HPE ProLiant DL380 Generation9 (Gen9)

Overview

Page 1

HPE ProLiant DL380 Generation9 (Gen9)

The HPE ProLiant DL380 Gen9 Server delivers the best performance and expandability in the Hewlett Packard Enterprise 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a compr environment. Deploy the data center standard.

Front View - 8SFF Chassis with Optional Universal Media Bay shown

Quick removal access panel

Universal Media bay. 2 USB 2.0 and VGA standard (8SFF bay optional)

Optional Optical drive. Requires Universal Media bay

Optional 2 SFF HDD, blank shown. Requires Universal Media bay

Drive Bay 2. Blank shown, 8SFF or 6NVMe optional

8 SFF Drive Cage Bay

Power On/Standby button and system power LED button

Health LED

NIC status

10.

UID button

11.

USB 3.0

12.

Serial label pull tag

13.

Bay 3

14.

Bay 2

15.

Bay 1

ehensive warranty, make it ideal for any

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Overview

Page 2

Rear View

PCI Slots (Slots 1-3 top to bottom, riser shipped standard)

PCI Slots (Slots 4-6top to bottom, requires second riser card, and second processor)

Optional serial port

Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end)

Power supply Power connection

Power supply Power LED

HPE Flexible Slot Power Supply bay 2 (800w shown)

Power supply Power connection

Power supply Power LED

10.

HPE Flexible Slot Power Supply bay 1 (800w shown)

NOTE:

11.

VGA connector

12.

Embedded 4x1GbE Network Adapter

13.

Dedicated iLO connector

14.

USB 3.0 connectors (2)

15.

Unit ID LED

16.

Optional FlexibleLOM ports (Shown: 4x1GbE)

Optional Battery Back up option.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Overview

Page 3

Internal View

Fan cage shown with 6 standard Hot-plug fans (High Performance fans optional)

Optional HPE Smart Storage Battery

MicroSD card slot

NOTE: Optional Dual MicroSD.

Internal USB 3.0 connector (2)

Optional HPE Flexible Smart Array or Smart HBA (H240ar shown)

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

NOTE: Optional Micro UPS Battery Back up option.

Connection for second (optional) riser (Required second CPU)

Embedded 4x1Gbe NIC

Primary PCIe riser, standard (Optional double wide GPU riser)

10.

Optional FlexibleLOM slot

11.

X4 SATA ports (1 and 2)

12.

2 Processors, heatsink showing, with HPE Smart Socket Guide

13.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

What’s New

•

for

•

ClearOS, an easy to use OS with an application marketplace, allows you to build a fully functional server that is just right you at no upfront cost. To learn more on what you can do, please visit http://www.hpe.com/servers/clearos.

New NVIDIA GPUs

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 4

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Processor

Model

CPU

Cores

L3 Cache

Power

QPI

DDR4 Hz

E5-2699v3

2.3GHz

45MB

145W

9.6GT/s

2133

E5-2698v3

2.3GHz

40MB

135W

9.6GT/s

2133

E5-2697v3

2.6GHz

35MB

145W

9.6GT/s

2133

E5-2695v3

2.3GHz

35MB

120W

9.6GT/s

2133

E5-2690v3

2.6GHz

30MB

135W

9.6GT/s

2133

E5-2687Wv3

3.1GHz

25MB

160W

9.6GT/s

2133

E5-2683v3

2.0GHz

35MB

120W

9.6GT/s

2133

E5-2680v3

2.5GHz

30MB

120W

9.6GT/s

2133

E5-2670v3

2.3GHz

30MB

120W

9.6GT/s

2133

E5-2667v3

3.2GHz

20MB

135W

9.6GT/s

2133

E5-2660v3

2.6GHz

25MB

105W

9.6GT/s

2133

E5-2650v3

2.3GHz

25MB

105W

9.6GT/s

2133

E5-2650Lv3

1.8GHz

30MB

65W

9.6GT/s

2133

E5-2643v3

3.4GHz

20MB

135W

9.6GT/s

2133

E5-2640v3

2.6GHz

20MB

90W

8.0GT/s

1866

E5-2637v3

3.5GHz

15MB

135W

9.6GT/s

2133

E5-2630v3

2.4GHz

20MB

85W

8.0GT/s

1866

E5-2630Lv3

1.8GHz

20MB

55W

8.0GT/s

1866

E5-2623v3

3.0GHz

10MB

105W

8.0GT/s

1866

E5-2620v3

2.4GHz

15MB

85W

8.0GT/s

1866

E5-2609v3

1.9GHz

15MB

85W

6.4GT/s

1600

E5-2603v3

1.6GHz

15MB

85W

6.4GT/s

1600

E5-2699v4

2.2GHz

55MB

145W

9.6GT/s

2400

E5-2698v4

2.2GHz

50MB

135W

9.6GT/s

2400

E5-2697v4

2.3GHz

45MB

145W

9.6GT/s

2400

E5-2697Av4

2.6GHz

40MB

145W

9.6GT/s

2400

E5-2695v4

2.1GHz

45MB

120W

9.6GT/s

2400

E5-2690v4

2.6GHz

35MB

135W

9.6GT/s

2400

E5-2687Wv4

3.0GHz

30MB

160W

9.6GT/s

2400

E5-2683v4

2.1GHz

40MB

120W

9.6GT/s

2400

E5-2680v4

2.4GHz

35MB

120W

9.6GT/s

2400

E5-2667v4

3.2GHz

25MB

135W

9.6GT/s

2400

E5-2660v4

2.0GHz

35MB

105W

9.6GT/s

2400

E5-2650v4

2.2GHz

30MB

105W

9.6GT/s

2400

E5-2650Lv4

1.7GHz

35MB

65W

9.6GT/s

2400

E5-2643v4

3.4GHz

20MB

135W

9.6GT/s

2400

E5-2640v4

2.4GHz

25MB

90W

8.0GT/s

2133

E5-2637v4

3.5GHz

15MB

135W

9.6GT/s

2400

E5-2630v4

2.2GHz

25MB

85W

8.0GT/s

2133

E5-2630Lv4

1.8GHz

25MB

55W

8.0GT/s

2133

E5-2623v4

2.6GHz

10MB

85W

8.0GT/s

2133

Up to two of the following depending on model

frequency

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 5

E5-2620v4

2.1GHz

20MB

85W

8.0GT/s

2133

E5-2609v4

1.7GHz

20MB

85W

6.4GT/s

1866

E5-2603v4

1.7GHz

15MB

85W

6.4GT/s

1866

E5-2699Av4

2.4GHz

55MB

145W

9.6GT/s

2400

NOTE: All processors support Hyper-Threading except E5-2609 v4/v3 and E5-2603 v4/v3.

Chipset

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

Intel® E5-2600v4 Processor Family

NOTE: For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

On System

HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

Type:

HPE SmartMemory

DDR4 Registered (RDIMM), Load Reduced (LRDIMM) or Persistent Memory (NVDIMM)

DIMM Slots Available

24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)

Maximum Capacity (LRDIMM)

3TB (24 x 128GB LRDIMM @2400MHz)*

Maximum Capacity (RDIMM)

768GB

(24 x 32GB RDIMM @2400MHz)

Maximum Capacity (NVDIMM)

128GB

(16 x 8GB NVDIMM)*

• Note the 128GB LRDIMM may not be mixed with other DIMM capacities/types

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots

Primary Riser

Expansion

Slots #

Technology

Bus

Width

Connector

Width

Bus

Number

Form Factor

Notes

NOTE: All processors above 120W use a high efficiency Heatsink. Doublewide PCIe cards are only

supported with this Heatsink. For processors with a standard Heatsink that require double wide PCIe cards, the Graphics Enablement kit option is also required (719082-B21).

NOTE: Mixing of E5-2600v3 and E5-2600v4 processors is not supported. NOTE: Field upgrade from E5-2600v3 to E5-2600v4 is supported.

Management Chipset

One of the following depending on model

NVDIMM support only with the E5-2600v4 processors, and RDIMMs only

• Note mixing of 2133 and 2400MHz memory is not supported

• Note mixing of RDIMM and LRDIMM memory

is not supported

(Standard)

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 6

PCIe 3.0

X16

Full-height,

slot

Proc 1

PCIe 3.0

X16

Full-height,

slot

Proc 1

PCIe 3.0

Half

height

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

enablement kit (719082-B21).

Slot 2 PCIe Riser

Expansion

Slots #

Technology

Bus

Width

Connector

Width

Bus

Number

Form Factor

Notes

PCIe 3.0

X16

Full-height,

slot

Proc 2

PCIe 3.0

X16

Full-height,

slot

Proc 2

PCIe 3.0

Full-height,

slot

Proc 2

NOTE:

enablement kit (719082-B21).

Slot 1 PCIe Riser

Expansion

Slots #

Technology

Bus

Width

Connector

Width

Bus

Number

Form Factor

Notes

PCIe 3.0

X16

0x05

Full-height,

slot

Proc 1

PCIe 3.0

0x08

Full-height,

slot

Proc 1

NOTE:

enablement kit (719082-B21).

Storage Controller

Entry Models

HPE Dynamic Smart Array B140i Controller

(Optional 3-slot) 719073-B21

half-length

length/full

NOTE: All slots support PCIe cards to 150W or more depending on card, but an additional Power Cord Option is required (PN 669777-B21). See Option Section below for offering. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU

full-length

Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: When populating the second optional riser slot, the second processor must be installed. NOTE: All slots support PCIe cards to 150W or more depending on card but an additional Power Cord

Option is required (PN 669777-B21). See Option Section below for offering. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU

(Optional 2-slot) 719076-B21

Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: This will replace the standard primary riser and supports double wide cards. NOTE: All slots support PCIe cards to 150W or more depending on card, but an additional Power Cord

full-length

half-length

full-length

half-length

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 7

One of the following

NOTE:

controller will be needed, and for CTO orders please also select B22.

NOTE:

models if required.

NOTE:

Base Models

HPE Dynamic Smart Array B140i Controller

HPE Flexible Smart Array P440ar/2G FIO Controller

HPE Flexible Smart Array P840/4G FIO Controller

HPE Smart Array P840ar/2G Controller

Performance Models

HPE Dynamic Smart Array B140i Controller

HPE Flexible Smart Array P440ar/2GB

Internal Storage

Optical Drive

Ships standard in Performance Models

Optional: DVD-ROM, DVD-RW

Hard Drives

None ship standard

Hard Drive Bays

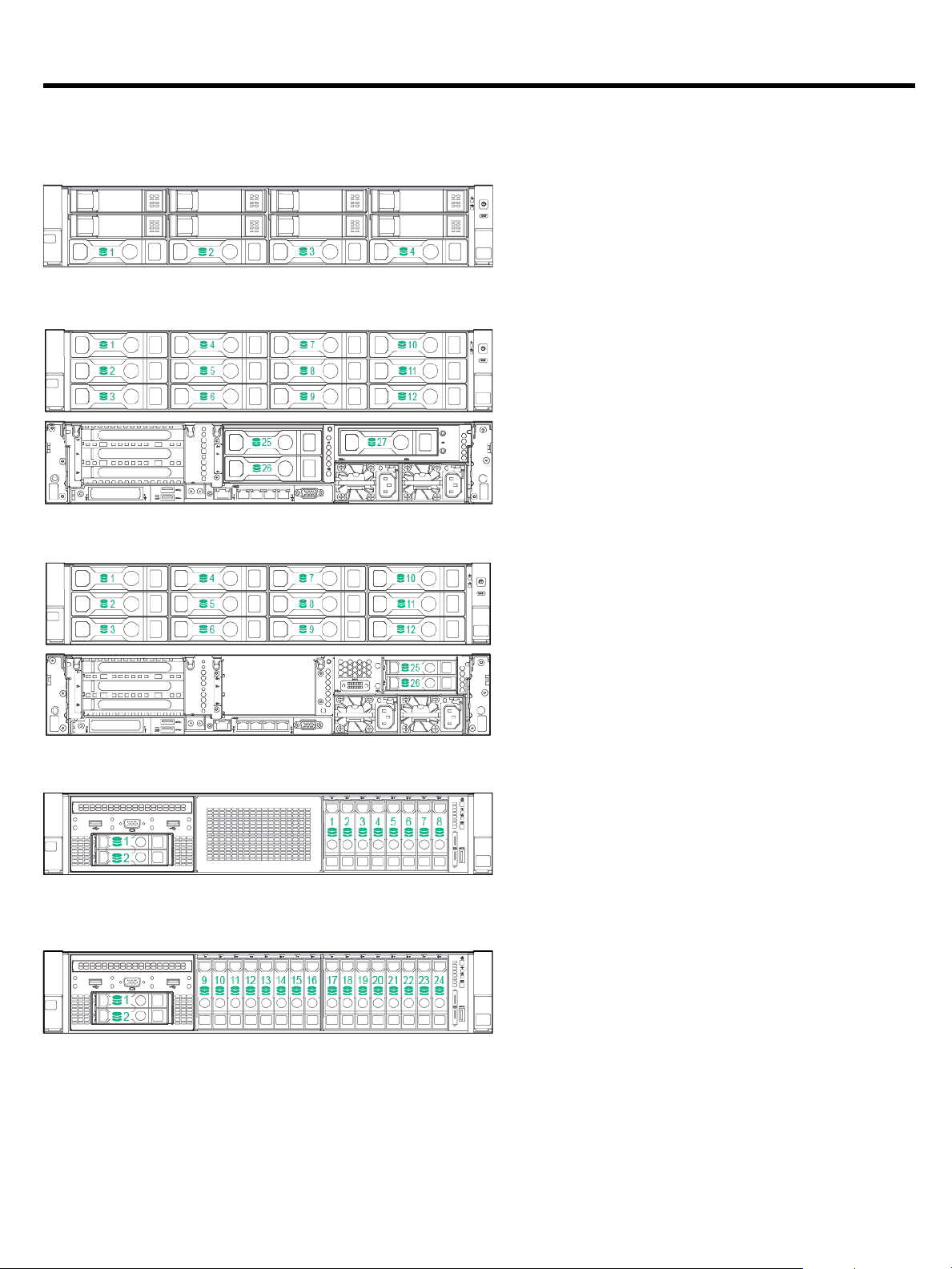

8 SFF with optional Universal Media Bay, 8 SFF bay or 6 NVME drive options

24 SFF plus optional 2 SFF drives rear

12 LFF plus optional 3 LFF drives rear

NOTE: The 3 LFF rear drives will consume space for the secondary riser.

The 12 LFF chassis also supports 2 SFF rear which allows for the second

replaces Bay 2.

4 LFF drive bays total

NOTE:

can be added.

Maximum Internal

CAPACITY

CONFIGURATION

Hot Plug SFF SAS

52.0TB

Hot Plug SFF SATA

52.0TB

24+2 x 2TB (with optional SFF drive cage)

Hot Plug LFF SAS

150.0TB

12+3 x 10TB (with optional rear LFF drive cage)

Hot Plug LFF SATA

150.0TB

12+3 x 10TB (with optional rear LFF drive cage)

Hot Plug SFF SAS SSD

99.84TB

24+2 x 3.84TB (with optional rear SFF drive cage)

Hot Plug LFF SATA SSD

57.6B

12+3 x 3.84TB (with optional rear LFF drive cage)

Hot Plug SFF NVMe PCIe SSD

12TB NVMe + 36TB SFF

6x2TB NVMe plus 36TB with 18 SFF (Bay 1, bay 3 and optional rear drive support)

depending on model

Devices

One of the following depending on model

The embedded B140i controller will operate in UEFI only mode. For legacy support an additional

the Legacy mode settings part, 758959-

The B140i defaults to AHCI off the chipset. Smart array needs to be enables on the SATA only

The B140i will not operate in Legacy mode.

Storage

NOTE:

riser. NOTE: The 6 NVMe drive option can only be leveraged in the SFF chassis and

The Universal Media Bay (724865-B21) not available with the LFF chassis or the 24SFF front end, and can only be populated in Bay1. NOTE: The 8SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade Bay2 should be populated second, with Bay 3 the last to be populated for a field upgrade to 24 SFF.

NOTE: The 4LFF chassis cannot be upgraded to 12LFF in the field. NOTE: All Pre-configured Chassis come with an embedded 10-Port SATA

controller. Optional HPE Flexible Smart Array and Smart SAS HBA Controllers

24+2 x 2TB (with optional rear SFF drive cage)

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 8

Power Supply

HPE 500W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% and 96% efficiency. NOTE:

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, too certified for high a power supply for specific server configurations. energy costs, and avoid "trapped" power capacity in the data center.

All pre cord is also included please check the

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at

Power specifications and technical content for all HP

http://www.hp.com/go/proliant/powersupply.

System Fans

Non-redundant

Redundant

2P model

6 fans

NOTE: 1P models typically ship with 4 standard fans. The second processor option kit contains 2

NOTE: The 8SFF Bay1 kit (719067-B21) will ship with 6 High efficiency fans.

Interfaces

Serial

Optional

Video

2 (1 front, optional via Universal Media Bay, 724865-B21), 1 back not active simultaneously

FlexibleLOM Network Ports

4 x 1Gb ports shipping standard with optional FlexibleLOM

HPE iLO Remote Management Network Port

1 Gb Dedicated Micro SD Slot

1 Micro SD

NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0

Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay

SID (Systems Insight Display)

Optional

NOTE:

Also available in -48VDC and 227VAC/380VDC power inputs.

l-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are

-efficiency operation and offer multiple power output options, allowing users to "right-size" This flexibility helps to reduce power waste, lower overall

-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper with each standard AC power supply option kit. If a different power cord is required,

ProLiant Power Cables web page.

http://www.hpe.com/info/hppoweradvisor.

E Server power supplies can be found at

One of the following depending on model

additional fans.

NOTE: The 12LFF and 24SFF chassis ship with 6 High Performance fans as standard. NOTE: High Performance Fan Kit is available to meet ambient temperature environments. NOTE: High Performance Fan Kit is required for Passive GPU support.

Not shipping as standard. Available as a CTO option or as a field upgrade (768900-B21).

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 9

Operating Systems

Software Support for

Microsoft Windows Server

Canonical Ubuntu

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Oracle Solaris

VMware

Citrix XenServer

ClearOS

NOTE:

ClearOS, please visit http://www.hpe.com/servers/clearos.

http://h20566.www2.hpe.com/hpsc/swd/public/readIndex?sp4ts.oid=7271242

Upgradeability

Upgradeable to 2 processors (36 Cores)

Up to 24 DIMM slots available for higher Memory capacity

FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options

HPE Flexible Smart Array or Smart HBA Controllers Embedded 10-Port SATA, B140i as standard

Optional 3 slot riser (x16, x16, x8), or 2 slot primary riser (x16, x8)

NOTE: To take advantage of the additional 3 PCI slot upgrade, the second processor must be installed.

Redundant Power Supply

Optical Drive supported via Universal Media Bay

NOTE: The Universal Media bay provides front VGA and 2xUSB 2.0, plus ability to add 2SFF and

NOTE:

HPE Legacy Mode (FIO only, 758959-B22)

NOTE: UEFI is the default mode for CTO and BTO SKUs. Can change default to legacy via CTO.

Industry Standard

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

USB 3.0 Support

USB 2.0 Support

NOTE: This support is on the optional Universal Media Bay.

Energy Star

ASHRAE A3/A4

and Virtualization

ProLiant Servers

ClearOS allows you to build a fully functional server that is just right for you at no upfront cost.

It is available via CTO preload, Intelligent Provisioning or via download. For more information on

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page:

NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600v3. Please contact Hewlett

Packard Enterprise Technology Sales (http://www.hpe.com/support), your local Hewlett Packard Enterprise Re-seller.

Compliance

Optical.

Universal Media bay is only available with 8 or 8+8SFF chassis & can be populated in Bay1 only.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 10

http://www.hpe.com/servers/ashrae

UEFI (Unified Extensible Firmware Interface Forum)

NOTE: UEFI is the default for the DL380 Gen9. Legacy model can be selected in the field or as a CTO option (758959-B22).

Graphics

Integrated Matrox G200eH2 video standard with 16MB of Video RAM

• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 256 MB DDR3 with ECC (112 MB after ECC and video)

HPE Server

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability

installations should be configured properly

factory for your HPE ProLiant Gen9 Server.

Form Factor

2U Rack form factor

8 SFF & 24SFF Drive Bay Version:

3.44 x 17.54 x 26.75 in (8.73 x 44.55 x 67.94 cm)

4 LFF & 12LFF Drive Bay Version:

NOTE: The DL380 Gen9 is now one of the first HPE ProLiant Gen9 Servers with Extended Ambient Support up to 45 C for data center infrastructures designed for better energy efficiency such as but not

limited to fresh air cooling. For additional technical thermal details regarding ambient temperatures, humidity and features support please visit:

• 1280 x 1024 (32 bpp)

• 16 MB Flash

UEFI/Legacy ROM

and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE

ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot

Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of

legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot

• Operating system specific functionality

• Support for > 2.2 TB (using GPT) boot drives

• USB 3.0 Stack

• Embedded UEFI Shell

• Mass Configuration Deployment Tool using RESTful API for iLO 4

• PXE boot support for IPv6 networks

• Boot support for option cards that only support a UEFI option ROM

• Network Stack configurations

NOTE: For UEFI Boot Mode, boot environment and OS image to support UEFI. NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the

One of the following depending on model

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 11

3.44 x 17.54 x 28.75 in (8.73 x 44.55 x 73.02 cm)

NOTE: Dimensions without bezel.

Embedded

HPE Integrated

(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote

UEFI

Configure and boot your servers securely with industry standard Unified Extensible

http://www.hpe.com/servers/uefi

RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server management

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or few servers with Intelligent Provisioning.

http://www.hpe.com/servers/intelligentprovisioning

Embedded

http://www.hpe.com/info/insightonline/explore.

Server utilities

Smart Update

Optimize firmware and driver updates with Smart Update solutions including Smart

http://www.hpe.com/servers/smartupdatemanager.

HPE Systems

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE

http://www.hpe.com/servers/hpsim

Scripting Tool

Provision 1 to many servers using your own scripts to discover and deploy them with

http://www.hpe.com/servers/powershell

RESTful

RESTful Interface tool is a scripting tool to provision using RESTful API for iLO 4 to

HPE iLO Mobile

Enables the ability to access, deploy, and manage your server anytime from anywhere

http://www.hpe.com/info/ilo/mobileapp.

HPE Insight

HPE Insight Online, available at no additional cost as part of your Hewlett Packard

is a personalized dashboard for simplified tracking of IT operations and support

Management

Lights-Out

Remote Support

management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

Firmware Interface (UEFI). Learn more at

such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi.

Learn more at

The Hewlett Packard Enterprise embedded remote support, when used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at

Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at

Insight Manager (HPE SIM)

Integrity Servers, and also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at

Kit and Windows

Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at

http://www.hpe.com/servers/proliant/stk or

PowerShell

Interface Tool

discover and deploy servers at scale. Learn more at

http://www.hpe.com/info/resttool.

Application

Online

from select smartphones and mobile devices. For additional information please visit:

Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise,

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Standard Features

Page 12

information from anywhere, anytime. Learn more at

http://www.hpe.com/info/insightonline/explore.

Security

Power-on password

Serial interface control

Administrator's password

UEFI

iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption

Integrated Lights-Out can be disabled via a Global Setting

iLO Advanced supports directory services integration

TPM 1.2

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business

day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR)

parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement.

A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2)

Optional CSR parts are also designed for easy replacement but may involve added complexity.

Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge.

Additional information regarding worldwide limited warranty and technical support is available at:

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Optional Features

Page 13

Embedded

iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all

Advanced at http://www.hpe.com/servers/iloadvanced.

Server Management

HPE Insight

HPE Insight Control, lets you deploy, migrate, monitor, remote control, and optimize your

see http://www.hpe.com/info/insightcontrol.

HPE Insight

Utility (CMU)

Rack and Power

HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions

Learn more at HPE Rack and Power Infrastructure.

High Performance

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters

http://www.hp.com/go/clusters.

NOTE:

http://www.hp.com/techservers/clusters/ucp/index.html

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server

http://www.hp.com/techservers/clusters/ucp/index.html.

Storage Software

Storage software that gets the job done:

Management

Infrastructure

HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO

Control

IT infrastructure through a single, simple management console. For more information,

HPE Insight Cluster Management Utility is a HyperScale management framework that

Cluster Management

includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at

http://www.hpe.com/info/cmu.

for existing or new IT data centers. HPE Rack and Power infrastructure solutions – rack infrastructure, power protection and management, performance optimized data centers (PODs) – are the foundation you are looking for to help secure your long-term IT success. These products are designed to help you react to changes in the industry. They deliver efficient, easy-to-use capabilities to manage, monitor, deploy and provision infrastructure from entry to enterprise. As an industry leader, Hewlett Packard Enterprise

uniquely positioned to address the key concerns of power, cooling, cable management and system access.

Clusters

optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPEC Server. A Cluster Platform Configurator simplifies ordering.

High Performance Computing (HPC) interconnect technologies are available for this server as

part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within a Hewlett Packard Enterprise cluster. Flexible, validated solutions can be defined with the help of configuration tools.

under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPEC Clusters with InfiniBand Interconnects:

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than Hewlett Packard Enterprise storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Optional Features

Page 14

retrieval requirements, improve application performance, and reduce costs by efficiently migrating

http://www.hp.com/go/storage/software

ClearOS

premise, and an Application Marketplace with over 100 apps and growing. Whether you’re starting out

One Config Simple

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial

Authorized Partner for assistance. http://ocs.ext.hpe.com/.

• Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, Hewlett Packard Enterprise data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.

• Data Archive and Migration Software

Hewlett Packard Enterprise storage software enables you to comply with data retention and

infrequently accessed or less valuable data to lower cost storage.

• Storage Resource Management Software (SRM)

Hewlett Packard Enterprise storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.

• Data Replication Software

Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.

• Storage Device Management Software

Maximize your investment in Hewlett Packard Enterprise storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.

• HPE StoreVirtual VSA

Enable highly available and clustered storage in your HPE ProLiant servers with virtualized storage: Add StoreVirtual VSA to multiple servers, manage it as a single pool of shared storage capacity, and scale it to match your evolving needs. To simplify deployment, HPE offers StoreVirtual Ready Nodes, pre-defined reference configurations for converged vSphere and Hyper-V virtualization solutions. You also have the option to install free 1TB-capacity StoreVirtual VSA software during server setup within Intelligent Provisioning. HPE ProLiant Gen9 servers include a 3-year limited license for this HPE software-defined storage at no extra cost. More information, instructional videos, and free management software are available at

http://www.hpe.com/storage/storevirtual.

NOTE: For more information about Storage Software including QuickSpecs, please see:

HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience onor scaling, you decide what applications you need and pay as you grow.

NOTE: For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

(SCE)

configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Service and

Support

Page 15

HPE Support

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability.

purchase your new server, giving you full entitlement to the support for need for your IT and business.

Connect your

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard

automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care

Recommended

Standard: HPE Proactive Care* with 24x7 coverage, three year Support Service

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Parts and Materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and

replaced by Hewlett Packard Enterprise due to malfunction.

Related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices

Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems,

Services

devices

Support

Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you

Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts,

Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

1- IDC 2 – HPE CSC reports 2014 - 2015

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Optimized HPE Proactive Care* with 6 hour call-to-repair commitment, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years’ proactive reporting and advice with our highest level of hardware support – Hewlett Packard Enterprise 24x7, six hour hardware call-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives

and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Service and Support

Page 16

C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades,

to your dynamic business.

HPE Education

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book

http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and

For more information: http://www.hpe.com/services

HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).

HPE Technology Services Support Credits Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding

Services

on a class today and learn how to get the most from your technology investment.

experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers.

Learn more

http://www.hpe.com/support/hpesc

The Hewlett Packard Enterprise Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.

*HPE Support Center Mobile App is subject to local availability.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Pre

-configured Models

Page 17

Entry Models

Base Models

[SKU Number]

766342-

752686-

826681-

752688-

752687-

826682-

826683-

848774-

Model Name

HPE

2609v3 1P

Server

HPE

Server

HPE

Processor

Intel® Xeon® E5-2609v3

Intel®

2609v4

Intel® Xeon® E5-2620v3

Intel® Xeon® E5-2620v4

Intel® Xeon®

Number of Processors

One

Memory

8GB (1x8GB Registered

8GB

1866MHz.

16GB (1x16GB Registered

16GB

Network Controller

HPE Embedded 1Gb Ethernet 4-port 331i Adapter, plus optional HPE FlexibleLOM or stand up card

Storage

HPE Dynamic Smart Array B140i, plus

SATA model.

HPE Flexible

HPE Flexible Smart

HPE Flexible

Hard Drive

None ship standard

None ship

drive blanks

None ship standard

Internal

4 LFF HDD

8 SFF HDD Bays

12 LFF HDD

8 SFF HDD Bays

12 LFF HDD

8 SFF HDD

to 24)

B21

ProLiant

DL380

Gen9 E5-

8GB-R

B140i

4LFF

SATA

500W PS

Entry

DIMMs, 2133 MHz)

NOTE: With the E5-

2609v3 this memory

DIMM will only operate

at 1600MHz.

B21

ProLiant

DL380

Gen9 E5-

2609v3

1P 8GB-R

B140i

8SFF

SATA

500W PS

Entry

B21

ProLiant

DL380

Gen9 E5-

2609v4 1P

8GB-R

B140i 8SFF

500W PS

Entry SATA

Server

Xeon® E5-

(1x8GB

Registered

DIMMs,

2400 MHz)

NOTE:

With the

E5-2609v4

this

memory

DIMM will

only

operate at

B21

ProLiant

DL380 Gen9

E5-2620v3

2.4GHz 6core 1P

16GB-R

P840/4GB

12LFF

2x800W PS

Base Server

B21

ProLiant

DL380

Gen9 E5-

2620v3

1P 16GB-

R P440ar

8SFF

500W PS

Base

Server

DIMMs, 2133 MHz)

NOTE: With the E5-

2620v3 this memory

DIMM will only operate at

1866MHz.

B21

ProLiant

DL380

Gen9 E5-

2620v4

1P 16GB-

R P440ar

8SFF

500W PS

B21

ProLiant

DL380 Gen9

E5-2620v4 1P 16GB-R

P440ar

12LFF 2x800W PS Base Server

Base

Server

DIMMs, 2400 MHz)

NOTE: With the E5-

2620v4 this memory

DIMM will only operate at

2133MHz.

B21

ProLiant

DL380 Gen9

E5-2630v4 1P 16GB-R

P440ar

8SFF 500W

PS Base

Server

E5-2630v4

(1x16GB

Registered

DIMMs,

2400 MHz)

NOTE: With

the E5-

2630v4 this

memory

DIMM will

only operate

2133MHz.

Controller

optional HPE Flexible Smart Array or

Smart HBA controller

NOTE: Default is AHCI off chipset,

Smart Array needs to be enabled on

Storage

Bays

(upgradable to 24)

Smart Array

P840/4G

Controller

standard;

includes 10

LFF hard

Bays

Array P440ar/2GB

(upgradable to 24)

Smart Array

P840ar/2G

Controller

Bays

Smart Array

P440ar/2GB

Bays

(upgradable

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Pre

-configured Models

Page 18

Optical Drive

Not

Optional Universal Media

Not

Optional Universal

Not

Optional

B21)

Optical Drive

Optional

Mobile USB

Optional DVD-ROM

Optional via

Optional DVD-ROM

Optional via

Optional

B21)

PCI-Express Slots

3 PCIe slots (+3 PCI slots available with upgrade option, second processor required)

Power

(1) HPE 500W Flex Slot Platinum

(2) HPE

(1) HPE 500W Flex Slot

(2) HPE

(1) HPE

Supply

Fans

4 hot plug fans, redundant

6 hot plug

redundant

4 hot plug fans,

6 hot plug

redundant

4 hot plug

Management

iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control

(optional), HPE OneView (optional)

Form Factor

Rack (2U), HPE Easy Install Rails

Rack (2U), HPE Easy Install Rails with CMA

Rack (2U),

Install Rails

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

Bay

Supply

Available

via HPE

DVDRW

Drive

(701498-

B21)

Bay (724865-B21)

(726536-B21) or DVD-

RW (726537-B21) via

the Universal Media Bay

(724865-B21)

Power Supply

Available

HPE Mobile

USB DVDRW

Drive

(701498-

B21)

800W Flex

Slot Platinum

Power

Supply

Media Bay (724865-

B21)

(726536-B21) or DVD-

RW (726537-B21) via

the Universal Media Bay

(724865-B21)

Platinum Power Supply

Available

HPE Mobile

USB DVDRW

Drive

(701498-

B21)

800W Flex

Slot Platinum

Power

Supply

Universal

Media Bay

(724865-

DVD-ROM

(726536-

B21) or

DVD-RW

(726537-

B21) via the

Universal

Media Bay

(724865-

500W Flex

Slot

Platinum

Power

high

performance

fans,

redundant

high

performance

fans,

redundant

HPE Easy

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Pre

-configured Models

Page 19

Performance Models

High Performance Models

[SKU Number]

752689-B21

826684-B21

852432-B21

803860-B21

803861-B21

Model Name

HPE ProLiant

R P440ar

Server

HPE ProLiant

Processor

Intel® Xeon® E5-

Intel® Xeon® E5-2690v3

Number of Processors

Two

Memory

32GB (2x16GB

MHz)

32GB (2x16GB

64GB (4x16GB

32GB (2x16GB Registered DIMMs, 2133

Network Controller

HPE Embedded 4x1Gb, plus

HPE Embedded

HPE Embedded 4x1Gb, plus 2x10Gb-T

Storage Controller

HPE Flexible Smart Array P440ar/2GB

Hard Drive

None ship standard

Internal Storage

8 SFF HDD Bays (upgradable to 24)

Optical Drive Bay

Optional

B21)

Universal Media Bay (724865-B21)

Optical Drive

HPE Half-Height SATA DVD-RW Optical Drive

PCI-Express Slots

6 PCIe slots

(includes second

riser slot upgrade

option)

6 PCIe 3.0 slots

6 PCIe slots (includes second riser slot

Power Supply

(2) HPE 800W Flex Slot Platinum Power Supply

Fans

6 hot plug fans, redundant

Management

iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced

iLO Management

(Standard)

Energy Star

Meets Energy Star requirements

Form Factor

Rack (2U), HPE Easy Install Rails with CMA

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day

response

DL380 Gen9 E5-

2650v3 2P

32GB-

8SFF 2x10Gb

2x800W Perf

2650v3

DL380 Gen9 E5-

2650v4 2P 32GB-

R P440ar 8SFF

2x10Gb 2x800W

Perf Server

2650v4

DL380 Gen9 E5-

2660v4 2P 64GB-

R P440ar 8SFF

2x10Gb 2x800W

Perf Server

2660v4

DL380 Gen9 E5-

2690v3 2P 32GB-

R P440ar 8SFF

2x10Gb 2x800W

High Perf Server

DL380 Gen9 E5-

2690v3 2P 32GB-

R P440ar 8SFF

2x10Gb 2x800W

OneView Server

Registered

DIMMs, 2133

2x10Gb-T FlexibleLOM

Registered DIMMs,

2400 MHz)

Registered DIMMs,

2400 MHz)

4x1Gb, plus

MHz)

FlexibleLOM

2x10Gb SFP+

FlexibleLOM

Universal Media

Bay (724865-

(standard), HPE OneView (optional)

upgrade option)

(standard),

Intelligent

Provisioning

(standard), iLO

Advanced

(standard), HPE

OneView

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Pre

-configured Models

Page 20

NOTE: UEFI is the standard default for all Predefined models.

Country Code Key

xx1 = B21

Worldwide

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

xx1 = 291

Japan

xx1 = AA1

PRC

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Configuration Information

- Factory Integrated Models

Page 21

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

[Chassis]

HPE ProLiant DL380

Gen9 8SFF Configure

HPE ProLiant

SKU Number

719064-B21

810393-B21

767032-B21

767033-B21

719061-B21

Processor

2 (optional) x HPE Smart Socket Guide

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory

Storage Controller

HPE Dynamic Smart Array B140i, plus optional HPE Flexible Smart Array or Smart HBA controller

PCIe

3 PCIe slots (+3 PCI slots available with upgrade option, second processor required)

Drive Cage

8SFF Hot Plug

(+8SFF and Universal

8SFF +6NVMe Hot

24SFF Hot Plug

4LFF Hot Plug

12LFF Hot Plug

Network

HPE Embedded 1Gb

Adapter, plus optional

stand up card

HPE Embedded

HPE Embedded 1Gb Ethernet 4-port 331i Adapter, plus optional

Fans

4 hot plug fans,

6 hot plug high performance fans,

4 hot plug fans,

6 hot plug high

redundant

Management

iLO Management (standard), Intelligent Provisioning (standard)

USB

1 front, 2 internal, 2

rear

1 front, 1 internal, 2

rear

1 front, 2 internal, 2

rear

No front USB support

Ears

HPE Quick Release Ears

NOTE: The NVMe chassis (810393-B21) ships with the standard x8 Risers supporting 6xNVMe drives.

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

Select one or two processors from Core Options-Processor section below.

• If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

to-order Server

DL380 Gen9 NVMe

6 Solid State Drive

Express Bay

Configure-to-order

Server

DL380 Gen9

24SFF Configure-

to-order Server

DL380 Gen9 4LFF Configure-to-order

Server

DL380 Gen9 12LFF

Configure-to-order

Server

Plug (+8SFF or

Media Bay Optional)

Universal Media

Bay Optional)

Controller

Ethernet 4-port 331i

1Gb Ethernet 4-

HPE FlexibleLOM or stand up card

port 331i Adapter

HPE FlexibleLOM or

redundant

NOTE: With the NVMe chassis (810393-B21) there are limitations on GPU support.

redundant

performance fans,

• If one processor is desired, select one xxxxxx-L21

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Configuration Information

- Factory Integrated Models

Page 22

• Up to 2 processors supported. Mixing different processor models is not supported.

HPE Memory

Select one or more memory from Core Options-Memory section below.

2400MHz, 2133MHz, 1866MHz or 1600MHz. Please see Memory Population Table or the Online

HPE Power Supplies

Select one or more power supplies from Core Options-Power Supplies section below.

Step 3: Choose Additional Factory Integratable Options

HPE Unique Options

HPE I/O Expansion

Select one or more Riser Kit options from Core Options section below.

HPE Drives

Select one or more drives from Core Options-HPE Drives section below.

• The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form

• DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend

on the quantity and type of DIMMs installed.

For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

• UDIMM, RDIMM, and LRDIMM are all distinct memory technologies and cannot be mixed within a

server.

• HPE memory options from previous generation servers are not qualified or warranted with

Hewlett Packard Enterprise Gen9 systems. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.

• If only one processor is installed, only half of the total DIMM slots are available. When populating

with two processors all DIMM slots are available.

• Depending on the memory configuration and processor model, the memory speed may run at

Memory Configuration Tool at: http://www.hpe.com/go/ddr4config.

• Prior to selecting a power supply option, it is highly recommended that you review your server

configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

http://www.hpe.com/info/hppoweradvisor

• Mixing of power supplies in the same server is not supported. All power supplies must be of the

same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

Select one or more Unique options from Core Options section below.

• This section may contain FIO options, please see the Unique options section below.

• FIO indicates that this option is only available as a factory installable option.

Options

• To take advantage of the additional PCI slot upgrade, the second processor must be installed.

• This section may contain FIO options, please see HPE I/O Expansion Options section below.

• FIO indicates that this option is only available as a factory installable option.

• The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the

server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

• Hard drives have either a one year or three year warranty; refer to the specific hard drive

QuickSpecs for details.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Configuration Information

- Factory Integrated Models

Page 23

Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard

HPE FlexibleLOM

Select a FlexibleLOM from Core Options-Networking section below.

HPE Networking

Select a standup NIC adapter from Core Options-Networking section below.

HPE Storage

Select one or more Storage options from Additional Options section below.

HPE Graphics

HPE Cooling Options

Select one or more Fan Kits from Core Options section below.

HPE Rail Kits

Select one type of rail kit from Additional Options section below.

Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."

• Only one FlexibleLOM can be added to the server. These options are upgradeable and can be

changed from the original configuration after the server is shipped.

• For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each

adapter.

• Please see the QuickSpecs for Technical Specifications and additional information:

http://www.hpe.com/go/ProLiantNICs

• Please see the QuickSpecs for Technical Specifications and additional information:

http://www.hpe.com/go/ProLiantNICs

• These options are upgradeable and can be changed from the original configuration after the

server is shipped.

• For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each

adapter.

Controllers

Options

• The embedded B140i controller will operate in UEFI only mode. For legacy support an additional

controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

• This section may contain FIO options, please see HPE Storage Controllers section below.

• FIO indicates that this option is only available as a factory installable option.

Select one or more graphics adapter from Additional Options section below.

• Please see the HPE Power Advisor for estimated power consumption of your individual system

configuration prior to installing GPUs. The HPE Power Advisor is located at:

http://www.hpe.com/info/hppoweradvisor

• This section may contain FIO options, please see HPE Computation & Graphics Accelerators

section below.

• This section may contain FIO options, please see HPE Cooling Options section below.

• FIO indicates that this option is only available as a factory installable option.

• Please take a moment to review the installation documentation that comes with the server to help

you with the installation of your Gen9 server.

• To assist in the installation of the server into the rack, an optional installation tool is available by

contacting your local services representative (p/n 695539-001).

•

See Hewlett Packard Enterprise Rack Options in Additional Options section of this QuickSpecs for

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Configuration Information

- Factory Integrated Models

Page 24

more rack kit choices.

people to use for any installation.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all

Rack Server installations. Please refer to your installation instructions for proper tools and number of

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 25

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard

information.

HPE Unique

HP DL380 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit

774741-B21

HP DL380 Gen9 Universal Media Bay Kit

724865-B21

NOTE: The HPE DL380 Gen9 Universal Media bay provides front VGA and 2xUSB

included); and can only be located in Bay1 in either an 8SFF or 8+8SFF front end.

HP DL380 Gen9 Graphics Enablement Kit

719082-B21

NOTE:

HP DL380 Gen9 High Performance Fan Kit

719079-B21

NOTE: This kit provides max cooling for your Server.

HP DL380 Gen9 2SFF Front/Rear SAS/SATA Kit

724864-B21

CPUs.

HP DL380 Gen9 3LFF Rear SAS/SATA Kit

768856-B21

CPUs.

HP DL380 Gen9 Primary 2 Slot GPU Ready Riser Kit

719076-B21

Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional

Options

NOTE: This option provides support for up to 6NVMe drives, and can only be

populated in BAY2 in SFF chassis only, can be used with Bay1 and Bay 3 populated. NOTE: The HPE DL380 Gen9 High Performance Fan Kit is required for NVMe support (719079-B21). NOTE: The PCIe card in this enablement kit can only be populated in slot2 (primary) or slot 5 (secondary). NOTE: For true x16 support with this option a secondary riser (719073-B21) is needed (second processor required). NOTE: Kit includes Mylar film for Universal Media Bay (724865-B21) support to ensure optimal airflow. NOTE: For NVME CTO support, please use the NVME chassis (810393-B21), this kit is for field upgrades only. NOTE: There are limitations on GPU support with the NVMe bay installed.

2.0; plus support for 2xSFF front drives (724864-B21) and ODD support (No

NOTE: This kit includes alternative 2 heatsinks plus6 cables to enable GPU

support. Other limitations apply, see Graphic section for more details. NOTE: We support up to 2 Double wide and 3 single wide Graphics cards, limitations

apply. NOTE: Double Wide GPUs will occupy slots 2 and 5 and will leave only 2 slots left open.

There are limitations on GPU support with the NVMe bay installed.

NOTE: This kit is required for specific Ambient temperature environments, more

details here: http://www.hpe.com/servers/ashrae.

NOTE: This kit is also required to support Passive GPUs.

NOTE: For 2SFF front the Universal Media Bay (724865-B21) is required. NOTE: 2SFF in the rear is only supported with a 24SFF (CTO chassis or field

upgraded) or 12LFF (719061-B21) front end.

NOTE: Rear drives will not support higher than 160W CPUs and other special/unique

NOTE: This is only supported in the 12LFF chassis (CTO: 719061-B21 or BTO skus). NOTE: 3LFF rear drives will consume the 2nd riser expansion slot. NOTE: Rear drives will not support higher than 160W CPUs and other special/unique

Slot1: 1x Gen3 x16 FH/FL, 1xGen3 x8 FH/HL.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 26

NOTE: This replaces the standard Primary riser in slot1.

HPE DL380 Gen9 Secondary 3 Slot GPU Ready Riser Kit

719073-B21

Slot2: 2xGen3 x16 FH/FL, 1xGen3 x8 FH/HL.

HPE DL380 Gen9 8SFF Bay1 Cage/Backplane Kit

719067-B21

HP DL380 Gen9 Additional 8SFF Bay2 Cage/Backplane Kit

768857-B21

NOTE: To add an additional 8SFF drive cage in Bay 2. This is the optimal solution to

(724865-B21) for 2 additional SFF or Optical.

HP 12Gb SAS Expander Card with Cables for DL380 Gen9

727250-B21

HP DL380 Gen9 Systems Insight Display Kit

768900-B21

NOTE: The Systems Insight Display no longer ships as standard but is available as a Factory Integrated or field upgrade option.

HP Legacy FIO Mode Setting

758959-B22

NOTE:

HP DL380 Gen9 Rear Serial Port and Enablement Kit

768896-B21

HPE DL380 Gen9 P440ar/H240ar Riser 2 SAS Expander Kit

844115-B21

NOTE:

secondary riser (719073-B21) with the P840ar or P440ar.

HPE Processors

E5-2600v4 series Processors

HPE DL380 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit

817941-L21

HPE DL380 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) Processor Kit

817941-B21

HPE DL380 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) FIO Processor Kit

817931-L21

HPE DL380 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) Processor Kit

817931-B21

HPE DL380 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor Kit

817925-L21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit

817925-B21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor Kit

817923-L21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) Processor Kit

817923-B21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2643v4 (3.4GHz/6-core/20MB/135W) FIO

817939-L21

NOTE: To add an additional 8SFF drive cage in Bay1. NOTE: To get to 16SFF total please populate bay 2 with 768857-B21 (from an 8SFF

starting point).

NOTE: This ships with 6 High Efficiency Fans. NOTE: Selecting this option does not allow you to select the Universal Media Bay.

upgrade to 16SFF total and allows the flexibility to add the Universal Media Bay

NOTE: SAS expander to enable 24SFF field upgrade. NOTE: Primary population in slot2 or 3 of the Primary Riser.

UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

Cable kit required to support the SAS Expander (727250-B21) in the

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 27

Processor Kit

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2637v4 (3.5GHz/4-core/15MB/135W) FIO

NOTE: Ships with a High Performance Heatsink.

817935-L21

HPE DL380 Gen9 Intel® Xeon® E5-2637v4 (3.5GHz/4-core/15MB/135W) Processor Kit

817935-B21

HPE DL380 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO Processor Kit

817929-L21

HPE DL380 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) Processor Kit

817929-B21

HPE DL380 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit

817927-L21

HPE DL380 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit

817927-B21

HPE DL380 Gen9 Intel® Xeon® E5-2643v4 (3.4GHz/6-core/20MB/135W) Processor Kit

817939-B21

HPE DL380 Gen9 Intel® Xeon® E5-2687Wv4 (3.0GHz/12-core/30MB/160W) FIO Processor Kit

817957-L21

HPE DL380 Gen9 Intel® Xeon® E5-2687Wv4 (3.0GHz/12-core/30MB/160W) Processor Kit

817957-B21

HPE DL380 Gen9 Intel® Xeon® E5-2699v4 (2.2GHz/22-core/55MB/145W) FIO Processor Kit

817967-L21

NOTE:

HPE DL380 Gen9 Intel® Xeon® E5-2699v4 (2.2GHz/22-core/55MB/145W) Processor Kit

817967-B21

HPE DL380 Gen9 Intel® Xeon® E5-2698v4 (2.2GHz/20-core/50MB/135W) FIO Processor Kit

817965-L21

HPE DL380 Gen9 Intel® Xeon® E5-2698v4 (2.2GHz/20-core/50MB/135W) Processor Kit

817965-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2697v4 (2.3GHz/18-core/45MB/145W) FIO

817963-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2697v4 (2.3GHz/18-core/45MB/145W) Processor Kit

817963-B21

NOTE:

HPE DL380 Gen9 Intel® Xeon® E5-2697Av4 (2.6GHz/16-core/40MB/145W) FIO Processor Kit

817955-L21

HPE DL380 Gen9 Intel® Xeon® E5-2697Av4 (2.6GHz/16-core/40MB/145W) Processor Kit

817955-B21

HPE DL380 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO

817961-L21

Processor Kit

NOTE: Ships with a High Performance Heatsink.

Ships with a High Performance Heatsink.

NOTE: Ships with a High Performance Heatsink.

Processor Kit

Ships with a High Performance Heatsink.

NOTE: Ships with a High Performance Heatsink.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 28

Processor Kit

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit

817961-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit

817959-L21

HPE DL380 Gen9 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit

817959-B21

HPE DL380 Gen9 Intel® Xeon® E5-2683v4 (2.1GHz/16-core/40MB/120W) FIO Processor Kit

817953-L21

HPE DL380 Gen9 Intel® Xeon® E5-2683v4 (2.1GHz/16-core/40MB/120W) Processor Kit

817953-B21

HPE DL380 Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

817951-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) Processor Kit

817951-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit

817945-L21

HPE DL380 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor Kit

817945-B21

HPE DL380 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit

817943-L21

HPE DL380 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor Kit

817943-B21

HPE DL380 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

817937-L21

HPE DL380 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) Processor Kit

817937-B21

HPE DL380 Gen9 Intel® Xeon® E5-2667v4 (3.2GHz/8-core/25MB/135W) FIO Processor Kit

817947-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2667v4 (3.2GHz/8-core/25MB/135W) Processor Kit

817947-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) Processor Kit

817933-B21

HPE DL380 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor Kit

817933-L21

HPE DL380 Gen9 Intel® Xeon® E5-2699Av4 (2.4GHz/22-core/55MB/145W) Processor Kit

871026-B21

HPE DL380 Gen9 Intel® Xeon® E5-2699Av4 (2.4GHz/22-core/55MB/145W) FIO

871026-L21

NOTE: Ships with a High Performance Heatsink.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 29

Processor Kit

E5-2600v3 series Processors

HPE DL380 Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) FIO Processor Kit

719052-L21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit

719052-B21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) FIO Processor Kit

719053-L21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit

719053-B21

NOTE: This processor does not support Hyper-Threading.

HPE DL380 Gen9 Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) FIO Processor Kit

719060-L21

HPE DL380 Gen9 Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) Processor

719060-B21

HPE DL380 Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) FIO Processor Kit

719049-L21

HPE DL380 Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit

719049-B21

HPE DL380 Gen9 Intel® Xeon® E5-2637v3 (3.5GHz/4-core/15MB/135W) FIO Processor Kit

719058-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2637v3 (3.5GHz/4-core/15MB/135W) Processor Kit

719058-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) FIO Processor Kit

719050-L21

HPE DL380 Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit

719050-B21

HPE DL380 Gen9 Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) FIO Processor Kit

779556-L21

HPE DL380 Gen9 Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) Processor Kit

779556-B21

HPE DL380 Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) FIO Processor Kit

719051-L21

HPE DL380 Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

719051-B21

HPE DL380 Gen9 Intel® Xeon® E5-2687Wv3 (3.1GHz/10-core/25MB/160W) FIO Processor Kit

762768-L21

NOTE:

HPE DL380 Gen9 Intel® Xeon® E5-2687Wv3 (3.1GHz/10-core/25MB/160W) Processor Kit

762768-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2699v3 (2.3GHz/18-core/45MB/145W) FIO Processor Kit

781915-L21

HPE DL380 Gen9 Intel® Xeon® E5-2699v3 (2.3GHz/18-core/45MB/145W) Processor Kit

781915-B21

Kit

NOTE: Ships with a High Performance Heatsink.

This processor is not supported in a 12LFF or 24SFF Chassis + Rear drive.

NOTE: This processor is not supported in a 12LFF or 24SFF Chassis + Rear drive.

NOTE: Ships with a High Performance Heatsink.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 30

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2698v3 (2.3GHz/16-core/40MB/135W) FIO Processor Kit

781913-L21

HPE DL380 Gen9 Intel® Xeon® E5-2698v3 (2.3GHz/16-core/40MB/135W) Processor Kit

781913-B21

HPE DL380 Gen9 Intel® Xeon® E5-2697v3 (2.6GHz/14-core/35MB/145W) FIO Processor Kit

719054-L21

HPE DL380 Gen9 Intel® Xeon® E5-2697v3 (2.6GHz/14-core/35MB/145W) Processor Kit

719054-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W) FIO Processor Kit

762760-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W) Processor Kit

762760-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2690v3 (2.6GHz/12-core/30MB/135W) FIO Processor Kit

719044-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2690v3 (2.6GHz/12-core/30MB/135W) Processor Kit

719044-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W) FIO Processor Kit

719055-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W) Processor Kit

719055-B21

HPE DL380 Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) FIO Processor Kit

762766-L21

HPE DL380 Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) Processor Kit

762766-B21

NOTE: Ships with a High Performance Heatsink.

HP DL380 Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) FIO

719046-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) Processor Kit

719046-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) FIO Processor Kit

762764-L21

HPE DL380 Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor

762764-B21

HPE DL380 Gen9 Intel® Xeon® E5-2650Lv3 (1.8GHz/12-core/30MB/65W) FIO

719059-L21

NOTE: Ships with a High Performance Heatsink.

Processor Kit

Kit

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 31

Processor Kit

HPE DL380 Gen9 Intel® Xeon® E5-2650Lv3 (1.8GHz/12-core/30MB/65W) Processor Kit

719059-B21

HPE DL380 Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) FIO Processor Kit

719048-L21

HPE DL380 Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit

719048-B21

HPE DL380 Gen9 Intel® Xeon® E5-2667v3 (3.2GHz/8-core/20MB/135W) FIO Processor Kit

719056-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2667v3 (3.2GHz/8-core/20MB/135W) Processor Kit

719056-B21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2643v3 (3.4GHz/6-core/20MB/135W) FIO Processor Kit

719057-L21

NOTE: Ships with a High Performance Heatsink.

HPE DL380 Gen9 Intel® Xeon® E5-2643v3 (3.4GHz/6-core/20MB/135W) Processor Kit

719057-B21

NOTE: Ships with a High Performance Heatsink.

NOTE:

Memory Selection

Best product availability is limited to US, Canada, and Latin America at this time.

HPE Memory

Registered DIMMs (RDIMMs) for E5-2600v3 Series

HP 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726717-B21

HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HP 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

759934-B21

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

728629-B21

NOTE: FIO indicates factory integrated option via CTO. NOTE: Up to 2 processors supported. Performance and Energy Star Model configurations include two

processors.

NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology. NOTE: Turbo2: Intel® Turbo Boost Technology 2.0 provides more computing power when you need it

with performance that adapts to spikes in your workload and delivers more performance upside than then previous generation turbo technology. NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

NOTE: The xxxxxx-L21 is the first processor shipped, the xxxxxx-B21 is the 2nd processor and ships with 2 additional FANs for factory of field installation. NOTE: Double wide PCIe cards are only supported in risers with the Processors leveraging the High Performance Heatsink. For Processors requiring double wide GPU support please order the GPU enablement kit (719082-B21). NOTE: Mixing of E5-2600v3 and E5-2600v4 Processors is not supported.

Field upgrade from E5-2600v3 to E5-2600v4 is supported.

To streamline the configuration process for HPE ProLiant Gen9 servers and to provide the best product availability, HPE recommends memory from the list located here: http://www.hpe.com/products/recommend.

NOTE: The following memory is supported by the E5-2600v3 series Processors.

NOTE: Depending on Processor selected this memory will run at 1600, 1866 or 2133MHz.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 32

NOTE: Mixing of DIMM types is not supported.

Load Reduced DIMMs (LRDIMMs) for E5-2600v3 Series

NOTE: The following memory is supported by the E5-2600v3 series Processors.

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726720-B21

HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

HP 64GB (1x64GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726724-B21

Registered DIMMs (RDIMMs) for E5-2600v4 Series

HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21

HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

836220-B21

HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21

Load Reduced DIMMs (LRDIMMs) for E5-2600v4 Series

NOTE: The following memory is supported by the E5-2600v4 series Processor only.

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805353-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805358-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced

809208-B21

HPE Persistent Memory (NVDIMM)

NOTE:

HPE 8GB NVDIMM Single Rank x4 DDR4-2133 Module

782692-B21

HPE Optical Drives

HP 9.5mm SATA DVD-ROM JackBlack Gen9 Optical Drive

726536-B21

NOTE: The Universal Media Bay (724865-B21) is required for this option.

NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported.

NOTE: Depending on Processor selected this memory will run at 1600, 1866 or 2133MHz. NOTE: Mixing of DIMM types is not supported.NOTE: Mixing of 2133 and 2400MHz DIMMs is not

supported.

NOTE: The following memory is supported by the E5-2600v4 series Processor only.

NOTE: Depending on Processor selected this memory will run at 1866, 2133 or 2400MHz. NOTE: Mixing of DIMM types is not supported.

NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported.

Memory Kit

NOTE: Depending on Processor selected this memory will run at 1866, 2133 or 2400MHz. NOTE: These LRDIMMs do not support NVDIMMs. NOTE: Mixing of DIMM types is not supported. NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported. NOTE: Mixing the 128GB LRDIMM with other capacities is not supported.

The following memory is supported by the E5-2600v4 series Processor only.

NOTE: NVDIMMs are only supported with E5-2600v4 processors, excluding field upgrades from E52600v3 to E5-2600v4.

NOTE: A maximum of 16 NVDIMMs supported. NOTE: Can only be mixed with RDIMMs. NOTE: Depending on Processor selected this memory will run at 2133MHz maximum.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 33

HP 9.5mm SATA DVD-RW JackBlack G9 Optical Drive

726537-B21

NOTE: The Universal Media Bay (724865-B21) is required for this option.

HP Mobile USB Non Leaded System DVD RW Drive

701498-B21

NOTE: This is only supported on USB 3.0 ports.

HPE Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD

791034-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

781518-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870759-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870765-B21

HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785069-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870763-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD

748387-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759212-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD

781516-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759210-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759208-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785067-B21

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765464-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty HDD

832514-B21

12G SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SC 3yr Wty HDD

765424-B21

HPE 450GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737394-B21

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737261-B21

12G SAS Hot Plug LFF (3.5-inch) SC Midline Hard Drives - 1yr Warranty

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

857644-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861590-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

819201-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

846514-B21

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 34

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD

793699-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861754-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872487-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

818367-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861756-B21

HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793669-B21

HPE 3TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

846528-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872485-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

818365-B21

HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

846524-B21

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765455-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765453-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty HDD

655710-B21

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

857648-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861594-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

819203-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

846510-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e HDD

793683-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861750-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793667-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872491-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861678-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861752-B21

HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard

793665-B21

HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861693-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872489-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861676-B21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861691-B21

HPE 500GB SATA 6G Midline 7.2k LFF (3.5in) SC 1yr Wty HDD

658071-B21

SSD Selection

Best product availability is limited to US, Canada, and Latin America at this time.

12G SAS Mixed Use Hot Plug SFF (2.5-inch) Solid State Drives

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822567-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822563-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822559-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822555-B21

6G SATA Hot Plug RI-3 SFF (2.5-inch) SC Solid State Drives

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816576-B21

Drives

To streamline the configuration process for HPE ProLiant Gen9 servers and to provide the best product availability, HPE recommends SSDs from the list located here:

http://www.hpe.com/products/recommend.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 35

12G SAS Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

802891-B21

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779176-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802586-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779172-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779168-B21

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779164-B21

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802578-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802582-B21

6G SATA Hot Plug SFF Value Endurance (2.5-inch) Enterprise Value M1 Solid State Drives

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764927-B21

6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868830-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868826-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

871770-B21

HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869386-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869384-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868822-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

871768-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804599-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869378-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868818-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

872855-B21

HPE 240GB 6G SATA Read Intensive SFF (2.5-inch) SC DS SSD

868814-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869376-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

872853-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804587-B21

HPE 150GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869374-B21

6G SATA Hot Plug SFF (2.5-inch) SC Write Intensive Solid State Drives

HPE 1.6TB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Digitally Signed Firmware SSD

872363-B21

HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804677-B21

HPE 800GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Digitally Signed

872359-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804671-B21

HPE 400GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty Digitally Signed

872355-B21

Firmware SSD

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 36

Firmware SSD

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804665-B21

HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804639-B21

6G SATA Hot Plug SFF (2.5-inch) SC Mixed Use Solid State Drives

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872352-B21

HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804631-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872348-B21

HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804625-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872344-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

832414-B21

HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804613-B21

6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives

HPE 1.6TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

869388-B21

HPE 800GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804602-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed

869380-B21

HPE 240GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804590-B21

HPE 120GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty SSD

804584-B21

6G SATA Hot Plug LFF (3.5-inch) SC Write Intensive Solid State Drives

HPE 1.6TB 6G SATA Write Intensive-2 LFF 2.5-in SC 3yr Wty Digitally Signed Firmware SSD

872365-B21

HPE 1.2TB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD

804680-B21

HPE 800GB 6G SATA Write Intensive-2 LFF 2.5-in SC 3yr Wty Digitally Signed Firmware SSD

872361-B21

HPE 800GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD

804674-B21

HPE 400GB 6G SATA Write Intensive-2 LFF 2.5-in SC 3yr Wty Digitally Signed Firmware SSD

872357-B21

HPE 400GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD

804668-B21

HPE 200GB SATA 6G Write Intensive LFF (3.5in) SCC 3yr Wty SSD

804642-B21

6G SATA Hot Plug LFF (3.5-inch) SC Mixed Use Solid State Drives

HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804634-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872350-B21

HPE 800GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804628-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872346-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

832417-B21

HPE 200GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

804616-B21

HPE NVMe PCIe Read Intensive SFF (2.5 inch) Solid State Drives

HPE 2TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty SSD

764908-B21

HPE 1.2TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty SSD

764906-B21

HPE 400GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty SSD

764904-B21

NOTE: With NVMe support only 1xDouble Wide Graphics card is supported.

HPE NVMe PCIe Mixed Use SFF (2.5 inch) Solid State Drives

HPE 2TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765044-B21

Firmware SSD

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 37

HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765038-B21

HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765036-B21

HPE 400GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765034-B21

NOTE: With NVMe support only 1xDouble Wide Graphics card is supported.

HPE NVMe PCIe Write Intensive SFF (2.5-inch) Solid State Drives

HPE 2TB NVMe x4 Lanes Write Intensive SFF(2.5in) SCN 3yr Wty SSD

764894-B21

HPE 1.6TB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty SSD

764892-B21

HPE 800GB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty SSD

736939-B21

HPE 400GB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty SSD

736936-B21

NOTE:

NOTE: With NVMe support only 1xDouble Wide Graphics card is supported.

M.2 SSD

HPE 340GB SATA 6G Read Intensive 3yr Wty Dual M.2 Kit

835565-B21

HPE 340GB SATA 6G Read Intensive 3yr Wty M.2 Kit

835563-B21

HP Dual 120GB Value Endurance Solid State M.2 Enablement Kit for ProLiant ML/DL Servers

777894-B21

HPE 120GB SATA 6G Read Intensive HHHL 3yr Wty M.2 Kit

788028-B21

Hard Drive Blank Kits

HPE Large Form Factor Hard Drive Blank Kit

666986-B21

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

Hard Drive Kits

HP DL380 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit

774741-B21

NOTE:

ensure optimal airflow.

HPE DL380 Gen9 8SFF Bay1 Cage/Backplane Kit

719067-B21

HP DL380 Gen9 Additional 8SFF Bay2 Cage/Backplane Kit

768857-B21

HP DL380 Gen9 2SFF Front/Rear SAS/SATA Kit

724864-B21

HP DL380 Gen9 3LFF Rear SAS/SATA Kit

768856-B21

4154ENW&cc=us&lc=en

Media Bay Kits

The NVMe CTO chassis (810393-B21) or the NVMe Express Bay Enablement

kit (774741-B21) are required to support these drives. NOTE: HPE has qualified the NVMe drive portfolio using the Operating System inbox

drivers, full detail on the HPE Solid State Drive QuickSpecs.

NOTE: M.2 drives go in PCIe slots and use B140i SATA controller only. NOTE: M.2 supports Software RAID only. NOTE: No HPE Flexible Smart Array supported.

This option provides support for up to 6NVMe drives, and can only be populated in BAY2 in SFF chassis only, can be used with Bay1 and Bay 3 populated. NOTE: The HPE DL380 Gen9 High Performance Fan Kit is required for NVMe support (719079-B21). NOTE: The PCIe card in this enablement kit can only be populated in slot2 (primary) or slot 5 (secondary). NOTE: For true x16 support with this option a secondary riser (719073-B21) is needed (second processor required).

NOTE: Kit includes Mylar film for Universal Media Bay (724865-B21) support to

NOTE: For a complete list of the drive, controller and cable options please check the

compatibility matrix:

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 38

HP DL380 Gen9 Universal Media Bay Kit

724865-B21

can only be populated in Bay1.

HPE Networking

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21

10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPEE Ethernet 10Gb 2-port 530T Adapter

656596-B21

HPE Ethernet 10Gb 2-port 546SFP+ Adapter

779793-B21

HPE Ethernet 10Gb 2-port 557SFP+ Adapter

788995-B21

HPE Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21

HPEE Ethernet 10Gb 2-port 570SFP+ Adapter

718904-B21

NOTE: The DL380 Gen9 chassis ships with 4x1Gb Embedded.

http://www.hp.com/go/ProLiantNICs.

25 Gigabit Ethernet adapters

HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter

817762-B21

NOTE: Initially available as a BTO only option.

HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter

817753-B21

FlexibleLOM Adapters

HPE Ethernet 1Gb 4-port 331FLR Adapter

629135-B22

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HPE FlexFabric 10Gb 4-port 536FLR-T Adapter

764302-B21

HPE Ethernet 10Gb 2-port 546FLR-SFP+ Adapter

779799-B21

HPE FlexFabric 10Gb 2-port 556FLR-T Adapter

794525-B21

HPE FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter

727060-B21

HPE Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21

HPE Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727054-B21

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

NOTE: The Universal Media Bay offers front VGA and 2xUSB 2.0, plus ability to add

optional Optical drive, and 2SFF.

NOTE: This is only compatible with the 8SFF or 8+8 SFF front end configurations and

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each

adapter. NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information:

NOTE: The DL380 Gen9 chassis ships with 4x1Gb Embedded.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 39

NOTE: Only one FlexibleLOM can be added to the server. These options are

HPE InfiniBand

HPE InfiniBand FDR 2-port 545QSFP Adapter

702211-B21

http://downloads.linux.hp.com/SDR/downloads/MLNX_OFED/.

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

764284-B21

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter

764285-B21

HPE InfiniBand QDR/Ethernet 10Gb 2-port 544+FLR-QSFP Adapter

764286-B21

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel® Omni-Path Architecture Adapter

829335-B21

HPE 100Gb 1-port OP101 QSFP28 x8 PCIe Gen3 with Intel® Omni-Path Architecture Adapter

829334-B21

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

HPE I/O Expansion

HP DL380 Gen9 Primary 2 Slot GPU Ready Riser Kit

719076-B21

support please order the GPU enablement kit (719082-B21).

HPE DL380 Gen9 Secondary 3 Slot GPU Ready Riser Kit

719073-B21

support please order the GPU enablement kit (719082-B21).

HPE Power

HPE Flex Slot Platinum Hot-plug Power supplies

HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit

720478-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

HPE 800W Flex Slot Titanium Hot Plug Power Supply Kit

720482-B21

NOTE: Flex Slot Titanium power supplies support power efficiency of up to 96% and include a standard C-14 power inlet connector.

HPE 800W Flex Slot Platinum Hot Plug Power Supply Kit

720479-B21

upgradeable and can be changed from the original configuration after the server is shipped. NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information:

http://www.hp.com/go/ProLiantNICs.

NOTE: The RHEL6.5 driver is not part of SPP, but may be downloaded here:

Options

Supplies

NOTE: This is for slot 1 and supports double wide GPGPUs. NOTE: For Graphics cards please also order the DL380 Gen9 Graphics Enablement

kit, 719082-B21

Slot1: 1xGen3 x16 FH/FL, 1xGen3 x8 FH/HL.

Double wide PCIe cards are only supported in risers with the Processors

NOTE:

leveraging the High Performance Heatsink. For Processors requiring double wide GPU

NOTE: This is for slot 2 and supports double wide GPGPUs. NOTE: For Graphics cards please also order the DL380 Gen9 Graphics Enablement

kit, 719082-B21

Slot2: 2xGen3 x16 FH/FL, 1xGen3 x8 FH/HL.

Double wide PCIe cards are only supported in risers with the Processors

NOTE:

leveraging the High Performance Heatsink. For Processors requiring double wide GPU

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 40

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

HPE 800W Flex Slot Universal Hot Plug Power Supply Kit

720484-B21

NOTE: Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.

HPE 800W Flex Slot -48VDC Hot Plug Power Supply Kit

720480-B21

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply Kit

720620-B21

NOTE: Flex Slot Platinum Plus power supplies support power efficiency of up to 94%

Services (blue connector).

NOTE: All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-

HPE Computation

HP DL380 Gen9 Graphics Enablement Kit

719082-B21

B21), per card for cards over 150W. Cards 150W or under can

NOTE: Not required for M2000.

NVIDIA Tesla K40C 12GB Computational Accelerator

753960-B21

and include a C-14 power inlet connector that can support HPE Power Discovery

matching power supplies are installed, you may receive an error message and/or experience operational issues with your server. NOTE: Mixing different power supplies in the same server may limit or disable some power supply features including support for power redundancy. To ensure access to all available features, all power supplies within the same server should have the same output and efficiency ratings NOTE: Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.

NOTE: Support for HPE Power Discovery Services is included with the 1400W Flex Slot option. Power specifications and technical content for all HPE Server power supplies can be found at

http://www.hp.com/go/proliant/powersupply.

NOTE: Maximum of 2 Flex Slot PS per platform.

and Graphics Accelerators

NOTE: This GPU enablement kit includes 2 Heatsinks and 8 cables to enable double

wide GPUs to be supported. NOTE: For doublewide GPU support you are required to have at least 1x1400W Power Supply (720620-

used 800W Power Supplies; however check the power usage via the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor.

NOTE: There are limitations on the chassis and processor supported when adding Graphics accelerators. NOTE: Passive cards will require the addition of the High Performance Fan Kit (719079-B21). NOTE: We support up to 2 Double wide and 3 single wide Graphics cards, limitations

apply.

NOTE: This kit support up to 2 double wide Graphics cards. NOTE: Double Wide GPUs will occupy slots 2 and 5 and will leave only 2 slots left

open. NOTE: There are limitations on GPU support (1x double wide) with the NVMe bay installed. NOTE: All Accelerators are restricted to less than 1024GB for system host memory, with the exception of the Tesla P100, AMD and Intel cards. NOTE: This kit includes PCIe GPU Retention Brackets that need to be installed on the air baffle to support FL cards.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 41

NOTE: Only supported with E5-2600v3 processors.

HP NVIDIA Tesla K80 Dual GPU PCIe Computational Accelerator

J0G95A

temperature limitations: 24SFF chassis to 300C and 12LFF chassis to 250C

HPE NVIDIA Tesla M4 4GB Computational Accelerator

P9U90A

NOTE: Only supported with E5-2600v4 processors.

NVIDIA Tesla M10 Quad GPU Module

Q0J62A

supported to 35C, 8SFF supported to 35C, 12LFF supported to 20C, 16SFF+Universal

NOTE: Only supported with E5-2600v4 processors.

HPE NVIDIA Tesla M40 24GB Computational Accelerator

P8Y46A

NOTE:

NOTE: This is supported in all chassis. NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required). NOTE: For doublewide GPU support you are required to have at least 1x1400W Power Supply (720620-B21), per card. NOTE: Double-wide cards require the addition of the High Performance Fan Kit (719079-B21).

NOTE: For doublewide GPU support you are required to have at least 1x1400W

Power Supply (720620-B21), per card.

NOTE: This card only runs at PCIeGen2 speeds. NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required).

NOTE: PCIe accelerators are not supported in conjunction with this card. NOTE: This card will require the addition of the High Performance Fan Kit (719079-

B21).

NOTE: Max cooling setting required to support in RSBU. NOTE: There are limitations operating this card with operative environment

NOTE: Maximum of 3 cards supported per server. NOTE: This is supported in all chassis. NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required). NOTE: 1x 1400W PS recommended, but this card will work with 1x800W PS (Per GPU). However check the power usage via the HPE Power Advisor Tool located at

http://www.hpe.com/info/hppoweradvisor.

NOTE: No GPU enablement kit is required for this option.

NOTE: This is supported in all chassis, however with the following limitations: 4LFF

Media bay supported to 25C, 16SFF+NVMe cage supported to 35C and 24SFF+2SFF supported to 35C.

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

Maximum 2 supported with both risers, support for 2 cards requires the

1400W Power Supply (720620-B21) to be selected.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 42

NOTE: Double-wide cards require the addition of the High Performance Fan Kit

temperature limitations: 24SFF chassis to 300C and 12LFF chassis to 250C

HPE NVIDIA Tesla M60 Reverse Air Flow Dual GPU PCIe Graphics Accelerator

M3X67A

NOTE: Maximum 2 supported with both risers, support for 2 cards requires the

NOTE: Additional Grid 2.0 Licensing from NVIDIA is required.

HPE NVIDIA Tesla P4 8GB Computational Accelerator

Q0V79A

NOTE: Only supported with E5-2600v4 processors.

HPE NVIDIA Tesla P100 PCIe 16GB Computational Accelerator

Q0E21A

NOTE:

Q0V76A

(719079-B21).

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required).

NOTE: Only supported with E5-2600v4 processors. NOTE: There are limitations operating this card with operative environment

1400W Power Supply (720620-B21) to be selected. NOTE: Double-wide cards require the addition of the High Performance Fan Kit (719079-B21).

(2nd processor required). NOTE: There are limitations operating this card with a 160W processor with operative environment temperature limitations: 8SFF to 350C, 16 SFF to 250C and 24SFF/12LFF to 200C

(2nd processor required). NOTE: 1x 1400W PS recommended, but this card will work with 1x800W PS (Per GPU). However check the power usage via the HPE Power Advisor Tool located at

http://www.hpe.com/info/hppoweradvisor.

NOTE: No GPU enablement kit is required for this option.

There are chassis limitations with this card: 4LFF supported to 25C, 8SFF

supported to 30C, 12LFF not supported, 16SFF+Universal Media bay supported to 30C, 16SFF+NVMe cage supported to 20C and 24SFF+2SFF supported to 20C.

NOTE: For doublewide GPU support you are required to have at least 1x1400W Power Supply (720620-B21), per card.

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required). NOTE: There are limitations on the chassis and processor supported when adding Graphics accelerators. NOTE: This card will require the addition of the High Performance Fan Kit (719079- B21).

This card is supported on the E5-2600v4 series processors only.

HPE NVIDIA Quadro P6000 Graphics Accelerator

NOTE: There are chassis limitations with this card: 4LFF supported to 25C, 8SFF supported to 30C, 12LFF not supported, 16SFF+Universal Media bay supported to 30C, 16SFF+NVMe cage supported to 20C and 24SFF+2SFF supported to 20C.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 43

NOTE:

HPE NVIDIA Quadro M2000 Graphics Accelerator

P8Y48A

NOTE: Maximum of 3 cards supported per server.

NOTE: No GPU enablement kit is required for this option.

HPE NVIDIA Quadro M4000 Graphics Accelerator

M9X58A

http://www.hpe.com/info/hppoweradvisor

HP NVIDIA Quadro M5000 Graphics Accelerator

M9R60A

NOTE: Only supported with E5-2600v4 processors.

(719079-B21).

HPE NVIDIA Quadro M6000 24GB Graphics Accelerator

P8Y47A

For doublewide GPU support you are required to have at least 1x1400W

Power Supply (720620-B21), per card.

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

NOTE: This card is supported on the E5-2600v4 series processors only.

NOTE: This is supported in all chassis. NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required).

NOTE: Only supported with E5-2600v4 processors. NOTE: 1x 1400W PS recommended, but this card will work with 1x800W PS (Per

GPU). However check the power usage via the HPE Power Advisor Tool located at

http://www.hpe.com/info/hppoweradvisor.

NOTE: Only supported with E5-2600v4 processors. NOTE: This is supported in all chassis. NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required). NOTE: 1x 1400W PS recommended, but this card will work with 1x800W PS (Per GPU). However check the power usage via the HPE Power Advisor Tool located at

NOTE: This is supported in all chassis. NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required). NOTE: 1x 1400W PS recommended, but this card will work with 1x800W PS (Per GPU). However check the power usage via the HPE Power Advisor Tool located at

http://www.hpe.com/info/hppoweradvisor.

NOTE: Double-wide cards require the addition of the High Performance Fan Kit

NOTE: Maximum 2 supported with both risers, support for 2 cards requires the

1400W Power Supply (720620-B21) to be selected. NOTE: Double-wide cards require the addition of the High Performance Fan Kit (719079-B21).

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required).

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 44

NOTE: Only supported with E5-2600v4 processors.

HP AMD FirePro W7100 Accelerator Kit

J0H10A

http://www.hpe.com/info/hppoweradvisor

HP AMD FirePro S9150 Accelerator Kit

J0H11A

NOTE:

HPE AMD FirePro S7150x2 Accelerator Kit

M3X68A

temperature limitations: 12LFF chassis to 300C

HPE 150W PCI-E Power Cable Kit

669777-B21

NOTE: This cable is required for the K1, K4200, K5200, M5000 and W7100 cards.

NOTE: This is supported in all chassis. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

(2nd processor required).

NOTE: Up to 3 of these single wide cards are supported. NOTE: 1x 1400W PS recommended, but this card will work with 1x800W PS (Per

GPU). However check the power usage via the HPE Power Advisor Tool located at

NOTE: For doublewide GPU support you are required to have at least 1x1400W

Power Supply (720620-B21), per card.

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

12LFF support is restricted to 30C Server Ambient only.

NOTE: For doublewide GPU support you are required to have at least 1x1400W

Power Supply (720620-B21), per card.

NOTE: The Primary GPU riser (719076-B21) is required to support this in slot1. NOTE: The secondary GPU riser (719073-B21) is required to support this in slot2

NOTE: This card is supported on the E5-2600v4 series processors only. NOTE: This card only runs at PCIeGen2 speeds. NOTE: There are limitations operating this card with operative environment

NOTE: Each DL380 Gen9 server will accommodate up to three single-width or two

double width PCIe cards for Computational Graphics support. Note that 11.25" is the max length for a card to also allow for cabling. This applies to primary slots 1 & 2 or secondary slots 4 & 5. NOTE: The NVIDIA Tesla, GRID and Quadro modules are supported only on 64-bit versions of Linux and Windows operating systems as well as on Virtual Machine client operating systems. The supported bare metal operating systems are RHEL6, SLES 11 and Windows Server 2012 R2.

NOTE: There are limitations on fan types, setting, and chassis support by card. NOTE: Mixing of GPUs is not supported.

NOTE: All NVIDIA, Intel and AMD cards limit configurations to having less than 1TB

memory installed.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Core Options

Page 45

NOTE: Double Wide GPUs will occupy slots 2 and 5 and will leave only 2 slots left

HPE Cooling

HP DL380 Gen9 High Performance Fan Kit

719079-B21

http://www.hpe.com/servers/ashrae.

open.

NOTE: There are limitations on GPU support with the NVMe bay installed.

Options

NOTE: High Performance Fan kit consists of 6 fans, these will need to replace all the

standard Fans in the unit, and fill all 6-Fan cages. NOTE: The 12LFF and 24SFF chassis (including field upgrades to 24SFF) will already include 6 High Performance Fan kits. NOTE: The High Performance Fan Kit is needed to support certain Passive GPGPU (Graphics cards) configurations; or ASHRAE operating environments.

NOTE: For elevated ambient temperature support please see:

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 46

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard

information.

HPE Insight

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Management Media Kit

C6N31A

NOTE: For additional license options please see the HPE Insight Control QuickSpecs.

NOTE: For additional license options please see the QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

Embedded

HPE iLO Advanced

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU

512485-B21

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU

BD505A

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU

E6U59ABE

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU

E6U64ABE

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView Physical Media Kit LTU

E5Y37A

Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional

HPE Insight Control

Software

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple

licenses with a single activation key. NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support and Update Service. NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates.

Management

HPE Converged Infrastructure Management Software

NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use HPE

Insight Control without additional charge. NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of this software (USB flash drive). NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/oneview

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 47

High Performance

HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU

BD476A

NOTE: These part numbers can be used to purchase one certificate for multiple

certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

HPE Insight Cluster Management Utility Media

BD477A

NOTE: For additional license kits please see the HPE Insight Cluster Management

Utility QuickSpecs.

Light Endurance (LE) PCIe Workload Accelerators

HPE 5.2TB FH/HL Light Endurance (LE) PCIe Workload Accelerator

775672-B21

NVME PCIe Workload Accelerators

HPE 6.4TB Read Intensive-2 FH/HL PCIe Workload Accelerator

831739-B21

HPE 3.2TB Read Intensive-2 HH/HL PCIe Workload Accelerator

831737-B21

HPE 2.0TB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803204-B21

HPE 1.6TB Read Intensive-2 HH/HL PCIe Workload Accelerator

831735-B21

HPE 1.6TB NVMe Write Intensive HH/HL PCIe Workload Accelerator

803197-B21

HPE 1.6TB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803202-B21

HPE 1.3TB Read Intensive-2 HH/HL PCIe Workload Accelerator

831733-B21

HPE 800GB NVMe Write Intensive HH/HL PCIe Workload Accelerator

803195-B21

HPE 800GB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803200-B21

HPE Security

HPE 2U Security Bezel Kit

666988-B21

HPE Trusted Platform Module 2.0 Kit

745823-B21

It cannot be replaced with any other TPM module.

HPE Trusted Platform Module Option

488069-B21

It cannot be replaced with any other TPM module.

HPE Storage

SAS Controllers

Clusters

HPE PCIe Workload Accelerator Options

licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement

NOTE: If the TPM Module (488069-B21) is installed, then there is no support for TPM 2.0.

NOTE: This is supported on both the E5-2600v3 and E5-2600v4 processors. NOTE: HPE Trusted Platform Module 2.0 Option works with Gen9 servers with UEFI

Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. NOTE: HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option.

NOTE: HPE server systems can have a TPM module (of any type) installed only once.

NOTE: The HPE Trusted Platform Module Option (488069-B21) is the TPM 1.2

version. Compatible server platforms include Gen8 and Gen9 servers.

NOTE: HPE server systems can have a TPM module (of any type) installed only once.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 48

Controllers

HPE Flexible Smart Array Controllers

HPE Smart Array P440ar/2GB FBWC 12Gb 2-ports Int SAS Controller

726736-B21

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe

NOTE:

HP Smart Array P440ar/2GB FBWC 12Gb 2-ports Int FIO SAS Controller

749974-B21

NOTE:

HPE Smart Array P840ar/2GB FBWC 12Gb 2-port Internal SAS Controller

843199-B21

NOTE: Provides support for up to 16 internal SAS/SATA drives without using a PCIe

HPE Smart Array Controllers

HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller

726821-B21

NOTE: Provides support for up to 8 internal SAS/SATA drives.

HPE Smart Array P840/4GB FBWC 12Gb 2-ports Int SAS Controller

726897-B21

HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

726903-B21

HPE Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller

726825-B21

HP Smart Array P440/4GB FBWC 12Gb 1-port Int FIO SAS Controller

761872-B21

NOTE: Provides support for up to 8 internal SAS/SATA drives.

NOTE: FIO indicates factory integrated option via CTO.

HP Smart Array P840/4GB FBWC 12Gb 2-ports Int FIO SAS Controller

761874-B21

HPE Smart Host Bus Adapters

HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

HPE H240 12Gb 2-ports Int Smart Host Bus Adapter

726907-B21

HPE H240ar 12Gb 2-ports Int Smart Host Bus Adapter

726757-B21

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe slot. HP H240ar 12Gb 2-ports Int FIO Smart Host Bus Adapter

749976-B21

NOTE:

NOTE: FIO indicates factory integrated option via CTO.

HPE Cable Options

HP DL380 Gen9 12LFF Rear 2SFF or 3LFF P840/440 SAS Cable Kit

783007-B21

NOTE: 12LFF port 3 to 2SFF or 3LFF to P440/840 PCIe.

HP DL380 Gen9 2SFF Front SAS x4 Cable Kit

783008-B21

NOTE: For front mount 2SFF to H240/P440ar, H240 or embedded B140i SATA.

HP DL380 Gen9 8SFF SAS Cable Kit

783009-B21

NOTE: 8/16/24 SFF to P840/440 bay 3.

slot.

Includes the HPE Smart Storage Battery.

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe slot. NOTE: Includes the HPE Smart Storage Battery.

FIO indicates factory integrated option via CTO.

slot.

NOTE: Includes the HPE Smart Storage Battery.

NOTE: Includes the HPE Smart Storage Battery. NOTE: When ordering controllers, please reference the HPE Cable Options below for

the required cable. NOTE: FIO indicates factory integrated option via CTO.

Provides support for up to 8 internal SAS/SATA drives without using a PCIe

slot.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 49

HP DL380 Gen9 2SFF x8 Front Cable Kit

785989-B21

NOTE: For front/rear mount 2SFF to P440/840 PCIe).

HP DL380 Gen9 12LFF SAS Cable Kit

785991-B21

NOTE: For 12LFF to P440/840 PCIe cables- ports 1/2/3.

HP DL380 Gen9 8SFF H240 Cable Kit

786092-B21

NOTE: 8/16/24SFF to 240/440ar, H240 PCIe or embedded B140i SATA.

HP DL380 Gen9 12LFF Smart HBA H240 SAS Cable Kit

786215-B21

NOTE: For 12LFF ports 1&2 to H240/P440ar, H240 or embedded B140i SATA.

Cabling Matrix.

Optional Software

HPE SmartCache No Media 24x7 Technical Support 1-server LTU

D7S26A

HPE SmartCache No Media 24x7 Technical Support Flexible LTU

D7S27A

HPE SmartCache No Media 24x7 Technical Support E-LTU

D7S27AAE

Optional Upgrades

HP 96W Smart Storage Battery with 145mm Cable for DL/ML/SL Servers

727258-B21

NOTE: Ships as standard with some HPE Flexible Smart Array Controllers.

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hpe.com/storage/BURAcompatibility

Tape Drives

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader

C0H19A

HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit

C0L99A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver LTO-5 Ultrium 3000 SAS Tape Drive in a 1U Rack Mount Kit

EJ014B

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver LTO-4 Ultrium 1760 SAS (1) in a 1U Rack Mount Kit

EH946C

HPE StoreEver LTO-4 Ultrium 1760 SAS External Tape Drive

EH920B

HPE StoreEver 1U SAS Rack Mount Kit

AE459B

HPE Tape Storage Systems

HPE StoreEver MSL6480

HPE StoreEver MSL6480 Scaleable Expansion Module

QU626A

NOTE: Please see the HPE StoreEver MSL6480 Tape Library QuickSpecs for Technical Specifications and additional information).

HPE StoreEver MSL6480 Scalable Base Module

QU625A

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE StoreEver MSL4048 0-drive Tape Library

AK381A

NOTE: For details on cabling options, additional information available here:

NOTE: HPE SmartCache is supported when one of the supported Smart Array

Controllers is installed in the server. NOTE: HPE SmartCache comes standard (no licensing is required) if the HPE Smart Array P840 Controller is installed in the server.

NOTE: Provides backup power for multiple HPE Smart Array controllers or other

devices (up to 16).

http://www.hp.com/go/tape. For hardware and software compatibility of Hewlett Packard

Enterprise tape backup products

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 50

HPE Disk Backup

HPE RDX Removable Disk Backup System

HPE RDX+ 3TB USB 3.0 External Disk Backup System

P9L72A

HPE RDX 3TB USB 3.0 Internal Disk Backup System

P9L71A

HP RDX 2TB USB3.0 External Disk Backup System

E7X53B

HP RDX+ 1TB External Backup System

B7B69B

HP RDX+ 500GB External Backup System

B7B66B

HPE RDX+ External Docking System

C8S07B

HPE D3700 Enclosure

QW967A

HPE D3600 Enclosure

QW968A

NOTE: For the complete range of RDX drives and media see:

Packard Enterprise disk backup products see: http://www.hp.com/storage/SPOCK.

HPE Storage

NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server

2003 and Linux, please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html.

Emulex Fibre Channel HBAs

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HPE StoreFabric 84E 4-port 8Gb Fibre Channel Host Bus Adapter

E7Y63A

HPE StoreFabric SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE StoreFabric SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE StoreFabric SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE StoreFabric SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

HPE StoreFabric SN1100E 4-port 16Gb Fibre Channel Host Bus Adapter

P9D99A

QLogic Fibre Channel HBAs

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HPE StoreFabric 84Q 4-port 8Gb Fibre Channel Host Bus Adapter

P9D91A

HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HPE StoreFabric SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

HPE StoreFabric SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE StoreFabric SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter

P9M75A

HPE StoreFabric SN1600Q 32Gb Dual Port Fibre Channel Host Bus Adapter

P9M76A

Converged Network Adapter

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A

HPE StoreFabric CN1200E 10Gb Converged Network Adapter

E7Y06A

HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter

N3U51A

http://www.hp.com/go/rdx. For hardware and software compatibility of Hewlett

Options

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 51

HPE Data Center

HPE Advanced Series Racks

HPE 48U 600mm x 1075mm Advanced Pallet Rack

H6J87A

HPE 48U 600mm x 1075mm Advanced Shock Rack

H6J88A

HPE 42U 600mm x 1075mm Advanced Pallet Rack

H6J65A

HPE 42U 600mm x 1075mm Advanced Shock Rack

H6J66A

HPE 42U 600mm x 1200mm Advanced Pallet Rack

H6J67A

HPE 42U 600mm x 1200mm Advanced Shock Rack

H6J68A

HPE 36U 600mm x 1075mm Advanced Pallet Rack

H6J77A

HPE 36U 600mm x 1075mm Advanced Shock Rack

H6J78A

HPE 22U 600mm x 1075mm Advanced Pallet Rack

H6J83A

HPE 22U 600mm x 1075mm Advanced Shock Rack

H6J84A

HPE 14U 600mm x 1075mm Advanced Shock Rack

H6J82A

NOTE: Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Enterprise Series Racks

HP 47U 600mm x 1075mm Enterprise Pallet Rack

BW911A

HP 47U 600mm x 1075mm Enterprise Shock Rack

BW912A

HP 47U 600mm x 1200mm Enterprise Pallet Rack

BW913A

HP 47U 600mm x 1200mm Enterprise Shock Rack

BW914A

HPE 42U 600mm x 1075mm Enterprise Pallet Rack

BW903A

HP 42U 600mm x 1075mm Enterprise Shock Rack

BW904A

HP 42U 600mm x 1200mm Enterprise Pallet Rack

BW907A

HP 42U 600mm x 1200mm Enterprise Shock Rack

BW908A

HP 36U 600mm x 1075mm Enterprise Pallet Rack

BW895A

HP 36U 600mm x 1075mm Enterprise Shock Rack

BW896A

HP 42U 800mm x 1075mm Enterprise Pallet Rack

BW917A

HP 42U 800mm x 1075mm Enterprise Shock Rack

BW918A

NOTE: Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Power

HPE Basic Power Distribution Units (PDU)

HPE Basic 1.9kVA/L5-20P 16A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

H5M54A

HPE Basic 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

H5M56A

HPE Basic 2.8kVA/L5-30P 24A/120V Outlets (18) 5-20R/Vertical NA/JP PDU

H5M55A

HPE Basic 4.9kVA/60320 C20 Detachable 16A/230V Outlets (20) C13/Vertical WW PDU

H5M57A

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU

H5M58A

HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU

H5M68A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13/Vertical NA/JP PDU

H5M61A

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M59A

HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M70A

HPE Basic 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (6) C19/Vertical NA PDU

H5M60A

HPE Basic 11kVA/60309 63A 3-wire 48A/230V Outlets (30) C13 (6) C19/Vertical

H5M71A

Racks

Distribution Units (PDUs)

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 52

INTL PDU

HPE Basic 9.2kVA/50A Terminal Block 40A/230V Outlets (30) C13 (6) C19/Vertical WW PDU

H5M75A

HPE Basic 3Ph 5.7kVA/ L21-20P 16A/120-208V Outlets (24) C13 (3) 5-20R/Vertical NA/JP PDU

H5M63A

HPE Basic 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (24) C13 (3) C19 (3) 520R/Vertical NA/JP PDU

H5M64A

HPE Basic 3Ph 8.6kVA/L15-30P 24A/208V Outlets (24) C13 (6) C19/Vertical NA/JP PDU

H5M62A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M72A

HPE Basic 3Ph 11kVA/60309 5-wire 16A/230V Outlets (36) C13 (6) C19/Vertical INTL PDU

H5M73A

HPE Basic 3Ph 11kVA/60309 16A/240V Outlets (36) C13 (6) C19/Vertical NA PDU

H5M67A

HPE Basic Modular 2.8kVA/L5-30P 24A/120V Outlets (4) C19/Horizontal NA/JP PDU

252663-D71

HPE Basic Modular 4.9kVA/L6-30P 24A/208V Outlets (4) C19/Horizontal NA/JP Core Only PDU

252663-D74

HPE Basic Modular 8.3kVA/CS8265C 40A/208V Outlets (4) C19/Horizontal NA/JP PDU

252663-D75

HPE Basic Modular 7.3kVA/60309 3-wire 32A/230V Outlets (4) C19/Horizontal INTL Core Only PDU

252663-B33

HPE Basic Modular 9.2kVA/60309 63A 3-wire 40A/230V Outlets (4) C19/Horizontal INTL PDU

252663-B34

HPE Basic Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF512A

HPE Basic Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF513A

HPE Basic Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF519A

HPE Basic Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF511A

HPE Basic Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF518A

HPE 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.

HPE Metered Power Distribution Units (PDU)

HPE Metered 2.8kVA/L5-30P 24A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

D9N43A

HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

D9N46A

HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Horizontal NA/JP PDU

D9N44A

HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (16) C13/Vertical WW

D9N45A

HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (12) C13/Vertical NA/JP PDU

G9Z05A

HPE Metered 7.3kVA/60309 3-wire 32A/230V Outlets (12) C13/Vertical INTL PDU

G9Z06A

HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

D9N47A

HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

D9N48A

PDU

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 53

HPE Metered 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (3) C19/Vertical NA/JP PDU

D9N51A

HPE Metered 3Ph 8.6kVA/L21-30P 24A/120-208V Outlets (18) C13 (3) C19 (3) 520R/Vertical NA/JP PDU

D9N53A

HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (18) C13 (3) C19/Vertical INTL PDU

D9N55A

HPE Metered 8.3kVA/CS8265C 40A/208V Outlets (30) C13 (3) C19/Vertical NA PDU

D9N49A

HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlet (32) C13 (4) C19/Vertical INTL PDU

D9N50A

HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (30) C13 (3) C19/Vertical INTL PDU

D9N57A

HPE Metered 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N58A

HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (30) C13 (3) C19/Vertical NA/JP PDU

D9N61A

HPE Metered 3Ph 16.6kVA/60309 32A-30A 5-wire 24A/230V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N62A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (24) C13 (3) C19/Vertical NA/JP PDU

D9N54A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N59A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

G9Z07A

HPE Metered 3Ph 19.9kVA/L22-30P 24A/277V Outlets (30) RF-203P-HP/Vertical NA PDU

D9N63A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlet (30) C13 (3) C19/Vertical INTL PDU

D9N56A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

D9N60A

HPE Metered 3Ph 22kVA/60309 5-wire WT 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

G9Z08A

HP Environmental Sensor for Remote Monitored and Managed PDUs

E2D53A

NOTE: Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.

HPE Intelligent Power Distribution Unit (PDU)

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP

AF520A

HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF521A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF522A

HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6)

AF523A

HPE Intelligent Modular 3Ph 17.3kVA/60309 30A 5-wire 24A/240V (6) C19/Horizontal NA/JP PDU

AF901A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF525A

HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF526A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6)

AF527A

PDU

C19/Horizontal NA/JP PDU

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 54

C19/Horizontal INTL PDU

HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU

AF535A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C19/Horizontal INTL PDU

AF538A

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF531A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF532A

HPE Intelligent Modular 3Ph 14.4kVA/CS8365C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF533A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU Kit

AF534A

HPE 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HPE 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on additional options and product specifications.

HPE Metered and Switched Power Distribution Units (PDU)

HPE Metered Switched 2.8kVA/L5-30P 24A/120V Outlets (24) 5-20R /Vertical NA/JP PDU

H8B48A

HPE Metered Switched 3.6kVA/60320 C20 Detachable 16A/230V Outlets (7) C13 (1) C19/Vertical WW PDU

H8B49A

HPE Metered Switched 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

H8B50A

HPE Metered Switched 7.3kVA/60309 3-wire 32A/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

H8B51A

HPE Metered Switched 3Ph 8.6kVA/L15-30P 24A/208V Outlets (18) C13 (6) C19/Vertical NA/JP PDU

H8B52A

HPE Metered Switched 3Ph 8.6kVA/L21-30P 24A/208V Outlets (20)C13 (3)C19 (1)520R/Vertical NA/JP PDU

H8B53A

HPE Metered Switched 3Ph 11kVA/60309 5-wire 16A/230V Outlets (21) C13 (3) C19/Vertical INTL PDU

H8B54A

HPE Metered Switched 3Ph 14.4kVA/CS8365C 40A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

H8B55A

HPE Metered Switched 3Ph 17.3kVA/60309 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

H8B56A

NOTE: Please see the HPE Metered and Switched Power Distribution Units (PDU)

NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS)

web page.

HPE Location Discovery Services

HPE 36U Location Discovery Kit

BW945A

HPE 42U Location Discovery Kit

BW946A

HPE 47U Location Discovery Kit

BW947A

HP DL380 Gen9 Location Discovery Services Ear Kit

768884-B21

HPE Location Discovery Services LCD8500 Kit

TL052A

NOTE: Please see the HPE Location Discovery Services QuickSpecs for information

QuickSpecs for information on additional options and product specifications.

HPE Rack Mount Consoles, KVM Switches, and Keyboards

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 55

on additional options and product specifications.

HPE Rack Mount Consoles

HP LCD8500 1U US Rackmount Console Kit

AF630A

HP LCD8500 1U UK Rackmount Console Kit

AF631A

HP LCD8500 1U DE Rackmount Console Kit

AF632A

HP LCD8500 1U FR Rackmount Console Kit

AF633A

HP LCD8500 1U JP Rackmount Console Kit

AF642A

HP LCD8500 1U RU Rackmount Console Kit

AF643A

HP LCD8500 1U INTL Rackmount Console Kit

AF644A

HP LCD8500 1U US TAA Rackmount Console Kit

AF645A

HPE KVM Switches

HP 0x1x8 G3 KVM Console Switch

AF651A

HP 0x2x16 G3 KVM Console Switch

AF652A

HP TAA 0x2x16 G3 KVM Console Switch

AF653A

HP USB Remote Access Key for G3 KVM Console Switches

AF650A

HP KVM Console USB Interface Adapter

AF628A

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter

AF629A

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

HPE KVM Switches web page.

HPE USB Keyboard and Mouse

HPE USB US Keyboard/Mouse Kit

631341-B21

HPE USB UK Keyboard/Mouse Kit

631344-B21

HPE USB FR Keyboard/Mouse Kit

631346-B21

HPE USB ES Keyboard/Mouse Kit

631348-B21

HPE USB DE Keyboard/Mouse Kit

631358-B21

HPE USB JP Keyboard/Mouse Kit

631360-B21

HPE USB IT Keyboard/Mouse Kit

631362-B21

HPE USB CN Keyboard/Mouse Kit

631364-B21

HPE USB AE Keyboard/Mouse Kit

638212-B21

HPE USB RU Keyboard/Mouse Kit

638214-B21

HPE USB IN Keyboard/Mouse Kit

672097-D63

HPE USB AP/INTL Keyboard/Mouse Kit

672097-373

HPE USB INTL Keyboard/Mouse Kit

672097-B33

HPE USB PT Keyboard/Mouse Kit

672097-133

HPE USB TR Keyboard/Mouse Kit

672097-143

HPE USB CZ Keyboard/Mouse Kit

672097-223

HPE USB FI Keyboard/Mouse Kit

672097-353

HPE USB SE Keyboard/Mouse Kit

672097-103

HPE USB CH Keyboard/Mouse Kit

672097-113

HPE USB KR Keyboard/Mouse Kit

672097-KD3

To learn more, please visit the

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 56

Rail Kits

NOTE: Gen9 rail kits have changed significantly from prior generation rail kits. Please take a moment to

people to use for any installation.

HP 2U Small Form Factor Easy Install Rail Kit

733660-B21

NOTE: Does not include CMA (733664-B21).

HP 2U Large Form Factor Easy Install Rail Kit

733662-B21

NOTE: Does not include CMA (733664-B21).

HP 2U Cable Management Arm for Easy Install Rail Kit

733664-B21

HPE 2U Small Form Factor Ball Bearing Rail Kit

720863-B21

NOTE: Does not include CMA (720865-B21).

HPE 2U Large Form Factor Ball Bearing Rail Kit

720864-B21

NOTE: Does not include CMA (720865-B21).

HPE 2U Cable Management Arm for Ball Bearing Rail Kit

720865-B21

HPE Other Options

HPE Rack LED Light Kit

BW939A

HP Kit LCD 1.83m Latch Display Port Cable

G7T29A

HPE Uninterruptible

HPE DirectFlow Three Phase UPS

Power Unit (1U UPS)

HPE R12000 DirectFlow - 1U Rackmount Uninterruptible Power System

G9Y75A

HPE R12000 DirectFlow - POD 1U Rackmount Uninterruptible Power System

AF478A

HPE RP12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF437A

Input/Output Module Options for 1U UPS

HPE 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309

AF488A

HPE 30A 400-415 Volt Three Phase NA R10000 DirectFlow UPS IEC309 Input/Output Module

AF489A

HPE 32A 380 Volt Three Phase China R12000 DirectFlow UPS Unterminated Input/Output Module

AF490A

HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS L22-30 Input/Output Module

AF491A

HPE 30A 480 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module

AF492A

HPE 30A 400-415 Volt Three Phase NA R12000 DirectFlow UPS IEC309 Input/Output Module

G9Y76A

HPE DirectFlow UPS Management Card

AF493A

review the installation documentation that comes with the server to help you with the installation of your Gen9 server. NOTE: Rail kits are optional for DL380 Gen9 and are no longer included standard with the server. Customers have the option to purchase their server without a rail kit. NOTE: Ball bearing and Easy Install rail kits contain telescoping rails which allow for in-rack serviceability. NOTE: To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of

Power Systems (UPS)

Input/Output Module

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 57

Power Unit (2U UPS)

HPE R18000 DirectFlow - 2U Rackmount Uninterruptible Power System

AF479A

Input/Output Module Options for 2U UPS

HPE 32A 400-415 Volt Three Phase INTL R18000 DirectFlow UPS IEC309 Input/Output Module

AF483A

HPE 30A 380 Volt Three Phase China R18000 DirectFlow UPS Unterminated Input/Output Module

AF485A

HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module

AF486A

HPE 30A 480 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module

AF487A

HPE 30A 400 Volt Three Phase NA R18000 DirectFlow UPS IEC309 Input/Output Module

D9Q02A

HPE 30A 400-415V Three Phase NA R18000 DirectFlow UPS 1:1 IEC309 Input/Output Module

AF484A

NOTE: All Input/Output Modules support dual output outlets except the AF484A.

Battery Pack Options

HPE DirectFlow UPS - 1U Rackmount Lithium-ion Battery Pack

AF480A

HPE DirectFlow UPS - 3U Rackmount VRLA Battery Pack

AF482A

HPE WW DirectFlow Secondary Battery Cable

AF497A

NOTE: Please see the HPE DirectFlow Three Phase Uninterruptible Power System

QuickSpecs for information on additional options and product specifications.

HPE Tower UPS

HPE T750 G4 UPS Models

HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A

HPE T750 G4 INTL Uninterruptible Power System

J2P88A

HPE T1000 G4 UPS Models

HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A

HPE T1000 G4 INTL Uninterruptible Power System

J2P89A

HPE T1500 G4 UPS Models

HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A

HPE T1500 G4 INTL Uninterruptible Power System

J2P90A

HPE Rack-mountable UPS

HPE R/T2200 G4 UPS Models

HPE R/T2200 G4 NA/JP Uninterruptible Power System

J2R00A

HPE R/T3000 G4 UPS Models

HPE R/T3000 G4 Low Voltage NA/JP Uninterruptible Power System

J2R01A

HPE R/T3000 G4 High Voltage NA/JP Uninterruptible Power System

J2R02A

HPE R/T3000 G4 High Voltage INTL Uninterruptible Power System

J2R04A

R1500 G4 Models

HPE R1500 G4 NA Uninterruptible Power System

J2Q99A

HPE R1500 G4 JP/TWN Uninterruptible Power System

J2R05A

HPE R1500 G4 INTL Uninterruptible Power System

J2R03A

R7000 Uninterruptible Power System (UPS)

HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Additional Options

Page 58

R5000 Uninterruptible Power System (UPS)

HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

NOTE: Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on additional options and product specifications.

HPE UPS Options

HPE R/T2200 G4 Extended Runtime Module

J2R09A

HPE R/T3000 G4 Extended Runtime Module

J2R10A

HPE 2U Rack/Tower UPS Shipping Kit

L4Q11A

NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS)

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 32GB microSD Mainstream Flash Media Kit

700139-B21

HPE 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HP Dual 8GB microSD Enterprise Midline USB Kit

741279-B21

HPE Support

Installation & Start-up Services

HPE Install ProLiant DL38x(p) Service

U4554E

HPE Installation and Startup DL38x(p) Service

U4555E

Proactive Care

HPE 3 year Proactive Care 24x7 DL380 Gen9 w/IC Service

U5HW1E

HPE 3 year Proactive Care 24x7 with DMR DL380 Gen9 w/IC Service

U5HW2E

HPE 3 year Proactive Care 24x7 with CDMR DL380 Gen9 w/IC Service

U5HW3E

HPE 3 year Proactive Care Call to Repair DL380 Gen9 w/IC Service

U5HX0E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR DL380 Gen9 w/IC Service

U5HX1E

HPE 3 year Proactive Care Call to Repair with CDMR DL380 Gen9 w/IC Service

U5HX2E

HPE 3 year Proactive Care 24x7 DL380 Gen9 Service

U7AE8E

HPE 3 year Proactive Care 24x7 with DMR DL380 Gen9 Service

U7AE9E

HPE 3 year Proactive Care 24x7 with CDMR DL380 Gen9 Service

U7AF0E

HPE 3 year Proactive Care Call to Repair DL380 Gen9 Service

U7AF4E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR DL380 Gen9 Service

U7AF5E

HPE 3 year Proactive Care Call to Repair with CDMR DL380 Gen9 Service

U7AF6E

HPE USB and SD Options

web page.

Services

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Memory

Page 59

Memory Population

General Memory Population Rules and Guidelines:

White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.

A minimum of one DIMM is required per server.

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest load (DIMM with most ranks) within a channel goes furthest from the processor.

Do not mix RDIMMs or LRDIMMs.

LRDIMMs are supported up to 3 DIMMs per channel.

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

HPE memory from previous generation servers is not compatible with the DL380 Gen9 Server. Certain

supported.

To realize the performance memory capabilities listed in this document, HPE SmartMemory is required.

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535

For memory population rules and additional memory guidelines, please see the DL380 Gen9 user guide at http://www.hp.com/support.

guidelines

HPE SmartMemory features such as memory authentication and enhanced performance may not be

For additional information, please see the HPE SmartMemory QuickSpecs at:

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Memory

Page 60

There are four (4) Memory channels per processor; eight (8) channels per 2 processor server.

There are three (3) DIMM slots for each memory channel; twenty four (24) total slots for 2 processor server.

Memory channels1 and 3 consists of the three (3) DIMMs that are furthest from the processor.

Memory channel 2 and 4 consists of the three (3) DIMMs that are closest to the processor.

Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v3 Series Processor Family

Memory Bandwidth and Capacity

[DIMM Type] Registered DIMMs (RDIMMs)

Load Reduced (LRDIMMs)

HPE SKU P/N

726717-

B21

726718-

B21

759934-

B21

726719-

B21

728629-

B21

726720-

B21

726722-

B21

726724-

B21

DIMM Rank

Single Rank

Dual Rank

Quad Rank

DIMM Capacity

4GB

8GB

16GB

32GB

16GB

32GB

64GB

Voltage

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

DRAM Depth [bit]

512M

DRAM Width [bit]

DRAM Density

4Gb

8Gb

CAS Latency

15-15-15

DIMM Native Speed (MT/s)

2133

SLOTS THAT CAN BE POPULATED

24 slot servers

MAXIMUM CAPACITY (GB)

192

384

768

384

768

1536

POPULATED DIMM SPEED (MT/s)

1 DIMM Per Channel

2133

2 DIMM Per Channel

2133

3 DIMM Per Channel

1600

1866

Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v4 Series Processor Family

Memory Bandwidth and Capacity

[DIMM Type] Registered DIMMs (RDIMMs)

Load Reduced (LRDIMMs)

HPE SKU P/N

805347-B21

805349-B21

836220-B21

805351-B21

805353-B21

805358-B21

809208-B21

DIMM Rank

Single Rank

Dual Rank

Quad Rank

Octal Rank

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Memory

Page 61

DIMM Capacity

8GB

16GB

32GB

64GB

128GB

Voltage

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

DRAM Depth [bit]

DRAM Width [bit]

DRAM Density

8Gb

4Gb

8Gb

CAS Latency

17-17-17

20-18-18

DIMM Native Speed (MT/s)

2400

SLOTS THAT CAN BE POPULATED

24 slot servers

MAXIMUM CAPACITY (GB)

192

384

768

1536

3072

POPULATED DIMM SPEED (MT/s)

1 DIMM Per Channel

2400

2 DIMM Per Channel

2133

2400

3 DIMM Per Channel

1866

2400

NOTE: Mixing the 128GB LRDIMM with other capacities is not supported.

Memory Speed

Processor Models

Supported Memory Speeds

E5-2609v3, E5-2603v3

1600MT/s

E5-2630Lv3, E5-2640v3, E5-2630v3, E5-2623v3, E5-2620v3

1866MT/s

E5-2637v3, E5-2687Wv3, E5-2699v3, E52698v3, E5 2683v3, E5 2650Lv3, E5-2650v3, E5-2667v3, E5-2643v3

2133MT/s

E5-2609v4, E5-2603v4

1866MT/s

E5-2630Lv4, E5-2623v4, E5-2620v4, E5-2640v4, E5-2630v4

2133MT/s

E5-2650Lv4, E5-2643v4, E5-2637v4, E52687Wv4, E5 E5 2683v4, E5 2667v4, E5-2699Av4

2400MT/s

by Processor Model

-2697v3, E5-2695v3, E5-2690v3, E5-

-2680v3, E5-2670v3, E5-2660v3, E5-

-2699v4, E5-2698v4, E5-2697v4,

-2697Av4, E5-2695v4, E5-2690v4, E5-

-2680v4, E5-2660v4, E5-2650v4, E5-

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Memory

Page 62

Standard and Maximum Memory

Pre Configured Models

Standard Memory

Maximum Memory Plus Optional Memory

Standard Memory Replaced with Optional Memory

E5-2690v3, E5-2650v3

32GB (2x16GB)

736GB (22x32GB, 2x16GB)

1536GB (24x64GB)

E5-2660v4

64GB (4x16GB)

704GB (20x32GB, 4x16GB)

3072GB (24x128GB)

E5-2650v4

32GB (2x16GB)

736GB (22x32GB, 2x16GB)

3072GB (24x128GB)

E5-2630v4, E5-2620v4

16GB (1x16GB)

752GB (23x32GB, 1x16GB)

3072GB (24x128GB)

E5-2620v3

16GB (1x16GB)

752GB (23x32GB, 1x16GB)

1536GB (24x64GB)

E5-2609v4

8GB (1x8GB)

744GB (23x32GB, 1x8GB)

3072GB (24x128GB)

E5-2609v3

8GB (1x8GB)

744GB (23x32GB, 1x8GB)

1536GB (24x64GB)

DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 128GB = 13,072MB

Capacity (Preconfigured Models)

• 4GB = 4,096MB

• 8GB = 8,192MB

• 16GB = 16,384MB

• 32GB = 32,768MB

• 64GB = 65,536MB

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Storage

Page 63

4 LFF hot-plug drive model

1-4

4 x LFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

12 LFF + 3 rear LFF hot-plug drive model

1-12

12 x LFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

25-27

3 x LFF SATA/SAS/SSD Hot Pluggable Rear Hard Drive Bays

12 LFF + 2 rear SFF hot-plug drive model

1-12

12 x LFF SATA/SAS/SDD Hot Pluggable Hard Drive Bays

25-26

2 x SFF SATA/SAS/SSD Hot Pluggable Rear Hard Drive Bays

8 SFF (+2 SFF) hot-plug drive model with Universal Media Bay

1-8

8 x SFF SATA/SAS/SDD Hot Pluggable Hard drive bays

1-2

2 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

16 SFF (+2 SFF) hot-plug drive model with Universal Media Bay

9-24

16 x SFF SATA/SAS/SDD Hot Pluggable Hard drive bays

1-2

2 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Storage

Page 64

24 SFF + rear 2 SFF hot-plug drive model

1-24

24 x SFF SATA/SAS/SDD Hot Pluggable Hard drive bays

25-26

2 x SFF SATA/SAS/SSD Hot Pluggable Rear Hard Drive Bays

NOTE: Drives behind the SAS expander will be labeled continuous, drives behind a controller will be numbered 1-8.

27.

NOTE: With a SAS Expander and rear drive support the 2SFF rear will be labeled 25 & 26, for 3LFF they will be numbered 25-

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Technical Specifications

Page 65

System Unit

Dimensions

SFF Drives: 3.44 x 17.54 x 26.75 in (8.73 x 44.55 x 67.94 cm)

LFF Drives: 3.44 x 17.54 x 28.75 in (8.73 x 44.55 x 73.02 cm)

Weight (approximate)

Minimum:

chassis with 1xSFF HDD

Riser installed)

32.6 lb (14.759 kg) Maximum:

Risers installed)

51.5 lb (23.6 kg)

Input Requirements

Rated Line Voltage

100 to 120 VAC

200 to 240 VAC

BTU Rating

Maximum

For 800W Power Supply: 3207 BTU/hr (at 100

(at 240 VAC) for China Only

For 500W Power Supply: 1979 BTU/hr (at 100

(at 240 VAC) for China Only

Power Supply Output

Rated Steady-State

For 1400W Power Supply: 1400W (at 240 VAC), 1400W (at 240 VAC)

For 800W Power Supply: 800W (at 100 VAC),

for China only

For 500W Power Supply: 500W (at 100 VAC),

for China only

Maximum Peak Power

For 1400W Power Supply: 1400W (at 200 to 240 1VAC), 1400W (at 240 VAC) input for China only

For 800W Power Supply: 800W (at 100 to 127

For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only

System Inlet Temperature

Standard Operating

10° to 35°C (50° to 95°F) at sea level with an

may be limited by the type and number of options

with a fan fault or above 30°C (86°F).

(Minimum - 8SFF

and 7 HDD blanks, 1x processor, 1x power supply (plus blank), 1x Flexible Smart Array, 1x

(Maximum - 12 LFF hard drives (No rear drives), 2x processors, 2x power supplies, 1x Flexible Smart Array, 2x

(per power supply)

Power

Support

VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr

VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr

800W (at 240 VAC), 800W (at 240 VAC) input

500W (at 240 VAC), 500W (at 240 VAC) input

VAC), 800W (at 200 to 240 1VAC), 800W (at 240 VAC) input for China only

altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change

installed. System performance during standard operating support may be reduced if operating

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Technical Specifications

Page 66

Extended Ambient

above 900 m (2953 ft) to a maximum of 3050 m

hardware configurations for this system are listed

tem performance may be reduced if operating

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

Operating

Minimum to be the higher (more moisture) of -

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by

m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and

and declared in accordance with ISO 9296 (ECMA 109).

Idle

LWAd

4.0 B Entry LFF

4.1 B Entry

4.2 B Base

5.7 B Base LFF

4.3 B Perf

LpAm

23 dBA Entry LFF

24 dBA Entry

24 dBA Base

For approved hardware configurations, the

Operating Support

supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of

1.0°C per every 175 m (1.8°F per every 574 ft)

(10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved

at the URL: http://www.hpe.com/servers/ashrae

Sys in the extended ambient operating range or with a fan fault.

(non-condensing)

declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74)

12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity.

the type and number of options installed. Maximum allowable altitude change rate is 457

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Technical Specifications

Page 67

39 dBA Base LFF

25 dBA Perf

Operating

LWAd

4.3 B Entry LFF

4.6 B Entry

4.8 B Base

5.9 B Base LFF

5.6 B Perf

LpAm

25 dBA Entry LFF

29 dBA Entry

30 dBA Base

31 dBA Base LFF

39 dBA Perf

NOTE: The Listed sound levels apply to standard shipping configurations

standard fan options.

Emissions Classification

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt

60950-1

NOTE: Product conformance to cited product specifications is based on

configurations. Additional options may result in increased sound levels.

HPE Dynamic Smart

Number of PCI links

Four

PCI link rate

4Gb/s

Storage protocol support

SATA

SAS/SATA peak data transfer rate

6Gb/s Number of SAS/SATA links

10 links

SAS/SATA connectivity

2x4 connectors; 2x1 connectors

Expander support

Drives supported (max)

Up to 10 Internal Drives

RAID support

0, 1, 10, 5 SATA

Software management

HPE SSA, SMH, SIM

Warranty

Server warranty

license

Not Supported Not Supported

HPE Smart Storage

Supported

(Entry LFF, Entry, Base, Base LFF and Performance models) additional options may result in increased sound levels. The Base LFF model leverages our High Efficiency Fans, other models are shipping with

Array B140i Controller

(EMC)

15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC

sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping

HPE Secure Encryption

HPE SmartCache License

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Technical Specifications

Page 68

Administrator

HPE Ethernet 1Gb

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX

Data Transfer Method

PCI Express, two lanes (x2)

Controller

BCM5719

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s per port, 40 Mb/s combined

10Base-T (Full-Duplex)

20 Mb/s per port, 80 Mb/s combined

100Base-TX (HalfDuplex)

100 Mb/s per port, 400 Mb/s combined

100Base-TX (Full-Duplex)

200 Mb/s per port, 800 Mb/s combined

1000Base-TX (Half and Full-Duplex)

1000 Mb/s per port, 4000 Mb/s combined

1000Base-TX (FullDuplex)

2000 Mb/s per port, 8000 Mb/s combined

Connector

Four RJ-45

Cable Support

10 Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000 Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-

End-of-life Management and

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and

http://www.hpe.com/recycle

4-port 331i Adapter

friendly Products

Recycling

and Approach

recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www.hpe.com/recycle

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Summary of Changes

Page 69

Date

Version History

Action

Description of Change

8-May-2017

From Version 29 to 30

Added

Support for ClearOS was added under Operating

Accelerators options.

Changed

HPE Unique Options section was revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

3-Apr-2017

From Version 28 to 29

Changed

Smart Buy models section was revised for the NA version only.

27-Mar-2017

From Version 27 to 28

Added

Added new Hard Drives and new HPE Networking option.

Changed

Base Configuration, HPE Unique Options, HPE

Storage Options were revised.

17-Feb-2017

From Version 26 to 27

Changed

HPE Memory section under Core Options was revised.

13-Feb-2017

From Version 25 to 26

Added

Added new HDD and SSD offering to HPE Drives

Changed

Processors and Memory under Standard Features

Processors, and HPE Memory were revised.

16-Dec-2016

From Version 24 to 25

Added

Availability note was added to the HPE Drives section.

Changed

Overview, Storage Software, and HPE Computation and Graphics Accelerators were revised.

28-Nov-2016

From Version 23 to 24

Added

Added new NVIDIA Tesla M10 and P100 cards new Virtualization and High offering. Added new LFF HDDs up to 10TB capacity now bring the DL380 max storage capacity to 150TB SAS. Added new Fiber Channel HBA’s up to 32Gb. Added new E5-2699Av4 processor.

Changed

Processors, Memory, Maximum Internal Storage, HPE Drives, HPE Computation and Graphics Accelerators, and HPE Storage Options were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

28-Oct-2016

From Version 22 to 23

Removed

Obsolete Hard Drives were removed from the QuickSpecs.

26-Sep-2016

From Version 21 to 22

Added

Added new NVIDIA Tesla M4/M40 GPUs and new 10TB LFF hard drives offering.

Changed

Memory, Maximum Internal Storage, HPE Computation and Graphics Accelerators, and HPE Storage Options were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

19-Aug-2016

From Version 20 to 21

Changed

Smart Buy models section was revised for the NA

Systems and Virtualization Software Support for ProLiant Servers and Optional Features sections.

Added new HPE Computation and Graphics

Computation and Graphics Accelerators, and HPE

section.

were revised.

Storage Software, HPE Unique Options, HPE

-End General Compute GPU

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Summary of Ch

anges

Page 70

version only.

15-Aug-2016

From Version 19 to 20

Added

Added new options to HPE Networking, HPE Infiniband, HPE Computation Accelerators, HPE Disk Backup, and HPE Storage Options.

Changed

HPE Unique Options was revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

8-Jul-2016

From Version 18 to 19

Changed

Smart Buy models section was revised for the NA version only.

6-Jun-2016

From Version 17 to 18

Added

Added new 25GbE networking options, OneView 3.0, and new NVIDIA Quadro GPU options.

Changed

Pre-configured Models, HPE Memory, HPE Drives, HPE Computation and Graphics Accelerators, HPE Disk Ba updated.

29-Apr-2016

From Version 16 to 17

Changed

E5-2600v4 Series Smart Buy Models table was updated in the NA version only.

1-Apr-2016

From Version 15 to 16

Changed

What’s New section was updated. Standard Features/M sections were revised.

31-Mar-2016

From Version 14 to 15

Added

Added new Smart Memory DDR4 2400MHz, Intel Xeon E5 Smart Array P840ar controller, new graphic options, new HPE Trusted Platform Modu HDD offering.

Changed

Embedded Management, Service and Support, Preconfigured Models, HPE Security, and Memory sections were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

16-Feb-2016

From Version 13 to 14

Added

New HDD offering was added to HPE Drives.

Changed

HPE Computation and Graphics Accelerators, HPE Data Center Racks, and HPE Power Distribution Units (PDUs) were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

17-Dec-2015

From Version 12 to 13

Changed

Smart Buy models section was revised in the NA version only.

1-Dec-2015

From Version 11 to 12

Added

New HDD offering was added to HPE Drives.

New options added to Graphics Options, HPE PCIe Workload Accelerator Options, and HPE Tape Backup.

Changed

On System Management Chipset, Maximum Internal Storage, Embedded Management, and Server utilities were revised.

Product images were updated.

Removed

Obsolete SKUs were removed from the QuickSpecs.

28-Sep-2015

From Version 10 to 11

Added

Added new 6Gb SATA Solid State Drives.

Added new HPE OneView management software.

Changed

Maximun Internal Storage was revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

and Graphics

ckup, and HPE Storage Options were

emory and HPE Memory

-2600v4 processor support, new Flexible

le (TPM) 2.0, new

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Summary of Ch

anges

Page 71

17-Aug-2015

From Version 9 to 10

Added

Added new Solid State Drives offering.

Added new graphic options.

Changed

What's New changed to: New support for NVMe PCIe SSDs New Graphic card options

Service and Support section was updated.

Maximun Internal Storage and Core Options were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

1-Jun-2015

From Version 8 to 9

Added

New larger capacity HDDs (up to 8TB LFF), Max capacity 120TB were added.

New higher capacity memory (64GB), Max capacity

1.5TB was added.

New Networking options were added.

Optional Software added to HPE Storage Controllers.

Changed

Updated max HDD and memory capacity due to new options added.

HPE SmartCache Software, HPE Disk Backup System, HPE Uninterruptible Power Systems (UPS) were updated.

30-Mar-2015

From Version 7 to 8

Added

New Hard Drives offering.

Optical Software added to HPE Storage Controllers.

Added new HPE Care Pack Services.

Added new HPE PCIe Workload Accelerator Options.

Changed

What’s New, Standard Features, Unique Options, Power Supplies, HPE Storage Storage Systems, and Technical Specifications were revised.

Removed

Removed obsolete HPE Care Pack Services.

17-Feb-2015

From Version 6 to 7

Added

Added Smart Buy Models to the NA version only.

9-Feb-2015

From Version 5 to 6

Added

What’s new section was added.

Added new HDD offering, new computational Graphics options, and new G4 UPS models.

Changed

HPE Drives, HPE Computation and Graphics Accelerators, HPE Tape Backup, HPE Disk Backup, HPE Rack Mount, Consoles, KVM Switches, Keyboards, and HPE Uninterruptible Power Systems (UPS) sections were revised.

1-Dec-2014

From Version 4 to 5

Changed

Changes made throughout the entire QuickSpecs.

13-Oct-2014

From Version 3 to 4

Changed

Corrected inconsistencies between Product Bulletin and Concentra versions.

13-Oct-2014

From Version 2 to 3

Added

6G SATA Enterprise Value G1 Solid State Drives were added to Core Option section.

Controllers, HPE Disk

and

QuickSpecs

HPE ProLiant DL380 Generation9 (Gen9)

Summary of Ch

anges

Page 72

HPE PCIe Workload Accelerator Options, HPE USB and SD options, and HPE Care Pack Services were added to the Additional Options section.

Changed

Standard Features, Optional Features, PreConfigured Models, Configuration Information Factory Integrated Models, Core Options, Additional Options, and Memory sections were revised.

19-Sep-2014

From Version 1 to 2

Changed

Changes were made throughout the QuickSpecs.

© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein shou be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

c04346247 - 15034 - Worldwide - V30 - 8-May-2017

countries.

HPE 852432-B21 Product Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Standard Features

Optional Features

Core Options

Additional Options

Memory

Storage

Technical Specifications

Summary of Changes

c04346247 - 15034 - Worldwide - V30 - 8-May-2017
