HPE 835265-421 Getting Started Guide

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Overview

Page 1

HPE ProLiant ML350 Generation9 (Gen9)

The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability, manageability,

Front View Rack Model (SFF)

Optional HDD cage Drive Cage Bays (Rack shown

drives)

Slim Height Drive Bay for Optional Slim Height

on Tower)

Systems Insight Display Bay for Optional SID (Rack models only)

Unit ID LED button

NIC Activity LED

Eight (8) SFF (Rack)/LFF (Tower) SAS/SATA HDD cage 2

Quick removal access panel

Media Drive Cage Bays – (Rack supports two half

Two (2) USB 2.0 connectors

Health LED

Power On /Standby button & system power LED button

Serial label pull tab

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

with blanks. Tower shown with 16 LFF Optional

height or one full height device; Tower supports one half height device)

SATA DVD-ROM or DVD RW Optical Drive (shown

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Overview

Page 2

Front View Tower Model (LFF)

Slim Height Drive Bay for Optional Slim Height SATA DVD-ROM or DVD RW Optical Drive

Unit ID LED button

NIC Activity LED

Optional HDD cage Drive Cage Bays (Rack shown

drives)

Serial label pull tab

Two (2) USB 2.0 connectors

Health LED

Power On /Standby button & system power LED button

Eight (8) SFF (Rack)/LFF (Tower) SAS/SATA HDD cage

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

with blanks. Tower shown with 16 LFF Optional

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Overview

Page 3

Rear View (Tower Model)

Power supply Power LED

HPE Flexible Slot 4 Power Supply (Optional 500w Power Supply shown)

Power supply Power LED

Power supply Power connection

HPE Flexible Slot 2 Power Supply (Optional 500w Power Supply shown)

Power supply Power LED

Unit ID LED

Padlock

get this Hardware security feature enabled.

Power supply Power connection

HPE Flexible Slot 3 Power Supply (Optional 500w Power Supply shown)

Power supply Power LED

Power supply Power connection

HPE Flexible Slot 1 Power Supply (Standard Entry Model - 500w Power Supply shown)

PCI Slots (Slots 1-4) Slot 1 and 3 can support Optional GPU

USB 3.0 Connectors (2) top & USB 2.0 Connectors (2) bottom

Embedded 4 x 1GbE Network Adapter

Serial Connector

PCI Slots (Slots 5-9) requires Optional second processor–Slot 6 and 8 can support Optional GPU

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Chassis mechanical feature only to support Padlock. NOTE: HPE do not offer padlock options or provide qualified part numbers. Customers will need to source from other 3rd party vendors to

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Overview

Page 4

Kensington Security Lock

feature enabled.

Dedicated iLO Connector

Video Connector

Internal View (Rack Model)

System fans: Three (3) fans are standard Optional Five (5) systems fans are shown.

Nine (9) PCIe expansion slots (8 PCIe Gen3 and 1 PCIe Gen2)

Optional HPE Flexible Smart Array or Smart HBA

Twenty four DIMM slots: DDR4 Registered

memory

Two (2) processors and heatsinks (Second Processor is Optional)

Optional HPE Smart Storage Battery is under the system fans

What's New

• New 12 TB SAS and SATA LFF HDD option offering, maximum internal storage capacity up to 288 TB

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Chassis mechanical feature only to support Kensington Security lock. NOTE: HPE do not offer Kensington security lock options or provide qualified part numbers. Customers will need to source from other 3rd party vendors to get this Hardware security

(RDIMM) or Load Reduced Registered (LRDIMM)

(not shown here)

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 5

NOTE:

Processor

One of the following depending on model

Model

CPU

Cores

L3 Cache

Power

QPI

DDR4 Hz

E5-2699v3

2.3GHz

45MB

145W

9.6GT/s

2133

E5-2698v3

2.3GHz

40MB

135W

9.6GT/s

2133

E5-2697v3

2.6GHz

35MB

145W

9.6GT/s

2133

E5-2695v3

2.3GHz

35MB

120W

9.6GT/s

2133

E5-2690v3

2.6GHz

30MB

135W

9.6GT/s

2133

E5-2683v3

2.0GHz

35MB

120W

9.6GT/s

2133

E5-2680v3

2.5GHz

30MB

120W

9.6GT/s

2133

E5-2670v3

2.3GHz

30MB

120W

9.6GT/s

2133

E5-2667v3

3.2GHz

20MB

135W

9.6GT/s

2133

E5-2660v3

2.6GHz

25MB

105W

9.6GT/s

2133

E5-2650v3

2.3GHz

25MB

105W

9.6GT/s

2133

E5-2650Lv3

1.8GHz

30MB

65W

9.6GT/s

2133

E5-2643v3

3.4GHz

20MB

135W

9.6GT/s

2133

E5-2640v3

2.6GHz

20MB

90W

8.0GT/s

1866

E5-2637v3

3.5GHz

15MB

135W

9.6GT/s

2133

E5-2630v3

2.4GHz

20MB

85W

8.0GT/s

1866

E5-2630Lv3

1.8GHz

20MB

55W

8.0GT/s

1866

E5-2623v3

3.0GHz

10MB

105W

8.0GT/s

1866

E5-2620v3

2.4GHz

15MB

85W

8.0GT/s

1866

E5-2609v3

1.9GHz

15MB

85W

6.4GT/s

1600

E5-2603v3

1.6GHz

15MB

85W

6.4GT/s

1600

E5-2699v4

2.2GHz

55MB

145W

9.6GT/s

2400

E5-2698v4

2.2GHz

50MB

135W

9.6GT/s

2400

E5-2697v4

2.3GHz

45MB

145W

9.6GT/s

2400

E5-2697Av4

2.6GHz

40MB

145W

9.6GT/s

2400

E5-2695v4

2.1GHz

45MB

120W

9.6GT/s

2400

E5-2690v4

2.6GHz

35MB

135W

9.6GT/s

2400

E5-2683v4

2.1GHz

40MB

120W

9.6GT/s

2400

E5-2680v4

2.4GHz

35MB

120W

9.6GT/s

2400

E5-2667v4

3.2GHz

25MB

135W

9.6GT/s

2400

E5-2660v4

2.0GHz

35MB

105W

9.6GT/s

2400

E5-2650v4

2.2GHz

30MB

105W

9.6GT/s

2400

E5-2650Lv4

1.7GHz

35MB

65W

9.6GT/s

2400

E5-2643v4

3.4GHz

20MB

135W

9.6GT/s

2400

E5-2640v4

2.4GHz

25MB

90W

8.0GT/s

2133

E5-2637v4

3.5GHz

15MB

135W

9.6GT/s

2400

E5-2630v4

2.2GHz

25MB

85W

8.0GT/s

2133

E5-2630Lv4

1.8GHz

25MB

55W

8.0GT/s

2133

E5-2623v4

2.6GHz

10MB

85W

8.0GT/s

2133

E5-2620v4

2.1GHz

20MB

85W

8.0GT/s

2133

E5-2609v4

1.7GHz

20MB

85W

6.4GT/s

1866

E5-2603v4

1.7GHz

15MB

85W

6.4GT/s

1866

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

frequency

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 6

Chipset

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

Intel® E5-2600v4 Processor Family

http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO (Firmware HPE iLO4 2.0 or later) 4GB NAND

NOTE:

the iLO QuickSpecs.

Memory One of the following depending on model

Type:

HPE SmartMemory

DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

NOTE:

DIMM Slots Available

(12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)

Maximum Capacity

1.5TB

(24 x 64GB LRDIMM)

Maximum Capacity (RDIMM)

768GB

24 x 32GB RDIMM

NOTE: Refer to the Memory section in this document for more memory support detail.

NOTE: The following shows the support with E5-2600v4 processors.

DIMM Slots Available

(12 DIMM slots per processor, 4 channels per processor, 3 DIMMs

Maximum Capacity (LRDIMM)

3TB

(24 x 128GB LRDIMM)

Maximum Capacity (RDIMM)

768GB

24 x 32GB RDIMM

NOTE: Refer to the Memory section in this document for more memory support detail.

NOTE:

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Network Controller

HPE 1Gb Ethernet 4-port 331i Adapter

Expansion Slots

Expansion

Slots #

Technology

Bus

Width

Connector

Width

Bus

Number

Form Factor

Notes

PCIe 3.0

Full-height, full-length

slot

For processor 2

PCIe 3.0

x16

Full-height, full-length

slot

For processor 2

PCIe 3.0

Full-height, full-length

slot

For processor 2

PCIe 3.0

x16

Full-height, full-length

For processor 2

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: For more information regarding Intel® chipsets, please see the following URL:

1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in

The following shows the support with E5-2600v3 processors.

(LRDIMM)

Type:

per channel)

Mixing of 2133 and 2400MHz memory is not supported.

slot

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 7

PCIe 2.0

x8 Full-height, half-

length slot

For processor 2

PCIe 3.0

Full-height, full-length

slot

For processor 1

PCIe 3.0

x16

Full-height, full-length

slot

For processor 1

PCIe 3.0

Full-height, full-length

slot

For processor 1

PCIe 3.0

x16

Full-height, full-length

slot

For processor 1

NOTE: Bus number - Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number.

NOTE:

PCIe 3.0 x8 (x4 speed); One PCIe 2.0 x8 (x4 speed).

Storage Controller One of the following depending on model

Entry Models

HPE Dynamic Smart Array B140i

Embedded SATA controller

Base Models

HPE Flexible Smart Array P440ar/2GB

Performance Models

HPE Flexible Smart Array P440ar/2GB

Internal Storage Devices

One of the following depending on m

Optical Drive

Optional SATA 9.5mm DVD-ROM Optical Drive

Optional SATA 9.5mm DVD RW Optical Drive

NOTE:

Hard Drive Bays

8 Hot plug SFF SAS/SATA HDD bays; upgradable to 48

8 Hot plug LFF SAS/SATA HDD Bays; upgradable to 24

replacement HDD blanks for their server.

Hard Drives

None ship standard

Maximum Internal Storage

One of the following depending on model

CAPACITY

CONFIGURATION

Hot Plug LFF SAS

288TB

24 x 12TB

Hot Plug LFF SATA

288TB

24 x 12TB

Hot Plug LFF SAS SSD

38.4TB

24 x 1.6TB

Hot Plug LFF SATA SSD

92.16TB

24 x 3.84TB

Hot Plug SFF SAS

96TB

48 x 2TB

Hot Plug SFF SATA

96TB

48 x 2TB

Hot Plug SFF SAS SSD

184.32TB

48 x 3.84TB

Hot Plug SFF SATA SSD

184.32TB

48 x 3.84TB

Hot Plug SFF NVMe PCIe SSD

7.2TB

6 x 1.2TB

Power Supply One of the following depending on model

HPE 500W Flex Slot Platinum Hot Plug Power Supply

NOTE:

HPE 800W Flex Slot Platinum Hot Plug Power Supply

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply

for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Nine total expansion slots. Three PCIe 3.0 x16 (x16 speed); One PCIe 3.0 x16 (x8 speed); Four

odel

Optical is optional in entry, base and performance BTO models.

NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF HDD Blank Kit or P/N 666986-B21: HPE LFF HDD Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require

The 500W Flex Slot PSU was not qualified or supported with the X4 RPS Enablement Kit.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 8

are certified for high-efficiency operation, allowing users to "right-size" a power supply for specific server System Fans One of the following depending on model

Non-redundant

Redundant

1P model

3 fans

6 fans

NOTE:

kit

Non-redundant

Redundant

2P model

4 fans

8 fans

NOTE: Refer to ML350 Gen9 User Guide for fan configuration rules.

Interfaces

Serial

1 Video

1 (rear)

Network RJ-45 (Ethernet)

HPE iLO Remote Management Network Port

1 Gb Dedicated SD Slot

1 (internal)

NOTE:

Micro-SD card into the Micro-SD slot while the server is powered.

USB 2.0 Ports

5 (2 front, 2 rear, 1 internal)

USB 3.0

3 (2 rear, 1 internal)

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server

Canonical Ubuntu

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

VMware

Citrix XenServer

ClearOS

NOTE:

cost. It is available via CTO preload, Intelligent Provisioning or via download. For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

page

Upgradeability

Upgradeable to 2 processors (up to 22 cores)

Up to 24 DIMM slots available for higher Memory capacity

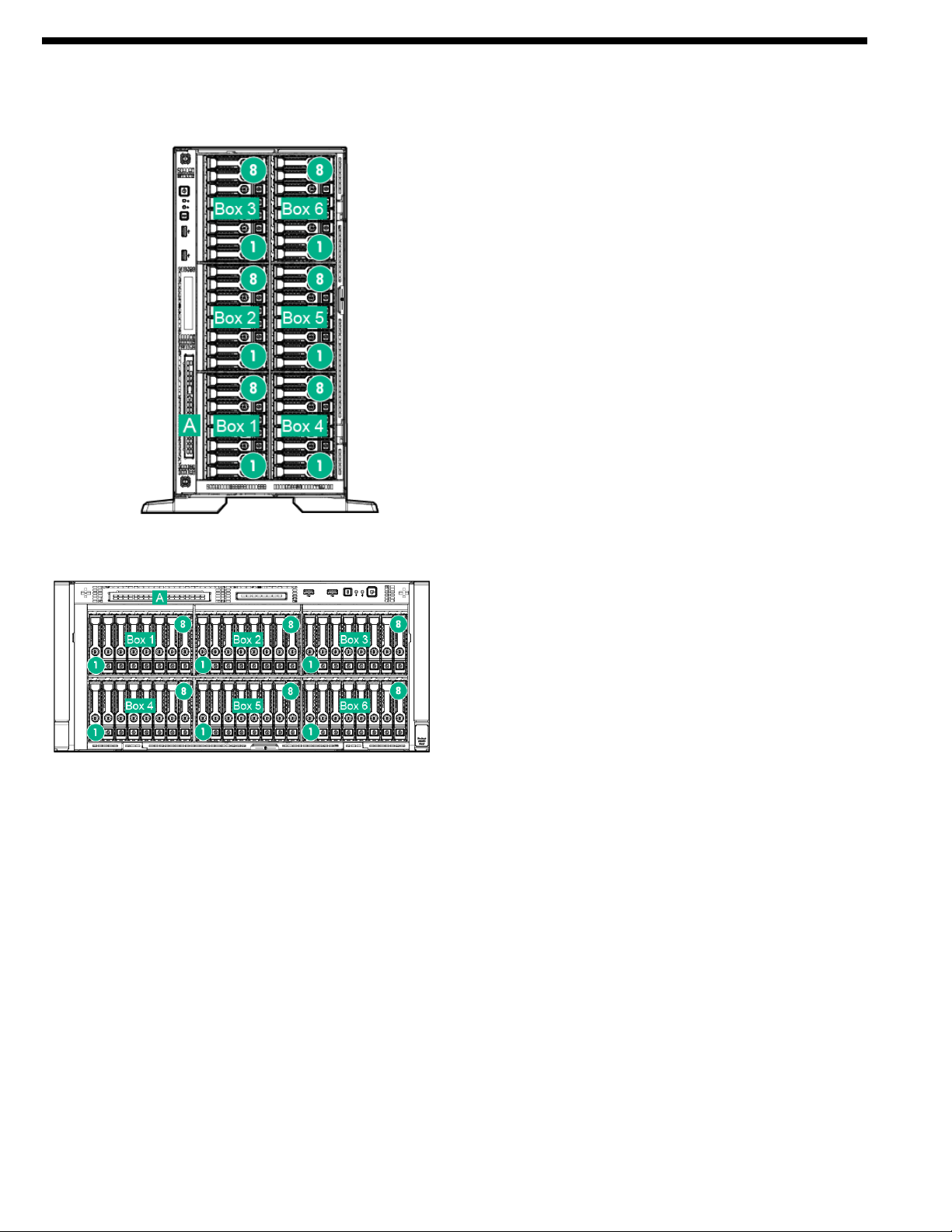

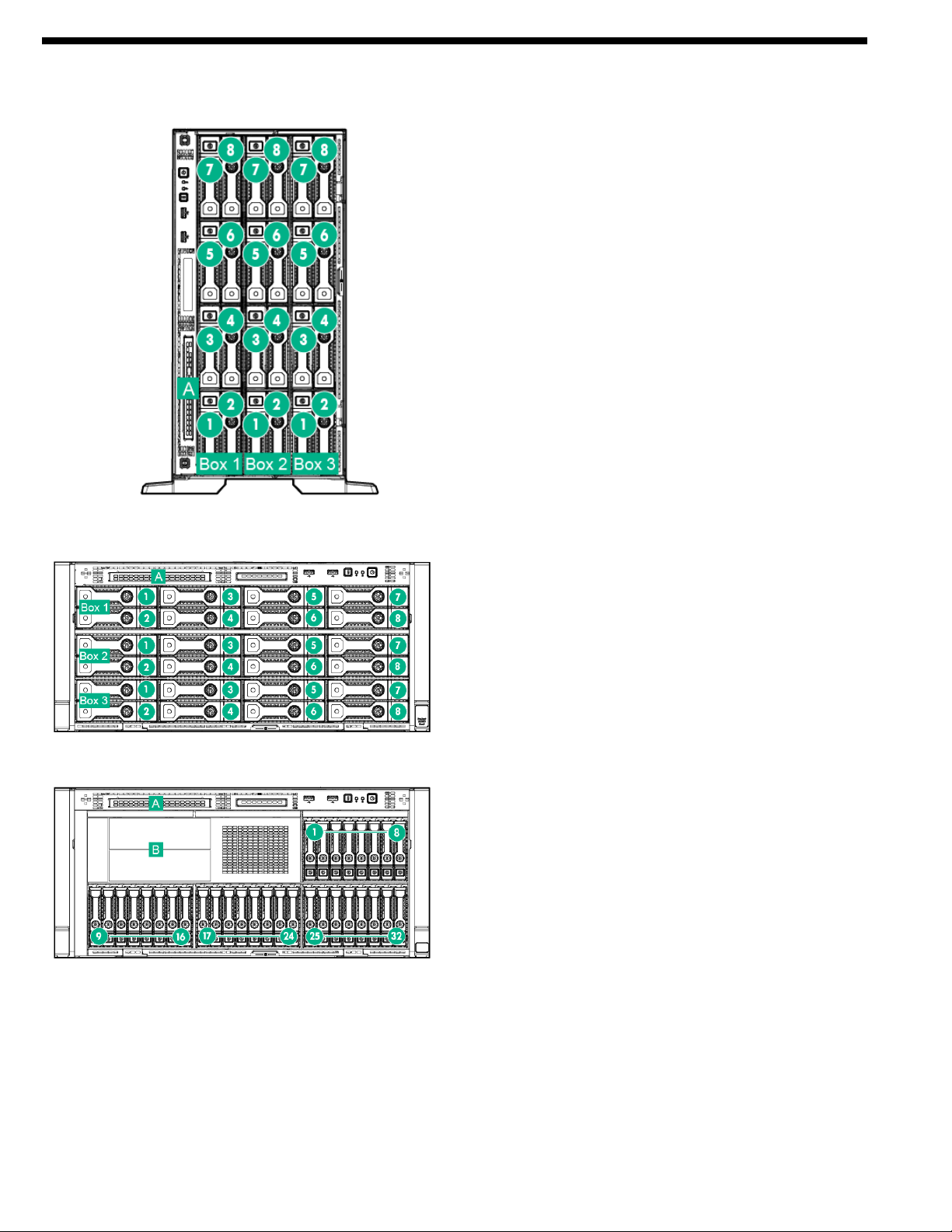

Up to 48 SFF Hard Drive Bays; Or 24 LFF Hard Drive Bays

Up to 6 SFF NVMe PCIe SSD drives

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor.

Power specifications and technical content for all HPE Server power supplies can be found at http://www.hp.com/go/proliant/powersupply.

Fan Redundancy is standard in performance model. ML350 Gen9 Redundant Fan option

(725878-B21) consists of four system fans and two PCIe air baffles.

The Micro-SD slot is not a hot-pluggable device. Customers should not attempt to plug a

ClearOS allows you to build a fully functional server that is just right for you at no upfront

NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hpe.com/info/ossupport and our driver download

NOTE: Total 4, 6, 8, 10, 12, 14, 16, 18, 20 & 22 cores.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 9

NOTE: The ML350 Gen9 6SFF Express Bay kit MUST be installed and it takes up one SFF drive cage space. For detail, refer to Express Bay kit and NVMe SSD section.

8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion

4 redundant hot-plug power supplies

Redundant Fan

Optional optical drive (up to 1)

NOTE:

Optional SFF or LFF media bay kit to support RDX or tape device(s)

Tower to rack conversion

Optional System Insight Display

NOTE:

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

Novell Certified

IPMI 2.0, SMASH CLP, DCMI 1.0 compliant

Microsoft® Logo certifications

USB 3.0 Support

SMBIOS 2.7.1

ASHRAE A3/A4

Energy Star

Graphics

16 bit color: maximum resolution of 1920 x 1200

Integrated Matrox G200 video standard

32 bit color: maximum resolution of 1280 x 1024

• 256 MB DDR3

HPE Server UEFI/Legacy ROM

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Support of 9.5mm DVD-RW or DVD-ROM.

Rack model only.

• 16 MB Flash

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot

• Operating system specific functionality

• Support for > 2.2 TB (using GPT) boot drives

• USB 3.0 Stack

• Embedded UEFI Shell

• Mass Configuration Deployment Tool using RESTful API for iLO 4

• PXE boot support for IPv6 networks

• Boot support for option cards that only support a UEFI option ROM

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 10

• Network Stack configurations

the factory for your HPE ProLiant Gen9 Server.

Form Factor

Tower or Rack (5U)

Embedded Management

HPE Integrated

(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and

UEFI

Configure and boot your servers securely with industry standard Unified

http://www.hpe.com/servers/uefi

RESTful API

RESTful API for iLO 4 is Redfish 1.0 conformance for simplified server

http://www.hpe.com/info/restfulapi

Intelligent

Hassle free server and OS provisioning for 1 or few servers with Intelligent

http://www.hpe.com/servers/intelligentprovisioning

Embedded

http://www.hpe.com/info/insightonline/explore

Server utilitie s

Smart Update

Optimize firmware and driver updates with Smart Update solutions including

http://www.hpe.com/servers/smartupdatemanager

HPE Systems

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE

seamless firmware updates. Learn more at http://www.hpe.com/servers/hpsim.

Scripting Tool

Provision 1 to many servers using your own scripts to discover and deploy them

http://www.hpe.com/servers/powershell

RESTful

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in

Lights-Out

remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

Extensible Firmware Interface (UEFI). Learn more at

management such as configuration and maintenance tasks based on modern

Provisioning

industry standards. Learn more at

Provisioning. Learn more at

The Hewlett Packard Enterprise embedded remote support, when used with

Remote Support

Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at

Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at

Insight Manager (HPE SIM)

Kit and Windows PowerShell

Integrity Servers, and also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and

with Scripting Tool Kit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at

http://www.hpe.com/servers/proliant/stk

RESTful Interface tool is a scripting tool to provision using RESTful API for iLO

Interface Tool

4 to discover and deploy servers at scale. Learn more at

http://www.hpe.com/info/resttool.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Standard Features

Page 11

HPE iLO Mobile

Enables the ability to access, deploy, and manage your server anytime from

m select smartphones and mobile devices. For additional information

http://www.hpe.com/info/ilo/mobileapp

HPE Insight

HPE Insight Online, available at no additional cost as part of your Hewlett Packard

http://www.hpe.com/info/insightonline/explore

NOTE:

from on: .

Security

Power-on password

Setup password

Serial interface control

Power switch security

Administrator's password

UEFI

TPM 1.2

NOTE:

TPM 2.0

NOTE:

before using the TPM 2.0. Refer to Additional Options section in this

document for detail.

Security Front Bezel

NOTE: Refer to Additional Options section in this document for detail.

Chassis mechanical support of padlock and Kensington Security lock (located at system rear)

NOTE:

numbers. Customers will need to source from other 3rd party vendors to get security features enabled.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide

software and initial setup is available for 90

at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Application

anywhere fro please visit:

Online

Enterprise warranty or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at

The Service Pack for ProLiant (which includes SUM) can be downloaded

http://www.hpe.com/servers/spp/download. More information can be found

http://www.hpe.com/info/smartupdate, http://www.hpe.com/servers/spp and http://www.hpe.com/servers/hpsum

Refer to Additional Options section in this document for detail.

Need to upgrade BIOS

HPE do not offer padlock or Kensington security lock options or provide qualified part

network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HPE replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available

these Hardware

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Optional Features

Page 12

Embedded

iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise,

http://www.hpe.com/servers/iloadvanced

Server

HPE Insight Control

HPE Insight Control, lets you deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hpe.com/info/insightcontrol

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale framework and monitoring of nodes at http://www.hpe.com/info/cmu

Rack and Power

HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions for existing or new IT data centers. HPE Rack and Power infrastructure solutions power protection and management, performance optimized data centers (PODs) you are looking for to help secure your long react to changes in the industry. They deliver efficient, easy deploy and provision infrastructure from entry t Enterprise system access. Learn more at

High Performance

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters

ordering. http://www.hp.com/go/clusters.

HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise licensed and supported

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server as

http://www.hp.com/techservers/clusters/ucp/index.html

HPC Interconnects

NOTE:

speed interconnects are fully supported

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Management

Infrastructure

for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at

management

that includes software for the centralized provisioning, management

and infrastructure. Learn more

– rack infrastructure,

– are the foundation

-term IT success. These products are designed to help you

-to-use capabilities to manage, monitor,

o enterprise. As an industry leader, Hewlett Packard

is uniquely positioned to address the key concerns of power, cooling, cable management and

HPE Rack and Power Infrastructure.

Clusters

optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPEC Server. A Cluster Platform Configurator simplifies

suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hp.com/go/cmu.

part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within a Hewlett Packard Enterprise cluster. Flexible, validated solutions can be defined with the help of configuration tools.

High Performance Computing (HPC) interconnect technologies are available for this server

under the HPE Cluster Platform product portfolio. These highby Hewlett Packard Enterprise when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPEC Clusters with InfiniBand Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Optional Features

Page 13

than Hewlett Packard Enterprise storage software. Our storage software helps you reduce costs, simplify

inside your servers into a virtual storage array. Add StoreVirtual VSA to multiple servers, manage

http://www.hp.com/go/storage/software

ClearOS

HPE and ClearCenter will help you lower the cost of building on-premise solutions without sacrificing

premise, and an Application Marketplace with over 100 apps and growing. Whether you’re

NOTE: For more information on ClearOS, please visit http://www.hpe.com/servers/clearos.

One Config Simple

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

storage infrastructure, protect vital assets and respond faster to business opportunities. Storage software that gets the job done:

• Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, Hewlett Packard Enterprise data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.

• Data Archive and Migration Software

Hewlett Packard Enterprise storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.

• Storage Resource Management Software (SRM)

Hewlett Packard Enterprise storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.

• Data Replication Software

Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.

• Storage Device Management Software

Maximize your investment in Hewlett Packard Enterprise storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.

• HPE StoreVirtual VSA

Make the move to virtualized storage with HPE StoreVirtual VSA. Transform unused capacity

it as a single pool of shared storage capacity, and scale it to match your evolving needs. HPE ProLiant Gen9 servers include a 3-year limited license for HPE software-defined storage at no extra cost. You have the option to install free 1TB-capacity StoreVirtual VSA software during server setup within Intelligent Provisioning. More information, instructional videos, and free management software are available at

http://www.hpe.com/storage/tryVSA.

NOTE: For more information about Storage Software including QuickSpecs, please

see:

security and ease of use. HPE ProLiant servers with ClearOS give you a simple, secure, and affordable operating system with an intuitive web based graphical user interface that provides a cloud-like experience on-

starting out or scaling, you decide what applications you need and pay as you grow.

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial

(SCE)

configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an

Authorized Partner for assistance. http://ocs.ext.hpe.com/

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Service and Support

Page 14

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new server, giving y

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77% consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected

Recommended Support

Standard: HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combines three years proactive reporting and ad problem. This service also includes collaborative software support for Independent Software Vendors (ISVs),

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3

Optimized HPE Proactive Care* with 6 hour call

HPE Proactive Care gives custome Hewlett Packard Enterprise, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice. This service combi proactive reporting and advice with our highest level of hardware support 24x7, six hour hardware call makes this level of coverage ava service also includes collaborative software support for Independent Software Vendors (ISVs),

VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Parts and Materials

Hewlett Packard Enterprise will provide Hewlett Packard Enterprise-supported replacement parts and materials necessary to materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitatio product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Dis replaced by Hewlett Packard Enterprise due to malfunction.

Related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981

HPE Inst

Provides for the installation and startup of Hewlett Packard Enterprise technology including BladeSystems, C HPE Virtual Conn InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

ou full entitlement to the support for need for your IT and business.

reduction in down time, near 100%2 diagnostic accuracy and a single

-failure alerts,

1- IDC 2 – HP CSC reports 2014 - 2015

vice with our 24x7 coverage, four hour hardware response time when there is a

(Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

-8855ENW.pdf

-to-repair commitment, three year Support Service

rs an enhanced call experience. When your products are connected to

-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who ilable as a standard service offering for your most valuable servers. This

to Hewlett Packard Enterprise support.

products are connected to

nes three years’

– Hewlett Packard Enterprise

(Red Hat,

maintain the covered hardware product in operating condition, including parts and

ns as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical

k or eligible SSD/Flash Drives

networking options to assist you in bringing your new hardware into operation in a timely and

-9356EN.pdf

allation and Startup Service

-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, ect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Service and Support

Page 15

HPE Technology Services Support Credits

Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technolo investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise Hewlett Packard Enterprise experts, access support resources or collaborate with peers.

Learn more

The Hewlett quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center ar Packard Enterprise warranty, HPE Support Service or Hewlett Packard Enterprise contractual support agreement.

*HPE Support Center Mobile App is subject to local availability.

For more information: http://www.hpe.com/services

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

while proactively responding

business products. Submit support cases online, chat with

http://www.hpe.com/support/hpesc

Packard Enterprise Support Center Mobile App* allows you to resolve issues yourself or

e available at no additional cost with a Hewlett

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Pre-configured Models

Page 16

configured models ship with the configurations below. Options can be selected from the Core or Additional options section

Entry Models

Base Models

[SKU Number]

765819-xx1

835262-xx1

765820-xx1

835263-xx1

Model Name

HPE ProLiant ML350

Gen9

HPE ProLiant ML350

Server

HPE ProLiant ML350

Processor

Intel® Xeon® E5-

Number of Processors

One

Memory

8GB (1x8GB

2133 MHz)

8GB (1x8GB

2400 MHz)

16GB (1x16GB

2133 MHz)

16GB (1x16GB

2400 MHz)

Network Controller

HPE Embedded 1Gb Ethernet 4-port 331i Adapter

Storage Controller

HPE Dynamic Smart Array B140i

HPE Smart Array P440ar/2G Controller

Hard Drive

None ship standard; includes 6 LFF hard drive

blanks

None ship standard; includes 6 SFF hard drive

blanks

Internal Storage

8 LFF HDD Bays (upgradable to 24)

8 Hot plug SFF SAS/SATA HDD Bays;

Optical Drive Bay

Optional LFF Media Cage Kit (726561-B21)

Optional SFF Media Cage Kit (726545-B21)

Optical Drive

Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)

PCI-Express Slots

9 PCIe slots

Power Supply

(1) HPE 500W Flex Slot Platinum Power Supply

Fans

3 hot swap fans, non-redundant

Management

iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight

Control (optional), HPE OneView (optional)

Energy Star

Meets Energy Star

requirements

Meets Energy Star

requirements

Form Factor

Tower (5U)

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day

response

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

1. Preof this QuickSpecs.

2. Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.

3. If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.

4. Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Hard Drive Blank Kit or P/N 666986-B21: HPE LFF Hard Drive Blank Kit. NOTE: All pre-configured servers ship with a country-specific AC power cord in Tower models; while in the Rack model, a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A) is included. This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

web page.

E5-2609v3 8GB-

R B140i 8LFF 500W

PS Entry Tower Server

2609v3

Registered DIMMs,

Gen9 E5-2609v4 1P

8GB-R B140i 8LFF

500W PS Entry Server

2609v4

Registered DIMMs,

Gen9 E5-2620v3 16GB-R P440ar 8SFF 500W PS Base Tower

2620v3

Registered DIMMs,

upgradeable to 48

Gen9 E5-2620v4 16GB-R P440ar 8SFF 500W PS Base Server

2620v4

Registered DIMMs,

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Pre-configured Models

Page 17

Performance Rack Models

Performance Models

[SKU Number]

765821-xx1

835264-xx1

765822-xx1

835265-xx1

Model Name

HPE ProLiant ML350

Gen9 2xE5-2630v3 2P

Server

HPE ProLiant ML350

Rack Server

HPE ProLiant ML350

Server

HPE ProLiant ML350

Processor

Intel® Xeon® E5-

Number of Processors

Two

Memory

32GB (2x16GB

2133 MHz)

32GB (2x16GB

2400 MHz)

32GB (2x16GB

2133 MHz)

32GB (2x16GB

2400 MHz)

Network Controller

HPE Embedded 1Gb Ethernet 4-port 331i Adapter

Storage Controller

HPE Smart Array P440ar/2G Controller

Hard Drive

None ship standard; includes 6 SFF hard drive blanks

Internal Storage

8 Hot plug SFF SAS/SATA HDD Bays; upgradeable to 48

Optical Drive Bay

Optional SFF Media Cage Kit (726545-B21)

Optical Drive

Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)

PCI-Express Slots

9 PCIe slots

Power Supply

(2) HPE 800W Flex Slot Platinum Power Supply

Fans

8 hot plug fans, redundant

Management

iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight

Control (optional), HPE OneView (optional)

Energy Star

Meets Energy Star requirements

Accessories

Rack Kit included

Form Factor

Rack (5U) HPE Easy Install Rails with CMA

Tower (5U)

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day

response

Country Code Key

xx1 = 001

xx1 = 011

AU xx1 = 031

xx1 = 291

Japan

xx1 = 371

AP xx1 = 421

xx1 = AA1

PRC

xx1 = B21

Worldwide

NOTE:

Enterprise

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Gen9 2xE5-2630v4 2P

32GB-R P440ar 8SFF

2x800W PS ES Rack

2630v3

Registered DIMMs,

32GB-R P440ar 8SFF

2x800W PS Perf ES

2630v4

Registered DIMMs,

Gen9 2xE5-2650v3 2P

32GB-R P440ar 8SFF 2x800W PS ES Tower

2650v3

Registered DIMMs,

Gen9 E5-2650v4 2P

32GB-R P440ar 8SFF

2x800W PS Perf Server

2650v4

Registered DIMMs,

Not all models are available in all regions. Check with your local country Hewlett Packard

offices for availability.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Configuration Information - Factory Integrated Models

Page 18

Step 1: Base Configuration (choose one of the following configurable models)

[Chassis]

HPE ProLiant ML350 Gen9

order Rack Server

HPE ProLiant ML350 Gen9

order Tower Server

HPE ProLiant ML350 Gen9

order Tower Server

SKU Number

754534-B21

754536-B21

754537-B21

Processor

2 (optional) x HPE Smart Socket Guide

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory

Storage Controller

HPE Dynamic Smart Array B140i

PCIe

9 Standard (8 FH/FL, 1 FH/HL)

Drive Cage

8SFF Hot Plug

8LFF Hot Plug

Network Controller

HPE Embedded 1Gb Ethernet 4-port 331i Adapter

Fans

3 hot swap fans, non-redundant

Management

iLO Management (standard), Intelligent Provisioning (standard)

USB

2 front, 2 internal, 4 rear

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and

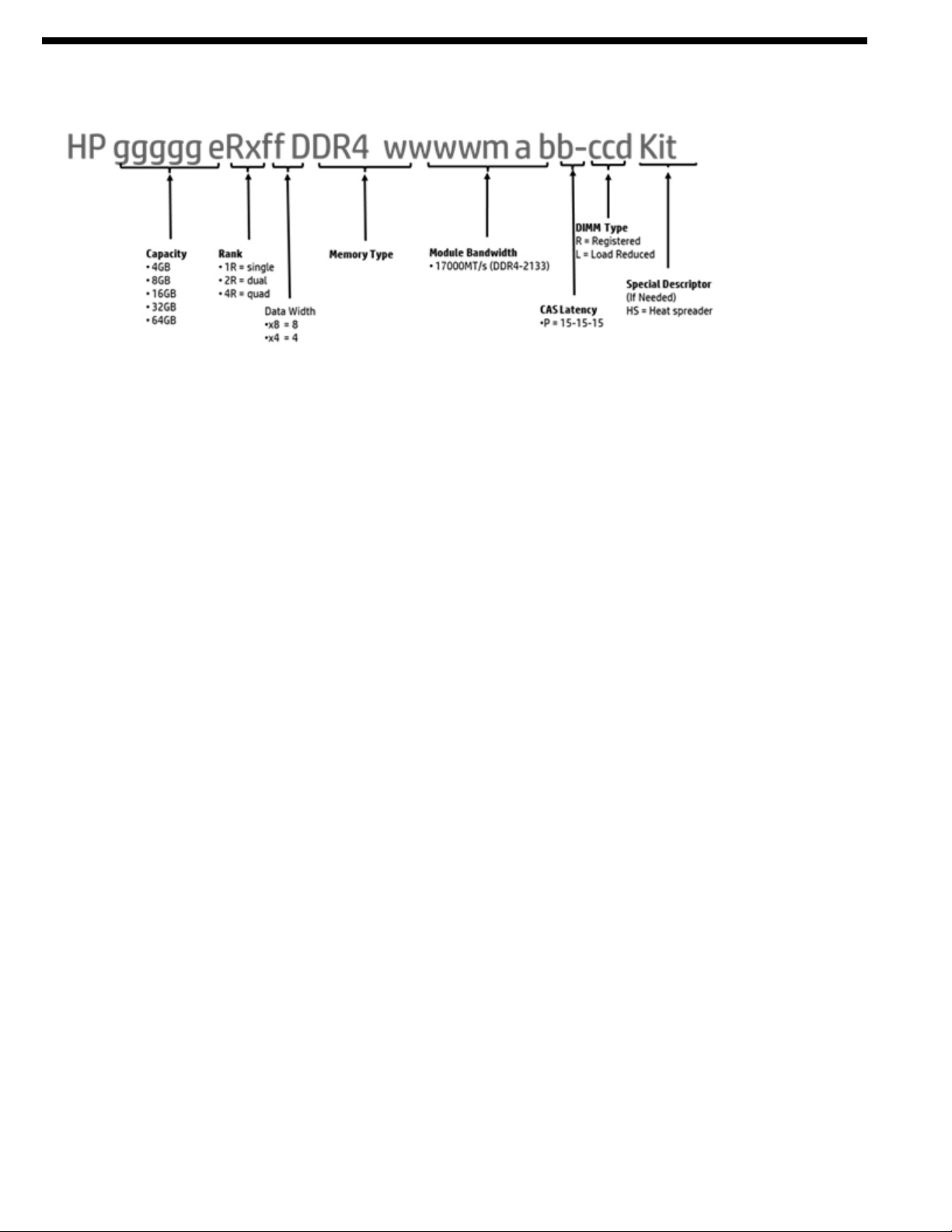

6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and

v# (not yet designated) = version number.

HPE memory options from previous generation servers are not qualified or warranted with Hewlett Packard Enterprise

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Hot Plug 8SFF Configure-to-

Hot Plug 8LFF Configure-to-

Select one or two processors from Core Options-Processor section below,

• If one processor is desired, select one xxxxxx-L21

• If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

• Up to 2 processors supported. Mixing different processor models is not supported.

•

type of DIMMs installed.

For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node,

Select one or more memory from Core Options-Memory section below,

• UDIMM, RDIMM, and LRDIMM are all distinct memory technologies and cannot be mixed within a server.

•

Gen9 systems. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.

• If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors

all DIMM slots are available.

• Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz,

1866MHz or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hpe.com/go/ddr4config.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Configuration Information - Factory Integrated Models

Page 19

and/or experience operational issues with your server.

Step 3: Choose Additional Factory Integratable Options

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Select one or more power supplies from Core Options-Power Supplies section below:

• Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the

HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.

• Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage,

output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message

Select a standup NIC adapter from Core Options-Networking section below,

• Please see the QuickSpecs for Technical Specifications and additional

information: http://www.hpe.com/go/ProLiantNICs

• These options are upgradeable and can be changed from the original configuration after the server is shipped.

• For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

Select one or more drives from Core Options-HPE Drives section below:

• The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane)

should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

• Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

• The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) and

Large Form Factor (LFF 3.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove."

Select one or more graphics adapter from Additional Options section below.

• Please see the HPE Power Advisor for estimated power consumption of your individual system configuration prior to

installing GPUs. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor

• This section may contain FIO options, please see HPE Computation & Graphics Accelerators section below.

Select one or more Unique options from Core Options section below.

• This section may contain FIO options, please see the Unique options section below.

• FIO indicates that this option is only available as a factory installable option.

Select one or more Fan Kits from Core Options section below.

• This section may contain FIO options, please see HPE Cooling Options section below.

• FIO indicates that this option is only available as a factory installable option.

Select one or more Storage options from Additional Options section below.

• The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be

needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22

• This section may contain FIO options, please see HPE Storage Controllers section below.

• FIO indicates that this option is only available as a factory installable option.

Select one type of rail kit from Additional Options section below.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Configuration Information - Factory Integrated Models

Page 20

installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

• Please take a moment to review the installation documentation that comes with the server to help you with the

installation of your Gen9 server.

• To assist in the installation of the server into the rack, an optional installation tool is available by contacting your local

services representative (p/n 695539-001).

• See Hewlett Packard Enterprise Rack Options in Additional Options section of this QuickSpecs for more rack kit

choices.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 21

information.

HPE Unique

HP ML350 Gen9 8LFF Hot Plug Drive Cage Kit

726547-B21

HP ML350 Gen9 8SFF Hard Drive Cage Kit

to 48SFF Drive Bays.

778157-B21

HP ML350 Gen9 Redundant Fan Kit

support fan redundancy.

725878-B21

HP ML350 Gen9 LFF Media Cage Kit

Height tape storage/ Disk-Based Backup device. (RDX)

726561-B21

HP ML350 Gen9 SFF Media Cage Kit

Height/ 1*Full-Height tape storage/ Disk-Based Backup device (RDX).

726545-B21

HP ML350 Gen9 Flexible Smart Array Controller Mini-SAS Cable Kit

765652-B21

HP ML350 Gen9 Smart Array Cable Kit

765650-B21

HP ML350 Gen9 Host Bus Adapter Mini-SAS Cable Kit

765648-B21

HP ML350 Gen9 Mini SAS Cable FIO Kit

765654-B21

HP ML350 Gen9 Graphic Card Support Kit

NOTE: Required to support graphic accelerators except for K2200.

726565-B21

HP ML350 Gen9 Tower to Rack Conversion Kit

SID blank etc).

726567-B21

HP ML350 Gen9 System Insight Display Kit

726563-B21

HP Security Bezel Kit

NOTE:

660584-B21

HP 12Gb SAS Expander Card for ML350 Gen9

769635-B21

HPE ML350 Gen9 2nd Expander FIO Kit

769637-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional

Options

NOTE: Add’l 8LFF Hard Drive Cage/backplane assembly, allowing for up to

24FF Drive Bays.

NOTE: Add’l 8SFF Hard Drive Cage/Backplane assembly, allowing for up

NOTE: This kit consists of four add’l system fans and two PCIe air baffles to

NOTE: Cage for converting LFF drive bays to a media device. Supports 1*Half-

NOTE: Cage for converting SFF drive bays to a media device. Supports 2*Half-

NOTE: Mini-SAS Cable Kit for Flexible Smart Array Controller (AROC).

NOTE: Mini-SAS Cable Kit for stand-up P-series Smart Array Card.

NOTE: Mini-SAS Cable kit for Host Bus Adapter.

NOTE: Required to support B140i embedded SATA controller NOTE: FIO indicates factory integrated option for CTO order only.

NOTE: For converting a tower model to a rack model. It is consist of a 5U rail kit,

cable management arm (CMA) and rack enablement kit (rack ear, rack handle,

NOTE: For rack model only.

For ML350 Rack model only.

NOTE: The SAS Expander card supports 24 drives. The SAS Expander card must be used in conjunction with an HPE Smart Array P840 or P440 controller, or an H240 Host Bus Adapter. The SAS Expander card cannot be connected to H240ar or P440ar Flexible Smart Array Controller cards.

NOTE: The SAS Expander kit includes two cables to connect from the Smart Array controller or HBA to the SAS Expander and the other to connect from the Expander to the HDD backplane.

NOTE: It DOES NOT support tape storage/ Disk-Based Backup device (RDX).

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 22

HP ML350 Gen9 X4 RPS Enablement Kit

802988-B21

HP ML350 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit

726551-B21

HPE Processors

E5-2600v4 series Processors

HPE ML350 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit

801233-B21

HPE ML350 Gen9 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor Kit

801233-L21

HPE ML350 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W)

801234-B21

HPE ML350 Gen9 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor Kit

801234-L21

HPE ML350 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) Processor Kit

801250-B21

HPE ML350 Gen9 Intel® Xeon® E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit

801250-L21

HPE ML350 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) Processor Kit

801251-B21

HPE ML350 Gen9 Intel® Xeon® E5-2630Lv4 (1.8GHz/10-core/25MB/55W) FIO Processor Kit

801251-L21

HPE ML350 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W)

801232-B21

HPE ML350 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit

801232-L21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: 2nd Expander FIO Kit (769637-B21) is for factory integrated only and support for 25-48 HDDs, CANNOT be selected when the 1st Expander Kit (769635-B21) is not in order. NOTE: When 769637-B21 (2nd Expander FIO Kit) is selected, then 2nd CPU (B21 processor) and (725870-B21) X4 RPS Enablement FIO Kit and P840 controller must be ordered.

NOTE: Can't support tape storage/ Disk-Based Backup device (RDX).

NOTE: ML350 Gen9 supports max. four Power Supply slots. If Power supply

selection qty is more than two, then X4 RPS Enablement Kit must be selected to support the 3rd and 4th Power Supply Units. Minimum Power Supply qty. selection to configure with X4 RPS Enablement Kit is three. NOTE: And this option is not supported with 720478-B21 (HPE 500W FS Plat Ht Plg Pwr Supply Kit). NOTE: If hard drive cage selection qty. is more than three, this X4 RPS Enablement Kit must be selected - to get proper qty. of HDD backplane power connectors. NOTE: If DW GPU card selection qty. is more than two, this X4 RPS Enablement Kit MUST be selected - in order to get proper qty. of GPU external power connectors.

NOTE: Support for SFF chassis SKU only. Maximum installation of NVMe express bay in ML350 Gen9 is one - installation limited to Box 1 or Box 4 for optimized cooling, which supports up to 6 SFF NVMe PCIe SSDs. NOTE: One express bay bridge card is included in the enablement kit, with installation limited to PCIe slot 3, 6 or 8. If slot 6 or 8 is selected, a 2nd processor must be installed. NOTE: For NVMe PCIe SSD selection, refer to drive section in this document.

Processor Kit

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 23

HPE ML350 Gen9 Intel® Xeon® E5-2643v4 (3.4GHz/6-core/20MB/135W) Processor Kit

801255-B21

HPE ML350 Gen9 Intel® Xeon® E5-2643v4 (3.4GHz/6-core/20MB/135W) FIO Processor Kit

801255-L21

HPE ML350 Gen9 Intel® Xeon® E5-2637v4 (3.5GHz/4-core/15MB/135W)

801256-B21

HPE ML350 Gen9 Intel® Xeon® E5-2637v4 (3.5GHz/4-core/15MB/135W) FIO Processor Kit

801256-L21

HPE ML350 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) Processor Kit

801258-B21

HPE ML350 Gen9 Intel® Xeon® E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO

801258-L21

HPE ML350 Gen9 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit

801225-B21

HPE ML350 Gen9 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit

801225-L21

HPE ML350 Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W)

801226-B21

HPE ML350 Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

801226-L21

HPE ML350 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor Kit

801228-B21

HPE ML350 Gen9 Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit

801228-L21

HPE ML350 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor Kit

801229-B21

HPE ML350 Gen9 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit

801229-L21

HPE ML350 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W)

801230-B21

HPE ML350 Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

801230-L21

HPE ML350 Gen9 Intel® Xeon® E5-2697v4 (2.3GHz/18-core/45MB/145W) Processor Kit

801252-B21

HPE ML350 Gen9 Intel® Xeon® E5-2697v4 (2.3GHz/18-core/45MB/145W) FIO

801252-L21

HPE ML350 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit

801253-B21

HPE ML350 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

801253-L21

HPE ML350 Gen9 Intel® Xeon® E5-2667v4 (3.2GHz/8-core/25MB/135W) Processor Kit

801254-B21

HPE ML350 Gen9 Intel® Xeon® E5-2667v4 (3.2GHz/8-core/25MB/135W) FIO Processor Kit

801254-L21

HPE ML350 Gen9 Intel® Xeon® E5-2683v4 (2.1GHz/16-core/40MB/120W) Processor Kit

801257-B21

HPE ML350 Gen9 Intel® Xeon® E5-2683v4 (2.1GHz/16-core/40MB/120W) FIO Processor Kit

801257-L21

HPE ML350 Gen9 Intel® Xeon® E5-2699v4 (2.2GHz/22-core/55MB/145W) Processor Kit

801259-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Processor Kit

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 24

HPE ML350 Gen9 Intel® Xeon® E5-2699v4 (2.2GHz/22-core/55MB/145W) FIO Processor Kit

801259-L21

HPE ML350 Gen9 Intel® Xeon® E5-2698v4 (2.2GHz/20-core/50MB/135W) Processor Kit

801271-B21

HPE ML350 Gen9 Intel® Xeon® E5-2698v4 (2.2GHz/20-core/50MB/135W) FIO

801271-L21

HPE ML350 Gen9 Intel® Xeon® E5-2697Av4 (2.6GHz/16-core/40MB/145W) Processor Kit

839989-B21

HPE ML350 Gen9 Intel® Xeon® E5-2697Av4 (2.6GHz/16-core/40MB/145W) FIO Processor Kit

839989-L21

HPE ML350 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W)

801231-B21

HPE ML350 Gen9 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor Kit

801231-L21

HP ML350 Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit

726661-B21

HP ML350 Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) FIO Processor Kit

726661-L21

HP ML350 Gen9 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit

726664-B21

HP ML350 Gen9 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) FIO Processor Kit

726664-L21

HP ML350 Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit

726651-B21

HP ML350 Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) FIO Processor Kit

726651-L21

HP ML350 Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit

726654-B21

HP ML350 Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) FIO Processor Kit

726654-L21

HP ML350 Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

726658-B21

HP ML350 Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) FIO Processor Kit

726658-L21

HP ML350 Gen9 Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) Processor Kit

726671-B21

HP ML350 Gen9 Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) FIO Processor Kit

726671-L21

HP ML350 Gen9 Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) Processor Kit

779834-B21

HP ML350 Gen9 Intel® Xeon® E5-2623v3 (3GHz/4-core/10MB/105W) FIO Processor Kit

779834-L21

HP ML350 Gen9 Intel® Xeon® E5-2637v3 (3.5GHz/4-core/15MB/135W) Processor Kit

726686-B21

HP ML350 Gen9 Intel® Xeon® E5-2637v3 (3.5GHz/4-core/15MB/135W) FIO Processor Kit

726686-L21

HP ML350 Gen9 Intel® Xeon® E5-2690v3 (2.6GHz/12-core/30MB/135W) Processor Kit

726636-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Processor Kit

E5-2600v3 series Processors

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 25

HP ML350 Gen9 Intel® Xeon® E5-2690v3 (2.6GHz/12-core/30MB/135W) FIO Processor Kit

726636-L21

HP ML350 Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) Processor Kit

726639-B21

HP ML350 Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) FIO

726639-L21

HP ML350 Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) Processor Kit

726642-B21

HP ML350 Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) FIO Processor Kit

726642-L21

HP ML350 Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W)

726645-B21

HP ML350 Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) FIO Processor Kit

726645-L21

HP ML350 Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit

726648-B21

HP ML350 Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) FIO

726648-L21

HP ML350 Gen9 Intel® Xeon® E5-2650Lv3 (1.8GHz/12-core/30MB/65W) Processor Kit

726668-B21

HP ML350 Gen9 Intel® Xeon® E5-2650Lv3 (1.8GHz/12-core/30MB/65W) FIO Processor Kit

726668-L21

HP ML350 Gen9 Intel® Xeon® E5-2697v3 (2.6GHz/14-core/35MB/145W) Processor Kit

726674-B21

HP ML350 Gen9 Intel® Xeon® E5-2697v3 (2.6GHz/14-core/35MB/145W) FIO Processor Kit

726674-L21

HP ML350 Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W) Processor Kit

726677-B21

HP ML350 Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W) FIO

726677-L21

HP ML350 Gen9 Intel® Xeon® E5-2667v3 (3.2GHz/8-core/20MB/135W) Processor Kit

726680-B21

HP ML350 Gen9 Intel® Xeon® E5-2667v3 (3.2GHz/8-core/20MB/135W) FIO Processor Kit

726680-L21

HP ML350 Gen9 Intel® Xeon® E5-2643v3 (3.4GHz/6-core/20MB/135W)

726683-B21

HP ML350 Gen9 Intel® Xeon® E5-2643v3 (3.4GHz/6-core/20MB/135W) FIO Processor Kit

726683-L21

HP ML350 Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W) Processor Kit

765794-B21

HP ML350 Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W) FIO Processor Kit

765794-L21

HP ML350 Gen9 Intel® Xeon® E5-2699v3 (2.3GHz/18-core/45MB/145W) Processor Kit

781828-B21

HP ML350 Gen9 Intel® Xeon® E5-2699v3 (2.3GHz/18-core/45MB/145W) FIO Processor Kit

781828-L21

HP ML350 Gen9 Intel® Xeon® E5-2698v3 (2.3GHz/16-core/40MB/135W) Processor Kit

781830-B21

HP ML350 Gen9 Intel® Xeon® E5-2698v3 (2.3GHz/16-core/40MB/135W) FIO Processor Kit

781830-L21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Processor Kit

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 26

HPE Memory

Registered DIMMs (RDIMMs) for E5-2600v3 Series

HP 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726717-B21

HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HP 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

759934-B21

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

HP 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

728629-B21

Load Reduced DIMMs (LRDIMMs) for E5-2600v3 Series

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726720-B21

HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced

726722-B21

HP 64GB (1x64GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726724-B21

Registered DIMMs (RDIMMs) for E5-2600v4 Series

HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory

805347-B21

HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21

HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered

836220-B21

Load Reduced DIMMs (LRDIMMs) for E5-2600v4 Series

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805353-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805358-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit

809208-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Depending on Processor selected this memory will run at 1600, 1866 or 2133MHz. NOTE: Mixing of DIMM types is not supported. NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported.

Memory Kit

NOTE: Depending on Processor selected this memory will run at 1600, 1866 or 2133MHz. NOTE: Mixing of DIMM types is not supported. NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported.

NOTE: The following memory is supported by the E5-2600v4 series Processor only.

Kit

Memory Kit

NOTE: Depending on Processor selected this memory will run at 1866, 2133 or 2400MHz. NOTE: Mixing of DIMM types is not supported. NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported.

NOTE: The following memory is supported by the E5-2600v4 series Processor only.

NOTE: Depending on Processor selected this memory will run at 1866, 2133 or 2400MHz. NOTE: Mixing of DIMM types is not supported. NOTE: Mixing of 2133 and 2400MHz DIMMs is not supported.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 27

HPE Optical Drives

HP 9.5mm SATA DVD-ROM JackBlack Gen9 Optical Drive

726536-B21

HP 9.5mm SATA DVD-RW JackBlack G9 Optical Drive

726537-B21

HPE Drives

NOTE: For a complete list of the drive, controller and cable options please check

5-4154ENW&cc=us&lc=en

12G SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) SC 3yr Wty HDD

765424-B21

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) SCC 3yr Wty HDD

737261-B21

12G SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HPE 12TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

881779-B21

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

857644-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

861590-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

819201-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861754-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846514-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861756-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872487-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872487-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872485-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872485-B21

HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846524-B21

6G SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

881785-B21

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

857648-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD

861594-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

819203-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861750-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

846510-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD

861750-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872491-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

the compatibility matrix: https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 28

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware

872491-B21

HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

861693-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware

872489-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD

872489-B21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD

861691-B21

6G SATA Hot Plug LFF (3.5-inch) Mixed Use Solid State Drives

HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

875480-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872350-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872346-B21

12G SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

881457-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870759-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870765-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

12G SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765464-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware

832514-B21

6G SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

12G SAS Hot Plug SFF (2.5-inch) Read Intensive Solid State Drives

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

HDD

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 29

HPE 7.68TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

870144-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872394-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

875330-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872392-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875326-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872390-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875313-B21

HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875311-B21

12G SAS Hot Plug SFF (2.5-inch) Write Intensive Solid State Drives

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

873357-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873355-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

873351-B21

12G SAS Hot Plug LFF (3.5-inch) Mixed Use Solid State Drives

HPE 800GB SAS 12G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

872378-B21

12G SAS Hot Plug SFF (2.5-inch) Mixed Use Solid State Drives

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873367-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872386-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873365-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872382-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873363-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872376-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

873359-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872374-B21

6G SATA Hot Plug WI-3 SFF (2.5-inch) SC Solid State Drives

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872355-B21

6G SATA Hot Plug SFF (2.5-inch) Mixed Use Solid State Drives

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877788-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Firmware SSD

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 30

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed

875478-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872352-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed

877782-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875474-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872348-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877776-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875470-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872344-B21

HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

880295-B21

HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875483-B21

6G SATA Hot Plug LFF (3.5-inch) Mixed Use Solid State Drives

HPE 1.92TB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed

877790-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877784-B21

HPE 960GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

875476-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

875472-B21

Mixed Use - 6G SATA - M.2 - Solid State Drives

HPE 960GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875492-B21

HPE 480GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875490-B21

HPE 240GB SATA 6G Mixed Use M.2 2280 3yr Wty Digitally Signed Firmware SSD

875488-B21

6G SATA Hot Plug LFF (3.5-inch) SC Read Intensive Solid State Drives

HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877760-B21

HPE 960GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877754-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD

877748-B21

6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877764-B21

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868830-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877758-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Firmware SSD

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 31

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

868826-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875513-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

877752-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868822-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875511-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877746-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868818-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875509-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

877740-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868814-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

875503-B21

Read Intensive - 6G SATA - M.2 - Solid State Drives

HPE 960GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875500-B21

HPE 480GB SATA 6G Read Intensive M.2 2280 3yr Wty Digitally Signed Firmware SSD

875498-B21

HPE NVMe PCIe Read Intensive SFF (2.5 inch) Solid State Drives

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875591-B21

HPE 960GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875589-B21

HPE 480GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875587-B21

NOTE: ML350 Gen9 6SFF Express Bay Enablement Kit (726551-B21) is required to support these drives.

NOTE: HPE has qualified the NVMe drive portfolio using the Operating System inbox drivers, full detail on the HPE Solid State Drive QuickSpecs.

HPE NVMe PCIe Mixed Use SSDs

HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875597-B21

HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875595-B21

HPE 400GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

875593-B21

NOTE: ML350 Gen9 6SFF Express Bay Enablement Kit (726551-B21) is required to support these drives.

NOTE: HPE has qualified the NVMe drive portfolio using the Operating System

HPE Solid State Drive QuickSpecs.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Firmware SSD

inbox drivers, full detail on the

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 32

M.2 SSD

HPE Universal SATA HHHL 3yr Wty M.2 Kit

878783-B21

NOTE: M.2 SSD ML-DL Enablmt Kit can be used to build RAID 0, 1 by using

can support RAID 0.

NOTE: M.2 SSD ML-DL Enablmt Kit CANNOT support RAID setting when AROC

used when AROC is ordered.

Hard Drive Blank Kits

HPE Large Form Factor Hard Drive Blank Kit

666986-B21

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

Hard Drive Kits

HP ML350 Gen9 SFF Media Cage Kit

726545-B21

HP ML350 Gen9 8LFF Hot Plug Drive Cage Kit

726547-B21

HP ML350 Gen9 LFF Media Cage Kit

726561-B21

HP ML350 Gen9 8SFF Hard Drive Cage Kit

778157-B21

HP ML350 Gen9 NVMe 6 Solid State Drive Express Bay Enablement Kit

726551-B21

NOTE: The ML350 Gen9 6SFF Express Bay kit is consist of one x6 SFF NVMe

HPE Networking

1 Gigabit Ethernet adapters

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

HP Ethernet 1Gb 2-port 332T Adapter

615732-B21

HP Ethernet 1Gb 4-port 366T Adapter

811546-B21

10 Gigabit Ethernet adapters

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HP Ethernet 10Gb 2-port 530T Adapter

656596-B21

HP Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HP Ethernet 10Gb 2-port 561T Adapter

716591-B21

HP Ethernet 10Gb 2-port 546SFP+ Adapter

779793-B21

HP Ethernet 10Gb 2-port 557SFP+ Adapter

788995-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21

25 Gigabit Ethernet adapters

HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter

817753-B21

HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter

817762-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

B140i controller.

- When HPE 120GB or 340GB M.2 SSD ML-DL Dual Enablmt Kit is ordered, it can support RAID 0, 1.

- When HPE 120GB or 340GB M.2 SSD ML-DL Sngl Enablmt Kit is ordered, it

card (P440ar or H240ar) is selected. Embedded B140i controller CANNOT be

drive cage assembly, one Express Bay Bridge card, etc.

NOTE: The ML350 Gen9 ships with 4x1Gb ports Embedded. NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic

environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 33

HPE

HP InfiniBand FDR 2-port 545QSFP Adapter

702211-B21

HPE Power Supplies

HPE Flex Slot Platinum Hot-plug Power supplies

HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit

720478-B21

HPE 800W Flex Slot Platinum Hot Plug Power Supply Kit

720479-B21

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply Kit

720620-B21

HPE 800W Flex Slot -48VDC Hot Plug Power Supply Kit

720480-B21

HPE 800W Flex Slot Titanium Hot Plug Power Supply Kit

720482-B21

HPE 800W Flex Slot Universal Hot Plug Power Supply Kit

720484-B21

HP ML350 Gen9 X4 RPS Enablement Kit

If Power supply selection qty is more than two, then X4 RPS Enablement

802988-B21

HPE Computation and Graphics Accelerator

HP ML350 Gen9 Graphic Card Support Kit

computation or graphics accelerator except for K2200 or M2000.

726565-B21

NVIDIA Tesla K40C 12GB Computational Accelerator

753960-B21

HP AMD FirePro W7100 Accelerator Kit

Graphic Card Support Kit (726565-B21).

J0H10A

HPE NVIDIA Quadro M4000 Graphics Accelerator

M9X58A

HP NVIDIA Quadro M5000 Graphics Accelerator

M9R60A

HPE NVIDIA Quadro M2000 Graphics Accelerator

P8Y48A

HPE NVIDIA Quadro P2000 Graphics Accelerator

Q0V77A

HPE NVIDIA Quadro P4000 Graphics Accelerator

Q0V78A

NOTE:

NOTE: Only supported with E5-2600v4 processors.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

InfiniBand

NOTE:

Kit must be selected (minimum Power Supply qty. selection to configure with X4 RPS Enablement Kit is three). NOTE: And this option is not supported with 720478-B21 (HPE 500W FS Plat Ht Plg Pwr Supply Kit). NOTE: If hard drive cage selection qty. is more than three, this X4 RPS Enablement Kit must be selected - to get proper qty. of HDD backplane power connectors. NOTE: If DW GPU card selection qty. is more than two, this X4 RPS Enablement Kit MUST be selected - in order to get proper qty. of GPU external power

connectors.

NOTE: One Graphic Card Support Kit- 726565-B21 is required for each

NOTE: A maximum of four of these cards can be selected. Each requires one

Graphic Card Support Kit (726565-B21). NOTE: If this SKU is selected then minimum quantity = 2 of 800W Power Supply Kit (725870-B21) must be selected.

NOTE: A maximum of four of these cards can be selected. Each requires one

Graphic Card Support Kit (726565-B21).

NOTE: Only supported with E5-2600v4 processors.

NOTE: A maximum of four of these cards can be selected. Each requires one

Graphic Card Support Kit (726565-B21). NOTE: Only supported with E5-2600v4 processors.

A maximum of four of these cards can be selected.

NOTE: If more than two Double Wide Graphics options are selected, then HPE ML350 Gen9 X4 RPS Enablement Kit must be selected in order to get the third and fourth supporting power connectors to supply power to the GPU cards.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Core Options

Page 34

NOTE: Only the above listed Graphics cards are HPE standard supported options in this server.

HPE Option

HP ML350 Gen9 Redundant Fan Kit

NOTE:

725878-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: The NVIDIA Quadro modules are supported only on 64-bit versions of Linux and Windows operating systems as well as on Virtual Machine client operating systems. The supported bare metal operating systems are RHEL6, SLES 11 and Windows Server 2012 R2. NOTE: Please see the HPE Power Advisor for estimated power consumption of your individual system configuration prior to installing GPUs. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor.

NOTE: All GPU Accelerators are restricted to equal less than 1024GB for system HOST memory.

Cooling

This kit consists of four system fans and two PCIe air baffles.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 35

information.

HPE Insight

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Management Media Kit

C6N31A

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

Embedded

HPE iLO Advanced

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU

BD505A

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU

E6U59ABE

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU

512485-B21

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU

E6U64ABE

HPE Converged

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView Physical Media Kit LTU

E5Y37A

NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use

parts or service technician dispatch.

High Performance

HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU

licenses and support with a single activation key. Each license is for one node

BD476A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Software

Management

Infrastructure Management Software

HPE Insight Control without additional charge. NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of

this software (USB flash drive).

NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hpe.com/info/hpeoneview NOTE: HPE OneView 3.1 Advanced simplifies Lifecycle Operations with Proactive Insight and Automated Updates. NOTE: HPE OneView delivers proactive insights into the health of your entire infrastructure. An intuitive dashboard provides an at-a-glance view of the status of your servers, storage pools and enclosures. Color-coded icons clearly show which systems are functioning properly and which ones need attention. NOTE: Integrated remote support automatically logs hardware failures with Hewlett Packard Enterprise support to speed problem resolution and accelerate

Clusters

NOTE: These part numbers can be used to purchase one certificate for multiple

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 36

(server). Customer will receive a printed end user license agreement and license

receive a support agreement.

HPE Insight Cluster Management Utility Media

BD477A

HPE PCIe

Options

Light Endurance (LE) PCIe Workload Accelerators

HPE 5.2TB FH/HL Light Endurance (LE) PCIe Workload Accelerator

775672-B21

HP Security Bezel Kit

NOTE:

660584-B21

HP Trusted Platform Module Option

B21) is the TPM 1.2

r platform. These artifacts

retained. Misplacing or losing the key could result in data loss.

488069-B21

HP Trusted Platform Module 2.0 Kit

https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04939549

745823-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will

Workload Accelerator

HPE Security

Rack model only.

NOTE: The HPE Trusted Platform Module Option (488069version. Compatible server platforms include Gen8 and Gen9 servers. NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module. NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the serve can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, go to: https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04939549. NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.

NOTE: The TPM key is unique to every TPM deployed server and must be

NOTE: HPE Trusted Platform Module 2.0 Option works with Gen9 servers with

UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants. NOTE: HPE Gen9 servers purchased earlier may need the latest firmware update to be compatible with the TPM 2.0 Option. NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module. NOTE: ML350 Gen9 supports both TPM 1.2 (488069-B21) and TPM 2.0 (745823-B21). However, once the TPM version 1.2 is installed on the system board, it can no longer be upgraded to TPM version 2.0. NOTE: A new TPM (1.2 or 2.0) can only be installed on a Gen9 server if there is no TPM already installed. Once a TPM is installed with the security rivet, it is not designed to be removed. This means that if a customer already has a TPM

1.2 module riveted down on their Gen9 server, they cannot remove it and change it to a TPM 2.0 module.

NOTE: For more information about TPM, go to:

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 37

HPE Storage

SAS Controllers

HPE Flexible Smart Array Controllers

HP Smart Array P440ar/2GB FBWC 12Gb 2-ports Int SAS Controller

726736-B21

HP Smart Array P440ar/2GB FBWC 12Gb 2-ports Int FIO SAS Controller

749974-B21

HPE Smart Array Controllers

HP Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller

Provides support for up to 8 internal SAS/SATA drives, consumes 1 PCIe

726821-B21

HP Smart Array P440/4GB FBWC 12Gb 1-port Int FIO SAS Controller

761872-B21

HP Smart Array P840/4GB FBWC 12Gb 2-ports Int SAS Controller

726897-B21

HP Smart Array P840/4GB FBWC 12Gb 2-ports Int FIO SAS Controller

NOTE:

761874-B21

HP Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller

726825-B21

HP Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

726903-B21

HPE Smart Host Bus Adapters

HP H240ar 12Gb 2-ports Int Smart Host Bus Adapter

PCIe slot.

726757-B21

HP H240ar 12Gb 2-ports Int FIO Smart Host Bus Adapter

749976-B21

HP H240 12Gb 2-ports Int Smart Host Bus Adapter

726907-B21

HP H240 12Gb 2-ports Int FIO Smart Host Bus Adapter

NOTE: FIO indicates factory integrated option via CTO.

761873-B21

HP H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

Optional Upgrades

HP 12Gb SAS Expander Card for ML350 Gen9

769635-B21

HP ML350 Gen9 2nd Expander Card

described in

above item), a 2nd processor kit, ML350 Gen9 x4 RPS enablement kit

811216-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Controllers

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a

PCIe slot.

NOTE: Includes the HPE Smart Storage Battery.

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a

PCIe slot.

NOTE: Includes the HPE Smart Storage Battery. NOTE: FIO indicates factory integrated option via CTO.

NOTE:

slot.

NOTE: Includes the HPE Smart Storage Battery. NOTE: FIO indicates factory integrated option via CTO.

NOTE: Includes the HPE Smart Storage Battery.

FIO indicates factory integrated option via CTO.

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a

PCIe slot.

NOTE: FIO indicates factory integrated option via CTO.

NOTE: The SAS Expander card supports 24 drives. The SAS Expander card

must be used in conjunction with an HPE Smart Array P440 or P840 controller, or an H240 Host Bus Adapter. The SAS Expander card cannot be connected to H240ar or P440ar Flexible Smart Array Controller (AROC) cards. The SAS Expander kit includes two cables to connect from the Smart Array controller or HBA to the SAS Expander and the other to connect from the Expander to the HDD backplane.

NOTE: It DOES NOT support tape storage/ Disk-Based Backup device (RDX).

NOTE: The ML350 Gen9 2nd Expander Card must be used in conjunction with

ML350 Gen9 SAS Expander kit (769635-B21, see config. guideline

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 38

(802988-B21) and P840 controller. This configuration can support maximum

HPE 96W Smart Storage Battery 145mm Cbl for DL/ML/SL Servers

P01366-B21

NOTE: New part number P01366-B21 to replace the older part 727258-B21.

HPE SmartCache No Media 24x7 Technical Support 1-server LTU

D7S26A

HPE SmartCache No Media 24x7 Technical Support Flexible LTU

D7S27A

HPE SmartCache No Media 24x7 Technical Support E-LTU

D7S27AAE

HPE Cable Options

HP ML350 Gen9 Flexible Smart Array Controller Mini-SAS Cable Kit

765652-B21

HP ML350 Gen9 Smart Array Cable Kit

765650-B21

HP ML350 Gen9 Host Bus Adapter Mini-SAS Cable Kit

765648-B21

HP ML350 Gen9 Mini SAS Cable FIO Kit

765654-B21

Tape Drives

HPE StoreEver LTO-4 Ultrium 1760 SAS External Tape Drive

EH920B

HPE StoreEver LTO-4 Ultrium 1760 SAS Internal WW Tape Drive

EH919B

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver LTO-5 Ultrium 3000 SAS Internal Tape Drive

EH957B

HPE StoreEver LTO-5 Ultrium 3000 SAS Tape Drive in a 1U Rack Mount Kit

EJ014B

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver LTO-6 Ultrium 6250 Internal Tape Drive

EH969A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 Fibre Channel Tape Autoloader

C0H19A

HPE StoreEver LTO-6 Ultrium 6250 Tape Drive in a 1U Rack Mount Kit

C0L99A

HPE StoreEver Mini-SAS High Density to 4-lane Mini-SAS External Fanout 2m Cable

K2R09A

HPE StoreEver Mini-SAS High Density to 4-lane Mini-SAS External Fanout 4m Cable

K2R10A

HPE StoreEver LTO-7 Ultrium 15000 Internal Tape Drive

BB873A

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE LTO-8 Ultrium 30750 Int Tape Drive

BC022A

HPE Tape Storage Systems HPE StoreEver MSL6480

HPE StoreEver MSL6480 Scaleable Expansion Module

Technical Specifications and additional information.

QU626A

HPE StoreEver MSL6480 Scalable Base Module

QU625A

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE StoreEver MSL4048 0-drive Tape Library

AK381A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

48 drives in SFF chassis system. NOTE: This kit DOES NOT support tape storage or disk-based backup devices (RDX) either.

NOTE: Mini-SAS Cable Kit for Flexible Smart Array (AROC) Controller.

NOTE: Mini-SAS Cable Kit for stand-up P-series Smart Array Card.

NOTE: Mini-SAS Cable kit for Host Bus Adapter.

HPE Tape Backup

NOTE: Required to support B140i embedded SATA controller. NOTE: FIO indicates factory integrated option for CTO order.

NOTE: For the complete range of tape drives, autoloaders, libraries and media

see: http://www.hp.com/go/tape. For hardware and software compatibility of Hewlett Packard Enterprise tape backup products see: http://www.hp.com/storage/SPOCK and http://www.hp.com/go/ebs.

NOTE: Please see the HPE StoreEver MSL6480 Tape Library QuickSpecs for

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 39

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 40

HPE Disk Backup

HPE RDX Removable Disk Backup Systems USB

HPE RDX500 USB3.0 Internal Disk Backup System

B7B64A

HPE RDX1000 USB3.0 Internal Disk Backup System

B7B67A

HPE RDX 2TB USB3.0 Internal Disk Backup System

E7X52A

HP RDX+ 500GB External Backup System

B7B66B

HP RDX+ 1TB External Backup System

B7B69B

HP RDX 2TB USB3.0 External Disk Backup System

E7X53B

HPE RDX+ External Docking System

C8S07B

HPE RDX USB 3.0 Internal Docking Station

C8S06A

HPE RDX 3TB USB 3.0 Internal Disk Backup System

P9L71A

HPE RDX+ 3TB USB 3.0 External Disk Backup System

P9L72A

NOTE:

and software compatibility of HPE disk backup products see: http://www.hp.com/storage/SPOCK.

HPE Storage

NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed

compatibility information please see:

Emulex Fibre Channel HBAs

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

HPE StoreFabric SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE StoreFabric SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

HPE StoreFabric SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE StoreFabric SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

QLogic Fibre Channel HBAs

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

HPE StoreFabric 84Q 4-port 8Gb Fibre Channel Host Bus Adapter

P9D91A

HPE StoreFabric SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE StoreFabric SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE StoreFabric SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter

P9M75A

HPE StoreFabric SN1600Q 32Gb Dual Port Fibre Channel Host Bus Adapter

P9M76A

Converged Network Adapter

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE StoreFabric CN1200E 10Gb Converged Network Adapter

E7Y06A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A

HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter

N3U51A

HPE Advanced Series Racks

HPE 11648 1075mm Pallet Universal Rack

H6J87A

HPE 11648 1075mm Shock Universal Rack

H6J88A

HPE 11642 1075mm Pallet Universal Rack

H6J65A

HPE 11642 1075mm Shock Universal Rack

H6J66A

HPE 11642 1200mm Pallet Universal Rack

H6J67A

HPE 11642 1200mm Shock Universal Rack

H6J68A

HPE 11636 1075mm Pallet Universal Rack

H6J77A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

For the complete range of RDX drives and media see: http://www.hp.com/go/rdx. For hardware

Options

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html.

HPE Data Center Racks

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 41

HPE 11636 1075mm Shock Universal Rack

H6J78A

HPE 11622 G2 1075mm Pallet Universal Rack

H6J83A

HPE 11622 G2 1075mm Shock Universal Rack

H6J84A

HPE 11614 1075mm Shock Universal Rack

H6J82A

on additional racks options and rack specifications.

HPE Enterprise Series Racks

HPE 647 1075mm Pallet Intelligent Series Rack

BW911A

HPE 647 1075mm Shock Intelligent Series Rack

BW912A

HPE 647 1200mm Pallet Intelligent Series Rack

BW913A

HPE 647 1200mm Shock Intelligent Series Rack

BW914A

HPE 642 1075mm Pallet Intelligent Series Rack

BW903A

HPE 642 1075mm Shock Intelligent Series Rack

BW904A

HPE 642 1200mm Pallet Intelligent Series Rack

BW907A

HPE 642 1200mm Shock Intelligent Series Rack

BW908A

HPE 636 1075mm Pallet Intelligent Series Rack

BW895A

HPE 636 1075mm Shock Intelligent Series Rack

BW896A

HPE 842 1075mm Pallet Intelligent Series Rack

BW917A

HPE 842 1075mm Shock Intelligent Series Rack

BW918A

on additional racks options and rack specifications.

HPE Power

HPE Basic Power Distribution Units (PDU)

HPE Basic Modular 4.9kVA/L6-30P 24A/208V Outlets (4) C19/Horizontal NA/JP Core Only PDU

252663-D74

HPE Basic Modular 8.3kVA/CS8265C 40A/208V Outlets (4) C19/Horizontal NA/JP PDU

252663-D75

HPE Basic Modular 7.3kVA/60309 3-wire 32A/230V Outlets (4) C19/Horizontal INTL Core Only PDU

252663-B33

HPE Basic Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF511A

HPE Basic Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF518A

HPE Basic 3.6kVA/60320 C20 Detachable 16A/230V Outlets (12) C13/Horizontal WW PDU

H5M56A

HPE Basic 4.9kVA/L6-30P 24A/208V Outlets (20) C13/Vertical NA/JP PDU

H5M58A

HPE Basic 7.3kVA/60309 5-wire 32A/230V Outlets (20) C13/Vertical INTL PDU

H5M68A

HPE Basic 7.3kVA/60309 3-wire 32A/230V Outlets (24) C13 (6) C19/Vertical INTL PDU

H5M70A

HPE Intelligent Modular 3Ph 11kVA/60309 5-wire 16A/230V Outlets (6) C19/Horizontal INTL PDU

AF526A

HPE Intelligent Modular 3Ph 22kVA/60309 5-wire 32A/230V Outlets (6)

AF527A

for information on additional options and product specifications.

HPE Metered Power Distribution Units (PDU)

HPE Metered 2.8kVA/L5-30P 24A/120V Outlets (12) 5-20R/Horizontal NA/JP PDU

D9N43A

HPE Metered 3.6kVA/60320 C20 Detachable 16A/230V Outlets (16) C13/Vertical WW PDU

D9N45A

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Please see the HPE Advanced Series Racks QuickSpecs for information

NOTE: Please see the HPE Enterprise Series Racks QuickSpecs for information

Distribution Units (PDUs)

C19/Horizontal INTL PDU

NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 42

HPE Metered 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (4) C19/Vertical NA/JP PDU

D9N47A

HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlets (20) C13 (4) C19/Vertical INTL PDU

D9N48A

HPE Metered 7.3kVA/60309 32A 3-wire/230V Outlet (32) C13 (4) C19/Vertical INTL PDU

D9N50A

HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (18) C13 (3) C19/Vertical INTL PDU

D9N55A

HPE Metered 3Ph 11kVA/60309 5-wire 16A/230V Outlets (30) C13 (3) C19/Vertical INTL PDU

D9N57A

HPE Metered 3Ph 17.3kVA/60309 60A 4-wire 48A/208V Outlets (12) C13 (12) C19/Vertical NA/JP PDU

D9N59A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlet (30) C13 (3) C19/Vertical INTL PDU

D9N56A

HPE Metered 3Ph 22kVA/60309 5-wire 32A/230V Outlets (12) C13 (12) C19/Vertical INTL PDU

D9N60A

HPE Intelligent Power Distribution Unit (PDU)

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF520A

HPE Intelligent Modular 8.3kVA/CS8265C 40A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF521A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (6) C19/Horizontal NA/JP PDU

AF522A

HPE Intelligent Modular 3Ph 17.3kVA/60309 60A 4-wire 48A/208V (6) C19/Horizontal NA/JP PDU

AF523A

HPE Intelligent Modular 3Ph 17.3kVA/IEC 60309 60A 4-wire 48A/208V (12) C19/Horizontal NA/JP PDU

AF535A

HPE Intelligent Modular 4.9kVA/L6-30P 24A/208V Outlets (20) C13 (6)

AF531A

HPE Intelligent Modular 3Ph 8.6kVA/L15-30P 24A/208V Outlets (20) C13 (6) C19/Horizontal NA/JP PDU

AF532A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU

AF525A

HPE Intelligent Modular 7.3kVA/60309 3-wire 32A/230V Outlets (6) C19/Horizontal INTL PDU Kit

AF534A

HPE Rack Mount

Rack location options

HP ML350 Gen9 Discover Service FIO Kit

NOTE:

726549-B21

HP ML350 Gen9 System Insight Display Kit

726563-B21

HPE 36U Location Discovery Kit

BW945A

HPE 42U Location Discovery Kit

BW946A

HPE 47U Location Discovery Kit

BW947A

HPE Location Discovery Services LCD8500 Kit

TL052A

Rail Kits

HP ML350 Gen9 5U FIO Rail Kit

NOTE: For Rack CTO server only.

790357-B21

HP ML350 Gen9 Tower to Rack Conversion Kit

726567-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on additional options and product specifications.

C19/Horizontal NA/JP PDU

NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on additional options and product specifications.

Consoles, KVM Switches, and Keyboards

For Rack CTO server only.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 43

NOTE: For converting a tower model to a rack model. It is consist of a 5U rail kit,

SID blank etc).

HPE Rack Mount Consoles

HP LCD8500 1U US Rackmount Console Kit

AF630A

HP LCD8500 1U UK Rackmount Console Kit

AF631A

HP LCD8500 1U DE Rackmount Console Kit

AF632A

HP LCD8500 1U FR Rackmount Console Kit

AF633A

HP LCD8500 1U JP Rackmount Console Kit

AF642A

HP LCD8500 1U RU Rackmount Console Kit

AF643A

HP LCD8500 1U INTL Rackmount Console Kit

AF644A

HP LCD8500 1U US TAA Rackmount Console Kit

AF645A

HPE KVM Switches

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

HP KVM Console USB Interface Adapter

AF628A

HP KVM Console USB 2.0 Virtual Media CAC Interface Adapter

AF629A

HP USB Remote Access Key for G3 KVM Console Switches

AF650A

HP 0x1x8 G3 KVM Console Switch

AF651A

HP 0x2x16 G3 KVM Console Switch

AF652A

HP TAA 0x2x16 G3 KVM Console Switch

AF653A

HPE USB Keyboard and Mouse

HP USB BFR with PVC Free US Keyboard/Mouse Kit

631341-B21

HP USB BFR with PVC Free Intl Keyboard/Mouse Kit

672097-B33

HP USB BFR with PVC Free UK Keyboard/Mouse Kit

631344-B21

HP USB BFR with PVC Free FR Keyboard/Mouse Kit

631346-B21

HP USB BFR with PVC Free ES Keyboard/Mouse Kit

631348-B21

HP USB BFR with PVC Free DE Keyboard/Mouse Kit

631358-B21

HP USB BFR with PVC Free JP Keyboard/Mouse Kit

631360-B21

HP USB BFR with PVC Free IT Keyboard/Mouse Kit

631362-B21

HP USB BFR with PVC Free CN Keyboard/Mouse Kit

631364-B21

HP USB BFR with PVC Free AE Keyboard/Mouse Kit

638212-B21

HP USB BFR with PVC Free RU Keyboard/Mouse Kit

638214-B21

HP USB BFR with PVC Free SE Keyboard/Mouse Kit

672097-103

HP USB BFR with PVC Free CH Keyboard/Mouse Kit

672097-113

HP USB BFR with PVC Free PT Keyboard/Mouse Kit

672097-133

HP USB BFR with PVC Free TR Keyboard/Mouse Kit

672097-143

HP USB BFR with PVC Free CZ Keyboard/Mouse Kit

672097-223

HP USB BFR with PVC Free FI Keyboard/Mouse Kit

672097-353

HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit

672097-373

HP USB BFR with PVC Free IN Keyboard/Mouse Kit

672097-D63

HP USB BFR with PVC Free KR Keyboard/Mouse Kit

for information on additional options and product specifications.

672097-KD3

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

cable management arm (CMA) and rack enablement kit (rack ear, rack handle,

NOTE: To learn more, please visit the HPE KVM Switches web page.

NOTE: Please see the HPE USB Keyboard and Mouse QuickSpecs

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Additional Options

Page 44

HPE Uninterruptible

HPE Tower UPS

HPE R1500 G4 JP/TWN Uninterruptible Power System

J2R05A

HPE R1500 G4 INTL Uninterruptible Power System

J2R03A

HPE T750 G4 NA/JP Uninterruptible Power System

J2P85A

HPE T1000 G4 NA/JP Uninterruptible Power System

J2P86A

HPE T1500 G4 NA/JP Uninterruptible Power System

J2P87A

HPE T750 G4 INTL Uninterruptible Power System

J2P88A

HPE T1000 G4 INTL Uninterruptible Power System

J2P89A

HPE T1500 G4 INTL Uninterruptible Power System

J2P90A

HPE R5000 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

HPE Rack-mountable UPS

HPE 32A 400-415 Volt Three Phase INTL R12000 DirectFlow UPS IEC309 Input/Output Module

AF488A

HPE R5000 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

HPE R7000 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

HPE R7000 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HPE RP12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System

AF437A

HPE USB and SD

HPE 32GB microSD Mainstream Flash Media Kit

700139-B21

HPE 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HP Dual 8GB microSD Enterprise Midline USB Kit

741279-B21

HPE Support

HPE Install ProLiant ML350(p) Service

U4522E

HPE Installation and Startup ML350(p) Service

U4523E

Proactive Care

HPE 3 year Proactive Care 24x7 ML350 Gen9 Service

U7BG4E

HPE 3 year Proactive Care Call to Repair ML350 Gen9 Service

U7BH0E

HPE 3 year Proactive Care 24x7 with DMR ML350 Gen9 Service

U7BG5E

HPE 3 year Proactive Care 24x7 with CDMR ML350 Gen9 Service

U7BG6E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR ML350 Gen9 Service

U7BH1E

HPE 3 year Proactive Care Call to Repair with CDMR ML350 Gen9 Service

U7BH2E

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Power Systems (UPS)

Options

Services

NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

Installation & Start-up Services

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Memory

Page 45

Memory

General Memory Population Rules and Guidelines:

A minimum of one DIMM is required per server.

White DIMM slots denote the first slot to be populated in a channel.

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

Place the DIMMs with the highest number of ranks in the white slot when mixing DIMMs of different ranks on the same channel.

Do not mix RDIMMs or LRDIMMs.

Quad rank RDIMMs are not supported in HPE ProLiant ML350 Gen9 servers.

Quad rank LRDIMMs are capable of up to three DIMMs per channel.

RDIMMs operating at 1.2V

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

To realize the performance memory capabilities listed in this document, HPE SmartMemory is required.

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535

For memory population rules and additional memory guidelines, please see the ML350 Gen9 user

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04431235

There are four (4) channels per processor; eight (8) channels per server. There are three (3) DIMM slots for each memory channel; twenty-four (24) total slots Memory channels1 and 3 consists of the

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Population guidelines

For additional information, please see the HPE SmartMemory QuickSpecs at:

guide at

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Memory

Page 46

three (3) DIMMs that are furthest from the processor Memory channel 2 and 4 consists of the three (3) DIMMs that are closest to the processor

All GPU Accelerators are restricted to equal less than 1024GB for system HOST memory.

Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v3 Series Processor Family

Memory Bandwidth and Capacity

[DIMM Type] Registered DIMMs (RDIMMs)

Load Reduced (LRDIMMs)

HPE SKU P/N

726717-

B21

726718-

B21

759934-

B21

726719-

B21

728629-

B21

726720-

B21

726722-

B21

726724-

B21

DIMM Rank

Single Rank

Dual Rank

Quad Rank

DIMM Capacity

4GB

8GB

16GB

32GB

16GB

32GB

64GB

Voltage

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

Std Voltage

1.2V

DRAM Depth [bit]

512M

DRAM Width [bit]

DRAM Density

4Gb

8Gb

CAS Latency

15-15-15

DIMM Native Speed (MT/s)

2133

SLOTS THAT CAN BE POPULATED

24 slot servers

MAXIMUM CAPACITY (GB)

192

384

768

384

768

1536

POPULATED DIMM SPEED (MT/s)

1 DIMM Per

2133

2 DIMM Per

2133

3 DIMM Per

1600

1866

1600

1866

Intel Gen9 Supported Memory Bandwidth for HPE ProLiant Gen9 Intel® Xeon® E5-2600v4 Series Processor Family

Memory Bandwidth and Capacity

[DIMM Type] Registered DIMMs (RDIMMs)

Load Reduced (LRDIMMs)

HPE SKU P/N

805347-B21

805349-B21

836220-B21

805351-B21

805353-B21

805358-B21

809208-B21

DIMM Rank

Single Rank

Dual Rank

Quad Rank

Octal Rank

DIMM Capacity

8GB

16GB

32GB

64GB

128GB

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Channel

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Memory

Page 47

Voltage

Std Voltage

DRAM Depth [bit]

DRAM Width [bit]

DRAM Density

8Gb

4Gb

8Gb

CAS Latency

17-17-17

20-18-18

DIMM Native Speed (MT/s)

2400

SLOTS THAT CAN BE POPULATED

24 slot servers

MAXIMUM CAPACITY (GB)

192

384

768

1536

3072

POPULATED DIMM SPEED (MT/s)

1 DIMM Per Channel

2400

2 DIMM Per Channel

2133

2400

3 DIMM Per Channel

1866

2133

DIMM slot and

DIMM slot and configuration diagrams

• Population order; start with "A" first, "B" second, "C" third, etc.

• When one processor is installed, install DIMMs in sequential alphabetic order: A, B, C, D, E, F.

• When two processors are installed, install DIMMs in sequential alphabetic order: CPU1-A, CPU2-

CPU 1

CPU 2

Slot #

population order

Slot #

population order

Chnl 1

1 A 1

2 E 2 G 3 I 3

Chnl 4

CPU 1

CPU 2

Slot #

population order

Slot #

population order

Chnl 2

4 B 4

5 F 5

6 J 6

Chnl 3

CPU 1

CPU 2

Slot #

population order

Slot #

population order

Chnl 3

7 L 7

8 H 8

9 D 9

Chnl 2

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

1.2V

configuration diagram

A,CPU1-B,CPU2-B,CPU1-C, CP2-C

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Memory

Page 48

CPU 1

CPU 2

Slot #

population order

Slot #

population order

Chnl 4

10 K 10

11 G 11

12 C 12

Chnl 1

Memory Speed by

Processor Models

Supported Memory Speeds

E5-2609v3, E5-2603v3

1600MT/s

E5-2640v3, E5-2630v3, E5-2620v3, E5-2630Lv3, E5-2623v3

1866MT/s

E5-2637v3, E5-2690v3, E5-2680v3, E5-2670v3,

2697v3,

E5-2699v3, E5-2698v3

2133MT/s

E5-2609v4, E5-2603v4

1866MT/s

E5-2630Lv4, E5-2620v4, E5-2623v4, E5-2640v4, E5-2630v4

2133MT/s

E5-2650Lv4, E5-2643v4, E5-2637v4, E5-2690v4,

E5-2698v4, E5-2697Av4

2400MT/s

Standard and

Pre Configured Models

Standard Memory

Maximum Memory Plus

Standard Memory Replaced with Optional Memory

E5-2650v4, E5-2650v3, E5-2630v4, E5-2630v3

32GB (2x16GB)

736GB (22x32GB, 2x16GB)

1536GB (24x64GB)

E5-2620v4, E5-2620v3

16GB (1x16GB)

752GB (23x32GB, 1x16GB)

1536GB (24x64GB)

E5-2609v4, E5-2609v3

8GB (1x8GB)

744GB (23x32GB, 1x8GB)

1536GB (24x64GB)

DDR4 memory options part number decoder

NOTE:

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Processor Model

E5-2660v3, E5-2650v3, E5-2650Lv3, E5E5-2695v3, E5-2667v3, E5-2643v3, E5-2683v3,

Maximum Memory Capacity (Preconfigured Models)

Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB

• 4GB = 4,096MB

• 8GB = 8,192MB

• 16GB = 16,384MB

• 32GB = 32,768MB

• 64GB = 65,536MB

E5-2680v4, E5-2660v4, E5-2650v4, E5-2697v4, E5-2695v4, E5-2667v4, E5-2683v4, E5-2699v4,

Optional Memory

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Memory

Page 49

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Storage

Page 50

48 SFF hot-plug drive model (Tower)

Optional Slim DVD-ROM/DVD-RW

1-6

8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

48 SFF hot-plug drive model (Rack)

Optional Slim DVD-ROM/DVD-RW

1-6

8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

24 LFF hot-plug drive model (Tower)

Optional Slim DVD-ROM/DVD-RW

1-3

8 x LFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Storage

Page 51

24 LFF hot-plug drive model (Rack)

Optional Slim DVD-ROM/DVD-RW

1-3

8 x LFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

32 SFF hot-plug drives with SFF media cage

Optional Slim DVD-ROM/DVD-RW

SFF Media Cage

Remark: Support up to 2 RDX or Tape devices.

1-4

8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

Image shown a ML350 Gen9 Rack model

16 LFF hot-plug drives with LFF media cage

Optional Slim DVD-ROM/DVD-RW

LFF Media Cage

1-2

8 x LFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

Image shown a ML350 Gen9 Rack model

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Storage

Page 52

40 SFF hot-plug drives with 6 SFF NVMe SSD

Optional Slim DVD-ROM/DVD-RW

1 SFF Express Bay to support 6 x SFF PCIe NVMe SSDs

1-5

8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays

Image shown a ML350 Gen9 Rack model

document.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: For additional storage configuration guidelines, please see the ML350 Gen9 user guide at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04431235 NOTE: For maximum storage capacity information with different types of drives installation, refer to the "Standard Features" section in this document.

NOTE: For drive options and part numbers supported by ML350 Gen9, refer to the "Core Options" section in this document. NOTE: For controller options and part numbers supported by ML350 Gen9, refer to the "Additional Options" section in this

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Technical Specifications

Page 53

System Unit

Tower

18.27(H) x 8.62(W) x 30.28(D) in (46.4 x 21.9 x 76.9 cm)

Rack Dimensions

8.58(H) x 17.51(W) x 29.37(D) in (21.8 x 44.5 x 74.6 cm)

Tower Weight

Minimum:

66.14lb(30kg)

Maximum:

121.30lb (55kg)

Rack Weight

Minimum:

57.3lb(26kg)

Maximum:

112.4lb(51kg)

Input

Range Line

100 to 120 VAC

200 to 240 VAC

BTU Rating

Maximum

For 1400W Power Supply: 5459 BTU/hr (at 200 VAC), 5459

Only

For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071

Only

For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911

Only

Power Supply

Rated Steady-

For 1400W Power Supply: 1400W (at 240 VAC), 1400W (at 240 VAC)

For 800W Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VAC) input for China only

For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only

Maximum Peak

For 1400W Power Supply: 1400W (at 200 to 240 1VAC), 1400W (at 240 VAC) input for China only

For 800W Power Supply: 800W (at 100 to 127 VAC), 800W

only

For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only

System Inlet

Standard

10° to 35°C (50° to 95°F) at sea level with an altitude derating

configurations, the supported system inlet range is extended to

every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m

URL: http://www.hpe.com/servers/ashrae.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Dimensions

Requirements

Output

Voltage

BTU/hr (at 240 VAC), 5459 BTU/hr (at 240 VAC) for China

BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China

BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China

State Power

Power

(at 200 to 240 1VAC), 800W (at 240 VAC) input for China

Temperature

Operating Support

of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. For approved hardware

be: 5° to 40°C (41° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae. For approved hardware configurations, the supported system inlet range is extended to be: 5° to 45°C (41° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per

(10,000 ft). The approved hardware configurations for this system are listed at the

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Technical Specifications

Page 54

Relative

Operating

Minimum to be the higher (more moisture) of -12°C (10.4°F)

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared

with ISO 9296 (ECMA 109).

Idle

L WAd

3.6 Bels (1P LFF Entry)

3.5 Bels (1P SFF Base)

3.6 Bels (2P SFF E-star Rack)

3.4 Bels (2P SFF E-star Tower)

L pAm

21 dBA (1P LFF Entry)

21 dBA (1P SFF Base)

20 dBA (2P SFF E-star Rack)

19 dBA (2P SFF E-star Tower)

Operating

L WAd

3.7 Bels (1P LFF Entry)

3.6 Bels (1P SFF Base)

4.5 Bels (2P SFF E-star Rack)

L pAm

21 dBA (1P LFF Entry)

22 dBA (1P SFF Entry)

28 dBA (2P SFF E-star Rack)

28 dBA (2P SFF E-star Tower)

NOTE: Configurations tested for 1P LFF Entry models included two (2) 500GB

Emissions

FCC Rating

Class A

Normative

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003;

EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample

eligible to bear the appropriate compliance logos and statements.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Humidity

dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity.

average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance

LFF SATA Midline HDD and Windows 2012 Enterprise 64-bit. NOTE: Configurations tested for 1P and 2P SFF models included two (2) 500GB SFF SATA Midline HDD and Windows 2012 Enterprise 64-bit. NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Classification

Standards

CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3;

(type) testing, evaluation, or assessment. This product or family of products is

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Technical Specifications

Page 55

HPE Dynamic

Number of PCI

Four PCI link rate

4Gb/s

Storage protocol support

SATA

SAS/SATA peak

rate

6Gb/s

Number of SAS/SATA links

10 links

SAS/SATA

2x4 connectors; 2x1 connectors

Expander support

Drives supported (max)

Up to 10 Internal Drives RAID support

0, 1, 10, 5 SATA

Software

HPE SSA, SMH, SIM

Warranty

Server warranty

HPE Secure

license

Not Supported

HPE SmartCache License

Not Supported

Supported

HPE Ethernet 1Gb

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX

Data Transfer Method

PCI Express, two lanes (x2) Controller

BCM5719

Network

10Base-T (HalfDuplex)

10 Mb/s per port, 40 Mb/s combined

10Base-T (FullDuplex)

20 Mb/s per port, 80 Mb/s combined

100Base-TX (HalfDuplex)

100 Mb/s per port, 400 Mb/s combined

100Base-TX (Full-

100Base-TX (HalfDuplex)

1000 Mb/s per port, 4000 Mb/s combined

100Base-TX (FullDuplex)

2000 Mb/s per port, 8000 Mb/s combined

Connector

RJ-45

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Smart Array B140i Controller

links

data transfer

connectivity

management

Encryption

4-port 331i Adapter

HPE Smart Storage Administrator

Transfer Rate

Duplex) 200 Mb/s per port, 800 Mb/s combined

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Technical Specifications

Page 56

Cable Support

10 Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000 Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many

manufacturers to provide treatment information for each

product type for use by treatment facilities. This information (product disassembly instructions) is posted

sell

http://www.hpe.com/recycle

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

friendly Products and Approach End-of-life Management and Recycling

geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www.hpe.com/recycle

The EU WEEE directive (2002/95/EC) requires

on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and reHewlett Packard Enterprise equipment.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Summary of Changes

Page 57

Date

Version History

Action

Description of Change

2-Apr-2018

Version 31

Added

New LTO-8 tape drive, new Smart Battery part number

Changed

SKU description were revised..

Removed

Obsolete SKUs were removed from the QuickSpecs.

4-Dec-2017

Version 30

Added

Added new 12 TB SAS and SATA LFF HDD option offering. Added a few new LFF HDD options.

23-Oct-2017

Version 29

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

25-Sep-2017

Version 28 Added

Added new Solid State Drives offering to the HPE Drives section.

Changed

Core Options section was revised.

7-Aug-2017

Version 27

Added

Added new Solid State Drives offering to the HPE Drives section.

11-Jul-2017

Version 26

Added

Added support for HPE OneView 3.1 and new GPU offering.

5-Jun-2017

Version 25

Added

Added new HPE Digitally Signed (DS) Firmware Solid State Drive and Hard Disk Drive options.

8-May-2017

Version 24

Added

Added support for ClearOS.

Changed

Operating Systems and Virtualization Software Support for ProLiant Removed

Obsolete SKUs were removed from the QuickSpecs.

27-Mar-2017

Version 23

Added

Added new Hard Drives.

13-Feb-2017

Version 22 Added

Added new HDD and SSD offering to the HPE Drives section.

Changed

HPE StoreVirtual VSA content was revised.

28-Nov-2016

Version 21

Added

Added new Hard Drives offering.

Changed

Maximum Internal Storage and HPE Storage Options were revised.

Removed

Obsolete SKUs were removed from the QuickSpecs.

28-Oct-2016

Version 20

Removed

Obsolete Hard Drives were removed from the QuickSpecs.

26-Sep-2016

Version 19

Added

Added new SATA & SAS LFF HDD offering and 16Gb/32Gb FC HBAs. Added new 128GB LRDIMM memory.

Changed

Standard features was revised to reflect the system support with the new option offering eg. 128GB DIMM, max What's new and memory table were updated.

15-Aug-2016

Version 18

Added

Added new Networking and Storage option offering.

Changed

PCIe expansion slot 5 support revised to support FH/HL cards in Standard Features section.

Removed

Removed K4200 & K5200 from the Computation and Graphics Accelerators section along with a few PCIe workload accelerators for option EOL.

24-Jun-2016

Version 17

Changed

Expansion Slot 5 under the Standard Features section was revised.

6-Jun-2016

Version 16

Added

New option offering incl. NVIDIA Quadro M2000, 340GB M.2 kits, LTO-7, new HDD options, dual 32GB micro-SD USB kit, RDX 3TB.

Changed

Updated 2400MHz memory table in the Standard Features section. Updated memory speed, memory configuration guidelines in the memory section. Added notes to the storage section.

Removed

Removed EOL drive options.

22-Apr-2016

Version 15

Changed

Part numbers for the E5-2600v4 Smart Buy Models in the NA version were revised.

8-Apr-2016

Version 14

Changed

HPE Processors section was revised.

31-Mar-2016

Version 13

Added

New E5 new networking cards, TPM2.0 and new drives added. Added mechanical features for HW

Added new E5-2600 v4 BTO SKUs.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Servers and HPE Drives were revised.

-2600 v4 CPU, new 2400MHz DIMM, new M4000 & M5000 GPU,

memory capacity 3TB, etc.

security: padlock, Kensington lock.

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Summary of Changes

Page 58

Changed

Internal Storage Devices, Upgradeability, Embedded Management, Service and Support, Pre Memory sections were revised. Storage section configuration among HDD/SSD, SFF/LFF media cage, NVMe SSD.

Removed

Obsolete SKUs were removed from the QuickSpecs.

26-Feb-2016

Version 12

Removed

340GB M.2 options (835563 Core Options.

16-Feb-2016

Version 11

Added

New 12G SAS Drives and M.2 offering was added to HPE Drives.

1-Dec-2015

Version 10

Added

New HDD offering was added to HPE Drives. New options added to HPE Unique Options, HPE Backup, and HPE Disk Storage Systems.

Changed

On System Management Chipset, Maximum Internal Storage, Embedded Management, and Server utilities were revised. Product images were updated.

Removed

Obsolete SKUs were removed from the QuickSpecs.

16-Nov-2015

Version 9

Added

New Solid State Drives offering was added to HPE Drives.

Changed

Maximum Internal Storage, and Additional Options were updated. X4 RPS Enablement Kit note was updated. iLO FW updated to iLO4 2.3

17-Aug-2015

Version 8

Added

New Solid State Drives offering was added to HPE Drives. New graphic options were added to HPE Computation and Graphics Accelerators.

Changed

Memory, Maximum Internal Storage, and Additional Options were updated.

Removed

Obsolete SKUs were removed from QuickSpecs.

1-Jun-2015

Version 7

Added

New Hard Drives were added to QuickSpecs.

Changed

Number of fans for Energy Star Models and Performance Models were revised. HPE Memory was revised.

Removed

Obsolete SKUs were removed from QuickSpecs.

30-Mar-2015

Version 6

Added

New Hard Drives offering. Optional Software added to HPE Storage Controllers.

Changed

HPE Power Supplies, HPE Storage Controllers, HPE Disk Storage Systems, Micro SD Options were updated.

9-Feb-2015

Version 5

Added

Added new HPE Drives, HPE Disk Backup, and new G4 UPS models.

HPE Drives, HPE Computation and Graphics Accelerators, HPE Tape Backup, HPE Rack Mount Consoles, KVM Switches, and Keyboards, and HPE Uninterruptible Power Systems (UPS) sections were revised.

1-Dec-2014

Version 4

Changed

Changes made throughout the entire QuickSpecs.

13-Oct-2014

Version 3

Added

6G SATA Enterprise Value G1 Solid State Drives were added to Core Option section. High Performance Clusters, HPE PCIe Workload Accelerator Options, HPE USB and SD options, and to the Additional Options section.

Changed

Standard Features, Optional Features, Core Options, Additional Options, and Memory sections were revised.

19-Sep-2014

Version 2

Changed

Changes made throughout the entire QuickSpecs.

9-Sep-2014

Version 1

New

New QuickSpecs.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

-configured Models, HPE Security, HPE Tape Backup, and

- added additional front views of different storage

-B21 & 835565-B21) were removed from

Security, HPE Tape

New RDX+ external backup options were added.

HPE Pointnext operational services were added

QuickSpecs

HPE ProLiant ML350 Generation9 (Gen9)

Summary of Changes

Page 59

© Copyright 2018 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as c technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsof companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

c04346270 - 15035 - Worldwide - V31 - 2-April-2018

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

onstituting an additional warranty. Hewlett Packard Enterprise shall not be liable for

t®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of

HPE 835265-421 Getting Started Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
