FIRE PIT INSERT CSA CERTIFIED-OUTDOOR USE ONLY
FOR COMMERCIAL AND RESIDENTIAL USE
A
HEARTH PRODUCTS CONTROLS
3050 PLAINFIELD RD.
KETTERING, OH 45432
TOLL FREE: 1-877-433-7001
PHONE: (937) 433-7000
FAX: (937) 433-0704
www.hpcfire.com
FRAME IS PRE-CUT FOR FPPK OR
B
ELECTRONIC IGNITION (EI)
PART NUMBERS
U45R/25SSCEK
U54R/25SSCEK
PART NUMBERS
U45R/FPPK25CEK
U54R/FPPK25CEK
PART NUMBERS
ROUND BURNER
U45R/MLFPK25CEK
U54R/MLFPK25CEK
Notes:
1. CONSTRUCITON - 22 GAUGE GALVANIZED STEEL WELDED FRAME AND 1/2" HARDIBOARD SHELL AND WEIGHS 150 LBS.
2. ALL ENCLOSURES INCLUDE REQUIRED 4 each 18 SQ/IN VENTS ON OPPOSING SIDES. ADEQUATE DRAINAGE IS NEEDED.
2. FOLLOW ALL MANUFACTURER INSTALLATION INSTRUCTIONS AND LOCAL CODES.
3. ALL DIMENSIONS ARE CONSIDERED TRUE AND REFLECT MANUFACTURER'S SPECIFICATIONS AS OF THE REVISION DATE.
4. DO NOT SCALE DRAWING.
5. THESE DRAWINGS ARE FOR SIZING AND PLANNING PURPOSES. ALL INFORMATION CONTAINED HEREIN WAS CURRENT AT THE
TIME OF DEVELOPMENT. THE MANUFACTURER'S RESPONSIBLE FOR THE ACCURACY OF THE DRAWING.
6. CONTRACTOR'S NOTE: FOR PRODUCT AND COMANY INFORMATION VISIT www.CADdetails.com/info
REFERENCE NUMBER 771-061.
STND
BTU
125K 45 18 120VAC OR 24VAC PENTA25EI
125K 54 18 120VAC OR 24VAC PENTA25EI
PUSH BUTTON/FLAME SENSING (FPPK)
STND
BTU
90K 45 18
90K 54 18
STND
BTU
65K 45 18
65K
DIMENSION CHART
A" B"
DIMENSION CHART
A" B"
MATCH LIT (MLFPK)
DIMENSION CHART
A" B"
54 18
MLFPK BUT NOT HARDIBOARD
POWER INSERT
POWER INSERT
AA BATTERY PENTA25FPPK
AA BATTERY PENTA25FPPK
POWER INSERT
- PENTA25MLFPK
- PENTA25MLFPK
EI MODELS INCLUDE:
FULLY ASSEMBLED INSERT, INPUT
FLEX LINE AND INSTRUCTIONS
FPPK MODELS INCLUDE:
ENCLOSURE, FULLY ASSEMBLED
INSERT, MOUNTING SLEEVE AND
INSTRUCTIONS
MLFPK MODELS INCLUDE:
ENCLOSURE, FULLY ASSEMBLED
INSERT AND INSTRUCTIONS
INSERT:

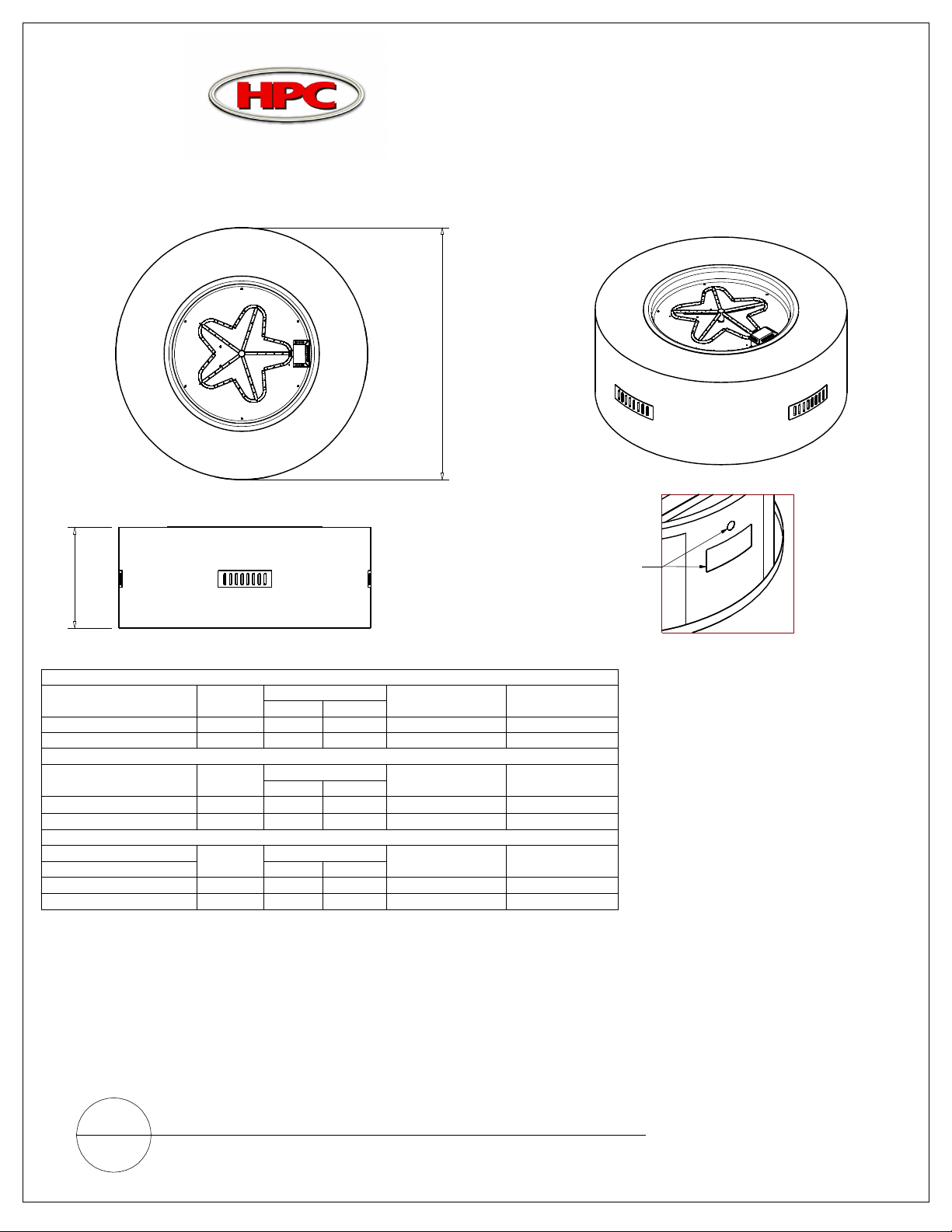

25" BOWL PAN, 18" PENTA BURNER
ENCLOSURE,
771-061
READY TO FINISH SERIES
ROUND ENCLOSURE
REVISION DATE 11/30/2017
