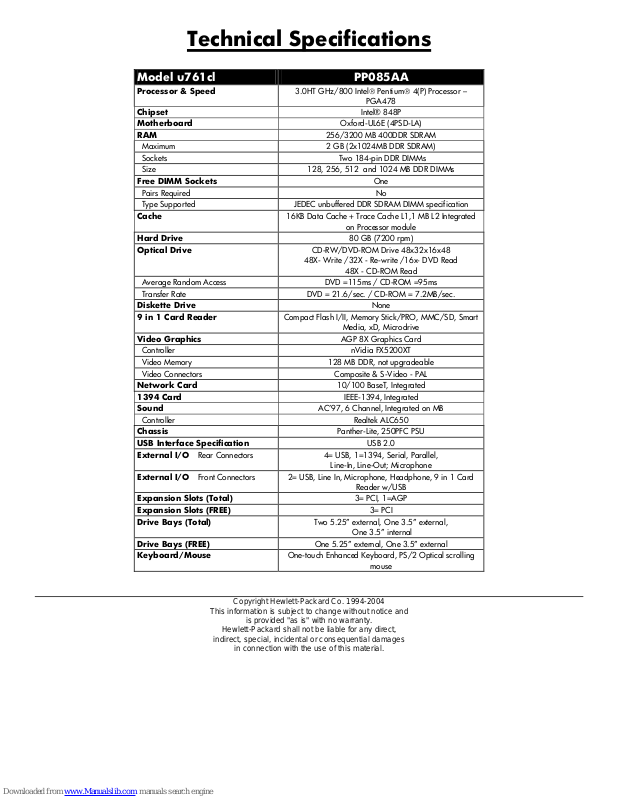

HP Pavilion u700, u761cl Technical Specifications

Technical Specifications

Model u761cl PP085AA

Processor & Speed 3.0HT GHz/800 Intel® Pentium® 4(P) Processor –

PGA478

Chipset Intel® 848P
Motherboard Oxford-UL6E (4PSD-LA)
RAM 256/3200 MB 400DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1,1 MB L2 Integrated

on Processor module

Hard Drive 80 GB (7200 rpm)
Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5200XT
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Panther-Lite, 250PFC PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2= USB, Line In, Microphone, Headphone, 9 in 1 Card

Reader w/USB

Expansion Slots (Total) 3= PCI, 1=AGP
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
