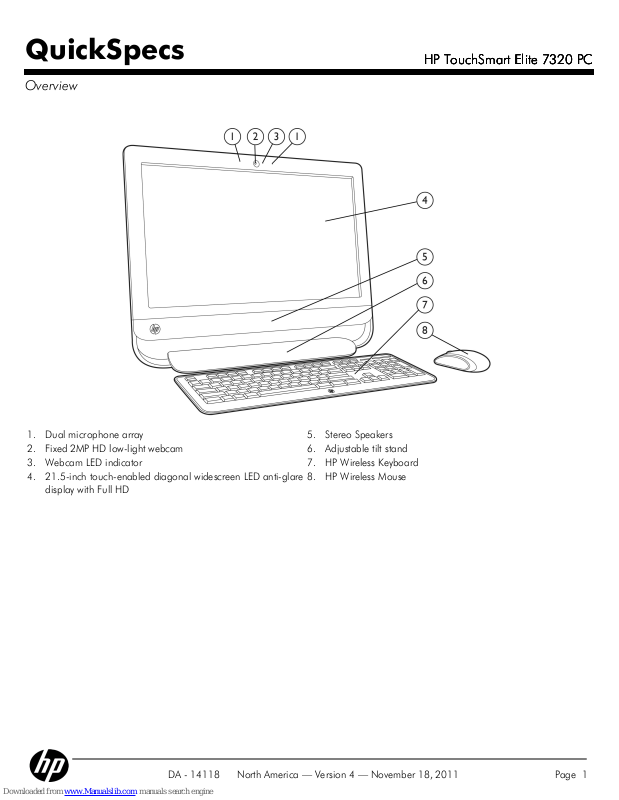

Page 1
1.
Dual microphone array
5.
Stereo Speakers
2.
Fixed 2MP HD low-light webcam
6.
Adjustable tilt stand
3.
Webcam LED indicator
7.
HP Wireless Keyboard
4.
21.5-inch touch-enabled diagonal widescreen LED anti-glare
display with Full HD
8.
HP Wireless Mouse
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Overview
DA - 14118 North America — Version 4 — November 18, 2011
Page 1
Page 2
1.
Optical Disk Drive
4.
6-in-1 Media Card Reader
2.
Hard Disk Drive LED Indicator
5.
2 USB 2.0 ports
3.
Media Card Reader LED Indicator
6.
Microphone port
7.
Headphone Port
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Overview
DA - 14118 North America — Version 4 — November 18, 2011
Page 2
Page 3
1.
IR Emitter (Blaster) output
4.
RJ-45/Ethernet
2.
4 USB 2.0 ports
5.
Power connector
3.
Line out
6.
TV coax in
At A Glance
At A GlanceAt A Glance
At A Glance
Genuine Windows 7 Professional and Genuine Windows 7 Home Premium
Intel® 2nd Generation Core™ i3, i5, i7 and Intel Pentium Processors
21.5-inch touch-enabled diagonal widescreen LED anti-glare display with Full HD (1080p)
Integrated All-in-One form factor
Adjustable tilt stand
Chassis is tiltable from 0 degrees (full vertical, no forward lean) to 30 degrees backward
Integrated VESA-compliant mounting hole pattern of 100mm x 100mm for attaching the All-in-One system directly to a wall
mount or articulating arm
Intel H61Chipset
Integrated Intel HD Graphics or choice of discrete graphics including: NVIDIA GeForce 5xx 1GB DDR3 MXM 3.0A, NVIDIA
GeForce GT 5xx 2GB DDR3 MXM 3.0A, AMD Radeon HD 6450A 1GB DDR3 MXM 3.0A, and AMD Radeon HD 6550A
2GB DDR3 MXM 3.0A
Realtek RTL 8111E GbE Ethernet Controller (10/100/1000 NIC)
Fixed 2MP HD low-light webcam; stereo speakers
HD Audio, Beats Audio enabled through Stereo Speakers and Headphone port
Optional TV Tuner
Wireless connectivity:
HP Wireless NIC 802.11b/g/n Mini Card (1x1)
HP Wireless NIC 802.11b/g/n Mini Card (2x2)
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Overview
DA - 14118 North America — Version 4 — November 18, 2011
Page 3
Page 4
HP Wireless WLAN 802.11b/g/n Mini Card (2x2) with BT Combo
Up to 8GB of DDR3 SDRAM supported, dual channel memory support
Up to 1 TB hard drive
Slim Tray Blu-ray Combo Drive (optional on some skus) or Slim Tray Super Multi Drive
6-in-1 Media Card Reader
Available input devices include: USB Keyboard and Mouse, Wireless Keyboard and Mouse, and USB backlit keyboard
ENERGY STAR® (for Windows OS only)
EPEAT Silver certification*
BFR/CFR/PVC-free** (except for keyboard, mouse, power supply and cord)
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
* Where HP registers commercial desktop products. See
http://www.epeat.net
for registration status in your country.
** Meeting the industry definition of 'BFR/PVC-free' per the iNEMI Position Statement on "Low Halogen" Electronics. Plastic parts
incorporated into the chassis generally contain < 1000 ppm (0.1%) of bromine or chlorine. Printed circuit board and substrate
laminates generally contain < 1500 ppm (0.15%) of total bromine and chlorine. Service parts after purchase may not be BFR/PVCfree. External accessories, including power supplies, power cords, and peripherals are not BFR/PVC-free.
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Overview
DA - 14118 North America — Version 4 — November 18, 2011
Page 4
Page 5
Processors
ProcessorsProcessors
Processors
(Availability
(Availability(Availability
(Availability
depends on model; list is
depends on model; list isdepends on model; list is
depends on model; list is
subject to change)
subject to change)subject to change)
subject to change)
Intel Pentium:
Intel Pentium:Intel Pentium:
Intel Pentium:
Intel Pentium G850 Processor (2.9 GHz, 3 MB L3 cache)
Intel Pentium G840 Processor (2.8 GHz, 3 MB L3 cache)
Intel Pentium G620 Processor (2.6 GHz, 3 MB L3 cache)
Intel Core i3 Processors:
Intel Core i3 Processors:Intel Core i3 Processors:
Intel Core i3 Processors:
Intel Core i3-2120 Processor (3.3 GHz, 3 MB cache, 2C/4T)
Intel Core i3-2105 Processor (3.1 GHz, 3 MB cache, 2C/4T)
Intel Core i3-2100 Processor (3.1 GHz, 3 MB cache, 2C/4T)
Intel Core i5 Processors:
Intel Core i5 Processors:Intel Core i5 Processors:
Intel Core i5 Processors:
Intel Core i5-2500S Processor (2.7 GHz, 6 MB cache, 4C/4T, Turbo)
Up to 3.7 GHz with Intel Turbo Boost Technology
Intel Core i5-2405S Processor (2.5 GHz, 6 MB cache, 4C/4T, Turbo)
Up to 3.3 GHz with Intel Turbo Boost Technology
Intel Core i5-2400S Processor (2.5 GHz, 6 MB cache, 4C/4T, Turbo)
Up to 3.3 GHz with Intel Turbo Boost Technology
Intel Core i7 Processors:
Intel Core i7 Processors:Intel Core i7 Processors:
Intel Core i7 Processors:
Intel Core i7-2600S Processor (2.8 GHz, 8 cache, 4C/8T, Turbo)
Up to 3.8 GHz with Intel Turbo Boost Technology
Operating System
Operating SystemOperating System
Operating System
Preinstalled
PreinstalledPreinstalled
Preinstalled
Genuine Windows 7 Professional (64-bit)*
Genuine Windows 7 Professional (32-bit)
Genuine Windows 7 Home Premium (64-bit)*
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality.
See:
http://www.microsoft.com/windows/windows-7/
for details.
Chipset
ChipsetChipset
Chipset
Intel H61
Graphics
GraphicsGraphics
Graphics
Integrated
Integrated Integrated
Integrated
Intel HD Graphics
Display
DisplayDisplay
Display
21.5-inch diagonal widescreen Full HD (1080p) WLED anti-glare display
Maximum Resolution
Maximum ResolutionMaximum Resolution
Maximum Resolution
1920 x 1080 resolution (16:9)
Contrast ratio
Contrast ratioContrast ratio
Contrast ratio
1000:1 typical
Image brightness
Image brightnessImage brightness
Image brightness
250 nits typical
Response time
Response timeResponse time
Response time
5ms
Viewing angle (typical)
Viewing angle (typical)Viewing angle (typical)
Viewing angle (typical)
Up to 170º horizontal/160º vertical
Tiltability of Chassis
Tiltability of ChassisTiltability of Chassis
Tiltability of Chassis
0 degrees (full vertical, no forward lean) to 30 degrees backward
Adjustable Tilt Stand
Adjustable Tilt StandAdjustable Tilt Stand
Adjustable Tilt Stand
Tilt adjustments
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Standard Features
DA - 14118 North America — Version 4 — November 18, 2011
Page 5
Page 6
Memory
MemoryMemory
Memory
Standard
StandardStandard
Standard
PC3-10600 DDR3 1333-MHz non-ECC SDRAM
Two 200-pin SODIMM slots supporting dual channel memory
2 GB (1 x 2 GB)
3 GB (2 GB + 1 GB)
4 GB (1 x 4 GB)
4 GB (2 x 2 GB)
6 GB (1 x 2 GB + 1 x 4 GB)
8 GB (2 x 4 GB)
Dual-channel
Dual-channelDual-channel
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
NOTE:
NOTE: NOTE:
NOTE:
Full availability of 4 GB or more of memory requires a 64-bit operating system. With Windows
32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that
above 3 GB all memory may not be available due to system resource requirements.
Communications
CommunicationsCommunications
Communications
Integrated Realtek RTL8171EH GbE Ethernet Controller (10/100/1000 NIC)*
HP Wireless NIC
HP Wireless NICHP Wireless NIC
HP Wireless NIC
802.11b/g/n Mini Card
802.11b/g/n Mini Card802.11b/g/n Mini Card
802.11b/g/n Mini Card
(2x2)
(2x2)(2x2)
(2x2)
Support for 802.11 b, g, and n
Up to 300 mbps data rate
Built-in antennas (2 transmit, 2 receive)
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
IO Devices
IO DevicesIO Devices
IO Devices
HP USB Keyboard
HP USB KeyboardHP USB Keyboard
HP USB Keyboard
104 keys plus special keys for Mute, Volume Up, Volume Down. Separate
numeric keypad.
Cable length 51 in (130 cm)
HP USB Standard Value
HP USB Standard ValueHP USB Standard Value
HP USB Standard Value
Keyboard
KeyboardKeyboard
Keyboard
104, 105, 106, 107, or 109 key layout (depending upon country).
Cable length 59 in (150 cm)
HP USB Optical Scroll
HP USB Optical ScrollHP USB Optical Scroll
HP USB Optical Scroll
Mouse
MouseMouse
Mouse
Two buttons with scroll wheel acting as third button.
Cable length 69 in (175 cm)
HP Wireless Keyboard
HP Wireless KeyboardHP Wireless Keyboard
HP Wireless Keyboard
and Mouse
and Mouseand Mouse
and Mouse
104 keys plus special keys for Mute, Volume Up, Volume Down. Separate
numeric keypad.
Two buttons with scroll wheel acting as third button.
Storage
StorageStorage
Storage
Hard Drive
Hard DriveHard Drive
Hard Drive
3.5-inch, 7200 rpm, 6.0 Gb/s, Smart IV SATA Hard Drive:
250 GB
320 GB
500 GB
750 GB
1 TB
Slim Optical Drive
Slim Optical DriveSlim Optical Drive
Slim Optical Drive
Slim Tray Blu-ray Combo Drive
Read: 8x max DVD-ROM, 24x max CD-ROM
Write: 8x max DVD±R, 6x max DVD±R DL, 8x max DVD+RW,
6x max DVD-RW, 5x max DVD-RAM, 24x max CD-R,
24x max CD-RW
Slim Tray Super Multi Drive
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Standard Features
DA - 14118 North America — Version 4 — November 18, 2011
Page 6
Page 7
I/O Slots
I/O SlotsI/O Slots
I/O Slots
Half Height Mini PCIe x1
Half Height Mini PCIe x1Half Height Mini PCIe x1
Half Height Mini PCIe x1
One (For Wireless LAN module)
Full Height Mini PCIe x1
Full Height Mini PCIe x1Full Height Mini PCIe x1
Full Height Mini PCIe x1
One (TV Tuner module)
Interfaces
InterfacesInterfaces
Interfaces
6-in-1 Media Card
6-in-1 Media Card6-in-1 Media Card
6-in-1 Media Card
Reader
ReaderReader
Reader
Supports Secure Digital (SD, SDHC), MultiMedia Card (MMC),
xD-Picture Card, Memory Stick, Memory Stick Pro
USB 2.0
USB 2.0USB 2.0
USB 2.0
Four (rear)
USB 3.0
USB 3.0USB 3.0
USB 3.0
Two (side)
Stereo audio headphone
Stereo audio headphoneStereo audio headphone
Stereo audio headphone
jack
jackjack
jack
One
Stereo audio line out
Stereo audio line outStereo audio line out
Stereo audio line out
One
Coaxial Cables for Tuner
Coaxial Cables for TunerCoaxial Cables for Tuner
Coaxial Cables for Tuner
One
IR Blaster
IR BlasterIR Blaster
IR Blaster
One
Power connector
Power connectorPower connector
Power connector
One
RJ-45/Ethernet
RJ-45/EthernetRJ-45/Ethernet
RJ-45/Ethernet
One
Audio/Visual
Audio/VisualAudio/Visual
Audio/Visual
Integrated IDT 92HD91 Audio (Beats Audio)
Integrated high-performance stereo speakers
Volume control and mute buttons (on keyboard on select skus)
Stereo headphone jack
Stereo line out
Integrated 2 MP HD (1080p), low-light webcam with two built-in microphones
TV Tuners (configurable):
DVB-T+PAL (HW encode), ATSC+NTSC (HW encode), PAL/DMB-T
Software
SoftwareSoftware
Software
Preinstalled software
Preinstalled softwarePreinstalled software
Preinstalled software
(varies by country)
(varies by country)(varies by country)
(varies by country)
Microsoft Office 2010 Starter Preloaded (purchase of a Product Key required
to activate a full Office 2010 suite)*
Microsoft Windows Virtual PC - XP
Mozilla Firefox for HP Virtual Solutions 2011
Cyberlink PowerDVD
Cyberlink Label Print
Cyberlink Power 2 Go
CyberLink Power Starter
CyberLink Power Director
PDF Complete Special Edition
HP SimplePass PE 2011
Norton Internet Security 2011 (60 day)*
HP Power Assistant
HP Recovery Manager
HP Vision Hardware Diagnostics
HP Support Assistant (HPSA)
Authentec SimplePass PE (to support Intel One Time Password)**
Additional software
Additional softwareAdditional software
Additional software
available on optical disk
available on optical diskavailable on optical disk
available on optical disk
HP MyRooms (up to 3 people per meeting)
Optional software
Optional softwareOptional software
Optional software
(varies by country)
(varies by country)(varies by country)
(varies by country)
Credential Manager for HP ProtectTools
HP ProtectTools Security Suite for SMB
* 60 day trial period for Norton Internet Security. Internet access required to receive updates. First update
included. Subscription required for updates thereafter.
** Available on Intel Core i3, i5, and i7 cpus (not on Pentium or Celeron)
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Standard Features
DA - 14118 North America — Version 4 — November 18, 2011
Page 7
Page 8
SMBIOS
SMBIOSSMBIOS
SMBIOS
System Management BIOS, previously known as DMI BIOS, is used to store system management
information.
Security
SecuritySecurity
Security
Lock slot
Optional HP ProtectTools Security Software Suite
Optional HP Credential Manager
Power Supply
Power SupplyPower Supply
Power Supply
External 87% efficient, 150W 19V/7.9A power supply for UMA graphics cards
External 87% efficient, 180W for MXM graphics cards
Service and Support
Service and SupportService and Support
Service and Support
On-site Warranty
Note 1
Three 3-3-3- parts onsite limited warranty delivers three year of on-site, next
business-day
Note 2
service for parts and labor and includes free telephone support
Note 3
24 x 7. Global
coverage
Note 2
ensures that any product purchased in one country and transferred to another nonrestricted country will remain fully covered under the original warranty and service offering. One-year
onsite and labor are not available in all countries. To choose the right level of service for your HP
product, use the HP Care Pack Services Lookup Tool at:
http://www.hp.com/go/lookuptool
. Additional
HP Care Pack Services information by product is available at:
http://www.hp.com/hps/carepack
.
NOTE 1
NOTE 1NOTE 1
NOTE 1
: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other
warranty variations may be offered in your region.
NOTE 2
NOTE 2NOTE 2
NOTE 2
: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3
NOTE 3NOTE 3
NOTE 3
: Technical telephone support applies only to HP-configured Compaq and third-party HPqualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Standard Features
DA - 14118 North America — Version 4 — November 18, 2011
Page 8
Page 9
System Unit
System UnitSystem Unit
System Unit
Dimensions
DimensionsDimensions
Dimensions
(WxDxH)
21.64 x 8.09 x 17.22 in (including stand)
54.97 x 20.54 x 43.75 cm (including stand)
21.64 x 2.59 x 14.81 in (without stand)
54.97 x 6.57 x 37.61 cm (without stand)
Weight
WeightWeight
Weight
23.35 lbs (10.59 kg) (UMA)
23.92 lbs (10.85 kg) (MXM)
Packaging Dimensions
Packaging DimensionsPackaging Dimensions
Packaging Dimensions
(WxDxH)
24.68 x 9.92 x 19.76 in
62.7 x 25.2 x 50.2 cm
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
28.79 lbs (13.06 kg)
Stand-Alone Power
Stand-Alone PowerStand-Alone Power
Stand-Alone Power
Requirements
RequirementsRequirements
Requirements
Electrical Ratings
100-240 V, 50/60 Hz, 2.0 A
Idle Operating Power
Integrated graphics: 30W
Max Operating Power
<150W for systems with UMA graphics cards
<180W for systems with MXM graphics cards
Temperature
TemperatureTemperature
Temperature
Operating
41° to 95° F (5° to 35° C)
Non-operating
-22° to 149° F (-30° to 65° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
Operating
15% to 80% @ 26º C
Altitude
AltitudeAltitude
Altitude
(unpressurized)
Operating
0 to 6,562 ft (0 to 2000 m)
Non-operating
0 to 15,000 ft (0 to 4,572 m)
Industry Standard
Industry StandardIndustry Standard
Industry Standard
Certifications
CertificationsCertifications
Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Yes (for Windows OS only)
EPEAT
Silver* (for Windows OS only)
Environmental
EnvironmentalEnvironmental
Environmental
BFR/PVC Free
Yes
(External accessories, including power
supplies, power cords, and peripherals are not
BFR/PVC-free.)
Arsenic free display glass
Yes
Leakage current meets
NFPA99
Yes
TAA Compliant
Yes
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
* Where HP registers commercial desktop products. See
http://www.epeat.net
for registration status in
your country.
Copyright © 2011 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the
U.S. and/or other countries. Intel, Core, and Pentium are registered trademarks or trademarks of Intel Corporation in the U.S.
and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PCHP TouchSmart Elite 7320 PC
HP TouchSmart Elite 7320 PC
Technical Specifications - System
DA - 14118 North America — Version 4 — November 18, 2011
Page 9
Loading...
