HP SURESTORE FC10 User Manual

	HEWLETT-PACKARD
	SURESTORE 125EX
NEXT	OPTICAL JUKEBOX
	OPTICAL JUKEBOX

JUMP	USER’S GUIDE
	Edition 1
CONTENTS
INDEX
PRINT	Manufacturing Part Number: HP Part No. C1118-90000
	Greeley, CO USA
	© Copyright August 1999

JUMP

CONTENTS

INDEX

NOTICE

This document contains information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Pack- ard Company. The information contained in this document is subject to change without notice.

Hewlett-Packard makes no warranty of any kind with regard to this printed material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing,

performance, or use of this material.

PRINTING HISTORY

New editions of this manual incorporate all material updated since the previous edition. The manual printing date and part number indicate the current edition. The printing date changes when a new edition is printed. (Minor corrections and updates incorporated at reprint do not change this date.)

Part NumberC1118-90000Edition 1August 1999

JUMP

CONTENTS

INDEX

TYPOGRAPHICAL CONVENTIONS

The following typographical conventions are used in this manual:

Emphasis: Denotes important information.

Keycap: Keys on the jukebox.

Computer Output: Information displayed in the display window and screen menu items that you can select.

WARNING:Warnings call attention to a procedure or practice that could result in personal injury if not correctly performed. Do not proceed until you fully understand an meet the required conditions.

Caution: Cautions call attention to an operating procedure or practice that could damage the product if not correctly performed. Do not proceed until understanding and meeting these required conditions.

NOTE: Notes provide information that can be helpful in understanding the operation of the product.

JUMP

CONTENTS

INDEX

IN THIS MANUAL

This user’s guide includes:

Chapter 1	set-up information for the HP SureStore Optical 125ex optical jukebox
Chapter 2	information about choosing and using optical disks
Chapter 3	features description, operating instructions, and troubleshooting information
Appendix A	supplies and customer support
Appendix B	operating this jukebox on a SCSI bus
Appendix C	safety and regulatory information
Glossary of Terms
Index

1(;7

35(9,286

-803 %$&.

,1'(;

35,17

SETTING UP THE JUKEBOX

6HWWLQJ 8S WKH-XNHER[

:KDW \RX QHHG IRU VHWWLQJ XS WKH MXNHER[

&KRRVLQJ D /RFDWLRQ

,GHQWLI\LQJ 5HDU 3DQHO )HDWXUHV

5HPRYLQJ WKH 0DLOVORW 6KLSSLQJ %UDFNHW DQG &KHFNLQJ 5HPRYDO RI WKH 6KLSSLQJ 6FUHZ

&RQQHFWLQJ WKH 6&6, &DEOH WR WKH-XNHER[

&RQQHFWLQJ WKH-XNHER[ DV WKH 2QO\ 3HULSKHUDO

&RQQHFWLQJ WKH-XNHER[ ZLWK 2WKHU 6&6, 3HULSKHUDOV

&RQQHFWLQJ 3RZHU$GMXVWLQJ ,'V DQG 7XUQLQJ WKH-XNHER[ 2Q

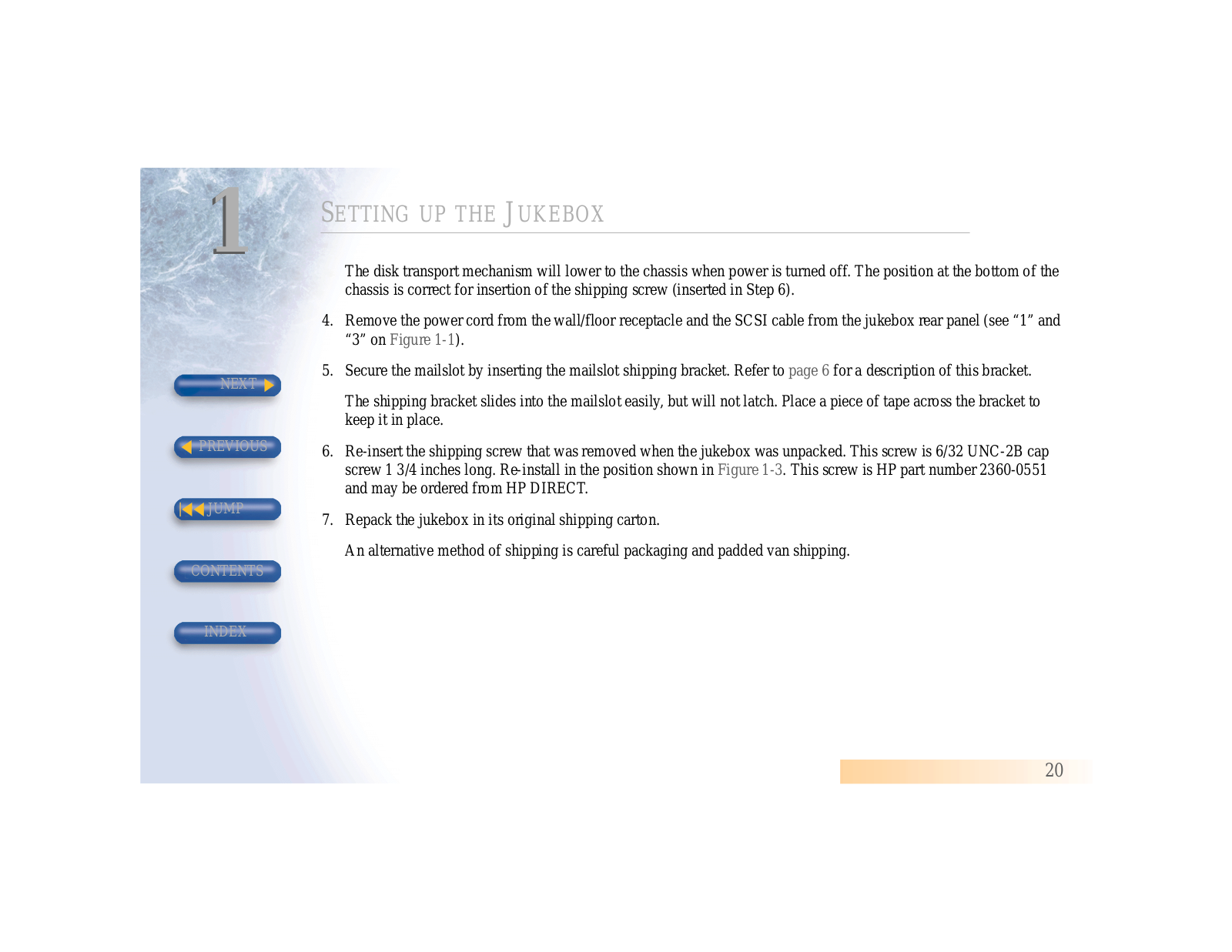

0RYLQJ RU 6KLSSLQJ WKH-XNHER[

0RYLQJ WKH-XNHER[ D 6KRUW 'LVWDQFH

6KLSSLQJ WKH-XNHER[

USING OPTICAL DISKS

2YHUYLHZ RI 7KLV &KDSWHU

8VLQJ 2SWLFDO 'LVNV

&KRRVLQJ DQ 2SWLFDO 'LVN 7\SH

1(;7

35(9,286

-803 %$&.

&217(176

,1'(;

CONTENTS

/DEHOLQJ DQ 2SWLFDO 'LVN &DUWULGJH

:ULWH 3URWHFWLQJ DQ 2SWLFDO 'LVN

&DULQJ IRU 2SWLFDO 'LVNV

&OHDQLQJ 'LVNV

OPERATING THE JUKEBOX

2YHUYLHZ RI 7KLV &KDSWHU

,QGHQWLI\LQJ )URQW 3DQHO )HDWXUHV

8VLQJ 6HOHFWLRQ %XWWRQV

8QGHUVWDQGLQJ 'LVSOD\ :LQGRZ 0HVVDJHV

0HVVDJHV 'XULQJ 2SHUDWRU 6HOHFWLRQV

0HVVDJHV 'XULQJ +RVW 2SHUDWLRQV

8VLQJ WKH )URQW 3DQHO )HDWXUHV

/RDGLQJ D 'LVN &DUWULGJH ,QWR WKH-XNHER[

(MHFWLQJ D 'LVN &DUWULGJH )URP WKH-XNHER[

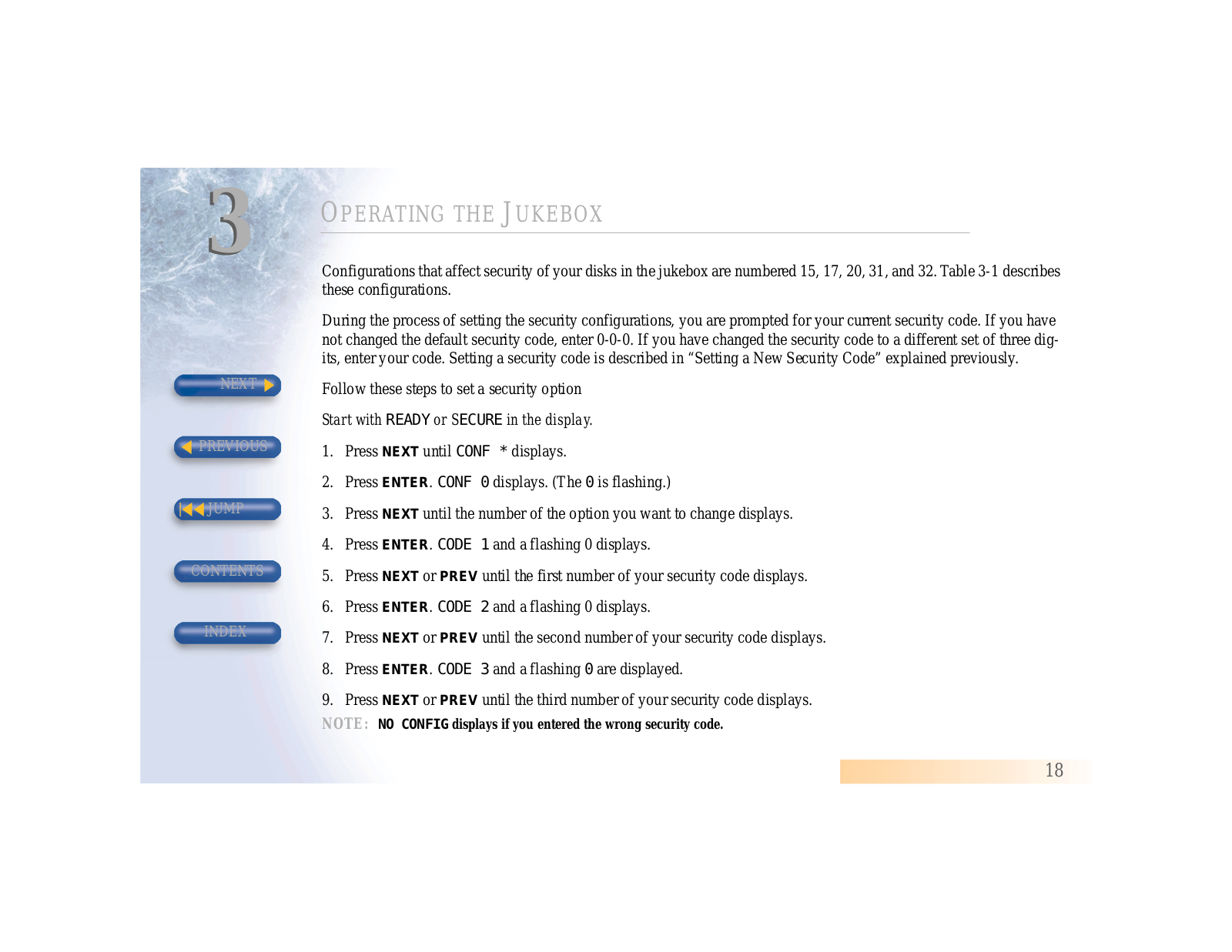

6HWWLQJ D 1HZ 6HFXULW\ &RGH

&XVWRPL]LQJ WKH 2SHUDWLRQ RI WKH-XNHER[

5HWULHYLQJ ,QIRUPDWLRQ /RJJHG E\ WKH-XNHER[

&KDQJLQJ 6&6, ,'V

&KDQJLQJ WKH-XNHER[ &RQWUROOHU ,'

&KDQJLQJ DQ 2SWLFDO 'ULYH ,'

1(;7

35(9,286

-803 %$&.

&217(176

,1'(;

CONTENTS

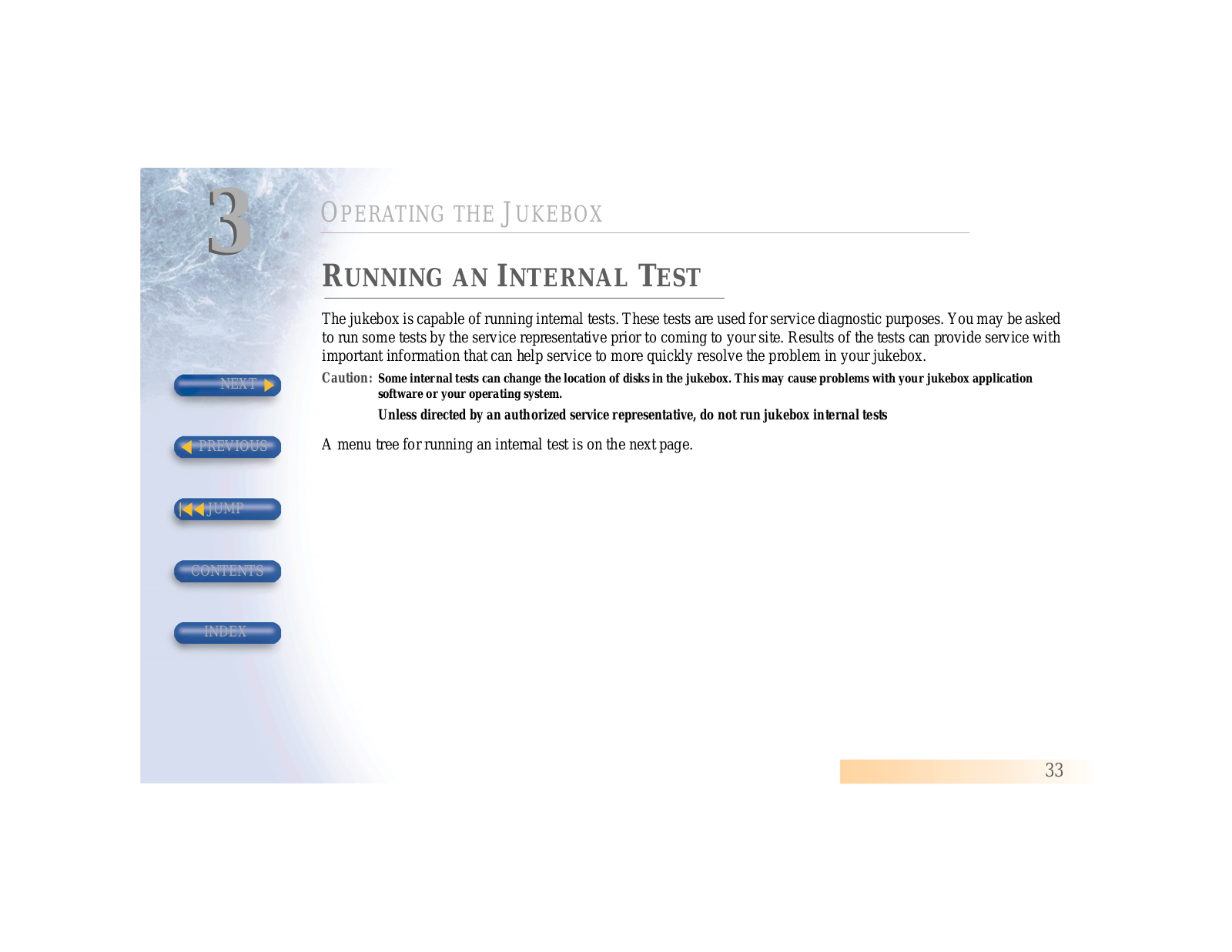

5XQQLQJ DQ ,QWHUQDO 7HVW

7URXEOHVKRRWLQJ

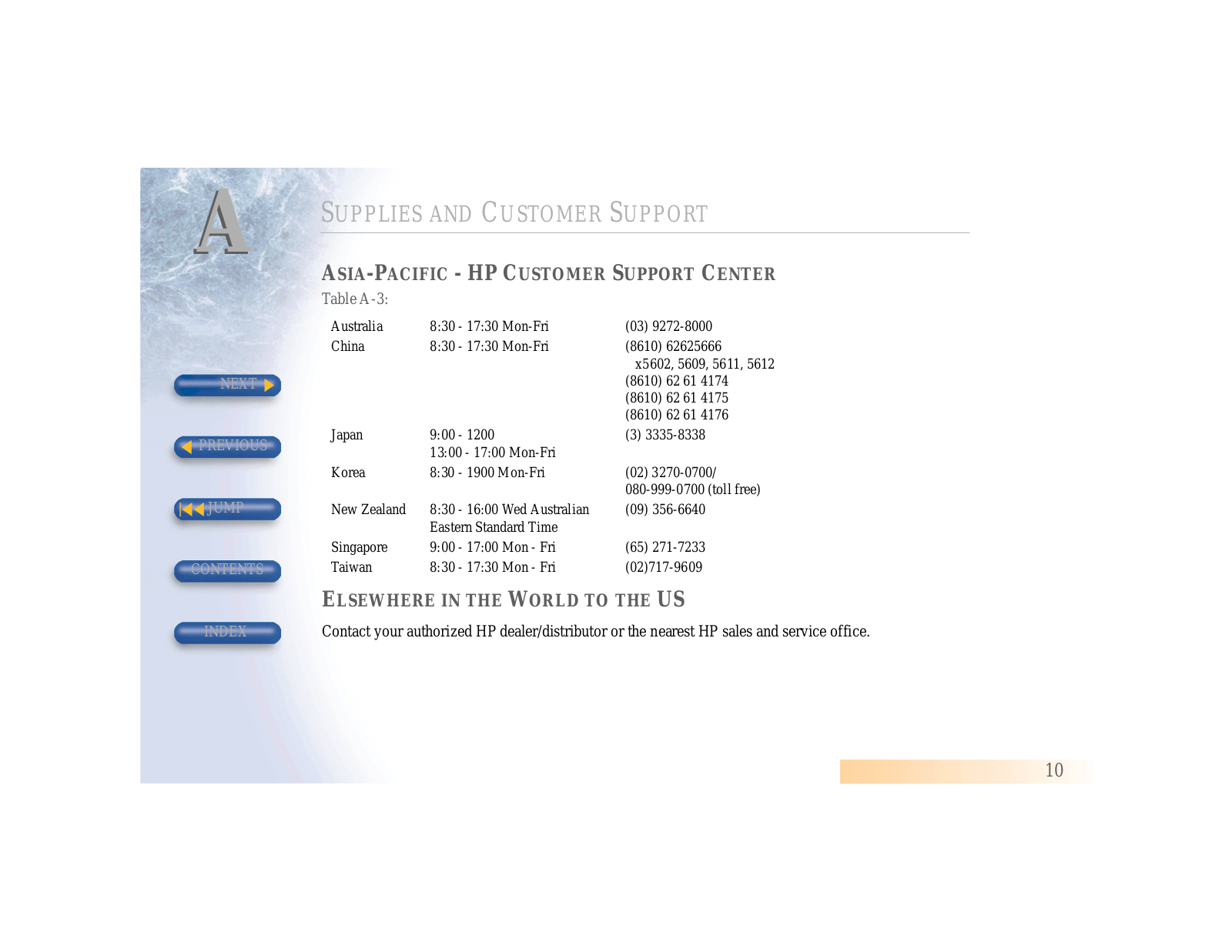

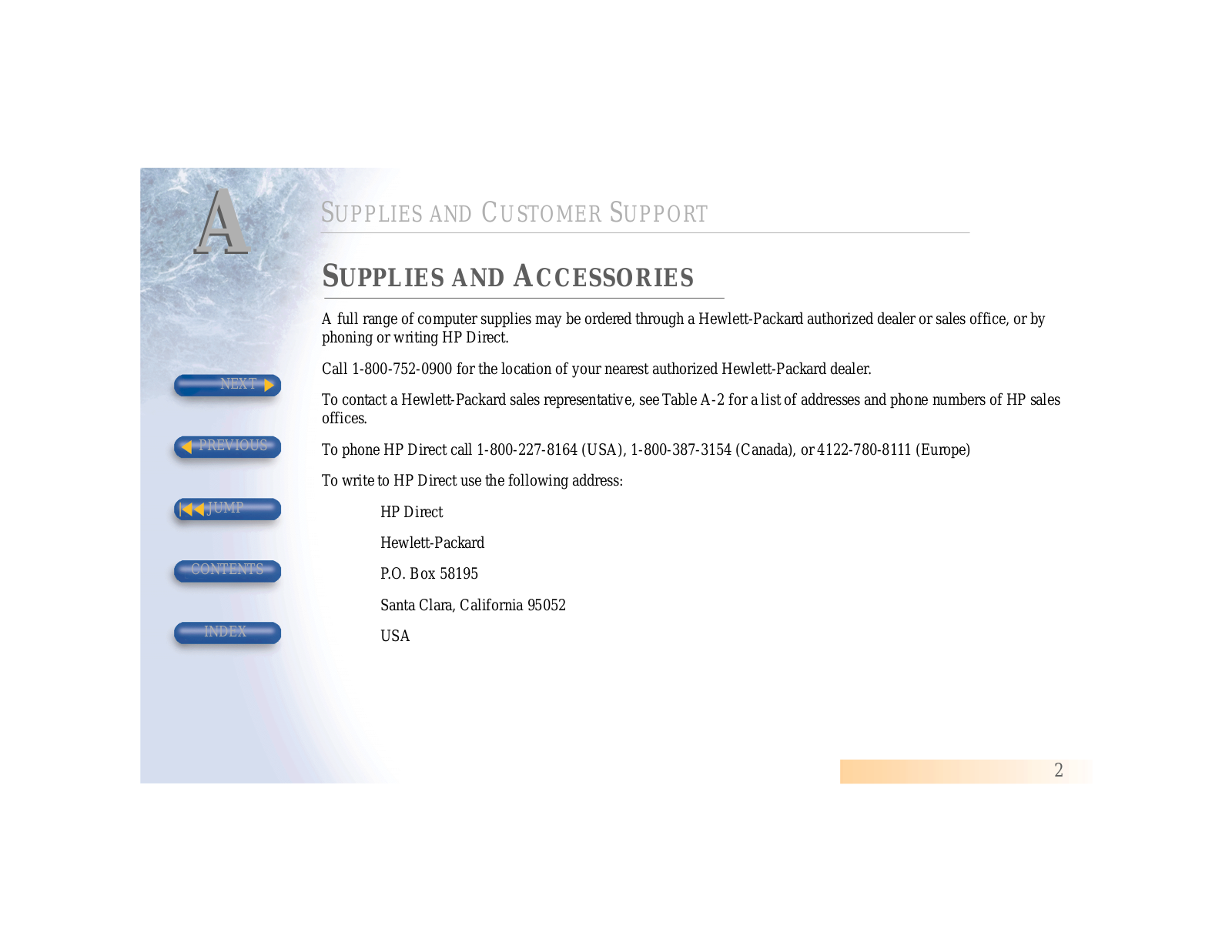

APPENDIX A: SUPPLIES AND CUSTOMER SUPPORT

2YHUYLHZ RI 7KLV$SSHQGL[ $ 6XSSOLHV DQG$FFHVVRULHV$ 6KLSSLQJ 6FUHZ 6SHFLILFDWLRQV$ +HZOHWW 3DFNDUG &XVWRPHU 6XSSRUW$ )D[EDFN 6HUYLFHV $ 6XSSRUW RQ WKH :RUOG :LGH :HE $

7HOHSKRQH 6XSSRUW 'XULQJ :DUUDQW\$

7HOHSKRQH 6XSSRUW$IWHU :DUUDQW\ $

$GGLWLRQDO 7HOHSKRQH 6XSSRUW $

+3 5HVHOOHU /RFDWRU 1XPEHUV$

:DUUDQW\ $

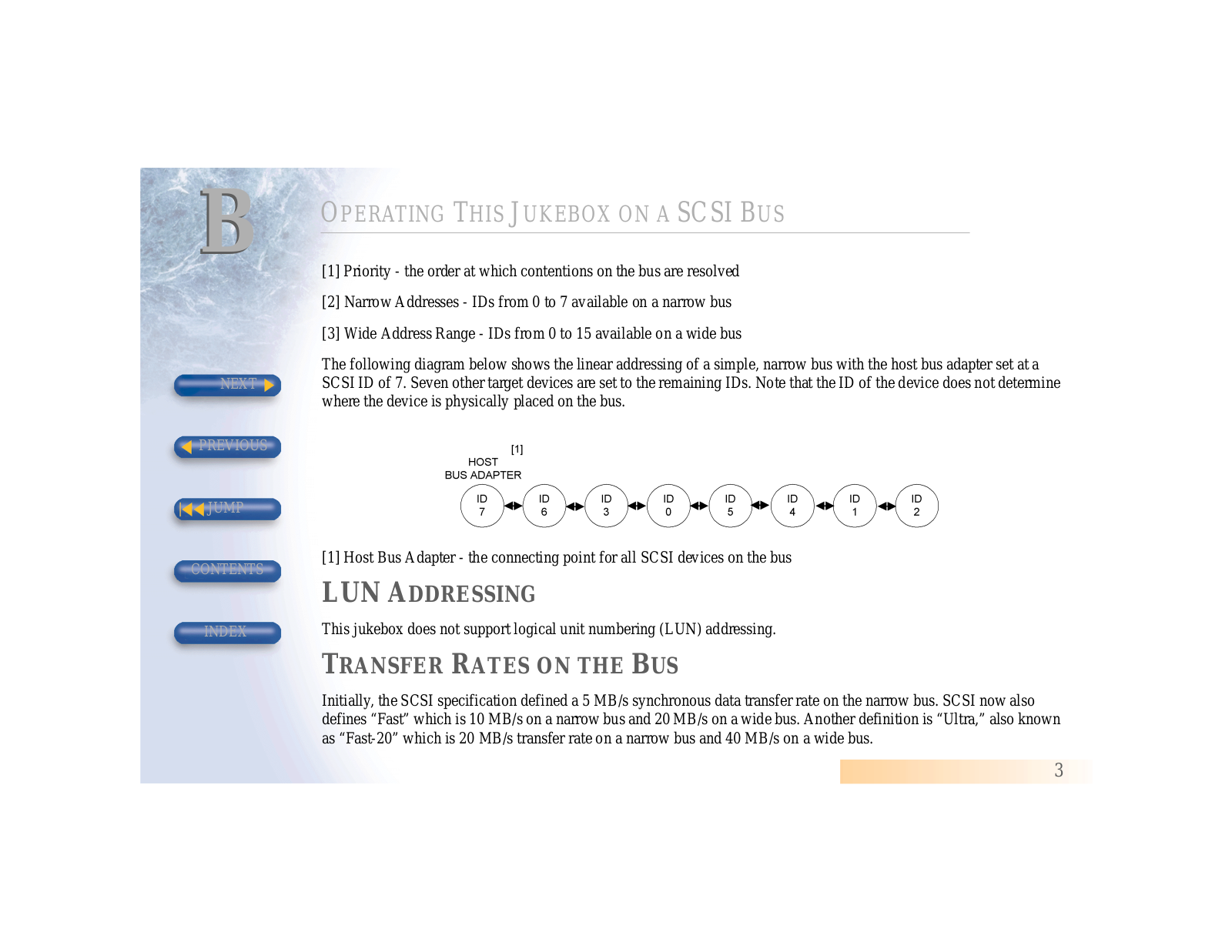

APPENDIX B: OPERATING THIS JUKEBOX ON A SCSI BUS

$%ULHI 2YHUYLHZ RI 6&6, % *HQHUDO % 7KH 6&6, %XV % ,QLWLDWRUV DQG 7DUJHWV%

1(;7

35(9,286

-803 %$&.

&217(176

,1'(;

CONTENTS

/81$GGUHVVLQJ % 7UDQVIHU 5DWHV RQ WKH %XV % 7HUPLQDWLRQ % 6LQJOH HQGHG +LJK 9ROWDJH 'LIIHUHQWLDO

DQG /RZ 9ROWDJH 'LIIHUHQWLDO ,QWHUIDFHV % &RQQHFWRUV % 7KH 6&6, %XV DQG 7KLV-XNHER[ % 0L[LQJ :LGH DQG 1DUURZ 'HYLFHV %

0L[LQJ 6LQJOH (QGHG +LJK 9ROWDJH 'LIIHUHQWLDO DQG /RZ 9ROWDJH 'LIIHUHQWLDO 'HYLFHV %

&DEOH /HQJWKV % 7HUPLQDWLRQ % *HQHUDO %

APPENDIX C: SAFETY AND REGULATORY INFORMATION

2YHUYLHZ RI WKLV$SSHQGL[ & &'5+ 5HJXODWLRQV 86$2QO\ & 8QLWHG .LQJGRP 7HOHFRPPXQLFDWLRQV$FW & (& 'HFODUDWLRQ RI &RQIRUPLW\ & +HUVWHOOHUEHVFKHLQLJXQJ &

1(;7

35(9,286

-803 %$&.

&217(176

,1'(;

CONTENTS

(QJOLVK 7UDQVODWLRQ RI *HUPDQ 6RXQG (PLVVLRQ 'LUHFWLYH & 7XUYDOOLVXXV\KWHHQYHWR & /DVHUWXUYDOOLVXXV & +XROWR & (QJOLVK 7UDQVODWLRQ RI )LQODQG 5HJXODWRU\ ,QIRUPDWLRQ & -DSDQHVH 9&&, 6WDWHPHQW & -DSDQHVH +DUPRQLFV 6WDWHPHQW &

JUMP

CONTENTS

INDEX

FIGURES

Figure 1-1: Rear Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 Figure 1-2: The Mailslot Shipping Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7 Figure 1-3: Location of the Shipping Screw . . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Figure 1-4: Connecting the Jukebox as the Only Peripheral . . . . . . . . . . . . 1-12 Figure 1-5: Connecting the Jukebox With Other SCSI Peripherals . . . . . . . 1-14 Figure 2-1: Recommended Placement of Cartridge Labels . . . . . . . . . . . . . . 2-4 Figure 2-2: Write-Protect Button Location . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Figure 3-1: Features on the Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Figure 3-1: Menu Tree - Top Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 Figure 3-2: Menu Tree - Top Level, With Configuration 15 ON . . . . . . . . . 3-5 Figure 3-3: Menu Tree - Top Level, With Configuration 32 ON . . . . . . . . . 3-5 Figure 3-4: Loading a Disk Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 Figure 3-5: Menu Tree - Loading a Disk Cartridge . . . . . . . . . . . . . . . . . . . 3-10 Figure 3-6: Menu Tree - Ejecting a Disk Cartridge . . . . . . . . . . . . . . . . . . . 3-11 Figure 3-7: Menu Tree - Setting a New Security Code . . . . . . . . . . . . . . . . 3-13 Figure 3-8: Menu Tree - Changing a Security Configuration . . . . . . . . . . . 3-17 Figure 3-9: Menu Tree - Setting a Non-Security Configuration . . . . . . . . . 3-21 Figure 3-10: Menu Tree - Retrieving Information . . . . . . . . . . . . . . . . . . . . 3-26 Figure 3-11: Menu Tree - Changing SCSI IDs . . . . . . . . . . . . . . . . . . . . . . 3-29 Figure 3-12: Menu Tree - Running an Internal Test . . . . . . . . . . . . . . . . . . 3-34

TABLES

Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23

Information Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

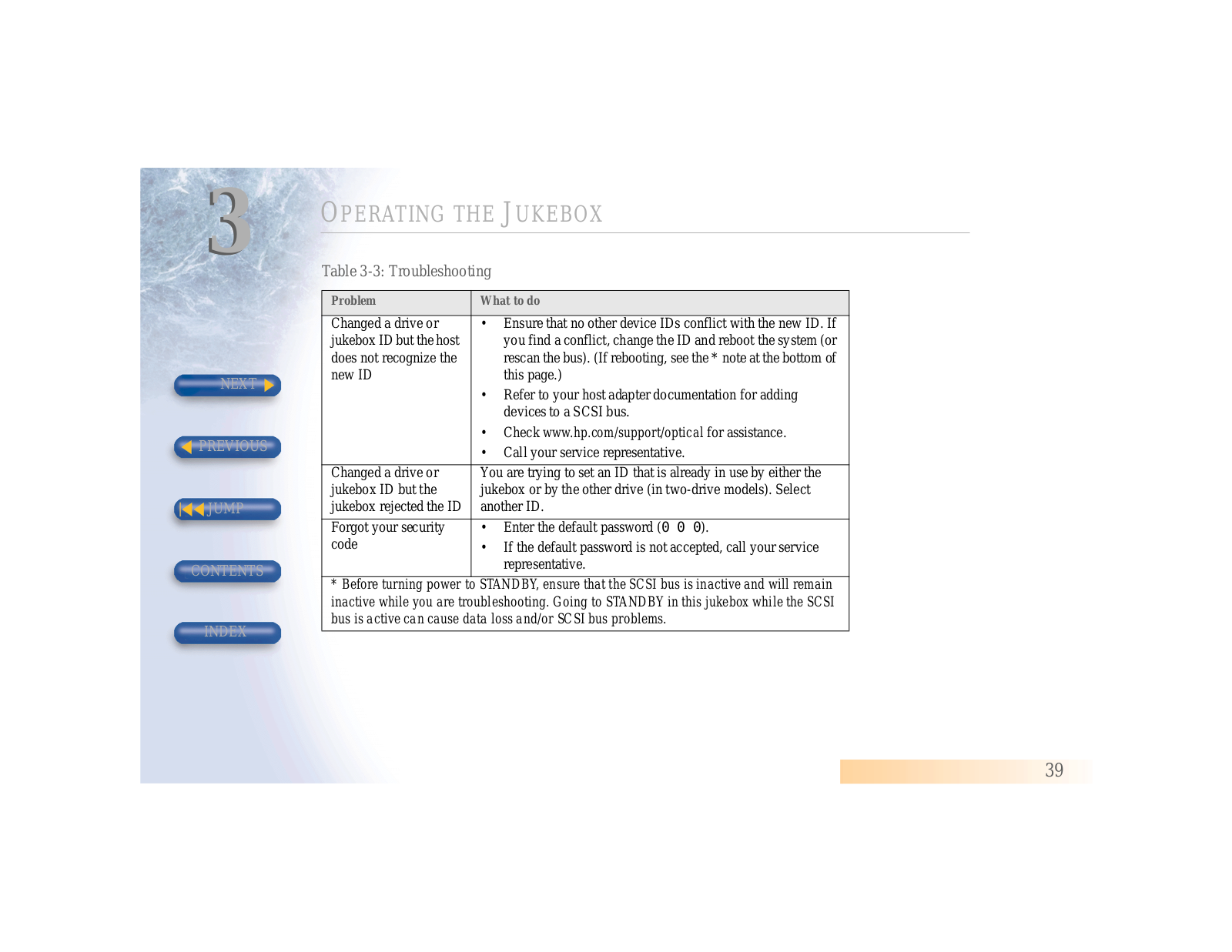

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37

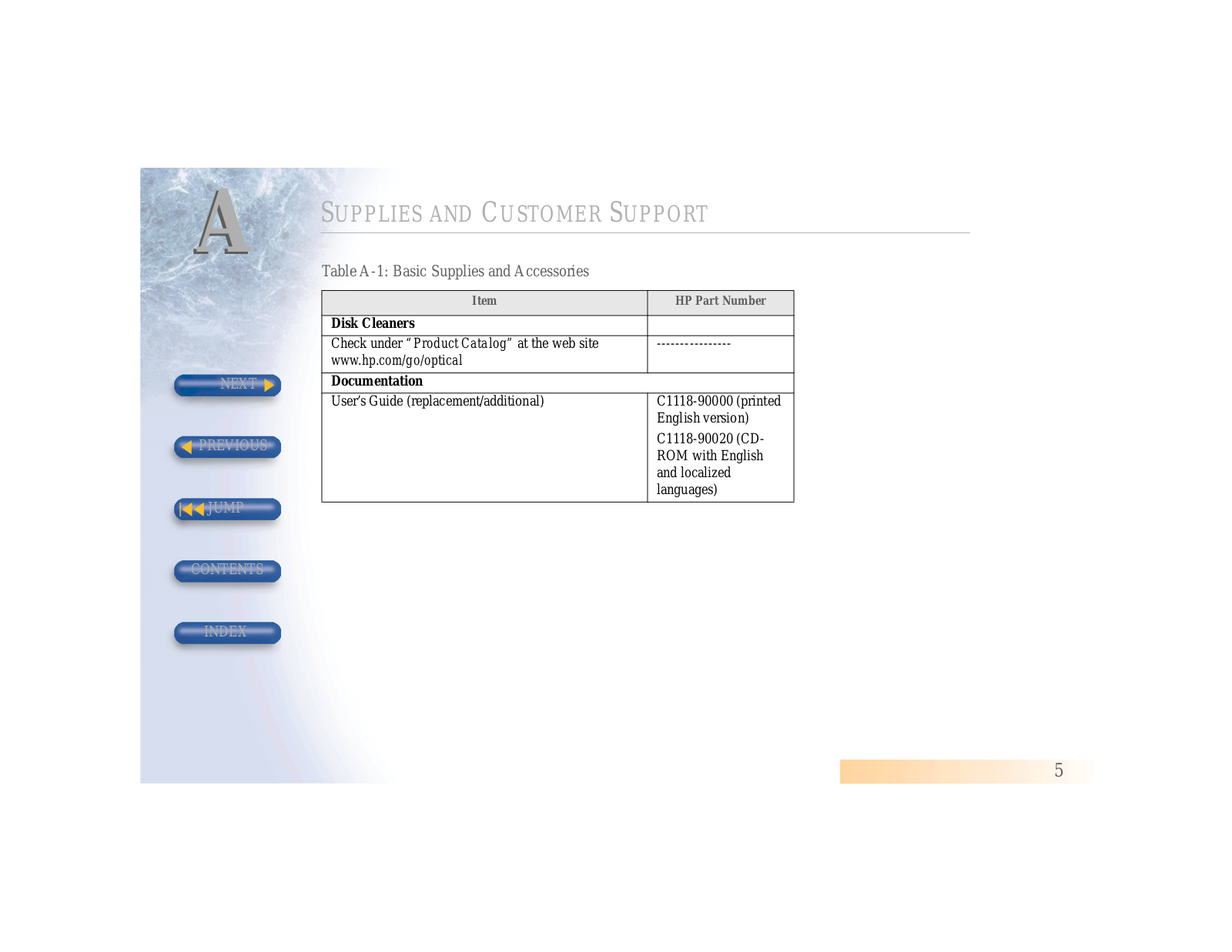

Basic Supplies and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

JUMP

CONTENTS

INDEX

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

This chapter tells you how to connect the jukebox to your computer. Follow the unpacking instructions printed on the outside of the shipping carton before you complete the steps given in this chapter.

NOTE: “Jukebox” and “library” are two, interchangeable terms used for this type of data storage device. “Jukebox” is used in this document.

The term “autochanger” in this document refers only to the physical and electronic components that manage the movement and storage of optical cartridges inside the jukebox.

This chapter gives information on the following topics:

•choosing a proper environment for the jukebox

•identifying parts on the rear panel

•connecting the jukebox to your computer

•connecting power

•moving and shipping the jukebox

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

WHAT YOU NEED FOR SETTING UP THE JUKEBOX:

• power cord (included)

• SCSI terminator (included)

• 68-pin, high density SCSI cable of desired length

• single-ended or low-voltage differential SCSI host adapter with at least two available addresses (at least three available addresses if you are installing one jukebox with two drives).

• application software that supports this type of jukebox

• this guide (included)

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

CHOOSING A LOCATION

Before setting up your jukebox, choose the proper environment based on the following recommendations:

•temperature range between 65-75º F (18-24º C). The maximum operating temperature range is 50-104º F (10-40º)

• away from sources of particulate contamination such as printers, scanners, frequently-used doors and walkways, supplies that collect dust, and smoke-filled rooms.

• 2-3 inches in front and back of the jukebox to allow air circulation.

• availability of AC power with voltage ranges of 100-127 V (115 V nominal) or 200-240 V (230 V nominal). This jukebox has an autoranging power supply.

At 100-127 V, the maximum current rating is 1.8 Amperes

At 200-240V, the maximum current rating is 0.9 Amperes

Typical power usage is 100 Watts

Maximum power usage is 170 Watts

Complete specifications are at www.hp.com/go/optical or you may contact your sales or service respresentative.

1 SETTING UP THE JUKEBOX

IDENTIFYING REAR PANEL FEATURES

Refer to Figure 1-1 and the text on the next page to identify parts and learn their functions.

Figure 1-1: Rear Panel Features

JUMP

CONTENTS

INDEX

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

The numbers below correspond to the numbers in Figure 1-1 on the previous page.

Table 1-1:

1	Power receptacle	Used to connect the power cord to the jukebox.

2	Standby/on switch	The ON position applies power to the robotics and
		electronics in the jukebox. The STANDBY
		position removes power from the robotics and
		electronics of the jukebox but power remains ON
		inside the power supply enclosure on the rear of the
		jukebox.
		To remove power completely from the jukebox,
		you must remove the power cable either from the
		rear input on the jukebox or at the wall/floor
		electrical outlet.

3	SCSI ports	Two 68-pin high-density connectors that allow
		connection to either a single-ended or low-voltage
		differential SCSI bus. A terminator must be
		plugged into one of these connectors when the
		jukebox is the last physical device on a SCSI bus.
		The terminator shipped with the jukebox is a
		single-ended / low-voltage differential terminator.
		For the most flexible configuration, use a self-
		configuring single-ended / low-voltage differential
		terminator (SE/LVD) even though the jukebox may
		be originally configured onto a low-voltage
		differential bus.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

REMOVING THE MAILSLOT SHIPPING BRACKET AND CHECKING REMOVAL OF THE SHIPPING SCREW

The jukebox is shipped with a plastic bracket inserted into the mailslot to prevent damage to the mailslot during shipping. A shipping screw is installed through the bottom of the chassis to restrain the cartridge picker.

To remove the mailslot bracket, do the following. Refer to Figure 1-2 on the following page.

1.Grasp both sides of the bracket and at the same time hook your fingers underneath its lower edge.

2.Gently bend the bottom of the bracket out slightly and while jiggling the bracket, pull it out from the mailslot.

1	SETTING UP THE JUKEBOX
		Figure 1-2: The Mailslot Shipping Bracket

JUMP

CONTENTS

INDEX

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

NOTE: When shipped, a wire links the shipping screw to the packing material on the bottom of the jukebox. The screw should have been removed when the bottom packing material was removed.

Check that the shipping screw was removed by doing the following:

3.Slide a finger under the chassis so that you can feel the area shown in Figure 1-3. The bottom of the chassis should be flat. You should not feel the head of a finger screw.

Caution: If you feel a large screwhead undeneath the chassis, gently lay the jukebox on its side and remove the screw. The jukebox will not be harmed by laying it on its side.

After removing the screw, raise the jukebox up and onto its feet.

The jukebox weighs approximately 75 pounds (34 kg). Use two people to lay the jukebox on its side.

1	SETTING UP THE JUKEBOX
		Figure 1-3: Location of the Shipping Screw

JUMP

CONTENTS

INDEX

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

CONNECTING THE SCSI CABLE TO THE JUKEBOX

The jukebox can be connected to either a single-ended or low-voltage differential SCSI bus. The connectors are highdensity 68-pin.

When connecting to a single-ended SCSI bus, and because the drives are “fast SCSI” you have a maximum of 9.8 feet (3 metres) for the entire bus. The jukebox uses 16 inches (0.4 metre) internally so 8.5 feet (2.6 metres) remain available for your use. This assumes that you do not have internal devices (disks, etc. connected to the bus. If you do, the maximum allowable external bus is reduced by the amount of internal bus used.

When connecting to a low-voltage differential SCSI bus, you have a maximum of 39.4 feet (12 metres) for the entire bus. As mentioned above, the jukebox uses 16 inches (0.4 metre) internally so 38 feet (11.6 metres) remain available for your use. This assumes that you do not have internal devices (disks, etc. connected to the bus. If you do, the maximum allowable external bus is reduced by the amount of internal bus used.

This jukebox can be connected to your host computer in two ways:

•as the only SCSI peripheral on a bus

•as one of multiple SCSI peripherals on a bus

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

CONNECTING THE JUKEBOX AS THE ONLY PERIPHERAL

The default IDs for the jukebox are as follows. Check to see if there will be any conflicts in this installation.

Autochanger (jukebox robotics) = 3

Drive 1 = 4

Drive 2 = 5 (if installed)

NOTE: If any of the autochanger/drive IDs are already being used, you can either change IDs used by the host bus adapter or another device on the bus, or you can change the autochanger/drive IDs.

If you choose to change the IDs of devices other than the autochanger and/or drives, do it now (before you begin cabling). Refer to your host and host bus adapter documentation.

If you will be changing the IDs of the autochanger or the drives, you will be given an opportunity to do this in the installation steps that follow.

1. Ensure that the mailslot shipping bracket and the shipping screw are removed.

NOTE: If you will be changing SCSI IDs in the host, finish changing them before doing the next step. See the previous NOTE.

2.Ensure that your host computer is OFF and the jukebox standby/on switch is in the STANDBY position.

The jukebox standby/on switch is in STANDBY when the STANDBY side of the switch is depressed. The switch is shown by “2” on Figure 1-1.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

Figure 1-4: Connecting the Jukebox as the Only Peripheral

3.Connect a SCSI cable between one of the SCSI ports on the jukebox with a SCSI port on your host computer (see “3” on Figure 1-1).

4. Plug a terminator into the unused SCSI port on the jukebox.

Because this configuration makes the jukebox the last peripheral on the SCSI bus, the bus must be terminated on the jukebox.

NOTE: The jukebox ships with a self-configuring single-ended / low-voltage differential terminator.

5. Go to “Connecting Power, Adjusting IDs, and Turning the Jukebox On” on page 1-16.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

CONNECTING THE JUKEBOX WITH OTHER SCSI

PERIPHERALS

Connecting this jukebox with other peripherals on the bus is shown in Figure 1-5.

Important: Other devices on the same bus as this jukebox will affect jukebox performance. Consider the following issues if you are deciding whether to connect other devices onto the same bus.

•How will the jukebox be used: archiving, backup, near-line storage? What performance must be maintained?

•How will the additional peripheral will be used? How much demand will the additional peripheral place on the bus?

•What is the bus length available?

A basic review of SCSI and a discussion of the issues involved with connecting devices on a bus is in Appendix B.

Caution: Do not connect a high-voltage differential device onto the same bus as this jukebox. Damage to the high-voltage differential device interface electronics can occur.

Important: Do not add a single-ended device onto the bus if you intend the bus to be a low-voltage differential bus. The bus will switch to single-ended mode if any single-ended devices are detected.

If you mix single-ended and low-voltage differential devices (causing single-ended operation) on total cabling longer than 9.8 feet (3 metres), SCSI bus problems could occur. This jukebox will operate in single-ended mode, but must be on a bus that is 9.8 feet (3 metres) or less.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

Important: Although this jukebox connects to a 68-pin SE/LVD “wide” SCSI bus and host adapter, the jukebox and its optical drives use a 50-pin “narrow” SCSI bus internally. See Appendix B for a discussion of SCSI buses.

Do not force “wide” data transfers.

Figure 1-5: Connecting the Jukebox With Other SCSI Peripherals

The default IDs for the jukebox are as follows. Check to see if there will be any conflicts in this installation. If you are installing another of this model jukebox on the same bus you have conflicts.

Autochanger (jukebox robotics) = 3

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

Drive 1 = 4

Drive 2 = 5 (if installed)

NOTE: If you determine that there are conflicts among SCSI IDs that are currently in use by your system and peripherals you will be placing on the bus, plan to do the following steps, as they apply to your situation.

•If you choose to change IDs used by internal devices, change the IDs at this time (before you turn the host system

OFF).

•If you choose to change the IDs of external peripherals (other than this jukebox) you may want to change those IDs at this time.

•If you choose to change the IDs in this jukebox (or an additional jukebox of this model), you can do this during the next set of steps “Connecting Power, Adjusting IDs, and Turning the Jukebox On”. Remember, if you are installing two libraries of this type, they will have the same default IDs (3, 4, and 5).

1.Ensure that the mailslot shipping bracket and the shipping screw are removed.

NOTE: If you will be changing SCSI IDs in the host, finish changing them before doing the next step. See the previous NOTE.

2.Ensure that your host computer is OFF and the jukebox standby/on switch is in the STANDBY position.

The jukebox standby switch is in STANDBY when the STANDBY side of the switch is depressed. The switch is shown by “2” on Figure 1-1.

3.Connect SCSI cables between the host, the jukebox, and the other peripheral (perhaps another jukebox) as shown in Figure 1-5.

4.Depending on your bus type, put a single-ended, low-voltage, or SE/LVD terminator on the SCSI connector of the last peripheral on the bus.

Caution: Do not use a high-voltage differential terminator.

5. Go to the next steps, “Connecting Power, Adjusting IDs, and Turning the Jukebox On”.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

CONNECTING POWER, ADJUSTING IDS, AND TURNING

THE JUKEBOX ON

NOTE: If you are changing SCSI IDs on the host bus adapter to avoid conflicts, change the IDs before turning host power OFF.

If you are changing IDs on one (or two) of this jukebox to avoid conflicts, the following steps include this option.

1.Ensure that your host computer is OFF and the jukebox standby/on switch is in the STANDBY position.

2.Plug the socket end of the power cord into the power port on the rear of the jukebox (see “1” on Figure 1-1). Use the power cord supplied with the jukebox.

3.Plug the other end of the power cord into a grounded electrical outlet.

Caution: Placing the standby/on switch to STANDBY does not remove all power from the jukebox. To remove all power (including primary power) you must pull the jukebox power plug from the wall/floor receptacle.

4. Press the jukebox standby/on switch to ON.

NOTE: If you are connecting two jukeboxes, place both jukeboxes to ON.

The remaining steps apply to both jukeboxes.

5.Initially, TESTING appears in the display window on the front of the jukebox. Once the poweron test completes (approximately 1.5 minutes), READY displays.

NOTE: If FAIL 1 displays, the poweron test was not successful. Feel under the chassis at the location shown in Figure 1-3 to ensure that the shipping screw was removed. If the shipping screw was removed, refer to “Troubleshooting” in Chapter 3.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

NOTE: If you are changing autochanger/drive IDs, refer to “Changing SCSI IDs” in Chapter 3. Return to this NOTE to continue.

After changing the IDs, turn the jukebox (or jukeboxes) to STANDBY then back to ON to write the changes into the jukebox memory. Once more, wait until the jukebox shows READY in the display before turning on the host.

6. Turn on the host computer.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

MOVING OR SHIPPING THE JUKEBOX

To move the jukebox a short distance, such as to another office or to another floor in your building, refer to “Moving the Jukebox a Short Distance”. To ship the jukebox to another location, refer to “Shipping the Jukebox”.

MOVING THE JUKEBOX A SHORT DISTANCE

1.Unmount any optical disk surfaces in the jukebox if necessary.

See your computer operating system, or software application documentation for instructions on how to unmount optical disks.

2.Ensure that there are no disks in the drives.

Eject any disks as necessary. Refer to your jukebox application software documentation. If you will be manually ejecting disks, refer to “Ejecting a Disk Cartridge From the Jukebox” on page 3-11.

Caution: Failure to eject a disk from the optical drive prior to moving the jukebox could result in damage to the optical drive mechanism.

Caution: Do not turn off power to the jukebox until you are sure the SCSI bus is inactive. Removing power from a SCSI peripheral when the bus is active can result in data loss and/or indeterminate bus states. Check your host system manuals for information about checking the SCSI bus status.

If your computer is connected to a LAN, ensure that other users on the LAN are not accessing the jukebox.

3.Switch the jukebox standby/on switch to STANDBY (see “2” on Figure 1-1).

4.Remove the power cord from the wall/floor receptacle and the SCSI cable connections from the rear of the jukebox.

5.Carefully move the jukebox to its new destination. If the jukebox contains disks, do not tip the jukebox or lay it on its side.

JUMP

CONTENTS

INDEX

SETTING UP THE JUKEBOX

6. Set up the jukebox at its new location, following the procedures in the beginning of this chapter.

SHIPPING THE JUKEBOX

1.Unmount any optical disk surfaces in the jukebox if necessary.

See your computer operating system, or software application documentation for instruction on how to unmount

optical disks.

2.Eject all disks from the jukebox.

If you will be replacing the disks into this jukebox after shipment, it is recommended that you label the disks at this time to at least show their slot location inside the jukebox. This will aid the setup at the new location.

Refer to your jukebox application software documentation for instructions on how to eject disks from the jukebox. If you will be manually ejecting disks, refer to “Ejecting a Disk Cartridge From the Jukebox” on page 3-11. To label disks so that the labeling will not cause problems in the jukebox, refer to “Labeling an Optical Disk Cartridge” on page 2-3.

Caution: Failure to eject a disk from the optical drive prior to moving the jukebox could result in damage to the optical drive mechanism.

Failure to remove all disks from the storage slots in the jukebox could result in damage to the jukebox.

If your computer is connected to a LAN, ensure that other users on the LAN are not accessing the jukebox.

3. Switch the jukebox standby/on switch to STANDBY (see “2” on Figure 1-1).

+ 99 hidden pages
