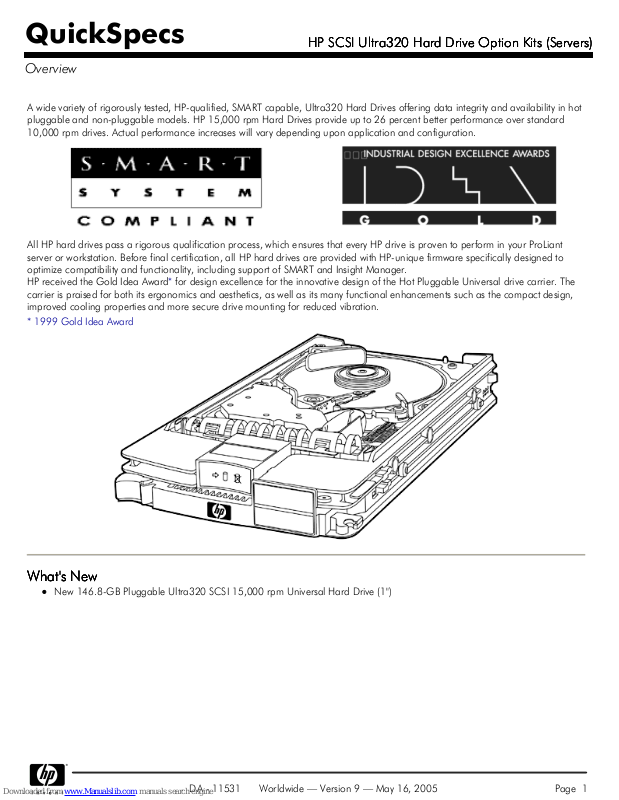

Page 1
A wide variety of rigorously tested, HP-qualified, SMART capable, Ultra320 Hard Drives offering data integrity and availability in hot
pluggable and non-pluggable models. HP 15,000 rpm Hard Drives provide up to 26 percent better performance over standard
10,000 rpm drives. Actual performance increases will vary depending upon application and configuration.
All HP hard drives pass a rigorous qualification process, which ensures that every HP drive is proven to perform in your ProLiant
server or workstation. Before final certification, all HP hard drives are provided with HP-unique firmware specifically designed to
optimize compatibility and functionality, including support of SMART and Insight Manager.
HP received the Gold Idea Award* for design excellence for the innovative design of the Hot Pluggable Universal drive carrier. The
carrier is praised for both its ergonomics and aesthetics, as well as its many functional enhancements such as the compact design,
improved cooling properties and more secure drive mounting for reduced vibration.
* 1999 Gold Idea Award
What's New
What's NewWhat's New
What's New
New 146.8-GB Pluggable Ultra320 SCSI 15,000 rpm Universal Hard Drive (1")
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Overview
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 1
Page 2
Hot Plug Drives
Hot Plug DrivesHot Plug Drives
Hot Plug Drives
146.8-GB Pluggable Ultra320 SCSI 15,000 rpm Universal Hard Drive (1")
347708-B22
72.8-GB Pluggable Ultra320 SCSI 15,000 rpm Universal Hard Drive (1")
286778-B22
72.8-GB Pluggable Ultra320 SCSI 15,000 rpm Universal Hard Drive (1") (2-5-2 sku)
3R-A3851-AA
36.4-GB Pluggable Ultra320 SCSI 15,000 rpm Universal Hard Drive (1")
286776-B22
36.4-GB Pluggable Ultra320 SCSI 15,000 rpm Universal Hard Drive (1") (2-5-2 sku)
3R-A3849-AA
300-GB Pluggable Ultra320 SCSI 10,000 rpm Universal Hard Drive (1")
350964-B22
300-GB Pluggable Ultra320 SCSI 10,000 rpm Universal Hard Drive (1") (2-5-2 sku)
3R-A4952-AA
146.8-GB Pluggable Ultra320 SCSI 10,000 rpm Universal Hard Drive (1")
286716-B22
146.8-GB Pluggable Ultra320 SCSI 10,000 rpm Universal Hard Drive (1") (2-5-2 sku)
3R-A3841-AA
72.8-GB Pluggable Ultra320 SCSI 10,000 rpm Universal Hard Drive (1")
286714-B22
72.8-GB Pluggable Ultra320 SCSI 10,000 rpm Universal Hard Drive (1") (2-5-2 sku)
3R-A3839-AA
Non-Hot Plug Drives
Non-Hot Plug DrivesNon-Hot Plug Drives
Non-Hot Plug Drives
36.4-GB Ultra320 SCSI 15,000 rpm Universal Hard Drive (1")
357012-B21
72.8-GB Ultra320 SCSI 10,000 rpm Universal Hard Drive (1")
332751-B21
146.8-GB Ultra320 SCSI 10,000 rpm Universal Hard Drive (1")
356990-B21
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Models
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 2
Page 3
Drive Quality
Drive QualityDrive Quality
Drive Quality
Today's distributed enterprise is seeing larger, more complex applications, an increase of mission-critical
data moving to the server, increasing demand for transaction processing and critical server
consolidation. In this environment, storage has become a critical component of the information system,
significantly defining both the systems reliability and performance. This is why HP drives undergo an
intense qualification process that eliminates data integrity problems, firmware and O/S incompatibilities
and other causes of data corruption or premature failure. All drive firmware is specific to our drives and
is designed to maximize both functionality and compatibility. All drives are proven to perform in the HP
systems for which they were designed.
Performance
PerformancePerformance
Performance
Only those drives whose performance is suitable for an enterprise environment are selected through the
HP qualification process and are labeled "best-in-class." All our drives are proven to be reliable and
tuned for optimum performance in the HP equipment for which they were designed.
Pre-Failure Warranty
Pre-Failure WarrantyPre-Failure Warranty
Pre-Failure Warranty
When used in conjunction with a SMART Array Controller and Insight Manager, the SMART capable
firmware in HP hard drives enables extensive fault prediction capabilities. If potential problems develop
in one of the drives, the SMART Array Controller, Insight Manager and/or SMART hard disk drive lets you
know in advance so you can have the drive replaced, before it fails, under the HP Pre-Failure Warranty.
NOTE:
NOTE: NOTE:
NOTE:
All drives are protected by a Pre-Failure Warranty when used with a HP array controller (SMART
or SMART-2) and Insight Manager, allowing hard drives to be replaced before failure free of charge. In
addition, all drives are covered by a one to three-year limited on-site warranty, or the remaining
warranty of the HP CPU in which it is installed (up to three years).
Integration
IntegrationIntegration
Integration
Many issues customers have with third party drives are "simple" integration issues. When buying from
another supplier, there is no guarantee that a drive has been correctly set for proper operation with
ProLiant servers and storage systems. These incompatibilities can create problems in configuration, can
rob your system of performance, or at their worst, can cause you to lose data. HP hard drives are
specifically designed and tested for flawless operation in your HP equipment. The integration of hard
drives in HP systems means that cables, SCSI ID settings, termination, hot plug drive trays and firmware
are right for your ProLiant server or storage system.
Server and Storage
Server and StorageServer and Storage
Server and Storage
Support
SupportSupport
Support
Please see the following URL for the latest list of supported servers and enclosures:
http://h18004.www1.hp.com/products/servers/proliantstorage/drives-enclosures/docs/index.html
Ultra320 SCSI Hard
Ultra320 SCSI HardUltra320 SCSI Hard
Ultra320 SCSI Hard
Drives
DrivesDrives
Drives
HP's Ultra320, Ultra3 and Ultra2 hard drives increase the maximum transfer rate of the SCSI bus to 320
MB/s (Ultra320), 160 MB/s (Ultra3) or 80 MB/s (Ultra2). By reducing the opportunity for SCSI bus
saturation, this increased data rate allows all SCSI devices to perform at optimum levels. Ultra320,
Ultra3 and Ultra2 hard drives are being offered in an improved hot plug drive carrier and can be used
interchangeably in HP Ultra2, Ultra3 or Ultra320 capable systems. In addition to improved drive
performance and increased storage density, the new carrier will also help prevent the inadvertent
insertion of single-ended SCSI drives into Low Voltage Differential SCSI capable equipment (avoiding
inadvertent performance degradation of LVD-capable systems). To achieve the maximum (320 MB/s)
transfer rates of Ultra320, the hard drive and the array controller (or SCSI host bus adapter) must both
be Ultra320 capable.
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Standard Features
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 3
Page 4
Ultra320 SCSI Universal
Ultra320 SCSI UniversalUltra320 SCSI Universal
Ultra320 SCSI Universal
Disk Drives
Disk DrivesDisk Drives
Disk Drives
HP Ultra320 SCSI Universal hard drives provide storage commonality across the enterprise. Ultra320
Universal drives add the feature of hot plug compatibility between any Ultra320, Ultra3 or Ultra2
capable ProLiant Servers, ProLiant Storage Systems, AlphaServers, and Modular Array enclosures by HP.
These hot plug drives are offered in multiple capacities and spindle speeds. Storage commonality across
these platforms provides many benefits including reduced cost of ownership, reduced storage complexity,
and a minimized hard drive spares inventory.
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Standard Features
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 4
Page 5
Support Services
Support ServicesSupport Services
Support Services
Care Pack services provide a range of life cycle support options that let you choose the service levels that
meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 ours, 5 day to 24 hours, 7
days call window with options including 4-hour response or 6-hour Call-To-Repair.
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials, and
VMWare-based IT solutions helping to deliver high level of application availability. Response times
ranging from 30 minutes for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution
NOTE:
NOTE: NOTE:
NOTE:
For more information on HP Care Pack services, contact any of our worldwide sales offices or
resellers or visit our worldwide Web site on the internet at:
http://www.hp.com/hps/carepack
NOTE:
NOTE: NOTE:
NOTE:
For more complete information on HP Services offerings, customers and resellers, please visit us
at:
http://www.hp.com/hps
NOTE:
NOTE: NOTE:
NOTE:
Additional information regarding worldwide limited warranty and technical support is available
at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Service and Support, HP Care Pack, and Warranty Information
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 5
Page 6
(For ease of deployment it is recommended that RAID sets not contain a combination of Ultra2 / Ultra3 drives and previous version
SCSI drives. Mixed RAID sets may be used if desired, however some combinations may require reconfiguring the RAID array)
Application Information
Application InformationApplication Information
Application Information
HP Ultra320 SCSI hard drives provide a maximum data transfer rate of 320 MB/s - twice the rate of
Ultra3 systems. These Universal Hard Disk Drives provide the ability to hot plug between various HP
Ultra320, Ultra3 and Ultra2 SCSI platforms. All HP Hard Disk Drives are required to meet our rigorous
standards for reliability and performance. These drives are intended for use in today's demanding, datacritical enterprise environments. Universal option kits are configured and pre-mounted in the appropriate
hot plug tray for immediate installation into your ProLiant server or storage system.
146.8-GB Pluggable
146.8-GB Pluggable146.8-GB Pluggable
146.8-GB Pluggable
Ultra320 SCSI
Ultra320 SCSIUltra320 SCSI
Ultra320 SCSI
15,000 rpm Hard Drive
15,000 rpm Hard Drive15,000 rpm Hard Drive
15,000 rpm Hard Drive
(1")
(1")(1")
(1")
347708-B22
146.8 GB 15K
146.8 GB 15K146.8 GB 15K
146.8 GB 15K
Capacity
CapacityCapacity
Capacity
146815.74 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.4 ms
Average
3.8 ms
Full-Stroke
8.0 ms
Rotational Speed
15,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
286,749,488
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
72.8-GB Pluggable
72.8-GB Pluggable72.8-GB Pluggable
72.8-GB Pluggable
Ultra320 SCSI
Ultra320 SCSIUltra320 SCSI
Ultra320 SCSI
15,000 rpm Universal
15,000 rpm Universal15,000 rpm Universal
15,000 rpm Universal
Hard Drive (1")
Hard Drive (1")Hard Drive (1")
Hard Drive (1")
286778-B22
3R-A3851-AA
72.8 GB 15K
72.8 GB 15K72.8 GB 15K
72.8 GB 15K
Capacity
CapacityCapacity
Capacity
72837.2 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.4 ms
Average
3.8 ms
Full-Stroke
8.0 ms
Rotational Speed
15,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
142,264,000
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Ultra320 Hot Plug Hard Disk Drives
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 6
Page 7
36.4-GB Pluggable
36.4-GB Pluggable36.4-GB Pluggable
36.4-GB Pluggable
Ultra320 SCSI
Ultra320 SCSIUltra320 SCSI
Ultra320 SCSI
15,000 rpm Universal
15,000 rpm Universal15,000 rpm Universal
15,000 rpm Universal
Hard Drive
Hard DriveHard Drive
Hard Drive (1")
(1")(1")
(1")
286776-B22
3R-A3849-AA
36.4 GB 15K
36.4 GB 15K36.4 GB 15K
36.4 GB 15K
Capacity
CapacityCapacity
Capacity
369419.2 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.4 ms
Average
3.8 ms
Full-Stroke
8.0 ms
Rotational Speed
15,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
71,132,000
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
300-GB Pluggable
300-GB Pluggable300-GB Pluggable
300-GB Pluggable
Ultra320 SCSI
Ultra320 SCSIUltra320 SCSI
Ultra320 SCSI
10,000 rpm Hard Drive
10,000 rpm Hard Drive10,000 rpm Hard Drive
10,000 rpm Hard Drive
(1")
(1")(1")
(1")
350964-B22
3R-A4952-AA
300 GB 10K
300 GB 10K300 GB 10K
300 GB 10K Capacity
CapacityCapacity
Capacity
300000 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.55 ms
Average
4.9 ms
Full-Stroke
10.0 ms
Rotational Speed
10,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
585,937,500
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
146.8-GB Pluggable
146.8-GB Pluggable146.8-GB Pluggable
146.8-GB Pluggable
Ultra320 SCSI
Ultra320 SCSIUltra320 SCSI
Ultra320 SCSI
10,000 rpm Hard Drive
10,000 rpm Hard Drive10,000 rpm Hard Drive
10,000 rpm Hard Drive
(1")
(1")(1")
(1")
286716-B22
3R-A3841-AA
146.8 GB 10K
146.8 GB 10K146.8 GB 10K
146.8 GB 10K
Capacity
CapacityCapacity
Capacity
146815.74 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.55 ms
Average
4.9 ms
Full-Stroke
10.0 ms
Rotational Speed
10,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
286,749,488
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Ultra320 Hot Plug Hard Disk Drives
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 7
Page 8
72.8-GB Pluggable
72.8-GB Pluggable72.8-GB Pluggable
72.8-GB Pluggable
Ultra320 SCSI
Ultra320 SCSIUltra320 SCSI
Ultra320 SCSI
10,000 rpm Hard Drive
10,000 rpm Hard Drive10,000 rpm Hard Drive
10,000 rpm Hard Drive
(1")
(1")(1")
(1")
286714-B22
3R-A3839-AA
72.8 GB 10K
72.8 GB 10K72.8 GB 10K
72.8 GB 10K
Capacity
CapacityCapacity
Capacity
72837.2 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.55 ms
Average
4.9 ms
Full-Stroke
10.0 ms
Rotational Speed
10,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
142,264,000
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Ultra320 Hot Plug Hard Disk Drives
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 8
Page 9
(For ease of deployment it is recommended that RAID sets not contain a combination of Ultra2 / Ultra3 drives and previous version
SCSI drives. Mixed RAID sets may be used if desired, however some combinations may require reconfiguring the RAID array)
Application Information
Application InformationApplication Information
Application Information
HP non-plug hard disk drives provide an economical, reliable, fully HP supported primary storage
solution. These drives provide functionality and features to satisfy our business and professional users. All
non-plug hard disk drive kits provide mounting hardware for both 3.5-inch and 5.25-inch bays and
include detailed instructions for mounting and configuring your new hard disk drive in your ProLiant
server or workstation.
36.4-GB Ultra320 SCSI
36.4-GB Ultra320 SCSI36.4-GB Ultra320 SCSI
36.4-GB Ultra320 SCSI
15,000 rpm Hard Drive
15,000 rpm Hard Drive15,000 rpm Hard Drive
15,000 rpm Hard Drive
(1")
(1")(1")
(1")
357012-B21
36.4 GB 15K
36.4 GB 15K36.4 GB 15K
36.4 GB 15K
Capacity
CapacityCapacity
Capacity
36419.2 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.4 ms
Average
3.8 ms
Full-Stroke
8 ms
Rotational Speed
15,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
71,132,000
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
72.8-GB Ultra320 SCSI
72.8-GB Ultra320 SCSI72.8-GB Ultra320 SCSI
72.8-GB Ultra320 SCSI
10,000 rpm Hard Drive
10,000 rpm Hard Drive10,000 rpm Hard Drive
10,000 rpm Hard Drive
(1")
(1")(1")
(1")
332751-B21
72.8 GB 10K
72.8 GB 10K72.8 GB 10K
72.8 GB 10K
Capacity
CapacityCapacity
Capacity
72837.2 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.55 ms
Average
4.9 ms
Full-Stroke
10ms
Rotational Speed
10,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
142,264,000
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Ultra320 Non-Hot Plug Hard Disk Drive
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 9
Page 10
146.8-GB Ultra320 SCSI
146.8-GB Ultra320 SCSI146.8-GB Ultra320 SCSI
146.8-GB Ultra320 SCSI
10,000 rpm Hard Drive
10,000 rpm Hard Drive10,000 rpm Hard Drive
10,000 rpm Hard Drive
(1")
(1")(1")
(1")
356990-B21
146.8 GB 10K
146.8 GB 10K146.8 GB 10K
146.8 GB 10K
Capacity
CapacityCapacity
Capacity
146815.74 MB
Height
HeightHeight
Height
1.0 in (2.54 cm)
Width
WidthWidth
Width
4.0 in (10.16 cm)
Interface
InterfaceInterface
Interface
Ultra320 SCSI
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
Synchronous
Synchronous Synchronous
Synchronous
(Maximum)
320 MB/s
Seek Time
Seek TimeSeek Time
Seek Time
(typical reads, including
settling)
Single Track
0.4 ms
Average
3.8 ms
Full-Stroke
8.0 ms
Rotational Speed
10,000 rpm
Physical Configuration
Physical ConfigurationPhysical Configuration
Physical Configuration
Bytes/Sector
512
Logical Blocks
286,749,488
Operating Temperature
Operating TemperatureOperating Temperature
Operating Temperature
50° to 95° F (10° to 35° C)
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)HP SCSI Ultra320 Hard Drive Option Kits (Servers)
HP SCSI Ultra320 Hard Drive Option Kits (Servers)
Ultra320 Non-Hot Plug Hard Disk Drive
DA - 11531 Worldwide — Version 9 — May 16, 2005
Page 10
Loading...
