HP ProOne 600 G1 Specification

Download

Page 1

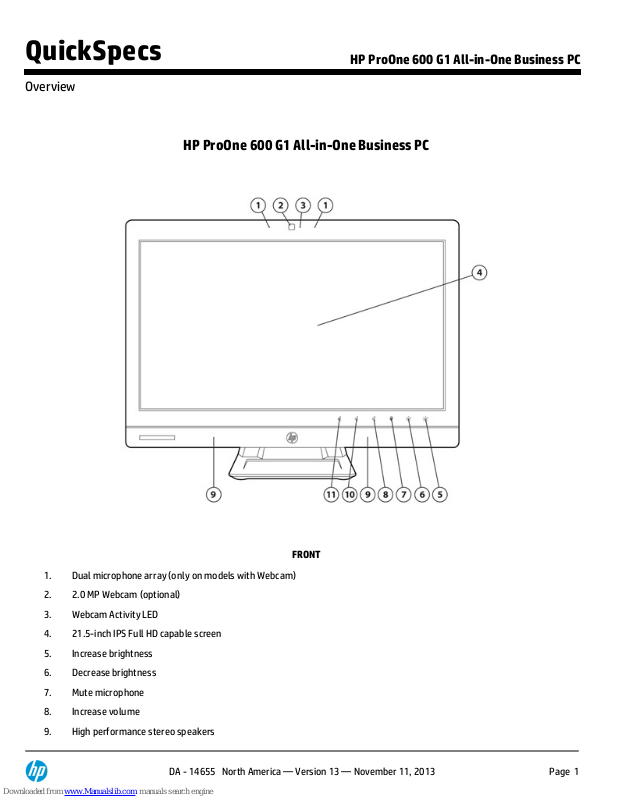

HP ProOne 600 G1 All-in-One Business PC

FRONT

Dual microphone array (only on models with Webcam)

2.0 MP Webcam (optional)

Webcam Activity LED

21.5-inch IPS Full HD capable screen

Increase brightness

Decrease brightness

Mute microphone

Increase volume

High performance stereo speakers

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Overview

DA - 14655 North America — Version 13 — November 11, 2013

Page 1

Page 2

10.

Reduce volume

11.

Mute speaker

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Overview

DA - 14655 North America — Version 13 — November 11, 2013

Page 2

Page 3

HP ProOne 600 G1 All-in-One Business PC

SIDE

Hard disc drive activity LED

HP SD media card reader (optional)

(2) USB 3.0 ports, including 1 fast charging port

Microphone/line in jack

Headphone/line out jack

Tray-load optical disc drive (optional)

Optical disc drive eject button

Optical disc drive activity LED

Power button

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Overview

DA - 14655 North America — Version 13 — November 11, 2013

Page 3

Page 4

HP ProOne 600 G1 All-in-One Business PC

REAR/PORTS (BEHIND SECURITY COVER)

Stand (can be configured with no stand, basic stand, or height adjustable/reclining stand)

Security lock slot

Access panel latches

(2) PS/2 mouse and keyboard connectors

(2) USB 2.0 ports

RJ-45 Gigabit Ethernet port

(2) USB 3.0 ports

DisplayPort connector

Stereo audio line out

10.

Power connector

11.

Optional Serial Port

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Overview

DA - 14655 North America — Version 13 — November 11, 2013

Page 4

Page 5

At A Glance

Windows 7 or Windows 8 UEFI BIOS developed and engineered by HP for better security, manageability and software image stability Integrated All-in-One form factor

21.5-inch IPS Full HD (1920 x 1080) diagonal widescreen WLED backlit anti-glare LCD Landscape or portrait display orientation - with height adjustable stand or VESA mount Can be configured with no stand, basic stand, or height adjustable/reclining stand Intel® Q85 chipset Intel® 4th generation Core™ processors Integrated Intel® HD Graphics Optional MXM Discrete graphics Integrated Intel® Gigabit Network Connection I217LM Optional wireless connectivity:

Intel® Advanced-N 6205 WLAN

Intel® 802.11 a/b/g/n

Intel® Dual Band Wireless-N 7260

Intel 802.11 a/b/g/n

WLAN and Bluetooth Combo Card

HP 802.11 a/b/g/n

Bluetooth® 4.0 WiDi support (with Intel® 6205 WLAN and Intel® HD Graphics) Optional Near Field Communication (NFC) Optional Integrated 2.0 MP Webcam & Dual Microphone Array High performance integrated stereo speakers DTS Sound +™ with optional DTS Studio Sound™ Up to 16 GB of DDR3 SDRAM, dual channel memory support, two SODIMM slots Support for up to 3 storage drives (2 SATA, 1 mSATA) Up to 1 TB SATA Hard Drive, up to 160GB Solid State Drive, 256GB Self-Encrypting Solid State Drive, 500GB Self-encrypting Drive, 1TB Solid State Hybrid Drive Optional Slim Tray-load SuperMulti DVD Writer or DVD-ROM Optical Disc Drive Optional SD Media Card Reader Optional serial port DisplayPort out Integrated VESA 100 x 100 mounting holes Lockable rear access panel with intrusion sensor ENERGY STAR® qualified. EPEAT® registered where applicable/supported. See www.epeat.net for registration status by country. CCC, CECP & SEPA Certified Optimized for Microsoft Lync TCO AiO and TCO Edge Low Halogen Arsenic Free Protected by HP Services, including warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Overview

DA - 14655 North America — Version 13 — November 11, 2013

Page 5

Page 6

OPERATING SYSTEM

Preinstalled

Windows 8 Professional (64-bit)* Windows 8 (64-bit)* Windows 7 Ultimate (32-bit)** (LAR only) Windows 7 Ultimate (64-bit)** Windows 7 Professional (32-bit)** Windows 7 Professional (64-bit)** Windows 7 Professional (32-bit) (available through downgrade rights from Windows® 8 Pro)*** Windows 7 Professional (64-bit) (available through downgrade rights from Windows® 8 Pro)*** Windows 7 Home Premium (32-bit)** (LAR only) Windows 7 Home Premium (64-bit)** Windows 7 Home Basic (32-bit)** (LAR only)

FreeDOS 2.0 Novell SUSE Linux Enterprise Desktop 11

*Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See

http://www.microsoft.com

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows® 7 functionality. See

http://www.microsoft.com/windows/windows-7/

for details.

***This system is preinstalled with Windows 7 Pro software and also comes with a license and media for Windows 8 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

PROCESSOR

Intel® 4th Generation Core™ i7 Processors

Intel® Core™ i7-4770S Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency), 8 MB cache, 4 cores, 8 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate Intel's® Stable Image Platform Program (SIPP)

Intel® 4th Generation Core™ i5 Processors

Intel® Core™ i5-4670S Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate Intel's® Stable Image Platform Program (SIPP)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 6

Page 7

Intel® Core™ i5-4570S Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate Intel's® Stable Image Platform Program (SIPP)

Intel® 4th Generation Core™ i3 Processors

Intel® Core™ i3-4340

3.6 GHz base frequency, 4 MB cache, 2 cores, 4 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-4330

3.5 GHz base frequency, 4 MB cache, 2 cores, 4 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-4130

3.4 GHz base frequency, 3 MB cache, 2 cores, 4 threads Intel® HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® 4th Generation Pentium™ Processors

Intel® Pentium™ G3430

3.3 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel® HD Graphics Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium™ G3420

3.2 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel® HD Graphics Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium™ G3220

3.0 GHz base frequency, 3 MB cache, 2 cores, 2 threads Intel® HD Graphics Supports DDR3 memory up to 1300 MT/s data rate

CHIPSET

Intel® 8 Series (Q85) Chipset

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 7

Page 8

INTEL® STANDARD MANAGEABILITY

Includes DASH 1.0/1.1 compliance plus:

System Defense Agent Presence SOL/IDE Redirection CISCO NAC/SDN support ME Wake on LAN Host Based Configuration ME Firmware Rollback IPv6 Support

DASH 1.0/1.1 compliance:

Boot Control HW Inventory SW Inventory Power State Management HW Alerting

SMBIOS

System Management BIOS, previously known as DMI BIOS, is used to store system management information.

GRAPHICS

Integrated

Intel® HD Graphics 4600 Graphics controller

Intel® Processor Graphics

DisplayPort

Multi-Stream support (supports up to 2 external displays)

Memory

Up to 1.8GB DDR3

Supported Graphics APIs

DX11.1, OpenGL 4.0, OpenCL 1.2, full 1080p Blu-Ray Disc (H264) playback in hardware

Discrete (optional)

AMD® Radeon HD 7650A 2GB DDR3 MXM Graphics Graphics controller

AMD® Radeon HD 7650A

DisplayPort

Multi-Stream support (supports up to 4 external displays at 1920x1080)

Core clock

600MHz max

Memory clock

800MHz max

Memory frame buffer

2GB, DDR3, 128-bit wide

Memory

2GB DDR3

Supported Graphics APIs

DX11, OpenGL 4.1, OpenCL 1.1, full 1080p Blu-Ray Disc (H264) playback in hardware

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 8

Page 9

Using the Integrated Graphics, two (2) external displays are supported via one of these methods:

Using the MXM Graphics, up to four (4) external displays are supported via one of these methods:

1) DisplayPort multi-stream monitors 'daisy-chained' together or

2) DisplayPort multi-stream hub - hub requires power through power cable provided. DisplayPort multi-stream hub provides 4 DisplayPort ports, adapters are required for support of DVI, VGA or HDMI displays.

WIRELESS DISPLAY

WiDi support with Intel® Advanced-N 6205 WLAN or Dual Band Wireless-N 7260 (mini PCI Express) and Intel® HD graphics

Desktop system requirements for Intel® Wireless Display

System Component

Requirement

Processor

4th generation Intel® Core processor

Graphics

Intel® HD Graphics

Wireless

Intel Advanced-N 6205 WLAN

Software

Intel® My WiFi Technology and Intel® Wireless Display must be pre-installed and enabled.

OS*

Windows 7 32-bit/64-bit Home Premium, Ultimate, Professional; Windows 7 32-bit Home Basic

* Windows 8 supports Wireless Display natively

DISPLAY

21.5"diagonal IPS widescreen WLED backlit anti-glare LCD; Orientation designed to operate in portrait or landscape

Display Panel

Type

IPS WLED Backlit LCD

Viewable image area (mm)

476.06 x 267.79

Screen opening (mm)

477.73 x 269.22

Native Resolution (HxV)

1920 x 1080

Aspect ratio

16:9

Pixel pitch (HxV)(mm)

0.248 x 0.248

Contrast ratio (typical)

1000:1

Brightness (typical)

250nits (cd/m2)

Viewing angle (typical) (HxV)

178 ° x178 °

Backlight lamp life (to half brightness)

30,000 hours minimum

Color support

Over 16 million colors

Color gamut (typical)

72%

Anti-glare

Yes

Default color temperature

Warm (6500K)

NOTE:

All performance specifications represent the typical specifications provided by HP's

component manufacturers; actual performance may vary either higher or lower.

Basic Stand:

Tilt Angle

-5° to +30°

Rotation

360° swivel

Height Adjustable /Reclining Stand:

Vertical Adjustment

Up to 110 mm

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 9

Page 10

Stand:

Recline Angle

Low position sliding height adjustment => -5° to +60°

Tilt Angle

High position sliding height adjustment => 5° to +30°

Rotation

360° swivel and portrait or landscape orientation

WEBCAM & MIC

Optional integrated 2.0 MP webcam & dual microphone array; maximum resolution of 1920 x 1080

STORAGE

3.5" SATA Hard Drive

500 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV 1 TB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

2.5" SATA Hard Drive

500 GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV

2.5" Solid State Drive

120 GB, SATA, Solid State Drive 128 GB, SATA, Solid State Drive 160 GB, SATA, Solid State Drive

2.5" Self-Encrypting Solid State Drive

128 GB, SATA, Self-Encrypting Solid State Drive 256 GB, SATA, Self-Encrypting Solid State Drive

2.5" Self-Encrypting Drive

500 GB, SATA, Self-Encrypting Drive

2.5" Solid State Hybrid Drive

500 GB, SATA, Solid State Hybrid Drive 1 TB SATA, Solid State Hybrid Drive

Optical Disc Drive

Slim Tray-load SATA DVD-ROM Slim Tray-load SATA SuperMulti DVD Writer No included Optical Disc Drive

Removable

HP Slim Removable SATA HDD frame/carrier

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 10

Page 11

Media Card Reader

(optional)

5-in-1 PCIe Interface Supports Secure Digital (SD, SDXC, SDHC, UHS-I, UHS-II)

MEMORY

Type

Non-ECC, DDR3 SDRAM, 1600 MT/s, SODIMM

Maximum

16 GB

# of Slots

2 204-pin supporting dual-channel memory Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Full availability of 4 GB or more of memory requires a 64-bit operating system. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

Memory modules support data transfer rates up to 1600 MT/s; actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate.

NETWORKING/COMMUNICATIONS

Ethernet (RJ-45)

Integrated Intel® I217LM Gigabit Network Connection

NOTE:

The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

Wireless LAN (optional)

Intel® 802.11 a/b/g/n wireless 6205 PCIe minicard Up to 300 mbps data rate

Intel® 802.11 a/b/g/n wireless 7260 PCIe minicard over here Up to 300 mbps data rate

HP 802.11 a/b/g/n wireless PCIe minicard with Bluetooth Combo Up to 300 mbps data rate Bluetooth 4.0 compliant Works with a wide range of Bluetooth devices

Near Field Communications (NFC) (optional)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 11

Page 12

HP Module with NXP NFC Controller with Embedded Secure Element, PN65O Supports Windows 8, Proximity Events Support Windows 7, PC/SC NFC Forum Compliant

AUDIO/MULTIMEDIA

DTS Sound +™ DTS Studio Sound™ (optional) Realtek ALC 3228 Audio – 16 & 24-bit PCM High performance integrated stereo speakers Volume control and mute buttons Stereo headphone jack Microphone in Stereo line out Integrated 2.0 MP webcam (up to 30 frames/sec) & dual microphone array (optional)

KEYBOARDS AND POINTING DEVICES

Keyboard

HP PS/2

104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad Cable length 70.87 in (180 cm)

HP USB

104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad Cable length 51 in (130 cm)

HP Wireless Keyboard & Mouse

104 keys plus special functions for Mute, Volume Up, Volume Down, Sleep Separate numeric keypad; two buttons with scroll wheel acting as third button Operates at ~ 2.4 GHz and supports a working distance of up to 32 ft (10m) Cable length 6ft (1.8m) (Keyboard contains 25% post-consumer recycled plastic material)

HP USB SmartCard CCID Keyboard

104, 105, 106, 107, 109 layout (depending upon country) All ISO 7816 smart cards

HP USB PS/2 Washable Keyboard

SpillSeal® keyboard technology protection USB & PS/2 support in one solution Separate numeric keypad Cable length 7ft (2.2m)

Mice

HP PS/2 Mouse

800 dpi support Two buttons with scroll wheel

72.8 in (185 cm)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 12

Page 13

HP USB Optical Mouse

800 dpi support Two buttons with scroll wheel

72.8 in (185 cm)

HP USB 1000dpi Laser Mouse

1000 dpi support Two buttons with scroll wheel Cable length 70.8 in (180 cm)

HP USB PS/2 Washable Scroll Mouse

SpillSeal® mouse technology protection Two buttons with scroll wheel

8.8 ft total 70 cm+ 2m extension

HP BIOSphere

Key features of the HP BIOS include:

Deployment and manageability - HP BIOS provides several technologies that help integrate the HP ProOne 600 Business PC into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages. Stability - HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification. Support UEFI specification 2.3.1 Thermal and power management - The HP BIOS provides and enables thermal and power management technologies so component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any enterprise environment. Thermal Controlled Fans - Automatic or manual controlled fan speeds for cooling and acoustic performance Serviceability HP BIOS provides diagnostic and detailed service information. Upgrades and recovery - HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS updates from within DOS (DOSFlash), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe recovery (Emergency Boot Block Recovery). In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is available from within the BIOS F10 setup and from the support website. HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery. Serviceability - HP BIOS provides diagnostic and detailed service information.

Additional HP BIOS Features

Power-On password - Helps prevent an unauthorized user from powering on the system. Administrator password - Also known as the setup password, this helps prevent unauthorized changes to the system configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to BIOS settings using F10 setup or under the OS. Advanced Configuration and Power Interface (ACPI) - Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. HP Pro models use ACPI to provide power conservation features. S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5 (when turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality.\ Master Boot Record Security - Helps to prevent changes and/or infections to the Master Boot Record caused by viruses or malicious code HP BIOS Protection - prevents unauthorized updates or changes to the BIOS due to malware, viruses, or malicious BIOS updates. Based on NIST SP800-147 policy guidelines.

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 13

Page 14

SECURITY

USB port disable Lockable Access Panel Lockable I/O security cover Security Screw HP Keyed Cable Lock (optional) Common Criteria Certified, Infineon TPM SLB9656TT1.2- 4.32 FW Intrusion Detector Wall/Arm/Cart Mountable via VESA bracket Support for Nobel Locking Plate (3rd party option) Support for 3M Privacy Screen (3rd party option)

POWER

Internal 180W, up to 91% efficient, active PFC 100-240V AC

20% 50%

100%

Power Efficiency

87% 87% 91% 90% 90% 87%

Volts

230

100/115

230

100/115

230

100/115

SOFTWARE COMPONENTS AND APPLICATIONS WITH WINDOWS

Included

Windows 7 Windows 8

Security

Computrace (status tracing)

Device Access Manager Drive Encryption

File Sanitizer (Activated via Wizard) Disk Sanitizer (External Version)

Microsoft Security Essentials Security Manager

Computrace (status tracing)

Device Access Manager Drive Encryption

File Sanitizer (Activated via Wizard) Disk Sanitizer (External Version)

Microsoft Defender Secure Erase Security Manager

Multimedia

Cyberlink Power DVD, BD Cyberlink Power2Go (Secure Burn)

Communication

HP Wireless Hotspot

HP Value Add

HP ePrint Driver

HP PageLift HP Support Assistant HP Recovery Disk Creator

HP ePrint Driver

HP PageLift HP Recovery Manager HP Support Assistant

3rd Party

Adobe Flash Player Bing Search for Internet Explorer 10 Box

PDF Complete, Corporate Edition Skype

Bing Search

PDF Complete, Corporate Edition Skype

Microsoft Products

Buy Office Buy Office

Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription. Subscriptions

can be purchased for terms ranging from one to five years. Service is limited, check with Absolute for availability outside the U.S.

Available via download

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 14

Page 15

Preinstalled on models with webcam

Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,

supported documents and image types and other HP ePrint details, see

www.hp.com/go/eprintcenter

).Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.

UK only 6 Drive Encryption is planned to be available in October 2013. Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive Encryption and prevents data access.

ENVIRONMENTAL & INDUSTRY

ENERGY STAR® qualified models available EPEAT® registered where applicable/supported. See

www.epeat.net

for registration status by country.

Industry standard certifications

: UL CSA FCC compliance ENERGY STAR® EPEAT® Gold EUP Lot6 Tier2 CCC CECP SEPA TCO AiO and TCO Edge Optimized for Microsoft Lync Low halogen Arsenic Free 80 PLUS® TAA compliant

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

WEIGHTS & DIMENSIONS

Weight

Product Weight Unboxed

Without stand

14.6 - 17.4 lbs

6.63 - 7.88 kg

Basic stand

19.4 - 22.2 lbs

8.8 - 10.05 kg

Height adjustable/reclining stand

28.8 - 31.5 lbs

13.06 - 14.31 kg

Shipping Weight Boxed

Without stand

26.24 lbs

11.90 kg

Basic stand

31.09 lbs

12.87 kg

Height adjustable/reclining stand

40.92 lbs

17.84 kg

Shipping Weight Pallet

Without stand (18 units)

503.80 lbs

228.48 kg

Basic stand (18 units)

595.35 lbs

250.66 kg

Height adjustable/reclining stand (12 units)

491.10 lbs

233.08.84 kg

Dimensions (W x D x H)

Product Dimensions

Without stand

20.5 x 2.56 x 14.5 in

Basic stand

20.5 x 7.7 x 16.8 in

Height adjustable/reclining stand 0 degrees

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 15

Page 16

521.9 x 65 x 367.4 mm

521.9 x 195.6 x 426.8 mm

20.5 x 9.8 x 20.4 in

521.9 x 247.7 x 518.5 mm Height adjustable/reclining stand

60 degrees

20.5 x 14.4 x 10.8 in

521.9 x 366.8 x 273.1 mm

Shipping Dimensions

Shipping Dimensions Boxed

Without stand

24.41 x 11.22 x 22.44 in 620 x 285 x 570 mm

Basic stand

24.41 x 11.22 x 22.44 in 620 x 285 x 570 mm

Height adjustable/reclining stand

29.06 x 12.87 x 23.19 in 738 x 327 x 589 mm

Shipping Dimensions Pallet

Without stand (18 units)

47.24 x 39.37 x 72.05 in 1200 x 1000 x 1830 mm

Basic stand (18 units)

47.24 x 39.37 x 72.05 in 1200 x 1000 x 1830 mm

Height adjustable/reclining stand (12 units)

47.24 x 39.37 x 74.29 in 1200 x 1000 x 1887 mm

BASIC STAND DIMENSIONS

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 16

Page 17

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 17

Page 18

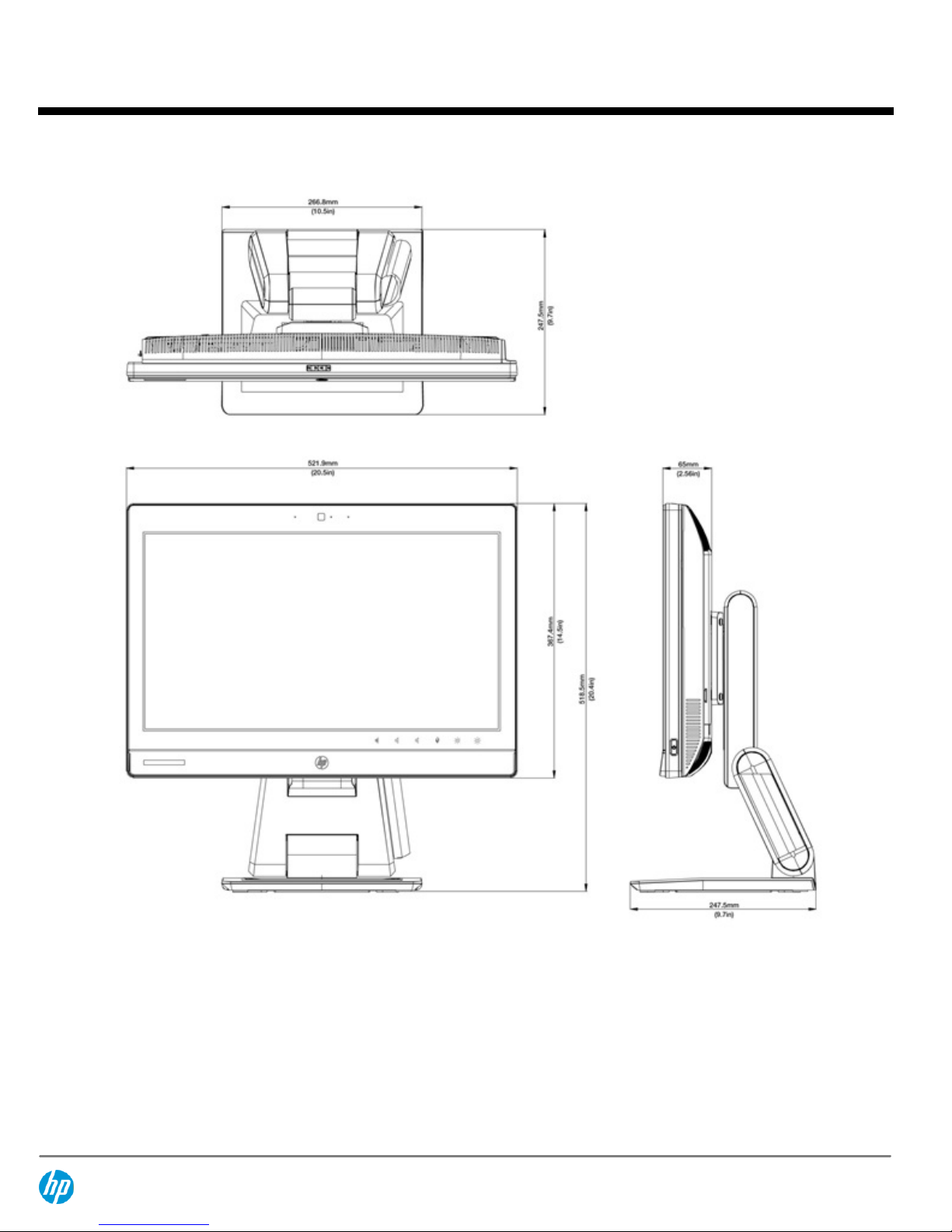

HEIGHT ADJUSTABLE/RECLINING STAND DIMENSIONS

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 18

Page 19

TEMPERATURE, HUMIDITY, ALTITUDE

Temperature

Operating

50° to 95° F (10° to 35° C)*

Non-operating

-22° to 140° F(-30° to 60° C)

Relative humidity

Operating

10% to 90% (non-condensing at ambient)

Non-operating

5% to 95% (non-condensing at ambient)

Altitude

(unpressurized)

Operating

10,000 ft (3048 m)

Non-operating

30,000 ft (9144 m)

PORTS

I/O Ports - Standard

4 - USB 3.0 (2 side including 1 fast charging, 2 rear)

USB Fast Charging Port:

Up to 2.5A charging current (5 times the maximum current supported by a USB 2.0 port) D+/D- CDP/DCP Modes per USB Battery Charging Specification 1.2 D+/D- Shorted Mode per Chinese Telecommunication Industry Standard YD/T 1591-2009 Supports non-BC1.2 Charging Modes by Automatic Selection D+/D- Divider Modes 2.0V/2.7V and 2.7/2.0V D+/D- 1.2V Mode Supports Sleep-Mode Charging Automatic SDP/CDP Switching for Devices That do not Connect to CDP Ports

2 - USB 2.0 (2 rear) 2 - PS/2 (legacy) (one keyboard, one mouse) 1 - Microphone in (side) 1 - Headphone jack (side) 1 - Serial RS-232 (rear) (optional) 1 - Stereo audio line out (rear) 1 - Power connector (rear) 1 - RJ-45 (rear)

1 - DisplayPort with multi-stream

DisplayPort connector supports multimode technology to support connection to DVI-D, HDMI and VGA monitors with optional adapters or to a DisplayPort monitor with a DisplayPort Cable.

DisplayPort Cable

Provides a direct connection between the PC's DisplayPort interface to the display's DisplayPort interface

DisplayPort To DVI-D Adapter

Provides a connection from the PC's DisplayPort interface to the display's DVI-D interface; adapts the DP output to the DVI-D input

DisplayPort To HDMI Adapter

Provides a connection from the PC's DisplayPort interface to the display's HDMI interface; adapts the DP output to the HDMI input

DisplayPort To VGA Adapter

Provides a connection from the PC's DisplayPort interface to the display's analog VGA interface; adapts the digital DP output to the analog VGA input

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 19

Page 20

Using the Integrated Graphics, two (2) external displays are supported via one of these methods:

Using the MXM Graphics, up to four (4) external displays are supported via one of these methods:

1) DisplayPort multi-stream monitors 'daisy-chained' together or

SLOTS

1 – Mini PCIe half-length (used by wireless LAN module) 1 – MXM 3.0 Type A - 35W 1 – mSATA

BAYS

1 – 3.5" internal; Supports One – 3.5" hard drive or up to Two – 2.5" hard drives (HDD/SSD/SED/SSHD) 1 – 5.25" external; Slim Line Optical Drive

SERVICE AND SUPPORT

On-site Warranty1: Three-year (3-3-3) limited warranty delivers three years of on-site, next business day2 service for parts and labor and includes free telephone support3 24 x 7. Three-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central:

www.hp.com/go/cpc

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be

offered in your region.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured Compaq and third-party HP qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14655 North America — Version 13 — November 11, 2013

Page 20

Page 21

Intel HD Graphics

VGA Controller

Integrated

DisplayPort

Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and Multi-Stream Technology for a maximum of 3 displays (including the integrated panel)

Bus Type

N/A

RAMDAC

N/A

Memory

Intel graphics do not have dedicated memory but utilizes some of the computer's system memory The amount of memory used for graphics depending on the amount of system memory installed, BIOS settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system boot time. Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio Video Playback) support for playback of protected video content.

Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Graphics Memory

Microsoft Windows 7

Windows 8

Up to 1.7GB Up to 1.8GB

NOTE:

the actual amount of maximum graphics memory can be less than the amounts listed above

depending upon your computer's configuration.

Maximum Color Depth

32 bits/pixel

Graphics/Video API Support

4th Generation Core processors:

The Processor Graphics contains a refresh of the seventh generation graphics core enabling substantial gains in performance and lower power consumption. Up to 16 EU support. Next Generation Intel Clear Video Technology HD Support is a collection of video playback and enhancement features that improve the end user's viewing experience

Encode/transcode HD content Playback of high definition content including Blu-ray Disc

Superior image quality with sharper, more colorful images DirectX Video Acceleration (DXVA) support for accelerating video processing o Full AVC/VC1/MPEG2 HW Decode Advanced Scheduler 2.0, 1.0 Windows 7, Windows 8, Linux OS Support DirectX 11.1 OpenGL 4.0 Open CL 1.2

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Graphics

DA - 14655 North America — Version 13 — November 11, 2013

Page 21

Page 22

Supported Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rates

800x600

60 Hz

1024x768

60 Hz

1152x864

60 Hz

1280x600

60 Hz

1280x720

60 Hz

1280x800

60 Hz

1280x960

60 Hz

1280x1024

60 Hz

1360x768

60 Hz

1366x768

60 Hz

1400x1050

60 Hz

1440x900

60 Hz

1600x900

60 Hz

1600x1200

60 Hz

1680x1050

60 Hz

1920x1080

60 Hz

1920x1200

60 Hz

1920x1440

60 Hz

2560x1440

60 Hz

2560x1600

60 Hz

* Only supported on displays connected to the external DisplayPort connector.

AMD Radeon HD 7650A Graphics Card

Form Factor

MXM 3.0

Graphics Controller

AMD Radeon HD 7650A

DisplayPort

Multi-Stream Technology for a maximum of 5 displays (including the integrated panel)

Core Clock

600MHz

Memory Clock

800MHz

Memory

2GB, DDR3, 128-bit wide

Bus Type

MXM

Max. Power

35W

Power Source Support

12V and 19V

3D API Support

DX11, SMS

HDCP Support

Yes

Display Max. Resolution

Digital 2560 x 1600 Analog 2048 x 1536

Supported Graphics APIs

DX11, OpenGL, full 1080p BD (H264) playback in hardware, Multi-Stream DisplayPort support

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Graphics

DA - 14655 North America — Version 13 — November 11, 2013

Page 22

Page 23

Supported Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rates

800 x 600

60 Hz

1024 x 768

60 Hz

1280 x 720

60 Hz

1280 x 768

60 Hz

1280 x 1024

60 Hz

1360 x 768

60 Hz

1440 x 900

60 Hz

1600 x 900

60 Hz

1680 x 1050

60 Hz

1920 x 1080

60 Hz

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Graphics

DA - 14655 North America — Version 13 — November 11, 2013

Page 23

Page 24

Introduction:

HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance of HP Business PCs by providing the technologies to meet your increasing storage demands with high-capacity drives offering superior reliability and performance.

SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the PC platform enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated bandwidth, the ability to more easily identify device failures and scalability. The HP Pro 600 Series supports the latest SATA 6.0Gb/s specification.

HP Drive Lock

HP Serial ATA Hard Drives offer enhanced security via a new Drive Lock. When enabled, this ATA security feature set prevents software access to user data on the drive until one or two user-defined passwords are provided.

SMART IV Technology

Self Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health and to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive technology enables the intelligent manageability or management software to generate a fault alert. While the current versions of SMART hard drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and quality has promoted HP to implement SMART IV technology which constantly checks that the data flow from host interface to media and media to host interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte block in the data path of the hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard drives, allows for more complete error detection coverage encompassing the entire data path between the host and the hard drive.

Smart IV is also known as IOEDC: I/O Error Detection Code.

Native Command Queuing

NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best overall throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory Access (FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding commands, without involving the host processor. NCQ can contribute to better performance but the results are dependent on many factors, including the access patterns of the various applications and operating system functions that are initiating drive accesses. Enabling NCQ features in the hard drive requires AHCI support from the host system BIOS, controller, and driver. AHCI support is typically implemented in RAID configurations.

NOTE:

GB = 1 billion bytes. Actual available capacity is less.

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 24

Page 25

HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

16 MB

Logical Blocks

976,773,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

Capacity

1,000,204,886,016 bytes

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

32 MB

Logical Blocks

1,953,525,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 25

Page 26

HP 500-GB 7.2K SATA 6.0Gb/s 2.5" Hard Disk Drive

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

16 MB

Logical Blocks

976,773,168

Seek Time

(typical reads, includes controller overhead, including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

25 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 120-GB Solid State Drive

Unformatted Capacity

120 GB

Architecture

Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller

Interface

SATA 3 Gb/s

Dimensions

(W x H x D)

2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)

Weight

0.18 lb (80 g)

Bandwidth Performance

Sustained Sequential Read:

Up to 250 MB/s

Sustained Sequential Write:

Up to 70 MB/s

Random Read:

Up to 35K IOPs

Random Write:

Up to 6.6K IOPs

Latency

Read:

65-ms

Write:

85-ms

Power

DC power requirement:

5 VDC 5%-100 mV ripple p-p

Total power consumption:

0.15W (active); 0.075W (idle)

Useful Drive Life

35TB written, up to 20GB/day for 5 years

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Maximum Wet Bulb Temperature (operating):

84° F (29° C)

Shock:

1,500 G/0.5-ms

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 26

Page 27

HP 128 GB Solid State Drive

Unformatted Capacity

128 GB

Architecture

Multi Level Cell (MLC) NAND

Interface

SATA 6 GB/sec

Dimensions

(W x H x D)

2.75 x 0.276 x 3.96 in (6.985 x 0.7 x 10.05 cm)

Weight

0.16 lb (73 g)

Bandwidth Performance

Sustained Sequential Read:

Up to 450 MB/s

Sustained Sequential Write:

Up to 260 MB/s

Random Read:

up to 46K IOPs

Random Write:

up to 56K IOPs

Latency

Read:

55ms (TYP)

Write:

55ms (TYP)

Power

DC power requirement:

Min 4.5 V; Max 5.5 V

Total power consumption:

160 mW (Active) ; <85 mW; (Idle)

Useful Drive Life

1.2 million device hours

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Maximum Wet Bulb Temperature (operating):

84° F (29° C)

Shock:

1,500 G/1.0 msec

Regulations

UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS CISPR 22:2002 Class B, Korea KCC, CE Mark

* For solid state disk drives, GB means 1 billion bytes. 128GB is the unformatted capacity of this drive before a portion of the drive is reserved for flash management features. Actual capacity will vary by content ** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units.

HP 160 GB Solid State Drive

Unformatted Capacity

160 GB

Architecture

Multi Level Cell (MLC) NAND

Interface

SATA 3 GB/sec

Dimensions

(W x H x D)

2.74 x 0.37 x 4 in (6.98 x 0.95 x 10.2 cm)

Weight

0.18 lb (80 g)

Bandwidth Performance

Sustained Sequential Read:

Up to 250 MB/s

Sustained Sequential Write:

Up to 70 MB/s

Random Read:

up to 35K IOPs

Random Write:

up to 6.6K IOPs

Latency

Read:

65 ms

Write:

85 ms

Power

DC power requirement:

5 VDC 5%-100 mV ripple p-p

Total power consumption:

0.15 Watt (Active); 0.075 Watt (Idle)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 27

Page 28

Useful Drive Life

35TB written, up to 20GB/day for 5 years

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Shock:

1,500 G/0.5 msec

Regulations

UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS CISPR 22:2002 Class B, Korea KCC, CE Mark

HP 256 GB SATA 2.5" Self-Encrypting (SED) Solid State Drive

Unformatted Capacity

256,186,209,271 bytes

Architecture

Self-Encrypting (SED) Solid State Drive with 25nm MLC NAND Flash and SATA interface

Interface

SATA 6 Gb/s

NAND Flash

25nm MLC NAND Flash

Height

.275 in/7mm

Width

2.75 in/69.85 mm

Length

3.95 in/100.5 mm

Weight

0.161 lb (73 g)

Bandwidth Performance

Sustained Sequential 128k Read:

Up to 450 MB/s

Sustained Sequential 128k Write:

Up to 260 MB/s

Random 4k Read:

Up to 46K IOPs

Random 4k Write:

Up to 56K IOPs

Latency

Read:

55 µs

Write:

55 µs

Power

SATA power consumption:

160 mW (active average); <85 mW (idle average)

Useful Drive Life

72TB written, up to 40GB/day for 5 years

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Shock:

1,500 G/1 ms

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 28

Page 29

HP 500-GB 7200 RPM SATA 2.5" Self-Encrypting (SED) Hard Disk Drive*

*2.5" SED HDD with a bracket that allows it to be used in a 3.5" drive bay

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Drive Type

Self-Encrypting Drive (SED) with SATA interface

Interface

SATA 6 Gb/s

Segmented Buffer with write cache

32768 KB - A portion of buffer capacity used for firmware

Number of Sectors

976,773,168

Seek Time

(typical reads)

Single Track:

1.0 ms

Average:

13 ms

Full-Stroke:

25 ms

Media Diameter

2.5 in/63.5 mm

Height

0.267 in/6.8 mm, ±0.2mm

Width

2.75 in/69.85 mm, ±0.25mm

Length

3.945 in/100.2 mm, ±0.25mm

Weight

3.35 oz/95 g (max)

Operating Temperature

32° to 140° F (0° to 60° C)

HP 500 GB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD) (Coming Soon)

Formatted Capacity

500 GB

Spindle Speed

5,400 rpm +/- 0.2%

Drive Type

Solid State Hybrid Drive (SSHD) technology with NAND Flash

Interface

SATA 6 Gb/s

Cache Buffer

64 MB

NAND Flash Commercial Multilevel Cell (cMLC)

8 GB

Number of Sectors

976,773,168

Seek Time

(typical reads)

Single Track:

2.0 ms

Average:

12 ms

Height

0.268 +/-.008 in (6.8 +/- 0.2 mm)

Width

2.750 +/- 0.010 in (69.85 +/- 0.25 mm)

Length

3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm)

Weight

0.209 lb/95 g (max)

Operating Temperature

32° to 140° F (0° to 60° C)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 29

Page 30

HP 1-TB SATA 6G 2.5" 8GB Solid State Hybrid Drive (SSHD) (Coming Soon)

Formatted Capacity

1 TB

Spindle Speed

5,400 rpm +/- 0.2%

Drive Type

Solid State Hybrid Drive (SSHD) technology with NAND Flash

Interface

SATA 6 Gb/s

Cache Buffer

64 MB

NAND Flash Commercial Multilevel Cell (cMLC)

8 GB

Number of Sectors

976,773,168

Seek Time

(typical reads)

Single Track:

2.0 ms

Average:

12 ms

Height

0.374 +/-.008 in (9.5 +/- 0.2 mm)

Width

2.750 +/- 0.010 in (69.85 +/- 0.25 mm)

Length

3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm)

Weight

0.254 lb/115 g (max)

Operating Temperature

32° to 140° F (0° to 60° C)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Hard Disk and Solid State Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 30

Page 31

HP Slim SuperMulti DVD Writer Drive

Height

12.7mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc recording capacity

Up to 8.5 GB DL or 4.7 GB standard

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Write speeds

DVD-RAM

Up to 5X

DVD-R DL

Up to 6X

DVD+R

Up to 8X

DVD+RW

Up to 8X

DVD+R DL

Up to 6X

DVD-R

Up to 8X

DVD-RW

Up to 6X

CD-R

Up to 24X

CD-RW

Up to 24X

Read speeds

DVD-RAM

Up to 5X

DVD-RW, DVD+RW

Up to 8X

DVD-R DL, DVD+R DL

Up to 8X

DVD+R, DVD-R

Up to 8X

DVD-ROM DL, DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including settling)

Random

DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)

Full Stroke

DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)

Stop Time

6 seconds typical

Power

Source

Slimline SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, 1600 mA maximum)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Removable Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 31

Page 32

Environmental conditions

(operating - non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb Temperature

84° F (29° C)

HP Slim DVD-ROM Drive

Height

12.7mm

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Dimensions

(W x H x D)

5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel

Weight

(max)

Up to 0.37 lb (170 g) without bezel

Read speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL

Up to 8X

DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including settling)

Random

DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)

Full Stroke

DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)

Power

Source

Slimline SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA maximum

Environmental

(all conditions

non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 80%

Maximum Wet Bulb Temperature (operating)

84° F (29° C)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Removable Storage

DA - 14655 North America — Version 13 — November 11, 2013

Page 32

Page 33

System Memory Support

The HP ProOne 600 G1 All-in-One Business PC supports the 4th generation Intel® Core™ processor families. Based on a new PC microarchitecture, the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations, the processor includes an integrated memory controller (IMC). The IMC supports DDR3 protocols with two independent, 64-bit wide channels each accessing one SODIMM.

Two channels of non-ECC DDR3 unbuffered small outline dual in-line memory modules (SODIMM) with a maximum of one DIMM per channel Single-channel and dual-channel memory organization modes Data burst length of eight for all memory organization modes DDR3 memory data transfer rates of up to 1600 MT/s; actual supported DDR3 data transfer rate determined by the configured processor 64-bit wide channels DDR3 system memory I/O voltage of 1.5V and 1.35V Theoretical Maximum Memory Bandwidth:

10.6 GB/s in single-channel mode of 21.3 GB/s in dual-channel mode assuming DDR3 1333 MT/s

12.8 GB/s in single-channel mode or 25.6 GB/s in dual-channel mode assuming DDR3 1600 MT/s 16 GB maximum memory support

CAUTION:

You must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

Memory Configurations:

Slot 1 must always be populated. Not all memory configurations possible are represented below.

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to

system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

Total Memory

Socket

Channel A (black)

Channel B (black)

2 GB

Unpopulated

4 GB

Unpopulated

8 GB (dual channel)

4 GB 4 GB

8 GB

Unpopulated

16 GB (dual channel)

8 GB 8 GB

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Memory

DA - 14655 North America — Version 13 — November 11, 2013

Page 33

Page 34

Intel® I217LM GbE Network Connection

(integrated)

Connector

RJ-45

System Interface

Integrated on PCA

Controller

Intel® Ethernet Controller I217LM

Memory

24 KB FIFO packet buffer memory Two Queues (Tx & Rx)

Data rates supported

10/100/1000 Mbps

IEEE Compliance

802.1P

802.1Q

802.1as/1588

802.3

802.3ab

802.3az

802.3u

Bus architecture

PCI Express and SMBus

Data transfer mode

PCIe-based interface for active state operation (S0 state) and SMBus for host and management traffic (Sx low power state)

Power requirement

Requires 3.3Vdc with integrated regulators Thermal Design Power (TDP) 0.535 Watts

Boot ROM support

Yes

Network transfer mode

Full-duplex Half-duplex (not supported for the 1000BASE-T transceiver)

Network transfer rate

10BASE-T (half-duplex) 10 Mbps 10BASE-T (full-duplex) 20 Mbps 100BASE-TX (half-duplex) 100 Mbps 100BASE-TX (full-duplex) 200 Mbps 1000BASE-T (full-duplex) 2000 Mbps

Environmental

Operating Temperature:

0° to 85° C

Operating Humidity:

60% RH

Management

WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostic, Smart speed operation

Alerting

ASF 2.0 support; AMT 7.0 support

Intel Centrino Advance-N 6205 Wireless Network Interface Connection

Wireless LAN Standards

IEEE 802.11a/b/g/n IEEE 802.11 e, 802.11i, 802.11d, 802.11d, 802.11h

Interoperability

Wi-Fi certified (802.11 a/b/g/n WMM, WPA, WPA2 and WPS) Tested with wireless access points from several major manufacturers OS compatible with Microsoft Windows, Win7 and XP Cisco Compatible Extensions Program compliant (802.11a/b/g only) with Microsoft Windows XP and

Windows 7

Frequency Band

2.4 GHz and 5 GHz

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Communications

DA - 14655 North America — Version 13 — November 11, 2013

Page 34

Page 35

Antenna Structure

2 transmit; 2 receive (2x2)

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n specification

Modulation

Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128bits), TKIP, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP, MSCHAP, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM, EAP-AKA PAP, CHAP, TLS, GTC

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required) Intel® My Wifi Technology (iPAN)

Roaming

Provide seamless roaming between like access points (same frequency band)

Output Power (for CCK)

15 dBm

Output Power (for OFDM; power varies by data rate)

15 dBm

Power Consumption

Transmit: 2.3 Watts (average, with one spatial streams) Receive: 1.9 Watts (average with two receive chains) Idle mode: 30mW - 40mW (average) Radio off: 20 mW (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Antenna Connections

3 U.FL type connectors, 50 ohm nominal impedance

Range

802.11 a - Typical (@6 Mbps)

600 feet - Outdoor Open Area 150 feet - Indoor, Office environment

802.11 b - Typical (@1 Mbps)

1200 feet - Outdoor Open Area 300 feet - Indoor, Office environment

802.11 g - Typical (@1 Mbps)

1200 feet - Outdoor Open Area 300 feet - Indoor, Office environment

Form Factor

MiniPCI-Express

Weight

0.013 lb (4.0 g)

Dimensions

1.1 x 1.2 in (26.8 x 30.0 mm)

Operating Voltage

3.3V +/- 9%, 1.5V +/- 5%

Temperature

Operating: Non-operating:

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating: Non-operating:

10% to 90% (non-condensing) 5% to 90% (non-condensing)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Communications

DA - 14655 North America — Version 13 — November 11, 2013

Page 35

Page 36

Microsoft Windows XP

Microsoft Windows Win 7

Configuration Utility

Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows XP (required for Cisco Compatible Extensions support)

Intel IHV extensions for Win7 available to support Cisco Compatible Extensions

HP WLAN 802.11a/b/g/n Wireless 2x2 Dual-Band Minicard with Bluetooth Combo

Dimensions

(L x H)

1.18 x 1.06 in (30 x 26.8 mm)

Chipset

Atheros AR9462

System interface

PCI-Express Mini Card

Network standard

802.11 a/b/g/n

Frequency band

Bluetooth: 2.402 - 2.480 GHz Wi-Fi:

802.11a/n - 4.9 - 4.95 GHz (Japan), 5.15 - 5.25 GHz, 5.25 - 5.35 GHz, 5.47 - 5.725 GHz, 5.825 - 5.850 GHz

802.11b/g/n 2.402-2.482 GHz

Bluetooth

The WLAN + Bluetooth Combo Mini Card meets all of the requirements to support Bluetooth 4.0 and is backwards compatible with 2.1 with EDR and 3.0 High speed.

Operating temperature

14° to 158°F, operating (-10° to 70°C, operating)

Storage temperature

-40° to 176°F, non-operating (-40° to 80°C, non-operating)

Humidity

10-90% operating 5-95% non-operating

Operating voltage

3.3 V ±9% I/O supply voltage

Power Consumption

Platform/WLAN Mode

Power Consumption

Wi-Fi

Transmit Mode

2 W

Receive Mode

1.6 W

Idle mode (PSP) (WLAN Associated)

250mW

Idle mode (WLAN unassociated)

100mW

Radio disabled

75mW

Bluetooth

Peak Operating

330 mW

Receive

230 mW

USB Selective Suspend

17 mW

Output Power

(approximate)

2.4G: +13.5dBm minimum 5G: +12dBm minimum

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Communications

DA - 14655 North America — Version 13 — November 11, 2013

Page 36

Page 37

Security

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

802.1x authentication WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES IEEE 802.11i Cisco Certified Extensions, all versions through V5 WAPI

Antenna

Dual antenna connectors

Near Field Communications Controller, with Embedded Secure Element (Coming Soon)

Dimensions

(L x W x H)

Module 10mm by 17mm by 1.8mm

Chipset

NXP PN65O (PN544C3 and P5CN145 dies in a single VFBGA64 package)

System interface

I2C

NFC RF standards

ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 ISO/IEC 18092 ECMA-340 NFCIP-1 Target and Initiator ECMA-320 NFCIP-2

NFC Forum Support

Tag Type 1, Type 2, Type3 and Type 4, NFCIP-1 and NFCIP-2

Reader (PCD-VCD) Mode

ISO/IEC 14443 A ISO/IEC 14443 B ISO/IEC 15693 MIFARE 1K MIFARE 4K FeliCa

Card Emulation (PICC-VICC) Mode

ISO/IEC 14443 A ISO/IEC 14443 B and B' MIFARE FeliCa

Frequency

13.56 MHz

NFC Modes Supported

Reader/Writer, Peer-to-Peer, Card Emulation

Raw RF Data Rates

106, 212, 424 kbps

Embedded Secure Element

144 KB EEPROM, Data Memory or Program Memory 264 KB User ROM

7.5 KB RAM PKI (Public Key Infrastructure) coprocessor Dual Triple DES Key coprocessor NFC-WI interface to NFC controller, PN544 MIFARE 4 KB card emulation EEPROM data retention time 20 years, minimum

Operating temperature

0°C to 70°C

Storage temperature

-40° to 80°C

Humidity

10-90% operating 5-95% non-operating

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Communications

DA - 14655 North America — Version 13 — November 11, 2013

Page 37

Page 38

Supply Operating voltage

2.97 to 5.25 Volts

I/O Voltage

1.8V or 3.3V

Power Consumption (Supply 3.3 Volts)

Mode

Power Consumption, Typical

Reset

10 µW

Standby

150 µW

Card Emulation within Polling Loop

297 µW

When generating RF

120 mW

Transmitter Supply Current (Continuous wave)

30 mA

Antenna

Antenna connector, 0.5mm pitch, 5 connector FPC. Antenna matching is external to module.

With application or UICC support

Actual Power Consumption is dependent on NFC antenna and matching circuit and on the particular polling sequence and

period configured.

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Communications

DA - 14655 North America — Version 13 — November 11, 2013

Page 38

Page 39

Realtek ALC3228 High Definition Audio

Type

Integrated

HD Stereo Codec

Realtek ALC3228 4-channel codec

Ports

Line-In/Microphone input ports are 47K (nominal) at the pin Line-Out intended to drive an external 10K load (nominal) and an on board shunt resistor of 20-47K

(nominal) Headphone-Out designed to drive 32 ohm (nominal) headphones or a 10K (nominal) load All ports are 3.5 mm

Internal Speaker Amplifier

2.2W/channel Class-D stereo BTL speaker amplifier@ 4 ohms and 5V

Sampling

The ALC3228 audio CODEC provides stereo 24- bit, full duplex resolution supporting sample rates up to 192kHz by the DAC and ADC. Additional sample rates are supported by the driver software.

Analog Audio

Yes

# of Channels on Line-Out

4 Channels (2 stereo DACs and 2 stereo ADCs) with 24-bit resolution

Internal Speaker

Yes

DTS Studio Sound Technology

Introduction

DTS Studio Sound

provides the ultimate audio and entertainment experience for all PC applications related to music, movies and games. Utilizing DTS' revolutionary 3D audio technology, DTS Studio Sound provides the most immersive and realistic listening experience unlike any solution ever offered for a two speaker playback environment. DTS Studio Sound offers a wider surround effect and significantly more natural positioning of audio for both 2D and 3D content and delivers immersive surround complete with deep, rich enveloping bass and crystal clear dialog. It also delivers high-frequency definition for crisp detail in any listening environment, ensuring users a premium and natural entertainment experience across any speaker configuration (desktop speakers or headphones).

DTS Studio Sound Features

The ultimate multimedia audio experience Immersive surround sound from two speakers or headphones Extracts acoustic placement cues from original audio signal and adds near and far depth to the sound field to maximize 3D surround effect Custom-tuned solutions to provide superior natural sound from desktop speakers and headphones Maximum volume from small speakers Deep, rich bass and crystal clear dialog Intuitive user interface with presets for ease of use

DTS Studio Sound Benefits

Provides a remarkably immersive 3D surround sound experience for business multimedia applications, complete with deep, rich enveloping bass, and crystal clear dialog Ability to personalize acoustic preferences with speaker and headphone optimization

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Audio

DA - 14655 North America — Version 13 — November 11, 2013

Page 39

Page 40

DTS Sound+ Technology

Introduction

DTS Sound+

is a state-of-the-art solution suite which optimizes the audio experience for all business applications including VoIP, computer based training, business presentations and digital content creation for any speaker configuration (notebook/desktop speakers or headphones). DTS Sound+ delivers natural and immersive surround sound complete with deep, enveloping bass and crystal clear dialog which allows users to clearly hear audio and voice in communications or presentations and ensures that digital content can be experienced with uncompromised quality.

DTS Sound+ Features

Premium audio experience for all applications including VoIP, Video Conferencing, Webcasts, Multimedia Presentations and Digital Content Creation Natural and Immersive sound from two speakers or headphones Custom-tuned solutions to provide superior natural sound from desktop speakers and headphones Crystal clear dialog Deep, rich bass Intuitive user interface with presets for ease of use

DTS Sound+ Benefits

Turn your desktop into a multimedia powerhouse! Bring your business communication to life with natural sounding voice and clear dialog Increase productivity by making computer based training, webcasts and VoIP available anytime and anywhere with crystal clear audio Make presentations shine with rich, expansive sound without the need for external speakers Take digital content creation to a new level with deep bass, enhanced fidelity and immersive surround sound which ensures that your content is heard with uncompromised quality and detail

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications - Audio

DA - 14655 North America — Version 13 — November 11, 2013

Page 40

Page 41

HP USB Keyboard

Physical characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H)

18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)

Weight

2 lb (0.9 kg)

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 41

Page 42

Kit contents

Keyboard

Installation Guide

Warranty Card

Safety and Comfort Guide

HP PS/2 Keyboard

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H)

18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

PS/2 6-pin mini din connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Environmental

Acoustics

50-dBA maximum sound pressure level

Operating temperature

32° to 104° F (0° to 40° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

15% to 80% (non-condensing at ambient)

Non-operating humidity

15% to 90% (non-condensing at ambient)

Operating shock

N/A

Non-operating shock

65 inch 2.9 ms, six surface; 30g 266 inch/second; 50g 266 inch/second six surface

Operating vibration

2-g peak acceleration

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 42

Page 43

Non-operating vibration

Starting at 5 Hz, vary the frequency of vibration from 5 to 500 Hz and back to 5 Hz at a Logarithmic sweep rate of 1 octave per minute.

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

29.93 in (76 cm) on concrete, 16-drop sequence

Approvals

CUL, ICES-003 Class B, FCC, CE Mark,TUV GS, VCCI, BSMI, C-Tick, KC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP USB Smart Card (CCID) Keyboard Introduction

Boost your security, simplify access procedures and reduce the costs associated with managing networks by preventing unauthorized access to your computers and networks using smartcard technology with the HP Smart Card (CCID) Keyboard.

The USB Smart Card (CCID) Keyboard is a full-sized keyboard that takes advantage of digital signatures and certificates to secure the environment for transactions performed on both public and private networks. The USB Smart Card (CCID) Keyboard works with all smart cards that comply with ISO standard 7816.

Smart cards are easy-to-use credit card-sized devices which require multiple forms of information to be validated before you gain access to your accounts or resources. Used worldwide, smart cards strengthen access to a network or other resource using dual-factor authentication. Implementing a two-factor authentication (or multi-factor authentication) process reduces the risk of unauthorized access by verifying and validating your identity in one of the following ways:

Something you know – a combination of username and password or PIN Something you have – a smart card or security token.

Something you have (smart card) plus something you know (PIN), improves user-access security within corporate network environments. Smart cards are used in government agencies, healthcare companies and the finance industry.

HP ProtectTools Smart Card Manager provides authentication software for the smart card. The Smart Card Reader module works with the HP ProtectTools Security Manager and enables the user to setup, use, and manage the smart card. This allows strengthened security with HP patented technology.

Key Benefits:

Protects against unauthorized access with smart card technology Delivers even greater security when combined with a HP ProtectTools smart card and the HP ProtectTools Security Software Combination of username and password or pin with a smart card or security token Secures online transactions using digital signatures and certificates Conforms to industry standards for ease of setup and use Delivers long product life and quiet operation with high-impact materials and lubricated keys Spill drain feature

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country

Form factor

USB basic smart card keyboard

Colors

Carbonite/Silver

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 43

Page 44

Dimensions (H x W x D)

18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

100-mA maximum (with four LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Languages

30+ available

Keycaps

Standard design

Switch actuation

55 g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

42 in (107 cm) on concrete, 16-drop sequence

SmartCard Function

Support

All ISO 7816 smart cards

Interface

Reads from and writes to all ISO7816-1, 2, 3, 4 memory and microprocessor smart cards (T=0, T=1)

Chipset

SCM STCIII

Standard APIs supported

PC/SC, EMV2000, CT-API

Power

USB Port Short circuit detection (protects smart card and reader) Power supply compliant with ISO7816 and EMV (5V, 60 mA) Supports 3-V and 5-V cards

Power consumption

100-mA maximum draw

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 44

Page 45

Communication

From card

9600 bps to 330,000 bps

From computer

12 Mbps (USB transfer speed)

Landing mechanism

Contact device

Friction contact

Card insertions rating

Up to 100,000 insertion cycles

Interface modes

CCID protocol

Reader performance interface

USB connection

Electro-magnetic standards

Europe

2004/108/EC

USA

USAFCC part 15

Approvals

CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF

Ergonomic Compliance

ISO 9241-4, TUVGS

Kit Contents

Keyboard, I/O Security and Documentation CD, warranty card

HP USB PS/2 Washable Keyboard

Physical Characteristics

Keys

104 (US) Layout, 105 (EU) layout - depending upon country

Dimensions (L x W x H)

17.67x 6.62 x 1.38 in (449 x 168 x 35 mm)

Weight

1.7 lb (0.77 kg) minimum

Electrical

Operating voltage

+ 5VDC ±5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Stepped -profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

7 ft (2.2 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

4° to 149° F (-20° to 65° C)

Operating humidity

10% to 95% (non-condensing at ambient)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 45

Page 46

Environmental

Non-operating humidity

0% to 95% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

42 in (107 cm) on concrete, 16-drop sequence

Operating system support

Windows® 7, Windows Vista, Windows XP Professional

Approvals

UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP Wireless Keyboard and Mouse

Keyboard

Dimensions (H x L x W)

1.09 x 18.1 x 6.47 in (27.87 x 460.3 x 164.3 mm

Weight – Without Two AA Alkaline Batteries

1.94 lb (880 g)

Mouse

Dimensions (H x L x W)

1.46 x 4.53 x 2.47 in (37 x 115 x 62.9 mm)

Weight – Without Two AA Alkaline Batteries

0.15 lb (67 g)

Receiver

Dimensions (H x L x W)

0.33x 1.79 x 0.72 in (8.4 x 45.5 x 18.4 mm)

Weight

0.21 oz (5.9 g)

Cable Length – Minimum

6 ft (1.8 m)

Range

32.8 ft (10 m)

System Requirements

Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional Edition 32*, Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*, Windows 7 Ultimate Edition 64* Windows Vista or Windows XP Available USB port for the receiver CD-ROM Drive

*This system may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/

for details.

Product Safety

UL; CSA /TUV (Europe only); CE Mark; CB Report

Ergonomics

ANSI; ISO (Europe only); GS Mark (Germany only)

EMC

FCC; CE; ACA (-tick); BSMI; KC ; VCCI

CE Mark

EN 55022:2010; EN 55024; EN 301489-1; EN 61000

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 46

Page 47

System Requirements

Design Guidelines for PCs

PC 99 - connector overmold colors; PC 2001 - full functionality

Telecom

All local telecom requirements and approvals for intended markets

USA

FCC Title 47 CFR, Par 15, Subpart C; other local requirements

Country Support

US, Belgium, Switzerland, Spain, Denmark, Netherlands, France, Germany, Italy, Portugal, Sweden, Norway, Finland, UK, Poland, Czech Republic, Turkey, Greece, Austria, Bulgaria, Cyprus, Estonia, Hungary, Ireland, Latvia, Lithuania, Luxemburg, Malta, Romania, Slovakia, Slovenia, Vietnam, HK, Australia, NZ, Malaysia, Singapore, Indonesia, Philippines, Thailand, Canada, China, Japan, Korea, Taiwan, India, Venezuela, Ecuador, Russia, Ukraine, Israel, Croatia, United Arab Emirates, Peru, Brazil, Chile, Argentina, Mexico, South Africa, and up to 193 countries worldwide.

Environmental

Keyboard contains 25% post-consumer recycled plastic material

HP PS/2 Mouse

Dimensions

(H x L x W)

1.46 x 2.48 x 4.53 in (3.70 x 6.29 x 11.50 cm)

Weight

3.53 oz (100g; +10g/- 5 g)

Environmental

Operating temperature

-32° to 104°F (0° to 40° C)

Non-operating temperature

-4° to 140°F (-20° to 60° C)

Operating humidity

10% to 90% (non condensing at ambient)

Non-operating humidity

10% to 90% (non condensing at ambient)

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Drop (out of box)

80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5 direction except the cable face

Electrical

Operating voltage

5 VDC ± 10%

Power consumption

100mA

System consumption

PS/2 mini-din connector

ESD

CE level 4, 15 kV air discharge

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 47

Page 48

EMI-RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC99 - 2001

Functionally compliant

Mechanical

Resolution

800 DPI

Tracking speed

10 in/s (25.4 cm/s) maximum

Acceleration

±15%

Switch actuation

65±20 gf

Switch life

3,000,000 operations (using Hasco modified tester)

Switch type

Low force micro-switches

Tracking mechanism life

80 km

Cable length

6 ft (1.8 m)

Microsoft PC99 - 2001

Mechanically compliant

Scroll wheel

Width

6 mm

Diameter

22.5 ± 0.2 mm

Maximum rotation force

50 gf-cm

Switch type

Light force micro-switch

Switch life

1 million operations

Mechanical life

Minimum 200,000 revolutions

Regulatory Approvals

UL/cUL, FCC, CE Mark, TUV/GS, VCCI, KCC, BSMI, C-Tick

HP USB Optical Mouse

Dimensions

(H x L x W)

1.5x 4.5 x 2.5 in (3. 7x 11.5 x 6.3 cm)

Weight

0.22 lb (0.10 kg)

Cable length

70.9 in (180 cm)

System requirements

Available USB port

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 48

Page 49

HP USB 1000dpi Laser Mouse

Dimensions

(H x L x W)

1.47 x 4.53 x 2.47 in (37.3 x 114.97 x 62.86 mm)

Weight

3.360 oz (102g)

Cable length

70.9 in (180 cm)

System requirements

Available USB port

Environmental

Operating Temperature

32° to 104° F (0° to 40° C)

Non-operating Temperature

-4° to 140° F (-20° to 60° C)

Operating Humidity

10% to 90% (non-condensing at ambient)

Mechanical

Resolution

1000dpi

Tracking Speed

45 cm/sec

Cable Length

70.9 in (180 cm)

HP USB PS/2 Washable Mouse

Dimensions

(H x L x W)

1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm)

Weight

4.44 oz (126 g)

Environmental

Operating temperature

–32° to 104°F (0° to 40° C)

Non-operating temperature

–4° to 140°F (–20° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

10% to 90% (non condensing at ambient)

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Drop (out of box)

80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5 direction except the cable face

Electrical

Operating voltage

5 VDC ± 10%

Power consumption

100mA

System consumption

PS/2 mini-din connector

ESD

CE level 4, 15 kV air discharge

EMI-RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC99 – 2001

Functionally compliant

Mechanical

Resolution

400 ± 20% DPI

Tracking speed

10 in/s (25.4 cm/s) maximum

Acceleration

100 in/s/s (2.54 m/s/s)

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 49

Page 50

Switch actuation

61 g nominal peak force

Switch life

3,000,000 operations (using Hasco modified tester)

Switch type

Low force micro-switches

Tracking mechanism life

155 mi (250 km) at average speed of 10 in/s

Cable length

6 ft (1.8 m)

Microsoft PC99 – 2001

Mechanically compliant

Scroll wheel

Width

8 mm

Diameter

1.01 in (25.6 mm)

Maximum rotation speed

48 rats/sec

Switch type

Light force micro-switch

Switch life

1 million operations

Mechanical life

Minimum 200,000 revolutions

Regulatory approvals

Compliant

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Compatibility

Operating system support

Windows 7, Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows 2000, Windows XP Professional or Windows XP Home 32* (No driver is required for this device. Native support is provided by the operating system.), xpe, ce.net, Linux, XP-64

* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

. For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Keyboards and Pointing Devices

DA - 14655 North America — Version 13 — November 11, 2013

Page 50

Page 51

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

US ENERGY STAR® EPEAT® Gold registered in the United States. See

http://www.epeat.net

for registration status in your country IT ECO declaration

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the All-in-One PC model is based on a typically configured product

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

41.28 W 41.76 W 40.56 W

Sleep (ENERGY STAR® low power mode)

2.18 W 2.16 W 2.17 W

Off

1.32 W 1.44 W 1.32 W

NOTE:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured model.

Heat Dissipation

115 VAC 230 VAC 100 VAC

141 BTU/hr 143 BTU/hr 139 BTU/hr

7 BTU/hr 7 BTU/hr 7 BTU/hr 7 BTU/hr

5 BTU/hr 5 BTU/hr 5 BTU/hr

NOTE:

Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power (LWAd, bels)

Sound Pressure (LpAm, decibels)

3.4

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

4 USB 3.0 ports 2 USB 2.0ports 2 memory slots 1 Mini PCIe half-length slot 1 MXM 3.0 Type A - 35W slot 1 mSATA slot 1 3.5" internal bay supporting up to Two 2.5" hard drives (HDD/SSD/SED/SSHD) 1 5.25" external supporting optical drive

Spare parts are available throughout the warranty period and or for up to "5" years after the end of production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Environmental Data

DA - 14655 North America — Version 13 — November 11, 2013

Page 51

Page 52

Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP registers commercial desktop products. See

http://www.epeat.net

for registration status in your country. Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043. This product contains 36% post-consumer recycled plastic (by wt.) This product is 94.5% recyclable when properly disposed of at end of life.

Packaging Materials

External:

PAPER/Corrugated 1490 g PAPER/Paper 94 g

Internal:

o PLASTIC/EPE - Expanded Polyethylene 574 g PLASTIC/Polyethylene high density 39 g The PAPER/Cardboard packing material is made from 55.5% recycled content. The PAPER/PAPER packing material is made from 55.5% recycled content. The PLASTIC/Polyethylene packing material contains at least 75% recycled content. The PLASTIC/Polyethylene high density packing material contains at least 75% recycled content.

RoHS Compliance

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at:

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

Asbestos Certain Azo Colorants Certain Brominated Flame Retardants - may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Environmental Data

DA - 14655 North America — Version 13 — November 11, 2013

Page 52

Page 53

Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user. Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from most applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

or contact your nearest HP

sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/recyclers

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Hewlett-Packard Corporate Environmental Information

For more information about HP's commitment to the environment: Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Technical Specifications – Environmental Data

DA - 14655 North America — Version 13 — November 11, 2013

Page 53

Page 54

AFTER MARKET OPTIONS:

MEMORY

Part Number

HP 2GB DDR3-1600 (PC3-12800) SODIMM

B4U38AA

HP 4GB DDR3-1600 (PC3-12800) SODIMM

B4U39AA

HP 8GB DDR3-1600 (PC3-12800) SODIMM

B4U40AA

DATA STORAGE DRIVES AND ACCESSORIES

Part Number

HP 1TB, 7200 rpm, SATA -6.0 Gb/s

QK555AA

HP 500GB, 7200 rpm, SATA -6.0 Gb/s

QK554AA

HP 500GB SATA , 6G (8GB cache) Solid State Hybrid Drive (SSHD)

E1C62AA

HP 128GB SATA Solid State Drive

QV063AA

HP Slim SATA DVD-ROM Drive

VP033AA

HP Slim SATA BDXL Blu-Ray Writer Drive

E0X94AA

HP Slim SATA SuperMulti DVD Writer Drive

QS209AA

INPUT DEVICES - KEYBOARD AND MOUSE COMBO

Part Number

HP USB PS/2 Washable Keyboard & Mouse

BU207AA

HP Wireless Keyboard & Mouse (Keyboard contains 25% post-consumer recycled plastic material)

QY449AA

INPUT DEVICES - KEYBOARD

Part Number

HP PS/2 Keyboard

QY774AA

HP USB Smart Card (CCID) Keyboard

E6D77AA

HP USB Keyboard

QY776AA

INPUT DEVICES - MOUSE

Part Number

HP PS/2 Mouse

QY775AA

HP USB 1000dpi Laser Mouse

QY778AA

HP USB Mouse

QY777AA

SECURITY

Part Number

HP UltraSlim Cable Lock

H4D73AA

GRAPHICS - VIDEO ADAPTERS AND CABLES

Part Number

HP DisplayPort Cable Kit

VN567AA

HP DisplayPort To DVI-D Adapter

FH973AA

HP DisplayPort To HDMI Adapter

BP937AA

HP DisplayPort To VGA Adapter

AS615AA

HP DVI Cable

DC198A

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Options and Accessories (sold separately)

DA - 14655 North America — Version 13 — November 11, 2013

Page 54

Page 55

USB Graphics Adapter

NL571AA

STANDS AND MONITOR ARM

Part Number

AiO Height Adjustable and Reclining Stand

C1N43AA

HP Single Monitor Arm

BT861AA

HP (Flat Panel Monitor) Quick Release

EM870AA

MISCELLANEOUS

Part Number

Belkin 7-Outlet Surge Protector for North America 120V

AG290AA

Belkin USB to Serial Adapter

EM449AA

Belkin CAT5e Patch Cable RJ45/RJ45

AH122AA

HP Business Headset

QK550AA

ADDITIONAL MONITORS FOR MULTI-DISPLAY CONFIGURATIONS

Part Number

HP EliteDisplay E201 20-inch LED Backlit Monitor

C9V73AA

HP EliteDisplay E221 21.5-inch LED Backlit Monitor

C9V76AA

HP EliteDisplay E231 23-inch LED Backlit Monitor

C9V75AA

HP Compaq LA2206xc 21.5-inch Webcam LCD Monitor

LW490AA

HP LA2405x 24-inch LED Backlit Monitor

D0P36AA

HP EliteDisplay E271i 27-inch LED Backlit Monitor

D7Z72AA

HP EliteDisplay E221c 21.5-inch WebCam LED Backlit Monitor

D9E49AA

HP L2206tm 21.5-inch LED Backlit Touchscreen Monitor

B0L55AA

LANDESK SOFTWARE (E-DELIVERY)

Part Number

Contact your HP representative for available options.

N/A

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft, Windows and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel and Core are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

QuickSpecs

HP ProOne 600 G1 All-in-One Business PC

Options and Accessories (sold separately)

DA - 14655 North America — Version 13 — November 11, 2013

Page 55
