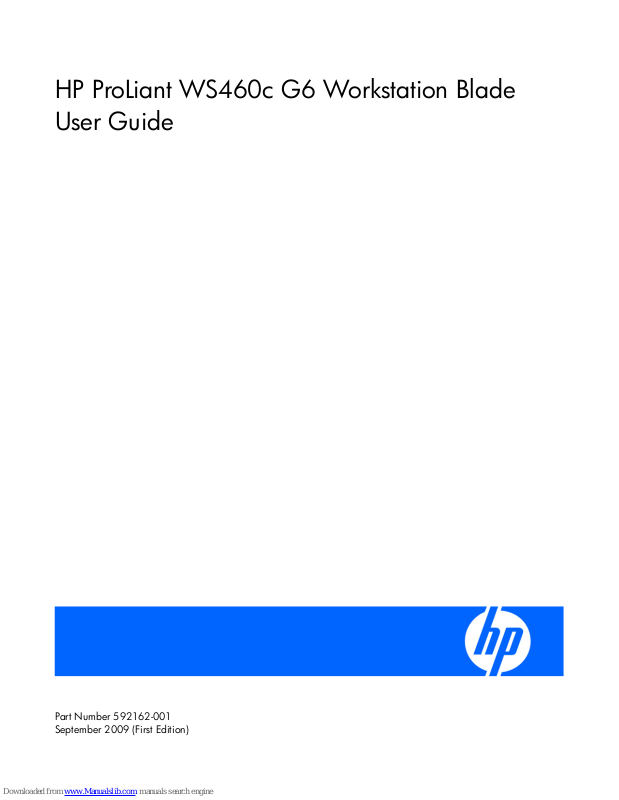

HP ProLiant WS460c G6 Workstation Blade
User Guide
Part Number 592162-001
September 2009 (First Edition)
Page 2
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft, Windows, Windows NT, and Windows Server are U.S. registered trademarks of Microsoft Corporation. AMD Athlon is a trademark
of Advanced Micro Devices, Inc. Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United
States and other countries. Java is a US trademark of Sun Microsystems, Inc.
Intended audience
This document is for the person who installs, administers, and troubleshoots servers and storage systems.
HP assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards
in products with hazardous energy levels.
Page 3
Contents
Component identification............................................................................................................... 6
Front panel components ............................................................................................................................. 6
Front panel LEDs ....................................................................................................................................... 7
SAS and SATA hard drive LEDs................................................................................................................... 8
SAS and SATA hard drive LED combinations ................................................................................................ 8
System board components.......................................................................................................................... 9
Mezzanine connector definitions ..................................................................................................... 10
DIMM slot locations .......................................................................................................................10
System maintenance switch............................................................................................................. 10
HP c-Class Blade SUV Cable..................................................................................................................... 11
Operations................................................................................................................................. 12
Power up the workstation blade ................................................................................................................12
Power down the workstation blade ............................................................................................................12
Remove the workstation blade................................................................................................................... 13
Remove the access panel.......................................................................................................................... 14
Install the access panel............................................................................................................................. 14
Remove the DIMM baffle.......................................................................................................................... 14
Setup......................................................................................................................................... 16
Overview ............................................................................................................................................... 16
Installing an HP BladeSystem c-Class enclosure ...........................................................................................16
Installing server blade options................................................................................................................... 16
Connecting to the network........................................................................................................................ 16
Installing a server blade ........................................................................................................................... 17
Hardware options installation....................................................................................................... 19
Introduction ............................................................................................................................................ 19
Hard drive option.................................................................................................................................... 19
Processor option...................................................................................................................................... 20
Memory options...................................................................................................................................... 25
Memory subsystem architecture ....................................................................................................... 25
Single-, dual-, and quad-rank DIMMs ............................................................................................... 26
DIMM identification....................................................................................................................... 26
Memory configurations................................................................................................................... 27
General DIMM slot population guidelines.........................................................................................28
Installing a DIMM.......................................................................................................................... 31
Cache module and battery pack option...................................................................................................... 32
Cabling ..................................................................................................................................... 37
BBWC battery pack cabling .....................................................................................................................37
Using the HP c-Class Blade SUV Cable ...................................................................................................... 37
Connecting locally to a server blade with video and USB devices.................................................................. 37
Accessing a server blade with local KVM .........................................................................................37
Accessing local media devices........................................................................................................ 38
Software and configuration utilities ............................................................................................... 40
Server blade deployment tools .................................................................................................................. 40
Contents 3
Page 4
Software drivers and additional components..................................................................................... 40
HP BladeSystem c-Class Advanced management ............................................................................... 40
Network-based PXE deployment ...................................................................................................... 41
Deployment methods...................................................................................................................... 43
Configuration tools.................................................................................................................................. 46
SmartStart software........................................................................................................................ 46
HP ROM-Based Setup Utility............................................................................................................ 47
Array Configuration Utility.............................................................................................................. 49
Option ROM Configuration for Arrays .............................................................................................49
Re-entering the server serial number and product ID........................................................................... 50
Management tools................................................................................................................................... 50
Automatic Server Recovery .............................................................................................................50
ROMPaq utility.............................................................................................................................. 51
Integrated Lights-Out 2 technology................................................................................................... 51
Erase Utility ..................................................................................................................................51
StorageWorks library and tape tools................................................................................................ 51
HP Systems Insight Manager........................................................................................................... 52
Management Agents...................................................................................................................... 52
HP ProLiant Essentials Virtualization Management Software ................................................................52
HP ProLiant Essentials Vulnerability and Patch Management Pack ........................................................52
HP Insight Server Migration software for ProLiant...............................................................................53
HP ProLiant Essentials Performance Management Pack .......................................................................53
HP Insight Control Environment Suites............................................................................................... 54
HP Insight Control Linux Edition ....................................................................................................... 54
Redundant ROM support ................................................................................................................ 54
USB support and functionality ......................................................................................................... 55
Diagnostic tools ...................................................................................................................................... 55
HP Insight Diagnostics.................................................................................................................... 55
HP Insight Diagnostics survey functionality ........................................................................................56
Integrated Management Log ...........................................................................................................56
Array Diagnostic Utility ..................................................................................................................56
Remote support and analysis tools............................................................................................................. 57
HP Insight Remote Support software ................................................................................................. 57
Keeping the system current ....................................................................................................................... 57
Drivers ......................................................................................................................................... 57
ProLiant Support Packs ................................................................................................................... 58
Operating system version support.................................................................................................... 58
HP Smart Update Manager............................................................................................................. 58
System Online ROM flash component utility ......................................................................................58
Change control and proactive notification ........................................................................................ 59
Care Pack ....................................................................................................................................59
Troubleshooting.......................................................................................................................... 60
Troubleshooting resources ........................................................................................................................60
Pre-diagnostic steps ................................................................................................................................. 60
Important safety information............................................................................................................ 61
Symptom information ..................................................................................................................... 62
Prepare the server for diagnosis ......................................................................................................62
Service notifications................................................................................................................................. 63
Loose connections ...................................................................................................................................63
Troubleshooting flowcharts .......................................................................................................................63
Start diagnosis flowchart ................................................................................................................64
General diagnosis flowchart ........................................................................................................... 65
Server blade power-on problems flowchart .......................................................................................67
Contents 4
Page 5
POST problems flowchart ............................................................................................................... 69
OS boot problems flowchart ...........................................................................................................71
Server fault indications flowchart ..................................................................................................... 73
POST error messages and beep codes....................................................................................................... 75
Battery replacement .................................................................................................................... 76
Regulatory compliance notices ..................................................................................................... 78
Regulatory compliance identification numbers............................................................................................. 78
Federal Communications Commission notice............................................................................................... 78
FCC rating label............................................................................................................................ 78
Class A equipment......................................................................................................................... 78
Class B equipment......................................................................................................................... 78
Declaration of conformity for products marked with the FCC logo, United States only....................................... 79
Modifications.......................................................................................................................................... 79
Cables................................................................................................................................................... 79
Canadian notice (Avis Canadien).............................................................................................................. 80
European Union regulatory notice .............................................................................................................80
Disposal of waste equipment by users in private households in the European Union......................................... 80
Japanese notice ...................................................................................................................................... 81
BSMI notice............................................................................................................................................ 82
Korean notice ......................................................................................................................................... 82
Chinese notice ........................................................................................................................................ 82
Laser compliance .................................................................................................................................... 82
Battery replacement notice........................................................................................................................ 83
Taiwan battery recycling notice................................................................................................................. 83
Acoustics statement for Germany (Geräuschemission) .................................................................................. 84
Electrostatic discharge................................................................................................................. 85
Preventing electrostatic discharge.............................................................................................................. 85
Grounding methods to prevent electrostatic discharge.................................................................................. 85
Specifications............................................................................................................................. 86
Environmental specifications ..................................................................................................................... 86
Server blade specifications....................................................................................................................... 86
Technical support........................................................................................................................ 87
Before you contact HP.............................................................................................................................. 87
HP contact information............................................................................................................................. 87
Customer Self Repair ...............................................................................................................................87
Acronyms and abbreviations........................................................................................................ 95
Index......................................................................................................................................... 98
Contents 5
Page 6
Component identification
Front panel components
Item Description
1 SUV connector*
2 Serial label pull tab
3 Release button
4 Server blade release lever
5 Power On/Standby button
6 Hard drive bay 1
7 Hard drive bay 2
*The SUV connector and the HP c-Class Blade SUV Cable are for some workstation blade configuration and
diagnostic procedures.
Component identification 6
Page 7
Front panel LEDs
Item Description Status
1 UID LED Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
2 Health LED Green = Normal
Flashing = Booting
Amber = Degraded condition
Red = Critical condition
3 Reserved —
4 Reserved —
5 Reserved —
6 System power LED Green = On
Amber = Standby (auxiliary power available)
Off = Off
Component identification 7
Page 8
SAS and SATA hard drive LEDs
Item Description
1 Fault/UID LED (amber/blue)
2 Online LED (green)
SAS and SATA hard drive LED combinations
Online/activity
LED (green)
On, off, or flashing Alternating amber
On, off, or flashing Steadily blue The drive is operating normally, and it has been selected by a
On Amber, flashing
On Off The drive is online, but it is not active currently.
Flashing regularly
(1 Hz)
Flashing regularly
(1 Hz)
Fault/UID LED
Interpretation
(amber/blue)
The drive has failed, or a predictive failure alert has been
and blue
regularly (1 Hz)
Amber, flashing
regularly (1 Hz)
Off Do not remove the drive. Removing a drive may terminate the
received for this drive; it also has been selected by a
management application.
management application.
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
Do not remove the drive. Removing a drive may terminate the
current operation and cause data loss.
The drive is part of an array that is undergoing capacity
expansion or stripe migration, but a predictive failure alert has
been received for this drive. To minimize the risk of data loss, do
not replace the drive until the expansion or migration is
complete.
current operation and cause data loss.
The drive is rebuilding, erasing, or it is part of an array that is
undergoing capacity expansion or stripe migration.
Component identification 8
Page 9
Online/activity
LED (green)
Flashing irregularly Amber, flashing
Fault/UID LED
(amber/blue)
regularly (1 Hz)
Interpretation
The drive is active, but a predictive failure alert has been
received for this drive. Replace the drive as soon as possible.
Flashing irregularly Off The drive is active, and it is operating normally.
Off Steadily amber A critical fault condition has been identified for this drive, and
the controller has placed it offline. Replace the drive as soon as
possible.
Off Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive.
Replace the drive as soon as possible.
Off Off The drive is offline, a spare, or not configured as part of an
array.

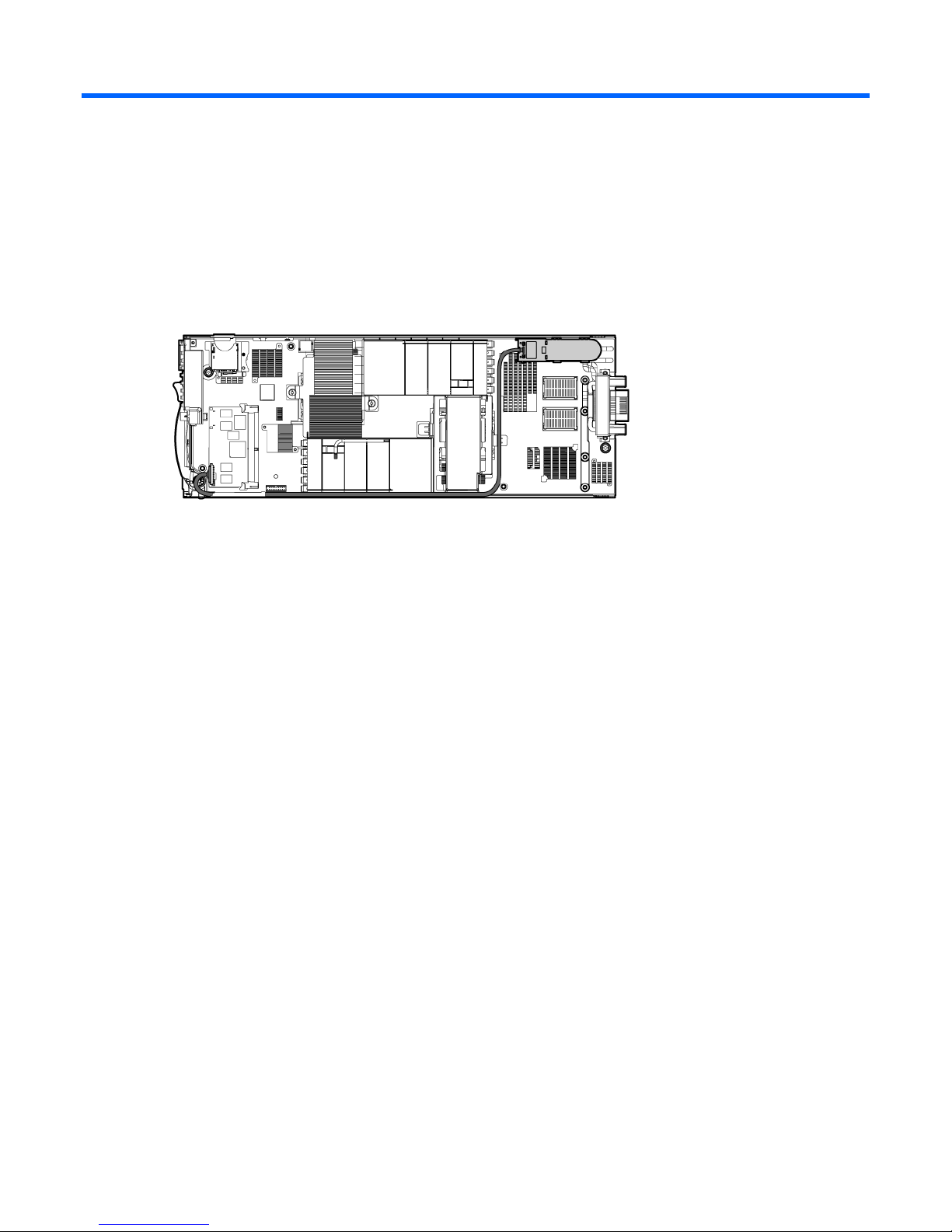

System board components
Item Description
1 System board thumbscrews (2)
2 SD card slot
3 Internal USB connector
4 Hard drive backplane connector
5 Processor 2 DIMM slots (6)
6 Processor socket 2
7 Mezzanine connector 1 (Type I mezzanine only)
8 Mezzanine connector 2 (Type I or Type II mezzanine)
9 System battery
10 Battery tray
11 Enclosure connector
12 Embedded NICs (2)
13 System maintenance switch
14 Processor 1 DIMM slots (6)
Component identification 9
Page 10
Item Description
15 Processor socket 1 (populated)
16 TPM connector
17 Cache module connector
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant WS460c G6 Workstation Blade Installation Instructions that ship with the workstation blade.
Mezzanine connector definitions
A PCIe x8 mezzanine connector supports x16 cards at up to x8 speeds.
Item PCIe
Mezzanine connector 1 x8, Type I mezzanine card only
Mezzanine connector 2 x8, Type 1 or II mezzanine card
DIMM slot locations
DIMM slots are numbered sequentially (1 through 6) for each processor. The supported AMP modes use
the letter assignments for population guidelines.
System maintenance switch
Position Function Default
1* iLO 2 security override Off
2 Configuration lock Off
3 Reserved Off
4 Reserved Off
5* Password disabled Off
6* Reset configuration Off
7 Reserved Off
8 Reserved Off
*To access redundant ROM, set S1, S5, and S6 to ON.
Component identification 10
Page 11

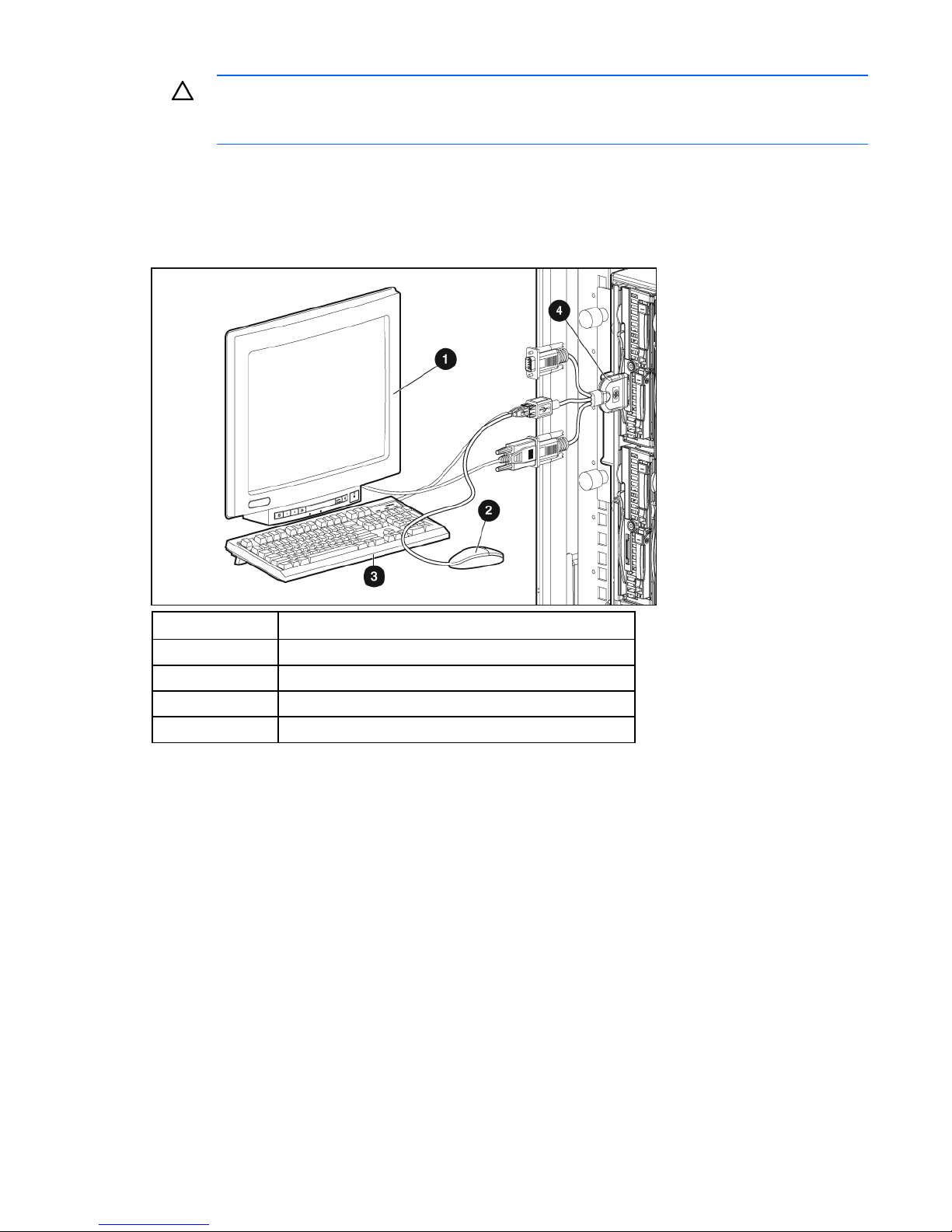

HP c-Class Blade SUV Cable
Item Connector Description
1 Server blade For connecting to the SUV connector on the
workstation blade front panel
2 Video For connecting a video monitor
3 USB For connecting up to two USB devices
4 Serial For trained personnel to connect a null modem
serial cable and perform advanced diagnostic
procedures
Component identification 11
Page 12
Operations
Power up the workstation blade
The Onboard Administrator initiates an automatic power-up sequence when the workstation blade is
installed. If the default setting is changed, use one of the following methods to power up the workstation
blade:
• Use a virtual power button selection through iLO 2.
• Press and release the Power On/Standby button.
When the workstation blade goes from the standby mode to the full power mode, the system power LED
changes from amber to green.
For more information about the Onboard Administrator, see the enclosure setup and installation guide on
the HP website (http://www.hp.com/support
).
For more information about iLO 2, see "Integrated Lights-Out 2 technology (on page 51)."
Power down the workstation blade
Before powering down the workstation blade for any upgrade or maintenance procedures, perform a
backup of critical server data and programs.
Depending on the Onboard Administrator configuration, use one of the following methods to power down
the workstation blade:
• Use a virtual power button selection through iLO 2.
This method initiates a controlled remote shutdown of applications and the OS before the
workstation blade enter standby mode.
• Press and release the Power On/Standby button.
This method initiates a controlled shutdown of applications and the OS before the workstation blade
enter standby mode.
• Press and hold the Power On/Standby button for more than 4 seconds to force the workstation blade
to enter standby mode.
This method forces the workstation blade to enter standby mode without properly exiting
applications and the OS. It provides an emergency shutdown method in the event of a hung
application.
• Execute one of the following commands using the Onboard Administrator CLI:
poweroff server all
or
poweroff server all force
The first command initiates a controlled shutdown of applications and the OS before the workstation
blade enter standby mode. The second form of the command forces the workstation blade to enter
Operations 12
Page 13
standby mode without exiting applications and the OS. This is an emergency method to force a
shutdown in the event of a hung application.
• Use the Onboard Administrator GUI to initiate a shutdown:
a. Select the Enclosure Information tab, then select the Overall checkbox in the Device Bays item.
b. Initiate a shutdown from the Virtual Power menu:
— Select Momentary Press to initiate a controlled shutdown of applications and the OS.
— Select Press and Hold to initiate an emergency shutdown of applications and the OS.
IMPORTANT: When the workstation blade are in standby mode, auxiliary power is still being
provided. To remove all power from the workstation blade, remove the workstation blade from
the enclosure.
After initiating a virtual power down command, be sure that the workstation blade go into standby mode
by observing that the system power LED is amber.
Remove the workstation blade
CAUTION: Do not use the workstation blade release lever to lift or carry the workstation blade.
Always support the weight of the workstation blade by handling the chassis directly. Improper
To remove the component:
1. Identify the proper workstation blade.
2. Power down the workstation blade (on page 12).
3. Remove the workstation blade.
use can damage the release lever and the workstation blade.
4. Place the workstation blade on a flat, level work surface.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
Operations 13
Page 14
CAUTION: To prevent damage to electrical components, properly ground the workstation
blade before beginning any installation procedure. Improper grounding can cause ESD.
Remove the access panel
To remove the component:
1. Power down the workstation blade (on page 12).
2. Remove the workstation blade (on page 13).

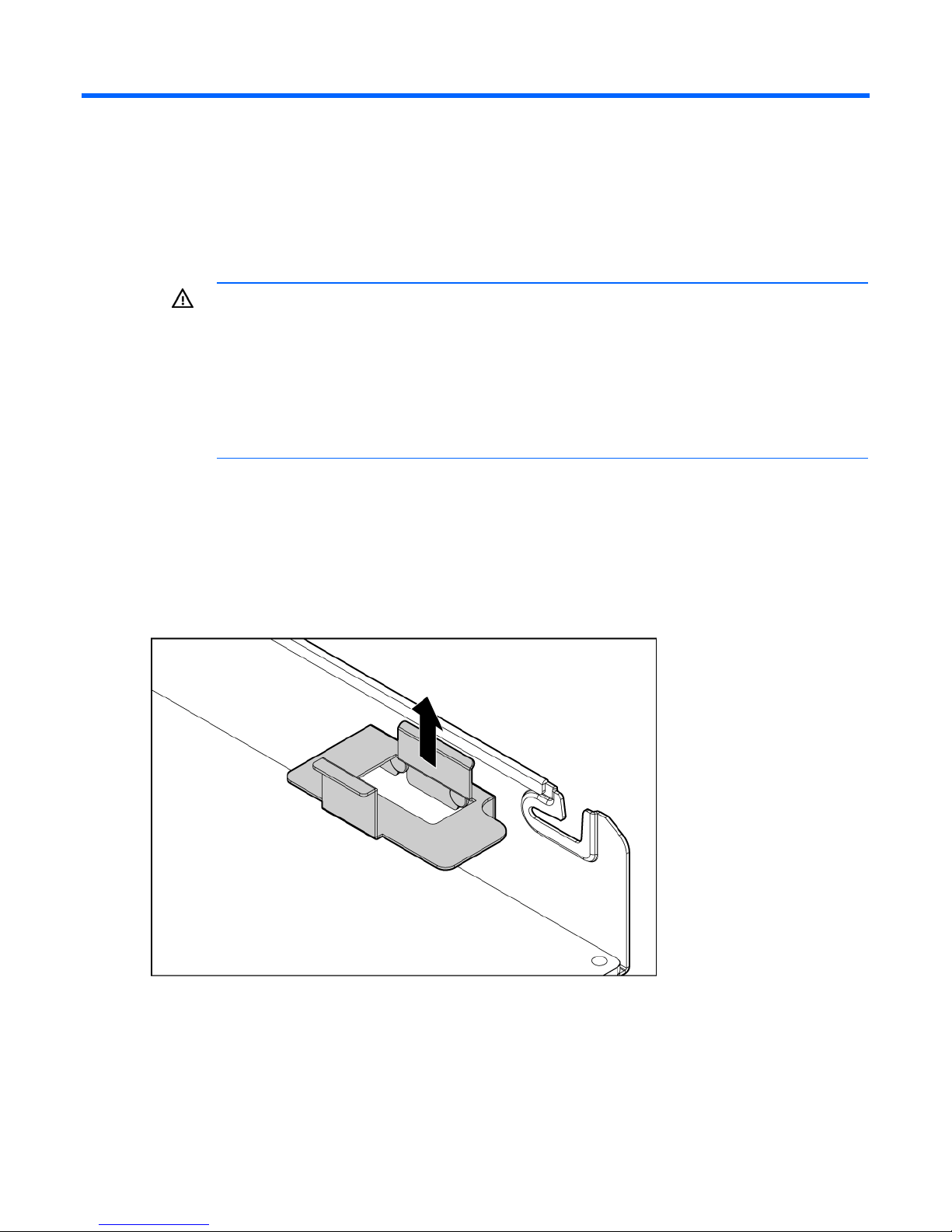

3. Lift the access panel latch and slide the access panel to the rear.
4. Remove the access panel.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the workstation
blade before beginning any installation procedure. Improper grounding can cause ESD.
Install the access panel
1. Place the access panel on top of the workstation blade with the hood latch open. Allow the panel to
extend past the rear of the workstation blade approximately 0.8 cm (0.2 in).
2. Engage the anchoring pin with the corresponding hole in the latch.
3. Push down on the hood latch. The access panel slides to a closed position.

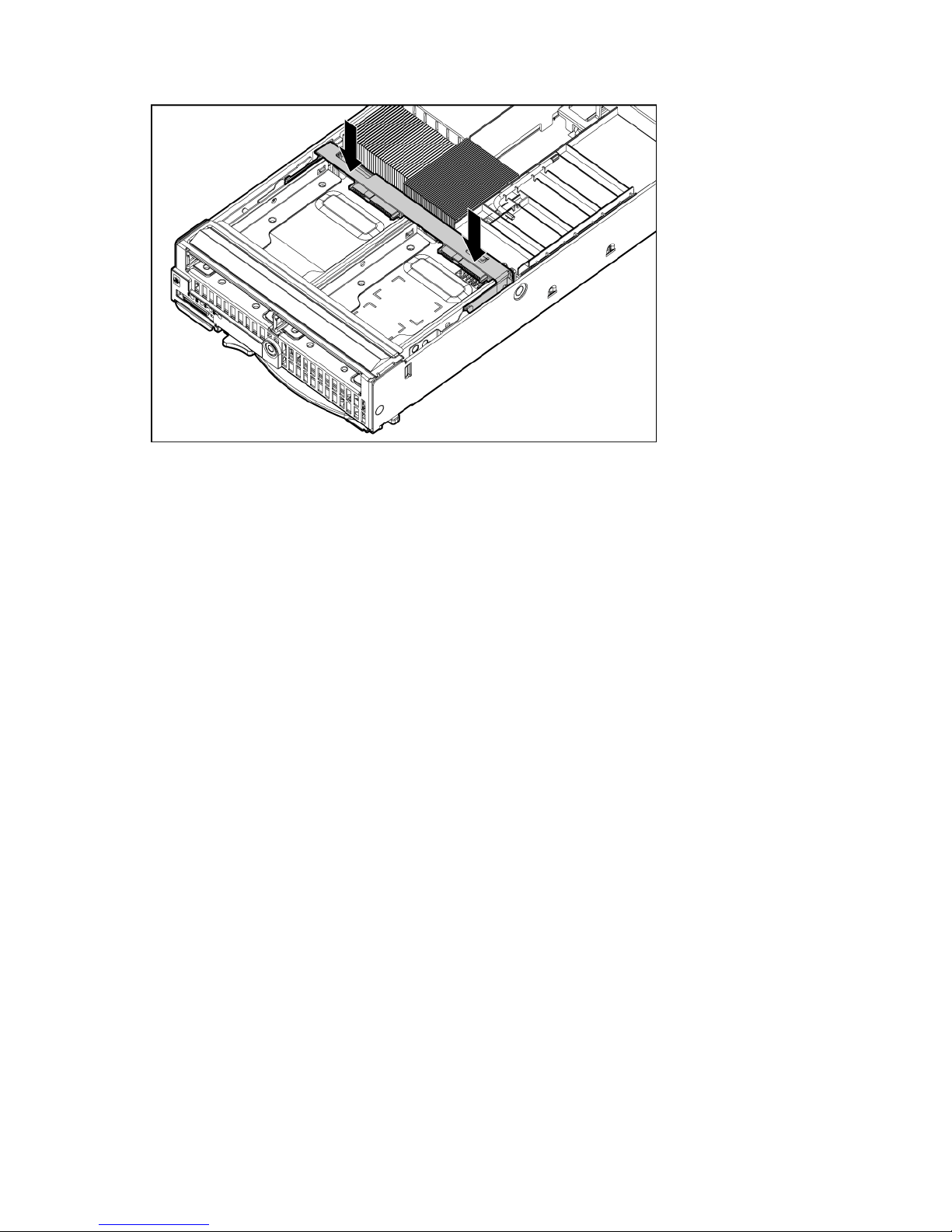

Remove the DIMM baffle
To remove the component:
1. Power down the workstation blade (on page 12).
2. Remove the workstation blade (on page 13).
3. Remove the access panel (on page 14).
Operations 14
Page 15
4.

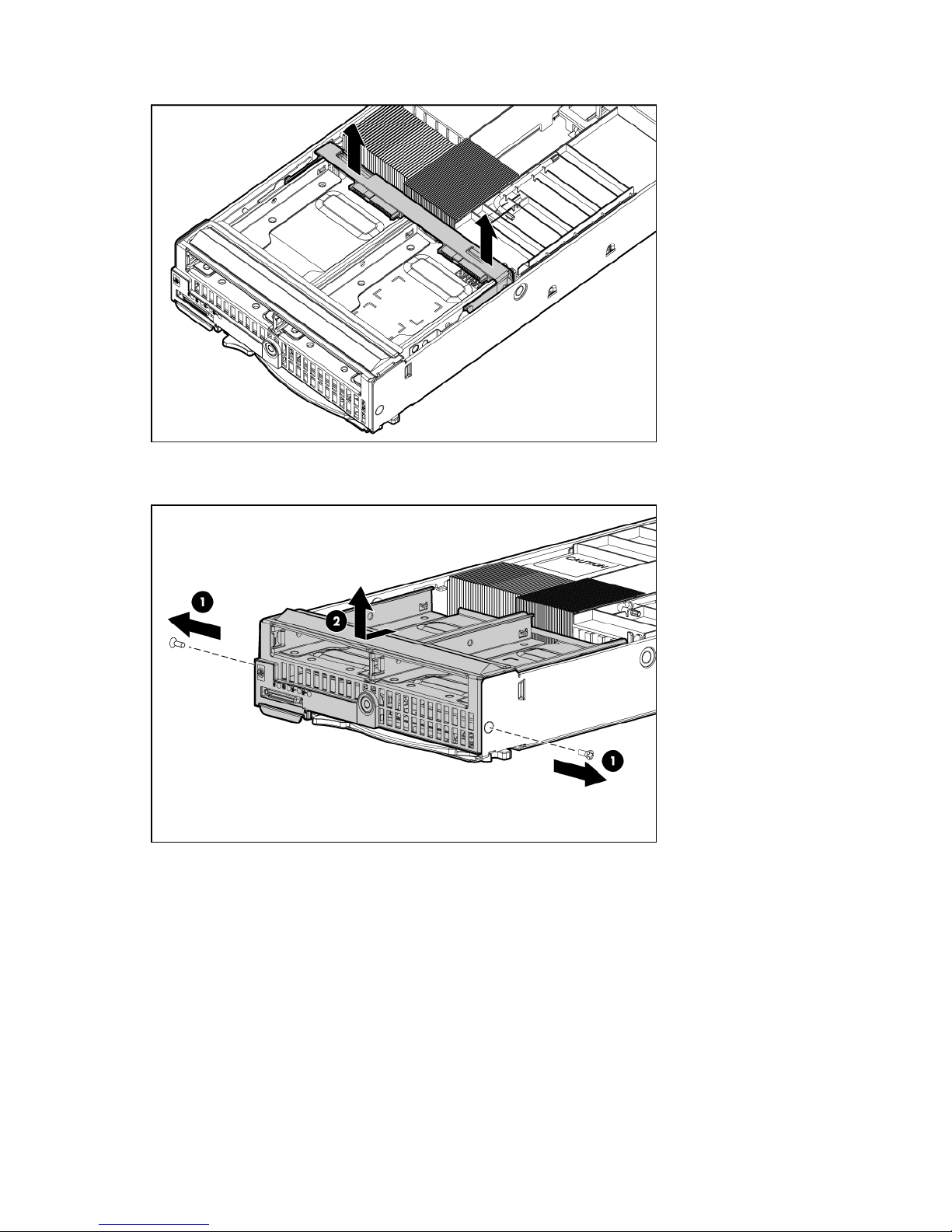

Remove the DIMM baffle.
Operations 15
Page 16
Setup
Overview
Installation of a workstation blade requires the following steps:
1. Install and configure an HP BladeSystem c-Class enclosure.
2. Install any workstation blade options.
3. Install interconnect modules in the enclosure.
4. Connect the interconnect modules to the network.
5. Install a workstation blade.
6. Complete the workstation blade configuration.
7. Install any software as outlined in the workstation blade Windows or Linux Administrator's Guide.
For definitions of the acronyms used in this document, refer to "Acronyms and abbreviations" in the
workstation blade user guide.
Installing an HP BladeSystem c-Class enclosure
Before performing any workstation blade-specific procedures, install an HP BladeSystem c-Class
enclosure.
The most current documentation for workstation blades and other HP BladeSystem components is
available at the HP website (http://www.hp.com/go/bladesystem/documentation
Documentation is also available in the following locations:
).
• Documentation CD that ships with the enclosure
• HP Business Support Center website (http://www.hp.com/support)
• HP Technical Documentation website (http://docs.hp.com)
Installing server blade options
Before installing and initializing the workstation blade, install any workstation blade options, such as an
additional processor, hard drive, or mezzanine card.
Connecting to the network
To connect the HP BladeSystem to a network, each enclosure must be configured with network
interconnect devices to manage signals between the workstation blades and the external network.
Setup 16
Page 17
Two types of interconnect modules are available for HP BladeSystem c-Class enclosures: Pass-Thru
modules and switch modules. For more information about interconnect module options, see the HP
website (http://www.hp.com/go/bladesystem/interconnects
IMPORTANT: To connect to a network with a Pass-Thru module, always connect the Pass-Thru
).
module to a network device that supports Gigabit speed.
Installing a server blade
CAUTION: To prevent improper cooling and thermal damage, do not operate the workstation
blade or the enclosure unless all hard drive and device bays are populated with either a
1. Remove the device bay blank.
component or a blank.
2. Remove the enclosure connector cover.
Setup 17
Page 18
3.
Prepare the workstation blade for installation.
4. Install the workstation blade.
Setup 18
Page 19
Hardware options installation
Introduction
If more than one option is being installed, read the installation instructions for all the hardware options
and identify similar steps to streamline the installation process.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, properly ground the server before
beginning any installation procedure. Improper grounding can cause electrostatic discharge.
Hard drive option
The workstation blade supports up to two SAS or SATA drives.
CAUTION: To prevent improper cooling and thermal damage, do not operate the workstation
blade or the enclosure unless all hard drive and device bays are populated with either a
1. Remove the SAS hard drive blank.
component or a blank.
Hardware options installation 19
Page 20
2.
Prepare the hard drive.
3. Install the hard drive.
4. Determine the status of the hard drive from the hot-plug SAS hard drive LED combinations ("SAS and
SATA hard drive LED combinations" on page 8).
Processor option
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To avoid damage to the system board:
• Do not touch the processor socket contacts.
• Always install the processor socket cover after removing the processor from the socket.
• Do not tilt or slide the processor when lowering the processor into the socket.
CAUTION: To avoid damage to the processor:
• Handle the processor only by the edges.
• Do not touch the bottom of the processor, especially the contact area.
Hardware options installation 20
Page 21
CAUTION: To prevent possible workstation blade malfunction and damage to the equipment,
multiprocessor configurations must contain processors with the same part number.
CAUTION: To prevent possible workstation blade overheating, always populate processor
socket 2 with a processor and a heatsink or a processor socket cover and a heatsink blank.
CAUTION: The heatsink thermal interface media is not reusable and must be replaced if the
heatsink is removed from the processor after it has been installed.
IMPORTANT: When installing the heatsink, align the guide pins on the processor retention
bracket with the alignment holes in the heatsink.
IMPORTANT: Processor socket 1 must always be populated. If processor socket 1 is empty, the
workstation blade does not power up.
NOTE: Do not discard the processor protective cover. Always install the processor protective
cover if the processor is removed from the socket.
To install the component:
1. Update the system ROM using any standard ROM flash mechanism.
2. Power down the workstation blade (on page 12).
3. Remove the workstation blade (on page 13).
4. Remove the access panel (on page 14).
5. Remove all DIMM baffles ("Remove the DIMM baffle" on page 14).
6. Remove the heatsink blank. Retain the heatsink blank for future use.
7. Open the processor retaining latch and the processor socket retaining bracket.
Hardware options installation 21
Page 22
8.
Remove the processor socket protective cover.
IMPORTANT: Be sure the processor remains inside the processor installation tool.
9. If the processor has separated from the installation tool, carefully re-insert the processor in the tool.
Hardware options installation 22
Page 23
10.
Align the processor installation tool with the socket and install the processor.
11. Press down firmly until the processor installation tool clicks and separates from the processor, and
then remove the processor installation tool.
Hardware options installation 23
Page 24
12.
Close the processor socket retaining bracket and the processor retaining latch.
13. Remove the thermal interface protective cover from the heatsink.
Hardware options installation 24
Page 25
14.
Align and install the heatsink. Alternate tightening the screws until the heatsink is seated properly.
15. Install all DIMM baffles.
16. Install the access panel (on page 14).
Memory options
IMPORTANT: This workstation blade does not support mixing RDIMMs and UDIMMs.
Attempting to mix these two types causes the server to halt during BIOS initialization.
The memory subsystem in this workstation blade can support RDIMMs or UDIMMs. Both types are referred
to as DIMMs when the information applies to both types. When specified as RDIMM or UDIMM, the
information applies to that type only. All memory installed in the workstation blade must be the same type.
The workstation blade supports the following DIMM speeds:
• Single- and dual-rank PC3-10600 (DDR-1333) DIMMs operating at 1333 and 1066 MHz
• Quad-rank PC3-8500 (DDR-1067) DIMMs operating at 1066 MHz
Depending on the processor model, the number of DIMMs installed, and whether UDIMMs or RDIMMs
are installed, the memory clock speed may be reduced to 1066 or 800 MHz. For more information on
Memory subsystem architecture
the effect of DIMM slot population, see "General DIMM slot population guidelines (on page 28)."
The memory subsystem in this workstation blade is divided into channels. Each processor supports three
channels, and each channel supports two DIMM slots, as shown in the following table.
Channel Slot Slot number
1 D A 1
2 E B 3
2
4
Hardware options installation 25
Page 26
Channel Slot Slot number
3 F C 5
6
This multi-channel architecture provides enhanced performance in Advanced ECC mode. This architecture
also enables the Mirrored Memory and Lockstep memory modes. This workstation blade supports both
Registered PC3 DIMMs (RDIMMs) and Unbuffered DIMMs (UDIMMs).
DIMM slots in this server are identified by number and by letter. Letters identify the slots to populate for
specific AMP modes. Slot numbers are reported by ROM messages during boot and for error reporting.
Single-, dual-, and quad-rank DIMMs
To understand and configure memory protection modes properly, an understanding of single-, dual-, and
quad-rank DIMMs is helpful. Some DIMM configuration requirements are based on these classifications.
A single-rank DIMM has one set of memory chips that is accessed while writing to or reading from the
memory. A dual-rank DIMM is similar to having two single-rank DIMMs on the same module, with only
one rank accessible at a time. A quad-rank DIMM is, effectively, two dual-rank DIMMs on the same
module. Only one rank is accessible at a time. The workstation blade memory control subsystem selects
the proper rank within the DIMM when writing to or reading from the DIMM.
Dual- and quad-rank DIMMs provide the greatest capacity with the existing memory technology. For
example, if current DRAM technology supports 2-GB single-rank DIMMs, a dual-rank DIMM would be 4GB, and a quad-rank DIMM would be 8-GB.
DIMM identification
IMPORTANT: This workstation blade does not support mixing RDIMMs and UDIMMs.
The memory subsystem may be populated with either RDIMMs or UDIMMs, but mixing the two types is not
supported. To determine DIMM characteristics, use the label attached to the DIMM and the following
illustration and table.
Attempting to mix these two types causes the server to halt during BIOS initialization.
Hardware options installation 26
Page 27
Item Description Definition
1 Size —
2 Rank 1R = Single-rank
2R = Dual-rank
4R = Quad-rank
3 Data width x4 = 4-bit
x8 = 8-bit
4 Memory speed 10600 = 1333-MHz
8500 = 1067-MHz
5 DIMM type R = RDIMM (registered)
E = UDIMM (unbuffered with ECC)
For the latest supported memory information, see the QuickSpecs on the HP website
(http://www.hp.com
).
Memory configurations
To optimize workstation blade availability, the workstation blade supports the following AMP modes:
• Advanced ECC—provides the greatest memory capacity for a given DIMM size, while providing up
to 8-bit error correction, depending on the specific DIMM type. This mode is the default option for
this workstation blade.
• Mirrored Memory—provides maximum protection against failed DIMMs. Uncorrectable errors in one
channel are corrected by the mirror channel.
• Lockstep—provides enhanced protection while making all installed memory available to the
operating system. The workstation blade can continue to function if a single- or multi-bit memory
failure within a single DRAM device occurs.
Advanced Memory Protection options are configured in RBSU. If the requested AMP mode is not
supported by the installed DIMM configuration, the workstation blade boots in Advanced ECC mode. For
more information, see "HP ROM-Based Setup Utility (on page 47)."
For the latest memory configuration information, see the QuickSpecs on the HP website
(http://www.hp.com
).
RDIMM maximum memory configurations
The following table lists the maximum memory configuration possible with 8-GB RDIMMs.
Rank Single-processor Dual-processor
Single-rank 48 GB 96 GB
Dual-rank 48 GB 96 GB
Quad-rank 32 GB 64 GB
UDIMM maximum memory configurations
The workstation blade supports a maximum of 12 GB with one processor and 24 GB with two processors
using 2-GB single- or dual-rank UDIMMs.
Hardware options installation 27
Page 28
Advanced ECC memory configuration
Advanced ECC memory is the default memory protection mode for this workstation blade. Standard ECC
can correct single-bit memory errors and detect multi-bit memory errors. When multi-bit errors are detected
using Standard ECC, the error is signaled to the workstation blade and causes the workstation blade to
halt.
Advanced ECC protects the workstation blade against some multi-bit memory errors. Advanced ECC can
correct both single-bit memory errors and 4-bit memory errors if all failed bits are on the same DRAM
device on the DIMM.
Advanced ECC provides additional protection over Standard ECC because it is possible to correct certain
memory errors that would otherwise be uncorrected and result in a workstation blade failure. The
workstation blade provides notification that correctable error events have exceeded a pre-defined
threshold rate.
Mirrored memory configuration
Mirroring provides protection against uncorrected memory errors that would otherwise result in
workstation blade downtime. Mirroring is performed at the channel level. Channels 1 and 2 are used;
channel 3 is not populated.
Data is written to both memory channels. Data is read from one of the two memory channels. If an
uncorrectable error is detected in the active memory channel, data is retrieved from the mirror channel.
This channel becomes the new active channel, and the system disables the channel with the failed DIMM.
Lockstep memory configuration
Lockstep mode provides protection against multi-bit memory errors that occur on the same DRAM device.
Lockstep mode can correct any single DRAM device failure on x4 and x8 DIMM types. The DIMMs in
each channel must have identical HP part numbers.
Lockstep mode uses channel 1 and channel 2. Channel 3 is not populated. Because channel 3 cannot be
populated when using Lockstep mode, the maximum memory capacity is lower than Advanced ECC
mode. Memory performance with Advanced ECC is also slightly higher.
General DIMM slot population guidelines
Observe the following guidelines for all AMP modes:
• Populate DIMM slots for a processor only if the processor is installed.
• To maximize performance in multi-processor configurations, distribute the total memory capacity
between all processors as evenly as possible.
• Do not mix Unbuffered and Registered PC3 DIMMs.
• Each channel supports up to two Unbuffered DIMMs.
• If quad-rank DIMMs are installed for a processor, a maximum of two DIMMs can be installed on
each channel for that processor.
If a channel contains quad-rank DIMMs, the quad-rank DIMM must be installed first on that channel.
DIMM speeds are supported as indicated in the following table.
Hardware options installation 28
Page 29
Populated slots
Rank Speeds supported
(per channel)
1 Single- or dual-rank 1333, 1066
1 Quad-rank 1066
2 Single- or dual-rank 1066
Advanced ECC population guidelines
For Advanced ECC mode configurations, observe the following guidelines:
• Observe the general DIMM slot population guidelines (on page 28).
(MHz)
• DIMMs may be installed individually.
Single-processor Advanced ECC population order
For Advanced ECC mode configurations with a single processor, populate the DIMM slots in the following
order:
• RDIMM: Sequentially in alphabetical order (A through F)
• UDIMM: Sequentially in alphabetical order (A through F).
Multi-processor Advanced ECC population order
For Advanced ECC mode configurations with multiple processors, populate the DIMM slots for each
processor in the following order:
• RDIMM: Sequentially in alphabetical order (A through F)
• UDIMM: Sequentially in alphabetical order (A through F).
Mirrored Memory population guidelines
For Mirrored Memory mode configurations, observe the following guidelines:
• Observe the general DIMM slot population guidelines (on page 28).
• Always install DIMMs in channels 1 and 2 for each installed processor.
• Do not install DIMMs in channel 3 for any processor.
• DIMMs installed on channel 1 and channel 2 of an installed processor must be identical.
• In multi-processor configurations, each processor must have a valid Mirrored Memory configuration.
• In multi-processor configurations, each processor may have a different valid Mirrored Memory
configuration.
Single-processor Mirrored Memory population order
For Mirrored Memory mode configurations with a single processor, populate the DIMM slots in the
following order:
• RDIMM
o First: A and B
o Next: D and E
Hardware options installation 29
Page 30
o
Do not populate slots C or F.
• UDIMM
o First: A and B
o Last: D and E
o Do not populate slots C or F.
After installing the DIMMs, use RBSU to configure the system for Mirrored Memory support ("Configuring
mirrored memory" on page 48).
Multi-processor Mirrored Memory population order
For Mirrored Memory mode configurations with multiple processors, populate the DIMM slots for each
processor in the following order:
• RDIMM
o First: A and B
o Next: D and E
o Do not populate slots C or F.
• UDIMM
o First: A and B
o Last: D and E
o Do not populate slots C or F.
After installing the DIMMs, use RBSU to configure the system for mirrored memory support ("Configuring
mirrored memory" on page 48).
Lockstep Memory population guidelines
For Lockstep memory mode configurations, observe the following guidelines:
• Observe the general DIMM slot population guidelines (on page 28).
• Always install DIMMs in channels 1 and 2 for each installed processor.
• Do not install DIMMs in channel 3 for any processor.
• DIMM configuration on channel 1 and channel 2 of a processor must be identical.
• In multi-processor configurations, each processor must have a valid Lockstep Memory configuration.
• In multi-processor configurations, each processor may have a different valid Lockstep Memory
configuration.
Single-processor Lockstep population order
For Lockstep memory mode configurations with a single processor, populate the DIMM slots in the
following order:
• RDIMM
o First: A and B
o Next: D and E
o Do not populate slots C or F.
Hardware options installation 30
Page 31
• UDIMM
o First: A and B
o Last: D and E
o Do not populate slots C or F.
After installing the DIMMs, use RBSU to configure the system for Lockstep memory support ("Configuring
lockstep memory" on page 49).
Multi-processor Lockstep population order
For Lockstep memory mode configurations with multiple processors, populate the DIMM slots for each
processor in the following order:
• RDIMM
o First: A and B
o Next: D and E
o Do not populate slots C or F.
• UDIMM
o First: A and B
o Last: D and E
o Do not populate slots C or F.
After installing the DIMMs, use RBSU to configure the system for Lockstep memory support ("Configuring
lockstep memory" on page 49).
Installing a DIMM
CAUTION: To avoid damage to the hard drives, memory, and other system components, the
1. Power down the server ("Power down the workstation blade" on page 12).
2. Remove the workstation blade (on page 13).
3. Remove the access panel (on page 14).
4. Remove all DIMM baffles ("Remove the DIMM baffle" on page 14).
5. Open the DIMM slot latches.
air baffle, drive blanks, and access panel must be installed when the server is powered up.
Hardware options installation 31
Page 32
6.

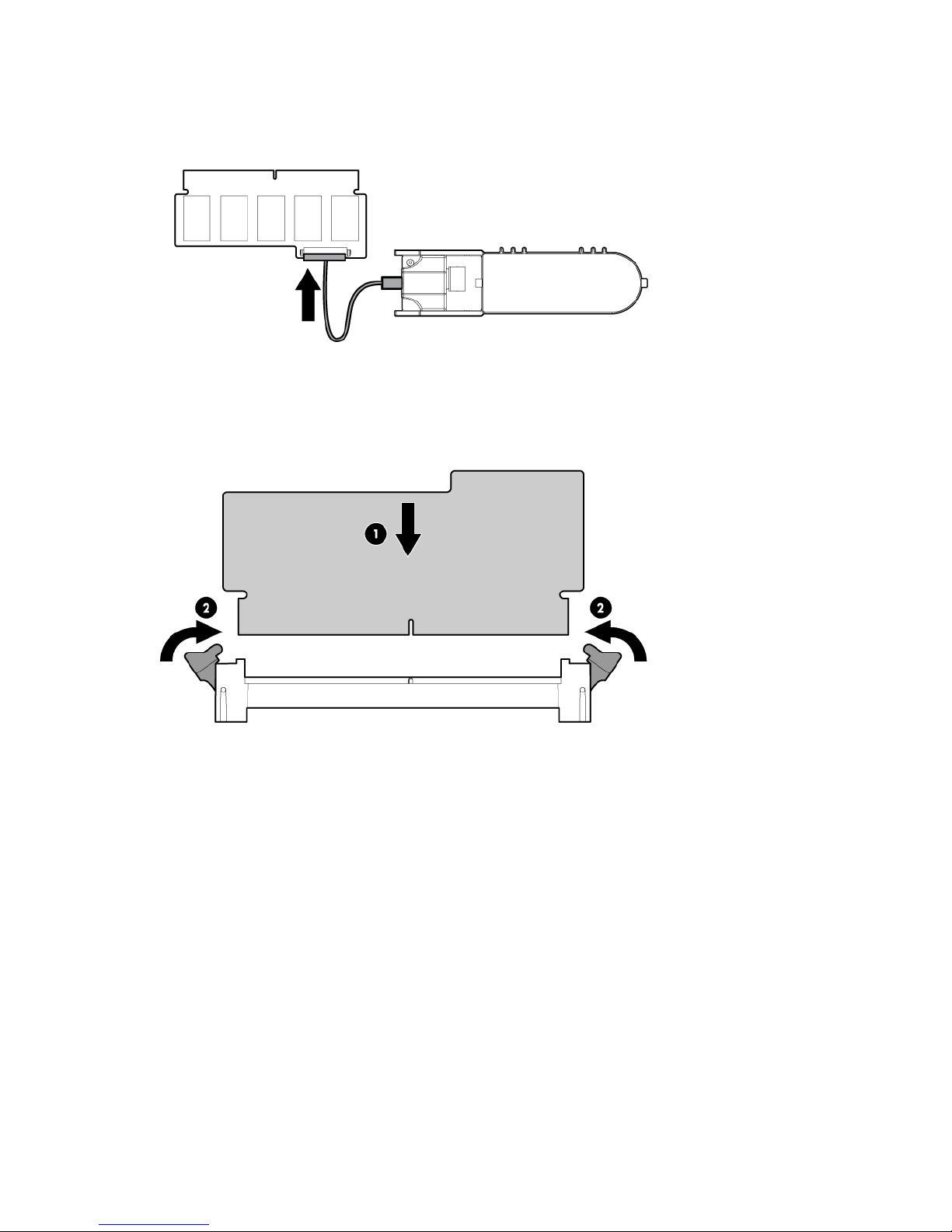

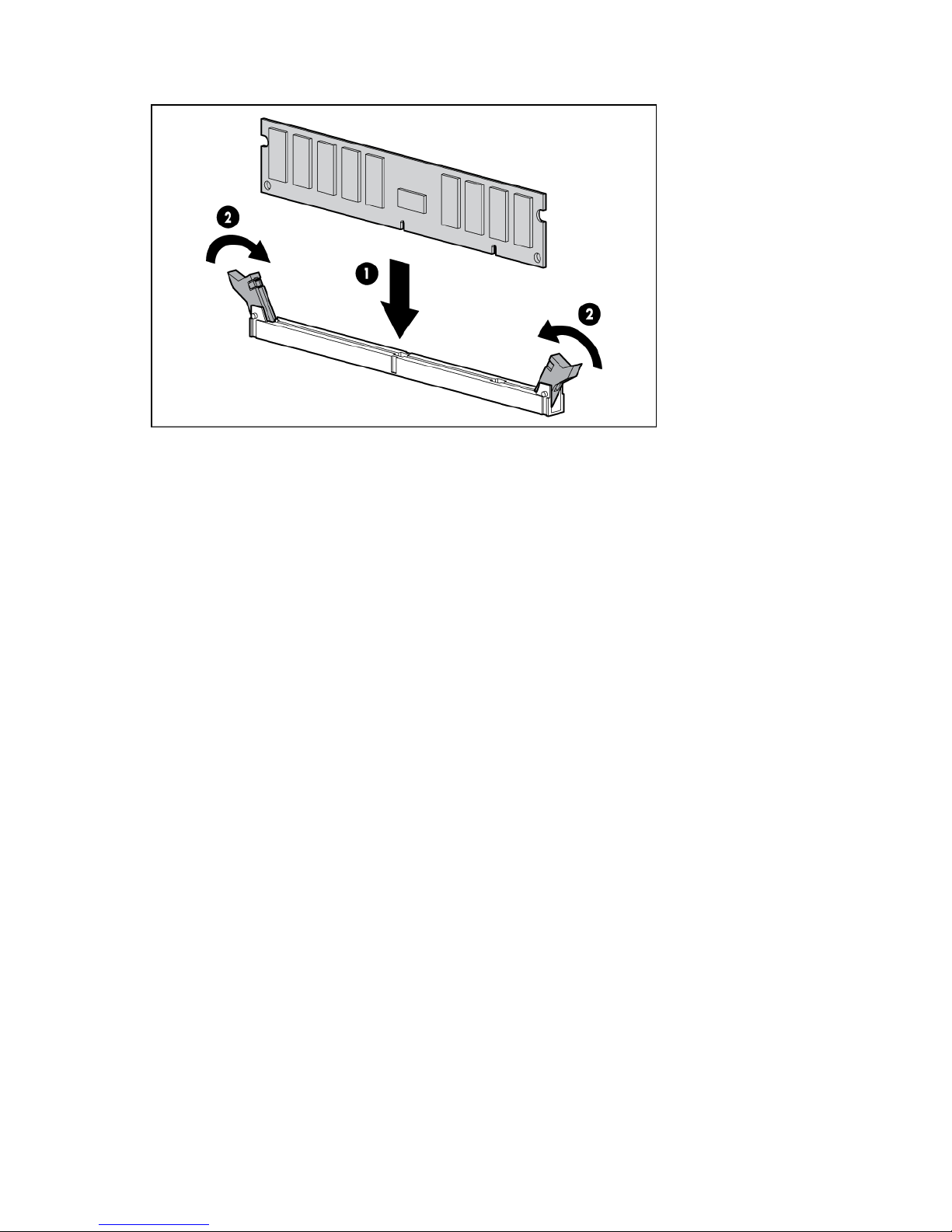

Install the DIMM.
7. Install all DIMM baffles.
8. Install the access panel (on page 14).
If you are installing DIMMs in a mirrored or lock-step configuration, configure this mode in RBSU ("HP
ROM-Based Setup Utility" on page 47).
Cache module and battery pack option
The optional BBWC enabler provides the system with a means for storing and saving data in the event of
an unexpected system shutdown.
To install the component:
1. Back up all data on the hard drive.
2. Power down the workstation blade (on page 12).
3. Remove the workstation blade (on page 13).
4. Remove the access panel (on page 14).
5. Remove all hard drives ("Hard drive option" on page 19).
Hardware options installation 32
Page 33
6.
Remove the hard drive backplane.
7. Remove the two T-15 screws from the front panel/hard drive cage assembly.
8. Remove the front panel/hard drive cage assembly.
Hardware options installation 33
Page 34

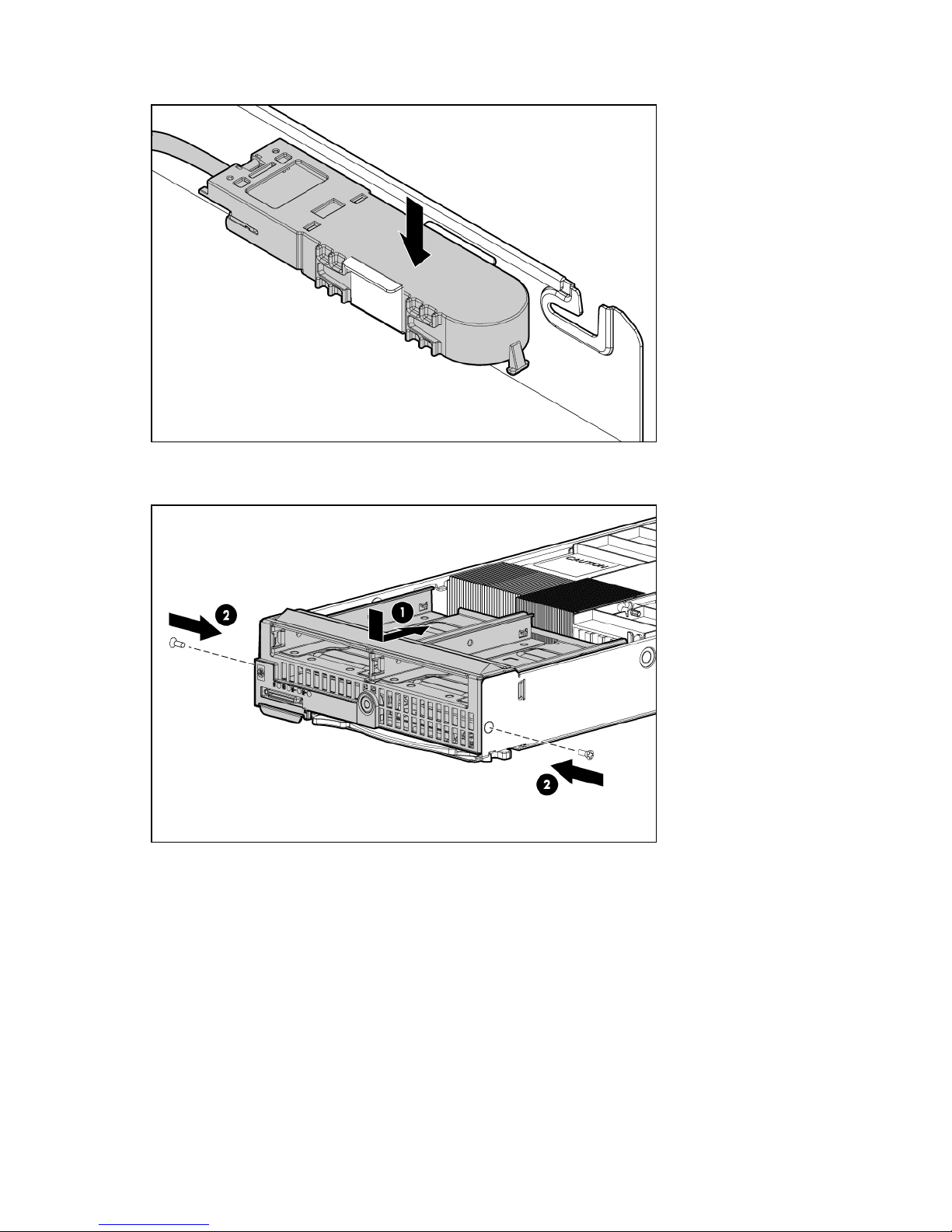

9.
Connect the BBWC battery pack cable to the cache module.
10. Install the cache module.
11. Route the BBWC battery pack cable ("BBWC battery pack cabling" on page 37).
Hardware options installation 34
Page 35
12.
Install the battery pack.
13. Install the front panel/hard drive cage assembly.
14. Install the two T-15 screws to secure the front panel/hard drive cage assembly to the chassis.
Hardware options installation 35
Page 36
15.
Install the hard drive backplane. Press down on the hard drive backplane retainer to seat the board.
16. Install the hard drives ("Hard drive option" on page 19).
17. Install the access panel (on page 14).
18. Install the workstation blade ("Installing a server blade" on page 17).
Hardware options installation 36
Page 37
Cabling
BBWC battery pack cabling
• Cache module cabling: Use the 24-inch BBWC battery pack cable.
Using the HP c-Class Blade SUV Cable
The HP c-Class Blade SUV Cable enables the user to perform workstation blade administration,
configuration, and diagnostic procedures by connecting video and USB devices directly to the workstation
blade. For SUV cable connectors, see "HP c-Class Blade SUV Cable (on page 11)."
Connecting locally to a server blade with video and
USB devices
Use the SUV cable to connect a monitor and any of the following USB devices:
• USB hub
• USB keyboard
• USB mouse
• USB CD/DVD-ROM drive
• USB diskette drive
Numerous configurations are possible. This section offers two possible configurations. For more
information, see "USB support and functionality (on page 55)."
Accessing a server blade with local KVM
For this configuration, a USB hub is not necessary. To connect additional devices, use a USB hub.
Cabling 37
Page 38
CAUTION: Before disconnecting the SUV cable from the connector, always squeeze the
release buttons on the sides of the connector. Failure to do so can result in damage to the
1. Connect the SUV cable to the workstation blade.
2. Connect the video connector to a monitor.
3. Connect a USB mouse to one USB connector.
4. Connect a USB keyboard to the second USB connector.
equipment.
Item Description
1 Monitor
2 USB mouse
3 USB keyboard
4 HP c-Class Blade SUV Cable
Accessing local media devices
Use the following configuration when configuring a workstation blade or loading software updates and
patches from a USB CD/DVD-ROM or a USB diskette.
Use a USB hub when connecting a USB diskette drive and/or USB CD-ROM drive to the workstation
blade. The USB hub provides additional connections.
1. Connect the HP c-Class Blade SUV cable to the workstation blade.
2. Connect the video connector to a monitor.
3. Connect a USB hub to one USB connector.
4. Connect the following to the USB hub:
o USB CD/DVD-ROM drive
o USB keyboard
o USB mouse
Cabling 38
Page 39
o
USB diskette drive
Item Description
1 Monitor
2 USB CD/DVD-ROM drive or diskette drive
3 USB keyboard
4 USB hub
5 USB mouse
6 HP c-Class Blade SUV Cable
Cabling 39
Page 40
Software and configuration utilities
Server blade deployment tools
Software drivers and additional components
HP offers the following additional software components for workstation blades:
• Health and Wellness driver and IML viewer
• iLO 2 Management interface driver
• Rack infrastructure interface service
For Microsoft® Windows® OS users, these items are included in the HP ProLiant iLO 2 Standard Blade
Edition, available from the HP website (http://www.hp.com/servers/lights-out
).
Linux OS users can download these components from the HP website
(http://www.hp.com/products/servers/linux
For information on how to use these components with a Linux OS, see the HP website
(http://h18000.www1.hp.com/products/servers/linux/documentation.html
).
HP BladeSystem c-Class Advanced management
iLO 2 is a standard component of ProLiant c-Class workstation blades that provides server health and
remote workstation blade manageability. Its features are accessed from a network client device using a
supported web browser. In addition to other features, iLO 2 provides keyboard, mouse, and video (text
and graphics) capability for a workstation blade, regardless of the state of the host OS or host
workstation blade.
iLO 2 includes an intelligent microprocessor, secure memory, and a dedicated network interface. This
design makes iLO 2 independent of the host workstation blade and its OS. iLO 2 provides remote access
to any authorized network client, sends alerts, and provides other workstation blade management
functions.
Using a supported web browser, you can:
• Remotely access the console of the host workstation blade, including all text mode and graphics
mode screens with full keyboard and mouse controls.
• Remotely power up, power down, or reboot the host workstation blade.
).
• Remotely boot a host workstation blade to a virtual media image to perform a ROM upgrade or
install an OS.
• Send alerts from iLO 2 regardless of the state of the host workstation blade.
• Access advanced troubleshooting features provided by iLO 2.
• Launch a web browser, use SNMP alerting, and diagnose the workstation blade with HP SIM.
Software and configuration utilities 40
Page 41
• Configure static IP bay settings for the dedicated iLO 2 management NICs on each workstation
blade in an enclosure for faster deployment.
To connect to the workstation blade using iLO 2, install the workstation blade in an enclosure. Onboard
Administrator assigns an IP address to enable iLO 2 connectivity to the workstation blade.
The c-Class tab enables you to control specific settings for the HP BladeSystem. iLO 2 also provides web-
based status for the HP BladeSystem configuration.
For detailed information about iLO 2, refer to the HP Integrated Lights-Out User Guide on the HP website
(http://www.hp.com/servers/lights-out
).
Network-based PXE deployment
PXE is a component of the Intel® WfM specification. The PXE model enables workstation blades to load
and execute an NBP from a PXE server and to execute a pre-configured image. The image can be an OS
image created by software utilities or a boot diskette image. This feature enables a user to configure a
Deployment overview
workstation blade and install an OS over a network.
When a PXE-enabled target workstation blade boots, it obtains an IP address from a DHCP server. The
target workstation blade obtains the name of the NBP from the appropriate boot server. Then, the target
workstation blade uses TFTP to download the NBP from the boot server and executes the image.
IMPORTANT: To connect to a network with a Pass-Thru module, always connect the Pass-Thru
module to a network device that supports Gigabit speed.
For each workstation blade being deployed, the PXE server must be connected to the NIC designated for
PXE. The workstation blade defaults PXE functions to NIC 1, but any of the NC series NICs in the
workstation blade can be designated for PXE in RBSU. For NIC connector locations, refer to the
documentation included with the workstation blade.
NOTE: Actual NIC numeration depends on several factors, including the OS installed on the
workstation blade.
Deployment infrastructure
To deploy an OS to multiple workstation blades, install a PXE deployment server on a network.
IMPORTANT: To connect to a network with a Pass-Thru module, always connect the Pass-Thru
module to a network device that supports Gigabit speed.
To establish a network-based PXE deployment infrastructure, provide the following software and minimum
hardware:
• Client PC (administrative workstation)
o AMD Athlon™ XP processor (700 MHz or greater recommended), AMD Athlon™ 64 processor,
or Intel® Pentium® III or higher processor (700 MHz or greater recommended)
o 128 MB of RAM
o Microsoft® Windows® 2000 Professional or Microsoft® Windows® XP OS
o Microsoft® Internet Explorer 5.5 or above with 128-bit encryption
Software and configuration utilities 41
Page 42
o
Ethernet NIC with 10/100 RJ-45 connector
o TCP/IP networking and an IP address compatible with one of the following: the iLO 2 Diagnostic
Port IP address or an assigned DHCP or static IP address
o CD-ROM drive, CD/DVD-ROM drive, and/or diskette drive
o Any of the following Java™ Runtime Environment versions:
1.3.1_02
1.3.1_07
1.3.1_08
1.4.1 for Windows® users only
1.4.2 for Linux users only
Access the Java™ Runtime Environment versions at the HP website
(http://java.sun.com/products/archive/index.html
).
• DHCP server (IP address assignment)
o AMD Athlon™ XP processor (700 MHz or greater recommended), AMD Athlon™ 64 processor,
or Intel® Pentium® or Pentium® II 200-MHz or faster processor
o 64 MB of RAM
o 64 MB of free hard drive space
o 10-Mb/s network adapter
• PXE deployment server (storing boot images)
o AMD Athlon™ XP processor (700 MHz or greater recommended), AMD Athlon™ 64 processor,
or Intel® Pentium® III or higher processor (500 MHz recommended)
o 256 MB of RAM
o 10-Mb/s network adapter
o CD-ROM drive
• Windows® repository server (Windows® or Linux deployment)
o Windows® 2000 or Windows Server® 2003 OS installed
o Network connection
o CD-ROM drive
o 1.5 GB of available disk space
o TCP/IP networking and an IP address compatible with one of the following: the iLO 2 Diagnostic
Port IP address or an assigned DHCP or static IP address
o CD-ROM drive and/or diskette drive
o Any of the following Java™ Runtime Environment versions:
1.3.1_02
1.3.1_07
1.3.1_08
1.4.1 for Windows® users only
1.4.2 for Linux users only
Access the Java™ Runtime Environment versions at the HP website
(http://java.sun.com/products/archive/index.html
).
Software and configuration utilities 42
Page 43
• Network server with an OS installed
Deployment methods
Four primary deployment methods are supported:
IMPORTANT: To deploy a workstation blade without the RDP, create a bootable diskette or
• PXE deployment (on page 43)
• CD-ROM deployment (on page 44)
• Diskette image deployment (on page 45)
• SAN configuration (on page 46)
PXE deployment
PXE enables workstation blades to load an image over the network from a PXE server, and then execute it
in memory. The first NIC on the workstation blade is the default PXE boot NIC, but any of the other NC
series NICs can be configured to boot PXE. For more information, refer to "Network-based PXE
deployment (on page 41)."
image of a bootable diskette.
NOTE: Actual NIC numeration depends on several factors, including the OS installed on the
workstation blade.
HP recommends using one of the following methods for PXE deployment:
• HP ProLiant Essentials RDP ("HP ProLiant Essentials Rapid Deployment Pack" on page 43)
• SmartStart Scripting Toolkit (on page 43)
A number of third-party PXE deployment tools are available for Windows® and Linux. For additional
information, refer to the HP website
(ftp://ftp.compaq.com/pub/products/servers/management/pxe_wp.pdf
HP ProLiant Essentials Rapid Deployment Pack
NOTE: To deploy workstation blades in an existing server blade enclosure, always use the
most recent version of RDP available at the HP website (http://www.hp.com/servers/rdp
The RDP software is the preferred method for rapid, high-volume server deployments. The RDP software
integrates two powerful products: Altiris Deployment Solution and the HP ProLiant Integration Module.
The intuitive graphical user interface of the Altiris Deployment Solution console provides simplified pointand-click and drag-and-drop operations that enable you to deploy target servers, including server blades,
remotely. It enables you to perform imaging or scripting functions and maintain software images.
For more information about the RDP, refer to the HP ProLiant Essentials Rapid Deployment Pack CD or
refer to the HP website (http://www.hp.com/servers/rdp
).
).
).
SmartStart Scripting Toolkit
The SmartStart Scripting Toolkit is a server deployment product that delivers an unattended automated
installation for high-volume server deployments. The SmartStart Scripting Toolkit is designed to support
Software and configuration utilities 43
Page 44
ProLiant BL, ML, and DL servers. The toolkit includes a modular set of utilities and important documentation
that describes how to apply these new tools to build an automated server deployment process.
Using SmartStart technology, the Scripting Toolkit provides a flexible way to create standard server
configuration scripts. These scripts are used to automate many of the manual steps in the server
configuration process. This automated server configuration process cuts time from each server deployed,
making it possible to scale server deployments to high volumes in a rapid manner.
For more information, and to download the SmartStart Scripting Toolkit, refer to the HP website
(http://www.hp.com/servers/sstoolkit
CD-ROM deployment
CD-ROM deployment involves using a bootable CD that executes scripts to configure the hardware and
install the OS. After the OS is configured, the workstation blade can access the network to locate the
scripts and files necessary for deployment. Before beginning the deployment process, connect the
workstation blade to the network.
NOTE: For more information about hardware and cabling configurations, see the documents
Two methods are available for CD-ROM deployment:
that ship with the enclosure.
).
• iLO virtual CD-ROM (on page 44)
• USB CD-ROM
iLO virtual CD-ROM
To deploy with a boot CD:
1. Do one of the following:
o Insert the boot CD into the client PC using the iLO 2 Remote Console.
o Use iLO 2 to create an image file of the boot CD.
o Copy the image of the boot CD to a location on the network or the client PC hard drive.
2. Remotely access the workstation blade through iLO 2. See "HP BladeSystem c-Class advanced
management (on page 40)."
3. Click the Virtual Media tab.
4. Select the Virtual Media applet.
5. Use the Virtual Media applet to select the local CD or image file and connect the Virtual CD to the
workstation blade.
6. Use the iLO 2 Virtual Power Button feature to reboot the workstation blade.
7. After the workstation blade boots, follow the normal network installation procedure for the OS.
USB CD-ROM
This method uses SmartStart to facilitate loading the OS. However, SmartStart also allows for manual
loading of the OS and drivers.
To deploy with a boot CD:
1. Use the HP c-Class Blade SUV Cable to connect a USB CD-ROM drive to the workstation blade.
Refer to "Connecting locally to a server blade with video and USB devices (on page 37)."
Software and configuration utilities 44
Page 45
2.
Insert the boot CD into the USB CD-ROM drive.
3. Reboot the workstation blade.
4. After the workstation blade boots, follow the normal installation procedure for an OS.
Windows Server® 2003 cannot be installed from a USB CD-ROM on the HP c-Class Blade SUV Cable if
the hard drive is completely blank (no partitions defined). To install Windows Server® 2003, use one of
the following methods:
• Make a partition on the hard drive that Windows Server® 2003 will be loaded on.
• Use the SmartStart CD 7.60 or later.
• Use the Rapid Deployment Pack. For instructions, see the HP website
(http://h18013.www1.hp.com/products/servers/management/rdp.html?jumpid=reg_R1002_USE
N).
Diskette image deployment
To deploy with a diskette image, the user creates a DOS-based network-enabled boot diskette that
executes a script that configures the hardware and installs the OS. The diskette enables the workstation
blade to access the required deployment scripts and files on the network.
This method implies a deployment infrastructure that may include an administrator workstation, PXE
server, Microsoft® Windows® file share, or a Linux file share. For more information, refer to "Deployment
infrastructure (on page 41)."
Before beginning the deployment process, connect the workstation blade to the network.
NOTE: For more information about hardware and cabling configurations, see the documents
that ship with the enclosure.
Two methods are available for diskette image deployment:
• iLO virtual floppy (on page 45)
• PXE ("PXE deployment" on page 43)
Creating a boot diskette
The SmartStart Scripting Toolkit provides the tools and information for creating a boot diskette. For details,
refer to the SmartStart Scripting Toolkit User Guide and download the latest version of the software from
the HP website (http://www.hp.com/servers/sstoolkit
).
As an alternative method, configure the hardware manually with RBSU and the iLO 2 remote console.
With this method, the disk is more generic and integrates with an existing network OS installation
process. For more information, refer to "HP BladeSystem c-Class advanced management (on page 40)."
To operate properly, the workstation blade must have a supported OS. For the latest information on a
supported OS, refer to the HP website (http://www.hp.com/go/supportos
).
iLO virtual floppy
To deploy with a boot diskette:
1. Do one of the following:
o Insert the boot diskette into the client PC using the iLO 2 Remote Console.
o Use iLO 2 to create an image file of the boot diskette.
Software and configuration utilities 45
Page 46
o
Copy the image of the boot diskette to a location on the network or the client PC hard drive.
2. Remotely access the workstation blade through iLO 2. See "HP BladeSystem c-Class advanced
management (on page 40)."
3. Click the Virtual Media tab.
4. Select the Virtual Media applet.
5. Use the Virtual Media applet to select the local diskette or image file and connect the Virtual CD to
the workstation blade.
6. Use the iLO 2 Virtual Power Button feature to reboot the workstation blade.
7. After the workstation blade boots, follow the normal network installation procedure for the OS.
SAN configuration
The workstation blade provides FC support for SAN implementations. This solution uses an optional FCA
that offers redundant SAN connectivity and optimization for HP StorageWorks products. The workstation
blade is also compatible with certain third-party SAN products. For more information, refer to the
documentation that ships with the FCA option.
For optimal SAN connectivity, observe the following guidelines:
• The FCA option is installed correctly in the workstation blade. Refer to the documentation that ships
with the FCA option.
• An FC-compatible interconnect is installed in the enclosure. Refer to the documentation that ships
with the interconnect option.
• The server blade enclosure management module firmware is up-to-date. Refer to the HP Business
Support Center website (http://www.hp.com/support
• The workstation blade is cabled properly to a supported SAN.
• SAN storage drivers are loaded. Refer to supporting white papers and the HP website
(http://www.hp.com/servers/rdp
For SAN configuration information for the workstation blade, refer to the HP StorageWorks SAN Design
Reference Guide on the HP website
(http://h18000.www1.hp.com/products/storageworks/san/documentation.html
).
).
).
Configuration tools
SmartStart software
SmartStart is a collection of software that optimizes single-server setup, providing a simple and consistent
way to deploy server configuration. SmartStart has been tested on many ProLiant server products,
resulting in proven, reliable configurations.
SmartStart assists the deployment process by performing a wide range of configuration activities,
including:
• Configuring hardware using embedded configuration utilities, such as RBSU and ORCA
• Preparing the system for installing "off-the-shelf" versions of leading operating system software
• Installing optimized server drivers, management agents, and utilities automatically with every
assisted installation
Software and configuration utilities 46
Page 47
• Testing server hardware using the Insight Diagnostics Utility ("HP Insight Diagnostics" on page 55)
• Installing software drivers directly from the CD. With systems that have internet connection, the
SmartStart Autorun Menu provides access to a complete list of ProLiant system software.
• Enabling access to the Array Configuration Utility (on page 49), Array Diagnostic Utility (on page
56), and Erase Utility (on page 51)
SmartStart is included in the HP ProLiant Essentials Foundation Pack. For more information about
SmartStart software, refer to the HP ProLiant Essentials Foundation Pack or the HP website
(http://h18013.www1.hp.com/products/servers/management/smartstart/index.html
HP ROM-Based Setup Utility
RBSU is a configuration utility embedded in ProLiant servers that performs a wide range of configuration
activities that can include the following:
• Configuring system devices and installed options
• Enabling and disabling system features
• Displaying system information
• Selecting the primary boot controller
).
• Configuring memory options
• Language selection
For more information on RBSU, see the HP ROM-Based Setup Utility User Guide on the Documentation CD
or the HP website (http://www.hp.com/support/smartstart/documentation
Using RBSU
To use RBSU, use the following keys:
• To access RBSU, press the F9 key during power-up when prompted.
• To navigate the menu system, use the arrow keys.
• To make selections, press the Enter key.
• To access Help for a highlighted configuration option, press the F1 key.
Default configuration settings are applied to the server at one of the following times:
• Upon the first system power-up
• After defaults have been restored
).
IMPORTANT: RBSU automatically saves settings when you press the Enter key. The utility does
not prompt you for confirmation of settings before you exit the utility. To change a selected
setting, you must select a different setting and press the Enter key.
Default configuration settings are sufficient for proper typical server operation, but configuration settings
can be modified using RBSU. The system will prompt you for access to RBSU with each power-up.
Auto-configuration process
The auto-configuration process automatically runs when you boot the server for the first time. During the
power-up sequence, the system ROM automatically configures the entire system without needing any
Software and configuration utilities 47
Page 48
intervention. During this process, the ORCA utility, in most cases, automatically configures the array to a
default setting based on the number of drives connected to the server.
NOTE: The server may not support all the following examples.
NOTE: If the boot drive is not empty or has been written to in the past, ORCA does not
automatically configure the array. You must run ORCA to configure the array settings.
Drives installed Drives used RAID level
1 1 RAID 0
2 2 RAID 1
3, 4, 5, or 6 3, 4, 5, or 6 RAID 5
More than 6 0 None
To change any ORCA default settings and override the auto-configuration process, press the F8 key when
prompted.
By default, the auto-configuration process configures the system for the English language. To change any
default settings in the auto-configuration process (such as the settings for language, operating system, and
primary boot controller), execute RBSU by pressing the F9 key when prompted. After the settings are
selected, exit RBSU and allow the server to reboot automatically.
For more information on RBSU, see the HP ROM-Based Setup Utility User Guide on the Documentation CD
or the HP website (http://www.hp.com/support/smartstart/documentation
Boot options
Near the end of the boot process, the boot options screen is displayed. This screen is visible for several
seconds before the system attempts to boot from a supported boot device. During this time, you can do
the following:
• Access RBSU by pressing the F9 key.
• Access the System Maintenance Menu (which enables you to launch ROM-based Diagnostics or
Inspect) by pressing the F10 key.
• Force a PXE Network boot by pressing the F12 key.
BIOS Serial Console
BIOS Serial Console allows you to configure the serial port to view POST error messages and run RBSU
remotely through a serial connection to the server COM port. The server that you are remotely configuring
does not require a keyboard and mouse.
For more information about BIOS Serial Console, see the BIOS Serial Console User Guide on the
Documentation CD or the HP website (http://www.hp.com/support/smartstart/documentation
).
).
Configuring mirrored memory
To configure mirrored memory:
1. Install the required DIMMs ("Installing a DIMM" on page 31).
2. Access RBSU by pressing the F9 key during power-up when the prompt is displayed.
Software and configuration utilities 48
Page 49
3.
Select System Options.
4. Select Advanced Memory Protection.
5. Select Mirrored Memory with Advanced ECC Support.
6. Press the Enter key.
7. Press the Esc key to exit the current menu or press the F10 key to exit RBSU.
For more information on mirrored memory, see the white paper on the HP website
(http://h18000.www1.hp.com/products/servers/technology/memoryprotection.html
Configuring lockstep memory
To configure Lockstep memory:
1. Install the required DIMMs ("Installing a DIMM" on page 31).
2. Access RBSU by pressing the F9 key during power-up when the prompt is displayed.
3. Select System Options.
4. Select Advanced Memory Protection.
5. Select Lockstep with Advanced ECC Support.
6. Press the Enter key.
).
7. Press the Esc key to exit the current menu, or press the F10 key to exit RBSU.
For more information on Lockstep memory, see the white paper on the HP website
(http://h18000.www1.hp.com/products/servers/technology/memoryprotection.html
Array Configuration Utility
ACU is a browser-based utility with the following features:
• Runs as a local application or remote service
• Supports online array capacity expansion, logical drive extension, assignment of online spares, and
RAID or stripe size migration
• Suggests the optimum configuration for an unconfigured system
• Provides different operating modes, enabling faster configuration or greater control over the
configuration options
• Remains available any time that the server is on
• Displays on-screen tips for individual steps of a configuration procedure
For optimum performance, the minimum display settings are 800 × 600 resolution and 256 colors.
Servers running Microsoft® operating systems require Internet Explorer 5.5 (with Service Pack 1) or later.
For Linux servers, refer to the README.TXT file for additional browser and support information.
).
For more information, refer to the Configuring Arrays on HP Smart Array Controllers Reference Guide on
the Documentation CD or the HP website (http://www.hp.com
Option ROM Configuration for Arrays
Before installing an operating system, you can use the ORCA utility to create the first logical drive, assign
RAID levels, and establish online spare configurations.
).
Software and configuration utilities 49
Page 50
The utility also provides support for the following functions:
• Reconfiguring one or more logical drives
• Viewing the current logical drive configuration
• Deleting a logical drive configuration
• Setting the controller to be the boot controller
If you do not use the utility, ORCA will default to the standard configuration.
For more information regarding array controller configuration, refer to the controller user guide.
For more information regarding the default configurations that ORCA uses, refer to the HP ROM-Based
Setup Utility User Guide on the Documentation CD.
Re-entering the server serial number and product ID
After you replace the system board, you must re-enter the server serial number and the product ID.
1. During the server startup sequence, press the F9 key to access RBSU.
2. Select the System Options menu.
3. Select Serial Number. The following warning is displayed:
WARNING! WARNING! WARNING! The serial number is loaded into the system
during the manufacturing process and should NOT be modified. This option
should only be used by qualified service personnel. This value should
always match the serial number sticker located on the chassis.
4. Press the Enter key to clear the warning.
5. Enter the serial number and press the Enter key.
6. Select Product ID.
7. Enter the product ID and press the Enter key.
8. Press the Esc key to close the menu.
9. Press the Esc key to exit RBSU.
10. Press the F10 key to confirm exiting RBSU. The server will automatically reboot.
Management tools
Automatic Server Recovery
ASR is a feature that causes the system to restart when a catastrophic operating system error occurs, such
as a blue screen, ABEND, or panic. A system fail-safe timer, the ASR timer, starts when the System
Management driver, also known as the Health Driver, is loaded. When the operating system is
functioning properly, the system periodically resets the timer. However, when the operating system fails,
the timer expires and restarts the server.
ASR increases server availability by restarting the server within a specified time after a system hang or
shutdown. At the same time, the HP SIM console notifies you by sending a message to a designated
pager number that ASR has restarted the system. You can disable ASR from the HP SIM console or
through RBSU.
Software and configuration utilities 50
Page 51
ROMPaq utility
The ROMPaq utility enables you to upgrade the system firmware (BIOS). To upgrade the firmware, insert
a ROMPaq diskette into the diskette drive or ROMPaq USB Key into an available USB port and boot the
system. Online versions of the ROMPaq utility are also available for updating the system firmware.
The ROMPaq utility checks the system and provides a choice (if more than one exists) of available
firmware revisions.
For more information about the ROMPaq utility, see the HP website (http://www.hp.com/go/support
Integrated Lights-Out 2 technology
The iLO 2 subsystem is a standard component of selected ProLiant servers that provides server health and
remote server manageability. The iLO 2 subsystem includes an intelligent microprocessor, secure memory,
and a dedicated network interface. This design makes iLO 2 independent of the host server and its
operating system. The iLO 2 subsystem provides remote access to any authorized network client, sends
alerts, and provides other server management functions.
Using iLO 2, you can:
• Remotely power up, power down, or reboot the host server.
• Send alerts from iLO 2 regardless of the state of the host server.
• Access advanced troubleshooting features through the iLO 2 interface.
• Diagnose iLO 2 using HP SIM through a web browser and SNMP alerting.
For more information about iLO 2 features (which may require an iLO Advanced Pack or iLO Advanced
for BladeSystem license), see the iLO 2 documentation on the Documentation CD or on the HP website
(http://www.hp.com/servers/lights-out
).
Erase Utility
CAUTION: Perform a backup before running the System Erase Utility. The utility sets the system
to its original factory state, deletes the current hardware configuration information, including
array setup and disk partitioning, and erases all connected hard drives completely. Refer to the
instructions for using this utility.
).
Run the Erase Utility if you must erase the system for the following reasons:
• You want to install a new operating system on a server with an existing operating system.
• You encounter an error when completing the steps of a factory-installed operating system installation.
The Erase Utility can be accessed from the Maintenance Utilities menu of the SmartStart CD ("SmartStart
software" on page 46).
StorageWorks library and tape tools
HP StorageWorks L&TT provides functionality for firmware downloads, verification of device operation,
maintenance procedures, failure analysis, corrective service actions, and some utility functions. It also
provides seamless integration with HP hardware support by generating and emailing support tickets that
deliver a snapshot of the storage system.
Software and configuration utilities 51
Page 52
For more information, and to download the utility, refer to the StorageWorks L&TT website
(http://h18006.www1.hp.com/products/storageworks/ltt
HP Systems Insight Manager
HP SIM is a web-based application that allows system administrators to accomplish normal administrative
tasks from any remote location, using a web browser. HP SIM provides device management capabilities
that consolidate and integrate management data from HP and third-party devices.
IMPORTANT: You must install and use HP SIM to benefit from the Pre-Failure Warranty for
processors, SAS and SATA hard drives, and memory modules.
For additional information, refer to the Management CD in the HP ProLiant Essentials Foundation Pack or
the HP SIM website (http://www.hp.com/go/hpsim
Management Agents
Management Agents provide the information to enable fault, performance, and configuration
management. The agents allow easy manageability of the server through HP SIM software, and thirdparty SNMP management platforms. Management Agents are installed with every SmartStart assisted
installation or can be installed through the HP PSP. The Systems Management homepage provides status
and direct access to in-depth subsystem information by accessing data reported through the Management
Agents. For additional information, refer to the Management CD in the HP ProLiant Essentials Foundation
Pack or the HP website (http://www.hp.com/servers/manage
).
).
).
HP ProLiant Essentials Virtualization Management Software
The ProLiant Essentials Virtual Machine Management Pack and ProLiant Essentials Server Migration Pack
plug-ins extend HP Systems Insight Manager capabilities to manage virtual machines.
The Virtual Machine Management Pack provides the following functionality:
• Central management and control of VMware® and Microsoft® virtual machines with physical host to
virtual machine association
• Easy identification of VMs or host servers reaching high CPU, memory, or disk utilization levels
• Highly flexible move capabilities that enable live moves and moves to dissimilar host resources
• Back up, template, and alternate host capabilities that enable restoration of VMs on any available
host
The Server Migration Pack automates the manual processes required for migrating servers between
physical or virtual platforms (P2V, V2P, and V2V), enabling easy migration to appropriate physical or
virtual platforms that meet performance and capacity requirements.
For more information about virtualization management software, see the HP website
(http://www.hp.com/go/vmmanage
).
HP ProLiant Essentials Vulnerability and Patch Management Pack
The HP ProLiant Essentials Vulnerability and Patch Management Pack software extends the functionality of
HP Systems Insight Manager (HP SIM) to provide vulnerability and patch management for target systems.
Software and configuration utilities 52
Page 53
The Vulnerability and Patch Management Pack is an all-in-one vulnerability assessment and patch
management tool. It enables you to gain the upper hand in the war against hackers, worms, and Trojan
software that exploit software security vulnerabilities by:
• Enhancing system lifecycle management by incorporating vulnerability assessment and patching as
integral parts of the system management process.
• Accelerating resolution of vulnerabilities by reducing the research time to understand the criticality of
the vulnerability and the expected behavior for patches and fixes.
• Reducing the risk of security threats by automating the acquisition, scheduling the deployment, and
ensuring that the patches remain in place continuously enforcing the persistence (desired state) of
patches.
The Vulnerability and Patch Management Pack and HP SIM can be installed on a single server (referred to
as a shared configuration) or on a separate server (referred to as a distributed configuration).
The Vulnerability and Patch Management Pack is included on the Insight Control Data Center Edition
DVD. For more information, see the HP ProLiant Essentials Vulnerability and Patch Management Pack User
Guide, or the HP website (http://www.hp.com
).
HP Insight Server Migration software for ProLiant
The HP Insight Server Migration software for ProLiant (SMP) enables administrators to upgrade or replace
an existing workstation blade through server migration. SMP provides an automated, accurate, and
affordable method of migrating existing workstation blades and their content to the latest server
technologies.
SMP automates the migration of the operating system, applications, and data from one workstation blade
to another without errors, eliminating the need for manual redeployment of these elements on the new
workstation blade. During the migration process, the software automatically loads new drivers, required
for boot, on the destination workstation blade. The wizard-based user interface simplifies the migration
process and requires little experience or training.
For more information about the SMP, see the HP website (http://www.hp.com/go/migrate
HP ProLiant Essentials Performance Management Pack
HP ProLiant Essentials Performance Management Pack (PMP) is an integrated performance management
solution that detects and analyzes hardware bottlenecks on HP ProLiant servers, select HP Integrity servers
and MSA500/MSA1000/MSA1500 shared storage devices.
PMP provides the tools you need to receive proactive notification of building bottlenecks, and debug
existing performance issues. PMP is automatically installed with HP Systems Insight Manager (HP SIM)
and is integrated with HP SIM. No software installation on the monitored servers is required, other than
the Insight Management Agents. PMP analyzes performance information to determine if there is a building
or existing restriction. You can display this information interactively, log the information to a database for
later analysis or reporting, and set up proactive notification using the HP Systems Insight Manager
notification mechanism.
).
For more information on HP ProLiant Essentials Performance Management Pack, see the documentation
available on the HP website (http://www.hp.com/products/pmp
).
Software and configuration utilities 53
Page 54
HP Insight Control Environment Suites
HP Insight Control Environment and Insight Control Environment for BladeSystem are integrated suites of
software that simplify the management of HP infrastructures.
The HP Insight Control Environment suites are licensing options for HP infrastructure management software
delivered on the Insight Control Management DVD. HP Insight Control Environment provides
comprehensive management for ProLiant ML/DL customers, while HP Insight Control Environment for
BladeSystem provides additional functionality for HP BladeSystem environments.
Using an integrated, wizard-based installer, Insight Control Environment suites install and configure HP
Systems Insight Manager (HP SIM) and HP ProLiant Essentials management software rapidly and
consistently. Once installed, Insight Control Environment suites deliver enhanced infrastructure stability by
improving control over IT assets, increasing responsiveness to business needs through flexible deployment
and optimization of compute resources, and providing tangible savings through improved IT staff
efficiency.
The software installed by Insight Control Environment suites delivers core management functionality for HP
ProLiant server and HP BladeSystem lifecycles, including:
• Rapid server deployment
• Health and performance monitoring
• Comprehensive remote control
• Vulnerability scanning and patch management
• Power and thermal measurement, reporting, capping, and regulation
• Integrated management of virtual and physical infrastructure
• Third-party device management
For more information about Insight Control Environment suites, see the HP website
(http://www.hp.com/go/ice
).
HP Insight Control Linux Edition
HP Insight Control Linux Edition is an all-in-one software package that provides Linux-based management
and deployment capabilities for the HP BladeSystem and its c-Class and p-Class ProLiant server blades.
Built on Linux, the software includes an easy-to-use interface customized for blades and optimized for
Linux users. HP Insight Control Linux Edition enables operating system deployment with both standard
installation and image-based technologies.
For more information about HP Insight Control Linux Edition, see the HP website
(http://www.hp.com/go/icle
).
Redundant ROM support
The server enables you to upgrade or configure the ROM safely with redundant ROM support. The server
has a 8-MB ROM that acts as two, separate 4-MB ROMs. In the standard implementation, one side of the
ROM contains the current ROM program version, while the other side of the ROM contains a backup
version.
Software and configuration utilities 54
Page 55
NOTE: The server ships with the same version programmed on each side of the ROM.
Safety and security benefits
When you flash the system ROM, ROMPaq writes over the backup ROM and saves the current ROM as a
backup, enabling you to switch easily to the alternate ROM version if the new ROM becomes corrupted
for any reason. This feature protects the existing ROM version, even if you experience a power failure
while flashing the ROM.
USB support and functionality
USB support
HP provides both standard USB support and legacy USB support. Standard support is provided by the OS
through the appropriate USB device drivers. Before the OS loads, HP provides support for USB devices
through legacy USB support, which is enabled by default in the system ROM.
Legacy USB support provides USB functionality in environments where USB support is not available
normally. Specifically, HP provides legacy USB functionality for the following:
• POST
• RBSU
• Diagnostics
• DOS
• Operating environments which do not provide native USB support
Internal USB functionality
An internal USB connector is available for use with security key devices and USB drive keys. This solution
provides for use of a permanent USB key installed in the internal connector, avoiding issues of clearance
on the front of the rack and physical access to secure data.
For additional security, external USB functionality can be disabled through RBSU. Disabling external USB
support in RBSU disables the USB connectors on the local I/O cable. Internal USB functionality is
unaffected.
Diagnostic tools
HP Insight Diagnostics
HP Insight Diagnostics is a proactive workstation blade management tool, available in both offline and
online versions, that provides diagnostics and troubleshooting capabilities to assist IT administrators who
verify workstation blade installations, troubleshoot problems, and perform repair validation.
HP Insight Diagnostics Offline Edition performs various in-depth system and component testing while the
OS is not running. To run this utility, launch the SmartStart CD.
Software and configuration utilities 55
Page 56
HP Insight Diagnostics Online Edition is a web-based application that captures system configuration and
other related data needed for effective workstation blade management. Available in Microsoft®
Windows® and Linux versions, the utility helps to ensure proper system operation.
For more information or to download the utility, refer to the HP website
(http://www.hp.com/servers/diags
).
HP Insight Diagnostics survey functionality
HP Insight Diagnostics (on page 55) provides survey functionality that gathers critical hardware and
software information on ProLiant workstation blades.
This functionality supports operating systems that may not be supported by the workstation blade. For
operating systems supported by the workstation blade, see the HP website
(http://www.hp.com/go/supportos
If a significant change occurs between data-gathering intervals, the survey function marks the previous
information and overwrites the survey data files to reflect the latest changes in the configuration.
Survey functionality is installed with every SmartStart-assisted HP Insight Diagnostics installation, or it can
be installed through the HP PSP ("ProLiant Support Packs" on page 58).
NOTE: The current version of SmartStart provides the memory spare part numbers for the
workstation blade. To download the latest version, see the HP website
(http://www.hp.com/support
).
).
Integrated Management Log
The IML records hundreds of events and stores them in an easy-to-view form. The IML timestamps each
event with 1-minute granularity.
You can view recorded events in the IML in several ways, including the following:
• From within HP SIM ("HP Systems Insight Manager" on page 52)
• From within Survey Utility
• From within operating system-specific IML viewers
o For NetWare: IML Viewer
o For Windows®: IML Viewer
o For Linux: IML Viewer Application
• From within the iLO 2 user interface
• From within HP Insight Diagnostics (on page 55)
For more information, refer to the Management CD in the HP ProLiant Essentials Foundation Pack.
Array Diagnostic Utility
The HP Array Diagnostics Utility is a web-based application that creates a report of all HP storage
controllers and disk drives. This report provides vital information to assist in identifying faults or conditions
that may require attention. ADU can be accessed from the SmartStart CD ("SmartStart software" on page
46) or downloaded from the HP website (http://www.hp.com
).
Software and configuration utilities 56
Page 57
Remote support and analysis tools
HP Insight Remote Support software
HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24 X
7, so you can spend less time solving problems and more time focused on your business. You can have
your systems remotely monitored for hardware failure using secure technology that has been proven at
thousands of companies around the world. In many cases, you can avoid problems before they occur.
There are two HP Insight Remote Support solutions:
• For small and midsize environments: HP Insight Remote Support Standard provides basic remote
monitoring, notification/advisories and service dispatch. It is optimized for environments with 1 to
50 servers and can be installed on a shared HP ProLiant Windows application server. The software
supports HP EVA storage devices, HP ProLiant, BladeSystems, HP Integrity and HP 9000 servers
running Microsoft Windows, Red Hat Enterprise Linux, Novell SUSE and Novell Netware. Download
from the HP website
(http://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=RSSWMBA
SE).
• For midsize and large environments: HP Insight Remote Support Pack (formerly Service Essentials
Remote Support Pack) is targeted for larger environments and is integrated with HP Systems Insight
Manager (SIM). It provides comprehensive remote monitoring, notification/advisories, dispatch and
proactive service support for nearly all HP servers, storage, network and SAN environments, plus
selected Dell and IBM Windows servers that have a support obligation with HP. It also enables HP to
deliver higher levels of proactive support in line with HP Mission Critical Services support
agreements. Download from the HP website
(http://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=ISDVD
).
Both HP Insight Remote Support solutions are available at no additional cost to customers with a valid
warranty on HP technology, an HP Care Pack Service or HP contractual support agreement.
For more information, see the HP website (http://www.hp.com/go/insightremotesupport
Keeping the system current
Drivers
IMPORTANT: Always perform a backup before installing or updating device drivers.
The server includes new hardware that may not have driver support on all OS installation media.
If you are installing a SmartStart-supported OS, use the SmartStart software (on page 46) and its Assisted
Path feature to install the OS and latest driver support.
If you are installing drivers from the SmartStart CD, be sure that you are using the latest SmartStart version
that your workstation blade supports. To verify that your workstation blade is using the latest supported
version, see the HP website (http://www.hp.com/support
provided with the SmartStart CD.
).
). For more information, see the documentation
Software and configuration utilities 57
Page 58
If you do not use the SmartStart CD to install an OS, drivers for some of the new hardware are required.
These drivers, as well as other option drivers, ROM images, and value-add software can be downloaded
from the HP website (http://www.hp.com/support
ProLiant Support Packs
PSPs represent operating system-specific bundles of ProLiant optimized drivers, utilities, and management
agents. Refer to the PSP website
(http://h18000.www1.hp.com/products/servers/management/psp.html
Operating system version support
).
).
Refer to the operating system support matrix (http://www.hp.com/go/supportos).
HP Smart Update Manager
The HP Smart Update Manager enables system administrators to upgrade ROM images efficiently across
a wide range of servers and options. This tool has the following features:
• Works offline and online
• Supports Microsoft® Windows® and Linux operating systems
• Integrates with other software maintenance, deployment, and operating system tools
• Automatically checks for hardware, firmware, and operating system dependencies, and installs only
the correct ROM upgrades required by each target server
For more information, see the HP Smart Update Manager User Guide. The guide and the HP Smart
Update Manager utility are available from the ProLiant Firmware Maintenance CD. This CD and others
can be downloaded free of charge from the SmartStart download page on the HP website
(http://www.hp.com/go/support
).
System Online ROM flash component utility
The Online ROM Flash Component Utility enables system administrators to efficiently upgrade system or
controller ROM images across a wide range of servers and array controllers. This tool has the following
features:
• Works offline and online
• Supports Microsoft® Windows NT®, Windows® 2000, Windows Server® 2003, Novell Netware,
and Linux operating systems
IMPORTANT: This utility supports operating systems that may not be supported by the server.
For operating systems supported by the server, see the HP website
(http://www.hp.com/support
• Integrates with other software maintenance, deployment, and operating system tools
• Automatically checks for hardware, firmware, and operating system dependencies, and installs only
the correct ROM upgrades required by each target server
To download the tool and for more information, see the HP website (http://www.hp.com/support
).
).
Software and configuration utilities 58
Page 59
Change control and proactive notification
HP offers Change Control and Proactive Notification to notify customers 30 to 60 days in advance of
upcoming hardware and software changes on HP commercial products.
For more information, refer to the HP website (http://www.hp.com/go/pcn
Care Pack
HP Care Pack Services offer upgraded service levels to extend and expand standard product warranty
with easy-to-buy, easy-to-use support packages that help you make the most of your server investments.
Refer to the Care Pack website (http://www.hp.com/hps/carepack/servers/cp_proliant.html
).
).
Software and configuration utilities 59
Page 60
Troubleshooting
Troubleshooting resources
The HP ProLiant Servers Troubleshooting Guide provides procedures for resolving common problems and
comprehensive courses of action for fault isolation and identification, error message interpretation, issue
resolution, and software maintenance on ProLiant servers and server blades. This guide includes problemspecific flowcharts to help you navigate complex troubleshooting processes. To view the guide, select a
language:
• English (http://www.hp.com/support/ProLiant_TSG_en)
• French (http://www.hp.com/support/ProLiant_TSG_fr)
• Italian (http://www.hp.com/support/ProLiant_TSG_it)
• Spanish (http://www.hp.com/support/ProLiant_TSG_sp)
• German (http://www.hp.com/support/ProLiant_TSG_gr)
• Dutch (http://www.hp.com/support/ProLiant_TSG_nl)
• Japanese (http://www.hp.com/support/ProLiant_TSG_jp)
The HP BladeSystem c-Class Enclosure Troubleshooting Guide provides procedures and solutions for
troubleshooting HP BladeSystem c-Class enclosures. This guide explains how to use the Insight Display to
troubleshoot enclosures, and it includes a flowchart to help you navigate the troubleshooting process. To
view the guide, see the HP website (http://www.hp.com/support/BladeSystem_Enclosure_TSG_en
Pre-diagnostic steps
WARNING: To avoid potential problems, ALWAYS read the warnings and cautionary
information in the server documentation before removing, replacing, reseating, or modifying
1. Review the important safety information (on page 61).
system components.
IMPORTANT: This guide provides information for multiple servers. Some information may not
apply to the server you are troubleshooting. Refer to the server documentation for information
on procedures, hardware options, software tools, and operating systems supported by the
server.
).
2. Gather symptom information (on page 62).
3. Prepare the server for diagnosis (on page 62).
4. Use the Start diagnosis flowchart (on page 64) to begin the diagnostic process.
Troubleshooting 60
Page 61
Important safety information
Familiarize yourself with the safety information in the following sections before troubleshooting the server.
Important safety information
Before servicing this product, read the Important Safety Information document provided with the server.
Symbols on equipment
The following symbols may be placed on equipment to indicate the presence of potentially hazardous
conditions.
This symbol indicates the presence of hazardous energy circuits or electric shock
hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.
This symbol indicates the presence of electric shock hazards. The area contains no
user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure.
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment,
do not plug telephone or telecommunications connectors into this receptacle.
This symbol indicates the presence of a hot surface or hot component. If this surface is
contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the surface to
cool before touching.
This symbol indicates that the component exceeds the recommended weight for one
individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the equipment,
observe local occupational health and safety requirements and guidelines for manual
material handling.
6.44 kg
14.20 lb
These symbols, on power supplies or systems, indicate that the equipment is supplied
by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock, remove all power cords
Warnings
to completely disconnect power from the system.
Troubleshooting 61
Page 62
WARNING: Only authorized technicians trained by HP should attempt to repair this
equipment. All troubleshooting and repair procedures are detailed to allow only
subassembly/module-level repair. Because of the complexity of the individual boards and
subassemblies, no one should attempt to make repairs at the component level or to make
modifications to any printed wiring board. Improper repairs can create a safety hazard.
WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:
• The leveling feet are extended to the floor.
• The full weight of the rack rests on the leveling feet.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if more than one
component is extended for any reason.
Symptom information
Before troubleshooting a server problem, collect the following information:
• What events preceded the failure? After which steps does the problem occur?
• What has been changed since the time the server was working?
• Did you recently add or remove hardware or software? If so, did you remember to change the
appropriate settings in the server setup utility, if necessary?
• How long has the server exhibited problem symptoms?
• If the problem occurs randomly, what is the duration or frequency?
To answer these questions, the following information may be useful:
• Run HP Insight Diagnostics (on page 55) and use the survey page to view the current configuration
or to compare it to previous configurations.
• Refer to your hardware and software records for information.
• Refer to server LEDs and their statuses.
Prepare the server for diagnosis
1. Be sure the server is in the proper operating environment with adequate power, air conditioning,
and humidity control. For required environmental conditions, see the server documentation.
2. Record any error messages displayed by the system.
3. Remove all diskettes, CD-ROMs, DVD-ROMs, and USB drive keys.
4. Power down the server and peripheral devices if you will be diagnosing the server offline. If
possible, always perform an orderly shutdown:
a. Exit any applications.
b. Exit the operating system.
c. Power down the server ("Power down the workstation blade" on page 12).
5. Disconnect any peripheral devices not required for testing (any devices not necessary to power up
the server). Do not disconnect the printer if you want to use it to print error messages.
Troubleshooting 62
Page 63
6.
Collect all tools and utilities, such as a Torx screwdriver, loopback adapters, ESD wrist strap, and
software utilities, necessary to troubleshoot the problem.
o You must have the appropriate Health Drivers and Management Agents installed on the server.
To verify the server configuration, connect to the System Management homepage and select
Version Control Agent. The VCA gives you a list of names and versions of all installed HP drivers,
Management Agents, and utilities, and whether they are up-to-date.
o HP recommends you have access to the server documentation for server-specific information.
o HP recommends you have access to the SmartStart CD for value-added software and drivers
required during the troubleshooting process. Download the current version of SmartStart from the
HP website (http://www.hp.com/servers/smartstart
Service notifications
To view the latest service notifications, refer to the HP website (http://www.hp.com/go/bizsupport).
Select the appropriate server model, and then click the Troubleshoot a Problem link on the product page.
Loose connections
).
Action:
• Be sure all power cords are securely connected.
• Be sure all cables are properly aligned and securely connected for all external and internal
components.
• Remove and check all data and power cables for damage. Be sure no cables have bent pins or
damaged connectors.
• If a fixed cable tray is available for the server, be sure the cords and cables connected to the server
are routed correctly through the tray.
• Be sure each device is properly seated. Avoid bending or flexing circuit boards when reseating
components.
• If a device has latches, be sure they are completely closed and locked.
• Check any interlock or interconnect LEDs that may indicate a component is not connected properly.
• If problems continue to occur, remove and reinstall each device, checking the connectors and sockets
for bent pins or other damage.
Troubleshooting flowcharts
To effectively troubleshoot a problem, HP recommends that you start with the first flowchart in this section,
"Start diagnosis flowchart (on page 64)," and follow the appropriate diagnostic path. If the other
flowcharts do not provide a troubleshooting solution, follow the diagnostic steps in "General diagnosis
flowchart (on page 65)." The General diagnosis flowchart is a generic troubleshooting process to be used
when the problem is not server-specific or is not easily categorized into the other flowcharts.
The available flowcharts include:
• Start diagnosis flowchart (on page 64)
• General diagnosis flowchart (on page 65)
Troubleshooting 63
Page 64
• Server blade power-on problems flowchart (on page 67)
• POST problems flowchart (on page 69)
• OS boot problems flowchart (on page 71)
• Server fault indications flowchart (on page 73)

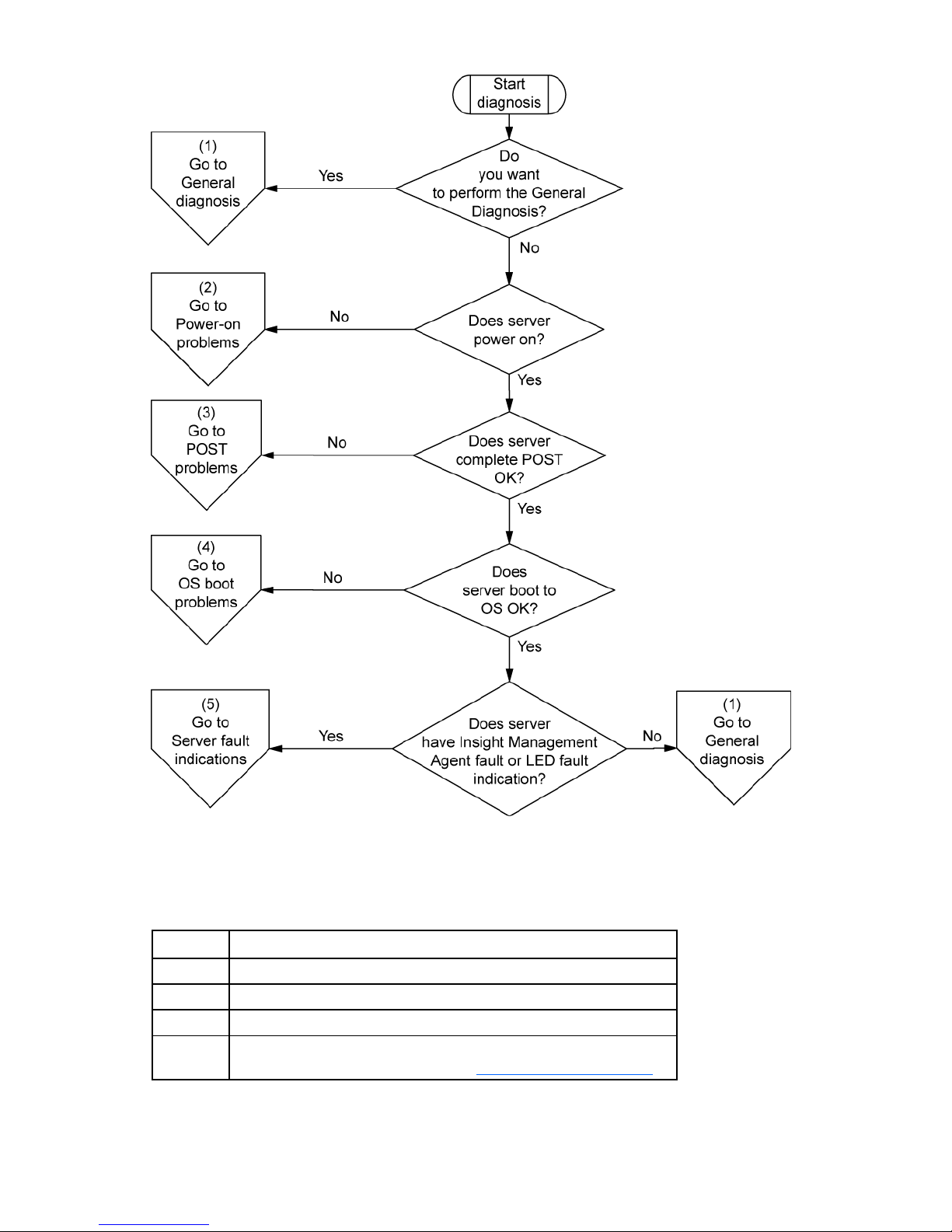

Start diagnosis flowchart
Use the following flowchart to start the diagnostic process.
Item Refer to
1 "General diagnosis flowchart (on page 65)"
2 "Power-on problems flowchart ("Server blade power-on problems
flowchart" on page 67)"
3 "POST problems flowchart (on page 69)"
4 "OS boot problems flowchart (on page 71)"
5 "Server fault indications flowchart (on page 73)"
Troubleshooting 64
Page 65

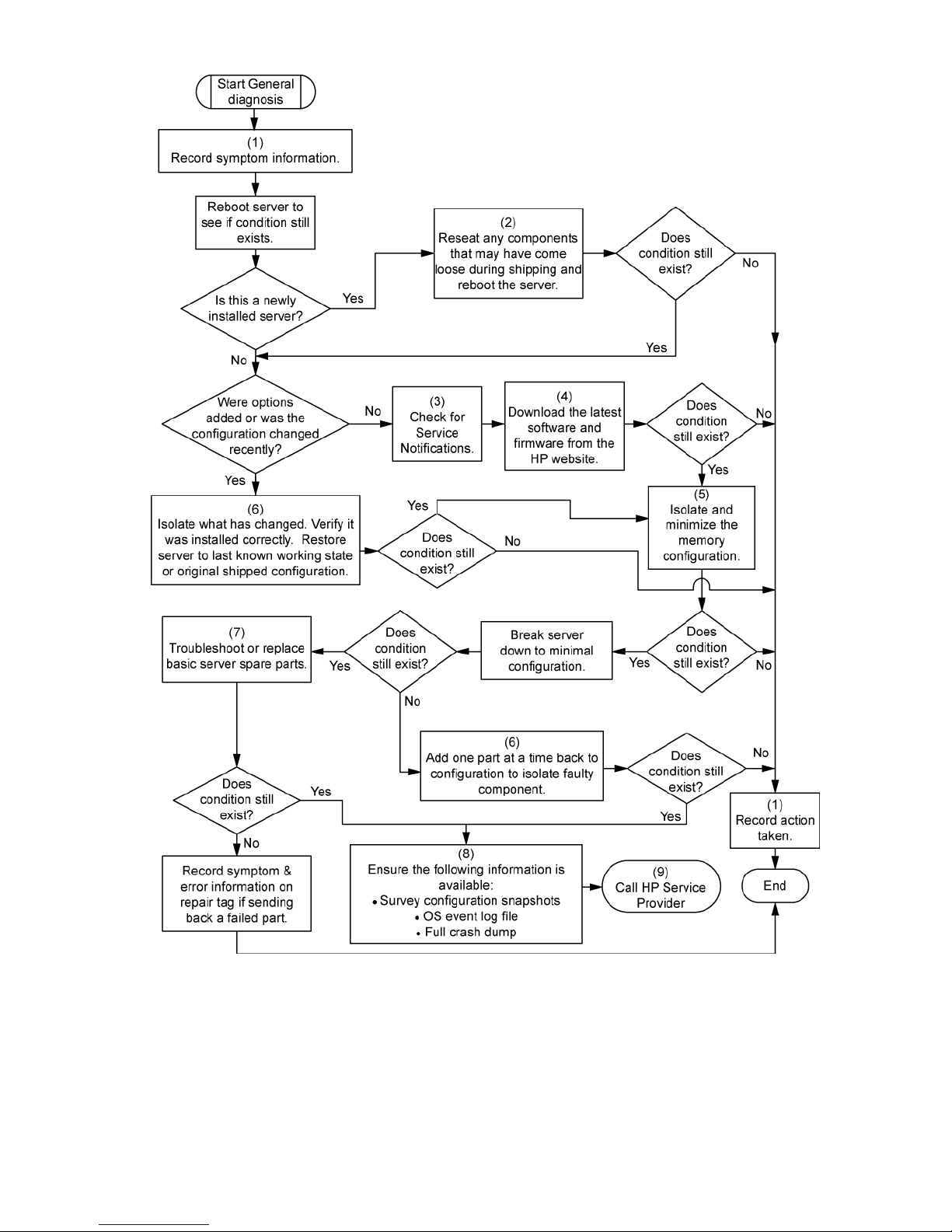

General diagnosis flowchart
The General diagnosis flowchart provides a generic approach to troubleshooting. If you are unsure of the
problem, or if the other flowcharts do not fix the problem, use the following flowchart.
Item See
1 "Symptom information (on page 62)"
2 "Loose connections (on page 63)"
3 "Service notifications (on page 63)"
4 The most recent version of a particular server blade or option firmware
is available on the HP Support website (http://www.hp.com/support
).
Troubleshooting 65
Page 66
Item See
5 "General memory problems are occurring" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
6
website (http://www.hp.com/support
• Maintenance and service guides for p-Class server blades, located
on the Documentation CD or the HP website
(http://www.hp.com/products/servers/proliant-bl/p-class/info
)
• Maintenance and service guides for c-Class server blades, located
on the Documentation CD or the HP website
7
(http://www.hp.com/go/bladesystem/documentation
• Maintenance and service guides for p-Class server blades, located
on the Documentation CD or the HP website
(http://www.hp.com/products/servers/proliant-bl/p-class/info
)
• Maintenance and service guides for c-Class server blades, located
on the Documentation CD or the HP website
(http://www.hp.com/go/bladesystem/documentation
)
• "Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
8
(http://www.hp.com/support
• "Server information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support
)
)
• "Operating system information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support
9 "HP contact information (on page 87)"
)
)
)
Troubleshooting 66
Page 67

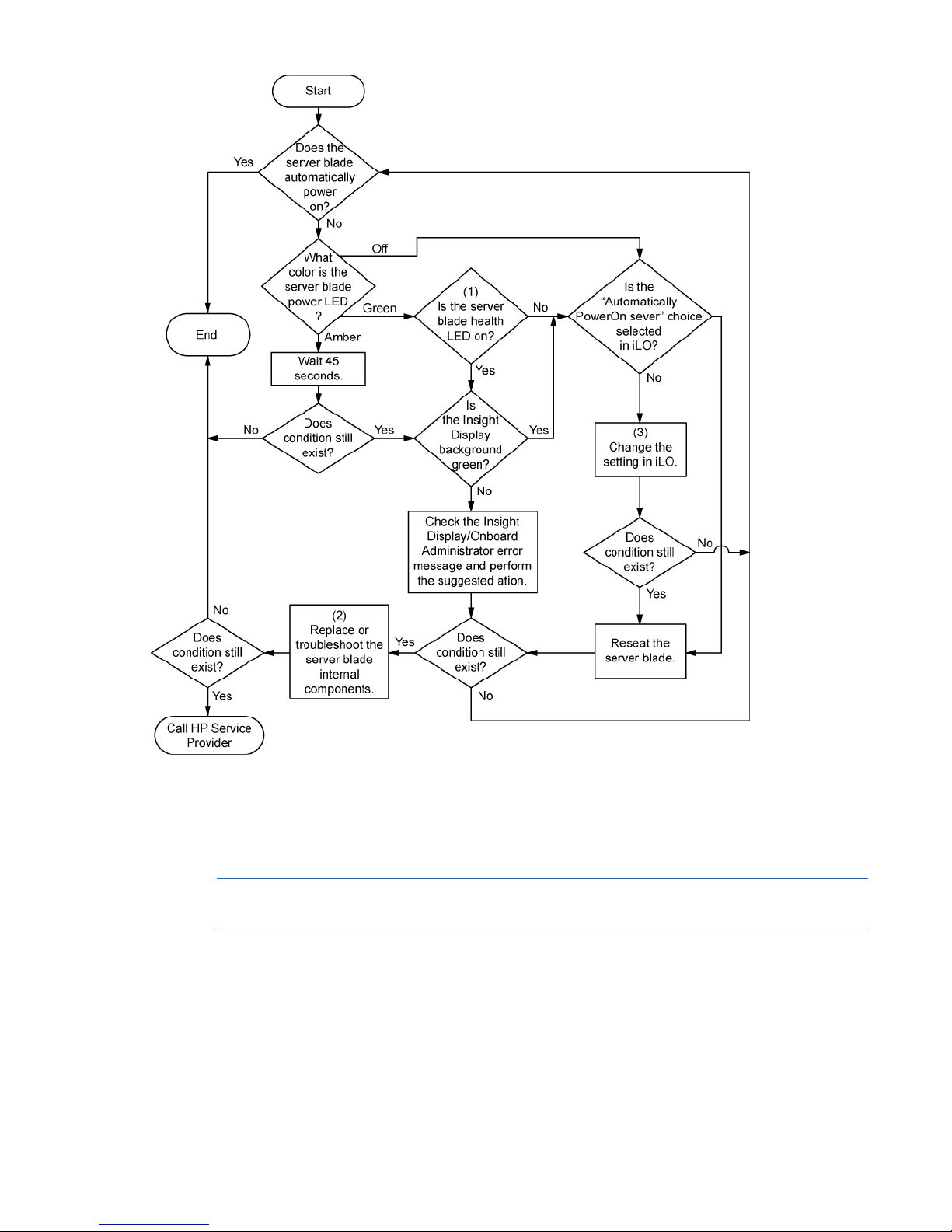

Server blade power-on problems flowchart
Symptoms:
• The server does not power on.
• The system power LED is off or amber.
Troubleshooting 67
Page 68
• The health LED is red or amber.
NOTE: For the location of server LEDs and information on their statuses, refer to the server
documentation.
Possible causes:
• Improperly seated or faulty power supply
• Loose or faulty power cord
• Power source problem
• Power on circuit problem
• Improperly seated component or interlock problem
• Faulty internal component
Item See
1 "Component identification (on page 6)"
2 Maintenance and service guides for c-Class server blades, located on
the HP website (http://www.hp.com/go/bladesystem/documentation
3 Integrated Lights-Out User Guide located on the HP website
(http://www.hp.com/servers/lights-out
)
)
Troubleshooting 68
Page 69

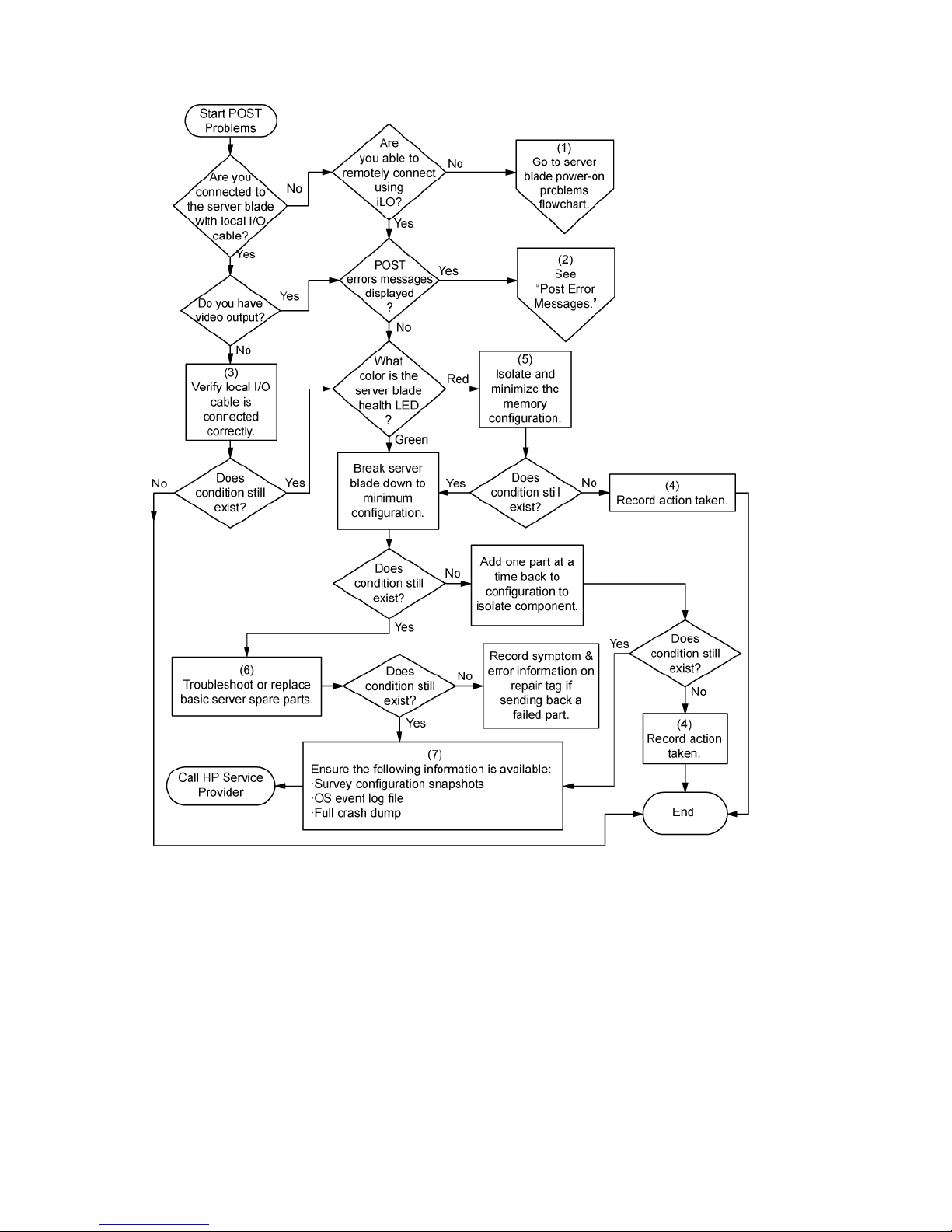

POST problems flowchart
Symptoms:
• Server does not complete POST
NOTE: The server has completed POST when the system attempts to access the boot device.
• Server completes POST with errors
Possible problems:
• Improperly seated or faulty internal component
• Faulty KVM device
• Faulty video device
Troubleshooting 69
Page 70
Item Refer to
1 Server blade power-on problems flowchart (on page 67)
2 "POST error messages and beep codes (on page 75)"
3 "Video problems" in the HP ProLiant Servers Troubleshooting Guide
located on the Documentation CD or on the HP website
(http://www.hp.com/support
)
4 "Symptom information (on page 62)"
5 "General memory problems are occurring" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
6
website (http://www.hp.com/support
• "Hardware problems" in the HP ProLiant Servers Troubleshooting
)
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
)
• Maintenance and service guides for c-Class server blades, located on
the Documentation CD or the HP website
7
(http://www.hp.com/go/bladesystem/documentation
• "Server information you need" in the HP ProLiant Servers
)
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support
)
• "Operating system information you need" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support
)
Troubleshooting 70
Page 71
OS boot problems flowchart
There are two ways to use SmartStart when diagnosing OS boot problems on a server blade:
• Use iLO to remotely attach virtual devices to mount the SmartStart CD onto the server blade.
• Use a local I/O cable and drive to connect to the server blade, and then restart the server blade.
Symptoms:
• Server does not boot a previously installed OS
• Server does not boot SmartStart
Troubleshooting 71
Page 72

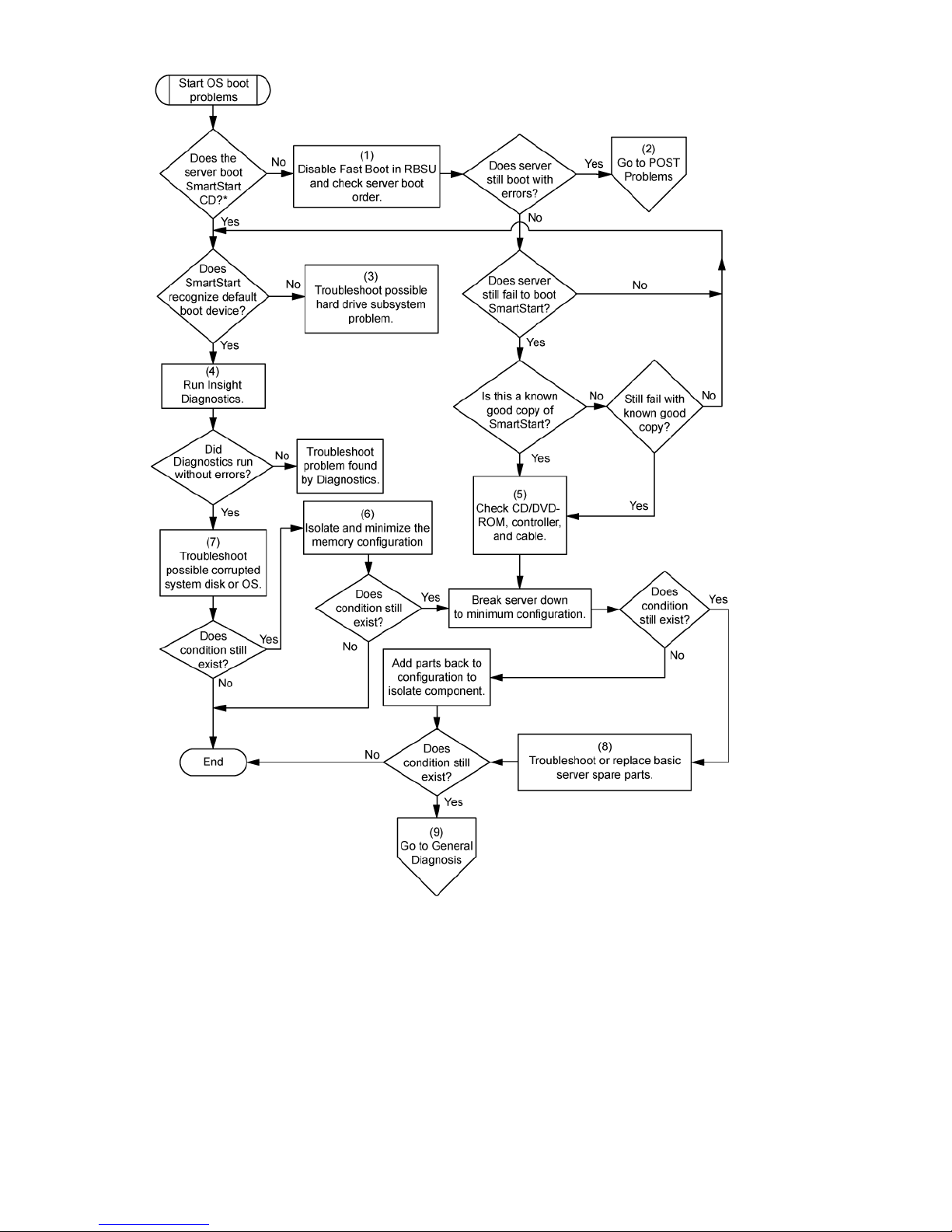

Possible causes:
• Corrupted OS
• Hard drive subsystem problem
• Incorrect boot order setting in RBSU
Item See
1 HP ROM-Based Setup Utility User Guide
(http://www.hp.com/servers/smartstart
2 "POST problems flowchart (on page 69)"
3
• "Hard drive problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
• Controller documentation
4 "HP Insight Diagnostics (on page 55)" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support
5
• "Loose connections (on page 63)"
• "CD-ROM and DVD drive problems" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support
• Controller documentation
6 "General memory problems are occurring" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support
7
• "Operating system problems" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the
HP website (http://www.hp.com/support
• "HP contact information (on page 87)"
8
• "Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
• Maintenance and service guides for p-Class server blades, located
on the Documentation CD or the HP website
(http://www.hp.com/products/servers/proliant-bl/p-class/info
• Maintenance and service guides for c-Class server blades, located on
the Documentation CD or the HP website
(http://www.hp.com/go/bladesystem/documentation
9 "General diagnosis flowchart (on page 65)"
)
)
)
)
)
)
)
)
)
Troubleshooting 72
Page 73
* See the server blade OS boot problems flowchart (on page 71)

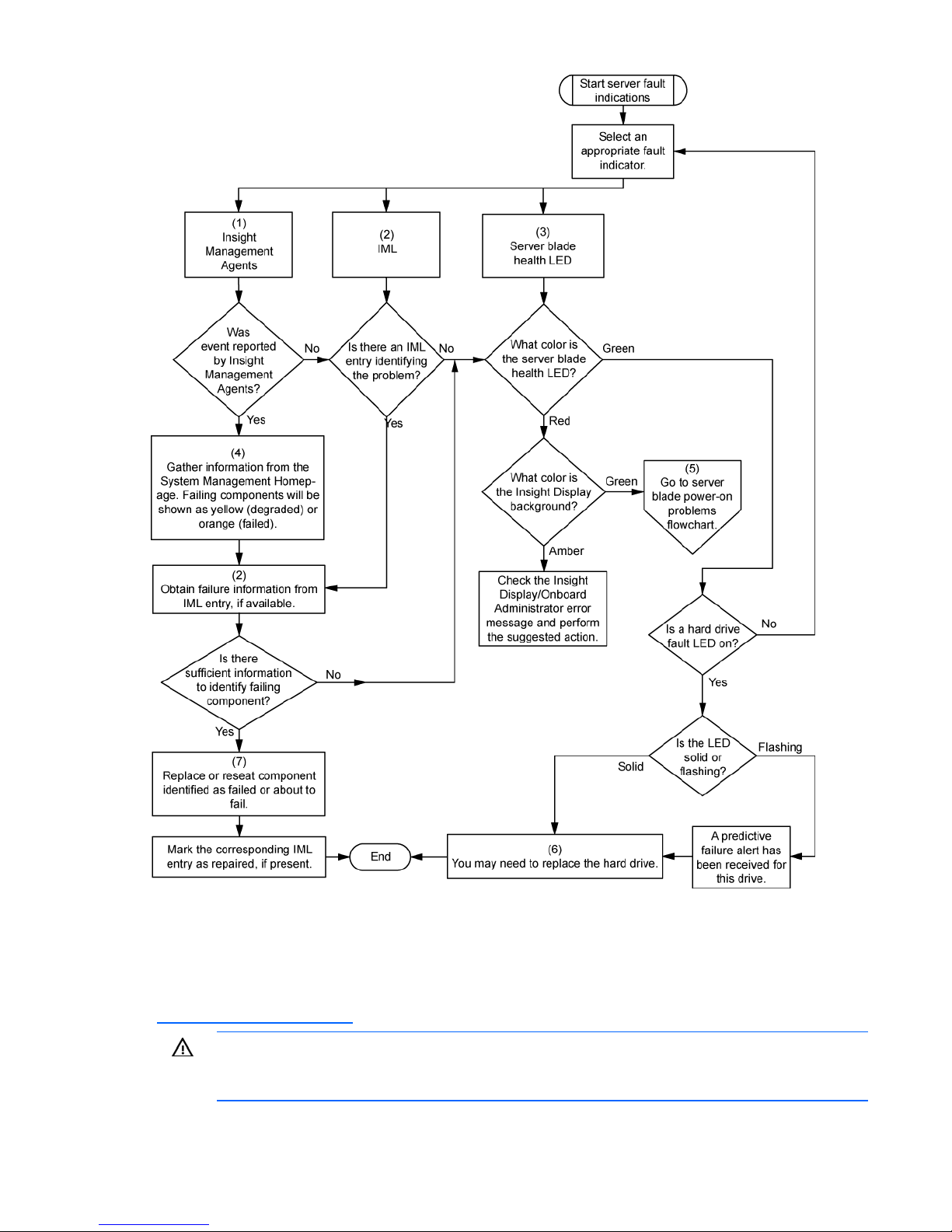

Server fault indications flowchart
Symptoms:
• Server boots, but a fault event is reported by Insight Management Agents (on page 52)
• Server boots, but the internal health LED, external health LED, or component health LED is red or
amber
Troubleshooting 73
Page 74
NOTE: For the location of server LEDs and information on their statuses, refer to the server
documentation.
Possible causes:
• Improperly seated or faulty internal or external component
• Unsupported component installed
• Redundancy failure
• System overtemperature condition
Item See
1 "Management agents (on page 52)" or in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP
website (http://www.hp.com/support
2
• "Integrated Management Log (on page 56)" or in the HP ProLiant
Servers Troubleshooting Guide located on the Documentation CD or
on the HP website (http://www.hp.com/support
• "Event list error messages" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
3 "Component identification (on page 6)"
4 System Management Homepage (https://localhost:2381)
5 "Power-on problems flowchart ("Server blade power-on problems
flowchart" on page 67)"
6
• "Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
• Maintenance and service guides for c-Class server blades, located on
the Documentation CD or the HP website
(http://www.hp.com/go/bladesystem/documentation
• "HP contact information (on page 87)"
7
• "Hardware problems" in the HP ProLiant Servers Troubleshooting
Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
• Maintenance and service guides for c-Class server blades, located on
the Documentation CD or the HP website
(http://www.hp.com/go/bladesystem/documentation
)
)
)
)
)
)
)
Troubleshooting 74
Page 75
POST error messages and beep codes
For a complete listing of error messages, refer to the "POST error messages" in the HP ProLiant Servers
Troubleshooting Guide located on the Documentation CD or on the HP website
(http://www.hp.com/support
WARNING: To avoid potential problems, ALWAYS read the warnings and cautionary
information in the server documentation before removing, replacing, reseating, or modifying
system components.
).
Troubleshooting 75
Page 76
Battery replacement
If the workstation blade no longer automatically displays the correct date and time, you may need to
replace the battery that provides power to the real-time clock. Under normal use, battery life is 5 to 10
years.
WARNING: The computer contains an internal lithium manganese dioxide, a vanadium
pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack is not
properly handled. To reduce the risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
• Replace only with the spare designated for this product.
To remove the component:
1. Power down the workstation blade (on page 12).
2. Remove the workstation blade (on page 13).
3. Remove the access panel (on page 14).
4. Identify the battery location ("System board components" on page 9).
5. Remove the battery tray.
Battery replacement 76
Page 77

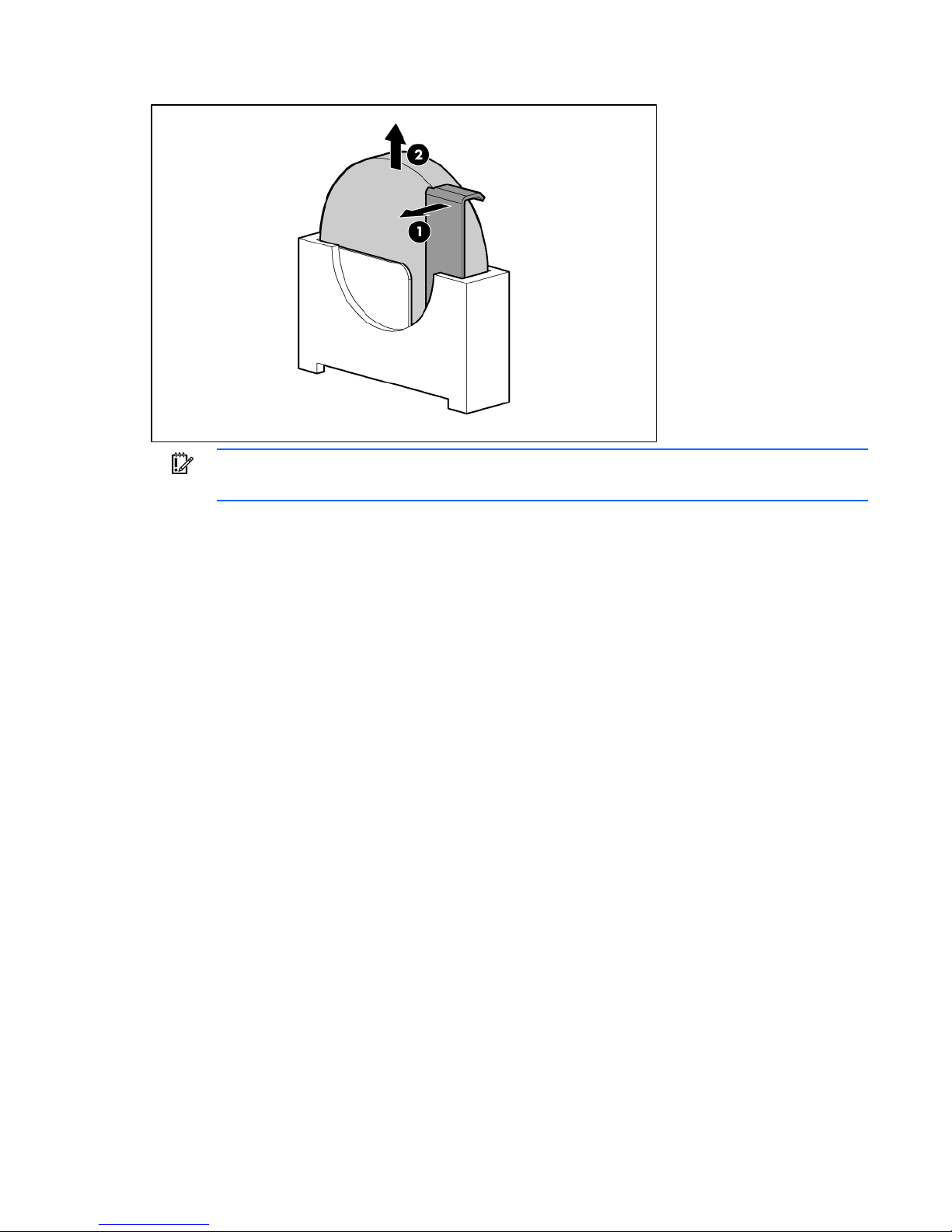

6.
Remove the battery.
IMPORTANT: Replacing the system board battery resets the system ROM to its default
configuration. After replacing the battery, reconfigure the system through RBSU.
To replace the component, reverse the removal procedure.
For more information about battery replacement or proper disposal, contact an authorized reseller or an
authorized service provider.
Battery replacement 77
Page 78
Regulatory compliance notices
Regulatory compliance identification numbers
For the purpose of regulatory compliance certifications and identification, this product has been assigned
a unique regulatory model number. The regulatory model number can be found on the product nameplate
label, along with all required approval markings and information. When requesting compliance
information for this product, always refer to this regulatory model number. The regulatory model number is
Federal Communications Commission notice
not the marketing name or model number of the product.
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has established Radio
Frequency (RF) emission limits to provide an interference-free radio frequency spectrum. Many electronic
devices, including computers, generate RF energy incidental to their intended function and are, therefore,
covered by these rules. These rules place computers and related peripheral devices into two classes, A
and B, depending upon their intended installation. Class A devices are those that may reasonably be
expected to be installed in a business or commercial environment. Class B devices are those that may
reasonably be expected to be installed in a residential environment (for example, personal computers).
The FCC requires devices in both classes to bear a label indicating the interference potential of the device
as well as additional operating instructions for the user.
FCC rating label
The FCC rating label on the device shows the classification (A or B) of the equipment. Class B devices
have an FCC logo or ID on the label. Class A devices do not have an FCC logo or ID on the label. After
you determine the class of the device, refer to the corresponding statement.
Class A equipment
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to correct
the interference at personal expense.
Class B equipment
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
Regulatory compliance notices 78
Page 79
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit that is different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio or television technician for help.
Declaration of conformity for products marked with
the FCC logo, United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
For questions regarding this product, contact us by mail or telephone:
• Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
• 1-800-HP-INVENT (1-800-474-6836). (For continuous quality improvement, calls may be recorded
or monitored.)
For questions regarding this FCC declaration, contact us by mail or telephone:
• Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
• 1281-514-3333
To identify this product, refer to the part, series, or model number found on the product.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that are
not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in
order to maintain compliance with FCC Rules and Regulations.
Regulatory compliance notices 79
Page 80
Canadian notice (Avis Canadien)
Class A equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Class B equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
European Union regulatory notice
This product complies with the following EU Directives:
• Low Voltage Directive 2006/95/EC
• EMC Directive 2004/108/EC
Compliance with these directives implies conformity to applicable harmonized European standards
(European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this
product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g. Bluetooth).
This marking is valid for EU non-harmonized Telecom products.
*Notified body number (used only if applicable—refer to the product label)
Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany
The official EU CE declaration of conformity for this device can be found on the HP website
(http://www.hp.com/go/certificates
).
Disposal of waste equipment by users in private
households in the European Union
Regulatory compliance notices 80
Page 81
This symbol on the product or on its packaging indicates that this product must not be disposed
of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste
electrical and electronic equipment. The separate collection and recycling of your waste
equipment at the time of disposal will help to conserve natural resources and ensure that it is
recycled in a manner that protects human health and the environment. For more information
about where you can drop off your waste equipment for recycling, please contact your local
city office, your household waste disposal service or the shop where you purchased the
product.
Japanese notice
Regulatory compliance notices 81
Page 82
BSMI notice
Korean notice
Class A equipment
Class B equipment
Chinese notice
Class A equipment
Laser compliance
This product may be provided with an optical storage device (that is, CD or DVD drive) and/or fiber optic
transceiver. Each of these devices contains a laser that is classified as a Class 1 Laser Product in
accordance with US FDA regulations and the IEC 60825-1. The product does not emit hazardous laser
radiation.
Each laser product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser
Notice No. 50, dated May 27, 2001; and with IEC 60825-1:1993/A2:2001.
Regulatory compliance notices 82
Page 83
WARNING: Use of controls or adjustments or performance of procedures other than those
specified herein or in the laser product's installation guide may result in hazardous radiation
exposure. To reduce the risk of exposure to hazardous radiation:
• Do not try to open the module enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other
than those specified herein.
• Allow only HP Authorized Service technicians to repair the unit.
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration
implemented regulations for laser products on August 2, 1976. These regulations apply to laser products
manufactured from August 1, 1976. Compliance is mandatory for products marketed in the United States.
Battery replacement notice
WARNING: The computer contains an internal lithium manganese dioxide, a vanadium
pentoxide, or an alkaline battery pack. A risk of fire and burns exists if the battery pack is not
properly handled. To reduce the risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Batteries, battery packs, and accumulators should not be disposed of together with the general
household waste. To forward them to recycling or proper disposal, use the public collection system
or return them to HP, an authorized HP Partner, or their agents.
For more information about battery replacement or proper disposal, contact an authorized reseller or an
authorized service provider.
Taiwan battery recycling notice
The Taiwan EPA requires dry battery manufacturing or importing firms in accordance with Article 15 of
the Waste Disposal Act to indicate the recovery marks on the batteries used in sales, giveaway or
promotion. Contact a qualified Taiwanese recycler for proper battery disposal.
Regulatory compliance notices 83
Page 84
Acoustics statement for Germany
(Geräuschemission)
Schalldruckpegel LpA < 70 dB(A)
Zuschauerpositionen (bystander positions), Normaler Betrieb (normal operation)
Nach ISO 7779:1999 (Typprüfung)
Regulatory compliance notices 84
Page 85
Electrostatic discharge
Preventing electrostatic discharge
To prevent damaging the system, be aware of the precautions you need to follow when setting up the
system or handling parts. A discharge of static electricity from a finger or other conductor may damage
system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the
device.
To prevent electrostatic damage:
• Avoid hand contact by transporting and storing products in static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.
• Place parts on a grounded surface before removing them from their containers.
• Avoid touching pins, leads, or circuitry.
• Always be properly grounded when touching a static-sensitive component or assembly.
Grounding methods to prevent electrostatic
discharge
Several methods are used for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:
• Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist
straps are flexible straps with a minimum of 1 megohm ±10 percent resistance in the ground cords.
To provide proper ground, wear the strap snug against the skin.
• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet
when standing on conductive floors or dissipating floor mats.
• Use conductive field service tools.
• Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized reseller
install the part.
For more information on static electricity or assistance with product installation, contact an authorized
reseller.
Electrostatic discharge 85
Page 86
Specifications
Environmental specifications
Specification Value
Temperature range* —
Operating 10°C to 35°C (50°F to 95°F)
Non-operating -30°C to 60°C (-22°F to 140°F)
Relative humidity
(noncondensing)**
Operating 10% to 90% @ 28°C (82.4°F)
Non-operating 5% to 95% @ 38.7°C
Altitude† —
Operating 3050 m (10,000 ft)
Non-operating 9144 m (30,000 ft)
* The following temperature conditions and limitations apply:
- All temperature ratings shown are for sea level.
- An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) up to 3048 m (10,000 ft) applies.
- No direct sunlight is allowed.
-The maximum permissible rate of change is 10°C/hr (18°F/hr).
- The type and number of options installed may reduce the upper temperature and humidity limits.
- Operating with a fan fault or above 30°C (86°F) may reduce system performance.
** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F).
†Maximum storage altitude corresponds to a minimum pressure of 70 kPa (10.1 psia).
—
(101.7°F)
Server blade specifications
Specification Value
Height 5.56 cm (2.19 in)
Depth 50.95 cm (20.06 in)
Width 18.16 cm (7.15 in)
Weight (maximum) 6.44 kg (14.20 lb)
Weight (no drives installed) 5.82 kg (12.82 lb)
Specifications 86
Page 87
Technical support
Before you contact HP
Be sure to have the following information available before you call HP:
• Technical support registration number (if applicable)
• Product serial number
• Product model name and number
• Product identification number
• Applicable error messages
• Add-on boards or hardware
• Third-party hardware or software
• Operating system type and revision level
HP contact information
For the name of the nearest HP authorized reseller:
• See the Contact HP worldwide (in English) webpage
(http://welcome.hp.com/country/us/en/wwcontact.html
For HP technical support:
• In the United States, for contact options see the Contact HP United States webpage
(http://welcome.hp.com/country/us/en/contact_us.html
o Call 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a
week. For continuous quality improvement, calls may be recorded or monitored.
o If you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more
information about Care Packs, refer to the HP website (http://www.hp.com/hps
• In other locations, see the Contact HP worldwide (in English) webpage
(http://welcome.hp.com/country/us/en/wwcontact.html
Customer Self Repair
).
). To contact HP by phone:
).
).
HP products are designed with many Customer Self Repair (CSR) parts to minimize repair time and allow
for greater flexibility in performing defective parts replacement. If during the diagnosis period HP (or HP
service providers or service partners) identifies that the repair can be accomplished by the use of a CSR
part, HP will ship that part directly to you for replacement. There are two categories of CSR parts:
• Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these
parts, you will be charged for the travel and labor costs of this service.
Technical support 87
Page 88
• Optional—Parts for which customer self repair is optional. These parts are also designed for
customer self repair. If, however, you require that HP replace them for you, there may or may not be
additional charges, depending on the type of warranty service designated for your product.
NOTE: Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty,
HP requires that an authorized service provider replace the part. These parts are identified as "No" in the
Illustrated Parts Catalog.
Based on availability and where geography permits, CSR parts will be shipped for next business day
delivery. Same day or four-hour delivery may be offered at an additional charge where geography
permits. If assistance is required, you can call the HP Technical Support Center and a technician will help
you over the telephone. HP specifies in the materials shipped with a replacement CSR part whether a
defective part must be returned to HP. In cases where it is required to return the defective part to HP, you
must ship the defective part back to HP within a defined period of time, normally five (5) business days.
The defective part must be returned with the associated documentation in the provided shipping material.
Failure to return the defective part may result in HP billing you for the replacement. With a customer self
repair, HP will pay all shipping and part return costs and determine the courier/carrier to be used.
For more information about HP's Customer Self Repair program, contact your local service provider. For
the North American program, refer to the HP website (http://www.hp.com/go/selfrepair
).
Réparation par le client (CSR)
Les produits HP comportent de nombreuses pièces CSR (Customer Self Repair = réparation par le client)
afin de minimiser les délais de réparation et faciliter le remplacement des pièces défectueuses. Si pendant
la période de diagnostic, HP (ou ses partenaires ou mainteneurs agréés) détermine que la réparation peut
être effectuée à l'aide d'une pièce CSR, HP vous l'envoie directement. Il existe deux catégories de pièces
CSR:
• Obligatoire - Pièces pour lesquelles la réparation par le client est obligatoire. Si vous demandez à
HP de remplacer ces pièces, les coûts de déplacement et main d'œuvre du service vous seront
facturés.
• Facultatif - Pièces pour lesquelles la réparation par le client est facultative. Ces pièces sont également
conçues pour permettre au client d'effectuer lui-même la réparation. Toutefois, si vous demandez à
HP de remplacer ces pièces, l'intervention peut ou non vous être facturée, selon le type de garantie
applicable à votre produit.
REMARQUE: Certaines pièces HP ne sont pas conçues pour permettre au client d'effectuer lui-même la
réparation. Pour que la garantie puisse s'appliquer, HP exige que le remplacement de la pièce soit
effectué par un Mainteneur Agréé. Ces pièces sont identifiées par la mention "Non" dans le Catalogue
illustré.
Les pièces CSR sont livrées le jour ouvré suivant, dans la limite des stocks disponibles et selon votre
situation géographique. Si votre situation géographique le permet et que vous demandez une livraison le
jour même ou dans les 4 heures, celle-ci vous sera facturée. Pour bénéficier d'une assistance
téléphonique, appelez le Centre d'assistance technique HP. Dans les documents envoyés avec la pièce de
rechange CSR, HP précise s'il est nécessaire de lui retourner la pièce défectueuse. Si c'est le cas, vous
devez le faire dans le délai indiqué, généralement cinq (5) jours ouvrés. La pièce et sa documentation
doivent être retournées dans l'emballage fourni. Si vous ne retournez pas la pièce défectueuse, HP se
réserve le droit de vous facturer les coûts de remplacement. Dans le cas d'une pièce CSR, HP supporte
l'ensemble des frais d'expédition et de retour, et détermine la société de courses ou le transporteur à
utiliser.
Technical support 88
Page 89
Pour plus d'informations sur le programme CSR de HP, contactez votre Mainteneur Agrée local. Pour plus
d'informations sur ce programme en Amérique du Nord, consultez le site Web HP
(http://www.hp.com/go/selfrepair
).
Riparazione da parte del cliente
Per abbreviare i tempi di riparazione e garantire una maggiore flessibilità nella sostituzione di parti
difettose, i prodotti HP sono realizzati con numerosi componenti che possono essere riparati direttamente
dal cliente (CSR, Customer Self Repair). Se in fase di diagnostica HP (o un centro di servizi o di
assistenza HP) identifica il guasto come riparabile mediante un ricambio CSR, HP lo spedirà direttamente
al cliente per la sostituzione. Vi sono due categorie di parti CSR:
• Obbligatorie – Parti che devono essere necessariamente riparate dal cliente. Se il cliente ne affida la
riparazione ad HP, deve sostenere le spese di spedizione e di manodopera per il servizio.
• Opzionali – Parti la cui riparazione da parte del cliente è facoltativa. Si tratta comunque di
componenti progettati per questo scopo. Se tuttavia il cliente ne richiede la sostituzione ad HP,
potrebbe dover sostenere spese addizionali a seconda del tipo di garanzia previsto per il prodotto.
NOTA: alcuni componenti HP non sono progettati per la riparazione da parte del cliente. Per rispettare
la garanzia, HP richiede che queste parti siano sostituite da un centro di assistenza autorizzato. Tali parti
sono identificate da un "No" nel Catalogo illustrato dei componenti.
In base alla disponibilità e alla località geografica, le parti CSR vengono spedite con consegna entro il
giorno lavorativo seguente. La consegna nel giorno stesso o entro quattro ore è offerta con un
supplemento di costo solo in alcune zone. In caso di necessità si può richiedere l'assistenza telefonica di
un addetto del centro di supporto tecnico HP. Nel materiale fornito con una parte di ricambio CSR, HP
specifica se il cliente deve restituire dei componenti. Qualora sia richiesta la resa ad HP del componente
difettoso, lo si deve spedire ad HP entro un determinato periodo di tempo, generalmente cinque (5) giorni
lavorativi. Il componente difettoso deve essere restituito con la documentazione associata nell'imballo di
spedizione fornito. La mancata restituzione del componente può comportare la fatturazione del ricambio
da parte di HP. Nel caso di riparazione da parte del cliente, HP sostiene tutte le spese di spedizione e
resa e sceglie il corriere/vettore da utilizzare.
Per ulteriori informazioni sul programma CSR di HP contattare il centro di assistenza di zona. Per il
programma in Nord America fare riferimento al sito Web HP (http://www.hp.com/go/selfrepair
Customer Self Repair
HP Produkte enthalten viele CSR-Teile (Customer Self Repair), um Reparaturzeiten zu minimieren und
höhere Flexibilität beim Austausch defekter Bauteile zu ermöglichen. Wenn HP (oder ein HP
Servicepartner) bei der Diagnose feststellt, dass das Produkt mithilfe eines CSR-Teils repariert werden
kann, sendet Ihnen HP dieses Bauteil zum Austausch direkt zu. CSR-Teile werden in zwei Kategorien
unterteilt:
• Zwingend – Teile, für die das Customer Self Repair-Verfahren zwingend vorgegeben ist. Wenn Sie
den Austausch dieser Teile von HP vornehmen lassen, werden Ihnen die Anfahrt- und Arbeitskosten
für diesen Service berechnet.
).
• Optional – Teile, für die das Customer Self Repair-Verfahren optional ist. Diese Teile sind auch für
Customer Self Repair ausgelegt. Wenn Sie jedoch den Austausch dieser Teile von HP vornehmen
lassen möchten, können bei diesem Service je nach den für Ihr Produkt vorgesehenen
Garantiebedingungen zusätzliche Kosten anfallen.
Technical support 89
Page 90
HINWEIS: Einige Teile sind nicht für Customer Self Repair ausgelegt. Um den Garantieanspruch des
Kunden zu erfüllen, muss das Teil von einem HP Servicepartner ersetzt werden. Im illustrierten Teilekatalog
sind diese Teile mit „No“ bzw. „Nein“ gekennzeichnet.
CSR-Teile werden abhängig von der Verfügbarkeit und vom Lieferziel am folgenden Geschäftstag
geliefert. Für bestimmte Standorte ist eine Lieferung am selben Tag oder innerhalb von vier Stunden gegen
einen Aufpreis verfügbar. Wenn Sie Hilfe benötigen, können Sie das HP technische Support Center
anrufen und sich von einem Mitarbeiter per Telefon helfen lassen. Den Materialien, die mit einem CSRErsatzteil geliefert werden, können Sie entnehmen, ob das defekte Teil an HP zurückgeschickt werden
muss. Wenn es erforderlich ist, das defekte Teil an HP zurückzuschicken, müssen Sie dies innerhalb eines
vorgegebenen Zeitraums tun, in der Regel innerhalb von fünf (5) Geschäftstagen. Das defekte Teil muss
mit der zugehörigen Dokumentation in der Verpackung zurückgeschickt werden, die im Lieferumfang
enthalten ist. Wenn Sie das defekte Teil nicht zurückschicken, kann HP Ihnen das Ersatzteil in Rechnung
stellen. Im Falle von Customer Self Repair kommt HP für alle Kosten für die Lieferung und Rücksendung auf
und bestimmt den Kurier-/Frachtdienst.
Weitere Informationen über das HP Customer Self Repair Programm erhalten Sie von Ihrem Servicepartner
vor Ort. Informationen über das CSR-Programm in Nordamerika finden Sie auf der HP Website unter
(http://www.hp.com/go/selfrepair
).
Reparaciones del propio cliente
Los productos de HP incluyen muchos componentes que el propio usuario puede reemplazar (Customer
Self Repair, CSR) para minimizar el tiempo de reparación y ofrecer una mayor flexibilidad a la hora de
realizar sustituciones de componentes defectuosos. Si, durante la fase de diagnóstico, HP (o los
proveedores o socios de servicio de HP) identifica que una reparación puede llevarse a cabo mediante el
uso de un componente CSR, HP le enviará dicho componente directamente para que realice su
sustitución. Los componentes CSR se clasifican en dos categorías:
• Obligatorio: componentes para los que la reparación por parte del usuario es obligatoria. Si solicita
a HP que realice la sustitución de estos componentes, tendrá que hacerse cargo de los gastos de
desplazamiento y de mano de obra de dicho servicio.
• Opcional: componentes para los que la reparación por parte del usuario es opcional. Estos
componentes también están diseñados para que puedan ser reparados por el usuario. Sin embargo,
si precisa que HP realice su sustitución, puede o no conllevar costes adicionales, dependiendo del
tipo de servicio de garantía correspondiente al producto.
NOTA: Algunos componentes no están diseñados para que puedan ser reparados por el usuario. Para
que el usuario haga valer su garantía, HP pone como condición que un proveedor de servicios
autorizado realice la sustitución de estos componentes. Dichos componentes se identifican con la palabra
"No" en el catálogo ilustrado de componentes.
Según la disponibilidad y la situación geográfica, los componentes CSR se enviarán para que lleguen a
su destino al siguiente día laborable. Si la situación geográfica lo permite, se puede solicitar la entrega
en el mismo día o en cuatro horas con un coste adicional. Si precisa asistencia técnica, puede llamar al
Centro de asistencia técnica de HP y recibirá ayuda telefónica por parte de un técnico. Con el envío de
materiales para la sustitución de componentes CSR, HP especificará si los componentes defectuosos
deberán devolverse a HP. En aquellos casos en los que sea necesario devolver algún componente a HP,
deberá hacerlo en el periodo de tiempo especificado, normalmente cinco días laborables. Los
componentes defectuosos deberán devolverse con toda la documentación relacionada y con el embalaje
de envío. Si no enviara el componente defectuoso requerido, HP podrá cobrarle por el de sustitución. En
Technical support 90
Page 91
el caso de todas sustituciones que lleve a cabo el cliente, HP se hará cargo de todos los gastos de envío
y devolución de componentes y escogerá la empresa de transporte que se utilice para dicho servicio.
Para obtener más información acerca del programa de Reparaciones del propio cliente de HP, póngase
en contacto con su proveedor de servicios local. Si está interesado en el programa para Norteamérica,
visite la página web de HP siguiente (http://www.hp.com/go/selfrepair
Customer Self Repair
Veel onderdelen in HP producten zijn door de klant zelf te repareren, waardoor de reparatieduur tot een
minimum beperkt kan blijven en de flexibiliteit in het vervangen van defecte onderdelen groter is. Deze
onderdelen worden CSR-onderdelen (Customer Self Repair) genoemd. Als HP (of een HP Service Partner)
bij de diagnose vaststelt dat de reparatie kan worden uitgevoerd met een CSR-onderdeel, verzendt HP
dat onderdeel rechtstreeks naar u, zodat u het defecte onderdeel daarmee kunt vervangen. Er zijn twee
categorieën CSR-onderdelen:
• Verplicht: Onderdelen waarvoor reparatie door de klant verplicht is. Als u HP verzoekt deze
onderdelen voor u te vervangen, worden u voor deze service reiskosten en arbeidsloon in rekening
gebracht.
• Optioneel: Onderdelen waarvoor reparatie door de klant optioneel is. Ook deze onderdelen zijn
ontworpen voor reparatie door de klant. Als u echter HP verzoekt deze onderdelen voor u te
vervangen, kunnen daarvoor extra kosten in rekening worden gebracht, afhankelijk van het type
garantieservice voor het product.
).
OPMERKING: Sommige HP onderdelen zijn niet ontwikkeld voor reparatie door de klant. In verband met
de garantievoorwaarden moet het onderdeel door een geautoriseerde Service Partner worden vervangen.
Deze onderdelen worden in de geïllustreerde onderdelencatalogus aangemerkt met "Nee".
Afhankelijk van de leverbaarheid en de locatie worden CSR-onderdelen verzonden voor levering op de
eerstvolgende werkdag. Levering op dezelfde dag of binnen vier uur kan tegen meerkosten worden
aangeboden, indien dit mogelijk is gezien de locatie. Indien assistentie gewenst is, belt u een HP Service
Partner om via de telefoon technische ondersteuning te ontvangen. HP vermeldt in de documentatie bij het
vervangende CSR-onderdeel of het defecte onderdeel aan HP moet worden geretourneerd. Als het defecte
onderdeel aan HP moet worden teruggezonden, moet u het defecte onderdeel binnen een bepaalde
periode, gewoonlijk vijf (5) werkdagen, retourneren aan HP. Het defecte onderdeel moet met de
bijbehorende documentatie worden geretourneerd in het meegeleverde verpakkingsmateriaal. Als u het
defecte onderdeel niet terugzendt, kan HP u voor het vervangende onderdeel kosten in rekening brengen.
Bij reparatie door de klant betaalt HP alle verzendkosten voor het vervangende en geretourneerde
onderdeel en kiest HP zelf welke koerier/transportonderneming hiervoor wordt gebruikt.
Neem contact op met een Service Partner voor meer informatie over het Customer Self Repair programma
van HP. Informatie over Service Partners vindt u op de HP website (http://www.hp.com/go/selfrepair
Reparo feito pelo cliente
Os produtos da HP são projetados com muitas peças para reparo feito pelo cliente (CSR) de modo a
minimizar o tempo de reparo e permitir maior flexibilidade na substituição de peças com defeito. Se,
durante o período de diagnóstico, a HP (ou fornecedores/parceiros de serviço da HP) concluir que o
reparo pode ser efetuado pelo uso de uma peça CSR, a peça de reposição será enviada diretamente ao
cliente. Existem duas categorias de peças CSR:
).
Technical support 91
Page 92
• Obrigatória – Peças cujo reparo feito pelo cliente é obrigatório. Se desejar que a HP substitua essas
peças, serão cobradas as despesas de transporte e mão-de-obra do serviço.
• Opcional – Peças cujo reparo feito pelo cliente é opcional. Essas peças também são projetadas
para o reparo feito pelo cliente. No entanto, se desejar que a HP as substitua, pode haver ou não a
cobrança de taxa adicional, dependendo do tipo de serviço de garantia destinado ao produto.
OBSERVAÇÃO: Algumas peças da HP não são projetadas para o reparo feito pelo cliente. A fim de
cumprir a garantia do cliente, a HP exige que um técnico autorizado substitua a peça. Essas peças estão
identificadas com a marca "No" (Não), no catálogo de peças ilustrado.
Conforme a disponibilidade e o local geográfico, as peças CSR serão enviadas no primeiro dia útil após
o pedido. Onde as condições geográficas permitirem, a entrega no mesmo dia ou em quatro horas pode
ser feita mediante uma taxa adicional. Se precisar de auxílio, entre em contato com o Centro de suporte
técnico da HP para que um técnico o ajude por telefone. A HP especifica nos materiais fornecidos com a
peça CSR de reposição se a peça com defeito deve ser devolvida à HP. Nos casos em que isso for
necessário, é preciso enviar a peça com defeito à HP dentro do período determinado, normalmente
cinco (5) dias úteis. A peça com defeito deve ser enviada com a documentação correspondente no
material de transporte fornecido. Caso não o faça, a HP poderá cobrar a reposição. Para as peças de
reparo feito pelo cliente, a HP paga todas as despesas de transporte e de devolução da peça e
determina a transportadora/serviço postal a ser utilizado.
Para obter mais informações sobre o programa de reparo feito pelo cliente da HP, entre em contato com
o fornecedor de serviços local. Para o programa norte-americano, visite o site da HP
(http://www.hp.com/go/selfrepair
).
Technical support 92
Page 93
Technical support 93
Page 94
Technical support 94
Page 95
Acronyms and abbreviations
ABEND
abnormal end
ACU
Array Configuration Utility
ADU
Array Diagnostics Utility
AMP
Advanced Memory Protection
ASR
Automatic Server Recovery
BBWC
battery-backed write cache
FC
Fibre Channel
iLO 2
Integrated Lights-Out 2
IML
Integrated Management Log
ORCA
Option ROM Configuration for Arrays
P2V
physical to virtual
PMP
Performance Management Pack
Acronyms and abbreviations 95
Page 96
POST
Power-On Self Test
PSP
ProLiant Support Pack
PXE
Preboot Execution Environment
RBSU
ROM-Based Setup Utility
RDP
Rapid Deployment Pack
RILOE
Remote Insight Lights-Out Edition
SAS
serial attached SCSI
SATA
serial ATA
SIM
Systems Insight Manager
SMP
Server Migration Pack
UID
unit identification
USB
universal serial bus
V2P
virtual to physical
V2V
virtual to virtual
Acronyms and abbreviations 96
Page 97
VCA
Version Control Agent
VCRM
Version Control Repository Manager
Acronyms and abbreviations 97
Page 98
Index
A
access panel 14
acoustics statement for Germany 84
ACU (Array Configuration Utility) 49
additional information 60
ADU (Array Diagnostic Utility) 56
Advanced ECC memory 28, 29
Array Configuration Utility (ACU) 49
Array Diagnostic Utility (ADU) 56
ASR (Automatic Server Recovery) 50
authorized reseller 87
auto-configuration process 47
Automatic Server Recovery (ASR) 50
Autorun menu 46
B
Basic Input/Output System (BIOS) 48, 51
batteries, replacing 76, 83
battery 9, 76, 83
battery replacement notice 83
BBWC (battery-backed write cache) 32
BBWC battery pack 32
beep codes 75
before you contact HP 87
BIOS (Basic Input/Output System) 48, 51
BIOS Serial Console 48
BIOS upgrade 51
boot diskette 45
boot options 48
BSMI notice 82
buttons 6
C
cables 37, 63, 79
cables, FCC compliance 79
cables, troubleshooting 63
cabling 37
cache module 32
cache module battery pack 32
Canadian notice 80
Care Pack 59
CD-ROM deployment 44
Change Control 59
Chinese notice 82
class A equipment 78
class B equipment 78
compliance 78
components 6
components, identification 6, 8
configuration of system 40, 46
configuration parameters 46
configuration tools 46
configuration, network 41
connecting to the network 16
connection problems 63
connectors 6
contact information 87
contacting HP 87
creating a disk image 45
CSR (customer self repair) 87
customer self repair (CSR) 87
D
Declaration of Conformity 79
deployment infrastructure 41
deployment methods 40, 41, 43
deployment overview 41
DHCP server 40
diagnosing problems 60, 65
diagnostic tools 46, 50, 51, 55
diagnostics utility 55
DIMM baffles 14
DIMM identification 26
DIMM installation guidelines 28
DIMM population guidelines 28
DIMM slot locations 9, 10
DIMM slots 28
DIMMs 9, 26, 31, 48
DIMMs, installation 31
DIMMs, single- and dual-rank 26
disposal, waste 80
documentation 46
drivers 40, 57
Index 98
Page 99
E
electrostatic discharge 85
enclosure connector 9
enclosure, installing into rack 16
environmental specifications 86
Erase Utility 51
error messages 75
European Union notice 80
external cables 37
F
FCC (Federal Communications Commission)
notice 78, 79
FCC rating label 78
features 6
Federal Communications Commission (FCC)
notice 78, 79
firmware upgrade utility, troubleshooting 60
flowcharts 63, 64, 65, 67, 69, 71, 73
front panel buttons 6
front panel components 6
front panel LEDs 7
G
general diagnosis flowchart 65
grounding methods 85
H
hard drive backplane connector 9
hard drive bays 6
hard drive LEDs 8
hard drives 8, 19
hard drives, determining status of 8
hard drives, installing 19
hardware options 19
hardware options installation 19
health driver 50
health LEDs 7, 8
heatsink 20
heatsink blank 20
help resources 87
HP c-Class Blade SUV Cable 6, 11, 37
HP contact information 87
HP Insight Control Environment Suites 54
HP Insight Control Linux Edition 54
HP Insight Diagnostics 55, 56
HP Insight Diagnostics survey functionality 56
HP Insight Remote Support software 57
HP Insight Server Migration Pack software for
ProLiant 53
HP ProLiant Essentials Foundation Pack 52
HP ProLiant Essentials Performance Management
Pack 53
HP ProLiant Essentials Server Migration Pack 52
HP ProLiant Essentials Virtual Machine Management
Pack 52
HP ProLiant Essentials Virtualization Management
Software 52
HP ProLiant Essentials Vulnerability and Patch
Management Pack 52
HP Smart Update Manager overview 58
HP StorageWorks Library and Tape Tools (L&TT) 51
HP Systems Insight Manager, overview 52
HP technical support 87
HP website 87
HP, contacting 87
I
identification number 78
iLO 2 (Integrated Lights-Out 2) 12, 40, 41, 51
iLO 2 activity LED 51
iLO 2 advanced features 40
IML (Integrated Management Log) 56
Important Safety Information document 61
Insight Control Environment Suites 54
Insight Control Linux Edition 54
Insight Diagnostics 55, 56, 57
installation, server options 19
installing hardware 19
installing memory 31
installing operating system 43
installing server blade options 19
installing server options 19
installing the access panel 14
Integrated Lights-Out 2 (iLO 2) 12, 40, 51
Integrated Management Log (IML) 56
internal health LED 8
internal USB connector 55
J
Japanese notice 81
K
Korean notices 82
Index 99
Page 100
L
laser compliance 82
laser devices 82
LED, health 7, 8
LED, power button 7
LED, system power 7
LEDs 6, 8
LEDs, hard drive 8
LEDs, NIC 7
LEDs, SAS hard drive 8
LEDs, SATA hard drive 8
LEDs, troubleshooting 60
LEDs, unit identification (UID) 7
Lights-Out network-based deployment 40, 41, 43
local KVM, accessing a server blade with 37
local media devices, accessing 38
lockstep memory 28, 30, 49
loose connections 63
M
maintenance guidelines 57
Management Agents 52
management tools 40, 50
memory 25, 27, 48, 49
memory configurations 27
memory options 19
memory subsystem architecture 25
memory, mirrored 49
mezzanine board connectors 9
mezzanine connectors 9, 10
mirrored memory 28, 29, 48, 49
modifications, FCC notice 79
N
network connections 16
network-based PXE deployment 41
NIC (network interface card) 9
O
Online ROM Flash Component Utility 58
operating systems 58
operations 12
Option ROM Configuration for Arrays (ORCA) 49
options installation 16, 19
ORCA (Option ROM Configuration for Arrays) 49
OS boot problems flowchart 71
overview 16
P
Performance Management Pack (PMP) 53
phone numbers 87
POST error messages 75
POST problems flowchart 69
power button LED 7
Power On/Standby button 6
powering down 12
powering up 12, 47
power-on problems flowchart 67
preboot execution environment (PXE) 41, 43
pre-diagnostic steps 60
preparation procedures 12, 62
preparing the server for diagnosis 62
problem diagnosis 60
processor socket 9
processors 9, 20
Product ID 50
ProLiant Support Pack (PSP) 58
PSP (ProLiant Support Pack) 58
PSPs, overview 58
PXE (preboot execution environment) 41, 43
PXE deployment 41, 43
R
Rapid Deployment Pack (RDP) 43
RBSU (ROM-Based Setup Utility) 47
RBSU configuration 47
RDIMM configuration 27
redundant ROM 54
regulatory compliance identification numbers 78
regulatory compliance notices 78, 80, 83
release button 6
remote support and analysis tools 57
removing the access panel 14
removing the server blade 13
required information 87
resources 46, 60
resources, troubleshooting 60
ROM legacy USB support 55
ROM redundancy 54
ROM, updating 58
ROM-Based Setup Utility (RBSU) 47
ROMPaq utility 51, 54
S
safety considerations 61
safety information 55
SAN configuration 46
Index 100
Loading...
