HP ProLiant Moonshot Specification
As a dedicated hosting company are you using large numbers of traditionally architected servers? Are you hitting the wall for power,
cooling and space?
The HP Moonshot System uses an innovative new architecture that results from one simple design tenet: to align purpose-built modules
with the right workload to provide optimal results for your dedicated hosting environment. Traditional servers rely on dedicated
components, including management, networking, storage, power cords and cooling fans in a single chassis. In contrast, the Moonshot
system share these chassis components and are capable of supporting 45 servers per 4.3U chassis.
This gives you the ability to generate greater revenue from a smaller footprint while driving down your operational costs. The HP
ProLiant Moonshot Servers use low-energy processors and direct attached disk drives to provide an ideal solution for dedicated hosting.

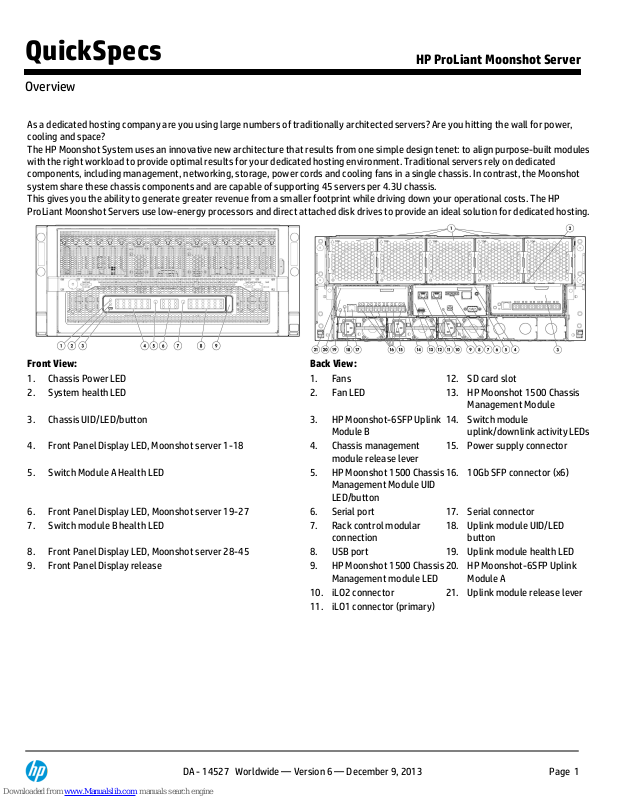

Front View:
Back View:
1.
Chassis Power LED
1.
Fans
12.
SD card slot
2.
System health LED
2.
Fan LED
13.
HP Moonshot 1500 Chassis
Management Module
3.
Chassis UID/LED/button
3.
HP Moonshot-6SFP Uplink
Module B
14.
Switch module
uplink/downlink activity LEDs
4.
Front Panel Display LED, Moonshot server 1-18
4.
Chassis management
module release lever
15.
Power supply connector
5.
Switch Module A Health LED
5.
HP Moonshot 1500 Chassis
Management Module UID
LED/button
16.
10Gb SFP connector (x6)
6.
Front Panel Display LED, Moonshot server 19-27
6.
Serial port
17.
Serial connector
7.
Switch module B health LED
7.
Rack control modular
connection
18.
Uplink module UID/LED
button
8.
Front Panel Display LED, Moonshot server 28-45
8.
USB port
19.
Uplink module health LED
9.
Front Panel Display release
9.
HP Moonshot 1500 Chassis
Management module LED
20.
HP Moonshot-6SFP Uplink
Module A
10.
iLO2 connector
21.
Uplink module release lever
11.
iLO1 connector (primary)
QuickSpecs
HP ProLiant Moonshot Server
Overview
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 1
Standard Features - Server
Processor
Intel® Atom™ Processor S1260, 2.0 GHz
Cache Memory
1 MB
Chipset
Intel™ Atom™ Processor S1200 Series for Servers
On System Management
Processor
via HP Moonshot 1500 Chassis Management module
Memory Protection
Advanced ECC (multi-bit error protection)
Memory
Type
Unbuffered (UDIMM), ECC @ 1333 MHz
DIMM Slots Available
1 SO-DIMM Slot
Configuration
8GB (1x8GB)
Network Controller
Network Controller Broadcom 5720 Dual-port 1Gb Ethernet Controller
Storage Controller
Marvell 9125
Storage Device
Hard Drive
Each cartridge will ship with a SATA HDD or SATA SSD
Maximum Internal
Storage (per Moonshot
Server)
Quick Release SATA 2.5"
1TB
1 x 1TB SATA
500 GB
1 x 500 GB SATA
QuickSpecs
HP ProLiant Moonshot Server
Standard Features
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 2
Interfaces
Network RJ-45 for
Management
Two RJ-45 are located on the HP Moonshot 1500 Chassis Management
Module. One is for the HP Moonshot iLO Chassis Management and one is for
future use
SFP+ connector
Six 10GbE SFP+ connectors per HP Moonshot-6SFP Uplink.
NOTE:
See the HP Moonshot-6SFP Uplink Module QuickSpecs for Technical
Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14734_div/
14734_div.html
Health LED
47 front for server/switch health, one per server and switch when access
panel is removed
Power
1 front and one per server and switch when access panel is removed
UID for node
1 front and 1 rear (on management module) and one per server and switch
when access panel is removed
Drive health LED
One per server and switch when access panel is removed
Industry Standard
Compliance
ACPI 2.0b Compliant
SMBIOS 2.6.1
PXE Support
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
NOTE:
Only 64-bit versions of these operating systems are supported.
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server including how to purchase from
HP, please visit our OS Support Site at:
http://www.hp.com/go/ossupport
and our driver download page:
http://www.hp.com/go/servers/Moonshot/download
Server Form Factor
HP ProLiant Moonshot Servers are constructed to allow for 45 servers to fit vertically and exclusively into
the HP Moonshot 1500 chassis
HP Moonshot-45G Switch Modules - up to two switches install vertically and exclusively into the chassis.
An HP Moonshot-6SFP Uplink Module is required per switch.
NOTE:
See the HP Moonshot-45G Switch Module QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14732_div/14732_div.html
NOTE:
See the HP Moonshot-6SFP Uplink Module QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14734_div/14734_div.html
Standard Features - HP Moonshot 1500 Chassis
Chassis Form Factor
4.3U
QuickSpecs
HP ProLiant Moonshot Server
Standard Features
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 3
HP Interconnect modules
NOTE:
Up to two identical pairs of Switch and Uplink modules are supported in the Moonshot 1500 Chassis.
Dual switch modules are required for network redundancy, regardless of cartridge configuration.
HP Moonshot-45G Switch Module
Switch with 45 1 GbE downlink ports.
Compatible with HP Moonshot-6SFP Uplink Module in the Moonshot 1500 Chassis.
For more information, please visit:
HP Moonshot-45G Switch Module
http://h18000.www1.hp.com/products/quickspecs/14732_div/14732_div.html
HP Moonshot-6SFP Uplink Module
Networking faceplate module with 6 10GbE SFP+ uplink ports.
Compatible with HP Moonshot-45G Switch Module in the Moonshot 1500 Chassis.
For more information, please visit:
HP Moonshot-6SFP Uplink Module
http://h18000.www1.hp.com/products/quickspecs/14734_div/14734_div.html
HP Moonshot 1500
Chassis Management
Module
HP Moonshot 1500 Chassis Management module, complete with support for SL-APM.
The HP Moonshot 1500 Chassis Management module manages the health of the chassis and servers and
includes a command-line interface accessible via SSH to configure the chassis and server settings and
control server power and UID lights, use Virtual Serial Port to servers, and to flash firmware in the chassis.
It also supports IPMI management.
On System Management
HP Moonshot iLO Chassis Management Firmware is the gateway for aggregated chassis management on
HP Moonshot. Moonshot iLO CM firmware reduces cost and power by sharing four iLO modules across the
nodes and other system components. As a single point of access to the chassis, Moonshot iLO CM firmware
allows you to configure, update, and operate HP Moonshot via CLI, IPMI, and remote serial console access.
For more information, see the HP Moonshot iLO Chassis Management Firmware User Guide on the HP
Project Moonshot Information Library (
http://www.hp.com/go/moonshot/docs
).
System Fans
5 Dual-Rotor, Hot-Plug Fans, N+1
Power Specifications
To review typical system power ratings use the HP Power Advisor which is available via the online tool
located at URL:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
.
NOTE:
Power Specification and Technical Content for supported power supplies can be found at:
http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html
QuickSpecs
HP ProLiant Moonshot Server
Standard Features
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 4
Common Slot Power
Supply
Each Moonshot Chassis comes with a minimum of two (2) HP Common slot power supplies.
HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of
ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest
power supply efficiency without degrading system performance. HP CS power supplies are tested by the
Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP
CS power supply options provide efficiency ratings of up to 94% and are available in only a 1200W
configuration for this platform which is "right-sized" for this specific solution. All HP Common Slot power
sources are UL, CE Mark Compliant, hot-plug and support redundant configurations. HP Power Advisor can
be accessed at:
www.hp.com/go/hppoweradvisor
.
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies must be of the
same output and efficiency rating. If non-matched power supplies are inserted you will get errors and
operation will fail.
NOTE:
Redundant Power: Optional redundant power supplies can be purchased through power supply
option kits (see Power Supplies for part numbers).
QuickSpecs
HP ProLiant Moonshot Server
Standard Features
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 5
HP Insight management
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. For more information, see
http://www.hp.com/go/insightcontrol
.
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:
http://www.hp.com/services/insight
High Performance
Clusters
HP Insight Cluster
Management Utility
HP Insight Cluster Management Utility (CMU) is an HP-licensed and HPsupported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to:
http://www.hp.com/go/factory-express
.
QuickSpecs
HP ProLiant Moonshot Server
Optional Features
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 6
Services and Support
HP Technology Services for Moonshot
Capitalizing on the Moonshot 1500 System requires a service partner who understands your increasingly
complex business technology environment. That's why it makes sense to team up with the people who
know HP infrastructure hardware and software best - the experienced professionals at HP Technology
Services.
HP is pleased to include full software support for Ubuntu Linux as part of your Moonshot chassis purchase.
For chassis supporting revenue-generating or production level workloads, consider purchasing a level of
support that matches your requirements.
Protect your business beyond warranty with HP Care Pack Services
HP sells support in easy-to-buy, preconfigured packages with the combination of services, coverage and
duration to fit your needs and budget. With Moonshot, we are introducing a new, simpler set of services.
Simply choose the service level that best fits the criticality of your hardware.
HP Foundation Care
HP introduces new Foundation Care services offer scalable reactive support-packages for HP Moonshot
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. The Moonshot 1500 Care Pack services cover the Moonshot 1500 Chassis and the Moonshot servers
with one single Care Pack SKU. Entitlement of support requires the customer to provide the 1500 chassis
serial number. All HP components structured to the Moonshot System are covered by Care Pack services
inclusive of switches, power supplies, and fans. HP Foundation Care services include hardware support,
basic software support and collaborative call handling for software questions related to industry leading
operating systems and software. For a complete list of software products covered, refer to:
www.hp.com/services/collaborativesupport.
Full software support, including call management and ownership thru to resolution is available for select
third party software. As stated earlier, support for Ubuntu software is included in the purchase of your
Moonshot chassis.
HP Datacenter Care
HP Datacenter Care offers you a flexible, tailored, relationship-based approach to support the most
demanding data centers handling the demands of hyperscale computing. This is an environment level
service, purchased once to support your Moonshot environment. Other equipment may be included in this
agreement for holistic datacenter coverage. With HP Datacenter Care, you still have the choice of HP
Foundation Care reactive support which you purchase with each chassis.
HP Datacenter Care is flexible enough to deliver exactly what you need in one relationship. All Datacenter
Care support is tailored to your needs, based on our experience with hyperscale customers:
Assigned account team, led by an account support manager (ASM) who knows your business and
your IT environment and is responsible for the quality service delivery and experience.
Enhanced call handling for the best call experience with rapid escalation and incident resolution
through the HP Hyperscale Center of Excellence
Proactive and reactive support, configured to deliver the level of support needed by the different
data center components and meeting both service-level agreement (SLA) and cost targets
Then add on other services that are tailored to your specific needs, including:
HP Self-Service Spares Service
answers the question: What do you do when you need parts? We can set it
up so that you get spare parts onsite through our automated self-service spares. You simply go to the part
QuickSpecs
HP ProLiant Moonshot Server
Service and Support
DA - 14527 Worldwide — Version 6 — December 9, 2013
Page 7
Loading...
