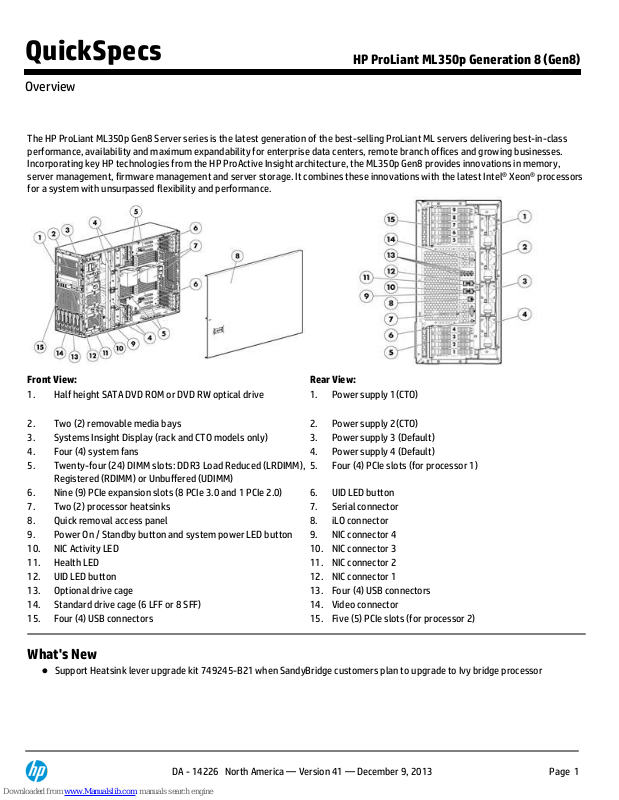

Page 1
The HP ProLiant ML350p Gen8 Server series is the latest generation of the best-selling ProLiant ML servers delivering best-in-class
performance, availability and maximum expandability for enterprise data centers, remote branch offices and growing businesses.
Incorporating key HP technologies from the HP ProActive Insight architecture, the ML350p Gen8 provides innovations in memory,
server management, firmware management and server storage. It combines these innovations with the latest Intel® Xeon® processors
for a system with unsurpassed flexibility and performance.
Front View:
Rear View:
1.
Half height SATA DVD ROM or DVD RW optical drive
1.
Power supply 1(CTO)
2.
Two (2) removable media bays
2.
Power supply 2(CTO)
3.
Systems Insight Display (rack and CTO models only)
3.
Power supply 3 (Default)
4.
Four (4) system fans
4.
Power supply 4 (Default)
5.
Twenty-four (24) DIMM slots: DDR3 Load Reduced (LRDIMM),
Registered (RDIMM) or Unbuffered (UDIMM)
5.
Four (4) PCIe slots (for processor 1)
6.
Nine (9) PCIe expansion slots (8 PCIe 3.0 and 1 PCIe 2.0)
6.
UID LED button
7.
Two (2) processor heatsinks
7.
Serial connector
8.
Quick removal access panel
8.
iLO connector
9.
Power On / Standby button and system power LED button
9.
NIC connector 4
10.
NIC Activity LED
10.
NIC connector 3
11.
Health LED
11.
NIC connector 2
12.
UID LED button
12.
NIC connector 1
13.
Optional drive cage
13.
Four (4) USB connectors
14.
Standard drive cage (6 LFF or 8 SFF)
14.
Video connector
15.
Four (4) USB connectors
15.
Five (5) PCIe slots (for processor 2)
What's New
Support Heatsink lever upgrade kit 749245-B21 when SandyBridge customers plan to upgrade to Ivy bridge processor
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Overview
DA - 14226 North America — Version 41 — December 9, 2013
Page 1
Page 2
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One of the following
depending on Model
E5-2600 v2 series Processors
Entry Processors
NOTE:
All support up to 1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)
Intel® Xeon® E5-2603 v2 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)
Base Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR3-1600, HT, Turbo23/3/3/3/3/3/4/5)
Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)
Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)
Intel® Xeon® E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)
Performance Processors
NOTE:
All support up to 1866MHz DDR3 memory speeds.
Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo23/3/3/3/3/3/3/4/5/6/7/8)
Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo23/3/3/3/3/3/3/4/5/6)
Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo24/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo23/3/3/3/4/5/6/7)
Intel® Xeon® E5-2650 v2 (2.6GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo24/4/4/4/5/6/7/8)
Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)
Intel® Xeon® E5-2637 v2 (3.5GHz/4-core/15MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/2/3)
E5-2600 series Processors
Entry Processors
NOTE:
All support up to 1066MHz DDR3 memory speeds.
Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W)
Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)
Base Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/8.0GT-s QPI/60W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Performance Processors
NOTE:
All support up to 1600MHz DDR3 memory speeds.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 2
Page 3
Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo24/4/4/5/5/7/7/9)
Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo24/4/5/5/5/7/8/8)
Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo24/4/5/5/6/6/7/7)
Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)
Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2-
4/4/5/5/6/6/7/7)
Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)
Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)
Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2-
2/2/3/3/4/4/5/5)
Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 1/1/2/2)
Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2- 5/5)
NOTE:
HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE:
Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.
NOTE:
DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on
the quantity and type of DIMMs installed.
NOTE:
Up to 2 processors supported. Mixing different processor models is not supported.
NOTE:
For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the
Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 =
Processor SKU, and x = L for low power SKUs.
Cache Memory
One of the following
depending on Model
30MB (1 x 30MB) Level 3
NOTE:
For Twelve-core processors.
25MB (1 x 25MB) Level 3
NOTE:
For Ten-core processors.
20MB (1 x 20MB) Level 3
NOTE:
For Eight-core processors.
15MB (1 x 15MB) Level 3
NOTE:
For Six-core processors.
10MB (1 x 10MB) Level 3
NOTE:
For Quad-core processors.
5MB (1 x 5MB) Level 3
NOTE:
For Dual-Core processors.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 3
Page 4
Chipset
Intel® C600 Chipset
Intel® E5-2600 Processor Family
Intel® E5-2600v2 Processor Family
NOTE:
For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
.
Upgradeability
Upgradeable to two processors
NOTE:
Total 4, 8, 12 ,16, 20 or 24 cores
NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600 to E5-2600 v2. Please contact
HP Technology Sales (
http://www.hp.com/support
), your local HP Re-seller, or reference the following
Customer Advisory:
ProLiant Servers-Instructions for Upgrading an HP ProLiant Gen8 Server from an Intel
Xeon Processor E5-2600 to an Intel Xeon Processor E5-2600 v2
, regarding critical details before
upgrading. An explanation of requirements and limitations are provided.
NOTE:
Customers who use ML350p Gen8 sandy bridge processors need to purchase Heatsink lever
upgrade kit 749245-B21 when plan to upgrade to Ivy bridge processor
Up to 24 DIMM slots available for higher memory capacity
Up to 24 SFF Hard Drive Bays; Or 18 LFF Hard Drive Bays
8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion
Redundant Power Supply and Redundant Fans
Optical Drive Bay (up to 3)
On System Management
Chipset
HP iLO (Firmware: HP iLO4)
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
Memory Protection
Advanced ECC
Online Spare
Lock-step mode
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 4
Page 5
Memory
Type
HP SmartMemory
DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available
24
Maximum Capacity
(LRIDMM)
768GB (24 x 32GB LRDIMM @1866MHz)
Maximum Capacity
(RDIMM)
384GB (24x 16GB RDIMM @1866MHz)
Maximum Capacity
(UDIMM)
128GB (16 x 8GB UDIMM @1866MHz)
NOTE:
HP memory from previous generation servers are not qualified or warranted with this HP ProLiant
Server. HP SmartMemory is required to realize the memory performance improvements and enhanced
functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory
QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a
server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
NOTE:
If only one processor is installed, only 12 DIMM slots are available. When populating with two
processors 24 DIMM slots are available. For maximum speed on some memory options on 16 DIMM slots
may be populated.
NOTE:
Depending on the memory configuration and processor model, the memory speed may run at
1866MHz, 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory
Configuration Tool at:
www.hp.com/go/ddr3memory-configurator
.
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Expansion Slots
Expansion
Slot #
Technology
Bus Width
Connector
Width
Bus Number
Form Factor
Notes
9
PCIe 3.0
x4 x8
32
Full
Length/Full
Height
For processor
2
8
PCIe 3.0
x16 x16
32
Full
Length/Full
Height
For processor
2
7
PCIe 3.0
x4 x8
32
Full
Length/Full
Height
For processor
2
6
PCIe 3.0
x16 x16
32
Full
Length/Full
Height
For processor
2
5
PCIe 2.0
x4 x8
0
Half
Length/Full
Height
For processor
2
4
PCIe 3.0
x4 x8
0
Full
Length/Full
Height
For processor
1
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 5
Page 6
3
PCIe 3.0
x16 x16
0
Full
Length/Full
Height
For processor
1
2
PCIe 3.0
x4 x8
0
Full
Length/Full
Height
For processor
1
1
PCIe 3.0
x8
x16
0
Full
Length/Full
Height
For processor
1
NOTE:
Bus number - Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the
actual bus assignment number.
NOTE:
Nine total expansion slots. Three PCIe 3.0 x16 (x16 speed); One PCIe 3.0 x16 (x8 speed); Four PCIe
3.0 x8 (x4 speed); One PCIe 2.0 x8 (x4 speed).
HP Server ROM
HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is
verified before the flash process starts, reducing accidental programming and preventing malicious efforts
to corrupt system ROM.
HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating
system.
HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to
assist in diagnosis.
HP's ProLiant ROM is used to configure the following:
Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (Integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).
NOTE:
For further information, please refer to HP's RBSU (ROM based setup utility) user guide:
www.hp.com/support/rbsu
.
Storage Controller
One of the following
depending on model
Entry Models
HP Smart Array P420i/Zero Memory Controller
Base Models
HP Smart Array P420i/512M FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
NOTE:
The SA-P420i/512M FBWC is standard on tower model and SA-
P420i/1G FBWC is standard on rack model.
HP Smart Array P420i/1G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Performance Models
HP Smart Array P420i/2G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 6
Page 7
Internal Storage Devices
Optical Drives
One of the following
depending on model
HP Half-Height SATA DVD-ROM Optical Drive
NOTE:
DVD ROM is standard in entry and base tower models.
HP Half Height SATA DVD-RW Optical Drive
NOTE:
DVD-RW is standard in performance tower and all rack models.
Hard Drives
None ship standard
Hard Drive Bays
One of the following
depending on model
(6) Hot plug LFF SAS/SATA HDD bays; upgradable to (18)
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
NOTE:
All Pre-configured Models come populated with some hard drive blanks
installed. Should the customer need additional hard drive blanks, they can
order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or
P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. These part numbers for
single HDD blanks below are also provided should the customer require
replacement HDD blanks for their server.
Maximum Internal
Storage
One of the following
depending on model
Hot Plug LFF SAS
72TB
18 x 4TB
Hot Plug LFF SATA
72TB
18 x 4TB
Hot Plug SFF SAS
28.8TB
24 x 1.2TB
Hot Plug SFF SATA
24TB
24 x 1TB
Hot Plug SFF SATA SSD
9.6TB
24 x 400GB
Hot Plug SFF SAS SSD
19.2TB
24 x 800GB
Hot Plug LFF SATA SSD
7.2TB
18 x 400GB
Interfaces
Serial
1
Video
1 (rear)
Network RJ-45 (Ethernet)
5 (1 dedicated for HP Integrated Lights-Out)
HP iLO Remote
Management Network Port
1 Gb Dedicated
SD slot
1 (internal)
NOTE:
The SD slot is not a hot-pluggable device. Customers should not
attempt to plug an SD card into the SD slot while the server is powered.
USB
10 (4 front, 4 rear, 2 internal)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 7
Page 8
Industry Standard
Compliance
ACPI 2.0b Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Novell Certified
IPMI 2.0, SMASH CLP, DCMI 1.0 compliant
Microsoft® Logo certifications
USB 2.0 Support
SMBIOS 2.7.1
Server Power Cords
ProLiant ML servers in a rack-mount configuration no longer ship standard with NEMA power cords that
allow connection to 110V US wall outlets in a home or office. These servers are primarily connected to
PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user
wishes to power a ProLiant ML rack-mount server using a 110V receptacle (NEMA-15), the NEMA power
cord must be ordered separately. The 12' cord (AF556A) or 6' cord (187335-001) can be purchased online
at HP.COM. In a tower configuration, the servers ship standard with a 6' NEMA power cord. If customers
require a power cord, they can check the power cord matrix for the appropriate sku. Please see the
following power cord matrix:
http://www.hp.com/go/powercordmatrix
.
Power Specifications
To review typical system power ratings use the HP Power Advisor which is available via the online tool
located at URL:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
.
NOTE:
Power Specification and Technical Content for supported power supplies can be found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
Common Slot Power
Supplies
NOTE: Mixing of power supplies in the same server is not supported. All power supplies inside a server
must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not
supported.
HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of
ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest
power supply efficiency without degrading system performance. HP CS power supplies are tested by the
Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP
CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in
three power output options – 460W, 750W, and 1200W - allowing the customer to "right-size" a power
supply for their specific server configuration. All HP Common Slot power sources are UL, CE Mark
Compliant, hot-plug and support redundant configurations.
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies must be of the
same output and efficiency rating. If non-matched power supplies are inserted you will get errors and
operation will fail.
HP CS Platinum power supplies are required when enabling HP's Intelligent Power Discovery (IPD) solution.
IPD is the first technology to create an automated, energy-aware network between IT systems and
facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime
costs across data centers. For more information on HP's IPD solution, go to
www.hp.com/go/ipd
.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 8
Page 9
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for
your needs. HP Power Advisor can be accessed at:
www.hp.com/go/hppoweradvisor
.
NOTE:
The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and
consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus
independently tests power supply efficiency and publicly posts the results on 80Plus.org.
Redundant Power: Optional (1 + 1 redundant) power supplies can be purchased through power supply
option kits (see Power Supplies for part numbers).
NOTE:
Power Specification and Technical Content for supported power supplies can be found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
System Fans
One of the following
depending on Model
(4) hot plug, redundant fans plus louvers
Fan Redundancy is standard in performance model. Four fans, PCIe baffles plus fan louvers are required
for fan redundancy.
(3) hot plug, non-redundant fans
For fan redundancy in entry and base models, the HP Hot Plug Redundant Fan Kit (659486-B21) must be
purchased. HP Hot Plug Redundant Fan Kit includes 4th fan, PCIe baffles and fan louvers.
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Solaris
VMware
Citrix XenServer
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/ossupport
and our driver download page
http://www.hp.com/support/ML350pGen8
Graphics
Integrated Matrox G200 video standard
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)
HP iLO 4 On System Management Memory
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor
Tower or Rack (5U)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 9
Page 10
On System Management
HP iLO Management
Engine
HP iLO Management Engine is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HP iLO Management Engine comes standard on all HP ProLiant Gen8
servers. The HP iLO Management Engine portfolio includes:
HP iLO
: The HP iLO (Integrated Lights-Out) management processor is
the core foundation for the HP iLO Management Engine
HP Agentless Management
: Provides built in server health monitoring
and alerting capability without OS agents, that starts working the
moment a power cord and an Ethernet cable are connected.
HP Active Health System
: Always on, continuous monitoring for
increased stability and shorter downtimes; 100% configuration history;
Health and service alerts and easy export and upload to Service and
Support.
HP Intelligent Provisioning
: Lets customers provision and configure a
single server without any separate media. No more SmartStart CDs or
Smart Update Firmware DVD are needed.
To start Intelligent Provisioning:
Press the F10 key during the ProLiant Gen8 server boot
process (also known as power on self-test or POST).
Please go to the Intelligent Provisioning website at:
www.hp.com/go/intelligentprovisioning
for additional
information and to view usage videos.
Use the Service Pack for ProLiant (SPP) at:
www.hp.com/go/spp
to get firmware and software
updates.
HP iLO Mobile App
: Enables the ability to access, deploy, and manage
your server anytime from anywhere from select smartphones and
mobile devices. For additional information please visit:
www.hp.com/go/ilo/mobileapp
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
or HP iLO
Management Engine technologies whitepaper
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 10
Page 11
HP Insight Management
HP Service Pack for
ProLiant (SPP)
HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
provide a comprehensive approach to firmware and system software
maintenance. Together they provide better operating stability and ensure
maximum uptime. The SPP will be updated at a predictable cadence, typically
coinciding with new HP server hardware launches. By enabling firmware to be
updated online and integrating firmware and system software updates in one
operation, HP SUM and the SPP offer faster updates of individual servers and
dramatically faster updates of entire BladeSystem enclosures. Further
improving system uptime and stability is the fact that HP provides 12 months
of support for each Service Pack for ProLiant release.
The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM and the latest
SPP. Optional smaller subsets with only specific types of servers or specific
operating systems are offered to save on download time. The HP SUM
application provides a straightforward, intuitive user interface that guides the
user through the steps of discovery, analyses and update, providing
comprehensive information on available updates, criticality and
interdependencies. This information is also available in reports. By providing
the option of multiple local or shared repositories which can be easily updated
from hp.com, HP SUM provides the tools to optimize stability and consistency
throughout the company. While HP SUM and the SPP recommend the
combinations of firmware and system software that HP has found to be the
best practice, the application gives customers the flexibility to set their own
specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.
NOTE:
The Service Pack for ProLiant (which includes HP SUM) can be
downloaded from
www.hp.com/go/spp/download
. More information can be
found:
http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp
and
http://www.hp.com/go/hpsum
HP StoreVirtual VSA
HP StoreVirtual VSA allows you to create fully featured shared storage on a VMware vSphere or Microsoft
Hyper-V virtualized server. This server model starting November 2013, includes a limited license for HP
StoreVirtual VSA software with 1TB of capacity. To download the license key and StoreVirtual VSA
software, visit:
www.hp.com/go/unlockVSA
.
NOTE:
You will need your server serial number in order to complete the registration form. Fully functional,
capacity-based licenses are available in 4TB, 10TB, and 50TB sizes. For more information and access to the
60-day free trial, visit:
www.hp.com/go/tryVSA
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 11
Page 12
Security
Power-on password
Setup password
Serial interface control
Power switch security
Administrator's password
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE:
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity. Customers may choose
to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited
warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Standard Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 12
Page 13
HP Insight Management
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. HP Insight Control also supports
Location and Power Discovery Services to automate many configuration, asset
tracking, and power management tasks to speed implementation and prevent
downtime. For more information, see
http://www.hp.com/go/insightcontrol
.
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:
http://www.hp.com/services/insight
.
HP iLO Advanced
HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multiuser collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:
http://www.hp.com/go/iloadvance
HP Matrix Operating
Environment
The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.
The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS).
NOTE:
For more information, visit:
http://www.hp.com/go/matrixoe
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering.
http://www.hp.com/go/clusters
.
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Optional Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 13
Page 14
HP Insight Cluster
Management Utility
HP Insight Cluster Management Utility (CMU) is an HP-licensed and HPsupported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
Storage Software
Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:
Data Protection and Recovery Software
Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.
Data Archive and Migration Software
HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.
Storage Resource Management Software (SRM)
HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.
Data Replication Software
HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.
Storage Device Management Software
Maximize your investment in HP storage and networking with software that enables hardware-
specific configuration, performance tuning and connectivity management.
HP StoreVirtual VSA
With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.
NOTE:
For more information available Storage Software including QuickSpecs, please see:
www.hp.com/go/storage/software
.
HP Insight Online
HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP
support information personalized to your IT environment. Insight Online can automatically display devices
remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at any time.
www.hp.com/go/insightonline
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Optional Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 14
Page 15
HP Proactive Insight
experience
Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consists of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:
www.hp.com/go/proactiveinsightexperience
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to:
http://www.hp.com/go/factory-express
HP Simple Configurator
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.
http://www.hp.com/products/configurator
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Optional Features
DA - 14226 North America — Version 41 — December 9, 2013
Page 15
Page 16
Service and Support
HP Technology Services for Industry Standard Servers
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.
Protect your business beyond warranty with HP Care Pack Services
HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.
HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response
Optimized Care
Supports maintaining servers at optimum performance availability
3-Year HP 6 hour Call to Repair Response, Proactive Care*
Combined reactive and proactive support for hardware and software helping optimize your systems and
delivering high levels of availability through proactive service management and advanced technical
response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the
initial service request. A Technical Account Manager, as your single point of contact, will own your call or
issue end to end until resolved.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
Standard Care
Service recommendation that maintains high level of server availability
3-Year HP 24x7 4 hour response, Proactive Care Service*
This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
Related Services
HP Proactive Care Personalized Support - Environmental Option
The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.
HP Proactive Select Service
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Service and Support
DA - 14226 North America — Version 41 — December 9, 2013
Page 16
Page 17
12 months.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf
Additional HP Care Pack services can be found at:
http://www.hp.com/go/cpc
Insight Online/Insight
Remote Support
HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution*. Learn more about Insight Remote
Support
http://www.hp.com/go/insightremotesupport
and Insight Online
http://www.hp.com/go/insightonline
* Insight Remote Support is a prerequisite for Proactive Care.
Parts and Material
HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.
For more information
To learn more on HP ProLiant servers, please contact your HP sales representative or HP Authorized
ServiceOne Channel Partner. Or visit:
http://www.hp.com/services/proliant
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Service and Support
DA - 14226 North America — Version 41 — December 9, 2013
Page 17
Page 18
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
NOTE:
Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section
of this QuickSpecs.
NOTE:
HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped
separately.
NOTE:
If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this
QuickSpecs.
NOTE:
All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard
drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8
Hard Drive Blank Kit.
Entry Models
E5-2600 v2 series Processors
HP ProLiant ML350p Gen8
E5-2609v2 1P 4GB-R
P420i/ZM 6 LFF 460W PS
Server
736947-001
Processor
(1) Intel® Xeon® E5-2609 v2 (2.50GHz/4-core/10MB/6.4GT-s QPI/80W)
Processor
Cache Memory
10MB (1 x 10MB) L3
Memory
4GB (1x4GB) PC3L-12800R (DDR3-1600LV) Registered DIMMS
NOTE:
11 DIMM slots available (23 if second processor is purchased).
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/Zero Memory Controller
Hard Drive
None ship standard; includes 5 LFF hard drive blanks
Internal Storage
(6) Hot plug LFF SAS/SATA HDD bays; upgradable to (18)
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
(1) HP 460W Common Slot Gold Hot Plug Power Supply
Fans
3 hot plug, non-redundant fans
Accessories
USB Keyboard and Mouse ship standard
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
E5-2600 series Processors
HP ProLiant ML350p Gen8
E5-2609 1P 4GB-R P420i
Hot Plug 6 LFF 460W PS
Entry Svr
646675-001
Processor
(1) Intel® Xeon® E5-2609(2.40GHz/4-core/10MB/6.4GT-s QPI/80W) Processor
Cache Memory
10MB (1 x 10MB) L3
Memory
4GB (1x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
11 DIMM slots available (23 if second processor is purchased).
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/Zero Memory Controller
Hard Drive
None ship standard; includes 5 LFF hard drive blanks
Internal Storage
(6) Hot plug LFF SAS/SATA HDD bays; upgradable to (18)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Pre-configured Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 18
Page 19
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
(1) HP 460W Common Slot Gold Hot Plug Power Supply
Fans
3 hot plug, non-redundant fans
Accessories
USB Keyboard and Mouse ship standard
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Base Models
E5-2600 v2 series Processors
HP ProLiant ML350p Gen8
E5-2620v2 1P 8GB-R
P420i/512 FBWC 8 SFF
460W PS Server
736958-001
Processor
(1) Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processor
Cache Memory
15MB (1 x 15MB) L3
Memory
8GB (1x8GB) PC3L-12800R (DDR3-1600LV) Registered DIMMS
NOTE:
11 DIMM slots available (23 if second processor is purchased)
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/512M FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
Power Supply
(1) HP 460W Common Slot Gold Hot Plug Power Supply
Fans
3 hot plug, non-redundant fans
Accessories
USB Keyboard and Mouse ship standard
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
E5-2600 series Processors
HP ProLiant ML350p Gen8
E5-2620 1P 8GB-R P420i
Hot Plug 8 SFF 460W PS
Base Svr
646676-001
Processor
(1) Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processor
Cache Memory
15MB (1 x 15MB) L3
Memory
8GB (2x4B) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
10 DIMM slots available (22 if second processor is purchased).
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/512M FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Pre-configured Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 19
Page 20
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
Power Supply
(1) HP 460W Common Slot Gold Hot Plug Power Supply
Fans
3 hot plug, non-redundant fans
Accessories
USB Keyboard and Mouse ship standard
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
HP ProLiant ML350p Gen8
E5-2630 1P 8GB-R P420i
Hot Plug 8 SFF 750W PS
Base Svr
646677-001
Processor
(1) Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processor
Cache Memory
15MB (1 x 15MB) L3
Memory
8GB (2x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
10 DIMM slots available (22 if second processor is purchased).
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/1G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
Power Supply
(1) HP 750W Common Slot Platinum Plus Hot Plug Power Supply
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Fans
3 hot plug, non-redundant fans
Form Factor
Rack (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Performance Models
HP ProLiant ML350p Gen8
E5-2650 2P 16GB-R P420i
Hot Plug 8 SFF 750W PS ES
Server
678237-001
Processor
(2) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600,
HT, Turbo2- 4/4/5/5/5/7/8/8) Processors
Cache Memory
20MB (1 x 20MB) L3
Memory
16GB (4x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
20 DIMM slots available.
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/2G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Pre-configured Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 20
Page 21
Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
Power Supply
(2) HP 750W Common Slot Platinum Plus Hot Plug Power Supply
Fans
4 hot plug, redundant fans plus louvers
Accessories
USB Keyboard and Mouse ship standard
Management
HP iLO Management Engine (standard)
HP Insight Control Standard
Energy Star
Meets Energy Star requirements
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Performance Models
NOTE:
These Models are Energy Star Certified.
E5-2600 v2 series Processors
HP ProLiant ML350p Gen8
E5-2650v2 2P 16GB-R
P420i/2GB FBWC 8 SFF
750W RPS Server
736968-001
Processor
(2) Intel® Xeon® E5-2650 v2 (2.60GHz/8-core/20MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processors
Cache Memory
20MB (1 x 20MB) L3
Memory
16GB (2x8GB) PC3-14900R (DDR3-1866) Registered DIMMS
NOTE:
20 DIMM slots available.
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/2G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
Power Supply
(2) HP 750W Common Slot Platinum Plus Hot Plug Power Supplies
Fans
4 hot plug, redundant fans plus louvers
Management
HP iLO Management Engine (standard)
HP Insight Control Standard
Energy Star
Meets Energy Star requirements
Form Factor
Tower(5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
HP ProLiant ML350p Gen8
E5-2640v2 2P 16GB-R
P420i/2GB FBWC 8 SFF
750W RPS Server
736967-001
Processor
(2) Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR31600, HT, Turbo2- 3/3/3/3/3/3/4/5) Processors
Cache Memory
20MB (1 x 20MB) L3
Memory
16GB (2x8GB) PC3L-12800R (DDR3-1600LV) Registered DIMMS
NOTE:
20 DIMM slots available.
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/2G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Pre-configured Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 21
Page 22
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
Power Supply
(2) HP 750W Common Slot Platinum Plus Hot Plug Power Supply
Fans
4 hot plug, redundant fans plus louvers
Management
HP iLO Management Engine (standard)
HP Insight Control Standard
Energy Star
Meets Energy Star requirements
Form Factor
Rack (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
E5-2600 series Processors
HP ProLiant ML350p Gen8
E5-2640 2P 16GB-R P420i
Hot Plug 8 SFF 750W PS
Perf Svr
646678-001
Processor
(2) Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processors
Cache Memory
15MB (1 x 15MB) L3
Memory
16GB (4x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
20 DIMM slots available.
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/2G FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard; includes 7 SFF hard drive blanks
Internal Storage
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (24)
Optical Drive
HP Half-Height SATA DVD-RW Optical Drive
Power Supply
(2) HP 750W Common Slot Platinum Plus Hot Plug Power Supplies
Fans
4 hot plug, redundant fans plus louvers
Management
HP iLO Management Engine (standard)
HP Insight Control Standard
Energy Star
Meets Energy Star requirements
Form Factor
Rack(5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Pre-configured Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 22
Page 23
HP ProLiant ML350p Gen8
E5-2620 LFF Svr/S-Buy
686713-S01
Processor
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333,
HT, Turbo2- 3/3/4/4/5/5)
Cache Memory
15MB (1 x 15MB) L3 cache
Memory
8GB (2x4GB) DDR3 RDIMM Low Voltage
NOTE:
10 additional DIMM slots available (22 if second processor is
purchased).
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC Controller
Hard Drive
None ship standard
Internal Storage
(6) Hot plug LFF SAS/SATA HDD bays
Optical Drive
HP Half-Height SATA DVD-RW Optical JB Drive
Power Supply
HP 460W Common Slot Gold Hot Plug Power Supply Kit
Fans
3 hot plug, non-redundant fans; upgradeable to 4 redundant fans with kit
Management
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
HP ProLiant ML350p Gen8
E5-2620 SFF Svr/S-Buy
686714-S01
Processor
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-
Cache Memory
1333, HT, Turbo2- 3/3/4/4/5/5)
Memory
15MB (1 x 15MB) L3 cache
Network Controller
8GB (2x4GB) DDR3 RDIMM Low Voltage
NOTE:
10 additional DIMM slots available. (22 if second processor is
purchased)
Storage Controller
HP 1Gb Ethernet 4-port 331i Adapter
Hard Drive
HP Smart Array P420i/512MB FBWC Controller
Internal Storage
None ship standard
Optical Drive
HP Half-Height SATA DVD-RW Optical JB Drive
Power Supply
HP 460W Common Slot Gold Hot Plug Power Supply Kit
Fans
460 Watt Power Supply
Management
3 hot plug, non-redundant fans; upgradeable to 4 redundant fans with kit
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Smart Buys
DA - 14226 North America — Version 41 — December 9, 2013
Page 23
Page 24
HP ProLiant ML350p Gen8
E5-2609v2 LFF Svr/S-Buy
736983-S01
Processor
Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)
Cache Memory
10MB (1 x 10MB) L3 cache
Memory
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11
Low Voltage
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/Zero Memory Controller
Hard Drive
None ship standard
Internal Storage
Up to 6 SAS/SATA LFF
Optical Drive
HP Half-Height SATA DVD-ROM Optical JB Drive
Power Supply
HP 460W Common Slot Gold Hot Plug Power Supply Kit
Fans
3 hot plug, non-redundant fans
Management
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
HP ProLiant ML350p Gen8
E5-2620v2 SFF Svr/S-Buy
736984-S01
Processor
Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1 x 15MB) L3 cache
Memory
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11
Low Voltage
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC Controller
Hard Drive
None ship standard
Internal Storage
Up to 8 SAS/SATA SFF
Optical Drive
HP Half-Height SATA DVD-ROM Optical JB Drive
Power Supply
HP 460W Common Slot Gold Hot Plug Power Supply Kit
Fans
3 hot plug, non-redundant fans
Management
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Smart Buys
DA - 14226 North America — Version 41 — December 9, 2013
Page 24
Page 25
HP ProLiant ML350p Gen8
E5-2640v2 SFF Svr/S-Buy
736985-S01
Processor
Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR31600, HT, Turbo2- 3/3/3/3/3/3/4/5)
Cache Memory
20MB (1 x 20MB) L3 cache
Memory
HP 16GB (2x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS11 Low Voltage
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC Controller
Hard Drive
None ship standard
Internal Storage
Up to 8 SAS/SATA SFF
Optical Drive
HP Half-Height SATA DVD-ROM Optical JB Drive
Power Supply
(2) HP 460W Common Slot Gold Hot Plug Power Supply Kit
Fans
3 hot plug, non-redundant fans
Management
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
HP ProLiant ML350p Gen8
E5-2630v2 LFF Svr/S-Buy
748305-S01
Processor
Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1 x 15MB) L3 cache
Memory
HP 32GB (2x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS11 Low Voltage
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC Controller
Hard Drive
None ship standard
Internal Storage
Up to 6 SAS/SATA LFF
Optical Drive
HP Half-Height SATA DVD-RW Optical JB Drive
Power Supply
HP 460W Common Slot Gold Hot Plug Power Supply Kit
Fans
3 hot plug, non-redundant fans
Management
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Smart Buys
DA - 14226 North America — Version 41 — December 9, 2013
Page 25
Page 26
HP ProLiant ML350p Gen8
E5-2670v2 2P SFF Svr/SBuy
748306-S01
Processor
(2) Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W,
DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)
Cache Memory
25MB (1 x 25MB) L3 cache
Memory
HP 32GB (2x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13
Network Controller
HP 1Gb Ethernet 4-port 331i Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC Controller
Hard Drive
None ship standard
Internal Storage
Up to 8 SAS/SATA SFF
Optical Drive
HP Half-Height SATA DVD-ROM Optical JB Drive
Power Supply
2xHP 460W Common Slot Gold Hot Plug Power Supply Ki
Fans
4 hot plug, redundant fans plus louvers
Management
iLO Management Engine Standard
Form Factor
Tower (5U)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Smart Buys
DA - 14226 North America — Version 41 — December 9, 2013
Page 26
Page 27
NOTE:
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on
configurable product offerings and requirements.
NOTE:
Factory Integrated Models must start with a CTO Server.
NOTE:
FIO indicates that this option is only available as a factory installable option.
NOTE:
All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives
ordered with the server.
Step 1: Base Configuration (choose one of the following configurable models)
HP Models
ML350p Gen8 Tower Models
HP ProLiant ML350p Gen8 Hot Plug 8 SFF Configure-to-order Tower Server
652065-B21
Includes:
HP 1Gb Ethernet 4-port 331i Adapter
HP Smart Array P420i Controller
Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays
Seven (7) HDD blanks
Ten (10) USB ports
Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe 2.0 slot (1x4)
USB Keyboard & Mouse (optional)
HP iLO Management Engine (standard)
Tower (5U) form factor
SID Module (optional)
HP ProLiant ML350p Gen8 Hot Plug 6 LFF Configure-to-order Tower Server
652066-B21
Includes:
HP 1Gb Ethernet 4-port 331i Adapter
HP Smart Array P420i Controller
Six (6) Hot-Plug (LFF) SAS/SATA Drive Bays
Five (5) HDD blanks
Ten (10) USB ports
Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe 2.0 slot (1x4)
USB Keyboard & Mouse (optional)
HP iLO Management Engine (standard)
Tower (5U) form factor
SID Module (optional)
ML350p Gen8 Rack Models
HP ProLiant ML350p Gen8 Hot Plug 8 SFF Configure-to-order Rack Server
652063-B21
Includes:
HP 1Gb Ethernet 4-port 331i Adapter
HP Smart Array P420i Controller
Eight (8) Hot-Plug (SFF) SAS/SATA Drive Bays
Seven (7) HDD blanks
Ten (10) USB ports
Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe .2.0 slot (1x4)
HP iLO Management Engine (standard)
Rack (5U) form factor
Sliding Rail Kit
SID module (standard)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 27
Page 28
HP ProLiant ML350p Gen8 Hot Plug 6 LFF Configure-to-order Rack Server
652064-B21
Includes:
HP Embedded 1 Gb Ethernet 4-port 331i Adapter
Embedded HP Smart Array P420i Controller
Six(6) Hot-Plug (LFF) SAS/SATA Drive Bays
Five(5) HDD blanks
Ten (10) USB ports
Eight (8) PCIe 3.0 slots (3x16, 1x8, 4x4), One (1) PCIe 2.0 slot (1x4)
HP iLO Management Engine (standard)
Rack (5U) form factor
Sliding Rail Kit
SID module (standard)
Step 2: Choose Required Options (only one of the following from each list unless otherwise
noted)
HP Processors
NOTE:
If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21
Entry Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1333MHz memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) FIO Processor
Kit
722284-L21
HP ML350p Gen8 Intel® Xeon® E5-2603v2 (1.8GHz/4-core/10MB/80W) FIO Processor
Kit
722285-L21
Base Processors - E5-2600 v2 series Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2640v2 (2.0GHz/8-core/20MB/95W) FIO Processor
Kit
709491-L21
HP ML350p Gen8 Intel® Xeon® E5-2630v2 (2.6GHz/6-core/15MB/80W) FIO Processor
Kit
709492-L21
HP ML350p Gen8 Intel® Xeon® E5-2620v2 (2.1GHz/6-core/15MB/80W) FIO Processor
Kit
709493-L21
HP ML350p Gen8 Intel® Xeon® E5-2630Lv2 (2.4GHz/6-core/15MB/60W) FIO Processor
Kit
722287-L21
Performance Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1866MHz DDR3 memory speeds
HP ML350p Gen8 Intel® Xeon® E5-2697v2 (2.7GHz/12-core/30MB/130W) FIO Processor
Kit
722301-L21
HP ML350p Gen8 Intel® Xeon® E5-2690v2 (3.0GHz/10-core/25MB/130W) FIO Processor
Kit
709486-L21
HP ML350p Gen8 Intel® Xeon® E5-2670v2 (2.5GHz/10-core/25MB/115W) FIO Processor
Kit
709488-L21
HP ML350p Gen8 Intel® Xeon® E5-2667v2 (3.3GHz/8-core/25MB/130W) FIO Processor
Kit
722303-L21
HP ML350p Gen8 Intel® Xeon® E5-2650v2 (2.6GHz/8-core/20MB/95W) FIO Processor
Kit
709490-L21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 28
Page 29
HP ML350p Gen8 Intel® Xeon® E5-2643v2 (3.5GHz/6-core/25MB/130W) FIO Processor
Kit
722304-L21
HP ML350p Gen8 Intel® Xeon® E5-2637v2 (3.5GHz/4-core/15MB/130W) FIO Processor
Kit
722305-L21
Entry Processors - E5-2600 series Processors
NOTE:
All support up to 1066MHz memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) FIO Processor Kit
660597-L21
HP ML350p Gen8 Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/80W) FIO Processor Kit
660595-L21
Base Processors - E5-2600 series Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/95W) FIO Processor Kit
660600-L21
HP ML350p Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) FIO Processor Kit
660599-L21
HP ML350p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) FIO Processor Kit
660598-L21
HP ML350p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) FIO Processor Kit
660607-L21
Performance Processors - E5-2600 series Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/135W) FIO Processor Kit
660605-L21
HP ML350p Gen8 Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/130W) FIO Processor Kit
660604-L21
HP ML350p Gen8 Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/115W) FIO Processor Kit
660603-L21
HP ML350p Gen8 Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/130W) FIO Processor Kit
660608-L21
HP ML350p Gen8 Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/115W) FIO Processor Kit
660596-L21
HP ML350p Gen8 Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/95W) FIO Processor Kit
660602-L21
HP ML350p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) FIO Processor Kit
660601-L21
HP ML350p Gen8 Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/70W) FIO Processor Kit
660606-L21
HP ML350p Gen8 Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/130W) FIO Processor Kit
678242-L21
HP ML350p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) FIO Processor Kit
678244-L21
HP Memory
NOTE:
HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be
mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM
and LRDIMM.
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708637-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713983-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
731765-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 29
Page 30
HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708639-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708641-B21
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713975-B21
HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708631-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713977-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708633-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713979-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708635-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669322-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 30
Page 31
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647909-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit
708643-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit
647903-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
Depending on the memory configuration and processor model, 1866MHz,
1600MHz, and 1333MHz memory may operate at a lower speed. Please see the see the
"Memory" section later in this document and the Online Memory Configuration Tool for
details at
www.hp.com/go/ddr3memory-configurator
.
HP Power Supplies
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies
inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum
Plus certified power supplies is not supported.
NOTE:
Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:
www.hp.com/go/hppoweradvisor
HP Common Slot Platinum Plus Power Supply Kits
NOTE:
The following Power Supplies offer 94% Efficiency with support for Intelligent
Power Discovery.
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit
656362-B21
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit
656363-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit
656364-B21
HP Common Slot Gold Power Supplies
NOTE:
The following Power Supplies offer up to 92% efficiency.
HP 460W Common Slot Gold Hot Plug Power Supply Kit
503296-B21
HP 750W Common Slot Gold Hot Plug Power Supply Kit
512327-B21
HP Common Slot -48VDC Power Supplies
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE:
The HP 750W Common Slot -48VDC power supply does not ship with a power
cable. It has been designed with a terminal block connection allowing for custom design
of power cords by the user.
636673-B21
Enablement Kit
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 31
Page 32
HP 4X1200W RPS FIO Enablement Kit
NOTE:
This kit Requires the selection of either 2 x 1200W power supply kits or 4 x
1200w power supply kits.
659487-B21
Step 3: Choose Additional Factory Integratable Options (only one of the following from each
list unless otherwise noted)
HP Graphics Options
HP 3rd FIO Graphic Card Power Cable Kit
NOTE:
This FIO kit only required when 3rd graphic card ordered.
700835-B21
HP SID Module
HP Systems Insight Display FIO Kit
NOTE:
Provides health status for key components (for CTO Tower Models only,
standard in Rack Models)
660583-B21
HP Insight Software
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License
C6N36A
Step 4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options" and "Additional Options" section below.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14226 North America — Version 41 — December 9, 2013
Page 32
Page 33
NOTE:
Some options may not be integrated at the factory. Contact your local sales representative for additional information.
HP Unique Options
HP Hot Plug Redundant Fan Kit
659486-B21
HP Tower to Rack Conversion Tray Kit
659488-B21
HP Security Bezel Kit
NOTE:
For restricting access to a rack model
660584-B21
HP Graphic Card Support Kit
NOTE:
The ML350p Gen8 supports up to 3 graphic cards. HP Graphic Card Support Kit
(660582-B21) will be required per Graphic Card HP 3rd Graphic Card Power Cable FIO Kit
(700835-B21) will be an additional request for the 3rd graphics card support
NOTE: Please see the HP Power Advisor for estimated power consumption of your
individual system configuration prior to installing GPUs. The HP Power Advisor is
located at:
www.hp.com/go/hppoweradvisor
.
660582-B21
HP ML350p Gen8 Smart Array Cable Kit
NOTE:
While P430 purchased, this option kit needs to be purchased.
725675-B21
HP Processors
Entry Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1333MHz memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit
722284-B21
HP ML350p Gen8 Intel® Xeon® E5-2603v2 (1.8GHz/4-core/10MB/80W) Processor Kit
722285-B21
Base Processors - E5-2600 v2 series Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2640v2 (2.0GHz/8-core/20MB/95W) Processor Kit
709491-B21
HP ML350p Gen8 Intel® Xeon® E5-2640v2 (2.0GHz/8-core/20MB/95W) Processor Kit/SBuy
709491-S21
HP ML350p Gen8 Intel® Xeon® E5-2630v2 (2.6GHz/6-core/15MB/80W) Processor Kit
709492-B21
HP ML350p Gen8 Intel® Xeon® E5-2620v2 (2.1GHz/6-core/15MB/80W) Processor Kit
709493-B21
HP ML350p Gen8 Intel® Xeon® E5-2620v2 (2.1GHz/6-core/15MB/80W) Processor Kit/SBuy
709493-S21
HP ML350p Gen8 Intel® Xeon® E5-2630Lv2 (2.4GHz/6-core/15MB/60W) Processor Kit
722287-B21
Performance Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1866MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2697v2 (2.7GHz/12-core/30MB/130W) Processor Kit
722301-B21
HP ML350p Gen8 Intel® Xeon® E5-2690v2 (3.0GHz/10-core/25MB/130W) Processor Kit
709486-B21
HP ML350p Gen8 Intel® Xeon® E5-2670v2 (2.5GHz/10-core/25MB/115W) Processor Kit
709488-B21
HP ML350p Gen8 Intel® Xeon® E5-2667v2 (3.3GHz/8-core/25MB/130W) Processor Kit
722303-B21
HP ML350p Gen8 Intel® Xeon® E5-2650v2 (2.6GHz/8-core/20MB/95W) Processor Kit
709490-B21
HP ML350p Gen8 Intel® Xeon® E5-2643v2 (3.3GHz/6-core/25MB/130W) Processor Kit
722304-B21
HP ML350p Gen8 Intel® Xeon® E5-2637v2 (3.5GHz/4-core/15MB/130W) Processor Kit
722305-B21
Entry Processors - E5-2600 series Processors
NOTE:
All support up to 1066MHz memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit
660597-B21
HP ML350p Gen8 Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/80W) Processor Kit
660595-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 33
Page 34
Base Processors - E5-2600 series Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/95W) Processor Kit
660600-B21
HP ML350p Gen8 Intel® Xeon® E5-2630 (2.30GHz/6-core/15MB/95W) Processor Kit
660599-B21
HP ML350p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) Processor Kit
660598-B21
HP ML350p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) Processor Kit
660607-B21
Performance Processors - E5-2600 series Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
HP ML350p Gen8 Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/135W) Processor Kit
660605-B21
HP ML350p Gen8 Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/130W) Processor Kit
660604-B21
HP ML350p Gen8 Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/115W) Processor Kit
660603-B21
HP ML350p Gen8 Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/130W) Processor Kit
660608-B21
HP ML350p Gen8 Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/115W) Processor Kit
660596-B21
HP ML350p Gen8 Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/95W) Processor Kit
660602-B21
HP ML350p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) Processor Kit
660601-B21
HP ML350p Gen8 Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/70W) Processor Kit
660606-B21
HP ML350p Gen8 Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/130W) Processor Kit
678242-B21
HP ML350p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) Processor Kit
678244-B21
Processor Upgrade Kit
HP ML350p Gen8ProcessorUpgrade Lever Kit
NOTE:
Customers who use ML350p Gen8 sandy bridge processors need to purchase
Heatsink lever upgrade kit 749245-B21 when plan to upgrade to Ivy bridge processor.
749245-B21
HP Memory
NOTE:
HP memory from previous generation servers are not qualified or warranted
with this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be
mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM
and LRDIMM.
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708637-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713983-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
731765-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708639-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 34
Page 35
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708641-B21
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit S-Buy
647893-S21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647895-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit S-Buy
647895-S21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit S-Buy
647897-S21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647899-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit S-Buy
647899-S21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit S-Buy
647901-S21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
672631-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit S-Buy
672631-S21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713975-B21
HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708631-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713977-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708633-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713979-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 35
Page 36
HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708635-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647905-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit S-Buy
647905-S21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647907-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit S-Buy
647907-S21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647909-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit
708643-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit
647903-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
Depending on the memory configuration and processor model, 1866MHz,
1600MHz, and 1333MHz memory may operate at a lower speed. Please see the see the
"Memory" section later in this document and the Online Memory Configuration Tool for
details at:
www.hp.com/go/ddr3memory-configurator
.
HP Optical Drives
HP Half-Height SATA DVD ROM JackBlack Optical Drive
624189-B21
HP Half-Height SATA DVD RW JackBlack Optical Drive
624192-B21
NOTE:
A total of two optical drives can be added. A second and third optical drive
requires the HP 2nd Media Bay Cage Kit (Part Number 661618-B21).
HP Hard Drives
NOTE:
The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 36
Page 37
components.
NOTE:
Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard
Drive
718162-B21
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
697574-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652589-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652589-S21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652583-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652583-S21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652572-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652564-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652564-S21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652611-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652611-S21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652605-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652605-S21
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
652749-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
652745-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive
652620-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive
652615-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
695510-B21
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652766-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652757-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652753-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
655710-B21
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
655710-S21
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
655708-B21
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
655708-S21
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
693687-B21
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
628061-B21
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
658079-B21
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
657750-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 37
Page 38
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
657750-S21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
658071-B21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
658071-S21
NOTE:
SATA hard drives have a 1-year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
718171-B21
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
734362-B21
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State
Drives
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739898-B21
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739888-B21
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State
Drive
718189-B21
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739900-B21
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State
Drive
718183-B21
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739890-B21
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State
Drive
718177-B21
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691868-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691866-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691864-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691862-B21
6G SATA ME Hot Plug SFF (3.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691860-B21
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691856-B21
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691854-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 38
Page 39
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691852-B21
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
690829-B21
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
690827-B21
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
690825-B21
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive
653082-B21
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive
653078-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html
Hard Drive Kits
NOTE:
All Factory Integrated Models will be populated with sufficient hard drive blanks
based on the number of initial hard drives ordered with the server.
HP 2nd Media Bay Cage Kit
661618-B21
HP 5U 6 Large Form Factor (LFF) Hot Plug Drive Cage Kit
659485-B21
HP 5U 8 Small Form Factor (SFF) Hot Plug Drive Cage Kit
659484-B21
HP 5U 6 LFF Expander Hard Drive Cage Kit
661717-B21
HP 5U 8 SFF Expander Hard Drive Cage Kit
661714-B21
HP SFF Gen8 Hard Drive Blank Kit
666987-B21
HP LFF Gen8 Hard Drive Blank Kit
666986-B21
NOTE:
Mixing of SFF and LFF drive cages is not allowed.
NOTE:
Additional Hot Plug Drive Cages require a separate Smart Array controller for
each drive cage. HP recommends the HP Smart Array P420/1GB FBWC 6Gb 2-ports Int
SAS Controller (P/N 631670-B21).
NOTE:
Expander HDD Cage Kit allows up to 18 LFF / 24 SFF HDDs managed under one
single controller. The controller must have a minimum of 512MB FBWC module
installed.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 39
Page 40
HP Networking
Gigabit Ethernet adapters
HP NC112T PCI Express Gigabit Server Adapter
503746-B21
HP NC365T 4-port Ethernet Server Adapter
593722-B21
HP Ethernet 1Gb 4-port 331T Adapter
647594-B21
HP Ethernet 1Gb 2-port 332T Adapter
615732-B21
HP Ethernet 1Gb 2-port 361T Adapter
652497-B21
10 Gigabit Ethernet adapters
HP NC523SFP 10Gb 2-port Server Adapter
593717-B21
HP Ethernet 10Gb 2-port 530SFP Adapter
652503-B21
HP Ethernet 10Gb 2-port 530T Adapter
656596-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter
614203-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter
665249-B21
HP Ethernet 10Gb 2-port 561T Adapter
716591-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
www.hp.com/go/ProLiantNICs
HP InfiniBand
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA
583211-B21
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html
HP Power Supplies
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies
inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum
Plus certified power supplies is not supported.
NOTE:
Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:
www.hp.com/go/hppoweradvisor
HP Common Slot Platinum Plus Power Supply Kits
NOTE:
The following Power Supplies offer 94% Efficiency with support for Intelligent
Power Discovery.
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit
656362-B21
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit
656363-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit
656364-B21
HP Common Slot Gold Power Supplies
NOTE:
The following Power Supplies offer up to 92% efficiency.
HP 460W Common Slot Gold Hot Plug Power Supply Kit
503296-B21
HP 750W Common Slot Gold Hot Plug Power Supply Kit
512327-B21
HP Common Slot -48VDC Power Supplies
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE:
The HP 750W Common Slot -48VDC power supply does not ship with a power
cable. It has been designed with a terminal block connection allowing for custom design
of power cords by the user.
636673-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 40
Page 41
NOTE:
Option Kits for AC power supplies include the power supply and one PDU IEC
cable.
NOTE:
Power Specification and Technical Content for supported power supplies can be
found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
HP Cooling Options
HP Hot Plug Redundant Fan Kit
659486-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Core Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 41
Page 42
NOTE:
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software
HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License
C6N27A
HP Insight Control including 1yr 24/7 Technical Support and Updates Single Server
License/S-Buy
C6N27S
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic
License/S-Buy
C6N28ASE
HP Insight Control Server Provisioning Media Kit
BD883A
HP Insight Management Media Kit
C6N31A
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License
T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License
452151-B21
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.
NOTE:
Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE:
Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at:
http://www.hp.com/go/insightupdates
.
NOTE:
For additional license options please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Integrated Lights-Out (iLO) Advanced for ProLiant
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server
License
512485-B21
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates
BD505A
NOTE:
For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_na/14276_na.html
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
High Performance
Clusters
HP Insight Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License
QL803B
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
BD476A
NOTE:
These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.
HP Insight Cluster Management Utility Media
BD477A
NOTE:
For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 42
Page 43
HP I/O Accelerator
Options
Second Generation Accelerators
HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673642-B21
HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673644-B21
HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673646-B21
HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers
673648-B21
HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers
721458-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13587_na/13587_na.html
HP PCIe Workload
Accelerator Options
Mainstream Endurance (ME) PCIe Workload Accelerators
HP 1.4TB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator
729307-B21
HP 700GB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator
729305-B21
High Endurance (HE) PCIe Workload Accelerators
HP 700GB HH/HL High Endurance (HE) PCIe Workload Accelerator
708090-B21
HP 350GB HH/HL High Endurance (HE) PCIe Workload Accelerator
708088-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14528_na/14528_na.html
HP Graphics Options
NOTE:
Only the below listed Graphics cards are HP standard supported options in this
server.
NOTE:
The ML350p Gen8 supports up to 3 graphic cards. HP Graphic Card Support Kit
(660582-B21) will be required per Graphic Card.
NOTE:
Please see the HP Power Advisor for estimated power consumption of your
individual system configuration prior to installing GPUs. The HP Power Advisor is
located at:
www.hp.com/go/hppoweradvisor
.
HP Graphic Card Support Kit
660582-B21
NVIDIA Quadro K4000 PCI-E Graphics Adapter
730870-B21
NOTE:
Min/Max rule does not apply to this option. However maximum of Three HP
Graphic Card Support Kit can be selected. This Graphic Card Support Kit must be
selected along with Graphic cards only.
NOTE:
OS support only with 64-bit Only: Red Hat Enterprise Linux 5.x, Red Hat
Enterprise Linux 6.x, SUSE Linux Enterprise Server 11 SPx , 64-bit Only: Windows Server
2008 R2 SPx.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 43
Page 44
HP Security
HP Trusted Platform Module Option
NOTE:
The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM
.
NOTE:
ProLiant OS pre-installed units will come with the partition required for TPM
deployment.
NOTE:
The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
488069-B21
HP Security Bezel Kit
NOTE:
For restricting access to a rack model
660584-B21
HP Storage Controllers
SAS Controllers
HP Smart Array P420 Controller
HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller
631671-B21
HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller
631670-B21
HP Smart Array P421 Controller
HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller
631674-B21
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller
631673-B21
Smart Array P430 Controller
HP Smart Array P430/2GB FBWC 6Gb 1-port Int SAS Controller
698529-B21
Smart Array P431 Controller
HP Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller
698531-B21
HP Smart Array P822 Controller
HP Smart Array P822/2GB FBWC 2-ports Int/4-ports Ext SAS Controller
615418-B21
Optional Upgrades
HP 1GB P-series Smart Array Flash Backed Write Cache
631679-B21
HP 2GB P-series Smart Array Flash Backed Write Cache
631681-B21
HP 512MB P-series Smart Array Flash Backed Write Cache
661069-B21
HP SmartCache Nm 24x7 Supp 1 Svr Lic
D7S26A
HP SmartCache Nm 24x7 Supp Flex Lic
D7S27A
HP SmartCache Nm 24x7 Supp E-LTU
D7S27AAE
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14228_na/14228_na.html
(Smart Array P420 Controller)
http://h18000.www1.hp.com/products/quickspecs/14229_na/14229_na.html
(Smart Array P421 Controller)
http://h18000.www1.hp.com/products/quickspecs/14624_na/14624_na.html
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 44
Page 45
(Smart Array P430 Controller)
http://h18000.www1.hp.com/products/quickspecs/14625_na/14625_na.html
(Smart Array P431 Controller)
http://h18000.www1.hp.com/products/quickspecs/14341_na/14341_na.html
(Smart Array P822 Controller)
http://h18000.www1.hp.com/products/quickspecs/14532_na/14532_na.html
(SmartCache)
HP Host Bus Adapters
HP H220 Host Bus Adapter
650933-B21
HP H221 Host Bus Adapter
650931-B21
HP H221 PCIe 3.0 SAS HBA
729552-B21
HP H222 Host Bus Adapter
650926-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/14336_na/14336_na.html
(HBA 220)
http://h18004.www1.hp.com/products/quickspecs/14222_na/14222_na.html
(HBA 221)
http://h18004.www1.hp.com/products/quickspecs/14337_na/14337_na.html
(HBA 222)
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
412911-B21
NOTE:
Supports external drive attach
NOTE:
Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html
HP Tape Backup
NOTE:
For the complete range of tape drives, autoloaders, libraries and media see:
http://www.hp.com/go/tape
. For hardware and software compatibility of HP tape
backup products see:
http://www.hp.com/storage/SPOCK
and
www.hp.com/go/ebs
.
NOTE:
Installation of tape drive requires ordering of 2nd Media Bay Cage, Part Number
661618-B21.
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit
C0L99A
HP StoreEver LTO-6 Ultrium 6650 Internal Tape Drive
EH963A
HP StoreEver LTO-6 Ultrium 6650 External Tape Drive
EH964A
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive
EH969A
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive
EH970A
HP 1/8 G2 LTO-6 Ult 6250 FC Autoloader
C0H19A
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 45
Page 46
HP Tape Storage Systems
HP StoreEver MSL6480
HP StoreEver MSL6480 Base Module
QU625A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14604_na/14604_na.html
HP Disk Backup
NOTE:
For the complete range of RDX drives and media see:
http://www.hp.com/go/rdx
. For hardware and software compatibility of HP disk backup
products see:
http://www.hp.com/storage/SPOCK
.
HP StoreOnce Backup systems
HP StoreOnce 2620 iSCSI Backup
BB852A
HP StoreOnce 4220 Backup
BB855A
HP RDX Removable Disk Backup Systems USB
HP RDX320 USB3.0 External Disk Backup System
B7B63A
HP RDX500 USB3.0 Internal Disk Backup System
B7B64A
HP RDX500 USB3.0 External Disk Backup System
B7B66A
HP RDX1000 USB3.0 Internal Disk Backup System
B7B67A
HP RDX1000 USB3.0 External Disk Backup System
B7B69A
NOTE:
Please see the following QuickSpecs for additional models and information:
http://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html
HP Disk Storage Systems
Disk Enclosures
HP D2600 4TB 6G SAS LFF MDL 48TB Bndl
E7W32A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html
HP Storage Options
NOTE:
The following is a list of all Fibre Channel Host Bus Adapters for Windows and
Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
NOTE:
HP ProLiant ML350p Gen8 Server series limited support for Red Hat Enterprise
Linux 5.7 (x86and x86_64) when installing with Brocade HBAs.
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AP770B
Emulex Fibre Channel HBAs
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AJ762B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ763B
HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter
QR558A
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter
QR559A
HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter
C8R38A
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 46
Page 47
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter
C8R39A
QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ764A
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter
QW971A
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter
QW972A
Converged Network Adapter
HP CN1000Q Dual Port Converged Network Adapter
BS668A
HP CN1100E Dual Port Converged Network Adapter
BK835A
HP StoreFabric CN1100R Dual Port Converged Network Adapter
QW990A
HP Uninterruptible Power
Systems
HP Tower UPS
HP T1000 G3 UPS Models
HP T1000 G3 1000VA NA Tower Uninterruptible Power System
AF448A
HP T1500 G3 UPS Models
HP T1500 G3 1400VA NA Tower Uninterruptible Power System
AF450A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_na/13160_na.html
HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power System
AF469A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_na/14059_na.html
HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System
AF466A
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System
AF467A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_na/14058_na.html
R5000 Uninterruptible Power System (UPS)
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System
AF460A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_na/14109_na.html
R7000 Uninterruptible Power System (UPS)
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System
AF462A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_na/14110_na.html
NOTE:
For additional information on sizing your HP UPS, please reference:
http://www.upssizer.com
NOTE:
Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link:
www.hp.com/products/powercords
.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 47
Page 48
NOTE:
For additional information on HP Uninterruptible Power Systems please go to:
www.hp.com/servers/rackups
.
HP Basic Power
Distribution Units
(bPDU)
HP Basic Power Distribution Unit: 1U/0U Version
HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit
H5M54A
HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit
H5M56A
HP Basic Power Distribution Unit: Half Height Version
HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit
H5M55A
HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit
H5M57A
HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit
H5M58A
HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit
H5M61A
HP Basic Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit
H5M59A
HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit
H5M60A
HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit
H5M75A
HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit
H5M63A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit
H5M64A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit
H5M62A
HP Basic Power Distribution Unit: Full Height Version
HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit
H5M67A
HP Basic Power Distribution Unit: 480/277 Volt Version
HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit
H3X07A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit
H3X08A
HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer
H3X09A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14557_na/14557_na.html
NOTE:
Additional HP Power Distribution Units are available. For a complete list of all HP
PDUs and additional information please visit
www.hp.com/go/rackandpower
.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 48
Page 49
HP Remote Monitoring
Power Distribution Units
(mPDU)
HP Remote Monitored Power Distribution Unit: 1U Version
HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit
D9N43A
HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit
D9N46A
HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit
D9N44A
HP Remote Monitored Power Distribution Unit: Half Height Version
HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit
D9N45A
HP Remote Monitored Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit
D9N47A
HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit
D9N51A
HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit
D9N52A
HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit
D9N53A
HP Remote Monitored Power Distribution Unit: Full Height Version
HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit
D9N49A
HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit
D9N58A
HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit
D9N61A
HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit
D9N54A
HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit
D9N59A
HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit
D9N62A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit
D9N63A
HP Environmental Sensor for Remote Monitored PDUs
HP Environmental Sensor for Remote Monitored PDUs
E2D53A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14669_na/14669_na.html
HP Intelligent Power
Distribution Units (iPDU)
iPDU Core Units
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF520A
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF521A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF522A
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit
AF533A
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF523A
HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit
AF902A
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF535A
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF537A
iPDU Kits with Standard Extension Bars
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit
AF531A
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit
AF532A
iPDU Extension Bars
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 49
Page 50
HP 5xC13 Intelligent PDU Extension Bar G2 Kit
AF547A
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar
AF528A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13650_na/13650_na.html
NOTE:
Additional HP Power Distribution Units are available. For a complete list of all HP
PDUs and additional information please visit:
www.hp.com/go/rackandpower
.
HP Rack Series
HP Intelligent Series Rack
HP 636 1075mm Pallet Intelligent Series Rack
BW895A
HP 636 1075mm Shock Intelligent Series Rack
BW896A
HP 642 1075mm Pallet Intelligent Series Rack
BW903A
HP 642 1075mm Shock Intelligent Series Rack
BW904A
HP 647 1075mm Pallet Intelligent Series Rack
BW911A
HP 647 1075mm Shock Intelligent Series Rack
BW912A
NOTE:
Please see the QuickSpecs for Technical Specifications such as height, width,
depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/14223_na/14223_na.html
NOTE:
For additional information regarding Rack Cabinets, please see the following
URL:
http://www.hp.com/go/rackandpower
.
HP Rack Options
HP Location Discovery Services
HP 36U Location Discovery Kit
BW945A
HP 42U Location Discovery Kit
BW946A
HP 47U Location Discovery Kit
BW947A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14429_na/14429_na.html
HP USB Keyboard and Mouse
HP USB BFR with PVC Free US Keyboard/Mouse Kit
631341-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13792_na/13792_na.html
HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor
HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor
AZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor
AZ885A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html
HP Server Console Switches
HP Server Console 0x2x8 Port Analog Switch
AF616A
HP Server Console 0x2x16 Port Analog Switch
AF617A
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 50
Page 51
HP TAA 0x2x16xKVM Server Console G2 Switch
AF626A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11834_na/11834_na.html
HP Server Console Switch G2 with Virtual Media & CAC
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software
AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software
AF619A
HP KVM CAT5 1-pack USB Interface Adapter
336047-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13475_na/13475_na.html
HP IP Console Switch G2 with Virtual Media & CAC
HP 1x4 USB/PS2 KVM Console Switch
AF611A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software
AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software
AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software
AF622A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13474_na/13474_na.html
Rack Kits
HP Tower to Rack Conversion Tray Kit
659488-B21
HP USB and SD Options
HP Flash Media Kits for USB Drives
HP 2GB USB Flash Media Drive Key Kit
NOTE:
HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device must be
installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to
HP VMware Getting Started Guide for installation instructions
608447-B21
HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HP Enterprise Performance Flash Media Kits for Memory Cards
HP 32GB SD Enterprise Mainstream Flash Media Kit
700136-B21
HP Enterprise Mainstream Flash Media Kits for Memory Cards
HP 8GB SD Enterprise Mainstream Flash Media Kit
726113-B21
NOTE:
Blank SD media device is supported for use with VMware and Citrix. SD media
must be installed in the internal slot of the ProLiant server. Learn more at:
http://www.hp.com/go/proliantvirtualization
.
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13971_na/13971_na.html
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 51
Page 52
HP Care Pack Services
Proactive Care
NOTE:
Collaborative Support plus Proactive services delivered by the onshore, local
language Advanced Solution Center (ASC), end-to-end case ownership from a Technical
Solution Specialists and Technical Account Manager who remotely delivers
firmware/software revision management, proactive scans and incident trend reports.
Recommended for customers running a virtualized infrastructure and/or customers
who desire an enhanced call support experience.
HP 3 year 4 hour 24x7 ProLiant ML350(p) Proactive Care Service
U3A78E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant ML350(p) Proactive Care
Service
U3A81E
HP 3 year 6 hour Call To Repair 24x7 ProLiant ML350(p) Proactive Care Service
U3A84E
HP 3 year 6 hour Call To Repair 24x7 with Defective Media Retention ProLiant ML350(p)
Proactive Care SVC
U3A87E
HP 3 year 4 hour 24x7 ProLiant ML350(p) with Insight Control Proactive Care Service
U3N77E
HP 3 year 4hr 24x7 with Defective Media Retention ML350(p) with Insight Control
Proactive Care SVC
U3N80E
HP 3 year 6 hour Call To Repair 24x7 ProLiant ML350(p) with Insight Control Proactive
Care Service
U3N83E
HP 3yr 6hrCallToRepair 24x7w/Defective Media Retention ML350(p) w/Insight Control
Proactive Care SVC
U3N86E
Proactive Care Personalized Support Option
NOTE:
To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an
assigned resource who delivers support planning and brings technical expertise and
best practices advices for the customer's environment.
HP 3 year ISS ProactiveCare Personalized Support
U6W98E
Installation Services
NOTE:
Reduce the time required to get your system up and running and help minimize
disruptions to your business.
HP Install ProLiant ML350(p) Service
U4522E
HP Startup ProLiant ML350(p) Service
U4523E
NOTE:
For more information, customer/resellers can contact:
http://www.hp.com/services/carepack
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Additional Options
DA - 14226 North America — Version 41 — December 9, 2013
Page 52
Page 53
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
DDR3 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
General Guidelines:
White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
To maximize performance, balance the total memory capacity between all installed processors
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest from the processor
Do not mix UDIMMs, RDIMMs or LRDIMMs
Quad rank LR DIMMs are supported at 3 DIMMs per channel.
DIMMs of different voltages (1.35V & 1.5V) may be mixed in any order
The system will power them at the higher voltage
DIMMs of different speed grades may be mixed in any order
The system will select a common optimal speed
Memory speed is a function of the processor QPI bus speed.
Population Guidelines:
There are four (4) channels per processor; eight (8) channels per server
There are three (3) DIMM slots for each memory channel; twenty-four (24) total slots
Memory channels1 and 3 consists of the three (3) DIMMs that are furthest from the processor
Memory channel 2 and 4 consists of the three (3) DIMMs that are closest to the processor
ML350p Gen8-IVB Supported Memory Bandwidth and Capacity -- Treaty
DIMM
Type
Registered DIMMS (RDIMMs)
Load
Reduced
(LRDIMMs)
Unbuffered with ECC DIMMs (UDIMMs)
DIMM
Rank
Single Rank (1R)
Dual Rank (2R)
Quad Rank
(4R)
Single Rank
(1R)
Dual Rank (2R)
DIMM
Capacity
4GB 4GB 8GB 8GB 8GB 8GB
16GB 16GB 32GB
2GB 2GB 4GB 4GB 8GB 8GB
DIMM
Native
Speed
(MHz)
1600 1866 1600 1866 1600 1866 1600 1866 1866 1600 1866 1600 1866 1600 1866
Voltage
LV
Std
LV
Std
LV
Std
LV
Std Std
LV
Std
LV
Std
LV
Std
SLOTS THAT CAN BE POPULATED
24 slot
servers
24 24 24 24 24 24 24 24 24 16 16 16 16 16 16
MAXIMUM CAPACITY (GB)
*
24 slot
servers
96 96 192 192 192 192 384 384 768 32 32 64 64 128 128
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 53
Page 54
POPULATED DIMM SPEED (MHz)
1 DIMM
Per
Channel
1600 1866 1600 1866 1600 1866 1600 1866 1866
**
1600 1866 1600 1866 1600 1866
2 DIMM
Per
Channel
1600 1866 1600 1866 1600 1866 1600 1866 1600
**
1600 1866
***
1600 1866
***
1600
1866***
3 DIMM
Per
Channel
800 1066 800 1066 800 1066 800 1066 1333
**
n/a n/a n/a n/a n/a n/a
NOTES:
Memory speed is a function of the processor QPI bus speed.
To realize the performance memory capabilities listed above HP SmartMemory is required.
* Maximum capacity will vary based on individual server platform qualification schedule
** For HP SmartMemory RDIMM supports up to 3DPC@1066 at 1.35V. Third party memory may only support up to 3DPC@1066 at 1.5V.
*** LRDIMM enables 3 DIMMs per channel. HP SmartMemory will supports up to 3DPC@DDR3-1066 at 1.35V. Third party memory may
only support 3DPC @DDR3-1066 at 1.5V.
**** For HP SmartMemory, UDIMM is, supported at 2DPC@1333. Third party memory may only support up to 2DPC@1066.
## RBSU setting required
ML350p Gen8-IVB Supported Memory Bandwidth and Capacity
DIMM
Type
Registered DIMMS (RDIMMs)
Load
Reduced
(LRDIMMs)
Unbuffered with ECC DIMMs (UDIMMs)
DIMM
Rank
Single Rank (1R)
Dual Rank (2R)
Quad Rank
(4R)
Single Rank (1R)
Dual Rank (2R)
DIMM
Capacity
4GB 4GB 8GB 8GB 8GB
16GB 16GB 32GB
2GB 2GB 4GB 4GB 8GB 8GB
DIMM
Native
Speed
(MHz)
1333 1600 1600 1333 1600 1333 1600 1333 1333 1600 1333 1600 1333 1600
Voltage
LV
Std Std
LV
Std
LV
Std
LV LV
Std
LV
Std
LV
Std
SLOTS THAT CAN BE POPULATED
24 slot
servers
24 24 24 24 24 24 24 24 16 16 16 16 16 16
MAXIMUM CAPACITY (GB)
*
24 slot
servers
96 96 192 192 192 384 384 768 32 32 64 64 128 128
POPULATED DIMM SPEED (MHz)
1 DIMM
Per
Channel
1333 1600 1600 1333 1600 1333 1600 1333
**
1333 1600 1333 1600 1333 1600
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 54
Page 55
2 DIMM
Per
Channel
1333 1600 1600 1333 1600 1333 1600 1333**1333
***
1600 1333
***
1600 1333
***
1600
3 DIMM
Per
Channel
800 1066 1066 800 1066 800 1066 1066
n/a n/a n/a n/a n/a n/a
NOTES:
Memory speed is a function of the processor QPI bus speed.
To realize the performance memory capabilities listed above HP SmartMemory is required.
* Maximum capacity will vary based on individual server platform qualification schedule
** LRDIMM enables 3 DIMMs per channel. HP SmartMemory will supports up to 3DPC@DDR3-1066 at 1.35V. Third party memory may
only support 3DPC @DDR3-1066 at 1.5V.
*** For HP SmartMemory, UDIMM is, supported at 2DPC@1333. Third party memory may only support up to 2DPC@1066.
Memory Speed by Processor Model
Processor Models
Supported Memory Speeds
E5-2680, E5-2670, E5-2667, E5-2665, E5-2660, E5-2650, E5-2650L, E5-2637
1600/1333/1066MHz
E5-2640, E5-2630, E5-2630L, E5-2620
1333/1066MHz
E5-2609, E5-2603
1066MHz
E5-2697 v2, E5-2690 v2, E5-2670 v2, E5-2667 v2, E5-2650 v2, E5-2643 v2, E5-2637
v2
1866/1600/1333/1066MHz
E5-2640 v2, E5-2630 v2, E5-2630L v2, E5-2620 v2
1600/1333/1066MHz
E5-2609 v2, E5-2603 v2
1333/1066MHz
Standard and Maximum Memory Capacity (Pre-configured Models)
Pre Configured Models
Standard Memory
Maximum Memory Plus
Optional Memory
Standard Memory Replaced with Optional
Memory
Intel Xeon E5-2640
16GB (4x 4GB)
336GB (20x16GB, 4x4GB)
768GB (24 x 32GB)
Intel Xeon E5-2620
8GB (2x 4GB)
360GB (22x16GB, 2x4GB)
768GB (24 x 32GB)
Intel Xeon E5-2603
4GB (1x 4GB)
372GB (23x16GB, 1x4GB)
768GB (24 x 32GB)
Intel Xeon E5-2640 v2
16GB (2x 8GB)
336GB (20x16GB, 4x4GB)
768GB (24 x 32GB)
Intel Xeon E5-2620 v2
8GB (1x 8GB)
360GB (22x16GB, 2x4GB)
768GB (24 x 32GB)
Intel Xeon E5-2609 v2
4GB (1x 4GB)
372GB (23x16GB, 1x4GB)
768GB (24 x 32GB)
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second, "C" third, etc.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 55
Page 56
24 DIMM SLOTS (12 per CPU node)
slot #
population order
slot #
population order
Chnl 1
1
A
1
A
Chnl 1
2
I
2
I
3
E
3
E
Chnl 2
4
B
4
B
Chnl 2
5
F
5
F
6
J
6
J
Processor 1 Processor 2
Chnl 4
7
L
7
L
Chnl 4
8
H
8
H
9
D
9
D
Chnl 3
10
K
10
K
Chnl 3
11
G
11
G
12
C
12
C
Standard memory configuration (1 CPU model)
16GB, consisting of two (2) 8GB dual-rank PC3L-10600R-9 RDIMMs (Base Model)
slot #
population order
slot #
population order
Chnl 1
1
A; 8GB RDIMM
1
A; empty
Chnl 1
2
E; empty
2
E; empty
3
I; empty
3
I; empty
Chnl 2
4
B; 8GB RDIMM
4
B; empty
Chnl 2
5
F; empty
5
F; empty
6
J; empty
6
J; empty
Processor 1 Processor 2
Chnl 4
7
l; empty
7
L; empty
Chnl 4
8
H; empty
8
H; empty
9
D; empty
9
D; empty
Chnl 3
10
K; empty
10
K; empty
Chnl 3
11
G; empty
11
G; empty
12
C; empty
12
C; empty
Standard memory plus optional memory (1 CPU model)
48GB, consisting of two (2) 4GB RDIMMs plus ten (10) 4GB RDIMMs (Base Model)
12x 4GB dual-rank PC3L-10600R-9 RDIMMs
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 56
Page 57
slot #
population order
slot #
population order
Chnl 1
1
A; 4GB RDIMM
1
A; empty
Chnl 1
2
E; 4GB RDIMM
2
E; empty
3
I; 4GB RDIMM
3
I; empty
Chnl 2
4
B; 4GB RDIMM
4
B; empty
Chnl 2
5
B; 4GB RDIMM
5
F; empty
6
J; 4GB RDIMM
6
J; empty
Processor 1 Processor 2
Chnl 4
7
L; 4GB RDIMM
7
L; empty
Chnl 4
8
H; 4GB RDIMM
8
H; empty
9
D; 4GB RDIMM
9
D; empty
Chnl 3
10
K; 4GB RDIMM
10
K; empty
Chnl 3
11
G; 4GB RDIMM
11
G; empty
12
C; 4GB RDIMM
12
C; empty
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration (1 CPU model)
192GB, consisting of twelve (12) 16GB dual-rank PC3L-10600R-9 RDIMMs
slot #
population order
slot #
population order
Chnl 1
1
A; 16GB RDIMM
1
A; empty
Chnl 1
2
E; 16GB RDIMM
2
E; empty
3
I; 16GB RDIMM
3
I; empty
Chnl 2
4
B; 16GB RDIMM
4
B; empty
Chnl 2
5
F; 16GB RDIMM
5
F; empty
6
J; 16GB RDIMM
6
J; empty
Processor 1 Processor 2
Chnl 4
7
L; 16GB RDIMM
7
L; empty
Chnl 4
8
H; 16GB RDIMM
8
H; empty
9
D; 16GB RDIMM
9
D; empty
Chnl 3
10
K; 16GB RDIMM
10
K; empty
Chnl 3
11
G; 16GB RDIMM
11
G; empty
12
C; 16GB RDIMM
12
C; empty
UDIMM maximum configuration (1 CPU model)
64GB, consisting of eight (8) 8GB dual-rank PC3L-10600E-9 UDIMMs
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 57
Page 58
slot #
population order
slot #
population order
Chnl 1
1
A; 8GB UDIMM
1
A; empty
Chnl 1
2
E; 8GB UDIMM
2
E; empty
3
I; empty
3
I; empty
Chnl 2
4
B; 8GB UDIMM
4
B; empty
Chnl 2
5
F; 8GB UDIMM
5
F; empty
6
J; empty
6
J; empty
Processor 1 Processor 2
Chnl 4
7
L; empty
7
L; empty
Chnl 4
8
H; 8GB UDIMM
8
H; empty
9
D; 8GB UDIMM
9
D; empty
Chnl 3
10
K; empty
10
K; empty
Chnl 3
11
G; 8GB UDIMM
11
G; empty
12
C; 8GB UDIMM
12
C; empty
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration (2 CPU model)
768GB, consisting of twenty four (24) 32GB quad-rank PC3L-10600LR-9 RDIMMs
slot #
population order
slot #
population order
Chnl 1
1
A; 32GB RDIMM
1
A; 32GB RDIMM
Chnl 1
2
E; 32GB RDIMM
2
E; 32GB RDIMM
3
I; 32GB RDIMM
3
I; 32GB RDIMM
Chnl 2
4
B; 32GB RDIMM
4
B; 32GB RDIMM
Chnl 2
5
F; 32GB RDIMM
5
F; 32GB RDIMM
6
J; 32GB RDIMM
6
J; 32GB RDIMM
Processor 1 Processor 2
Chnl 4
7
L; 32GB RDIMM
7
L; 32GB RDIMM
Chnl 4
8
H; 32GB RDIMM
8
H; 32GB RDIMM
9
D; 32GB RDIMM
9
D; 32GB RDIMM
Chnl 3
10
K;32GB DIMM
10
K;32GB DIMM
Chnl 3
11
G;32GB DIMM
11
G;32GB DIMM
12
C;32GB DIMM
12
C;32GB DIMM
UDIMM maximum configuration (2 CPU model)
128GB, consisting of sixteen (16) 8GB dual-rank PC3L-10600E-9 UDIMMs
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 58
Page 59
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
A; 8GB UDIMM
1
A; 8GB UDIMM
Chnl 1
2
E; 8GB UDIMM
2
E; 8GB UDIMM
3
I; empty
3
I; empty
Chnl 2
4
B; 8GB UDIMM
4
B; 8GB UDIMM
Chnl 2
5
F; 8GB UDIMM
5
F; 8GB UDIMM
6
J; empty
6
J; empty
Processor 1 Processor 2
Chnl 4
7
L; empty
7
L; empty
Chnl 4
8
H; 8GB UDIMM
8
H; 8GB UDIMM
9
D; 8GB UDIMM
9
D; 8GB UDIMM
Chnl 3
10
K; empty
10
K; empty
Chnl 3
11
G; 8GB UDIMM
11
G; 8GB UDIMM
12
C; 8GB UDIMM
12
C; 8GB UDIMM
NOTE:
Capacity references are rounded to the common Gigabyte values.
1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
16GB = 16384MB
32GB = 32768MB
DDR3 memory options part number decoder
Following are memory options available from HP:
HP Memory
NOTE:
HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 59
Page 60
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be
mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM
and LRDIMM.
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708637-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713983-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
731765-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708639-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708641-B21
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713975-B21
HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708631-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713977-B21
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 60
Page 61
HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708633-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713979-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708635-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647909-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit
708643-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit
647903-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
Depending on the memory configuration and processor model, 1600MHz and
1333MHz memory may operate at a lower speed. Please see the see the "Memory"
section later in this document and the Online Memory Configuration Tool for details at
www.hp.com/go/ddr3memory-configurator
.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Memory
DA - 14226 North America — Version 41 — December 9, 2013
Page 61
Page 62
1 - 12
12 x 3.5" (LFF) Hot-Plug SAS/SATA hard drive
bays
NOTE:
Optional 2nd hard drive cage shown in
configuration.
A
Optical Drive
B-C
Available half height media bays, for up to two
half height optical/tape drives or a single full
height tape drive, or both can be populated with
a third hard drive cage
1-16
16 x 2.5" (SFF) Hot-Plug SAS/SATA hard drive
bays
NOTE:
Optional 2nd hard drive cage shown in
configuration
A
Optical Drive
B-C
Available half height media bays, for up to two
half height optical/tape drives or a single, full
height tape drives, or both can be populated
with a third hard drive cage
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Storage
DA - 14226 North America — Version 41 — December 9, 2013
Page 62
Page 63
System Unit
Tower Dimensions
(H x W x D)
(with feet/bezel)
18.19 x 8.58 x 29.13 in (46.2 x 21.8 x 74.0 cm)
Rack Dimensions
(H x W x D)
(with feet/bezel)
8.58 x 19.0 x 28.83 in. (21.8 x 48.26 x 73.22cm)
Tower Weight
(approximate)
Maximum
(all hard drives, power
supplies, and processors
installed)
114.84 lb (52.09 kg)
Minimum
(one hard drive, power
supply, and processor
installed)
70.33 lb (31.9 kg)
Rack Weight
(approximate)
Maximum
(all hard drives, power
supplies, and processors
installed)
110.36 lb (50.06 kg)
Minimum
(one hard drive, power
supply, and processor
installed)
60.91 lb (27.63 kg)
Input Requirements
(per power supply)
Rated Line Voltage
100 to 240 VAC
Rated Input Current
7.1 Amps (at 120VAC) to 3.5 Amps (at 240 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
852 W
BTU Rating
Maximum
460W - 1773 BTU / hr (at 120 VAC), 1715 (at 240
VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at 240
VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600 (at 240
VAC)
Power Supply Output
(per power supply)
Rated Steady-State Power
460(750) W (at 100 VAC),
460(750) W (at 200 VAC)
Maximum Peak Power
460(750) W (at 100 VAC),
460(750) W (at 200 VAC)
System Inlet
Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3048 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Technical Specifications
DA - 14226 North America — Version 41 — December 9, 2013
Page 63
Page 64
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, noncondensing.
Altitude
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
Idle
L
WAd
3.9 Bels (1P Non-Redundant)
4.2 Bels (2P Redundant)
L
pAm
22 dBA (1P Non-Redundant)
24 dBA (2P Redundant)
Operating
L
WAd
4.0 Bels (1P Non-Redundant)
4.8 Bels (2P Redundant)
L
pAm
22 dBA (1P Non-Redundant)
30 dBA (2P Redundant)
NOTE:
The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Emissions Classification
(EMC)
FCC Rating
Class B
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE:
Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Technical Specifications
DA - 14226 North America — Version 41 — December 9, 2013
Page 64
Page 65
HP Smart Array P420i
Controller
Dimensions
Embedded
Disk Drive and Enclosure
Interface - Transfer rate
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
DDR3-1333MHz with 40 or 72-bit wide bus
Server Interface
x8 PCIe 3.0 provides 32.0GB/s maximum bandwidth
SAS Speed
8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Cache Memory
Zero Memory RAID has no cache memory
40-bit 512MB ECC protected Flash Backed Write Cache (FBWC)
72-bit 1GB and 2GB ECC protected FBWC
Logical Drives Supported
Zero Memory, Up to 2 logical volumes (8 physical drives)
Up to 64 logical drives with cache
Host Memory Addressing
64-bit, supporting greater than 4GB server memory space
RAID Support
RAID 6, 60 (Advanced Data Guarding)
RAID 5, 50 (Distributed Data Guarding
NOTE:
A minimum of 512 MB cache is required to enable RAID 5, 50, 6, 60.
NOTE:
HP Smart Array Advanced Pack (SAAP 2.0) is no longer required to
enable RAID 6 & 60 (Advanced Data Guarding). However, controller must be in
firmware version 4.68 (or later).
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping), RAID 1 (Mirroring)
HP Ethernet 1Gb 4-port
331i Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
PCI Express, two lanes (x2)
Controller
BCM5719
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s per port, 40 Mb/s Combined
10Base-T (Full-Duplex)
20 Mb/s per port, 80 Mb/s Combined
100Base-TX (Half-Duplex)
100 Mb/s per port, 400 Mb/s Combined
100Base-TX (Full-Duplex)
200 Mb/s per port, 800 Mb/s Combined
1000Base-TX (HalfDuplex)
1000Mb/s per port, 4000 Mb/s Combined
1000 Base-TX (FullDuplex)
2000Mb/s per port, 8000 Mb/s Combined
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 or better; up to 328 ft (100 m)
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Technical Specifications
DA - 14226 North America — Version 41 — December 9, 2013
Page 65
Page 66
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green
. To recycle your product, please go to:
http://www.hp.com/go/green
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/green
. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP ProLiant ML350p Generation 8 (Gen8)
Technical Specifications
DA - 14226 North America — Version 41 — December 9, 2013
Page 66
Loading...
