HP ProLiant ML350e G8 v2 Specification

The HP ProLiant ML350e Gen8 v2 is a dual processor tower platform, which is built on the latest Intel® Xeon® E5-2400 processors to
create a unique system architecture. This unique architecture, as well as flexible deployment options, allows businesses to scale as
needed so they can optimize their IT spending dollars. The HP ProLiant ML350e Gen8 v2 delivers the industry's most powerful
embedded management technology, HP integrated Lights-Out 4 (iLO4), enabling businesses to manage the servers anytime and from
anywhere.

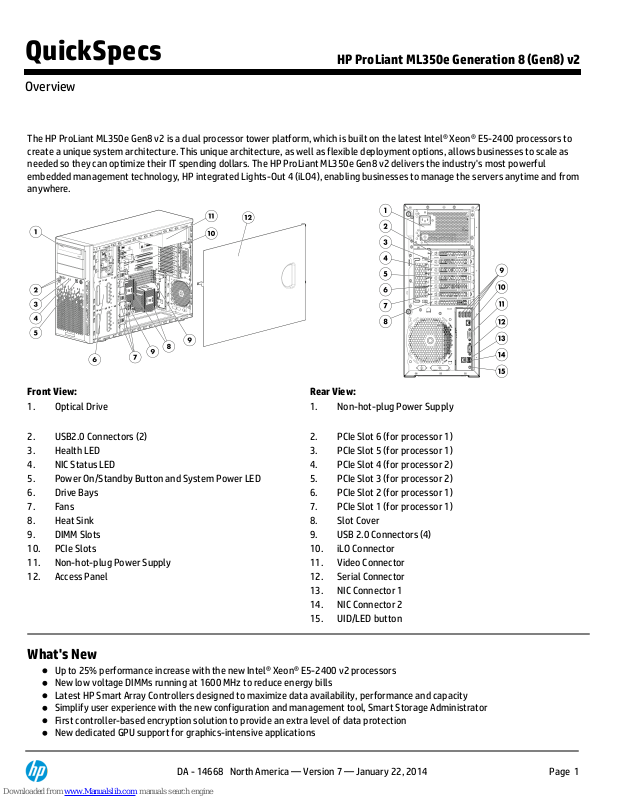

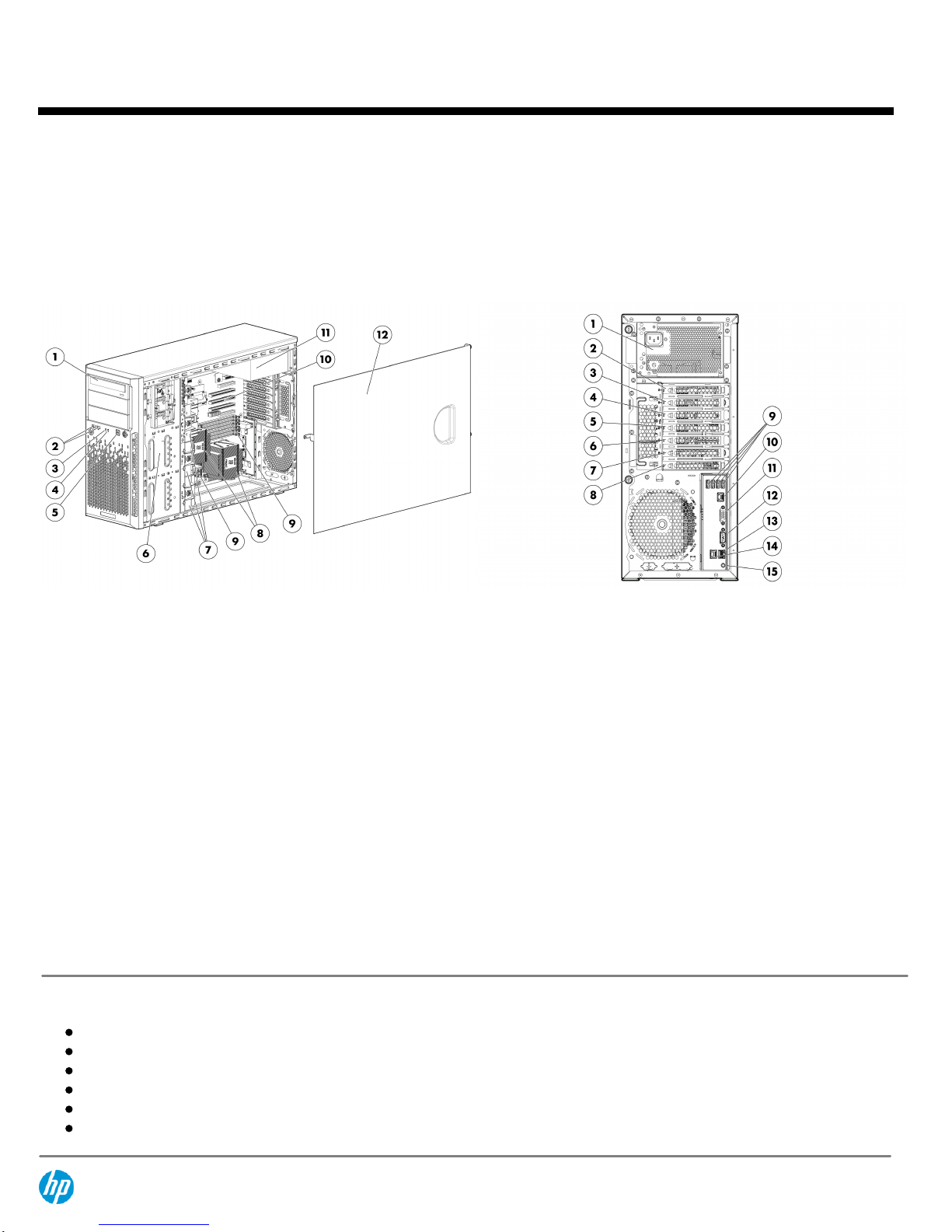

Front View:

Rear View:

1.

Optical Drive

1.

Non-hot-plug Power Supply

2.

USB2.0 Connectors (2)

2.

PCIe Slot 6 (for processor 1)

3.

Health LED

3.

PCIe Slot 5 (for processor 1)

4.

NIC Status LED

4.

PCIe Slot 4 (for processor 2)

5.

Power On/Standby Button and System Power LED

5.

PCIe Slot 3 (for processor 2)

6.

Drive Bays

6.

PCIe Slot 2 (for processor 1)

7.

Fans

7.

PCIe Slot 1 (for processor 1)

8.

Heat Sink

8.

Slot Cover

9.

DIMM Slots

9.

USB 2.0 Connectors (4)

10.

PCIe Slots

10.

iLO Connector

11.

Non-hot-plug Power Supply

11.

Video Connector

12.

Access Panel

12.

Serial Connector

13.

NIC Connector 1

14.

NIC Connector 2

15.

UID/LED button

What's New

Up to 25% performance increase with the new Intel® Xeon® E5-2400 v2 processors
New low voltage DIMMs running at 1600 MHz to reduce energy bills
Latest HP Smart Array Controllers designed to maximize data availability, performance and capacity
Simplify user experience with the new configuration and management tool, Smart Storage Administrator
First controller-based encryption solution to provide an extra level of data protection
New dedicated GPU support for graphics-intensive applications

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Overview

DA - 14668 North America — Version 7 — January 22, 2014

Page 1

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following
depending on Model

E5-2400 v2 Series Processors

Ten-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

Intel® Xeon® E5-2470 v2 (2.4GHz/10-core/95W/25MB) Processor

Eight-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

Intel® Xeon® E5-2450 v2 (2.5GHz/8-core/95W/20MB) Processor
Intel® Xeon® E5-2440 v2 (1.9GHz/8-core/95W/20MB) Processor

Six-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

Intel® Xeon® E5-2430 v2 (2.5GHz/6-core/80W/15MB) Processor
Intel® Xeon® E5-2420 v2 (2.2GHz/6-core/80W/15MB) Processor

Quad-Core Processors

NOTE:

All support up to 1333MHz DDR3 memory speeds.

Intel® Xeon® E5-2407 v2 (2.4GHz/4-core/80W/10MB) Processor
Intel® Xeon® E5-2403 v2 (1.8GHz/4-core/80W/10MB) Processor

E5-2400 Series Processors

Eight-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

Intel® Xeon® E5-2470 (2.3GHz/8-core/95W/20MB) Processor
Intel® Xeon® E5-2450 (2.1GHz/8-core/95W/20MB) Processor
Intel® Xeon® E5-2450L (1.8GHz/8-core/70W/20MB) Processor

Six-Core Processors

NOTE:

All support up to 1333MHz DDR3 memory speeds.

Intel® Xeon® E5-2440 (2.4GHz/6-core/95W/15MB) Processor
Intel® Xeon® E5-2430 (2.2GHz/6-core/95W/15MB) Processor
Intel® Xeon® E5-2430L (2.0GHz/6-core/60W/15MB) Processor
Intel® Xeon® E5-2420 (1.9GHz/6-core/95W/15MB) Processor

Quad-Core Processors

NOTE:

All support up to 1066MHz DDR3 memory speeds.

Intel® Xeon® E5-2407 (2.2GHz/4-core/80W/10MB) Processor
Intel® Xeon® E5-2403 (1.8GHz/4-core/80W/10MB) Processor

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on

the quantity and type of DIMMs installed.

NOTE:

Up to 2 processors supported. Mixing different processor models is not supported.

NOTE:

For the Intel® C600 Chipset E5-2400 Series, the letter preceding the model number indicates the
Product Line (E3, E5, E7); 2400x v#, 2 = number of CPUs in a Node, 4 is socket/segment designation, 00 =
Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 2

Cache Memory

One of the following
depending on Model

25MB (1 x 25MB) Level 3

NOTE:

For Ten-core processors.

20MB (1 x 20MB) Level 3

NOTE:

For Eight-core processors.

15MB (1 x 15MB) Level 3

NOTE:

For Six-core processors.

10MB (1 x 10MB) Level 3

NOTE:

For Quad-core processors.

Chipset

Intel® C600 Chipset
Intel® E5-2400 v2 Processor Family

NOTE:

For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

.

Upgradeability

Upgradeable to two processors

NOTE:

Total 8, 12, 16 or 20 cores

NOTE:

Processor upgrade available from Intel® Xeon® Processors E5-2400 to E5-2400 v2. Please contact

HP Technology Sales (

http://www.hp.com/support

), your local HP Re-seller, or reference the following

Customer Advisory:

ProLiant Servers-Instructions for Upgrading an HP ProLiant Gen8 Server from an Intel

Xeon Processor E5-2400 to an Intel Xeon Processor E5-2400v2

, regarding critical details before

upgrading. An explanation of requirements and limitations are provided.

Up to 12 DIMM slots available for higher memory capacity
Up to 16 SFF hard drives or 8 LFF hard drives for expanded storage
4 PCIe 3.0 and 2 PCIe 2.0 I/O slots for additional communications and storage expansion
Redundant Power Supplies (92% and 94% efficiency)
Tower to rack conversion
Optical drive bays (up to 2)

On System Management
Chipset

HP iLO (Firmware: HP iLO4)

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

Memory Protection

Advanced ECC
Online Spare
Lock-step mode

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 3

Memory

One of the following
depending on model

Type

HP SmartMemory
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available

12 DIMM slots (6 DIMM slots per CPU)

Maximum (RDIMM)

192 GB (12 x 16 GB) RDIMMM

Maximum (UDIMM)

96 GB (12 x 8 GB) UDIMM

NOTE:

HP memory from previous generation servers are not fully compatible with the HP ProLiant ML350e
Gen8 v2 Server.

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is
required. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

If one processor is installed, only 6 DIMM slots are available. When populating with two processors
12 DIMM slots are available.

NOTE:

Depending on the memory configuration and processor model, the memory speed may run up to
1600MHz or at 1333MHz. Please see Memory Population Table or the Online Memory Configuration Tool
at:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Redundant PSU Kit (PN 738661-B21) is required for RDIMMs.

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Expansion Slots

Expansion

Slot #

Technology

Bus Width

Connector

Width

Bus Number

Form Factor

Notes

6

PCIe 2.0

x1

X4

0

Half

Length/Full

Height

Activated

when

installed with

Processor 1

5

PCIe 2.0

x4 x8

0

Full-

length/Full

Height

Activated

when

installed with

Processor 1

4

PCIe 3.0

X8

X16

32

Full

Length/Full

Height

Activated

when

installed with

Processor 2

3

PCIe 3.0

x16 x16

32

Full

Length/Full

Height

Activated

when

installed with

Processor 2

2

PCIe 3.0

X16 X16

0

Full

Length/Full

Height

Activated

when

installed with

Processor 1

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 4

1

PCIe 3.0

X4 X8

0

Full

Length/Full

Height

Activated

when

installed with

Processor 1

NOTE:

Bus number - Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the

actual bus assignment number.

HP Server ROM

HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is
verified before the flash process starts, reducing accidental programming and preventing malicious efforts
to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating
system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to
assist in diagnosis.

HP's ProLiant ROM is used to configure the following:

Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (Integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).

NOTE:

For further information, please refer to HP's RBSU (ROM based setup utility) user guide:

www.hp.com/support/rbsu

.

Storage Controller

One of the following
depending on model

HP Dynamic Smart Array B120i/512MB FBWC SATA Controller (RAID 0,1, 5, 10)

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 5

Internal Storage Devices

Optical Drives

HP Half-Height SATA DVD-ROM/RW Optical Drive

NOTE:

DVD ROM is standard in base tower models.

Hard Drives

None ship standard

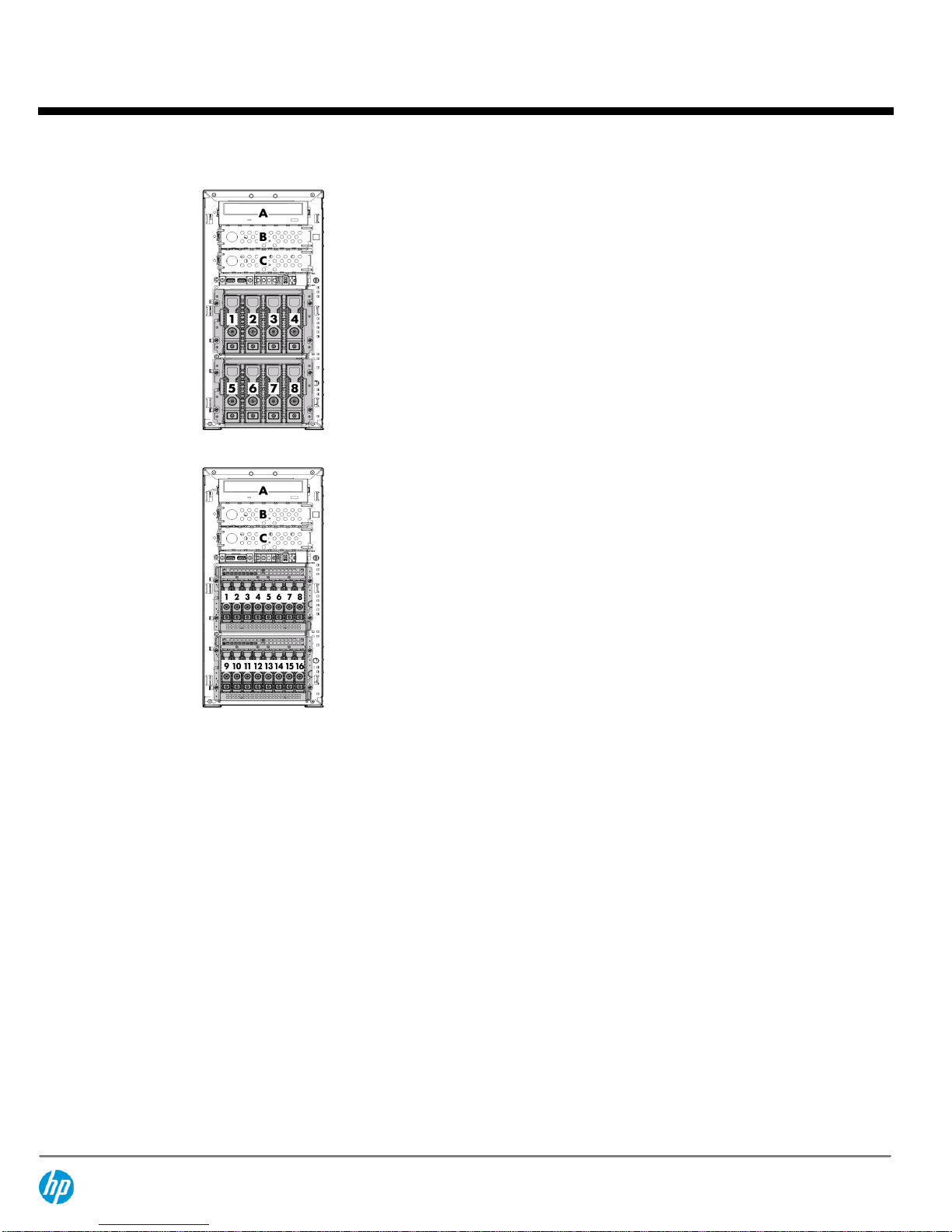

Hard Drive Bays

One of the following
depending on model

(4) Non-hot plug LFF SATA HDD bays
(4) Hot plug LFF SAS/SATA HDD bays; upgradable to (8)
(8) Hot plug SFF SAS/SATA HDD bays; upgradable to (16)

NOTE:

All Pre-configured Models come populated with some hard drive blanks
installed. Should the customer need additional hard drive blanks, they can
order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or
P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. These part numbers for
single HDD blanks below are also provided should the customer require
replacement HDD blanks for their server.

Maximum Internal
Storage

One of the following
depending on model

Hot Plug LFF SAS

32TB

8 x 4TB

Hot Plug LFF SATA

32TB

8 x 4TB

Hot Plug SFF SAS

19.2TB

16 x 1.2TB

Hot Plug SFF SATA

16TB

16 x 1TB

Non-Hot Plug LFF SATA

16TB

4 x 4TB

Hot Plug SFF SAS SSD

1.6TB

16 x 100GB

Hot Plug LFF SATA SSD

1TB

8 x 100GB

Interfaces

Serial

1

Video

1 (rear)

Network RJ-45 (Ethernet)

3 (1 dedicated for HP Integrated Lights-Out)

HP iLO Remote
Management Network Port

1 Gb Dedicated

SD slot

1 (internal)

NOTE:

The SD slot is not a hot-pluggable device. Customers should not
attempt to plug an SD card into the SD slot while the server is powered.

USB 2.0

8 (2 front, 4 rear, 2 internal)

Industry Standard
Compliance

ACPI 2.0b Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Novell Certified
IPMI 2.0, SMASH CLP, DCMI 1.0 compliant
Microsoft® Logo certifications
USB 2.0 Support
SMBIOS 2.7.1

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 6

Server Power Cords

ProLiant ML servers in a rack-mount configuration no longer ship standard with NEMA power cords that
allow connection to 110V US wall outlets in a home or office. These servers are primarily connected to
PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user
wishes to power a ProLiant ML rack-mount server using a 110V receptacle (NEMA-15), the NEMA power
cord must be ordered separately. The 12' cord (AF556A) or 6' cord (187335-001) can be purchased online
at HP.COM. In a tower configuration, the servers ship standard with a 6' country specific NEMA power cord.
If customers require a local power cord, they can check the power cord matrix for the appropriate country
specific sku. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

.

Power Specifications

To review typical system power ratings use the HP Power Advisor which is available via the online tool
located at URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor.

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html

Common Slot Power
Supplies

NOTE:

The ML350e Gen8 v2 supports three power supply models, a 460W Multi-Output Power Supply, and
a 460W and 750W Common Slot Platinum Plus Power Supplies. The 460W Multi-Output Power Supply is a
non-redundant power supply.

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies inside a server
must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not
supported.

HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of
ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest
power supply efficiency without degrading system performance. HP CS power supplies are tested by the
Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP
CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in
power output options - 460W, 750W - allowing the customer to "right-size" a power supply for their
specific server configuration. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and
support redundant configurations.

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies must be of the
same output and efficiency rating. If non-matched power supplies are inserted you will get errors and
operation will fail.

HP CS Platinum power supplies are required when enabling HP's Intelligent Power Discovery (IPD) solution.
IPD is the first technology to create an automated, energy-aware network between IT systems and
facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime
costs across data centers. For more information on HP's IPD solution, go to

www.hp.com/go/ipd

.

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for
your needs. HP Power Advisor can be accessed at:

www.hp.com/go/hppoweradvisor

.

NOTE:

The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and
consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus
independently tests power supply efficiency and publicly posts the results on 80Plus.org.

Redundant Power: Optional (1 + 1 redundant) power supplies can be purchased through power supply
option kits (see Power Supplies for part numbers).

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 7

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html

System Fans

Two (2) Non-hot plug, non-redundant fans ship standard (support up to 3 fans).

NOTE:

Third fan is shipped with 2nd CPU Kit. Third fan is only required in 2P configurations.

Operating Systems and
Virtualization Software
Support for ProLiant
Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Canonical Ubuntu
VMware

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/ossupport

and our driver download page

http://www.hp.com/support/ML350eGen8v2

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

Tower 5U
Rackable with the purchase of tower to rack conversion tray kit

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 8

On System Management

HP iLO Management
Engine

HP iLO Management Engine is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HP iLO Management Engine comes standard on all HP ProLiant Gen8
servers. The HP iLO Management Engine portfolio includes:

HP iLO

: The HP iLO (Integrated Lights-Out) management processor is

the core foundation for the HP iLO Management Engine

HP Agentless Management

: Provides built in server health monitoring
and alerting capability without OS agents, that starts working the
moment a power cord and an Ethernet cable are connected.

HP Active Health System

: Always on, continuous monitoring for
increased stability and shorter downtimes; 100% configuration history;
Health and service alerts and easy export and upload to Service and
Support.

HP Intelligent Provisioning

: Lets customers provision and configure a
single server without any separate media. No more SmartStart CDs or
Smart Update Firmware DVD are needed.

To start Intelligent Provisioning:
Press the F10 key during the ProLiant Gen8 server boot process
(also known as power on self test or POST).
Please go to the Intelligent Provisioning website at

www.hp.com/go/intelligentprovisioning

for additional
information and to view usage videos.
Use the Service Pack for ProLiant (SPP) at:

www.hp.com/go/spp

to get firmware and software updates.

HP iLO Mobile App

: Enables the ability to access, deploy, and manage
your server anytime from anywhere from select smartphones and
mobile devices. For additional information please visit:

www.hp.com/go/ilo/mobileapp

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

or HP iLO

Management Engine technologies whitepaper

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 9

HP Insight Management

HP Service Pack for
ProLiant

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
provide a comprehensive approach to firmware and system software
maintenance. Together they provide better operating stability and ensure
maximum uptime. The SPP will be updated at a predictable cadence, typically
coinciding with new HP server hardware launches. By enabling firmware to be
updated online and integrating firmware and system software updates in one
operation, HP SUM and the SPP offer faster updates of individual servers and
dramatically faster updates of entire BladeSystem enclosures. Further
improving system uptime and stability is the fact that HP provides 12 months
of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM and the latest
SPP. Optional smaller subsets with only specific types of servers or specific
operating systems are offered to save on download time. The HP SUM
application provides a straightforward, intuitive user interface that guides the
user through the steps of discovery, analyses and update, providing
comprehensive information on available updates, criticality and
interdependencies. This information is also available in reports. By providing
the option of multiple local or shared repositories which can be easily updated
from hp.com, HP SUM provides the tools to optimize stability and consistency
throughout the company. While HP SUM and the SPP recommend the
combinations of firmware and system software that HP has found to be the
best practice, the application gives customers the flexibility to set their own
specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.

NOTE:

The Service Pack for ProLiant (which includes HP SUM) can be

downloaded from

www.hp.com/go/spp/download

. More information can be

found:

http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp

and

http://www.hp.com/go/hpsum

Security

Power-on password
Setup password
Serial interface control
Power switch security
Administrator's password

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 10

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.

NOTE:

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity. Customers may choose
to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited
warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Standard Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 11

HP Insight Management

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. HP Insight Control also supports
Location and Power Discovery Services to automate many configuration, asset
tracking, and power management tasks to speed implementation and prevent
downtime. For more information, see

http://www.hp.com/go/insightcontrol

.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:

http://www.hp.com/services/insight

.

HP iLO Essentials

HP iLO Essentials license ideal for small and medium business customers. The
specially created HP iLO Essentials (a subset of iLO Advanced functionality)
saves SMB customers time and money, by ease of remote server set up
through the interactive virtual media, lowering operational costs with remote
access via the Integrated Remote Console, and faster time to resolution with
email-based proactive notifications. With this newly designed HP iLO
Essentials license SMB customers now have the option of a server
management package solely design and priced just right for their IT
environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series
making this an ideal solution for small business owners. For more
information, see:

http://www.hp.com/go/iLO/essentials

HP iLO Advanced

HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multi­user collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:

http://www.hp.com/go/iloadvance

HP Matrix Operating
Environment

The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS).

NOTE:

For more information, visit:

http://www.hp.com/go/matrixoe

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Optional Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 12

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.

Data Archive and Migration Software

HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.

Storage Resource Management Software (SRM)

HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.

Data Replication Software

HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.

Storage Device Management Software

Maximize your investment in HP storage and networking with software that enables hardware­specific configuration, performance tuning and connectivity management.

HP StoreVirtual VSA

With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

.

HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP
support information personalized to your IT environment. Insight Online can automatically display devices
remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.

www.hp.com/go/insightonline

HP Proactive Insight
experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Optional Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 13

Factory Express Portfolio
for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.

For more information on Factory Express services for your specific server model please contact your sales
representative or go to:

http://www.hp.com/go/factory-express

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Optional Features

DA - 14668 North America — Version 7 — January 22, 2014

Page 14

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.

Optimized Care

Supports maintaining servers at optimum performance availability

3-Year HP 24x7 4 hour response, Proactive Care Service

*

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Standard Care

Supports maintaining high level of server availability

3-Year HP Next Business Day, Proactive Care Service

*

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Basic Care

Delivers minimum recommended support service level

3-Year HP Next Business Day with Collaborative Support

This service gives you hardware break/fix plus software diagnosis support with collaborative call
management for a broad spectrum of 3rd Party software products including O/S and hypervisors.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Service and Support

DA - 14668 North America — Version 7 — January 22, 2014

Page 15

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8232ENW.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Insight Online/Insight
Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution*. Learn more about Insight Remote
Support http://www.hp.com/go/insightremotesupport and Insight Online

http://www.hp.com/go/insightonline

* Insight Remote Support is a prerequisite for Proactive Care.

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App** allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.

** HP Support Center Mobile App is subject to local availability

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.

For more information

To learn more on services for HP ProLiant servers, please contact your HP sales representative or HP
Authorized Channel Partner. Or visit:

http://www.hp.com/services/proliant

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Service and Support

DA - 14668 North America — Version 7 — January 22, 2014

Page 16

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section

of this QuickSpecs.

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped

separately.

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this

QuickSpecs.

NOTE:

All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard
drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8
Hard Drive Blank Kit.

Entry Models

HP ProLiant
ML350eGen8v2 E5­2403v2 2P 2GB-U B120i
460W PS Entry US Svr

740898-001

Processor

(1) Intel® Xeon® E5-2403 v2 (1.8GHz/4-core/80W/10MB) Processor

Cache Memory

10MB (1 x 10MB) Level 3

Memory

2GB (1 x 2GB) Unbuffered DIMMs

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Storage Controller

HP Dynamic Smart Array B120i/ZM FBWC SATA Controller (RAID 0,1, 5, 10)

Hard Drive

None ships standard

Internal Storage

4 LFF Non-Hot Plug SATA HDD Bays only

Optical Drive

None ships standard

Power Supply

(1) 460 Watt Power Supply (non-hot plug, non-redundant)

Fans

2 Non-Hot Plug, Non Redundant Fans

Accessories

USB Keyboard and Mouse (None ship standard)

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

Tower (5U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 17

Base Models

HP ProLiant ML350e Gen8
v2 E5-2407v2 2P 4GB-U
B120i 460W PS Base US
Svr

748953-001

Processor

(1) Intel® Xeon® E5-2407 v2 (2.2GHz/4-core/80W/10MB) Processor

Cache Memory

10MB (1 x 10MB) Level 3

Memory

4GB (1 x 4GB) Unbuffered DIMMs

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Storage Controller

HP Dynamic Smart Array B120i/512MB FBWC SATA Controller (RAID 0,1, 5, 10)

Hard Drive

None ships standard

Internal Storage

4 LFF Hot Plug SATA HDD Bays only

Optical Drive

HP Half-Height SATA DVD-ROM Optical Drive

Power Supply

(1) 460 Watt Power Supply (non-hot plug, non-redundant)

Fans

2 Non-Hot Plug, Non Redundant Fans

Accessories

USB Keyboard and Mouse ship standard

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

Tower (5U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response

HP ProLiant ML350e Gen8
v2 E5-2407 1P 4GB-U
B120i 460W PS Base
Server

740899-001

Processor

(1) Intel® Xeon® E5-2407 (2.2GHz/4-core/80W/10MB) Processor

Cache Memory

10MB (1 x 10MB) Level 3

Memory

4GB (1 x 4GB) Unbuffered DIMMs

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Storage Controller

HP Dynamic Smart Array B120i/512MB FBWC SATA Controller (RAID 0,1, 5, 10)

Hard Drive

None ships standard

Internal Storage

4 LFF Hot Plug SATA HDD Bays only

Optical Drive

HP Half-Height SATA DVD-ROM Optical Drive

Power Supply

(1) 460 Watt Power Supply (non-hot plug, non-redundant)

Fans

2 Non-Hot Plug, Non Redundant Fans

Accessories

USB Keyboard and Mouse ship standard

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

Tower (5U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 18

HP ProLiant
ML350eGen8v2 E5­2403v2 8GB-U B120i 460W
PS US Svr/S-Buy

749355-S01

Processor

(1) Intel® Xeon® E5-2403 v2 (1.8GHz/4-core/80W/10MB) Processor

Cache Memory

10MB (1 x 10MB) Level 3

Memory

8GB (2 x 4GB) Unbuffered DIMMs

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Storage Controller

HP Dynamic Smart Array B120i/ZM FBWC SATA Controller (RAID 0,1, 5, 10)

Hard Drive

None ships standard

Internal Storage

4 LFF Non-Hot Plug SATA HDD Bays only

Optical Drive

HP Half Height SATA DVD/RW Optical Drive

Power Supply

(1) 460 Watt ATX Power Supply (non-hot plug, non-redundant)

Fans

2 Non-Hot Plug, Non Redundant Fans

Accessories

USB Keyboard and Mouse

Management

HP iLO Management Engine (standard)

Form Factor

Tower (5U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response

HP ProLiant
ML350eGen8v2 E5­2420v2 8GB-U B120i 460W
PS US Svr/S-Buy

749356-S01

Processor

(1) Intel® Xeon® E5-2420 v2 (2.2GHz/6-core/80W/15MB) Processor

Cache Memory

15MB (1 x 15MB) Level 3

Memory

8GB (2 x 4GB) Unbuffered DIMMs

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Storage Controller

HP Dynamic Smart Array B120i/512MB FBWC SATA Controller (RAID 0,1, 5, 10)

Hard Drive

None ships standard

Internal Storage

4 LFF Non-Hot Plug SATA HDD Bays only

Optical Drive

HP Half Height SATA DVD/RW Optical Drive

Power Supply

(1) 460 Watt ATX Power Supply (non-hot plug, non-redundant)

Fans

2 Non-Hot Plug, Non Redundant Fans

Accessories

USB Keyboard and Mouse

Management

HP iLO Management Engine (standard)

Form Factor

Tower (5U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Smart Buys

DA - 14668 North America — Version 7 — January 22, 2014

Page 19

HP ProLiant
ML350eGen8v2 E5­2440v2 2P 16GB-R
P430/2GB 750W PS US
Svr/S-Buy

749357-S01

Processor

(2) Intel® Xeon® E5-2440 v2 (1.9GHz/8-core/95W/20MB) Processor

Cache Memory

20MB (1 x 20MB) Level 3

Memory

16GB (2 x 8GB) 1600 RDIMMs

Network Controller

HP Ethernet 1Gb 2-port 361i Adapter

Storage Controller

HP Smart Array P430/2GB FBWC 6Gb 1-Port SAS Controller

Hard Drive

None ships standard

Internal Storage

(8) Hot plug SFF SAS/SATA HDD bays

Optical Drive

HP Half Height SATA DVD/RW Optical Drive

Power Supply

(1) 750 Watt Common Slot Platinum Plus Power Supply (Hot Plug, Redundant)

Fans

3 Non-Hot Plug, Non Redundant Fans

Accessories

USB Keyboard and Mouse

Management

HP iLO Management Engine (standard)

Form Factor

Tower (5U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Smart Buys

DA - 14668 North America — Version 7 — January 22, 2014

Page 20

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on
configurable product offerings and requirements.

NOTE:

Factory Integrated Models must start with a CTO Server.

NOTE:

FIO indicates that this option is only available as a factory installable option.

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives
ordered with the server.

Step 1: Base Configuration (choose one of the following configurable models)

HP Models

ML350e Gen8 v2 Tower Models

HP ProLiant ML350e Gen8 v2 Non-hot Plug 4 LFF Configure-to-order Server

740895-B21

Includes:

HP Ethernet 1Gb 2-port 361i Adapter
HP Dynamic Smart Array B120i/ZM SATA Controller (RAID 0/1/10)
Four (4) Non-Hot-Plug (LFF) SATA Drive Bays
Eight (8) USB ports
Six (6) PCIe slots
Two (2) Non-hot plug, non-redundant fans
HP iLO Management Engine (standard)
Tower (5U) form factor

HP ProLiant ML350e Gen8 v2 Hot Plug 4 LFF Configure-to-order Server

740896-B21

Includes:

HP Ethernet 1Gb 2-port 361i Adapter
HP Dynamic Smart Array B120i/ZM SATA Controller (RAID 0/1/10)
Four (4) Hot-Plug (LFF) SATA Drive Bays
Eight (8) USB ports
Six (6) PCIe slots
Two (2) Non-hot plug, non-redundant fans
HP iLO Management Engine (standard)
Tower (5U) form factor

HP ProLiant ML350e Gen8 v2 Hot Plug 8 SFF Configure-to-order Server

740897-B21

Includes:

HP Ethernet 1Gb 2-port 361i Adapter
HP Dynamic Smart ArrayB120i/ZM SATA Controller (RAID 0/1/10)
Eight (8) Hot-Plug (SFF) SATA Drive Bays

NOTE:

A SAS controller is required to support 8 SFF drives.

Eight (8) USB ports
Six (6) PCIe slots
Two (2) Non-hot plug, non-redundant fans
HP iLO Management Engine (standard)
Tower (5U) form factor

Step 2: Choose Required Options (only one of the following from each list unless otherwise
noted)

HP Processors

E5-2400 v2 Series Processors

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 21

Ten-Core Processors

NOTE:

All support up to 1600MHz memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2470v2 (2.4GHz/10-core/25MB/95W) FIO
Processor Kit

701849-L21

Eight-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2450v2 (2.5GHz/8-core/20MB/95W) FIO Processor
Kit

701847-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2440v2 (1.9GHz/8-core/20MB/95W) FIO Processor
Kit

701845-L21

Six-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2430v2 (2.5GHz/6-core/15MB/95W) FIO Processor
Kit

701843-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2420v2 (2.2GHz/6-core/15MB/80W) FIO Processor
Kit

701841-L21

Quad-Core Processors

NOTE:

All support up to 1333MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2407v2 (2.4GHz/4-core/10MB/80W) FIO Processor
Kit

701839-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2403v2 (1.8GHz/4-core/10MB/80W) FIO Processor
Kit

701837-L21

E5-2400 Series Processors

Eight-Core Processors

NOTE:

All support up to 1600MHz memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) FIO Processor
Kit

741277-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) FIO Processor
Kit

741275-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) FIO Processor
Kit

741253-L21

Six-Core Processors

NOTE:

All support up to1333MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) FIO Processor
Kit

741259-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) FIO Processor
Kit

741257-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) FIO Processor
Kit

741251-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) FIO Processor
Kit

741255-L21

Quad-Core Processors

NOTE:

All support up to 1066MHz DDR3 memory speeds.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 22

HP ML350e Gen8 v2 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) FIO Processor
Kit

740887-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) FIO Processor
Kit

740885-L21

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

(Worldwide)

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for RDIMMs.

Registered DIMMs (RDIMMs)

NOTE:

The following memory is supported by the E5-2400 v2 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713981-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713983-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713985-B21

Registered DIMMs (RDIMMs)

NOTE:

The following memory is supported by the E5-2400 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647893-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647897-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647901-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672631-B21

Unbuffered with ECC DIMMs (UDIMMs)

NOTE:

The following memory is supported by the E5-2400 v2 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)

NOTE:

The following memory is supported by the E5-2400 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669320-B21

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 23

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647905-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647907-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647909-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:

http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

HP Power Supplies

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies
inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum
Plus certified power supplies is not supported.

NOTE:

Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

.

Primary Power Supplies

HP 460W Factory Integrated Power Supply Kit

NOTE:

This power supply is non-redundant and is factory integrated only.

667559-B21

HP Common Slot Platinum Plus Power Supply Kits

NOTE:

The following Power Supplies offer 94% Efficiency with support for Intelligent
Power Discovery.

HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit

656362-B21

HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit

656363-B21

HP Common Slot Gold Power Supplies

NOTE:

The following Power Supplies offer up to 92% efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HP 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

Enablement Kit

HP ML350e v2 Redundant Power Supply

NOTE:

ML350e v2 Redundant Power Supply (PN: 738661-B21) is required for any

common slot power supply.

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for any 2P configuration.

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for RDIMMs

738661-B21

NOTE:

Power Specification and Technical Content for supported power supplies can be
found at:

http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 24

Step 3: Choose Additional Factory Integratable Options

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License

C6N36A

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Core Options" and "Additional Options" section below.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14668 North America — Version 7 — January 22, 2014

Page 25

NOTE:

Some options may not be integrated at the factory. Contact your local sales representative for additional information.

HP Processors

E5-2400 v2 Series Processors

Ten-Core Processors

NOTE:

All support up to 1600MHz memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2470v2 (2.4GHz/10-core/25MB/95W) FIO
Processor Kit

701849-L21

Eight-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2450v2 (2.5GHz/8-core/20MB/95W) FIO Processor
Kit

701847-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2440v2 (1.9GHz/8-core/20MB/95W) FIO Processor
Kit

701845-L21

Six-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2430v2 (2.5GHz/6-core/15MB/95W) FIO Processor
Kit

701843-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2420v2 (2.2GHz/6-core/15MB/80W) FIO Processor
Kit

701841-L21

Quad-Core Processors

NOTE:

All support up to 1333MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2407v2 (2.4GHz/4-core/10MB/80W) FIO Processor
Kit

701839-L21

HP ML350e Gen8 v2 Intel® Xeon® E5-2403v2 (1.8GHz/4-core/10MB/80W) FIO Processor
Kit

701837-L21

E5-2400 Series Processors

Eight-Core Processors

NOTE:

All support up to 1600MHz memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2470 (2.3GHz/8-core/20MB/95W) Processor Kit

741277-B21

HP ML350e Gen8 v2 Intel® Xeon® E5-2450 (2.1GHz/8-core/20MB/95W) Processor Kit

741275-B21

HP ML350e Gen8 v2 Intel® Xeon® E5-2450L (1.8GHz/8-core/20MB/70W) Processor Kit

741253-B21

Six-Core Processors

NOTE:

All support up to1333MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2440 (2.4GHz/6-core/15MB/95W) Processor Kit

741259-B21

HP ML350e Gen8 v2 Intel® Xeon® E5-2430 (2.2GHz/6-core/15MB/95W) Processor Kit

741257-B21

HP ML350e Gen8 v2 Intel® Xeon® E5-2430L (2.0GHz/6-core/15MB/60W) Processor Kit

741251-B21

HP ML350e Gen8 v2 Intel® Xeon® E5-2420 (1.9GHz/6-core/15MB/95W) Processor Kit

741255-B21

Quad-Core Processors

NOTE:

All support up to 1066MHz DDR3 memory speeds.

HP ML350e Gen8 v2 Intel® Xeon® E5-2407 (2.2GHz/4-core/10MB/80W) Processor Kit

740887-B21

HP ML350e Gen8 v2 Intel® Xeon® E5-2403 (1.8GHz/4-core/10MB/80W) Processor Kit

740885-B21

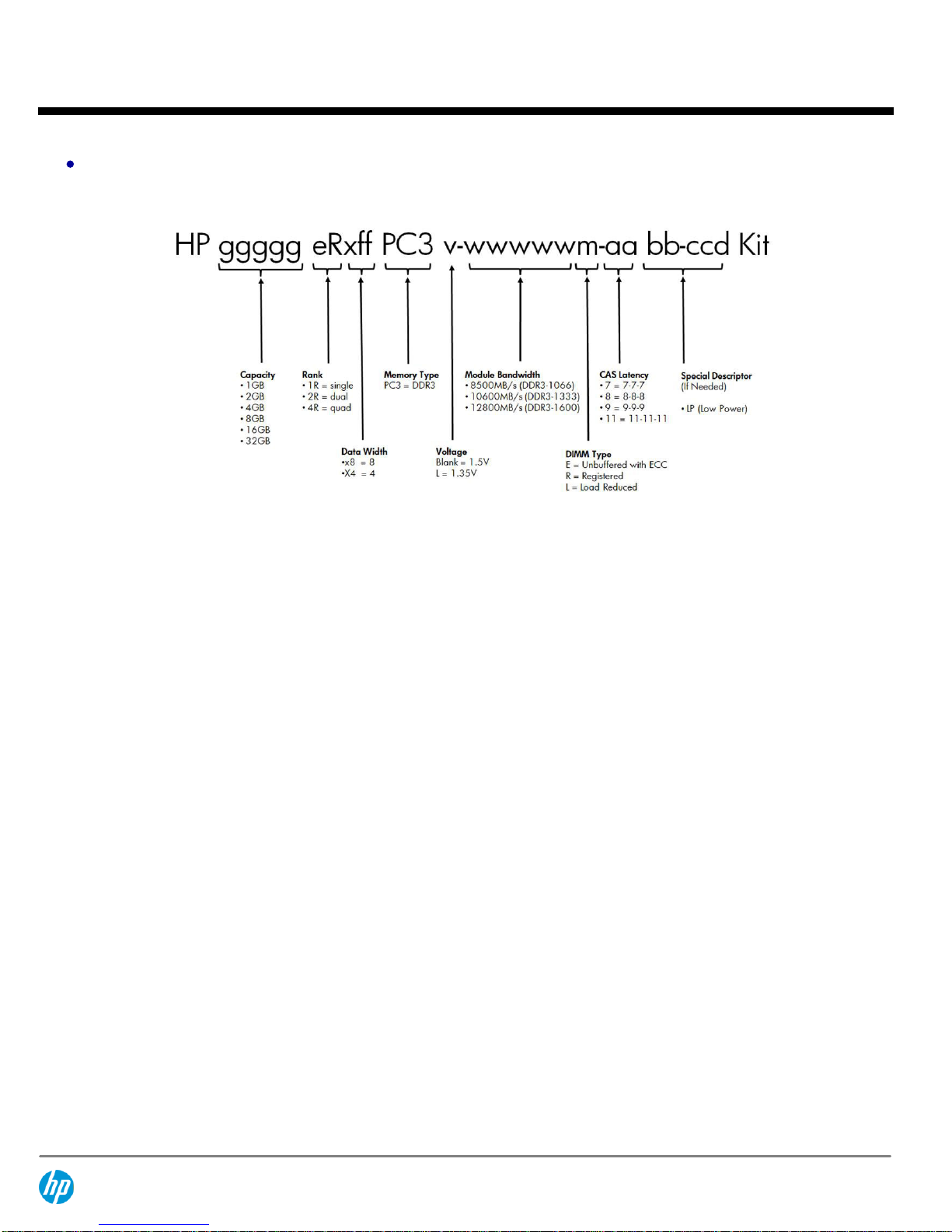

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Core Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 26

SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

(Worldwide)

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for RDIMMs.

Registered DIMMs (RDIMMs)

NOTE:

The following memory is supported by the E5-2400 v2 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713981-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713983-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713985-B21

NOTE:

The following memory is supported by the E5-2400 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647893-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647897-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647901-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672631-B21

Unbuffered with ECC DIMMs (UDIMMs)

NOTE:

The following memory is supported by the E5-2400 v2 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

NOTE:

The following memory is supported by the E5-2400 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647905-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647907-B21

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Core Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 27

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647909-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:

http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

HP Optical Drives

HP Half-Height SATA DVD ROM JackBlack Optical Drive

624189-B21

HP Half-Height SATA DVD RW JackBlack Optical Drive

624192-B21

HP Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.

NOTE:

SAS hard drives require a Smart Array Controller.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

697574-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652620-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652615-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 1.2TB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

693648-B21

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Core Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 28

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

693687-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658079-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

657750-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658071-B21

6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659339-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659337-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard
Drive

659341-B21

NOTE:

SATA hard drives have a 1-year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691862-B21

6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691860-B21

HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691856-B21

HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691854-B21

HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691852-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

Hard Drive Kits

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks
based on the number of initial hard drives ordered with the server.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Core Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 29

NOTE:

Mixing of SFF and LFF drive cages is not allowed.

NOTE:

A second SFF Hot Plug Drive Cage requires a separate Smart Array controller. A
second LFF Hot Plug Drive cage can be supported with a P222, or both LFF drive cages
can be supported with a single P430.

HP ML350e Gen8 v2 4 Large Form Factor (LFF) Hot Plug Hard Drive Cage Kit

741741-B21

HP ML350e Gen8 v2 8 Small Form Factor (SFF) Hot Plug Hard Drive Cage Kit

741744-B21

HP LFF Gen8 Hard Drive Blank Kit

666986-B21

HP SFF Gen8 Hard Drive Blank Kit

666987-B21

HP Networking

Gigabit Ethernet adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP Ethernet 1Gb 2-port 332T Adapter

615732-B21

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

10 Gigabit Ethernet Adapters

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each

adapter.

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately. See cables/options
below.

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HP Ethernet 10Gb 2-port 530T Adapter

656596-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

www.hp.com/go/ProLiantNICs

Optional Upgrades

HP PCI Baffle Kit

NOTE:

The PCI Baffle Kit is required whenever a PCI option card (NIC, Smart Array
Controller, etc.) is installed in a PCIe slot.

738655-B21

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Core Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 30

HP Power Supplies

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies
inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum
Plus certified power supplies is not supported.

NOTE:

Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

.

HP Common Slot Platinum Plus Power Supply Kits

NOTE:

The following Power Supplies offer 94% Efficiency with support for Intelligent
Power Discovery.

HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit

656362-B21

HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit

656363-B21

HP Common Slot Gold Power Supplies

NOTE:

The following Power Supplies offer up to 92% efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HP 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

Enablement Kit

HP ML350e v2 Redundant Power Supply

NOTE:

Redundant Enablement Kit (PN: 738661-B21) is required for any common slot

power supply.

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for any 2P configuration

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for RDIMMs

738661-B21

NOTE:

Power Specification and Technical Content for supported power supplies can be
found at:

http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Core Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 31

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Insight Software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License

C6N27A

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

C6N31A

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at:

http://www.hp.com/go/insightupdates.

NOTE:

For additional license options please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Integrated Lights-Out (iLO)

HP Integrated Lights-Out (iLO) Advanced for ProLiant

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

TA850AAE

HP iLO Advanced Electronic License with 3yr 24x7 Tech Support and Updates

BD506AAE

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server
License

512485-B21

HP iLO Essentials

HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates

BD505A

NOTE:

For additional license options please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/14276_na/14276_na.html

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

.

HP Storage Controllers

SAS Controllers

HP Smart Array P222 Controller

HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller

631667-B21

HP Smart Array P430 Controller

HP Smart Array P430/2GB FBWC 6Gb 1-port Int SAS Controller

698529-B21

HP Smart Array P431 Controller

HP Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller

698531-B21

Optional Upgrades

HP 512MB B-series 36 inch Dynamic Smart Array Flash Backed Write Cache for ML/DL

NOTE:

This cache option provides RAID 5 for the integrated Dynamic Smart Array B120i.

631922-B21

HP ML350e Gen8 v2 Smart Array Cable Kit

NOTE:

This Cable kit is required when ordering a Smart Array P430 Controller.

725895-B21

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 32

HP PCI Baffle Kit

NOTE:

The PCI Baffle Kit is required whenever a PCI option card (NIC, Smart Array

Controller, etc.) is installed in a PCIe slot.

738655-B21

HP SmartCache No Media 24x7 Technical Support 1 Svr License

D7S26A

HP SmartCache No Media 24x7 Technical Support Flexible License

D7S27A

HP SmartCache No Media 24x7 Technical Support Electronic License

D7S27AAE

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14227_na/14227_na.html

(Smart Array P222 Controller)

http://h18000.www1.hp.com/products/quickspecs/14624_na/14624_na.html

(Smart Array P430 Controller)

http://h18000.www1.hp.com/products/quickspecs/14625_na/14625_na.html

(Smart Array P431 Controller)

HP Host Bus Adapters

HP H220 Host Bus Adapter

650933-B21

HP H221 Host Bus Adapter

650931-B21

HP H221 PCIe 3.0 SAS HBA

729552-B21

HP H222 Host Bus Adapter

650926-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18004.www1.hp.com/products/quickspecs/14336_na/14336_na.html

(HBA 221)

http://h18004.www1.hp.com/products/quickspecs/14222_na/14222_na.html

(HBA 221)

http://h18004.www1.hp.com/products/quickspecs/14337_na/14337_na.html

(HBA 222)

SCSI HBA

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

412911-B21

NOTE:

Please see the following QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html

(SC11Xe HBA)

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 33

HP Tape Backup

NOTE:

For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hp.com/go/tape

. For hardware and software compatibility of HP tape

backup products see:

http://www.hp.com/storage/SPOCK

and

www.hp.com/go/ebs

.

NOTE:

All internal tape drives listed are only supported with the non-hot plug, non­redundant ATX power supply. The internal drives not are supported in any hot-plug,
redundant power supply configuration.

HP StorageWorks DAT 160 USB Internal Tape Drive

Q1580B

HP StorageWorks DAT 160 SAS Internal Tape Drive

Q1587B

HP StoreEver LTO-3 Ultrium 920 SAS Internal Tape Drive

EH847B

HP StoreEver LTO-4 Ultrium 1840 SAS External Tape Drive

EH861B

HP StoreEver LTO-4 Ultrium 1760 SAS Internal WW Tape Drive

EH919B

HP StoreEver LTO-5 Ultrium 3000 SAS Internal Tape Drive

EH957B

HP StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit

C0L99A

HP StoreEver LTO-6 Ultrium 6650 SAS Internal Tape Drive

EH963A

HP StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive

EH964A

HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive

EH969A

HP StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader

C0H19A

HP Tape Storage Systems

HP StoreEver MSL6480

HP StoreEver MSL6480 Scalable Base Module

QU625A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14604_na/14604_na.html

HP Disk Storage Systems

Disk Enclosures

HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle

E7W32A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html

HP Storage Options

QLogic Fibre Channel HBAs

HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

Converged Network Adapter

HP CN1100E Dual Port Converged Network Adapter

BK835A

HP CN1000Q Dual Port Converged Network Adapter

BS668A

HP StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 34

HP Uninterruptible Power
Systems

HP Tower UPS

HP T1500 G3 UPS Models

HP T1500 G3 1400VA NA Tower Uninterruptible Power System

AF450A

HP T1000 G3 UPS Models

HP T1000 G3 1000VA NA Tower Uninterruptible Power System

AF448A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13160_na/13160_na.html

HP Rack-mountable UPS

HP R1500 G3 Uninterruptible Power Supply (UPS)

HP R1.5kVA G3 1U NA Uninterruptible Power System

AF469A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14059_na/14059_na.html

HP R/T3000 G2 Uninterruptible Power System (UPS)

HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System

AF467A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14058_na/14058_na.html

R5000 Uninterruptible Power System (UPS)

HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14109_na/14109_na.html

R7000 Uninterruptible Power System (UPS)

HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14110_na/14110_na.html

NOTE:

For additional information on HP Uninterruptible Power Systems please go to:

www.hp.com/servers/rackups

.

NOTE:

For additional information on sizing your server, please reference:

http://www.upssizer.com

.

NOTE:

Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link:

www.hp.com/products/powercords

.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 35

HP Basic Power
Distribution Units (bPDU)

HP Basic Power Distribution Unit: 1U/0U Version

HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit

H5M54A

HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit

H5M56A

HP Basic Power Distribution Unit: Half Height Version

HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit

H5M55A

HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit

H5M57A

HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit

H5M58A

HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit

H5M61A

HP Basic Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit

H5M59A

HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit

H5M60A

HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit

H5M75A

HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit

H5M63A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit

H5M64A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit

H5M62A

HP Basic Power Distribution Unit: Full Height Version

HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit

H5M67A

HP Basic Power Distribution Unit: 480/277 Volt Version

HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit

H3X07A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit

H3X08A

HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14557_na/14557_na.html

NOTE:

Additional HP Power Distribution Units are available. For a complete list of all HP
PDUs and additional information please visit

www.hp.com/go/rackandpower

.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 36

HP Remote Monitoring
Power Distribution Units
(mPDU)

HP Remote Monitored Power Distribution Unit: 1U Version

HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N43A

HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit

D9N46A

HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N44A

HP Remote Monitored Power Distribution Unit: Half Height Version

HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit

D9N45A

HP Remote Monitored Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit

D9N47A

HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit

D9N51A

HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit

D9N52A

HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit

D9N53A

HP Remote Monitored Power Distribution Unit: Full Height Version

HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit

D9N49A

HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N58A

HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit

D9N61A

HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit

D9N54A

HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit

D9N59A

HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N62A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit

D9N63A

HP Environmental Sensor for Remote Monitored PDUs

HP Environmental Sensor for Remote Monitored PDUs

E2D53A

HP Remote Monitored Power Distribution Unit: 1U Version

HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N43A

HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit

D9N46A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14669_na/14669_na.html

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 37

HP Intelligent Power
Distribution Units

(iPDU)

iPDU Core Units

HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF520A

HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF521A

HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF522A

HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit

AF533A

HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF523A

HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit

AF902A

HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit

AF535A

HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit

AF537A

iPDU Kits with Standard Extension Bars

HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit

AF531A

HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit

AF532A

iPDU Extension Bars

HP 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13650_na/13650_na.html

HP Rack Series

HP Intelligent Series Rack

HP 636 1075mm Pallet Intelligent Series Rack

BW895A

HP 636 1075mm Shock Intelligent Series Rack

BW896A

HP 642 1075mm Pallet Intelligent Series Rack

BW903A

HP 642 1075mm Shock Intelligent Series Rack

BW904A

HP 642 1200mm Pallet Intelligent Series Rack

BW907A

HP 642 1200mm Shock Intelligent Series Rack

BW908A

HP 647 1075mm Pallet Intelligent Series Rack

BW911A

HP 647 1075mm Shock Intelligent Series Rack

BW912A

HP 647 1200mm Pallet Intelligent Series Rack

BW913A

HP 647 1200mm Shock Intelligent Series Rack

BW914A

NOTE:

Please see the QuickSpecs for Technical Specifications such as height, width,
depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/14223_na/14223_na.html

NOTE:

For additional information regarding Rack Cabinets, please see the following
URL:

http://www.hp.com/go/rackandpower

.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 38

HP Rack Options

HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)

HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor

AZ870A

HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor

AZ885A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html

HP USB Keyboard and Mouse

HP USB BFR with PVC Free US Keyboard/Mouse Kit

631341-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13792_na/13792_na.html

HP Server Console Switches

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP TAA 0x2x16xKVM Server Console G2 Switch

AF626A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/11834_na/11834_na.html

HP Server Console Switch G2 with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM CAT5 1-pack USB Interface Adapter

336047-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13475_na/13475_na.html

HP IP Console Switch G2 with Virtual Media & CAC

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13474_na/13474_na.html

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 39

HP USB and SD Options

HP Flash Media Kits for USB Drives

HP 2GB USB Flash Media Drive Key Kit

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device must be
installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to
HP VMware Getting Started Guide for installation instructions.

608447-B21

HP 8GB USB EM Flash Media Kit

737953-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB SD Enterprise Mainstream Flash Media Kit

726113-B21

HP 32GB SD Enterprise Mainstream Flash Media Kit

700136-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13971_na/13971_na.html

HP Care Pack Services

Proactive Care

NOTE:

Collaborative Support plus Proactive services delivered by the onshore, local
language Advanced Solution Center (ASC), end-to-end case ownership from a Technical
Solution Specialists and Technical Account Manager who remotely delivers
firmware/software revision management, proactive scans and incident trend reports.
Recommended for customers running a virtualized infrastructure and/or customers
who desire an enhanced call support experience.

HP 3 year 4 hour 24x7 ProLiant ML350e Proactive Care Service

U6C93E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant ML350e Proactive Care
Service

U6C94E

HP 3 year 6 hour Call to Repair 24x7 ProLiant ML350e Proactive Care Service

U6C99E

HP 3 year 6 hour Call to Repair 24x7 w/Defective Media Retention ProLiant ML350e
Proactive Care SVC

U6D00E

HP 3 year ISS ProactiveCare Personalized Support

U6W98E

Collaborative Support

NOTE:

Hardware break/fix plus 24x7 software diagnosis support with collaborative call
management for a broad spectrum of 3rd Party software products including O/S and
hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors
from the software vendors directly and deploying them on HP ProLiant servers.

HP 3 year 4 hour 24x7 ProLiant ML350e Collaborative Support

U6C91E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant ML350e Collaborative
Support

U6C92E

HP 3 year 6 hour Call to Repair 24x7 ProLiant ML350e Collaborative Support

U6C97E

HP 3 year 6 hour CalltoRepair 24x7 w/Defective Media Retention ProLiant ML350e
Collaborative Support

U6C98E

Installation Services

NOTE:

Reduce the time required to get your system up and running and help minimize
disruptions to your business.

HP Install ProLiant ML350e Service

U6D41E

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 40

HP Startup ProLiant ML350e Service

U6D43E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Additional Options

DA - 14668 North America — Version 7 — January 22, 2014

Page 41

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

DDR3 memory population guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

General Guidelines:

White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
To maximize performance, balance the total memory capacity between all installed processors

Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel

Heaviest load (DIMM with most ranks) within a channel goes furthest from the processor
Do not mix UDIMMs or RDIMMs
DIMMs of different voltages (1.35V & 1.5V) may be mixed in any order

The system will power them at the higher voltage
DIMMs of different speed grades may be mixed in any order

The system will select a common optimal speed
Memory speed is a function of the processor QPI bus speed.

Population Guidelines:

There are three (3) channels per processor; six (6) channels per server
There are two (2) DIMM slots for each memory channel; twelve (12) total slots
Memory channel 1 consists of the two (2) DIMMs that are furthest from the processor
Memory channel 3 consists of the two (2) DIMMs that are closest to the processor

DIMM slot/capacity/populated speed table

DIMM Type

->

Registered DIMMS (RDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)

DIMM Rank->Single Rank (1R)

Dual Rank (2R)

Single Rank (1R)

Dual Rank (2R)

DIMM
Capacity ->

4GB 4GB 4GB 8GB 8GB 8GB 8GB

16GB 16GB 16GB

2GB 2GB 2GB 4GB 4GB 4GB 8GB 8GB 8GB

DIMM
Native
Speed
(MHz) ->

1333 1600 1600 1600 1333 1600 1600 1333 1600 1600 1333 1600 1600 1333 1600 1600 1333 1600 1600

Voltage

LV

Std

LV

Std

LV

Std

LV LV

Std

LV LV

Std

LV LV

Std

LV LV

Std

LV

SLOTS THAT CAN BE POPULATED

12 slot
servers

12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12

MAXIMUM CAPACITY (GB)

*

12 slot
servers

48 48 48 96 96 96 96 192 192 192 24 24 24 48 48 48 96 96 96

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Memory

DA - 14668 North America — Version 7 — January 22, 2014

Page 42

POPULATED DIMM SPEED (MHz)

1 DIMM Per
Channel

1333 1600 1600 1600 1333 1600 1600 1333 1600 1600 1333 1600 1600 1333 1600 1600 1333 1600 1600

2 DIMM Per
Channel

1333 1600 1600 1600 1333 1600 1600 1333 1600 1600 1333**1600 1600 1333**1600 1600 1333**1600 1600

Please note:
Memory speed is a function of the processor QPI bus speed.
* Maximum capacity will vary based on individual server platform qualification schedule
** For HP SmartMemory, UDIMM is supported at 2DPC@DDR3-1333. Third party memory may only support up to 2DPC@DDR3-1066.

DIMM slot and configuration diagrams

Basic memory slot & population diagram

Population order; start with "A" first, "B" second, "C" third, etc.

12 DIMM SLOTS (6 per CPU node)

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A

1

A

Chnl 1

5

D

2

D

Chnl 2

4

B

3

B

Chnl 2

3

E

4

E

Chnl 3

2

C

5

C

Chnl 3

1

F

6

F

Standard memory configuration (1 CPU model) - Entry models

2GB, consisting of one (1) 2GB single-rank PC3L-10600E-9 UDIMM

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 2GB UDIMM

1

A; empty

Chnl 1

5

D; empty

2

D; empty

Chnl 2

4

B; empty

3

B; empty

Chnl 2

3

E; empty

4

E; empty

Chnl 3

2

C; empty

5

C; empty

Chnl 3

1

F; empty

6

F; empty

Standard memory configuration (1 CPU model) - Base models

4GB, consisting of one (1) 4GB dual-rank PC3L-10600E-9 UDIMM

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Memory

DA - 14668 North America — Version 7 — January 22, 2014

Page 43

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 4GB UDIMM

1

A; empty

Chnl 1

5

D; empty

2

D; empty

Chnl 2

4

B; empty

3

B; empty

Chnl 2

3

E; empty

4

E; empty

Chnl 3

2

C; empty

5

C; empty

Chnl 3

1

F; empty

6

F; empty

Standard memory configuration (1 CPU model) - Performance models

8GB, consisting of two (2) 4GB dual-rank PC3L-10600E-9 UDIMMs

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 4GB UDIMM

1

A; empty

Chnl 1

5

D; empty

2

D; empty

Chnl 2

4

B; 4GB UDIMM

3

B; empty

Chnl 2

3

E; empty

4

E; empty

Chnl 3

2

C; empty

5

C; empty

Chnl 3

1

F; empty

6

F; empty

RDIMM maximum configuration (1 CPU model)

96GB, consisting of six (6) 16GB dual-rank PC3L-10600R-9 RDIMMs

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 16GB RDIMM

1

A; empty

Chnl 1

5

D; 16GB RDIMM

2

D; empty

Chnl 2

4

B; 16GB RDIMM

3

B; empty

Chnl 2

3

E; 16GB RDIMM

4

E; empty

Chnl 3

2

C; 16GB RDIMM

5

C; empty

Chnl 3

1

F; 16GB RDIMM

6

F; empty

UDIMM maximum configuration (1 CPU model)

48GB, consisting of six (6) 8GB dual-rank PC3L-10600E-9 UDIMMs

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Memory

DA - 14668 North America — Version 7 — January 22, 2014

Page 44

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 8GB RDIMM

1

A; empty

Chnl 1

5

D; 8GB RDIMM

2

D; empty

Chnl 2

4

B; 8GB RDIMM

3

B; empty

Chnl 2

3

E; 8GB RDIMM

4

E; empty

Chnl 3

2

C; 8GB RDIMM

5

C; empty

Chnl 3

1

F; 8GB RDIMM

6

F; empty

RDIMM maximum configuration (2 CPU model)

192GB, consisting of twenty (12) 16GB dual-rank PC3L-10600R-9 RDIMMs

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 16GB RDIMM

1

A; 16GB RDIMM

Chnl 1

5

D; 16GB RDIMM

2

D; 16GB RDIMM

Chnl 2

4

B; 16GB RDIMM

3

B; 16GB RDIMM

Chnl 2

3

E; 16GB RDIMM

4

E; 16GB RDIMM

Chnl 3

2

C; 16GB RDIMM

5

C; 16GB RDIMM

Chnl 3

1

F; 16GB RDIMM

6

F; 16GB RDIMM

UDIMM maximum configuration (2 CPU model)

96GB, consisting of twelve (12) 8GB dual-rank PC3L-10600E-9 UDIMMs

Processor 1 Processor 2

slot #

population order

slot #

population order

Chnl 1

6

A; 8GB RDIMM

1

A; 8GB RDIMM

Chnl 1

5

D; 8GB RDIMM

2

D; 8GB RDIMM

Chnl 2

4

B; 8GB RDIMM

3

B; 8GB RDIMM

Chnl 2

3

E; 8GB RDIMM

4

E; 8GB RDIMM

Chnl 3

2

C; 8GB RDIMM

5

C; 8GB RDIMM

Chnl 3

1

F; 8GB RDIMM

6

F; 8GB RDIMM

NOTE:

Capacity references are rounded to the common Gigabyte values.

1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Memory

DA - 14668 North America — Version 7 — January 22, 2014

Page 45

16GB = 16384MB

DDR3 memory options part number decoder

Following are memory options available from HP:

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

Redundant PSU Kit (PN: 738661-B21) is required for RDIMMs.

Registered DIMMs (RDIMMs)

NOTE:

The following memory is supported by the E5-2400 v2 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713981-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713983-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713985-B21

NOTE:

The following memory is supported by the E5-2400 series Processors.

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647893-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647897-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647901-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672631-B21

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Memory

DA - 14668 North America — Version 7 — January 22, 2014

Page 46

Unbuffered with ECC DIMMs (UDIMMs)

NOTE:

The following memory is supported by the E5-2400 v2 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

NOTE:

The following memory is supported by the E5-2400 series Processors.

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647905-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647907-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647909-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:

http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Memory

DA - 14668 North America — Version 7 — January 22, 2014

Page 47

A

Optical Drive (standard with BTO, optional
with CTO)

B

Optional Media Bay

C

Optional Media Bay

1-4

Standard LFF Drive Cage

5-8

Optional LFF Drive Cage

A

Optical Drive

B

Optional Media Bay

C

Optional Media Bay

1-8

Standard SFF Drive Cage

9-16

Optional SFF Drive Cage

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Storage

DA - 14668 North America — Version 7 — January 22, 2014

Page 48

System Unit

Dimensions

(H x W x D)
(with feet/bezel)

16.93 x 7.87 x 24.8 in (43 x 20 x 63 cm)

Weight

(approximate)

Maximum
(all hard drives, power
supplies, and processors
installed)

72.34 lb (27 kg)

Minimum
(one hard drive, power
supply, and processor
installed)

53.58lb (20 kg)

Input Requirements

(per power supply)

Rated Line Voltage

100 to 240 VAC

Rated Input Current

7.1 Amps (at 120VAC) to 3.5 Amps (at 240 VAC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

852 W

BTU Rating

Maximum

460W - 1773 BTU / hr (at 120 VAC), 1715 (at 240
VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at 240
VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600 (at 240
VAC)

Power Supply Output

(per power supply)

Rated Steady-State Power

460(750) W (at 100 VAC)
460(750) W (at 200 VAC)

Maximum Peak Power

460(750) W (at 100 VAC)
460(750) W (at 200 VAC)

System Inlet
Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3048 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non­condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non­condensing.

Altitude

Operating

3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Technical Specifications

DA - 14668 North America — Version 7 — January 22, 2014

Page 49

Non-operating

9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).

Idle

L

WAd

4.1 B

L

pAm

25 dB

Operating

L

WAd

4.1 B

L

pAm

26 dB

NOTE:

Configurations tested for Entry models included Windows 2008

Enterprise 64-bit.

NOTE:

Configurations tested for Base models included one (1) 1TB non-hot

plug LFF SATA HDD and Windows 2008 Enterprise 64-bit.

NOTE:

The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

Emissions Classification
(EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1

NOTE:

Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.

HP Dynamic Smart Array
B120i Controller

Dimensions

Embedded

Disk Drive Interface ­Transfer rate

Up to 6Gb/s SATA (Serial ATA)

Connectors

6 internal SATA connectors

Server Interface

x4 PCIe 2.0

SATA Speed

6Gb/s SATA links

Cache Memory

Zero Memory RAID has no cache memory
optional 40-bit 512MB ECC protected Flash Backed Write Cache (FBWC)

Logical Drives Supported

Up to 8 logical volumes (6 physical drives)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Technical Specifications

DA - 14668 North America — Version 7 — January 22, 2014

Page 50

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)
RAID 1+0 (Striping & Mirroring)
RAID 5 with optional 512MB FBWC

NOTE:

512 MB cache is required to enable RAID 5 support

NOTE:

NO SAS supported.

HP Ethernet 1Gb 2-port
361i Adapter

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 1588, IEEE 802.1AS
IEEE 802.3az - Energy Efficient Ethernet (EEE)

Data Transfer Method

PCI Express V2.0, 5.0 GT/s with x2 link (fixed)

Controller

Intel I350 Powerville

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s per port, 20 Mb/s Combined

10Base-T (Full-Duplex)

20 Mb/s per port, 40 Mb/s Combined

100Base-TX (Half-Duplex)

100 Mb/s per port, 200 Mb/s Combined

100Base-TX (Full-Duplex)

200 Mb/s per port, 400 Mb/s Combined

1000Base-TX (Half­Duplex)

1000Mb/s per port, 2000 Mb/s Combined

1000 Base-TX (Full­Duplex)

2000Mb/s per port, 4000 Mb/s Combined

Connector

RJ-45

Cable Support

10Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000Base-TX

Category 5E or better; up to 328 ft (100 m)

Environment-friendly
Products and Approach

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Technical Specifications

DA - 14668 North America — Version 7 — January 22, 2014

Page 51

© Copyright 2014 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant ML350e Generation 8 (Gen8) v2

Technical Specifications

DA - 14668 North America — Version 7 — January 22, 2014

Page 52
