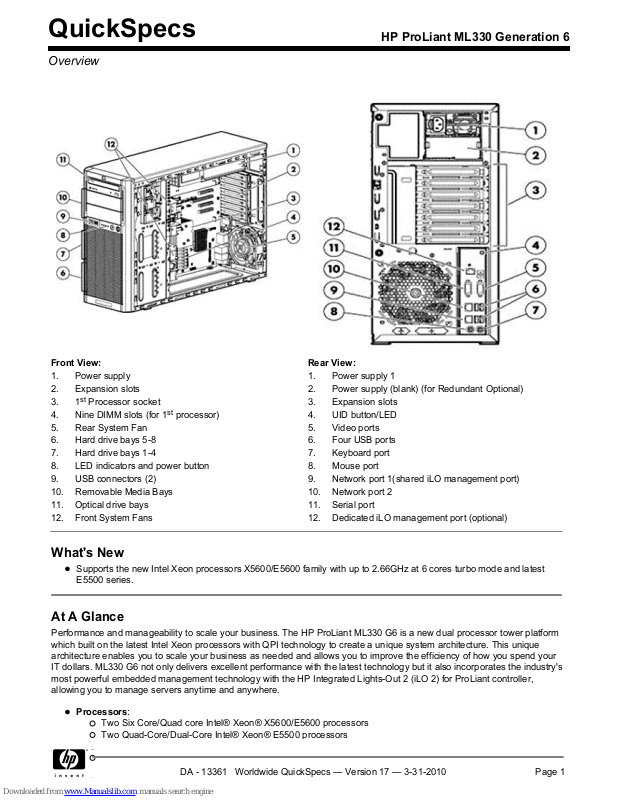

Page 1
Front View:
Rear View:
1.
Power supply
1.
Power supply 1
2.
Expansion slots
2.
Power supply (blank) (for Redundant Optional)
3.
1st Processor socket
3.
Expansion slots
4.
Nine DIMM slots (for 1st processor)
4.
UID button/LED
5.
Rear System Fan
5.
Video ports
6.
Hard drive bays 5-8
6.
Four USB ports
7.
Hard drive bays 1-4
7.
Keyboard port
8.
LED indicators and power button
8.
Mouse port
9.
USB connectors (2)
9.
Network port 1(shared iLO management port)
10.
Removable Media Bays
10.
Network port 2
11.
Optical drive bays
11.
Serial port
12.
Front System Fans
12.
Dedicated iLO management port (optional)
What's New
Supports the new Intel Xeon processors X5600/E5600 family with up to 2.66GHz at 6 cores turbo mode and latest
E5500 series.
At A Glance
Performance and manageability to scale your business. The HP ProLiant ML330 G6 is a new dual processor tower platform
which built on the latest Intel Xeon processors with QPI technology to create a unique system architecture. This unique
architecture enables you to scale your business as needed and allows you to improve the efficiency of how you spend your
IT dollars. ML330 G6 not only delivers excellent performance with the latest technology but it also incorporates the industry's
most powerful embedded management technology with the HP Integrated Lights-Out 2 (iLO 2) for ProLiant controller,
allowing you to manage servers anytime and anywhere.
Processors
:
Two Six Core/Quad core Intel® Xeon® X5600/E5600 processors
Two Quad-Core/Dual-Core Intel® Xeon® E5500 processors
QuickSpecs
HP ProLiant ML330 Generation 6
Overview
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 1
Page 2
One Quad-Core/Dual Core Intel® Xeon® W3500 processors
Intel® 5500 chipset
Memory
:
18 DIMM slots
Up to 192GB, using PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully
populated at 3 DIMMs per Channel in 18 slots.
Up to 48GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully
populated at 2 DIMMs per Channel in 12 slots.
NOTE:
If only one processor is installed, only half the DIMM slots are available
Storage Controllers
:
Entry Models: Non hot plug model with embedded HP Smart Array B110i SATA RAID Controller (RAID 0/1/1+0)
o Base Models: Hot plug SAS/SATA model (SAS model integrated HP Smart Array P410/Zero memory SAS
Controller (RAID 0/1/1+0)
Performance Models: Hot plug SATA model integrated HP Smart Array B110i SATA RAID controller hot plug
advanced key
Available upgrades: 256MB, 512MB/1G with write back, Battery kit upgrade (for FB/BBWC), and Smart Array
Advanced Pack (SAAP)
Internal Drive Support
:
Up to eight (8) LFF (3.5") Hot Plug or four (4) Non Hot Plug Serial Attached SCSI (SAS) or Serial-ATA (SATA)
hard drives
Maximum of 16TB of internal storage capacity
Network Controller
:
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Expansion Slots
:
Four total expansion slots
One (1) PCI-Express x8 Gen1 (x1 speed); One (1) PCI-Express x16 Gen2 (x16 speed); Two (2) PCI-Express x8
Gen2 (x4 speed)
Optional PCI-X Expander provides additional two (2) 64-bit/100-MHz PCI-X slots by using a single PCI Express
slot (only on slot 5)
Ports
:
USB 2.0 support
Eight total ports: (2) front; (4) rear; (2) internal (1 for Tape)
1 internal Secure Digital (SD) slot
Power Supply
:
One 460 W Non-Hot Plug, Non-redundant Power Supply
Optional 750W Hot Plug redundant power supply
NOTE:
The 750W power supply requires RPS Enablement kit.
Redundancy
:
Optional Hot plug redundant power supply
Optional for optional redundant fan
Infrastructure Management
:
HP Integrated Lights-Out 2 (iLO 2) management processor for simplified server setup, health monitoring and
recovery, power and thermal control, and lights-out remote administration.
HP Insight Control a product option, delivers essential infrastructure management that can help save time and
money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a
single, simple management console. Insight Control supports both Windows and Linux-based central
management servers.
HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff
personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the
cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep
pace with the organization's changing business requirements.
Deployment/Serviceability
:
Easy chassis entry and component access
Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow
for greater flexibility in performing defective parts replacement
HP Smart Start Tool
Operating Systems and Virtualization Software Support for ProLiant Servers
:
Supports Windows, RHEL, SLES, OEL, VMware, and HP Citrix Essentials for XenServer
QuickSpecs
HP ProLiant ML330 Generation 6
Overview
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 2
Page 3
Security - Trusted Platform Module
:
One (1) internal TPM 1.2 module connector
Warranty
:
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of
HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years
from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
Enhancements to warranty services are available through HP Care Pack services or customized service
agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive
QuickSpecs for details.
NOTE:
Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These
parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor
charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also
designed for easy replacement but may involve added complexity. Customers may choose to have HP replace
Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical
support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant ML330 Generation 6
Overview
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 3
Page 4
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information -
Factory Integrated Models" section.
Processor
One of the following
depending on Model
Six-Core Processors
Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W,DDR3-1333, HT, Turbo
1/1/2/2/3/3)
Quad-Core Processors
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo
NA/1/1/2/2)
Intel® Xeon® Processor E5630 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo
NA/1/1/2/2)
Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W, DDR3-1066, HT, Turbo
NA/1/1/2/2)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor W3540 (2.93 GHz, 8MB L3 Cache, 130W, DDR3-1066, HT, Turbo
1/1/1/2)
Intel® Xeon® Processor W3520 (2.66 GHz, 8MB L3 Cache, 130W, DDR3-1066, HT, Turbo
1/1/1/2)
Dual-Core Processors
Intel® Xeon® Processor E5503 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor W3505 (2.53 GHz, 4MB L3 Cache, 130W, DDR3-1066)
Intel® Xeon® Processor W3503 (2.40 GHz, 4MB L3 Cache, 130W, DDR3-1066)
NOTE:
HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE:
Turbo indicates the maximum potential frequency increment when using Intel® Turbo
Boost Technology, with 4, 3, 2, and 1 cores active.
NOTE:
DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE:
For the Intel 5500 Series, the letter preceding the model number indicates the
performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes
Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.
Cache Memory
One of the following
depending on Model
12MB (1x 12MB) level 3 cache
NOTE:
For processors X5600 and E5600.
8MB (1 x 8MB) Level 3 cache
NOTE:
For processors E5540/E5530/E5520/W3540/W3520.
4MB (1 x 4MB) Level 3 cache
NOTE:
For processors E5506/E5504/E5502/W3505/W3503.
Chipset
Intel® 5500 Chipset
NOTE:
For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
.
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 4
Page 5
Upgradeability
Upgradeable to 2 processors (4 or 8 or 12 cores)
Memory Protection
Mirroring
Lock-step mode
Advanced ECC
Online Spare (Requires X5600 or E5600 processor family)
NOTE:
Xeon W3500 processor family does not support any of above advanced features.
Memory
One of the following
depending on model
Type
DDR3 Registered (RDIMM) and Unbuffered (UDIMM)
Standard (Performance)
6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Base Models)
4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs
Standard (Entry Models)
2GB (1 x 2GB) PC3-10600E (DDR3-1333) Registered DIMMs
Maximum (RDIMM)
192GB (18 x 8GB) for Registered Memory configurations
Maximum (UDIMM)
48GB (12x 2GB) for Unbuffered Memory configurations
NOTE:
Depending on the memory configuration and processor model, the memory speed may run
at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:
www.hp.com/go/ddr3memory-configurator
.
Network Controller
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 5
Page 6
Expansion Slots
Expansion
Slot #
Technology
Bus Width**Connector
Width
Bus
Number
*
Form Factor
Notes
6
PCI Express
Gen2
x4 x8
4
Standard
Height/ Half
Length
5
PCI Express
Gen2
x4 x8
10
Standard
Height/ Half
Length
4
PCI Express
Gen2
x16 x16
13
Standard
Height/Length
3
PCI Express
Gen1
x1 x8
7
Standard
Height/Length
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus
assignment number
** Indicates the number of physical electrical lanes running to the connector.
Storage Controller
Entry Models
Non hot plug model with HP Smart Array B110i SATA RAID Controller
(RAID 0/1/1+0)
Base Models
Hot plug SAS model integrated HP Smart Array P410/Zero memory SAS
Controller (RAID 0/1/1+0)
Hot plug SATA model integrated HP Smart Array B110i SATA RAID
controller hot plug advanced key
Performance Models
Hot plug SATA model integrated HP Smart Array B110i SATA RAID
controller hot plug advanced key
Available upgrades: 256MB, 512MB/1GB with FB/BBWC, Battery kit upgrade (for FB/BBWC), and
Smart Array Advanced Pack (SAAP)
Storage
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
Hard Drives
Hot Plug Model: None ship standard
HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD
Maximum Internal
Storage
Hot Plug LFF SATA
16TB
8 x 2TB
Hot Plug LFF SAS
16TB
8 x 2TB
Interfaces
Serial
1
Pointing Device (Mouse)
1
Graphics
1
Keyboard
1
Network RJ-45
3 (1 dedicated for HP Integrated Lights-Out 2 (iLO 2)
SD Slot
1 (internal)
USB 2.0 Ports
8 (2 front, 4 rear, 2 internal)
NOTE:
Please see the following URL for additional information
regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html
.
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 6
Page 7
Graphics
Integrated ATI RN50, 64MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE:
Maximum resolution available via HP Integrated Lights-Out 2 (iLO 2) remote console is
1280 x 1024.
Form Factor
Tower (5U)
NOTE:
Rack mounting available via HP Tower to Rack Conversion Tray, Universal Kit. Please see
the options section in this QuickSpecs:
Square or round hole racks 24"- 36" deep, including HP Rack System /E and HP Systems
Telco racks with 3rd part option kit from Rack Solutions
www.hp.com/go/rackandpower
HP Insight
management software
HP Insight Foundation
Managing the growing number of servers can be complex and
expensive for your organization. IT managers need to address changing
business needs with tools that meet the challenges of managing today's
complex Datacenters.
HP provides management solutions that are designed to simplify a
server's installation, configuration and maintenance throughout the
entire server lifecycle. This provides the customer with higher levels of
operational efficiency and highly reliable systems:
www.hp.com/go/foundation
.
The foundation pack includes:
HP SmartStart
HP Management
HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 8.25
http://www.hp.com/servers/smartstart
NOTE:
In an effort to support reducing our environmental impact, the
HP ProLiant Essentials Foundation Pack media will be available as a
selectable option for this server at time of order of a Factory Integrated
Model. This will allow customers to order the number of media kits that
best meet their needs and eliminate receiving unnecessary duplicate
media.
HP Integrated Lights-Out
(iLO)
HP Integrated Lights-Out (iLO) simplifies server setup, health
monitoring, power and thermal control, and lights-out remote
administration of ProLiant ML, DL, and BL servers. HP iLO functions
without additional software and can be accessed from any location via a
web browser. HP iLO works hand-in-hand with HP Systems Insight
Manager, Insight Control suites, and Insight Dynamics for ProLiant,
helping customers unleash the value of the ProLiant platform and
deliver the highest possible quality of IT service. For more information,
visit:
www.hp.com/go/iLO
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, remote control, and optimize your IT
infrastructure through a single, simple management console.
Two versions of Insight Control are available, to serve environments
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 7
Page 8
requiring either a Linux-based or a Windows-based central management
server: HP Insight Control for Linux, and HP Insight Control. See
www.hp.com/go/insightcontrol
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff
and proactive delivery of software updates. For more information about
this service, please visit:
http://www.hp.com/services/insight
.
HP Insight Dynamics for
ProLiant
HP Insight Dynamics for ProLiant, a product option, is advanced
infrastructure management software that enables IT staff to instantly
adjust their environments to meet dynamic business demands by
provisioning, optimizing and protecting complex infrastructure in
minutes. It's a powerful toolkit, integrated-by-design, that accelerates
complex technology projects and simplifies daily operations,
transforming data center economics. With Insight Dynamics IT
professionals can plan capacity and power continuously, balance
workloads across physical and virtual resources, and ensure costeffective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared
resources using a self-service portal. Resources provisioned can range
from a single virtual machine to complex multi-tier environments and
their associated physical and virtual resource requirements. In addition
to the previous functional benefits, it also provides a cost-effective
disaster recovery for physical and virtual environments that works with
HP StorageWorks Continuous Access software for both the Enterprise
Virtual Array and the XP storage array allowing application
environments to be reactivated in minutes with the touch of a button to a
remote location.
NOTE:
For more information, visit:
http://www.hp.com/go/insightdynamics
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI-Express Gen2
PXE Support
WOL Support
PCI-X 1.0a Compliant
Microsoft® Logo certifications
USB 2.0
System Management
HP Systems Insight Manager
SmartStart
Redundant ROM
System Firmware Update
ROMPaq
ProLiant RBSU (ROM-Based Setup Utility)
Automatic Server Recovery-2 (ASR-2)
Dynamic Sector Repairing (with Smart Array Controller)
Drive Parameter Tracking (with Smart Array Controller)
Pre-Failure Warranty (covers processors, memory, and SAS hard drives)
Dynamic power capping (with 750W PSU)
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 8
Page 9
Security
Power-on password
Setup password
Serial interface control
Power switch security
Front bezel/side access panel Lock
Padlock and Kensington lock available
Keyboard/Mouse/USB port lock
Security - Trusted
Platform Module
Trusted Platform Module option kit
The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used
to authenticate the server platform. These artifacts can include passwords, certificates and
encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature
available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a
Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user
data and to ensure that a server running Windows Server 2008 has not been tampered with while
the system was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM
NOTE:
ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE:
The TPM key is unique to every TPM deployed server and must be retained. Misplacing or
loosing the key could result in data loss.
UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page.
Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions,
requirements, and specifications for UPS and PDU units. Please see the following link:
www.hp.com/products/powercords
.
Power Supply
460W Non-Redundant Power Supply, Non-hot plug
750W Hot plug, Redundant Power supply
NOTE:
The 750W power supply requires RPS Enablement kit.
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power
supply for your need. The HP Power Advisor is located at "
www.hp.com/go/proliant-energy-
efficient
or
www.hp.com/go/hppoweradvisor
HP has a new design for ProLiant power. The new Common Slot Power Supply bay. This design
provides the customer with commonality in power supplies across multiple platforms to save on
the cost of spares and allows HP to offer multiple power solutions to fit the customers' needs.
Many HP ProLiant Servers come with Common Slot, High Efficiency and Right-Size Power
Supplies. Common Slot (CS) designates commonality of the power supply across multiple
ProLiant servers. HP's new Common Slot power supplies are designed for highest efficiency to
provide power efficiency without degrading performance of the ProLiant. Power Supplies will have
efficiency ratings up to 92%. There are three Right Size power options available, depending on
the configuration of your server. To make sure you select the correct power supply to meet your
configuration, we suggest that you use the HP Power Calculator to decide the "Right-Size" for
your configuration. All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and
Redundant.
HP's ProLiant Common Slot Power supplies (750W) meet multiple Energy Efficiency Initiatives.
Climate Savers Computing Initiative GOLD, ECOS Consulting 80PLUS GOLD and they meet the
standard specifications for Energy Star for Servers Power Supply requirements.
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 9
Page 10
System Fans
3 fans ship standard, 4 fans total supported (optional (1) redundant fan)
NOTE:
Does not include power supply or processor heat sink fans. Processor heat sink fans
packed in processor kit.
NOTE:
There are two fans packed in the Redundant Fan Kit, only 1 is required for system
redundant function. The other one can be saved as a spare part.
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
VMware
Citrix Essentials for XenServer
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and
Virtualization Software and latest listing of software drivers available for your server, please visit
our Support Matrix at:
http://www.hp.com/go/ossupport
and our driver download page
www.hp.com/support/ML330G6
.
Factory Express
Portfolio for Servers
and Storage
HP Factory Express offers configuration, customization, integration and deployment services for
HP servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading,
asset tagging, and custom packaging. HP products supported through Factory Express include a
wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP
BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server model please contact
your sales representative or go to:
http://www.hp.com/go/factory-express
.
HP Enterprise
Configurator
The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP
hardware portfolio. This approach is aligned with our strategic direction to meet the needs and
expectations of our valued customers. If you require "custom" rack configuration, please contact
HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 10
Page 11
Service and Support
HP Care Pack services provide total care and support expertise with committed response
designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the
server and purchased at the same time or afterward that are internal to the enclosure. This also
includes the 22" and smaller external monitors and tower UPS options up to 12kVA. These items
will be covered at the same service level and for the same coverage period as the server.
Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For
servers or storage systems installed within a rack, service also covers all HP qualified rack
options installed within the same rack.
To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an
industry leader in provision of multi vender support solutions, provides a range of support services
designed to meet the varying needs of your business. Whether an SMB, or large global
corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize
system uptime.
Recommended Service
- simplify ProLiant solution implementation, maintenance, and
management.
Support
- 3-Year 4-Hour response 24x7 Same Business Day Coverage only
Deployment Service
- Installation and Start up only
Enhanced Service
- optimize service level to increase IT performance and availability.
Support
- 3-Year Support Plus 24 only
Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or
Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis
8am-5pm, M-F, excluding HP holidays.
NOTE:
For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/services/carepack
QuickSpecs
HP ProLiant ML330 Generation 6
Standard Features
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 11
Page 12
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information -
Factory Integrated Models" section.
HP ML330 G6 Entry
Model
Quad-Core Models
HP ML330T06 E5504
LFF Non Hot Plug
504055-xx1
Processor
(1) Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W,
DDR3-800
Cache Memory
4MB (1 x 4MB) Level 3 cache
Memory
2 GB (1 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
Network Controller
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller
Embedded HP Smart Array B110i SATA RAID Controller (RAID 0/1/0+1)
Hard Drive
HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD
Internal Storage
8TB LFF SAS
8TB LFF SATA
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
PCI-Express Slots
Four expansion slots (four PCI-Express)
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans
3 fans ship standard
Form Factor
Tower (5U)
HP ML330 G6 Base
Models
Quad-Core Models
HP ML330T06 E5506
LFF Hot Plug
504056-xx1
Processor
(1) Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W,
DDR3-800)
Cache Memory
4MB (1 x 4MB) Level 3 cache
Memory
4 GB (2 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
Network Controller
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller
HP Smart Array P410/Zero memory Controller (RAID 0/1/0+1)
Hard Drive
None ship standard
Internal Storage
4TB LFF SAS
8TB LFF SATA
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
PCI-Express Slots
Four expansion slots (four PCI-Express)
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans
3 fans ship standard
Form Factor
Tower (5U)
QuickSpecs
HP ProLiant ML330 Generation 6
Models
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 12
Page 13
HP ML330 G6 Base
Models
Quad-Core Models
HP ML330T06 E5507
LFF Hot Plug
600910-xx1
Processor
(1) Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W,
DDR3-800)
Cache Memory
4MB (1 x 4MB) Level 3 cache
Memory
4 GB (2 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
Network Controller
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller
Embedded HP Smart Array B110i SATA RAID Controller Hot plug
advanced key (RAID 0/1/0+1)
Hard Drive
None ship standard
Internal Storage
8TB LFF SAS
8TB LFF SATA
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
PCI-Express Slots
Four expansion slots (four PCI-Express)
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans
3 fans ship standard
Form Factor
Tower (5U)
HP ML330 G6
Performance Models
Quad-Core Models
HP ML330T06 E5620
LFF Hot Plug
600910-xx1
Processor
(1) Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W,
DDR3-1066)
Cache Memory
12MB (1 x 12MB) Level 3 cache
Memory
6 GB (3 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs
Network Controller
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Storage Controller
Embedded HP Smart Array B110i SATA RAID Controller Hot plug
advanced key (RAID 0/1/0+1)
Hard Drive
None ship standard
Internal Storage
8TB LFF SAS
8TB LFF SATA
Optical Drive
HP Half-Height SATA DVD-ROM Optical Drive
PCI-Express Slots
Four expansion slots (four PCI-Express)
Power Supply
460 Watt power supply (NHP, Non Redundant)
Fans
3 fans ship standard
Form Factor
Tower (5U)
Country Code Key
Tower Code Key
Rack Code Key
xx=00
U.S. English U.S. English
xx=01
Australia
N/A
xx=03
UK
N/A
xx=04
Germany
N/A
xx=05
France
N/A
xx=20
Brazil
N/A
xx=29
Japan Japan
xx=37
APD APD
xx=42
Europe Europe
xx=AA
PRC PRC
QuickSpecs
HP ProLiant ML330 Generation 6
Models
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 13
Page 14
NOTE:
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.
NOTE:
HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must
start with a CTO Chassis.
NOTE:
FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
HP Models
HP ML330G6 CTO Chassis
504271-B21
Includes:
Embedded NC326i PCI Express Dual Port Gigabit Server Adapter
Integrated Smart Array B110i SATA RAID Controller
One PCI-Express x8 Gen1 (x1 speed); One PCI-Express x16 Gen2 (x16 speed);
Two PCI-Express x8 Gen2 (x4 speed)
Eight USB ports
Tower Form Factor
Keyboard
2-button Mouse
Step 2: Choose Required Options (only one of the following from each list unless
otherwise noted)
HP Processors
Six-Core Processors
Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W, DDR3-1333,
HT, Turbo 2/2/3/3/4/4) FIO
601054-L21
Quad-Core Processors
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) FIO
607120-L21
Intel® Xeon® Processor E5630 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) FIO
601053-L21
Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) FIO
601052-L21
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 FIO Kit
535585-L21
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 FIO Kit
535584-L21
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 FIO Kit
535583-L21
Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 FIO Kit
601051-L21
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 FIO Kit
535582-L21
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800
ML330G6 FIO Kit
535581-L21
Intel® Xeon® Processor W3540 (2.93 GHz, 8MB L3 Cache, 130W, DDR3-1066,
HT, Turbo 1/1/1/2) ML330G6 FIO Kit
512718-L21
Intel® Xeon® Processor W3520 (2.66 GHz, 8MB L3 Cache, 130W, DDR3-1066,
HT, Turbo 1/1/1/2) ML330G6 FIO Kit
512717-L21
Dual-Core Processors
Intel® Xeon® Processor E5503 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 FIO Kit
601050-L21
QuickSpecs
HP ProLiant ML330 Generation 6
Configuration Information - Factory Integrated Models
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 14
Page 15
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 FIO Kit
535580-L21
Intel® Xeon® Processor W3505 (2.53 GHz, 4MB L3 Cache, 130W, DDR3-1066)
ML330G6 FIO Kit
573362-L21
Intel® Xeon® Processor W3503 (2.40 GHz, 4MB L3 Cache, 130W, DDR3-1066)
ML330G6 FIO Kit
573363-L21
NOTE:
Xeon E5500 DP family supports both Registered DIMMs and Unbuffered
DIMMs. Xeon W3500 UP family supports only Unbuffered DIMMs.
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB 2Rx8 PC3-10600R-9 Kit
500656-B21
HP 4GB 2Rx4 PC3-10600R-9 Kit
500658-B21
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
500660-B21
HP 4GB 1Rx4 PC3-10600R-9 Kit
593339-B21
HP 4GB 1Rx4 PC3L-10600R-9 Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
604504-B21
HP 8GB 2Rx4 PC3-8500R-7 Kit
516423-B21
HP 8GB 2Rx4 PC3-10600R-9 Kit
500662-B21
HP 8GB 2Rx4 PC3L-10600R-9 Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
604506-B21
HP 16GB 4Rx4 PC3-8500R-7 Kit
500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
500668-B21
HP 2GB 2Rx8 PC3-10600E-9 Kit
500670-B21
HP 4GB 2Rx8 PC3-10600E-9 Kit
500672-B21
NOTE:
For detailed memory configuration rules and guidelines, please use the
Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-
configurator
.
NOTE:
PC3L is a low voltage memory.
HP Drive Cage Options
Non-Hot Plug HDD Model
HP SATA 5U G6 Module FIO Kit
500448-B21
Hot Plug HDD Model
HP Hot Plug HDD Drive Cage Kit
487737-B21
NOTE:
Hot Plug SATA/SAS model and Non-hot plug SAS model requires a HP
SATA or SAS RAID Controller.
NOTE:
Non-Hot Plug Model only supports up to total 4 drives.
NOTE:
Hot plug SATA model requires HP Smart Array B110i SATA RAID
controller hot plug advanced key (515471-B21)
NOTE:
To reach maximum 8 LFF Drive support, it is required to purchase 2 Hot
Plug HDD Drive Cage kit and Smart Array controller 8 ports or 2x 4 ports.
HP Hard Drives
NOTE:
The components of a storage subsystem (e.g. the drive, the
HBA/controller, firmware, and the server backplane) should operate at the same
data transfer rate or the system bandwidth will be negotiated down to an
acceptable level for all components.
NOTE:
Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516830-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Configuration Information - Factory Integrated Models
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 15
Page 16
HP 450GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516826-B21
HP 450GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
454234-B21
HP 300GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516824-B21
HP 300GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
417950-B21
HP 146GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
417855-B21
HP 600GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516830-B21
NOTE:
SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4
port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard
Drive
458947-B21
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
462595-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
458941-B21
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
458939-B21
HP Power supplies
It is highly recommended that you use the HP Power Advisor in defining the
"Right-Size" power supply for your need. The HP Power Advisor is located at:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
HP 460W Power Supply, FIO Kit
500447-B21
HP 750W CS HE Power Supply
NOTE:
The HP 750W power supply requires purchasing the Redundant Power
Supply Enablement Kit (P/N 508544-B21).
512327-B21
HP Redundant Power Supply Enablement Kit
NOTE:
The Redundant Power Supply Enablement kit does not integrate any
power supply. To enable full Redundancy, it requires 2 units of 750W Power
supply.
508544-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Configuration Information - Factory Integrated Models
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 16
Page 17
Step 3: Choose Additional Factory Integratable Options
HP Storage Controllers
HP P212 /256 FIO SA Cntrlr w/Battery
491191-B21
HP P410/ZM FIO Smart Array Controller
462860-B21
HP P410/256 FIO SA Cntrlr w/Battery
491195-B21
HP P411/256MB BBWC Smart Array Controller FIO Kit
NOTE:
SAS Controller supporting RAID 0/1/1+0/5.
491193-B21
Optional Upgrades
256 MB Cache Upgrade
NOTE:
Supported HP Smart Array P212 and P410/ZM Controllers only.
462968-B21
512MB BBWC
NOTE:
Supported on HP Smart Array P410 Controller and HP Smart Array P411
Controller only.
462967-B21
Battery Kit upgrade
NOTE:
To enable BBWC on the 256MB cache.
NOTE:
Supported on HP Smart Array P212 Controller, HP Smart Array P410
Controller, and HP Smart Array P411 Controller only.
NOTE:
To support RAID 5, HP P410 requires at least 256MB Cache
NOTE:
To support RAID 6, HP P410 requires at least 256MB Cache + Battery +
SAAP or 512MB BBWC + Smart Array Advanced Pack (SAAP) license key.
Smart Array P411 Controller.
462969-B21
HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7
NOTE:
This part number can be used to purchase a single license or to order
multiple licenses with a single activation key. Customers will receive a license
entitlement certificate via e-mail. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s).
Include one year of 24x7 HP Software Technical Support Services.
516471-B21
HP Smart Array Hot Plug Advance Pack for B110i w/1yr 24x7 Supp Physical 1
Svr LTU
TC421A
HP Insight Software
HP Insight Control suite, No Media 1-Server License Factory-Integratable Option
(FIO) including 1 year of 24x7 Technical Support and Updates
582765-B21
HP Insight Control for Linux, No Media 1-Server License Factory-Integratable
Option (FIO) including 1 year of 24x7 Technical Support and Updates
TC203A
Step 4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options" or "Additional Options" section below.
QuickSpecs
HP ProLiant ML330 Generation 6
Configuration Information - Factory Integrated Models
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 17
Page 18
NOTE:
Some options may not be factory configurable. Please contact your local sales representative for additional
information.
HP Processors
Six-Core Processors
Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95W, DDR3-1333,
HT, Turbo 2/2/3/3/4/4) ML330G6 Processor Kit
603978-B21
Quad-Core Processors
Intel® Xeon® Processor E5640 (2.66 GHz, 12MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 Processor Kit
607122-B21
Intel® Xeon® Processor E5630 (2.53 GHz, 12MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 Processor Kit
603977-B21
Intel® Xeon® Processor E5620 (2.40 GHz, 12MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 Processor Kit
603976-B21
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 Processor Kit
512716-B21
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 Processor Kit
512715-B21
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066,
HT, Turbo 1/1/2/2) ML330G6 Processor Kit
512714-B21
Intel® Xeon® Processor E5507 (2.26 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 Processor Kit
603975-B21
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 Processor Kit
512713-B21
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800
ML330G6 Processor Kit
512712-B21
Dual-Core Processors
Intel® Xeon® Processor E5503 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 Processor Kit
603974-B21
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
ML330G6 Processor Kit
512711-B21
NOTE:
Each Processor Kit includes (1) processor/(1) heatsink/ (1) Processor
board. The Processor board integrated (1) processor socket and (9) DIMM slots.
NOTE:
When two (2) Xeon E5500 processors are installed, the system QPI will
be locked at 4.8 GT/s.
NOTE:
Xeon E5500 DP family supports both Registered DIMMs and Unbuffered
DIMMs. Xeon W3500 UP family supports only Unbuffered DIMMs.
QuickSpecs
HP ProLiant ML330 Generation 6
Core Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 18
Page 19
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB 2Rx8 PC3-10600R-9 Kit
500656-B21
HP 4GB 2Rx4 PC3-10600R-9 Kit
500658-B21
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
500660-B21
HP 4GB 1Rx4 PC3-10600R-9 Kit
593339-B21
HP 4GB 1Rx4 PC3L-10600R-9 Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
604504-B21
HP 8GB 2Rx4 PC3-8500R-7 Kit
516423-B21
HP 8GB 2Rx4 PC3-10600R-9 Kit
500662-B21
HP 8GB 2Rx4 PC3L-10600R-9 Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
604506-B21
HP 16GB 4Rx4 PC3-8500R-7 Kit
500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
500668-B21
HP 2GB 2Rx8 PC3-10600E-9 Kit
500670-B21
NOTE:
For detailed memory configuration rules and guidelines, please use the
Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-
configurator
.
NOTE:
PC3L is a low voltage memory.
HP Optical Drives
HP Half-Height SATA DVD-ROM Optical Drive
447326-B21
HP Half-Height SATA DVD RW Optical Drive
447328-B21

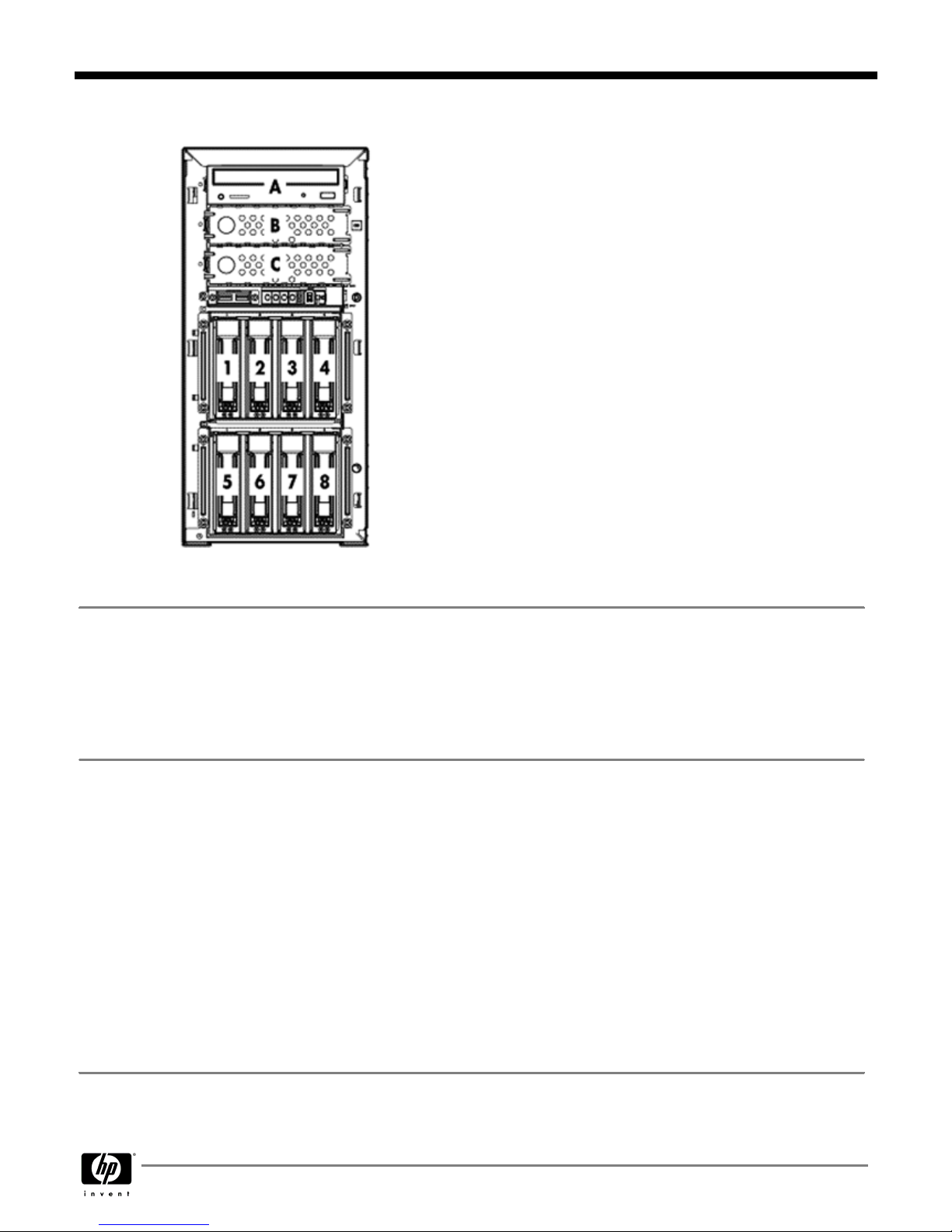

HP Drive Cage Options
HP 5U Hot Plug HDD Drive Cage Kit
487737-B21
NOTE:
To reach maximum 8 LFF Drive support, it is required to purchase 2 Hot
Plug HDD Drive Cage kit and Smart Array controller 8 ports or 2x 4 ports.
HP Hard Drives
NOTE:
The components of a storage subsystem (e.g. the drive, the
HBA/controller, firmware, and the server backplane) should operate at the same
data transfer rate or the system bandwidth will be negotiated down to an
acceptable level for all components.
NOTE:
Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE:
SATA Hot Plug models require HP SAS Smart Array Controller.
NOTE:
SAS Non-Hot Plug and SAS Hot Plug Models require HP SAS Smart
Array Controller.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
516828-B21
HP 450GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
516816-B21
HP 450GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
454232-B21
HP 300GB 6G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
516814-B21
HP 300GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
416127-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Core Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 19
Page 20
HP 146GB 3G SAS 15K LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
384854-B21
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
HP 600GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516830-B21
HP 450GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516826-B21
HP 450GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
454234-B21
HP 300GB 6G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
516824-B21
HP 300GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
417950-B21
HP 146GB 3G SAS 15K LFF (3.5-inch) Non-hot Plug Dual Port ENT 3y Wty
Hard Drive
417855-B21
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
507616-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
507614-B21
HP 1TB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
461137-B21
HP 750GB 3G SAS 7.2K rpm LFF(3.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
461135-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
507632-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
454146-B21
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458930-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458928-B21
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive
458926-B21
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
507774-B21
HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
507772-B21
HP 750GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
462595-B21
HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
458941-B21
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard
Drive
458939-B21
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
571230-B21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Entry 1yr Warranty Hard Drive
458945-B21
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
HP 250GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard
Drive
571232-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Core Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 20
Page 21
HP 160GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Entry 1y Wty Hard
Drive
458947-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
HP 60GB 3G SATA 3.5in MDL 1y Wty SSD
570761-B21
HP 120GB 3G SATA 3.5in MDL 1y Wty SSD
570763-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html
(Worldwide)
HP Networking
Gigabit Ethernet Adapters
HP NC112T PCIe Gigabit Server Adapter
503746-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
435508-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter
538696-B21
HP NC382T PCIe Dual Port Multifunction Gigabit Server Adapter
458492-B21
10 Gigabit Ethernet Adapters
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE:
A minimum of 2 GB of server memory is required per each NC522SFP
adapter.
NOTE:
Direct Attach Cable (DAC) for copper environments or fiber transceivers
and cables for fiber-optic environments must be purchased separately.
468332-B21
HP NC550SFP Dual Port 10GbE Server Adapter
NOTE:
A minimum of two Gigabytes (2 GB) of server memory is required per
each NC550SFP adapter.
NOTE:
Direct Attach Cable (DAC) for copper environments or fiber transceivers
and cables for fiber-optic environments must be purchased separately.
581201-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
www.hp.com/go/ProLiantNICs
QuickSpecs
HP ProLiant ML330 Generation 6
Core Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 21
Page 22
HP Power Supplies
NOTE:
It is highly recommended that you use the HP Power Advisor in defining
the "Right-Size" power supply for your need. The HP Power Advisor is located
at:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
CAUTION:
Optional Power Supplies used for Redundancy "must" match the
original supplied power supply. Upgrades for more power headroom, when
replacing the original power supplies must match if purchased for redundancy.
Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables. In ProLiant Servers that have more than one power slot (bay), only same
size power supplies are recommended. If non-matched power supplies are
inserted you will get errors and operation will fail.
HP 750W CS HE Power Supply
NOTE:
The HP 750W power supply requires purchasing the Redundant Power
Supply Enablement Kit (P/N 508544-B21).
512327-B21
HP Redundant Power Supply Enablement Kit
NOTE:
The Redundant Power Supply Enablement kit does not integrate any
power supply. To enable full Redundancy, it requires 2 units of 750W Power
supply.
508544-B21
HP Cooling Options
HP 5U G6 Redundant fan kit
NOTE:
Option Kits contain optional power supply, an IEC power cable and PDU
IEC cables.
513927-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Core Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 22
Page 23
HP Insight Software
HP Insight Control
HP Insight Control, Single-Server License including 1 year of 24x7 Technical
Support and Updates
452148-B22
HP Insight Control suite, No Media, Electronic License including 1 year of 24x7
Technical Support and Updates
T9074BAE
HP Insight Control, Electronic License for bundling with ProLiant ML/DL server,
including 1 year of 24x7 Technical Support and Updates
TC278AAE
HP Insight Control, Tracking License for bundling with ProLiant ML/DL server,
including 1 year of 24x7 Technical Support and Updates
TC275A
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single activation key.
NOTE:
Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE:
Customer will receive a license entitlement certificate. The license
entitlement certificate must be redeemed online or via fax in order to obtain the
license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support and Update Service.
NOTE:
Licenses ship without media. The HP Insight Control Media Kit can be
ordered separately, or can be downloaded at:
http://www.hp.com/go/insightupdates
.
NOTE:
For additional license options please see the Insight Control QuickSpecs
at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7
Technical Support and Updates, Electronic
TC213AAE
HP Insight Control for Linux, No Media, 1-Server license, including one year of
24x7 Technical Support and Updates
TC209A
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE:
Media pack DVD contains the ISO image for HP Insight Control for Linux,
HP Systems Insight Manager, HP Insight Control power management, HP
Insight Control virtual machine management, and an integrated installer. Servers
must be acquired separately.
TC208A
NOTE:
Licenses ship without media. The Media Kit for Insight Control for Linux
can be ordered separately, or can be downloaded at:
http://www.hp.com/go/ic-
linux
(click on Download button).
NOTE:
Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase
multiple licenses with a single set of activation keys.
NOTE:
For additional License Kits, including electronic licensing options, please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Integrated Lights-Out (iLO) Advanced
HP Integrated Lights-Out Advanced, No Media, 1-Server License, including 1
year of 24x7 Technical Support and Updates
512485-B21
HP ProLiant Essentials Integrated Lights-Out Advanced Pack, Electronic,
including 1 year of 24x7 Technical Support and Updates
TA850AAE
HP Insight Software Media Kit
NOTE:
Insight Software DVD media without licenses. Contains HP Systems
Insight Manager, HP Insight Control, HP Insight Dynamics, HP Insight Control for
Microsoft System Center, and Virtual Connect Enterprise Manager software.
Uses an integrated installer to perform quick and accurate software installation
and updates.
436222-B21
NOTE:
This license allows 1 server to be deployed and managed via HP iLO
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 23
Page 24
Advanced. Customer will receive a printed license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online
or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service
NOTE:
For additional license kits, including electronic delivery options, please
see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
HP Insight Control server deployment
HP Insight Control server deployment Electronic License including 1 year 24x7
Technical Support and Updates
T9082AAE
HP Insight Control server deployment 1-Server License including 1 year 24x7
Technical Support and Updates
452151-B21
NOTE:
Licenses ship without media. The Insight Control Media Kit can be
ordered separately, or can be downloaded at:
http://www.hp.com/go/insightupdates
.
NOTE:
Electronic licenses can be used to purchase multiple licenses with a
single activation key, and is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE:
Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s).
Includes one year of 24 x 7 HP Software Technical Support Service.
NOTE:
For additional license kits please see the Insight Control QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Port Options
HP iLO 2 PORT OPT KIT
514206-B21
HP NHP Internal SAS/SATA 4 port cable kit
NOTE:
SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4
port Cable kit (P/N 487734-B21) and a HP SAS/Smart Array Controller.
487734-B21
HP Hot plug internal SATA to mini SAS cable kit
NOTE:
This cable needed when upgrade from non-hot plug SATA to hot plug
SATA.
600732-B21
HP PCI-X Expander Kit
HP PCI-X Expander Kit (2 x 64-bit 100MHz PCI-X slots)
488413-B21
HP Security - TPM
HP Trusted Platform Module Option Kit
488069-B21
HP Storage Controllers
SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/Zero Memory Controller
462828-B21
HP Smart Array P212/256MB Controller
462834-B21
Smart Array P410 Controller
HP Smart Array P410/256MB Controller
462862-B21
HP Smart Array P410/512MB with BBWC
462864-B21
HP Smart Array P410/512MB with FBWC
578230-B21
HP Smart Array P410/1G with FBWC
572532-B21
Smart Array P411 Controller
HP Smart Array P411/256MB Controller
462830-B21
HP Smart Array P411/512MB BBWC
462832-B21
HP Smart Array P411/512MB Flash Backed Write Cache
578229-B21
HP Smart Array P411/1G Flash Backed Write Cache
572531-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 24
Page 25
Smart Array P812 Controller
HP Smart Array P812/1G Flash Backed Cache Controller
487204-B21
Upgrade Options
256 MB Cache Module
NOTE:
Supported on HP Smart Array P212 and P410/ZM Controllers only.
462968-B21
512MB BBWC
462967-B21
Battery Kit upgrade
NOTE:
To enable BBWC on the 256MB cache.
NOTE:
Supported on HP Smart Array P212 Controller, HP Smart Array P410
Controller, and HP Smart Array P411 Controller only.
462969-B21
HP 8484 to Mini SAS 33in Cable Assy
NOTE:
Needed to support internal drives on the HP ProLiant ML330 G6 when
using a Smart Array P800.
591734-B21
512MB Flash Backed Write Cache
534916-B21
1G Flash Backed Write Cache
534562-B21
HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7
Technical Support
NOTE:
This part number can be used to purchase a single license or to order
multiple licenses with a single activation key. Customers will receive a license
entitlement certificate via e-mail. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s).
Include one year of 24x7 HP Software Technical Support Services.
516471-B21
HP Smart Array Hot Plug Advance Pack for B110i w/1yr 24x7 Supp Physical 1
Svr LTU
TC421A
NOTE:
Please see the following QuickSpecs additional information:
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)
SAS HBA
HP SC08Ge Host Bus Adapter
488765-B21
NOTE:
Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html
(SC08Ge HBA)
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE:
Recommended HBA for SCSI tape drive connect.
412911-B21
NOTE:
Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 25
Page 26
Backup & Recovery
Software
HP Data Protector Express
HP Data Protector Express 4.0 SP1 Backup Server
BB117BA
HP Data Protector Express 4.0 SP1 for Microsoft Small Business Server
BB118BA
HP Data Protector Express Backup Server 4.0 SP1Upgrade from Data Protector
Express Single Server Edition
BB117BT
NOTE:
One of these Data Protector Express base products is required. To see
available options:
http://www.hp.com/go/dataprotectorexpress
Tape Backup
NOTE:
For the complete range of StorageWorks tape drives, autoloaders,
libraries and media see:
http://www.hp.com/go/tape
. For hardware and software
compatibility of HP StorageWorks tape backup products see:
http://www.hp.com/go/connect
.
Rack-Mount Tape Solutions
HP StorageWorks DAT 320 USB Internal Tape Drive
AJ825A
HP StorageWorks DAT 320 SAS Internal Tape Drive
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
AJ830A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH847A
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH919A
HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH861A
HP StorageWorks LTO-5 Ultrium 3000 SAS Internal Tape Drive
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
EH958A
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
NOTE:
Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack
installation. Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
AK377A
HP StorageWorks MSL2024 Tape Library with one LTO-4 Ultrium 1760 SAS
Drive
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
AK378A
HP StorageWorks MSL4048 Tape Library with two LTO-4 Ultrium 1760 SAS
Drives
NOTE:
Connection using HP SC44Ge SAS Host Bus Adapter (416096-B21)
recommended.
AK380A
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 26
Page 27
Disk Backup
NOTE:
For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d
. For the complete range of StorageWorks RDX drives
and media see:
http://www.hp.com/go/rdx
. For hardware and software
compatibility of HP StorageWorks disk backup products see:
http://www.hp.com/go/connect
.
HP StorageWorks D2D Backup Systems with Backup Data Deduplication
HP StorageWorks D2D2502i Backup System
NOTE:
1.5TB of useable network disk backup capacity. Network connected
appliance with connectivity using the iSCSI protocol. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
EJ001A
HP StorageWorks D2D2503i Backup System
NOTE:
2.25TB of useable network disk backup capacity. Network connected
appliance with connectivity using the iSCSI protocol. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
EH954A
HP StorageWorks D2D4004i Backup System
NOTE:
3.0TB (expandable to 7.5TB) of useable network disk backup capacity.
Network connected appliance with connectivity using the iSCSI protocol. If the
server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus
Adapter is recommended.
EH938A
HP StorageWorks D2D4112fc Backup System
NOTE:
9.0TB (expandable to 18.0TB) of useable network disk backup capacity.
Fibre Channel SAN connected appliance. Direct server attach is not supported,
requires connection via SAN fabric.
EH993A
HP StorageWorks RDX Removable Disk Backup Systems USB
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE:
For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 320GB of disk capacity per data
cartridge.
AJ767A
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE:
For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 500GB of disk capacity per data
cartridge.
AJ934A
HP StorageWorks RDX750 Internal Removable Disk Backup System
NOTE:
For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay
available for drive installation into the server. 750GB of disk capacity per data
cartridge.
AW577A
HP StorageWorks
Options
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE:
Recommended HBA for MSL SCSI Tape Library connect.
AH627A
HP Disk Storage
Systems
Disk Enclosures
HP StorageWorks D2700 Disk Enclosure
AJ941A
NOTE:
Please see the QuickSpecs for additional information including
configuration steps and additional options needed for a complete solution at:
http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 27
Page 28
HP Uninterruptible
Power Systems
HP Tower UPS
HP T1000 G3 UPS Models
HP T1000 G3 UPS, NA
AF448A
HP T1000 G3 UPS, INTL
AF449A
HP T1000J UPS, Japan
AF457A
HP T1500 G3 UPS Models
HP T1500 G3 UPS, NA
AF450A
HP T1500 G3 UPS, INTL
AF451A
HP T1500J UPS, Japan
AF458A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html
(Worldwide)
NOTE:
For additional information on HP Uninterruptible Power Systems please
go to:
www.hp.com/products/ups
.
NOTE:
For additional information on sizing your server, please reference:
http://www.upssizer.com
HP Rack Series
HP Rack 10000 G2 Series
(Carbon/Graphite Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
AF001A
10642 G2 (42U) Rack Cabinet - Shock Pallet
AF002A
NOTE:
It is mandatory to use a shock pallet when shipping racks with equipment
installed.
NOTE:
Please see the QuickSpecs for Technical Specifications such as height,
width, depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
NOTE:
For additional information regarding Rack Cabinets, please see the
following URL:
http://www.hp.com/go/rackandpower
.
HP Rack Options
HP Server Console Switches
HP Server console switch 0x2x8
AF616A
HP Server console switch 0x2x16
AF617A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html
(Worldwide)
HP Server Console Switch G2 with Virtual Media & CAC
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC
AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC
AF619A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html
(Worldwide)
HP IP Console Switch G2 with Virtual Media & CAC
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC
AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC
AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC
AF622A
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 28
Page 29
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)
Rack Kit
HP Tower to Rack Conversion Tray, Universal Kit
417705-B21
HP USB and SD
Options
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
DC172B
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard
DT528A#ABA
HP 4GB SD Flash Media Kit
NOTE:
Blank SD media device is supported for use with VMware and Citrix.SD
media must be installed in the internal slot of the ProLiant server. Learn more at:
http://www.hp.com/go/proliantvirtualization
.
580387-B21
HP 2GB USB Flash Media Drive Key
NOTE:
HP qualified blank USB key for use with HP ProLiant servers that support
the VMware virtualization environment and other HP value-add software like
SmartStart. HP recommends this industry standard USB flash device for use
with VMware ESXi. USB device must be installed in the internal slot of the
ProLiant server for use with VMware ESXi. Refer to
HP VMware Getting
Started Guide
for installation instructions.
608447-B21
HP Care Pack Services
Hardware Services On-site Service
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 1Year
UM868E
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 1 Year
UM869E
Hardware Services
Next Day Service, 3 Year
UM870E
4-Hour Service, 5-Day x 13-Hour Coverage, 3 Years
UM872E
4-Hour Service, 7-Day x 24-Hour Coverage, 3Years
UM874E
6-Hour Call to Repair, Service, 7-Day x 24-Hour Coverage, 3 Year
UM876E
Other Services
4-Hour Service, 5-Day x 13-Hour Coverage, 4 Years
UM880E
4-Hour Service, 7-Day x 24-Hour Coverage, 4Years
UM882E
4-Hour Service, 5-Day x 13-Hour Coverage, 5 Years
UM888E
4-Hour Service, 7-Day x 24-Hour Coverage, 5Years
UM890E
Support Plus
Support Plus, MS, 3Years
UM894E
NOTE:
For more information, customer/resellers can contact:
http://www.hp.com/services/carepack
QuickSpecs
HP ProLiant ML330 Generation 6
Additional Options
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 29
Page 30
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
DDR3 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Some DIMM installation guidelines are summarized below:
For servers with eighteen (18) memory slots:
There are three (3) channels per processor; six (6) channels per server
There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
To maximize performance, balance the total memory capacity between all installed processors
It is not required, but it is recommended to load the channels similarly if possible
If any Quad rank DIMMs are installed, all channels are limited to only 2 DIMMs per channel.
You can only install two quad-rank DIMMs per channel
You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired
slots will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600 series processors
If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of
supporting 1.5V operations
DIMM slot/capacity/populated speed table
DIMM Type
Registered DIMMS
(RDIMMs)
Unbuffered with ECC DIMMs
(UDIMMs)
DIMM Rank
Single
Rank
(1R)
Dual Rank (2R)
Quad Rank (4R)
Single
Rank
(1R)
Dual Rank (2R)
DIMM Capacity
4GB 2GB 4GB 8GB 8GB 4GB
16GB
1GB 2GB 4GB
DIMM Native Speed
(MHz)
1333 1333 1333 1066 1333 1066 1066 1333 1333 1333
Voltage
LV/Reg
Reg Reg Reg
LV/Reg
Reg Reg Reg Reg Reg
SLOTS THAT CAN BE POPULATED
18 slot servers
18 18 18 18 18 12 12 12 12 12
MAXIMUM CAPACITY (GB)
72 36 72 144 144 48 192 12 24 48
POPULATED DIMM SPEED (MHz)
1 DIMM Per
Channel
1333 1333 1333 1066 1333 1066 1066 1333 1333 1333
2 DIMM Per
Channel
1333
*
1333
*
1333
*
1066 1333
*
800 800 1333 1333 1333
*
3 DIMM Per
Channel
800 800 800 800 800
n/a n/a n/a n/a n/a
NOTES:
QuickSpecs
HP ProLiant ML330 Generation 6
Memory
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 30
Page 31
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz
Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if
the slower DIMM is on the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be
1066MHz If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in
each of the other channels, the maximum speed will be 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the
other channels, you run at 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
Maximum memory speed will also depend on the processor installed. References to the above MHz speeds are for the
various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second, "C" third, etc.
18 DIMM SLOTS (9 per CPU node)
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 0
1
G
1
G
Chnl 0
2
D
2
D
3
A
3
A
Chnl 1
4
H
4
H
Chnl 1
5
E
5
E
6
B
6
B
Chnl 2
7
I
7
I
Chnl 2
8
F
8
F
9
C
9
C
Standard memory configuration (1 CPU model)
4GB, consisting of three (2) 2GB dual-rank PC3-10600 RDIMMs (Base model)
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; empty
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; empty
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; empty
8
F; empty
9
C; empty
9
C; empty
QuickSpecs
HP ProLiant ML330 Generation 6
Memory
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 31
Page 32
Standard memory plus optional memory (1 CPU model)
60GB, consisting of two (2) 2GB RDIMMs plus seven (7) 8GB RDIMMs
2x 2GB dual-rank PC3-10600 RDIMMs
7x 8GB dual-rank PC3-8500 RDIMMs
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; 8GB DIMM
1
G; empty
Chnl 1
2
D; 8GB DIMM
2
D; empty
3
A; 2GB DIMM
3
A; empty
Chnl 2
4
H; 8GB DIMM
4
H; empty
Chnl 2
5
E; 8GB DIMM
5
E; empty
6
B; 2GB DIMM
6
B; empty
Chnl 3
7
I; 8GB DIMM
7
I; empty
Chnl 3
8
F; 8GB DIMM
8
F; empty
9
C; 8GB DIMM
9
C; empty
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration
96GB, consisting of nine (6) 16GB dual-rank PC3-8500 RDIMMs
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 16GB DIMM
2
D; empty
3
A; 16GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 16GB DIMM
5
E; empty
6
B; 16GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 16GB DIMM
8
F; empty
9
C; 16GB DIMM
9
C; empty
UDIMM maximum configuration (1 CPU model)
24GB, consisting of six (6) 4GB dual-rank PC3-10600 UDIMMs
QuickSpecs
HP ProLiant ML330 Generation 6
Memory
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 32
Page 33
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 4GB DIMM
2
D; empty
3
A; 4GB DIMM
3
A; empty
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 4GB DIMM
5
E; empty
6
B; 4GB DIMM
6
B; empty
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 4GB DIMM
8
F; empty
9
C; 4GB DIMM
9
C; empty
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration
192GB, consisting of eighteen (12) 16GB dual-rank PC3-8500 RDIMMs
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 16GB DIMM
2
D; 16GB DIMM
3
A; 16GB DIMM
3
A; 16GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 16GB DIMM
5
E; 16GB DIMM
6
B; 16GB DIMM
6
B; 16GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 16GB DIMM
8
F; 16GB DIMM
9
C; 16GB DIMM
9
C; 16GB DIMM
UDIMM maximum configuration (2 CPU model)
48GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs
CPU1 CPU2
slot #
population order
slot #
population order
Chnl 1
1
G; empty
1
G; empty
Chnl 1
2
D; 4GB DIMM
2
D; 4GB DIMM
3
A; 4GB DIMM
3
A; 4GB DIMM
Chnl 2
4
H; empty
4
H; empty
Chnl 2
5
E; 4GB DIMM
5
E; 4GB DIMM
6
B; 4GB DIMM
6
B; 4GB DIMM
Chnl 3
7
I; empty
7
I; empty
Chnl 3
8
F; 4GB DIMM
8
F; 4GB DIMM
9
C; 4GB DIMM
9
C; 4GB DIMM
QuickSpecs
HP ProLiant ML330 Generation 6
Memory
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 33
Page 34
NOTE:
Capacity references are rounded to the common Gigabyte values.
1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
Following are memory options available from HP:
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB 2Rx8 PC3-10600R-9 Kit
500656-B21
HP 4GB 2Rx4 PC3-10600R-9 Kit
500658-B21
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
500660-B21
HP 4GB 1Rx4 PC3-10600R-9 Kit
593339-B21
HP 4GB 1Rx4 PC3L-10600R-9 Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
604504-B21
HP 8GB 2Rx4 PC3-8500R-7 Kit
516423-B21
HP 8GB 2Rx4 PC3-10600R-9 Kit
500662-B21
HP 8GB 2Rx4 PC3L-10600R-9 Kit
NOTE:
Low Voltage DIMMs can only be used with Intel® Xeon® processor 5600
series processors.
604506-B21
HP 16GB 4Rx4 PC3-8500R-7 Kit
500666-B21
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
500668-B21
HP 2GB 2Rx8 PC3-10600E-9 Kit
500670-B21
NOTE:
For detailed memory configuration rules and guidelines, please use the
Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-
configurator
.
NOTE:
PC3L is a low voltage memory.
QuickSpecs
HP ProLiant ML330 Generation 6
Memory
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 34
Page 35
A
Optical Drive
B,C
Removable Media Bays- 1 full-height drive or 2 halfheight drives
1-4
4 x 3.5" (LFF) Hot plug or Non hot-plug SATA/SAS
hard drive bays (Standard)
5-8
4 x 3.5" (LFF) Hot plug SATA/SAS hard drive bays
(Optional)
Drive Support
Quantity
Supported
Position
Supported
Controller
Removable Media
SATA DVD-ROM Drive
Up to 1
A
Integrated SAS Controller
HP Half-Height SATA
DVD RW Optical Drive
Up to 1
A
Integrated SATA Controller
Hard Drives
NOTE:
Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to
the HBA or Controller technical specifications for details.
NOTE:
Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE:
Supports up to Eight (8) SAS/SATA hard drives via 2nd Hot plug Hard Disk Drive module option kit and HP Smart
Array P410 Controller.
SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
450GB 3G SAS 15K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
Up to 8
1-8
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives
Quantity
Supported
Position
Supported
Controller
QuickSpecs
HP ProLiant ML330 Generation 6
Storage
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 35
Page 36
600GB 6G SAS 15K DP
450GB 6G SAS 15K DP
450GB 3G SAS 15K DP
300GB 6G SAS 15K DP
300GB 3G SAS 15K DP
146GB 3G SAS 15K DP
Up to 8
1-8
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 6G SAS 7.2K DP
1TB 3G SAS 7.2K DP
750GB 3G SAS 7.2K DP
Up to 8
1-8
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
NOTE:
Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to
the HBA or Controller technical specifications for details.
SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
2TB 3G SATA 7.2K
1TB 3G SATA 7.2K
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
Quantity
Supported
Position
Supported
Controller
750GB 3G SATA15K
500GB 3G SATA 15K
250GB 3G SATA 15K
Up to 4
1-4
Embedded Smart Array B110i SATA RAID Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array B110i SATA RAID controller
SATA Hot Plug LFF (3.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 7.2K
160GB 3G SATA 7.2K
Up to 8
1-8
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
SATA Non-Hot Plug LFF (3.5-inch) Entry (ETY) Drives
Quantity
Supported
Position
Supported
Controller
QuickSpecs
HP ProLiant ML330 Generation 6
Storage
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 36
Page 37
250GB 3G SATA 15K
160GB 3G SATA 15K
Up to 4
1-4
Embedded Smart Array B110i SATA RAID Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array B110i SATA RAID Controller
SATA Hot Plug 3.5" Midline (MDL) Solid State Drives
Quantity
Supported
Position
Supported
Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
Up to 8
1-8
Embedded Smart Array B110i SATA RAID Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array Hot Plug Advance Pack for B110i
NOTE:
To support 8 drives, the purchase of the optional HP HDD cage and possibly purchase a second SATA/SAS
controller are required.
NOTE:
SAS non-hot plug drives require the Non-Hot Plug Internal SAS/SATA 4 port Cable kit (P/N 487734-B21) and a HP
SAS/Smart Array Controller.
NOTE:
Hot Plug SATA/SAS model and Non-hot plug SAS model requires A HP SAS Controller.
Maximum Storage Capacity
- SAS Models
Internal
16.0TB (8 x 2TB SAS hard drives)
Total
16.0TB (8 x 2TB SAS hard drives)
Maximum Storage Capacity
- SATA Models
Internal
16.0TB (8 x 2TB SATA drives)
Total
16.0TB (8 x 2TB SATA drives)
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
D2700 Disk Enclosure
Up to 2
External
HP Smart Array P212/ 256 MB Controller
Up to 4
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Tape and Disk Backup
NOTE:
For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting
models, see:
http://www.hp.com/go/tape
. For the complete range of StorageWorks D2D Backup Systems see:
http://www.hp.com/go/d2d
. For the complete range of StorageWorks RDX drives and media see:
http://www.hp.com/go/rdx
.
For hardware and software compatibility of HP StorageWorks disk and tape backup products see:
http://www.hp.com/go/connect
.
Position
Supported
Controller
Controller/HBA
Option Kit Part
Number
HP StorageWorks SCSI
Tape Drives
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
Internal or
External
HP SC11Xe Host Bus Adapter
412911-B21
QuickSpecs
HP ProLiant ML330 Generation 6
Storage
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 37
Page 38
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
HP U320e SCSI Dual Channel Controller
AH627A
NOTE:
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks SCSI
Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter
412911-B21
HP StorageWorks USB
Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
Internal or
External
USB 2.0 Port
N/A
HP StorageWorks USB
Rack Mount Kits
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A
HP StorageWorks SAS
Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
Internal or
External
HP SC44Ge SAS Host Bus Adapter
416096-B21
NOTE:
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks SAS
Rack Mount Kits
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC44Ge SAS Host Bus Adapter
416096-B21
NOTE:
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks SCSI
Tape Autoloaders,
External
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP SC11Xe Host Bus Adapter
412911-B21
HP U320e SCSI Dual Channel Controller
AH627A
NOTE:
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks SCSI
Tape Libraries,
External
MSL2024
MSL4048
MSL8096
MSL6000
External
HP U320e SCSI Dual Channel Controller
AH627A
NOTE:
Please check the full compatibility information at:
http://www.hp.com/go/connect
QuickSpecs
HP ProLiant ML330 Generation 6
Storage
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 38
Page 39
HP StorageWorks SAS
Tape Autoloaders and
Libraries, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP SC44Ge SAS Host Bus Adapter
416096-B21
NOTE:
Please check the full compatibility information at:
http://www.hp.com/go/connect
HP StorageWorks Fibre
Channel Tape Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs
for connectivity information and the
supported Fibre Channel HBAs shown in this QuickSpec.
HP StorageWorks USB
RDX Removable Disk
Backup System
RDX160
RDX320
RDX500
RDX750
Internal or
External
USB 2.0 port
N/A
HP StorageWorks D2D
Backup Systems, iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If the server requires a
hardware iSCSI initiator, the QLogic QLA4050 Host Bus
Adapter is recommended.
HP StorageWorks D2D
Backup Systems, Fibre
Channel
D2D4000fc
External
Direct server attach is not supported, requires connection via
SAN fabric. See:
http://www.hp.com/go/connect
QuickSpecs
HP ProLiant ML330 Generation 6
Storage
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 39
Page 40
460W PSU Part Number
500447-B21
Operational Input Voltage Range
(Vrms)
90 to 135
Frequency Range (Nominal) (Hz)
47 to 66 Hz
Nominal Input Voltage (Vrms)
100 115 208 220 230 240
Max Rated Output Wattage Rating
460 460 460 460 460 460
Nominal Input Current (A rms)
10 10 5 5 5 5
Max Rated Input Wattage Rating (Watts)
760 760 700 700 700 700
Max. Rated VA (Volt-Amp)
850 850 830 830 830 830
Efficiency (%)
65 65 65 65 65 65
Power Factor
0.9 0.9 0.9 0.9 0.9 0.9
Leakage Current (mA)
3.5 3.5 3.5 3.5 3.5 3.5
Maximum Inrush Current (A peak)
450 450 450 450 450 450
Maximum Inrush Current duration (mS)
HP 750W Power Supply
Part Number - AC 750W PSU
512327-B21
Input Voltage Range (Vrms)
100 to 240
Frequency Range (Nominal)
(Hz)
50/60
Nominal Input Voltage (Vrms)
100 120 200 208 220 230 240
Maximum Rated Output Wattage
750 750 750 750 750 750 750
Nominal Input Current (A rms)
8.9 7.4 4.3 4.1 3.9 3.7 3.6
Max Rated Input Wattage Rating
(Watts)
857 847 824 825 820 820 820
Max. Rated VA (Volt-Amp)
894 884 859 859 854 854 854
Efficiency (%) at Max. Rated
Output Wattage
87.5 88.5
91 91
91.5 91.5 91.5
Power Factor
0.97 0.97 0.97 0.97 0.97 0.97 0.97
Leakage Current (mA)
0.42 0.50 0.83 0.87 0.92 0.96 1.00
Max. Inrush Current (A peak)
30 30 30 30 30 30 30
Max. Inrush Current duration
(mS)
20 20 20 20 20 20 20
Maximum British Thermal Unit
Rating (BTU-Hr)
2925 2892 2812 2812 2797 2797 2797
NOTE:
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your need.
The HP Power Advisor is located at:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
QuickSpecs
HP ProLiant ML330 Generation 6
Power Specifications
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 40
Page 41
System Unit
Tower Dimensions
(H x W x D)
(W/O foot stand)
7.87 x 16.81 x 24.13 in (200 x 427 x 613 mm)
Tower Weight
(approximate)
Maximum:
(All hard drives, power
supplies and processors
installed)
30 kg
Minimum:
(One hard drive, power
supply and processor
installed)
16 Kg
Input Requirements
(per power supply)
Rated Line Voltage
100 to 240 VAC
Rated Input Current
7.1 Amps (at 120VAC) to 3.5 Amps (at 240
VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
852 W
BTU Rating
Maximum
460W - 1773 BTU / hr (at 120 VAC), 1715 (at
240 VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at
240 VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600
(at 240 VAC)
Power Specifications
To review typical system power ratings use the Power Calculator which
is available via the online tool located at URL:
www.hp.com/go/proliant-
energy-efficient
or
www.hp.com/go/hppoweradvisor
- Click on the system of interest. Example: ML330 G6
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State
Power
460 (750) W (at 100 VAC),
460 (750) W (at 200 VAC)
Maximum Peak Power
460 (750) W (at 100 VAC),
460 (750) W (at 200 VAC)
NOTE:
See Power Supply Specifications
tables for complete details on 460W PSU and
optional 750W.
System Inlet
Temperature
Operating
50° to 95° F (10° to 35° C) at sea level with an
altitude derating of 1.8°F per 1,000 ft (1.0° C
per every 305 m) above seal level to a
maximum of 10,000 ft (3050 m) no direct
sustained sunlight . Maximum rate of change
is 18°F/hr (10°C/hr). The upper limit may be
limited by the type and number of options
installed. System performance may be
reduced if operating with a fan fault or above
86°F (30°C).
Non-Operating
-22° to 140° F (-30° to 60° C)
Relative Humidity
(non-condensing)
Operating
10% to 90% relative humidity (Rh), 82.4°F
(28°C) maximum wet bulb temperature, noncondensing.
Non-operating
**
10% to 95% relative humidity (Rh), 101.7°F
(38.7°C) maximum wet bulb temperature,
non-condensing.
QuickSpecs
HP ProLiant ML330 Generation 6
Technical Specifications
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 41
Page 42
Altitude
Operating
10,000 ft (3000m). Maximum allowable
altitude change rate is 1°C per 300m.
Non-Operating
30,000 ft (9144m). Maximum allowable
altitude change rate is 1°C per 300m.
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment.
Noise emissions were measured in accordance with ISO 7779 (ECMA
74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
(Fixed Disk Drives
Spinning)
L WAd (BELS)
460W SPS (w/ non-redundant fan): 4.9B
460W SPS (w/ redundant fan): 5.1B
750W RPS (w/ non-redundant fan): 5.1B
750W RPS (w/ redundant fan): 5.3B
L-pAm
460W SPS (w/ non-redundant fan): 31.4 dBA
460W SPS (w/ redundant fan): 33.7 dBA
750W RPS (w/ non-redundant fan): 33.4 dBA
750W RPS (w/ redundant fan): 33.8 dBA
Operating
(Random Seeks to Fixed
Disks)
L WAd (BELS)
460W SPS (w/ non-redundant fan): 4.9B
460W SPS (w/ redundant fan): 5.2B
750W RPS (w/ non-redundant fan): 5.3B
750W RPS (w/ redundant fan): 5.4B
L WAd (BELS)
460W SPS (w/ non-redundant fan): 31.4 dBA
460W SPS (w/ redundant fan): 33.9 dBA
750W RPS (w/ non-redundant fan): 34.6 dBA
750W RPS (w/ redundant fan): 35.2 dBA
NOTE:
The listed sound levels apply to
standard shipping configurations. Additional
options may result in increased sound levels.
Emissions
Classification (EMC)
FCC Rating
Class B
Normative Standards
CISPR 22; EN55022; EN55024; 47 CFR, FCC
Rules and Regulations Part 15 Subpart
B;VCCI Class B ITE; ICES-003; CNS13438;
GB9254; K22;K24; EN 61000-3-2; EN 610003-3.
NOTE:
Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family
of products is eligible to bear the appropriate compliance logos and
statements.
QuickSpecs
HP ProLiant ML330 Generation 6
Technical Specifications
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 42
Page 43
HP Smart Array B110i
SATA RAID Controller
(RAID 0,1,10)
Dimensions
N/A (embedded)
Disk Drive and
Enclosure Protocol
Support
Architecture
3.0 Gbps SATA
64-bit
SAS Connectors
4 internal x1 SATA connectors
Software Upgradeable
Firmware
Yes. HP Smart Array hot plug Advanced Pack No Media 1-Server
license including 1yr 24x7 Technical Support
Maximum Capacity
2TB
Memory Addressing
6GB (maximum)
Logical Drives
Supported
2 (maximum)
RAID Support
RAID 1 (Mirroring)
RAID 0 (Striping)
RAID 10
HP 250GB 3G SATA
7.2K NHP 3.5" MDL
HDD
Capacity
250,059MB
Height
*
1.028 in (26.1 mm)
Width
4.00 in (101.6 mm)
Depth
*
5.787 in (147.0 mm)
Interface
Serial ATA
Transfer Rate
(Maximum)
3Gb/s
Native Command
Queuing
N/A
Seek Time
(typical reads, including
settling)
Single Track
1.0 ms
Average
<8.5 ms
Full-Stroke
17.0 ms
Rotational Speed
7,200 rpm
Physical Configuration
Bytes/Sector
512
Logical Blocks
488,397,168
Operating Temperature
41° to 131° F (5° to 55° C)
* Maximum drive dimension
QuickSpecs
HP ProLiant ML330 Generation 6
Technical Specifications
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 43
Page 44
Embedded NC326i PCI
Express Dual Port
Gigabit Server Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method
PCI Express, four lanes (x4)
Controller
BCM5715C
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (HalfDuplex)
100 Mb/s
100Base-TX (FullDuplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP; up to 328 ft (100 m)
Environment-friendly
Products and
Approach
End-of-life
Management and
Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and
recycling programs in many geographic areas. For trade-in information,
please go to:
http://www.hp.com/go/green
. To recycle your product,
please go to:
http://www.hp.com/go/green
or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to
provide treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at:
http://www.hp.com/go/green
. These
instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of
Intel Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP ProLiant ML330 Generation 6
Technical Specifications
DA - 13361 Worldwide QuickSpecs — Version 17 — 3-31-2010
Page 44
Loading...
