HP ProLiant ML310e G8 v2 Specification

Page 1

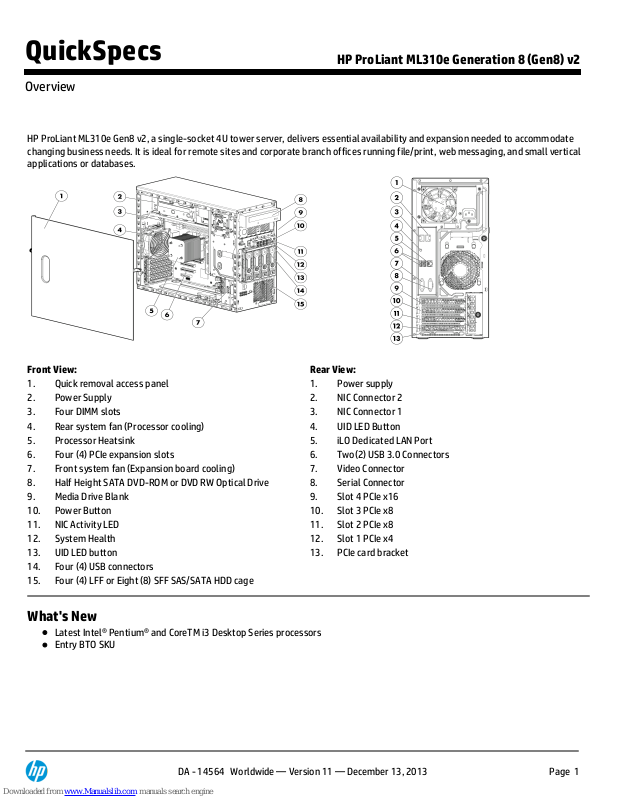

HP ProLiant ML310e Gen8 v2, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases.

Front View:

Rear View:

Quick removal access panel

Power supply

Power Supply

NIC Connector 2

Four DIMM slots

NIC Connector 1

Rear system fan (Processor cooling)

UID LED Button

Processor Heatsink

iLO Dedicated LAN Port

Four (4) PCIe expansion slots

Two(2) USB 3.0 Connectors

Front system fan (Expansion board cooling)

Video Connector

Half Height SATA DVD-ROM or DVD RW Optical Drive

Serial Connector

Media Drive Blank

Slot 4 PCIe x16

10.

Power Button

10.

Slot 3 PCIe x8

11.

NIC Activity LED

11.

Slot 2 PCIe x8

12.

System Health

12.

Slot 1 PCIe x4

13.

UID LED button

13.

PCIe card bracket

14.

Four (4) USB connectors

15.

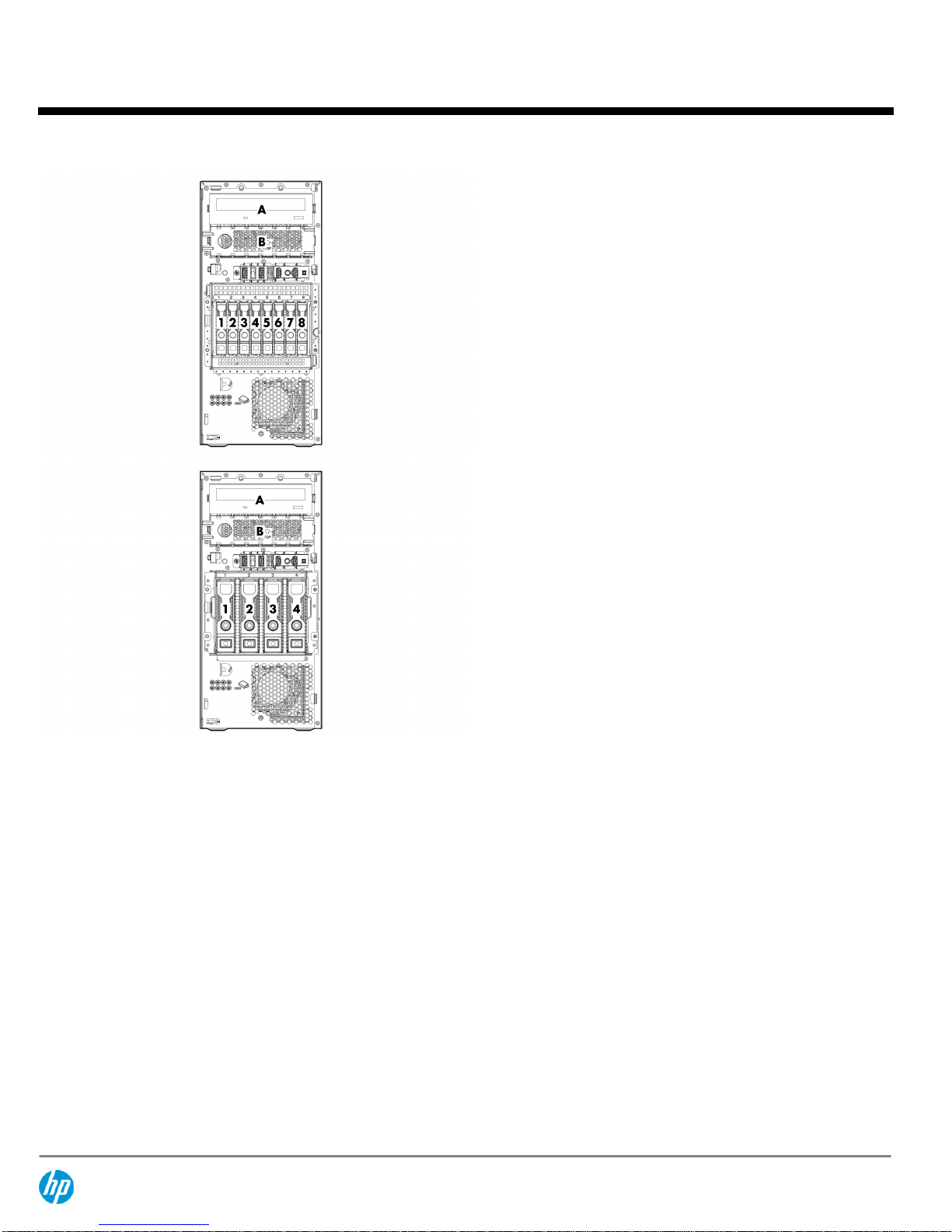

Four (4) LFF or Eight (8) SFF SAS/SATA HDD cage

What's New

Latest Intel® Pentium® and CoreTM i3 Desktop Series processors Entry BTO SKU

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Overview

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 1

Page 2

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following depending on Model

Entry Processors

NOTE:

All support up to 1333MT/s DDR3 memory speeds.

Intel® Pentium® G3220 (3.0GHz/2-core/3MB/54W)

Base Processors

NOTE:

All support up to 1600MT/s DDR3 memory speeds.

Intel® CoreTM i3-4130 (3.4GHz/2-core/3MB/54W, HT) Intel® CoreTM i3-4130T (2.9GHz/2-core/3MB/35W, HT)

Performance Processors

NOTE:

All support up to 1600MT/s DDR3 memory speeds.

Intel® Xeon® E3-1230Lv3 (1.8GHz/4-core/8MB/25W, HT) Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W) Intel® Xeon® E3-1230v3 (3.3GHz/4-core/8MB/80W, HT) Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W, HT) Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W, HT)

Cache Memory

One of the following depending on Model

8MB (1 x 8MB) L3 Cache

NOTE:

For Quad-core Xeon processors.

3MB (1 x 3MB) L3 Cache

NOTE:

For Dual-core Pentium® CoreTM i3 processors.

Chipset

Intel® C222 Chipset

NOTE:

For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to 4 cores

NOTE:

Total 2 or 4 cores

Up to 4 DIMM slots available for higher memory capacity Up to 8 SFF Hard Drive Bays; Or 4 LFF Hard Drive Bays 1 x8 and 1 x16 PCIe 3.0 and 1 x8 and 1x4 PCIe 2.0 I/O slots for additional communications and storage

expansion Redundant Power Supply Optical Drive Bay (up to 2)

On System Management Processor

HP iLO (Firmware: HP iLO4)

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 2

Page 3

Memory Protection

ECC

Memory

One of the following depending on model

Type

HP SmartMemory DDR3 Unbuffered (UDIMM)

DIMM Slots Available

Maximum Capacity (UDIMM)

32 GB (4 x 8 GB UDIMM)

NOTE:

HP memory from previous generation servers are not fully compatible with the HP ProLiant ML310e

Gen8 v2 Server.

NOTE:

epending on the memory configuration and processor model, the memory speed may run at 1600MT/s or 1333MT/s. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

Network Controller

HP Ethernet 1Gb 2-port 332i Adapter

Expansion Slots

Expansion

Slot #

Technology

Bus Width*

Connector

Width

Form Factor

Notes

PCIe 3.0

X16

Full Length/Full

Height

PCIe 3.0

X8 X8

Full Length/Full

Height

PCIe 2.0

Full Length/Full

Height

PCIe 2.0

X1 X4

Half Length/Full

Height

*Indicates the number of physical electrical lanes running to the connector.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 3

Page 4

HP Server ROM

HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HP's ProLiant ROM is used to configure the following:

Processor and chipset status registers System memory, memory map, and memory initialization System hardware configuration (Integrated PCI devices and optional PCIe cards). Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).

NOTE:

For further information, please refer to HP's RBSU (ROM based setup utility) user guide:

www.hp.com/support/rbsu

Storage Controller

HP Dynamic Smart Array B120i Controller

NOTE:

Supports up to 6.0Gb/s SATA. (SATA port 0/1 support 6Gb/s and SATA port 2/3 support 3Gb/s)

NOTE:

Supports RAID 0/1/10 only. No FBWC support. For FBWC, a standup Smart Array Controller card must be configured.

NOTE:

For set up instructions, please refer to the HP ProLiant ML300 series server user guide.

NOTE:

For general information about HP Smart Array B120i SATA RAID Controller, please go to:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/smartarrayb120i/ index.html

Internal Storage Devices

Optical Drives

One of the following depending on model

HP Half-Height SATA DVD-ROM Optical Drive

HP Half-Height SATA DVD-RW Optical Drive

Hard Drives

1x500GB HP LFF SATA HDD included in Performance Model

Hard Drive Bays

One of the following depending on model

4 LFF drive bays (non-hot-plug and hot-plug) 8 SFF hot-plug drive bays

NOTE:

HP ProLiant ML310e Series servers offer both SFF, and LFF versions in

CTO.

NOTE:

All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 4

Page 5

Maximum Internal Storage

One of the following depending on model

Hot Plug LFF SAS

16TB

4 x 4TB

Hot Plug SFF SAS

9.6TB

8x 1.2TB

Non Hot Plug LFF SAS

2.4TB

4 x 600GB

Hot Plug LFF SATA

16TB

4 x 4TB

Hot Plug SFF SATA

8TB

8 x 1TB

Non Hot Plug LFF SATA

12TB

4 x 3TB

Hot Plug SFF SAS SSD

3.2TB

8 x 400GB

Hot Plug SFF SATA SSD

6.4TB

8 x 800GB

Hot Plug LFF SATA SSD

3.2TB

4 x 800GB

Interfaces

Serial

1 (rear)

Video

1 (rear)

Network RJ-45 (Ethernet)

2 (1 shared for HP Integrated Lights-Out)

HP iLO Remote Management Network Port

1 Gb Dedicated

Micro SD slot

1 (internal)

NOTE:

The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug a Micro SD card into the Micro SD slot while the server is powered.

USB

8 (4 front, 2 rear(USB3.0), 1 internal standard USB and 1 internal USB header)

NOTE:

RHEL 5.9 OS would not be supporting USB3.0

Industry Standard Compliance

ACPI 2.0b Compliant PCIe 3.0 Compliant PXE Support WOL Support Microsoft® Logo certifications USB 2.0 /3.0 Support

Server Power Cords

The ProLiant ML310e Gen8 v2 server is a tower server that ships standard with a 6' country specific NEMA power cord that allows connection to wall outlets in a home or office. If customers require additional local power cords, they can check the power cord matrix for the appropriate country specific sku. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

. To install the ML310e Gen8 v2 server in a rack, the Tower to Rack Conversion kit (417705-B21 ) is required as well as a PDU power cord (416151-B21) to connect to a PDU in a data center rack.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 5

Page 6

Power Specifications

To review typical system power requirements, use the HP Power Advisor which is available via download at URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

Power Supplies

The ML310e Gen8 v2 supports two power supplies, a 350W Multi-Output Power Supply and a 460W Common Slot Gold Power Supply. The 350W Multi-Output Power Supply is a non-redundant power supply with an efficiency rating of 85%.

HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. The 460W HP CS power supply option provides an efficiency rating of up to 92%. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs. HP Power Advisor can be accessed at:

www.hp.com/go/hppoweradvisor

NOTE:

The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on 80Plus.org.

Redundant Power: Optional (1 + 1 redundant) power supplies can be purchased through power supply option kits (see Power Supplies for part numbers).

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

System Fans

One (1) Non-redundant system fan ships standard One (1) Non-redundant PCIe fan ships standard

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 6

Page 7

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/ossupport

and our driver download page:

http://www.hp.com/support/ML310eGen8v2

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bpp) 1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

One of the following depending on model

Micro ATX Tower (4U) chassis with feet/bezel:

14.5" (36.82cm) Height x 6.89" (17.5cm) Width x 18.71" (47.52cm) Length 8 SFF Drive Bay Cage:

4.6" (11.72cm) Height x 5.74" (14.57cm) Width x 4.79" (12.16cm) Length 4 LFF Drive Bay Cage:

4.6" (11.72cm) Height x 5.74" (14.57cm) Width x 6.90" (17.54cm) Length

On System Management

HP iLO Management Engine

HP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:

HP iLO:

The HP iLO (Integrated Lights-Out) management processor is

the core foundation for the HP iLO Management Engine

HP Agentless Management:

Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.

HP Active Health System:

Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.

HP Intelligent Provisioning:

Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed.

To start Intelligent Provisioning:

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 7

Page 8

Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST). Please go to the Intelligent Provisioning website at

www.hp.com/go/intelligentprovisioning

for additional information and to view usage videos. Use the Service Pack for ProLiant (SPP) at

www.hp.com/go/spp

to get firmware and software

updates.

HP iLO Mobile App:

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:

www.hp.com/go/ilo/mobileapp

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

or HP iLO

Management Engine technologies whitepaper.

HP Insight Management

HP Service Pack for ProLiant (SPP)

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HP SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HP SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HP SUM provides the tools to optimize stability and consistency throughout the company. While HP SUM and the SPP recommend the combinations of firmware and system software that HP has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 8

Page 9

NOTE:

The Service Pack for ProLiant (which includes HP SUM) can be

downloaded from

www.hp.com/go/spp/download

. More information can be

found:

http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp

and

http://www.hp.com/go/hpsum

Security

Power-on password Administrator's password

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE:

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. (3-1-1 warranty offered in Brazil only). Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Standard Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 9

Page 10

HP Insight Management

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HP Insight Control also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see

http://www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see:

http://www.hp.com/services/insight

HP iLO Advanced

HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multiuser collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hp.com/go/iloadvance

HP iLO Essentials

HP iLO Essentials license ideal for small and medium business customers. The specially created HP iLO Essentials (a subset of iLO Advanced functionality) saves SMB customers time and money, by ease of remote server set up through the interactive virtual media, lowering operational costs with remote access via the Integrated Remote Console, and faster time to resolution with email-based proactive notifications. With this newly designed HP iLO Essentials license SMB customers now have the option of a server management package solely design and priced just right for their IT environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series making this an ideal solution for small business owners. For more information, see:

http://www.hp.com/go/iLO/essentials

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.

Data Archive and Migration Software

HP's storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.

Storage Resource Management Software (SRM)

HP's storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Optional Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 10

Page 11

Data Replication Software

HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.

Storage Device Management Software

Maximize your investment in HP storage and networking with software that enables hardwarespecific configuration, performance tuning and connectivity management.

HP StoreVirtual VSA

With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime.

www.hp.com/go/insightonline

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

http://www.hp.com/go/factory-express

HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. For additional information please visit:

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Optional Features

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 11

Page 12

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers and software. You can choose the type and level of service that is most suitable for your IT and business needs. HP Proactive Care delivers high levels of system availability through proactive service management and advanced technical response.

Optimized Care

Supports maintaining servers at optimum performance availability

3-Year HP 24x7 4 hour response, Proactive Care Service

This service gives you combined reactive and proactive support including rapid access to our Advanced Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of technical knowledge that will engage with additional technical expertise as needed from HP's vast global resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Standard Care

Supports maintaining high level of server availability

3-Year HP Next Business Day, Proactive Care Service

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Basic Care

Delivers minimum recommended support service level

3-Year HP Next Business Day with Collaborative Support

This service gives you hardware break/fix plus software diagnosis support with collaborative call management for a broad spectrum of 3rd Party software products including O/S and hypervisors.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8232ENW.pdf

HP ProLiant Server Hardware Installation

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Service and Support

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 12

Page 13

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Insight Online/Insight Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. This comes at no additional cost with your HP solution*. Learn more about Insight Remote Support

http://www.hp.com/go/insightremotesupport

and Insight Online

http://www.hp.com/go/insightonline

* Insight Remote Support is a prerequisite for Proactive Care.

Related Services

HP Proactive Care Personalized Support - Environmental Option

The Personalized Support option provides an assigned Account Support Manager who can bring best practices from across the industry plus extra technical skills to your IT team. This option is only available as an add-on to HP Proactive Care Support.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

*HP Support Center Mobile App is subject to local availability

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit:

http://www.hp.com/services/proliant

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Service and Support

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 13

Page 14

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section

of this QuickSpecs.

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped

separately.

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this

QuickSpecs.

NOTE:

Maximum speed supported depends on the CPU installed.

Please see Memory Population Table or the Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.

NOTE:

Not all models are available in all regions. Check with your local country HP offices for availability.

Entry Models

HP ProLiant ML310e Gen8 v2 i3-4130 1P 2GB-U NHP 4 LFF 350W PS Entry Svr

712327-xx1

Processor(s)

(1) Intel® CoreTM i3-4130 (3.4GHz/2-core/3MB/54W, HT) Processor

Cache Memory

3MB (1 x 3MB) L3 cache

Memory

2GB (1 x 2GB) PC3-12800E DDR3 UDIMM

Network Controller

HP Ethernet 1Gb 2-port 332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

Hard Drive

None

Internal Storage

4 LFF SAS/SATA HDD cage; includes 4 LFF hard drive blanks

Optical Drive

None

Power Supply

HP 350W Multi-Output Power Supply

Fans

One (1) Non-redundant system fan ships standard One (1) Non-redundant PCIe fan ships standard

Management

HP iLO Management Engine (standard on shared system NIC) Optional: HP iLO Essentials or HP Insight Control

Form Factor

Micro ATX Tower (4U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response (3-1-1 warranty offered in Brazil only).

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 14

Page 15

Base Models

HP ProLiant ML310e Gen8 v2 E3-1220v3 1P 4GB-U B120i 350W PS Svr

712329-xx1

Processor(s)

(1) Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W) Processor

Cache Memory

8MB (1 x 8MB) L3 cache

Memory

4GB (1 x 4GB) PC3-12800E DDR3 UDIMM

Network Controller

HP Ethernet 1Gb 2-port 332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

Hard Drive

None

Internal Storage

4 LFF SAS/SATA HDD cage; includes 4 LFF hard drive blanks

Optical Drive

HP Half-Height 16x SATA DVD-RW

Power Supply

HP 350W Multi-Output Power Supply

Fans

One (1) Non-redundant system fan ships standard One (1) Non-redundant PCIe fan ships standard

Management

HP iLO Management Engine (standard on shared system NIC) Optional: HP iLO Essentials or HP Insight Control

Form Factor

Micro ATX Tower (4U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response (3-1-1 warranty offered in Brazil only).

Performance Models

NOTE:

These Models are Energy Star Certified.

HP ProLiant ML310e Gen8 v2 E3-1240v3 1P 8GB-U B120i SATA 500GB 4 LFF 460W PS Svr

712328-xx1

Processor(s)

(1) Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W) Processor

Cache Memory

8MB (1 x 8MB) L3 cache

Memory

8GB (1 x 8GB) PC3-12800E DDR3 UDIMM

Network Controller

HP Ethernet 1Gb 2-port 332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

Hard Drive

1x500GB HP LFF SATA

Internal Storage

4 LFF SAS/SATA HDD cage; includes 3 LFF hard drive blanks

Optical Drive

HP Half-Height 16x SATA DVD-RW

Power Supply

HP 460W Common Slot Gold Hot Plug Power Supply

Fans

One (1) Non-redundant system fan ships standard One (1) Non-redundant PCIe fan ships standard

Management

HP iLO Management Engine (standard on shared system NIC) Optional: HP iLO Essentials or HP Insight Control

Energy Star

Meets Energy Star requirements

Form Factor

Micro ATX Tower (4U)

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response (3-1-1 warranty offered in Brazil only).

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 15

Page 16

Country Code Key

Tower Code Key

xx=00

xx=01

Australia

xx=03

xx=04

Germany

xx=05

France

xx=37

APD

xx=42

Europe

xx=AA

PRC

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 16

Page 17

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

NOTE:

Factory Integrated Models must start with a CTO Server.

NOTE:

FIO indicates that this option is only available as a factory installable option.

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Step 1: Base Configuration (choose one of the following configurable models)

HP Models

HP ProLiant ML310e Gen8 v2 Non-hot Plug 4 LFF Configure-to-order Server

722445-B21

Factory Integrated Model ships with:

HP Ethernet 1Gb 2-port 332i Adapter HP iLO Management Engine (standard on shared system NIC) HP Dynamic Smart Array B120i Controller (RAID 0/1/10) 4 ports for HDD

NOTE:

For set up instructions for HP Dynamic Smart Array B120i Controller please refer

to the HP ProLiant ML300 series server user guide.

NOTE:

For general information about HP Dynamic Smart Array B120i Controller, please visit:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/ dynamicsmartarray/index.html

Non Hot-Plug SAS/SATA 4 port cable PCA Power Cord Micro ATX Tower (4U)

HP ProLiant ML310e Gen8 v2 Hot Plug 4 LFF Configure-to-order Server

722446-B21

Factory Integrated Model ships with:

HP Ethernet 1Gb 2-port 332i Adapter HP iLO Management Engine (standard on shared system NIC) HP Dynamic Smart Array B120i Controller (RAID 0/1/10) 4 ports for HDD

NOTE:

For set up instructions for HP Dynamic Smart Array B120i Controller please refer to the HP ProLiant ML300 series server user guide.

NOTE:

For general information about HP Dynamic Smart Array B120i Controller, please visit:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/d ynamicsmartarray/index.html

Hot-Plug SAS/SATA 4 port cable PCA Power Cord Micro ATX Tower (4U)

HP ProLiant ML310e Gen8 v2 Hot Plug 8 SFF Configure-to-order Server

722447-B21

Factory Integrated Model ships with:

HP Ethernet 1Gb 2-port 332i Adapter HP iLO Management Engine (standard on shared system NIC) Standup HP Smart Array Controller or Host Bus Adapter required PCA Power Cord Micro ATX Tower (4U)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 17

Page 18

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HP Processors

Entry Processors

NOTE:

All support up to 1333MT/s DDR3 memory speeds.

HP ML310e Gen8 v2 Intel® Pentium® G3220 (3.0GHz/2-core/3MB/54W) FIO Processor Kit

740647-L21

Base Processors

NOTE:

All support up to 1600MT/s DDR3 memory speeds.

HP ML310e Gen8 v2 Intel® Core™ i3-4130 (3.4GHz/2-core/3MB/54W) FIO Processor Kit

740651-L21

HP ML310e Gen8 v2 Intel® Core™ i3-4130T (2.9GHz/2-core/3MB/35W) FIO Processor Kit

740653-L21

Performance Processors

NOTE:

All support up to 1600MT/s DDR3 memory speeds.

HP ML310e Gen8 v2 Intel® Xeon® E3-1230Lv3 (1.8GHz/4-core/8MB/25W) FIO Processor Kit

740649-L21

HP ML310e Gen8 v2 Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W) FIO Processor Kit

723935-L21

HP ML310e Gen8 v2 Intel® Xeon® E3-1230v3 (3.3GHz/4-core/8MB/80W) FIO Processor Kit

723937-L21

HP ML310e Gen8 v2 Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W) FIO Processor Kit

723927-L21

HP ML310e Gen8 v2 Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W) FIO Processor Kit

723929-L21

HP Memory

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647905-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647907-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647909-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713979-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 18

Page 19

HP Power Supplies

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.

NOTE:

Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

HP 350W Factory Integrated Power Supply Kit

674838-B21

HP Common Slot Gold Power Supplies

NOTE:

The following Power Supplies offer 92% Efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

Enablement Kit

HP 4U Redundant Power Supply Enablement Kit

NOTE:

The HP 4U Redundant Power Supply Enablement Kit (675843-B21) must be installed when using HP Common Slot power supplies.

675843-B21

Step 3: Choose Additional Factory Integratable Options

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License

C6N36A

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License

NOTE:

The Electronic software license is available in EMEA only.

C6N36ABE

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Core Options" and "Additional Options" section below.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 19

Page 20

NOTE:

Some options may not be integrated at the factory. Contact your local sales representative for additional information.

HP Unique Options

HP 4U 4 Large Form Factor Hot Plug Hard Drive Backplane Kit

NOTE:

The LFF Kit is a backplane kit designed for going from NHP LFF to hot-plug LFF.

674839-B21

HP 4U 8 Small Form Factor Hot Plug Hard Drive Cage Kit

NOTE:

The SFF Kit is the cage plus backplane and designed to convert from any LFF

configuration to SFF.

674841-B21

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html

(Worldwide)

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647905-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647907-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647909-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713979-B21

HP Drive Cage Options

HP 4U 4 Large Form Factor Hot Plug Hard Drive Backplane Kit

NOTE:

The LFF Kit is a backplane kit designed for going from NHP LFF to hot-plug LFF.

674839-B21

HP 4U 8 Small Form Factor Hot Plug Hard Drive Cage Kit

NOTE:

The SFF Kit is the cage plus backplane and designed to convert from any LFF configuration to SFF

674841-B21

HP Optical Drives

HP Half-Height SATA DVD ROM JackBlack Optical Drive

624189-B21

HP Half-Height SATA DVD RW JackBlack Optical Drive

624192-B21

HP Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller,

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Core Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 20

Page 21

firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

697574-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652620-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652615-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive

516830-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive

516826-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

693687-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658079-B21

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Core Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 21

Page 22

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

657750-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658071-B21

6G SATA Non-hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

628065-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659339-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659337-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659341-B21

NOTE:

SATA hard drives have a 1-year warranty. Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive

718171-B21

HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive

734362-B21

6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives

HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

718189-B21

HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

718183-B21

HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

718177-B21

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690827-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690825-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691862-B21

6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691860-B21

HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691856-B21

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Core Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 22

Page 23

HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691854-B21

HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691852-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html

(Worldwide)

Hard Drive Kits

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

NOTE:

The part numbers for single HDD blanks below are provided should the customer

require replacement HDD blanks for their server

HP LFF Gen8 Hard Drive Blank Kit

666986-B21

HP SFF Gen8 Hard Drive Blank Kit

666987-B21

HP Networking

Gigabit Ethernet adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP Ethernet 1Gb 2-port 332T Adapter

615732-B21

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

10 Gigabit Ethernet adapters

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

www.hp.com/go/ProLiantNICs

Switches

HP PS1810-24G Switch

J9834A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18004.www1.hp.com/products/quickspecs/14586_div/14586_div.html

(Worldwide)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Core Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 23

Page 24

HP Power Supplies

NOTE:

www.hp.com/go/hppoweradvisor

HP Common Slot Gold Power Supplies

NOTE:

The following Power Supplies offer 92% Efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

NOTE:

Option Kits for AC power supplies include the power supply and one PDU IEC cable.

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Core Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 24

Page 25

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Insight Software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License

C6N27A

HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License

NOTE:

The Electronic software license is available in EMEA only.

C6N28ABE

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

C6N31A

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

NOTE:

For additional license options please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Integrated Lights-Out (iLO)

HP iLO Essentials

HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates ELTU

NOTE:

The Electronic software license is available in EMEA only.

E6U61ABE

HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates ELTU

NOTE:

The Electronic software license is available in EMEA only.

E6U62ABE

HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates Single Svr License

BD774A

HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates Single Svr License

BD775A

HP Integrated Lights-Out (iLO) Advanced for ProLiant

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

NOTE:

The Electronic software license is available in EMEA only.

E6U59ABE

HP iLO Advanced including 3yr 24x7 Tech Support and Updates Electronic License

NOTE:

The Electronic software license is available in EMEA only.

E6U64ABE

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License

512485-B21

HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates

BD505A

HP iLO Advanced Flexible Qty License with 3yr 24x7 Tech Support and Updates

BD506A

HP iLO Advanced Tracking License with 3yr 24x7 Tech Support and Updates

BD507A

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Flexible Quantity License

512486-B21

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 25

Page 26

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Tracking License

512487-B21

NOTE:

For additional license kits, including electronic delivery options, please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

HP Security

HP Trusted Platform Module Option

488069-B21

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to:

www.hp.com/go/TPM

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HP Storage Controllers

SAS Controllers

NOTE:

Smart Array Storage controller can be added only in PCIe Slot 3, Slot 4 or both.

HP Smart Array P222 Controller

HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller

631667-B21

HP Smart Array P420 Controller

HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller

631671-B21

HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller

631670-B21

HP Smart Array P421 Controller

HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller

631674-B21

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

Optional Upgrades

HP 2GB P-series Smart Array Flash Backed Write Cache

631681-B21

HP SmartCache No Media 24x7 Technical Support 1 Svr License

D7S26A

HP SmartCache No Media 24x7 Technical Support Flexible License

D7S27A

HP SmartCache No Media 24x7 Technical Support Electronic License

D7S27AAE

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14227_div/14227_div.html

(Smart Array P222 Controller)

http://h18000.www1.hp.com/products/quickspecs/14228_div/14228_div.html

(Smart Array P420 Controller)

http://h18000.www1.hp.com/products/quickspecs/14229_div/14229_div.html

(Smart Array P421 Controller)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 26

Page 27

HP Host Bus Adapters

HP H220 Host Bus Adapter

650933-B21

HP H221 Host Bus Adapter

650931-B21

HP H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HP H222 Host Bus Adapter

650926-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18004.www1.hp.com/products/quickspecs/14336_div/14336_div.html

(HBA H220)

http://h18004.www1.hp.com/products/quickspecs/14222_div/14222_div.html

(HBA H221)

http://h18004.www1.hp.com/products/quickspecs/14337_div/14337_div.html

(HBA H222)

HP Tape Backup

NOTE:

For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hp.com/go/tape

. For hardware and software compatibility of HP tape backup products see:

http://www.hp.com/storage/SPOCK and www.hp.com/go/ebs

HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit

C0L99A

HP StoreEver LTO-6 Ultrium 6650 Internal Tape Drive

EH963A

HP StoreEver LTO-6 Ultrium 6650 External Tape Drive

EH964A

HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive

EH969A

HP StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader

C0H19A

HP Tape Storage Systems

HP StoreEver MSL6480

HP StoreEver MSL6480 Scalable Base Module

QU625A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14604_div/14604_div.html

(Worldwide)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 27

Page 28

HP Disk Backup

NOTE:

For the complete range of RDX drives and media see:

http://www.hp.com/go/rdx

. For hardware and software compatibility of HP disk backup

products see:

http://www.hp.com/storage/SPOCK

HP RDX Removable Disk Backup System

HP RDX320 USB3.0 External Disk Backup System

B7B63A

HP RDX500 USB3.0 Internal Disk Backup System

B7B64A

HP RDX500 USB3.0 External Disk Backup System

B7B66A

HP RDX1000 USB3.0 Internal Disk Backup System

B7B67A

HP RDX1000 USB3.0 External Disk Backup System

B7B69A

NOTE:

Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information:

http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html

(Worldwide)

HP Disk Storage Systems

Disk Enclosures

HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle

E7W32A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html

(Worldwide)

HP Uninterruptible Power Systems

HP Tower UPS

HP T1000 G3 UPS Models

HP T1000 G3 1000VA INTL Tower Uninterruptible Power System

AF449A

HP T1000 G3 1000VA NA Tower Uninterruptible Power System

AF448A

HP T1000J JP Uninterruptible Power System

AF457A

HP T1500 G3 UPS Models

HP T1500 G3 1400VA INTL Tower Uninterruptible Power System

AF451A

HP T1500 G3 1400VA NA Tower Uninterruptible Power System

AF450A

HP T1500J JP Uninterruptible Power System

AF458A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html

(Worldwide)

HP Rack-mountable UPS

HP R1500 G3 Uninterruptible Power Supply (UPS)

HP R1.5kVA G3 1U INTL Uninterruptible Power System

AF471A

HP R1.5kVA G3 1U NA Uninterruptible Power System

AF469A

HP R1.5kVA G3 1U JP/TW Uninterruptible Power System

AF470A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html

(Worldwide)

HP R/T3000 G2 Uninterruptible Power System (UPS)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 28

Page 29

HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System

AF467A

HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System

AF468A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html

(Worldwide)

R5000 Uninterruptible Power System (UPS)

HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html

(Worldwide)

R7000 Uninterruptible Power System (UPS)

HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html

(Worldwide)

NOTE:

For additional information on sizing your server, please reference:

http://www.upssizer.com

NOTE:

Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link:

www.hp.com/products/powercords

NOTE:

For additional information on HP Uninterruptible Power Systems please go to:

www.hp.com/servers/rackups

HP Basic Power Distribution Units (bPDU)

HP Basic Power Distribution Unit: 1U/0U Version

HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit

H5M54A

HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit

H5M56A

HP Basic Power Distribution Unit: Half Height Version

HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit

H5M55A

HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit

H5M57A

HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit

H5M58A

HP 7.3kVA 230 Volt 20 Outlet INTL Basic Power Distribution Unit

H5M68A

HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit

H5M61A

HP Basic Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit

H5M59A

HP 7.3kVA 230 Volt 30 Outlet INTL Basic Power Distribution Unit

H5M70A

HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit

H5M60A

HP 11kVA 230 Volt 36 Outlet INTL Basic Power Distribution Unit

H5M71A

HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit

H5M75A

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 29

Page 30

HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution Unit

H5M63A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution Unit

H5M64A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit

H5M62A

HP 11kVA 400 Volt Three Phase 30 Outlet INTL Basic Power Distribution Unit

H5M72A

HP Basic Power Distribution Unit: Full Height Version

HP 11kVA 400 Volt Three Phase 42 Outlet INTL Basic Power Distribution Unit

H5M73A

HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit

H5M67A

HP Basic Power Distribution Unit: 480/277 Volt Version

HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit

H3X07A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit

H3X08A

HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14557_div/14557_div.html

(Worldwide)

NOTE:

Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit

www.hp.com/go/rackandpower

HP Remote Monitoring Power Distribution Units (mPDU)

HP Remote Monitored Power Distribution Unit: 1U Version

HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N43A

HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit

D9N46A

HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N44A

HP Remote Monitored Power Distribution Unit: Half Height Version

HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit

D9N45A

HP Remote Monitored Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit

D9N47A

HP 7.3kVA 230 Volt 24 Outlet INTL Monitored Power Distribution Unit

D9N48A

HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit

D9N51A

HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power Distribution Unit

D9N52A

HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power Distribution Unit

D9N53A

HP 11kVA 400 Volt Three Phase 21 Outlet INTL Monitored Power Distribution Unit

D9N55A

HP Remote Monitored Power Distribution Unit: Full Height Version

HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit

D9N49A

HP 7.3kVA 230 Volt 36 Outlet INTL Monitored Power Distribution Unit

D9N50A

HP 11kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution Unit

D9N57A

HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N58A

HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit

D9N61A

HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit

D9N54A

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 30

Page 31

HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit

D9N59A

HP 22kVA 400 Volt Three Phase 24 Outlet INTL Monitored Power Distribution Unit

D9N60A

HP 22kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution Unit

D9N56A

HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N62A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit

D9N63A

HP Environmental Sensor for Remote Monitored PDUs

E2D53A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14669_div/14669_div.html

(Worldwide)

HP Intelligent Power Distribution Units

(iPDU)

iPDU Core Units

HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF520A

HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF521A

HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF522A

HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit

AF533A

HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF523A

HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit

AF902A

HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit

AF525A

HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit

AF526A

HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit

AF527A

HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit

AF535A

HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit

AF537A

HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit

AF538A

iPDU Kits with Standard Extension Bars

HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit

AF531A

HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit

AF532A

HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit

AF534A

iPDU Extension Bars

HP 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13650_div/13650_div.html

(Worldwide)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 31

Page 32

HP Rack Series

HP Intelligent Series Rack

HP 642 1075mm Pallet Intelligent Series Rack

BW903A

HP 642 1075mm Shock Intelligent Series Rack

BW904A

NOTE:

Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/14223_div/14223_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the following URL:

http://www.hp.com/go/rackandpower

HP Rack Options

HP USB Keyboard and Mouse

HP USB BFR with PVC Free US Keyboard/Mouse Kit

631341-B21

HP USB BFR with PVC Free UK Keyboard/Mouse Kit

631344-B21

HP USB BFR with PVC Free FR Keyboard/Mouse Kit

631346-B21

HP USB BFR with PVC Free ES Keyboard/Mouse Kit

631348-B21

HP USB BFR with PVC Free DE Keyboard/Mouse Kit

631358-B21

HP USB BFR with PVC Free JP Keyboard/Mouse Kit

631360-B21

HP USB BFR with PVC Free IT Keyboard/Mouse Kit

631362-B21

HP USB BFR with PVC Free CN Keyboard/Mouse Kit

631364-B21

HP USB BFR with PVC Free AE Keyboard/Mouse Kit

638212-B21

HP USB BFR with PVC Free RU Keyboard/Mouse Kit

638214-B21

HP USB BFR with PVC Free IN Keyboard/Mouse Kit

672097-D63

HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit

672097-373

HP USB BFR with PVC Free Intl Keyboard/Mouse Kit

672097-B33

HP USB BFR with PVC Free PT Keyboard/Mouse Kit

672097-133

HP USB BFR with PVC Free TR Keyboard/Mouse Kit

672097-143

HP USB BFR with PVC Free CZ Keyboard/Mouse Kit

672097-223

HP USB BFR with PVC Free FI Keyboard/Mouse Kit

672097-353

HP USB BFR with PVC Free SE Keyboard/Mouse Kit

672097-103

HP USB BFR with PVC Free CH Keyboard/Mouse Kit

672097-113

HP USB BFR with PVC Free KR Keyboard/Mouse Kit

672097-KD3

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13792_div/13792_div.html

(Worldwide)

HP TFT7600 G2 KVM Console Rackmount Keyboard Monitor

HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor

AZ870A

HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor

AZ871A

HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor

AZ872A

HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor

AZ873A

HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor

AZ874A

HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor

AZ875A

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 32

Page 33

HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor

AZ876A

HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor

AZ877A

HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor

AZ878A

HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor

AZ879A

HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor

AZ880A

HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor

AZ881A

HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor

AZ882A

HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor

AZ883A

HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor

AZ884A

HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor

AZ885A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html

(Worldwide)

HP Server Console Switches

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP TAA 0x2x16xKVM Server Console G2 Switch

AF626A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html

(Worldwide)

HP Server Console Switch G2 with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM CAT5 1-pack USB Interface Adapter

336047-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html

(Worldwide)

HP IP Console Switch G2 with Virtual Media & CAC

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html

(Worldwide)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 33

Page 34

HP USB and SD Options

HP Flash Media Kits for USB Drives

HP 2GB USB Flash Media Drive Key Kit

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.

608447-B21

HP 8GB USB EM Flash Media Kit

737953-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13971_div/13971_div.html

HP Care Pack Services

Proactive Care

NOTE:

Collaborative Support plus Proactive services delivered by the onshore, local language Advanced Solution Center (ASC), end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.

HP 3 year Next business day ProLiant ML310e Proactive Care Service

U6F65E

HP 3 year Next business day with Defective Media Retention ProLiant ML310e Proactive Care Service

U6F66E

HP 3 year 4 hour 24x7 ProLiant ML310e Proactive Care Service

U6F73E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant ML310e Proactive Care Service

U6F74E

Collaborative Support

NOTE:

Hardware break/fix plus 24x7 software diagnosis support with collaborative call management for a broad spectrum of 3rd Party software products including O/S and hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors from the software vendors directly and deploying them on HP ProLiant servers.

HP 3 year Next business day ProLiant ML310e Collaborative Support

U6F63E

HP 3 year Next business day with Defective Media Retention ProLiant ML310e Collaborative Support

U6F64E

Proactive Care Personalized Support Option

NOTE:

To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advices for the customer's environment.

HP 3 year ISS ProactiveCare Personalized Support

U6W98E

Installation Services

NOTE:

Reduce the time required to get your system up and running and help minimize

disruptions to your business.

HP Install ProLiant ML310e Service

U6G21E

HP Startup ProLiant ML310e Service

U6G23E

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 34

Page 35

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Additional Options

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 35

Page 36

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

HP SmartMemory

New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of additional Gen8 enhancements in performance, durability and future manageability support through HP Active Health System

DDR3 memory population guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

General Guidelines:

The HP ProLiant ML310e Gen8 v2 Server has four memory slots There are two channels per server with two DIMM slots per channel Memory channel 1 consists of the two (2) DIMMs that are closest to the processor Memory channel 2 consists of the two (2) DIMMs that are furthest from the processor Different types of processors have different types of memory support. Support for single/dual-rank 1333/1600 MT/s ECC UDIMM (unbuffered DIMMS) The server supports up to 32 GB (4 x 8-GB) for Unbuffered DIMMs No support for LRDIMMs; RDIMMs; Non-ECC UDIMMs Do not install DIMMs if the processor is not installed Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank) Non-ECC DIMMs are not supported Always use HP qualified DIMMs

ML310e Gen8 v2 Supported Memory Bandwidth and Capacity

DIMM Type

Unbuffered with ECC DIMMs (UDIMMs)

DIMM Rank

Single Rank (1R)

Dual Rank (2R)

DIMM Capacity

2GB 2GB 2GB 4GB 4GB 4GB 8GB 8GB 8GB

DIMM Native Speed (MT/s)

1333 1600 1600 1333 1600 1600 1333 1600 1600

Voltage

Std

LV LV

Std

LV LV

Std

SLOTS THAT CAN BE POPULATED

4 slot servers

4 4 4 4 4 4 4 4 4

MAXIMUM CAPACITY (GB)

8 8 8 16 16 16 32 32 32

POPULATED DIMM SPEED (MT/s)

1 DIMM Per Channel

1333 1600 1600 1333 1600 1600 1333 1600 1600

2 DIMM Per Channel

1333

1600 1600 1333

1600 1600

NOTE:

Memory speed is a function of the processor QPI bus speed. To realize the performance memory capabilities listed above HP SmartMemory is required. * Maximum capacity will vary based on individual server platform qualification schedule ** For HP SmartMemory, UDIMM is supported at 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Memory

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 36

Page 37

Memory

Slot

DIMM1C

DIMM2A

DIMM3D

DIMM4B

Standard

(Performance Model)

8 GB

Empty

8 GB

Empty Empty

Maximum

32 GB

8 GB 8 GB 8 GB 8 GB

Memory Speed by Processor Model

Processor Models

Supported Memory Speeds

E3-1220v3, E3-1230v3, E3-1240v4, E3-1270v3

1600/1333

NOTE:

Capacity references are rounded to the common Gigabyte values.

2GB = 2048MB 4GB = 4096MB 8GB = 8192MB

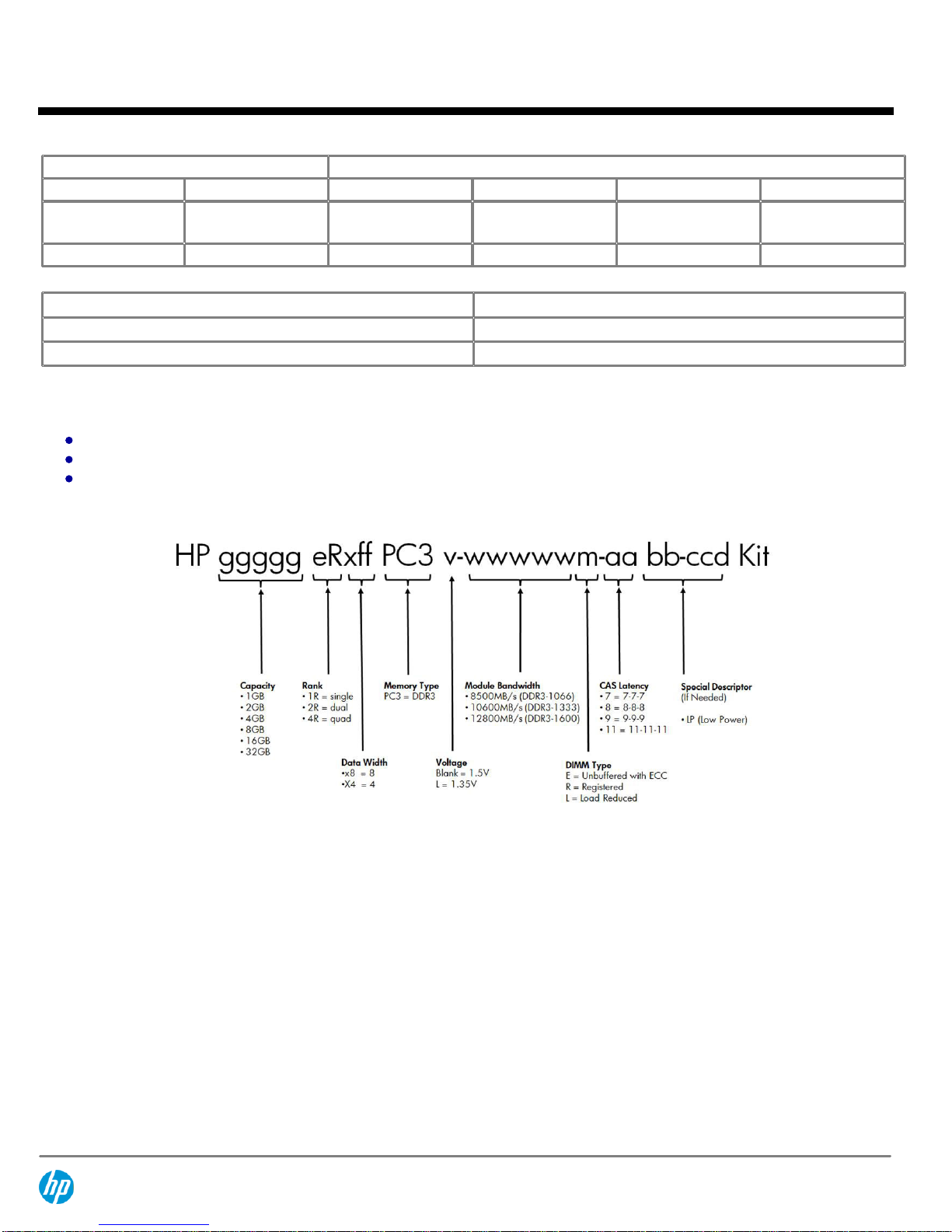

DDR3 memory options part number decoder

Following are memory options available from HP:

HP Memory

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647905-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647907-B21

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Memory

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 37

Page 38

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low Voltage Memory Kit

647909-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low Voltage Memory Kit

713979-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Memory

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 38

Page 39

1 - 8

8 x 2.5" (SFF) SAS/SATA hard drive bays

Removable Optical Drive

NOTE.

Once Redundant Power Supply is installed, Bay A will be the only media bay available for use.

1 - 4

4 x 3.5" (LFF) SAS/SATA hard drive bays

Removable Optical Drive

NOTE.

Once Redundant Power Supply is installed, Bay A will be the only media bay available for use.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Storage

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 39

Page 40

System Unit

Tower Dimensions

(H x W x D) (with feet/bezel)

14.5.x 6.89 x 18.71 in (36.82 x17.5 x 47.52 cm)

Tower Weight

(approximate)

Maximum (all hard drives, power supplies, and processors installed)

41.8 lb (18.96 kg)

Minimum (one hard drive, power supply, and processor installed)

25.29 lb (11.47 kg)

Input Requirements

(per power supply)

Rated Line Voltage

100 to 240 VAC

Rated Input Current

6 Amps

Rated Input Frequency

47 to 63 Hz

Rated Input Power

440W at 100 V AC input 440W at 200V AC input

BTU Rating

Maximum

460W - 1773 BTU / hr (at 120 VAC), 1715 (at 240 VAC)

Power Supply Output

(per power supply)

Rated Steady-State Power

350 W (at 100 VAC), 350 W (at 200 VAC)

Maximum Peak Power

350 W (at 100 VAC), 350 W (at 200 VAC)

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, noncondensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, noncondensing.

Altitude

Operating

3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Technical Specifications

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 40

Page 41

average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

WAd

4.0 B

pAm

26dB-A

Operating

WAd

4.0 B

pAm

26dB-A

NOTE:

The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

Emissions Classification (EMC)

FCC Rating

Class B

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE:

Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

HP Dynamic Smart Array B120i Controller

Dimensions

Embedded

Disk Drive and Enclosure Interface - Transfer rate

Up to 6Gb/s SATA (Serial ATA)

Connectors

6 internal SATA connectors

Server Interface

x4 PCIe 2.0

SATA Speed

6Gb/s SATA links

Cache Memory

Zero Memory RAID has no cache memory

Logical Drives Supported

Up to 8 logical volumes (6 physical drives)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

Hot Plug Support

Yes

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring) RAID 1+0 (Striping & Mirroring)

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Technical Specifications

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 41

Page 42

HP Ethernet 1Gb 2-port 332i Adapter

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX Energy Efficient Ethernet (EEE) compliant with IEEE Std 802.3az (default is

disabled)

Data Transfer Method

PCI-e, two lanes (x2)

Controller

BCM5720

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s per port, 20 Mb/s Combined

10Base-T (Full-Duplex)

20 Mb/s per port, 40 Mb/s Combined

100Base-TX (Half-Duplex)

100 Mb/s per port, 200 Mb/s Combined

100Base-TX (Full-Duplex)

200 Mb/s per port, 400 Mb/s Combined

1000Base-TX (HalfDuplex)

1000Mb/s per port, 2000 Mb/s Combined

1000 Base-TX (FullDuplex)

2000Mb/s per port, 4000 Mb/s Combined

Connector

RJ-45

Cable Support

10Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000Base-TX

Category 5 or better; up to 328 ft (100 m)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Technical Specifications

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 42

Page 43

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant ML310e Generation 8 (Gen8) v2

Technical Specifications

DA - 14564 Worldwide — Version 11 — December 13, 2013

Page 43
