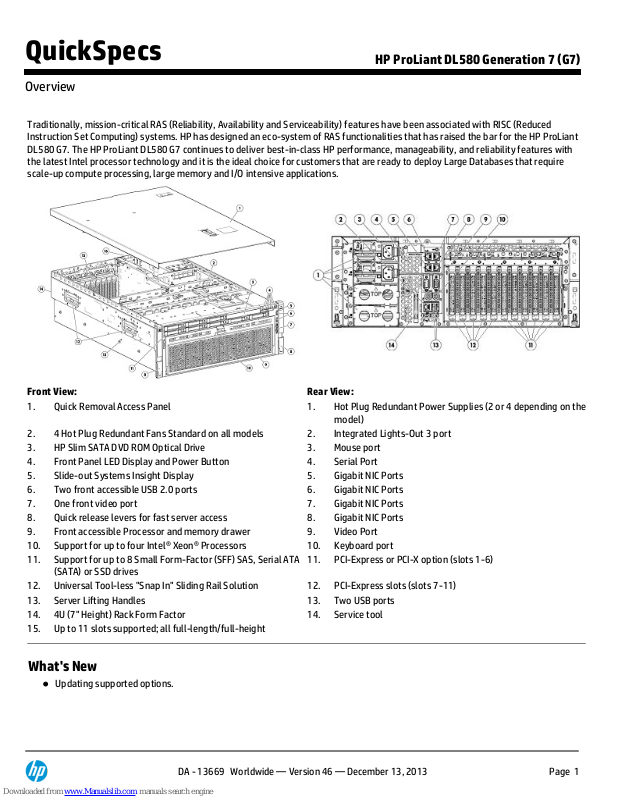

Traditionally, mission-critical RAS (Reliability, Availability and Serviceability) features have been associated with RISC (Reduced
Instruction Set Computing) systems. HP has designed an eco-system of RAS functionalities that has raised the bar for the HP ProLiant
DL580 G7. The HP ProLiant DL580 G7 continues to deliver best-in-class HP performance, manageability, and reliability features with
the latest Intel processor technology and it is the ideal choice for customers that are ready to deploy Large Databases that require
scale-up compute processing, large memory and I/O intensive applications.
Front View:
Rear View:
1.
Quick Removal Access Panel
1.
Hot Plug Redundant Power Supplies (2 or 4 depending on the
model)
2.
4 Hot Plug Redundant Fans Standard on all models
2.
Integrated Lights-Out 3 port
3.
HP Slim SATA DVD ROM Optical Drive
3.
Mouse port
4.
Front Panel LED Display and Power Button
4.
Serial Port
5.
Slide-out Systems Insight Display
5.
Gigabit NIC Ports
6.
Two front accessible USB 2.0 ports
6.
Gigabit NIC Ports
7.
One front video port
7.
Gigabit NIC Ports
8.
Quick release levers for fast server access
8.
Gigabit NIC Ports
9.
Front accessible Processor and memory drawer
9.
Video Port
10.
Support for up to four Intel® Xeon® Processors
10.
Keyboard port
11.
Support for up to 8 Small Form-Factor (SFF) SAS, Serial ATA
(SATA) or SSD drives
11.
PCI-Express or PCI-X option (slots 1-6)
12.
Universal Tool-less "Snap In" Sliding Rail Solution
12.
PCI-Express slots (slots 7-11)
13.
Server Lifting Handles
13.
Two USB ports
14.
4U (7" Height) Rack Form Factor
14.
Service tool
15.
Up to 11 slots supported; all full-length/full-height
What's New
Updating supported options.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Overview
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 1
Page 2
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One or more of the
following depending on
model
Ten-Core Processors
Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) Processor
Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB/130W) Processor
Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) Processor
Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB/105W) Processor
Eight-Core Processors
Intel® Xeon® E7-8837 (2.67GHz/8-core/24MB/130W) Processor
Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) Processor
Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB/105W) Processor
Intel® Xeon® X7560 (2.26GHz/8-core/24MB/130W) Processor
Intel® Xeon® X7550 (2.0GHz/8-core/18MB/130W) Processor
Intel® Xeon® L7555 (1.86GHz/8-core/24MB/95W) Processor
Six-Core Processors
Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) Processor
Intel® Xeon® E7540 (2.0GHz/6-core/18MB/105W) Processor
Intel® Xeon® E7530 (1.86GHz/6-core/12MB/105W) Processor
Intel® Xeon® X7542 (2.66GHz/6-core/18MB/130W) Processor
Quad-Core Processors
Intel® Xeon® E7520 (1.86GHz/4-core/18MB/95W) Processor
NOTE:
New Intel Microarchitecture with Intel Virtualization Technology FlexMigration. Industry Standard
Intel® 7500 Chipset with four high-speed interconnects up to 6.4GT/s.
Cache Memory
One of the following
depending on model
30MB (1 x 30MB) Level 3 cache
NOTE:
For E7-8867L and E7-4870 Processors
24MB (1 x 24MB) Level 3 cache
NOTE:
For E7-8837, E7-4860, E7-4850, E7-4830, X7560, and L7555 Processors.
18MB (1 x 18MB) Level 3 cache
NOTE:
For E7-4820, E7-4807, X7550, E7540, X7542, and E7520 Processors.
12MB (1 x 12MB) Level 3 cache
NOTE:
For E7530 Processor.
Chipset
Industry Standard Intel® 7500 Chipset
NOTE:
For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
Upgradeability
Upgradeable to quad (4) processors
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 2
Page 3

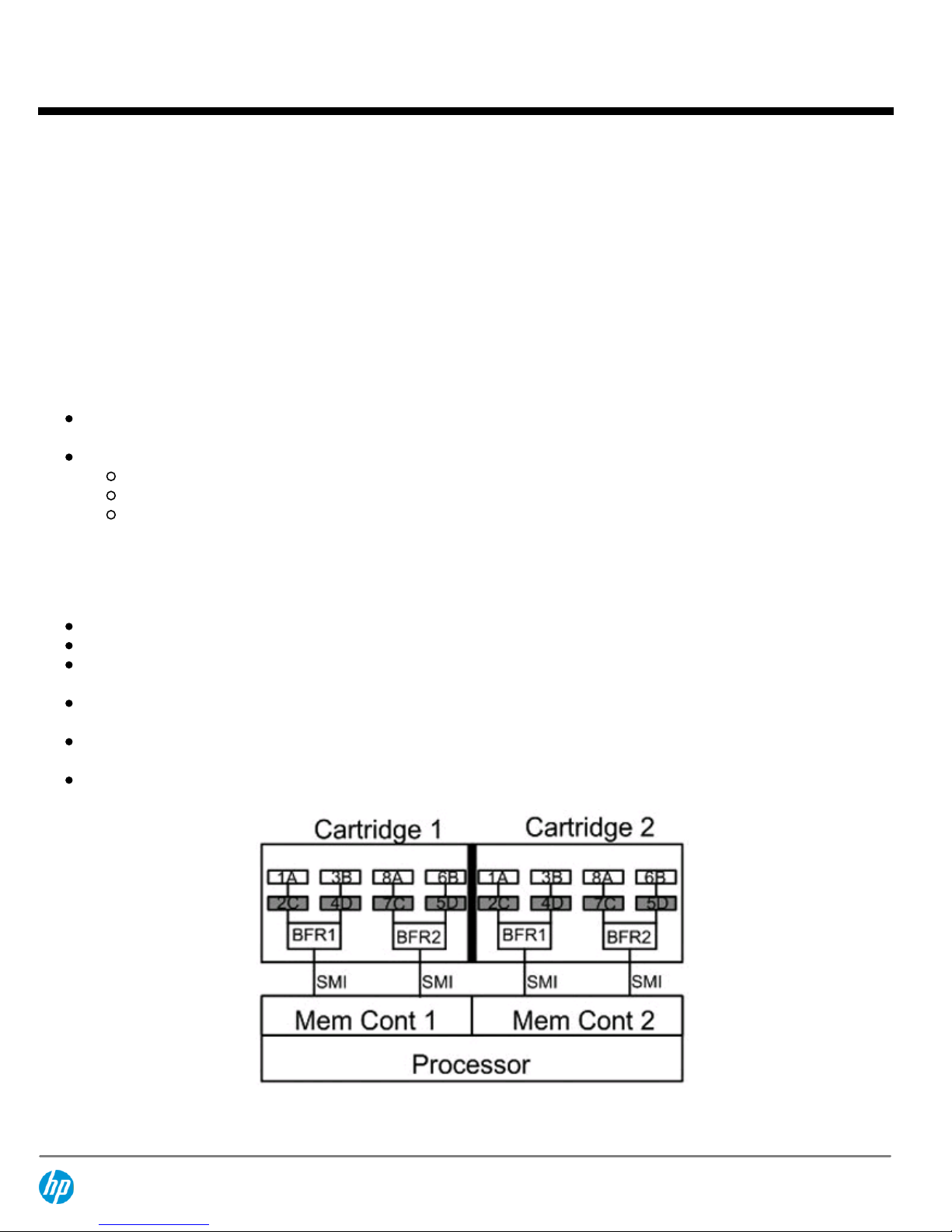

Memory Protection
Advanced ECC
Double Data Device Correction - DDDC
NOTE:
Intel® Xeon® E7-48xx/88xx processor series powered only.
Mirrored Memory
Online Spare Memory
Memory
One of the following
depending on Model
Type
PC3-10600R DIMMs (DDR3)
Standard
(2P Models)
16GB (4 x 4GB)
Standard
(4P Model - E7540)
32GB (8 x 4GB)
Standard
(4P Models - X7560,
X7550)
64GB (16 x 4GB)
Standard
(2P Models - E7-4830, E7-
4807)
64 (8 x 8GB)
Standard
(4P Models - E7-4870, E7-
4850)
128GB (16 x 8GB)
Maximum
2TB (64 x 32GB)
*
* Intel® Xeon® Processor E7 series powered only, 1TB max on 7500 series
Network Controller
HP NC375i Integrated Quad Port Gigabit Server Adapter
NOTE:
Optional Dual Port 10GbE upgrade (replaces two 1G ports)
Expansion Slots
NOTE:
Up to 11 slots supported; all full-length/full-height. Standard: 2 PCI-E 2.0 x8, 3 PCI-E 2.0 x4.
NOTE:
The primary video controller needs to be located in the Main I/O board slots 7-11 providing video during boot. A video controller
installed in an I/O expansion slot 1-6 cannot be the primary controller. It will not have video during boot but will provide video once OS
and drives load.
Expansion
Slots (Main IO
Board
standard)
Expansion Slot
#
Technology
Width
Connector
Width
*
Bus / Dev
Number
**
Form Factor
Notes
1
N/A N/A N/A N/A N/A N/A
2
N/A N/A N/A N/A N/A N/A
3
N/A N/A N/A N/A N/A N/A
4
N/A N/A N/A N/A N/A
5
N/A N/A N/A N/A N/A
6
N/A N/A N/A N/A N/A
7
PCI Express
Gen2
x4 x8
0/0A
FH/FL
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 3
Page 4
8
PCI Express
Gen2
x4 x8
0/09
FH/FL
9
PCI Express
Gen2
x8
x16
0/07
FH/FL
10
PCI Express
Gen2
x4 x8
0/01
FH/FL
11
PCI Express
Gen2
x8
x16
0/05
FH/FL
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest
bus).
FL= Full length; FH = Full height; LP = low-profile.
Expansion Slots
Expansion
Slots with
IO Expander
(combination
PCI-X, PCI-e
and 300W GPU
Expansion Slot
#
Technology
Width
Connector
Width
*
Bus / Dev
Number
**
Form Factor
Notes
1
PCI-X
64-bit
N/A
82/01
FH/FL
100MHz
2
PCI-X
64-bit
N/A
82/02
FH/FL
100MHz
3
PCI Express
Gen2
x16 x16
80/07
FH/FL
4
PCI Express
Gen2
x4 x8
80/01
FH/FL
5
N/A N/A N/A N/A N/A N/A
6
PCI Express
Gen2
x16 x16
80/03
FH/FL
7
PCI Express
Gen2
x4 x8
0/0A
FH/FL
8
PCI Express
Gen2
x4 x8
0/09
FH/FL
9
PCI Express
Gen2
x8
x16
0/07
FH/FL
10
PCI Express
Gen2
x4 x8
0/01
FH/FL
11
PCI Express
Gen2
x8
x16
0/05
FH/FL
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest
bus).
FL= Full length; FH = Full height; LP = low-profile.
Expansion Slots
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 4
Page 5
Expansion
Slots with
I/O Expander
(standard PCI-
e option)
Expansion Slot
#
Technology
Width
Connector
Width
*
Bus / Dev
Number
**
Form Factor
Notes
1
PCI Express
Gen1
x4 x8
80/00
FH/FL
2
PCI Express
Gen2
x8
x16
80/09
FH/FL
3
PCI Express
Gen2
x8
x16
80/07
FH/FL
4
PCI Express
Gen2
x4 x8
80/01
FH/FL
5
PCI Express
Gen2
x8
x16
80/05
FH/FL
6
PCI Express
Gen2
x8
x16
80/03
FH/FL
7
PCI Express
Gen2
x4 x8
0/0A
FH/FL
8
PCI Express
Gen2
x4 x8
0/09
FH/FL
9
PCI Express
Gen2
x8
x16
0/07
FH/FL
10
PCI Express
Gen2
x4 x8
0/01
FH/FL
11
PCI Express
Gen2
x8
x16
0/05
FH/FL
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest
bus).
FL= Full length; FH = Full height; LP = low-profile.
Storage Controller
One of the following
depending on Model
Base Models
HP Smart Array P410i/512 MB FBWC Controller
High Performance Models
HP Smart Array P410i/1G FBWC Controller
The Flash Backed Write Cache (FBWC) increases cache data retention capabilities from two days of existing
battery backed write cache (BBWC) to infinite data retention.
Standard on all Models
Transportable data protection
Increases overall controller performance
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 5
Page 6
Internal Storage Devices
Diskette Drive
None
Optional Optical Drive
HP Slim SATA DVD ROM Optical Drive
NOTE:
Standard on Xeon Processor 7500 series models
Hard Drives
None ship standard
Hard Disk Drive
Backplane
Internal SAS backplane supports up to eight SFF hard disk drives
Maximum Internal
Storage
Hot Plug SFF SAS
9.6TB
8 x 1.2TB
Hot Plug SFF SATA
8.0TB
8 x 1TB
Hot Plug SFF SSD
960GB
8 x 120GB
Hot Plug SFF SAS SSD
6.4TB
8 x 800GB
Hot Plug SFF SATA SSD
3.2TB
8 x 400GB
NOTE:
There is an extra internal SSD slot available as well.
Interfaces
Serial
1
Video
1 front; 1 rear
Network RJ-45
4
iLO 3 Remote Management
1
Keyboard
1
Pointing Device (Mouse)
1
SD Slot
1
USB 2.0 Ports
6 total: 2 front; 2 rear; 2 internal
Industry Standard
Compliance
ACPI 2.0. Compliant
PCIE 2.0 Compliant
PXE Support
WOL Support
Physical Address Extension (PAE) Support
Microsoft® Logo certifications
USB 2.0 Support
Server Power Cords
NOTE:
If customers require a local power cord, they can check the power cord matrix for the appropriate
county specific sku. Please see the following power cord matrix for details:
http://www.hp.com/go/powercordmatrix
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 6
Page 7
Power Supply
One of the following
depending on Model
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
NOTE:
Supported on the E7-4870, E7-4850, E7-4830 and E7-4807 Models
HP 1200W Common Slot Silver Hot Plug Power Supply Kit
NOTE:
Supported on the X7560, X7550, E7540, E7530, E7520 Models
NOTE:
Two Hot Plug Power Supplies ship standard with 2P Models. Four Hot Plug Power Supplies ship
standard with 4P Models.
Power Supply Requirement Override
NOTE:
The HP ProLiant DL580 G7 does an inventory of the system configuration to determine what level
of redundancy the power supply configuration supports based on some configuration assumptions. The
level of redundancy will be reported during the system power on. For planning purposes you can use the
Power Advisor (
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
) which is
more accurate to determine the power requirements. Also, there is an RBSU override switch capability that
allows the user to override the base setting if the Power Advisor indicates redundancy with their
configuration.
System Fans
Four Hot Plug redundant fans standard (3+1)
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/ossupport
and our driver download page
http://www.hp.com/support/DL580G7
Graphics
Integrated ATI ES1000 with 64MB embedded video SDRAM
Max Resolution 1280 x 1024 x 16M color
Form Factor
Rack (4U = 7 inches), ships with Quick Deploy Sliding Rail System, an ambidextrous cable management arm
and quick release levers for fast and easy serviceability and in-rack tool-less access to major components.
Space saving form factor (4U) provides space efficiencies while providing maximum deployment flexibility.
HP Insight Management
HP Service Pack for
ProLiant
HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
provide a comprehensive approach to firmware and system software
maintenance. Together they provide better operating stability and ensure
maximum uptime. The SPP will be updated at a predictable cadence, typically
coinciding with new HP server hardware launches. By enabling firmware to be
updated online and integrating firmware and system software updates in one
operation, HP SUM and the SPP offer faster updates of individual servers and
dramatically faster updates of entire BladeSystem enclosures. Further
improving system uptime and stability is the fact that HP provides 12 months
of support for each Service Pack for ProLiant release.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 7
Page 8
The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM and the latest
SPP. Optional smaller subsets with only specific types of servers or specific
operating systems are offered to save on download time. The HP SUM
application provides a straightforward, intuitive user interface that guides the
user through the steps of discovery, analyses and update, providing
comprehensive information on available updates, criticality and
interdependencies. This information is also available in reports. By providing
the option of multiple local or shared repositories which can be easily updated
from hp.com, HP SUM provides the tools to optimize stability and consistency
throughout the company. While HP SUM and the SPP recommend the
combinations of firmware and system software that HP has found to be the
best practice, the application gives customers the flexibility to set their own
specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.
NOTE:
The Service Pack for ProLiant (which includes HP SUM) can be
downloaded from
www.hp.com/go/spp/download
. More information can be
found:
http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp
and
http://www.hp.com/go/hpsum
HP Insight Foundation
Insight Foundation is being baselined at version v8.70 which means the
following:
Its Media Kit (contains 2 SmartStart CDs, the Firmware DVD, and the
Management DVD) will continue to ship with all supported ProLiant G7
or earlier BTO servers until the last supported server is no longer
shipping.
The Media Kit will not be updated past version 8.70.
ProLiant G7 or earlier CTO servers are able to order the Media Kit with
the understanding that the media is not updated. Please check specific
server QuickSpecs for availability of CTO Kit.
PSP and Firmware DVD downloads will be updated through 2Q 2012 at
the HP Insight Foundation Suite for ProLiant downloads tab:
http://www.hp.com/go/foundation
Customers are urged to use the replacement product, HP Service Pack for
ProLiant, instead of Insight Foundation Suite which is found at these location:
www.hp.com/go/spp
www.hp.com/go/spp/download
HP Integrated Lights-Out
(iLO)
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and can
be accessed from any location via a web browser. HP iLO works hand-in-hand
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 8
Page 9
with HP Systems Insight Manager, Insight Control and Insight Dynamics for
ProLiant, helping customers unleash the value of the ProLiant platform and
deliver the highest possible quality of IT service. For more information, visit:
www.hp.com/go/iLO
Intelligent Manageability
HP Systems Insight Manager
SmartStart
Redundant ROM
Remote Flash ROM
Management Agents
Integrated Management Log (IML)
Automatic Server Recovery-2 (ASR-2)
ROM-Based Setup Utility (RBSU)
Dynamic Sector Repairing (with Smart Array Controllers)
Drive Parameter Tracking (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, SAS hard drives and memory)
Redundant/adaptive load balancing NIC Support
Hot Spare Boot
NOTE:
Upon the event of a failed processor in a multi-processing environment, the system will
automatically reboot and use the remaining good processor(s).
HP Insight Online
HP Insight Online is a new capability available through the HP Support Center portal for one stop, secure
access to product and HP support information specific to your IT environment. Insight Online can
automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's
easy navigation you can efficiently track your IT support contracts and device status from anywhere and at
anytime.
www.hp.com/go/insightonline
HP Proactive Insight
experience
Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:
www.hp.com/go/proactiveinsightexperience
Security
Power-on password
Keyboard password
External USB port enable/disable
Network Server Mode
Serial interface control
Administrator's password
Removable optical drive
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 9
Page 10
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE:
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity. Customers may choose
to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited
warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Standard Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 10
Page 11
HP Insight management
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. For more information, see
http://www.hp.com/go/insightcontrol
.
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:
http://www.hp.com/services/insight
.
HP iLO Advanced
HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multiuser collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:
http://www.hp.com/go/iloadvance
HP Insight Dynamics for
ProLiant
HP Insight Dynamics for ProLiant, a product option, is an integrated command
center that enables IT Staff personnel to continuously analyze and optimize a
converged infrastructure, while automating and reducing the cost of common
data center tasks by as much as 40 percent. As a powerfully integrated by
design toolkit to accelerate complex technology projects and simplify daily
operations that ultimately enable IT Staff personnel to dynamically keep pace
with the organizations changing business requirements. It enables them to
plan capacity and power continuously, balance across physical and virtual
resources, and ensure cost-effective high availability. It also enables IT
organizations to provision infrastructure consistently and automatically from
pools of shared resources using a self-service portal. Resources provisioned
can range from a single virtual machine to complex multi-tier environments
and their associated physical and virtual resource requirements. In addition to
the previous functional benefits, it also provides a cost-effective disaster
recovery for physical and virtual environments that works with HP Continuous
Access software for both the Enterprise Virtual Array and the XP storage array
allowing application environments to be reactivated in minutes with the touch
of a button to a remote location.
NOTE:
For more information, visit:
http://www.hp.com/go/insightdynamics
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Optional Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 11
Page 12
Solutions
The ProLiant DL580 G7 server is an enterprise class, 4 socket server designed for maximum scalability and
high availability. Its innovative chassis offers unsurpassed flexibility and serviceability in a versatile form
factor. Based upon the latest industry standard processing, memory, I/O and networking technologies, the
ProLiant DL580 G7 provides the highest levels of performance demanded by today's compute intensive
applications. Unparalleled high availability features, including hot-plug and redundant components,
guarantee maximum uptime. HP Integrated Lights-Out 3 (iLO3) technology allows remote administration
from a standard web browser without ever having to visit the server. Within the 4U dense form factor, it's
highly expandable architecture provides maximum application deployment flexibility with the ability to
add PCI-Express, PCI-X, 2 - 10GB NICs and battery-backed write cache options. Innovative features, such
as the ability to access processors, memory, hard drives, and power supplies while the unit remains
secured in the rack, enable rapid response to service events, radically decreasing overall IT costs and
server downtime.
Typical Usage
:
Space-constrained corporate data centers and service providers
Network and I/O expandability, inbuilt availability and reliability features, advanced power management
capabilities and large internal storage make DL580 G7 ideal for corporate datacenters.
Database, Messaging and Business Applications
Large internal storage, refined I/O slots options, high network bandwidth, new DDR3 expandable memory
combined with latest Intel 8-core expandable processors in DL580 G7 provide everything necessary for
today's database, messaging and business applications.
Virtualization and Consolidation
HP's 4S architecture, inbuilt advanced reliability and scalability features make DL580 G7 a perfect platform
for virtualization and consolidation solutions. HP's Insight control offerings make it easy to manage,
deploy and migrate virtualized servers with VMware or Microsoft® Virtual Server. For more solutions visit:
http://www.hp.com/solutions/proliantdl580
.
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering.
http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management
Utility
HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported
suite of tools that are used to manage large-scale Linux ProLiant systems.
CMU includes software for the centralized provisioning, management and
monitoring of nodes. CMU makes the administration of clusters user friendly,
efficient, and effective.
http://www.hp.com/go/cmu
Storage Software
Whether you need to solve a specific data protection, archiving, or storage command and control
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Optional Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 12
Page 13
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:
Data Protection and Recovery Software
Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.
Data Archive and Migration Software
HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.
Storage Resource Management Software (SRM)
HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.
Data Replication Software
HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.
Storage Device Management Software
Maximize your investment in HP storage and networking with software that enables hardwarespecific configuration, performance tuning and connectivity management.
HP StoreVirtual VSA
With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.
NOTE:
For more information available Storage Software including QuickSpecs, please see:
www.hp.com/go/storage/software
.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to:
http://www.hp.com/go/factory-express
.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Optional Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 13
Page 14
HP Simple Configurator
SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.
http://www.hp.com/products/configurator
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Optional Features
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 14
Page 15
Service and Support
HP Technology Services for Industry Standard Servers and BladeSystem
Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.
What HP ProLiant and BladeSystem Services can do for you
HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage
IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift
of base warranty. You can get the support you need by choosing from one of a number of service
packaged solutions we have designed to address wider set of customer support needs:.
HP Technology Services meets business challenges with services offered in three packages -
Optimized Care Package, Standard Care Package, and Basic Care Package
- available for each product
group. Such packaged solutions enable customers to optimize technology operations, minimize risk and
drive better business outcomes with easy-to-buy, easy-to-use scalable support packages for servers,
storage, networking and software.
Optimized Care Package
Supports maintaining servers at optimum performance availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for SIM (Systems Insight Manager)
Provides for installation and configuration of the latest version of HP Systems Insight Manager, together
with the installation and startup of HP Service Essentials Remote Support Pack
http://h20195.www2.hp.com/v2/GetPDF.aspx/5982-4143EN.pdf
3-Year HP Critical Advantage
Provides end-to-end infrastructure support solution for business critical applications running on
virtualized/x86 infrastructures, enabling the customers to cost effectively build, operate, and
continuously improve their IT environment
http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA3-1772ENW
Additional Services
: Microsoft or Linux or VMware education courses + Facility & technology
environmental assessment services + Energy Efficiency Design, Factory Express
Standard Care Package
Package that maintains high level of server availability
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
HP Installation and Startup for SIM (Systems Insight Manager)
Provides for installation and configuration of the latest version of HP Systems Insight Manager, together
with the installation and startup of HP Service Essentials Remote Support Pack
http://h20195.www2.hp.com/v2/GetPDF.aspx/5982-4143EN.pdf
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Service and Support
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 15
Page 16
3-Year HP 6 hour Hardware Support Onsite Call-to-Repair Service
Provides an IT manager with a team of support specialists who will quickly begin troubleshooting the
system to help return the hardware to operating condition within 6 hours of the initial service request to
the HP Global Solution Center
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EN.pdf
3-Year , HP 24x7 Software Support for Insight Control
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series
servers or HP BladeSystem servers
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf
Additional Services
: Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up, and
Software Support; Install and Startup Services for Insight Control; Microsoft or Linux or VMware education
courses; +30 Proactive Select Credits, Factory Express
Basic Care Package
Basic Care Package: delivers minimum recommended support service level
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN
3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service
Provides for the deployment and basic configuration of HP Insight Control on HP ProLiant ML and DL series
servers or HP BladeSystem servers
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf
Additional Services
: Software OS (Microsoft, Linux (SUSE/Red Hat) & VMware Installation & Start Up and
Software Support); +10 Proactive Select Credits, Factory Express
Insight Remote Support
The packages include HP Insight Remote Support that uses proven technology to deliver secure, reliable
24x7 remote monitoring, diagnoses, and problem resolution. It is available at no additional cost to all
warranty, HP Care Pack Service, and service agreement customers.
For more information
To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales
representative or HP Authorized Channel Partner. Or visit:
http://www.hp.com/services/proliant
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Service and Support
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 16
Page 17
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
NOTE:
Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section
of this QuickSpecs.
NOTE:
HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped
separately.
NOTE:
If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this
QuickSpecs.
NOTE:
Not all models are available in all regions. Check with your local country HP offices for availability.
High Performance Models
HP ProLiant DL580 G7 E74870 4P 128GB-R
P410i/1G FBWC 4x1200W
HE PS Server
643063-xx1
HP ProLiant DL580 G7 E74850 4P 128GB-R
P410i/1G FBWC 4x1200W
HE PS Server
643064-xx1
HP ProLiant DL580 G7 E74870 4P 128GB-R Hot Plug
SAS SFF BC NIC 1200W PS
Server
696729-xx1
HP ProLiant DL580 G7 E74850 4P 128GB-R Hot Plug
SAS SFF BC NIC 1200W PS
Server
696730-xx1
Processor(s)
Four of the following
depending on model
(4) Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) Processors
(4) Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) Processors
Cache Memory
One of the following
depending on model
30MB (1 x 30MB) Level 3 cache
24MB (1 x 24MB) Level 3 cache
Memory
One of the following
depending on model
128GB (16 x 8GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (8) (E7)
Memory Cartridges (E7-4870, E7-4850 Models)
64GB (16 x 4GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (8) memory
boards (X7560, X7550 Models)
32GB (8 x 4GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (4) memory
boards (E7540 Models)
Network Controller
HP NC375i Integrated Quad Port Gigabit Server Adapter
Storage Controller
Embedded HP Smart Array P410i/1G FBWC Controller
Hard Drives
None ship standard
Internal Storage
Up to 8.0TB of internal storage (SFF SAS)
Optical Drive
HP Slim SATA DVD ROM Optical Drive
Power Supply
One of the following
depending on model
(4) HP 1200W Common Slot Platinum Hot Plug Power Supply Kit (E7-4870, E74850 Models)
Fans
Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out
Integrated Lights-Out 3 (iLO 3) ships standard
Insight Control
HP Insight Control No Media single server license, including 1 year of 24x7
Technical Support and Updates
Form Factor
Rack 4U
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Pre-configured Models
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 17
Page 18
Base Models
HP ProLiant DL580 G7 E74830 2P 64GB-R
P410i/512 FBWC 2x1200W
HE PS Server
643065-xx1
HP ProLiant DL580 G7 E74807 2P 64GB-R
P410i/512 FBWC 2x1200W
HE PS Server
643066-xx1
HP ProLiant DL580 G7 E74830 2P 64GB-R Hot Plug
SAS SFF BC NIC 1200W PS
Server
696731-xx1
HP ProLiant DL580 G7 E74807 2P 64GB-R Hot Plug
SAS SFF BC NIC 1200W PS
Server
696732-xx1
Processor(s)
Two of the following
depending on model
Up to 4 supported
(2) Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) Processors
(2) Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) Processors
Cache Memory
One of the following
depending on model
24MB (1 x 24MB) Level 3 cache
Memory
64GB (8 x 8GB DIMMs) PC3-10600R DIMMs (DDR3) installed in (4) (E7) Memory
Cartridges (E7-4830, E7-4807 Models)
Network Controller
HP NC375i Integrated Quad Port Gigabit Server Adapter (643065-xx1 and
643066-xx1 Models)
HP Ethernet 1Gb 4-port 331i Integrated Server Adapter (696731-xx1 and
696732-xx1 Models)
Storage Controller
Embedded HP Smart Array P410i/512 MB FBWC Controller
Hard Drives
None ship standard
Internal Storage
Up to 8.0TB of internal storage (SFF SAS)
Optical Drive
HP Slim SATA DVD ROM Optical Drive
Power Supply
One of the following
depending on model
(2) HP 1200W Common Slot Platinum Hot Plug Power Supply Kit (E7-4830, E74807 Models)
Fans
Four Hot Plug redundant fans standard (3+1)
Integrated Lights Out
Integrated Lights-Out 3 (iLO 3) ships standard
Form Factor
Rack 4U
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response
Country Code Key
xx = 00
US
xx = 20
Brazil
xx = 29
Japan
xx = 37
APD
xx = 42
Europe
xx = AA
PRC
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Pre-configured Models
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 18
Page 19
NOTE:
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on
configurable product offerings and requirements.
NOTE:
Factory Integrated Models must start with a CTO Server
NOTE:
FIO indicates that this option is only available as a factory installable option.
Step 1: Base Configuration
HP Models
HP ProLiant DL580 G7 (E7) Configure-to-order Server
643086-B21
Factory Integrated Models ship with:
HP NC375i Integrated Quad Port Gigabit Server Adapter
Four HP DL580G7/DL980 G7 (E7) Memory Cartridges
Five standard PCI-express slots
HP Smart Array P410i/ Zero Memory Controller
Four redundant hot-plug fans
SFF SAS/SATA/SSD drive cage
HP Integrated Lights-Out 3 (iLO 3) management processor: integrated on system board
Rack (4U), 7-inch
NOTE:
Power supplies need to be selected separately from Step 2 below.
NOTE:
Customers purchasing the Intel® Xeon® Processor E7 series will need to
purchase the HP DL580R07 (E7) CTO Server (PN 643086-B21)
HP ProLiant DL580 G7 (E7) BC NIC Configure-to-order Server
643086-B22
Factory Integrated Models ship with:
HP Ethernet 1Gb 4-port 331i Integrated Server Adapter
Four HP DL580G7/DL980 G7 (E7) Memory Cartridges
Five standard PCI-express slots
HP Smart Array P410i/ Zero Memory Controller
Four redundant hot-plug fans
SFF SAS/SATA/SSD drive cage
HP Integrated Lights-Out 3 (iLO 3) management processor: integrated on system board
Rack (4U), 7-inch
NOTE:
Power supplies need to be selected separately from Step 2 below
Step 2: Choose Required Options (only one of the following from each list unless otherwise
noted)
HP Processors
NOTE:
If a 2p configuration is selected, then a single -L21 processor kit should be used.
If a 3p configuration is selected, then first processor kit is -L21 and second is -B21. If a
4p configuration is selected, then first processor kit is -L21 and second and third
processor kit is -B21.
NOTE:
Intel® Xeon® Processor E7-4800 series processors are supported only in the HP
ProLiant DL580 G7 (E7) Configure-to-order Server (PN 643086-B2x) and E7 series preconfigured models)
Ten-Core Processors
HP DL580 G7 Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) FIO 2-processor Kit
NOTE:
QPI speed is 6.40 GT/s
643067-L21
HP DL580 G7 Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB/130W) FIO 2-processor Kit
NOTE:
QPI speed is 6.40 GT/s
643069-L21
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Configuration Information - Factory Integrated Models
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 19
Page 20
HP DL580 G7 Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) FIO 2-processor Kit
NOTE:
QPI speed is 6.40 GT/s
643071-L21
HP DL580 G7 Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB/105W) FIO 2-processor
Kit
NOTE:
QPI speed is 6.40 GT/s
643079-L21
Eight-Core Processors
HP DL580 G7 Intel® Xeon® E7-8837 (2.67GHz/8-core/24MB/130W) FIO 2-processor Kit
NOTE:
QPI speed is 6.40 GT/s
643081-L21
HP DL580 G7 Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) FIO 2-processor Kit
NOTE:
QPI speed is 6.40 GT/s
643073-L21
HP DL580 G7 Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB/105W) FIO 2-processor Kit
NOTE:
QPI speed is 5.86 GT/s
643075-L21
Six-Core Processors
HP DL580 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) FIO 2-processor Kit
NOTE:
QPI speed is 4.80 GT/s
643077-L21
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
NOTE:
Only supported with the Intel® Xeon® Processor 7500 series processors
500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
500666-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP
Memory Kit
627812-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory
Kit
627814-B21
NOTE:
PC3L DIMMs are only supported with the Intel® Xeon® E7-48xx/88xx processors
and require (E7) memory cartridge.
NOTE:
PC3L is a low-voltage memory.
Memory Expansion Options
HP DL580G7/DL980G7 (E7) Memory Cartridge
NOTE:
Four memory cartridges come standard in the HP ProLiant DL580 G7 (E7)
Configure-to-order Server (643086-B21), each kit contains one cartridge and a
maximum of (8) are supported in the server. See Memory Performance Optimization in
the Memory section for configuration guidelines.
644172-B21
HP Power Supplies
NOTE:
Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:
www.hp.com/go/hppoweradvisor
.
HP 1200W Common Slot Silver Hot Plug Power Supply Kit
500172-B21
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
578322-B21
NOTE:
All power supplies in a server should match. Mixing Platinum and Silver Power
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Configuration Information - Factory Integrated Models
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 20
Page 21
Supplies is not supported.
NOTE:
Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
NOTE:
HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with
Power Distribution Units (PDUs). For a full list of optional HP power cords please go to
www.hp.com/products/powercords
Step 3: Choose Additional Factory Integratable Options
HP Insight Software
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License
C6N36A
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic
License
NOTE:
The Electronic software license is available in EMEA only.
C6N36ABE
Step 4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options" and "Additional Options" section below.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Configuration Information - Factory Integrated Models
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 21
Page 22
NOTE:
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for additional information.
HP Unique Options
HP DL580 G7 PCI Express Kit
NOTE:
Adds four PCI-E 2.0 x8, one PCI-E 2.0 x4 and one PCI-E 1.1 x4.
588137-B21
HP DL580 G7 PCI-X Combo Express Kit
NOTE:
Adds two PCI-E 2.0 x16, one PCI-E 2.0 x4 and two PCI-X.
588139-B21
HP DL580G7/DL980G7 (E7) Memory Cartridge
NOTE:
Four memory cartridges come standard in the HP ProLiant DL580 G7 (E7)
Configure-to-order Server (643086-B21), each kit contains one cartridge and a
maximum of (8) are supported in the server. See Memory Performance Optimization in
the Memory section for configuration guidelines.
644172-B21
HP Processors
Ten-Core Processors
HP DL580 G7 Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB/130W) Processor Kit
NOTE:
QPI speed is 6.40 GT/s
643067-B21
HP DL580 G7 Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB/130W) Processor Kit
NOTE:
QPI speed is 6.40 GT/s
643069-B21
HP DL580 G7 Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB/130W) Processor Kit
NOTE:
QPI speed is 6.40 GT/s
643071-B21
HP DL580 G7 Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB/105W) Processor Kit
NOTE:
QPI speed is 6.40 GT/s
643079-B21
Eight-Core Processors
HP DL580 G7 Intel® Xeon® E7-8837 (2.67GHz/8-core/24MB/130W) Processor Kit
NOTE:
QPI speed is 6.40 GT/s
643081-B21
HP DL580 G7 Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB/105W) Processor Kit
NOTE:
QPI speed is 6.40 GT/s
643073-B21
HP DL580 G7 Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB/105W) Processor Kit
NOTE:
QPI speed is 5.86 GT/s
643075-B21
Six-Core Processors
HP DL580 G7 Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB/95W) Processor Kit
NOTE:
QPI speed is 4.80 GT/s
643077-B21
NOTE:
Above processor kits contain one processor each.
NOTE:
Intel® Xeon® Processor E7-4800 series processors only supported in the HP
ProLiant DL580 G7 (E7) Configure-to-order Server (PN 643086-B2x) and E7 series preconfigured models (PNs 6430xx-xx1 & 6967xx-xx1)
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Core Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 22
Page 23
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
NOTE:
Only supported with the Intel® Xeon® Processor 7500 series processors.
500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
500666-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP
Memory Kit
627812-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory
Kit
NOTE:
PC3L DIMMs are only supported with the Intel® Xeon® Processor E7 series
processors and require (E7) memory cartridge.
NOTE:
PC3L is a low-voltage memory.
627814-B21
Memory Expansion Options
HP DL580G7/DL980G7 (E7) Memory Cartridge
NOTE:
Four memory cartridges come standard in the HP ProLiant DL580 G7 (E7)
Configure-to-order Server (643086-B21), each kit contains one cartridge and a
maximum of (8) are supported in the server. See Memory Performance Optimization in
the Memory section for configuration guidelines.
644172-B21
HP Optical Drives
NOTE:
Optical drives are ejectable.
HP Slim 12.7mm SATA DVD-RW Optical Drive
481043-B21
HP Slim 12.7mm SATA DVD-ROM Optical Drive
481041-B21
HP Hard Drives
NOTE:
The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE:
Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
718160-B21
HP 1.2TB 6G SAS 10K SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
693648-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
619291-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581286-B21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
581284-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
507127-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive
627117-B21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive
512547-B21
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Core Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 23
Page 24
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
605835-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive
507610-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive
625609-B21
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
507750-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13121_div/13121_div.html
(Worldwide)
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State
Drive
728726-B21
HP 80GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive
734366-B21
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State
Drives
HP 800GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State
Drive
728743-B21
HP 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State
Drive
728739-B21
HP 600GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State
Drive
739904-B21
HP 300GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State
Drive
739894-B21
HP 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State
Drive
728735-B21
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive
730065-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive
730063-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive
730061-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive
730059-B21
6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr
Warranty Solid State Drive
690823-B21
HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid
State Drive
690821-B21
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Core Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 24
Page 25
HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr
Warranty Solid State Drive
690819-B21
NOTE:
Cable is not included for Non-hot plug Drives. SSD cable option kit sku: 661778B21
6G SAS SLC Hot Plug Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State
Drive
632494-B21
HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State
Drive
632492-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html
(Worldwide)
Hard Drive Cables
HP DL580/DL585/DL980 G7 SSD Cable Kit
661778-B21
HP Networking
Gigabit Ethernet Adapters
HP NC112T PCI Express Gigabit Server Adapter
503746-B21
HP NC360T PCI-E Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI-E Quad Port Gigabit Server Adapter
435508-B21
HP NC365T 4-port Ethernet Server Adapter
593722-B21
HP NC373F PCI-E Multifunction 1000SX Gigabit Svr Adapter
394793-B21
HP NC373T PCI-E Multifunction Gigabit Server Adapter
394791-B21
HP NC375T PCI Express Quad Port Gigabit Server Adapter
538696-B21
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
458492-B21
HP Ethernet 1Gb 4-port 331T Adapter
647594-B21
HP Ethernet 1Gb 2-port 332T Adapter
615732-B21
HP Ethernet 1Gb 2-port 361T Adapter
652497-B21
10 Gigabit Ethernet Adapters
NOTE:
A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.
HP NC524SFP Dual Port 10GbE Module
489892-B21
HP NC523SFP 10Gb 2-port Server Adapter
593717-B21
HP NC550SFP Dual Port 10GbE Server Adapter
581201-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter
614203-B21
HP Ethernet 10Gb 2-port 530SFP Adapter
652503-B21
HP Ethernet 10Gb 2-port 530T Adapter
656596-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter
665249-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
www.hp.com/go/ProLiantNICs
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Core Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 25
Page 26
1.
2.
3.
4.
HP InfiniBand
HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA
592520-B21
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA
583211-B21
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544QSFP Adapter
649281-B21
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html
HP I/O Expansion Options
HP DL580 G7 PCI Express Kit
NOTE:
Adds four PCI-E 2.0 x8, one PCI-E 2.0 x4 and one PCI-E 1.1 x4.
588137-B21
HP DL580 G7 PCI-X Combo Express Kit
NOTE:
Adds two PCI-E 2.0 x16, one PCI-E 2.0 x4 and two PCI-X
Suggested Slot placement:
Slot 3 PCIe2 x 16 (16,8,4,2,1)
Slot 6 PCIe2 x 16 (16,8,4,2,1)
Slot 9 PCIe2 x 16 (8,4,2,1)
Slot 11 PCIe2 x 16 (8,4,2,1)
NOTE:
Slot 9 and 11 are physically a x16 slot but will operate electrically at x8.
588139-B21
HP Power Supplies
NOTE:
Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:
www.hp.com/go/hppoweradvisor
.
HP 1200W Common Slot Silver Hot Plug Power Supply Kit
500172-B21
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
578322-B21
NOTE:
All power supplies in a server should match. Mixing Platinum and Silver Power
Supplies is not supported.
NOTE:
Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
NOTE:
HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with
Power Distribution Units (PDUs). For a full list of optional HP power cords please go to
www.hp.com/products/powercords
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Core Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 26
Page 27
NOTE:
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software
HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License
C6N27A
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License
NOTE:
The Electronic software license is available in EMEA only.
C6N28ABE
HP Insight Control Server Provisioning Media Kit
BD883A
HP Insight Management Media Kit
C6N31A
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License
T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License
452151-B21
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.
NOTE:
Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE:
Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at:
http://www.hp.com/go/insightupdates
.
NOTE:
For additional license options please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Integrated Lights-Out (iLO) Advanced for ProLiant
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License
NOTE:
The Electronic software license is available in EMEA only.
E6U59ABE
HP iLO Advanced including 3yr 24x7 Tech Support and Updates Electronic License
NOTE:
The Electronic software license is available in EMEA only.
E6U64ABE
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server
License
512485-B21
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates
BD505A
NOTE:
For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 27
Page 28
High Performance
Clusters
HP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License
NOTE:
This part number can be used to purchase one certificate for multiple licenses
with a single activation key. Each license is for one node (server). Customer will receive
a printed end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in order to
obtain a license key.
QL803B
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
NOTE:
These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.
BD476A
HP Insight Cluster Management Utility Media
BD477A
NOTE:
For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
HP I/O Accelerator
Options
Second Generation Accelerators
HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673642-B21
HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673644-B21
HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673646-B21
HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers
673648-B21
HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers
721458-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13587_div/13587_div.html
(Worldwide)
HP PCIe Workload
Accelerator Options
Mainstream Endurance (ME) PCIe Workload Accelerators
HP 1.4TB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator
729307-B21
HP 700GB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator
729305-B21
High Endurance (HE) PCIe Workload Accelerators
HP 700GB HH/HL High Endurance (HE) PCIe Workload Accelerator
708090-B21
HP 350GB HH/HL High Endurance (HE) PCIe Workload Accelerator
708088-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14528_div/14528_div.html
(Worldwide)
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 28
Page 29
HP Graphics Options
HP DL580/DL585/DL980 G7 Power Cable Kit
NOTE:
The HP ProLiant DL580 G7 can support up to 4 (225W) or 3(300W) Graphic Cards
and/or GPGPU Accelerator Options (x16 PCIE add-in cards in slots 11 and 9 will downtrain electrically to x8 PCIE which may result in reduced performance.)
NOTE:
An option kit will be required per Graphic Card and/or GPGPU Accelerator
Options.
NOTE:
Depending on the number of GPGPUs required, customers will need to purchase
the following I/O expansion boards: DL580G7 PCI-X / PCI Express I/O Exp. Kit: PN:
588139-B21 (Adds two PCI-E 2.0 x16, one PCI-E 2.0 x4 and two PCI-X).
631660-B21
HP Security
HP Trusted Platform Module Option
488069-B21
NOTE:
The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM
.
NOTE:
ProLiant OS pre-installed units will come with the partition required for TPM
deployment.
NOTE:
The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
HP Storage Controllers
SAS Controllers
Smart Array P212 Controller
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller
462828-B21
HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller
462834-B21
Smart Array P410 Controller
HP Smart Array P410/256 2-ports Int PCIe x8 SAS Controller
462862-B21
HP Smart Array P410/512 BBWC 2-ports Int PCIe x8 SAS Controller
462864-B21
HP Smart Array P410/512 FBWC 2-ports Int PCIe x8 SAS Controller
578230-B21
HP Smart Array P410/1G FBWC 2-ports Int PCIe x8 SAS Controller
572532-B21
Smart Array P411 Controller
HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller
462830-B21
HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller
462832-B21
HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller
572531-B21
HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller
578229-B21
Smart Array P812 Controller
HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller
487204-B21
Optional Upgrades
HP 512MB P-Series Battery Backed Write Cache Upgrade
NOTE:
Supported on HP Smart Array P411 Controller only.
462967-B21
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 29
Page 30
HP 1GB Flash Backed Cache
534562-B21
HP 512MB Flash Backed Write Cache
534916-B21
HP 256MB P-series Cache Upgrade
462968-B21
HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates
Single Server License
NOTE:
This part number can be used to purchase a single license or to order multiple
licenses with a single activation key. Customers will receive a license entitlement
certificate via e-mail. The license entitlement certificate must be redeemed online or via
fax in order to obtain the license activation key(s). Include one year of 24x7 HP
Software Technical Support Services.
516471-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html
(Smart Array P812 Controller)
http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html
(Smart Array Advanced Pack)
SAS HBA
HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter
NOTE:
This is a 2 x4 External Port HBA
NOTE:
This is only approved for the HP P2000 G3 SAS Modular Smart Array.
614988-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13651_div/13651_div.html
(SC08e 6Gb HBA)
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
NOTE:
Recommended HBA for SCSI tape drive connect.
412911-B21
NOTE:
Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
HP Power Cords
HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord
AF565A
HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord
AF566A
HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord
AF568A
HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord
AF570A
HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord
AF571A
HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord
AF567A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 30
Page 31
HP Tape Backup
NOTE:
For the complete range of tape drives, autoloaders, libraries and media see:
http://www.hp.com/go/tape
. For hardware and software compatibility of HP tape
backup products see:
http://www.hp.com/storage/SPOCK
and
www.hp.com/go/ebs
.
NOTE:
For Internal drives to be connected to DL servers please make sure that you
order rack mount kit as well.
HP StoreEver LTO-4 Ultrium 1840 SAS External Tape Drive
EH861B
HP StoreEver LTO-5 Ultrium 3280 SAS Internal Tape Drive
NOTE:
For installation into 3U SAS rack kit (AG576B). No peripheral bay available for
installation into the server. Connection using HP P212 Smart Array Controller SAS
(462828-B21) recommended.
EH899B
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit
C0L99A
HP StoreEver LTO-6 Ultrium 6650 Internal Tape Drive
EH963A
HP StoreEver LTO-6 Ultrium 6650 External Tape Drive
EH964A
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive
EH969A
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive
EH970A
HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader
C0H19A
HP Tape Storage Systems
HP StoreEver MSL6480
HP StoreEver MSL6480 Scalable Base Module
QU625A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14604_div/14604_div.html
(Worldwide)
HP Disk Backup
NOTE:
For the complete range of RDX drives and media see:
http://www.hp.com/go/rdx
. For hardware and software compatibility of HP disk backup
products see:
http://www.hp.com/storage/SPOCK
.
HP StoreOnce Backup systems
HP StoreOnce 2620 iSCSI Backup
BB852A
HP StoreOnce 4220 Backup
BB855A
HP D2D Backup Systems with Backup Data Deduplication
HP D2D4112 Backup System
EH993C
HP D2D2504i Backup System
EJ002C
HP RDX Removable Disk Backup System
HP RDX320 USB3.0 External Disk Backup System
B7B63A
HP RDX500 USB3.0 Internal Disk Backup System
B7B64A
HP RDX500 USB3.0 External Disk Backup System
B7B66A
HP RDX1000 USB3.0 Internal Disk Backup System
B7B67A
HP RDX1000 USB3.0 External Disk Backup System
B7B69A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 31
Page 32
NOTE:
Please see the QuickSpecs for additional part numbers, Technical Specifications,
and additional information:
http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html
(Worldwide)
HP Disk Storage Systems
Disk Enclosures
HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle
E7W32A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html
(Worldwide)
HP Storage Options
Storage Fibre Channel HBA
NOTE:
The following is a list of all Fibre Channel Host Bus Adapters for Windows and
Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AP770B
Emulex Fibre Channel HBAs
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AJ762B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ763B
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter
QR559A
HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter
QR558A
HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter
C8R38A
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter
C8R39A
QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ764A
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter
QW971A
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter
QW972A
Converged Network Adapter
HP CN1100E Dual Port Converged Network Adapter
BK835A
HP CN1000Q Dual Port Converged Network Adapter
BS668A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 32
Page 33
HP Disk Storage Systems
Disk Enclosures
HP D2600 Disk Enclosure
AJ940A
HP D2700 Disk Enclosure
AJ941A
NOTE:
Please see the QuickSpecs for additional options and configuration information
at:
http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html
(Worldwide)
HP Uninterruptible Power
Systems
HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power System
AF469A
HP R1.5kVA G3 1U JP/TW Uninterruptible Power System
AF470A
HP R1.5kVA G3 1U INTL Uninterruptible Power System
AF471A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html
(Worldwide)
HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System
AF466A
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System
AF467A
HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System
AF468A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html
(Worldwide)
R5000 Uninterruptible Power System (UPS)
HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System
AF461A
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System
AF460A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html
(Worldwide)
R7000 Uninterruptible Power System (UPS)
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System
AF462A
HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System
AF463A
HP R5KVA and R7KVA 3U Extended Runtime Module
AF464A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html
(Worldwide)
HP Rackmountable 3 Phase Uninterruptible Power Systems (UPS R8000/3 and
R12000/3)
HP R8000/3 8000kVA Three Phase NA 6U Rackmount Uninterruptible Power System
AF431A
HP R8000/3 8000kVA Three Phase INTL 6U Rackmount Uninterruptible Power System
AF432A
HP R12000/3 12000VA Three Phase NA 6U Rackmount Uninterruptible Power System
AF429A
HP R12000/3 12000VA Three Phase INTL 6U Rackmount Uninterruptible Power System
AF430A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 33
Page 34
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12857_div/12857_div.html
(Worldwide)
NOTE:
For additional information on HP Uninterruptible Power Systems please go to:
www.hp.com/servers/rackups
.
NOTE:
For additional information on sizing your server, please reference:
http://www.upssizer.com
.
NOTE:
Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link:
www.hp.com/products/powercords
.
HP Basic Power
Distribution Units (pPDU)
HP Basic Power Distribution Unit: 1U/0U Version
HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit
H5M54A
HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit
H5M56A
HP Basic Power Distribution Unit: Half Height Version
HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit
H5M55A
HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit
H5M57A
HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit
H5M58A
HP 7.3kVA 230 Volt 20 Outlet INTL Basic Power Distribution Unit
H5M68A
HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit
H5M61A
HP Basic Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit
H5M59A
HP 7.3kVA 230 Volt 30 Outlet INTL Basic Power Distribution Unit
H5M70A
HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit
H5M60A
HP 11kVA 230 Volt 36 Outlet INTL Basic Power Distribution Unit
H5M71A
HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit
H5M75A
HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit
H5M63A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit
H5M64A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit
H5M62A
HP 11kVA 400 Volt Three Phase 30 Outlet INTL Basic Power Distribution Unit
H5M72A
HP Basic Power Distribution Unit: Full Height Version
HP 11kVA 400 Volt Three Phase 42 Outlet INTL Basic Power Distribution Unit
H5M73A
HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit
H5M67A
HP Basic Power Distribution Unit: 480/277 Volt Version
HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit
H3X07A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit
H3X08A
HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer
H3X09A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 34
Page 35
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14557_div/14557_div.html
(Worldwide)
NOTE:
Additional HP Power Distribution Units are available. For a complete list of all HP
PDUs and additional information please visit:
www.hp.com/go/rackandpower
.
HP Remote Monitoring
Power Distribution Units
(mPDU)
HP Remote Monitored Power Distribution Unit: 1U Version
HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit
D9N43A
HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit
D9N46A
HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit
D9N44A
HP Remote Monitored Power Distribution Unit: Half Height Version
HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit
D9N45A
HP Remote Monitored Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit
D9N47A
HP 7.3kVA 230 Volt 24 Outlet INTL Monitored Power Distribution Unit
D9N48A
HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit
D9N51A
HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit
D9N52A
HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit
D9N53A
HP 11kVA 400 Volt Three Phase 21 Outlet INTL Monitored Power Distribution Unit
D9N55A
HP Remote Monitored Power Distribution Unit: Full Height Version
HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit
D9N49A
HP 7.3kVA 230 Volt 36 Outlet INTL Monitored Power Distribution Unit
D9N50A
HP 11kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution Unit
D9N57A
HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit
D9N58A
HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit
D9N61A
HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit
D9N54A
HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit
D9N59A
HP 22kVA 400 Volt Three Phase 24 Outlet INTL Monitored Power Distribution Unit
D9N60A
HP 22kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution Unit
D9N56A
HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit
D9N62A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit
D9N63A
HP Environmental Sensor for Remote Monitored PDUs
HP Environmental Sensor for Remote Monitored PDUs
E2D53A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14669_div/14669_div.html
(Worldwide)
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 35
Page 36
HP Intelligent Power
Distribution Units
(iPDU)
iPDU Core Units
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF520A
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF521A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF522A
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit
AF533A
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF523A
HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit
AF525A
HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit
AF526A
HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit
AF527A
HP 11.4kVA 16A 415V Three Phase L22-20 NA Core Intelligent Power Distribution Unit
AF900A
HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit
AF902A
HP 17.3kVA 24A 415V Three Phase IEC309 NA Core Intelligent Power Distribution Unit
AF901A
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF535A
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF537A
HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit
AF538A
iPDU Kits with Standard Extension Bars
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit
AF531A
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit
AF532A
HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit
AF534A
iPDU Extension Bars
HP 5xC13 Intelligent PDU Extension Bar G2 Kit
AF547A
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar
AF528A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13650_div/13650_div.html
(Worldwide)
HP Rack Options
HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)
HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor
AZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor
AZ871A
HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor
AZ872A
HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor
AZ873A
HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor
AZ874A
HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor
AZ875A
HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor
AZ876A
HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor
AZ877A
HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor
AZ878A
HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor
AZ879A
HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor
AZ880A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 36
Page 37
HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor
AZ881A
HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor
AZ882A
HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor
AZ883A
HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor
AZ884A
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor
AZ885A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html
(Worldwide)
HP USB Keyboard and Mouse
HP USB BFR with PVC Free IN Keyboard/Mouse Kit
672097-D63
HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit
672097-373
HP USB BFR with PVC Free Intl Keyboard/Mouse Kit
672097-B33
HP USB BFR with PVC Free PT Keyboard/Mouse Kit
672097-133
HP USB BFR with PVC Free TR Keyboard/Mouse Kit
672097-143
HP USB BFR with PVC Free CZ Keyboard/Mouse Kit
672097-223
HP USB BFR with PVC Free FI Keyboard/Mouse Kit
672097-353
HP USB BFR with PVC Free SE Keyboard/Mouse Kit
672097-103
HP USB BFR with PVC Free CH Keyboard/Mouse Kit
672097-113
HP USB BFR with PVC Free KR Keyboard/Mouse Kit
672097-KD3
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html
(Worldwide)
HP Server Console Switches
HP Server Console 0x2x8 Port Analog Switch
AF616A
HP Server Console 0x2x16 Port Analog Switch
AF617A
HP TAA 0x2x16xKVM Server Console G2 Switch
AF626A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html
(Worldwide)
HP Server Console Switch G2 with Virtual Media & CAC
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software
AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software
AF619A
HP KVM CAT5 1-pack USB Interface Adapter
336047-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html
(Worldwide)
HP IP Console Switch G2 with Virtual Media & CAC
HP 1x4 USB/PS2 KVM Console Switch
AF611A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software
AF620A
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 37
Page 38
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software
AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software
AF622A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html
(Worldwide)
HP USB and SD Options
HP Flash Media Kits for USB Drives
HP 2GB USB Flash Media Drive Key Kit
NOTE:
HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device must be
installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to
HP VMware Getting Started Guide for installation instructions.
608447-B21
HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HP Enterprise Mainstream Flash Media Kits for Memory Cards
HP 8GB SD Enterprise Mainstream Flash Media Kit
726113-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13971_div/13971_div.html
Other USB and SD Options
HP USB 04 Standard Keyboard
DT528A#ABA
HP Care Pack Services
Proactive Care
NOTE:
Collaborative Support plus Proactive services delivered by the onshore, local
language Advanced Solution Center (ASC), end-to-end case ownership from a Technical
Solution Specialists and Technical Account Manager who remotely delivers
firmware/software revision management, proactive scans and incident trend reports.
Recommended for customers running a virtualized infrastructure and/or customers
who desire an enhanced call support experience.
HP 3 year 4 hour 24x7 ProLiant DL58x Proactive Care Service
U2Z68E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL58x Proactive Care
Service
U2Z71E
HP 3 year 6 hour Call To Repair 24x7 ProLiant DL58x Proactive Care Service
U2Z74E
HP 3 year 6 hour Call To Repair 24x7 withDefective Media Retention ProLiant DL58x
Proactive Care SVC
U2Z77E
Collaborative Support
NOTE:
Hardware break/fix plus 24x7 software diagnosis support with collaborative call
management for a broad spectrum of 3rd Party software products including O/S and
hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors
from the software vendors directly and deploying them on HP ProLiant servers.
HP 3 year 4 hour 24x7 ProLiant DL58x Collaborative Support
U1J48E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL58x Collaborative
Support
U1J51E
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 38
Page 39
HP 3 year 6 hour Call To Repair 24x7 ProLiant DL58x Collaborative Support
U1J54E
HP 3 year 6hr Call To Repair 24x7 withDefective Media Retention ProLiant DL58x
Collaborative Support
U1J57E
Proactive Care Personalized Support Option
NOTE:
To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an
assigned resource who delivers support planning and brings technical expertise and
best practices advices for the customer's environment.
HP 3 year ISS ProactiveCare Personalized Support
U6W98E
Installation Services
NOTE:
Reduce the time required to get your system up and running and help minimize
disruptions to your business.
HP 3 year 4 hour 24x7 ProLiant D58x Hardware Support
U4608E
HP Install ProLiant DL58x Service
U4617E
HP Startup ProLiant DL58x Service
U4618E
HP Installation and Startup for Insight Control Server Deployment - previously Rapid
Deployment Pack
U5683E
NOTE:
For more information, customer/resellers can contact:
http://www.hp.com/services/carepack
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Additional Options
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 39
Page 40
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL580 G7
Memory Subsystem Architecture
Intel® Xeon® processor E7 and 7500 series memory architecture is designed to take advantage of multiple stages of memory
interleaving to reduce latency and increase bandwidth.
Each processor contains two Memory Controllers as shown in the Processor/Memory interconnect figure below. Each Memory
controller has two Scalable Memory Interface (SMI) buses operating in lockstep where each SMI bus connects to a memory buffer. The
purpose of the buffer is to convert SMI to DDR3. Each buffer has two DDR3 channels and can support up to four DIMMs for a total of
eight DIMMs per cartridge.
Memory speed is not affected by number of DIMMs or ranks. All DIMMs will run at the highest possible speed for a given
processor.
DDR3 memory speed is a function of the processors QPI bus speed such that
Processors with a QPI speed of 6.4GT will run memory at 1066MHz
Processors with a QPI speed of 5.6GT will run memory at 978MHz
Processors with a QPI speed of 4.8GT will run memory at 800 MHz
DIMM Installation guidelines
Each memory cartridge can support up to 8 DIMMs, for a system total of 64 DIMMs. When installing DIMM modules in the Memory
Cartridge observe the following minimum guidelines:
UDIMMs are not supported
Minimum allowable configuration is two DIMMs per cartridge.
DIMMs must be installed in pairs with identical characteristics. For configuration simplicity HP recommends using identical part
numbered DIMMs throughout when possible.
DIMM pairs MUST be populated in sequence by letter designation. Install DIMM pair 1A, 8A first followed by DIMM pair 3B, 6B then
DIMM pair 2C, 7C and DIMM pair 4D, 5D last.
Maximum performance is achieved by balancing DIMM pairs by letter groupings across all memory cartridges. Such that the 1A,
8A pair is install in all memory cartridges first (see diagram below) followed by the B pair, C pair and D pair.
AMP modes Online Sparing and Memory Mirroring have further requirements beyond these listed here. Please refer to the user
guide for additional memory configuration requirements.
Figure 1 Processor/Memory interconnect
Illustration of how the processor, cartridges and DIMMs are electrically connected.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Memory
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 40
Page 41
Memory Cartridge population guidelines
This server contains 8 memory cartridge slots in the processor memory drawer. Observe the following guidelines:
Populate memory cartridge slots for a processor only if the processor is installed where:
Processor 1 connects to cartridge slots 1 and 2.
Processor 2 connects to cartridge slots 3 and 4.
Processor 3 connects to cartridge slots 5 and 6.
Processor 4 connects to cartridge slots 7 and 8.
Minimum recommended cartridge population is one cartridge per processor. For best performance two cartridges per processor
are recommended.
Processors installed without corresponding memory cartridges will incur high memory access latencies and is not
recommended.
To maximize performance in multi-processor configurations distribute the total memory capacity evenly between all
processors.
Hemisphere mode
The architecture incorporates hemisphere mode, a high performance interleaving technology. Hemisphere mode allows interleaving
between the two processor memory controllers internal to each processor.
Hemisphere mode is enabled when all processors in a system have the memory behind both memory controllers populated identically.
To enable each processor to enter hemisphere mode it must have both cartridges installed, populated with equal memory
capacities and follow the DIMM installation guidelines.
Figure 2 Hemisphere Population Diagram
Examples of Hemisphere vs Non-Hemisphere populations.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Memory
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 41
Page 42
Memory Performance Optimization
The DL580 G7 supports 64 DIMMs across four multi-core processors. While there are many DIMM population configurations that can
support any desired total memory size, optimal performance can only be achieved when DIMMs are populated to take advantage of the
architecture. Reference the Figure: Hemisphere Population Diagram to achieve the best performance for a given memory/processor
configuration.
The largest contributor to maximum memory bandwidth performance is to utilize both memory controllers inside the processor.
This is achieved by populating both memory cartridges for each installed processor.
The second largest contributor to performance is to populate each DDR3 channel in each memory cartridge. To achieve this, the
minimum DIMM count per cartridge is four. Maximum bandwidth is reached by fully populating all memory cartridges with the
maximum number of eight DIMMs per cartridge.
Best performance is obtained when all installed processors are enabled for Hemisphere mode. HP recommends two memory
boards per processor- each one with at least 4 DIMMs- for improved memory bandwidth
Hemisphere mode is optimum when four or eight DIMMs are installed per cartridge. Hemisphere mode can be reached with two
or six DIMMs per cartridge (2 cartridges per processor) but it is not optimal configuration for Hemisphere mode.
Plan your memory configurations using Identical DIMMs to reach your memory size target taking into account that 32 and 64
DIMM count configurations result in the highest performance. For a 4 processor example:
If initial memory target is 64GB then populate a 4 processor system with eight cartridges of 4 - 2GB DIMMs each for a total
of 32 DIMMs. Your maximum expansion target is 128GB with 64 2GB DIMMs.
For 4GB DIMMs your initial memory target is 128GB using 32 DIMMs. Your maximum expansion target is 256GB with 64
DIMMs.
For 8GB DIMMs your initial memory target is 256GB using 32 DIMMs. Your maximum expansion target is 512GB with 64
DIMMs.
Maximum system memory capability is reached with an initial memory target of 512GB with 32 - 16GBDIMMs and 2TB
with 64 32GB DIMMs.
The more ranks per DIMM the higher the performance such that Quad rank DIMMs perform better than dual rank DIMMs.
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models". Only registered (RDIMM) speeds of 1066 or 1333
running at 1066 are supported and must be installed in pairs. UDIMMs are not supported.
HP Memory
Registered DIMMs (RDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
NOTE:
Only supported with the Intel® Xeon® Processor 7500 series processors
500656-B21
HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500658-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
604504-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit
500662-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit
604506-B21
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit
500666-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP
Memory Kit
627812-B21
HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory
Kit
NOTE:
PC3L DIMMs are only supported with the Intel® Xeon® Processor E7 series
processors and require (E7) memory cartridge.
NOTE:
PC3L is a low-voltage memory.
627814-B21
Memory Expansion Options
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Memory
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 42
Page 43
HP DL580G7/DL980G7 (E7) Memory Cartridge
NOTE:
Four memory cartridges come standard in the HP ProLiant DL580 G7 (E7)
Configure-to-order Server (643086-B21), each kit contains one cartridge and a
maximum of (8) are supported in the server. See Memory Performance Optimization in
the Memory section for configuration guidelines.
644172-B21
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Memory
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 43
Page 44
1-8
SFF SAS Internal Drive cage
Drive Support
Quantity
Supported
Position
Supported
Controller
Optical Drives
Slimline DVD-ROM drive
Up to 1
1
Integrated SATA
HP Slim SATA DVD RW
Optical Drive
Up to 1
1
Integrated SATA
External Storage
Quantity
Supported
Position
Supported
Host Controller or Adapter
D2600 Disk Enclosure
Up to 8
External
HP Smart Array P411/256MB BBWC Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
D2700 Disk Enclosure
Up to 4
External
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P812/1G Flash Backed Cache Controller
Maximum Storage Capacity
- (External SAS Enclosure Attached)
Internal
9.6TB (8 x 1.2TB SFF SAS/SATA Drives)
External
960TB (80 MSA60 enclosures x 12 drive bays each x 1TB SATA Drives)
Tape and Disk-Based Backup
NOTE:
For the complete range of tape drives, autoloaders, libraries and media, including the internal fitting models, see:
http://www.hp.com/go/tape
. For the complete range of D2D Backup Systems see:
http://www.hp.com/go/d2d
. For the complete
range of RDX drives and media see:
http://www.hp.com/go/rdx
. For hardware and software compatibility of HP disk and tape backup
products see:
http://www.hp.com/storage/SPOCK
.
Position
Recommended Controller
Controller Part
Number
HP SCSI Tape Drives
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
412911-B21
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Storage
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 44
Page 45
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
HP USB Tape Drives
DAT 40
DAT 72
DAT 160
DAT 320
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A
HP SAS Tape Drives
DAT 160
DAT 320
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
LTO-5 Ultrium 3000
LTO-5 Ultrium 3280
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS
Controller
462828-B21
HP SCSI Tape Autoloaders
DAT 72x10 Autoloader
1/8 G2 Autoloader
External
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
412911-B21
HP SAS Tape Autoloaders
and Libraries
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS
Controller
462828-B21
HP Fibre Channel Tape
Libraries
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs
for connectivity information and the
supported Fibre Channel HBAs shown in this QuickSpec.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Storage
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 45
Page 46
HP USB RDX Removable
Disk Backup System
RDX160
RDX320
RDX500
RDX750
RDX1TB
External
USB 2.0 port
N/A
HP D2D Backup Systems,
iSCSI
D2D2500i
D2D4000i
External
Embedded Network Controller. If the server requires a hardware
iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is
recommended.
HP D2D Backup Systems,
Fibre Channel
D2D4000fc
External
Direct server attach is not supported, requires connection via SAN
fabric. See:
http://www.hp.com/storage/SPOCK
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Storage
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 46
Page 47
HP 1200W Common Slot Silver Hot Plug Power Supply Kit
Part Number
500172-B21
Input Voltage Range ( V rms )
100 to 240
Frequency Range (Nominal) ( Hz )
50/60
Nominal Input Voltage ( Vrms )
100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating
800 900 1200 1200 1200 1200 1200
Nominal Input Current ( A rms )
9.7 9.0 7.0 6.8 6.4 6.1 5.9
Maximum Rated Input Wattage Rating ( Watts )
930 1034 1348 1348 1348 1348 1348
Maximum Rated VA ( Volt-Amp )
970 1079 1406 1406 1406 1406 1406
Efficiency ( % )
86 86 89 89 89 89 89
Power Factor
0.97
Leakage Current ( mA )
0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak )
30
Maximum Inrush Current duration ( mS )
20
Maximum British Thermal Unit Rating ( BTU-Hr )
3174 3530 4600 4600 4600 4600 4600
HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
Part Number
578322-B21
Input Voltage Range ( V rms )
100 to 240
Frequency Range (Nominal) ( Hz )
50/60
Nominal Input Voltage ( Vrms )
100 120 200 208 220 230 240
Maximum Rated Output Wattage Rating
800 900 1200 1200 1200 1200 1200
Nominal Input Current ( A rms )
9.3 8.6 6.7 6.5 6.1 5.8 5.6
Maximum Rated Input Wattage Rating ( Watts )
889 989 1290 1290 1290 1290 1290
Maximum Rated VA ( Volt-Amp )
927 1031 1345 1345 1345 1345 1345
Efficiency ( % )
90 91 93 93 93 93 93
Power Factor
0.97
Leakage Current ( mA )
0.42 0.50 0.83 0.87 0.92 0.96 1.00
Maximum Inrush Current ( A peak )
30
Maximum Inrush Current duration ( mS )
20
Maximum British Thermal Unit Rating ( BTU-Hr )
3033 3375 4403 4403 4403 4403 4403
NOTE:
To review typical system power ratings use the HP Power Advisor which is available online located at url:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Power Specifications
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 47
Page 48
System Unit
Dimensions
(H x W x D)
(with bezel)
6.94" x 19.0" x 27.55" (17.6cm x 48.3cm x 70.0cm)
Weight
(approximate)
Maximum
(all hard drives, power
supplies, DIMMs and
processors installed)
100.0 lb (45.4 kg)
Minimum
(one hard drive, two power
supplies, four DIMMs, and
two processors installed)
66.0 lb (30.0 kg)
Input Requirements
(per power supply)
Rated Line Voltage
100 - 127 VAC,
200 - 240 VAC
Rated Input Current
12 A (at 100 VAC),
8 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
1161 W (at 100 VAC),
1598 W (at 240 VAC)
BTU Rating
Maximum
3960 BTU/hr (at 100 VAC),
5450 BTU/hr (at 200 VAC)
Power Specifications
NOTE:
To review typical system power ratings use the HP Power Advisor
which is available online located at url:
www.hp.com/go/proliant-energy-
efficient
or
www.hp.com/go/hppoweradvisor
- Click on the system of interest. Example: DL580 G7
- Follow the instructions of the next screens.
Power Supply Output
(per
power supply)
Rated Steady-State Power
910 W (low line),
1300 W (high line)
Maximum Peak Power
910 W (low line),
1300 W (high line)
System Inlet
Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3048 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be limited
by the type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, noncondensing.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Technical Specifications
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 48
Page 49
Altitude
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).
Idle
L WAd
6.4 B (with PCI-E)
L
pAm
NA dBA
Operating
L
WAd
6.8 B (with PCI-E)
L pAm
NA dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE:
Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.
Integrated Lights-Out 3
(iLO 3)
integrated on system
board
Architecture
PCI Express based health and remote management ASIC
Processor
PCI Express RISC processor core running at 250MHz
Upgradeability
Option firmware upgradeable via Flash ROM.
Interfaces
One Ethernet Sideband connection (10/100/1000 Mb/s)
One Ethernet network connection (10/100Mb/s)
Memory
128-MB RAM with ECC
Operating System
Support
Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows
Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Technical Specifications
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 49
Page 50
Solaris
Client System Support
Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support
Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support
Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security
Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
Directory Support
Services
Active Directory v1.0 (Windows 2003)
Driver Support
HP ProLiant iLO3 Management Controller Driver Package
Management protocols
supported
SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management
Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP
RIBCL XML
Smart Array P410i
Controller
Dimensions
Embedded
Disk Drive and Enclosure
Interface - Transfer rate
6Gb/s SAS (Serial Attached SCSI)
3Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit wide bus
Server Interface
x4 PCIe 2.0 provides 2GB/s maximum bandwidth
SAS Speed
8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Cache Memory
Zero Memory RAID has no cache memory
40-bit 256MB ECC protected cache (battery upgrade available)
72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC
Logical Drives Supported
Zero Memory, Up to 2 logical volumes (8 physical drives)
Up to 64 logical drives with cache
Host Memory Addressing
64-bit, supporting greater than 4GB server memory space
RAID Support
RAID 6, 6+0 (Advanced Data Guarding)
NOTE:
RAID 6, 6+0 can be enabled with one of the following combinations:
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Technical Specifications
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 50
Page 51
256 MB cache, Battery kit and Smart Array Advanced Pack License key
option upgrades
512 MB BBWC/FBWC and Smart Array Advanced Pack License key option
upgrades
1G FBWC and Smart Array Advanced Pack License key option upgrades
RAID 5, 5+0 (Distributed Data Guarding)
NOTE:
A minimum or 256 MB cache is required to enable RAID 5, 5+0 support
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping), RAID 1 (Mirroring)
HP NC375i Integrated
Quad Port Gigabit Server
Adapter
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
Data Transfer Method
PCI-Express 2.0 x8
Controller
Qlogic/NetXen NX3031
Network Transfer Rate
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4, or 5 UTP; up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP; up to 328 ft (100 m)
1000Base-TX
Category 5 or higher UTP; up to 328 ft (100 m)
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green
. To recycle your product, please go to:
http://www.hp.com/go/green
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/green
. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Technical Specifications
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 51
Page 52
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Unix is a registered trademark of The Open Group.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP ProLiant DL580 Generation 7 (G7)
Technical Specifications
DA - 13669 Worldwide — Version 46 — December 13, 2013
Page 52
Loading...
