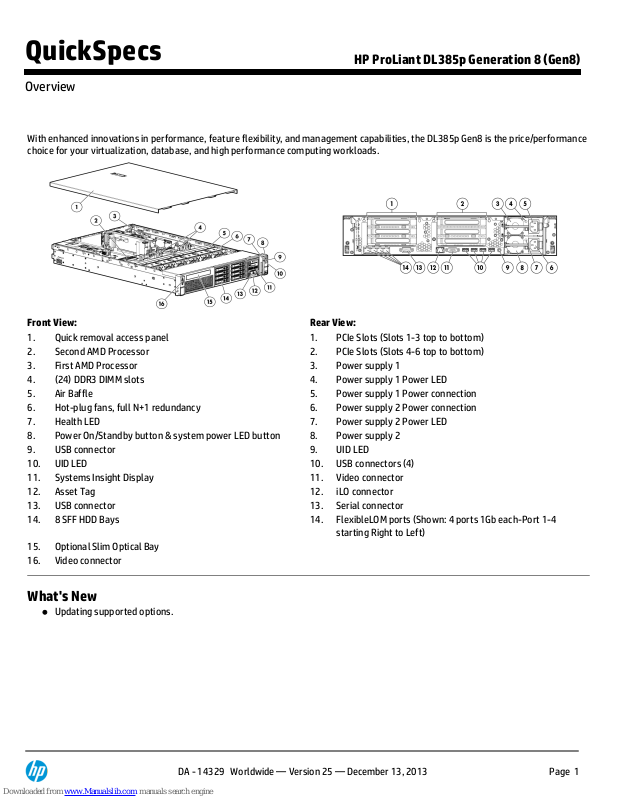

HP ProLiant DL385p G8 Specification

Page 1

With enhanced innovations in performance, feature flexibility, and management capabilities, the DL385p Gen8 is the price/performance choice for your virtualization, database, and high performance computing workloads.

Front View:

Rear View:

Quick removal access panel

PCIe Slots (Slots 1-3 top to bottom)

Second AMD Processor

PCIe Slots (Slots 4-6 top to bottom)

First AMD Processor

Power supply 1

(24) DDR3 DIMM slots

Power supply 1 Power LED

Air Baffle

Power supply 1 Power connection

Hot-plug fans, full N+1 redundancy

Power supply 2 Power connection

Health LED

Power supply 2 Power LED

Power On/Standby button & system power LED button

Power supply 2

USB connector

UID LED

10.

UID LED

10.

USB connectors (4)

11.

Systems Insight Display

11.

Video connector

12.

Asset Tag

12.

iLO connector

13.

USB connector

13.

Serial connector

14.

8 SFF HDD Bays

14.

FlexibleLOM ports (Shown: 4 ports 1Gb each-Port 1-4 starting Right to Left)

15.

Optional Slim Optical Bay

16.

Video connector

What's New

Updating supported options.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Overview

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 1

Page 2

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following depending on Model

Sixteen-Core Processors

AMD Opteron™ 6386SE (2.8GHz/16-core/16MB/140W TDP) Processor AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W TDP) Processor AMD Opteron™ 6284SE (2.7GHz/16-core/16MB/140W TDP) Processor AMD Opteron™ 6282SE (2.6GHz/16-core/16MB/140W TDP) Processor AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6276 (2.3GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6274 (2.2GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6272 (2.1GHz/16-core/16MB/115W TDP) Processor AMD Opteron™ 6262HE (1.6GHz/16-core/16MB/85W TDP) Processor

Twelve-Core Processors

AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W TDP) Processor AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W TDP) Processor AMD Opteron™ 6238 (2.6GHz/12-core/16MB/115W TDP) Processor AMD Opteron™ 6234 (2.4GHz/12-core/16MB/115W TDP) Processor

Eight-Core Processors

AMD Opteron™ 6328(3.2GHz/8-core/16MB/115W TDP) Processor AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W TDP) Processor AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W TDP) Processor AMD Opteron™ 6212 (2.6GHz/8-core/16MB/115W TDP) Processor

Quad-Core Processors

AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W TDP) Processor AMD Opteron™ 6204 (3.3GHz/4-core/16MB/115W TDP) Processor

NOTE:

Mixing different processor models is not supported.

NOTE:

All processors support up to 1600MHz DDR3 memory speeds.

Cache Memory

16MB (2x8MB) Level 3

Chipset

AMD SR5690 Northbridge and SP5100 Southbridge

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 2

Page 3

Upgradeability

Upgradeable to 2 processors Up to 24 DIMM slots available for higher memory capacities FlexibleLOM connector for 1Gb or 10Gb networking options 8SFF (plus optional upgrade of 8SFF for up to 16SFF drives-requires second Smart Array) and other Models

with 8LFF, 12LFF, or 25SFF hard drive bays Optional 3-slot PCIe 2.0 riser (x16, x8, x8)

NOTE:

The second processor must be installed to take advantage of the optional 3-slot riser.

Redundant Power Supply Optical Drive (available on 8SFF and 8LFF Models only)

On System Management Chipset

HP iLO (Firmware: HP iLO 4)

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

Memory Protection

Advanced ECC Online Spare

Memory

One of the following depending on Model

Type

HP SmartMemory DDR3 Load Reduced (LRDIMM) and Registered (RDIMM)

DIMM Slots Available

24 (12 DIMM slots per processor/4 channels per processor/3 DIMMs per channel)

Storage Centric Model

16GB (2x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

Dedicated Workload Model

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

Maximized Consolidation Model

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

Maximum Capacity (LDIMM)

768GB (24 x 32GB LRDIMM @ 800MHz)

Maximum Capacity (RDIMM)

128GB (8 slots x 16GB RDIMM @1600MHz)

NOTE:

Requires 2nd processor installed

NOTE:

HP memory from previous generation servers may not provide the same performance with the HP

ProLiant DL385p Gen8 Servers as HP SmartMemory will.

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html

NOTE:

If only one processor is installed, only half the DIMM slots are available.

NOTE:

Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 3

Page 4

Network Controller

One of the following depending on Model

HP ProLiant Gen8 servers offer a new networking technology - FlexibleLOM. The HP ProLiant DL385p Gen8 server offers the customer the choice of 1 Gigabit and/or 10 Gigabit networking solutions. For additional details see the Networking Section of this document. Only one FlexibleLOM may fit on a single server - see PCIe solutions for additional networking.

HP Ethernet 1Gb 4-port 331FLR Adapter

Expansion Slots

PCIe Riser #1

(Standard)

Expansion

Slots #

Technology

Bus

Width

Connector

Width

Bus Number*Form Factor

Notes

PCIe 2.0

X16

Full Length,

Full Height

Slot

For Processor

PCIe 2.0

X8 X8

Half Length,

Full Height

Slot

For Processor

PCIe 2.0

X4 X8

Half Length,

Full Height

Slot

For Processor

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number ** Indicates the number of physical electrical lanes running to the connector.

NOTE:

When populating the second optional riser slot, the second processor must be installed.

PCIe Riser #2

(Optional - Requires 2nd Processor)

Expansion

Slots #

Technology

Bus

Width

Connector

Width

Bus Number*Form Factor

Notes

PCIe 2.0

X16 X16

Full length,

full height slot

For Processor

PCIe 2.0

X16

Half length,

full height slot

For Processor

PCIe 2.0

X8 X8

Half length,

full height slot

For Processor

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number. ** Indicates the number of physical electrical lanes running to the connector.

NOTE:

When populating the second optional riser slot, the second processor must be installed.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 4

Page 5

HP Server ROM

HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HP's ProLiant ROM is used to configure the following:

Processor and chipset status registers System memory, memory map, and memory initialization System hardware configuration (Integrated PCI devices and optional PCIe cards). Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).

NOTE:

For further information, please refer to HP's RBSU (ROM based setup utility) user guide:

www.hp.com/support/rbsu

Storage Controller

One of the following depending on Model

Entry Model

HP Smart Array P420i/ZM (RAID 0/1)

Storage Centric Model

HP Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Dedicated Workload Model

HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Maximized Consolidation Model

HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Internal Storage Devices

Diskette Drive

None

Optical Drive

Optional: DVD-ROM, DVD-RW

NOTE:

Not Available on 8+8 LFF, 12LFF or 25SFF Models.

Hard Drives

None ship standard

Drive Bays

One of the following depending on Model

Entry Model

8-SFF drive bays(additional 8-SFF option)

Storage Centric Model

12-LFF drive bays

Dedicated Workload Model

8-SFF drive bays total with options for DVD OR optional second 8-SFF drive bay set (total of 16SFF drive bays, no DVD)

NOTE:

Optional 2nd 8-SFF drive kit requires 2nd Smart Array Controller (PCIe) for support recommend HP Smart Array P420 PCI card).

Maximized Consolidation Model

25-SFF drive bays total

NOTE:

For best performance on the 25 Small Form Factor drive cage where

less than 25 drives are installed you will need to balance the drives on the

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 5

Page 6

backplane's two expanders. Drive bays 1-12 are on routed to expander 1 and drive bays 13-25 are routed to expander number 2. Example: if a customer purchases 16 drives, they should split 8 drives on expander 1 and 8 drives on expander 2 for optimal performance.

NOTE:

HP ProLiant DL385p series servers offer both LFF and SFF versions. The optical drive bay is not available with +8SFF drive bay upgrade, 12-LFF, or 25SFF drive bay models.

NOTE:

8-LFF, 12-LFF, and 25-SFF versions are not upgradeable options from the standard 8SFF model, or vice versa.

NOTE:

All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. These part numbers for single HDD blanks below are also provided should the customer require replacement HDD blanks for their server.

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Maximum Internal Storage

Hot Plug SFF SAS

30.0TB

25 x 1.2TB (on 25 SFF Drive Bay Models)

Hot Plug SFF SATA

25.0TB

25 x 1.0TB (on 25 SFF Drive Bay Models)

Hot Plug LFF SAS

48.0TB

12 x 4TB (on 12 LFF Drive Bay Models)

Hot Plug LFF SATA

48.0TB

12 x 4TB (on 12 LFF Drive Bay Models)

Hot Plug SFF SAS SSD

20.0TB

25 x 800GB (on 25 SFF Drive Bay Models)

Hot Plug LFF SATA SSD

10.0TB

12 x 800GB (on 12 LFF Drive Bay Models)

NOTE:

Storage capacities may vary depending on Models/Drive Cages and Hard Drives selected.

Interfaces

Serial

1 (Back)

Video

2 (1 front, 1 back) not active simultaneously

FlexibleLOM Network Ports

All pre-configured models come standard with 4 x 1GB ports (See HP Networking section below for more details and options)

HP iLO Remote Management Network Port

1 Gb Dedicated

SD Slot

1 Internal Secure

USB 2.0 Ports

Up to 8 total: up to 2 front, 4 back, 2 internal

Industry Standard Compliance

ACPI 2.0b Compliant PCIe 2.0 Compliant PXE Support WOL Support Microsoft® Logo certifications USB 2.0 Compliant

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 6

Page 7

Server Power Cords

All Pre-configured Models servers ship with a high voltage server to PDU power cord.

NOTE:

HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cord that connects to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to power distribution units (PDUs) in data center racks and now ship standard with a PDU 6-foot C-14 to C13 power cord (A0K02A). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the 6foot NEMA 5-15 to C13 power cord must be ordered separately (AF556A). See Power Cords section for Worldwide Power Cord options.

Power Specifications

To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

Common Slot Power Supply

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies inside a server must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported.

HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest power supply efficiency without degrading system performance. HP CS power supplies are tested by the Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in three power output options - 460W, 750W, and 1200W - allowing the customer to "right-size" a power supply for their specific server configuration. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.

NOTE:

Mixing of power supplies in the same server is not supported. All power supplies must be of the same output and efficiency rating. If non-matched power supplies are inserted you will get errors and operation will fail.

HP CS Platinum Plus power supplies are required when enabling HP's Intelligent Power Discovery (IPD) solution. IPD is the first technology to create an automated, energy-aware network between IT systems and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and downtime costs across data centers. For more information on HP's IPD solution, go to

www.hp.com/go/ipd

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs. HP Power Advisor can be accessed at:

www.hp.com/go/hppoweradvisor

NOTE:

The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on 80Plus.org.

Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power supply option kits (see Power Supplies for part numbers).

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 7

Page 8

System Fans

One of the following depending on Model

2P Models have (6) (N+1 redundancy standard)

1P Models have (4) (N+1 redundancy standard)

Required Cabling

For required cabling information, refer to the HP Web site at:

www.hp.com/servers/dl385p-gen8

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/ossupport

and our driver download page:

http://www.hp.com/support/DL385pGen8

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bpp) 1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

16 MB Flash 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

One of the following depending on Model

2U Rack form factor

NOTE:

All pre-configured BTO Models ship with Ball-Bearing sliding rails and cable management arm. Any

customer configured models through HP CTO must select the appropriate Rail Kit when configuring.

8 SFF Drive Bay Version:

3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length 8 LFF Drive Bay Version:

3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length 12 LFF Drive Bay Version:

3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length 25 SFF Drive Bay Version:

3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 8

Page 9

On System Management

HP iLO Management Engine

HP iLO Management Engine is a comprehensive set of embedded management features supporting the complete lifecycle of the server, from initial deployment, through ongoing management, to service alerting and remote support. HP iLO Management Engine comes standard on all HP ProLiant Gen8 servers. The HP iLO Management Engine portfolio includes:

HP iLO:

The HP iLO (Integrated Lights-Out) management processor is

the core foundation for the HP iLO Management Engine

HP Agentless Management:

Provides built in server health monitoring and alerting capability without OS agents, that starts working the moment a power cord and an Ethernet cable are connected.

HP Active Health System:

Always on, continuous monitoring for increased stability and shorter downtimes; 100% configuration history; Health and service alerts and easy export and upload to Service and Support.

HP Intelligent Provisioning:

Lets customers provision and configure a single server without any separate media. No more SmartStart CDs or Smart Update Firmware DVD are needed.

To start Intelligent Provisioning:

Press the F10 key during the ProLiant Gen8 server boot process (also known as power on self test or POST). Please go to the Intelligent Provisioning website at

www.hp.com/go/intelligentprovisioning

for additional information and to view usage videos. Use the Service Pack for ProLiant (SPP) at

www.hp.com/go/spp

to get firmware and software

updates.

HP iLO Mobile App: Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:

www.hp.com/go/ilo/mobileapp

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

or HP iLO

Management Engine technologies whitepaper

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 9

Page 10

HP Insight management

HP Service Pack for ProLiant

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new HP server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HP SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire BladeSystem enclosures. Further improving system uptime and stability is the fact that HP provides 12 months of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HP SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HP SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HP SUM provides the tools to optimize stability and consistency throughout the company. While HP SUM and the SPP recommend the combinations of firmware and system software that HP has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.

NOTE:

The Service Pack for ProLiant (which includes HP SUM) can be

downloaded from

www.hp.com/go/spp/download

. More information can be

found:

http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp

and

http://www.hp.com/go/hpsum

Security

Power-on password Serial interface control Administrator's password

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 10

Page 11

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE:

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Standard Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 11

Page 12

HP Insight management

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. HP InsightControl also supports Location and Power Discovery Services to automate many configuration, asset tracking, and power management tasks to speed implementation and prevent downtime. For more information, see

http://www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, see:

http://www.hp.com/services/insight

HP iLO Advanced

HP Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HP ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multiuser collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see:

http://www.hp.com/go/iloadvance

HP Matrix Operating Environment

The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HP CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).

NOTE:

For more information, visit:

http://www.hp.com/go/matrixoe

High Performance Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering.

http://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HP Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by HP when integrated within an HP cluster. Flexible, validated solutions can be defined with the help of configuration tools.

http://www.hp.com/techservers/clusters/ucp/index.html

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Optional Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 12

Page 13

HP Insight Cluster Management Utility

HP Insight Cluster Management Utility (CMU) is an HP-licensed and HPsupported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective.

http://www.hp.com/go/cmu

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.

Data Archive and Migration Software

HP's storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.

Storage Resource Management Software (SRM)

HP's storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.

Data Replication Software

HP offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.

Storage Device Management Software

Maximize your investment in HP storage and networking with software that enables hardwarespecific configuration, performance tuning and connectivity management.

HP StoreVirtual VSA

With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime.

www.hp.com/go/insightonline

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Optional Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 13

Page 14

HP Proactive Insight experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support Service as one integrated solution. The Proactive Insight experience provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, EVA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

http://www.hp.com/go/factory-express

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Optional Features

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 14

Page 15

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.

What HP ProLiant and BladeSystem Services can do for you

HP ProLiant and BladeSystem Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. This way, HP proposes services solutions that include more than just uplift of base warranty. Foundation Care services deliver scalable support-packages for HP industry-standard servers and software. You can choose the type and level of service that is most suitable for their business needs. New to this portfolio is HP Collaborative Support. If you are running business critical environments, HP offers Proactive Care or Critical Advantage. These services help deliver high levels of application availability through proactive service management and advanced technical response

You can get the support you need by choosing from one of a number of service packaged solutions we have designed to address wider set of customer support needs.

HP Technology Services meets business challenges with services offered in three support recommendations -

Optimized Care, Standard Care, and Basic Care

- available for each product group. Such support solutions enable customers to optimize technology operations, minimize risk and drive better business outcomes with easy-to-buy, easy-to-use scalable support recommendations for servers, storage, networking and software designed to meet your specific needs.

All three service recommendations include support services from the broader portfolio of Foundation Care and Proactive Care services.

Optimized Care

Optimized Care : Supports maintaining servers at optimum performance availability

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

HP Installation and Startup for Insight Control Software / HP SIM

Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servers

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP 24x7 4 hour Response, Proactive Care

Helps optimize your systems and delivers high levels of application availability through proactive service management and advanced technical response. A skilled Technical Manager will own your call and end to end until resolved, delivering a single point of contact for you. Helping you to resolve your hardware and software issues and minimizing downtime in your business critical environment.

Additional Services:

Factory Express, Education Services, Proactive Select - 30 Credit Package

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Service and Support

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 15

Page 16

Standard Care

Standard Care : Service recommendation that maintains high level of server availability

HP ProLiant Server Hardware Installation

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

HP Installation and Startup for Insight Control Software / HP SIM

Provides for the deployment and basic configuration of HP Insight Control or HP SIM (Systems Insight Manager) on HP ProLiant ML and DL series servers or HP BladeSystem servers

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

3-Year HP 24x7 4 hour Response, Collaborative Support

Provides problem resolution support across the stack of HW, firmware, and HP and 3rd party SW. In case the issue is with 3rd party SW, HP does known issue resolution. If HP cannot solve the issue, it will contact the third-party vendor and create a problem incident on your behalf.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8232ENW.pdf

Additional Services:

Software support service with 24X7 availability with a 2 hour response, Training courses on Microsoft, Linux (Red Hat and SUSE), VMware, and HP Insight Software, 10 Proactive Select Credit package, Factory Express

http://www8.hp.com/us/en/business-services/it-services.html?compURI=1078865

Basic Care

Basic Care: delivers minimum recommended support service level

HP ProLiant Server Hardware Installation

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

3-Year HP 24x7 4 hour Response, Hardware Support Onsite Service

Provides you with rapid remote support and if required an HP authorized technical engineer will be on site 24X7 begin hardware maintenance service within 4 hours of the service request being logged

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE.pdf

3-Year , HP 24x7 Software Support for Insight Control

Provides remote 3-year software support service that delivers comprehensive software services, including access to HP technical resources and software updates

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6645EEE.pdf

Additional Services:

Factory Express, Education Services, Proactive Select - 10 Credits

Insight Remote Support

Provides 24 X 7 remote monitoring, proactive notifications, and problem resolution. Learn more

http://www.hp.com/go/insightremotesupport

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Service and Support

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 16

Page 17

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business products. Submit support cases online, chat with HP experts, access support resources or collaborate with peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

*HP' Support Center Mobile App is subject to local availability

Warranty / Service Coverage

For ProLiant servers and storage systems, the services cover HP-branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as external monitors up to 22" and tower UPS products; these items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been exceeded. Coverage of the UPS battery is not included; standard warranty terms and conditions apply.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales representative or HP Authorized Channel Partner. Or visit:

http://www.hp.com/services/proliant

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Service and Support

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 17

Page 18

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section

of this QuickSpecs.

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped

separately.

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this

QuickSpecs.

NOTE:

Not all models are available in all regions. Check with your local country HP offices for availability.

Entry Model

HP ProLiant DL385p Gen8 6320 1P 4GB-R P420i/ZM Hot Plug 8 SFF 460W PS Server

710723-xx1

Processor(s)

(1) AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W TDP) Processor

Cache Memory

16MB (2x8MB) Level 3

Memory

4GB (1x4GB) PC3-10600R (DDR3-1333) Registered DIMMS

NOTE:

Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM

Slots per processor).

Network Controller

HP Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HP Smart Array P420i/ZM (RAID 0/1)

Hard Drive

None ship standard; includes 6 SFF hard drive blanks, 2 open drive bays for drives(P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

8SFF SAS/SATA/SSD HDD Bays

Optical Drive Bay

Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)

PCI-Express Slots

3 PCIe slots

NOTE:

3 additional PCIe slots available with optional PCIe Riser Cage #2-

requires second processor.

Power Supply

(1) HP 460W CS Gold Hot Plug Power Supply (92% Efficient)

Fans

(4) (N+1 redundancy standard)

Management

HP iLO Management Engine (standard) Optional: HP iLO Advanced or HP Insight Control

Form Factor

Rack (2U), HP Friction Rail Kit Standard/ No Cable Management Arm included

NOTE:

The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Pre-configured Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 18

Page 19

Storage Centric Models

HP ProLiant DL385p Gen8 6320 1P 16GB-R P420i/512 Hot Plug 12 LFF 750W PS Server

703930-xx1

Processor(s)

(1) AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W TDP) Processor

Cache Memory

16MB (2x8MB) Level 3

Memory

16GB (2x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

NOTE:

Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM Slots per processor).

Network Controller

HP Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HP Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Hard Drive

None ship standard; drive cage includes 10 LFF hard drive blanks, 2 open drive bays for drives(P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

12 LFF SAS/SATA HDD Bays

Optical Drive Bay

None available

PCI-Express Slots

3 PCIe slots

NOTE:

3 additional PCIe slots available with optional PCIe Riser Cage #2-

requires second processor.

Power Supply

(1) HP 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)

Fans

(4) (N+1 redundancy standard)

Management

HP iLO Management Engine (standard) Optional: HP iLO Advanced or HP Insight Control

Form Factor

Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard

NOTE:

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Pre-configured Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 19

Page 20

Dedicated Workload Models

NOTE:

This Model is Energy Star Certified.

HP ProLiant DL385p Gen8 6344 2P 32GB-R P420i/1GB Hot Plug 8 SFF 2x750W PS Svr

703931-xx1

Processor(s)

(2) AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W TDP) Processors

Cache Memory

16MB (2x8MB) Level 3

Memory

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

NOTE:

Up to 24 DIMM slots available with 2nd Processor installed (12 DIMM Slots per processor).

Network Controller

HP Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Hard Drive

None ship standard; includes 6 SFF hard drive blanks, 2 open drive bays for drives(P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

8 SFF SAS/SATA HDD Bays Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays (requires additional PCI controller)

Optical Drive Bay

Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)

PCI-Express Slots

6 PCIe slots

NOTE:

Includes PCIe Riser Cage #2.

Power Supply

(2) HP 750W CS Platinum Plus Hot Plug Power Supplies (94% Efficient)

Fans

(6) (N+1 redundancy standard)

Management

HP iLO Management Engine (standard) Optional: HP iLO Advanced or HP Insight Control

Form Factor

Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard

NOTE:

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Pre-configured Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 20

Page 21

Maximized Consolidation Models

NOTE:

These Models are Energy Star Certified.

HP ProLiant DL385p Gen8 6376 2P 32GB-R P420i/2GB Hot Plug 25 SFF 2x750W PS Svr

703932-xx1

Processor(s)

(2) AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W TDP) Processors

Cache Memory

16MB (2x8MB) Level 3

Memory

32GB (4x8GB) PC3-10600R (DDR3-1333) Registered DIMMS

NOTE:

Up to 24 DIMM slots available with 2nd Processor installed(12 DIMM

Slots per processor).

Network Controller

HP Ethernet 1Gb 4-port 331FLR Adapter

Storage Controller

HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Hard Drive

None ship standard; includes 23 SFF hard drive blanks, 2 open drive bays for drives (P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit available for additional blanks)

Internal Storage

25 SFF SAS/SATA HDD Bays

Optical Drive Bay

None Available

PCI-Express Slots

6 PCIe slots

NOTE:

Includes PCIe Riser Cage #2.

Power Supply

(2) HP 750W CS Platinum Plus Hot Plug Power Supplies (94% Efficient)

Fans

(6) (N+1 redundancy standard)

Management

HP iLO Management Engine (standard) Optional: HP iLO Advanced or HP Insight Control

Form Factor

Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard

NOTE:

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Country Code Key

xx = 00

U.S.

xx = 29

Japan

xx = 37

APD

xx = 42

Europe

xx = AA

PRC

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Pre-configured Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 21

Page 22

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

NOTE:

Factory Integrated Models must start with a CTO Server.

NOTE:

FIO indicates that this option is only available as a factory installable option.

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Step 1: Base Configuration (choose one of the following configurable models)

HP Models

HP ProLiant DL385p Gen8 8 SFF Configure-to-order Server

653203-B21

Factory Integrated Model ships with:

Drive Cage - 8-SFF Drive Bays available (See hard drives in Section 4 for options) SID-Systems Insight Display Included 24 DIMM slots for RDIMM or LRDIMM memory installation Smart Array P420i Controller w/ Zero Memory (ZM) I/O slots - 3 Slots come standard:

Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector) Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector) Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector) Additional PCIe Slots may be added with the 2nd Riser Cage option.

System Fans - 4 standard (2 additional fans included with second processor) Drive Cage - 8SFF (drive blanks installed dependent on number of drives ordered) USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot HP iLO Management Engine (iLO4)

NOTE:

Smart Array Cache options, Hard drives, Optical drives, Flexible NICs*, Power Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section. Additional 8-SFF Drive option requires additional HP Smart Array Controller. * This is a required selection.

HP ProLiant DL385p Gen8 8 LFF Configure-to-order Server

669804-B21

Factory Integrated Model ships with:

Drive Cage - 8-LFF Drive Bays available (See hard drives in Section 4 for options) Pop Out SID-Systems Insight Display Included 24 DIMM slots for RDIMM or LRDIMM memory installation Smart Array P420i Controller w/ Zero Memory (ZM) I/O slots - 3 Slots come standard:

Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector) Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector) Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector) Additional PCIe Slots may be added with the 2nd Riser Cage option.

System Fans - 4 standard (2 additional fans included with second processor) Drive Cage - 8LFF (drive blanks installed dependent on number of drives ordered) USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot HP iLO Management Engine (iLO4)

NOTE:

Smart Array Cache options, Hard drives, Optical drives, Flexible NICs*, Power

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Configuration Information - Factory Integrated Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 22

Page 23

Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section. * Required selection.

HP ProLiant DL385p Gen8 12 LFF Configure-to-order Server

669805-B21

Factory Integrated Model ships with:

Drive Cage - 12-LFF Drive Bays available (See hard drives in Section 4 for options) NO SID-Systems Insight Display Included 24 DIMM slots for RDIMM and LRDIMM memory installation Smart Array P420i Controller w/ Zero Memory (ZM) I/O slots - 3 Slots come standard:

Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector) Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector) Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector) Additional PCIe Slots may be added with the 2nd Riser Cage option.

System Fans - 4 standard (2 additional fans included with second processor) USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot HP iLO Management Engine (iLO4)

NOTE:

Smart Array Cache options, Hard drives, Flexible NICs*, Power Supply* and Rail/CMA Kits not included in the base configuration - choose these from Steps 2 or 4 below in Options section. * Required selection.

HP ProLiant DL385p Gen8 25 SFF Configure-to-order Server

669803-B21

Factory Integrated Model ships with:

Drive Cage - 25-SFF Drive Bays available (See hard drives in Section 4 for options) NO SID-Systems Insight Display Included 24 DIMM slots for RDIMM, LRDIMM, and UDIMM memory installation 1 FlexibleLOM connector (see Step2: HP Flexible NIC section below for NIC choices to populate the embedded connector) Smart Array P420i Controller w/ Zero Memory (ZM) I/O slots - 3 Slots come standard:

Slot 1 - FL/FH x8 PCIe 2.0 (x16 connector) Slot 2 - HL/FH x8 PCIe 2.0 (x8 connector) Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector) Additional Slots may be added via selection from the "PCI Information and Options" subsection

System Fans - 4 standard (2 additional fans included with second processor) Drive Cage - 12LFF (drive blanks installed dependent on number of drives ordered) USB - 4 Rear, 2 Front, 2 Internal, 1 SD slot HP iLO Management Engine (iLO4)

NOTE:

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Configuration Information - Factory Integrated Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 23

Page 24

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HP Processors

NOTE:

All processors support up to 1600MHz DDR3 memory speeds.

Sixteen-Core Processors

HP DL385p Gen8 AMD Opteron™ 6386SE (2.8GHz/16-core/16MB/140W) FIO Processor Kit

703939-L21

HP DL385p Gen8 AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) FIO Processor Kit

703941-L21

HP DL385p Gen8 AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W) FIO Processor Kit

703943-L21

HP DL385p Gen8 AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W) FIO Processor Kit

703946-L21

HP DL385p Gen8 AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) FIO Processor Kit

703950-L21

Twelve-Core Processors

HP DL385p Gen8 AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) FIO Processor Kit

703952-L21

HP DL385p Gen8 AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) FIO Processor Kit

703954-L21

Eight-Core Processors

HP DL385p Gen8 AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) FIO Processor Kit

703958-L21

HP DL385p Gen8 AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) FIO Processor Kit

703960-L21

Quad-Core Processors

HP DL385p Gen8 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) FIO Processor Kit

703962-L21

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is recommended. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html

(Worldwide)

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647871-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647873-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

695793-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647877-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647879-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647883-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

672633-B21

Load Reduced DIMMs(LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit

647885-B21

Ultra Low Voltage DIMMs (ULVDIMM)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Configuration Information - Factory Integrated Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 24

Page 25

HP 4GB (1x4GB) Single Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647869-B21

HP 8GB (1x8GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647875-B21

HP 16GB (1x16GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647881-B21

NOTE:

HP memory from previous generation servers may not provide the same performance with the HP ProLiant DL385p Gen8 Servers as HP SmartMemory will.

NOTE:

If only one processor is installed, only half the DIMM slots are available.

NOTE:

Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

HP Networking

FlexibleLOM Adapters

NOTE: The HP ProLiant DL385p Gen8 server requires one FlexibleLOM to be installed in

the FlexibleLOM slot.

HP Ethernet 1Gb 4-port 331FLR FIO Adapter

684208-B21

HP Ethernet 10Gb 2-port 530FLR-SFP+ FIO Adapter

684210-B21

HP FlexFabric 10Gb 2-port 554FLR-SFP+ FIO Adapter

684213-B21

HP Ethernet 1Gb 4-port 366FLR FIO Adapter

684217-B21

HP Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter

684218-B21

HP FlexFabric 10Gb 2-port 526FLR-SFP+ FIO Adapter

684219-B21

HP Ethernet 10Gb 2-port 561FLR-T FIO Adapter

700700-B21

HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter

700752-B21

HP FlexFabric 10Gb 2-port 533FLR-T FIO Adapter

700760-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

www.hp.com/go/ProLiantNICs

HP Power Supplies

NOTE:

Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

HP Common Slot Platinum Plus Power Supply Kits

NOTE:

The following Power Supplies offer 94% Efficiency with support for Intelligent

Power Discovery.

HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit

656362-B21

HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit

656363-B21

HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

HP Common Slot Gold Power Supplies

NOTE:

The following Power Supplies offer 92% efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HP 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Configuration Information - Factory Integrated Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 25

Page 26

HP Common Slot -48VDC Power Supplies

HP 750W Common Slot -48VDC Hot Plug Power Supply Kit

636673-B21

NOTE:

The HP 750W Common Slot -48VDC power supply does not ship with a power cable. It has been designed with a terminal block connection allowing for custom design of power cords by the user.

NOTE:

Option Kits for AC power supplies include the power supply and one PDU IEC cable.

NOTE:

HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to

www.hp.com/products/powercords

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

Step 3: Choose Additional Factory Integratable Options (only one of the following from each list unless otherwise noted)

HP Rack Kits

NOTE:

Rail kits are optional for Gen8 and are no longer included standard with the server (except pre-configured/BTO Models). The customer has the choice to not include rail kits with their server purchase, but it is recommended.

NOTE:

HP 2U Ball Bearing Rail Kits provide full serviceability of the server while in the Rack and include a CMA. HP 2U Friction Rail Kits ARE NOT serviceable in the Rack and must be removed from the rack and do not include CMA.

NOTE: Additional HP Rack Kit options can be found in "Step 4: Additional Options, HP

Rack Options - Rail Kits" section of this QuickSpecs. Only FIO options are listed here.

NOTE:

To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001). Caution: HP recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HP 2U FIO Friction Rail Kit

NOTE:

No in-rack serviceability.

663476-B21

HP 2U Small Form Factor Ball Bearing Gen8 Rail Kit with CMA

663478-B21

HP 2U Large Form Factor Ball Bearing Gen8 Rail Kit with CMA

663480-B21

NOTE:

In custom configurations - No Rails can be selected

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License

C6N36A

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License

NOTE:

The Electronic software license is available in EMEA only.

C6N36ABE

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Configuration Information - Factory Integrated Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 26

Page 27

Converged Infrastructure Management Software

HP OneView with iLO Advanced - Server hardware required on same purchase order

HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

E5Y43A

HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU

E5Y43AAE

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Core Options and Additional Options" section below.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Configuration Information - Factory Integrated Models

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 27

Page 28

NOTE:

Some options may not be integrated at the factory. Contact your local sales representative for additional information.

HP Unique Options

HP DL380/DL385 Gen8 8 Small Form Factor Hard Drive Backplane Cage Kit

NOTE:

With upgrade of 8SFF Cage/Bkpln, there is no Optical Drive support.

NOTE:

All cables necessary for proper installation of the 8SFF Cage are included with this Kit.

NOTE:

With upgrade of 8SFF Cage/Bkpln, an additional storage controller is required. Please go to the Storage Controller section for options available.

662883-B21

HP DL385p Gen8 x16 2x8 PCI-E Riser Kit

NOTE:

2nd Riser Cage requires 2nd Processor.

653214-B21

HP Processors

Sixteen-Core Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds

HP DL385p Gen8 AMD Opteron™ 6386SE (2.8GHz/16-core/16MB/140W) Processor Kit

703939-B21

HP DL385p Gen8 AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) Processor Kit

703941-B21

HP DL385p Gen8 AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W) Processor Kit

703943-B21

HP DL385p Gen8 AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W) Processor Kit

703946-B21

HP DL385p Gen8 AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) Processor Kit

703950-B21

HP DL385p Gen8 AMD Opteron™ 6284SE (2.7GHz/16-core/16MB/140W) Processor Kit

686879-B21

HP DL385p Gen8 AMD Opteron™ 6282SE (2.6GHz/16-core/16MB/140W) Processor Kit

654712-B21

HP DL385p Gen8 AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W) Processor Kit

686881-B21

HP DL385p Gen8 AMD Opteron™ 6276 (2.3GHz/16-core/16MB/115W) Processor Kit

654714-B21

HP DL385p Gen8 AMD Opteron™ 6274 (2.2GHz/16-core/16MB/115W) Processor Kit

654716-B21

HP DL385p Gen8 AMD Opteron™ 6272 (2.1GHz/16-core/16MB/115W) Processor Kit

654718-B21

HP DL385p Gen8 AMD Opteron™ 6262HE (1.6GHz/16-core/16MB/85W) Processor Kit

654728-B21

Twelve-Core Processors

HP DL385p Gen8 AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) Processor Kit

703952-B21

HP DL385p Gen8 AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) Processor Kit

703954-B21

HP DL385p Gen8 AMD Opteron™ 6238 (2.6GHz/12-core/16MB/115W) Processor Kit

654722-B21

HP DL385p Gen8 AMD Opteron™ 6234 (2.4GHz/12-core/16MB/115W) Processor Kit

654724-B21

Eight-Core Processors

HP DL385p Gen8 AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) Processor Kit

703958-B21

HP DL385p Gen8 AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) Processor Kit

703960-B21

HP DL385p Gen8 AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor Kit

654726-B21

HP DL385p Gen8 AMD Opteron™ 6212 (2.6GHz/8-core/16MB/115W) Processor Kit

654720-B21

Quad-Core Processors

HP DL385p Gen8 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) Processor Kit

703962-B21

HP DL385p Gen8 AMD Opteron™ 6204 (3.3GHz/4-core/16MB/115W) Processor Kit

677551-B21

NOTE:

Up to 2 processors supported in all models.

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 28

Page 29

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is recommended. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html

(Worldwide)

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647871-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647873-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

695793-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647877-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647879-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647883-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

672633-B21

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit

647885-B21

Ultra Low Voltage DIMMs (ULVDIMM)

HP 4GB (1x4GB) Single Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647869-B21

HP 8GB (1x8GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647875-B21

HP 16GB (1x16GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647881-B21

NOTE:

HP memory from previous generation servers may not provide the same performance with the HP ProLiant DL385p Gen8 Servers as HP SmartMemory will.

NOTE:

If only one processor is installed, only half the DIMM slots are available.

NOTE:

Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

HP Optical Drives

HP 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive

652232-B21

HP 12.7mm Slim SATA DVD-RW JackBlack Optical Drive

NOTE:

Not Available on 8+8 LFF, 12LFF or 25SFF Models.

652235-B21

HP Hard Drives

NOTE:

The HP ProLiant DL385p Gen8 Smart Storage solutions are equipped with

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 29

Page 30

entirely re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HP Qualified Hard Drives and Solid State Drives. These new carriers provide status, location and activity indicators as well as caution indicators for "Do Not Remove".

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific

hard drive QuickSpecs for details.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

697574-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652620-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652615-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

693687-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658079-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

657750-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 30

Page 31

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658071-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

717965-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

734360-B21

6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive

718171-B21

HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive

734362-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717973-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717971-B21

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

739898-B21

HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drive

739888-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

717969-B21

6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives

HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

718189-B21

HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive

739900-B21

HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

718183-B21

HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State Drive

739890-B21

HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State Drive

718177-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691864-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 31

Page 32

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691862-B21

6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691860-B21

HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691856-B21

HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691854-B21

HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

691852-B21

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690829-B21

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690827-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty Solid State Drive

690825-B21

6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive

653082-B21

HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State Drive

653078-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html

(Worldwide)

Hard Drive Kits

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

HP SFF Gen8 Hard Drive Blank Kit

666987-B21

HP LFF Gen8 Hard Drive Blank Kit

666986-B21

HP DL380/DL385 Gen8 8 Small Form Factor Hard Drive Backplane Cage Kit

662883-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 32

Page 33

HP Networking

Gigabit Server adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP Ethernet 1Gb 4-port 331T Adapter

647594-B21

HP Ethernet 1Gb 2-port 332T Adapter

615732-B21

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

10 Gigabit ServerAdapters

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP FlexFabric 10Gb 2-port 526FLR-SFP+ Adapter

629138-B21

HP Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HP Ethernet 10Gb 2-port 530T Adapter

656596-B21

HP FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HP Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21

HP Ethernet 10Gb 2-port 561T Adapter

716591-B21

HP Ethernet 10Gb 2-port 570SFP+ Adapter

718904-B21

FlexibleLOM Adapters

HP Ethernet 1Gb 4-port 331FLR Adapter

629135-B21

HP Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

647581-B21

HP FlexFabric 10Gb 2-port 554FLR-SFP+ Adapter

629142-B21

HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21

HP Ethernet 10Gb 2-port 570FLR-SFP+ Adapter

717491-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

www.hp.com/go/ProLiantNICs

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 33

Page 34

HP InfiniBand

QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA

583211-B21

HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA

592520-B21

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544QSFP Adapter

649281-B21

NOTE:

For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to the server, which is selected in Step 2 for the "Configuration Information - Factory Integrated Models" section. These two options are for upgrade or change from original configuration.

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter

649282-B21

HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter

649283-B21

NOTE:

FLR Indicates new HP FlexibleLOM Adapter series.

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

HP I/O Expansion Options

HP DL385p Gen8 x16 2x8 PCI-E Riser Kit

NOTE:

2nd Riser Cage requires 2nd Processor.

653214-B21

HP Power Supplies

NOTE:

www.hp.com/go/hppoweradvisor

HP Common Slot Platinum Plus Power Supply Kits

NOTE:

The following Power Supplies offer 94% Efficiency with support for Intelligent Power Discovery.

HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit

656362-B21

HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit

656363-B21

HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit

656364-B21

HP Common Slot Gold Power Supplies

NOTE: The following Power Supplies offer 92% Efficiency.

HP 460W Common Slot Gold Hot Plug Power Supply Kit

503296-B21

HP 750W Common Slot Gold Hot Plug Power Supply Kit

512327-B21

HP Common Slot -48VDC Power Supplies

NOTE:

The following Power Supplies offer 92% Efficiency.

HP 750W Common Slot -48VDC Hot Plug Power Supply Kit

NOTE:

The HP 750W Common Slot -48VDC power supply does not ship with a power cable. It has been designed with a terminal block connection allowing for custom design of power cords by the user.

636673-B21

NOTE:

Option Kits contain optional power supply, an IEC power cable and PDU IEC

cables.

NOTE:

HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to

www.hp.com/products/powercords

NOTE:

Power Specification and Technical Content for supported power supplies can be

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 34

Page 35

found at:

http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Core Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 35

Page 36

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Insight Software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License

C6N27A

HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License

NOTE:

The Electronic software license is available in EMEA only.

C6N28ABE

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

C6N31A

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Control Media Kit can be ordered

separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

NOTE:

For additional license options please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Integrated Lights-Out (iLO) Advanced for ProLiant

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

NOTE:

The Electronic software license is available in EMEA only.

E6U59ABE

HP iLO Advanced including 3yr 24x7 Tech Support and Updates Electronic License

NOTE:

The Electronic software license is available in EMEA only.

E6U64ABE

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License

512485-B21

HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates

BD505A

NOTE:

For additional license options please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 36

Page 37

Converged Infrastructure Management Software

HP OneView

HP OneView with iLO Advanced

HP OneView Media Kit Phys No Lic

E5Y37A

HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y34A

HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU

E5Y35AAE

HP OneView without iLO Advanced

HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y38A

HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU

E5Y39AAE

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14621_div/14621_div.html

(Worldwide)

High Performance Clusters

HP Cluster Management Utility

HP Insight Cluster Management Utility 1yr 24x7 Flexible License

QL803B

HP Insight Cluster Management Utility 3yr 24x7 Flexible License

BD476A

NOTE:

These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

HP Insight Cluster Management Utility Media

BD477A

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html

HP I/O Accelerator Options

Second Generation Accelerators

HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673642-B21

HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673644-B21

HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers

673646-B21

HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers

673648-B21

HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers

721458-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13587_div/13587_div.html

(Worldwide)

HP PCIe Workload Accelerator Options

Mainstream Endurance (ME) PCIe Workload Accelerators

HP 1.4TB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator

729307-B21

HP 700GB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator

729305-B21

High Endurance (HE) PCIe Workload Accelerators

HP 700GB HH/HL High Endurance (HE) PCIe Workload Accelerator

708090-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 37

Page 38

HP 350GB HH/HL High Endurance (HE) PCIe Workload Accelerator

708088-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14528_div/14528_div.html

(Worldwide)

HP Security

HP Trusted Platform Module Option

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to:

www.hp.com/go/TPM

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

488069-B21

HP 2U Security Bezel Kit

666988-B21

HP Storage Controllers

SAS Controllers

Smart Array P222 Controller

HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller

631667-B21

Smart Array P420 Controller

HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller

631670-B21

HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller

631671-B21

Smart Array P421 Controller

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller

631674-B21

Smart Array P430 Controller

HP Smart Array P430/2GB FBWC 6Gb 1-port Int SAS Controller

698529-B21

Smart Array P431 Controller

HP Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller

698531-B21

Smart Array P822 Controller

HP Smart Array P822/2GB FBWC 2-ports Int/4-ports Ext SAS Controller

615418-B21

Optional Upgrades

HP 1GB P-series Smart Array Flash Backed Write Cache

631679-B21

HP 2GB P-series Smart Array Flash Backed Write Cache

631681-B21

HP 512MB P-series Smart Array Flash Backed Write Cache

661069-B21

HP SmartCache No Media 24x7 Technical Support 1 Svr License

D7S26A

HP SmartCache No Media 24x7 Technical Support Flexible License

D7S27A

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 38

Page 39

HP SmartCache No Media 24x7 Technical Support Electronic License

D7S27AAE

HP Cable Options

HP Mini SAS Straight to Straight 37in Cable Assembly

662897-B21

HP DL38x/DL360 Gen8 Embedded SATA Cable Kit

664009-B21

HP Mini SAS/Straight to Straight 25 SFF Bypass Cable Assembly

726974-B21

HP Mini SAS/Straight to Straight Offset Bypass Cable Assembly

697611-B21

HP Mini SAS/Straight to Straight Short Bypass Cable Assembly

697691-B21

HP DL38Xp Gen8 8 Large Form Factor (LFF) P430/830 Cable Kit

729270-B21

HP DL38Xp Gen8 12 Large Form Factor (LFF) P430/830 Cable Kit

729272-B21

HP DL38Xp Gen8 25 Small Form Factor (SFF) P430/830 Cable Kit

729274-B21

HP 6G SAS P430/830 Secondary Cable Kit

729276-B21

HP 6G SAS P430/830 Primary Cable Kit

729278-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14227_div/14227_div.html

(Smart Array P222 Controller)

http://h18000.www1.hp.com/products/quickspecs/14228_div/14228_div.html

(Smart Array P420 Controller)

http://h18000.www1.hp.com/products/quickspecs/14229_div/14229_div.html

(Smart Array P421 Controller)

http://h18000.www1.hp.com/products/quickspecs/14624_div/14624_div.html

(Smart Array P430 Controller)

http://h18000.www1.hp.com/products/quickspecs/14625_div/14625_div.html

(Smart Array P431 Controller)

Host Bus Adapter

HP H220 Host Bus Adapter

650933-B21

HP H221 Host Bus Adapter

650931-B21

HP H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HP H222 Host Bus Adapter

650926-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18004.www1.hp.com/products/quickspecs/14336_div/14336_div.html

(HBA 220)

http://h18004.www1.hp.com/products/quickspecs/14222_div/14222_div.html

(HBA 221)

http://h18004.www1.hp.com/products/quickspecs/14337_div/14337_div.html

(HBA 222)

SCSI HBA

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

412911-B21

NOTE:

Please see the following QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html

(SC11Xe HBA)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 39

Page 40

HP Tape Backup

NOTE:

For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hp.com/go/tape

. For hardware and software compatibility of HP tape

backup products see:

http://www.hp.com/storage/SPOCK

NOTE:

For Internal drives to be connected to DL servers please make sure that you

order rack mount kit as well.

HP StoreEver DAT 160 SCSI External Tape Drive

Q1574B

HP StoreEver LTO-4 Ultrium 1760 SCSI External Tape Drive

EH922B

HP StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit

C0L99A

HP StoreEver LTO-6 Ultrium 6650 External Tape Drive

EH964A

HP StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader

C0H19A

HP Tape Storage Systems

HP StoreEver MSL6480

HP StoreEver MSL6480 Scalable Base Module

QU625A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14604_div/14604_div.html

(Worldwide)

HP Disk Backup

NOTE:

For the complete range of RDX drives and media see:

http://www.hp.com/go/rdx

. For hardware and software compatibility of HP disk backup

products see:

http://www.hp.com/storage/SPOCK

HP RDX Removable Disk Backup System

HP RDX320 USB3.0 External Disk Backup System

B7B63A

HP RDX500 USB3.0 Internal Disk Backup System

B7B64A

HP RDX500 USB3.0 External Disk Backup System

B7B66A

HP RDX1000 USB3.0 Internal Disk Backup System

B7B67A

HP RDX1000 USB3.0 External Disk Backup System

B7B69A

HP RDX Removable Disk Backup Systems USB

HP RDX1000 USB3.0 Gen8 DL Server Module

B7B70A

NOTE:

Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information:

http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 40

Page 41

HP Disk Storage Systems

Disk Enclosures

HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle

E7W32A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html

(Worldwide)

HP Storage Options

Storage Fibre Channel HBA

NOTE:

For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows Server 2003 and Linux, please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AP769B

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AP770B

Emulex Fibre Channel HBAs

HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter

QR558A

HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter

QR559A

HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

QLogic Fibre Channel HBAs

HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

Converged Network Adapter

HP CN1100E Dual Port Converged Network Adapter

BK835A

HP CN1000Q Dual Port Converged Network Adapter

BS668A

HP StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 41

Page 42

HP Uninterruptible Power Systems

HP Rack-mountable UPS

HP R1500 G3 Uninterruptible Power Supply (UPS)

HP R1.5kVA G3 1U NA Uninterruptible Power System

AF469A

HP R1.5kVA G3 1U JP/TW Uninterruptible Power System

AF470A

HP R1.5kVA G3 1U INTL Uninterruptible Power System

AF471A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14059_div/14059_div.html

(Worldwide)

HP R/T3000 G2 Uninterruptible Power System (UPS)

HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System

AF467A

HP R/T3000 G2 2U Detachable Cord High Voltage INTL Uninterruptible Power System

AF468A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14058_div/14058_div.html

(Worldwide)

R5000 Uninterruptible Power System (UPS)

HP R5KVA 3U IEC309-32A High Voltage INTL Uninterruptible Power System

AF461A

HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14109_div/14109_div.html

(Worldwide)

R7000 Uninterruptible Power System (UPS)

HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

HP R7KVA 4U IEC-32A High Voltage INTL Uninterruptible Power System

AF463A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14110_div/14110_div.html

(Worldwide)

NOTE:

For additional information on HP Uninterruptible Power Systems please go to:

www.hp.com/servers/rackups

NOTE:

For additional information on sizing your server, please reference:

http://www.upssizer.com

NOTE:

Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link:

www.hp.com/products/powercords

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 42

Page 43

HP Basic Power Distribution Units (bPDU)

HP Basic Power Distribution Unit: 1U/0U Version

HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit

H5M54A

HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit

H5M56A

HP Basic Power Distribution Unit: Half Height Version

HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit

H5M55A

HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit

H5M57A

HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit

H5M58A

HP 7.3kVA 230 Volt 20 Outlet INTL Basic Power Distribution Unit

H5M68A

HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit

H5M61A

HP Basic Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit

H5M59A

HP 7.3kVA 230 Volt 30 Outlet INTL Basic Power Distribution Unit

H5M70A

HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit

H5M60A

HP 11kVA 230 Volt 36 Outlet INTL Basic Power Distribution Unit

H5M71A

HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit

H5M75A

HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution Unit

H5M63A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution Unit

H5M64A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit

H5M62A

HP 11kVA 400 Volt Three Phase 30 Outlet INTL Basic Power Distribution Unit

H5M72A

HP Basic Power Distribution Unit: Full Height Version

HP 11kVA 400 Volt Three Phase 42 Outlet INTL Basic Power Distribution Unit

H5M73A

HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit

H5M67A

HP Basic Power Distribution Unit: 480/277 Volt Version

HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit

H3X07A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit

H3X08A

HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14557_div/14557_div.html

(Worldwide)

NOTE:

Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit

www.hp.com/go/rackandpower

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 43

Page 44

HP Remote Monitoring Power Distribution Units (mPDU)

HP Remote Monitored Power Distribution Unit: 1U Version

HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N43A

HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit

D9N46A

HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N44A

HP Remote Monitored Power Distribution Unit: Half Height Version

HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit

D9N45A

HP Remote Monitored Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit

D9N47A

HP 7.3kVA 230 Volt 24 Outlet INTL Monitored Power Distribution Unit

D9N48A

HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit

D9N51A

HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power Distribution Unit

D9N52A

HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power Distribution Unit

D9N53A

HP 11kVA 400 Volt Three Phase 21 Outlet INTL Monitored Power Distribution Unit

D9N55A

HP Remote Monitored Power Distribution Unit: Full Height Version

HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit

D9N49A

HP 7.3kVA 230 Volt 36 Outlet INTL Monitored Power Distribution Unit

D9N50A

HP 11kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution Unit

D9N57A

HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N58A

HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit

D9N61A

HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit

D9N54A

HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit

D9N59A

HP 22kVA 400 Volt Three Phase 24 Outlet INTL Monitored Power Distribution Unit

D9N60A

HP 22kVA 400 Volt Three Phase 33 Outlet INTL Monitored Power Distribution Unit

D9N56A

HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N62A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit

D9N63A

HP Environmental Sensor for Remote Monitored PDUs

E2D53A

HP Remote Monitored Power Distribution Unit: 1U Version

HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N43A

HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit

D9N46A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14669_div/14669_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 44

Page 45

HP Intelligent Power Distribution Units (iPDU)

iPDU Core Units

HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF520A

HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF521A

HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF522A

HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit

AF533A

HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF523A

HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit

AF902A

HP 7.3kVA 32A Single Phase INTL Core Intelligent Modular Power Distribution Unit

AF525A

HP 11kVA 16A Three Phase INTL Core Intelligent Modular Power Distribution Unit

AF526A

HP 22kVA 32A Three Phase INTL Core Intelligent Modular Power Distribution Unit

AF527A

HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit

AF535A

HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution Unit

AF537A

HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit

AF538A

iPDU Kits with Standard Extension Bars

HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit

AF531A

HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit

AF532A

HP 7.3kVA 32A Single Phase INTL Intelligent Modular Power Distribution Kit

AF534A

iPDU Extension Bars

HP 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13650_div/13650_div.html

(Worldwide)

NOTE:

Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit:

www.hp.com/go/rackandpower

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 45

Page 46

HP Rack Series

HP Intelligent Series Rack

HP 636 1075mm Pallet Intelligent Series Rack

BW895A

HP 636 1075mm Shock Intelligent Series Rack

BW896A

HP 642 1075mm Pallet Intelligent Series Rack

BW903A

HP 642 1075mm Shock Intelligent Series Rack

BW904A

HP 647 1075mm Pallet Intelligent Series Rack

BW911A

HP 647 1075mm Shock Intelligent Series Rack

BW912A

NOTE:

Please see the QuickSpecs for Technical Specifications such as height, width, depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/14223_div/14223_div.html

(Worldwide)

NOTE:

For additional information regarding Rack Cabinets, please see the following URL:

http://www.hp.com/go/rackandpower

HP Rack Options

HP Location Discovery Services

HP 36U Location Discovery Kit

BW945A

HP 42U Location Discovery Kit

BW946A

HP 47U Location Discovery Kit

BW947A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14429_div/14429_div.html

(Worldwide)

HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)

HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor

AZ870A

HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor

AZ871A

HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor

AZ872A

HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor

AZ873A

HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor

AZ874A

HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor

AZ875A

HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor

AZ876A

HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor

AZ877A

HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor

AZ878A

HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor

AZ879A

HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor

AZ880A

HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor

AZ881A

HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor

AZ882A

HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor

AZ883A

HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor

AZ884A

HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor

AZ885A

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 46

Page 47

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13731_div/13731_div.html

(Worldwide)

HP USB Keyboard and Mouse

HP USB BFR with PVC Free US Keyboard/Mouse Kit

631341-B21

HP USB BFR with PVC Free UK Keyboard/Mouse Kit

631344-B21

HP USB BFR with PVC Free FR Keyboard/Mouse Kit

631346-B21

HP USB BFR with PVC Free ES Keyboard/Mouse Kit

631348-B21

HP USB BFR with PVC Free DE Keyboard/Mouse Kit

631358-B21

HP USB BFR with PVC Free JP Keyboard/Mouse Kit

631360-B21

HP USB BFR with PVC Free IT Keyboard/Mouse Kit

631362-B21

HP USB BFR with PVC Free CN Keyboard/Mouse Kit

631364-B21

HP USB BFR with PVC Free AE Keyboard/Mouse Kit

638212-B21

HP USB BFR with PVC Free RU Keyboard/Mouse Kit

638214-B21

HP USB BFR with PVC Free AP-Intl Keyboard/Mouse Kit

672097-373

HP USB BFR with PVC Free Intl Keyboard/Mouse Kit

672097-B33

HP USB BFR with PVC Free PT Keyboard/Mouse Kit

672097-133

HP USB BFR with PVC Free TR Keyboard/Mouse Kit

672097-143

HP USB BFR with PVC Free CZ Keyboard/Mouse Kit

672097-223

HP USB BFR with PVC Free FI Keyboard/Mouse Kit

672097-353

HP USB BFR with PVC Free SE Keyboard/Mouse Kit

672097-103

HP USB BFR with PVC Free CH Keyboard/Mouse Kit

672097-113

HP USB BFR with PVC Free IN Keyboard/Mouse Kit

672097-D63

HP USB BFR with PVC Free KR Keyboard/Mouse Kit

672097-KD3

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13972_div/13972_div.html

(Worldwide)

HP Server Console Switches

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP TAA 0x2x16xKVM Server Console G2 Switch

AF626A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html

(Worldwide)

HP Server Console Switch G2 with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM CAT5 1-pack USB Interface Adapter

336047-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 47

Page 48

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html

(Worldwide)

HP IP Console Switch G2 with Virtual Media & CAC

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html

(Worldwide)

Rail Kits

NOTE: Rail kits are optional for Gen8 and are no longer included standard with the

server(except pre-configured/BTO Models). The customer has the choice to not include rail kits with their server purchase, but it is recommended.

NOTE:

Caution:

HP recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HP 2U Large Form Factor Ball Bearing Gen8 Rail Kit with CMA

NOTE:

663480-B21

HP 2U Small Form Factor Ball Bearing Gen8 Rail Kit with CMA

NOTE:

663478-B21

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 48

Page 49

HP USB and SD options

HP Flash Media Kits for USB Drives

HP 2GB USB Flash Media Drive Key Kit

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.

608447-B21

HP 8GB USB EM Flash Media Kit

737953-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB SD Enterprise Mainstream Flash Media Kit

726113-B21

HP 32GB SD Enterprise Mainstream Flash Media Kit

700136-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13971_div/13971_div.html

Other USB and SD Options

HP USB 04 Standard Keyboard

DT528A#ABA

HP Care Pack Services

Proactive Care

NOTE:

Collaborative Support plus Proactive services delivered by the onshore, local language Advanced Solution Center (ASC), end-to-end case ownership from a Technical Solution Specialists and Technical Account Manager who remotely delivers firmware/software revision management, proactive scans and incident trend reports. Recommended for customers running a virtualized infrastructure and/or customers who desire an enhanced call support experience.

HP 3 year 4 hour 24x7 ProLiant DL38x(p) Proactive Care Service

U2Z50E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL38x(p) Proactive Care Service

U2Z53E

HP 3 year 6 hour Call To Repair 24x7 ProLiant DL38x(p) Proactive Care Service

U2Z56E

HP 3 year 6 hour Call To Repair 24x7 w/DefectiveMedia Retention ProLiant DL38x(p) Proactive Care SVC

U2Z59E

HP 3 year Next business day ProLiant DL38x(p) with Insight Control Proactive Care Service

U3N17E

HP 3 year 4 hour 24x7 ProLiant DL38x(p) with Insight Control Proactive Care Service

U3N23E

HP 3 year 4hr 24x7 with Defective Media Retention DL38x(p) with Insight Control Proactive Care SVC

U3N26E

HP 3 year 6 hour Call To Repair 24x7 ProLiant DL38x(p) with Insight Control Proactive Care Service

U3N29E

HP 3yr 6hrCallToRepair 24x7w/Defective Media Retention DL38x(p) w/Insight Control Proactive Care SVC

U3N32E

Collaborative Support

NOTE:

Hardware break/fix plus 24x7 software diagnosis support with collaborative call management for a broad spectrum of 3rd Party software products including O/S and hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors from the software vendors directly and deploying them on HP ProLiant servers.

HP 3 year 4 hour 24x7 ProLiant DL38x(p) Collaborative Support

U1J30E

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 49

Page 50

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL38x(p) Collaborative Support

U1J33E

HP 3 year 6 hour Call To Repair 24x7 ProLiant DL38x(p) Collaborative Support

U1J36E

HP 3 year 6hr Call To Repair 24x7 withDefective Media Retention ProLiant DL38x(p) Collaborative Supp

U1J39E

Installation Services

NOTE:

Reduce the time required to get your system up and running and help minimize

disruptions to your business.

HP 3 year 4 hour 24x7 ProLiant DL380 Hardware Support Defective Media Retention

UD940E

HP Install ProLiant DL38x(p) Service

U4554E

HP Startup ProLiant DL38x(p) Service

U4555E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Additional Options

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 50

Page 51

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture

Each AMD Opteron family processor socket contains four memory channels that support three DIMMs each for a total of twelve (12) DIMM per installed processor or a grand total of twenty-four (24) DIMMs for the server. Up to 32GB capacity DIMMs are supported for 768GB of memory (24 DIMM slots x 32GB per DIMM).

Memory population guidelines

General Memory Population Rules and Guidelines:

White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only. Install DIMMs only if the corresponding processor is installed. If only one processor is installed in a two processor system, only half of the DIMM slots are available. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible. RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage. RDIMMs and LRDIMMs are supported up to 3 DIMMs per channel. The DL385p Gen8 RBSU has options to set memory for Performance or Power modes. In Performance Mode all memory whether

1.35V DIMMs or 1.5V DIMMs will be set to 1.5V. In Power Mode all memory whether 1.35V or 1.5V will be set to 1.35V for power savings. DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed. The maximum memory speed is a function of the memory type and memory configuration. The maximum memory capacity is a function of the memory type and number of installed processors. HP memory from previous generation servers is not qualified on the DL385p Gen8 Server. Certain HP SmartMemory features such as memory authentication and enhanced performance may not be supported. To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html

. For memory population rules and additional memory guidelines, please see the DL385p Gen8 user guide at

http://www.hp.com/support

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Memory

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 51

Page 52

DL385p Gen8 Supported Memory Bandwidth and Capacity

DIMM Type

Registered DIMMS

Load

Reduced

(LRDIMMs)

DIMM Rank

Single Rank (1R)

Dual Rank (2R)

Quad Rank

(4R)

DIMM Capacity

4GB 4GB 8GB 8GB

16GB 16GB 32GB

DIMM Native Speed (MHz)

1333 1600 1600 1333 1333 1600 1066

Voltage

LV/ULV

Std Std

LV/ULV LV/ULV

Std

SLOTS THAT CAN BE POPULATED

24 slot servers

24 24 24 24 24 24 24

MAXIMUM CAPACITY (GB)

24 slot servers

96 96 192 192 384 384 768

POPULATED DIMM SPEED (MHz)

1 DIMM Per Channel

1333 1600 1600 1333 1333 1600 1333

2 DIMM Per Channel

1333 1600 1600

1333/106621333/1066

1600 1333

3 DIMM Per Channel

1066 1066 1066

1066/80031066/800

1066 800

Maximum capacity will vary based on individual server platform.

Ultra Low Voltage 8GB and 16GB dual rank operate at 1066MT/s speed in 2 DPC configurations.

Ultra Low Voltage 8GB and 16GB dual rank operate at 800MT/s speed in 3 DPC configurations.

LRDIMM capable of 3 DIMMs per channel.

DIMM slot and configuration diagram

Population order; start with "A" first, "B" second, "C" third, etc. When one processor is installed, install DIMMs in sequential alphabetic order: A, B, C, D, E, F … When two processors are installed, install DIMMs in sequential alphabetic order: CPU1-A, CPU2-A,CPU1-B,CPU2-B,CPU1-C, CP2-C

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Memory

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 52

Page 53

24 DIMM SLOTS (12 per CPU node)

slot #

population order

slot #

population order

Chnl 1

Chnl 2

CPU1 CPU2

Chnl 3

Chnl 4

NOTE:

Capacity references are rounded to the common Gigabyte values.

1GB = 1024MB 2GB = 2048MB 4GB = 4096MB 8GB = 8192MB 16GB = 16384MB 32GB = 32768MB

DDR3 memory options part number decoder

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Memory

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 53

Page 54

Following are memory options available from HP:

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is recommended. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html

(Worldwide)

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647871-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647873-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

695793-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647877-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

647879-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage Memory Kit

647883-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

672633-B21

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low Voltage Memory Kit

647885-B21

Ultra Low Voltage DIMMs (ULVDIMM)

HP 4GB (1x4GB) Single Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647869-B21

HP 8GB (1x8GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647875-B21

HP 16GB (1x16GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low Voltage Memory Kit

647881-B21

NOTE:

HP memory from previous generation servers may not provide the same performance with the HP ProLiant DL385p Gen8 Servers as HP SmartMemory will.

NOTE:

If only one processor is installed, only half the DIMM slots are available.

NOTE:

Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz, 1066MHz or lower. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Memory

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 54

Page 55

1-8

Eight SFF SAS hot plug drive bays

1-8,

1-8

Sixteen SFF SAS hot plug drive bays. Built-In Smart Array manages first 8 drives. Requires 2nd Smart Array Controller for second option of 8 drives.

NOTE:

This configuration does not support optical

drive.

1-25

Twenty Five SFF SAS hot plug drive bays

NOTE:

This configuration does not support SID or

optical drive.

1-8

Eight LFF SAS hot plug drive bays.

NOTE:

This configuration supports a pop-out SID.

1-12

Twelve LFF SAS hot plug drive bays

NOTE:

This configuration does not support SID or

optical drive.

Maximum Storage Capacity

- (SAS/SATA HDD)

Internal

48TB (12 x 4TB SATA LFF with twelve LFF drive bays)

External

200TB (200 x 1TB SAS SFF)

Total

248TB

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Storage

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 55

Page 56

System Unit

Dimensions

(H x W x D)

(with bezel)

SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm) LFF Drives: 3.44 x 17.54 x 29.50 in (8.73 x 44.55 x 74.93 cm)

Weight

(approximate)

Maximum (all LFF hard drives, power supply, and processor installed)

61.00 lb (27.66 kg)

Minimum (one SFF hard drive, power supply, and processor installed, ODD not installed)

41.0 lb (18.59 kg)

Input Requirements

(per power supply)

Rated Line Voltage

100 to 120 VAC 200 to 240 VAC

Rated Input Current

For 1200 W Power Supply: 10 A (at 100 VAC),

4.9 A (at 200 VAC) For 750 W Power Supply:

8.9 A (at 100 VAC),

4.3 A (at 200 VAC) For 460 W Power Supply:

5.5 A (at 100 VAC),

2.6 A (at 200 VAC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

For 1200 W Power Supply: 930 W (at 100 VAC), 1348 W (at 200 VAC) For 750 W Power Supply: 857 W (at 100 VAC), 824 W (at 200 VAC) For 460 W Power Supply: 526 W (at 100 VAC), 505 W (at 200 VAC)

BTU Rating

Maximum

For 1200 W Power Supply: 3530 BTU/hr (at 100 VAC), 4600 BTU/hr (at 200 VAC) For 750 W Power Supply: 2925 BTU/hr (at 100 VAC), 2812 BTU/hr (at 200 VAC) For 460 W Power Supply: 1794 BTU/hr (at 100 VAC), 1725 BTU/hr (at 200 VAC)

Power Supply Output

(per power supply)

Rated Steady-State Power

For 1200 W Power Supply: 800 W (at 100 VAC), 900 W (at 120 VAC), 1200 W (at 200 to 240 VAC) For 750 W Power Supply: 750 W (at 100 to 120 VAC), 750 W (at 200 to 240 VAC)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Technical Specifications

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 56

Page 57

For 460 W Power Supply: 460 W (at 100 to 120 VAC), 460 W (at 200 to 240 VAC)

Maximum Peak Power

For 1200 W Power Supply: 800 W (at 100 VAC), 900 W (at 120 VAC), 1200 W (at 200 to 240 VAC) For 750 W Power Supply: 750 W (at 100 to 120 VAC), 750 W (at 200 to 240 VAC) For 460 W Power Supply: 460 W (at 100 to 120 VAC), 460 W (at 200 to 240 VAC)

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, noncondensing.

Non-operating

5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, noncondensing.

Altitude

Operating

3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

NOTE:

The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

Idle

LWAd

5.5 B

LpAm

37 dBA

Operating

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Technical Specifications

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 57

Page 58

LWAd

5.5 B

LpAm

37 dBA

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE:

Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE:

The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

HP Smart Array P420i Controller

Dimensions

Embedded

Disk Drive and Enclosure Interface - Transfer Rate

6Gb/s SAS (Serial Attached SCSI) 3Gb/s SATA (Serial ATA)

SAS Connectors

2 internal 4X connectors

Cache Memory Speed

DDR2-800MHz with 40 or 72-bit wide bus

Server Interface

x4 PCIe 2.0 provides 2GB/s maximum bandwidth

SAS Speed

(8) 6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Cache Memory

Zero Memory RAID has no cache memory 40-bit 256MB ECC protected cache (battery upgrade available) 72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC Zero Memory, Up to 2 logical volumes (8 physical drives)

Logical Drives Supported

Up to 64 logical drives with cache

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

RAID Support

RAID 6, 60 (Advanced Data Guarding) RAID 5, 50 (Distributed Data Guarding)

NOTE:

A minimum of 512 MB cache is required to enable RAID 5, 50, 6, 60

NOTE:

HP Smart Array Advanced Pack (SAAP 2.0) is no longer required to enable RAID 6 & 60 (Advanced Data Guarding). However, controller must be in firmware version 4.68 (or later).

RAID 1+0 (Striping & Mirroring) RAID 0 (Striping), RAID 1 (Mirroring)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Technical Specifications

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 58

Page 59

HP Ethernet 1Gb 4-port 331FLR Adapter

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

EEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX IEEE 802.3ad 1000Base-TX IEEE 802.1p 100Base-TX IEEE 802.1q 100Base-TX

Data Transfer Method

PCI Express, four lanes (x4)

Number of Ports

Controller

BCM5719

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s per port, 40 Mb/s Combined

10Base-T (Full-Duplex)

20 Mb/s per port, 80 Mb/s Combined

100Base-TX (Half-Duplex)

100 Mb/s per port, 400 Mb/s Combined

100Base-TX (Full-Duplex)

200 Mb/s per port, 800 Mb/s Combined

1000Base-TX (Half Duplex)

1000Mb/s per port, 4000 Mb/s Combined

1000Base-TX (Full Duplex)

2000Mb/s per port, 8000 Mb/s Combined

Connector

Two RJ-45

Cable Support

10Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

EEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX IEEE 802.3ad 1000Base-TX IEEE 802.1p 100Base-TX IEEE 802.1q 100Base-TX

Data Transfer Method

PCI Express, four lanes (x4)

Controller

BCM57810S

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (Half-Duplex)

100 Mb/s

100Base-TX (Full-Duplex)

200 Mb/s

1000Base-TX (Half and Full-Duplex)

2000Mb/s

Connector

Two SFP+

Cable Support

10Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Technical Specifications

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 59

Page 60

100Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

1000BaseTX

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice. Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL385p Generation 8 (Gen8)

Technical Specifications

DA - 14329 Worldwide — Version 25 — December 13, 2013

Page 60
