The HP ProLiant DL380p Gen8 sets the next generation standards of 2U 2-socket rack servers for the industry. With enhanced
configuration flexibility, unmatched performance, and leading energy efficient design the DL380p Gen8 offers the perfect solution for
the dynamic compute requirements of today's demanding datacenters.

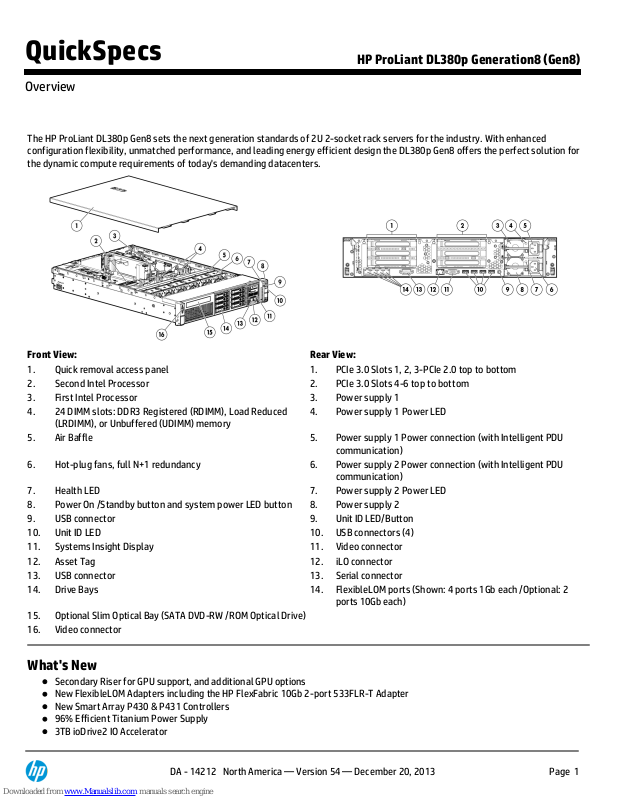

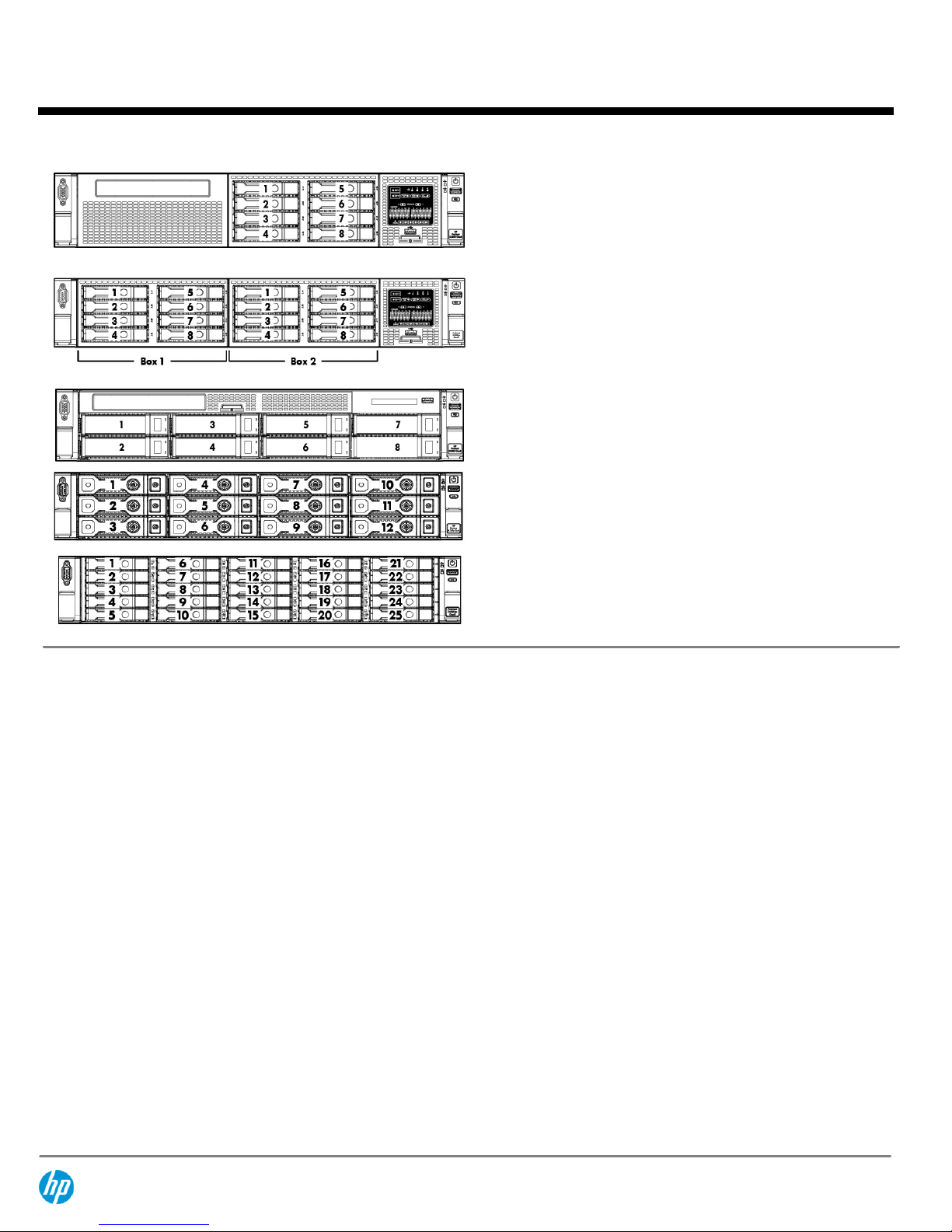

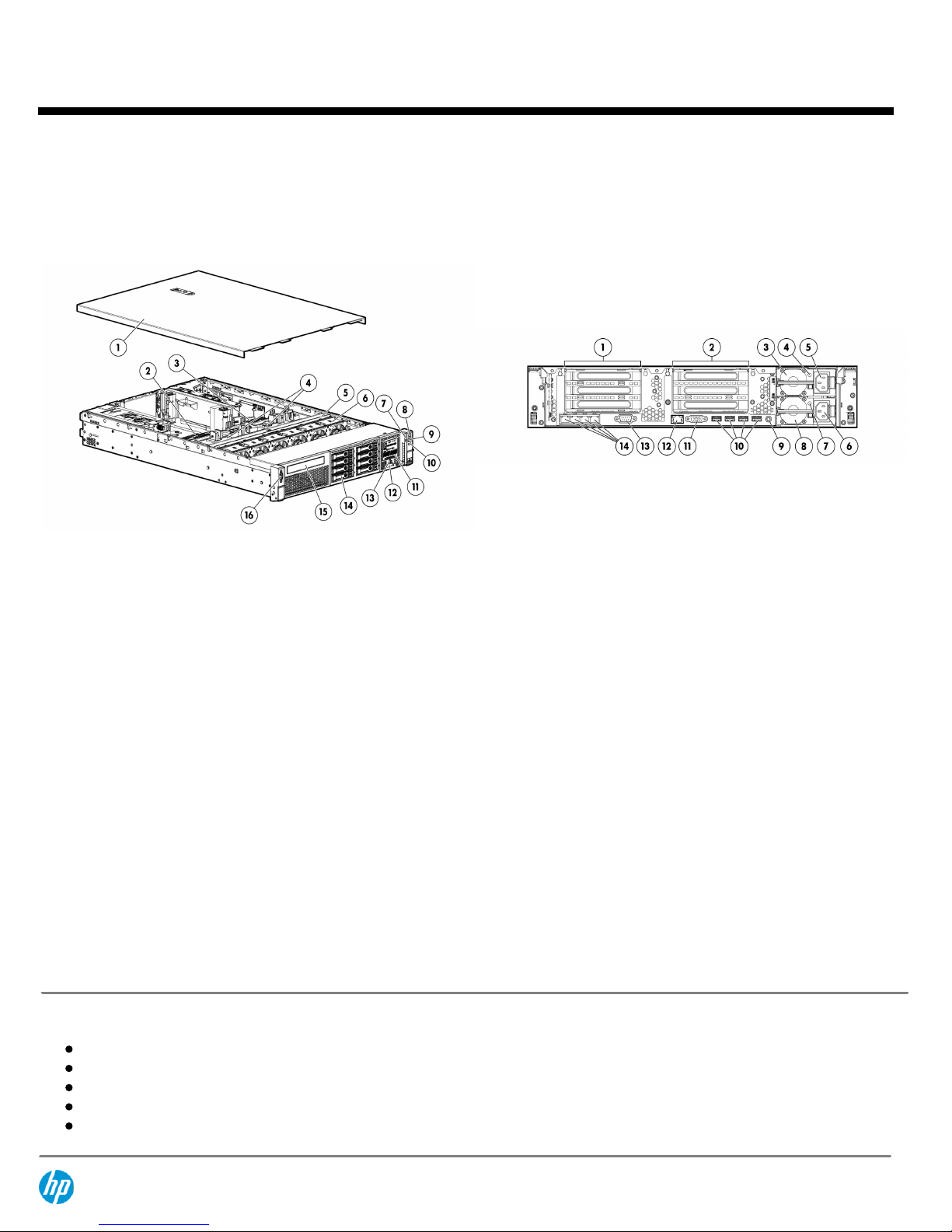

Front View:
Rear View:
1.
Quick removal access panel
1.
PCIe 3.0 Slots 1, 2, 3-PCIe 2.0 top to bottom
2.
Second Intel Processor
2.
PCIe 3.0 Slots 4-6 top to bottom
3.
First Intel Processor
3.
Power supply 1
4.
24 DIMM slots: DDR3 Registered (RDIMM), Load Reduced
(LRDIMM), or Unbuffered (UDIMM) memory
4.
Power supply 1 Power LED
5.
Air Baffle
5.
Power supply 1 Power connection (with Intelligent PDU
communication)
6.
Hot-plug fans, full N+1 redundancy
6.
Power supply 2 Power connection (with Intelligent PDU
communication)
7.
Health LED
7.
Power supply 2 Power LED
8.
Power On /Standby button and system power LED button
8.
Power supply 2
9.
USB connector
9.
Unit ID LED/Button
10.
Unit ID LED
10.
USB connectors (4)
11.
Systems Insight Display
11.
Video connector
12.
Asset Tag
12.
iLO connector
13.
USB connector
13.
Serial connector
14.
Drive Bays
14.
FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2
ports 10Gb each)
15.
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
16.
Video connector
What's New
Secondary Riser for GPU support, and additional GPU options
New FlexibleLOM Adapters including the HP FlexFabric 10Gb 2-port 533FLR-T Adapter
New Smart Array P430 & P431 Controllers
96% Efficient Titanium Power Supply
3TB ioDrive2 IO Accelerator
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Overview
DA - 14212 North America — Version 54 — December 20, 2013
Page 1
Page 2
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
One of the following
depending on Model
E5-2600 v2 series Processors
Entry Processors
NOTE:
All support up to 1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)
Intel® Xeon® E5-2603 v2 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)
Base Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR3-1600, HT, Turbo23/3/3/3/3/3/4/5)
Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)
Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)
Intel® Xeon® E5-2650L v2 (1.7GHz/10-core/25MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2-
2/2/2/2/2/2/2/2/3/4)
Intel® Xeon® E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)
Performance Processors
NOTE:
All support up to 1866MHz DDR3 memory speeds.
Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo23/3/3/3/3/3/3/4/5/6/7/8)
Intel® Xeon® E5-2695 v2 (2.4GHz/12-core/30MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo24/4/4/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo23/3/3/3/3/3/3/4/5/6)
Intel® Xeon® E5-2680 v2 (2.8GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo23/3/3/3/3/4/5/6/7/8)
Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo24/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo23/3/3/3/4/5/6/7)
Intel® Xeon® E5-2660 v2 (2.2GHz/10-core/25MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo24/4/4/4/4/4/5/6/7/8)
Intel® Xeon® E5-2650 v2 (2.6GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo24/4/4/4/5/6/7/8)
Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)
Intel® Xeon® E5-2637 v2 (3.5GHz/4-core/15MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/2/3)
E5-2600 series Processors
Entry Processors
NOTE:
All support up to 1066MHz memory speeds.
Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W)
Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)
Base Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 2
Page 3
Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/8.0GT-s QPI/60W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)
Performance Processors
NOTE:
All support up to 1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo24/4/4/5/5/7/7/9)
Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo24/4/5/5/5/7/8/8)
Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo24/4/5/5/6/6/7/7)
Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)
Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2-
4/4/5/5/6/6/7/7)
Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)
Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)
Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2-
2/2/3/3/4/4/5/5)
Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 1/1/2/2)
Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2- 5/5)
NOTE:
HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE:
Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.
NOTE:
DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on
the quantity and type of DIMMs installed.
NOTE:
Up to 2 processors supported. Mixing different processor models is not supported.
NOTE:
For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the
Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 =
Processor SKU, and x = L for low power SKUs.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 3
Page 4
Cache Memory
One of the following
depending on Model
30MB (1x30MB) Level 3
NOTE:
For Twelve-core processors.
25MB (1x25MB) Level 3
NOTE:
For Ten-core processors.
20MB (1x20MB) Level 3
NOTE:
For Eight-core processors.
15MB (1x15MB) Level 3
NOTE:
For Six-core processors.
10MB (1x10MB) Level 3
NOTE:
For Quad-core processors.
5MB (1x5MB) Level 3
NOTE:
For Dual-core processors.
NOTE:
All processor models above list the L3 Cache associated with that particular processor.
Chipset
Intel® C600 Series Chipset
Intel® E5-2600 and E5-2600 v2 Processor Families
NOTE:
For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/
.
Upgradeability
Upgradeable to 2 processors (24 Cores)
NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600 to E5-2600 v2. Please contact
HP Technology Sales (
http://www.hp.com/support
), your local HP Re-seller, or reference the following
Customer Advisory:
ProLiant Servers-Instructions for Upgrading an HP ProLiant Gen8 Server from an Intel
Xeon Processor E5-2600 to an Intel Xeon Processor E5-2600 v2
, regarding critical details before
upgrading. An explanation of requirements and limitations are provided.
Up to 24 DIMM slots available for higher Memory capacity
FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options
8SFF Hard drive bays (16SFF with optional upgrade), 8LFF, 12LFF, or 25SFF
Optional 3 slot riser (x16, x8, x8), or 2 slot (x16, x16)
NOTE:
To take advantage of the additional 3 PCI slot upgrade, the second processor must be installed.
Redundant Power Supply
Optical Drive (8SFF/8LFF only)
On System Management
Chipset
HP iLO (Firmware: HP iLO 4)
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 4
Page 5
Memory Protection
Advanced ECC
NOTE:
Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multibit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires lockstep
mode).
Online Spare
NOTE:
Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and
switches operation to the spare rank.
Lock-step mode
NOTE:
Memory Lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs in
each paired memory channel must have identical HP part numbers.
Memory
One of the following
depending on Model

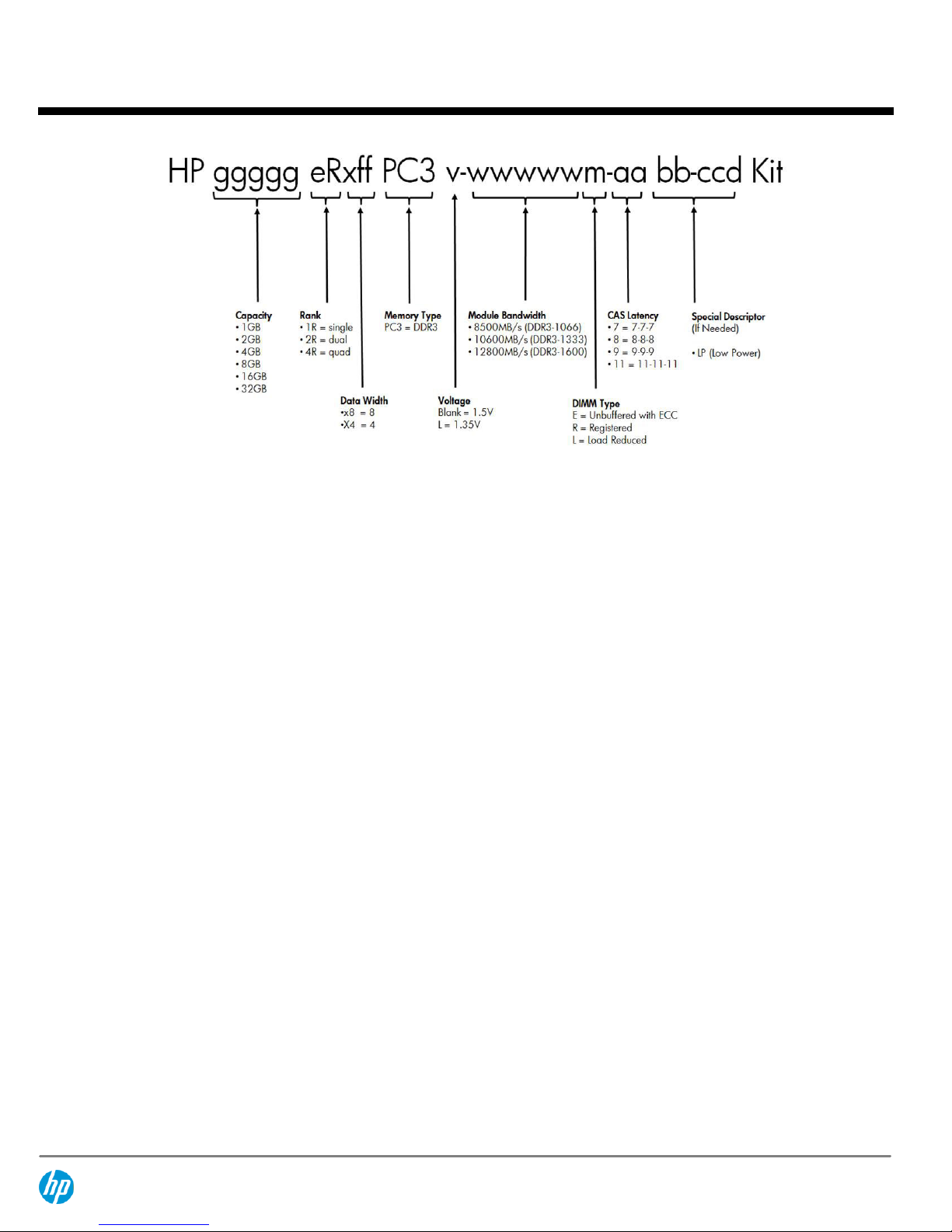

Type
HP SmartMemory
DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)

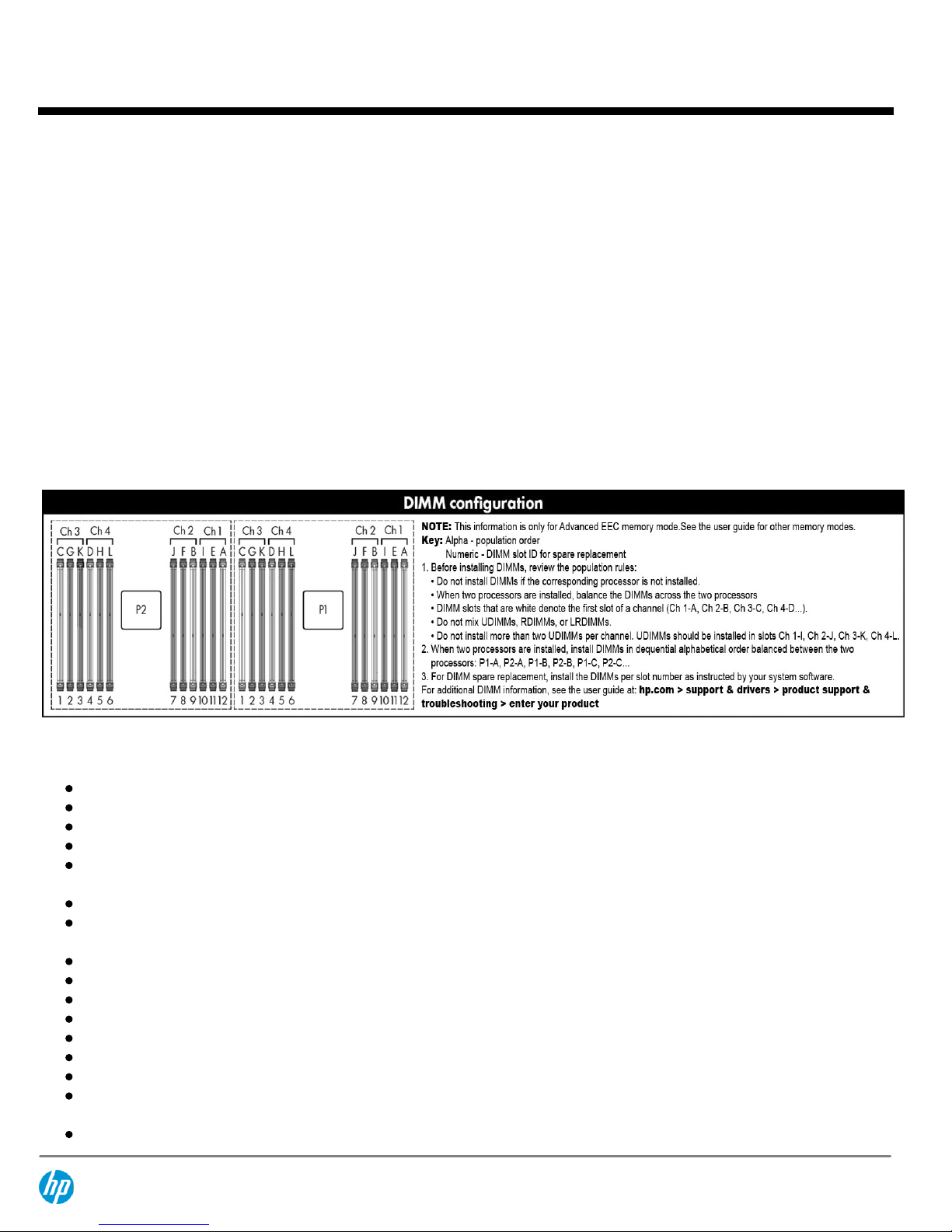

DIMM Slots Available
24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per
channel)
Maximum Capacity
(LRDIMM)
768GB (24 x 32GB LRDIMM @1066MHz)
Maximum Capacity
(RDIMM)
384GB (24x 16GB RDIMM @1333MHz)
Maximum Capacity
(UDIMM)
128GB (16 x 8GB UDIMM @1600MHz)
Maximum Capacity
(HDIMM)
768GB (24 x 32GB HDIMM @1333MHz)
NOTE:
HP memory from previous generation servers are not qualified or warranted with this HP ProLiant
Server. HP SmartMemory is required to realize the memory performance improvements and enhanced
functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory
QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and cannot be mixed
within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.
NOTE:
If only one processor is installed, only half the DIMM slots are available.
NOTE:
UDIMM max DIMM population is 16.
NOTE:
Depending on the memory configuration and processor model, the memory speed may run at
1866MHz, 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory
Configuration Tool at:
www.hp.com/go/ddr3memory-configurator
.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 5
Page 6
Network Controller
One of the following
depending on Model
HP ProLiant Gen8 servers offer a new flexible network technology - FlexibleLOMs. The HP ProLiant DL380p
Gen8 server offers the customer the choice of 1Gb, 10Gb, or 10Gb base-T networking solutions. For
additional details see the Networking Section of this document.
Entry Models
HP Ethernet 1Gb 4-port 331FLR Adapter
Base Models
HP Ethernet 1Gb 4-port 331FLR Adapter
25SFF Models
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Performance Models
One of the following
depending on Model
HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
HP Ethernet 1Gb 4-port 331FLR Adapter
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Energy Star Models
HP Ethernet 1Gb 4-port 331FLR Adapter
Expansion Slots
Primary Riser
(Standard)
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
Bus Number*Form Factor
Notes
1
PCIe 3.0
X16 X16
7
Full Length,
Full Height
Slot
Proc 1
2
PCIe 3.0
X8 X8
10
Half Length,
Full Height
Slot
Proc 1
3
PCIe 2.0
X4 X8
13
Half Length,
Full Height
Slot
Chipset
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment
number
** Indicates the number of physical electrical lanes running to the connector.
NOTE:
When populating the second optional riser slot, the second processor must be installed.
NOTE:
All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (PN
669777-B21). See Option Section below for offering.
PCIe Riser
(Optional 3-slot)
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
Bus Number*Form Factor
Notes
4
PCIe 3.0
X16 X16
16
Full length,
full height slot
Proc 2
5
PCIe 3.0
X8 X8
20
Half length,
full height slot
Proc 2
6
PCIe 3.0
X8 X8
23
Half length,
full height slot
Proc 2
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment
number
** Indicates the number of physical electrical lanes running to the connector.
NOTE:
When populating the second optional riser slot, the second processor must be installed.
NOTE:
All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (669777-
B21). See Option Section below for offering
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 6
Page 7
PCIe Riser
(Optional 2-slot)
Expansion
Slots #
Technology
Bus
Width
**
Connector
Width
Bus Number*Form Factor
Notes
4
PCIe 3.0
X16 X16
16
Full length,
Full height
slot
Proc 2
5
PCIe 3.0
X16 X16
16
Half Length,
Full Height
Proc 2
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment
number
** Indicates the number of physical electrical lanes running to the connector.
HP Server ROM
HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is
verified before the flash process starts, reducing accidental programming and preventing malicious
efforts to corrupt system ROM.
HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating
system.
HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML)
to assist in diagnosis.
HP's ProLiant ROM is used to configure the following:
Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (Integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).
NOTE:
For further information, please refer to HP's RBSU (ROM based setup utility) user guide:
www.hp.com/support/rbsu
.
Storage Controller
One of the following
depending on Model
Entry Models
HP Smart Array P420i/ZM (RAID 0/1/1+0)
Base Models
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
25SFF Models
HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Performance Models
HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Energy Star Models
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 7
Page 8
Internal Storage Devices
Diskette Drive
None
Optical Drive
Ships standard in Performance Models
Optional: DVD-ROM, DVD-RW
Hard Drives
None ship standard
Drive Bays
Standard: 8SFF drive bays total with Optical Bay, 8 LFF drive bays total with
Optical Bay, 12LFF drive bays total, or 25SFF drive bays total
Optional: +8SFF drive bay (total of 16SFF drive bays)
NOTE:
The Optical drive bay is not available with the 12LFF model, 25SFF
model, or +8SFF drive bay optional upgrade.
NOTE:
The 8LFF, 12LFF, and 25SFF drive cage versions are not field
upgradeable options from the 8SFF model.
NOTE:
The optional +8SFF drive bay requires an additional internal storage
controller be selected. HP recommends the HP Smart Array P420/1GB FBWC
6Gb 2-ports Int SAS Controller (P/N 631670-B21).
NOTE:
All Pre-configured Models come populated with some hard drive blanks
installed. Should the customer need additional hard drive blanks, they can
order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or
P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. The part numbers for
single HDD blanks below are also provided should the customer require
replacement HDD blanks for their server.
Maximum Internal
Storage
Hot Plug SFF SAS
30.0TB
25 x 1.2TB (with optional SFF drive cage)
Hot Plug SFF SATA
25.0TB
25 x 1TB (with optional SFF drive cage)
Hot Plug LFF SAS
36.0TB
12 x 3TB (with optional LFF drive cage)
Hot Plug LFF SATA
48.0TB
12 x 4TB (with optional LFF drive cage)
Hot Plug SFF SAS SSD
20.0TB
25 x 800GB (with optional SFF drive cage)
Hot Plug LFF SATA SSD
9.6TB
12 x 800GB (with optional LFF drive cage)
Interfaces
Serial
1
Video
2 (1 front, 1 back) not active simultaneously
FlexibleLOM Network Ports
Some models come standard with 4 x 1Gb ports while others come with 2 x
10Gb or 2 x 10Gb base-T ports (See HP Networking section below for more
details and options).
HP iLO Remote
Management Network Port
1 Gb Dedicated
SD slot
1 Internal Secure
NOTE:
The SD slot is not a hot-pluggable device. Customers should not
attempt to plug an SD card into the SD slot while the server is powered.
USB 2.0 Ports
Up to 7 total: up to 2 front, 4 back, 1 internal
NOTE:
Only 1 front USB port available for 12LFF and 25SFF models.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 8
Page 9
Industry Standard
Compliance
ACPI 2.0b Compliant
PCIe 3.0 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0 Compliant
Server Power Cords
All Pre-configured servers ship with a high voltage server-to-PDU power cord.
NOTE:
HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cord that
connects to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to power
distribution units (PDUs) in data center racks and now ship standard with a PDU 6-foot C-14 to C13 power
cord (A0K02A). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the 6foot NEMA 5-15 to C13 power cord must be ordered separately (AF556A). See Power Cords section for
Power Cord options.
Power Specifications
To review typical system power ratings use the HP Power Advisor which is available via the online tool
located at URL:
www.hp.com/go/proliant-energy-efficient
or
www.hp.com/go/hppoweradvisor
.
NOTE:
Power Specification and Technical Content for supported power supplies can be found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
Common Slot Power
Supply
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies inside a server
must be exactly the same model. Mixing Gold, Platinum, and Platinum Plus certified power supplies is not
supported.
HP's Common Slot (CS) power supplies allow for commonality of power supplies across a wide range of
ProLiant and Integrity servers, as well as HP Storage solutions, and are designed to provide the highest
power supply efficiency without degrading system performance. HP CS power supplies are tested by the
Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. HP
CS power supply options provide efficiency ratings of up to 94% (80 Plus Platinum) and are available in
three power output options - 460W, 750W, and 1200W - allowing the customer to "right-size" a power
supply for their specific server configuration. All HP Common Slot power sources are UL, CE Mark
Compliant, hot-plug and support redundant configurations.
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies must be of the
same output and efficiency rating. If non-matched power supplies are inserted you will get errors and
operation will fail.
HP CS Platinum Plus power supplies are required when enabling HP's Intelligent Power Discovery (IPD)
solution. IPD is the first technology to create an automated, energy-aware network between IT systems
and facilities. This allows your company to reclaim millions of dollars in wasted power capacity and
downtime costs across data centers. For more information on HP's IPD solution, go to
www.hp.com/go/ipd
.
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for
your needs. HP Power Advisor can be accessed at:
www.hp.com/go/hppoweradvisor
.
NOTE:
The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 9
Page 10
consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus
independently tests power supply efficiency and publicly posts the results on 80Plus.org.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power
supply option kits (see Power Supplies for part numbers).
NOTE:
Power Specification and Technical Content for supported power supplies can be found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
System Fans
One of the following
depending on Model
2P Models have (6) (N+1 redundancy standard)
1P Models have (4) (N+1 redundancy standard)
Required Cabling
For required cabling information, refer to the HP Web site at:
www.hp.com/servers/dl380p-gen8
.
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Canonical Ubuntu
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/ossupport
and our driver download page:
http://www.hp.com/support/DL380pGen8
Graphics
Integrated Matrox G200 video standard
1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)
HP iLO 4 On System Management Memory
16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)
Form Factor
One of the following
depending on Model
2U Rack form factor
8 SFF & 25SFF Drive Bay Version:
3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 27.5" (69.85 cm) Length
8 LFF & 12LFF Drive Bay Version:
3.44 (8.74 cm) Height x 17.54" (44.55 cm) Width x 29.5" (74.94cm) Length
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 10
Page 11
On System Management
HP iLO Management
Engine
HP iLO Management Engine is a comprehensive set of embedded
management features supporting the complete lifecycle of the server,
from initial deployment, through ongoing management, to service
alerting and remote support. HP iLO Management Engine comes
standard on all HP ProLiant Gen8 servers. The HP iLO Management
Engine portfolio includes:
HP iLO:
The HP iLO (Integrated Lights-Out) management
processor is the core foundation for the HP iLO Management
Engine
HP Agentless Management:
Provides built in server health
monitoring and alerting capability without OS agents, that starts
working the moment a power cord and an Ethernet cable are
connected.
HP Active Health System:
Always on, continuous monitoring for
increased stability and shorter downtimes; 100% configuration
history; Health and service alerts and easy export and upload to
Service and Support.
HP Intelligent Provisioning:
Lets customers provision and
configure a single server without any separate media. No more
SmartStart CDs or Smart Update Firmware DVD are needed.
To start Intelligent Provisioning:
Press the F10 key during the ProLiant Gen8 server
boot process (also known as power on self test or
POST).
Please go to the Intelligent Provisioning website at
www.hp.com/go/intelligentprovisioning
for
additional information and to view usage videos.
Use the Service Pack for ProLiant (SPP) at
www.hp.com/go/spp
to get firmware and software
updates.
HP iLO Mobile App:
Enables the ability to access, deploy, and
manage your server anytime from anywhere from select
smartphones and mobile devices. For additional information
please visit:
www.hp.com/go/ilo/mobileapp
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
or HP iLO
Management Engine technologies whitepaper
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 11
Page 12
HP Insight management
HP Service Pack for
ProLiant (SPP)
HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
provide a comprehensive approach to firmware and system software
maintenance. Together they provide better operating stability and ensure
maximum uptime. The SPP will be updated at a predictable cadence, typically
coinciding with new HP server hardware launches. By enabling firmware to be
updated online and integrating firmware and system software updates in one
operation, HP SUM and the SPP offer faster updates of individual servers and
dramatically faster updates of entire BladeSystem enclosures. Further
improving system uptime and stability is the fact that HP provides 12 months
of support for each Service Pack for ProLiant release.
The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM and the latest
SPP. Optional smaller subsets with only specific types of servers or specific
operating systems are offered to save on download time. The HP SUM
application provides a straightforward, intuitive user interface that guides the
user through the steps of discovery, analyses and update, providing
comprehensive information on available updates, criticality and
interdependencies. This information is also available in reports. By providing
the option of multiple local or shared repositories which can be easily updated
from hp.com, HP SUM provides the tools to optimize stability and consistency
throughout the company. While HP SUM and the SPP recommend the
combinations of firmware and system software that HP has found to be the
best practice, the application gives customers the flexibility to set their own
specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdependencies, when determining the correct updates and
order of update deployment.
NOTE:
The Service Pack for ProLiant (which includes HP SUM) can be
downloaded from
www.hp.com/go/spp/download
. More information can be
found:
http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp
and
http://www.hp.com/go/hpsum
Security
Power-on password
Serial interface control
Administrator's password
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 12
Page 13
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE:
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity. Customers may choose
to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited
warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Standard Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 13
Page 14
HP Insight management
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. HP Insight Control also supports
Location and Power Discovery Services to automate many configuration, asset
tracking, and power management tasks to speed implementation and prevent
downtime. For more information, see
http://www.hp.com/go/insightcontrol
.
HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:
http://www.hp.com/services/insight
.
HP iLO Advanced
HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multiuser collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:
http://www.hp.com/go/iloadvance
HP Matrix Operating
Environment
The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.
The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS).
NOTE:
For more information, visit:
http://www.hp.com/go/matrixoe
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering.
http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Optional Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 14
Page 15
HP Insight Cluster
Management Utility
HP Insight Cluster Management Utility (CMU) is an HP-licensed and HPsupported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.
http://www.hp.com/go/cmu
Storage Software
Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:
Data Protection and Recovery Software
Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.
Data Archive and Migration Software
HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.
Storage Resource Management Software (SRM)
HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.
Data Replication Software
HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.
Storage Device Management Software
Maximize your investment in HP storage and networking with software that enables hardwarespecific configuration, performance tuning and connectivity management.
HP StoreVirtual VSA
With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.
NOTE: For more information available Storage Software including QuickSpecs, please see:
www.hp.com/go/storage/software
HP Insight Online
HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP
support information personalized to your IT environment. Insight Online can automatically display devices
remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.
www.hp.com/go/insightonline
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Optional Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 15
Page 16
HP Proactive Insight
experience
Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:
www.hp.com/go/proactiveinsightexperience
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, EVA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to:
http://www.hp.com/go/factory-express
.
HP Simple Configurator
SCE is a guided self-service tool to help sales and non-technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.
http://www.hp.com/products/configurator
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Optional Features
DA - 14212 North America — Version 54 — December 20, 2013
Page 16
Page 17
Service and Support
HP Technology Services for Industry Standard Servers
Capitalizing on HP ProLiant server capabilities requires a service partner who understands your
increasingly complex business technology environment. That's why it makes sense to team up with the
people who know HP infrastructure hardware and software best - the experienced professionals at HP
Services.
Protect your business beyond warranty with HP Care Pack Services
HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.
HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.
Optimized Care
Supports maintaining servers at optimum performance availability
3-Year HP 6 hour Call to Repair Response, Proactive Care*
Combined reactive and proactive support for hardware and software helping optimize your systems and
delivering high levels of availability through proactive service management and advanced technical
response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the
initial service request. A Technical Account Manager, as your single point of contact, will own your call or
issue end to end until resolved.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
Standard Care
Service recommendation that maintains high level of server availability
3-Year HP 24x7 4 hour response, Proactive Care Service*
This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.
http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf
HP ProLiant Server Hardware Installation
Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Service and Support
DA - 14212 North America — Version 54 — December 20, 2013
Page 17
Page 18
Related Services
HP Proactive Care Personalized Support - Environmental Option
The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.
HP Proactive Select Service
Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf
Additional HP Care Pack services can be found at:
http://www.hp.com/go/cpc
Insight Online/Insight
Remote Support
HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution*. Learn more about Insight Remote
Support
http://www.hp.com/go/insightremotesupport
and Insight Online
http://www.hp.com/go/insightonline
* Insight Remote Support is a prerequisite for Proactive Care.
HP Support Center
Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more
http://www.hp.com/go/hpsc
HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack, or HP contractual support agreement.
*HP' Support Center Mobile App is subject to local availability
Parts and Material
HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.
Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.
The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.
For more information
To learn more on HP ProLiant servers, please contact your HP sales representative or HP Authorized
ServiceOne Channel Partner. Or visit:
http://www.hp.com/services/proliant
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Service and Support
DA - 14212 North America — Version 54 — December 20, 2013
Page 18
Page 19
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
NOTE:
Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section
of this QuickSpecs.
NOTE:
HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped
separately.
NOTE:
If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this
QuickSpecs.
NOTE:
All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard
drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8
Hard Drive Blank Kit.
Entry Models
E5-2600 v2 series Processors
HP ProLiant DL380p Gen8
E5-2609v2 1P 4GB-R
P420i/ZM 460W PS Server
704560-001
Processor(s)
(1) Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)
Cache Memory
10MB (1x10MB) Level 3
Memory
4GB (1x4GB) PC3L-12800R (DDR3-1600LV) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/ZM (RAID 0/1/1+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
3 PCIe slots (+3 PCIe slots available with upgrade option)
Power Supply
(1) HP 460W Common Slot Gold Hot Plug Power Supply (92% Efficient)
Fans
(4) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
N/A
Form Factor
Rack (2U), HP Friction Rail Kit
NOTE:
The HP 2U Gen8 Cable Management Arm is not available when using
Friction Rails.
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
E5-2600 series Processors
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 19
Page 20
HP ProLiant DL380p Gen8
E5-2609 1P 4GB-R P420i
SFF 460W PS Entry Server
642121-001
Processor(s)
(1) Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W) Processor
Cache Memory
10MB (1x10MB) Level 3
Memory
4GB (1x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/ZM (RAID 0/1/1+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
3 PCIe slots (+3 PCI slots available with upgrade option)
Power Supply
(1) HP 460W Common Slot Gold Hot Plug Power Supply (92% Efficient)
Fans
(4) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Friction Rail Kit
NOTE:
The HP 2U Gen8 Cable Management Arm is not available when using
Friction Rails.
NOTE: To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
Base Models
E5-2600 v2 series Processors
HP ProLiant DL380p Gen8
E5-2630v2 1P 16GB-R
P420i/1GB FBWC 460W PS
Server
704559-001
Processor(s)
(1) Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (1x16GB) PC3L-12800R (DDR3-1600LV) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 20
Page 21
PCI-Express Slots
3 PCIe slots (+3 PCIe slots available with upgrade option)
Power Supply
(1) HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(4) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
N/A
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
E5-2600 series Processors
HP ProLiant DL380p Gen8
E5-2640 1P 16GB-R P420i
SFF 460W PS Base Server
642107-001
HP ProLiant DL380p Gen8
E5-2630 1P 16GB-R P420i
SFF 460W PS Base Server
642119-001
HP ProLiant DL380p Gen8
E5-2620 1P 16GB-R P420i
SFF 460W PS Base Server
642120-001
Processor(s)
One of the following
depending on Model
(1) Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processor
(1) Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processor
(1) Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5) Processor
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (4x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
3 PCIe slots (+3 PCI slots available with upgrade option)
Power Supply
(1) HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(4) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Ball Bearing Rail Kit/Cable Management Arm standard
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 21
Page 22
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
25SFF Models
NOTE:
This Model is Energy Star Certified.
E5-2600 v2 series Processors
HP ProLiant DL380p Gen8
E5-2650v2 2P 32GB-R
P420i/2GB FBWC 750W
RPS Server
704558-001
Processor(s)
(2) Intel® Xeon® E5-2650 v2 (2.6GHz/8-core/20MB/8.0GT-s QPI/95W, DDR31866, HT, Turbo2- 4/4/4/4/5/6/7/8)
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (2x16GB) PC3-14900R (DDR3-1866) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Storage Controller
HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 25 SFF SAS/SATA HDD Bays; includes 23 SFF hard drive blanks
Optical Drive Bay
Not available in 25 SFF model
PCI-Express Slots
6 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
Performance Models
NOTE:
These Models are Energy Star Certified.
E5-2600 v2 series Processors
HP ProLiant DL380p Gen8
E5-2690v2 2P 32GB-R
P420i/2GB FBWC 750W
RPS Server
Processor(s)
(2) Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W,
DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)
Cache Memory
25MB (1x25MB) Level 3
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 22
Page 23
RPS Server
709943-001
Memory
32GB (2x16GB) PC3-14900R (DDR3-1866) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Storage Controller
HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
DVD-RW standard
PCI-Express Slots
6 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
E5-2600 series Processors
HP ProLiant DL380p Gen8
E5-2690 2P 32GB-R P420i
SATA SFF 750W PS High
Perf Server
662257-001
HP ProLiant DL380p Gen8
E5-2665 2P 32GB-R P420i
SFF 750W PS High Perf
Server
642105-001
HP ProLiant DL380p Gen8
E5-2650 2P 32GB-R P420i
SFF 750W PS High Perf
Server
642106-001
Processor(s)
One of the following
depending on Model
(2) Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8GT-s QPI/135W, DDR3-1600,
HT, Turbo2- 4/4/4/5/5/7/7/9) Processor
(2) Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8GT-s QPI/115W, DDR3-1600,
HT, Turbo2- 4/4/5/5/6/6/7/7) Processor
(2) Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600,
HT, Turbo2- 4/4/5/5/5/7/8/8) Processor
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (4x8GB) PC3-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 24 DIMM slots available.
Network Controller
One of the following
depending on Model
HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter (on E5-2690/E5-2665 Models)
NOTE:
SFP Transceivers for the 530FLR-SFP+ are not included with the server
and must be purchased separately.
HP Ethernet 1Gb 4-port 331FLR Adapter (on E5-2650 Model)
Storage Controller
HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
DVD-RW standard
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 23
Page 24
PCI-Express Slots
6 PCIe slots (includes second riser slot upgrade option)
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Power Supplies (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
HP Insight Control Standard
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Ball Bearing Rail Kit/Cable Management Arm standard
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
Energy Star Models
NOTE:
These Models are Energy Star Certified.
E5-2600 v2 series Processors
HP ProLiant DL380p Gen8
E5-2630v2 2P 32GB-R
P420i/1GB FBWC 460W PS
Server
709942-001
Processor(s)
(2) Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
32GB (2x16GB) PC3L-12800R (DDR3-1600LV) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
(1) HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 24
Page 25
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
E5-2600 series Processors
HP ProLiant DL380p Gen8
E5-2630 2P 16GB-R P420i
Hot Plug SFF 460W PS
Server
677278-001
Processor(s)
(2) Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (4x4GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots.
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
3 PCIe slots (+3 PCI slots available with upgrade option)
Power Supply
(1) 460W HP CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Energy Star
Meets Energy Star requirements
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Pre-configured Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 25
Page 26
HP ProLiant DL380p Gen8
E5-2690 2P Svr/S-Buy
742818-S01
Processor(s)
(2) Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8GT-s QPI/135W, DDR3-1600,
HT, Turbo2- 4/4/4/5/5/7/7/9)
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (4x8GB) PC3L-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 24 DIMM slots
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 750W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2670 2P Svr/S-Buy
670852-S01
Processor(s)
(2) Intel® Xeon® E5-2670 (2.60GHz/8-core/20MB/8GT-s QPI/115W, DDR31600, HT, Turbo2- 4/4/5/5/6/6/7/7)
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (4x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 750W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Also includes HP Insight Control Control including 1yr 24x7 Technical Support
and Updates Single Server License
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 26
Page 27
HP ProLiant DL380p Gen8
E5-2660 2P Svr/S-Buy
670853-S01
Processor(s)
(2) Intel® Xeon® E5-2660 (2.20GHz/8-core/20MB/8GT-s QPI/95W, DDR3-1600,
HT, Turbo2- 5/5/6/6/7/7/8/8)
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (4x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 750W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Also includes HP Insight Control Control including 1yr 24x7 Technical Support
and Updates Single Server License
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2640 2P Svr/S-Buy
670854-S01
Processor(s)
(2) Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/7.2GT-s QPI/95W, DDR31333, HT, Turbo2- 3/3/4/4/5/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (2x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 460W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 27
Page 28
HP ProLiant DL380p Gen8
E5-2620 1P Svr/S-Buy
670856-S01
Processor(s)
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333,
HT, Turbo2- 3/3/4/4/5/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (2x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots available with upgrade to 2nd processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/with 512MB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 460W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2609 1P Svr/S-Buy
670857-S01
Processor(s)
Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/6.4GT-s QPI/80W)
Cache Memory
10MB (1x10MB) Level 3
Memory
8GB (1x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2
nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/ZM (RAID 0/1/1+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 460W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 28
Page 29
HP ProLiant DL380p Gen8
E5-2640 1P 25SFF Svr/SBuy
706539-S01
Processor(s)
Intel® Xeon® E5-2640 (2.50GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333,
HT, Turbo2- 3/3/4/4/5/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (2x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots available with upgrade to 2nd processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 25 SFF SAS/SATA HDD Bays
Optical Drive Bay
Not available
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 750W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2620 1P LFF Svr/S-Buy
697494-S01
Processor(s)
Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333,
HT, Turbo2- 3/3/4/4/5/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (2x8GB) PC3L-10600R (DDR3-1333) Registered DIMMS
NOTE:
Total 24 DIMM slots available with upgrade to 2nd processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 LFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 460W CS Platinum Plus Hot Plug Redundant Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit /Cable Management Arm standard
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 29
Page 30
HP ProLiant DL380p Gen8
E5-2609 1P SFF Svr/S-Buy
734789-S01
Processor(s)
(1) Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)
Cache Memory
10MB (1x10MB) Level 3
Memory
8GB (1x8GB) PC3L-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/ZM (RAID 0/1/1+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
HP 460W CS Platinum Plus Hot Plug Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2620 1P SFF Svr/S-Buy
734790-S01
Processor(s)
(1) Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (1x16GB) PC3L-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
HP 460W CS Platinum Plus Hot Plug Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 30
Page 31
HP ProLiant DL380p Gen8
E5-2640 2P SFF Svr/S-Buy
734791-S01
Processor(s)
(2) Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR31600, HT, Turbo2- 3/3/3/3/3/3/4/5)
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (2x16GB) PC3L-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
2 x HP 460W CS Platinum Plus Hot Plug Redundant Power Supplies
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2660 1P SFF Svr/S-Buy
734792-S01
Processor(s)
Intel® Xeon® E5-2660 v2 (2.2GHz/10-core/25MB/8.0GT-s QPI/95W, DDR31866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)
Cache Memory
25MB (1x25MB) Level 3
Memory
16GB (1x16GB) PC3L-14900R (DDR3-1866) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
HP 460W CS Platinum Plus Hot Plug Power Supply
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 31
Page 32
HP ProLiant DL380p Gen8
E5-2670 2P SFF Svr/S-Buy
734793-S01
Processor(s)
(2) Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W,
DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/5/6/7/8)
Cache Memory
25MB (1x25MB) Level 3
Memory
32GB (2x16GB) PC3L-14900R (DDR3-1866) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
2x HP 750W CS Platinum Plus Hot Plug Redundant Power Supplies
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2640 1P 25-SFF Svr/SBuy
734794-S01
Processor(s)
(1) Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR31600, HT, Turbo2- 3/3/3/3/3/3/4/5)
Cache Memory
20MB (1x20MB) Level 3
Memory
32GB (2x16GB) PC3L-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 25 SFF SAS/SATA HDD Bays
Optical Drive Bay
Not available
PCI-Express Slots
3 PCIe slots
Power Supply
2x HP 750W CS Platinum Plus Hot Plug Redundant Power Supplies
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 32
Page 33
HP ProLiant DL380p Gen8
E5-2620 1P 12-LFF Svr/SBuy
742132-S01
Processor(s)
(1) Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (1x16GB) PC3L-12800R (DDR3-1600) Registered DIMMS
NOTE:
Total 12 DIMM slots. 24 DIMM slots available with upgrade to 2nd
processor
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/2GB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 12 LFF SAS/SATA HDD Bays
Optical Drive Bay
Not available
PCI-Express Slots
3 PCIe slots
Power Supply
2 x HP 750W CS Platinum Plus Hot Plug Redundant Power Supplies
Fans
(4) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2690 v2 2P SFF Svr/SBuy
748303-S01
Processor(s)
(2) Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W,
DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)
Cache Memory
25MB (1x25MB) Level 3
Memory
32GB (2x16GB) PC3-14900R (DDR3-1866) Registered DIMMS
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Redundant Power Supplies
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit (does not include cable mgmt arm)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 33
Page 34
HP ProLiant DL380p Gen8
E5-2697 v2 2P SFF Svr/SBuy
748304-S01
Processor(s)
(2) Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W,
DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8)
Cache Memory
30MB (1x30MB) Level 3
Memory
32GB (2x16GB) PC3-14900R (DDR3-1866) Registered DIMMS
Network Controller
One HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)
PCI-Express Slots
3 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Redundant Power Supplies
Fans
(6) (N+1 redundancy standard)
Management
iLO Management Engine Standard
Form Factor
Rack (2U), HP Ball Bearing Rail Kit (does not include cable mgmt arm)
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2697v2 2P 64GB-R
P420i/1GB FBWC 750W
RPS Server
748598-001
Processor(s)
(2) Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W,
DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6/7/8)
Cache Memory
30MB (1x30MB) Level 3
Memory
64GB (4x16GB) PC3-14900R (DDR3-1866) Registered DIMMs
NOTE:
Total 24 DIMM slots available
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 34
Page 35
HP ProLiant DL380p Gen8
E5-2695v2 2P 64GB-R
P420i/1GB FBWC 750W
RPS Server
748597-001
Processor(s)
(2) Intel® Xeon® E5-2695 v2 (2.4GHz/12-core/30MB/8.0GT-s QPI/115W,
DDR3-1866, HT, Turbo2- 4/4/4/4/4/4/4/4/5/6/7/8)
Cache Memory
30MB (1x30MB) Level 3
Memory
64GB (4x16GB) PC3-14900R (DDR3-1866) Registered DIMMs
NOTE:
Total 24 DIMM slots available
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2690v2 2P 64GB-R
P420i/1GB FBWC 750W
RPS Server
748596-001
Processor(s)
(2) Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W,
DDR3-1866, HT, Turbo2- 3/3/3/3/3/3/3/4/5/6)
Cache Memory
25MB (1x25MB) Level 3
Memory
64GB (4x16GB) PC3-14900R (DDR3-1866) Registered DIMMs
NOTE:
Total 24 DIMM slots available
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
(2) HP 750W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 35
Page 36
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2667v2 2P 32GB-R
P420i/1GB FBWC 460W
RPS Server
748595-001
Processor(s)
(2) Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR31866, HT, Turbo2- 3/3/3/3/4/5/6/7)
Cache Memory
25MB (1x25MB) Level 3
Memory
32GB (2x16GB) PC3-14900R (DDR3-1866) Registered DIMMs
NOTE:
Total 24 DIMM slots available
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
(2) HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(6) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 36
Page 37
HP ProLiant DL380p Gen8
E5-2640v2 1P 16GB-R
P420i/1GB FBWC 460W PS
Server
748594-001
Processor(s)
Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR31600, HT, Turbo2- 3/3/3/3/3/3/4/5)
Cache Memory
20MB (1x20MB) Level 3
Memory
16GB (1x16GB) PC3L-12800R (DDR3-1600) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/1GB FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(4) (N+1 redundancy standard)
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
HP ProLiant DL380p Gen8
E5-2620v2 1P 16GB-R
P420i/512MB FBWC 460W
PS Server
748593-001
Processor(s)
Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR31600, HT, Turbo2- 3/3/3/3/4/5)
Cache Memory
15MB (1x15MB) Level 3
Memory
16GB (2x8GB) PC3L-12800R (DDR3-1600) Registered DIMMs
NOTE:
Total 24 DIMM slots available with processor upgrade (2P
configuration)
Network Controller
HP Ethernet 1Gb 4-port 331FLR Adapter
Storage Controller
HP Smart Array P420i/512MB FBWC (RAID 0/1/1+0/5/5+0)
Hard Drive
None ship standard
Internal Storage
Standard: 8 SFF SAS/SATA HDD Bays; includes 6 SFF hard drive blanks
Optional: +8 SFF (total of 16) SFF SAS/SATA HDD Bays
Optical Drive Bay
Optional: Slim Optical Bay (SATA DVD-RW/ROM Optical Drive)
PCI-Express Slots
6 PCIe slots
Power Supply
HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
Fans
(4) (N+1 redundancy standard)
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 37
Page 38
Management
HP iLO Management Engine (standard)
Optional: HP Insight Control
Form Factor
Rack (2U), HP Ball Bearing Rail Kit without Cable Management Arm
NOTE:
To assist in the installation of the server into the rack an optional
installation tool is available by contacting your local services representative
(p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all
Rack Server installations. Please refer to your installation instructions for
proper tools and number of people to use for any installation.
Warranty
Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support
with next business day response.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Smart Buys
DA - 14212 North America — Version 54 — December 20, 2013
Page 38
Page 39
NOTE:
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on
configurable product offerings and requirements.
NOTE:
Factory Integrated Models must start with a CTO Server.
NOTE:
FIO indicates that this option is only available as a factory installable option.
NOTE:
All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives
ordered with the server.
Step 1: Base Configuration (choose one of the following configurable models)
HP Models
HP ProLiant DL380p Gen8 8 LFF Configure-to-order Server
665553-B21
Factory Integrated Model ships with:
2 x HP Smart Socket Guides for fast processor installation.
24 DIMM slots for RDIMM, LRDIMM and UDIMM Memory installation
1 FlexibleLOM connector: (see Step2: HP FlexibleNIC section below for NIC choices to
populate the embedded connector)
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x16 PCIe 3.0 (x16 connector)
Slot 2 - HL/FH x8 PCIe 3.0 (x8 connector)
Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
Additional Slots may be added via selections from the PCI Information and
Options subsection
System Fans - 4 (2 additional fans included with second processor)
Drive Cage - 8LFF (Optical media drive optional)
USB - 4 Rear, 2 Front, 1 Internal, 1 SD slot
HP iLO Management Engine (standard)
NOTE:
Power Supply & Rail Kit not included - choose from Step 2 & 3 sections below
NOTE:
If a P430 controller is required, it cannot be populated in slots 3 or 4.
HP ProLiant DL380p Gen8 8 SFF Configure-to-order Server
653200-B21
Factory Integrated Model ships with:
1 FlexibleLOM connector: (see Step 2: HP FlexibleLOM section below for NIC choices to
populate the embedded connector)
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x16 PCIe 3.0 (x16 connector)
Slot 2 - HL/FH x8 PCIe 3.0 (x8 connector)
Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
Additional Slots may be added via selections from the PCI Information and
Options subsection
System Fans - 4 (2 additional fans included with second processor)
Drive Cage - 8SFF (Optical media drive OR Second 8SFF drive cage optional)
USB - 4 Rear, 2 Front, 1 Internal, 1 SD slot
HP iLO Management Engine (standard)
NOTE:
Power Supply & Rail Kit not included - choose from Step 2 & 3 sections below
NOTE:
If a P430 controller is required, it cannot be populated in slots 3 or 4.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 39
Page 40
HP ProLiant DL380p Gen8 12 LFF Configure-to-order Server
665552-B21
Factory Integrated Model ships with:
1 FlexibleLOM connector: (see Step 2: HP FlexibleLOM section below for NIC choices to
populate the embedded connector)
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x16 PCIe 3.0 (x16 connector)
Slot 2 - HL/FH x8 PCIe 3.0 (x8 connector)
Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
Additional Slots may be added via selections from the PCI Information and
Options subsection
System Fans - 4 (2 additional fans included with second processor)
Drive Cage - 12LFF (with built-in expander)
USB - 4 Rear, 1 Front, 1 Internal, 1 SD slot
HP iLO Management Engine (standard)
NOTE:
Power Supply & Rail Kit not included - choose from Step 3 & 4 sections below
NOTE:
Customers cannot select the E5-2643 nor the E5-2637 v2 processor in this
configure-to-order model.
NOTE:
Processors consuming 115W power or greater require the use of DIMM blanks
and do not support LR or HC-DIMMs
NOTE:
This chassis comes with a built-in expander. All drives can be driven off of the
embedded P420i controller.
NOTE:
Customers must add a minimum of a 512MB controller cache module when
choosing this CTO server.
NOTE:
If a P822 controller is required, it cannot be populated in slot 3.
NOTE:
If a P421 controller is required, it cannot be populated in slot 1.
NOTE:
If a P430 controller is required, it cannot be populated in slots 3 or 4.
NOTE:
HyperCloud DIMMs, Q4000, and Q6000 options are not supported in this CTO
server.
NOTE:
Customer will not be able to get an optical drive, SID, second front USB, and ID
label.
HP ProLiant DL380p Gen8 25 SFF Configure-to-order Server
665554-B21
Factory Integrated Model ships with:
1 FlexibleLOM connector: (see Step 2: HP FlexibleLOM section below for NIC choices to
populate the embedded connector)
Smart Array P420i Controller w/ Zero Memory (ZM)
I/O slots - 3 Slots come standard:
Slot 1 - FL/FH x16 PCIe 3.0 (x16 connector)
Slot 2 - HL/FH x8 PCIe 3.0 (x8 connector)
Slot 3 - HL/FH x4 PCIe 2.0 (x8 connector)
Additional Slots may be added via selections from the PCI Information and
Options subsection
System Fans - 4 (2 additional fans included with second processor)
Drive Cage - 25SFF (with built-in expander)
USB - 4 Rear, 1 Front, 1 Internal, 1 SD slot
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 40
Page 41
HP iLO Management Engine (standard)
NOTE:
Power Supply & Rail Kit not included - choose from Step 3 & 4 sections below
NOTE:
Customers cannot select the E5-2643, E5-2637 v2, nor the E5-2643 v2
processor in this configure-to-order model.
NOTE:
Processors consuming 115W power or greater require the use of DIMM blanks
and do not support LR or HC-DIMMs
NOTE:
This chassis comes with a built-in expander. All drives can be driven off of the
embedded P420i controller.
NOTE:
Customers must add a minimum of a 512MB controller cache module when
choosing this CTO server.
NOTE:
If a P822 controller is required, it cannot be populated in slot 3.
NOTE:
If a P430 controller is required, it cannot be populated in slots 3 or 4.
NOTE:
HyperCloud DIMMs, Q4000, and Q6000 options are not supported in this CTO
server.
NOTE:
Customer will not be able to get an optical drive, SID, second front USB, and ID
label.
Step 2: Choose Required Options (only one of the following from each list unless otherwise
noted)
HP Processors
NOTE:
If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21
Entry Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1333MHz memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) FIO Processor Kit
715222-L21
HP DL380p Gen8 Intel® Xeon® E5-2603v2 (1.8GHz/4-core/10MB/80W) FIO Processor Kit
715223-L21
Base Processors - E5-2600 v2 series Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2640v2 (2.0GHz/8-core/20MB/95W) FIO Processor Kit
715219-L21
HP DL380p Gen8 Intel® Xeon® E5-2630v2 (2.6GHz/6-core/15MB/80W) FIO Processor Kit
715220-L21
HP DL380p Gen8 Intel® Xeon® E5-2620v2 (2.1GHz/6-core/15MB/80W) FIO Processor Kit
715221-L21
HP DL380p Gen8 Intel® Xeon® E5-2650Lv2 (1.7GHz/10-core/25MB/70W) FIO Processor
Kit
715229-L21
HP DL380p Gen8 Intel® Xeon® E5-2630Lv2 (2.4GHz/6-core/15MB/60W) FIO Processor
Kit
715230-L21
Performance Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1866MHz DDR3 memory speeds
HP DL380p Gen8 Intel® Xeon® E5-2697v2 (2.7GHz/12-core/30MB/130W) FIO Processor
Kit
715224-L21
HP DL380p Gen8 Intel® Xeon® E5-2695v2 (2.4GHz/12-core/30MB/115W) FIO Processor
Kit
715225-L21
HP DL380p Gen8 Intel® Xeon® E5-2690v2 (3.0GHz/10-core/25MB/130W) FIO Processor
Kit
715214-L21
HP DL380p Gen8 Intel® Xeon® E5-2680v2 (2.8GHz/10-core/25MB/115W) FIO Processor
Kit
715215-L21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 41
Page 42
HP DL380p Gen8 Intel® Xeon® E5-2670v2 (2.5GHz/10-core/25MB/115W) FIO Processor
Kit
715216-L21
HP DL380p Gen8 Intel® Xeon® E5-2667v2 (3.3GHz/8-core/25MB/130W) FIO Processor
Kit
715226-L21
HP DL380p Gen8 Intel® Xeon® E5-2660v2 (2.2GHz/10-core/25MB/95W) FIO Processor
Kit
715217-L21
HP DL380p Gen8 Intel® Xeon® E5-2650v2 (2.6GHz/8-core/20MB/95W) FIO Processor Kit
715218-L21
HP DL380p Gen8 Intel® Xeon® E5-2643v2 (3.3GHz/6-core/25MB/130W) FIO Processor
Kit
715227-L21
HP DL380p Gen8 Intel® Xeon® E5-2637v2 (3.5GHz/4-core/15MB/130W) FIO Processor
Kit
715228-L21
Entry Processors - E5-2600 series Processors
NOTE:
All support up to 1066MHz memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) FIO Processor Kit
662252-L21
HP DL380p Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) FIO Processor Kit
662254-L21
Base Processors - E5-2600 series Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/95W) FIO Processor Kit
662246-L21
HP DL380p Gen8 Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/95W) FIO Processor Kit
662248-L21
HP DL380p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) FIO Processor Kit
662250-L21
HP DL380p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) FIO Processor Kit
675092-L21
Performance Processors - E5-2600 series Processors
NOTE:
All support up to 1600MHz DDR3 memory speeds
HP DL380p Gen8 Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/135W) FIO Processor Kit
662226-L21
HP DL380p Gen8 Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/130W) FIO Processor Kit
662228-L21
HP DL380p Gen8 Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/115W) FIO Processor Kit
662240-L21
HP DL380p Gen8 Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/130W) FIO Processor Kit
662214-L21
HP DL380p Gen8 Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/115W) FIO Processor Kit
666509-L21
HP DL380p Gen8 Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/95W) FIO Processor Kit
662242-L21
HP DL380p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) FIO Processor Kit
662244-L21
HP DL380p Gen8 Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/70W) FIO Processor Kit
662256-L21
HP DL380p Gen8 Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/130W) FIO Processor Kit
662216-L21
HP DL380p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) FIO Processor Kit
662224-L21
HP Memory
NOTE:
HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and
cannot be mixed within a server. The majority of ProLiant Gen8 servers support
LRDIMM, RDIMM and UDIMMs.
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 42
Page 43
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708637-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713983-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
731765-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708639-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708641-B21
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713975-B21
HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708631-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713977-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708633-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713979-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708635-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 43
Page 44
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647909-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit
708643-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit
647903-B21
HyperCloud DIMMs (HDIMMs) - E5-2600 series Processors
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Dual Rank x4 PC3-10600H (DDR3-1333) HyperCloud CAS-9 Memory
Kit
715166-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:
www.hp.com/go/proliant-energy-efficient
NOTE:
PC3L is a low voltage memory
HP Networking
FlexibleLOM Adapters
NOTE:
Only one FlexibleLOM can be added to the server. These options are upgradeable
and can be changed from the original configuration after the server is shipped.
NOTE:
For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is
required per each adapter.
HP Ethernet 1Gb 4-port 331FLR FIO Adapter
684208-B21
HP FlexFabric 10Gb 2-port 526FLR-SFP+ FIO Adapter
684219-B21
HP Ethernet 10Gb 2-port 530FLR-SFP+ FIO Adapter
684210-B21
HP FlexFabric 10Gb 2-port 533FLR-T FIO Adapter
700760-B21
HP FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter
700752-B21
HP FlexFabric 10Gb 2-port 554FLR-SFP+ FIO Adapter
684213-B21
HP Ethernet 1Gb 4-port 366FLR FIO Adapter
684217-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 44
Page 45
HP Ethernet 10Gb 2-port 560FLR-SFP+ FIO Adapter
684218-B21
HP Ethernet 10Gb 2-port 561FLR-T FIO Adapter
700700-B21
HP Ethernet 10Gb 2-port 570FLR-SFP+ FIO Adapter
717492-B21
HP Ethernet 10Gb 2-port 571FLR-SFP+ FIO Adapter
728993-B21
NOTE:
Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately. Please see the
related NIC QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs
.
HP InfiniBand
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter
649282-B21
HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter
649283-B21
NOTE:
10Gb Ethernet requires the use of the QSFP to SFP+ adapter P/N 655874-B21.
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html
HP Power Supplies
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies
must be of the same output and efficiency rating. If non-matched power supplies are
inserted, you will get errors, and operation will fail.
NOTE:
Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:
www.hp.com/go/hppoweradvisor
.
HP Common Slot Platinum Plus Power Supply Kits
NOTE:
The following Power Supplies offer 94% Efficiency and lower total harmonic
distortion to save on energy costs. Common Slot Platinum Plus Power Supplies support
Power Discovery Services when used with the HP Intelligent PDUs.
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit
656362-B21
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit
656363-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit
656364-B21
HP Common Slot Gold Power Supplies
NOTE:
The following Power Supplies offer 92% Efficiency.
HP 460W Common Slot Gold Hot Plug Power Supply Kit
503296-B21
HP 750W Common Slot Gold Hot Plug Power Supply Kit
512327-B21
HP Common Slot -48VDC Power Supplies
NOTE:
The following Power Supplies offer 92% Efficiency.
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE:
The HP 750W Common Slot -48VDC power supply does not ship with a power
cable. It has been designed with a terminal block connection allowing for custom design
of power cords by the user.
636673-B21
HP Common Slot 380VDC Power Supplies
NOTE:
94% efficiency.
HP 1200W Common Slot 380VDC Hot Plug Power Supply Kit
NOTE:
The 1200W Common Slot 380VDC Hot Plug Power Supply Kit does not include a
power cord.
684539-B21
HP Common Slot 277VAC Power Supplies
NOTE:
94% efficiency.
HP 500W Common Slot 277VAC Hot Plug Power Supply Kit
717362-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 45
Page 46
HP 750W Common Slot 277VAC Hot Plug Power Supply Kit
717364-B21
HP 1200W Common Slot 277VAC Hot Plug Power Supply Kit
NOTE:
The 1200W Common Slot 277VAC Hot Plug Power Supply Kit does not include a
power cord.
717359-B21
HP Common Slot Titanium Power Supply Kits
NOTE:
96% efficiency with support for HP Power Discovery Services.
HP 750W Common Slot Titanium Hot Plug Power Supply Kit
697581-B21
NOTE:
Option Kits for AC power supplies include the power supply and one PDU IEC
cable.
NOTE:
HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with
Power Distribution Units (PDUs). For a full list of optional HP power cords please go to
www.hp.com/products/powercords
NOTE:
Power Specification and Technical Content for supported power supplies can be
found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
Step 3: Choose Additional Factory Integratable Options (only one of the following from each
list unless otherwise noted)
HP Graphic Options
NVIDIA GRID K1 PCIe GPU FIO Adapter
NOTE:
The HP DL380p Gen8 Dbl Wide GPU Cage Kit (728543-B21) supports 1xK1 in the
secondary position.
NOTE:
This option is available as a CTO only option.
730876-B21
HP Rack Kits
NOTE:
Gen8 rail kits have changed significantly from prior generation rail kits. Please
take a moment to review the installation documentation that comes with the server to
help you with the installation of your Gen8 server.
NOTE:
Rail kits are optional for DL380p Gen8 and are no longer included standard with
the server. Customers have the option to purchase their server without a rail kit. The HP
2U Gen8 Cable Management Arm is not available when using Friction Rails.
NOTE:
To assist in the installation of the server into the rack, an optional installation
tool is available by contacting your local services representative (p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all Rack Server
installations. Please refer to your installation instructions for proper tools and number
of people to use for any installation.
NOTE:
See HP Rack Options in Additional Options section of this QuickSpecs for more
rack kit choices.
HP 2U FIO Friction Rail Kit
NOTE:
Kit contains non-telescoping friction rails which do not allow for in-rack
serviceability. The HP Gen8 Cable Management Arm is not available when using Friction
Rails.
663476-B21
HP Insight Software
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License
C6N36A
HP OneView
HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic
E5Y43A
HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU
E5Y43AAE
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 46
Page 47
Step 4: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Core Options and Additional Options" section below.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Configuration Information - Factory Integrated Models
DA - 14212 North America — Version 54 — December 20, 2013
Page 47
Page 48
NOTE:
Some options may not be integrated at the factory. Contact your local sales representative for additional information.
HP Unique Options
HP DL380p/560 Gen8 3 Slot PCI-E Riser Kit
653206-B21
HP DL380p/560 Gen8 2 Slot 2x16 PCI-E Riser Kit
653208-B21
HP DL380p Gen8 Double Wide Riser Cage Kit
NOTE:
Kit contains a power cable for the nVidia Q6000 double wide graphics card.
NOTE:
this riser does not support card greater than 9.5", and supports only one single
or one double wide card.
NOTE:
The double wide riser cage kit is not supported in the 12LFF and 25SFF
Configure-to-order Servers.
662885-B21
HP DL380p Gen8 Double Wide Graphic Processing Unit Drive Cage Kit
NOTE:
Kit is required to support cards greater than 9.5".
NOTE:
2 processors are required for this riser
NOTE:
This riser supports 2 single wide, or one double wide CPU option in the secondary
riser position
NOTE:
The double wide riser cage kit is not supported in the 12LFF and 25SFF
Configure-to-order Servers.
728543-B21
HP DL380p Gen8 NEBS Conversion Cage Kit
NOTE:
This conversion kit is only available for the 8SFF base server model.
NOTE:
A NEBS conversion cage kit is required for each riser in an 8SFF base server for
the server to meet NEBS and ETSI certification.
707865-B21
HP Processors
Entry Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1333MHz memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit
715222-B21
HP DL380p Gen8 Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit/SBuy
736610-S21
HP DL380p Gen8 Intel® Xeon® E5-2603v2 (1.8GHz/4-core/10MB/80W) Processor Kit
715223-B21
Base Processors - E5-2600 v2 series Processors
NOTE:
All support up to1600MHz DDR3 memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2640v2 (2.0GHz/8-core/20MB/95W) Processor Kit
715219-B21
HP DL380p Gen8 Intel® Xeon® E5-2630v2 (2.6GHz/6-core/15MB/80W) Processor Kit
715220-B21
HP DL380p Gen8 Intel® Xeon® E5-2620v2 (2.1GHz/6-core/15MB/80W) Processor Kit
715221-B21
HP DL380p Gen8 Intel® Xeon® E5-2620v2 (2.1GHz/6-core/15MB/80W) Processor Kit/SBuy
736611-S21
HP DL380p Gen8 Intel® Xeon® E5-2650Lv2 (1.7GHz/10-core/25MB/70W) Processor Kit
715229-B21
HP DL380p Gen8 Intel® Xeon® E5-2630Lv2 (2.4GHz/6-core/15MB/60W) Processor Kit
715230-B21
Performance Processors - E5-2600 v2 series Processors
NOTE:
All support up to 1866MHz DDR3 memory speeds
HP DL380p Gen8 Intel® Xeon® E5-2697v2 (2.7GHz/12-core/30MB/130W) Processor Kit
715224-B21
HP DL380p Gen8 Intel® Xeon® E5-2695v2 (2.4GHz/12-core/30MB/115W) Processor Kit
715225-B21
HP DL380p Gen8 Intel® Xeon® E5-2690v2 (3.0GHz/10-core/25MB/130W) Processor Kit
715214-B21
HP DL380p Gen8 Intel® Xeon® E5-2680v2 (2.8GHz/10-core/25MB/115W) Processor Kit
715215-B21
HP DL380p Gen8 Intel® Xeon® E5-2670v2 (2.5GHz/10-core/25MB/115W) Processor Kit
715216-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 48
Page 49
HP DL380p Gen8 Intel® Xeon® E5-2667v2 (3.3GHz/8-core/25MB/130W) Processor Kit
715226-B21
HP DL380p Gen8 Intel® Xeon® E5-2660v2 (2.2GHz/10-core/25MB/95W) Processor Kit
715217-B21
HP DL380p Gen8 Intel® Xeon® E5-2660v2 (2.2GHz/10-core/25MB/95W) Processor
Kit/S-Buy
736612-S21
HP DL380p Gen8 Intel® Xeon® E5-2650v2 (2.6GHz/8-core/20MB/95W) Processor Kit
715218-B21
HP DL380p Gen8 Intel® Xeon® E5-2643v2 (3.3GHz/6-core/25MB/130W) Processor Kit
715227-B21
HP DL380p Gen8 Intel® Xeon® E5-2637v2 (3.5GHz/4-core/15MB/130W) Processor Kit
715228-B21
Entry Processors - E5-2600 series Processors
NOTE:
All support up to 1066MHz memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit
662252-B21
HP DL380p Gen8 Intel® Xeon® E5-2603 (1.80GHz/4-core/10MB/80W) Processor Kit
662254-B21
Base Processors - E5-2600 series Processors
NOTE:
All support up to1333MHz DDR3 memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/95W) Processor Kit
662246-B21
HP DL380p Gen8 Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/95W) Processor Kit
662248-B21
HP DL380p Gen8 Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/95W) Processor Kit
662250-B21
HP DL380p Gen8 Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/60W) Processor Kit
675092-B21
Performance Processors - E5-2600 series Processors
NOTE:
All support up to 1600MHz DDR3 memory speeds.
HP DL380p Gen8 Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/135W) Processor Kit
662226-B21
HP DL380p Gen8 Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/130W) Processor Kit
662228-B21
HP DL380p Gen8 Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/115W) Processor Kit
662240-B21
HP DL380p Gen8 Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/130W) Processor Kit
662214-B21
HP DL380p Gen8 Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/115W) Processor Kit
666509-B21
HP DL380p Gen8 Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/95W) Processor Kit
662242-B21
HP DL380p Gen8 Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/95W) Processor Kit
662244-B21
HP DL380p Gen8 Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/70W) Processor Kit
662256-B21
HP DL380p Gen8 Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/130W) Processor Kit
662216-B21
HP DL380p Gen8 Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/80W) Processor Kit
662224-B21
NOTE:
Up to 2 processors supported. Performance and Energy Star Model
configurations include two processors.
NOTE:
HT indicates that the processor model supports Intel® Hyper-Threading
Technology
NOTE:
Turbo2: Intel® Turbo Boost Technology 2.0 provides more computing power
when you need it with performance that adapts to spikes in your workload and delivers
more performance upside than then previous generation turbo technology.
NOTE:
DDR3 speed is the maximum memory speed of the processor. Actual memory
speed may depend on the quantity and type of DIMMs installed.
HP Memory
NOTE:
HP memory from previous generation servers are not qualified or warranted
with this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 49
Page 50
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM, UDIMM, and HDIMMs are all distinct memory technologies and
cannot be mixed within a server. The majority of ProLiant Gen8 servers support
LRDIMM, RDIMM and UDIMMs.
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708637-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713983-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
731765-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708639-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708641-B21
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647893-B21
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit S-Buy
647893-S21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647895-B21
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit S-Buy
647895-S21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit S-Buy
647897-S21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647899-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit S-Buy
647899-S21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit S-Buy
647901-S21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 50
Page 51
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
672631-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit S-Buy
672631-S21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713975-B21
HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708631-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713977-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708633-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713979-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708635-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647905-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit S-Buy
647905-S21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647907-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit S-Buy
647907-S21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647909-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit
708643-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit
647903-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 51
Page 52
HyperCloud DIMMs (HDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Dual Rank x4 PC3-10600H (DDR3-1333) HyperCloud CAS-9 Memory
Kit
715166-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
Depending on the memory configuration and processor model, 1600MHz and
1333MHz memory may operate at a lower speed. Please see the see the "Memory"
section later in this document and the Online Memory Configuration Tool for details at:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
For additional memory rules and guidelines, see the "Memory" section later in
this document.
NOTE:
For more information on ProLiant Energy Efficient Features, see:
www.hp.com/go/proliant-energy-efficient
NOTE:
PC3L is a low voltage memory.
HP Optical Drives
HP 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive
652232-B21
HP 12.7mm Slim SATA DVD-RW JackBlack Optical Drive
652235-B21
HP Hard Drives
NOTE:
The HP ProLiant DL380p Gen8 Smart Storage solutions are equipped with
entirely re-designed Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in)
hot plug carriers for HP Qualified Hard Drives and Solid State Drives. These new carriers
provide status and activity indicators as well as caution indicators for "Do Not Remove".
NOTE:
The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE:
Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard
Drive
718162-B21
HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
697574-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652589-B21
HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652589-S21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652583-B21
HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652583-S21
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652572-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652564-B21
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652564-S21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652611-B21
HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652611-S21
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive
652605-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 52
Page 53
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy
652605-S21
SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives
HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
652749-B21
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
652745-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives
HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive
652620-B21
HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive
652615-B21
SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives
HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
695510-B21
HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652766-B21
HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652757-B21
HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
652753-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html
6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
655710-B21
HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
655710-S21
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive
655708-B21
HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
655708-S21
6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives
HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
693687-B21
HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
628061-B21
HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
658079-B21
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
657750-B21
HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
657750-S21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive
658071-B21
HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy
658071-S21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
717965-B21
HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
734360-B21
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Boot Solid State Drives
HP 120GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
718171-B21
HP 80GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
734362-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 53
Page 54
6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State
Drives
HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive
717973-B21
HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive
717971-B21
HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739898-B21
HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739888-B21
HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive
717969-B21
6G SATA Value Endurance Hot Plug LFF (3.5-inch) Enterprise Value Solid State Drives
HP 800GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State
Drive
718189-B21
HP 600GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739900-B21
HP 480GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State
Drive
718183-B21
HP 300GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Boot 3yr Wty Solid State
Drive
739890-B21
HP 240GB 6G SATA Value Endurance LFF 3.5-in SC Enterprise Value 3yr Wty Solid State
Drive
718177-B21
6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691868-B21
HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691866-B21
HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691864-B21
HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691862-B21
6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives
HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691860-B21
HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691856-B21
HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691854-B21
HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive
691852-B21
6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives
HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive
653082-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 54
Page 55
HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive
653078-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html
Hard Drive Kits
NOTE:
All Factory Integrated Models will be populated with sufficient hard drive blanks
based on the number of initial hard drives ordered with the server.
NOTE:
The part numbers for single HDD blanks below are provided should the customer
require replacement HDD blanks for their server.
HP SFF Gen8 Hard Drive Blank Kit
666987-B21
HP LFF Gen8 Hard Drive Blank Kit
666986-B21
HP DL380/DL385 Gen8 8 Small Form Factor Hard Drive Backplane Cage Kit
NOTE:
With upgrade of 8SFF Cage/Bkpln (662883-B21), there is no Optical Drive
support.
NOTE:
All cables necessary for proper installation of the 8SFF Cage are included with
this Kit.
NOTE:
With upgrade of 8SFF Cage/Bkpln (662883-B21), an additional storage controller
is required. HP recommends the HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS
Controller (P/N 631670-B21).
NOTE:
The P822 controller has only two internal ports like the P420 controller and
cannot be used to attach both 8SFF drive cages through a single controller. Please see
the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/14341_na/14341_na.html
NOTE:
In Gen8, the 8+8SFF solution is designed as a performance configuration
delivering maximum IOPS across the two drive cages. Customers seeking to have all
drives in a single volume should consider the DL380p Gen8 25 SFF Configure-to-order
Server (P/N 665554-B21) as a base.
662883-B21
Hard Drive Cables
HP DL38x/DL360 Gen8 Embedded SATA Cable Kit
664009-B21
HP Networking
Gigabit Ethernet adapters
HP NC112T PCI Express Gigabit Server Adapter
503746-B21
HP NC365T 4-port Ethernet Server Adapter
593722-B21
HP Ethernet 1Gb 4-port 331T Adapter
647594-B21
HP Ethernet 1Gb 2-port 361T Adapter
652497-B21
HP Ethernet 1Gb 2-port 332T Adapter
615732-B21
10 Gigabit Ethernet Adapters
NOTE:
A minimum of two Gigabytes (2 GB) of server memory is required per each
adapter.
NOTE:
Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately. Please see the
related NIC QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs
.
HP NC523SFP 10Gb 2-port Server Adapter
593717-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 55
Page 56
HP Ethernet 10Gb 2-port 530SFP Adapter
652503-B21
HP Ethernet 10Gb 2-port 530T Adapter
656596-B21
HP Ethernet 10Gb 2-port 560SFP+ Adapter
665249-B21
HP Ethernet 10Gb 2-port 561T Adapter
716591-B21
HP NC552SFP 10Gb 2-port Ethernet Server Adapter
614203-B21
HP Ethernet 10Gb 2-port 570SFP+ Adapter
718904-B21
HP Ethernet 10Gb 2-port 571SFP+ Adapter
728987-B21
FlexibleLOM Adapters
NOTE:
Only one FlexibleLOM can be added to the server. These options are upgradeable
and can be changed from the original configuration after the server is shipped.
NOTE:
Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately. Please see the
related NIC QuickSpecs for Technical Specifications and additional information:
www.hp.com/go/ProLiantNICs
.
HP Ethernet 1Gb 4-port 331FLR Adapter
629135-B21
HP Ethernet 1Gb 4-port 366FLR Adapter
665240-B21
HP FlexFabric 10Gb 2-port 526FLR-SFP+ Adapter
629138-B21
HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
647581-B21
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
700759-B21
HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter
700751-B21
HP FlexFabric 10Gb 2-port 554FLR-SFP+ Adapter
629142-B21
HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter
665243-B21
HP Ethernet 10Gb 2-port 561FLR-T Adapter
700699-B21
HP Ethernet 10Gb 2-port 570FLR-SFP+ Adapter
717491-B21
HP Ethernet 10Gb 2-port 571FLR-SFP+ Adapter
728992-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
www.hp.com/go/ProLiantNICs
HP InfiniBand
QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA
583211-B21
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544QSFP Adapter
649281-B21
NOTE:
For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to
the server, which is selected in Step 2 for the "Configuration Information - Factory
Integrated Models" section. These two options are for upgrade or change from original
configuration.
NOTE:
FLR Indicates new HP FlexibleLOM Adapter series.
HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter
649282-B21
HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter
649283-B21
NOTE:
10Gb Ethernet requires the use of the QSFP to SFP+ adapter P/N 655874-B21.
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 56
Page 57
HP I/O Expansion Options
HP DL380p/560 Gen8 3 Slot PCI-E Riser Kit
653206-B21
HP DL380p/560 Gen8 2 Slot 2x16 PCI-E Riser Kit
653208-B21
HP DL380p Gen8 Double Wide Riser Cage Kit
NOTE:
Kit is required to support nVidia Q6000 double wide graphics card.
NOTE:
Kit contains a power cable for the nVidia Q6000 double wide graphics card.
NOTE:
The double wide riser cage kit is not supported in the 12LFF and 25SFF
Configure-to-order Servers.
662885-B21
HP DL380p Gen8 Double Wide Graphic Processing Unit Drive Cage Kit
NOTE:
Kit is required to support cards greater than 9.5".
NOTE:
2 processors are required for this riser
NOTE:
This riser supports 2 single wide, or one double wide CPU option in the secondary
riser position
NOTE:
The double wide riser cage kit is not supported in the 12LFF and 25SFF
Configure-to-order Servers.
728543-B21
HP DL380p Gen8 NEBS Conversion Cage Kit
NOTE:
This conversion kit is only available for the 8SFF base server model.
NOTE:
A NEBS conversion cage kit is required for each riser in an 8SFF base server for
the server to meet NEBS and ETSI certification.
707865-B21
HP Power Supplies
NOTE:
Mixing of power supplies in the same server is not supported. All power supplies
must be of the same output and efficiency rating. If non-matched power supplies are
inserted, you will get errors, and operation will fail.
NOTE:
Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:
www.hp.com/go/hppoweradvisor
.
HP Common Slot Platinum Plus Power Supply Kits
NOTE:
The following Power Supplies offer 94% Efficiency with support for Intelligent
Power Discovery.*
HP 460W Common Slot Platinum Plus Hot Plug Power Supply Kit
656362-B21
HP 750W Common Slot Platinum Plus Hot Plug Power Supply Kit
656363-B21
HP 1200W Common Slot Platinum Plus Hot Plug Power Supply Kit
656364-B21
HP Common Slot Gold Power Supplies
NOTE: The following Power Supplies offer 92% Efficiency.
HP 460W Common Slot Gold Hot Plug Power Supply Kit
503296-B21
HP 750W Common Slot Gold Hot Plug Power Supply Kit
512327-B21
HP Common Slot -48VDC Power Supplies
NOTE:
The following Power Supplies offer 92% Efficiency.
HP 750W Common Slot -48VDC Hot Plug Power Supply Kit
NOTE:
The 750W Common Slot -48VDC Hot Plug Power Supply Kit does not include a
power cord. It has been designed with a terminal block connection that allows for
custom design of power cords by the end user. To select an alternative power cord for
your server, please review the HP Common Slot Power Supplies QuickSpecs
636673-B21
HP Common Slot 380VDC Power Supplies
NOTE:
94% efficiency.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 57
Page 58
HP 1200W Common Slot 380VDC Hot Plug Power Supply Kit
NOTE:
The 1200W Common Slot 380VDC Hot Plug Power Supply Kit does not include a
power cord.
684539-B21
HP Common Slot 277VAC Power Supplies
NOTE:
94% efficiency.
HP 500W Common Slot 277VAC Hot Plug Power Supply Kit
717362-B21
HP 750W Common Slot 277VAC Hot Plug Power Supply Kit
717364-B21
HP 1200W Common Slot 277VAC Hot Plug Power Supply Kit
NOTE:
The 1200W Common Slot 277VAC Hot Plug Power Supply Kit does not include a
power cord.
717359-B21
HP Common Slot Titanium Power Supply Kits
NOTE:
96% efficiency with support for HP Power Discovery Services.
HP 750W Common Slot Titanium Hot Plug Power Supply Kit
697581-B21
NOTE:
Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
NOTE:
HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with
Power Distribution Units (PDUs). For a full list of optional HP power cords please go to:
www.hp.com/products/powercords
NOTE:
Power Specification and Technical Content for supported power supplies can be
found at:
http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html
HP Graphic Options
HP 150W PCI-E Power Cable Kit
669777-B21
HP 225W PCIe Power Cable Kit
728539-B21
NVIDIA Quadro K4000 PCI-E Graphics Adapter
NOTE:
The HP DL380p Gen8 Double Wide Riser Cage Kit (662885-B21) supports
1xK4000 in the secondary position.
NOTE:
The HP DL380p Gen8 Dbl Wide GPU Cage Kit (728543-B21) supports 2xK4000 in
the secondary position.
730870-B21
NVIDIA Quadro K5000 PCI-E Graphics Adapter
NOTE:
The HP DL380p Gen8 Dbl Wide GPU Cage Kit (728543-B21) supports 1xK5000 in
the secondary position.
730872-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Core Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 58
Page 59
NOTE:
Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software
HP Insight Control
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License
C6N27A
HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License/S-Buy
C6N27S
HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic
License/S-Buy
C6N28ASE
HP Insight Control Server Provisioning Media Kit
BD883A
HP Insight Management Media Kit
C6N31A
HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License
T9082AAE
HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License
452151-B21
NOTE:
Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.
NOTE:
Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE:
Licenses ship without media. The HP Insight Control Media Kit can be ordered
separately, or can be downloaded at:
http://www.hp.com/go/insightupdates
.
NOTE:
For additional license options please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html
HP Integrated Lights-Out (iLO) Advanced for ProLiant
HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server
License
512485-B21
HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates
BD505A
NOTE:
For additional license options please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/14276_na/14276_na.html
NOTE:
For more information, visit:
http://www.hp.com/go/ilo
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 59
Page 60
Converged Infrastructure
Management Software
HP OneView
HP OneView with iLO Advanced
HP OneView Media Kit Phys No Lic
E5Y37A
HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic
E5Y34A
HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU
E5Y35AAE
HP OneView without iLO Advanced
HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic
E5Y38A
HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU
E5Y39AAE
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14621_na/14621_na.html
(Worldwide)
High Performance
Clusters
HP Cluster Management Utility
HP Insight Cluster Management Utility 1yr 24x7 Flexible License
QL803B
HP Insight Cluster Management Utility 3yr 24x7 Flexible License
BD476A
NOTE:
These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.
HP Insight Cluster Management Utility Media
BD477A
NOTE:
For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html
HP I/O Accelerator
Options
Second Generation Accelerators
HP 365GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673642-B21
HP 785GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673644-B21
HP 1205GB Multi Level Cell G2 PCIe ioDrive2 for ProLiant Servers
673646-B21
HP 2410GB Multi Level Cell G2 PCIe ioDrive2 Duo for ProLiant Servers
673648-B21
HP 3TB G2 FH/HL PCIe ioDrive2 IO Accelerator for ProLiant Servers
721458-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13587_na/13587_na.html
HP PCIe Workload
Accelerator Options
Mainstream Endurance (ME) PCIe Workload Accelerators
HP 1.4TB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator
729307-B21
HP 700GB HH/HL Mainstream Endurance (ME) PCIe Workload Accelerator
729305-B21
High Endurance (HE) PCIe Workload Accelerators
HP 700GB HH/HL High Endurance (HE) PCIe Workload Accelerator
708090-B21
HP 350GB HH/HL High Endurance (HE) PCIe Workload Accelerator
708088-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 60
Page 61
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14528_na/14528_na.html
HP Security
HP Trusted Platform Module Option
NOTE:
The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline. For more information about TPM, including a white paper, go to:
www.hp.com/go/TPM
.
NOTE:
ProLiant OS pre-installed units will come with the partition required for TPM
deployment.
NOTE:
The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
488069-B21
HP 2U Security Bezel Kit
666988-B21
HP Storage Controllers
SAS Controllers
Smart Array P222 Controller
NOTE:
P222 requires (1) HP Mini SAS Straight to Straight 37in Cable Assembly (P/N
662897-B21)
HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller
631667-B21
Smart Array P420 Controller
NOTE:
P420 requires (2) HP Mini SAS Straight to Straight 37in Cable Assemblies (P/N
662897-B21)
HP Smart Array P420/1GB FBWC 6Gb 2-ports Int SAS Controller
631670-B21
HP Smart Array P420/2GB FBWC 6Gb 2-ports Int SAS Controller
631671-B21
Smart Array P421 Controller
NOTE:
If a P421 controller is selected for the 12LFF model, it cannot be populated in
slot 1.
HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller
631673-B21
HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller
631674-B21
Smart Array P430 Controller
NOTE:
If a P430 controller is selected for any model, it cannot be populated in slots 3 or
4.
HP Smart Array P430/2GB FBWC 6Gb 1-port Int SAS Controller
698529-B21
Smart Array P431 Controller
HP Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller
698531-B21
Smart Array P822 Controller
NOTE:
If a P822 controller is selected for the 12LFF or 25SFF model, it cannot be
populated in slot 3.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 61
Page 62
HP Smart Array P822/2GB FBWC 2-ports Int/4-ports Ext SAS Controller
NOTE:
The P822 controller has only two internal ports like the P420 controller and
cannot be used to attach both 8SFF drive cages through a single controller. Please see
the QuickSpecs link below for Technical Specifications and additional information.
615418-B21
Optional Upgrades
HP 1GB P-series Smart Array Flash Backed Write Cache
631679-B21
HP 2GB P-series Smart Array Flash Backed Write Cache
631681-B21
HP 512MB P-series Smart Array Flash Backed Write Cache
661069-B21
HP DL38Xp Gen8 8 Large Form Factor (LFF) P430/830 Cable Kit
729270-B21
HP DL38Xp Gen8 12 Large Form Factor (LFF) P430/830 Cable Kit
729272-B21
HP DL38Xp Gen8 25 Small Form Factor (SFF) P430/830 Cable Kit
729274-B21
HP 6G SAS P430/830 Secondary Cable Kit
729276-B21
HP 6G SAS P430/830 Primary Cable Kit
729278-B21
HP Mini SAS/Straight to Straight Offset Bypass Cable Assembly
697611-B21
HP Mini SAS/Straight to Straight Short Bypass Cable Assembly
697691-B21
HP Mini SAS/Straight to Straight 25 SFF Bypass Cable Assembly
726974-B21
HP SmartCache No Media 24x7 Technical Support 1 Svr License
D7S26A
HP SmartCache No Media 24x7 Technical Support Flexible License
D7S27A
HP SmartCache No Media 24x7 Technical Support Electronic License
D7S27AAE
HP Cable Options
HP Mini SAS Straight to Straight 37in Cable Assembly
662897-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14227_na/14227_na.html
(Smart Array P222 Controller)
http://h18000.www1.hp.com/products/quickspecs/14228_na/14228_na.html
(Smart Array P420 Controller)
http://h18000.www1.hp.com/products/quickspecs/14229_na/14229_na.html
(Smart Array P421 Controller)
http://h18000.www1.hp.com/products/quickspecs/14624_na/14624_na.html
(Smart Array P430 Controller)
http://h18000.www1.hp.com/products/quickspecs/14625_na/14625_na.html
(Smart Array P431 Controller)
http://h18000.www1.hp.com/products/quickspecs/14341_na/14341_na.html
(Smart Array P822 Controller)
http://h18000.www1.hp.com/products/quickspecs/14532_na/14532_na.html
(SmartCache)
Host Bus Adapter
HP H220 Host Bus Adapter
650933-B21
HP H221 Host Bus Adapter
650931-B21
HP H221 PCIe 3.0 SAS Host Bus Adapter
729552-B21
HP H222 Host Bus Adapter
650926-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/14336_na/14336_na.html
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 62
Page 63
(HBA 220)
http://h18004.www1.hp.com/products/quickspecs/14222_na/14222_na.html
(HBA 221)
http://h18004.www1.hp.com/products/quickspecs/14337_na/14337_na.html
(HBA 222)
SCSI HBA
HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter
412911-B21
NOTE:
Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_na/12566_na.html
(SC11Xe HBA)
HP Power Cords
NOTE:
HP ProLiant servers ships with an IEC-IEC power cord used for rack mounting
with Power Distribution Units (PDUs).
HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord
AF556A
HP Tape Backup
NOTE:
For the complete range of tape drives, autoloaders, libraries and media see:
http://www.hp.com/go/tape
. For hardware and software compatibility of HP tape
backup products see:
http://www.hp.com/storage/SPOCK
HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit
C0L99A
HP StoreEver LTO-6 Ultrium 6650 SAS Internal Tape Drive
EH963A
HP StoreEver LTO-6 Ultrium 6650 SAS External Tape Drive
EH964A
HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive
EH969A
HP StoreEver LTO-6 Ultrium 6250 External Tape Drive
EH970A
HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader
C0H19A
HP Tape Storage Systems
HP StoreEver MSL6480
HP StoreEver MSL6480 Scalable Base Module
QU625A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14604_na/14604_na.html
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 63
Page 64
HP Disk Backup
NOTE:
For the complete range of RDX drives and media see:
http://www.hp.com/go/rdx
. For hardware and software compatibility of HP disk backup
products see:
http://www.hp.com/storage/SPOCK
.
HP RDX Removable Disk Backup System
HP RDX320 USB3.0 External Disk Backup System
B7B63A
HP RDX500 USB3.0 Internal Disk Backup System
B7B64A
HP RDX500 USB3.0 External Disk Backup System
B7B66A
HP RDX1000 USB3.0 Internal Disk Backup System
B7B67A
HP RDX1000 USB3.0 External Disk Backup System
B7B69A
HP RDX Removable Disk Backup Systems USB
HP RDX1000 USB3.0 Gen8 DL Server Module
B7B70A
NOTE:
Please see the QuickSpecs for additional part numbers, Technical Specifications,
and additional information:
http://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html
HP Disk Storage Systems
Disk Enclosures
HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle
E7W32A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html
HP Storage Options
Storage Fibre Channel HBA
NOTE:
For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000,
Windows Server 2003 and Linux, please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AP769B
HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AP770B
Emulex Fibre Channel HBAs
HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AJ762B
HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ763B
HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter
QR558A
HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter
QR559A
HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter
C8R38A
HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter
C8R39A
QLogic Fibre Channel HBAs
HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter
AK344A
HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
AJ764A
HP StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter
QW971A
HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter
QW972A
Converged Network Adapter
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 64
Page 65
HP CN1100E Dual Port Converged Network Adapter
BK835A
HP CN1000Q Dual Port Converged Network Adapter
BS668A
HP StoreFabric CN1100R Dual Port Converged Network Adapter
QW990A
HP Uninterruptible Power
Systems
HP Rack-mountable UPS
HP R1500 G3 Uninterruptible Power Supply (UPS)
HP R1.5kVA G3 1U NA Uninterruptible Power System
AF469A
HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System
AF466A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14059_na/14059_na.html
HP R/T3000 G2 Uninterruptible Power System (UPS)
HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System
AF467A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14058_na/14058_na.html
R5000 Uninterruptible Power System (UPS)
HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14109_na/14109_na.html
AF460A
R7000 Uninterruptible Power System (UPS)
HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System
AF462A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14110_na/14110_na.html
NOTE:
For additional information on HP Uninterruptible Power Systems please go to:
www.hp.com/servers/rackups
.
NOTE:
For additional information on sizing your server, please reference:
http://www.upssizer.com
.
NOTE:
Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link:
www.hp.com/products/powercords
.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 65
Page 66
HP Basic Power
Distribution Units (bPDU)
HP Basic Power Distribution Unit: 1U/0U Version
HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit
H5M54A
HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit
H5M56A
HP Basic Power Distribution Unit: Half Height Version
HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit
H5M55A
HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit
H5M57A
HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit
H5M58A
HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit
H5M61A
HP Basic Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit
H5M59A
HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit
H5M60A
HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit
H5M75A
HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit
H5M63A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit
H5M64A
HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit
H5M62A
HP Basic Power Distribution Unit: Full Height Version
HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit
H5M67A
HP Basic Power Distribution Unit: 480/277 Volt Version
HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit
H3X07A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit
H3X08A
HP 277 Volt options for H3X07A and H3X08A
HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer
H3X09A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14557_na/14557_na.html
NOTE:
Additional HP Power Distribution Units are available. For a complete list of all HP
PDUs and additional information please visit
www.hp.com/go/rackandpower
.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 66
Page 67
HP Remote Monitoring
Power Distribution Units
(mPDU)
HP Remote Monitored Power Distribution Unit: 1U Version
HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit
D9N43A
HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit
D9N46A
HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit
D9N44A
HP Remote Monitored Power Distribution Unit: Half Height Version
HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit
D9N45A
HP Remote Monitored Power Distribution Unit: Mid Height Version
HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit
D9N47A
HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit
D9N51A
HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit
D9N52A
HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit
D9N53A
HP Remote Monitored Power Distribution Unit: Full Height Version
HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit
D9N49A
HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit
D9N58A
HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit
D9N61A
HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit
D9N54A
HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit
D9N59A
HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit
D9N62A
HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit
D9N63A
HP Environmental Sensor for Remote Monitored PDUs
HP Environmental Sensor for Remote Monitored PDUs
E2D53A
NOTE:
Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/14669_na/14669_na.html
HP Intelligent Power
Distribution Units (iPDU)
iPDU Core Units
HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF520A
HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF521A
HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF522A
HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit
AF533A
HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit
AF523A
HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit
AF902A
HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF535A
HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit
AF537A
iPDU Kits with Standard Extension Bars
HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit
AF531A
HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit
AF532A
iPDU Extension Bars
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 67
Page 68
HP 5xC13 Intelligent PDU Extension Bar G2 Kit
AF547A
HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar
AF528A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13650_na/13650_na.html
NOTE:
Additional HP Power Distribution Units are available. For a complete list of all HP
PDUs and additional information please visit:
www.hp.com/go/rackandpower
.
HP Rack Series
HP Intelligent Series Rack
HP 636 1075mm Pallet Intelligent Series Rack
BW895A
HP 636 1075mm Shock Intelligent Series Rack
BW896A
HP 642 1075mm Pallet Intelligent Series Rack
BW903A
HP 642 1075mm Shock Intelligent Series Rack
BW904A
HP 647 1075mm Pallet Intelligent Series Rack
BW911A
HP 647 1075mm Shock Intelligent Series Rack
BW912A
NOTE:
Please see the QuickSpecs for Technical Specifications such as height, width,
depth, weight, and color:
http://h18000.www1.hp.com/products/quickspecs/14223_na/14223_na.html
NOTE:
For additional information regarding HP Rack Cabinets, please see the following
URL:
http://www.hp.com/go/rackandpower
.
HP Rack Options
HP Location Discovery Services
HP 36U Location Discovery Kit
BW945A
HP 42U Location Discovery Kit
BW946A
HP 47U Location Discovery Kit
BW947A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/14429_na/14429_na.html
HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)
HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor
AZ870A
HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor
AZ885A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html
HP Server Console Switches
HP Server Console 0x2x8 Port Analog Switch
AF616A
HP Server Console 0x2x16 Port Analog Switch
AF617A
HP TAA 0x2x16xKVM Server Console G2 Switch
AF626A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11834_na/11834_na.html
HP Server Console Switch G2 with Virtual Media & CAC
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 68
Page 69
HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software
AF618A
HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software
AF619A
HP KVM CAT5 1-pack USB Interface Adapter
336047-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13475_na/13475_na.html
HP IP Console Switch G2 with Virtual Media & CAC
HP 1x4 USB/PS2 KVM Console Switch
AF611A
HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software
AF620A
HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software
AF621A
HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software
AF622A
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13474_na/13474_na.html
Rail Kits
NOTE:
Gen8 rail kits have changed significantly from prior generation rail kits. Please
take a moment to review the installation documentation that comes with the server to
help you with the installation of your Gen8 server.
NOTE:
Rail kits are optional for DL380p Gen8 and are no longer included standard with
the server. Customers have the option to purchase their server without a rail kit.
NOTE:
Ball bearing rail kits contain telescoping rails which allow for in-rack
serviceability.
NOTE:
The HP 2U Gen8 Cable Management Arm is not available when using Friction
Rails.
NOTE:
To assist in the installation of the server into the rack an optional installation
tool is available by contacting your local services representative (p/n 695539-001).
Caution:
HP recommends that a minimum of two people are required for all Rack
Server installations. Please refer to your installation instructions for proper tools and
number of people to use for any installation.
HP 2U Large Form Factor Ball Bearing Gen8 Rail Kit with CMA
663480-B21
HP 2U Small Form Factor Ball Bearing Gen8 Rail Kit with CMA
663478-B21
HP 2U Small Form Factor Ball Bearing Gen8 Rail Kit
720863-B21
HP 2U Large Form Factor Ball Bearing Gen8 Rail Kit
720864-B21
HP 2U Cable Management Arm for Ball Bearing Gen8 Rail Kit
720865-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 69
Page 70
HP USB and SD options
HP Flash Media Kits for USB Drives
HP 2GB USB Flash Media Drive Key Kit
NOTE:
HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software. HP recommends
this industry standard USB flash device for use with VMware ESXi. USB device must be
installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to
HP VMware Getting Started Guide for installation instructions.
608447-B21
HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit
737953-B21
HP Enterprise Mainstream Flash Media Kits for Memory Cards
HP 8GB SD Enterprise Mainstream Flash Media Kit
726113-B21
HP 32GB SD Enterprise Mainstream Flash Media Kit
700136-B21
NOTE:
Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13971_na/13971_na.html
HP USB Standard Keyboard DT528A ABA
DT528A#ABA
HP Care Pack Services
Proactive Care
NOTE:
Collaborative Support plus Proactive services delivered by the onshore, local
language Advanced Solution Center (ASC), end-to-end case ownership from a Technical
Solution Specialists and Technical Account Manager who remotely delivers
firmware/software revision management, proactive scans and incident trend reports.
Recommended for customers running a virtualized infrastructure and/or customers
who desire an enhanced call support experience.
HP 3 year 4 hour 24x7 ProLiant DL38x(p) Proactive Care Service
U2Z50E
HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL38x(p) Proactive Care
Service
U2Z53E
HP 3 year 6 hour Call To Repair 24x7 ProLiant DL38x(p) Proactive Care Service
U2Z56E
HP 3 year 6 hour Call To Repair 24x7 w/DefectiveMedia Retention ProLiant DL38x(p)
Proactive Care SVC
U2Z59E
HP 3 year 4 hour 24x7 ProLiant DL38x(p) with Insight Control Proactive Care Service
U3N23E
HP 3 year 4hr 24x7 with Defective Media Retention DL38x(p) with Insight Control
Proactive Care SVC
U3N26E
HP 3 year 6 hour Call To Repair 24x7 ProLiant DL38x(p) with Insight Control Proactive
Care Service
U3N29E
HP 3yr 6hrCallToRepair 24x7w/Defective Media Retention DL38x(p) w/Insight Control
Proactive Care SVC
U3N32E
NOTE:
For more information, customer/resellers can contact:
http://www.hp.com/services/carepack
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Additional Options
DA - 14212 North America — Version 54 — December 20, 2013
Page 70
Page 71
HP SmartMemory
New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP
Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of
additional Gen8 enhancements in performance, durability and future manageability support through HP Active Health System
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Memory Subsystem Architecture
Each Intel® Xeon® E5-2600 or E5-2600 v2 family processor socket contains four memory channels that support three DIMMs each for a
total of twelve (12) DIMMs per installed processor or a grand total of Twenty Four (24) DIMMs for the
server. Up to 32GB capacity DIMMs are supported for 768GB of max memory (for Best Speed (1600MHz) run
2 DIMMs per channel or 16 DIMM slots x 16GB per DIMM = 256GB).
Memory population guidelines
General Memory Population Rules and Guidelines:
White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
A minimum of one DIMM is required per server.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load
the channels similarly whenever possible.
When two processors are installed, balance the DIMMs across the two processors.
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest load (DIMM with most
ranks) within a channel goes furthest from the processor.
RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.
Do not mix RDIMMs, LRDIMMs, and UDIMMs.
LRDIMMs are supported up to 3 DIMMs per channel.
Using the HP RBSU, 1.35V DIMMs can be changed to operate at 1.5V.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.
The maximum memory capacity is a function of the memory type and number of installed processors.
HP memory from previous generation servers is not qualified on the DL380p Gen8 Server. Certain HP SmartMemory features
such as memory authentication and enhanced performance may not be supported.
To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 71
Page 72
information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
.
For memory population rules and additional memory guidelines, please see the DL380p Gen8 user guide at
http://www.hp.com/support
.
Supported Memory Bandwidth for DL380p Gen8 with Intel® Xeon® E5-2600 v2 Series Processor Family
DIMM
Type ->
Register DIMM
Load
Reduced
(LRDIMMs)
Unbuffered DIMM
DIMM
Rank ->
Single Rank
(1R)
Dual
Rank
(2R)
Dual
Rank
(2R)
Single
Rank
(1R)
Single
Rank
(1R)
Dual
Rank
(2R)
Dual
Rank
(2R)
Quad Rank
(4R)
Single Rank
(1R)
Dual Rank (2R)
DIMM
Capacity
->
4GB 4GB 8GB 8GB 8GB 8GB
16GB 16GB 32GB
2GB 2GB 4GB 4GB 8GB 8GB
DIMM
Native
Speed
(MT/s) >
1600 1866 1600 1866 1600 1866 1600 1866 1866 1600 1866 1600 1866 1600 1866
Voltage
LV
Std
LV
Std
LV
Std
LV
Std Std
LV
Std
LV
Std
LV
Std
SLOTS THAT CAN BE POPULATED
12 slot
servers
12 12 12 12 12 12 12 12 12 12 12 12 12 12 12
16 slot
servers
16 16 16 16 16 16 16 16 16 16 16 16 16 16 16
24 slot
servers
24 24 24 24 24 24 24 24 24 16 16 16 16 16 16
MAXIMUM CAPACITY (GB)
*
12 slot
servers
48 48 96 96 96 96 192 192 384 24 24 48 48 96 96
16 slot
servers
64 64 128 128 128 128 256 256 512 32 32 64 64 128 128
24 slot
servers
96 96 192 192 192 192 384 384 768 32 32 64 64 128 128
POPULATED DIMM SPEED (MT/s)
1 DIMM/
Channel
1600 1866 1600 1866 1600 1866 1600 1866 1866 1600 1866 1600 1866 1600 1866
2 DIMM/
Channel
1600 1866 1600 1866 1600 1866 1600 1866 1866 1600 1866 1600 1866 1600 1866
3 DIMM/
Channel
800 1066 800 1066 800 1066 800 1066 1333
n/a n/a n/a n/a n/a n/a
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 72
Page 73
Memory speed is a function of the processor QPI bus speed.
* Maximum capacity will vary based on individual server platform qualification schedule
For HP SmartMemory, UDIMM is supported at 2DPC@DDR3-1866. Third party memory may only support up to 2DPC@DDR3-1333 or 1600.
# All configurations on 64 slot server run at DDR3-1066.
Memory Speed by E5-2600 v2 Processor Model
Processor Models
Supported Memory Speeds
E5-2697 v2, E5-2695 v2, E5-2690 v2, E5-2680 v2, E5-2670 v2, E5-2667 v2, E5-2660 v2, E5-2650
v2, E5-2643 v2, E5-2637 v2
1866/1600MHz
E5-2640 v2, E5-2630 v2, E5-2620 v2, E5-2650L v2, E5-2630L v2
1600MHz
E5-2609 v2, E5-2603 v2
1333MHz
Supported Memory Bandwidth for DL380p Gen8 with Intel® Xeon® E5-2600 Series Processor Family
DIMM Type
Registered DIMMS
(RDIMMs)
Load
Reduced
(LRDIMMs
Unbuffered with ECC DIMMs (UDIMMs)
"HyperCloud
Memory
(HDIMMs)"
DIMM Rank
Single Rank (1R)
Dual Rank (2R)
Quad
Rank (4R)
Single Rank
(1R)
Dual Rank (2R)
Dual Rank
(2R)
DIMM
Capacity
4GB 4GB 8GB 8GB 8GB
16GB 16GB 32GB
2GB 2GB 4GB 4GB 8GB 8GB
16GB
DIMM
Native
Speed
(MHz)
1333 1600 1600 1333 1600 1333 1600 1333 1333 1600 1333 1600 1333 1600 1333
Voltage
LV
Std Std
LV
Std
LV
Std
LV LV
Std
LV
Std
LV
Std Std
SLOTS THAT CAN BE POPULATED
24 slot
servers
24 24 24 24 24 24 24 24 16 16 16 16 16 16 24
MAXIMUM CAPACITY (GB)
*
96 96 192 192 192 384 384 768 32 32 64 64 128 128 384
POPULATED DIMM SPEED (MHz)
1 DIMM Per
Channel
1333 1600 1600 1333 1600 1333 1600 1333
***
1333 1600 1333 1600 1333 1600
n/a
2 DIMM Per
Channel
1333 1600 1600 1333 1600 1333 1600 1333***
1333
****1600 1333
****
1600 1333
****
1600
n/a
3 DIMM Per
Channel
1066**1333## 1333##
1066**1333##
1066**1333##
1066
n/a n/a n/a n/a n/a n/a
1333##
NOTE:
Memory speed is a function of the processor QPI bus speed. To realize the performance memory capabilities listed above HP
SmartMemory is required.
* Maximum capacity will vary based on individual server platform qualification schedule
** For HP SmartMemory RDIMM supports up to 3DPC@1066 at 1.35V. Third party memory may only support up to 3DPC@1066 at 1.5V.
*** LRDIMMs enable 3 DIMMs per channel. HP SmartMemory will support up to 3DPC@1066 at 1.35V. Third party memory may only support
3DPC @1066 at 1.5V.
**** For HP SmartMemory, UDIMM is supported at 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 73
Page 74
# RBSU setting required
Memory Speed by E5-2600 Processor Model
Processor Models
Supported Memory Speeds
E5-2690 E5-2680, E5-2670, E5-2667, E5-2665, E5-2660, E5-2650, E5-2650L, E5-2643, E5-2637
1600/1333/1066MHz
E5-2640, E5-2630, E5-2630L, E5-2620
1333/1066MHz
E5-2609, E5-2603
1066MHz
DIMM slot and configuration diagram
Population order; start with "A" first, "B" second, "C" third, etc.
When one processor is installed, install DIMMs in sequential alphabetic order: A, B, C, D, E, F …
When two processors are installed, install DIMMs in sequential
alphabetic order: CPU1-A, CPU2-A,CPU1-B,CPU2-B,CPU1-C, CP2-C
24 DIMM SLOTS (12 per CPU node)
slot #
population order
slot #
population order
Chnl 3
1
C
1
C
Chnl 3
2
G
2
G
3
K
3
K
Chnl 4
4
D
4
D
Chnl 4
5
H
5
H
6
L
6
L
CPU1 CPU2
Chnl 2
7
J
7
J
Chnl 2
8
F
8
F
9
B
9
B
Chnl 1
10
I
10
I
Chnl 1
11
E
11
E
12
A
12
A
NOTE:
Capacity references are rounded to the common Gigabyte values.
1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
16GB = 16384MB
32GB = 32768MB
DDR3 memory options part number decoder
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 74
Page 75
Following are memory options available from HP:
HP Memory
NOTE:
HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html
NOTE:
LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be
mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM
and LRDIMM.
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713981-B21
HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708637-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713983-B21
HP 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
731765-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit
708639-B21
HP 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
731761-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit
713985-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory
Kit
708641-B21
Registered DIMMs (RDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647893-B21
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 75
Page 76
HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647895-B21
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647897-B21
HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
647899-B21
HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit
690802-B21
HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit
647901-B21
HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit
672631-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713975-B21
HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708631-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713977-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708633-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit
713979-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory
Kit
708635-B21
Unbuffered with ECC DIMMs (UDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669320-B21
HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647905-B21
HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669322-B21
HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647907-B21
HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit
669324-B21
HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit
647909-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 v2 series Processors.
HP 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit
708643-B21
Load Reduced DIMMs (LRDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 76
Page 77
HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit
647903-B21
HyperCloud DIMMs (HDIMMs)
NOTE:
The following memory is supported by the E5-2600 series Processors.
HP 32GB (1x32GB) Dual Rank x4 PC3-10600H (DDR3-1333) HyperCloud CAS-9 Memory
Kit
715166-B21
NOTE:
All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:
www.hp.com/go/ddr3memory-configurator
.
NOTE:
For more information on ProLiant Energy Efficient Features, see:
www.hp.com/go/proliant-energy-efficient
NOTE:
PC3L is a low voltage memory.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Memory
DA - 14212 North America — Version 54 — December 20, 2013
Page 77
Page 78
1-8
Eight SFF SAS hot plug drive bays
1-16
Sixteen SFF SAS hot plug drive bays
NOTE:
This configuration does not support optical drive.
NOTE:
This configuration requires the addition of a
second controller for the second drive cage.
1-8
Eight LFF SAS hot plug drive bays.
1-12
Twelve LFF SAS hot plug drive bays.
NOTE:
This configuration does not support optical drive.
NOTE:
This configuration has a built-in expander that is
driven by the embedded controller.
1-25
Twenty-five SFF SAS hot plug drive bays.
NOTE:
This configuration does not support optical drive.
NOTE:
This configuration has a built-in expander that is
driven by the embedded controller.
Maximum Storage Capacity
- (with D2700, SAS/SATA HDD)
Internal
30TB (25 SFF HDDs x 1.2TB SAS SFF)
Internal
48TB (12 LFF HDDs x4TB SATA LFF)
External
240TB (200 x 1.2TB SAS SFF)
Total
270TB (D2700 + DL380p Gen8 25 SFF)
288TB (D2700 + DL380p Gen8 12 LFF)
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Storage
DA - 14212 North America — Version 54 — December 20, 2013
Page 78
Page 79
System Unit
Dimensions
(H x W x D)
(with bezel)
SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm)
LFF Drives: 3.44 x 17.54 x 29.50 in (8.73 x 44.55 x 74.93 cm)
Weight
(approximate)
Maximum
(all LFF hard drives, power
supply, and processor
installed)
61.00 lb (27.66 kg)
Minimum
(one SFF hard drive, power
supply, and processor
installed, ODD not
installed)
41.0 lb (18.59 kg)
Input Requirements
(per power supply)
Rated Line Voltage
100 to 120 VAC
200 to 240 VAC
Rated Input Current
For 1200 W Power Supply:
10 A (at 100 VAC),
4.9 A (at 200 VAC)
For 750 W Power Supply:
8.9 A (at 100 VAC),
4.3 A (at 200 VAC)
For 460 W Power Supply:
5.5 A (at 100 VAC),
2.6 A (at 200 VAC)
Rated Input Frequency
50 to 60 Hz
Rated Input Power
For 1200 W Power Supply:
930 W (at 100 VAC),
1348 W (at 200 VAC)
For 750 W Power Supply:
857 W (at 100 VAC),
824 W (at 200 VAC)
For 460 W Power Supply:
526 W (at 100 VAC),
505 W (at 200 VAC)
BTU Rating
Maximum
For 1200 W Power Supply:
3530 BTU/hr (at 100 VAC),
4600 BTU/hr (at 200 VAC)
For 750 W Power Supply:
2925 BTU/hr (at 100 VAC),
2812 BTU/hr (at 200 VAC)
For 460 W Power Supply:
1794 BTU/hr (at 100 VAC),
1725 BTU/hr (at 200 VAC)
Power Supply Output
(per power supply)
Rated Steady-State Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Technical Specifications
DA - 14212 North America — Version 54 — December 20, 2013
Page 79
Page 80
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
Maximum Peak Power
For 1200 W Power Supply:
800 W (at 100 VAC),
900 W (at 120 VAC),
1200 W (at 200 to 240 VAC)
For 750 W Power Supply:
750 W (at 100 to 120 VAC),
750 W (at 200 to 240 VAC)
For 460 W Power Supply:
460 W (at 100 to 120 VAC),
460 W (at 200 to 240 VAC)
System Inlet
Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3048 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10% to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
5% to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Altitude
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were
measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping
configurations. Additional options may result in increased sound levels.
NOTE:
The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
Entry
Base
Performance
Idle
LWAd
4.1 B 4.1 B 4.1 B
LpAm
25 dBA 25 dBA 25 dBA
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Technical Specifications
DA - 14212 North America — Version 54 — December 20, 2013
Page 80
Page 81
Operating
LWAd
4.3 B 4.7 B 5.0 B
LpAm
27 dBA 31 dBA 35 dBA
Emissions Classification
(EMC)
FCC Rating
Class A
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1
NOTE:
Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.
NOTE:
The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
HP Smart Array P420i
Controller
Dimensions
Embedded
Disk Drive and Enclosure
Interface - Transfer Rate
6Gb/s SAS (Serial Attached SCSI)
6Gb/s SATA (Serial ATA)
SAS Connectors
2 internal 4X connectors
Cache Memory Speed
512MB FBWC - DDR3-1333MHz with 40-bit wide bus, 1GB or 2GB FBWC DDR31333MHz with 72-bit wide bus
Server Interface
x8 PCIe 3.0 provides 8GB/s maximum bandwidth
SAS Speed
(8) 6Gb/s SAS links provide 4.8GB/s maximum bandwidth
Cache Memory
Zero Memory RAID has no cache memory
40-bit 512MB ECC protected flash back write cache
72-bit 1GB FBWC or 72-bit 2GB FBWC
Logical Drives Supported
Zero Memory, Up to 2 logical volumes (8SFF or 4LFF physical drives)
Up to 64 logical drives with cache
Host Memory Addressing
64-bit, supporting greater than 4GB server memory space
RAID Support
RAID 6, 60 (Advanced Data Guarding)
RAID 5, 50 (Distributed Data Guarding)
NOTE:
A minimum of 512 MB cache is required to enable RAID 5, 50, 6, 60
NOTE:
HP Smart Array Advanced Pack (SAAP 2.0) is no longer required to
enable RAID 6 & 60 (Advanced Data Guarding). However, controller must be in
firmware version 4.68 (or later).
RAID 10 (Striping & Mirroring)
RAID 0 (Striping), RAID 1 (Mirroring)
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Technical Specifications
DA - 14212 North America — Version 54 — December 20, 2013
Page 81
Page 82
HP Ethernet 1Gb 4-port
331FLR Adapter
HP Flexible Network
Technology
HP Flexible Network Technology consists of replaceable network solutions to
meet customer requirements now and in the future.
Network Interface
10Base-T/100Base-TX/1000Base-TX
Compatibility
EEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1q 100Base-TX
Data Transfer Method
PCI Express, four lanes (x4)
Chipset
BCM5719
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex)
100 Mb/s
100Base-TX (Full-Duplex)
200 Mb/s
1000Base-TX (Half and
Full-Duplex)
2000Mb/s
Connector
Four RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP;
up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP;
up to 328 ft (100 m)
1000BaseTX
Category 5 or higher UTP;
up to 328 ft (100 m)
HP Ethernet 10Gb 2-port
530FLR-SFP+ Adapter
Network Interface
SFP+ for Direct Attach Cable copper or fiber
Compatibility
IEEE 802.3 SFP+ (SX, SR & LR)
IEEE 802.3ae
IEEE 802.1ax
IEEE 802.1q
IEEE 802.3x
IEEE 802.1au
IEEE 802.3ap
IEEE 802.1Qaz
IEEE 802.1Qau
IEEE 802.1Qbb
Data Transfer Method
PCI Express, eight lanes (x8)
Chipset
BCM57810S
Network Transfer Rate
10Base-T (Half-Duplex)
10Gbps
10Base-T (Full-Duplex)
1Gbps
Connector
Two SFP+
Cable Support
10Base-T
Categories 3, 4 or 5 UTP;
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Technical Specifications
DA - 14212 North America — Version 54 — December 20, 2013
Page 82
Page 83
up to 328 ft (100 m)
100Base-TX
Category 5 or higher UTP;
up to 328 ft (100 m)
1000BaseTX
Category 5 or higher UTP;
up to 328 ft (100 m)
HP FlexFabric 10Gb 2-port
533FLR-T Adapter
Network Interface
10GBASE-T connectivity supporting up to 100 meters with CAT 6A cabling
Compatibility
IEEE 802.3
IEEE 802.3x
IEEE 802.2x
IEEE 802.3ad
IEEE 802.1Qaz
IEEE 802.1Qau
IEEE 802.1Qbb
IEEE 802.1Qbg
IEEE 802.1ax
Data Transfer Method
PCIe 2.0, eight lanes (x8)
Chipset
BCM57810S
Data Rate
Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex
theoretical bandwidth.
Connector
Two RJ-45
Cable Support
Maximum distances for CAT6 cable are 30 meters (98 feet).
Maximum distances for CAT6a are 100 meters (328 feet).
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green
. To recycle your product, please go to:
http://www.hp.com/go/green
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/green
. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Technical Specifications
DA - 14212 North America — Version 54 — December 20, 2013
Page 83
Page 84
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP ProLiant DL380p Generation8 (Gen8)
Technical Specifications
DA - 14212 North America — Version 54 — December 20, 2013
Page 84
Loading...
