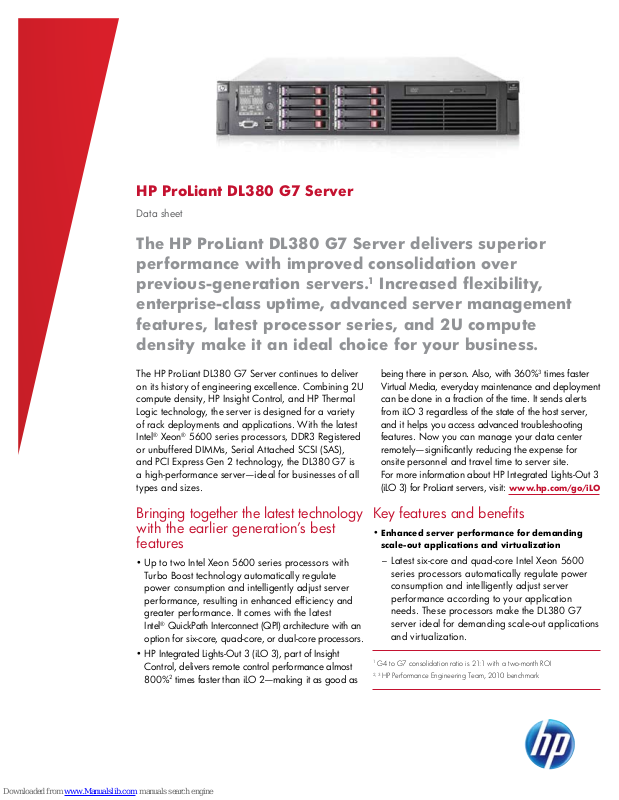

Page 1
HP ProLiant DL380 G7 Server
Data sheet
The HP ProLiant DL380 G7 Server delivers superior
performance with improved consolidation over
previous-generation servers.
1
Increased flexibility,
enterprise-class uptime, advanced server management
features, latest processor series, and 2U compute
density make it an ideal choice for your business.
The HP ProLiant DL380 G7 Server continues to deliver
on its history of engineering excellence. Combining 2U
compute density, HP Insight Control, and HP Thermal
Logic technology, the server is designed for a variety
of rack deployments and applications. With the latest
®
Xeon® 5600 series processors, DDR3 Registered
Intel
or unbuffered DIMMs, Serial Attached SCSI (SAS),
and PCI Express Gen 2 technology, the DL380 G7 is
a high-performance server—ideal for businesses of all
types and sizes.
Bringing together the latest technology
with the earlier generation’s best
features
Up to two Intel Xeon 5600 series processors with •
Turbo Boost technology automatically regulate
power consumption and intelligently adjust server
performance, resulting in enhanced efficiency and
greater performance. It comes with the latest
®
QuickPath Interconnect (QPI) architecture with an
Intel
option for six-core, quad-core, or dual-core processors.
HP Integrated Lights-Out 3 (iLO 3), part of Insight •
Control, delivers remote control performance almost
2
times faster than iLO 2—making it as good as
800%
being there in person. Also, with 360%3 times faster
Virtual Media, everyday maintenance and deployment
can be done in a fraction of the time. It sends alerts
from iLO 3 regardless of the state of the host server,
and it helps you access advanced troubleshooting
features. Now you can manage your data center
remotely—significantly reducing the expense for
onsite personnel and travel time to server site.
For more information about HP Integrated Lights-Out 3
(iLO 3) for ProLiant servers, visit:
www.hp.com/go/iLO
Key features and benefits
Enhanced server performance for demanding •
scale-out applications and virtualization
Latest six-core and quad-core Intel Xeon 5600 –
series processors automatically regulate power
consumption and intelligently adjust server
performance according to your application
needs. These processors make the DL380 G7
server ideal for demanding scale-out applications
and virtualization.
1
G4 to G7 consolidation ratio is 21:1 with a two-month ROI
2, 3
HP Performance Engineering Team, 2010 benchmark
Page 2
Up to 192 GB of DDR3 memory (800 MHz –
to 1333 MHz, depending on processor) with
enhanced memory capacity meets the requirements
of your memory-intensive applications.
2U compute density makes the DL380 G7 –
server well-suited for a variety of rack
deployments and applications.
®
Hyper-Threading Technology delivers
Intel –
simultaneous multi-threading resulting in efficient
use of processor resources, higher processing
throughput, and improved performance and
energy efficiency.
Improved server lifecycle management•
HP Insight Control is essential server management –
software that helps deploy servers quickly,
proactively manage the health of virtual or
physical servers, streamline power consumption,
and take complete remote control from anywhere.
iLO 3, part of Insight Control, is a standard –
component of the HP ProLiant DL380 G7 Server,
and facilitates server health and remote server
manageability. Because it includes an intelligent
microprocessor, secure memory, and a dedicated
network interface, iLO 3 is independent of the
host server and its operating system.
Insight Control server migration pack automates –
the manual processes required for a physical
server to virtual machine (P2V) migration. It raises
the bar on P2V automation, so that a typical
migration process can be completed in a matter
of minutes.
Together, HP SmartStart, HP Insight Control, –
Preboot Execution Environment (PXE), and
ROM-Based Setup Utility (RBSU) simplify server
configuration and deployment.
Insight Control helps you manage HP servers –
®
running Microsoft
Windows®, Linux, VMware,
and Citrix XenServer environments. In addition,
you can integrate Insight Control with leading
third-party enterprise management consoles,
such as Microsoft System Center and VMware
TM
vCenter
Server.
System Insight Display is a robust slide-out system –
diagnostics display that makes it easy to find
troubleshooting information at the front of the
server, helping to save administrator time.
HP Power Advisor helps in the estimation of –
power consumption and proper selection
of components including power supplies for
enhanced power management.
Advanced energy efficiency with HP Thermal •
Logic technologies
Compliance with Climate Savers Computing –
®
Gold, 80PLUS Gold, and ENERGY STAR
standards demonstrate the true power-efficiency
of the DL380 G7 server.
ProLiant server power supply options include –
460 watts, 750 watts, 1200 watts, and -48Vdc
(for special DC environments).
HP Sea of Sensors – technology enhances server
performance while helping to reduce energy
usage and expense. Achieve significant reduction
in power usage at the server level with the
HP Sea of Sensors—the heart of HP Thermal
Logic technologies. Up to 32 smart sensors
automatically track thermal activity across the
server, dynamically adjusting system components
such as fans, memory, and I/O processing to
enhance system cooling. In other words, the
HP Sea of Sensors makes intelligent decisions
about how much cooling is needed for the server
to perform efficiently.
Dynamic Power Capping – can improve
capacity by almost three times. Insight Control
and Dynamic Power Capping together allow
you to monitor power usage levels and
protect circuit breakers in the rack—without
impacting performance.
Simplified server configuration, installation, •
and maintenance
Mechanical design simplifies configuration and –
maintenance. Tool-free, modular components
and hot-plug redundancy features promote quick
maintenance and ease access to components
while helping to reduce cabling requirements.
Quick-deploy rail system simplifies installation –
and provides quick server access with universal
tool-free sliding rail support.
Commonality focus increases IT productivity with –
universal drives, Smart Array Controllers, and
power supplies. In addition, common components
simplify spares management.
ROM-based configuration and management –
features increase uptime and simplify configuration.
ROM protects the server platform during upgrades,
and ROM-based drivers provide independent
health operating system (OS) monitoring.
2
Page 3
HP ProLiant DL380 G7 Server
Technical specifications
Processor and memory
Number of processors 2
Processor cores Six-core, quad-core, and dual-core
Processor speed 3.46 GHz
®
Processors supported Intel
Cache 8 MB L3
Memory type DDR3 RDIMM or UDIMM
Standard memory Performance Model 12 GB (6x2 GB) DDR3-1333 MHz Registered Memory
Maximum memory 192 GB
Advanced memory protection Advanced error checking and correcting (ECC), mirrored memory, online spare (5600 series)
Memory slots 18 DIMM
Storage
Storage type Hot-plug 2.5-inch SAS
Maximum internal storage 4 TB
Maximum internal drive bays 8
Expansion slots 6 PCIe x8 Gen 2 mezzanine
Storage controller Smart Array P410i Controller with 256 MB, 512 MB battery-backed write cache (BBWC),
Deployment
Form factor Rack
Rack height 2U
Networking Two BCM5709C with dual-port Gigabit
Server management HP Insight Control featuring Integrated Lights-Out Advanced
Redundant power supply Standard on performance models, optional on entry and base models
Power supplies 460W; 750W; 1200W; -48Vdc power options
Security Trusted Platform Module (TPM)
Warranty 3-year parts/3-year labor/3-year onsite
Xeon® 5600 series
Base Model 6 GB (3x2 GB) DDR3-1333 MHz Registered Memory
Entry Model 4 GB (2x2 GB) DDR3-1333 MHz Registered Memory
Efficiency Model 4 GB (2x2 GB) DDR3-1333 MHz Unbuffered Memory
Hot-plug 2.5-inch SATA
Hot-plug 3.5-inch SAS
Hot-plug 3.5-inch SATA
512 MB flash-backed write cache (FBWC), and 1 GB FBWC options
For additional technical specifications, please visit: http://h18004.www1.hp.com/products/quickspecs/13595_div/13595_div.html
3
Page 4
Get connected
www.hp.com/go/getconnected
Current HP driver, support, and security alerts
delivered directly to your desktop
Why choose the DL380 G7 server?
Your business requirements and environment will
determine your server choice. The DL380 G7 server
is ideal for:
Environments and businesses of all types and sizes •
Space-constrained corporate data centers and •
service providers
Sophisticated small- and medium-sized •
businesses (SMBs)
Demanding scale-out applications•
Businesses realizing their virtualization roadmap•
Efficient remote manageability •
Ideal applications for the DL380 G7
server are:
Server-based computing•
Medium scale mail and messaging•
Web and application server•
Small to medium databases•
Terminal services (Citrix)•
File and print•
Data center utility•
HP Services
When technology works, business works
The challenge of virtually every IT organization is similar: to develop
and maintain an agile, efficient server infrastructure that delivers the
service levels your business needs.
HP Technology Services offers a comprehensive portfolio of HP Care
Pack services to help design, deploy, manage, and support your IT
environment, with easy-to-buy, easy-to-use support packages.
Minimum recommended HP Care Pack offerings
Three-year, same-business-day response, onsite 4-hour x 5-day x •
13-hour coverage
Hardware installation•
Related service-level HP Care Pack offerings
Hardware Support—• three-year, either 6-hour or 24-hour call to
repair onsite
Hardware Support Plus 24—• same-business-day, 4-hour hardware
response coverage, 2-hour remote software response
Proactive Select—• access to HP proven technical consultants,
service credits, and expertise when needed
HP Care Pack service benefits
Reduce deployment time and manage server blade solutions •
smoothly and efficiently
Increase server uptime, performance, and availability to •
your business
Detect, diagnose, and repair problems quickly, saving time, •
money, and resources
For more information, visit: www.hp.com/services/proliantservices
or www.hp.com/go/proliant/carepack
HP Financial Services
HP Financial Services provides innovative financing
and financial asset management programs to help
you cost-effectively acquire, manage, and ultimately
retire your HP solutions. For more information, visit:
www.hp.com/go/hpfinancialservices
To learn how the new HP ProLiant DL380 G7
Server can provide you an ideal combination of
performance and energy efficiency along with
improved consolidation over previous-generation
servers, visit:
www.hp.com/servers/dl380-g7
