Combining improved 1U compute performance, smart power and cooling management with infrastructure management tools and essential fault tolerance, the HP ProLiant DL360 G6 is optimized for space constrained operations.

With select Intel 5500/5600 Series Xeon® Processors (Six-Core, Quad-Core and Dual-Core), with choice of DDR3 Registered or Unbuffered DIMMs, integrated HP Smart Array for SATA, SAS and SSD hard drive support, PCI Express Gen2 technology and ProLiant iLO management The DL360 G6 provides a high performance system, ideal for the full range of scale out applications.

What's more, the DL360 G6 steps up the fault tolerant in an ultra-dense platform with redundant power, redundant fans, mirrored memory and embedded RAID capability.

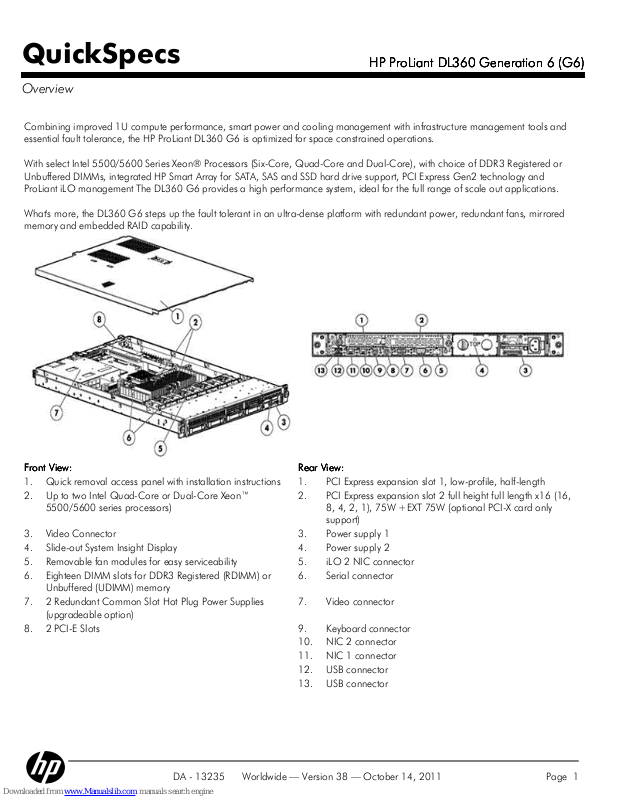

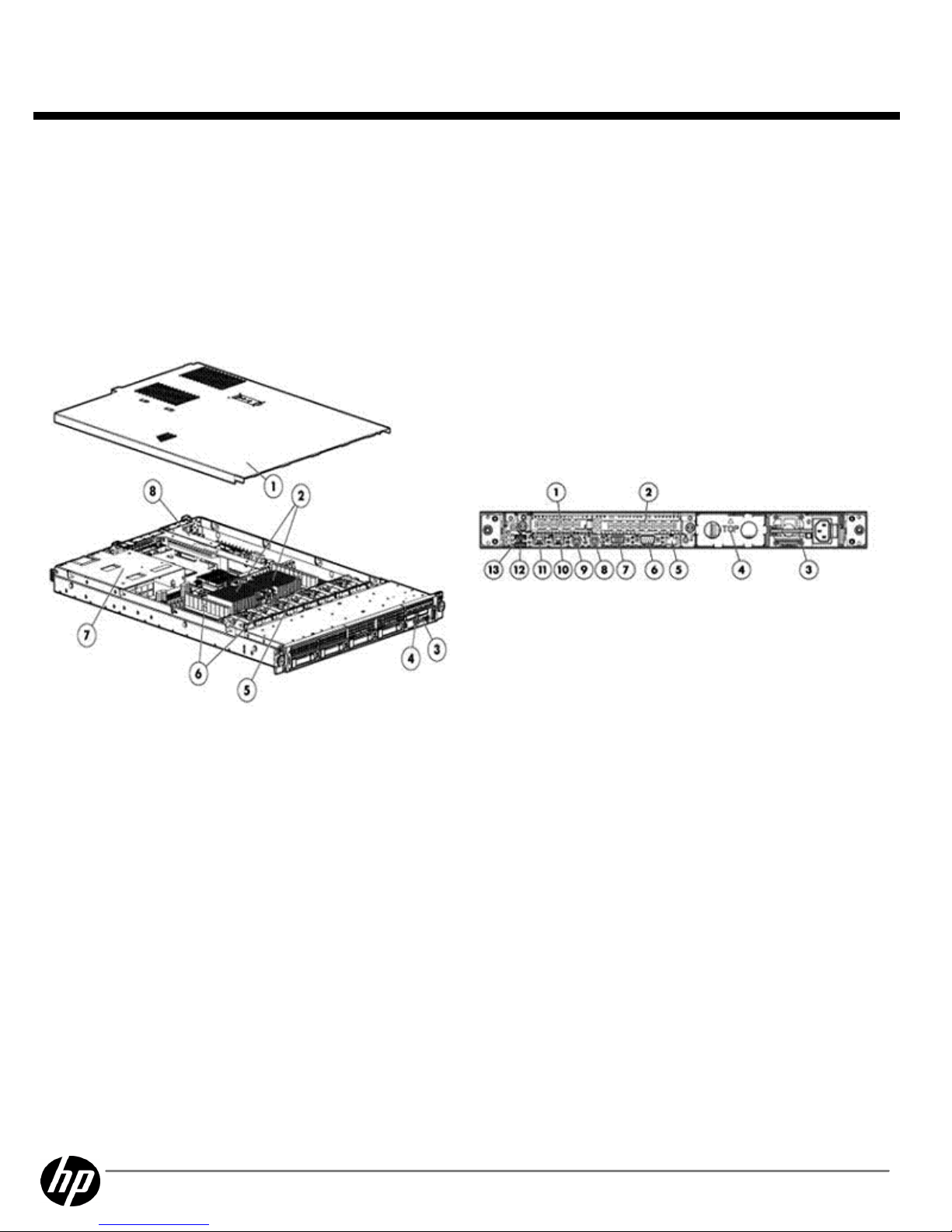

Front View:

Front View:Front View:

Front View:

Rear View:

Rear View:Rear View:

Rear View:

Quick removal access panel with installation instructions

PCI Express expansion slot 1, low-profile, half-length

Up to two Intel Quad-Core or Dual-Core Xeon™ 5500/5600 series processors)

PCI Express expansion slot 2 full height full length x16 (16, 8, 4, 2, 1), 75W +EXT 75W (optional PCI-X card only support)

Video Connector

Power supply 1

Slide-out System Insight Display

Power supply 2

Removable fan modules for easy serviceability

iLO 2 NIC connector

Eighteen DIMM slots for DDR3 Registered (RDIMM) or Unbuffered (UDIMM) memory

Serial connector

2 Redundant Common Slot Hot Plug Power Supplies (upgradeable option)

Video connector

2 PCI-E Slots

Keyboard connector

10.

NIC 2 connector

11.

NIC 1 connector

12.

USB connector

13.

USB connector

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Overview

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 1

Page 2

NOTE:

NOTE:NOTE:

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

ProcessorProcessor

Processor

One of the following depending on Model

Six-Core Processors

Six-Core ProcessorsSix-Core Processors

Six-Core Processors Intel® Xeon® Processor X5670 (2.93 GHz,12MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo

2/2/2/2/3/3) Intel® Xeon® Processor X5660 (2.80 GHz, 12MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo

2/2/2/2/3/3) Intel® Xeon® Processor X5650 (2.66 GHz, 12MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo

2/2/2/2/3/3) Quad-Core Processors

Quad-Core ProcessorsQuad-Core Processors

Quad-Core Processors Intel® Xeon® Processor X5570 (2.93 GHz,8MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo 2/2/3/3) Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo 2/2/3/3) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo 2/2/3/3) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80 Watts, DDR3-1066, HT Turbo 1/1/2/2) Intel® Xeon® Processor L5530 (2.40 GHz, 8MB L3 Cache, 60 Watts, DDR3-1066, HT Turbo 1/1/2/2) Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80 Watts, DDR3-1066, HT Turbo 1/1/2/2) Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60 Watts, DDR3-1066, HT Turbo 1/1/2/2) Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80 Watts, DDR3-1066, HT Turbo 1/1/2/2) Intel® Xeon® Processor L5506 (2.13 GHz, 4MB L3 Cache, 60 Watts, DDR3-800) Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80 Watts, DDR3-800) Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80 Watts, DDR3-800) Dual-Core Processors

Dual-Core ProcessorsDual-Core Processors

Dual-Core Processors Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80 Watts, DDR3-800)

NOTE:

NOTE:NOTE:

NOTE:

Up to 2 processors supported. Performance Model configurations include two processors.

NOTE:

NOTE:NOTE:

NOTE:

HT indicates that the processor model supports Intel® /Hyper-Threading Technology

NOTE:

NOTE:NOTE:

NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4,3,2 and 1 cores active. NOTE:

NOTE:NOTE:

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE:

NOTE:NOTE:

NOTE:

For the Intel 5500 Series, the letter preceding the model number indicated the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.

Cache Memory

Cache MemoryCache Memory

Cache Memory

One of the following depending on Model

12MB (1x12MB) Level 3 Cache on the 5600 Series 6-Core models 8MB (1 x 8MB) Level 3 cache on 5500 series

NOTE:

NOTE:NOTE:

NOTE:

All 5500 series processor models have 8M L3 Cache except for those identified below.

4MB (1 x 4MB) Level 3 cache

NOTE:

NOTE:NOTE:

NOTE:

For processors E5506/L5506/E5504/E5502.

Chipset

ChipsetChipset

Chipset

Intel® 5520 Chipset

NOTE:

NOTE:NOTE:

NOTE:

For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 2

Page 3

Upgradeability

UpgradeabilityUpgradeability

Upgradeability

Upgradeable to two processors

Memory Protection

Memory ProtectionMemory Protection

Memory Protection

Advanced ECC (multi-bit error protection) Mirroring mode Lock-step mode

Memory

MemoryMemory

Memory

One of the following depending on Model

Type

DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

Standard (Performance Models)

12GB (6 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Base Models)

6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Entry Model)

4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (High Efficiency Model)

4GB (2 x 2GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs

Maximum (RDIMM)

192GB (12 x 16GB) for Registered Memory configurations

Maximum (UDIMM)

48GB (12 x 4GB) for Unbuffered Memory configurations

NOTE:

NOTE:NOTE:

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE:NOTE:

NOTE:

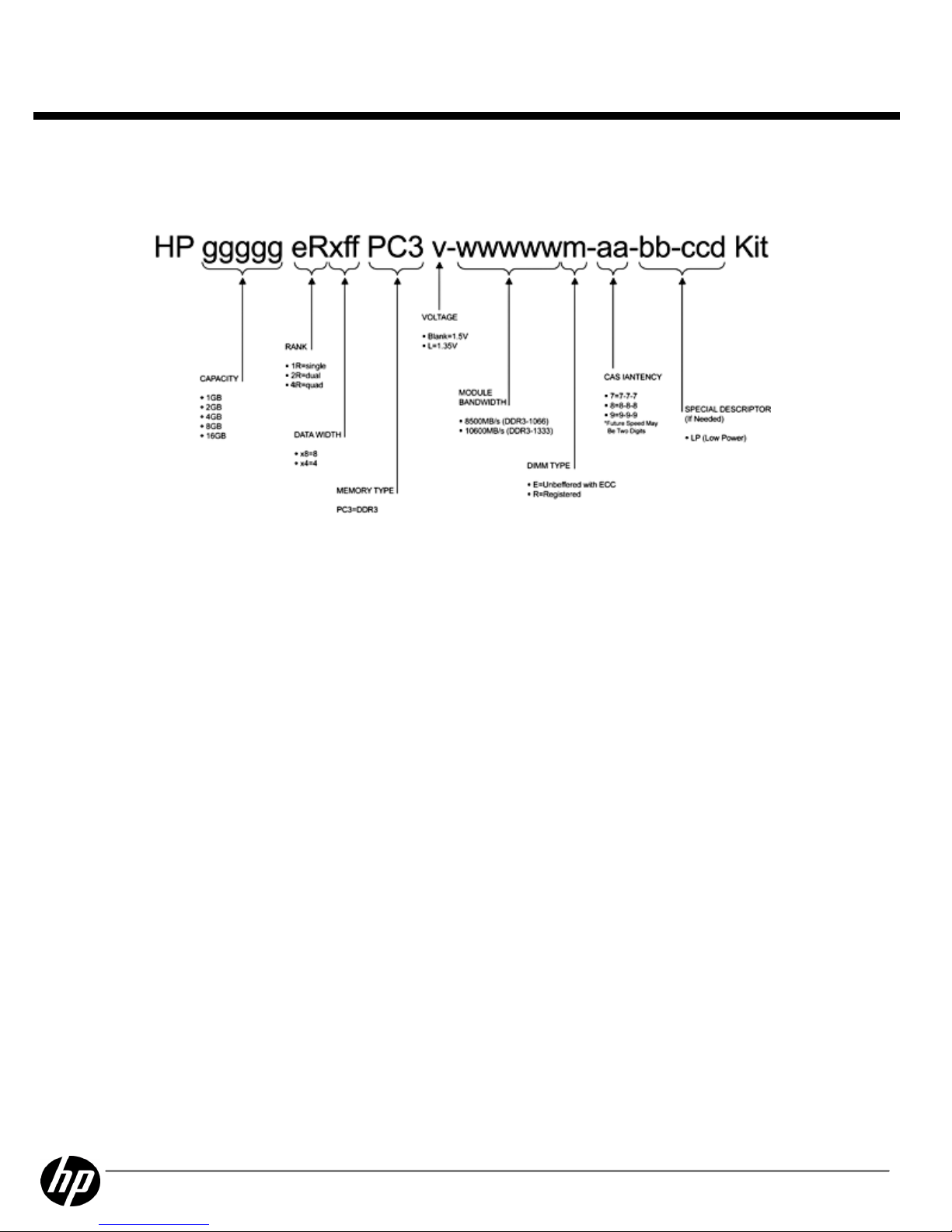

Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

Network Controller

Network ControllerNetwork Controller

Network Controller

One HP NC382i Dual Port Multifunction Gigabit Server Adapter (two ports total) with TCP/IP Offload Engine, including support for Accelerated iSCSI

Expansion Slots

Expansion SlotsExpansion Slots

Expansion Slots

NOTE:

NOTE:NOTE:

NOTE:

Two PCI-Express Gen 2 expansion slots: (1) full-length, full-height slot; (1) low-profile slot. Optional PCI-X Riser expansion

slot (for PCI-X card support only).

Expansion

ExpansionExpansion

Expansion

Slots #

Slots #Slots #

Slots #

Technology

TechnologyTechnology

Technology

Bus

BusBus

Bus

Width

WidthWidth

Width

Connector

ConnectorConnector

Connector

Width

WidthWidth

Width

Bus Number

Bus NumberBus Number

Bus Number*Form Factor

Form FactorForm Factor

Form Factor

Notes

NotesNotes

Notes

PCI-e

x8 x8

Low profile

slot

PCI-e

x16 x16

Full length,

full height slot

PCI-X

(133 MHz,

3.3 Voltage)

64-bit

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number ** Indicates the number of physical electrical lanes running to the connector. NOTE:

NOTE:NOTE:

NOTE:

For external power requirements for PCI options a PCI Thermal-Power Kit (cable) is offered

optionally for higher power requirements.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 3

Page 4

Storage Controller

Storage ControllerStorage Controller

Storage Controller

One of the following depending on Model

Entry Models

HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)

Base Models

HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

Performance Models

HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0)

High Efficiency Models

HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)

Available upgrades: 256MB, 512MB with BBWC, 512MB with FBWC, 1G with FBWC, Battery kit upgrade (for the 256MB cache), and Smart Array Advanced Pack (SAAP)

Internal Storage Devices

Internal Storage DevicesInternal Storage Devices

Internal Storage Devices

Diskette Drive

None

Optical Drive

None Standard

NOTE:

NOTE:NOTE:

NOTE:

This option supported on 4 drive models only.

Optional DVD-ROM, DVD-RW or Slimline floppy drive Optional HP External USB CD/DVD R/RW for 8 drive models

Hard Drives

None Standard

Drive Bays

4 SFF Drive Bays standard with options for up to 8 SFF drive bays total

NOTE:

NOTE:NOTE:

NOTE:

4 bays standard in Entry / Base & High Efficiency models, with optional upgrade of 4 additional bays with the SFF HD Backplane Kit (516966-B21). NOTE:

NOTE:NOTE:

NOTE:

This option available for 8 drive models. HP External USB CD/DVD R/RW Drive available for 8 drive systems.

Maximum Internal

Maximum InternalMaximum Internal

Maximum Internal Storage

StorageStorage

Storage

Hot Plug SAS

4.8TB

8 x 600GB SAS

Hot Plug SATA

4.0TB

8 x 500GB SATA

Interfaces

InterfacesInterfaces

Interfaces

Serial

Video

Network RJ-45

iLO 2 remote management port

Keyboard (PS/2)

Pointing Device (PS/2)

SD slot

USB 2.0 Ports

4 total: 2 rear, 1 front, 1 internal

NOTE:

NOTE:NOTE:

NOTE:

Please see the following URL for additional information regarding USB support:

http://h18004.www1.hp.com/products/servers/platforms/usb-support.html

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 4

Page 5

Industry Standard

Industry StandardIndustry Standard

Industry Standard Compliance

ComplianceCompliance

Compliance

ACPI 2.0b Compliant PCI 2.2 Compliant PXE Support WOL Support SMBIOS 2.6.1 Microsoft® Logo certifications USB 1.1 and 2.0 Compliant

Server Power Cords

Server Power CordsServer Power Cords

Server Power Cords

All Standard Model (BTO) servers ship with a high voltage server to PDU power cord. Localized cables may be included with geographic specific models in other world regions.

NOTE:

NOTE:NOTE:

NOTE:

ProLiant DL servers do not ship standard with NEMA power cords that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a standard wall receptacle (NEMA-15), the NEMA power cord must be ordered separately and the server will be shipped with both cords. If the order is a Factory-Integration or CTO order only the NEMA-15 power will be shipped. See Power Cords in the Additional Options section below for selection for your region.

Common Slot Power

Common Slot PowerCommon Slot Power

Common Slot Power Supplies

SuppliesSupplies

Supplies

HP has a unique design for ProLiant power supplies. The Common Slot (CS) Power Supply provides the customer with commonality in power supplies across multiple platforms to save on the cost of spares and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers come with or compatible with high-efficiency HP CS Power Supplies. These power supplies are designed to provide high-efficiency power without degrading performance of the ProLiant server. HP CS Power Supplies options for this server have efficiency ratings up to 92%. There are three Right Size power options available, depending on the configuration of your server. To make sure you select the correct power supply to meet your configuration, we suggest that you use the HP Power Advisor to decide the "Right-Size" for your configuration. All HP Common Slot power sources are UL, CE Mark Compliant, Hot Plug and Redundant. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs.

HP's ProLiant Common Slot Power supplies (460W & 750W) support multiple Energy Efficiency Initiatives. Climate Savers Computing Initiative GOLD, 80PLUS GOLD and offers models that meet the Energy Star for Server requirements.

Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power supply option kits (see Redundant Options for part numbers).

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 5

Page 6

System Fans

System FansSystem Fans

System Fans

1P Models

3 fan modules ship standard

2P Models

4 fan modules ship standard Fan redundancy standard with all modules

NOTE:

NOTE:NOTE:

NOTE:

The processor option kit contains 1 additional fan module, when upgrading from a 1 processor to two processor models. A Fan Module Option kit can also be purchased separately for use with PCI Graphics card upgrades on single processor models. See HP PCI Thermal Power Kit (519254-B21) in the Core Options section.

Required Cabling

Required CablingRequired Cabling

Required Cabling

For required cabling information, refer to the Web site at:

http://h18000.www1.hp.com/products/servers/proliantdl360/

Operating Systems and

Operating Systems andOperating Systems and

Operating Systems and Virtualization Software

Virtualization SoftwareVirtualization Software

Virtualization Software Support for ProLiant

Support for ProLiantSupport for ProLiant

Support for ProLiant Servers

ServersServers

Servers

Microsoft Windows Server Microsoft Windows Server Hyper-V Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris NetWare VMware Citrix XenServer

NOTE:

NOTE:NOTE:

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at:

http://www.hp.com/go/ossupport

and our driver download

page

www.hp.com/support/DL360G6

Graphics

GraphicsGraphics

Graphics

Integrated ATI ES1000, 32MB video standard

16 bit color: maximum resolution of 1600 x 1200 32 bit color: maximum resolution of 1280 x 1024

NOTE:

NOTE:NOTE:

NOTE:

Maximum resolution available via iLO 2 remote console is 1280 x 1024.

Form Factor

Form FactorForm Factor

Form Factor

1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 6

Page 7

HP Insight management

HP Insight managementHP Insight management

HP Insight management software

softwaresoftware

software

HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters. HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems:

www.hp.com/go/foundation

The foundation pack includes:

HP SmartStart HP Management HP ProLiant Firmware Maintenance

SmartStart version supported (minimum): SmartStart 8.20.

http://www.hp.com/servers/smartstart

NOTE:

NOTE:NOTE:

NOTE:

In an effort to support reducing our environmental impact, the HP ProLiant Essentials Foundation Pack media will be available as a selectable option for this server at time of order of a CTO SKU. This will allow customers to order the number of media kits that best meet their needs and eliminate receiving unnecessary duplicate media.

HP Integrated Lights-Out 2 (iLO 2)

HP Integrated Lights-Out 2 management processor) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP ProLiant iLO2 management functions without additional software, and can be accessed from any location via a web browser. It works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and the Insight Dynamics for ProLiant helping customers unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the business. See

www.hp.com/go/ProLiantOA

Security

SecuritySecurity

Security

Power-on password Keyboard password Diskette drive control Diskette boot control QuickLock, Network Server Mode Removable CD and Diskette Drive Assembly Serial interface control Administrator's password Integrated Lights-Out has 12 customizable user accounts and SSL encryption Integrated Lights-Out can be disabled via a Global Setting iLO Advance Pack supports directory services integration and two-factor authentication

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 7

Page 8

Warranty

WarrantyWarranty

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE:

NOTE:NOTE:

NOTE:

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Standard Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 8

Page 9

HP Insight management

HP Insight managementHP Insight management

HP Insight management software

softwaresoftware

software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See

www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit:

http://www.hp.com/services/insight

HP Insight Dynamics for ProLiant

HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a selfservice portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE:

NOTE:NOTE:

NOTE:

For more information, visit:

http://www.hp.com/go/insightdynamics

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Optional Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 9

Page 10

Factory Express Portfolio

Factory Express PortfolioFactory Express Portfolio

Factory Express Portfolio for Servers and Storage

for Servers and Storagefor Servers and Storage

for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

http://www.hp.com/go/factory-express

HP Enterprise

HP EnterpriseHP Enterprise

HP Enterprise Configurator

ConfiguratorConfigurator

Configurator

The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Optional Features

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 10

Page 11

Service and Support

Service and SupportService and Support

Service and Support

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity andHP Care Pack Services: Packaged server and storage services for increased uptime, productivity and

HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI

ROIROI

ROI When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments. We take a holistic approach to your environment, bridging servers, blades, storage, software and network infrastructures with our packaged HP Care Pack Services for servers and storage.

Protect your business beyond warranty

Protect your business beyond warrantyProtect your business beyond warranty

Protect your business beyond warranty When it comes to robustness and reliability, standard computing equipment warranties have matured along with technology. Good news that can also create problems stemming from depending on standard warranties designed to only protect against product defects and some downtime causes. Using a standard approach to warranty uplifts, such as HP Care Pack Services, helps reduce downtime risks and provides operational consistency for mission-critical and standard business computing.

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost

HP Care Pack Services: Upgrading or extending standard server and storage warranties costHP Care Pack Services: Upgrading or extending standard server and storage warranties cost

HP Care Pack Services: Upgrading or extending standard server and storage warranties cost effectively

effectivelyeffectively

effectively HP Care Pack Services offer a standard reactive hardware and software support services suite sold separately, or combined with our Support Plus and Support Plus 24 services. The portfolio also provides a combination of integrated proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition with HP Proactive Select, you can acquire the specific proactive constancy and technical services. HP Proactive Select menu offers a broad set of service options that you can mix and match depending on your specific requirements. Proactive service options include offers for server, storage, network, SAN device, software, environment and education services.

HP server and storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education Services offer flexible, comprehensive training on to help your IT staff get the most out of your server and storage investments. HP Financial solutions extend innovative financing and cost-effective asset management programs-from purchase to equipment retirement.

Learn more:

www.hp.com/services/servers

and

www.hp.com/services/storage

NOTE:

NOTE:NOTE:

NOTE:

Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools. Customers purchasing from a commercial reseller can find HP Care Pack Services at

http://www.hp.com/go/lookuptool

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Service and Support

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 11

Page 12

Recommended HP Care Pack Services for optimal satisfaction with your HP product

Recommended HP Care Pack Services for optimal satisfaction with your HP productRecommended HP Care Pack Services for optimal satisfaction with your HP product

Recommended HP Care Pack Services for optimal satisfaction with your HP product

Recommended Services

Recommended ServicesRecommended Services

Recommended Services

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour

3-Year HP Hardware Support Onsite Call-to-Repair (CTR) Service, 6- or 24-hour Provides your IT manager with a team of support specialists who will quickly begin troubleshooting the system to help return the hardware to operating condition within 6 or 24 hours of the initial service request to the HP Global Solution Center.

HP is committed to repairing your hardware within a maximum of six or twenty four hours. The benefits include:

Improved system uptime Predictable repair times More effective IT resource planning Consistent level of hardware support across your multi-technology systems

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x73-Year HP Hardware Support Onsite Service, 4-hour response, 24x7

3-Year HP Hardware Support Onsite Service, 4-hour response, 24x7 Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.

This service provides a trained HP service specialist to perform an installation that meets HP quality standards, for:

Help improve or maintain system uptime Convenient onsite support Committed response time

http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE

HP ProLiant Server Hardware Installation

HP ProLiant Server Hardware InstallationHP ProLiant Server Hardware Installation

HP ProLiant Server Hardware Installation Provides for the basic hardware installation of HP branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

Expedited installation, with all service prerequisites met before the installation is performed Installation in accordance with manufacturer's specifications, enhancing the supportability of your HP-installed hardware and software Service delivery at a mutually scheduled time Allows your IT resources to stay focused on their core tasks and priorities Availability of an HP service specialist to answer questions during the onsite delivery of this service

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Service and Support

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 12

Page 13

Optional HP Care Pack Services that will enhance your HP product experience

Optional HP Care Pack Services that will enhance your HP product experienceOptional HP Care Pack Services that will enhance your HP product experience

Optional HP Care Pack Services that will enhance your HP product experience

Optional Services

Optional ServicesOptional Services

Optional Services

3-Year HP Support Plus 24

3-Year HP Support Plus 243-Year HP Support Plus 24

3-Year HP Support Plus 24 As an alternative to our recommended support level, for customers who need access to responsive 24x7 hardware and software support plus software updates on HP and selected third party products:

For a higher return on your server and storage technology, our 3-year combined reactive support service delivers integrated onsite hardware/software support services available 24x7x365, including access to HP technical resources, 4-hour response onsite hardware support and software updates.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE

3-Year HP Proactive 24

3-Year HP Proactive 243-Year HP Proactive 24

3-Year HP Proactive 24 As an alternative to our recommended support level, for customers who want enhanced operational effectiveness and proactive problem identification:

Provides improved stability, availability and operational effectiveness with an integrated hardware and software support service that combines industry-leading reactive technical assistance with proactive account services, giving your IT manage support from a team of service specialists.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-1614ENUC

HP Proactive Select Service

HP Proactive Select ServiceHP Proactive Select Service

HP Proactive Select Service Customer needs on demand access to consulting, technical proactive services and education courses

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy Proactive Select Service Credits when you purchase your hardware and then use the credits over the next 12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN

eSupport

eSupporteSupport

eSupport

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

Support PortalSupport Portal

Support Portal The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include

Features includeFeatures include

Features include

Access to self-solve tools (including search technical knowledge base) Efficient logging and tracking of support cases Collaboration with other business and IT professionals Download of patches and drivers Access to diagnostic tools Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit:

http://www.hp.com/support

HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Service and Support

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 13

Page 14

X 7, so you can spend less time solving problems and more time focused on your business. You can have your systems remotely monitored for hardware failure using secure technology that's been proven at thousands of companies around the world. In many cases, you can avoid problems before they occur.

Customer Technical

Customer TechnicalCustomer Technical

Customer Technical Training

TrainingTraining

Training

In today's cost-conscious business environment, IT professionals, developers, consultants and users face an interesting challenge: how to keep up with the latest technologies and expand important skills while delivering profitable results on current projects. To help address this challenge, HP offers innovative training solutions that help keep you up-to-date on virtualization, server, storage, Insight Control, Citrix, Microsoft® and open source/Linux-related topics-while spending less time away from business-critical activities.

HP Services Awards

HP Services AwardsHP Services Awards

HP Services Awards

HP Technology Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction.

Additional Services

Additional ServicesAdditional Services

Additional Services Information

InformationInformation

Information

To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit:

www.hp.com/services/proliant

www.hp.com/services/bladesystem

http://www.hp.com/hps/storage

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Service and Support

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 14

Page 15

NOTE:

NOTE:NOTE:

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. NOTE:

NOTE:NOTE:

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs. NOTE:

NOTE:NOTE:

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately. NOTE:

NOTE:NOTE:

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs. NOTE:

NOTE:NOTE:

NOTE:

Not all models are available in all regions. Check with your local country HP offices for availability.

Performance Models

Performance ModelsPerformance Models

Performance Models

NOTE:

NOTE: NOTE:

NOTE:

Energy Star Qualified.

Quad-Core Models

Quad-Core ModelsQuad-Core Models

Quad-Core Models DL360 G6 X5550

DL360 G6 X5550DL360 G6 X5550

DL360 G6 X5550 504633-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95 Watts, DDR3-1333, HT Turbo 2/2/3/3)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

12 GB (6 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs

NOTE:

NOTE:NOTE:

NOTE:

18 DDR3 DIMM slots.

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC382i Dual Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/512MB with BBWC

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

8 SFF SAS/SATA HDD Bays

Optical Drive

Optical DriveOptical Drive

Optical Drive

None ship standard

Power Supply

Power SupplyPower Supply

Power Supply

Two 460W Hot Plug Power Supplies, redundant

Fans

FansFans

Fans

4 total (3 fan modules in 1P Models, 1 additional fan module with second processor), fan redundancy standard

Form Factor

Form FactorForm Factor

Form Factor

1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

Warranty

WarrantyWarranty

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Quad-Core Models

Quad-Core ModelsQuad-Core Models

Quad-Core Models HP DL360G6 X5550

HP DL360G6 X5550HP DL360G6 X5550

HP DL360G6 X5550 470065-074 US 470065-075 APJ 470065-073 EURO

Processor(s)

Processor(s)Processor(s)

Processor(s)

(2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

12 GB (6 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs

NOTE:

NOTE:NOTE:

NOTE:

18 DDR3 DIMM slots.

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC382i Dual Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/512MB with BBWC

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

8 SFF SAS/SATA HDD Bays

Optical Drive

Optical DriveOptical Drive

Optical Drive

None ship standard

Power Supply

Power SupplyPower Supply

Power Supply

Two 460W Hot Plug Power Supplies, redundant

Fans

FansFans

Fans

4 total (3 fan modules in 1P Models, 1 additional fan module with second processor), fan redundancy standard

Insight Control

Insight ControlInsight Control

Insight Control

HP Insight Control No Media single server license, including 1 year of 24x7 Technical Support and Updates

Form Factor

Form FactorForm Factor

Form Factor

1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Pre-configured Models

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 15

Page 16

Warranty

WarrantyWarranty

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Base Models

Base ModelsBase Models

Base Models

Quad-Core Models

Quad-Core ModelsQuad-Core Models

Quad-Core Models DL360G6 E5540 6GB

DL360G6 E5540 6GBDL360G6 E5540 6GB

DL360G6 E5540 6GB 504634-xx1

DL360G6 E5530 6GB

DL360G6 E5530 6GBDL360G6 E5530 6GB

DL360G6 E5530 6GB 504635-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

One of the following depending on Model

(1) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80 Watts, DDR3-1066, HT Turbo 1/1/2/2) (1) Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80 Watts, DDR3-1066, HT Turbo 1/1/2/2)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

6 GB (3 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs

NOTE:

NOTE:NOTE:

NOTE:

18 DDR3 DIMM slots.

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC382i Dual Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/256MB Controller

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

4 SFF SAS/SATA HDD Bays (with optional 4SFF HDD upgrade)

Optical Drive

Optical DriveOptical Drive

Optical Drive

One Multi-Media bay standard (not available with 4SFF HDD upgrade)

Power Supply

Power SupplyPower Supply

Power Supply

One 460W Hot Plug Power Supply

Fans

FansFans

Fans

3 total (3 fan modules in 1P Models, 1 additional fan module with 2P Model), fan redundancy standard

Form Factor

Form FactorForm Factor

Form Factor

1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

Warranty

WarrantyWarranty

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Efficiency Models

Efficiency ModelsEfficiency Models

Efficiency Models Quad-Core Models

Quad-Core ModelsQuad-Core Models

Quad-Core Models DL360G6 L5520 4GB

DL360G6 L5520 4GBDL360G6 L5520 4GB

DL360G6 L5520 4GB 504636-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(1) Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60 Watts, DDR3-1066, HT Turbo 1/1/2/2)

Cache Memory

Cache MemoryCache Memory

Cache Memory

8MB (1 x 8MB) Level 3 cache

Memory

MemoryMemory

Memory

4 GB (2 x 2 GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs

NOTE:

NOTE:NOTE:

NOTE:

18 DDR3 DIMM slots.

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC382i Dual Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/Zero Memory Controller

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

4 SFF SAS/SATA HDD Bays (with optional 4SFF HDD upgrade)

Optical Drive

Optical DriveOptical Drive

Optical Drive

One Multi-Media bay standard (not available with 4SFF HDD upgrade)

Power Supply

Power SupplyPower Supply

Power Supply

One 460W Hot Plug Power Supply

Fans

FansFans

Fans

3 total (3 fan modules in 1P Models, 1 additional fan module with 2P Model), fan redundancy standard

Form Factor

Form FactorForm Factor

Form Factor

1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

Warranty

WarrantyWarranty

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Pre-configured Models

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 16

Page 17

Entry Model

Entry ModelEntry Model

Entry Model

Quad-Core Models

Quad-Core ModelsQuad-Core Models

Quad-Core Models DL360G6 E5504 4GB

DL360G6 E5504 4GBDL360G6 E5504 4GB

DL360G6 E5504 4GB 504637-xx1

Processor(s)

Processor(s)Processor(s)

Processor(s)

(1) Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80 Watts, DDR3-800)

Cache Memory

Cache MemoryCache Memory

Cache Memory

4MB (1 x 4MB) Level 3 cache

Memory

MemoryMemory

Memory

4 GB (2 x 2 GB) PC3-10600R (DDR3-1333) Registered DIMMs

NOTE:

NOTE:NOTE:

NOTE:

18 DDR3 DIMM slots.

Network Controller

Network ControllerNetwork Controller

Network Controller

HP NC382i Dual Port Multifunction Gigabit Server Adapter

Storage Controller

Storage ControllerStorage Controller

Storage Controller

HP Smart Array P410i/Zero Memory Controller

Hard Drive

Hard DriveHard Drive

Hard Drive

None ship standard

Internal Storage

Internal StorageInternal Storage

Internal Storage

4 SFF SAS/SATA HDD Bays (with optional 4SFF HDD upgrade)

Optical Drive

Optical DriveOptical Drive

Optical Drive

One Multi-Media bay standard (not available with 4SFF HDD upgrade)

Power Supply

Power SupplyPower Supply

Power Supply

One 460W Hot Plug Power Supply

Fans

FansFans

Fans

3 total (3 fan modules in 1P Models, 1 additional fan module with 2P Model), fan redundancy standard

Form Factor

Form FactorForm Factor

Form Factor

1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

Warranty

WarrantyWarranty

Warranty

Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.

Country Code Key

Country Code KeyCountry Code Key

Country Code Key

xx=00

xx=20

Brazil

xx=29

Japan

xx=37

APD

xx=42

Europe

xx=AA

PRC

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Pre-configured Models

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 17

Page 18

NOTE:

NOTE:NOTE:

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. NOTE:

NOTE:NOTE:

NOTE:

Configure-to-order (CTO) servers must start with a CTO Chassis. NOTE:

NOTE:NOTE:

NOTE:

FIO indicates that this option is only available as a factory installable option.

Step 1: Base Configuration (choose one of the following configurable models)

Step 1: Base Configuration (choose one of the following configurable models)Step 1: Base Configuration (choose one of the following configurable models)

Step 1: Base Configuration (choose one of the following configurable models)

HP Models

HP ModelsHP Models

HP Models

HP ProLiant DL360 G6 Configure-to-order Rack Server

484184-B21

Factory Integrated Model ships with:

Factory Integrated Model ships with:Factory Integrated Model ships with:

Factory Integrated Model ships with: HP NC382i Dual Port Multifunction Gigabit Server Adapter

HP Smart Array P410i/Zero Memory Controller Integrated Lights-Out 2 (iLO 2) embedded 2 PCIe G2 Slots - 1 full-length x16 and 1 low-profile x8 PCI-Express 4 bay Hot-Plug SAS/SATA Drives(Factory Options for up to 8) 4 USB ports(1-front,1-internal, 2-rear) 1 Internal Secure Digital(SD) slot 3 fan modules; fan redundancy standard 1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep

Step 2: Choose Required Options (only one of the following from each list unless otherwise

Step 2: Choose Required Options (only one of the following from each list unless otherwiseStep 2: Choose Required Options (only one of the following from each list unless otherwise

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

noted)noted)

noted)

HP Processors

HP ProcessorsHP Processors

HP Processors

Six-Core Processors

Six-Core ProcessorsSix-Core Processors

Six-Core Processors HP DL360 G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) FIO Processor

Kit

588062-L21

HP DL360 G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) FIO Processor Kit

588064-L21

HP DL360 G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) FIO Processor Kit

588066-L21

Quad-Core Processors

Quad-Core ProcessorsQuad-Core Processors

Quad-Core Processors HP DL360 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) FIO Processor Kit

507674-L21

HP DL360 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) FIO Processor Kit

507676-L21

HP DL360 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) FIO Processor Kit

505878-L21

HP DL360 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) FIO Processor Kit

505880-L21

HP DL360 G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) FIO Processor Kit

583379-L21

HP DL360 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) FIO Processor Kit

505882-L21

HP DL360 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) FIO Processor Kit

507680-L21

HP DL360 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) FIO Processor Kit

505884-L21

HP DL360 G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) FIO Processor Kit

507678-L21

HP DL360 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) FIO Processor Kit

505886-L21

HP DL360 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) FIO Processor Kit

507682-L21

Dual-Core Processors

Dual-Core ProcessorsDual-Core Processors

Dual-Core Processors HP DL360 G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) FIO Processor Kit

507663-L21

NOTE:

NOTE:NOTE:

NOTE:

Up to 2 processors supported. Performance Model configurations include two

processors.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 18

Page 19

NOTE:

NOTE:NOTE:

NOTE:

HT indicates that the processor model supports Intel® /Hyper-Threading Technology NOTE:

NOTE:NOTE:

NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 6,5,4,3,2 and 1 cores active. NOTE:

NOTE:NOTE:

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE:

NOTE:NOTE:

NOTE:

For the Intel 5600/5500 Series, the letter preceding the model number indicated the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.

HP Memory

HP MemoryHP Memory

HP Memory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs) HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory

Kit

500656-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-B21

HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500658-B21

HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit

500660-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500662-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

500666-B21

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs) HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9

Memory Kit

500668-B21

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500670-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500672-B21

NOTE:

NOTE:NOTE:

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE:NOTE:

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

HP Power Supplies

HP Power SuppliesHP Power Supplies

HP Power Supplies

NOTE:

NOTE: NOTE:

NOTE:

Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

HP 460W HE Hot Plug AC Power Supply Kit

503296-B21

HP 750W Common Slot High Efficiency Power Supply Kit

512327-B21

HP 1200W 12V Hot Plug AC Power Supply

500172-B21

HP 1200W -48V DC Common Slot Power Supply

NOTE:

NOTE:NOTE:

NOTE:

DC power supplies contain a -48V DC power cord designed for in rack DC

power rectifiers.

437573-B21

NOTE:

NOTE:NOTE:

NOTE:

Option Kits contain optional power supply, an IEC power cable and PDU IEC

cables.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 19

Page 20

Step 3: Choose Additional Factory Integratable Options

Step 3: Choose Additional Factory Integratable OptionsStep 3: Choose Additional Factory Integratable Options

Step 3: Choose Additional Factory Integratable Options

HP Storage Controllers

HP Storage ControllersHP Storage Controllers

HP Storage Controllers

NOTE:

NOTE:NOTE:

NOTE:

Please see the Additional Options section in this QuickSpecs for more HP

Storage Controller choices.

HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 FIO SAS Controller

491191-B21

HP Smart Array P411/256 2-ports Ext PCIe x8 FIO SAS Controller

491193-B21

Optional Upgrades

Optional UpgradesOptional Upgrades

Optional Upgrades HP 256MB P-series Cache Upgrade

NOTE:

NOTE:NOTE:

NOTE:

Additional cache memory options for the integrated P410i ZM-Zero Memory

models is available in the options below.

462968-B21

HP Performance Packs

HP Performance PacksHP Performance Packs

HP Performance Packs

The HP ProLiant DL360 G6 performance packs are necessary to configure a HP ProLiant DL360 G6 Performance Model. HP ProLiant DL360 G6 Performance model includes the latest performance technologies and enterprise class availability features pre-installed for convenience and value. The performance pack includes a 2nd processor, redundant 460w power supplies, Smart Array P410i Controller with 512MB of BBWC.

HP DL360G6 X5550 HPM FIO Perf Pack

507937-B21

HP Insight Software

HP Insight SoftwareHP Insight Software

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License

582765-B21

HP Insight Control for Linux including 1yr 24x7 Support ML/DL Bundle 1 Server FIO License

TC203A

Step 4: Choose Additional Options for Factory Integration

Step 4: Choose Additional Options for Factory IntegrationStep 4: Choose Additional Options for Factory Integration

Step 4: Choose Additional Options for Factory Integration

NOTE:

NOTE:NOTE:

NOTE:

For additional options, please refer to the "Core Options" and "Additional Options" sections below.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Configuration Information - Factory Integrated Models

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 20

Page 21

NOTE:

NOTE:NOTE:

NOTE:

Some options may not be factory integratable. Contact your local sales representative for additional information.

HP Unique Options

HP Unique OptionsHP Unique Options

HP Unique Options

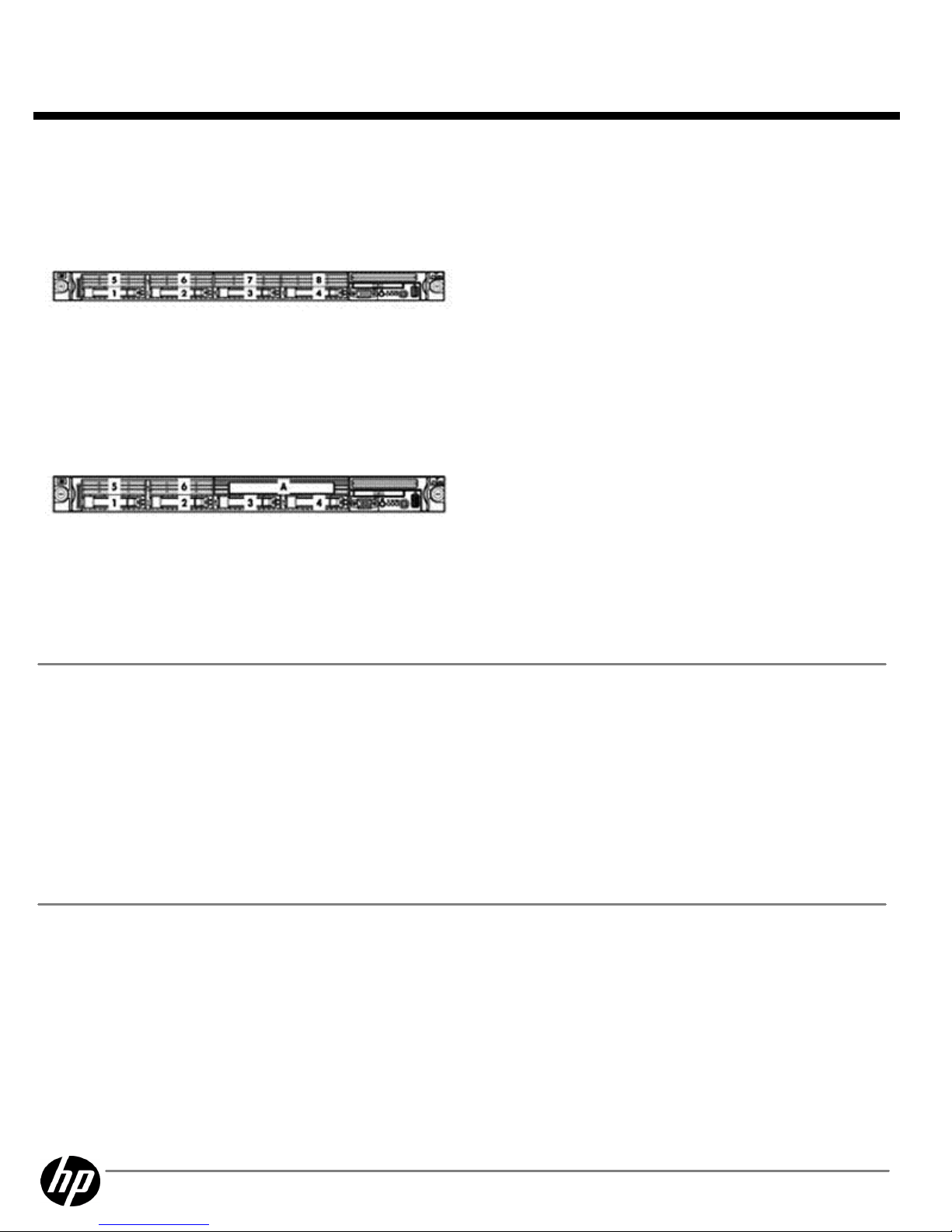

HP DL360G6 SFF HD Backplane Kit

NOTE:

NOTE:NOTE:

NOTE:

Integrated Optical/DVD cannot be used with this option. Optional External

USB CD/DVD Drive available.

516966-B21

HP DL360 SL 12.7mm SATA DVD

532066-B21

HP DL360 SL 12.7mm SATA DVD-RW Optical kit

NOTE:

NOTE:NOTE:

NOTE:

Integrated DVD/Optical drive option is supported on 4 Hard drive models

only.

532068-B21

PCI-X Riser option

NOTE:

NOTE:NOTE:

NOTE:

To convert full-length PCI-Express slot to PCI-X slot. This option kit is limited to

PCI-X card support only.

518824-B21

HP Processor

HP ProcessorHP Processor

HP Processor

Six-Core Processors

Six-Core ProcessorsSix-Core Processors

Six-Core Processors HP DL360 G7 Intel® Xeon® X5670 (2.93GHz/6-core/12MB/95W) Processor Kit

588062-B21

HP DL360 G7 Intel® Xeon® X5660 (2.80GHz/6-core/12MB/95W) Processor Kit

588064-B21

HP DL360 G7 Intel® Xeon® X5650 (2.66GHz/6-core/12MB/95W) Processor Kit

588066-B21

Quad-Core Processors

Quad-Core ProcessorsQuad-Core Processors

Quad-Core Processors HP DL360 G6 Intel® Xeon® X5570 (2.93GHz/4-core/8MB/95W) Processor Kit

507674-B21

HP DL360 G6 Intel® Xeon® X5560 (2.80GHz/4-core/8MB/95W) Processor Kit

507676-B21

HP DL360 G6 Intel® Xeon® X5550 (2.66GHz/4-core/8MB/95W) Processor Kit

505878-B21

HP DL360 G6 Intel® Xeon® E5540 (2.53GHz/4-core/8MB/80W) Processor Kit

505880-B21

HP DL360 G6 Intel® Xeon® L5530 (2.40GHz/4-core/8MB/60W) Processor Kit

583379-B21

HP DL360 G6 Intel® Xeon® E5530 (2.40GHz/4-core/8MB/80W) Processor Kit

505882-B21

HP DL360 G6 Intel® Xeon® E5520 (2.26GHz/4-core/8MB/80W) Processor Kit

507680-B21

HP DL360 G6 Intel® Xeon® L5520 (2.26GHz/4-core/8MB/60W) Processor Kit

505884-B21

HP DL360 G6 Intel® Xeon® L5506 (2.13GHz/4-core/4MB/60W) Processor Kit

507678-B21

HP DL360 G6 Intel® Xeon® E5506 (2.13GHz/4-core/4MB/80W) Processor Kit

505886-B21

HP DL360 G6 Intel® Xeon® E5504 (2.00GHz/4-core/4MB/80W) Processor Kit

507682-B21

Dual-Core Processors

Dual-Core ProcessorsDual-Core Processors

Dual-Core Processors HP DL360 G6 Intel® Xeon® E5502 (1.86GHz/2-core/4MB/80W) Processor Kit

507663-B21

NOTE:

NOTE:NOTE:

NOTE:

Up to 2 processors supported. Performance Model configurations include two processors. NOTE:

NOTE:NOTE:

NOTE:

HT indicates that the processor model supports Intel® /Hyper-Threading Technology NOTE:

NOTE:NOTE:

NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4,3,2 and 1 cores active. NOTE:

NOTE:NOTE:

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE:

NOTE:NOTE:

NOTE:

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Core Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 21

Page 22

HP Memory

HP MemoryHP Memory

HP Memory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs) HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory

Kit

500656-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-B21

HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500658-B21

HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit

500660-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500662-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

500666-B21

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs) HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9

Memory Kit

500668-B21

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500670-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500672-B21

NOTE:

NOTE:NOTE:

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE:NOTE:

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

HP Drive Cage Options

HP Drive Cage OptionsHP Drive Cage Options

HP Drive Cage Options

HP DL360G6 SFF HD Backplane Kit

NOTE:

NOTE:NOTE:

NOTE:

For 4 addition HDs in 5-8 slots. NOTE:

NOTE:NOTE:

NOTE:

Optical/DVD cannot be used with this option.

516966-B21

HP Optical Drives

HP Optical DrivesHP Optical Drives

HP Optical Drives

HP DL360 SL 12.7mm SATA DVD

532066-B21

HP DL360 SL 12.7mm SATA DVD-RW Optical kit

NOTE:

NOTE:NOTE:

NOTE:

Integrated DVD/Optical drive option is supported on 4 Hard drive models only.

532068-B21

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Core Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 22

Page 23

HP Hard Drives

HP Hard DrivesHP Hard Drives

HP Hard Drives

NOTE:

NOTE:NOTE:

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components. NOTE:

NOTE:NOTE:

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) DrivesSAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard

Drive

581286-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507125-B21

HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512545-B21

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SAS Hot Plug SFF (2.5-inch) Midline (MDL) DrivesSAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard

Drive

507610-B21

NOTE:

NOTE:NOTE:

NOTE:

SAS Enterprise drives have a 3 year warranty. Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) DrivesSATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

530888-B21

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

SATA Hot Plug SFF (2.5-inch) Entry (ETY) DrivesSATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives HP 250GB 3G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive

460355-B21

HP 120GB 1.5G SATA 5.4K rpm SFF (2.5-inch) Entry 1yr Warranty Hard Drive

458924-B21

NOTE:

NOTE:NOTE:

NOTE:

SATA drives have a 1 year warranty. Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SATA Hot Plug Midline (MDL) Solid State Drives

SATA Hot Plug Midline (MDL) Solid State DrivesSATA Hot Plug Midline (MDL) Solid State Drives

SATA Hot Plug Midline (MDL) Solid State Drives HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive

572071-B21

HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive

572073-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Core Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 23

Page 24

HP Networking

HP NetworkingHP Networking

HP Networking

Gigabit Ethernet Adapters

Gigabit Ethernet AdaptersGigabit Ethernet Adapters

Gigabit Ethernet Adapters HP NC112T PCIe Gigabit Server Adapter

503746-B21

HP NC360T PCI Express Dual Port Gigabit Server Adapter

412648-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP NC373F PCI Express Multifunction Gigabit Server Adapter

394793-B21

HP NC373T PCI Express Multifunction Gigabit Server Adapter

394791-B21

HP NC375T PCI Express Quad Port Gigabit Server Adapter

538696-B21

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

458492-B21

10 Gigabit Ethernet Adapters

10 Gigabit Ethernet Adapters10 Gigabit Ethernet Adapters

10 Gigabit Ethernet Adapters

NOTE:

NOTE:NOTE:

NOTE:

No more than two 10GbE I/O devices are supported in a single ProLiant server. NOTE:

NOTE:NOTE:

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each adapter. NOTE:

NOTE:NOTE:

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC550SFP Dual Port 10GbE Server Adapter

581201-B21

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

www.hp.com/go/ProLiantNICs

HP 10 GbE PCI-e G2 Dual Port NIC

516937-B21

HP InfiniBand

HP InfiniBandHP InfiniBand

HP InfiniBand

HP 4X QDR PCI-e G2 QLogic InfiniBand Dual Port HCA

583211-B21

HP IB 4X QDR CX-2 PCI-e G2 Dual Port HCA

592520-B21

HP IB 4X DDR CX-2 PCI-e G2 Dual Port HCA

592521-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

HP Power Supplies

HP Power SuppliesHP Power Supplies

HP Power Supplies

NOTE:

NOTE: NOTE:

NOTE:

www.hp.com/go/hppoweradvisor

HP 460W HE Hot Plug AC Power Supply Kit

503296-B21

HP 750W Common Slot High Efficiency Power Supply Kit

512327-B21

HP 1200W 12V Hot Plug AC Power Supply

500172-B21

HP 1200W -48V DC Common Slot Power Supply

NOTE:

NOTE:NOTE:

NOTE:

DC power supplies contain a -48V DC power cord designed for in rack DC

power rectifiers.

437573-B21

NOTE:

NOTE:NOTE:

NOTE:

Option Kits contain optional power supply, an IEC power cable and PDU IEC cables. NOTE:

NOTE:NOTE:

NOTE:

For regional specific power cables please refer to Power Cords section below.

HP Cooling Options

HP Cooling OptionsHP Cooling Options

HP Cooling Options

HP PCI Thermal Power Kit

NOTE:

NOTE:NOTE:

NOTE:

Supports 3rd Party PCI Video Graphics cards.

519254-B21

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Core Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 24

Page 25

HP Insight Software

HP Insight SoftwareHP Insight Software

HP Insight Software

HP Insight Control

HP Insight ControlHP Insight Control

HP Insight Control HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic

License

T9074BAE

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Electronic License

TC278AAE

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server License

452148-B22

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Tracking License

TC275A

HP Insight Software Media Kit

NOTE:

NOTE:NOTE:

NOTE:

Insight Software DVD media without licenses. Contains HP Systems Insight Manager, HP Insight Control, HP Insight Dynamics, HP Insight Control for Microsoft System Center, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.

436222-B21

NOTE:

NOTE:NOTE:

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key. NOTE:

NOTE:NOTE:

NOTE:

Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent. NOTE:

NOTE:NOTE:

NOTE:

Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service. NOTE:

NOTE:NOTE:

NOTE:

Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

NOTE:

NOTE:NOTE:

NOTE:

For additional license options please see the Insight Control QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP Insight Control for Linux

HP Insight Control for LinuxHP Insight Control for Linux

HP Insight Control for Linux HP Insight Control for Linux including 1yr 24x7 Support Electronic License

TC213AAE

HP Insight Control for Linux including 1yr 24x7 Support Single Server License

TC209A

HP Insight Control for Linux Media Kit

NOTE:

NOTE:NOTE:

NOTE:

Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.

TC208A

NOTE:

NOTE:NOTE:

NOTE:

Licenses ship without media. The Media Kit for Insight Control for Linux can be ordered separately, or can be downloaded at:

http://www.hp.com/go/ic-linux

(click on Download button). NOTE:

NOTE:NOTE:

NOTE:

Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent. NOTE:

NOTE:NOTE:

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys. NOTE:

NOTE:NOTE:

NOTE:

For additional License Kits, including electronic licensing options, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

HP Integrated Lights-Out (iLO) Advanced

HP Integrated Lights-Out (iLO) AdvancedHP Integrated Lights-Out (iLO) Advanced

HP Integrated Lights-Out (iLO) Advanced HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic

License

TA850AAE

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 25

Page 26

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License

512485-B21

NOTE:

NOTE:NOTE:

NOTE:

This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service NOTE:

NOTE:NOTE:

NOTE:

Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent. NOTE:

NOTE:NOTE:

NOTE:

For additional license kits, including electronic delivery options, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html

HP Insight Control server deployment

HP Insight Control server deploymentHP Insight Control server deployment

HP Insight Control server deployment HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

NOTE:NOTE:

NOTE:

Licenses ship without media. The Insight Control Media Kit can be ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

NOTE:

NOTE:NOTE:

NOTE:

Electronic licenses can be used to purchase multiple licenses with a single activation key, and is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent. NOTE:

NOTE:NOTE:

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE:

NOTE:NOTE:

NOTE:

For additional license kits please see the Insight Control QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html

HP I/O Accelerator

HP I/O AcceleratorHP I/O Accelerator

HP I/O Accelerator Options

OptionsOptions

Options

HP 160GB SLC PCIe ioDrive

NOTE:

NOTE:NOTE:

NOTE:

A low-profile PCI bracket is included for use in low-profile slots.

600278-B21

HP 320GB MLC PCIe ioDrive

NOTE:

NOTE:NOTE:

NOTE:

A low-profile PCI bracket is included for use in low-profile slots.

600279-B21

HP 320GB SLC PCIe ioDrive Duo

600281-B21

HP 640GB MLC PCIe ioDrive Duo

600282-B21

HP 1.28TB MLC PCIe ioDrive Duo

641027-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13587_div/13587_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 26

Page 27

HP Security - TPM

HP Security - TPMHP Security - TPM

HP Security - TPM

HP Trusted Platform Module Option Kit

488069-B21

NOTE:

NOTE:NOTE:

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to:

www.hp.com/go/TPM

NOTE:

NOTE:NOTE:

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM deployment. NOTE:

NOTE:NOTE:

NOTE:

The TPM key is unique to every TPM deployed server and must be retained. Misplacing or loosing the key could result in data loss.

HP Storage Controllers

HP Storage ControllersHP Storage Controllers

HP Storage Controllers

NOTE:

NOTE: NOTE:

NOTE:

The DL360 G6 Server comes standard with an integrated P410i Smart Array Controller designed to mange up to 8 SFF hard drives from HP. For additional capabilities and capacities HP offers additional Smart Arrays.

SAS Controllers

SAS ControllersSAS Controllers

SAS Controllers Smart Array P800 Controller

Smart Array P800 ControllerSmart Array P800 Controller

Smart Array P800 Controller HP Smart Array P800/512 BBWC 2-ports Int/2-ports Ext PCIe x8 SAS Controller

381513-B21

Smart Array P212 Controller

Smart Array P212 ControllerSmart Array P212 Controller

Smart Array P212 Controller HP Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462834-B21

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462828-B21

Smart Array P411 Controller

Smart Array P411 ControllerSmart Array P411 Controller

Smart Array P411 Controller HP Smart Array P411/512 BBWC 2-ports Ext PCIe x8 SAS Controller

462832-B21

HP Smart Array P411/256 2-ports Ext PCIe x8 SAS Controller

462830-B21

HP Smart Array P411/512 FBWC 2-ports Ext PCIe x8 SAS Controller

578229-B21

HP Smart Array P411/1G FBWC 2-ports Ext PCIe x8 SAS Controller

572531-B21

Smart Array P812 Controller

Smart Array P812 ControllerSmart Array P812 Controller

Smart Array P812 Controller HP Smart Array P812/1G FBWC 2-ports Int/4-ports Ext PCIe x8 SAS Controller

NOTE:

NOTE:NOTE:

NOTE:

The HP Smart Array P812/1G Flash Backed Cache Controller has the ability to support 8 internal drives on the DL360 G6 as well as external storage solutions. For use with the internal 8 drives the Mini-SAS to Mini-SAS, 25.50" & 28.00" option kit (PN: 496013-B21) is required.

487204-B21

Optional Upgrades

Optional UpgradesOptional Upgrades

Optional Upgrades HP 256MB P-series Cache Upgrade

NOTE:

NOTE:NOTE:

NOTE:

Supported on HP Smart Array P212 Controller and HP Smart Array P410i Controller.

462968-B21

HP 512MB P-Series Battery Backed Write Cache Upgrade

462967-B21

HP 1GB Flash Backed Cache

NOTE:

NOTE:NOTE:

NOTE:

Supported on the Smart Array P410i Controller only.

534562-B21

HP 512MB Flash Backed Write Cache

NOTE:

NOTE:NOTE:

NOTE:

Supported on the Smart Array P410i Controller only.

534916-B21

HP 650 mAh P-Series Battery

NOTE:

NOTE:NOTE:

NOTE:

To enable BBWC on the 256MB cache.

462969-B21

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 27

Page 28

HP 8484 to Mini SAS 33in Cable Assembly

NOTE:

NOTE:NOTE:

NOTE:

Cable for use connecting the Smart Array P800 Controller to internal hard disk drives on select HP ProLiant G6 Servers.

591734-B21

HP Mini SAS to Mini SAS 28in Cable Assembly

496013-B21

HP Chipset SATA Cable Kit

NOTE:

NOTE:NOTE:

NOTE:

This cable allows for connection of Chipset SATA to 1 SATA HD in the drive cage. This solution allows for disabling the embedded storage controller. Qty of 1 HD blanks may need to be ordered/installed when using this solution (503771-B21) to ensure all bays are populated with HDs or blanks. There is no support for optical media. There is no support for HD LED or thermal management when this solution is deployed. Only supported on non Hot Plug SFF Hard Drives configurations. Hot Plug is not supported. Loss of HD support for all drives bays except for the 1 deployed in this configuration. VMWare (ESX3.5/i ) is not supported in this configuration.

627121-B21

HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License

NOTE:

NOTE:NOTE:

NOTE:

This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP Software Technical Support Services.

516471-B21

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html

(Smart Array P800 Controller)

http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html

(Smart Array P212 Controller)

http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html

(Smart Array P411 Controller)

http://h18000.www1.hp.com/products/quickspecs/13558_div/13558_div.html

(Smart Array P812 Controller)

http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html

(Smart Array Advanced Pack)

SAS HBA

SAS HBASAS HBA

SAS HBA HP SC08Ge 2-ports Ext PCIe x8 SAS Host Bus Adapter

488765-B21

HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter

NOTE:

NOTE:NOTE:

NOTE:

This is a 2 x4 External Port HBA NOTE:

NOTE:NOTE:

NOTE:

This is only approved for the HP StorageWorks P2000 G3 SAS Modular Smart Array.

614988-B21

NOTE:

NOTE: NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html

(SC08Ge HBA)

http://h18004.www1.hp.com/products/quickspecs/13651_div/13651_div.html

(SC08e 6Gb HBA)

SCSI HBA

SCSI HBASCSI HBA

SCSI HBA HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

NOTE:

NOTE:NOTE:

NOTE:

Recommended HBA for SCSI tape drive connect.

412911-B21

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 28

Page 29

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html

(SC11Xe HBA)

HP Power Cords

HP Power CordsHP Power Cords

HP Power Cords

NOTE:

NOTE:NOTE:

NOTE:

The HP ProLiant DL360 G6 ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For specific regional power cords purchase from the following.

Nema 5-15P to IEC320-C13

AF556A

Power Cord, Euro, 10A 250 V Straight (6 ft/1.83 m)

AF568A

Power Cord, UK, 10A 250 V Straight (6 ft/1.83 m)

AF570A

Power Cord, Danish, 10A 250 V Straight (6 ft/1.83 m)

AF566A

Power Cord, Swiss, 10A 250 V Straight (6 ft/1.83 m)

AF565A

Power Cord, Italian, 10A 250 V Straight (6 ft/1.83 m)

AF571A

Power Cord, South Africa, 10A 250 V Straight (8.2 ft/2.5 m)

AF567A

HP Backup & Recovery

HP Backup & RecoveryHP Backup & Recovery

HP Backup & Recovery Software

SoftwareSoftware

Software

HP Data Protector Express

HP Data Protector ExpressHP Data Protector Express

HP Data Protector Express HP Basic Upgrade to Data Protector Express V5 for 1 Server E-LTU

TC333AAE

HP Data Protector Express V5.0 for 10 Servers E-LTU

TC332AAE

HP Data Protector Express V5.0 for 1 Server E-LTU

TC330AAE

HP Data Protector Express V5.0 for 3 Servers E-LTU

TC331AAE

NOTE:

NOTE:NOTE:

NOTE:

One of these Data Protector Express base products is required. To see available options:

http://www.hp.com/go/dataprotectorexpress

HP Tape Backup

HP Tape BackupHP Tape Backup

HP Tape Backup

NOTE:

NOTE:NOTE:

NOTE:

For the complete range of StorageWorks tape drives, autoloaders, libraries and media see:

http://www.hp.com/go/tape

. For hardware and software compatibility

of HP StorageWorks tape backup products see:

http://www.hp.com/go/connect

HP StorageWorks DAT 320 USB in 1U Rack-mount Kit

AP835B

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

NOTE:

NOTE:NOTE:

NOTE:

Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation. Connection using HP P212 SAS Smart Array Controller (462828-B21) recommended.

AK377A

HP StorageWorks DAT 320 SAS Internal Tape Drive

NOTE:

NOTE:NOTE:

NOTE:

For installation into 1U SAS rack kit (AE459B) or 3U SAS rack kit (AG576B). No peripheral bay available for installation into the server. Connection using HP Smart Array P212/Zero Memory Controller (462828-B21) recommended.

AJ830A

HP StorageWorks Ultrium 920 SAS Internal Tape Drive

NOTE:

NOTE:NOTE:

NOTE:

EH847A

HP StorageWorks LTO-4 Ultrium 1760 SAS (1) in 1U Rack-mount Kit

NOTE:

NOTE:NOTE:

NOTE:

Connection using HP Smart Array P212/Zero Memory Controller (462828B21) recommended.

EH946B

HP StorageWorks LTO-5 Ultrium 3000 SAS Tape Drive in 1U Rackmount

NOTE:

NOTE:NOTE:

NOTE:

Connection using HP Smart Array P212/Zero Memory Controller (462828B21) recommended.

EJ014A

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 29

Page 30

HP StorageWorks 1/8 G2 LTO-5 Ultrium 3000 SAS Tape Autoloader

NOTE:

NOTE:NOTE:

NOTE:

Requires HP 1U Tape Autoloader Rack Kit (AH166A) for rack installation. Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL536A

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Tape Library

AK378A

HP StorageWorks MSL2024 1 LTO-5 Ultrium 3000 SAS Tape Library

NOTE:

NOTE:NOTE:

NOTE:

Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL537A

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Tape Library

AK380A

HP StorageWorks MSL4048 2 LTO-5 Ultrium 3000 SAS Tape Library

NOTE:

NOTE:NOTE:

NOTE:

Connection using HP P212 Smart Array Controller SAS (462828-B21) recommended.

BL538A

HP Disk Backup

HP Disk BackupHP Disk Backup

HP Disk Backup

NOTE:

NOTE:NOTE:

NOTE:

For the complete range of StorageWorks D2D Backup Systems see:

http://www.hp.com/go/d2d

. For the complete range of StorageWorks RDX drives and

media see:

http://www.hp.com/go/rdx

. For hardware and software compatibility of

HP StorageWorks disk backup products see:

http://www.hp.com/go/connect

HP StorageWorks D2D Backup Systems with Backup Data Deduplication

HP StorageWorks D2D Backup Systems with Backup Data DeduplicationHP StorageWorks D2D Backup Systems with Backup Data Deduplication

HP StorageWorks D2D Backup Systems with Backup Data Deduplication HP StorageWorks D2D2502i Backup System

NOTE:

NOTE:NOTE:

NOTE:

1.5TB of useable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

EJ001B

HP StorageWorks D2D2504i Backup System

NOTE:

NOTE:NOTE:

NOTE:

3.0TB of useable network disk backup capacity. Network connected appliance with connectivity using the iSCSI protocol. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

EJ002B

HP StorageWorks D2D4112 Backup System

NOTE:

NOTE:NOTE:

NOTE:

9.0TB (expandable to 18.0TB) of useable network disk backup capacity. Fibre Channel SAN connected appliance. Direct server attach is not supported, requires connection via SAN fabric. See

http://www.hp.com/go/connect

for supported Fibre

Channel Host Bus Adapters.

EH993B

HP StorageWorks RDX Removable Disk Backup Systems USB

HP StorageWorks RDX Removable Disk Backup Systems USBHP StorageWorks RDX Removable Disk Backup Systems USB

HP StorageWorks RDX Removable Disk Backup Systems USB HP StorageWorks RDX320 Internal Removable Disk Backup System

NOTE:

NOTE:NOTE:

NOTE:

For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 320GB of disk capacity per data cartridge.

AJ767A

HP StorageWorks RDX500 Internal Removable Disk Backup System

NOTE:

NOTE:NOTE:

NOTE:

For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 500GB of disk capacity per data cartridge.

AJ934A

HP StorageWorks RDX 1TB Internal Removable Disk Backup System

NOTE:

NOTE:NOTE:

NOTE:

For installation into 1U USB Rack-Mount Kit (A8007A). No peripheral bay available for drive installation into the server. 1 TB of disk capacity per data cartridge.

BV847A

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 30

Page 31

HP StorageWorks

HP StorageWorksHP StorageWorks

HP StorageWorks Options

OptionsOptions

Options

StorageWorks Fibre Channel HBA

StorageWorks Fibre Channel HBAStorageWorks Fibre Channel HBA

StorageWorks Fibre Channel HBA

NOTE:

NOTE:NOTE:

NOTE:

The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

Brocade Fibre Channel HBAsBrocade Fibre Channel HBAs

Brocade Fibre Channel HBAs HP StorageWorks 81B PCIe 8Gb Fibre Channel Single Port Host Bus Adapter

AP769A

HP StorageWorks 82B PCIe 8Gb Fibre Channel Dual Port Host Bus Adapter

AP770A

HP StorageWorks 41B PCIe 4Gb Fibre Channel Single Port Host Bus Adapter

AP767A

HP StorageWorks 42B PCIe 4Gb Fibre Channel Dual Port Host Bus Adapter

AP768A

Emulex Fibre Channel HBAs

Emulex Fibre Channel HBAsEmulex Fibre Channel HBAs

Emulex Fibre Channel HBAs HP StorageWorks 81E 8Gb Single Port PCI-e Fibre Channel Host Bus Adapter

AJ762A

HP StorageWorks 82E 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter

AJ763A

HP StorageWorks FC2142SR 4Gb PCIe Host Bus Adapter

A8002A

HP StorageWorks FC2242SR 4Gb PCIe DC Host Bus Adapter

A8003A

QLogic Fibre Channel HBAs

QLogic Fibre Channel HBAsQLogic Fibre Channel HBAs

QLogic Fibre Channel HBAs HP StorageWorks 81Q PCI-e Fibre Channel Host Bus Adapter

AK344A

HP StorageWorks 82Q 8Gb Dual Port PCI-e Fibre Channel Host Bus Adapter

AJ764A

HP StorageWorks FC1142SR 4Gb PCIe Host Bus Adapter

AE311A

HP StorageWorks FC1242SR 4Gb PCIe DC Host Bus Adapter

AE312A

StorageWorks SCSI HBA

StorageWorks SCSI HBAStorageWorks SCSI HBA

StorageWorks SCSI HBA HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter

NOTE:

NOTE:NOTE:

NOTE:

Recommended HBA for MSL SCSI Tape Library connect.

AH627A

StorageWorks Converged Network Adapter

StorageWorks Converged Network AdapterStorageWorks Converged Network Adapter

StorageWorks Converged Network Adapter HP StorageWorks CN1000E Dual Port Converged Network Adapter

AW520A

HP CN1000Q 2P Converged Network Adapter

BS668A

HP Disk Storage Systems

HP Disk Storage SystemsHP Disk Storage Systems

HP Disk Storage Systems

MSA SAN Storage Arrays

MSA SAN Storage ArraysMSA SAN Storage Arrays

MSA SAN Storage Arrays HP StorageWorks 60 Modular Smart Array

418408-B21

NOTE:

NOTE:NOTE:

NOTE:

Supports 12 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s. NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional options and configuration information at:

http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html

HP StorageWorks 70 Modular Smart Array

418800-B21

NOTE:

NOTE:NOTE:

NOTE:

Supports 25 SFF drives, and SAS 3 Gb/s and SATA 1.5 Gb/s. NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional options and configuration information at:

http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html

Disk Enclosures

Disk EnclosuresDisk Enclosures

Disk Enclosures HP StorageWorks D2600 Disk Enclosure

AJ940A

HP StorageWorks D2700 Disk Enclosure

AJ941A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional options and configuration information at:

http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 31

Page 32

HP Uninterruptible Power

HP Uninterruptible PowerHP Uninterruptible Power

HP Uninterruptible Power Systems

SystemsSystems

Systems

HP Rack-mountable UPS

HP Rack-mountable UPSHP Rack-mountable UPS

HP Rack-mountable UPS HP R1500 G2 UPS

HP R1500 G2 UPSHP R1500 G2 UPS

HP R1500 G2 UPS HP R1500 G2 1440VA Low Voltage NA 1U Rackmount Uninterruptible Power System

AF419A

HP R1500 G2 1440VA INTL 1U Rackmount Uninterruptible Power System

AF418A

HP R1500 G2 1200kVA Low Voltage JP 1U Rackmount Uninterruptible Power System

AF421A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html

HP Rack-Mountable R5500 UPS

HP Rack-Mountable R5500 UPSHP Rack-Mountable R5500 UPS

HP Rack-Mountable R5500 UPS HP R5500 6000VA INTL 3U Rackmount Uninterruptible Power System

AF416A

HP R5500 5000kVA NA/JP 3U Rackmount Uninterruptible Power System

AF426A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html

NOTE:

NOTE:NOTE:

NOTE:

For additional information on HP Uninterruptible Power Systems please go to:

www.hp.com/servers/rackups

NOTE:

NOTE:NOTE:

NOTE:

For additional information on sizing your server, please reference:

http://www.upssizer.com

NOTE:

NOTE:NOTE:

NOTE:

Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link:

www.hp.com/products/powercords

HP Power Distribution

HP Power DistributionHP Power Distribution

HP Power Distribution Units

UnitsUnits

Units

HP Monitored Power Distribution Unit: Half Rack Version

HP Monitored Power Distribution Unit: Half Rack VersionHP Monitored Power Distribution Unit: Half Rack Version

HP Monitored Power Distribution Unit: Half Rack Version HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)

AF914A

HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)

AF915A

HP Monitored Power Distribution Unit: Full Rack Version

HP Monitored Power Distribution Unit: Full Rack VersionHP Monitored Power Distribution Unit: Full Rack Version

HP Monitored Power Distribution Unit: Full Rack Version HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)

AF504A

HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN)

AF506A

HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)

AF508A

HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL)

AF510A

NOTE:

NOTE:NOTE:

NOTE:

Please see the following QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html

(Worldwide)

Modular Power Distribution Units 1U/0U (Up to 32 outlets)

Modular Power Distribution Units 1U/0U (Up to 32 outlets)Modular Power Distribution Units 1U/0U (Up to 32 outlets)

Modular Power Distribution Units 1U/0U (Up to 32 outlets)

NOTE:

NOTE:NOTE:

NOTE:

1U/0U mounting brackets shipped with the unit (optimized for 10000 and 9000 series racks).

HP Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC) (NA, Japan)

252663-D72

8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)

252663-D73

HP Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l)

252663-B31

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 32

Page 33

HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)

NOTE:

NOTE:NOTE:

NOTE:

This PDU has a detachable input power cord and allows for adaptability to country specific power requirements.

252663-B24

NOTE:

NOTE:NOTE:

NOTE:

Please see the following QuickSpecs for additional options including shorter jumper cables and country specific power cords:

http://h18000.www1.hp.com/products/quickspecs/11041_div/11041_div.html

(Worldwide) NOTE:

NOTE:NOTE:

NOTE:

For additional information on HP Power Distribution Units including accessories please go to:

www.hp.com/go/pdu

NOTE:

NOTE:NOTE:

NOTE:

www.hp.com/products/powercords

HP Rack Series

HP Rack SeriesHP Rack Series

HP Rack Series

HP Rack 10000 G2 Series

HP Rack 10000 G2 SeriesHP Rack 10000 G2 Series

HP Rack 10000 G2 Series

(Carbon/Graphite Metallic)

HP 10642 G2 Pallet Universal Rack

AF001A

HP 10642 G2 Shock Universal Rack

AF002A

HP 10642 G2 1200mm deep Shock Rack

AF092A

HP 10647 G2 1200mm deep Shock Rack

AF094A

NOTE:

NOTE:NOTE:

NOTE:

It is mandatory to use a shock pallet when shipping racks with equipment installed. NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide) NOTE:

NOTE:NOTE:

NOTE:

For additional information regarding Rack Cabinets, please see the following URL:

http://www.hp.com/go/rackandpower

NOTE:

NOTE:NOTE:

NOTE:

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors. CAUTION:

CAUTION:CAUTION:

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment: Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm). CAUTION:

CAUTION:CAUTION:

CAUTION:

Always use blanking panels to fill all remaining empty front panel Uspaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage. NOTE:

NOTE:NOTE:

NOTE:

For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL:

www.hp.com/servers/dl360

Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 33

Page 34

HP Rack Options

HP Rack OptionsHP Rack Options

HP Rack Options

Keyboards and Monitors

Keyboards and MonitorsKeyboards and Monitors

Keyboards and Monitors HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor

AZ870A

HP TFT7600 G2 KVM Console Rackmount Keyboard UK Monitor

AZ871A

HP TFT7600 G2 KVM Console Rackmount Keyboard DE Monitor

AZ872A

HP TFT7600 G2 KVM Console Rackmount Keyboard FR Monitor

AZ873A

HP TFT7600 G2 KVM Console Rackmount Keyboard IT Monitor

AZ874A

HP TFT7600 G2 KVM Console Rackmount Keyboard ES Monitor

AZ875A

HP TFT7600 G2 KVM Console Rackmount Keyboard DK Monitor

AZ876A

HP TFT7600 G2 KVM Console Rackmount Keyboard NO Monitor

AZ877A

HP TFT7600 G2 KVM Console Rackmount Keyboard SE/FI Monitor

AZ878A

HP TFT7600 G2 KVM Console Rackmount Keyboard CH Monitor

AZ879A

HP TFT7600 G2 KVM Console Rackmount Keyboard PT Monitor

AZ880A

HP TFT7600 G2 KVM Console Rackmount Keyboard BE Monitor

AZ881A

HP TFT7600 G2 KVM Console Rackmount Keyboard JP Monitor

AZ882A

HP TFT7600 G2 KVM Console Rackmount Keyboard RU Monitor

AZ883A

HP TFT7600 G2 KVM Console Rackmount Keyboard Intl Monitor

AZ884A

HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor

AZ885A

HP Server Console Switches

HP Server Console SwitchesHP Server Console Switches

HP Server Console Switches HP Server console switch 0x2x8

AF616A

HP Server console switch 0x2x16

AF617A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html

(Worldwide)

HP Server Console Switch G2 with Virtual Media & CAC

HP Server Console Switch G2 with Virtual Media & CACHP Server Console Switch G2 with Virtual Media & CAC

HP Server Console Switch G2 with Virtual Media & CAC 0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC

AF618A

0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC

AF619A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html

(Worldwide)

HP IP Console Switch G2 with Virtual Media & CAC

HP IP Console Switch G2 with Virtual Media & CACHP IP Console Switch G2 with Virtual Media & CAC

HP IP Console Switch G2 with Virtual Media & CAC 1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC

AF620A

2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC

AF621A

4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC

AF622A

NOTE:

NOTE:NOTE:

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html

(Worldwide)

Rack Kits

Rack KitsRack Kits

Rack Kits 1U Cable Management Arm

NOTE:

NOTE:NOTE:

NOTE:

Package contains two cable management arms.

365403-B21

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 34

Page 35

HP USB and SD Options

HP USB and SD OptionsHP USB and SD Options

HP USB and SD Options

HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)

DC172B

HP USB 04 Standard Keyboard

DT528A#ABA

HP 4GB SD Flash Media Kit

NOTE:

NOTE:NOTE:

NOTE:

Blank SD media device is supported for use with VMware and Citrix. SD media must be installed in the internal slot of the ProLiant server. Learn more at:

http://www.hp.com/go/proliantvirtualization

580387-B21

HP 2GB USB Flash Media Drive Key

NOTE:

NOTE:NOTE:

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software like SmartStart. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi. Refer to

HP VMware Getting Started Guide

for installation instructions.

608447-B21

HP Care Pack Services

HP Care Pack ServicesHP Care Pack Services

HP Care Pack Services

Hardware Services 4-Hour On-site Service

Hardware Services 4-Hour On-site ServiceHardware Services 4-Hour On-site Service

Hardware Services 4-Hour On-site Service 4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic

U4496E

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

U4497E

Hardware Services 6-Hour Call to Repair On-site Service

Hardware Services 6-Hour Call to Repair On-site ServiceHardware Services 6-Hour Call to Repair On-site Service

Hardware Services 6-Hour Call to Repair On-site Service 6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,

Electronic

U4498E

Hardware Services Next Business Day On-Site Service

Hardware Services Next Business Day On-Site ServiceHardware Services Next Business Day On-Site Service

Hardware Services Next Business Day On-Site Service Hardware Installation, Electronic

U4506E

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am5pm, M-F, excl. HP holidays, Electronic

U4507E

Support Plus 24

Support Plus 24Support Plus 24

Support Plus 24 Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,

onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U4509E

Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic

U6310E

NOTE:

NOTE:NOTE:

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Additional Options

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 35

Page 36

NOTE:

NOTE:NOTE:

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

DDR3 memory population guidelines

DDR3 memory population guidelinesDDR3 memory population guidelines

DDR3 memory population guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

For servers with eighteen (18) memory slots:

There are three (3) channels per processor; six (6) channels per server There are three (3) DIMM slots for each memory channel; eighteen (18) total slots Memory channel 1 consists of the three (3) DIMMs that are closest to the processor

Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor DIMM slots that are white should be populated first Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs) Do not install DIMMs if the corresponding processor is not installed If only one processor is installed in a 2CPU system, only half of the DIMM slots are available To maximize performance, balance the total memory capacity between all installed processors It is not required, but it is recommended to load the channels similarly if possible You can only have up to eight (8) ranks installed per channel You can only install two quad-rank DIMMs per channel You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system No mixing DIMM voltage; all DIMMs must be the same voltage

DIMM Type ->

Registered Dimms (RDIMMs)

Unbuffered with ECC

DIMMs (UDIMMs)

DIMM Rank ->

Dual Rank (2R)

Quad Rank (4R)

Single Rank

(1R)

Dual

Rank (2R)

DIMM Capacity ->

2GB 4GB 8GB 8GB 4GB

16GB

1GB 2GB

DIMM Native Speed (MHz)

1333 1333 1333 1066 1066 1066 1333 1333

SLOTS THAT CAN BE POPULATED 9 slot servers

9 9 9 9 6 6 6 6

12 slot servers

12 12 12 12 12 12 12 12

16 slot servers

16 16 16 16 12 12 12 12

18 slot servers

18 18 18 18 12 12 12 12

MAXIMUM CAPACITY (GB) 9 slot servers

18 36 72 72 24 96

12 slot servers

24 48 96 96 48

192

12 24

16 slot servers

32 64

128 128

192

12 24

18 slot servers

36 72

144 144

192

12 24

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Memory

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 36

Page 37

POPULATED DIMM SPEED (MHz) 1 DIMM Per Channel

1333 1333 1333 1066 1066 1066 1333 1333

2 DIMM Per Channel

1333

1066

800 800

1333

3 DIMM Per Channel

800 800 800 800

n/a n/a n/a n/a

* - supported with ROM update via ROM Based Setup Utility (RBSU). UDIMM support is only on 12-slot servers.

NOTES:

NOTES:NOTES:

NOTES:

Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz 95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's are capable of up to 1066MHz References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.

DIMM slot and configuration diagrams

DIMM slot and configuration diagramsDIMM slot and configuration diagrams

DIMM slot and configuration diagrams Basic memory slot & population diagram

Basic memory slot & population diagramBasic memory slot & population diagram

Basic memory slot & population diagram

Population order; start with "A" first, "B" second, "C" third, etc.

18 DIMM SLOTS (9 per CPU node)

18 DIMM SLOTS (9 per CPU node)18 DIMM SLOTS (9 per CPU node)

18 DIMM SLOTS (9 per CPU node)

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

Chnl 2

Chnl 3

Standard memory configuration (1 CPU model)

Standard memory configuration (1 CPU model)Standard memory configuration (1 CPU model)

Standard memory configuration (1 CPU model)

6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Memory

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 37

Page 38

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; empty

C; 2GB DIMM

C; empty

Standard memory plus optional memory (1 CPU model)

Standard memory plus optional memory (1 CPU model)Standard memory plus optional memory (1 CPU model)

Standard memory plus optional memory (1 CPU model)

54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs

3x 2GB dual-rank PC3-10600 RDIMMs 6x 8GB dual-rank PC3-8500 RDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; 8GB DIMM

G; empty

Chnl 1

D; 8GB DIMM

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; 8GB DIMM

H; empty

Chnl 2

E; 8GB DIMM

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; 8GB DIMM

I; empty

Chnl 3

F; 8GB DIMM

F; empty

C; 2GB DIMM

C; empty

Standard memory replaced with optional memory (1 CPU model)

Standard memory replaced with optional memory (1 CPU model)Standard memory replaced with optional memory (1 CPU model)

Standard memory replaced with optional memory (1 CPU model) RDIMM maximum configuration

RDIMM maximum configurationRDIMM maximum configuration

RDIMM maximum configuration

72GB, consisting of nine (9) 8GB dual-rank PC3-8500 RDIMMs

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Memory

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 38

Page 39

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; 8GB DIMM

G; empty

Chnl 1

D; 8GB DIMM

D; empty

A; 8GB DIMM

A; empty

Chnl 2

H; 8GB DIMM

H; empty

Chnl 2

E; 8GB DIMM

E; empty

B; 8GB DIMM

B; empty

Chnl 3

I; 8GB DIMM

I; empty

Chnl 3

F; 8GB DIMM

F; empty

UDIMM maximum configuration (1 CPU model)

UDIMM maximum configuration (1 CPU model)UDIMM maximum configuration (1 CPU model)

UDIMM maximum configuration (1 CPU model)

12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 2GB DIMM

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; 2GB DIMM

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; 2GB DIMM

F; empty

C; 2GB DIMM

C; empty

Standard memory replaced with optional memory (2 CPU model)

Standard memory replaced with optional memory (2 CPU model)Standard memory replaced with optional memory (2 CPU model)

Standard memory replaced with optional memory (2 CPU model) RDIMM maximum configuration

RDIMM maximum configurationRDIMM maximum configuration

RDIMM maximum configuration

192GB, consisting of twelve (12) 16GB quad-rank PC3-8500 RDIMMs

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Memory

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 39

Page 40

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 16GB DIMM

A; 16GB DIMM

Chnl 2

H; empty

Chnl 2

E; 16GB DIMM

B; 16GB DIMM

Chnl 3

I; empty

Chnl 3

F; 16GB DIMM

C; 16GB DIMM

UDIMM maximum configuration (2 CPU model)

UDIMM maximum configuration (2 CPU model)UDIMM maximum configuration (2 CPU model)

UDIMM maximum configuration (2 CPU model)

48GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs

CPU1

CPU1CPU1

CPU1 CPU2

CPU2CPU2

CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 4GB DIMM

A; 4GB DIMM

Chnl 2

H; empty

Chnl 2

E; 4GB DIMM

B; 4GB DIMM

Chnl 3

I; empty

Chnl 3

F; 4GB DIMM

C; 4GB DIMM

NOTE:

NOTE:NOTE:

NOTE:

Capacity references are rounded to the common Gigabyte values.

1GB = 1024MB 2GB = 2048MB 4GB = 4096MB 8GB = 8192MB 16GB = 16384MB

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Memory

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 40

Page 41

Following are memory options available from HP:

Following are memory options available from HP:Following are memory options available from HP:

Following are memory options available from HP:

DDR3 memory options part number decoder

DDR3 memory options part number decoderDDR3 memory options part number decoder

DDR3 memory options part number decoder

HP Memory

HP MemoryHP Memory

HP Memory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs)Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs) HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory

Kit

500656-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593339-B21

HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500658-B21

HP 4GB (1x4GB) Quad Rank x8 PC3-8500 (DDR3-1066) Registered CAS-7 Low Power Memory Kit

500660-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

500662-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

500666-B21

Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs)Unbuffered with ECC DIMMs (UDIMMs)

Unbuffered with ECC DIMMs (UDIMMs) HP 1GB (1x1GB) Single Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9

Memory Kit

500668-B21

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500670-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9 Memory Kit

500672-B21

NOTE:

NOTE:NOTE:

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

NOTE: NOTE:

NOTE:

Kits described as LP include Low Power DIMMs. For more information on

ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Memory

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 41

Page 42

1-8

8 x SFF SAS Hot Pluggable Hard Drive Bays. Optical Media Bay not available for this configuration

1-4

4 x SFF SAS Hot Pluggable Hard Drives

Optical Media Bay

5, 6

Blanks (HDD Bays will not function)

Drive Support

Drive SupportDrive Support

Drive Support

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

Removable Media

Removable MediaRemovable Media

Removable Media HP DL360 SL 12.7mm

SATA DVD-RW

Slim Line Bay

Integrated SATA

HP DL360 SL 12.7mm SATA DVD

NOTE:

NOTE:NOTE:

NOTE:

DVD/Optical drive options supported on 4 hard drive models only.

Slim Line Bay

Integrated SATA

Hard Drives

Hard DrivesHard Drives

Hard Drives

NOTE:

NOTE:NOTE:

NOTE:

NOTE: NOTE:

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) DrivesSAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

600GB 6G SAS 10K DP 450GB 6G SAS 10K DP 300GB 6G SAS 10K DP 146GB 6G SAS 15K DP

1-8

HP Smart Array P800/512 BBWC Controller HP Smart Array P212/Zero Memory Controller HP Smart Array P212/ 256 MB Controller HP Smart Array P410i/Zero Memory Controller

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Storage

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 42

Page 43

146GB 6G SAS 10K DP 72GB 6G SAS 15K DP

HP Smart Array P410i/256 MB Controller HP Smart Array P410i/512 MB BBWC Controller HP Smart Array P411/256 MB Controller HP Smart Array P411/512 MB BBWC Controller HP Smart Array P411/512 MB FBWC Controller HP Smart Array P411/1G FBWC Controller HP Smart Array P812/1G Flash Backed Cache Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SAS Hot Plug SFF (2.5-inch) Midline (MDL) DrivesSAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

500GB 6G SAS 7.2K DP

1-8

HP Smart Array P800/512 BBWC Controller HP Smart Array P212/Zero Memory Controller HP Smart Array P212/ 256 MB Controller HP Smart Array P410i/Zero Memory Controller HP Smart Array P410i/256 MB Controller HP Smart Array P410i/512 MB BBWC Controller HP Smart Array P411/256 MB Controller HP Smart Array P411/512 MB BBWC Controller HP Smart Array P411/512 MB FBWC Controller HP Smart Array P411/1G FBWC Controller HP Smart Array P812/1G Flash Backed Cache Controller

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) DrivesSATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

500GB 3G SATA 7.2K 160GB 3G SATA 7.2K

1-8

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

SATA Hot Plug SFF (2.5-inch) Entry (ETY) DrivesSATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

SATA Hot Plug SFF (2.5-inch) Entry (ETY) Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

250GB 3G SATA 5.4K 120GB 1.5G SATA 5.4K

1-8

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Storage

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 43

Page 44

HP Smart Array P411/512 MB BBWC Controller HP Smart Array P411/512 MB FBWC Controller HP Smart Array P411/1G FBWC Controller HP Smart Array P812/1G Flash Backed Cache Controller

SATA Hot Plug Midline (MDL) Solid State Drives

SATA Hot Plug Midline (MDL) Solid State DrivesSATA Hot Plug Midline (MDL) Solid State Drives

SATA Hot Plug Midline (MDL) Solid State Drives

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

60GB 3.0G SATA SSD 120GB 3.0G SATA SSD

1-8

HP Smart Array P212/Zero Memory Controller HP Smart Array P212/ 256 MB Controller HP Smart Array P410i/Zero Memory Controller HP Smart Array P410i/256 MB Controller HP Smart Array P410i/512 MB BBWC Controller HP Smart Array P411/256 MB Controller HP Smart Array P411/512 MB BBWC Controller HP Smart Array P411/512 MB FBWC Controller HP Smart Array P411/1G FBWC Controller HP Smart Array P812/1G Flash Backed Cache Controller

External Storage

External StorageExternal Storage

External Storage

Quantity

QuantityQuantity

Quantity

Supported

SupportedSupported

Supported

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Host Controller or Adapter

Host Controller or AdapterHost Controller or Adapter

Host Controller or Adapter

60 Modular Smart Array

Up to 4

External

HP Smart Array P212/256 MB Controller

Up to 8

HP Smart Array P800/512 BBWC Controller HP Smart Array P411/256 MB Controller HP Smart Array P411/512 MB BBWC Controller HP Smart Array P411/512 MB FBWC Controller HP Smart Array P411/1G FBWC Controller HP Smart Array P812/1G Flash Backed Cache Controller

70 Modular Smart Array

Up to 2

External

HP Smart Array P212/256 MB Controller

Up to 4

D2700 Disk Enclosure

Up to 2

External

HP Smart Array P212/256 MB Controller

Up to 4

HP Smart Array P411/256 MB Controller HP Smart Array P411/512 MB BBWC Controller HP Smart Array P411/512 MB FBWC Controller HP Smart Array P411/1G FBWC Controller HP Smart Array P812/1G Flash Backed Cache Controller

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Storage

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 44

Page 45

Tape and Disk Backup

Tape and Disk BackupTape and Disk Backup

Tape and Disk Backup

NOTE:

NOTE:NOTE:

NOTE:

For the complete range of StorageWorks tape drives, autoloaders, libraries and media, including the internal fitting models, see:

http://www.hp.com/go/tape

. For the complete range of StorageWorks D2D Backup Systems see:

http://www.hp.com/go/d2d

For the complete range of StorageWorks RDX drives and media see:

http://www.hp.com/go/rdx

. For hardware and software

compatibility of HP StorageWorks disk and tape backup products see:

http://www.hp.com/go/connect

Position

PositionPosition

Position

Supported

SupportedSupported

Supported

Controller

ControllerController

Controller

Part Number

Part NumberPart Number

Part Number

HP StorageWorks SCSI

HP StorageWorks SCSIHP StorageWorks SCSI

HP StorageWorks SCSI Tape Drives

Tape DrivesTape Drives

Tape Drives LTO-1 Ultrium 232 LTO-2 Ultrium 448 LTO-3 Ultrium 920 LTO-3 Ultrium 960 LTO4 Ultrium 1760 LTO-4 Ultrium 1840 DAT 40 DAT 72 DAT 160 1U Rack-Mount Kit 3U Rack-Mount Kit

External

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

412911-B21

NOTE:

NOTE:NOTE:

NOTE:

Please check the full compatibility information at:

http://www.hp.com/go/connect

HP StorageWorks USB

HP StorageWorks USBHP StorageWorks USB

HP StorageWorks USB Tape Drives

Tape DrivesTape Drives

Tape Drives DAT 40 DAT 72 DAT 160 DAT 320 1U USB Rack-Mount Kit

External

USB 2.0 Port

N/A

HP StorageWorks SAS

HP StorageWorks SASHP StorageWorks SAS

HP StorageWorks SAS Tape Drives

Tape DrivesTape Drives

Tape Drives DAT 160 DAT 320 LTO-2 Ultrium 448 LTO-3 Ultrium 920 LTO-4 Ultrium 1760 LTO-4 Ultrium 1840 LTO-5 Ultrium 3000 LTO-5 Ultrium 3280 1U Rack-Mount Kit 3U Rack-Mount Kit

External

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462828-B21

HP StorageWorks SCSI

HP StorageWorks SCSIHP StorageWorks SCSI

HP StorageWorks SCSI Tape Autoloaders

Tape AutoloadersTape Autoloaders

Tape Autoloaders DAT 72x10 Autoloader 1/8 G2 Autoloader

External

HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter

412911-B21

NOTE:

NOTE:NOTE:

NOTE:

Please check the full compatibility information at:

http://www.hp.com/go/connect

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Storage

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 45

Page 46

HP StorageWorks SCSI

HP StorageWorks SCSIHP StorageWorks SCSI

HP StorageWorks SCSI Tape Libraries, External

Tape Libraries, ExternalTape Libraries, External

Tape Libraries, External MSL2024 MSL4048 MSL8096 MSL6000

External

HP StorageWorks U320e SCSI Dual Channel Host Bus Adapter

AH627A

NOTE:

NOTE:NOTE:

NOTE:

Please check the full compatibility information at:

http://www.hp.com/go/connect

HP StorageWorks SAS

HP StorageWorks SASHP StorageWorks SAS

HP StorageWorks SAS Tape Autoloaders and

Tape Autoloaders andTape Autoloaders and

Tape Autoloaders and Libraries

LibrariesLibraries

Libraries 1/8 G2 Autoloader MSL2024 MSL4048 MSL8096

External

HP Smart Array P212/ZM 1-ports Int/1-ports Ext PCIe x8 SAS Controller

462828-B21

NOTE:

NOTE:NOTE:

NOTE:

Please check the full compatibility information at:

http://www.hp.com/go/connect

HP StorageWorks Fibre

HP StorageWorks FibreHP StorageWorks Fibre

HP StorageWorks Fibre Channel Tape Libraries

Channel Tape LibrariesChannel Tape Libraries

Channel Tape Libraries MSL2024 MSL4048 MSL8096 MSL6000

External

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

for detailed connectivity information.

N/A

HP StorageWorks USB

HP StorageWorks USBHP StorageWorks USB

HP StorageWorks USB RDX Removable Disk

RDX Removable DiskRDX Removable Disk

RDX Removable Disk Backup System

Backup SystemBackup System

Backup System RDX160 RDX320 RDX500 RDX750 RDX1TB

External

USB 2.0 Port

N/A

HP StorageWorks D2D

HP StorageWorks D2DHP StorageWorks D2D

HP StorageWorks D2D Backup Systems, iSCSI

Backup Systems, iSCSIBackup Systems, iSCSI

Backup Systems, iSCSI D2D2500i D2D4000i

External

Embedded Network Controller. If the server requires a hardware iSCSI initiator, the QLogic QLA4050 Host Bus Adapter is recommended.

HP StorageWorks D2D

HP StorageWorks D2DHP StorageWorks D2D

HP StorageWorks D2D Backup Systems, Fibre

Backup Systems, FibreBackup Systems, Fibre

Backup Systems, Fibre Channel

ChannelChannel

Channel D2D4000fc

External

Direct server attach is not supported, requires connection via SAN fabric. See:

http://www.hp.com/go/connect

N/A

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Storage

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 46

Page 47

HP 460W HE 12V Hot Plug AC Power Supply Kit

HP 460W HE 12V Hot Plug AC Power Supply KitHP 460W HE 12V Hot Plug AC Power Supply Kit

HP 460W HE 12V Hot Plug AC Power Supply Kit Part Number

503296-B21

Input Voltage Range ( V rms )

100 to 240

Frequency Range (Nominal) ( Hz )

50/60

Nominal Input Voltage ( Vrms )

100

100100

100 120

120120

120 200

200200

200 208

208208

208 220

220220

220 230

230230

230 240

240240

240

Maximum Rated Output Wattage Rating

460 460 460 460 460 460 460

Nominal Input Current ( A rms )

5.5 4.5 2.6 2.5 2.4 2.3 2.2

Maximum Rated Input Wattage Rating ( Watts )

526 520 505 505 503 503 503

Maximum Rated VA ( Volt-Amp )

548 542 527 527 524 524 524

Efficiency ( % )

87.5 88.5

91 91

91.5 91.5 91.5

Power Factor

0.97

Leakage Current ( mA )

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Maximum Inrush Current ( A peak )

Maximum Inrush Current duration ( mS )

Maximum British Thermal Unit Rating ( BTU-Hr )

1794 1773 1725 1725 1715 1715 1715

HP 750W Common Slot High Efficiency Power Supply Kit

HP 750W Common Slot High Efficiency Power Supply KitHP 750W Common Slot High Efficiency Power Supply Kit

HP 750W Common Slot High Efficiency Power Supply Kit Part Number

512327-B21

Input Voltage Range ( V rms )

100 to 240

Frequency Range (Nominal) ( Hz )

50/60

Nominal Input Voltage ( Vrms )

100

100100

100 120

120120

120 200

200200

200 208

208208

208 220

220220

220 230

230230

230 240

240240

240

Maximum Rated Output Wattage Rating

750 750 750 750 750 750 750

Nominal Input Current ( A rms )

8.9 7.4 4.3 4.1 3.9 3.7 3.6

Maximum Rated Input Wattage Rating ( Watts )

857 847 824 824 820 820 820

Maximum Rated VA ( Volt-Amp )

894 884 859 854 854 854

Efficiency ( % )

87.5 88.5

91 91

91.5 91.5 91.5

Power Factor

0.97

Leakage Current ( mA )

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Maximum Inrush Current ( A peak )

Maximum Inrush Current duration ( mS )

Maximum British Thermal Unit Rating ( BTU-Hr )

2925 2892 2812 2812 2797 2797 2797

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Power Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 47

Page 48

HP 1200W 12V Hot Plug AC Power Supply

HP 1200W 12V Hot Plug AC Power SupplyHP 1200W 12V Hot Plug AC Power Supply

HP 1200W 12V Hot Plug AC Power Supply Part Number

500172-B21

Input Voltage Range ( V rms )

100 to 240

Frequency Range (Nominal) ( Hz )

50/60

Nominal Input Voltage ( Vrms )

100

100100

100 120

120120

120 200

200200

200 208

208208

208 220

220220

220 230

230230

230 240

240240

240

Maximum Rated Output Wattage Rating

800 900

1200 1200 1200 1200 1200

Nominal Input Current ( A rms )

9.7 9.0 7.0 6.8 6.4 6.1 5.9

Maximum Rated Input Wattage Rating ( Watts )

930

1034 1348 1348 1348 1348 1348

Maximum Rated VA ( Volt-Amp )

970

1079 1406 1406 1406 1406 1406

Efficiency ( % )

86 87 89 89 89 89 89

Power Factor

0.97

Leakage Current ( mA )

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Maximum Inrush Current ( A peak )

Maximum Inrush Current duration ( mS )

Maximum British Thermal Unit Rating ( BTU-Hr )

3174 3530 4600 4600 4600 4600 4600

HP 1200W -48V DC Common Slot Power Supply

HP 1200W -48V DC Common Slot Power SupplyHP 1200W -48V DC Common Slot Power Supply

HP 1200W -48V DC Common Slot Power Supply Part Number

437573-B21

Input Voltage Range ( V rms )

36-72

Frequency Range (Nominal) ( Hz )

Nominal Input Voltage ( Vrms )

3636

36 48

4848

48 72

7272

Maximum Rated Output Wattage Rating

1200 1200 1200

Nominal Input Current ( A rms )

38 28 19

Maximum Rated Input Wattage Rating ( Watts )

1380 1350 1365

Maximum Rated VA ( Volt-Amp )

1380 1350 1365

Efficiency ( % )

87 89 88

Power Factor

N/A

Leakage Current ( mA )

N/A

Maximum Inrush Current ( A peak )

20 25 35

Maximum Inrush Current duration ( mS )

1 1 3

Maximum British Thermal Unit Rating ( BTU-Hr )

4713 4610 4662

To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Power Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 48

Page 49

System Unit

System UnitSystem Unit

System Unit

Dimensions

DimensionsDimensions

Dimensions

(H x W x D)

(with bezel)

1.70 x 16.78 x 27.25 in (4.32 x 42.62 x 69.22 cm)

Weight

WeightWeight

Weight (approximate)

Maximum (all hard drives, power supplies, and processors installed)

39.5 lb (17.92 kg)

Minimum (one hard drive, power supply, and processor installed)

32 lb (14.51 kg)

Input Requirements

Input RequirementsInput Requirements

Input Requirements (for Standard 460W PSU, see power specifications tables for detail on 460W, 750W and 1200W power supplies)

Rated Line Voltage

100 to 240 VAC

Rated Input Current

4.5 Amps (at 120VAC) to 2.2 Amps (at 240 VAC)

Rated Input Frequency

50 to 60 Hz

BTU Rating

BTU RatingBTU Rating

BTU Rating

Maximum

1773 BTU / hr (at 120 VAC), 1715 (at 240 VAC)

Power Specifications

Power SpecificationsPower Specifications

Power Specifications

To review typical system power ratings use the HP Power Advisor which is available via the online tool located at URL:

www.hp.com/go/proliant-

energy-efficient

www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: DL360 G6

- Follow the instructions of the next screens.

Power Supply Output

Power Supply OutputPower Supply Output

Power Supply Output (per power supply)

Rated Steady-State Power

460 W (at 100 VAC), 460 W (at 200 VAC)

Maximum Peak Power

460 W (at 100 VAC), 460 W (at 200 VAC)

NOTE:

NOTE:NOTE:

NOTE:

See Power Supply Specifications tables for complete details on 460W PSU and optional 750W and 1200W Power Supply Options.

System Inlet Temperature

System Inlet TemperatureSystem Inlet Temperature

System Inlet Temperature

Operating

10° to 35° C (50° to 95° F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8° F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10° C/hr (18° F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30° C (86° F).

Non-operating

-40° to 70° C (-40° to 158° F). Maximum rate of change is 20° C/hr (36° F/hr).

Relative Humidity

Relative HumidityRelative Humidity

Relative Humidity (non-condensing)

Operating

10 to 90% relative humidity (Rh), 28° C (82.4° F) maximum wet bulb temperature, noncondensing.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Technical Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 49

Page 50

Non-operating

5 to 95% relative humidity (Rh), 38.7° C (101.7° F) maximum wet bulb temperature, noncondensing.

Altitude

AltitudeAltitude

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Acoustic NoiseAcoustic Noise

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23° C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle (Single Processor, Note 1)

Idle (Single Processor, Note 1)Idle (Single Processor, Note 1)

Idle (Single Processor, Note 1)

L WAd

4.3 B Average Bystander

L pAm

27 dBA

Operating

OperatingOperating

Operating

L WAd

4.8 B Average Bystander

L pAm

32 dBA

Idle (Dual Processors, Note 2)

Idle (Dual Processors, Note 2)Idle (Dual Processors, Note 2)

Idle (Dual Processors, Note 2)

L WAd

4.9 B Average Bystander

L pAm

33 dBA

Operating

OperatingOperating

Operating

L WAd

5.4 B Average Bystander

L pAm

38 dBA

NOTES:

NOTES:NOTES:

NOTES: Note 1) Configuration tested included an Intel X5520 quad-core 2.27GHz processor, one 72GB SAS HDD, four 250GB 5400 rpm SATA hard drives, six system fans, three 4GB(2x2GB) DIMM's, and one power supply (1P SKU). Note 2) Configuration tested included two Intel X5520 quad-core 2.27GHz processors, one 72GB SAS HDD, four 250GB 5400 rpm SATA hard drives, eight system fans, six 4GB(2x2GB) DIMM's, and one power supply (2P SKU). Note 3) Values are subject to change without notification and are for reference only. Note 4) Performance of system, options, and ancillary equipment will vary depending on the system configuration. Note 5) Levels presented do not account for non-Hewlett-Packard installed hardware.

Emissions Classification

Emissions ClassificationEmissions Classification

Emissions Classification (EMC)

(EMC)(EMC)

(EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22; K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Technical Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 50

Page 51

NOTE:

NOTE:NOTE:

NOTE:

Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Smart Array P410i

Smart Array P410iSmart Array P410i

Smart Array P410i Controller

ControllerController

Controller

Dimensions

DimensionsDimensions

Dimensions

Embedded

Disk Drive and Enclosure

Disk Drive and EnclosureDisk Drive and Enclosure

Disk Drive and Enclosure Interface - Transfer rate

Interface - Transfer rateInterface - Transfer rate

Interface - Transfer rate

6Gb/s SAS (Serial Attached SCSI) 3Gb/s SATA (Serial ATA)

SAS Connectors

SAS ConnectorsSAS Connectors

SAS Connectors

2 internal 4X connectors

Cache Memory Speed

Cache Memory SpeedCache Memory Speed

Cache Memory Speed

DDR2-800MHz with 40 or 72-bit wide bus

Server Interface

Server InterfaceServer Interface

Server Interface

x4 PCIe 2.0 provides 2GB/s maximum bandwidth

SAS Speed

SAS SpeedSAS Speed

SAS Speed

8 6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Cache Memory

Cache MemoryCache Memory

Cache Memory

Zero Memory RAID has no cache memory 40-bit 256MB ECC protected cache (battery upgrade available) 72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC Zero Memory, Up to 2 logical volumes (8 physical drives)

Logical Drives Supported

Logical Drives SupportedLogical Drives Supported

Logical Drives Supported

Up to 64 logical drives with cache

Host Memory Addressing

Host Memory AddressingHost Memory Addressing

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

RAID Support

RAID SupportRAID Support

RAID Support

RAID 6, 6+0 (Advanced Data Guarding)

NOTE:

NOTE:NOTE:

NOTE:

RAID 6, 6+0 can be enabled with one of the following

combinations:

256 MB cache, Battery kit and Smart Array Advanced Pack License key option upgrades 512 MB BBWC/FBWC and Smart Array Advanced Pack License key option upgrades 1G FBWC and Smart Array Advanced Pack License key option upgrades

RAID 5, 5+0 (Distributed Data Guarding)

NOTE:

NOTE:NOTE:

NOTE:

A minimum or 256 MB cache is required to enable RAID 5, 5+0

support

RAID 1+0 (Striping & Mirroring) RAID 0 (Striping), RAID 1 (Mirroring)

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Technical Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 51

Page 52

Embedded NC382i Dual

Embedded NC382i DualEmbedded NC382i Dual

Embedded NC382i Dual Port Multifunction Gigabit

Port Multifunction GigabitPort Multifunction Gigabit

Port Multifunction Gigabit Server Adapter

Server AdapterServer Adapter

Server Adapter

Network Interface

Network InterfaceNetwork Interface

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

CompatibilityCompatibility

Compatibility

IEEE 802.3 10Base-T IEEE 802.3ab 1000Base-T IEEE 802.3u 100Base-TX IEEE 802.3ad 1000Base-TX IEEE 802.1p 100Base-TX IEEE 802.1q 100Base-TX

Data Transfer Method

Data Transfer MethodData Transfer Method

Data Transfer Method

PCI Express, four lanes (x4)

Controller

ControllerController

Controller

BCM5709C

Network Transfer Rate

Network Transfer RateNetwork Transfer Rate

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (Half-Duplex)

100 Mb/s

100Base-TX (Full-Duplex)

200 Mb/s

1000Base-TX (Half and Full-Duplex)

2000 Mb/s

Connector

ConnectorConnector

Connector

Two RJ-45

Cable Support

Cable SupportCable Support

Cable Support

10Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

100Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

1000BaseTX

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-friendly

Environment-friendlyEnvironment-friendly

Environment-friendly Products and Approach

Products and ApproachProducts and Approach

Products and Approach

End-of-life Management

End-of-life ManagementEnd-of-life Management

End-of-life Management and Recycling

and Recyclingand Recycling

and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Technical Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 52

Page 53

The information contained herein is subject to change without notice. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)HP ProLiant DL360 Generation 6 (G6)

HP ProLiant DL360 Generation 6 (G6)

Technical Specifications

DA - 13235 Worldwide — Version 38 — October 14, 2011

Page 53
