HP ProLiant DL320e G8 v2 Specification

Do you need an entry-level short-depth server utilizing the latest technology to keep you competitive?

The HP ProLiant DL320e Gen8 v2 Server is an entry-level single processor 1U short depth rack server specifically designed to give you
the competitive edge you need. The server supports the latest Intel Xeon E3-1200 v3, PCIe 3.0 slots, DDR3 1600 MHz memory, and up to
8 TB internal storage, plus the state of the art HP iLO Management Engine.

It is ideal for small businesses, chain stores, telecommunications firms, or others that require a low-cost, compact server. The DL320e
Gen8 v2 is versatile enough to handle a variety of workloads, including single/dedicated IT services such as networking, security,
file/print, and web serving/hosting.

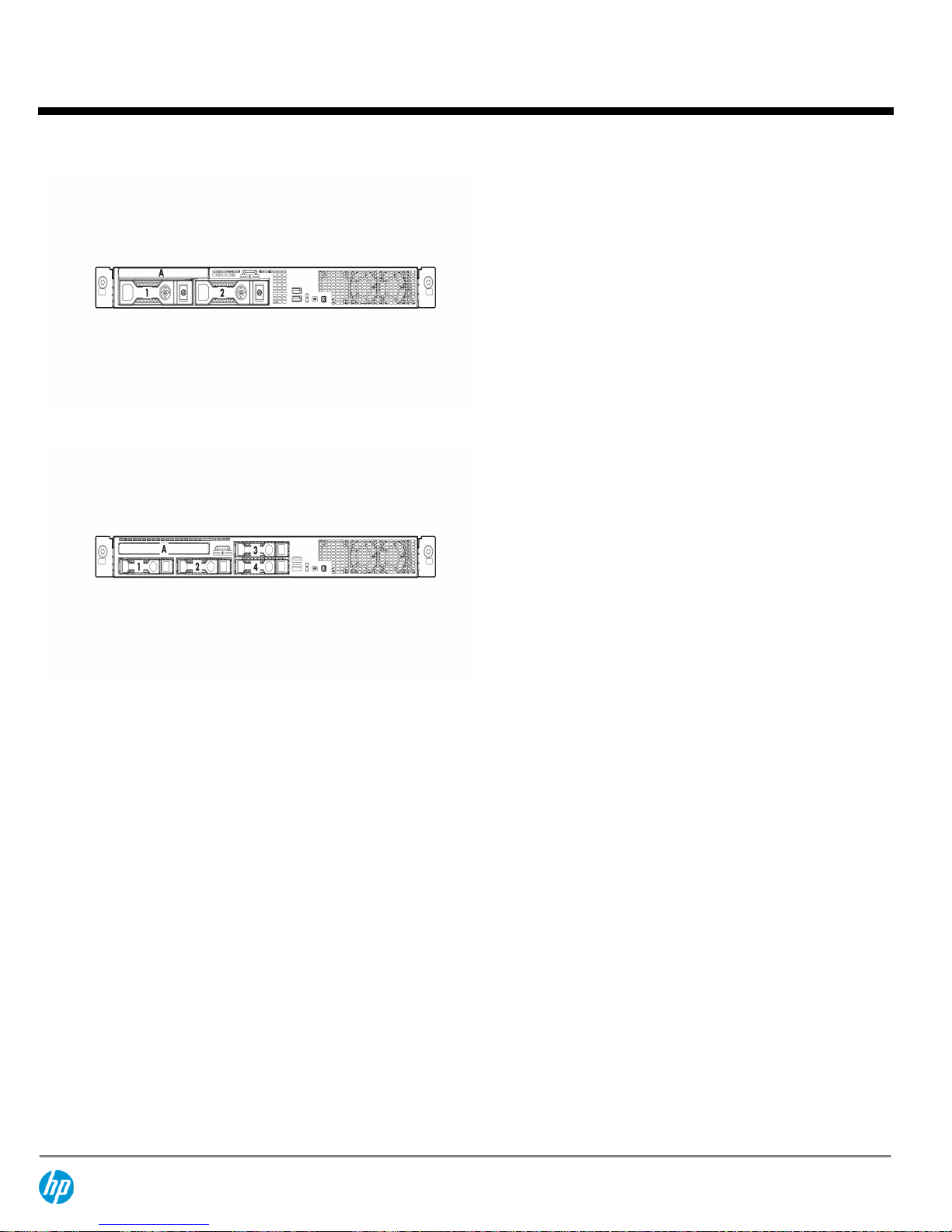

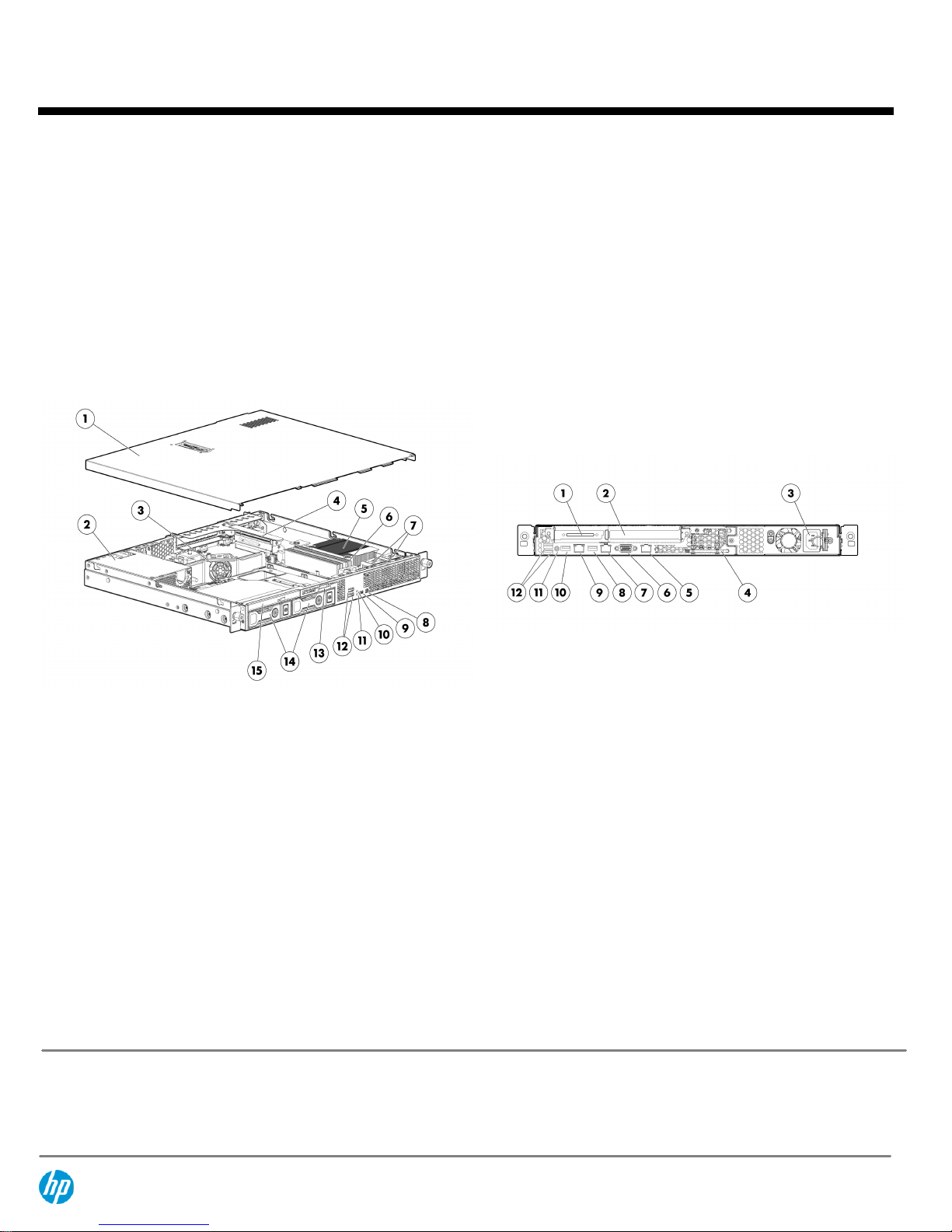

Front View:

Rear View:

1.

Access Panel

1.

Expansion slot 2, PCIe x8

2.

Power Supply

2.

Expansion slot 1, PCIe x16

3.

Fan Assembly

3.

Integrated Power Supply

4.

PCI Riser Cage

4.

T-10/T-15 Torx screwdriver

5.

Processor

5.

NIC1/shared iLO connector

6.

DIMMS

6.

Video Connector

7.

Fan Assembly

7.

NIC Connector 2

8.

Power On/Standby button and LED

8.

USB 3.0 Connector

9.

UID LED button

9.

iLO4 Connector

10.

Health LED

10.

USB 3.0 Connector

11.

NIC status LED

11.

NIC link LED

12.

2 USB Connectors

12.

USB2.0 Connectors

13.

Serial number/iLO information pull tab

14.

Hard Drive Bays

15.

Optical drive

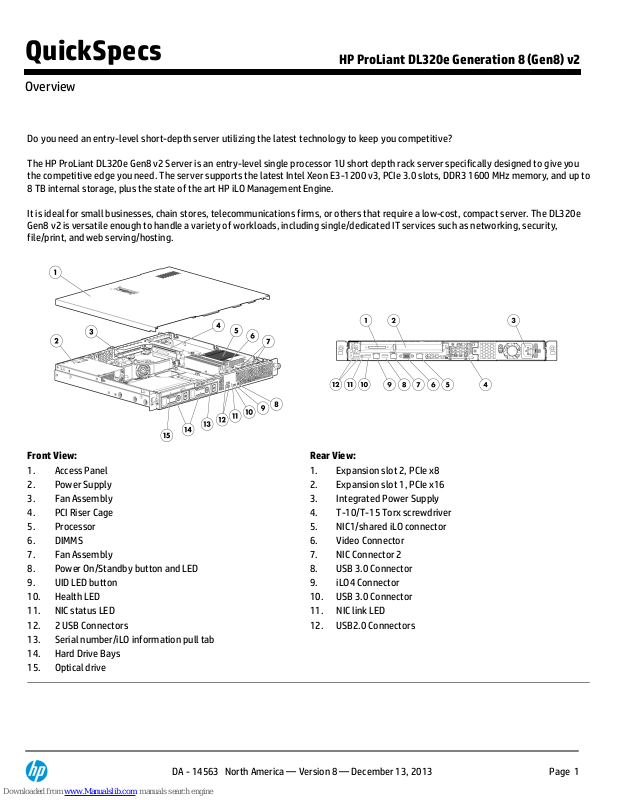

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Overview

DA - 14563 North America — Version 8 — December 13, 2013

Page 1

What's New

New affordable processors available - Pentium and Core series
Compact 15.07-inch 1U chassis depth to meet mobility and space requirements
Standard 300W 80% power supply for lower power consumption
NEBS compliance with 750W common slot power supply for telecom environment

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Overview

DA - 14563 North America — Version 8 — December 13, 2013

Page 2

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following
depending on Model

Entry Processors

Intel® Pentium® G3220 (3.0GHz/2-core/3MB/54W) Processor

NOTE:

Intel ®Pentium® G3220 processor, performance for 1600MHz memory is clocked down to 1333MHz.

Intel® Pentium® G3240 (3.2GHz/2-core/3MB/54W) Processor

NOTE:

Intel® Pentium® G3240 Processor supports up to 1600MHz DDR3 memory speeds.

Base Processors

NOTE:

All support up to1600MHz DDR3 memory speeds.

Intel® Core™ i3-4130 (3.4GHz/2-core/3MB/54W, HT) Processor
Intel® Core™ i3-4130T (2.9GHz/2-core/3MB/35W, HT) Processor

Performance Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W)
Intel® Xeon® E3-1230v3 (3.3GHz/4-core/8MB/80W, HT)
Intel® Xeon® E3-1230Lv3 (1.8GHz/4-core/8MB/25W, HT)
Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W, HT)
Intel® Xeon® E3-1265Lv3 (2.5GHz/4-core/8MB/45W, HT)
Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W, HT)
Intel® Xeon® E3-1280v3 (3.6GHz/4-core/8MB/82W, HT)

NOTE:

HT indicates that the processor model supports Intel® /Hyper-Threading Technology (depends on

the processor).

NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on

the quantity and type of DIMMs and CPU installed (options for 1600MHz, 1333MHz).

Cache Memory

One of the following
depending on Model

8MB (1x8MB) Level 3

NOTE:

For Quad-core processors.

Chipset

Intel® C222 Series Chipset

NOTE:

For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

.

Upgradeability

Up to 4 DIMM slots available for higher Memory capacity
Up to 4 bay SFF Hot plug Drive Cage; Or 2 bay LFF Hot plug or Non hot plug Drive Cages
2 PCIe 3.0 expansion slots
Optical Drive Bay

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 3

On System Management
Processor

HP iLO (Firmware: HP iLO 4)

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

.

Memory Protection

ECC

Memory

One of the following
depending on Model

Type

HP SmartMemory
Unbuffered (UDIMM)

DIMM Slots Available

4 DIMMs (2 Channels/ 2 DIMMs per channel)

Maximum Capacity
(UDIMM)

32GB (4 x 8GB@1600MHz)

NOTE:

HP memory from previous generation servers are not fully compatible with the HP ProLiant DL320e

Gen8 Servers.

NOTE:

To realize the performance memory capabilities listed in this document, HP SmartMemory is
required. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at
1600MHz, or 1333MHz. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

.

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

NOTE:

The HP ProLiant DL320e Gen8 v2 server has an embedded dual-port network adapter. The server

can be further upgraded with various networking products

Expansion Slots

Expansion

Slots #

Technology

Bus

Width

*

Connector

Width

Form Factor

Notes

1

PCIe 3.0

x8

x16

Half-length, full-

height slot

2

PCIe 3.0

x4 x8

Low profile slot

*Indicates the number of physical electrical lanes running to the connector.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 4

HP Server ROM

HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is
verified before the flash process starts, reducing accidental programming and preventing malicious efforts
to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating
system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to
assist in diagnosis.

HP's ProLiant ROM is used to configure the following:

Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (Integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration (using the HP ROM-Based Setup Utility (RBSU).

NOTE:

For further information, please refer to HP's RBSU (ROM based setup utility) user guide:

www.hp.com/support/rbsu

.

Storage Controller

One of the following
depending on Model

Base Models

HP Dynamic Smart Array B120i Controller

NOTE:

B120i has the following performance with regards to drive speed:
6Gb/s - in 2LFF and 4SFF only with port 0 & 1 installed; 3Gb/s - in 4SFF with
more than 2 drives installed. For full 6 Gb.0/s speed a stand up card/smart
array controller must be used.

NOTE:

B120i supports RAID 0/1/10 only. It does not have FBWC support so
cannot support advanced RAID (5 onwards). For FBWC, a standup Smart Array
Controller card must be configured.

Performance Models

HP Smart Array P222/512MB FBWC controller

NOTE:

P222 can support RAID 0/1/10/5/50. More advanced options available

with Smart Array Advanced Pack 2.0.

NOTE:

The DL320e Gen8 v2 can support other advanced controllers as well, depending on model and

configuration

NOTE:

For set up instructions for HP Smart Array B120i SATA Controller please refer to the HP ProLiant

DL300 series server user guide.

NOTE:

For general information about HP Smart Array B120i SATA RAID Controller, please visit:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers
/dynamicsmartarray/index.html

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 5

Internal Storage Devices

Diskette Drive

None

Optical Drive

Optional
DVD-RW

NOTE:

Slim-type (9.5mm)

Hard Drives

None ship standard (Base Models and Performance Models)

Hard Drive Bays

4 SFF drive bays or 2 LFF Non hot plug/Hot plug

NOTE:

HP ProLiant DL320e Series servers offer both SFF, and LFF versions in

CTO. The Optical Drive bay is available with both models.

NOTE:

LFF versions are not an upgradeable option from SFF models, or vice

versa, also between Non Hot Plug LFF and Hot Plug LFF.

NOTE:

All Pre-configured Models come populated with some hard drive blanks
installed. Should the customer need additional hard drive blanks, they can
order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or
P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit. These part numbers for
single HDD blanks below are also provided should the customer require
replacement HDD blanks for their server.

Maximum Internal
Storage

Hot Plug SFF SAS

4.8TB

4 x 1.2TB

Hot Plug SFF SATA

4.0TB

4 x 1TB

Hot Plug LFF SAS

8.0TB

2 x 4TB

Hot Plug LFF SATA

8.0TB

2 x 4TB

Hot Plug SFF SAS SSD

1.6TB

4 x 400GB

Hot Plug SFF SATA SSD

3.2TB

4 x 800GB

Hot Plug LFF SATA SSD

1.6TB

2 x 800GB

Non-Hot Plug LFF SATA

6TB

2 x 3TB

Interfaces

Video

1 Rear standard video

HP iLO Remote
Management Network Port

1Gb Dedicated

Micro SD slot

1 Internal

NOTE:

The Micro SD slot is not a hot-pluggable device. Customers should not
attempt to plug an Micro SD card into the slot while the server is powered.

USB 2.0 Ports

5 total: 2 rear, 2 front, 1 internal (Optional)

USB 3.0 Ports

2 total: 2 rear

Industry Standard
Compliance

ACPI 2.0b Compliant
PCIe 3.0
PXE Support
WOL Support
USB 2.0 Compliant
USB 3.0 Compliant

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 6

Server Power Cords

All Pre-configured Models servers ship with a high voltage server to PDU power cord.

NOTE:

HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cords
(227099-001) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are
primarily connected to PDU's in data center racks so they now ship standard with only a PDU 6-foot C-14
to C13 power cord (142258-001). If a user wishes to power a ProLiant DL server using a110V receptacle
(NEMA-15), the 12-foot NEMA 5-15 to C13 power cord must be ordered separately. See Power Cords
section for Power Cord options.

Power Specifications

To review typical system power ratings use the HP Power Advisor which is available via the online tool
located at URL:

www.hp.com/go/proliant-energy-efficient

or

www.hp.com/go/hppoweradvisor

.

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html

Common Slot Power
Supply

NOTE:

The default power supply for DL320e Gen8 server is a 300W Non Hot Plug, Non Redundant (ATX)

power supply with 80% efficiency.

A Common Slot 48V DC power supply (750W, 94% efficiency) supporting NEBS compliance is available only
for the 4 SFF configuration.

NOTE:

Selecting the 750W power supply requires the HP DL320e Gen8 v2 CS FIO Enablement Kit

NOTE:

Power Specification and Technical Content for supported power supplies can be found at:

http://h18000.www1.hp.com/products/quickspecs/14209_na/14209_na.html

System Fans

2 front fan assemblies and 1 center fan assembly ship standard, non-redundant

Operating Systems and
Virtualization Software
Support for ProLiant
Servers

Microsoft Windows Server
Canonical Ubuntu Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server including how to purchase from
HP, please visit our OS Support Site at:

http://www.hp.com/go/ossupport

and our driver download page:

http://www.hp.com/support/DL320eGen8v2

.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 7

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

One of the following
depending on Model

1U Rack form factor
4 SFF Drive Bay Version:

1.7" (4.32cm) Height x 17.11" (43.46cm) Width x 15.07" (38.30cm) Length
2 LFF Drive Bay Version:

1.7" (4.32cm) Height x 17.11" (43.46cm) Width x 15.07" (38.30cm) Length

On System Management

HP iLO Management
Engine

HP iLO Management Engine is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HP iLO Management Engine comes standard on all HP ProLiant Gen8
servers. The HP iLO Management Engine portfolio includes:

HP iLO:

The HP iLO (Integrated Lights-Out) management processor is

the core foundation for the HP iLO Management Engine

HP Agentless Management:

Provides built in server health monitoring
and alerting capability without OS agents, that starts working the
moment a power cord and an Ethernet cable are connected.

HP Active Health System:

Always on, continuous monitoring for
increased stability and shorter downtimes; 100% configuration history;
Health and service alerts and easy export and upload to Service and
Support.

HP Intelligent Provisioning:

Lets customers provision and configure a
single server without any separate media. No more SmartStart CDs or
Smart Update Firmware DVD are needed.

To start Intelligent Provisioning:

Press the F10 key during the ProLiant Gen8 server boot
process (also known as power on self test or POST).
Please go to the Intelligent Provisioning website at

www.hp.com/go/intelligentprovisioning

for additional
information and to view usage videos.
Use the Service Pack for ProLiant (SPP) at

www.hp.com/go/spp

to get firmware and software

updates.

HP iLO Mobile App:

Enables the ability to access, deploy, and manage
your server anytime from anywhere from select smartphones and
mobile devices. For additional information please visit:

www.hp.com/go/ilo/mobileapp

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

or HP iLO

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 8

Management Engine technologies whitepaper

HP Insight Management

HP Service Pack for
ProLiant (SPP)

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
version 5 provide a new, comprehensive approach to firmware and system
software maintenance. Together they provide better operating stability and
ensure maximum uptime. The SPP will be updated at a predictable cadence,
typically coinciding with new HP server hardware launches. By enabling all
firmware to be updated online and integrating firmware and system software
updates in one operation HP SUM and the SPP offer faster updates of
individual servers and dramatically faster updates of entire BladeSystem
enclosures. Further improving system uptime and stability is the fact that HP
provides 12 months of support on each Service Pack for ProLiant.

The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM version 5 and
the latest SPP. Optional smaller subsets with only specific types of servers or
specific operating systems are offered to save on download time. The HP SUM
application has been re-written to provide a more straightforward, intuitive
user interface that guides the user through the steps of discovery, analyses
and update, providing comprehensive information on available updates,
criticality and interdependencies. This information is also available in reports.
By providing the option of multiple local or shared repositories which can be
easily updated from hp.com, HP SUM provides the tools to optimize stability
and consistency throughout the company. While HP SUM and the SPP will
recommend the combinations of firmware and system software that HP has
found to be the best practice, the application gives customers the flexibility to
set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.

NOTE:

The Service Pack for ProLiant (which includes HP SUM 5) can be

downloaded from

www.hp.com/go/spp/download

. More information can be

found: www.hp.com/go/spp and

http://www.hp.com/go/hpsum

Security

Power-on password
Administrator's password

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 9

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.

NOTE:

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day
response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel
and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR
parts are also designed for easy replacement but may involve added complexity. Customers may choose
to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited
warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Standard Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 10

HP Insight management
software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. HP Insight Control also supports
Location and Power Discovery Services to automate many configuration, asset
tracking, and power management tasks to speed implementation and prevent
downtime. For more information, see

http://www.hp.com/go/insightcontrol

.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:

http://www.hp.com/services/insight

.

HP iLO Essentials

HP iLO Essentials license ideal for small and medium business customers. The
specially created HP iLO Essentials (a subset of iLO Advanced functionality)
saves SMB customers time and money, by ease of remote server set up
through the interactive virtual media, lowering operational costs with remote
access via the Integrated Remote Console, and faster time to resolution with
email-based proactive notifications. With this newly designed HP iLO
Essentials license SMB customers now have the option of a server
management package solely design and priced just right for their IT
environments. HP iLO Essentials is available on all HP ProLiant Gen8 e-series
making this an ideal solution for small business owners. For more
information, see:

http://www.hp.com/go/iLO/essentials

HP iLO Advanced

HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multi­user collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:

http://www.hp.com/go/iloadvance

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:

Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.

Data Archive and Migration Software

HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.

Storage Resource Management Software (SRM)

HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.

Data Replication Software

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Optional Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 11

HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.

Storage Device Management Software

Maximize your investment in HP storage and networking with software that enables hardware­specific configuration, performance tuning and connectivity management.

HP StoreVirtual VSA

With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

.

HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP
support information personalized to your IT environment. Insight Online can automatically display devices
remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.

www.hp.com/go/insightonline

HP Proactive Insight
experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio
for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.

For more information on Factory Express services for your specific server model please contact your sales
representative or go to:

http://www.hp.com/go/factory-express

.

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Optional Features

DA - 14563 North America — Version 8 — December 13, 2013

Page 12

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.

Optimized Care

Supports maintaining servers at optimum performance availability

3-Year HP 24x7 4 hour response, Proactive Care Service

*

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Standard Care

Supports maintaining high level of server availability

3-Year HP Next Business Day, Proactive Care Service

*

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Service and Support

DA - 14563 North America — Version 8 — December 13, 2013

Page 13

Basic Care

Delivers minimum recommended support service level

3-Year HP Next Business Day with Collaborative Support

This service gives you hardware break/fix plus software diagnosis support with collaborative call
management for a broad spectrum of 3rd Party software products including O/S and hypervisors.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8232ENW.pdf

HP ProLiant Server Hardware Installation

Provides for the basic hardware installation of HP branded servers, storage devices and networking
options to assist you in bringing your new hardware into operation in a timely and professional manner

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Related Services

HP Proactive Care Personalized Support - Environmental Option

The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

Insight Online/Insight
Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution*. Learn more about Insight Remote
Support

http://www.hp.com/go/insightremotesupport

and Insight Online

http://www.hp.com/go/insightonline

* Insight Remote Support is a prerequisite for Proactive Care.

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.

*HP' Support Center Mobile App is subject to local availability

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Service and Support

DA - 14563 North America — Version 8 — December 13, 2013

Page 14

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales
representative or HP Authorized Channel Partner. Or visit:

http://www.hp.com/services/proliant

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Service and Support

DA - 14563 North America — Version 8 — December 13, 2013

Page 15

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section

of this QuickSpecs.

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped

separately.

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this

QuickSpecs.

NOTE:

Maximum speed supported depends on the CPU installed. Entry model will support maximum speed of 1600 MHz.

Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard
drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8
Hard Drive Blank Kit.

Base Models

HP ProLiant DL320e Gen8
v2 G3220 1P 2GB-U NHP 2
LFF 300W PS Server

743490-001

Processor(s)

(1) Intel® Pentium® G3220 (3.0 GHz/2-core/3MB/54W) Processor

Cache Memory

8MB (1x8MB) Level3

Memory

2GB (1 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

NOTE:

B120i has the following performance with regards to drive speed:
6Gb/s - in 2LFF and 4SFF only with port 0 & 1 installed; 3Gb/s - in 4SFF with
more than 2 drives installed. For full 6 Gb.0/s speed a stand up card/smart
array controller must be used.

NOTE:

B120i supports RAID 0/1/10 only. It does not have FBWC support so
cannot support advanced RAID (5 onwards). For FBWC, a standup Smart Array
Controller card must be configured.

Hard Drive

None ship standard

Internal Storage

2 bay LFF Non Hot Plug Drive Cage; includes 2LFF Hard Drive blanks

Optical Drive Bay

None ships standard

PCI-Express Slots

1 PCIe3 x16 and 1 PCIe3 x8

Power Supply

300 Watts Non-Hot Plug, Non redundant Power Supply

NOTE:

The 300 Watts Non-Hot Plug Non redundant Power Supply is rated at
80% efficiency.

Fans

2 front fan assemblies and 1 center fan assembly ship standard, non­redundant

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

1U

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response.

NOTE:

No rail kits are included with the server. They must be ordered
separately.

HP ProLiant DL320e Gen8
v2 E3-1220v3 1P 4GB-U

Processor(s)

(1) Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W, HT) Processor

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 16

v2 E3-1220v3 1P 4GB-U
B120i 300W PS Server

717170-001

Cache Memory

8MB (1x8MB) Level3

Memory

4GB (1 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

NOTE:

B120i has the following performance with regards to drive speed:

6Gb/s

- in 2LFF and 4SFF only with port 0 & 1 installed;

3Gb/s

- in 4SFF with
more than 2 drives installed. For full 6 Gb.0/s speed a stand up card/smart
array controller must be used.

NOTE:

B120i supports RAID 0/1/10 only. It does not have FBWC support so
cannot support advanced RAID (5 onwards). For FBWC, a standup Smart Array
Controller card must be configured.

Hard Drive

None ship standard

Internal Storage

2 bay LFF Hot Plug Drive Cage; includes 1 LFF hard drive blank

Optical Drive Bay

None ships standard

PCI-Express Slots

1 PCIe3 x16 and 1 PCIe3 x8

Power Supply

300 Watts Non-Hot Plug, Non redundant Power Supply

NOTE:

The 300 Watts Non-Hot Plug Non redundant Power Supply is rated at

80% efficiency.

Fans

2 front fan assemblies and 1 center fan assembly ship standard, non­redundant

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

1U

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response.

NOTE:

No rail kits are included with the server. They must be ordered
separately.

Performance Models

HP ProLiant DL320e Gen8
v2 E3-1240v3 1P 8GB-U
P222 300W PS Server

722547-001

Processor(s)

(1) Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W, HT) Processor

Cache Memory

8MB (1x8MB) Level3

Memory

8GB (1 x 8GB) Unbuffered DIMMs PC3-12800E (1600MHz)

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

Storage Controller

HP Smart Array P222/512MB FBWC Controller

Hard Drive

None ship standard

Internal Storage

4 bay SFF Hot Plug Drive Cage; includes 3 SFF hard drive blanks

Optical Drive Bay

None ships standard

PCI-Express Slots

1 PCIe3 x16 and 1 PCIe3 x8

Power Supply

300 Watts Non-Hot Plug, Non redundant Power Supply

NOTE:

The 300 Watts Non-Hot Plug Non redundant Power Supply is rated at

80% efficiency.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 17

Fans

2 front fan assemblies and 1 center fan assembly ship standard, non­redundant

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

1U

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response.

NOTE:

No rail kits are included with the server. They must be ordered

separately.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Pre-configured Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 18

HP ProLiant DL320e Gen8
v2 E3-1220v3 1P 4GB-U
B120i LFF 300W PS
Server/S-Buy

736663-S01

Processor(s)

(1) Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W, HT) Processor

Cache Memory

8MB (1x8MB) Level3

Memory

4GB (1 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

Hard Drive

None ship standard

Internal Storage

2 bay LFF Hot Plug Drive Cage; includes 1 LFF hard drive blank

Optical Drive Bay

None ships standard

PCI-Express Slots

1 PCIe3 x16 and 1 PCIe3 x8

Power Supply

300 Watts Non-Hot Plug, Non redundant Power Supply

Fans

2 front fan assemblies and 1 center fan assembly ship standard, non­redundant

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

1U

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response.

NOTE:

No rail kits are included with the server. They must be ordered
separately.

HP ProLiant DL320e Gen8
v2 E3-1240v3 8GB-U
B120i SFF 300W PS
Server/S-Buy

736664-S01

Processor(s)

(1) Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W, HT)

Cache Memory

8MB (1x8MB) Level3

Memory

8GB (2 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

Hard Drive

None ship standard

Internal Storage

4 bay SFF Hot Plug Drive Cage; includes 3 SFF hard drive blanks

Optical Drive Bay

None ships standard

PCI-Express Slots

1 PCIe3 x16 and 1 PCIe3 x8

Power Supply

300 Watts Non-Hot Plug, Non redundant Power Supply

Fans

2 front fan assemblies and 1 center fan assembly ship standard, non­redundant

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

1U

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response.

NOTE:

No rail kits are included with the server. They must be ordered
separately.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Smart Buys

DA - 14563 North America — Version 8 — December 13, 2013

Page 19

HP ProLiant DL320e Gen8
v2 E3-1270v3 8GB-U
B120i SFF 300W PS
Server/S-Buy

736665-S01

Processor(s)

(1) Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W, HT)

Cache Memory

8MB (1x8MB) Level3

Memory

8GB (2 x 4GB) Unbuffered DIMMs PC3-12800E (1600MHz)

Network Controller

HP Ethernet 1Gb 2-port NC332i Adapter

Storage Controller

HP Dynamic Smart Array B120i Controller

Hard Drive

None ship standard

Internal Storage

4 bay SFF Hot Plug Drive Cage; includes 3 SFF hard drive blanks

Optical Drive Bay

None ships standard

PCI-Express Slots

1 PCIe3 x16 and 1 PCIe3 x8

Power Supply

300 Watts Non-Hot Plug, Non redundant Power Supply

Fans

2 front fan assemblies and 1 center fan assembly ship standard, non­redundant

Management

HP iLO Management Engine (standard)
Optional: HP iLO Essentials or HP Insight Control

Form Factor

1U

Warranty

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support
with next business day response.

NOTE:

No rail kits are included with the server. They must be ordered
separately.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Smart Buys

DA - 14563 North America — Version 8 — December 13, 2013

Page 20

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on
configurable product offerings and requirements.

NOTE:

Factory Integrated Models must start with a CTO Server.

NOTE:

FIO indicates that this option is only available as a factory installable option.

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives

ordered with the server.

Step 1: Base Configuration (choose one of the following configurable models)

HP Models

HP ProLiant DL320e Gen8 v2 Non-hot Plug 2 LFF Configure-to-order Server

722313-B21

Factory Integrated Model ships with:

1U Chassis with 2 LFF Non-Hot Plug Drive Cage
HP Ethernet 1Gb 2-port NC332i Adapter
HP iLO Management Engine (standard)
HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10)

NOTE:

For set up instructions for HP Dynamic Smart Array B120i SATA Controller please

refer to the HP ProLiant DL300 series server user guide

NOTE:

For general information about HP Dynamic Smart Array B120i SATA Controller,
please visit:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
smartarrayb120i/index.html

HP ProLiant DL320e Gen8 v2 Hot Plug 2 LFF Configure-to-order Server

722314-B21

Factory Integrated Model ships with:

1U Chassis with 2 LFF Hot Plug Drive Cage
HP Ethernet 1Gb 2-port NC332i Adapter
HP iLO Management Engine (standard)
HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10)

NOTE:

For set up instructions for HP Dynamic Smart Array B120i SATA Controller please
refer to the HP ProLiant DL300 series server user guide

NOTE:

For general information about HP Dynamic Smart Array B120i SATA Controller,
please visit:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
smartarrayb120i/index.html

HP ProLiant DL320e Gen8 v2 Hot Plug 4 SFF Configure-to-order Server

722315-B21

Factory Integrated Model ships with:

1U Chassis with 4 SFF Hot plug Drive Cage
HP Ethernet 1Gb 2-port NC332i Adapter
HP iLO Management Engine (standard)
HP Dynamic Smart Array B120i SATA Controller (RAID 0/1/10)

NOTE:

For set up instructions for HP Dynamic Smart Array B120i SATA Controller please
refer to the HP ProLiant DL300 series server user guide

NOTE:

For general information about HP Dynamic Smart Array B120i SATA Controller,
please visit:

http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/
smartarrayb120i/index.html

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 21

Step 2: Choose Required Options (only one of the following from each list unless otherwise
noted)

HP Processors

Entry Processors

NOTE:

G3220 supports up to 1333MHz DDR3 memory speeds. G3420 supports up to
1600MHz DDR3 memory speeds.

HP DL320e Gen8 v2 Intel® Pentium® G3220 (3.0GHz/2-core/3MB/54W) FIO Processor
Kit

741417-L21

HP DL320e Gen8 v2 Intel® Pentium® G3420 (3.2GHz/2-core/3MB/54W) FIO Processor
Kit

741419-L21

Base Processors

NOTE:

All support up to 1600MHz memory speeds.

HP DL320e Gen8 v2 Intel® Core™ i3-4130 (3.4GHz/2-core/3MB/54W) FIO Processor Kit

741413-L21

HP DL320e Gen8 v2 Intel® Core™ i3-4130T (2.9GHz/2-core/3MB/35W) FIO Processor Kit

741415-L21

Performance Processors

NOTE:

All support up to 1600MHz DDR3 memory speeds.

HP DL320e Gen8 v2 Intel® Xeon® E3-1280v3 (3.6GHz/4-core/8MB/95W) FIO Processor
Kit

718249-L21

HP DL320e Gen8 v2 Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W) FIO Processor
Kit

718251-L21

HP DL320e Gen8 v2 Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W) FIO Processor
Kit

718253-L21

HP DL320e Gen8 v2 Intel® Xeon® E3-1230Lv3 (1.8GHz/4-core/8MB/25W) FIO Processor
Kit

741411-L21

HP DL320e Gen8 v2 Intel® Xeon® E3-1230v3 (3.3GHz/4-core/8MB/80W) FIO Processor
Kit

718255-L21

HP DL320e Gen8 v2 Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W) FIO Processor
Kit

718257-L21

HP DL320e Gen8 v2 Intel® Xeon® E3-1265Lv3 (2.5GHz/4-core/8MB/45W) FIO Processor
Kit

718261-L21

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

HP memory from previous generation servers are not fully compatible with new
Active Health features on the DL320e Gen8 v2 Server.

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 22

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647905-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647907-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647909-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Depending on the memory configuration and processor model, 1600MHz and
1333MHz memory may operate at a lower speed. Please see the see the "Memory"
section later in this document and the Online Memory Configuration Tool for details at

www.hp.com/go/ddr3memory-configurator

.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in
this document.

NOTE:

For more information on ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

NOTE:

PC3L is a low voltage memory.

HP Power Supplies

NOTE:

Prior to making a power supply selection it is highly recommended that the HP
Power Advisor is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

.

HP 300W FIO Power Supply Kit

718142-B21

HP DL320e Gen8 v2 CS FIO Enablement Kit

NOTE:

This is not a power supply. It is an option required if P/N: 636673-B21 is on the
order.

718144-B21

HP 750W Common Slot -48VDC Hot Plug Power Supply Kit

NOTE:

Selecting the 750W power supply requires the HP DL320eGen8 v2 CS FIO
Enablement Kit.

636673-B21

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 23

Step 3: Choose Additional Factory Integratable Options

HP USB Cable Kit

HP Gen8 FIO Internal USB Kit

NOTE:

Required only if USB Flash Media Drive Key is selected.

662961-B21

HP Rail Kits

HP DL320eGen8 v2 Entry Rack Ear FIO Kit

NOTE:

DL320e Gen8 v2 ships with thumbscrew ear attachments (BTO and CTO) as
standard. The Entry Rack Ear FIO Kit is a Quick Release Ear kit, it also needs to be
purchased if you want to have a security bezel installed.
HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License.

723903-B21

NOTE:

For more rail kit options see "Additional Options" section of this QuickSpecs.

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License

C6N36A

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic
License

NOTE:

Server hardware required on same purchase order

C6N36ABE

Converged Infrastructure
Management Software

HP OneView with iLO Advanced - Server hardware required on same purchase order

HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

E5Y43A

HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU

E5Y43AAE

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Core Options" and "Additional Options" section below.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Configuration Information - Factory Integrated Models

DA - 14563 North America — Version 8 — December 13, 2013

Page 24

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

HP memory from previous generation servers are not fully compatible with
SmartMemory features in Gen8 Servers.

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647905-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit S-Buy

647905-S21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647907-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit S-Buy

647907-S21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647909-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

.

NOTE:

PC3L is a low voltage memory.

HP Optical Drives

HP 9.5mm SATA DVD-RW JackBlack Optical Drive

652241-B21

HP Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Core Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 25

components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard
Drive

718162-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

697574-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy

652589-S21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy

652583-S21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy

652564-S21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy

652611-S21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive S-Buy

652605-S21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy

655710-S21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy

655708-S21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

693687-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658079-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

657750-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy

657750-S21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658071-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive S-Buy

658071-S21

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Core Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 26

6G SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

628065-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659339-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659337-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard
Drive

659341-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691862-B21

6G SATA ME Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691860-B21

HP 400GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691856-B21

HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691854-B21

HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691852-B21

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690827-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690825-B21

6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive

653082-B21

HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive

653078-B21

3G SATA MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive

653120-B21

HP 200GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive

653118-B21

HP 100GB 3G SATA MLC SFF (2.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive

653112-B21

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Core Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 27

3G SATA MLC Hot Plug LFF (3.5-inch) Enterprise Mainstream Solid State Drives

HP 400GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive

653126-B21

HP 200GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive

653124-B21

HP 100GB 3G SATA MLC LFF (3.5-inch) SC Enterprise Mainstream 3yr Warranty Solid
State Drive

653122-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

Hard Drive Kits

NOTE:

All Factory Integrated Models will be populated with sufficient hard drive blanks

based on the number of initial hard drives ordered with the server.

NOTE:

The part numbers for single HDD blanks below are provided should the customer

require replacement HDD blanks for their server.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the
server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of
other drives types is not supported.

HP LFF Gen8 Hard Drive Blank Kit

666986-B21

HP SFF Gen8 Hard Drive Blank Kit

666987-B21

HP Networking

Gigabit Ethernet Adapters

HP NC112T PCI Express Gigabit Server Adapter

503746-B21

HP NC365T 4-port Ethernet Server Adapter

593722-B21

HP Ethernet 1Gb 2-port 361T Adapter

652497-B21

10 Gigabit Ethernet Adapters

NOTE:

A minimum of two Gigabytes (2 GB) of server memory is required per each

adapter.

NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and
cables for fiber-optic environments must be purchased separately.

HP NC523SFP 10Gb 2-port Server Adapter

593717-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HP Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional

information:

www.hp.com/go/ProLiantNICs

.

Switches

HP PS1810-24G Switch

J9834A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18004.www1.hp.com/products/quickspecs/14586_na/14586_na.html

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Core Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 28

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for additional information.
HP Insight Software HP Insight Control

HP Insight Software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License

C6N27A

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License/S-Buy

C6N27S

HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License

C6N28AAE

HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic
License/S-Buy

C6N28ASE

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

C6N31A

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple

licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Control Media Kit can be ordered

separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

.

NOTE:

For additional license options please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Integrated Lights-Out (iLO)

HP Integrated Lights-Out (iLO) Advanced for ProLiant

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

TA850AAE

HP iLO Advanced Electronic License with 3yr 24x7 Tech Support and Updates

BD506AAE

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server
License

512485-B21

HP iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates

BD505A

HP iLO Essentials

HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates E­LTU

BD774AAE

HP Integrated Lights-Out Essentials including 3yr 24x7 Tech Support and Updates
Single Svr License

BD774A

HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates E­LTU

BD775AAE

HP Integrated Lights-Out Essentials including 1yr 24x7 Tech Support and Updates
Single Svr License

BD775A

NOTE:

For additional license options please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/14276_na/14276_na.html

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 29

Converged Infrastructure
Management Software

HP OneView

HP OneView with iLO Advanced

HP OneView Media Kit Phys No Lic

E5Y37A

HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y34A

HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU

E5Y35AAE

HP OneView without iLO Advanced

HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y38A

HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU

E5Y39AAE

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14621_na/14621_na.html

High Performance
Clusters

HP Cluster Management Utility

HP Insight Cluster Management Utility 1yr 24x7 Flexible License

QL803B

HP Insight Cluster Management Utility 3yr 24x7 Flexible License

NOTE:

These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.

BD476A

HP Insight Cluster Management Utility Media

BD477A

NOTE:

For additional license kits please see the QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html

.

HP Security

HP Trusted Platform Module Option

488069-B21

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline. For more information about TPM, including a white paper, go to:

www.hp.com/go/TPM

.

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM
deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.

HP 1U Security Gen8 Bezel Kit

NOTE:

The Entry Rack Ear FIO Kit (P/N: 723903-B21) needs to be purchased if a security
bezel is installed.

664918-B21

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 30

HP Storage Controllers

SAS Controllers

Smart Array P222 Controller

HP Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller

631667-B21

Smart Array P421 Controller

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

HP Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller

631674-B21

Smart Array P431 Controller

HP Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller

698531-B21

Optional Upgrades

HP SmartCache No Media 24x7 Technical Support 1 Svr License

D7S26A

HP SmartCache No Media 24x7 Technical Support Flexible License

D7S27A

HP SmartCache No Media 24x7 Technical Support Electronic License

D7S27AAE

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14227_na/14227_na.html

(Smart Array P222 Controller)

http://h18000.www1.hp.com/products/quickspecs/14229_na/14229_na.html

(Smart Array P421 Controller)

http://h18000.www1.hp.com/products/quickspecs/14625_na/14625_na.html

(Smart

Array P431 Controller)

Host Bus Adapter

HP H221 Host Bus Adapter

NOTE:

This is a 2 x4 External Port HBA.

650931-B21

HP H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HP H222 Host Bus Adapter

650926-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18004.www1.hp.com/products/quickspecs/14336_na/14336_na.html

(HBA 220)

http://h18004.www1.hp.com/products/quickspecs/14222_na/14222_na.html

(HBA 221)

http://h18004.www1.hp.com/products/quickspecs/14337_na/14337_na.html

(HBA 222)

HP Networking Switches

HP PS1810-24G Switch

J9834A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18004.www1.hp.com/products/quickspecs/14586_na/14586_na.html

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 31

HP Tape Backup

NOTE:

For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hp.com/go/tape

. For hardware and software compatibility of HP tape

backup products see:

http://www.hp.com/storage/SPOCK

and

www.hp.com/go/ebs

.

NOTE:

For Internal drives to be connected to DL servers please make sure that you
order rack mount kit as well.

HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit

C0L99A

HP StoreEver LTO-6 Ultrium 6650 Internal Tape Drive

EH963A

HP StoreEver LTO-6 Ultrium 6650 External Tape Drive

EH964A

HP StoreEver LTO-6 Ultrium 6250 Internal Tape Drive

EH969A

HP StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HP StoreEver 1/8 G2 LTO-6 Ultrium 6250 FC Tape Autoloader

C0H19A

HP Tape Storage Systems

HP StoreEver MSL6480

HP StoreEver MSL6480 Scalable Base Module

QU625A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/14604_na/14604_na.html

HP Disk Backup

NOTE:

For the complete range of RDX drives and media see:

http://www.hp.com/go/rdx

. For hardware and software compatibility of HP disk backup

products see:

http://www.hp.com/storage/SPOCK

.

HP RDX Removable Disk Backup System

HP RDX320 USB3.0 External Disk Backup System

B7B63A

HP RDX500 USB3.0 Internal Disk Backup System

B7B64A

HP RDX500 USB3.0 External Disk Backup System

B7B66A

HP RDX1000 USB3.0 Internal Disk Backup System

B7B67A

HP RDX1000 USB3.0 External Disk Backup System

B7B69A

NOTE:

Please see the QuickSpecs for additional part numbers, Technical Specifications,
and additional information:

http://h18000.www1.hp.com/products/quickspecs/13036_na/13036_na.html

HP Disk Storage Systems

Disk Enclosures

HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle

E7W32A

HP D2600 Disk Enclosure

AJ940A

HP D2700 Disk Enclosure

AJ941A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13404_na/13404_na.html

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 32

HP Uninterruptible Power
Systems

HP Tower UPS

HP T1000 G3 UPS Models

HP T1000 G3 1000VA NA Tower Uninterruptible Power System

AF448A

HP T1500 G3 UPS Models

HP T1500 G3 1400VA NA Tower Uninterruptible Power System

AF450A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/13160_na/13160_na.html

HP Rack-mountable UPS

HP R1500 G3 Uninterruptible Power Supply (UPS)

HP R1.5kVA G3 1U NA Uninterruptible Power System

AF469A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14059_na/14059_na.html

HP R/T3000 G2 Uninterruptible Power System (UPS)

HP R/T3000 G2 2U L530 Low Voltage NA/JP Uninterruptible Power System

AF466A

HP R/T3000 G2 2U L620 High Voltage NA/JP Uninterruptible Power System

AF467A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14058_na/14058_na.html

R5000 Uninterruptible Power System (UPS)

HP R5KVA 3U L630 High Voltage NA/JP Uninterruptible Power System

AF460A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14109_na/14109_na.html

R7000 Uninterruptible Power System (UPS)

HP R7KVA 4U 50A High Voltage NA/JP Uninterruptible Power System

AF462A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14110_na/14110_na.html

NOTE:

For additional information on HP Uninterruptible Power Systems please go to:

www.hp.com/servers/rackups

.

NOTE:

For additional information on sizing your HP UPS, please reference:

http://www.upssizer.com

NOTE:

Please see the UPS and PDU cable matrix's on the HP Power Protection and
Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That
link will list cable descriptions, requirements, and specifications for UPS and PDU units.
Please see the following link:

www.hp.com/products/powercords

.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 33

HP Basic Power
Distribution Units (bPDU)

HP Basic Power Distribution Unit: 1U/0U Version

HP 1.9kVA 120 Volt 12 Outlet NA/JP Basic Power Distribution Unit

H5M54A

HP 3.6kVA 200-240 Volt 12 Outlet WW Basic Power Distribution Unit

H5M56A

HP Basic Power Distribution Unit: Half Height Version

HP 2.8kVA 120 Volt 18 Outlet NA/JP Basic Power Distribution Unit

H5M55A

HP 3.6kVA 200-240 Volt 20 Outlet WW Basic Power Distribution Unit

H5M57A

HP 4.9kVA 208 Volt 20 Outlet NA/JP Basic Power Distribution Unit

H5M58A

HP 8.6kVA 208 Volt Three Phase 18 Outlet NA/JP Basic Power Distribution Unit

H5M61A

HP Basic Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 30 Outlet NA/JP Basic Power Distribution Unit

H5M59A

HP 8.3kVA 208 Volt 36 Outlet NA/JP Basic Power Distribution Unit

H5M60A

HP Hardwired 200-240 Volt 36 Outlet WW Basic Power Distribution Unit

H5M75A

HP 5.7kVA 208 Volt Three Phase 27 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit

H5M63A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Dual Voltage Basic Power Distribution
Unit

H5M64A

HP 8.6kVA 208 Volt Three Phase 30 Outlet NA/JP Basic Power Distribution Unit

H5M62A

HP Basic Power Distribution Unit: Full Height Version

HP 11kVA 400 Volt Three Phase 42 Outlet NA Basic Power Distribution Unit

H5M67A

HP Basic Power Distribution Unit: 480/277 Volt Version

HP 13.2kVA 480 Volt Three Phase 15 Outlet NA Basic Power Distribution Unit

H3X07A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Basic Power Distribution Unit

H3X08A

HP 800VA - 277V Input / 230V Output NA Rack Mount Transformer

H3X09A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14669_na/14669_na.html

HP Remote Monitoring
Power Distribution Units
(mPDU)

HP Remote Monitored Power Distribution Unit: 1U Version

HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N43A

HP 3.6kVA 200-240 Volt 12 Outlet WW Monitored Power Distribution Unit

D9N46A

HP 4.9kVA 208 Volt 12 Outlet NA/JP Monitored Power Distribution Unit

D9N44A

HP Remote Monitored Power Distribution Unit: Half Height Version

HP 3.6kVA 200-240 Volt 16 Outlet WW Monitored Power Distribution Unit

D9N45A

HP Remote Monitored Power Distribution Unit: Mid Height Version

HP 4.9kVA 208 Volt 24 Outlet NA/JP Monitored Power Distribution Unit

D9N47A

HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit

D9N51A

HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit

D9N52A

HP 8.6kVA 208 Volt Three Phase 24 Outlet NA/JP Dual Voltage Monitored Power
Distribution Unit

D9N53A

HP Remote Monitored Power Distribution Unit: Full Height Version

HP 8.3kVA 208 Volt 33 Outlet NA Monitored Power Distribution Unit

D9N49A

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 34

HP 14.4kVA 208 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N58A

HP 16.6kVA 400 Volt Three Phase 33 Outlet NA Monitored Power Distribution Unit

D9N61A

HP 17.3kVA 208 Volt Three Phase 27 Outlet NA/JP Monitored Power Distribution Unit

D9N54A

HP 17.3kVA 208 Volt Three Phase 24 Outlet NA/JP Monitored Power Distribution Unit

D9N59A

HP 16.6kVA 400 Volt Three Phase 24 Outlet NA Monitored Power Distribution Unit

D9N62A

HP 19.9kVA 480 Volt Three Phase 30 Outlet NA Monitored Power Distribution Unit

D9N63A

HP Environmental Sensor for Remote Monitored PDUs

HP Environmental Sensor for Remote Monitored PDUs

E2D53A

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/14669_na/14669_na.html

HP Intelligent Power
Distribution Units (iPDU)

iPDU Core Units

HP 4.9kVA 24A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF520A

HP 8.3kVA 40A Single Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF521A

HP 8.6kVA 24A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF522A

HP 14.4kVA 40A Three Phase NA/JP Intelligent Modular Power Distribution Unit

AF533A

HP 17.3kVA 48A Three Phase NA/JP Core Intelligent Modular Power Distribution Unit

AF523A

HP 17.3kVA 24A 415V Three Phase L22-30 NA Core Intelligent Power Distribution Unit

AF902A

HP 17.3kVA 48A 208V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit

AF535A

HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution
Unit

AF537A

iPDU Kits with Standard Extension Bars

HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit

AF531A

HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit

AF532A

iPDU Extension Bars

HP 5xC13 Intelligent PDU Extension Bar G2 Kit

AF547A

HP 5xC13 Outlets Power and UID LEDs Pair Standard Extension Bar

AF528A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13650_na/13650_na.html

HP Rack Series

HP Intelligent Series Racks

HP 636 1075mm Pallet Intelligent Series Rack

BW895A

HP 636 1075mm Shock Intelligent Series Rack

BW896A

HP 642 1075mm Pallet Intelligent Series Rack

BW903A

HP 642 1075mm Shock Intelligent Series Rack

BW904A

HP 647 1075mm Pallet Intelligent Series Rack

BW911A

HP 647 1075mm Shock Intelligent Series Rack

BW912A

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 35

NOTE:

Please see the QuickSpecs for Technical Specifications such as height, width,
depth, weight, and color:

http://h18000.www1.hp.com/products/quickspecs/14223_na/14223_na.html

HP Rack Options

HP TFT7600 G2 KVM Console and Monitor (TFT7600 G2)

HP TFT7600 G2 KVM Console Rackmount Keyboard US Monitor

AZ870A

HP TFT7600 G2 KVM Console Rackmount Keyboard US TAA Monitor

AZ885A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13731_na/13731_na.html

HP USB Keyboard and Mouse

HP USB BFR with PVC Free US Keyboard/Mouse Kit

631341-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13972_na/13972_na.html

HP Server Console Switches

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

HP TAA 0x2x16xKVM Server Console G2 Switch

AF626A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/11834_na/11834_na.html

HP Server Console Switch G2 with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software

AF619A

HP KVM CAT5 1-pack USB Interface Adapter

336047-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13475_na/13475_na.html

HP 1x4 USB/PS2 KVM Console Switch

HP 1x4 USB/PS2 KVM Console Switch

AF611A

HP 1x1Ex8 KVM IP Console Switch G2 with Virtual Media CAC Software

AF620A

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13474_na/13474_na.html

Rail Kits

HP 1U Small Form Factor Ball Bearing Gen8 Rail Kit

663201-B21

HP 1U Friction Rail Kit

727604-B21

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 36

HP USB and SD Options

HP Flash Media Kits for USB Drives

HP 2GB USB Flash Media Drive Key Kit

608447-B21

HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13971_na/13971_na.html

HP Care Pack Services

Proactive Care

NOTE:

Collaborative Support plus Proactive services delivered by the onshore, local
language Advanced Solution Center (ASC), end-to-end case ownership from a Technical
Solution Specialists and Technical Account Manager who remotely delivers
firmware/software revision management, proactive scans and incident trend reports.
Recommended for customers running a virtualized infrastructure and/or customers
who desire an enhanced call support experience.

HP 3 year 4 hour 24x7 ProLiant DL320e Proactive Care Service

U6F03E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL320e Proactive Care
Service

U6F04E

HP 3 year 6 hour Call to Repair 24x7 ProLiant DL320e Proactive Care Service

U6F09E

HP 3 year 6 hour Call to Repair 24x7 w/Defective Media Retention ProLiant DL320e
Proactive Care SVC

U6F10E

HP 3 year Next business day ProLiant DL320e Proactive Care Service

U6E95E

HP 3 year Next business day with Defective Media Retention ProLiant DL320e Proactive
Care Service

U6E96E

HP 3 year 4 hour 13x5 ProLiant DL320e Hardware Support

U6E97E

HP 3 year 4 hour 13x5 with Defective Media Retention ProLiant DL320e Hardware
Support

U6E98E

HP 3 year 4 hour 24x7 ProLiant DL320e Hardware Support

U6E99E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL320e Hardware
Support

U6F00E

Collaborative Support

NOTE:

Hardware break/fix plus 24x7 software diagnosis support with collaborative call
management for a broad spectrum of 3rd Party software products including O/S and
hypervisors. Recommended for customers procuring 3rd party SW O/S and hypervisors
from the software vendors directly and deploying them on HP ProLiant servers.

HP 3 year 4 hour 24x7 ProLiant DL320e Collaborative Support

U6F01E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL320e Collaborative
Support

U6F02E

HP 3 year 6 hour Call to Repair 24x7 ProLiant DL320e Collaborative Support

U6F07E

HP 3 year 6 hour Call to Repair 24x7 w/Defective Media Retention ProLiant DL320e
Collaborative Sup

U6F08E

HP 3 year Next business day ProLiant DL320e Collaborative Support

U6E93E

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 37

HP 3 year Next business day with Defective Media Retention ProLiant DL320e
Collaborative Support

U6E94E

HP 3 year Next business day ProLiant DL320e Proactive Care Service

U6E95E

HP 3 year Next business day with Defective Media Retention ProLiant DL320e Proactive
Care Service

U6E96E

HP 3 year 4 hour 13x5 ProLiant DL320e Hardware Support

U6E97E

HP 3 year 4 hour 13x5 with Defective Media Retention ProLiant DL320e Hardware
Support

U6E98E

Installation Services

NOTE:

Reduce the time required to get your system up and running and help minimize
disruptions to your business.

HP Installation ProLiant DL320e Service

U6F51E

HP Installation non Standard Hours ProLiant DL320e Service

U6F52E

HP Startup ProLiant DL320e Service

U6F53E

HP Startup non Standard Hours Proliant DL320e Service

U6F54E

Other Services

HP 3 year Next business day ProLiant DL320e Hardware Support

U6E91E

HP 3 year Next business day with Defective Media Retention ProLiant DL320e Hardware
Support

U6E92E

HP 3 year 4 hour 13x5 ProLiant DL320e Hardware Support

U6E97E

HP 3 year 4 hour 13x5 with Defective Media Retention ProLiant DL320e Hardware
Support

U6E98E

HP 3 year 4 hour 24x7 ProLiant DL320e Hardware Support

U6E99E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant DL320e Hardware
Support

U6F00E

HP 3 year 6 hour Call to Repair 24x7 ProLiant DL320e Hardware Support

U6F05E

HP 3 year 6 hour Call to Repair 24x7 w /Defective Media Retention ProLiant DL320e
Hardware Support

U6F06E

HP 3 year 24 hour Call to Repair 24x7 ProLiant DL320e Hardware Support

U6F55E

HP 3 year 24 hour Call to Repair 24x7 w/Defective Media Retention ProLiant DL320e
Hardware Support

U6F56E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Additional Options

DA - 14563 North America — Version 8 — December 13, 2013

Page 38

HP SmartMemory

New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP
Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of
additional Gen8 enhancements in performance, durability and future manageability support through HP Active Health System

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture

Intel Processor socket supports 2 channels and 2 DIMMs per channel. Total max. memory up to 32GB DDR3 PC3-12800E1600MHz.

Standard Memory Plus Optional Memory

Up to 32 GB memory is available with the optional installation of 4 x 8GB PC3-12800E UDIMM ECC DDR3 UDIMM Memory kits, operating
at 1600MHz when fully populated at 2 DIMMs per Channel in 4 slots.

NOTE:

The below chart does not represent all possible memory configurations.

NOTE:

For best performance, it is recommended that customer installs memory in identical pairs

General Memory Population Rules and Guidelines:

The HP ProLiant DL320e Gen8v2Server has four memory slots
There are two channels per server with two DIMM slot per channel
Memory channel A consists of the two (2) DIMMs that are closest to the processor
Memory channel B consists of the two (2) DIMMs that are furthest from the processor
Different types of processors have different types of memory support.
Support for single/dual-rank 1333/1600 MT/s ECC UDIMM (unbuffered DIMMS)
The server supports up to 32 GB (4 x 8-GB) for Unbuffered DIMMs
No support for RDIMMs; Non-ECC UDIMMs
Do not install DIMMs if the processor is not installed
Populate DIMMs from heaviest load (double-rank) to lightest load (single-rank)
Always use HP qualified DIMM

Farthest DIMM (either CHA or CHB) should always be populated first

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Memory

DA - 14563 North America — Version 8 — December 13, 2013

Page 39

The UDIMM installing sequence:

Memory

Slot

DIMM4C

DIMM3A

DIMM2D

DIMM1B

Standard

(Base Model)

4 GB

Empty

4 GB

Empty Empty

Standard

(Performance Model)

8 GB

Empty

8 GB

Empty Empty

Maximum

32 GB

8 GB 8 GB 8 GB 8 GB

Memory Speed by Processor Model

Processor Models

Supported Memory Speeds

E3-1220v3, E3-1230v3, E3-1230Lv3, E3-1240v3, E3-1270v3, E3-1280v3, E3-1265Lv3, i3-4130,
i3-4130T, G3420

1600/1333MHz

G3220

1333MHz

Following are memory options available from HP:

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

HP memory from previous generation servers are not fully compatible with the
DL320e Gen8 Server.

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

Unbuffered with ECC DIMMs (UDIMMs)

HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647905-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647907-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory
Kit

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low
Voltage Memory Kit

647909-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Memory

DA - 14563 North America — Version 8 — December 13, 2013

Page 40

Tool:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant
Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

.

NOTE:

PC3L is a low voltage memory.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Memory

DA - 14563 North America — Version 8 — December 13, 2013

Page 41

1 - 2

2 x 3.5" (LFF) SAS/SATA hard drive bays

A

Optical Drive Bay: Optional DVD-RW drive

1 - 4

4 x 2.5" (SFF) SAS/SATA hard drive bays

A

Optical Drive Bay: Optional DVD-RW drive

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Storage

DA - 14563 North America — Version 8 — December 13, 2013

Page 42

System Unit

Dimensions

(H x W x D)

4 SFF

1.7 x 17.11 x 15.07 inches (4.32 x 43.46 x 38.30
cm)

2 LFF

1.7 x 17.11 x 15.07 inches (4.32 x 43.46 x 38.30
cm)

Weight

(approximate)

Maximum
(Processor,HDD+ Common
Slot power supply with 2
PCI cards)

4 SFF - 8.0 kg, 17.64 lb

Minimum
(Processor, one NHP hard
drive, ATX power supply,
without any Power Supply)

2 LFF NHP - 7.0 kg, 15.43 lb

Input Requirements

(HP ProLiant 300 W power
supply)

Rated Input Voltage

100 to 127 VAC
200 to 240VAC

Rated Input Current

6 Amps (at 100VAC) to 3 Amps (at 200 VAC)

Rated Input Frequency

50 to 60 Hz

Power Supply Output

(per power supply)

Rated Steady-State Power

300 W (at 100 to 127 VAC),
300 W (at 200 to 240 VAC)

Maximum Peak Power

350 W (at 100 to 127 VAC),
350 W (at 200 to 240 VAC)

System Inlet
Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 304.8 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3048 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non­condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non­condensing.

Altitude

Operating

3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions were

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Technical Specifications

DA - 14563 North America — Version 8 — December 13, 2013

Page 43

measured in accordance with ISO 7779 (ECMA 74) and declared in accordance
with ISO 9296 (ECMA 109).

Idle

LWAd

4.8 B (Base Model)

4.9 B (Performance Model)

LpAm

32 dBA (Base Model)
33 dBA (Performance Model)

Operating

LWAd

4.8 B (Base Model)

5.1 B (Performance Model)

LpAm

32 dBA (Base Model)
35 dBA (Performance Model)

NOTE:

The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels

NOTE:

Values are subject to change without notification and are for reference

only.

NOTE:

Performance of system, options, and ancillary equipment will vary

depending on the system configuration.

NOTE:

Levels presented do not account for non-Hewlett-Packard installed

hardware.

Emissions Classification
(EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;
ICES-003; CNS13438; GB9254; K22;K24; EN
61000-3-2; EN 61000-3-3; EN 60950-1; IEC
60950-1

NOTE:

Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and statements.

HP Dynamic Smart Array
B120i Controller

Dimensions

Embedded

Disk Drive Interface ­Transfer rate

Up to 6Gb/s SATA (Serial ATA)

SATA Connectors

6 internal SATA connectors

Server Interface

x4 PCIe 2.0

SATA Speed

6Gb/s SATA links

Cache Memory

Zero Memory RAID has no cache memory

Logical Drives Supported

Up to 8 logical volumes (6 physical drives)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

Hot Plug Support

Yes

RAID Support

RAID 0 (Striping), RAID 1 (Mirroring)
RAID 1+0 (Striping & Mirroring)

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Technical Specifications

DA - 14563 North America — Version 8 — December 13, 2013

Page 44

HP Ethernet 1Gb 2-port
NC332i Adapter

Compatibility

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3az 1000Base-T

NOTE:

NC332i is also compliant with the IEEE standard 802.az-2010

Data Transfer Method

PCI Express, one lanes (x1)

NOTE:

Speed is 5GT/s

Controller

BCM5720

Network Transfer Rate

10Base-T (Half and/or Full-Duplex)
100Base-T (Half and/or Full--Duplex)
1000Base-T (Half and/or Full-Duplex)

Connector

RJ-45

Cable Support

10Base-T
100Base-TX
1000BaseTX

Environment-friendly
Products and Approach

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.
AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL320e Generation 8 (Gen8) v2

Technical Specifications

DA - 14563 North America — Version 8 — December 13, 2013

Page 45
