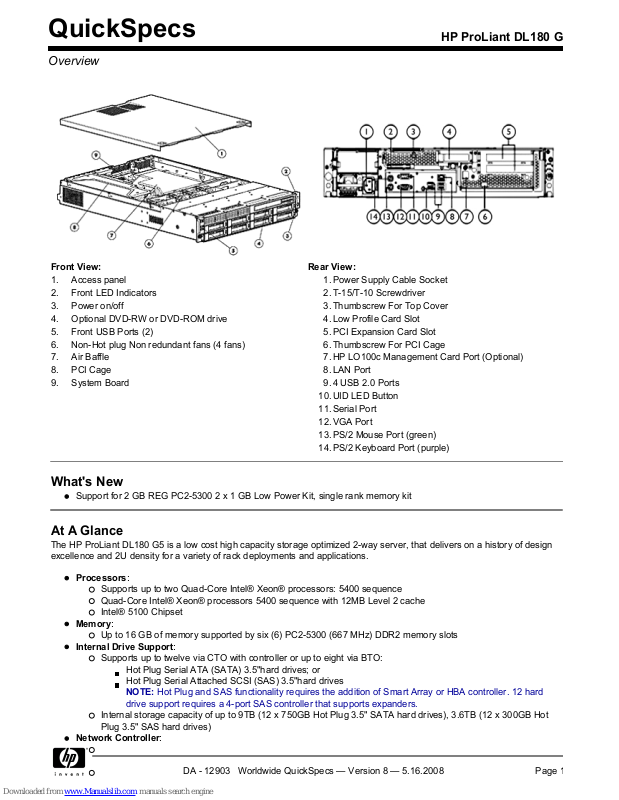

Front View:

Rear View:

Access panel

Power Supply Cable Socket

Front LED Indicators

T-15/T-10 Screwdriver

Power on/off

Thumbscrew For Top Cover

Optional DVD-RW or DVD-ROM drive

Low Profile Card Slot

Front USB Ports (2)

PCI Expansion Card Slot

Non-Hot plug Non redundant fans (4 fans)

Thumbscrew For PCI Cage

Air Baffle

HP LO100c Management Card Port (Optional)

PCI Cage

LAN Port

System Board

4 USB 2.0 Ports

10.

UID LED Button

11.

Serial Port

12.

VGA Port

13.

PS/2 Mouse Port (green)

14.

PS/2 Keyboard Port (purple)

What's New

Support for 2 GB REG PC2-5300 2 x 1 GB Low Power Kit, single rank memory kit

At A Glance

The HP ProLiant DL180 G5 is a low cost high capacity storage optimized 2-way server, that delivers on a history of design excellence and 2U density for a variety of rack deployments and applications.

Processors

: Supports up to two Quad-Core Intel® Xeon® processors: 5400 sequence Quad-Core Intel® Xeon® processors 5400 sequence with 12MB Level 2 cache Intel® 5100 Chipset

Memory

Up to 16 GB of memory supported by six (6) PC2-5300 (667 MHz) DDR2 memory slots

Internal Drive Support

Supports up to twelve via CTO with controller or up to eight via BTO:

Hot Plug Serial ATA (SATA) 3.5"hard drives; or Hot Plug Serial Attached SCSI (SAS) 3.5"hard drives

NOTE:

Hot Plug and SAS functionality requires the addition of Smart Array or HBA controller. 12 hard

drive support requires a 4-port SAS controller that supports expanders.

Internal storage capacity of up to 9TB (12 x 750GB Hot Plug 3.5" SATA hard drives), 3.6TB (12 x 300GB Hot Plug 3.5" SAS hard drives)

Network Controller

QuickSpecs

HP ProLiant DL180 G5

Overview

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 1

Page 2

One integrated NC105i PCI-e Gigabit NIC (embedded) (Wake on LAN and PXE capable)

Storage Controllers

: HP Embedded SATA RAID Controller (up to 4 hard drive support on base Models: HP Smart Array E200 Controller (optional) HP Smart Array P400 Controller (optional) HP Smart Array P800 Controller (optional) HP SC11Xe Host Bus Adapter (optional) HP SC44Ge Host Bus Adapter (optional)

Expansion Slots

: One available Low Profile x8 PCI-Express slot using a Low profile Riser. Two Full Height/ Full Length Riser options

Option1: 2 full-length/full-height PCI-Express x8 connector slots (x4 electrical - Standard) Option2: full-length/full-height riser with 2 PCI-X Slots(Optional)

Management

: Optional HP Lights Out 100c Remote Management card with Virtual KVM and Virtual Media support (includes IPMI2.0 and SMASH support)

USB Ports

Seven USB ports (2) front, (4) rear, (1) internal

Optical Drive

: Support for one (optional):Multi-bay DVD Optional Floppy (USB only, USB key)

Power Supply

: 750W Power Supply (Optional Redundancy Non-Hot Plug, Autoswitching) CSCI 2007/8 1200W High Efficiency Power Supply (Optional Redundancy Non-Hot Plug, Autoswitching) (Optional) CSCI 2007/8

NOTE:

Climate Savers Computing Initiative, 2007-2008 Compliant

Form Factor

2U rack models

Deployment/Serviceability

Tooled access to all system components for easy in rack serviceability

Warranty

: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase (3-1-1 warranty in AP and Brazil). Support for software and initial setup is available for 90 days from date of purchase. Additional support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

NOTE:

Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support (3-1-1-in AP and Brazil) with next business day response. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL180 G5

Overview

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 2

Page 3

NOTE:

For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and

specifications, please visit:

http://h71028.www7.hp.com/ERC/downloads/4AA1-2747EEW.pdf

NOTE:

For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information -

Factory Integrated Models" section.

Processor

One of the following depending on Model

Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80 W, 1333 MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB)

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80 W, 1333 MHz FSB)

Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65 W, 1066 MHz FSB)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for

more details.

Upgradeability

Upgradeable to two processors

Chipset

Intel® 5100 Chipset

Cache Memory

12MB (2 x 6MB) Level 2 cache (5400 sequence)

Memory Protection

Registered Advanced ECC memory

Memory

Type

PC2-5300 DIMMs (DDR2-667)

Standard

1 GB

(1 x 1 GB)

Maximum

16 GB

(2 x 4 GB) + (4 X 2 GB) Two 4 GB DIMMs should be populated in sockets 1 and 2 first (the right most sockets when looking from the front of the chassis) sockets 4 through 6 should be populated with 2 GB DIMMs. (Refer to hood label for more information)

Network Controller

One NC105i PCI-E Gigabit NIC (embedded) (Wake on LAN and PXE capable)

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 3

Page 4

Expansion Slots

Slot Number

Bus Speed

Bus

Number

Device

Number

Hot Plug

(Y/N)

PCI Voltage

Notes

x8 PCI-

Express

3 1

3.3 volts

Low Profile

x4 PCI-

Express

5 0

3.3 volts

Full Length

Full Height

x4 PCI-

Express

6 0

3.3 volts

Full length

Full Height

PCI-X***

Dynamic

3.3 volts

Full Length

Full Height

PCI-X***

Dynamic

3.3 volts

Full Length

Full Height

NOTE:

All slots can accept universal keyed PCI cards

* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.

** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID by bus (starting with the lowest bus).

*** PCI-X bus speed will be 133MHz when only one PCI-X card is installed. It will be 100MHz when both slots have PCI-X cards installed.

Storage Controller

4HDD Models

HP Embedded SATA RAID Controller (integrated into the south-bridge) supporting SW RAID 0,1

NOTE:

A diskette drive is needed to install storage controller drivers during a Windows operating

system installation from a CD.

NOTE:

A diskette drive is needed to install storage controller drivers during a Windows operating

system installation from a CD.

Storage

Optical Drives:

DVD-ROM

8x IDE (ATAPI) DVD-ROM drive, slim (optional)

DVD RW

8x IDE (ATAPI) DVD-RW drive, slim (optional)

Diskette Drives

Via USB only

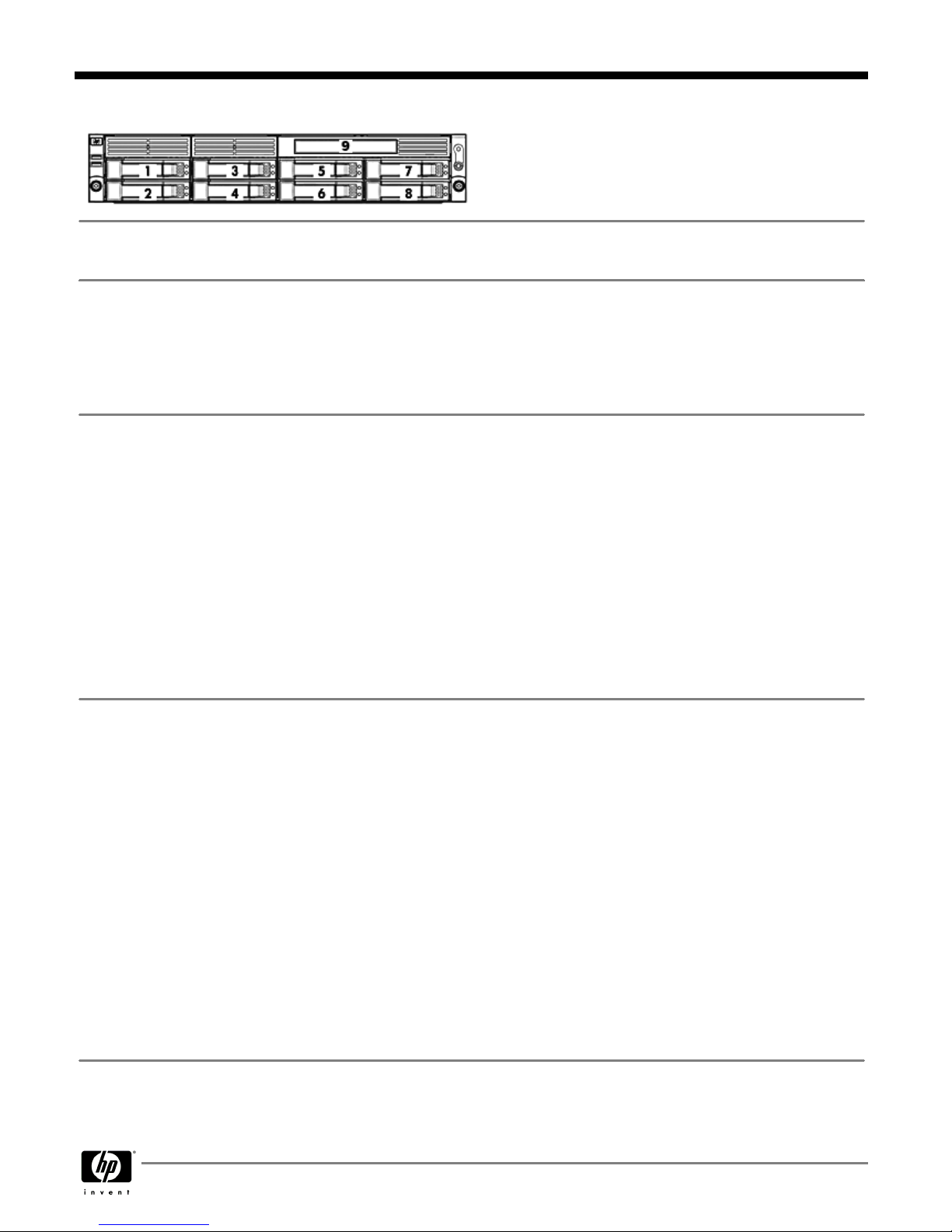

Drive Bays:

Hot Plug SAS/SATA

Up to 12 Hot Plug SAS/SATA 3.5" drives (4 drive bays standard)

NOTE:

4 Drive Models are Non-Hot Pluggable. Smart Array Controller must be added for Hot Plug drive capability. 4 Drive Models can be upgraded with the addition of a Smart Array Controller and a SAS/SATA Multi-lane cable (464830-B21). 12 Drive Model available via CTO factory integration ONLY.

NOTE:

The addition of a Smart Array Controller requires the addition of

a SAS/SATA Multi-lane cable (464830-B21)

Maximum Internal Storage

SATA Maximum Internal

9TB

12 x 750GB

SAS Maximum Internal

3.6TB

12 x 300GB

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 4

Page 5

Interfaces

Parallel

None

Network RJ-45 (Ethernet)

1 10/100/1000 NIC port (plus 1 optional for the HP ProLiant Lights Out 100c Remote Management Card)

Serial

Pointing Device (Mouse)

Graphics

Keyboard

USB

7 total ports: (2) front, (4) rear, (1) internal

NOTE:

Please see the following URL for additional information regarding USB support:

http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html

Graphics

32MB shared supporting 1600 x 1200 x 16M resolution.

Form Factor

Rack (2U), (3.5 in/8.89 cm)

Remote Management

Lights-Out 100c

Lights Out LO100c is a Remote Management Card (RMC) for HP ProLiant 100 series servers that do not have embedded LO100i. The LO100c has all the features of the LO100i Advanced license and allows customers, or their service providers, to remotely manage ProLiant servers over a LAN or the Internet from anywhere, anytime regardless whether the server is located in the same building, across town, or around the globe.

With LO100c, users can acquire complete remote control with Virtual KVM (graphical hardware-based, remote console). Users can also access the server's serial console, control system power, update system firmware and software, as well as monitor system environmental conditions. The LO100c remote management card can be accessed from a web browser or command line interface. This virtual "at-theserver" functionality means administrators stay in control of remote HP ProLiant 100 series servers.

The HP Lights-Out100c consists of a management processor and firmware that provides cost-effective, entry-level lights-out functionality, basic system board management functions, and diagnostics.

NOTE:

For more information, please refer to the QuickSpecs for the LO100c found at::

http://h18004.www1.hp.com/products/servers/management/ remotemgmt/lightsout100/index.html

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 5

Page 6

Server Management Stand Alone Software Product – ProLiant Essentials

HP Systems Insight Manager

HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible standards-based environment to centrally manage servers, storage and other infrastructure devices, (both HP and non-HP) across multiple operating system platforms.

ProLiant Essentials Rapid Deployment Pack

Rapid Deployment Pack (RDP) is an automated deployment and provisioning solution for all ProLiant servers. RDP supports image capture and deployment on 100 series servers. Every RDP disc includes 10-node trial licenses for evaluation purposes. RDP requires a license for each server deployed and is available for purchase with HP servers. For more information, visit:

http://www.hp.com/servers/rdp

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials

or the various ProLiant

Essentials Value Pack product QuickSpecs for more information.

NOTE:

For more information regarding ProLiant Essentials Software, please see the following URL:

http://www.hp.com/servers/proliantessentials

Core Infrastructure Management

Subscriber's Choice

Subscriber's Choice Driver and Support Alerts/Notifications is a webbased email subscription service that provides software and driver change notifications for ProLiant products. Sign up at:

http://www.hp.com/go/subscriberschoice

and customize your profile to receive various new alerts as they become available, on a weekly or monthly basis.

ROMPaq, software and latest drivers

The latest software, drivers, and firmware fully optimized and tested for your ProLiant server and options, available through ProLiant Support Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or downloaded from Software and Drivers download pages website at:

http://www.hp.com/go/support

Industry Standard Compliance

ACPI V2.0 Compliant

PCI 2.2 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

IPMI 2.0 Compliant

Manageability

The optional HP PL100 G5 Lights-Out 100c Kit ALL provides the following OS-independent remote control capabilities with a riser card:

Virtual power System event log access System health Remote Serial console (serial redirection) Browser, Telnet access SMASH-CLP compliant IPMI 2.0 compliant Virtual media (Floppy, CD, USB 2.0 (with release 3.0) Secure Socket Layer Encryption Secure Shell Encryption Virtual KVM

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 6

Page 7

Security

Power-on password

Setup password

Server Power Cords

One Highline IEC Power cord ships standard (for connection to a Power Distribution Unit)

NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power cords that allow connection to 110V US wall outlets in a home or office. HP ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord If a user wishes to power a ProLiant DL server using a110V receptacle (NEMA-15), the NEMA power cord (AF556A) must be ordered separately.

If a local power cord is required, please reference the following power cord matrix:

http://www.hp.com/go/powercordmatrix

NOTE:

Rack models ship standard with an IEC cable. Localized cables included with geographic specific models in other world regions.

UPS and PDU Power Cord Matrix

Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications for UPS and PDU units:

http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html

Power Supply

750Watts - (Non-Hot Plug, Autoswitching) Ships Standard

1200Watts - High Efficiency 12V Non-Hot Plug AC Power Supply (Autoswitching) (Optional)

750Watts - Power Supply (Redundant Non-Hot Plug, Autoswitching) (Optional)

1200Watts - High Efficiency Power Supply (Redundant Non-Hot Plug, Autoswitching), CSCI 2007/2008 (Optional)

NOTE:

Climate Savers Computing Initiative, 2007-2008 Compliant

NOTE:

For additional information please see the Options section of this QuickSpecs.

System Fans

4 system fans ship standard; Non-hot plug, Non-redundant

OS Support

Microsoft Windows 2003 and Microsoft Windows 2003/R2 Standard Edition (32-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 Enterprise Edition (32-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 Web Edition (32-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 for Extended Systems Standard Edition (64-bit) Microsoft Windows 2003 and Microsoft Windows 2003/R2 for Extended Systems Enterprise Edition (64-bit) Microsoft Windows Server 2008 Red Hat Enterprise Linux SUSE Linux Enterprise Server

NOTE:

For an up-to-date listing of the latest software and drivers available for your server, please select your server:

http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc=

us&taskId=135&prodTypeId=15351&prodCatId=241435

NOTE:

For more complete and up-to-date information on how to buy server operating systems from HP please visit the OS product site at:

http://h18004.www1.hp.com/products/servers/software/OEM.html

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 7

Page 8

Rack Airflow Requirements

Rack 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure

adequate airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

Rack Kit

HP ProLiant DL180 rack models have fixed rails which provide support for round or square mounting holes, including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36".

Telco and Threaded Hole Rack Support

Support for all 2-post Telco racks and threaded hole racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at:

http://www.racksolutions.com/hp

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

http://www.hp.com/go/factory-express

HP Enterprise Configurator

The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 8

Page 9

Service and Support

HP services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server, purchased at the same time or afterward, internal to the enclosure, as well as 22" and smaller external monitors and tower UPS options up to 3kVA; these items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service

– Simplify ProLiant solution implementation, maintenance and

management.

Support Service

– 3 Year, 9x5 Next Business Day coverage, excluding HP holidays only

Deployment Service

– Hardware Installation only

Enhanced Service

– Optimize service level to increase IT performance and availability

Support Service

– 3 Year 13x5 Same Business Day, 4-Hour response coverage

Deployment Service

– Installation and Start-up only

Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.

For a complete listing of service offerings and information visit:

http://www.hp.com/services/proliantservices http://www.hp.com/go/proliant/carepack

QuickSpecs

HP ProLiant DL180 G5

Standard Features

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 9

Page 10

Four Drive Serial ATA (SATA) Models

NOTE:

To upgrade from 4 Non-Hot Plug SATA hard drives to 4 Hot Plug SATA/SAS hard drives the addition of a storage controller and one Internal SATA/SAS cable (464830-B21) are required. To upgrade to 8 Hot Plug SATA/SAS hard drives, the addition of a storage controller and two Internal SATA/SAS cables (464830-B21) are required.

NOTE:

To upgrade to server models supporting 12 hard drives; you must start with HP ProLiant DL180 CTO Chassis (P/N 457649-B21). Please see the Configuration To Order section below.

HP DL180 G5, E5420

2.50GHz,(QC) 1GB (1P)

456830-xx1

HP DL180 G5, E5405

2.00 GHz,(QC) 1GB (1P)

456831-xx1

Processor

One of the following depending on model

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB) Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80 W, 1333 MHz FSB)

Cache Memory

One of the following depending on model

12MB (2 x 6MB) Level 2 cache (5400 sequence)

Memory

One of the following depending on model

1GB (1 x 1GB) PC2-5300 DIMMs (DDR2-667)with Advanced ECC capabilities

Network Controller

One HP NC105i PCI-E (embedded)

Storage Controller

Embedded SATA Raid Standard

Hard Drive

None ship standard (up to 8 Hot Plug SATA or SAS drives supported standard with the addition of a controller and cable. 12 drive models supported via CTO only.)

Internal Storage

BTO internal storage capacity of up to 6TB (8 x 750GB Hot Plug 3.5" SATA hard drives), 2.4TB (8 x 300GB Hot Plug 3.5" SAS hard drives)

Optical Drive

DVD-ROM, DVD RW (Optional)

Form Factor

Rack (2U)

NOTE:

Server models supporting 4 hard drives are Non-Hot Pluggable.

Smart Array Controller must be added for Hot Plug drive capability.

NOTE:

SAS (Serial Attach SCSI) capability requires the addition of a

Smart Array or HBA Controller card.

Country Code Key

xx = 00

U.S.

xx = 20

Brazil

xx = 29

Japan

xx = 37

APD

xx = 42

Europe

xx = AA

PRC

QuickSpecs

HP ProLiant DL180 G5

Models

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 10

Page 11

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.

NOTE:

HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis.

NOTE:

This product offering does not support HP Factory Express Server Configuration Level 1.

NOTE:

FIO indicates that this option is a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)

Hot Plug Models

HP ProLiant DL180 G5 Hot Plug SAS/SATA Rack CTO Chassis

457649-B21

Factory Integrated Model ships with:

One embedded NC105i PCI-E Gigabit Server Adapters (WOL & PXE-capable)

Three available PCI-Express slots:

Slot 1: x8 low-profile/half-height slot

Slot 2 & 3: x4 Full-Height/Full Length

NOTE:

Optional PCI-X option kit includes: Slot 1 and 2: full-length/full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.

One HP SATA Embedded Cable Kit

750 Watt Power Supply

One Highline IEC Power Cord

4 Non-Hot Plug Fans

Rack (2U), (3.5 in/8.89 cm)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

Processors

Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

If 2 processors are desired, select one 466106-L21 and one 466106-

B21.

466106-L21

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

If 2 processors are desired, select one 458784-L21 and one 458784-

B21.

458784-L21

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

If 2 processors are desired, select one 458785-L21 and one 458785-

B21.

458785-L21

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80 W, 1333 MHz FSB) Kit, FIO

NOTE:

If 2 processors are desired, select one 458786-L21 and one 458786-

B21.

458786-L21

Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066MHz FSB) Kit, FIO

NOTE:

If 2 processors are desired, select one 458787-L21 and one 458787-

B21.

458787-L21

Memory

1 GB PC2-5300 2 x 512 MB Single Rank Kit

408850-B21

1GB REG PC2-5300 1 x 1GB Kit

462483-B21

QuickSpecs

HP ProLiant DL180 G5

Configuration Information - Factory Integrated Models

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 11

Page 12

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit

483399-B21

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

408851-B21

4 GB REG PC2-5300 2 x 2 GB Single Rank Kit

461840-B21

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit

408853-B21

8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

408854-B21

Hard Drive Cage

HP DL180 8HDD Cage FIO Kit

451368-B21

HP DL180 12HDD Cage FIO Kit

451369-B21

NOTE:

The installation of a 12HDD Cage requires the addition of a 4-port SAS controller that supports expanders. A Smart Array Controller, P400 or better, is recommended.

NOTE:

The addition of a Smart Array Controller (or 4-port SAS controller that supports expanders) requires the addition a SAS/SATA Multi-lane cable (464830-B21).

Step 3: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Options" section below. Some options may not be available for factory

integration. Please contact an HP sales representative for additional information.

QuickSpecs

HP ProLiant DL180 G5

Configuration Information - Factory Integrated Models

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 12

Page 13

Unique Options

HP ProLiant DL180 PCI/X Riser Kit

NOTE:

This option kit replaces the three internal expansion slots listed in step 1 base configuration

451285-B21

NOTE:

Optional PCI-X option kit includes: Slot 1: full-length/full-height PCI-X 100; Slot 2: Full length/Full-height PCI-X 100. PCI-X slots are 64 bits; 133 MHz capable if only one PCI-X card is installed in the server.

Power Supplies

750W Redundant Power Supply Kit

451366-B21

High Efficiency HP 1200W 12V Non Hot Plug AC Power Supply

437572-B21

NOTE:

Redundant Power Supply configuration for 1200W power supply requires both power supplies to be 1200W. The 1200W and 750W power supplies cannot be mixed.)

Remote Management

Lights-Out 100c Remote Management Card

HP Lights Out 100c Remote Management Card 100c Kit

445513-B21

NOTE:

For more information regarding Lights Out 100c Remote Management Card, please see the following URL:

http://www.hp.com/servers/proliantessentials

Server Management Stand Alone Software Product – ProLiant Essentials

NOTE:

Electronic licensing options are available for Insight Control suites and select ProLiant Essentials software products. Please see the appropriate Insight Control and ProLiant Essentials QuickSpecs for additional information.

Deploy

Rapid Deployment Pack

ProLiant Essentials Rapid Deployment Pack No Media 1-Server License including 1 year of 24x7 Technical Support and Updates

NOTE:

This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

452151-B21

NOTE:

For additional ProLiant Essentials Rapid Deployment Pack License Kits please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html

NOTE:

Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to:

http://www.hp.com/servers/proliantessentials

or the various ProLiant Essentials Value Pack product QuickSpecs for more information.

NOTE:

For more information regarding ProLiant Essentials Software, please see

the following URL:

http://www.hp.com/servers/proliantessentials

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 13

Page 14

Processor

Quad-Core Intel® Xeon® processor E5440 (2.83 GHz, 80 W, 1333 MHz FSB) Option Kit

466106-B21

Quad-Core Intel® Xeon® processor E5430 (2.66 GHz, 80 W, 1333 MHz FSB) Option Kit

458784-B21

Quad-Core Intel® Xeon® processor E5420 (2.50 GHz, 80 W, 1333 MHz FSB) Option Kit

458785-B21

Quad-Core Intel® Xeon® processor E5405 (2.00 GHz, 80W, 1333 MHz FSB) Option Kit

458786-B21

Dual-Core Intel® Xeon® processor E5205 (1.86 GHz, 65W, 1066 MHz FSB) Option Kit

458787-B21

Memory

1 GB REG PC2-5300 2 x 512 MB Single Rank Kit

408850-B21

1 GB REG PC2-5300 1 x 1 GB Kit

462483-B21

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit

483399-B21

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

408851-B21

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit

408853-B21

4 GB REG PC2-5300 2 x 2 GB LP Single Rank Kit

461840-B21

8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

408854-B21

Hard Drives

Serial-ATA (SATA) Hot Plug Hard Drives

HP 80GB SATA 7.2K Hot Plug 3.5" HDD

349237-B21

HP 160GB SATA 7.2K Hot Plug 3.5" HDD

349238-B21

HP 250GB SATA 7.2K Hot Plug 3.5" HDD

349239-B21

HP 500GB SATA 7.2K Hot Plug 3.5" HDD

395473-B21

HP 750GB SATA 7.2K Hot Plug 3.5" HDD

432341-B21

NOTE:

SATA drives have a 1 year warranty. Please see the QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:

http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html

(Worldwide)

Serial-Attached SCSI (SAS) Hot Plug Hard Drives

HP 72GB 3G SAS 15K 3.5" DP HDD

384852-B21

HP 72GB SAS 15K Hot Plug 3.5" SP HDD

375870-B21

HP 146GB 3G SAS 15K 3.5" DP HDD

384854-B21

HP 146GB SAS 15K Hot Plug 3.5" SP HDD

375872-B21

HP 300GB 3G SAS 15K 3.5" DP HDD

416127-B21

HP 300GB SAS 15K Hot Plug 3.5 SP HDD

431944-B21

NOTE:

Please see the QuickSpecs for Technical Specifications such as capacity, height, width, interface, transfer rate, seek time, physical configuration, and operating temperature:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

NOTE:

If selecting more than 4 hard drives or if using SAS hard drives a Smart

Array controller and two SAS/SATA cables (P/N 464830-B21) are required.

Optical Drives

DVD-ROM Drive

449991-B21

DVD-RW Drive

449998-B21

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 14

Page 15

Storage Controllers

SAS Controllers

HP SC44Ge Host Bus Adapter

416096-B21

NOTE:

Please see the HBA QuickSpecs for additional information:

http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html

(SC44Ge HBA)

SCSI HBA

HP SC11Xe Host Bus Adapter

412911-B21

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html

(SCSI HBA)

Internal SAS/SATA Cable

NOTE:

If selecting more than 4 hard drives or if using SAS hard drives a Smart

Array controller is required and two SAS/SATA cables.

NOTE:

The addition of a Smart Array Controller requires the addition of a

SAS/SATA Multi-lane cable.

464830-B21

HP Smart Array E200 Controller

HP Smart Array E200/128 BBWC Controller

411508-B21

HP Smart Array E500 Controller

435129-B21

HP Smart Array P400 Controller

HP Smart Array P400/256MB Controller

405132-B21

HP Smart Array P400/512MB Controller with BBWC

411064-B21

NOTE:

When ordering a Smart Array P400 Controller with BBWC the addition of the 24" Battery Extension Cable (417836-B21) is required.

HP Smart Array P800 Controller

HP Smart Array P800/512 BBWC Controller

381513-B21

512 MB Battery-backed write cache upgrade

405148-B21

Battery-backed write cache upgrade

383280-B21

NOTE:

When ordering a Smart Array P800 Controller with BBWC the addition of the 24" Battery Extension Cable (417836-B21) is required.

HP Smart Array 24" Battery Cable Kit

417836-B21

NOTE:

Please see the following Controller QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html

(Smart Array E200 Controller)

http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html

(Smart Array E500 Controller)

http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html

(Smart Array P400 Controller)

http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html

(Smart Array P800 Controller)

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 15

Page 16

Communications

HP NC110T PCI Express Gigabit Server Adapter

NOTE:

Does not support Windows 2000.

434905-B21

HP NC360T PCI Express Dual Port Gigabit Server Adapter

412648-B21

HP NC364T PCI Express Quad Port Gigabit Server Adapter

NOTE:

Does not support Windows 2000.

435508-B21

HP NC373F PCI Express Multifunction Gigabit Server Adapter

394793-B21

HP NC373T PCI Express Multifunction Gigabit Server Adapter

394791-B21

HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter

NOTE:

Supported on a Full Length-Full Height slot only.

394795-B21

HP NC510C PCIe 10 Gigabit Server Adapter

NOTE:

A minimum of 1 gigabyte (1 GB) of server memory is required per each NC510C adapter.

414129-B21

HP NC510F PCIe 10 Gigabit Server Adapter

414126-B21

HPC Specific Options

HP IB 4X DDR PCI-e Dual-port 0 memory HCA

483513-B21

Rack Kits

HP Rack Cable Management Velcro Clips

379820-B21

HP StorageWorks Modular Smart Array 20

335921-B21

NOTE:

Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity,

redundant power supplies.

NOTE:

Please see the Modular Smart Array 20 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html

(Worldwide)

HP StorageWorks Modular Smart Array 30

HP StorageWorks Modular Smart Array 30 SB

302969-B21

NOTE:

Rack-mountable 14 drive enclosure with single bus, redundant power

supplies.

NOTE:

Please see the Modular Smart Array 30 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/11738_div/11738_div.html

(Worldwide)

HP StorageWorks Modular Smart Array 50

HP StorageWorks Modular Smart Array 50 Enclosure

364430-B21

NOTE:

Rack-mountable 10 SFF drive enclosure with single I/O module, redundant hot plug power supplies and hot plug fans.

NOTE:

Please see the Modular Smart Array 50 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 16

Page 17

HP StorageWorks Modular Smart Array 60

HP StorageWorks 60 Modular Smart Array

364430-B21

NOTE:

Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with

3Gb/s SAS host connectivity and redundant power supplies.

NOTE:

Please see the Modular Smart Array 60 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html

(Worldwide)

HP StorageWorks Modular Smart Array 70

HP StorageWorks 70 Modular Smart Array

418800-B21

NOTE:

Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with

3Gb/s SAS host connectivity and redundant power supplies.

NOTE:

Please see the Modular Smart Array 70 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html

(Worldwide)

HP StorageWorks Modular Smart Array 500

HP StorageWorks 500 Modular Smart Array

335880-B21

NOTE:

Please see the Modular Smart Array 500 QuickSpecs for additional information including configuration steps and additional options needed for a complete solution at:

http://h18000.www1.hp.com/products/quickspecs/11956_div/11956_div.html

(Worldwide)

Tape Drives

NOTE:

For the complete listing of Tape Drive offerings, please see:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

USB Tape Drives

HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive

AG703A

SAS Tape Drives

NOTE:

For the DL180 G5, HP recommends purchasing the HP SC44Ge HBA

(416096-B21) for a dedicated SAS HBA for tape.

HP StorageWorks DAT 160 SAS Internal Tape Drive

NOTE:

HP recommends combining this tape drive with the 1U SAS Rack-Mount kit (AE459A) for a complete rack-mount solution.

Q1587A

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

NOTE:

HP recommends combining this tape drive with the 1U SAS Rack-Mount

kit (AE459A) for a complete rack-mount solution.

DW085A

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

NOTE:

HP recommends combining this tape drive with the 1U SAS Rack-Mount

kit (AE459A) for a complete rack-mount solution.

EH847A

HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive

EH919A

HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760

EH946A

HP StorageWorks LTO-4 Ultrium 1840 SAS Internal Tape Drive

NOTE:

HP recommends combining this tape drive with the 3U SAS Rack-Mount

kit (AG576A) for a complete rack-mount solution.

EH860A

NOTE:

Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in the Storage section of this document for a list of SAS controllers with tape support.

Ultrium Tape Drives

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 17

Page 18

HP StorageWorks LTO-1 Ultrium 232 Internal Tape Drive (Carbonite)

NOTE:

HP recommends combining this tape drive with the 1U SCSI Rack-Mount

kit (A7445B) for a complete rack-mount solution.

DW064A

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI Tape Drive (Carbonite)

DW028B

HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920

EH903A

HP StorageWorks 3U SCSI Rack-mount kit with one LTO-3 Ultrium 960 (Carbonite)

Q1595B

HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive

EH926A

NOTE:

Please see the HP StorageWorks LTO Ultrium Tape Drive QuickSpecs for additional options such as controllers, media, and other related items:

http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html

(Worldwide)

http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html

(Worldwide)

For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit:

http://www.hp.com/go/connect

Rack-Mount Tape Drive Enclosures

HP StorageWorks 1U SCSI Rack-Mount kit

NOTE:

The 1U Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with multiple Single-Ended and LVD SCSI tape drives including the DAT 40, DAT 72, DAT 160, DLT VS160, LTO-1 Ultrium 232, LTO-2 Ultrium 448 and LTO-3 Ultrium 920 tape drives.

A7445B

HP StorageWorks 1U USB Rack-Mount Kit

NOTE:

The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 tape drives.

A8007A

HP StorageWorks 1U SAS Rack-Mount Kit

NOTE:

The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives and is compatible with the LTO-2 Ultrium 448 SAS and LTO-3 Ultrium 920 SAS tape drives.

AE459A

HP StorageWorks 3U SCSI Rack-mount kit

NOTE:

The 3U SCSI Rack-mount Kit can support up to (2) full-height or (4) halfheight tape drives and is compatible with multiple LVD SCSI tape drives including DAT 40, DAT 72, DLT VS160, SDLT 600, LTO-1 Ultrium 232, LTO-2 Ultrium 460, LTO-2 Ultrium 448, LTO-3 Ultrium 920, LTO-3 Ultrium 960 and LTO-4 Ultrium 1840 tape drives.

274338-B22

HP StorageWorks 3U SAS Rack-mount Kit

NOTE:

The 3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives and compatible with multiple SAS tape drives including DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3 Ultrium 920 SAS, and LTO-4 Ultrium 1840 SAS tape drives.

AG576A

NOTE:

Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional information regarding these kits:

http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 18

Page 19

HP D2D Backup System

HP StorageWorks D2D110 Backup System

NOTE:

1TB of Disk Storage

EH880A

HP StorageWorks D2D110 Backup System with Data Protector Express Software Kit

NOTE:

1TB of Disk Storage

EH923A

HP StorageWorks D2D120 Backup System

NOTE:

2TB of Disk Storage

EH884A

HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit

NOTE:

2TB of Disk Storage

EH924A

HP StorageWorks D2D130 Backup System

NOTE:

3TB of Disk Storage.

EH950A

HP StorageWorks D2D130 Backup System with Data Protector Express Software Kit

NOTE:

3TB of Disk Storage.

EH951A

HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive

NOTE:

3TB of Disk Storage.

EH952A

NOTE:

Please see the HP D2D Backup Systems QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html

(Worldwide)

Tape Autoloaders

HP StorageWorks DAT Autoloader

HP StorageWorks DAT 72x10 tape autoloader

AE313B

HP StorageWorks 1/8 Tape Autoloader

HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

AK377A

HP StorageWorks 1/8 LTO-3 Ultrium 920 G2 Tape Autoloader

AH165A

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

AH558A

HP StorageWorks 1/8 LTO-2 Ultrium 448 G2 Tape Autoloader

AH164A

HP StorageWorks 1/8 LTO-1 Ultrium 232 G2 Tape Autoloader

AH163A

HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit

NOTE:

Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions

AH166A

NOTE:

Please reference the Tape Autoloader QuickSpecs at:

http://www.hp.com/go/automation

for additional information needed to create a complete solution; reference current compatibility information at:

http://www.hp.com/go/ebs

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 19

Page 20

Tape Libraries

HP StorageWorks MSL2024 Tape Library

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ033A

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4GB FC Library

AJ034A

HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

AK378A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library

AG115A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4GB FC Library

AG326B

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library

AH169A

HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library

AG116A

HP StorageWorks MSL4048 Tape Library

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ035A

HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4GB FC Library

AJ036A

HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

AK380A

HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library

AG322A

HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4GB FC Library

AG324B

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library

AH560A

HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SCSI Drive Library

AH171A

HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive Library

AG320A

HP StorageWorks MSL8096 Tape Library

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 SCSI Drive Library

AJ039A

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1840 4GB FC Library

AJ040A

HP StorageWorks MSL8096 2 LTO-4 Ultrium 1760 SAS Drive Library

AK382A

HP StorageWorks MSL8096 2 LTO-3 Ultrium 920 SAS Drive Library

AH561A

HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 4GB FC Library

AH218A

HP StorageWorks MSL8096 2 LTO-3 Ultrium 960 Drive Library

AH219A

HP StorageWorks MSL6000 Tape Library

LTO-4 Ultrium 1840 technology

HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 SCSI Drive Library

AJ029A

HP StorageWorks MSL6030 1 LTO-4 Ultrium 1840 4GB FC Library

AJ030A

HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 SCSI Drive Library

AJ031A

HP StorageWorks MSL6060 2 LTO-4 Ultrium 1840 4GB FC Library

AJ032A

LTO-3 Ultrium 960 technology

HP StorageWorks MSL6030 1 Ultrium 960 Dr LVDS Library

AD606B

HP StorageWorks MSL6030 1 Ultrium 960 Dr FC Library

AD608B

HP StorageWorks MSL6030 2 Ultrium 960 Dr LVDS Library

AD607B

HP StorageWorks MSL6030 2 Ultrium 960 Dr FC Library

AD609B

NOTE:

Please reference the MSL2024, MSL4048, MSL8096 and MSL6000

Tape Library QuickSpecs at:

http://www.hp.com/go/automation

for additional information needed to create a complete solution; reference current compatibility information at:

http://www.hp.com/go/ebs

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 20

Page 21

StorageWorks Options

NOTE:

The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

HP StorageWorks 4 Gb PCI-X 2.0-to-Fibre Channel HBA

AB429A

HP StorageWorks 4 Gb PCI-X 2.0 DC-to-Fibre Channel HBA

AE369A

HP StorageWorks FC2142SR 4Gb PCI-E HBA

A8002A

HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-E HBA

A8003A

HP StorageWorks FC1142SR 4Gb PCI-E HBA

AE311A

HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-E HBA

AE312A

HP StorageWorks FC2143 4Gb PCI-X 2.0 HBA

AD167A

HP StorageWorks FC2243 4Gb PCI-X 2.0 DC HBA

AD168A

USB Options

USB 1.44-MB External Diskette Drive

DC141B

HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)

DC172B

HP Keyboard (USB) standard 2004

DT528A#ABA

HP 1GB USB 2.0 Floppy Drive Key

442085-B21

HP 256MB USB 2.0 Floppy Drive Key

442084-B21

HP USB Internal Cable Kit

451363-B21

HP KVM Switch Options

2x1x16 IP Console Switch with Virtual Media

AF601A

4x1x16 IP Console Switch with Virtual Media

AF602A

2x16 Server Console Switch with Virtual Media

AF600A

PS/2 Virtual Media Interface Adapter, 1 pack

NOTE:

Requires PS/2 and one USB port on server.

AF604A

HP Server Console Switch (KVM), 0 x 1 x 8 port

336044-B21

HP Server Console Switch (KVM), 0 x 2 x 16 port

336045-B21

PS/2 Interface Adapter, 1 pack

262588-B21

PS/2 Interface Adapter, 8 pack

262587-B21

USB Interface Adapter, 1 pack

336047-B21

Serial Interface Adapter - 1 pack with power supply

373035-B21

HP 1x4 Console Switch

AF611A

HP PS2 Server Console Cable, 6 foot, 2-Pack

AF612A

HP USB Server Console Cable, 6 foot, 2-Pack

NOTE:

required for supporting USB peripherals.

AF613A

NOTE

: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL:

http://www.hp.com/go/kvm.

HP Serial Console Server Options

HP 16 Port Serial Console Server (worldwide)

AF101A

HP 48 Port Serial Console Server (worldwide)

AF102A

Serial Adapter, RJ45-D89 DCE Female, 1-pack

AF103A

Serial Adapter, RJ45-D89 DCE Female, 8-pack

AF110A

NOTE: For additional information regarding KVM switches, Serial Console

servers, rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 21

Page 22

Service and Support Offerings (HP Care

Pack Services)

Hardware Services 4-Hour On-site Service

13-Hour x 5-Day Coverage, 3 Years, Electronic

UH271E

24-Hour x 7-Day Coverage, 3 Years, Electronic

UH272E

13-Hour x 5-Day Coverage, 1 Years, Electronic

UH267E

24-Hour x 7-Day Coverage, 1 Years, Electronic

UH268E

13-Hour x 5-Day Coverage, 4 Years, Electronic

UH275E

24-Hour x 7-Day Coverage, 4 Years, Electronic

UH276E

13-Hour x 5-Day Coverage, 5 Years, Electronic

UH278E

24-Hour x 7-Day Coverage, 5 Years, Electronic

UH279E

Hardware Services Next Business Day On-Site Service

9-Hour x 5-Day Coverage, 3 Years, Electronic

UH270E

9-Hour x 5-Day Coverage, 4 Years, Electronic

UH274E

9-Hour x 5-Day Coverage, 5 Years, Electronic

UH277E

Hardware Services 6-Hour Call to Repair On-Site Service

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic

UH273E

6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 1 Years, Electronic

UH269E

Hardware Installation, Electronic

UH301E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL180 G5

Options

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 22

Page 23

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

HP ProLiant DL180 G5

(all models)

Standard Memory

1 GB (1 x 1GB) PC2-5300 Registered DIMM memory, with Advanced ECC Capabilities Memory installed.

Maximum Memory

Up to 16GB memory is available with the optional installation of PC2-5300 Registered DIMM memory kits.

NOTE:

Memory should be installed in pairs and matched for optimum performance.

NOTE:

Chart does not represent all possible memory configurations.

NOTE:

Only 1 dual rank 8GB kit can be populated.

Memory

Slot

1* 2*

3 4 5 6

Standard (1 GB)

1 GB

Empty Empty Empty Empty Empty

Maximum (16 GB)

4 GB 4 GB 2 GB 2 GB 2 GB 2 GB

* Indicates the right most DIMM slots when looking from the front.

Following are memory options available from HP:

1 GB REG PC2-5300 2 x 512 MB Single Rank Kit

408850-B21

1 GB REG PC2-5300 1 x 1 GB Kit

462483-B21

2 GB REG PC2-5300 2 x 1 GB Low Power Single Rank Kit

483399-B21

2 GB REG PC2-5300 2 x 1 GB Single Rank Kit

408851-B21

4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit

408853-B21

4 GB REG PC2-5300 2 x2 GB Kit, Low Power, Single Rank Kit

461840-B21

8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit

408854-B21

QuickSpecs

HP ProLiant DL180 G5

Memory

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 23

Page 24

1.-8.

Eight 3.5" Hot Plug SAS/SATA Hard Drive Bays

DVD-ROM, DVD RW

Drive Support

Removable Media

Quantity Supported

Position Supported

Controller

DVD-ROM

Up to 1

Integrated IDE (ATAPI) (optional)

DVD RW

Up to 1

Integrated IDE (ATAPI) (optional)

Hard Drives

SAS/SATA Hot Plug

Quantity Supported

Position Supported

Controller

3.5-inch

80GB SATA 7,200 rpm 160GB SATA 7,200 rpm 250GB SATA 7,200 rpm 500GB SATA 7,200 rpm 750GB SATA 7,200 rpm 72GB SAS 15,000 rpm 146GB SAS 15,000 rpm 300GB SAS 15,000 rpm

Up to 8

1-8

HP Smart Array E200/128 BBWC Controller HP Smart Array P400/256MB Controller HP Smart Array E500/256MB Controller HP Smart Array P800/512 BBWC Controller HP SC44Ge Host Bus Adapter HP SC11Xe Host Bus Adapter

External Storage

Quantity Supported

Position Supported

Controller

HP Storageworks MSA20 Enclosure

Up to 2 per SA 6402 Up to 4 per SA 6404

External

Smart Array 6402 Controller Smart Array 6404 Controller

HP Storageworks MSA30 D-B Enclosure

Up to 2 per SA 6402 Up to 4 per SA 6404

External

Smart Array 6402 Controller Smart Array 6404 Controller

HP Storageworks MSA50 Enclosure

Up to 2

External

HP Smart Array E500/256MB controller

HP Storageworks MSA60 Enclosure

Up to 8 per SA P800

External

HP Smart Array E500/256MB controller

HP Storageworks MSA70 Enclosure

Up to 8 per SA P800

External

HP Smart Array E500/256MB controller

QuickSpecs

HP ProLiant DL180 G5

Storage

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 24

Page 25

Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup Systems

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/division/10233.html

(Worldwide)

NOTE:

For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders & Tape Libraries listed below, please see the following:

http://h18000.www1.hp.com/products/quickspecs/division/10809.html

(Worldwide)

NOTE:

For complete listing of tape drive offerings see:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

NOTE:

SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard drive cage would mean drive bay 8 is deactivated.

Position

Supported

Controller

Controller Part

Number

HP StorageWorks SCSI Tape Drives, External

LTO-1 Ultrium 232 LTO-2 Ultrium 448 LTO-2 Ultrium 460 LTO-3 Ultrium 920 LTO-3 Ultrium 960 LTO-4 Ultrium 1840 DAT 40 DAT 72 DAT 160 DLT VS160 SDLT 600 1U Rack-Mount Kit 3U Rack-Mount Kit

External

HP SC11Xe Host Bus Adapter

412911-B21

HP StorageWorks USB Tape Drives, External

DAT 40 USB DAT 72 USB DAT 160 USB 1U USB Rack-Mount Kit

External

USB 2.0 Port

N/A

HP StorageWorks SAS Tape Drives, External

DAT 160 SAS LTO-2 Ultrium 448 SAS LTO-3 Ultrium 920 SAS LT0-4 Ultrium 1760 SAS LTO-4 Ultrium 1840 SAS 1U Rack-Mount Kit

External

HP SC44Ge Host Bus Adapter *

416096-B21

HP Smart Array E500 Controller

435129-B21

HP Smart Array P800/512 BBWC Controller

381513-B21

NOTE:

The following SAS Smart Array controllers require ROM

Flash version 2.04 or higher for SAS tape support:

HP Smart Array P400/256MB Controller

405132-B21

HP Smart Array P400/512MB Controller

411064-B21

* Recommended

HP StorageWorks SCSI Tape Automation, External

DAT 72x10 Autoloader 1/8 Tape Autoloader

External

HP SC11Xe Host Bus Adapter

412911-B21

QuickSpecs

HP ProLiant DL180 G5

Storage

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 25

Page 26

DAT 72x10 Autoloader 1/8 Tape Autoloader MSL2024 MSL4048 MSL8096 MSL6000

HP U320e SCSI Host Bus Adapter

NOTE:

Only valid for MSL tape libraries.

AH627A

HP StorageWorks SAS Tape Automation, External

1/8 G2 Autoloader MSL2024 MSL4048 MSL8096

External

HP SC44Ge Host Bus Adapter

NOTE:

Please visit

http://www.hp.com/go/connect

for details about minimum SAS controller firmware version and SAS cabling requirements.

416096-B21

HP StorageWorks Fibre Tape Automation, External

MSL2024 MSL4048 MSL6000

External

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

for detailed connectivity information.

N/A

HP StorageWorks D2D Backup Systems

D2D110 D2D120 D2D130

External

Embedded Network Controller

N/A

QuickSpecs

HP ProLiant DL180 G5

Storage

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 26

Page 27

750W Power Supply Spare Kit

451366-291, AA1, B21

Operational Input Voltage Range

(Vrms)

90Vac to 264Vac full range

Frequency Range

(Nominal) (Hz)

47 Hz to 63 Hz

Nominal Input Voltage

(Vrms)

100 115 200 220 230 240

Max Rated Output Wattage Rating

750 750 750 750 750 750

Nominal Input Current

(A rms)

9.1 7.9 4.3 4.0 3.8 3.7

Max Rated Input Wattage Rating

(Watts)

893 888 872 862 862 862

Max. Rated VA

(Volt-Amp)

911 906 890 880 880 880

Efficiency

(%)

84.5

86 87 87 87

Power Factor

0.98 0.98 0.98 0.98 0.98 0.98

Leakage Current

(mA)

<0.43 <0.50

<.0.90

<0.96 <1.00 <1.04

Maximum Inrush Current

(A peak)

30A 30A 30A 30A 30A 30A

Maximum Inrush Current Duration

(mS)

5mS 5mS 5mS 5mS 5mS 5mS

QuickSpecs

HP ProLiant DL180 G5

Power Specifications

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 27

Page 28

System Unit

Dimensions

(H x W x D)

(with bezel)

3.44x 17.64 x 27.50 in (8.75 x 44.80 x 69.88cm)

Weight

(approximate)

Maximum

(all hard drives, power supplies and processors installed)

51.5 lb (19.22 kg)

Minimum

(one hard drive, power supply and processor installed)

35.0 lb (13.06 kg)

Input Requirements

(per power supply)

Rated Line Voltage

100 - 240 VAC

Rated Input Current

9.10 A (at 100 VAC),

4.5 A (at 200 VAC)

Rated Input Frequency

50 to 60 Hz

Rated Input Power

910 W (at 100 VAC), 900 W (at 200 VAC)

BTU Rating

Maximum

3107.82 BTU/hr (at 100 VAC),

3073.67 BTU/hr (at 200 VAC)

Power Specifications

To review typical system power ratings use the Power Calculator which is available via the online tool located at URL:

http://h30099.www3.hp.com/configurator/calc/ Power%20Calculator%20Catalog.xls

Click on the system of interest. Example: DL180 G5 Follow the instructions of the next screens.

Power Supply Output

(per power supply)

Rated Steady-State Power

750 W (at 100 VAC), 750 W (at 200 VAC)

Maximum Peak Power

750 W (at 100 VAC), 750W (at 200 VAC)

System Inlet Temperature

Operating

50° to 95°F (10° to 35°C) at sea level with an altitude derating of 1.8°F per every 1000 ft (1.0°C per every 305 m) above sea level to a maximum of 10,000 ft (3050 m), no direct sustained sunlight. Maximum rate of change is 18°F/hr (10°C/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 86°F (30°C).

Non-operating

-22° to 140° F (-30° to 60° C). Maximum rate of change is 36° F/hr (20° C/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 82.4° F (28° C) maximum wet bulb temperature, noncondensing.

Non-operating

5 to 95% relative humidity (Rh), 101.7° F (38.7° C) maximum wet bulb temperature, non-condensing.

Altitude

Operating

10,000 ft (3050 m). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

QuickSpecs

HP ProLiant DL180 G5

Technical Specifications

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 28

Page 29

Non-operating

30,000 ft (9144 m). Maximum allowable altitude change rate is 1500 ft/min (457 m/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA

74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

WAd

6.7 B

pAm

51 dBA

Operating

WAd

6.7 B

pAm

51 dBA

Embedded NC105i PCIe Gigabit Server Adapter

(Embedded)

Network Interface

Integrated 10/100/1000BASE-T Transceiver

Compatibility

Combines a triple-speed IEEE 802.3TM - Compliant Media Access

Controller (MAC) with a triple-speed Ethernet transceiver.

Data Transfer Method

Compliant to x1 PCIe Specification

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (HalfDuplex)

100 Mb/s

100Base-TX (FullDuplex)

200 Mb/s

1000Base-TX (Half and Full-Duplex)

2000 Mb/s

Connector

RJ-45

Cable Support

Performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethernet on standard Category 5 UT

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product,

please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

QuickSpecs

HP ProLiant DL180 G5

Technical Specifications

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 29

Page 30

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1 GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL180 G5

Technical Specifications

DA - 12903 Worldwide QuickSpecs — Version 8 — 5.16.2008

Page 30
