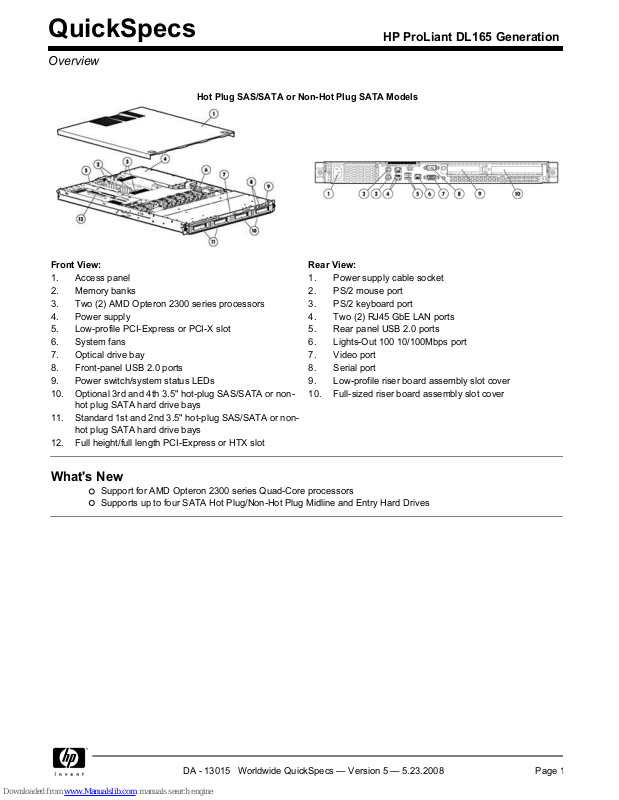

Hot Plug SAS/SATA or Non-Hot Plug SATA Models
Front View:
Rear View:
1.
Access panel
1.
Power supply cable socket
2.
Memory banks
2.
PS/2 mouse port
3.
Two (2) AMD Opteron 2300 series processors
3.
PS/2 keyboard port
4.
Power supply
4.
Two (2) RJ45 GbE LAN ports
5.
Low-profile PCI-Express or PCI-X slot
5.
Rear panel USB 2.0 ports
6.
System fans
6.
Lights-Out 100 10/100Mbps port
7.
Optical drive bay
7.
Video port
8.
Front-panel USB 2.0 ports
8.
Serial port
9.
Power switch/system status LEDs
9.
Low-profile riser board assembly slot cover
10.
Optional 3rd and 4th 3.5" hot-plug SAS/SATA or nonhot plug SATA hard drive bays
10.
Full-sized riser board assembly slot cover
11.
Standard 1st and 2nd 3.5" hot-plug SAS/SATA or nonhot plug SATA hard drive bays
12.
Full height/full length PCI-Express or HTX slot
What's New
Support for AMD Opteron 2300 series Quad-Core processors
Supports up to four SATA Hot Plug/Non-Hot Plug Midline and Entry Hard Drives
QuickSpecs
HP ProLiant DL165 Generation 5
Overview
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 1
Page 2
At A Glance
Introducing the HP ProLiant DL165G5, now available with the latest high performance Opteron Quad Core processors,
increased storage by 2X and a new high efficiency power supply option.
Processors:
Supports up to two AMD Opteron 2300 series Quad-Core processors
Supports DirectConnect Architecture
Supports Power Now
Memory:
8 DIMM slots supporting up to 32GB REG PC2-5300 DDR2-667 MHz memory with Advanced ECC
Internal Drive Support:
Internal storage capacity:
SATA Capacity: Support for up to 4.0TB (4 x 1TB)
SAS Capacity: Support for up to 1.2TB (4 x 300GB)
NOTE:
Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is required if ordering third or fourth
Hard Drives for Hot Plug models only.
Network Controller:
Embedded NC7782 dual-port gigabit server adapter
Storage Controllers:
Non-Hot Plug SATA Models: HP Embedded SATA Controller
Hot Plug SATA/SAS Models: HP SC40Ge SAS HBA with RAID 0,1
Expansion Slots:
Standard - PCI-Express assembly includes:
Slot 1: full-length/full height PCI-Express x16
Slot 2: half-length/low-profile PCI-Express x4 (x8 connector)
Optional - PCI-X assembly includes:
Slot 2: half-length/low-profile PCI-X 133 (note: PCI-X slots are 64 bits; 133 MHz capable)
Optional - HTX assembly includes: Slot 1: full-length/full height HTX
Management:
HP ProLiant Lights Out 100i Remote Management support (IPMI 2.0 and SMASH support)
Virtual Media support with LO100i Select license
Virtual Media plus Virtual KVM support with LO100i Advanced license
USB Ports:
Up to five USB ports (two front & two rear standard, 1 internal option)
Optical Drive:
Support for one (optional): DVD-ROM, DVD/CD RW
Power Supply:
650W Power Supply (Non-Hot Plug, Autoswitching)
Form Factor:
Rack (1U)
Fixed mounting rails included with all models
Deployment/Serviceability:
Tool-less access to all system components for easy in-rack serviceability
Warranty:
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of
HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of
purchase. Support for software and initial setup is available for 90 days from date of purchase. Additional
support may be covered under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services or customized service agreements. Certain restrictions
and exclusions apply. SATA hard drives have a one year warranty.
NOTE:
Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day
response. Additional information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant DL165 Generation 5
Overview
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 2
Page 3
NOTE:
For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and
specifications, please visit:
http://h71028.www7.hp.com/ERC/downloads/4AA1-5494ENW.pdf
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information -
Factory Integrated Models" section.
Processor
One of the following
depending on Model
AMD Opteron™ processor Model 2346 HE (1.8 GHz, 55W ACP)
AMD Opteron processor Model 2356 (2.3 GHz, 75W ACP)
AMD Opteron processor Model 2354 (2.2 GHz,75W ACP)
NOTE:
Offered through Configure-To-Order only. See Factory Integrated Models section for more
details.
AMD Opteron processor Model 2352 (2.1 GHz, 75W ACP)
Upgradeability
Upgradeable to two processors
Chipset
ServerWorks HT2100 and HT1000
Cache Memory
128K dedicated L1 per core
512K dedicated L2 per core
2MB shared L3
Memory Protection
Advanced ECC
Memory
One of the following
depending on Model
Type
REG PC2-5300 DIMMs (DDR2-667)
Standard
2 GB
(2 x 1 GB)
Maximum
32 GB
(8 x 4 GB)
Network Controller
Embedded NC7782 dual-port gigabit server adapter
Expansion Slots #
Technology
Bus Width
**
Connector
Width
Bus Number*Form Factor
Notes
1
PCI Express
x16 x16
3
Full Height/Full
Length
1
HTX
N/A N/A
9
Full Height/Full
Length
2
PCI Express
x4 x8
6
Low-profile
2
PCI-X
64-bit, 133MHz
N/A
2
Low-profile
*
Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment
number.
**
Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest
Device ID by bus (starting with the lowest bus).
QuickSpecs
HP ProLiant DL165 Generation 5
Standard Features
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 3
Page 4
Storage Controller
Non-Hot Plug SATA
Models
HP Embedded SATA Controller
Hot Plug SATA/SAS
Models
HP SC40Ge SAS HBA with RAID 0,1
NOTE:
A diskette drive is needed to install storage controller drivers during a Windows operating
system installation from CD.
Storage
Optical Drives:
DVD-ROM
8x IDE (ATAPI) DVD-ROM drive, slim (optional)
DVD/CD RW
24x IDE (ATAPI) DVD-ROM/CDRW drive (optional)
Diskette Drives
Via USB only
Drive Bays:
Non-Hot Plug SATA
Up to 4 Non-hot plug SATA 3.5" drives
Hot-Plug SATA/SAS
Up to 4 Hot plug SATA /SAS 3.5" drives
Maximum Internal
Storage
Non-Hot Plug SATA
3TB
4 x 750GB
Hot Plug SATA
4.0TB
4 x 1TB
Hot Plug SAS
1.2TB
4 x 300GB
Interfaces
Parallel
None
Network RJ-45(Ethernet)
Embedded NC7782 dual-port gigabit server adapter
Serial
1
Pointing Device (Mouse)
1
Graphics
1
Keyboard
1
USB
Up to 5 (two front & two rear standard, 1 internal option)
NOTE:
Please see the following URL for additional information
regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html
.
Graphics
32MB shared supporting 1600x1200x16M resolution
Form Factor
Rack (1U), (1.75 in/4.45 cm)
QuickSpecs
HP ProLiant DL165 Generation 5
Standard Features
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 4
Page 5
Server Management
Stand Alone Software
Product and ProLiant
Essentials
ProLiant Essentials
Rapid Deployment Pack
Rapid Deployment Pack (RDP) is an automated deployment and
provisioning solution for all ProLiant servers. RDP supports image
capture and deployment on 100 series servers. Every RDP disc
includes 10-node trial licenses for evaluation purposes. RDP requires a
license for each server deployed and is available for purchase with HP
servers. For more information, visit:
http://www.hp.com/go/rdp
.
NOTE:
Flexible and volume quantity license kits are available for
ProLiant Essentials Value Packs. AKA Tracking licenses require a 100
unit minimum forecast at initial contract signing. For AKA and flex
license part numbers, please refer to each software products’
QuickSpecs at:
http://www.hp.com/servers/proliantessentials
or the
various ProLiant Essentials Value Pack product QuickSpecs for more
information.
HP Systems Insight
Manager
HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible standards-based environment to centrally manage servers,
storage and other infrastructure devices, (both HP and non-HP) across
multiple operating system platforms.
Lights-Out 100i
HP Lights-Out 100i Remote Management delivers affordable, entry level
remote management capabilities for HP ProLiant 100 Series servers
with embedded LO100i. It allows customers or their service providers to
remotely manage ProLiant 100 Series servers remotely over a LAN or
the Internet and consists of the following:
LO100i Standard is embedded remote management and provides
basic remote control via telnet, browser, and IPMI 2.0 and
SMASH
LO100i Select Pack License are upgrades for essential, secure,
remote control, serial console and virtual media
LO100i Advanced Pack License are upgrades for all the features
of LO100i Select plus Virtual KVM (graphical hardware-based,
remote console)
NOTE:
Flexible and volume quantity (AKA) license kits are available for
both the Lights-Out 100i Select and Lights-Out 100 Advanced Pack
licenses as well as Electronic License To Use (E-LTU). AKA Tracking
licenses require a 100 unit minimum forecast at initial contract signing.
For these additional part numbers, please refer to each software
products' QuickSpecs at this link for more information:
http://h18004.www1.hp.com/products/servers/management/
remotemgmt.html
.
Core Infrastructure
Management
Subscriber's Choice
Subscriber's Choice Driver and Support Alerts/Notifications is a webbased email subscription service that provides software and driver
change notifications for ProLiant products. Sign up at:
http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq software and
latest drivers
The latest software, drivers, and firmware fully optimized and tested for
your ProLiant server and options, available through ProLiant Support
Packs the ProLiant Essentials Rapid Deployment Pack, SmartStart or
downloaded from software and drivers download pages website at:
http://www.hp.com/go/support
.
QuickSpecs
HP ProLiant DL165 Generation 5
Standard Features
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 5
Page 6
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
IPMI 2.0 Compliant
Manageability
Embedded HP ProLiant Lights-Out 100i Remote Management, with licensable upgrades to LightsOut 100i Select and Lights-Out 100i Advanced.
Security
Power-on password
Setup password
UPS and PDU Power
Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and
specifications for UPS and PDU units:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html
.
Power Supply
650 Watts, auto-switching, PFC (Power Factor Correcting)
System Fans
6 system fans ship standard; non-hot plug, non-redundant
OS Support
Microsoft Windows Small Business Server 2003, R2
Microsoft Windows 2003 and Microsoft Windows 2003/R2 Standard Edition (32-bit)
Microsoft Windows 2003 and Microsoft Windows 2003/R2 Enterprise Edition (32-bit)
Microsoft Windows 2003 and Microsoft Windows 2003/R2 Web Edition (32-bit)
Microsoft Windows 2003 and Microsoft Windows 2003/R2 for Extended Systems Standard Edition
(64-bit)
Microsoft Windows 2003 and Microsoft Windows 2003/R2 for Extended Systems Enterprise
Edition (64-bit)
Microsoft Windows Server 2008
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Solaris 10
NOTE:
For more complete and up-to-date information of all supported OSes for ProLiants,
certification information and how to buy server operating systems from HP please visit the OS
product site at:
http://h18004.www1.hp.com/products/servers/software/OEM.html
.
NOTE:
For an up-to-date listing of the latest software and drivers available for your server, please
select your server:
http://h20000.www2.hp.com/bizsupport/TechSupport/Product.jsp?lang=en&cc=
us&taskId=135& prodTypeId=15351&prodCatId=241435
.
QuickSpecs
HP ProLiant DL165 Generation 5
Standard Features
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 6
Page 7
Rack Airflow
Requirements
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for
maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION:
If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow
5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate
airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must
be a minimum of 7 cm (2.75 inches)
CAUTION:
Always use blanking panels to fill all remaining empty front panel U-spaces in the rack.
This arrangement ensures proper airflow. Using a rack without blanking panels results in improper
cooling that can lead to thermal damage.
Rack Support
The DL Fixed Rail System supports installation in racks with square or round mounting holes
(including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 24" - 36".
Installation into Telco 2 post, and 4 post, or threaded holes racks requires a 3rd party option kit.
For additional information, please visit:
www.racksolutions.com
.
HP Factory Express
Capability
HP Factory Express offers configuration, customization, integration and deployment services for
HP servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading,
asset tagging, and custom packaging. HP products supported through Factory Express include a
wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP
BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries
and configurable network switches.
For more information on Factory Express services for your specific server model please contact
your sales representative or go to
http://www.hp.com/go/factory-express
.
HP Enterprise
Configurator
The HP eCo-Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations
of our valued customers. If you require "custom" rack configuration, please contact HP's Customer
Business Center or an Authorized Partner for assistance.
QuickSpecs
HP ProLiant DL165 Generation 5
Standard Features
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 7
Page 8
Service and Support
HP Care Pack Services provide total care and support expertise with committed response
designed to meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the
server that are purchased at the same time or afterward and internal to the enclosure. It also
includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items
will be covered at the same service level and for the same coverage period as the server.
Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For
servers or storage systems installed within a rack, service also covers all HP qualified rack
options installed within the same rack.
To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who
thoroughly understands your server technology and systems environment. HP Services, an
industry leader in provision of multi vender support solutions provides a range of support services
designed to meet the varying needs of business. Whether an SMB or large global corporation HP
has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
Recommended Service
- Simplify ProLiant solution implementation, maintenance and
management.
Support Service
-3 Year, 9x5 Next Business Day coverage, excluding HP holidays only
Deployment Service
- Hardware Installation only
Enhanced Service
- Optimize service level to increase IT performance and availability
Support Service
- 3 Year 13x5 Same Business Day, 4-Hour response coverage
Deployment Service
- Installation and Start-up only
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer
Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP
holidays.
For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack
QuickSpecs
HP ProLiant DL165 Generation 5
Standard Features
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 8
Page 9
NOTE:
High Performance Computing (HPC) interconnect technologies are available for the DL165 G5 under the Cluster
Platform product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure
to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the
following URL to configure HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects:
http://www.hp.com/techservers/clusters/ucp/index.html
HPC Interconnects
InfiniBand
PCI-X and PCI-Express adapters
Gigabit Ethernet
Use embedded ports or optional 10GbE NICs
Myrinet XP
PCI-X Rev D, Rev E and Rev F adapters
QuickSpecs
HP ProLiant DL165 Generation 5
HPC Interconnects
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 9
Page 10
Non Hot Plug Serial ATA (SATA) Models
HP DL165 G5 2346HE
1.8GHz, 2GB, Non-Hot
Plug SATA (1P)
464207-xx1
HP DL165 G5 2352 2.1
GHz, 2GB, Non-Hot
Plug SATA (1P)
445153-xx1
HP DL165G5 2356
2.3GHz, 4GB, Non-Hot
Plug (1P)
445161-xx1
Processor(s)
One of the following
depending on model
(1) AMD Opteron processor Model 2346HE (1.8 GHz, 55W ACP)
(1) AMD Opteron processor Model 2352 (2.1 GHz,75W ACP)
(1) AMD Opteron processor Model 2356 (2.3 GHz, 75W ACP)
Cache Memory
2MB shared Level 3 cache
Memory
One of the following
depending on model
2GB (2 x 1GB) Registered PC2-5300 DDR2 DIMMs (667MHz) with
Advanced ECC capabilities
4GB (2 x 2GB) Registered PC2-5300 DDR2 DIMMs (667MHz) with
Advanced ECC capabilities
Network Controller
Embedded NC7782 dual-port gigabit server adapter
Storage Controller
HP Embedded SATA Controller
Hard Drive
(1) 160GB NHP SATA HDD
Internal Storage
3TB maximum
Optical Drive
Optional DVD-ROM, DVD/CD RW
Form Factor
Rack (1U)

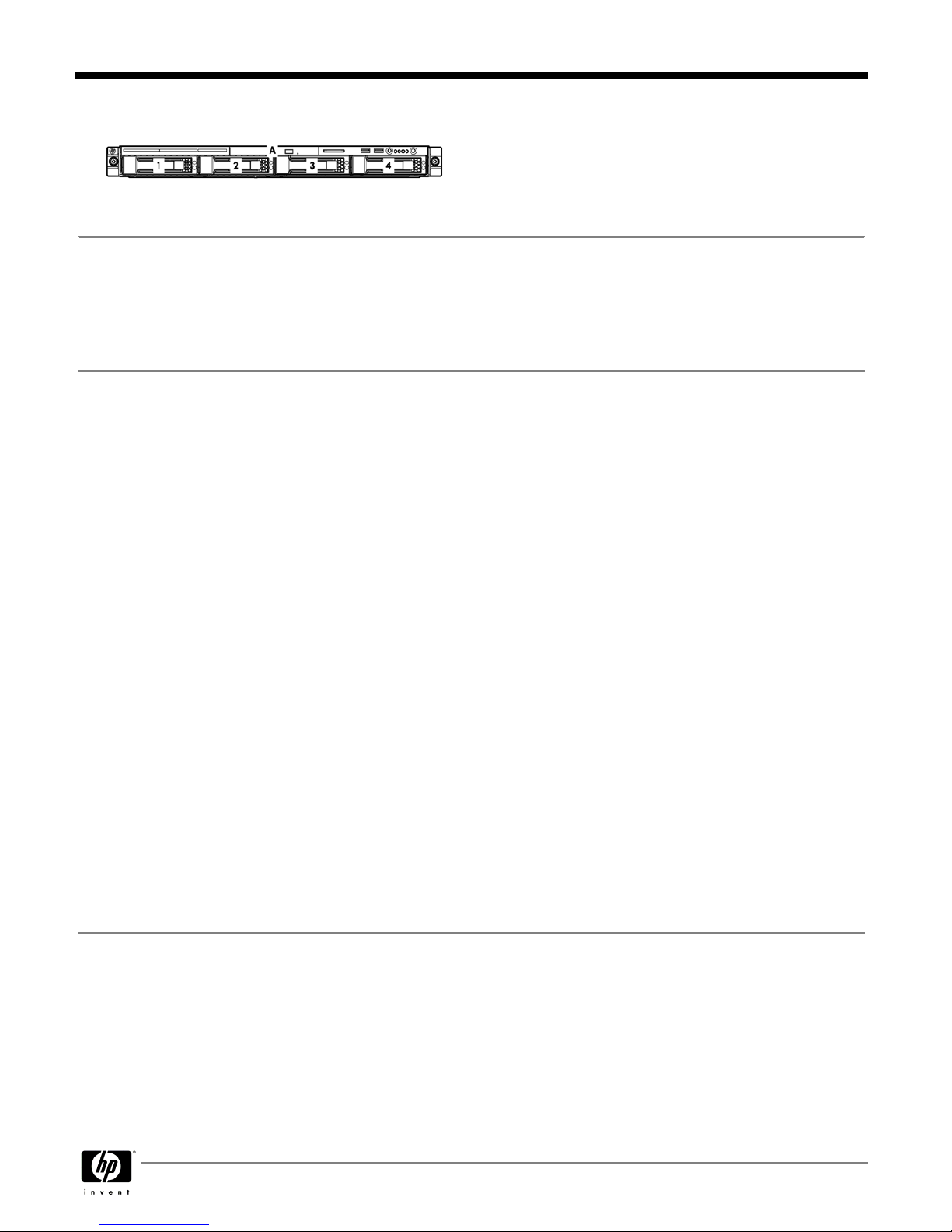

Hot Plug Serial ATA (SATA)/Serial Attached SCSI (SAS) Models
HP DL165G5 2346HE
1.8 GHz, 2GB, Hot Plug
(1P)
464208-xx1
HP DL165 G5 2352 2.1
GHz, 2 GB Hot Plug
SAS/SATA (1P)
445164-xx1
HP DL165G5 2356 2.3
GHz, 4 GB, Hot Plug
(1P)
445162-xx1
Processor(s)
One of the following
depending on model
(1) AMD Opteron processor Model 2346HE (1.8 GHz, 55W ACP)
(1) AMD Opteron processor Model 2352 (2.1 GHz,75W ACP)
(1) AMD Opteron processor Model 2356 (2.3 GHz, 75W ACP)
Cache Memory
2MB shared Level 3 cache
Memory
One of the following
depending on model
2 GB (2 x 1GB) Registered PC2-5300 DDR2 DIMMs (667MHz) with
Advanced ECC capabilities
4GB (2 x 2GB) Registered PC2-5300 DDR2 DIMMs (667MHz) with
Advanced ECC capabilities
Network Controller
Embedded NC7782 dual-port gigabit server adapter
Storage Controller
HP 8 Internal Port SAS HBA with RAID
Hard Drive
None ship standard (up to 4 Hot Plug SATA or SAS drives supported)
Internal Storage
One of the following
depending on model
SATA: 4.0TB Maximum
SAS: 1.2TB Maximum
Optical Drive
Optional DVD-ROM, DVD/CD RW
Form Factor
Rack (1U)
Country Code Key
xx = 00
U.S.
xx = 20
Brazil
(Model 445164-201 only)
xx = 29
Japan
xx = 37
APD
xx = 42
Euro
xx = AA
PRC
QuickSpecs
HP ProLiant DL165 Generation 5
Models
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 10
Page 11
NOTE:
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid
configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.
NOTE:
HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must
start with a CTO Chassis.
NOTE:
This product offering does not support HP Factory Express Server Configuration Level 1.
NOTE:
FIO indicates that this option is only available as a Factory Installable Option.
Step 1: Base Configuration
Non-Hot Plug Model
HP ProLiant DL165 G5 Non- Hot Plug SATA Rack Chassis
445147-B21
Factory Integrated Model ships with:
Embedded NC7782 dual-port gigabit server adapter
Two available PCI-Express slots, including one full-length/full height and one
low-profile/half height slot
HP embedded SATA controller
650 Watt Power Supply
6 Fixed, Non-Redundant Fans
Rack (1U), (1.75 in / 4.45 cm)
Fixed Mounting Rails
Hot Plug Model
HP ProLiant DL165 G5 Hot Plug SATA/SAS Rack Chassis
445148-B21
Factory Integrated Model ships with:
Embedded NC7782 dual-port gigabit server adapter
One full-length/full height PCI-Express slot. Low-profile/half height slot houses
the SATA/SAS storage controller
HP SC40Ge SAS HBA with RAID 0,1
650 Watt Power Supply
6 Fixed, Non-Redundant Fans
Rack (1U), (1.75 in / 4.45 cm)
Fixed Mounting Rails
Step 2: Choose Required Options (only one of the following from each list unless
otherwise noted)
Processors
AMD Opteron™ processor model 2356 (2.3 GHz,75W ACP), Option Kit, FIO
NOTE:
If 2 processors are desired, select one 445981-L21 and one 445981-
B21.
445981-L21
AMD Opteron™ processor model 2354 (2.2 GHz, 75W ACP), Option Kit, FIO
NOTE:
If 2 processors are desired, select one 445974-L21 and one 445974-
B21.
445974-L21
AMD Opteron™ processor model 2352 (2.1 GHz, 75W ACP), Option Kit, FIO
NOTE:
If 2 processors are desired, select one 445971-L21 and one 445971-
B21.
445971-L21
AMD Opteron™ processor model 2346HE (1.8 GHz, 55W ACP), Option Kit, FIO
NOTE:
If 2 processors are desired, select one 464210-L21 and one 464210-
B21.
464210-L21
QuickSpecs
HP ProLiant DL165 Generation 5
Configuration Information - Factory Integrated Models
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 11
Page 12
Memory
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
408850-B21
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
408851-B21
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
408853-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit
408854-B21
2 GB REG PC2-5300 2 X 1 GB Low Power Single Rank Kit
483399-B21
4 GB REG PC2-5300 2 X 2 GB Low Power Single Rank Kit
483401-B21
8 GB REG PC2-5300 2X 4 GB Low Power Dual Rank Kit
483403-B21
Hard Drive
Serial-ATA (SATA) Non-Hot Plug Hard Drives
(Non-Hot Plug Models Only)
SATA Non-Hot Plug Entry (ETY) Drives
HP 160GB 1.5G SATA 7.2K NHP 3.5" ETY HDD
458947-B21
SATA Non-Hot Plug Midline (MDL) Drives
HP 250GB 1.5G SATA 7.2K NHP 3.5" MDL HDD
458939-B21
HP 500GB 1.5G SATA 7.2K NHP 3.5" MDL HDD
458941-B21
HP 750GB 1.5G SATA 7.2K NHP 3.5" MDL HDD
462595-B21
Serial-ATA (SATA) Hot Plug Hard Drives
(SATA/SAS Hot Plug Models Only)
SATA Hot Plug Entry (ETY) Drives
HP 160GB 1.5G SATA 7.2K 3.5" ETY HDD
458945-B21
SATA Hot Plug Midline (MDL) Drives
HP 250GB 1.5G SATA 7.2K 3.5" MDL HDD
458926-B21
HP 500GB 1.5G SATA 7.2K 3.5" MDL HDD
458928-B21
HP 750GB 1.5G SATA 7.2K 3.5" MDL HDD
458930-B21
HP 1TB 1.5G SATA 7.2K 3.5" MDL HDD
454146-B21
NOTE:
SATA drives have a 1 year warranty. Please see the SATA Hard Drive
QuickSpecs for Technical Specifications such as capacity, height, width,
interface, transfer rate, seek time, physical configuration, and operating
temperature:
http://h18000.www1.hp.com/products/quickspecs/11940_div/11940_div.html
(Worldwide)
Serial-Attached SCSI (SAS) Hot Plug Hard Drives
(SATA/SAS Hot Plug
Models Only)
HP 72GB 3G SAS 15K 3.5" DP HDD
384852-B21
HP 72GB 3G SAS 15K 3.5" SP HDD
375870-B21
HP 146GB 3G SAS 15K 3.5" DP HDD
384854-B21
HP 146GB 3G SAS 15K 3.5" SP HDD
375872-B21
HP 300GB 3G SAS 15K 3.5" DP HDD
416127-B21
HP 300GB 3G SAS 15K 3.5 SP HDD
431944-B21
NOTE:
The purchase of an HP SAS HBA or Smart Array controller is required
for proper operation of SAS drives.
Backplane Option
Hot Plug HDD Backplane 1U 2S Kit
NOTE:
Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is
required if ordering third or fourth Hard Drives for Hot Plug models only. 445985B21
445985-B21
QuickSpecs
HP ProLiant DL165 Generation 5
Configuration Information - Factory Integrated Models
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 12
Page 13
Storage Controllers
HP SC44Ge Host Bus Adapter
416096-B21
HP SC40Ge 4INT PCIe SAS RAID Half Height HBA, FIO
449363-B21
HP Smart Array E500/256MB Controller with Battery, FIO
NOTE:
Customers can only order one Smart Array E500/256MB Controller and
one Battery-backed write cache upgrade (P/N 383280-B21) for the HP ProLiant
DL165 G5 server based on battery space.
462105-B21
256MB Battery-backed write cache upgrade for RAID 5 support
NOTE:
when installing a battery-backed write cache module, the HP Smart Array
E500 must be installed in the full-length PCI slot
383280-B21
HP Smart Array E200/128 BBWC Controller
411508-B21
Power Supply
HP High Efficiency Power Supply Kit, FIO
NOTE:
Selection of the HE Power Supply Unit will remove the 650 Watt
standard power supply and requires the purchase of Power Supply Backplane
(p/n 453652-B21)
453650-B21
Power Supply Backplane
NOTE:
This backplane must be ordered with the high efficiency power supply
(P/N 453650-B2).
453652-B21
Step 3: Choose Additional Options for Factory Integration
NOTE:
For additional options, please refer to the "Options" section below. Some options may not be available for factory
integration. Please contact an HP sales representative for additional information.
QuickSpecs
HP ProLiant DL165 Generation 5
Configuration Information - Factory Integrated Models
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 13
Page 14
Server Management
Stand Alone Software
Product and ProLiant
Essentials
NOTE:
Electronic licensing options are available for Insight Control suites and
select ProLiant Essentials software products. Please see the appropriate Insight
Control and ProLiant Essentials QuickSpecs for additional information
.
DEPLOY
Rapid Deployment Pack
ProLiant Essentials Rapid Deployment Pack No Media 1-Server License
including 1 year of 24x7 Technical Support and Updates
NOTE:
This license allows 1 server to be deployed and managed via RDP.
Customer will receive a printed license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online or via fax
in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service
.
452151-B21
NOTE:
For additional ProLiant Essentials Rapid Deployment Pack License Kits
please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to:
http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information.
NOTE:
For more information regarding ProLiant Essentials Software, please see
the following URL:
http://www.hp.com/servers/proliantessentials
.
Control
NOTE:
Electronic licensing options are available for Insight Control suites and
select ProLiant Essentials software products. Please see the appropriate Insight
Control and ProLiant Essentials QuickSpecs for additional information
.
Lights-Out 100i Select Pack
HP Lights Out 100i Select Pack, No Media, 1-Server License
NOTE:
Supports HP ProLiant DL 160 G5, DL165 G5 and DL180 G5 servers.
455339-B21
Lights-Out 100i Advanced Pack
HP Lights Out 100i Advanced Pack, No Media, 1-Server License
NOTE:
Supports HP ProLiant DL 160 G5, DL165 G5 and DL185 G5 servers.
455342-B21
NOTE:
Flexible and volume quantity (AKA) license kits are available for both the
Lights-Out 100i Select and Lights-Out 100 Advanced Pack licenses as well as
Electronic License To Use (E-LTU). AKA Tracking licenses require a 100 unit
minimum forecast at initial contract signing. For these additional part numbers,
please refer to each software products’ QuickSpecs at this link for more
information:
http://h18004.www1.hp.com/products/servers/management/remotemgmt.html
.
Processor
AMD Opteron™ processor 2356 (2.3 GHz,75W ACP)
445981-B21
AMD Opteron™ processor model 2354 (2.2 GHz, 75W ACP)
445974-B21
AMD Opteron™ processor 2352 (2.1 GHz,75W ACP)
445971-B21
AMD Opteron™ processor model 2346HE (1.8 GHz, 55W ACP)
464210-B21
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 14
Page 15
Memory (DIMMs)
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
408850-B21
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
408851-B21
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
408853-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit
408854-B21
2 GB REG PC2-5300 2 X 1 GB Low Power Single Rank Kit
483399-B21
4 GB REG PC2-5300 2 X 2 GB Low Power Single Rank Kit
483401-B21
8 GB REG PC2-5300 2 X 4 GB Low Power Dual Rank Kit
483403-B21
Hard Drives
Serial-ATA (SATA) Non-Hot Plug Hard Drives
(Non-Hot Plug Models Only)
SATA Non-Hot Plug Entry (ETY) Drives
HP 160GB 1.5G SATA 7.2K NHP 3.5" ETY HDD
458947-B21
SATA Non-Hot Plug Midline (MDL) Drives
HP 250GB 1.5G SATA 7.2K NHP 3.5" MDL HDD
458939-B21
HP 500GB 1.5G SATA 7.2K NHP 3.5" MDL HDD
458941-B21
HP 750GB 1.5G SATA 7.2K NHP 3.5" MDL HDD
462595-B21
SATA Hot Plug Entry (ETY) Drives
HP 160GB 1.5G SATA 7.2K 3.5" ETY HDD
458945-B21
SATA Hot Plug Midline (MDL) Drives
HP 250GB 1.5G SATA 7.2K 3.5" MDL HDD
458926-B21
HP 500GB 1.5G SATA 7.2K 3.5" MDL HDD
458928-B21
HP 750GB 1.5G SATA 7.2K 3.5" MDL HDD
458930-B21
HP 1TB 1.5G SATA 7.2K 3.5" MDL HDD
454146-B21
NOTE:
When purchasing systems with the 500GB Non-Hot Plug SATA drives,
please reference the Configuration Information Section of this QuickSpecs to
order via Configuration to Order.
Serial-ATA (SATA) Hot Plug Hard Drives
(SATA/SAS Hot Plug Models Only)
Serial-Attached SCSI (SAS) Hot Plug Hard Drives
(SATA/SAS Hot Plug
Models Only)
HP 72GB 3G SAS 15K 3.5" DP HDD
384852-B21
HP 72GB 3G SAS 15K 3.5" SP HDD
375870-B21
HP 146GB 3G SAS 15K 3.5" DP HDD
384854-B21
HP 146GB 3G SAS 15K 3.5" SP HDD
375872-B21
HP 300GB 3G SAS 15K 3.5" DP HDD
416127-B21
HP 300GB 3G SAS 15K 3.5 SP HDD
431944-B21
NOTE:
The purchase of SAS HBA or array controller is required.
Hot Plug HDD
Backplane Option
Hot Plug HDD Backplane 1U 2S Kit
NOTE:
Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is
required if ordering third or fourth Hard Drives for Hot Plug models only.
445985-B21
Graphic Cards
NVIDIA Quadro FX3500 256MB PCIe
NOTE:
Use Slot 2, PCI-E x16 Full Length Slot.
435681-B21
NVIDIA Quadro FX1500 256MB PCIe
NOTE:
Use Slot 2, PCI-E x16, Full Length Slot.
435703-B21
NOTE:
At this time, these graphic cards are supported on Linux and Windows.
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 15
Page 16
Optical Drives
DVD-ROM Drive (optional)
447889-B21
DVD/CD RW Drive (optional)
447891-B21
Storage Controllers
SAS HBA
HP 8 Internal Port SAS HBA with RAID
NOTE:
For use with Hot Plug SAS/SATA models.
NOTE:
The selection HP 8 Internal Port SAS HBA with RAID requires the
purchase of the LowProfile PCI-X Riser Option kit (P/N 452698-B21).
347786-B21
HP SC44Ge Host Bus Adapter
NOTE:
PCI-Express SAS HBA.
416096-B21
NOTE:
Please see the following QuickSpecs additional information:
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html
(8 Internal Port SAS HBA)
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html
(SC44Ge HBA)
SCSI HBA
HP SC11Xe Host Bus Adapter
412911-B21
NOTE:
Please see the following QuickSpecs additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
SAS Controllers
Smart Array E200 Controller
HP Smart Array E200/128 BBWC Controller
411508-B21
NOTE:
Please see the following QuickSpecs additional information:
http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html
(Smart Array E200 Controller)
Smart Array E500 Controller
HP Smart Array E500/256MB Controller
NOTE:
Standard RAID 0,1, 1+0.
NOTE:
Customers can only order one Smart Array E500/256MB Controller and
one Battery-backed write cache upgrade (P/N 383280-B21) for the HP ProLiant
DL165 G5 server based on battery space.
435129-B21
Battery-backed write cache upgrade
NOTE:
Contains battery only. For Smart Array P400 Controller.
NOTE:
RAID 5 support. When installing a battery-backed write cache module,
the HP Smart Array E500 must be installed in the full-length PCI slot.
383280-B21
NOTE:
Please see the following QuickSpecs additional information:
http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
Smart Array E400 Controller
HP Smart Array P400/256MB Controller
NOTE:
Customers can only order one Smart Array P400/256MB Controller and
one Battery-backed write cache upgrade (P/N 383280-B21) for the HP ProLiant
DL165 G5 server based on battery space.
405132-B21
HP Smart Array P400/512MB BBWC Controller
NOTE:
Customers can only order one Smart Array P400/512MB BBWC
Controllers for the HP ProLiant DL165 G5 server based on battery space.
411064-B21
512MB Battery-backed write cache upgrade
NOTE:
Contains battery and memory module. For Smart Array P400 Controller.
405148-B21
NOTE:
Please see the following QuickSpecs additional information:
http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 16
Page 17
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
381513-B21
NOTE:
Please see the following Controller QuickSpecs for Technical
Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
Riser Board Kits
HP HTX Riser Board Kit
445987-B21
HP PCI-X L/P Riser Kit
NOTE:
Replaces the standard Half Height (LP) PCI Express slot with a Half
Height (LowProfile) PCI-X slot.
452698-B21
Communications
HP NC110T PCI Express Gigabit Server Adapter
434905-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
435508-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE:
Supported on a Full Length-Full Height slot only.
394795-B21
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE:
A minimum of 1 gigabyte (1 GB) of server memory is required per each
NC510C adapter.
414129-B21
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE:
A minimum of 1 gigabyte (1 GB) of server memory is required per each
NC510F adapter.
414126-B21
HPC Specific Options
HP IB 4X DDR PCI-e Dual Port HCA
448397-B21
HP IB 4X DDR PCI-e Dual Port 0 Memory HCA
483513-B21
NOTE:
For HPC interconnect adapters please see the HPC Interconnect section
of this QuickSpecs.
Tape Drives
NOTE:
For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
USB Tape Drives
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive
AG703A
SAS Tape Drives
NOTE:
For the DL165 G5, HP recommends purchasing the HP SC44Ge HBA
(416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks DAT 160 SAS Internal Tape Drive
NOTE:
HP recommends combining this tape drive with the 1U SAS Rack-Mount
kit (AE459A) for a complete rack-mount solution.
Q1587A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE:
HP recommends combining this tape drive with the 1U SAS Rack-Mount
kit (AE459A) for a complete rack-mount solution.
DW085A
HP Ultrium 920 SAS Internal Tape Drive
NOTE:
HP recommends combining this tape drive with the 1U SAS Rack-Mount
kit (AE459A) for a complete rack-mount solution.
EH978A
HP StorageWorks 1U SAS Rack-mount kit with one LTO-4 Ultrium 1760
EH946A
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 17
Page 18
NOTE:
Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries"
table in the Storage section of this document for a list of SAS controllers with
tape support.
SCSI Tape Drives
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-2 Ultrium 448 SCSI
Tape Drive (Carbonite)
DW028B
HP StorageWorks 1U SCSI Rack-mount kit with one LTO-3 Ultrium 920
EH903A
HP StorageWorks 3U SCSI Rack-Mount with 1 LTO-4 Ultrium 1840 Tape Drive
EH926A
NOTE:
Please see the HP StorageWorks LTO Ultrium Tape Drive QuickSpecs
for additional options such as controllers, media, and other related items:
http://h18006.www1.hp.com/products/quickspecs/11739_div/11739_div.html
(Worldwide)
http://h18006.www1.hp.com/products/quickspecs/12128_div/12128_div.html
(Worldwide)
For an up-to-date listing of the latest O/S and software support details for HP
Ultrium tape drives, please visit:
http://www.hp.com/go/connect
Rack-Mount Tape Drive Enclosures
HP StorageWorks 1U SCSI Rack-Mount kit
NOTE:
The 1U Rack-Mount Kit can support up to (2) half-height tape drives and
is compatible with multiple Single-Ended and LVD SCSI tape drives including the
DAT 40, DAT 72, DAT 160, LTO-1 Ultrium 232, LTO-2 Ultrium 448 and LTO-3
Ultrium 920 tape drives.
A7445B
HP StorageWorks 1U USB Rack-Mount Kit
NOTE:
The 1U USB Rack-Mount Kit can support up to (2) half-height tape drives
and is compatible with the DAT 40 USB, DAT 72 USB and DAT 160 tape drives.
A8007A
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE:
The 1U SAS Rack-Mount Kit can support up to (2) half-height tape drives
and is compatible with the DAT 160 SAS, LTO-2 Ultrium 448 SAS, LTO-3
Ultrium 920 SAS and LTO-4 Ultrium 1760 tape drives.
AE459A
NOTE:
Please see the Rack-Mount Tape Drive Kits QuickSpecs for additional
information regarding these kits:
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html
(Worldwide)
HP D2D Backup
System
HP StorageWorks D2D110 Backup System
NOTE:
1TB of Disk Storage
EH880A
HP StorageWorks D2D110 Backup System with Data Protector Express
Software Kit
NOTE:
1TB of Disk Storage
EH923A
HP StorageWorks D2D120 Backup System
NOTE:
2TB of Disk Storage
EH884A
HP StorageWorks D2D120 Backup System with Data Protector Express
Software Kit
NOTE:
2TB of Disk Storage
EH924A
HP StorageWorks D2D130 Backup System
NOTE:
3TB of Disk Storage
EH950A
HP StorageWorks D2D130 Backup System with Data Protector Express
Software Kit
NOTE:
3TB of Disk Storage
EH951A
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape
Drive
NOTE:
3TB of Disk Storage.
EH952A
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 18
Page 19
NOTE:
Please see the HP D2D Backup Systems QuickSpecs for additional
information:
http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html
(Worldwide)
Tape Autoloaders
HP StorageWorks DAT Autoloader
HP StorageWorks DAT 72x10 tape autoloader
AE313B
HP StorageWorks 1/8 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 Tape Autoloader
AH165A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
AH558A
HP StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape Autoloader
AH164A
HP StorageWorks 1/8 G2 LTO-1 Ultrium 232 Tape Autoloader
AH163A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE:
Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;
includes rails and rackmount instructions
AH166A
NOTE:
Please reference the Tape Autoloader QuickSpecs at:
http://www.hp.com/go/automation
for additional information needed to create a
complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ033A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1840 4 GB FC Library
AJ034A
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
AK378A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 SCSI Drive Library
AG115A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 960 4 GB FC Library
AG326B
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
AH559A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SCSI Drive Library
AH169A
HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library
AG116A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Library
AJ035A
HP StorageWorks MSL4048 1 LTO-4 Ultrium 1840 4 GB FC Library
AJ036A
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library
AK380A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Library
AG322A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 960 4 GB FC Library
AG324B
HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library
AH560A
HP StorageWorks MSL4048 1 Ultrium 920 SCSI Drive Library
AH171A
HP StorageWorks MSL4048 1 LTO-2 Ultrium 448 SCSI Drive Library
AG320A
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 19
Page 20
HP StorageWorks
Modular Smart Array 50
HP StorageWorks Modular Smart Array 50 Enclosure
NOTE:
Rack-mountable 10 SFF drive enclosure with single I/O module,
redundant hot plug power supplies and hot plug fans.
364430-B21
HP StorageWorks 50 Modular Smart Array Enclosure (Japan)
NOTE:
Rack-mountable 10 SFF drive enclosure with single I/O module,
redundant hot plug power supplies and hot plug fans.
NOTE:
Please see the HP StorageWorks 50 Modular Smart Array QuickSpecs
for additional information:
http://h18004.www1.hp.com/products/quickspecs/12245_div/12245_div.html
364430-291
HP StorageWorks
Modular Smart Array 60
HP StorageWorks 60 Modular Smart Array
NOTE:
Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with
3Gb/s SAS host connectivity and redundant power supplies.
418408-B21
NOTE:
Please see the HP StorageWorks 60 Modular Smart Array QuickSpecs
for additional information:
http://h18004.www1.hp.com/products/quickspecs/12627_div/12627_div.html
HP StorageWorks
Modular Smart Array 70
HP StorageWorks 70 Modular Smart Array
NOTE:
Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with
3Gb/s SAS host connectivity and redundant power supplies.
418800-B21
NOTE:
Please see the HP StorageWorks 70 Modular Smart Array QuickSpecs
for additional information:
http://h18004.www1.hp.com/products/quickspecs/12652_div/12652_div.html
StorageWorks Options
StorageWorks Fibre Channel HBA
NOTE:
The following is a list of all Fibre Channel Host Bus Adapters for
Windows and Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
A8002A
HP StorageWorks FC2242SR Dual Channel 4 Gb PCI-e HBA
A8003A
HP StorageWorks FC1142SR 4Gb PCI-e HBA
AE311A
HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA
AE312A
HP StorageWorks FC2143 4Gb PCI-X 2.0 - to Fibre Channel HBA
AD167A
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
AH627A
NOTE:
Recommended Dual Channel Ultra320 SCSI Controller for connecting
multi-drive MSL tape libraries to ProLiant servers
USB Options
HP USB Internal Cable Kit
451363-B21
1.44MB External USB Floppy Drive All
DC141B
USB Floppy Drive
DC361B
USB P/S2 Optical Mouse
DC369A
USB Standard Keyboard All
DT528A#
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 20
Page 21
HP KVM Switch
Options
HP 1x4 Console Switch
AF611A
HP PS2 Server Console Cable, 6 foot, 2-Pack
AF612A
HP USB Server Console Cable, 6 foot, 2-Pack
NOTE:
required for supporting USB peripheral
AF613A
NOTE:
For additional information regarding KVM switches, Serial Console
servers, rack mount monitors, keyboards and all related options please see the
following URL:
http://www.hp.com/go/kvm
Service and Support
Offerings
(HP Care Pack Services)
Hardware Services 4-Hour On-site Service
13-Hour x 5-Day Coverage, 3 Years, Electronic
U9509E
24-Hour x 7-Day Coverage, 3 Years, Electronic
U9510E
Hardware Services Next Business Day On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
U9508E
Hardware Services 6-Hour Call to Repair On-Site Service
9-Hour x 5-Day Coverage, 3 Years, Electronic
U9511E
Hardware Installation, Electronic
U9520E
NOTE:
For more information, customer/resellers can contact:
http://www.hp.com/services/carepack
QuickSpecs
HP ProLiant DL165 Generation 5
Options
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 21
Page 22
NOTE:
Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL165 G5 (all models)
Standard Memory
2 GB (2 x 1 GB) PC2-5300 DIMM memory, with Advanced ECC Capabilities memory installed.
Maximum Memory
Up to 32GB memory is available with the optional installation of PC2-5300 Registered DIMM memory kits.
Memory should be installed in pairs and matched for optimum performance.
NOTE:
Chart does not represent all possible memory configurations.
Memory
Slot
1 2 3 4 5 6 7 8
Standard (2 GB)
1 GB 1 GB
Empty Empty Empty Empty Empty Empty
Maximum (32 GB)
4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB 4 GB
Following are memory options available from HP:
1 GB REG PC2-5300 2 x 512 MB Single Rank Kit
408850-B21
2 GB REG PC2-5300 2 x 1 GB Single Rank Kit
408851-B21
4 GB REG PC2-5300 2 x 2 GB Dual Rank Kit
408853-B21
8 GB REG PC2-5300 2 x 4 GB Dual Rank Kit
408854-B21
2 GB REG PC2-5300 2 X 1 GB Low Power Single Rank Kit
483399-B21
4 GB REG PC2-5300 2 X 2 GB Low Power Single Rank Kit
483401-B21
8 GB REG PC2-5300 2 X 4 GB Low Power Dual Rank Kit
483403-B21
QuickSpecs
HP ProLiant DL165 Generation 5
Memory
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 22
Page 23
1-4
Non-hot plug 3.5" SATA or Hot-plug SAS/SATA hard
drive bays
A
Optional DVD-ROM, or DVD/CD RW
Drive Support
Removable Media
Quantity
Supported
Position
Supported
Controller
DVD-ROM
Up to 1
A
Integrated IDE (ATAPI) (optional)
DVD/CD RW
Up to 1
A
Integrated IDE (ATAPI) (optional)
Hard Drives
Serial-ATA (SATA) Non-Hot Plug Hard Drives
Quantity
Supported
Position
Supported
Controller
SATA Non-Hot Plug
Entry (ETY) Drives
(3.5")
160GB 1.5G SATA 7.2K
Up to 4
1-4
HP Embedded SATA Controller
SATA Non-Hot Plug
Midline (MDL) Drives
(3.5")
250GB 1.5G SATA 7.2K
500GB 1.5G SATA 7.2K
750GB 1.5G SATA 7.2K
Up to 4
1-4
HP Embedded SATA Controller
Serial-ATA (SATA) Hot Plug Hard Drives
NOTE:
Installation of the Hot Plug Backplane 1U 2S Kit (445985-B21) is required if ordering third or fourth Hard Drives for
Hot Plug models only.
Quantity
Supported
Position
Supported
Controller
SATA Hot Plug Entry
(ETY) Drives (3.5")
160GB 1.5G SATA 7.2K
Up to 4
1-4
HP 8 Internal Port SAS HBA with RAID
SAS Hot Plug
72GB SAS 15,000 rpm
146GB SAS 15,000 rpm
300GB SAS 15,000 rpm
Up to 4
1-4
HP 8 Internal Port SAS HBA with RAID
QuickSpecs
HP ProLiant DL165 Generation 5
Storage
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 23
Page 24
Tape Drives, Tape Autoloaders, Tape Libraries & D2D Backup
NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the
following:
http://h18000.www1.hp.com/products/quickspecs/division/10233.html
(Worldwide)
NOTE:
For an up-to-date listing of the latest O/S Support details for each of the Tape Autoloaders and Tape Libraries listed
below, please see the following:
http://h18000.www1.hp.com/products/quickspecs/division/10809.html
(Worldwide)
NOTE:
For complete listing of tape drive offerings see
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
NOTE:
SAS Tape Drives: Connecting hard drive cage and SAS tape to the same SAS Controller using split cable (supplied
with tape drive) deactivates 1 of the hard drive bays. Actual hard drive bay deactivated depends on where split cable plugs
into SAS drive connector. Example: 3x SAS cable connector plugged into SAS drive connector (5-8) on the back of the hard
drive cage would mean drive bay 8 is deactivated.
Position
Supported
Controller
Controller Part
Number
HP StorageWorks SCSI
Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 920
LTO-3 Ultrium 960
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC11Xe Host Bus Adapter
412911-B21
HP StorageWorks USB
Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U USB Rack-Mount Kit
External
USB 2.0 Port
N/A
HP StorageWorks SAS
Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit
External
HP SC44Ge Host Bus Adapter.
416096-B21
HP StorageWorks SCSI
Tape Automation,
External
DAT 72x10 Autoloader
1/8 G2 Autoloader
MSL2024
External
HP SC11Xe Host Bus Adapter
HP U320e SCSI Host Bus Adapter
NOTE:
Recommended for MSL tape libraries.
412911-B21
AH627A
QuickSpecs
HP ProLiant DL165 Generation 5
Storage
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 24
Page 25
MSL4048
MSL8096
MSL6000
HP StorageWorks SAS
Tape Automation,
External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP SC44Ge Host Bus Adapter
416096-B21
HP StorageWorks Fibre
Tape Automation,
External
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs
for detailed connectivity information.
N/A
HP StorageWorks D2D
Backup Systems
D2D110
D2D120
D2D130
External
Embedded Network Controller
N/A
External Storage
Quantity
Supported
Position
Supported
Controller
Modular Smart Array 50
Enclosure
Up to 2
External
HP Smart Array E500/256MB controller
HP StorageWorks
Modular Smart Array 60
Up to 2
External
HP Smart Array E500/256MB controller
HP StorageWorks
Modular Smart Array 70
Up to 2
External
HP Smart Array E500/256MB controller
QuickSpecs
HP ProLiant DL165 Generation 5
Storage
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 25
Page 26
Operational Input
Voltage Range (Vrms)
90Vac to 264Vac full range at 25oC ambient
Frequency
Range
(Nominal) (Hz)
47 Hz to 63 Hz
Power Output
650W Nominal
Server Power Cords
One 6' Highline (IEC-IEC) power cord ships standard
NOTE:
HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002)
that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are
primarily connected to PDU's in data center racks so they now ship standard with only a PDU
power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle
(NEMA-15), the NEMA power cord (227099-001) must be ordered separately.
If customers require a local power cord, they can check the power cord matrix for the appropriate
cord. Please see the following power cord matrix:
http://www.hp.com/go/powercordmatrix
.
QuickSpecs
HP ProLiant DL165 Generation 5
Power Specifications
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 26
Page 27
System Unit
Dimensions
(H x W x D)
(with bezel)
1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)
Weight
(approximate)
Maximum
(all hard drives, power
supplies, and processors
installed)
37.00 lb (16.78 kg)
Minimum
(one hard drive, power
supply, and processor
installed)
30.00 lb (13.69 kg)
Input Requirements
(per 650W power
supply)
Rated Line Voltage
100-127 VAC,
200-240 VAC
Rated Input Current
10.0 A (at 115 VAC),
5.5 A (at 230 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
852.16 W (at 100 VAC),
805.03W (at 200 VAC)
BTU Rating
Maximum
2217.89 BTU/hr (at 100 VAC),
2217.89 BTU/hr (at 200 VAC)
Power Specifications
To review typical system power ratings use the Power Calculator which
is available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%
20Catalog.xls
- Click on the system of interest. Example: DL165 G5
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power
650 W (at 100 VAC),
650 W (at 200 VAC)
Maximum Peak Power
700 W (at 100 VAC),
700 W (at 200 VAC)
Optional High Efficiency Power Supply Specifications
Input Requirements
(per power supply)
Rated Line Voltage
90-132 VAC,
200-240 VAC
Rated Input Current
9.4 A (at 115 VAC),
7.8 A (at 230 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
1075 W (at 100 VAC),
1375W (at 200 VAC)
BTU Rating
Maximum
3070.93 BTU/hr (at 100 VAC),
4094.57 BTU/hr (at 200 VAC)
Power Specifications
To review typical system power ratings use the Power Calculator which
is available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator%
20Catalog.xls
- Click on the system of interest. Example: DL165 G5
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)
Rated Steady-State Power
900 W (at 100 VAC),
1200 W (at 200 VAC)
Maximum Peak Power
900 W (at 100 VAC),
1200 W (at 200 VAC)
QuickSpecs
HP ProLiant DL165 Generation 5
Technical Specifications
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 27
Page 28
System Inlet
Temperature
Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change
is 10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 30°C
(86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate
of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)
Operating
10 to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature,
non-condensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
3050 m (10,000 ft). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is
457 m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500
ft/min).
Acoustic Noise
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment.
Noise emissions were measured in accordance with ISO 7779 (ECMA
74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
6.82 B
LpAm
51.93 dBA
Operating
LWAd
6.84 B
LpAm
51.93 dBA
QuickSpecs
HP ProLiant DL165 Generation 5
Technical Specifications
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 28
Page 29
HP 160GB 1.5G SATA
7.2K NHP 3.5" ETY HDD
458947-B21
160-GB 7.2K
Capacity
160,041 MB
Height
1.028 in (2.61 cm)
Width
4.0 in (10.16 cm)
Depth
5.787 in (147.0 mm)
Interface
Serial ATA
Transfer Rate
Synchronous
(Maximum)
1.5Gb/s
Native Command
Queuing
N/A
Seek Time
(typical reads, including
settling)
Single Track
2.0 ms
Average
<11 ms
Full-Stroke
23.0 ms
Rotational Speed
7,200 rpm
Physical Configuration
Bytes/Sector
512
Logical Blocks
312,581,808
Operating Temperature
41° to 131° F (5° to 55° C)
Embedded SATA
Controller
Drives Supported
Up to 4 SATA devices
Channels
4 1.5Gb SATA
Storage Capacity
2.0TB internal storage
Data Transfer Method
32-bit/33-MHz PCI bus-master
Maximum SATA
Channel Transfer Rate
1.5Gb/s per channel
Maximum Transfer
Rate per PCI Bus
(peak)
266 MB/s per channel
Protocols
SATA
PIO Mode[0-4]
Cable
SATA
Internal ATA
Connectors
Four SATA connectors
HP 8 Internal Port SAS
HBA with RAID
Drives Supported
Up to 4 SATA/SAS drives
Channels
4
Storage Capacity
1.2TB SAS, 4.0TB SATA
Data Transfer Method
PCI-Express
Maximum SAS Channel
Transfer Rate
3Gb/s per channel
Maximum SAS transfer
rate
300Mb/sec per port
Protocols Supported
SSP, STP, SMP
Internal Connectors
1 SAS
QuickSpecs
HP ProLiant DL165 Generation 5
Technical Specifications
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 29
Page 30
Embedded NC7782
dual-port gigabit server
adapter
Network Interface
10Base-T/
100Base-TX/
1000Base-TX
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3 1000Base-T
IEEE 802.3 100Base-TX
Data Transfer Method
PCI-X
Network Transfer Rate
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (HalfDuplex)
100 Mb/s
100Base-TX (FullDuplex)
200 Mb/s
1000Base-TX
(Half and Full-Duplex)
2000 Mb/s
Connector
RJ-45
Cable Support
10Base-T
Categories 3, 4 or 5 UTP; up to 328 ft (100 m)
10/100/1000Base-TX
Category 5 UTP (2 Pair); up to 328 ft (100 m)
Environment-friendly
Products and
Approach
End-of-life
Management and
Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and
recycling programs in many geographic areas. For trade-in information,
please go to:
http://www.hp.com/go/green
. To recycle your product,
please go to:
http://www.hp.com/go/green
or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or
disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to
provide treatment information for each product type for use by treatment
facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at:
http://www.hp.com/go/green
. These
instructions may be used by recyclers and other WEEE treatment
facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. AMD, Opteron, and Hyper-Transport are
trademarks of AMD Corporation in the United States and other countries.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
QuickSpecs
HP ProLiant DL165 Generation 5
Technical Specifications
DA - 13015 Worldwide QuickSpecs — Version 5 — 5.23.2008
Page 30
Loading...
