HP ProLiant DL160 G6 Specification

Download

Page 1

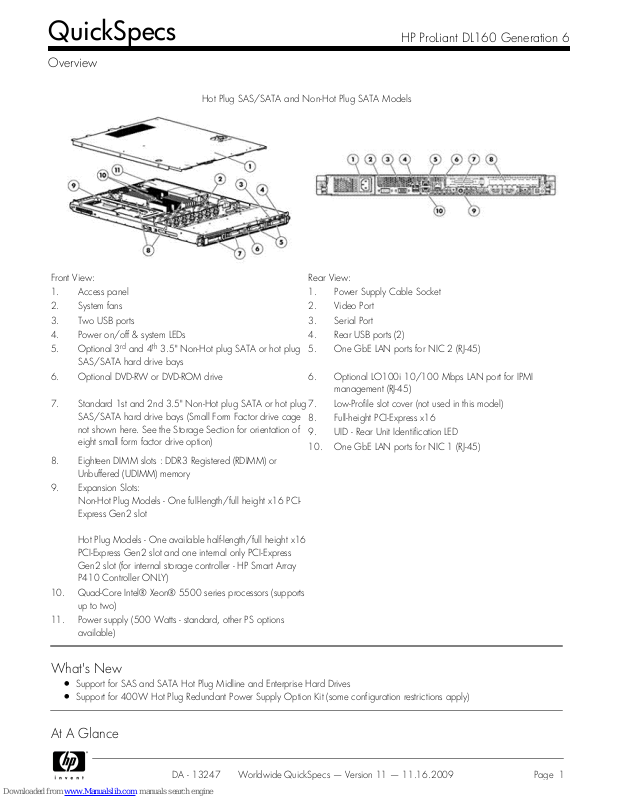

Hot Plug SAS/SATA and Non-Hot Plug SATA Models

Front View:

Rear View:

Access panel

Power Supply Cable Socket

System fans

Video Port

Two USB ports

Serial Port

Power on/off & system LEDs

Rear USB ports (2)

Optional 3rd and 4th 3.5" Non-Hot plug SATA or hot plug SAS/SATA hard drive bays

One GbE LAN ports for NIC 2 (RJ-45)

Optional DVD-RW or DVD-ROM drive

Optional LO100i 10/100 Mbps LAN port for IPMI management (RJ-45)

Standard 1st and 2nd 3.5" Non-Hot plug SATA or hot plug SAS/SATA hard drive bays (Small Form Factor drive cage not shown here. See the Storage Section for orientation of eight small form factor drive option)

Low-Profile slot cover (not used in this model)

Full-height PCI-Express x16

UID - Rear Unit Identification LED

10.

One GbE LAN ports for NIC 1 (RJ-45)

Eighteen DIMM slots : DDR3 Registered (RDIMM) or Unbuffered (UDIMM) memory

Expansion Slots: Non-Hot Plug Models - One full-length/full height x16 PCIExpress Gen2 slot

Hot Plug Models - One available half-length/full height x16 PCI-Express Gen2 slot and one internal only PCI-Express Gen2 slot (for internal storage controller - HP Smart Array P410 Controller ONLY)

10.

Quad-Core Intel® Xeon® 5500 series processors (supports up to two)

11.

Power supply (500 Watts - standard, other PS options available)

What's New

Support for SAS and SATA Hot Plug Midline and Enterprise Hard Drives Support for 400W Hot Plug Redundant Power Supply Option Kit (some configuration restrictions apply)

At A Glance

QuickSpecs

HP ProLiant DL160 Generation 6

Overview

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 1

Page 2

The HP ProLiant DL160 G6 server is a high performance, low cost, ultra-dense, dual processor capable, 1U rack server for memory intense High Performance Computing (HPC) environments, Web 2.0, hosting, and general large memory footprint server deployments.

Processors

Supports up to two Intel® Quad-Core 5500 sequence processors

Quad-Core Intel® Xeon® processors 5500 sequence with 8 MB Level 3 cache

Intel® 5520 Chipset

Memory

: Up to 192GB, using 16GB Quad-Rank PC3-8500R-7 DDR3 Registered (RDIMM) memory, operating at 800MHz when populated at 2 DIMMs per Channel in 12 slots. Up to 144GB, using PC3-10600R or PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when populated at 3 DIMMs per Channel in 18 slots. Up to 24GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when populated at 2 DIMMs per Channel in 12 slots.

Internal Drive Support

: Support for up to four 3.5" Non-Hot plug serial ATA (SATA) hard drives or

NOTE:

Embedded SATA controller support transfer rate up to 3Gb/s SATA.

Support for up to four 3.5" Hot plug Serial Attached SCSI (SAS) or SATA hard drives.

NOTE:

Installation of the Hot Plug Backplane 1U 2S Kit (512181-B21) is required if ordering third or fourth Hard Drives for Hot Plug models only.

Support for 2.5" Hot Plug Serial Attached SCSI (SAS) or SATA hard drives.

NOTE:

Installation of the HP 8SFF Hard Drive Cage & Backplane G6, FIO (515938-B21) is required if ordering 2.5" Hot Plug hard drives.

Internal storage capacity of up to 4.0TB (4 x 1TB Hot Plug 3.5" SATA/SAS), 3.0TB (4 x 750GB Non-Hot Plug SATA) or 4.0TB (8 x 500GB Hot Plug 2.5" SATA/SAS)

Network Controller

HP NC362i Integrated Dual Port Gigabit Server Adapter

Storage Controllers

: Non-Hot Plug SATA Models: HP Embedded SATA RAID Controller (RAID 0, 1, 10)

NOTE:

Transfer rate: up to 3 Gb/s SATA.

NOTE:

To enable RAID functionality on Embedded SATA, use the HP Smart Array B110i SATA Raid controller. To enable use of the B110i, enter the ROM Based Setup Utility (RBSU). The option for enabling RAID can be functionality found in the Advanced section of the RBSU.

Hot Plug SAS/SATA Models: HP P410 Smart Array Controller RAID 0,1,10, 5

NOTE:

Transfer rate: up to 3Gb/s.

Expansion Slots

Non-Hot Plug Models: Up to two available PCI Express 2.0 slots:

Slot 1: full-length/full-height PCI-Express 2.0 x16 or Slot 1: half-length/full-height PCI-Express 2.0 x16 Slot 2: low-profile internal only PCI-Express 2.0 x4 (x8 mechanically)

Hot Plug Models: One available PCI-Express slot:

Slot 1: half-length/full-height PCI-Express 2.0 x16 Slot 2: low-profile internal only PCI-Express 2.0 x4 (x8 mechanically) - slot populated by the SAS/SATA storage controller – HP Smart Array P410 Controller

Infrastructure Management

: HP Insight Control suite for Linux (IC-Linux), a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, monitor, control and optimize your IT infrastructure through a single, simple management console. The IC-Linux suite supports Linux-based servers and management consoles HP ProLiant Onboard Administrator Powered Lights-Out 100i with optional LO100i Advanced Licenses for Virtual KVM and Virtual Media. The HP ProLiant Easy Set-up CDs and ISO image downloads offer Assisted and Manual single server installation, setup,

QuickSpecs

HP ProLiant DL160 Generation 6

Overview

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 2

Page 3

and deployment capability. Capabilities provided are:

AutoRun Assisted Installation Microsoft Windows 2003 Server and Microsoft Windows 2008 Server OS and SW available for Manual Installation are listed on each servers' QuickSpecs

Ports

Five USB ports (two front, one internal, two rear)

NOTE:

In order to utilize the internal USB port the USB cable (P/N: 536769-B21) must be connected to the internal

USB header.

Optical Drive

Support for one (optional): DVD-ROM, DVD RW

Power Supply

: 500W Power Supply (Non-Hot Plug, Autoswitching) Optional FIO high-efficiency pluggable power supplies: 460W Power Supply or 750W Power Supply Optional FIO Hot Plug 400W G6 Redundant Power Supply. It includes the two power supplies as a part of the kit.

Additional Features

: Support for NVIDIA Quadro FX3700 512MB PCIe x 16 graphics card

NOTE:

For more information on the latest visualization and acceleration qualification status, please see

http://www.hp.com/go/accelerators

Form Factor

Rack (1U)

Operating Systems and Virtualization Software:

Supports Windows, RHEL, SLES, Solaris, VMware, and Citrix Essentials for XenServer (Retail)

Deployment/Serviceability

: HP ProLiant DL160 G6 models have fixed rails which provide support for racks with round mounting holes and tool-free support for racks with square mounting holes (including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 26" - 36" Tool-less access to all system components for easy in rack serviceability Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement

Warranty

: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and parts replacement is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE:

Server Warranty includes 3 year Next Day Parts replacement, 0-Years Labor, 0-Years Onsite support. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant DL160 Generation 6

Overview

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 3

Page 4

Processor

One of the following depending on Model

Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for more

details.

Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for more

details.

Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for more

details.

Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

NOTE:

Available through Configure To Order only. See Factory Integration Models section for more

details.

Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2) Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2) Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)

NOTE:

HT indicates that the processor model supports Intel® Hyper-Threading Technology.

NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE:

For the Intel 5500 Series, the letter preceding the model number indicates the performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.

Upgradeability

Upgradeable to two processors

Chipset

Intel® 5520 Chipset

Cache Memory

4 MB Level 3 cache (E5504) 8 MB Level 3 cache (standard)

Memory Protection

Advanced memory protection

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 4

Page 5

Memory

Type

DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

Standard

4 GB

(2 x 2 GB) UDIMMs

6 GB

(3 x 2 GB) UDIMMs

12 GB

(6 x 2 GB) RDIMMs

Maximum (RDIMM)

192 GB

(12 x 16 GB)

Maximum (UDIMM)

24 GB

(12 x 2 GB)

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at 1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

DDR3 memory options part number decoder

Network Controller

HP NC362i Integrated Dual Port Gigabit Server Adapter

Expansion Slots #

Technology

Bus Width

Connector

Width

Bus Number

Device No.

Form Factor

Notes

PCI-Express

2.0

x16 x16

1 0

Full length, full

height

3.3 volts

***

PCI-Express

2.0

x4 x8

6 3

Low Profile,

Internal Only

3.3 volts

NOTE:

All slots can accept universal keyed PCI cards * Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number. ** Slots are enumerated differently based on OS. MS OS's enumerate from lowest to highest Device ID

by bus (starting with the lowest bus). ***In order to access expansion slot #2, the low profile internal only slot, expansion slot #1 may only be

populated with a half length, full height form factor card.

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 5

Page 6

Storage Controller

Non-Hot Plug SATA Models

HP Embedded SATA RAID Controller (integrated into the south-bridge) supporting SW RAID 0,1,10

NOTE:

Transfer rate: up to 3 Gb/s SATA

HP Smart Array B110i SATA RAID

NOTE:

To enable RAID for embedded SATA controller, use EZ set-up CD to download driver, hpahcisr.sys, is part of the 8.20 PSP, Smart Start, EZSetup CD. For more information on SW Smart Array, go to:

www.hp.com/go/sataraid

Hot Plug SATA/SAS Models

HP Smart Array P410 Controller (RAID 0/1/1+0) HP Smart Array P410 Controller 256 BBWC (RAID/0/1/1+0/5/5+0)

NOTE:

Transfer rate: up to 3 Gb/s SATA, up to 3 Gb/s SAS.

NOTE:

A diskette drive or virtual FDD using LO100 Advanced Pack is needed to install storage controller drivers during a Windows operating system installation from a CD. NOTE:

Addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and stripe size migration. NOTE:

RAID 6 functionality requires the addition of Smart Array Advanced Pack (P/N: 516471-B21). NOTE:

The addition of a Smart Array hardware based storage controller to a Non-Hot Plug SATA Model is only supported for external storage.

Storage

Diskette Drives

Via USB only

Optical Drives

Optional SATA 9.5mm DVD-ROM Optical Drive Optional SATA 9.5mm DVD RW Optical Drive

Drive Bays

Up to 4 Non-hot plug SATA 3.5" drives Up to 4 Hot plug SAS/SATA 3.5" drives

Maximum Internal Storage

Non-Hot Plug SATA

3.0TB

4 x 750GB

Hot Plug SATA

4.0TB

4 x 1TB

Hot Plug SAS

4.0TB

4 x 1TB

Interfaces

Parallel

None

Network RJ-45(Ethernet)

2 10/100/1000 NIC ports (plus 1 optional dedicated port for the HP ProLiant Lights Out 100i Remote Management)

Serial

Pointing Device (Mouse)

0 (via USB only)

Graphics

Keyboard

0 (via USB only)

USB

5 (two front, one internal, two rear)

NOTE:

In order to connect a USB device internally, the internal USB Cable G6 Kit must be used (536769-B21) NOTE:

Please see the following URL for additional information regarding USB support:

http://h18004.www1.hp.com/products/servers/platforms/usbsupport.html

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 6

Page 7

Graphics

32MB shared supporting all display resolutions up to 1600x1200 16bpp@75Hz

NOTE:

8MB is dedicated to video memory.

Form Factor

Rack (1U), (1.75 in/4.45 cm)

Embedded Systems Management

HP ProLiant Onboard Administrator and LO100i Advanced

HP ProLiant Onboard Administrator Powered by LO100i with Optional LO100i Advanced Licenses for Virtual KVM and Virtual Media.

Features:

Embedded IPMI standard reporting System event log access Remote Serial console (serial redirection) Browser, Telnet access SMASH-CLP compliant IPMI 2.0 compliant Secure Socket Layer Encryption Secure Shell Encryption Virtual media (Floppy, CD, USB 2.0) with Advanced License Virtual KVM with Advanced License

NOTE:

For more information, see:

http://www.hp.com/go/lo100

Core Infrastructure Management

HP Insight Control for Linux

HP Insight Control for Linux (IC-Linux), as a product option, delivers essential lifecycle management that can help save time and money by integrating discovery, server deployment, firmware updates & provisioning, health & performance management, remote management, and virtualization. This makes it easy to optimize your IT infrastructure through a single, simple management console. The IC-Linux suite installs and licenses software modules that are integrated into HP System Insight Manager (HP SIM).

HP Insight Control for Linux serves environments requiring a Linux-based management console. See

www.hp.com/go/ic-linux

HP Insight Control for Linux includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit:

http://www.hp.com/services/insight

Insight Control server deployment

HP Insight Control server deployment is a deployment solution for HP ProLiant and Integrity servers hosted on a Windows CMS. It automates the process of deploying and provisioning server software, enabling companies to quickly and easily adapt to changing business demands. Insight Control server deployment includes software optimizations for HP servers, including the HP scripting toolkits, configuration jobs for leading industry-standard operating systems, sample unattended files, and HP server support packs that include software drivers, management agents, and important documentation. Deploying servers can be accomplished either through imaging or through scripting.

Insight Control server deployment is hosted on a Windows server and is

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 7

Page 8

intended for heterogeneous environments deploying Windows, Linux, VMware ESX and Microsoft Hyper-V systems.

Insight Control server deployment includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit:

http://www.hp.com/services/insight

Industry Standard Compliance

ACPI V2.0 Compliant PCI 2.2 Compliant PXE Support WOL Support Microsoft® Logo certifications IPMI 2.0, SMASH CLP compliant

Security

Power-on password Setup password Diskette boot control Secure Sockets Layer (SSL) Secure Shell (SSH)

Security - Trusted Platform Module

The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.

NOTE:

For more information about TPM, including a white paper, go to:

http://www.hp.com/go/TPM

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing

the key could result in data loss.

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard

NOTE:

HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the NEMA power cord (227099-001) must be ordered separately.

If customers require a local power cord, they can check the power cord matrix for the appropriate cord. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

UPS and PDU Power Cord Matrix

Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link:

www.hp.com/products/powercords

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 8

Page 9

Power Supply

500 Watts, auto-switching, high efficiency, PFC (Power Factor Correcting)

NOTE:

Factory upgradeable to high-efficiency (HE) pluggable or Hot Plug Redundant power supply.

System Fans

6 system fans ship standard; Non-hot plug, N+1 Redundant Standard

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server Microsoft Windows Server Hyper V Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Solaris 10 for x86/x64 based Systems VMware Citrix Essentials for XenServer (Retail)

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/supportos

and our driver download page

http://www.hp.com/support/DL160G6

Rack Airflow Requirements

Rack 10000 G2 series Cabinets The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION:

If a third-party rack is used, observe the following additional requirements to ensure adequate

airflow and to prevent damage to the equipment:

Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation). Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 7 cm (2.75 inches)

CAUTION:

Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE:

For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL:

www.hp.com/servers/dl160

Rack Support

The DL Fixed Rail System supports installation in racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 24" - 36".

Telco Rack Support

Support for all 2 and threaded hole racks requires an additional option kit from Rack Solutions. The Rack Solutions brackets can be purchased at:

www.racksolutions.com/hp

NOTE:

The 4 post Telco racks also supported.

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 9

Page 10

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to:

http://www.hp.com/go/factory-express

HP Enterprise Configurator

The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.

Service and Support

HP Care Pack Services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server that are purchased at the same time or afterward and internal to the enclosure. It also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalize on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions provides a range of support services designed to meet the varying needs of business. Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service

- Simplify ProLiant solution implementation, maintenance and management.

Support Service

- 3-Year 24x7 4 hr Response service support coverage

Deployment Service

- Hardware Installation only

Enhanced Service

- Optimize service level to increase IT performance and availability

Support

-3-Year 24x7 24 hr Call to repair service support coverage

Support

- 3-Year 24x7 6 hr Call to repair service support coverage

Support Plus

-24x7 4 hr Response service support including OS coverage

Installation of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays.

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 10

Page 11

For a complete listing of service offerings and information visit:

http://www.hp.com/services/proliantservices http://h20219.www2.hp.com/services/us/en/warranty/carepack-servers-proliant.html

QuickSpecs

HP ProLiant DL160 Generation 6

Standard Features

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 11

Page 12

NOTE:

High Performance Computing (HPC) interconnect technologies are available for the DL160 G6 under the Cluster Platform product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects:

http://www.hp.com/techservers/clusters/ucp/index.html

HPC Interconnects

InfiniBand

PCI-Express Generation 2 adapters

Gigabit Ethernet

Use embedded ports

10-Gigabit Ethernet

PCI-Express Generation 2

QuickSpecs

HP ProLiant DL160 Generation 6

HPC Interconnects

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 12

Page 13

Non-Hot Plug Serial ATA (SATA) Models

NOTE:

Non-Hot Plug models are not upgradeable to Hot Plug. The addition of a Smart Array controller is supported for external

storage use only.

HP DL160G6 E5504 NHP SATA, 4GB 490427-xx1

HP DL160G6 L5520 NHP SATA, 4GB 490432-xx1

Processor(s)

One of the following depending on model

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-

800) Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR31066, HT, Turbo 1/1/2/2)

Cache Memory

4MB shared L3 cache (E5504) 8MB shared L3 cache (L5520)

Memory

4GB (2 x 2GB) PC3-10600E (UDIMM)

Network Controller

HP NC362i Integrated Dual Port Gigabit Server Adapter

Storage Controller

Embedded SATA RAID 0, 1, 10

Hard Drive

HP 160GB 7.2k Non Hot Plug SATA

Internal Storage

Up to 4 large form factor Non-Hot Plug drives

Optical Drive

None ships standard

Power Supply

500W high efficiency multi-output supply (ships standard)

Form Factor

Hot Plug Serial ATA (SATA)/ Serial Attached SCSI (SAS) Models

NOTE:

Up to 4 large form factor hard drives supported in server model (P/N 490455-xx1).

NOTE:

Up to 2 large form factor hard drives supported in server models (P/N 490454-B21 and 490442-xx1).

HP DL160G6 E5504 Hot Plug

,4GB

490442-xx1

HP DL160G6 E5520 Hot Plug, 6GB 490454-xx1

HP DL160G6 X5550 Hot Plug, 4LFF, 12GB, 2P 490455-xx1

Processor(s)

One of the following depending on model

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-

800) Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR31066, HT, Turbo 1/1/2/2) (2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

Cache Memory

One of the following depending on model

4MB shared L3 cache (E5504)

8MB shared L3 cache

Memory

One of the following depending on model

4GB (2 x 2GB) PC3-10600E (UDIMM) 6GB (3 x 2GB) PC3-10600E (UDIMM) 12GB (6 x 2GB) PC3-10600R (RDIMM)

Network Controller

HP NC362i Integrated Dual Port Gigabit Server Adapter

Storage Controller

HP Smart Array P410 SAS/SATA RAID 0,1,10 HP Smart Array P410/ 256MB BBWC RAID 0,1,10,5,50 (P/N 490455xx1)

Hard Drive

None ship standard

Internal Storage

One of the following depending on model

Up to 4 large form factor Hot Plug drives

Up to 2 large form factor Hot Plug drives

Optical Drive

None ship standard

Power Supply

500W high efficiency multi-output supply (ships standard)

Form Factor

QuickSpecs

HP ProLiant DL160 Generation 6

Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 13

Page 14

Country Code Key

xx = 00

U.S.

xx = 20

Brazil (ONLY P/N 490442-xx1)

xx = 29

Japan

xx = 37

APD

xx = 42

Euro

xx = AA

PRC

QuickSpecs

HP ProLiant DL160 Generation 6

Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 14

Page 15

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information. NOTE:

HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start with a CTO Chassis. NOTE:

FIO indicates that this option is a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)

Non-Hot Plug SATA Model

NOTE:

Non-Hot Plug models are not upgradeable to Hot Plug.

NOTE:

The addition of a Smart Array controller is supported for external storage use

only.

HP ProLiant DL160 G6 Non-Hot Plug SATA Rack CTO Chassis

491531-B21 Factory Integrated Model ships with: HP NC362i Integrated Dual Port Gigabit Server Adapter One available full-length/full-height PCI-Express x16 Generation 2 slot One Highline IEC Power Cord 6 Non-Hot Plug Fans Rack (1U), (1.75 in / 4.45 cm) Tool-less Fixed Rails Hot Plug Model HP ProLiant DL160 G6 Hot Plug SAS/SATA Rack CTO Chassis

491532-B21 Factory Integrated Model ships with: HP NC362i Integrated Dual Port Gigabit Server Adapter One available PCI-Express Generation 2 slot:

Slot 1: half-length/full-height Slot 2: low-profile/half-height - occupied by HP Smart Array P410 Controller

One Highline IEC Power Cord 6 Non-Hot Plug Fans Rack (1U), (1.75 in / 4.45 cm) Tool-less Fixed Rails

QuickSpecs

HP ProLiant DL160 Generation 6

Configuration Information - Factory Integrated Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 15

Page 16

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

Processors

Quad-Core Processors Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3), FIO

NOTE:

If 2 processors are desired, select one 508231-L21 and one 508231-B21.

508231-L21

Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3), FIO

NOTE:

If 2 processors are desired, select one 573893-L21 and one 573893-B21.

573893-L21

Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3), FIO

NOTE:

If 2 processors are desired, select one 491511-L21 and one 491511-B21.

491511-L21

Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2), FIO

NOTE:

If 2 processors are desired, select one 490461-L21 and one 490461-B21.

490461-L21

Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2), FIO

NOTE:

If 2 processors are desired, select one 573895-L21 and one 573895-B21.

573895-L21

Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2), FIO

NOTE:

If 2 processors are desired, select one 490459-L21 and one 490459-B21.

490459-L21

Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2), FIO

NOTE:

If 2 processors are desired, select one 491507-L21 and one 491507-B21.

491507-L21

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO

NOTE:

If 2 processors are desired, select one 490457-L21 and one 490457-B21.

490457-L21

NOTE:

HT indicates that the processor model supports Intel® Hyper-Threading Technology. NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE:

QuickSpecs

HP ProLiant DL160 Generation 6

Configuration Information - Factory Integrated Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 16

Page 17

Memory

Registered DIMMs (RDIMMs) HP 2GB 2Rx8 PC3-10600R-9 Kit

500656-B21

HP 4GB 2Rx4 PC3-10600R-9 Kit

500658-B21

HP 4GB 4Rx8 PC3-8500R-7 LP Kit

500660-B21

HP 8GB 2Rx4 PC3-10600R-9 Kit

500662-B21

HP 8GB 2Rx4 PC3-8500R-7 Kit

516423-B21

HP 16GB 4Rx4 PC3-8500R-7 Kit

500666-B21 Unbuffered with ECC DIMMs (UDIMMs) HP 1GB 1Rx8 PC3-10600E-9 Kit

500668-B21 HP 2GB 2Rx8 PC3-10600E-9 Kit

500670-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-

efficient

NOTE:

There is a maximum support limitation of 8 ranks per memory channel (maximum of 2 quad rank DIMMs per channel)

Hard Drive

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components. NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Non-Hot Plug 3.5" Midline (MDL) Drive

NOTE:

A minimum of one SATA Non-Hot Plug hard drive is required ONLY when purchasing Non-Hot Plug CTO Chassis Model (P/N 491531-B21) in Step 1.

HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD

462595-B21

HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD

458941-B21

HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD

458939-B21 SATA Non-Hot Plug 3.5" Entry (ETY) Drives HP 160GB 3G SATA 7.2K NHP 3.5" ETY HDD

458947-B21

QuickSpecs

HP ProLiant DL160 Generation 6

Configuration Information - Factory Integrated Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 17

Page 18

Storage Controllers

NOTE:

A minimum of one Smart Array Controller is ONLY required when purchasing Hot Plug CTO Chassis Model (P/N 491532-B21) in Step 1. NOTE:

The below storage controllers are intended for use with internal drives in the Hot Plug CTO Chassis Model (P/N 491532-B21). The HP Smart Array P212 Controller (P/N 491191-B21) is supported in the Non-Hot Plug Model (P/N 491531-B21) for external storage control ONLY.

NOTE:

With the HP Smart Array P410 Controller, the addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB Cache and a Battery is required in addition to the Smart Array Advanced Pack license (P/N 516471-B21). NOTE:

To use the internal only PCI-e slot when purchasing the Hot Plug CTO Chassis, a HP Smart Array P410 controller must be selected. When selecting the HP Smart Array P212 Controller (P/N 491191-B21), the controller will be installed in the x16 slot since it has both an internal and external port. This prevents the use of the internal slot and no PCI-E slots will be available.

HP Smart Array P212/256 MB w/ Battery FIO

491191-B21

HP P410/Zero Memory FIO Smart Array Controller

462860-B21

HP Smart Array P410/256 MB w/Battery FIO

491195-B21

Hot Plug HDD Backplane Option

NOTE:

A minimum of one Hot Plug HDD Backplane option is ONLY required when purchasing Hot Plug CTO Chassis Model (P/N 491532-B21) in Step 1.

HP 8SFF Hard Drive Cage & Backplane G6, FIO

515938-B21

HP 2 HDD Backplane G6 FIO Kit

NOTE:

Supports LFF hard drives only.

518593-B21

HP 4HDD Hot Plug Backplane G6 Kit

NOTE:

Supports LFF hard drives only.

512181-B21

Power Supplies

CAUTION:

Many HP ProLiant Servers now offer new power options, including Common Slot Power Supplies. These power supplies come in multiple power ratings and higher efficiency levels to offer the Right Size solution to fit your configuration. This provides improved power delivery and the advantage of reclaiming lost power. Prior to making a power supply selection it is "highly recommended" that the "HP Power Advisor" is run to determine the right size power supply for your server configuration. The HP Power Advisor is located at:

www.hp.com/go/hppoweradvisor

. In ProLiant Servers that have more than one power slot (bay), only same size power supplies are recommended. If non-matched power supplies are inserted you will get errors and operation will fail. NOTE:

The 400W 1U G6 RPS (P/N: 532092-B21) is limited to the following configuration support: (1.) NHP SATA Model (P/N: 491531-B21), (2.) Up to 2 60W Low Voltage processors (P/N: 491507-L21, -B21) (3.) Unbuffered memory (P/N: 500668-B21 or 500670-B21), 4. No graphics cards supported via PCI-e.

HP High Efficiency 500W Multi-output Power Supply Kit

515915-B21

HP High Efficiency 460W Power Supply Kit

535684-B21

HP High Efficiency 750W Power Supply Kit

535683-B21

HP 400W 1U G6 Redundant Power Supply Kit

532092-B21

QuickSpecs

HP ProLiant DL160 Generation 6

Configuration Information - Factory Integrated Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 18

Page 19

Step 3: Choose Additional Options for Factory Integration

NOTE:

For additional "Core Options" and "Additional Options", please refer to the "Options" section below.

QuickSpecs

HP ProLiant DL160 Generation 6

Configuration Information - Factory Integrated Models

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 19

Page 20

NOTE:

Some options may not be available for factory integration. Please contact an HP sales representative for additional

information.

Unique Options

HP Dedicated Management Port Kit

516006-B21

Processor

Quad-Core Processors Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,

Turbo 2/2/3/3)

508231-B21

Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

573893-B21

Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)

491511-B21

Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

490461-B21

Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

573895-B21

Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)

490459-B21

Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)

490457-B21

Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)

491507-B21

NOTE:

HT indicates that the processor model supports Intel® Hyper-Threading Technology. NOTE:

Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost Technology, with 4, 3, 2, and 1 cores active. NOTE:

DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. NOTE:

QuickSpecs

HP ProLiant DL160 Generation 6

Core Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 20

Page 21

Memory

Registered DIMMs (RDIMMs) HP 2GB 2Rx8 PC3-10600R-9 Kit

500656-B21

HP 4GB 2Rx4 PC3-10600R-9 Kit

500658-B21

HP 4GB 4Rx8 PC3-8500R-7 LP Kit

500660-B21

HP 8GB 2Rx4 PC3-10600R-9 Kit

500662-B21

HP 8GB 2Rx4 PC3-8500R-7 Kit

516423-B21

HP 16GB 4Rx4 PC3-8500R-7 Kit

500666-B21 Unbuffered with ECC DIMMs (UDIMMs) HP 1GB 1Rx8 PC3-10600E-9 Kit

500668-B21 HP 2GB 2Rx8 PC3-10600E-9 Kit

500670-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-

efficient

Optical Drives

DVD-ROM Drive Optical Drive

481045-B21

DVD RW Drive Optical Drive

481047-B21

Hard Drives

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Hot Plug SFF Midline (MDL) Drives HP 500GB 3G SATA 7.2K 2.5in MDL HDD

507750-B21

HP 160GB 3G SATA 7.2K 2.5in MDL HDD

530888-B21 SATA Hot Plug SFF Entry (ETY) Drives HP 250GB 3G SATA 5.4K SFF ETY HDD

460355-B21 HP 120GB 1.5G SATA 5.4K SFF ETY HDD

458924-B21 SATA Non-Hot Plug 3.5" Midline (MDL) Drives

(Non-Hot Plug Models Only)

HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD

462595-B21 HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD

458941-B21 HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD

458939-B21 SATA Non-Hot Plug 3.5" Entry (ETY) Drives HP 160GB 3G SATA 7.2K NHP 3.5" ETY HDD

458947-B21 SATA Hot Plug 3.5" Midline (MDL) Drives

(SAS/SATA Hot Plug Models Only)

NOTE:

A SAS HBA or Array Controller is required.

HP 1TB 3G SATA 7.2K 3.5" MDL HDD

454146-B21 HP 750GB 3G SATA 7.2K 3.5" MDL HDD

458930-B21 HP 500GB 3G SATA 7.2K 3.5" MDL HDD

458928-B21 HP 250GB 3G SATA 7.2K 3.5" MDL HDD

458926-B21 SATA Hot Plug 3.5" Entry (ETY) Drives

QuickSpecs

HP ProLiant DL160 Generation 6

Core Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 21

Page 22

HP 160GB 3G SATA 7.2K 3.5" ETY HDD

458945-B21

NOTE:

Please see QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SATA Hot Plug Midline (MDL) Solid State Drives HP 60GB 3G SATA 2.5in MDL 1y Wty SSD

572071-B21

HP 120GB 3G SATA 2.5in MDL 1y Wty SSD

572073-B21 SATA Hot Plug 3.5" Midline (MDL) Solid State Drives HP 60GB 3G SATA 3.5in MDL 1y Wty SSD

570761-B21 HP 120GB 3G SATA 3.5in MDL 1y Wty SSD

570763-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html

(Worldwide)

SAS Hot Plug SFF Midline (MDL) Drives HP 500GB 6G SAS 7.2K SFF DP MDL HDD

507610-B21 SAS Hot Plug 3.5" Midline (MDL) Drives HP 1TB 3G SAS 7.2K 3.5" DP MDL HDD

461137-B21 HP 750GB 3G SAS 7.2K 3.5" DP MDL HDD

461135-B21 SAS Hot Plug SFF Enterprise (ENT) Drives HP 300GB 6G SAS 10K SFF DP ENT HDD

507127-B21 HP 300GB 3G SAS 10K SFF DP ENT HDD

492620-B21 HP 146GB 6G SAS 10K SFF DP ENT HDD

507125-B21 HP 146GB 3G SAS 10K SFF DP ENT HDD

418367-B21 HP 146GB 6G SAS 15K SFF DP ENT HDD

512547-B21 HP 146GB 3G SAS 15K SFF DP ENT HDD

504062-B21 HP 72GB 6G SAS 15K SFF DP ENT HDD

512545-B21 HP 72GB 3G SAS 15K SFF DP ENT HDD

418371-B21 HP 72GB 3G SAS 10K SFF DP ENT HDD

384842-B21 SAS Hot Plug 3.5" Enterprise (ENT) Drives HP 600GB 6G SAS 15K 3.5" DP ENT HDD

516828-B21 HP 450GB 6G SAS 15K 3.5" DP ENT HDD

516816-B21 HP 450GB 3G SAS 15K 3.5" DP ENT HDD

454232-B21 HP 300GB 6G SAS 15K 3.5" DP ENT HDD

516814-B21 HP 300GB 3G SAS 15K 3.5" DP ENT HDD

416127-B21 HP 146GB 3G SAS 15K 3.5" DP ENT HDD

384854-B21

NOTE:

The purchase of SAS HBA or array controller is required.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL160 Generation 6

Core Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 22

Page 23

Communications

Gigabit Ethernet Adapters HP NC112T PCIe Gigabit Server Adapter

503746-B21

HP NC360T PCI Express Dual Port Gigabit Server Adapter

412648-B21

HP NC373F PCI Express Multifunction Gigabit Server Adapter

394793-B21

HP NC373T PCI Express Multifunction Gigabit Server Adapter

394791-B21

HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter

458492-B21

HP NC364T PCI Express Quad Port Gigabit Server Adapter

435508-B21

HP NC375T PCI Express Quad Port Gigabit Server Adapter

538696-B21 10 Gigabit Ethernet Adapters HP NC522SFP Dual Port 10GbE Server Adapter

468332-B21

NOTE:

A minimum of two Gigabtyes (2GB) of server memory is required for each NC522SFP adapter. NOTE:

Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

www.hp.com/go/ProLiantNICs

QuickSpecs

HP ProLiant DL160 Generation 6

Core Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 23

Page 24

Remote Management

HP LO100i Advanced Pack, No Media 1-Server License including 1 year of 24x7 Technical Support and Updates

NOTE:

For additional License Kits please see the Lights-Out 100i QuickSpecs at:

www.hp.com/go/lo100

530521-B21

HP Insight software

HP Insight Control for Linux HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical

Support and Updates, Electronic

T9084BAE

HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates.

464423-B22

HP Insight Control for Linux, Media pack (DVD) - No licenses included

NOTE:

Media pack DVD contains HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Licenses must be acquired separately NOTE:

This Media pack is optional because the latest ISO image and latest updates may be downloaded at no cost from:

http://www.hp.com/go/ic-linux

(click on

Download button).

464422-B22

NOTE:

Electronic licenses can be used to purchase multiple licenses with a single activation key, and are available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent. NOTE:

Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE:

For additional License Kits, including electronic licensing options, please see the QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html

HP Insight Control server deployment HP Insight Control server deployment Electronic License including 1 year 24x7

Technical Support and Updates

T9082AAE

HP Insight Control server deployment, Single-Server License including 1 year of 24x7 Technical Support and Updates

NOTE:

This license allows 1 server to be deployed. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service. NOTE:

Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent. NOTE:

For additional license kits including electronic delivery options, please see the Insight Rapid Deployment software QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html

452151-B21

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 24

Page 25

Graphic Cards

HP NVIDIA FX3700 512 MB PCI-E 16x Kit

NOTE:

Additional graphics and accelerator cards can be used via third party offering. If using the High Efficiency 500W Multi-output Power Supply Kit (P/N: 515915-B21) the following Graphics Card Power Adapter Kit (P/N: 533955-B21) should be used to supply additional power to the card. The Graphic card is supported on Non-hot plug models. For a graphic card and Hot plug functionality, please refer to HP Proliant DL 160se Generation 6.

490062-B21

Hot Plug HDD Backplane Option

HP 4HDD Hot Plug Backplane G6 Kit

NOTE:

Installation of the 4 HDD Hot Plug Backplane G6 Kit (512181-B21) is required if ordering third or fourth Hard Drives for Hot Plug models only.

512181-B21

HP 8SFF HDD Cage & Backplane G6, FIO

NOTE:

Installation of the HP 8SFF HDD Cage & Backplane G6 FIO Kit is required when installing small form factor drives.

515938-B21

Security

HP Trusted Platform Module Option Kit

488069-B21

Storage Controllers

NOTE:

The addition of storage controllers for internal hard drive use is intended for use ONLY with the Hot Plug SATA/SAS Model Chassis (P/N 491532-B21). The addition of a storage controller to the Non-Hot Plug Model Chassis (P/N 491531B21) is supported for external storage ONLY. NOTE:

To utilize the internal only slot, the HP Smart Array P410 Controller must be selected. The selection of the HP Smart Array P212 Controller for internal and external connectivity, will require the use of the Full Length Full Height PCI-E x16 slot NOTE:

With the HP Smart Array P410 Controller, the addition of the battery backed cache upgrade enables BBWC, RAID 5, 5+0, array expansion, logical drive extension, RAID migration, and stripe size migration. In order to upgrade to RAID 6, at least 256MB Cache and a Battery is required in addition to the HP Smart Array Advanced Pack license (P/N 516471-B21).

SAS Controllers Smart Array P212 Controller HP Smart Array P212/Zero Memory Controller

462828-B21

HP Smart Array P212/256MB Controller

462834-B21 Smart Array P410 Controller HP Smart Array P410/256MB Controller

462862-B21 HP Smart Array P410/512MB with BBWC

462864-B21 Storage Controllers for use with External Storage Only HP Smart Array P411/256MB Controller

462830-B21 HP Smart Array P411/512MB BBWC

462832-B21 Optional upgrades HP Smart Array Advanced Pack No Media 1-Server license including 1yr 24x7

Technical Support

516471-B21

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 25

Page 26

NOTE:

This part number can be used to purchase a single license or to order multiple licenses with a single activation key. Customers will receive a license entitlement certificate via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HP Software Technical Support Services.

SAS HBA HP SC08Ge Host Bus Adapter

488765-B21

NOTE:

Please see the following QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html

(Smart Array P212 Controller)

http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html

(Smart Array P410 Controller)

http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html

(Smart Array P411 Controller)

http://h18000.www1.hp.com/products/quickspecs/13200_div/13200_div.html

(Smart Array Advanced Pack)

http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html

(SC08Ge HBA)

HPC Specific Options

HP IB 4X DDR Conn-X PCI-e G2 Dual Port HCA

483514-B21

HP IB 4X DDR PCI-e DUAL PORT HCA

448397-B21

HP IB 4X QDR Conn-X PCI-e G2 Dual Port HCA

517721-B21

HP 4X QDR PCI-e G2 QLogic InfiniBand Dual Port HCA

583211-B21

HP IB 4X QDR CX-2 PCI-e G2 Dual Port HCA

592520-B21

HP IB 4X DDR CX-2 PCI-e G2 Dual Port HCA

592521-B21

NOTE:

For HPC interconnect adapters please see the HPC Interconnect section of this QuickSpecs.

Tape Storage

NOTE:

For the complete listing of Tape Drive offerings, please see:

http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html

Tape Drives USB Rack-Mount Tape Drives HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive

NOTE:

Pre-configured with one DAT 160 USB tape drive.

AG703A

SAS Rack-Mount Tape Drives

NOTE:

HP recommends purchasing the HP Smart Array P212 (P/N 464828-B21) for a dedicated SAS HBA for tape.

HP StorageWorks 1U SAS Rack-Mount Kit with one LTO-4 Ultrium 1760

NOTE:

Pre-configured with one LTO-4 Ultrium 1760 SAS tape drive.

EH946A

HP StorageWorks 1U SAS Rack-Mount Kit

NOTE:

Supports up to (2) half-height SAS tape drives.

AE459A

HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive

NOTE:

Mounts inside the 1U SAS Rack-Mount Kit (AE459A).

DW085A

HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive

NOTE:

Mounts inside the 1U SAS Rack-Mount Kit (AE459A).

EH847A

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 26

Page 27

For an up-to-date listing of the latest operating system and software support details for HP Ultrium tape drives, please visit:

http://www.hp.com/go/connect

Tape Autoloaders HP StorageWorks 1/8 G2 Tape Autoloader HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader

AK377A

HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader

AH558A

HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit

NOTE:

Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;

includes rails and rackmount instructions.

AH166A

Tape Libraries HP StorageWorks MSL2024 Tape Library HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library

AK378A

HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library

AH559A HP StorageWorks MSL4048 Tape Library HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library

AK380A

HP StorageWorks MSL4048 1 Ultrium 920 SAS Drive Library

AH560A

NOTE:

HP P212 Smart Array Controller SAS (462828-B21) is recommended for a dedicated HBA for SAS tape autoloader connection NOTE:

HP SC44Ge SAS Host Bus Adapter (416096-B21) is recommended for a dedicated HBA for SAS tape library connection. NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://www.hp.com/go/automation

needed to create a complete

solution; reference current compatibility information at:

http://www.hp.com/go/ebs

Disk-Based Backup

RDX Removable Disk Backup HP StorageWorks RDX320 External Removable Disk Backup System

NOTE:

320GB of Disk Storage.

AJ768A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html

D2D Backup HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit

NOTE:

2TB of Disk Storage.

EH924A

HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive

NOTE:

3TB of Disk Storage.

EH952A

HP StorageWorks D2D2502i Backup System

NOTE:

2 TB raw capacity/1.5 TB useable capacity

EJ001A

HP StorageWorks D2D4004i Backup System

EH938A

HP StorageWorks D2D2504i Backup System

EJ002A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 27

Page 28

StorageWorks Options

StorageWorks Fibre Channel HBA

NOTE:

The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see:

http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs HP 81B PCIe 8Gb FC Single Port HBA

AP769A

HP 82B PCIe 8Gb FC Dual Port HBA

AP770A

HP 41B PCIe 4Gb FC Single Port HBA

AP767A

HP 42B PCIe 4Gb FC Dual Port HBA

AP768A Emulex Fibre Channel HBAs HP StorageWorks 81E 8Gb SP PCI-e FC HBA

AJ762A

HP 82E 8Gb Dual-port PCI-e FC HBA

AJ763A

HP StorageWorks FC2142SR 4Gb PCI-e HBA

A8002A

HP StorageWorks FC2242SR 4Gb DC PCI-e FC HBA

A8003A QLogic Fibre Channel HBAs HP StorageWorks 81Q PCI-e FC HBA

AK344A

HP 82Q 8Gb Dual Port PCI-e FC HBA

AJ764A

HP StorageWorks FC1142SR 4Gb PCI-e HBA

AE311A

HP StorageWorks FC1242SR Dual Channel 4 Gb PCI-e HBA

AE312A StorageWorks SCSI HBA HP U320e SCSI Host Bus Adapter

NOTE:

Recommended Dual Channel Ultra320 SCSI Controller for connecting multi-

drive MSL tape libraries to ProLiant servers.

AH627A

HP StorageWorks Modular Smart Array

MSA SAN Storage Arrays HP StorageWorks 50 Modular Smart Array

364430-B21

NOTE:

Rack-mountable 10 SFF drive enclosure with single I/O module, redundant hot plug power supplies and hot plug fans. NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html

(Worldwide)

HP StorageWorks 60 Modular Smart Array

418408-B21

NOTE:

Rack-mountable 12-drive (3.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies. NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html

(Worldwide)

HP StorageWorks 70 Modular Smart Array

418800-B21

NOTE:

Rack-mountable 25-drive (2.5" 3G SAS/1.5G SATA) 2U enclosure with 3Gb/s SAS host connectivity and redundant power supplies. NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html

(Worldwide)

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 28

Page 29

Uninterruptible Power Systems

HP Rack-mountable UPS HP UPS R1500 G2 UPS HP, R1.5k VA UPS, 1U, NA

AF419A

HP, R1.5kVA UPS, 1U, INTL

AF418A

HP, R1.5kVA UPS, 1U, JPN/TW

AF421A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13130_div/13130_div.html

(Worldwide) NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html

(Worldwide) NOTE:

For additional information on HP Uninterruptable Power Systems please go to:

www.hp.com/servers/rackups

HP R3000 UPS HP R3000 VA UPS, 2U, DTC, INTL

AF414A

HP R3000 VA UPS, 2U, Low Voltage L5-30, NA

AF422A

HP R3000 VA UPS, 2U, High Voltage L6-20, NA

AF423A

HP R3000 VA UPS, 2U, High Voltage L6-20, JPN

AF424A

HP R3000 VA UPS, 2U, Low Voltage L5-30, JPN

AF425A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/10671_div/10671_div.html

(Worldwide)

HP R3000v Uninterruptible Power System HP R3000v UPS

NOTE:

The R3000v is available in China and India only.

AF444A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html

(Worldwide)

HP Rack-Mountable R5500 UPS HP R5500 VA UPS, INTL

AF416A

HP R5500 VA UPS, NA/JPN

AF426A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html

(Worldwide) NOTE:

For additional information on HP Uninterruptable Power Systems please go to:

www.hp.com/servers/rackups

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 29

Page 30

Power Distribution Units

Monitored PDUs HP Monitored Power Distribution Unit: Full Rack Version HP 17.3 kVA S2324 Monitored PDU- dual input, 3Ø, 24A (NA/JPN)

AF503A

HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)

AF504A

HP 16.6 kVA S2140 Monitored PDU- dual input, 1Ø, 40A (NA/JPN)

AF505A

HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN)

AF506A

HP 22.1 kVA S2316 Monitored PDU- dual input, 3Ø, 16A (INTL)

AF507A

HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)

AF508A

HP 14.7 kVA S2132 Monitored PDU- dual input, 1Ø, 32A (INTL)

AF509A

HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL)

AF510A HP Monitored Power Distribution Unit: Half Rack Version HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)

AF914A HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)

AF915A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html

(Worldwide)

Modular PDUs 1U/0U

(Up to 28 outlets)

NOTE:

1U/0U mounting brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks).

Fixed Cord Extension Bars

NOTE:

Two extension bar sticks; each with (7) C13 plugs.

351655-B21

3.6kVA Model - mPDU, 16A, High (WW)

252663-B24

2.8 kVA Model - mPDU, 24A, Low (NA/JPN)

252663-D71

4.9kVA Model - mPDU, 24A, High (NA/JPN)

252663-D72

7.3kVA Model - mPDU, 32A, High (INT'L)

252663-B31

8.3kVA Model - mPDU, 40A, High (WW)

252663-B21

8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)

252663-D73

9.2kVA Model - mPDU, 40A, High (power cord attached) (INTL)

252663-B32

NOTE:

For additional information on HP Power Distribution Units including accessories please go to:

www.hp.com/go/pdu

(Worldwide)

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 30

Page 31

HP Rack Series

HP Rack 10000 G2 Series

(Carbon/Graphite Metallic)

10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet

AF034A

10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet

AF038A

10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet

AF044A

10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet

AF045A

10622 G2 (22U) Rack Cabinet - Shock Pallet

AF022A

NOTE:

It is mandatory to use a shock pallet when shipping racks with equipment installed. NOTE:

xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).

NOTE:

Please see the QuickSpecs for additional information:

http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html

(Worldwide) NOTE:

For additional information regarding Rack Cabinets, please see the following URL:

www.racksolutions.com/hp

HP Rack Options

HP KVM Switch Options 2x1x16 IP Console Switch with Virtual Media

AF601A

4x1x16 IP Console Switch with Virtual Media

AF602A

2x16 Server Console Switch with Virtual Media

AF600A

HP Server Console Switch (KVM), 0 x 2 x 8 port

AF616A

HP Server Console Switch (KVM), 0 x 2 x 16 port

AF617A

HP 1x4 Console Switch

AF611A

HP USB Server Console Cable, 6 foot, 2-Pack

NOTE:

required for supporting USB peripherals.

AF613A

NOTE:

Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL:

http://www.hp.com/go/kvm

HP Serial Console Server Options HP 16 Port Serial Console Server (worldwide)

AF101A

HP 48 Port Serial Console Server (worldwide)

AF102A

Serial Adapter, RJ45-D89 DCE Female, 1-pack

AF103A

Serial Adapter, RJ45-D89 DCE Female, 8-pack

AF110A

0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC

AF618A

0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC

AF619A

1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC

AF620A

2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC

AF621A

4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC

AF622A

USB Virtual Media, CAC Interface Adapter

AF623A

PS2/USB Virtual Media, CAC Interface Adapter, 1 pack

NOTE:

Requires PS/2 mouse and keyboard connections and one USB port on server.

AF624A

HP KVM CNSL SRL/PWR G2 ITFC ADPTR

NOTE:

VT100 True Serial.

AF625A

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 31

Page 32

NOTE:

For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL:

http://www.hp.com/go/kvm

USB Options

USB 1.44-MB External Diskette Drive

DC141B

USB Floppy Drive

DC361B

HP USB-P/S2 Mouse

DC369A

HP Keyboard (USB) standard 2004

DT528A#xxx

HP External USB CD/DVD R/RW Optical Drive

FS943AA

HP Internal USB Cable G6 Kit

NOTE:

In order to connect a USB device internally, the internal USB Cable G6 Kit (536769-B21) must be used.

536769-B21

Service and Support Offerings (HP Care Pack Services)

Hardware Services 4-Hour On-site Service 13-Hour x 5-Day Coverage, 3 Years, Electronic

U9509E

24-Hour x 7 Day Coverage, 3 Years, Electronic

U9510E Hardware Services 6-Hour Call to Repair On-Site Service 6-Hour Call to Repair On-Site Service, 7-Day x 24-Hour Coverage 3 Years, Electronic

U9511E Hardware Services 9-Hour x 5-Day Coverage, 3 Years, Electronic

U9508E Hardware Installation, Electronic

U9520E

NOTE:

For more information, customer/resellers can contact:

http://www.hp.com/services/carepack

QuickSpecs

HP ProLiant DL160 Generation 6

Additional Options

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 32

Page 33

HP ProLiant DL160 G6 (all models)

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

Standard Memory 4GB (2x2GB) or 6GB (3 x 2GB) depending on model, PC3-10600E Unbuffered UDIMM memory, with ECC.

Maximum Memory Up to 192GB memory is available with the optional installation of quad-rank PC3-8500R-7 16GB Registered RDIMM memory kits.

NOTE:

Charts do not represent all possible memory configurations.

DDR3 memory population guidelines

NOTE:

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

For servers with eighteen (18) memory slots:

There are three (3) channels per processor; six (6) channels per server There are three (3) DIMM slots for each memory channel; eighteen (18) total slots Memory channel 1 consists of the three (3) DIMMs that are closest to the processor

Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor DIMM slots that are white should be populated first Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs) Do not install DIMMs if the corresponding processor is not installed If only one processor is installed in a 2CPU system, only half of the DIMM slots are available To maximize performance, balance the total memory capacity between all installed processors It is not required, but it is recommended to load the channels similarly if possible You can only have up to eight (8) ranks installed per channel You can only install two quad-rank DIMMs per channel You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset No mixing DIMM voltage; all DIMMs must be the same voltage

DIMM Type ->

Registered DIMMs (RDIMMs)

Unbuffered with ECC

DIMMs (UDIMMs)

DIMM Rank ->

Dual Rank (2R)

Quad Rank (4R)

Single

Rank (1R)

Dual Rank

(2R)

DIMM Capacity ->

2GB 4GB 8GB 8GB 4GB

16 GB

1GB 2GB

DIMM Native Speed (MHz) ->

1333 1333 1066 1333 1066 1066 1333 1333

SLOTS THAT CAN BE POPULATED 18 slot servers

18 18 18 18 12 12 12 12

MAXIMUM CAPACITY (GB) 18 slot servers

36 72 144 144 48 192 12 24

POPULATED DIMM SPEED (MHz) 1 DIMM Per Channel

1333 1333 1066 1333 1066 1066 1333 1333

2 DIMM Per Channel

1333 1333 1066 1333

800 800 1066 1066

QuickSpecs

HP ProLiant DL160 Generation 6

Memory

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 33

Page 34

3 DIMM Per Channel

800 800 800 800

not

supported

not

supported

not

supported

not

supported

NOTE:

* Supported with ROM update via ROM Based Setup Utility (RBSU). UDIMM support is on12-slot server.

NOTES:

Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the slower DIMM is on the other processor If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other channels, you run at 1066MHz If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz 95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's are capable of up to 1066MHz References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.

DIMM slot and configuration diagrams Basic memory slot & population diagram

Population order; start with "A" first, "B" second, "C" third, etc.

18 DIMM SLOTS (9 per CPU node)

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

Chnl 2

Chnl 3

Standard memory configuration (1 CPU model)

6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs

QuickSpecs

HP ProLiant DL160 Generation 6

Memory

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 34

Page 35

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; empty

C; 2GB DIMM

C; empty

Standard memory plus optional memory (1 CPU model)

54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs 3x 2GB dual-rank PC3-10600 RDIMMs 6x 8GB dual-rank PC3-10600 or PC3-8500 RDIMMs

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

G; 8GB DIMM

G; empty

Chnl 1

D; 8GB DIMM

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; 8GB DIMM

H; empty

Chnl 2

E; 8GB DIMM

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; 8GB DIMM

I; empty

Chnl 3

F; 8GB DIMM

F; empty

C; 2GB DIMM

C; empty

Standard memory replaced with optional memory (1 CPU model) RDIMM maximum configuration

96GB, consisting of six (6) 16GB quad-rank PC3-8500R-7 RDIMMs

QuickSpecs

HP ProLiant DL160 Generation 6

Memory

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 35

Page 36

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 16GB DIMM

D; empty

A; 16GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; 16GB DIMM

E; empty

B; 16GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; 16GB DIMM

F; empty

C; 16GB DIMM

C; empty

UDIMM maximum configuration (1 CPU model)

12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 2GB DIMM

D; empty

A; 2GB DIMM

A; empty

Chnl 2

H; empty

Chnl 2

E; 2GB DIMM

E; empty

B; 2GB DIMM

B; empty

Chnl 3

I; empty

Chnl 3

F; 2GB DIMM

F; empty

C; 2GB DIMM

C; empty

Standard memory replaced with optional memory (2 CPU model) RDIMM maximum configuration

192GB, consisting of twelve (12) 16GB quad-rank PC3-8500R-7 RDIMMs

QuickSpecs

HP ProLiant DL160 Generation 6

Memory

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 36

Page 37

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 16GB DIMM

A; 16GB DIMM

Chnl 2

H; empty

Chnl 2

E; 16GB DIMM

B; 16GB DIMM

Chnl 3

I; empty

Chnl 3

F; 16GB DIMM

C; 16GB DIMM

UDIMM maximum configuration (2 CPU model)

24GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

G; empty

Chnl 1

D; 2GB DIMM

A; 2GB DIMM

Chnl 2

H; empty

Chnl 2

E; 2GB DIMM

B; 2GB DIMM

Chnl 3

I; empty

Chnl 3

F; 2GB DIMM

C; 2GB DIMM

NOTE:

Capacity references are rounded to the common Gigabyte values.

1GB = 1024MB 2GB = 2048MB 4GB = 4096MB 8GB = 8192MB

QuickSpecs

HP ProLiant DL160 Generation 6

Memory

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 37

Page 38

Following are memory options available from HP: Memory

Registered DIMMs (RDIMMs) HP 2GB 2Rx8 PC3-10600R-9 Kit

500656-B21

HP 4GB 2Rx4 PC3-10600R-9 Kit

500658-B21

HP 4GB 4Rx8 PC3-8500R-7 LP Kit

500660-B21

HP 8GB 2Rx4 PC3-10600R-9 Kit

500662-B21

HP 8GB 2Rx4 PC3-8500R-7 Kit

516423-B21

HP 16GB 4Rx4 PC3-8500R-7 Kit

500666-B21 Unbuffered with ECC DIMMs (UDIMMs) HP 1GB 1Rx8 PC3-10600E-9 Kit

500668-B21 HP 2GB 2Rx8 PC3-10600E-9 Kit

500670-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-

efficient

QuickSpecs

HP ProLiant DL160 Generation 6

Memory

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 38

Page 39

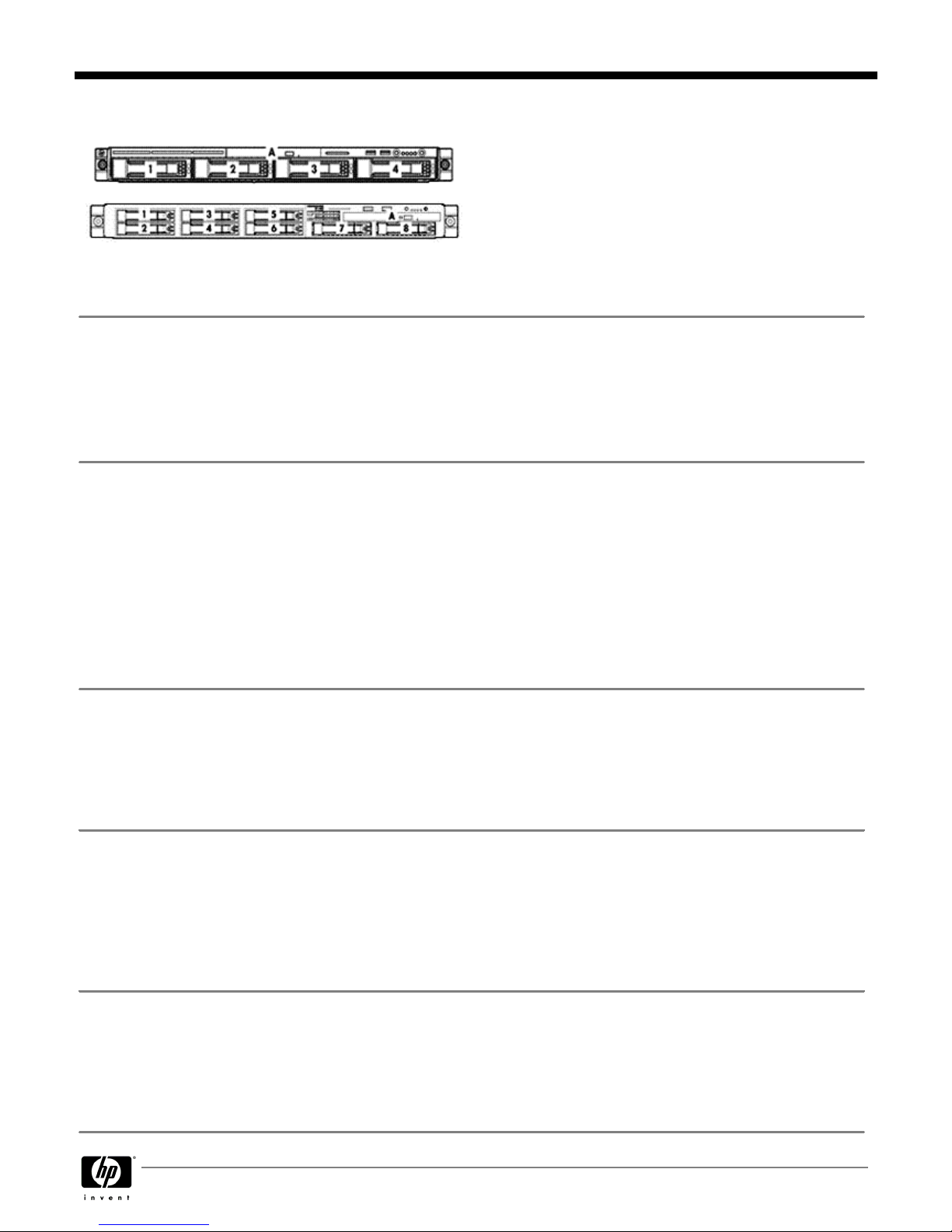

1-4

Four Non-hot plug SATA or four 3.5" Hot-plug SAS/SATA hard drive bays

Optional DVD-ROM, or DVD RW

1-8

Eight Hot-plug SATA/SAS hard drive bays

Optional DVD-ROM, or DVD RW

Drive Support

Quantity

Supported

Position

Supported

Controller Removable Media DVD-ROM

Up to 1

Integrated IDE (ATAPI) (optional) DVD RW

Up to 1

Integrated IDE (ATAPI) (optional)

Hard Drives

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

SATA Hot Plug SFF Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

500GB 3GSATA 7.2K 160GB 3G SATA 7.2K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

SATA Hot Plug SFF Entry (ETY) Drives

Quantity

Supported

Position

Supported

Controller

250GB 3G SATA 5.4K 120GB 1.5G SATA 5.4K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

SATA Non-Hot Plug 3.5" Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

750GB 3G SATA 7.2K 500GB 3GSATA 7.2K 250GB 3G SATA 7.2K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

SATA Non-Hot Plug 3.5" Entry (ETY) Drives

Quantity

Supported

Position

Supported

Controller

160GB 3G SATA 7.2K

Up to 4

1-4

HP Embedded SATA RAID Controller

NOTE:

Transfer rate: 1.5 Gb/s SATA

QuickSpecs

HP ProLiant DL160 Generation 6

Storage

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 39

Page 40

SATA Hot Plug 3.5" Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

1TB 3G SATA 7.2K 750GB 3G SATA 7.2K 500GB 3G SATA 7.2K 250GB 3G SATA 7.2K 160GB 3G SATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller HP Smart Arrays P410 Controller

NOTE:

Transfer rates up to 1.5 Gb/s

SATA Hot Plug 3.5" Entry (ETY) Drives

Quantity

Supported

Position

Supported

Controller

160GB 3G SATA 7.2K

Up to 4

1-4

HP Smart Array P212 Controller HP Smart Arrays P410 Controller

NOTE:

Transfer rates up to 1.5 Gb/s

SATA Hot Plug Midline (MDL) Solid State Drives

Quantity

Supported

Position

Supported

Controller

60GB 3.0G SATA SSD 120GB 3.0G SATA SSD

Up to 8

1-8

HP Smart Array E200i/64MB Controller HP Smart Array E200i/128 BBWC Controller HP Smart Array E500/256MB Controller HP Smart Array P400/256MB Controller HP Smart Array P400/512MB BBWC Controller HP Smart Array P600/256 BBWC Controller HP Smart Array P800/512 BBWC Controller

SATA Hot Plug 3.5" Midline (MDL) Solid State Drives

Quantity

Supported

Position

Supported

Controller

60GB 3.0G SATA SSD 120GB 3.0G SATA SSD

Up to 4

1-4

SAS Hot Plug SSF Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

500 6G SAS 7.2K

Up to 4

1-4

HP Smart Array P212 Controller HP Smart Arrays P410 Controller

NOTE:

Support for transfer rates up to 3 Gb/s

SAS Hot Plug SFF Midline (MDL) Drives

QuickSpecs

HP ProLiant DL160 Generation 6

Storage

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 40

Page 41

Quantity

Supported

Position

Supported

Controller

500GB 6G SAS 7.2K DP

Up to 8

1-8

HP Smart Array P800/512 BBWC Controller HP Smart Array P212/Zero Memory Controller HP Smart Array P212/ 256 MB Controller HP Smart Array P410/256 MB Controller HP Smart Array P410/512 MB BBWC Controller HP Smart Array P411/256 MB Controller HP Smart Array P411/512 MB BBWC Controller

SAS Hot Plug 3.5" Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

1TB 3G SAS 7.2K 750 3G SAS 7.2K

Up to 4

1-4

HP Smart Array P212 Controller HP Smart Arrays P410 Controller

NOTE:

Support for transfer rates up to 3 Gb/s

SAS Hot Plug SFF Enterprise (ENT) Drives

Quantity

Supported

Position

Supported

Controller

300GB 6G SAS 10K 300GB 3G SAS 10K 146GB 6G SAS 15K 146GB 3G SAS 15K 146GB 6G SAS 10K 146GB 3G SAS 10K 72GB 6G SAS 15K 72GB 3G SAS 10K

Up to 4

1-4

HP Smart Array P212 Controller HP Smart Array P410 Controller

NOTE:

Support for transfer rates up to 3 Gb/s

SAS Hot Plug 3.5" Enterprise (ENT) Drives

Quantity

Supported

Position

Supported

Controller

600GB 6G SAS 15K 450GB 6G SAS 15K 450GB 3G SAS 15K 300GB 6G SAS 15K 300GB 3G SAS 15K 146GB 3G SAS 15K

Up to 4

1-4

HP Smart Array P212 Controller HP Smart Array P410 Controller

NOTE:

Support for transfer rates up to 3 Gb/s

QuickSpecs

HP ProLiant DL160 Generation 6

Storage

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 41

Page 42

External Storage

Quantity

Supported

Position

Supported

Host Controller or Adapter

20 Modular Smart Array

Up to 2 per SA-

6402

Up to 4 per SA-

6404

External

HP Smart Array P212/256MB Controller HP Smart Array P212/256MB Controller HP Smart Array P411/256MB Controller

50 Modular Smart Array

Up to 2

External

60 HP StorageWorks Modular Smart Array

Up to 8

External

70 HP StorageWorks Modular Smart Array

Up to 8

External

Tape and Disk-Based Backup

NOTE:

For a complete listing of compatible tape and disk-based backup offerings, please visit:

http://www.hp.com/go/connect

Position

Supported

Controller

Controller/HBA

Option Kit Part

Number

HP StorageWorks SCSI Tape Drives, External LTO-1 Ultrium 232 LTO-2 Ultrium 448 LTO-3 Ultrium 920 LTO-3 Ultrium 960 LTO4 Ultrium 1760 LTO-4 Ultrium 1840 DAT 40 DAT 72 DAT 160 1U Rack-Mount Kit 3U Rack-Mount Kit

External

HP SC11Xe Host Bus Adapter

412911-B21

HP StorageWorks USB Tape Drives, External DAT 40 USB DAT 72 USB DAT 160 USB DAT 320 USB 1U USB Rack-Mount Kit

External

USB 2.0 Port

N/A

HP StorageWorks SAS Tape Drives, External DAT 160 SAS LTO-2 Ultrium 448 SAS LTO-3 Ultrium 920 SAS LTO-4 Ultrium 1760 SAS LTO-4 Ultrium 1840 SAS 1U Rack-Mount Kit

External

HP Smart Array P212/Zero Memory (ZM) Controller

462828-B21

QuickSpecs

HP ProLiant DL160 Generation 6

Storage

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 42

Page 43

3U Rack-Mount Kit

HP StorageWorks SCSI Tape Automation, External DAT 72x10 Autoloader 1/8 G2 Autoloader MSL2024 MSL4048

External

HP SC11Xe Host Bus Adapter HP U320e SCSI Host Bus Adapter

NOTE:

Recommended for MSL tape libraries.

412911-B21

AH627A

HP StorageWorks SAS Tape Automation, External 1/8 G2 Autoloader MSL2024 MSL4048

External

HP Smart Array P212/Zero Memory (ZM) Controller

462828-B21

HP StorageWorks Fibre Tape Automation, External MSL2024 MSL4048 MSL8096 MSL6000

External

Please consult the EBS connectivity matrix at:

http://www.hp.com/go/ebs

for detailed connectivity information.

N/A

HP StorageWorks RDX Removable Disk Backup System, External RDX160 RDX320 RDX500

External

USB 2.0 port

N/A

HP StorageWorks D2D Backup Systems D2D120 D2D130 D2D2500i D2D4000i

External

Embedded Network Controller

N/A

QuickSpecs

HP ProLiant DL160 Generation 6

Storage

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 43

Page 44

HP 750W Power Supply Part Number - AC 750W PSU

512327-B21 Option Kit

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

100 120 200 208 220 230 240

Max Rated Output Wattage Rating

750 750 750 750 750 750 750

Nominal Input Current (A rms)

8.9 7.4 4.3 4.1 3.9 3.7 3.6

Max Rated Input Wattage Rating (Watts)

857 847 824 825 820 820 820

Max. Rated VA (Volt-Amp)

894 884 859 859 854 854 854

Efficiency (%) at Max. Rated Output Wattage

87.5 88.5 91 91 91.5 91.5 91.5

Power Factor

0.97 0.97 0.97 0.97 0.97 0.97 0.97

Leakage Current (mA)

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20 20

Maximum British Thermal Unit Rating (BTU-Hr)

2925 2892 2812 2812 2797 2797 2797

HP 500W Power Supply Part Number - AC 500W PSU

515915-B21 Option Kit

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

47/63

Nominal Input Voltage (Vrms)

100 120 200 220 230 240

Maximum Rated Output Wattage

500 500 500 500 500 500

Nominal Input Current (A rms)

5.74 4.99 2.86 2.58 2.46 2.36

Max Rated Input Wattage Rating (Watts)

568 568 562 556 556 556

Max. Rated VA (Volt-Amp)

574 574 573 567 567 567

Efficiency (%) at Max. Rated Output Wattage

88 88 89 90 90 90

Power Factor

0.99 0.99 0.98 0.98 0.98 0.98

Leakage Current (mA)

0.42 0.50 0.81 0.91 0.95 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20

Maximum British Thermal Unit Rating (BTU-Hr)

QuickSpecs

HP ProLiant DL160 Generation 6

Power Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 44

Page 45

HP 460W Power Supply Part Number - AC 460W PSU

532092-B21 Option Kit

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

100 120 200 208 220 230 240

Maximum Rated Output Wattage

460 460 460 460 460 460 460

Nominal Input Current (A rms)

5.5 4.5 2.6 2.5 2.4 2.3 2.2

Max Rated Input Wattage Rating (Watts)

526 520 505 505 503 503 503

Max. Rated VA (Volt-Amp)

548 542 527 527 524 524 524

Efficiency (%) at Max. Rated Output Wattage

87.5 88.5 91 91 91.5 91.5 91.5

Power Factor

0.97 0.97 0.97 0.97 0.97 0.97 0.97

Leakage Current (mA)

0.42 0.50 0.83 0.87 0.92 0.96 1.00

Max. Inrush Current (A peak)

30 30 30 30 30 30 30

Max. Inrush Current duration (mS)

20 20 20 20 20 20 20

Maximum British Thermal Unit Rating (BTU-Hr)

1794 1773 1725 1725 1715 1715 1715

HP 400W Power Supply Part Number - AC 400W PSU

532092-B21 Option Kit

Input Voltage Range (Vrms)

100 to 240

Frequency Range (Nominal) (Hz)

50/60

Nominal Input Voltage (Vrms)

100 120 200 208 220 230 240

Maximum Rated Output Wattage

320 320 360 360 360 360 360

Nominal Input Current (A rms)

4.15 3.41 2.23 2.16 2.03 1.94 1.86

Max Rated Input Wattage Rating (Watts)

412 406 445 445 444 443 443

Max. Rated VA (Volt-Amp)

413 407 447 447 446 446 445

Efficiency (%) at Max. Rated Output Wattage

77.4 78.5 80.5 80.6 80.7 80.8 81.0

Power Factor

0.99 0.99 0.99 0.99 0.99 0.99 0.99

Leakage Current (mA)

0.75 0.75 0.85 0.90 0.95 0.95 1.00

Max. Inrush Current (A peak)

35 35 35 35 35 35 35

Max. Inrush Current duration (mS)

20 20 20 20 20 20 20

Maximum British Thermal Unit Rating (BTU-Hr)

1354 1334 1462 1462 1459 1456 1456

NOTE: To review typical system power ratings use the Active Answers Power Advisor which is available via the online tool located at URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

QuickSpecs

HP ProLiant DL160 Generation 6

Power Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 45

Page 46

Power ProLiant DL160 G6 Fully Configured

115V/60Hz 220V/50Hz

Fully Loaded System Input Wattage

(W)

448 445

Fully Loaded System Input Current

(A rms)

3.833 2.046

Fully Loaded System Thermal

(BTU- Hr)

1529 1518

Fully Loaded System VA

(Volt-Amp)

449 454

System Inrush Current with all power supplies loaded

(A)

10.1 10.96

Power cord requirements

Nema 5-15P to IEC320-C13

IEC320-C13 to IEC320-C14

NOTE:

Power shown is for a fully configured system consisting of (2) CPU, (8) double-sided DIMMs, (2) HDDs, (1) CD-ROM, and (2)

PCI cards.

Power Cord

AF556A

Server Power Cords

One 6' Highline (IEC-IEC) power cord ships standard

NOTE:

If customers require a local power cord, they can check the power cord matrix for the appropriate cord. Please see the following power cord matrix:

http://www.hp.com/go/powercordmatrix

QuickSpecs

HP ProLiant DL160 Generation 6

System Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 46

Page 47

System Unit

Dimensions

(H x W x D)

(with bezel)

1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)

Weight (approximate)

Maximum (all hard drives, power supplies, and processors installed)

34.00 lb (16.78 kg)

Minimum (one hard drive, power supply, and processor installed)

28.00 lb (12.7 kg)

Input Requirements (per power supply)

Rated Line Voltage

90 to 132 VAC 180 to 264 VAC

Rated Input Current

5. 8 Amps (at 100 VAC) to 2.9 Amps (at 200 VAC)

Rated Input Frequency

47 to 63 Hz

BTU Rating

Rated Input Power

570W (at 100 VAC) 565W (at 200 VAC)

Maximum

500W

1940 BTU / hr (at 100 VAC) 1920 BTU/hr (at 200 VAC)

460W

1773 BTU / hr (at 120 VAC) 1715 (at 240 VAC)

750W

2892 BTU / hr (at 120 VAC) 2797 (at 240 VAC)

Power Specifications

To review typical system power ratings use the Power Advisor which is available via the online tool located at URL:

www.hp.com/go/proliant-energy-efficient

www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: DL160 G6

- Follow the instructions of the next screens.

Power Supply Output (per power supply)

Rated Steady-State Power

500 Watts (at 100 VAC), 500 Watts (at 200 VAC)

Maximum Peak Power (See Power Specifications Tables)

500Watts (at 100 VAC), 500 Watts (at 200 VAC)

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

QuickSpecs

HP ProLiant DL160 Generation 6

Technical Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 47

Page 48

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity (non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

LWAd

6.3B

LpAm

48dBA

Operating

LWAd

6.3B

LpAm

48dBA

Emissions Classification (EMC)

FCC Rating

Class A

Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

NOTE:

Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

QuickSpecs

HP ProLiant DL160 Generation 6

Technical Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 48

Page 49

Non-Hot Plug SATA Hard Drives

160-GB 7.2K 458947-B21

Capacity

160,041 MB

Height

1.028 in (2.61 cm)

Width

4.0 in (10.16 cm)

Depth

5.787 in (147.0 mm)

Interface

SATA ATA

Transfer Rate Synchronous (Maximum)

1.5Gb/s

Seek Time

(typical reads,

including settling)

Single Track

0.9 ms

Average

9.0 ms

Full-Stroke

17.8 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

312,581,808

Operating Temperature

41° to 131° F (5° to 55° C)

NC362i Integrated Dual Port Gigabit Server Adapter

Network Interface

Integrated 10/100/1000BASE-T Transceiver Combines a triple-speed IEEE 802.3TM - Compliant Media Access

Controller (MAC) with a triple-speed Ethernet transceiver.

Data Transfer Method

Compliant to x1 PCIe Specification

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s

10Base-T (Full-Duplex)

20 Mb/s

100Base-TX (Half-Duplex)

100 Mb/s

100Base-TX (Full-Duplex)

200 Mb/s

1000Base-TX (Half and Full-Duplex)

2000Mb/s

Connector

RJ-45 connector

Cable Support

Performs all the physical layer functions for 10BASE-T, 100BASE-T, and 1000BASE-T Ethemet on standard Category 5 UTP

QuickSpecs

HP ProLiant DL160 Generation 6

Technical Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 49

Page 50

Smart Array P410/410i Controller

Disk Drive and Enclosure Interface

6Gb/s SAS (Serial Attached SCSI) 3Gb/s SATA (Serial ATA)

SAS Connectors

2 internal (Mini-SAS) x8 wide port connectors

Cache Memory Speed

DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.

Server Interface

x8 2.5G PCIe 2.0 provides 2GB/s maximum bandwidth

SAS Speed

x8 6Gb/s SAS provides 4.8GB/s maximum bandwidth

Cache Memory

40-bit 256MB ECC protected cache (72-bit 512MB BBWC module upgrades available); transportable with battery-backed upgrade

Logical Drives Supported

Up to 64 logical drives

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

RAID Support

RAID 6, 6+0 (Advanced Data Guarding)

NOTE:

The minimum of 256 MB cache, battery kit, and Smart Array

Advanced Pack License Key upgrade is required to enable RAID 6, 6+0

RAID 5, 5+0 (Distributed Data Guarding)

NOTE:

The 256 MB is required to enable RAID 5, 5+0 support of the Smart

Array P410i

RAID 1+0 (Striping & Mirroring) RAID 0 (Striping)

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/green

. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant DL160 Generation 6

Technical Specifications

DA - 13247 Worldwide QuickSpecs — Version 11 — 11.16.2009

Page 50
