Page 1
HP ProLiant DL100 G2 Data
Protection Storage Server
installation guide
This guide provides installation and configuration information for the
HP ProLiant DL100 G2 Data Protection Storage Server with Microsoft®
Windows® Storage Server 2003 R2.
*5697-5868*
Part number: 5697–5868
First edition: June 2 006
Page 2
Legal and notice information
© Copyright 2006 Hewlett-Packard Development Company, L.P.
Hewlett-Packard Company makes no warranty of any kind with regard to this material,
including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing, performance, or
use of this material.
This document contains proprietary information, which is protected by copyright. No part
of this document may be photocopied, reproduced, or translated into another language
without the prior written consent of Hewlett-Packard. The information contained in this
document is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting as additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft
®
,Windows®, and Windows NT®are U.S. registered trademarks of Microsoft
Corporation.
UNIX® is a registered trademark of The Open Group.
Hewlett-Packard Company shall not be liable for technical or editorial errors of omissions
contained herein. The information is provided “as is” without warranty of any kind and is
subject to change without notice. The warranties for Hewlett-Packard Company products
are set forth in the express limited warranty statements for such products. Nothing herein
should be construed as constituting an additional warranty.
Page 3
Contents
Aboutthisguide............. 7
Intendedaudience ...................... 7
Gettinghelp ......................... 7
Relateddocumentation..................... 7
Conventions ......................... 8
Documentconventionsandsymbols............. 9
Textsymbols....................... 9
Equipmentsymbols ..................... 10
HPtechnicalsupport..................... 11
HPsubscriber’schoice.................. 12
HP-authorizedreseller.................. 12
Otherhelpfulwebsites ................. 12
1Setupoverview ............ 13
Planningforinstallation ................... 13
Planninganetworkconfiguration ............... 15
Configurationchecklist.................... 15
2Installingtheserver........... 17
Checkingkitcontents .................... 18
Becomingfamiliarwithfront/backpanels............ 19
Locatingandwritingdowntheserialnumber .......... 20
Completingrailkitinstallation................. 20
Cablingtheserver ..................... 21
Poweringontheserver.................... 22
3 Accessing the HP Data Protection Storage
ServerManagementconsole ....... 25
UsingtheDirectAttachmethod ................ 25
UsingtheRemoteBrowsermethod............... 26
UsingtheRemoteDesktopmethod............... 28
4 Configuring the server on the network . . . 31
HP ProLiant DL100 G2 Data Protection Storage Server 3
Page 4
Beforeyoubegin ...................... 31
RunningtheRapidStartupWizard............... 34
RuntheDPMmini-setup ................... 35
5 Completing system configuration . . . . . 39
Additionalconfigurationtasks................. 39
A Configuring storage server for Web access
(optional)................ 41
SettingupanInternetconnection ............... 41
Index ................. 43
4
Page 5
Figures
1Decidinguponanetworkaccessmethod........... 14

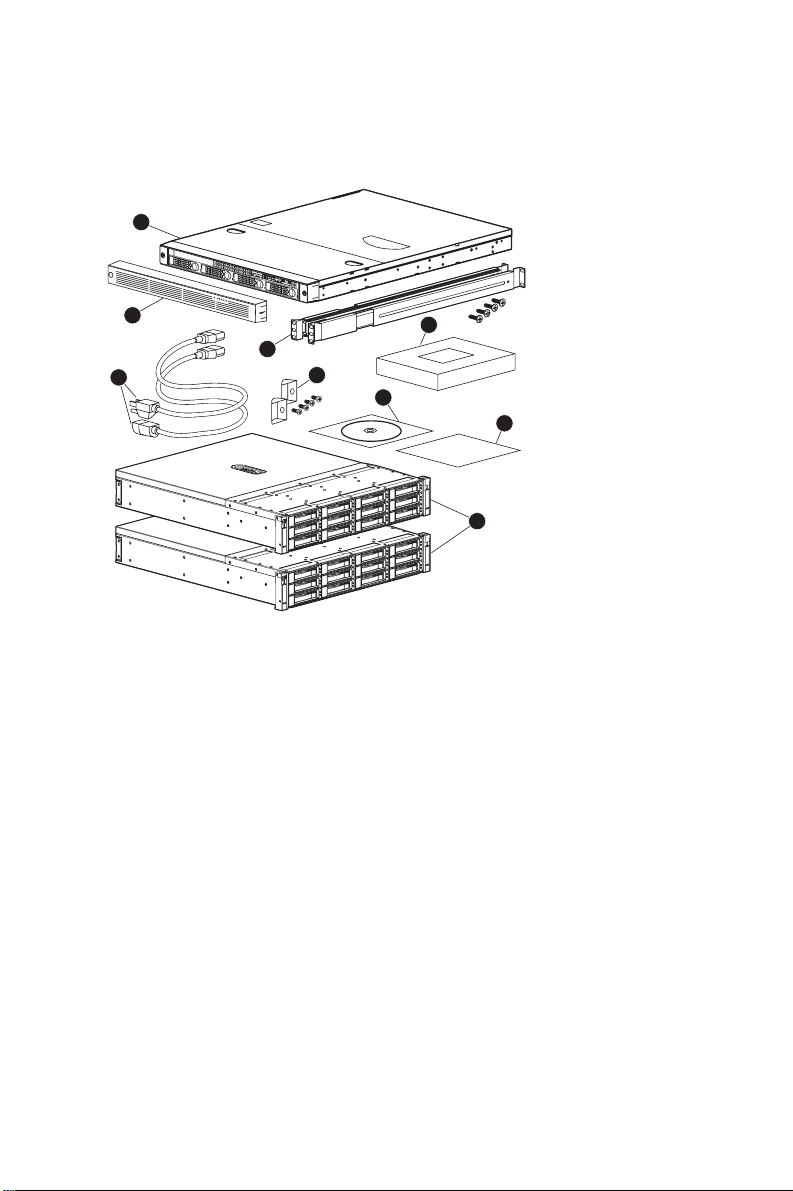

2Kitcontents ....................... 18
3Frontpanel ....................... 19

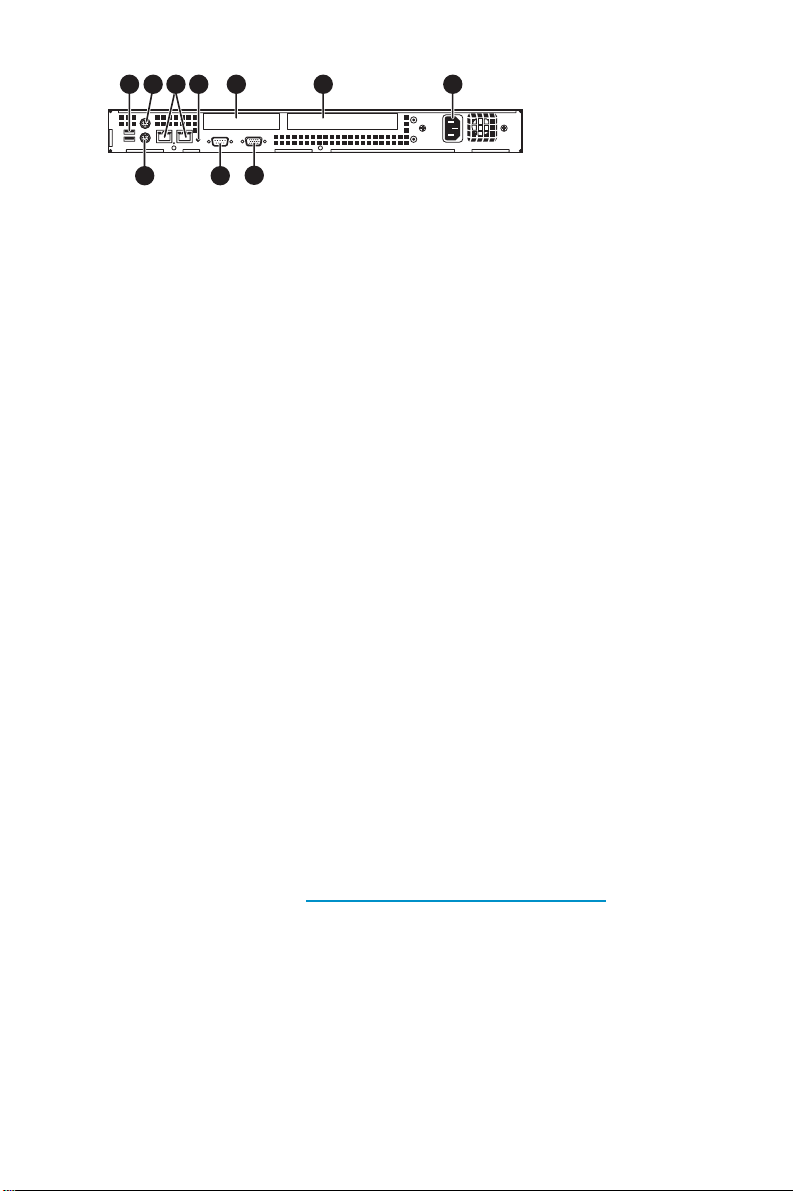

4Backpanel ....................... 20
5Cableconnections .................... 21
6ConnectingtheMSA20 .................. 21
7Bezel.......................... 22
8Powerbutton....................... 22
9Finalizeinstallationscreen ................. 23

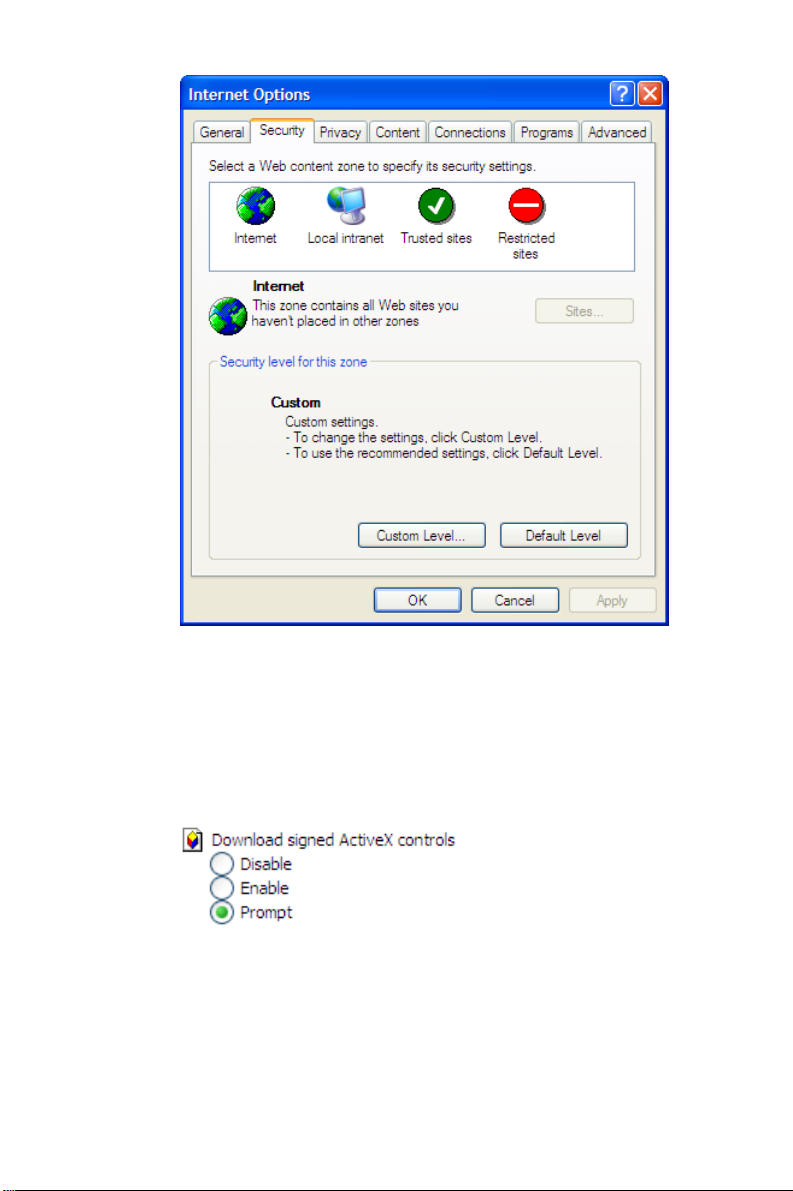

10Internetoptionsscreen .................. 27

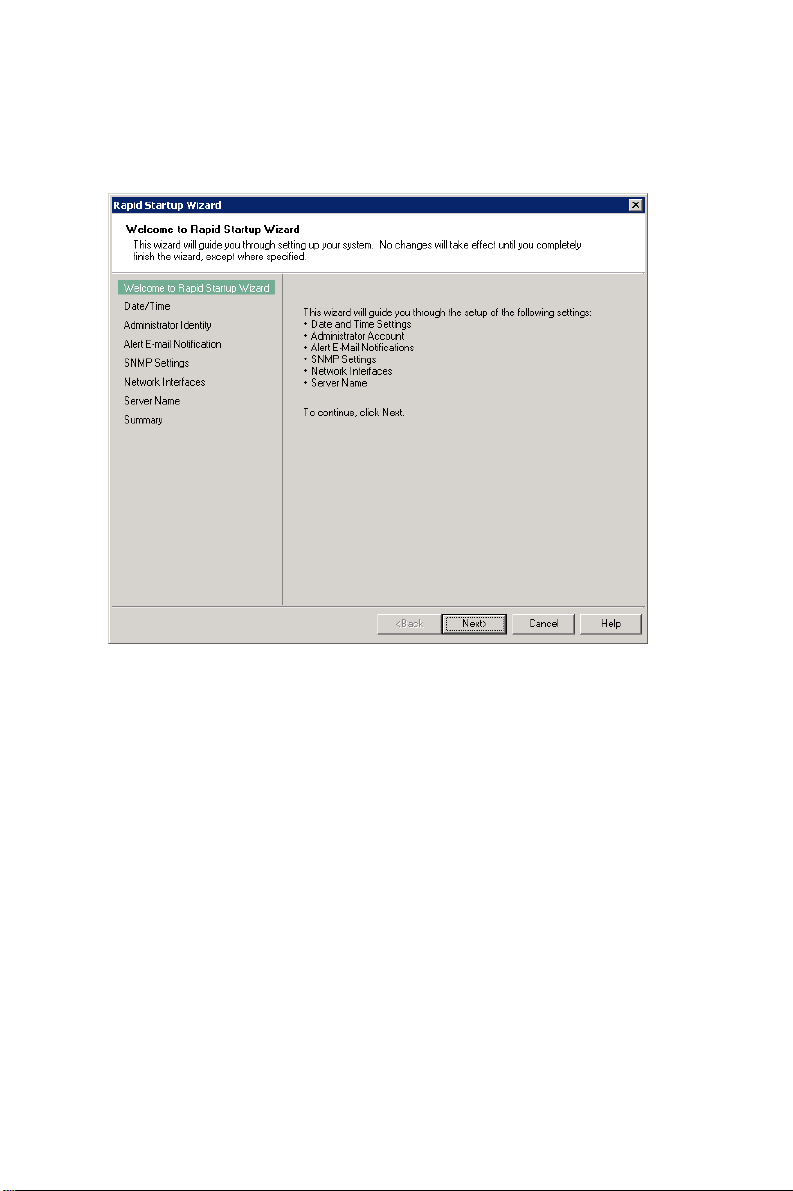

11RapidStartupWizardscreen ............... 34

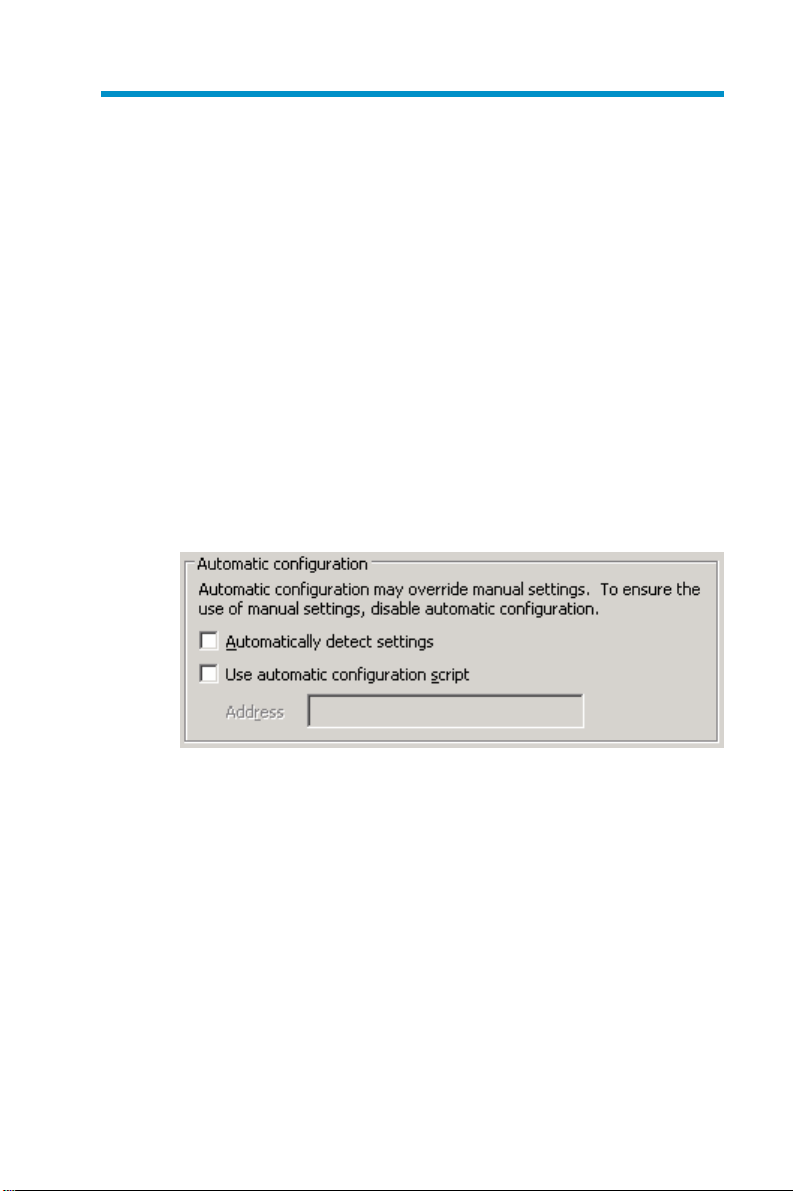

12Automaticconfigurationsettings .............. 41
13Proxyserversettings ................... 42
HP ProLiant DL100 G2 Data Protection Storage Server
5
Page 6
Tables
1Documentconventions.................... 9
2NetworkAccessmethods ................. 15
3Installationandconfigurationchecklist............ 16
4Serverconfigurationworksheet ............... 31
6
Page 7
About this guide
This guide provides information for setting up and configuring the following
HP ProLiant Storage Ser ver models:
• HP ProLiant DL100 G2 1TB Data Protection Storage Server
• HP ProLiant DL100 G2 2TB Data Protection Storage Server
• HP ProLiant DL100 G2 3TB Data Protection Storage Server
• HP ProLiant DL100 G2 6TB Data Protection Storage Server
In addition to being printed and included in your product kit, this guide
is also provided as a PDF printable document on the HP ProLiant Data
Protection Storage Server Documentation CD.
Intended audience
This book is intended for use by technical professionals who are
experienced with the following:
• Microsoft
• System and storage configurations
Getting help
If you still have a question after reading this guide, contact an HP
authorized service provider or access our web site: h
®
administrative procedures
ttp://www.hp.com.
NOTE:
Known issues and workarounds for the storage server products and
the service release are addressed in release notes. To view the latest
version, visit http://www.hp.com/go/support Select See support and
troubleshooting information and enter a product name/number. Under
self-help resources, select manuals (guides, supplements, addendums,
etc.).
Related documentation
In addition to this guide, refer to the following documents for more
information:
HP ProLiant DL100 G2 Data Protection Storage Server
7
Page 8
• HP ProLiant DL100 G2 Data Protection Storage Server
administration guide
• HP ProLiant 1U Rail installation instructions
These documents are available on the Documentation CD or they can be
obtained at h
then click Technical documentation under the Support section.
ttp://www.hp.com/support/manuals Select your product,
Conventions
This document contains the following conventions and symbols:
• Document conventions
•Textsymbols
• Equipment symbols
8
About this guide
Page 9
Document conventions and symbols
Table 1 Document conventions
Convention
Blue text
Medium blue,
underlined
ttp://
text (h
www.hp.com)
Bold font
Italic font
Monospace font
Monospace,
italic font
Monospace,
bold font
Element
Cross-reference links and e-mail addresses
Web site addresses
• Key names
• Text typed into a GUI element, such as
into a box
• GUI elements that are clicked or
selected, such as menu and list items,
buttons, and check boxes
Text emphasis
• File and directory names
• System output
• Code
• Text typed at the command line
• Code variables
• Command-line variables
Emphasis of file and directory names,
system output, code, and text typed at the
command line
Text symbols
WAR NING!
Indicates tha
death.
t failure to follow directions could result in bodily harm or
HP ProLiant DL100 G2 Data Protection Storage Server 9
Page 10
CAUTION:
Indicates that failure to follow directions could result in damage to
equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
NOTE:
Provides additional information.
TIP:
Provides helpful hints and shortcuts.
Equipment symbols
The following equipment symbols may be found on HP ProLiant Storage
Server hardware.
WAR NING!
symbols indicates the presence of electrical shock hazards. Enclosed area
contains no operator serviceable parts.
Any enclosed surface or area of the equipment marked with these
WAR NING: To reduce the risk of
personal in jury from electrical shock hazards, do not open this enclosure.
WAR NING!
network interface connection.
Any RJ-45 receptacle marked with these symbols indicates a
WARNING: To reduce the risk of electrical
shock, fire, or damage to the equipment, do not plug telephone or
telecommunications connectors into this receptacle.
10
About this guide
Page 11
WAR NING!
indicates the presence of a hot surface or hot component. Contact with this
surface could result in injury.
Any surface or area of the equipment marked with these symbols
WARNING : To reduce the risk of personal
injury from a hot component, allow the surface to cool before touching.
WAR NING!
indicate the presence of multiple sources of power.
Power supplies or systems marked with these symbols
WAR NING: To re duce
the risk of personal injury from electrical shock, remove all power cords to
completely disconnect power from the power supplies and systems.
WAR NING!
the component exceeds the recommended weight for one individual to handle
safely.
Any product or assembly marked with these symbols indicates that
WARNING: To reduce the risk of personal injury or damage to the
equipment, observe local occupational health and safety requirements and
guidelines for manually handling material.
HP technical support
Telephone num bers for worldwide technical support are listed on the HP
support web site: h
Collect the following information before calling:
• Technical support registration number (if applicable)
• Product serial numbers
• Product model names and numbers
• Applicable error messages
• Operating system type and revision level
• Detailed, specific questions
For continuous quality improvement, calls may be recorded or monitored.
ttp://www.hp.com/support/
HP ProLiant DL100 G2 Data Protection Storage Server
11
Page 12
HP subscriber’s choice
HP strongly recommends that customers sign up online using the
Subscriber’s choice web site: h
• Subscribing to this service provides you with e-mail updates on
the latest product enhancements, newest versions of drivers, and
firmware documentation updates, as well as instant access to
numerous other product resources.
• After signing up, you can quickly locate your products by selecting
Business support,andthenStorage under Product Category.
ttp://www.hp.com/go/e-updates
HP-authoriz ed reseller
For the name of your nearest HP-authorized reseller:
• In the United States, call 1-800-282-6672.
• Elsewhere, visit the HP web site: h
Contact HP to find locations a nd telephone numbers.
ttp://www.hp.com Then, click
Other helpful web sites
For other product information, see the following HP web sites:
•h
ttp://www.hp.com/go/storage
•http://www.hp.com/support/
•http://www.docs.hp.com
•http://www.microsoft.com
12
About this guide
Page 13
1 Setup overview
Your HP ProLiant Storage Server comes pre-installed with the Windows®
Storage Server 2003 R2 operating system. Windows Storage Server
2003 R2 extends the Windows Storage Server 2003 operating system,
providing a more efficient way to manage and control access to local
and remote resources. In addition, Windows Storage Server 2003 R2
provides a scalable, security-enhanced Web platform for simplified branch
server management, improved identity and access man agement, and more
efficient storage management.
The HP ProLiant D ata Protection Storage Server is an HP ProLiant Storage
Server preinstalled with Microsoft® System Center Data Protection Manager
(DPM) software and preconfigured with optimized storage settings to
deliver a rapid, reliable disk -to-disk backup and recovery solution.
Planning for installation
Before you install your H P ProLiant Storage Server, you need to make a
few up-front decisions.
Determining a network access method
Before beginning setup and startup procedures, decide upon an access
method to connect to the storage server. The type of network access you
select is determined by whether or not the network has a Dynamic Host
Configuration Protocol (DHCP) server, as shown in Table 2. Figure 1 shows
the types of network access methods that are available and provides more
information about each one.
HP ProLiant DL100 G2 Data Protection Storage Server 13
Page 14
DHCP Access?
y/n
Yes No
Direct Attach*
(mandatory)
Remote DesktopRemote Browser
Figure1Decidinguponanetworkaccessmethod
Direct Attach*
*Direct Attach requires
display, keyboard, and mouse.
5044
14
Setup overview
Page 15
Table 2 Net work Access methods
Access method Access to the HP
Direct Attach
Remote Browser
Remote Desktop
ProLiant Rapid Startup
Wizard
Indirectly from the
storage server desktop.
Directly from the
HP ProLiant Data
Protection Storage
Server Management
console.
Indirectly from the
storage server desktop.
Notes
Requires a
monitor, mouse,
and keyboard.
Does not display
the storage server
desktop.
Windows Remote
Desktop capability
required on client.
Planning a network configuration
Y ou use the Rapid Startup Wizard to configure your storage server. This
wizard is displayed automatically when you first start your system. Before
you run the Rapid Startup Wizard, it is helpful to gather together the
network configuration information you need, including:
• User name and administrator password (the system provides you
with defaults you need to change)
• E-mail addresses to set up system alerts
• SNMP settings
• Local area network (LAN) configuration settings
To help you gather this information, see Configuring the server on the
network on page 31.
Configuration checklist
Use the following checklist to make sure you have completed all
configuration tasks for your HP ProLiant Storage Server. The steps for each
task are explained in more detail in subsequent chapters of this guide.
HP ProLiant DL100 G2 Data Protection Storage Server
15
Page 16
Table 3 Installation and configuration checklist
Steps
1. Unpack server, check kit
contents, and become familiar
with front and back panels of
storage server. Locate and
write down serial number of
storage server.
2. Complete rail installation
instructions, if applicable.
3. Connect cables; (optional)
connect a keyboard, m ouse,
and monitor; power on server,
and log in to the server.
4. Access the HP Data
Protection Storage Server
Management console.
• Direct Attach method
• Remote Browse method
• Remote Desktop method
5. Complete the storage server
configuration worksheet.
6. Run Rapid Startup Wizard. See Rapid Startup
Reference
See Checking kit
contents on page 18.
See the HP ProLiant rail
installation instructions.
See Cabling the
server on page 21,
Powering on the server,
and Direct Attach method.
See Accessing
the HP Storage
Server Management
console on page 25.
See Server configuration
worksheet on page 31.
Wizard on page 34.
7. Complete system
configuration.
8. Configure storage server
for Web access, if necessary.
16 Setup overview
See Completing system
configuration on page 39.
See Configuring storage
server for Web access
(
optional) on page 41.
Page 17
2 Installing the ser ver
To install your HP ProLiant Storage Server, follow the instructions in the
sections below:
• Checking kit contents
• Becoming familiar with front/back panels
• Completing rail kit installation
• Cabling the server
• Powering on the server
HP ProLiant DL100 G2 Data Protection Storage Server
17
Page 18
Checking kit contents
Remove the contents, making sure you have all the components shown in
the figure below. If components are missing, contact HP technical support.
1
2
4
3
Figure 2 Kit contents
1
HP ProLiant DL100 G2
Data Protection Storage
Server (with operating
system preloaded)
2
Bezel
3
Power cords (select the
correct one needed for
your connection)
4
Slide Rail Assembly
6
5
7
9
5
Bezel brackets and screws
6
Documentation Kit, Safety and
Disposal Documentation CD
7 HP ProLiant Data Protection
Storage Server System
Installation and Recovery
DVD
8
End User License Agreement
9
MSA20 (3TB and 6TB
configurations only). The
3TB configuration ships
with one MSA20; the 6TB
configuration ships with
two.
8
5064
18
Installing the server
Page 19
Becoming familiar with front/back panels
3 4 8
10
6
5 7 9
Become familiar with the function of the front/back panels on the ser ver as
showninthefiguresbelow.
1 2
11
Figure 3 Front panel
1
Slim DVD-ROM
2
Individual HDD status LED
32USBports 9
4
Overall HDD activity LED
5
Overall HDD fault LED
6
NIC LEDs
7UIDLED
8
10
11
10699
Power LED
UID button
Power button
HDD bays (0–3)
HP ProLiant DL100 G2 Data Protection Storage Server 19
Page 20
531 42 6 7
8 9
10
10700
Figure 4 Back panel
1
Dual USB ports
2
PS/2 mouse port
3
NIC connectors
(RJ45)(1–2)
UID LED
4
5
Low profile, half length
PCI-X slot
6
Full height, full length PCI-X slot
7
AC power connector
8
PS/2 keyboard port
9
Serial por t
10
D-sub VGA port
Locating and writing down the serial number
Before completing the installation portion of this guide, locate and write
down the storage server’s serial number, which may be needed to access
the H P Data Protection Storage Server Management console later on
during the set up process.
The HP ProLiant Storage Server’s serial number is located in three places:
• Top of the storage server
• Back of the storage server
• Inside the storage server shipping box
Completing rail kit installation
Install the server into the rack by following the rail installation instructions
for your server model. These installation instructions are provided in printed
form with your server, on the HP ProLiant Data Protection Storage Server
Documentation CD, or at h
For all models of the HP ProLiant D L1 00 G2 Data Protection Storage
Server, see HP ProLiant 1U Rail installation instructions.
20
Installing the server
ttp://www.hp.com/support/manuals.
Page 21
Cabling the server
Connect the cables in the sequence shown in the figure below.
32 5
1
4
10700B
Figure 5 Cable connections
1
2
3
Keyboard
Mouse
Network cable
4 Monitor
5
Power cable
NOTE:
Connecting the power cord restores the storage server to whatever
previous powered state it was last in. This could result in the server
powering up, the fans operating, and the power indicator coming on.
NOTE:
The keyboard, mouse, and monitor are used only for the Direct Attach
method on page 25. They are not provided with your storage server.
With the 3TB and 6TB configurations, connect the MSA20(s) to the HP
ProLiantDL100G2DataProtectionStorageServerusingtheSCSIcable(s)
shipped with the MSA20, as shown in Figure 6.
To MSA array
Figure 6 Connecting the MSA20
HP ProLiant DL100 G2 Data Protection Storage Server 21
10704
Page 22
Powering on the server
Power on the server after connecting the cables.
1. Remove bezel (unlock, if necessary).
5043
Figure 7 Bezel
2. Power on ser ver by pushing the power button (2). The power LED
(1) illumin ates green.
21
5042
Figure 8 Power button
3. Insert the HP ProLiant Data Protection Storage Server System
Installation and Recovery DVD into the storage server DVD+RW drive
to finalize the operating system installation and updates.
22
Installing the server
Page 23
IMPORTANT:
To successfully complete the installation and update
process,youmustruntheHPProLiantDataProtection
Storage Server System Installation and Recovery DVD. If
you have not inserted this DVD into the DVD+RW drive
when you boot the server, you will be prompted to do so
(see Figure 9).
4. If the following is displayed, click Exit and Reboot.Ifthisdoesnot
reboot the server, press and hold the power button for 10 seconds.
Figure 9 Finalize installation screen
When the server boots from the HP ProLiant Data Protection Storage
Server System Installation and Recovery DVD, a progress screen is
displayed.
CAUTION:
Do not interrupt the reboot sequence; it takes a
considerableamountoftimeduringthe
action.
HP ProLiant DL100 G2 Data Protection Storage Server 23
copying files
Page 24
5. By now you should have determined the access method for
yourstorageserver. Formoreinformation,seePlanning for
installation on page 13.
6. Go to Accessing the HP Storage Server M anagement
console on page 25 to set up server access.
24
Installing the server
Page 25
3AccessingtheHPData Protection Storage Server Management console
Before accessing the HP D ata Protection Storage Server Management
console, verify that all cables and cords are connected to the Data
Protection Storage Ser ver. See the HP ProLiant 1U Rail installation
instructions for additional installation guidance.
To access the HP Data Protection Storage Server Management console,
you can use these access methods:
Direct Attach To connect directly to the storage server
Remote Browser To establish a browser-based connection
Remote Desktop To establish a connection from a remote
For more information, see Planning for installation on page 13.
without using the network.
to the HP ProLiant Data Protection
Storage Server Management console
from a remote client running Internet
Explorer 5.5 (or later).
client without using a browser. This
method requires the client to have
Windows Remote Desktop capability.
IMPORTANT:
An IP address can be substituted for a storage server’s serial number
when using either Remote Browser or Remote Desktop methods to access
the HP Data Protection Storage Server Management console.
Using the Direct Attach method
You can access the HP Data Protection Storage Server Management
console using a monitor, mouse, and keyboard directly attached to the
storage server.
To connect the storage ser ver to a network using the Direct Attach method
HP ProLiant DL100 G2 Data Protection Storage Server 25
Page 26
1. Log in to the HP P roLiant Data Protection Storage Server with the
default user name administrator and the password hpinvent.TheHP
ProLiant Data Protection Storage Server Management Console and the
Rapid Startup Wizard start automatically.
NOTE:
You can change the administrator name and password
when you configure the server using the Rapid Startup
Wizard. See Rapid Startup Wizard on page 34.
2. To complete network configuration using the Rapid Startup Wizard,
see Configuring the server on the network on page 31.
Using the Remote Bro wser method
The storage server ships with DHCP enabled on the network port. If the
sever is placed on a DHCP-enabled network and the serial number of
the device is known, the server can be accessed through a client running
Internet Ex plorer 5.5 (or later) on that network, using the TCP/IP 3202 port.
IMPORTANT:
Before you begin this procedure, ensure that you have the following:
• Windows-based PC loaded with Internet Explorer 5.5 (or later) on
thesamelocalnetworkasthestorageserver
• DHCP-enabled network
• Serial number or IP address of the storage server
To connect the server to a network using the Remote Browser method, you
must first ensure that the client is configured to download signed ActiveX
controls.
To enable ActiveX controls
1. On the remote client machine, open the Internet Explorer web browser
and select Tools > Internet Options > Security.
26
Accessing the HP D ata Protection Storage Server Management
console
Page 27
Figure 10 Internet options screen
2. On the Security screen, select Internet or Local intranet web content
zone, then click Custom Level.
3. Scroll down to locate the ActiveX Controls and plug-ins settings.
4. At Download signed ActiveX controls settings,selectEnable to enable
ActiveX or Prompt to launch a notice requiring approval before
ActiveX is enabled.
5. Click OK to close the Security Settings dialog box.
6. If prompt
this zone,clickY
ed Are you sure you want to change the security settings for
ES.
HP ProLiant DL100 G2 Data Protection Storage Server 27
Page 28
7. On the Internet Options dialog box, click OK to finish.
To co nnect the storage server to a network using the Remote Browser
method
1. On the remote client machine, open Internet Explorer and
enter https:// and the serial number of the storage server
followed by a hyphen (-), and then:3202. For example,
https://D4059ABC3433-:3202. Press Enter.
NOTE:
If you are able to determine the IP address from your DHCP
server, you can substitute the IP address for the serial
number and hyphen. For example: 192.100.0.1:3202.
2. Click OK on the Security Alert prompt.
3. Log in to the HP ProLiant Data Protection Storage Server Management
console with the default user name administrator and the
password hpinvent. The HP ProLiant Data Protection Storage
Server Management Console and the Rapid Startup Wizard start
automatically.
NOTE:
You can change the administrator name and password
when you configure the server using the Rapid Startup
Wizard on page 34.
4. To complete network configuration using the Rapid Startup Wizard,
see Configuring the server on the network on page 31.
IMPORTANT:
If you are using the Remote Browser method to access the HP Data
Prote
ction Storage Server Management console and Rapid Startup
Wizard, always close the remote session before closing your Internet
browser. Closing the Internet browser does not close the remote session.
Failure to close your rem
sessions allowed on the storage server at any g
ote session impacts the limited number of remote
iven time.
Using the Remote Desktop method
To co nnect the storage server to a network using the Remote Desktop
method
28
Accessing the HP D ata Protection Storage Server Management
console
Page 29
1. On the PC client, select Start > Run.AtOpen,typemstsc,thenclick
OK.
2. Enter the serial number of the storage server followed by a hyphen (-) in
the Computer box and click Connect. For example, D4059ABC3433-
NOTE:
If you are able to determine the IP address from your
DHCP server, you can substitute the IP address for the
serial number and hyphen (-). For example: 192.100.0.1
3. Log in to the HP ProLiant Data Protection Storage Server with the
default user name administrator and the password hpinvent.TheHP
ProLiant Data Protection Storage Server Management Console and the
Rapid Startup Wizard start automatically.
NOTE:
You can change the administrator name and password
when you configure the server using the Rapid Startup
Wizard. See Rapid Startup Wizard on page 34.
4. To complete network configuration using the Rapid Startup Wizard,
see Configuring the server on the network on page 31.
HP ProLiant DL100 G2 Data Protection Storage Server 29
Page 30
30
Accessing the HP Data Protection Storage Server Management
console
Page 31
4 Configuring the server on the network
Before you begin
When first powering on the storage server you need to have some
configuration data readily available to complete the Rapid Startup Wizard.
Complete the Server configuration worksheet and use the data collected to
initialize the storage server.
Table 4 Server config uration worksheet
Configuration Worksheet
Administrative Identity
User name
User
password
Alert E-mail Notification
Change system administrator’s user
name, which is set by d efault to
administrator.
Change system administrator’s
password, which is set by default to
hpinvent.
E-mail
address alert
sent to
E-mail
address alert
sent from
SMTP server
name or IP
address
SNMP Settings (to be completed only if needed)
E-mail address for critical, warning, or
informational messages about server
status.
Must be a valid, well-formed e-mail
address that will appear as the sender
of server status e-mail alerts.
Must be an e-mail server on your
network that supports the Simple Mail
Transfer Protocol (SMTP).
HP ProLiant DL100 G2 Data Protection Storage Server 31
Page 32
Configuration Worksheet
Contact
person
System
location
Community
name No. 1
Trap
destination
No. 1
Community
name No. 2
Trap
destination
No. 2
Network Interfaces (to be completed for non-DHCP
configurations)
System administrator for the storage
server. The contact and location
will be provided to any SNMP
management computer that requests
them.
Any text string, such as a location or
phone number. For example, Floor
#3, Financial Services
Bldg.
The community name is used for
network authentication when sending
outgoing SNMP messages.
The IP address of a management
computer that will receive SNMP
messages from the storage server
using the above community name.
Same as above.
Same as above.
Local area
connection 1
IP address An Internet Protocol (IP) address is
Subnet mask A mask is used to determine what
Default
gateway
32
Configuring the server on the network
A local area connection is
automatically created for each
network adapter that is detected.
assigned to the server. If it is not
automatically assigned, enter the IP
address that you want to assign to this
server.
subnet an IP address belongs to.
The gateway in a network that the
network adapter will use to access all
other networks.
Page 33
Configuration Worksheet
Local area
connection 2
IP address Same as above.
Subnet mask Same as above.
Default
gateway
DNS server A Domain Name System (DNS)
WINS server
Server Name
Server name
Any additional local area connections
can be renamed to prevent confusion.
Same as above.
server name is required to provide for
domain name to IP address resolution.
AWindowsInternetNamingService
(WINS) server name is required to
determine the IP address associated
with a particular network computer.
Assign a unique name to the storage
server. This name identifies the storage
server on the network.
HP ProLiant DL100 G2 Data Protection Storage Server 33
Page 34
Running the Rapid Startup Wizard
The Rapid Startup Wizard is only displayed during the initial setup process.
This wizard guides you through the configuration process.
Figure 11 Rapid Startup Wizard screen
The Rapid Startup Wizard guides you through configuring the following
system settings:
• Date, time, and time zone
• Administrator Identity (user name and password)
• Alert E-mail Notification
• Simple Network Management Protocol (SNMP) Settings
• Network Interfaces
• Server Name
For more information about the configuration settings available in the
Rapid Startup Wizard, click Help to see the corresponding Rapid Startup
Wizard online help topic.
34
Configuring the server on the network
Page 35
Run the DPM mini-setup
Before you begin:
• Ensure that you have the product license key from the COA card
that shipped with your HP ProLiant Data Protection Storage Server.
• Ensure that you assigned a host name to the server and joined
the server to the domain.
• Ensure that you are logged into the HP ProLiant Data Protection
Storage Server as a local or domain administrator.
• Y ou must be connected via the Direct attach or remote desktop
methods. The Remote browser method does not s how the desktop,
so you can not run DPM mini-setup from the Remote browser
method.
1. On the desktop, double-click the Microsoft System Center Data
Protection Manager 2006 icon.
TheDPMMini-SetupWelcomewindowopens.
2. Review the information and click Next.
The License Agreement window opens.
3. Click Next to accept the terms of the license agreement.
HP ProLiant DL100 G2 Data Protection Storage Server 35
Page 36
NOTE:
This licence agreement is for the DPM software, not the HP ProLiant
Data Protection Storage Server.
The Product Registration window opens.
4. Enter your user name, company name (required), and the product
license key, and then click Next.
NOTE:
The DPM product license key can be found on the COA card that
shipped with your HP ProLiant Data Protection Storage Server.
The Security Settings window opens.
5. Enter an SQL Server password, and then confirm it. This password
must conform to the group security policy set up by your domain
administrator (for example, eight characters or more).
NOTE:
This is a required field.
36
Configuring the server on the network
Page 37
The Summary of settings window opens, displaying your user
name and company name.
6. Click Configure.
The configuration process begins, displaying a slider bar. When
finished, the Confirmation window opens, indicating that DPM
has been successfully configured.
7. To start DPM, select Open DPM 2006 Administrator Consol e
when the M ini-Setup closes.Then,clickClose.DPMopensina
few moments.
IMPORTANT:
When DPM 2006 opens, a help window is displayed. Use the help
information to complete the following configuration tasks:
•Configuretheserver.
• Install disk agents.
• Create a Protection Group.
HP ProLiant DL100 G2 Data Protection Storage Server 37
Page 38
38
Configuring the server on the network
Page 39
5Completingsystem configuration
Additional configuration tasks
The physical installation a nd basic configuration for the HP ProLiant
Storage Server is complete.
Additional configuration tasks that should be performed include:
• Run Microsoft Update for new critical updates. See Configuring
storage server for Web access (optional) on page 41.
• Join the storage server to an Active Directory domain.
• Create and manage users and groups.
• Adjust logging for system, application and security events.
• Install additional third-party software, such as backup, anti-virus, or
monitoring agents.
• Install the HP ProLiant Windows Storage Server 2003 R2
Localization DVD (optional). The Localization DVD contains
the Microsoft Windows Multilingual User Interface (MUI) pack.
The Windows MUI pack is a set of language-specific resource
files that can be added to the English version of Windows
Server 2003 R2. When installed on the English version of
Windows,theMUIallowsthelanguageoftheoperating
system user interface (not HP ProLiant files and interfaces) to
be changed according to the preferences of individual users.
Languages included on the DVD are French, German, Italian,
Spanish, Japanese, simplified Chinese, traditional Chinese, and
Korean. Installation instructions are provided with the DVD. For
more information about the MUI, visit the Microsoft web site:
ttp://www.microsoft.com/globaldev/DrIntl/faqs/MUIFaq.mspx.
h
HP ProLiant DL100 G2 Data Protection Storage Server 39
Page 40
40
Completing system configuration
Page 41
A Configuring storage server for Web access (optional)
Setting up an Internet connection
BeforerunningWindows2003R2operatingsystemupdates,youmustset
up an Internet connection for the storage server. There are two methods for
configuring an Internet connection:
• Internet Explorer to use automatic configuration
• Internet Explorer to use a proxy server
To configure Internet Explorer to use automatic configuration
1. On the Tools menu in Internet Explorer, click Internet Options,
click the Connections tab, and then click LAN Settings.
2. Under Automatic Configuration, click either the Automatically
detect settings or Use automatic configuration script check box.
Figure 12 Automatic configuration settings
3. Click OK to close the LAN Settings dialog box.
4. Click OK again to close the Internet Options dialog box.
To configure Internet Explorer to use a proxy server
1. On the Tools menu in Internet Explorer, click Internet Options,
click the Connections tab, and then click LAN Settings.
HP ProLiant DL100 G2 Data Protection Storage Server
41
Page 42
2. Under Proxy server,clicktheUse a proxy s erver for your LAN
check box.
Figure 13 Proxy server settin gs
3. In the Address box, type the network name or IP address of the
proxy server.
4. In the Port box, type the port number that is used by the proxy
server for client connections (for example, 8080).
5. Click the Bypass proxy server for local addresses check box if
you d o not want the proxy server computer to be used when you
connect to a computer on the local network.
6. Click OK to close the LAN Settings dialog box.
7. Click OK again to close the Internet Options dialog box.
42
Configuring storage server for Web access (optional)
Page 43
