HP ProLiant BL685c G7 Specification

HP ProLiant BL685c G7 Server Blade

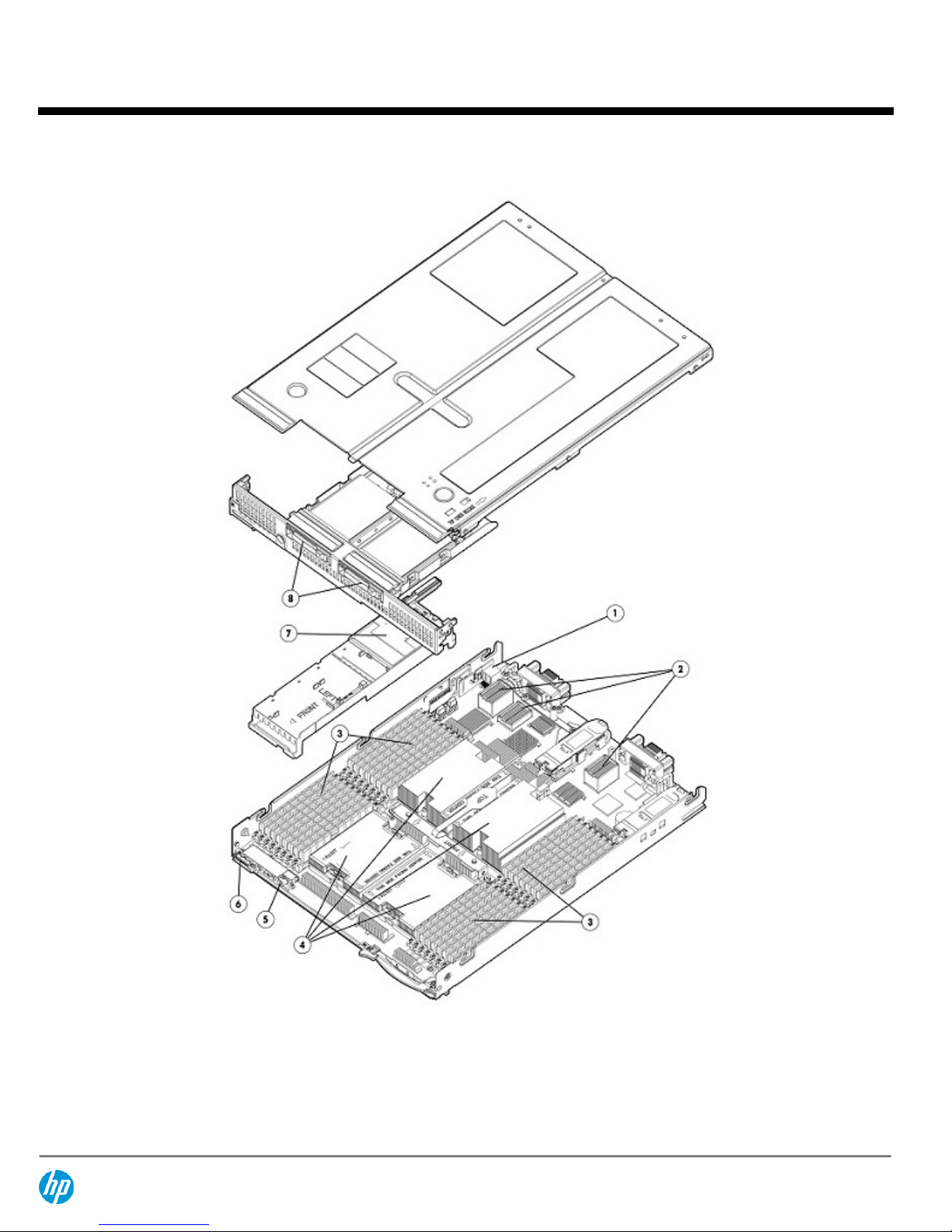

1.

Internal USB connector/
Internal MicroSD card slot

5.

System power button and LED

2.

Three (3) mezzanine I/O expansion slots

6.

Local I/O Connector

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Overview

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 1

3.

Thirty-two (32) DDR3 DIMM memory slots

7.

Smart Array P410i storage controller (available as an option in
factory integrated models)

4.

Up to four (4) Multi-Core AMD Opteron™ 6100, 6200 or 6300
Series processors

8.

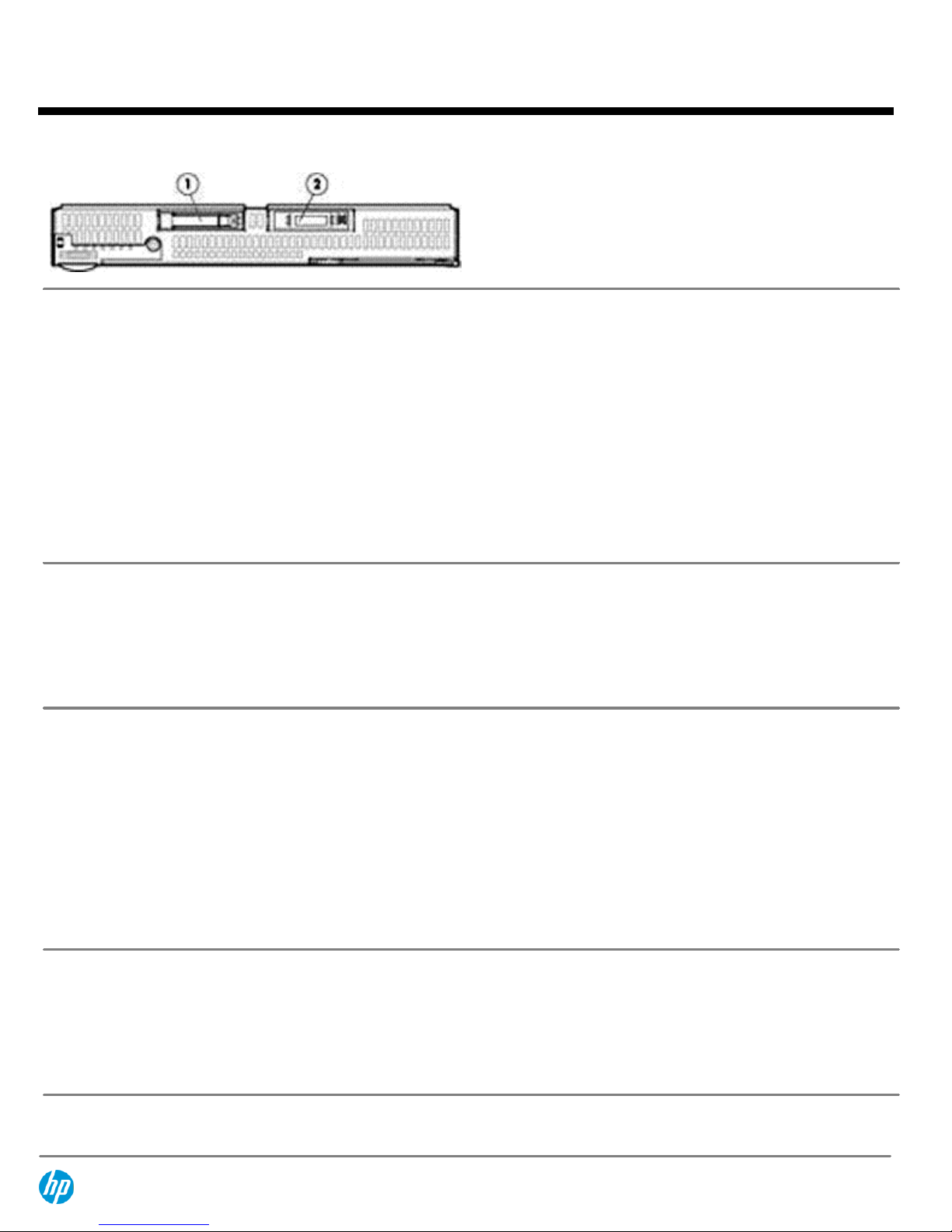

Two (2) small form factor (SFF) hot plug drive bays

What's New

Support for HP Oneview software License
Support for HP 300GB and 600GB 6G SATA VE 2.5in EV SSD

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Overview

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 2

This document covers the HP ProLiant BL685c G7 server blade only. For more information on HP BladeSystem c-Class Enclosures and
HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html

NOTE:

The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.

HP BladeSystem c7000 Platinum Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html

NOTE:

The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.

HP BladeSystem c-Class Interconnect and Mezzanine Components:

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following
depending on Model

Sixteen-Core Processors

AMD Opteron™ 6380 ( 2.5GHz/ 16-core/16MB/115W) Processor
AMD Opteron™ 6378 (2.4GHz 16-core/16MB/115W) Processor
AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W) Processor
AMD Opteron™ 6376 (2.3GHz 16-core/16MB/115W) Processor
AMD Opteron™ 6276 (2.3GHz/16-core/16MB/115W) Processor
AMD Opteron™ 6274 (2.2GHz/16-core/16MB/115W) Processor
AMD Opteron™ 6272 (2.1GHz/16-core/16MB/115W) Processor
Low Power AMD Opteron™ 6366HE (1.8GHz 16-core/16MB/85W) Processor
Low Power AMD Opteron™ 6262HE (1.6GHz/16-core/16MB/85W) Processor

Twelve-Core Processors

AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) Processor
AMD Opteron™ 6344 (2.6GHz/ 12-core/ 16MB/115W) Processor
AMD Opteron™ 6238 (2.6GHz/12-core/16MB/115W) Processor
AMD Opteron™ 6234 (2.4GHz/12-core/16MB/115W) Processor
AMD Opteron™ 6176 (2.3GHz/12-core/12MB/115W) Processor
AMD Opteron™ 6174 (2.2GHz/12-core/12MB/115W) processor
AMD Opteron™ 6166HE (1.8GHz/12-core/12MB/85W) Processor
AMD Opteron™ 6164HE (1.7GHz/12-core/12MB/85W) Processor

Eight-Core Processors

AMD Opteron™ 6328 (3.2GHz/ 8-core/ 16MB/115W) Processor
AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor
AMD Opteron™ 6320 (2.8GHz/ 8-core/ 16MB/115W) Processor
AMD Opteron™ 6212 (2.6GHz/8-core/16MB/115W) Processor
AMD Opteron™ 6140 (2.6GHz/8-core/12MB/115W) Processor
AMD Opteron™ 6136 (2.4GHz/8-core/12MB/115W) Processor
AMD Opteron™ 6132HE (2.2GHz/8-core/12MB/85W) Processor

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Standard Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 3

AMD Opteron™ 6128HE (2.0GHz/8-core/12MB/85W) Processor
AMD Opteron™ 6124HE (1.8GHz/8-core/12MB/85W) Processor

Quad-Core Processors

AMD Opteron™ 6308 (3.5GHz/ 4-core/ 16MB/115W) Processor
AMD Opteron™ 6204 (3.3GHz/4-core/16MB/115W) Processor

NOTE:

Processor wattage references reflect Thermal Design Power (TDP). For more information on TDP

and Average CPU Power (ACP) visit:

http://www.amd.com/acp

.

Cache Memory

12MB or 16MB Level 3 cache memory

Chipset

AMD SR5690 and SP5100

Upgradeability

Upgradeable to quad (4) processors

NOTE:

The HP ProLiant BL685c G7 only supports two (2) and four (4) processor configurations.

Integrated Manageability

HP Integrated Lights-Out 3 (iLO 3)

Memory

Type

DDR3 Registered (RDIMM)

Standard
(depending on model)

64GB (16 x 4GB)

Maximum (RDIMM)

1TB (32 x 32GB) at 1066MHz or at 800MHz

Maximum (RDIMM)

1TB (32 x 32GB) at 1333MHz

NOTE:

Depending on the memory configuration, the memory speed may run at 1600MHz, 1333MHz,
1066MHz, or 800MHz. Please see Memory Population Table or the Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

NOTE:

Kits described as PC3L include Low Voltage DIMMs. For more information on ProLiant Energy
Efficient Features, see:

www.hp.com/go/ddr3memory-configurator

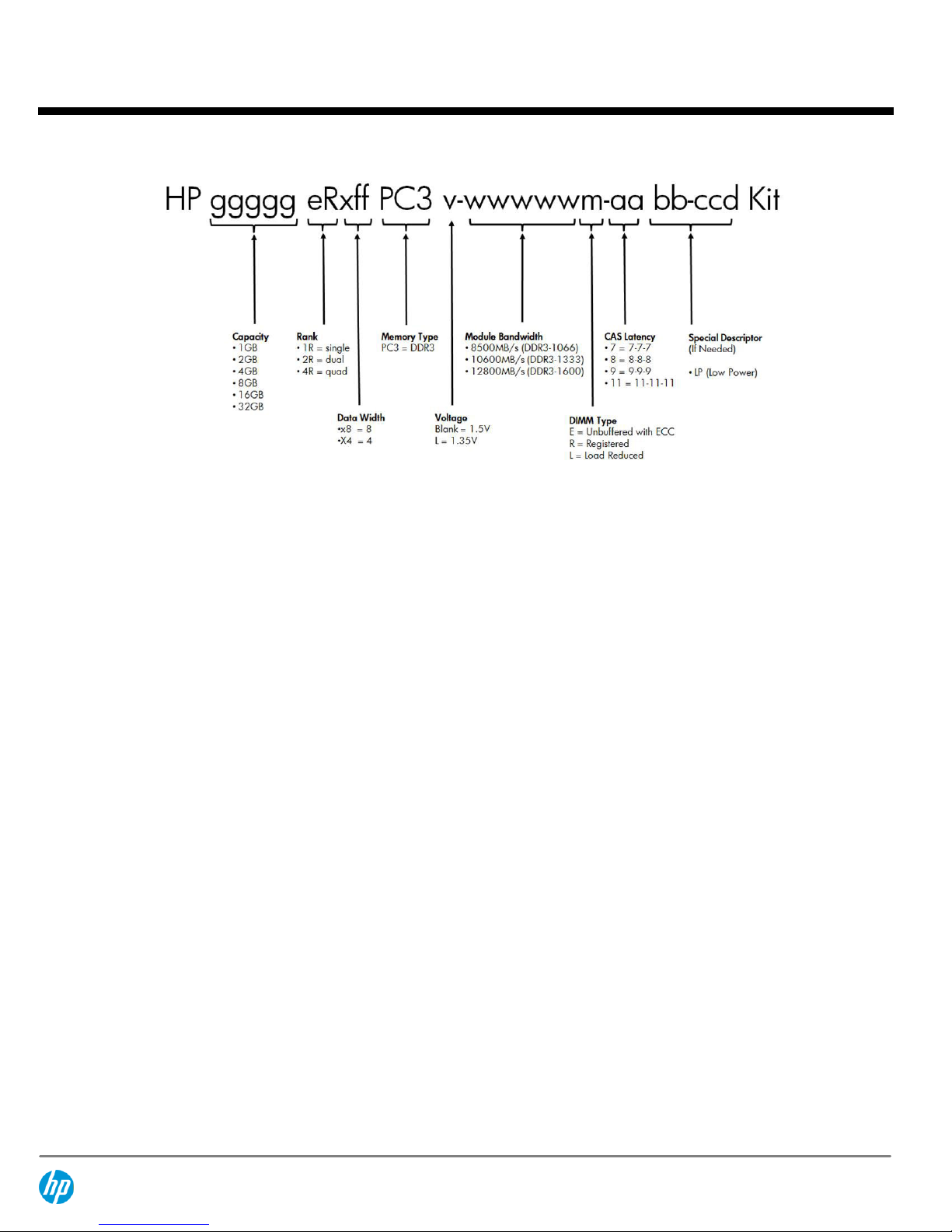

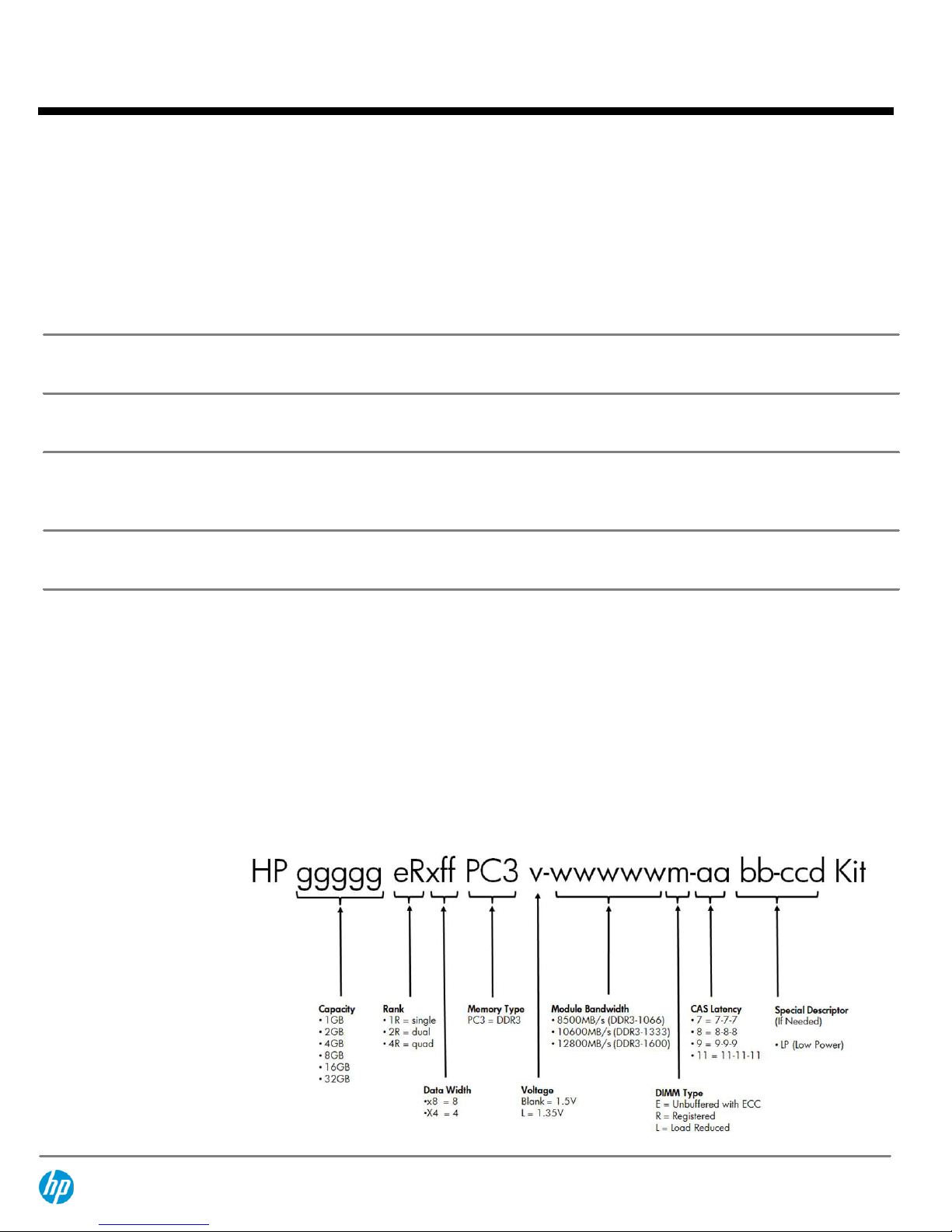

DDR3 memory options part number decoder

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Standard Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 4

Network Controller

Two (2) integrated NC551i Dual Port FlexFabric 10Gb Converged Network Adapters supporting stateless
TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols

NOTE:

Flex-10 capability requires the use of an HP Virtual Connect Flex-10 10Gb Ethernet module. Learn

more at:

www.hp.com/go/virtualconnect

.

NOTE:

Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric

10GB/24-port Module or HP 10GbE Pass-Thru Module.

NOTE:

Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class

interconnect components. Both ports will operate at the same speed

One (1) additional 10/100 network adapter dedicated to iLO 3 Management

I/O Expansion Slots

Three (3) I/O expansion mezzanine slots (All x8 PCIe 2.0)

Storage Controller

HP Smart Array P410i
Controller

1GB memory module with flash backed write cache (FBWC). Supports RAID 0,1.

NOTE:

The HP Smart Array P410i controller is required for all blades that support hot plug drives. See

Factory Integrated Models section for more information.

Maximum Internal
Storage

One of the following
depending on Model

Hot Plug SAS

2.4TB SAS (2 x 1.2TB)

Hot Plug SATA

2.0TB SATA (2 x 1.0TB)

Hot Plug SATA SSD

1.6TB SATA SSD (2 x 800GB)

Hot Plug SAS SSD

1.6TB SAS SSD (2 x 800GB)

NOTE:

SAS, SATA, and/or SSD drives cannot be mixed within the server.

Industry Standard
Compliance

ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support

Operating Systems and
Virtualization Software

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, including how to purchase from
HP, please visit our OS Support Site at:

http://www.hp.com/go/ossupport

and our driver download page:

http://www.hp.com/support/BL685cG7

.

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Standard Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 5

Enclosures

HP offers two (2) different c-Class server blade enclosures to meet your individual needs:

The HP BladeSystem c7000 rack enclosure is 10U high and holds up to eight (8) ProLiant BL685c G7
servers plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds up to four (4) HP ProLiant BL685c G7
servers plugged horizontally.

Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000
enclosures.

For additional enclosure information, please see:

http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

.

NOTE:

For optimal cooling and system performance the BL685c G7 requires the c7000 enclosure to be
configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

Graphics

Integrated ATI RN-50 1280 x 1024 x 16M color
Resolution Color Depths

Depths 1280 x 1024, 16.7M , 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16

Form Factor

HP ProLiant BL685c G7 is a single-wide, full-height server blade that plugs into the HP BladeSystem c3000
and c7000 enclosures.

HP Insight management
software

HP Service Pack for
ProLiant

HP Service Pack for ProLiant is an enhanced, re-packaging of ProLiant systems
software and firmware, but is still based on the rich legacy of ProLiant Support
Packs (PSPs) and HP Smart Update Firmware DVD that are originally found in
the Insight Foundation suite for ProLiant. It is a comprehensive systems
software and firmware release offered as a tested solution on all ProLiant
servers supported by Insight Foundation version 8.70. It evolves beyond
separate installation of HP PSPs and the HP Smart Update Firmware DVD by
providing a single image that combines both of these products. It offers
combined firmware and systems software packaging and improved processes
for drivers, utilities, agents, non agents, and other utilities that are required to
keep pace in today's rapidly expanding technology infrastructure.

Main or base releases for HP Service Pack for ProLiant are planned
approximately 3 times a year, but look for interim update releases that will
capture hot fixes released between main releases. HP Service Pack for
ProLiant is supported on all HP ProLiant SL/ML/DL 100, 300, 500, 700, and 900
servers and BladeSystems series servers that are supported with Insight
Foundation version 8.70 and will supersede and replace Insight Foundation. It
is downloadable from:

www.hp.com/go/server/service_packs/updates

as a

web only release and is not available on media.

The first release of HP Service Pack for ProLiant is Version 2011.06.0. It
contains the first comprehensive collection of firmware and system software
components, all tested together that include drivers, agents, non-agents,

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Standard Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 6

utilities, firmware packages for servers, controllers, storage, blades,
enclosures, and all components and options supported by HP ProLiant
Support Packs for Windows and Linux version 8.70. Additionally, VMware
offline firmware updates will be included.

More information can be found at this link for HP Service Pack for ProLiant:

www.hp.com/go/server/service_packs

HP Insight Foundation

Insight Foundation is being baselined at version v8.70 which means the
following:

Its Media Kit (contains 2 SmartStart CDs, the Firmware DVD, and the
Management DVD) will continue to ship with all supported ProLiant G7
or earlier BTO servers until the last supported server is no longer
shipping.
The Media Kit will not be updated past version 8.70.
ProLiant G7 or earlier CTO servers are able to order the Media Kit with
the understanding that the media is not updated. Please check specific
server QuickSpecs for availability of CTO Kit.
PSP and Firmware DVD downloads will be updated through 2Q 2012 at
the HP Insight Foundation Suite for ProLiant downloads tab:

http://www.hp.com/go/foundation

Customers are urged to use the replacement product, HP Service Pack for
ProLiant, instead of Insight Foundation Suite which is found at these location:

www.hp.com/go/spp
www.hp.com/go/spp/download

Security

Power-on password
Administrator's password
Integrated Lights-Out 3 with:

12 customizable user accounts
SSL encryption
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser,
CLP and XML scripting interface
AES and RC4 encryption of video

Disable via a global setting
Keyboard password
External USB port enable/disable
Network server mode
Serial interface control
TPM (Trusted Platform Module) 1.2 option

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Standard Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 7

Availability

Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Two (2) embedded dual-port 10Gb Converged Network Adapters for redundant LAN connections
Two (2) hot-plug SAS/SATA/SSD drive bays and integrated RAID (Smart Array P410i) controller with flash
backed write cache
Redundant ROM on each server blade
Multiple mezzanine I/O expansion
Advanced ECC Memory
Online memory spare
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load
balancing)

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three
years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Enhancements to warranty services are available through HP Care Pack services or customized
service agreements. Hard Drives have either a one year or three year warranty; refer to the specific hard
drive QuickSpecs for details.

NOTE:

Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may

be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories:

1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy
replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR
parts at no charge. Additional information regarding worldwide limited warranty and technical support is
available at:

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Standard Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 8

Fibre Channel Support

Three (3) optional dual-port Fibre Channel HBAs are supported by the HP ProLiant BL685c G7. Each
mezzanine circuit board connects directly to the server blade system board. These Fibre Channel HBAs are
available via option kits and must be ordered separately.

HBA mezzanine card option kits:

Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 403621-B21)

Field-proven reliability and performance for a broad range of applications using drivers and management
tools that are fully compatible with all Emulex HBAs

Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 456972-B21)

Exceptional performance, enhanced security, and scalable management for virtual server and
enterprise-class applications

QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 403619-B21)

Uses common drivers which means that customers can standardize on one QLogic driver whether
they are using the QMH2462 or other HBAs powered by QLogic

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem (PN 451871-B21)

Provides a first step into the 8Gb future, advanced, embedded support for virtualized environments
and reduced power consumption

HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter (PN 590647-B21)

Application oriented Quality of Service (AQoS) providing the ability to configure, prioritize, and
optimize traffic flows from virtual machines and/or applications to the target port

Brocade, Emulex and QLogic Fibre Channel HBAs for HP BladeSystem c-Class feature:

Optimal performance utilizing PCI Express
4/2/1Gb/s auto negotiating speeds (4Gb HBAs)
8/4/2Gb/s auto negotiation speeds (8Gb HBAs)
Dual-ports for redundant path connections
Up to two FC HBAs per server blade providing redundant FC HBA support
Optimized for HP Storage products and supported by third party SAN vendors
Support for Microsoft® Windows®, Linux, VMware ESX and Citrix XenServer™ operating system
environments

Compatible SAN

HP ProLiant BL685c G7 server blades are optimized for HP MSA, EVA, and XP
HP ProLiant BL685c G7 server blades are compatible with select third party SANs (please see blade storage
page for more details:

http://h18004.www1.hp.com/products/blades/components/c-class-sans.html

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Optional Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 9

HP Virtual Connect

HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to
data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of
network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and
infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect
FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HP
Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console
to administer network connections and workloads for thousands of servers. For more information on
Virtual Connect Enterprise Manager see:

www.hp.com/go/vcem

. For more information on Virtual Connect
Ethernet, Fibre Channel, Converged Network and management options see:

www.hp.com/go/virtualconnect

HP Insight management
software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. For more information, visit :

www.hp.com/go/insightcontrol

.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, please
visit:

http://www.hp.com/services/insight

.

NOTE:

HP Insight Control 7.2 introduces Insight Control server provisioning, a
new capability ideal for multi-server OS and firmware provisioning to ProLiant
and BladeSystem servers. Insight Control server provisioning is included and
licensed as part of HP Insight Control. A media kit, "HP Insight Control server
provisioning USB media kit" (# BD883A), including a USB, is available for
customers who require a physical copy of the media loaded with Insight
Control server provisioning software. Please note that this media kit is
separate and in addition to the HP Insight Management DVD media kit (P/N
C6N31A)

HP Matrix Operating
Environment

The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS). For more
information, see

http://www.hp.com/go/matrixoe

.

HP Integrated Lights-Out
(iLO)

HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and can
be accessed from any location via a web browser. HP iLO works hand-in-hand
with HP Systems Insight Manager, Insight Control suites, and Matrix Operating
Environment for ProLiant, helping customers unleash the value of the
ProLiant platform and deliver the highest possible quality of IT service. For
more information, visit:

www.hp.com/go/iLO

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Optional Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 10

HP OneView

The HP OneView architecture combines server, storage, and networking with control of datacenter
environmentals into a single, integrated management platform. Architected to deliver lifecycle
management for the complete Converged Infrastructure, it facilitates collaboration, removes friction,
collapses cycle times, eliminates error-prone work, and accelerates time to value. HP OneView v1.0
combines management of servers and virtual connect with open integration to automate and customize
existing tools and processes. With OneView, you'll work smarter-with greater visibility and control-and
fully capitalize on the benefits of a Converged Infrastructure.

For more information on HP OneView management, see:

http://www.hp.com/go/oneview

.

High Performance
Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large­scale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering.

http://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.

http://www.hp.com/techservers/clusters/ucp/index.html

HP Insight Cluster
Management Utility

HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP­supported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.

http://www.hp.com/go/cmu

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further
than HP storage software. Our storage software helps you reduce costs, simplify storage
infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

Data Protection and Recovery Software

Whether you're a large enterprise or a smaller business, HP data protection and recovery
software will cost-effectively protect you against disaster and ensure business continuity.

Data Archive and Migration Software

HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently
accessed or less valuable data to lower cost storage.

Storage Resource Management Software (SRM)

HP's storage resource management software reduces operational costs and provides the
command and control foundation you need to efficiently manage and visualize your physical
and virtual environments.

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Optional Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 11

Data Replication Software

HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.

Storage Device Management Software

Maximize your investment in HP storage and networking with software that enables hardware­specific configuration, performance tuning and connectivity management.

HP StoreVirtual VSA

HP StoreVirtual VSA allows you to create fully featured shared storage on a VMware vSphere or
Microsoft Hyper-V virtualized server. This server model starting November 2013, includes a
limited license for HP StoreVirtual VSA software with 1TB of capacity. To download the license
key and StoreVirtual VSA software, visit:

www.hp.com/go/unlockVSA

.

NOTE:

You will need your server serial number in order to complete the registration form. Fully
functional, capacity-based licenses are available in 4TB, 10T and 50TB sizes. For more
information and access to the 60-day free trail, visit:

www.hp.com/go/tryVSA

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

.

HP Proactive Insight
experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP
Proactive Insight experience consist of using Insight Online, Insight Remote Support, and Proactive
Care Support Service as one integrated solution. The Proactive Insight experience provides you with
expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned
down time and solve problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

Factory Express Portfolio
for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.

For more information on Factory Express services for your specific server model please contact your sales
representative or go to:

http://www.hp.com/go/factory-express

.

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or
use in your existing ordering processes. If you require "custom" rack configuration or configuration for
products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner
for assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Optional Features

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 12

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.

Recommended HP Care Pack Services for your HP product

Optimized Care Package

3-Year HP 6 hour Call to Repair Response, Proactive Care

Combined reactive and proactive support for hardware and software helping optimize your systems and
delivering high levels of availability through proactive service management and advanced technical
response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the
initial service request. A Technical Account Manager, as your single point of contact, will own your call or
issue end to end until resolved.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed
smoothly, efficiently, and with minimal disruption of your IT and business operations.

Standard Care

3-Year HP 24x7 4 hour response, Proactive Care Service

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed
smoothly, efficiently, and with minimal disruption of your IT and business operations

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Service and Support

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 13

Basic Care Package

HP Proactive Care Personalized Support - Environmental Option

The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

Insight Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote
Support http://www.hp.com/go/insightremotesupport and Insight Online

http://www.hp.com/go/insightonline

NOTE:

Insight Remote Support is a prerequisite for Proactive Care. All blades within a single HP

BladeSystem enclosure must be at the same service level.

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.

NOTE:

HP Support Center Mobile App is subject to local availability.

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales
representative or HP Authorized ServiceOne Channel Partner. Or visit:

www.hp.com/services/bladesystem

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Service and Support

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 14

Sixteen-Core Models

NOTE:

Not all models are available in all regions. Check with your local country HP offices for availability.

HP ProLiant BL685c G7
6380 4P 64GB-R
P410i/1GB FBWC Server

699066-B21

Processor(s)

(4) AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (16 x 4GB) PC3-10600, Registered DDR3-1333

NOTE:

Total of 32 DIMM slots.

Network Adapter

Two (2) embedded HP NC551i Dual Port FlexFabric 10Gb Converged Network
Adapters

Storage Controller

Smart Array P410i RAID controller with 1GB cache flash-backed write cache
(FBWC)

Hard Drives

None ships standard; (2) SFF SAS/SATA/SSD drive bays

Internal Storage

Up to 2.4TB SAS
Up to 2.0TB SATA
Up to 1.6TB SATA SSD
Up to 1.6TB SAS SSD

Optical Drive

None ships standard

Form Factor

Up to four (4) full-height blades supported in the HP BladeSystem c3000
Enclosure
Up to eight (8) full-height blades supported in HP BladeSystem c7000
Enclosure

Twelve-Core Models

NOTE:

Not all models are available in all regions. Check with your local country HP offices for availability.

HP ProLiant BL685c G7
6344 4P 64GB-R
P410i/1GB FBWC Server

708924-B21

Processor(s)

(4) AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (16 x 4GB) PC3-10600, Registered DDR3-1333

NOTE:

Total of 32 DIMM slots.

Network Adapter

Two (2) embedded HP NC551i Dual Port FlexFabric 10Gb Converged Network
Adapters

Storage Controller

Smart Array P410i RAID controller with 1GB cache flash-backed write cache
(FBWC)

Hard Drives

None ships standard; (2) SFF SAS/SATA/SSD drive bays

Internal Storage

Up to 2.4TB SAS
Up to 2.0TB SATA
Up to 1.6TB SATA SSD
Up to 1.6TB SAS SSD

Optical Drive

None ships standard

Form Factor

Up to four (4) full-height blades supported in the HP BladeSystem c3000
Enclosure
Up to eight (8) full-height blades supported in HP BladeSystem c7000
Enclosure

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Pre-configured Models

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 15

Eight-Core Models

HP ProLiant BL685c G7
6328 4P 64GB-R
P410i/1GB FBWC Server

699068-B21

Processor(s)

(4) AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (16 x 4GB) PC3-10600, Registered DDR3-1333

NOTE:

Total of 32 DIMM slots.

Network Adapter

Two (2) embedded HP NC551i Dual Port FlexFabric 10Gb Converged Network
Adapters

Storage Controller

Smart Array P410i RAID controller with 1GB cache flash backed write cache
(FBWC)

Hard Drives

None ships standard; (2) SFF SAS/SATA/SSD drive bays

Internal Storage

Up to 2.4TB SAS
Up to 2TB SATA
Up to 1.6TB SATA SSD
Up to 1.6TB SAS SSD

Optical Drive

None ships standard

Form Factor

Up to four (4) full-height blades supported in the HP BladeSystem c3000
Enclosure
Up to eight (8) full-height blades supported in HP BladeSystem c7000
Enclosure

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Pre-configured Models

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 16

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO
product offerings and requirements.

NOTE:

HP does not allow factory integration of options into standard models listed above.

NOTE:

Configure-to-order servers must start with a CTO server.

NOTE:

FIO indicates that this option is available only as a factory installable option.

Step 1: Base Server Blade Configuration

Models

HP ProLiant BL685c G7 Configure-to-order Server

518878-B21

Two (2) integrated HP NC551i Dual Port FlexFabric 10Gb Converged Network Adapters
and one (1) additional 10/100 server adapter dedicated to iLO 3 management

Two (2) small form factor (SFF) SAS/SATA/SSD hot plug drive bays
HP Integrated Lights-Out 3 (iLO 3)

Step 2: Choose Required Options (one of the following from each list unless otherwise
noted)

HP Processors

For dual (2) processor configurations choose (one of the following):

NOTE:

If four (4) processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

Sixteen-Core Processors

HP BL685c G7 AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) FIO 2-processor Kit

699069-L21

HP BL685c G7 AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W) FIO 2-processor Kit

699070-L21

HP BL685c G7 AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W) FIO 2-processor Kit

699071-L21

HP BL685c G7 AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) FIO 2-processor Kit

699077-L21

Twelve-Core Processors

HP BL685c G7 AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) FIO 2-processor Kit

699072-L21

HP BL685c G7 AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) FIO 2-processor Kit

699073-L21

Eight-Core Processors

HP BL685c G7 AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) FIO 2-processor Kit

699074-L21

HP BL685c G7 AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) FIO 2-processor Kit

699075-L21

Quad-Core Processors

HP BL685c G7 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) FIO 2-processor Kit

699076-L21

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593907-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676331-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593911-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit

604500-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676333-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593913-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit

604502-B21

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Configuration Information - Factory Integrated Models

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 17

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

593915-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP
Memory Kit

627808-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

684066-B21

HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory
Kit

627810-B21

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647885-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

A minimum of one (1) DIMM per processor is required.

NOTE:

Kits described as PC3L include Low Voltage DIMMs. For more information on
ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

.

NOTE:

Depending on the memory configuration, the memory speed may run at
1600MHz, 1333MHz, 1066MHz, or 800MHz. Please see Memory Population Table or the
Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

.

Step 3: Choose Additional Factory Integration Options

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License

C6N36A

Converged Infrastructure
Management Software

HP OneView with iLO Advanced - Server hardware required on same purchase order

HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

E5Y43A

HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU

E5Y43AAE

HP OneView for Blade Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

F6Q89A

HP OneView for Blade Server incl 3yr 24x7 Supp FIO Bundle 1 Svr E-LTU

F6Q89AAE

HP Storage Controller

HP Smart Array P410i/1G FBWC 2-ports Int PCIe x8 SAS Controller

NOTE:

Includes 1 GB cache with flash-backed write cache (FBWC).

NOTE:

The Smart Array P410i controller is required for all blades that support hot plug
drives.

588184-B22

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Configuration Information - Factory Integrated Models

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 18

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional "Core Options" and "Additional Options" please see the options sections below. For additional options, including
server blade enclosures interconnect options and power subsystem options; please see the following:
HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html

NOTE:

The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the
new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html

NOTE:

The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the
new enclosures and any future server blades will be supported in the existing enclosures.
and HP BladeSystem c-Class Interconnect and Mezzanine Components:

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Configuration Information - Factory Integrated Models

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 19

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of
an HP approved configurator. Contact your local sales representative for additional information.

Ethernet Mezzanine
Options

Gigabit Ethernet Mezzanines

HP NC325m PCI Express Quad Port Gigabit Server Adapter

416585-B21

HP NC360m Dual Port 1GbE BL-c Adapter

445978-B21

HP NC364m Quad Port 1GbE BL-c Adapter

447883-B21

HP NC382m PCI Express Dual Port Multifunction Gigabit Server Adapter

453246-B21

10 Gigabit Ethernet Mezzanines

NOTE:

A 10 Gigabit Ethernet adapter is required for each server blade connecting to a
10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP
BladeSystem c3000 Enclosure).

NOTE:

Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.

NOTE:

Only (2) 10 Gigabit Ethernet mezzanine cards can be installed in the BL685c G7 at
the same time.

NOTE:

Each 10 Gigabit Either adapter supports linking at 1000Mbps or 10000Mbps
when not connected to a Flex-10 enabled module and will link with all current 1Gb
switches at 1Gb.

NOTE:

The ROM Based Setup Utility (RBSU) feature allows for the configuring of a
FlexFabric Adapter to any of the supported protocols. For example iSCSI to FCoE (Fibre
Channel over Ethernet). Note that a HP Virtual Connect profile takes precedence over
the setting in this menu. Also, some FlexFabric Adapters may require that network boot
be enabled in order to configure the protocol. If the protocol is configured without
enabling network boot with certain FlexFabric Adapters, the protocol may not take
effect. Once the protocol has taken effect on the first boot after configuring this option,
network boot may be disabled if desired.

HP NC532m Dual Port 10GbE Multifunction BL-c Adapter

467799-B21

HP NC542m Dual Port Flex-10 10GbE BL-c Adapter

539857-B21

HP NC550m 10Gb 2-port PCIe x8 Flex-10 Ethernet Adapter

581204-B21

HP BLc NC551m Dual Port FlexFabric 10Gb Converged Network Adapter

NOTE:

Only (2) NC551m (PN 580151-B21) or NC553m (PN613431-B21) mezzanine
cards can be installed in the BL685c G7 at the same time.

580151-B21

HP NC552m 10Gb 2-port Flex-10 Ethernet Adapter

610609-B21

HP NC553m 10Gb 2-port FlexFabric Adapter

NOTE:

Only (2) NC551m (PN 580151-B21) or NC553m (PN613431-B21) mezzanine
cards can be installed in the BL685c G7 at the same time.

613431-B21

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Core Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 20

HP Fibre Channel
Mezzanine Options

4Gb Fibre Channel Mezzanines

Emulex LPe1105 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

403621-B21

QLogic QMH2462 4Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

403619-B21

8Gb Fibre Channel Mezzanines

Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

456972-B21

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

451871-B21

HP BLc Brocade 804 8Gb Fibre Channel Host Bus Adapter

590647-B21

HP Processors

Sixteen-Core Processors

HP BL685c G7 AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) 2-processor Kit

699069-B21

HP BL685c G7 AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W) 2-processor Kit

699070-B21

HP BL685c G7 AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W) 2-processor Kit

699071-B21

HP BL685c G7 AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) 2-processor Kit

699077-B21

HP BL685c G7 AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W) Processor Kit

686865-B21

HP BL685c G7 AMD Opteron™ 6276 (2.30GHz/16-core/16MB/115W) 2-processor Kit

654805-B21

HP BL685c G7 AMD Opteron™ 6274 (2.20GHz/16-core/16MB/115W) 2-processor Kit

654803-B21

HP BL685c G7 AMD Opteron™ 6272 (2.10GHz/16-core/16MB/115W) 2-processor Kit

654802-B21

HP BL685c G7 AMD Opteron™ 6262HE (1.60GHz/16-core/16MB/85W) 2-processor Kit

654808-B21

Twelve-Core Processors

HP BL685c G7 AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) 2-processor Kit

699072-B21

HP BL685c G7 AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) 2-processor Kit

699073-B21

HP BL685c G7 AMD Opteron™ 6238 (2.60GHz/12-core/16MB/115W) 2-processor Kit

654806-B21

HP BL685c G7 AMD Opteron™ 6234 (2.40GHz/12-core/16MB/115W) 2-processor Kit

654804-B21

HP BL685c G7 AMD Opteron™ 6174 (2.2GHz/12-core/12MB/115W) 2-processor Kit

518871-B21

HP BL685c G7 AMD Opteron™ 6176 (2.3GHz/12-core/12MB/115W) Processor Kit

632994-B21

HP BL685c G7 AMD Opteron™ 6136 (2.4GHz/8-core/12MB/115W) 2-processor Kit

518874-B21

HP BL685c G7 AMD Opteron™ 6166HE (1.8GHz/12-core/12MB/85W) 2-processor Kit

632998-B21

HP BL685c G7 AMD Opteron™ 6164HE (1.7GHz/12-core/12MB/85W) 2-processor Kit

596199-B21

Eight-Core Processors

HP BL685c G7 AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) 2-processor Kit

699074-B21

HP BL685c G7 AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) 2-processor Kit

699075-B21

HP BL685c G7 AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) 2-processor Kit

654807-B21

HP BL685c G7 AMD Opteron™ 6212 (2.60GHz/8-core/16MB/115W) Processor Kit

654801-B21

HP BL685c G7 AMD Opteron™ 6140 (2.6GHz/8-core/12MB/115W) 2-processor Kit

632996-B21

HP BL685c G7 AMD Opteron™ 6132HE (2.2GHz/8-core/12MB/85W) 2-processor Kit

633000-B21

HP BL685c G7 AMD Opteron™ 6128HE (2.0GHz/8-core/12MB/85W) 2-processor Kit

596201-B21

Quad-Core Processors

HP BL685c G7 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) 2-processor Kit

699076-B21

HP BL685c G7 AMD Opteron™ 6204 (3.30GHz/4-core/16MB/115W) Processor Kit

672514-B21

NOTE:

HP ProLiant BL685c G7 processor option kits contain two (2) processors.

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Core Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 21

NOTE:

The ProLiant BL685c G7 only supports two (2) and four (4) processor
configurations.

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593907-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676331-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593911-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit

604500-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676333-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593913-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit

604502-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

593915-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP
Memory Kit

627808-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

684066-B21

HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory
Kit

627810-B21

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647885-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

A minimum of one (1) DIMM per processor is required.

NOTE:

Kits described as PC3L include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

NOTE:

Depending on the memory configuration, the memory speed may run at
1600MHz, 1333MHz, 1066MHz, or 800MHz. Please see Memory Population Table or the
Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator

HP Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.

NOTE:

SAS, SATA, and/or SSD drives cannot be mixed within the server.

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive

625609-B21

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Core Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 22

NOTE:

Please see the for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html

(Worldwide)

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

718160-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

693648-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

619291-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581286-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

627117-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

NOTE:

Please see the for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html

(Worldwide)

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State
Drive

728726-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State Drive

734366-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State
Drives

HP 800GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State
Drive

728743-B21

HP 600GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State
Drive

739904-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State
Drive

728739-B21

HP 300GB 6G SATA Value Endurance SFF 2.5-in Enterprise Boot 3yr Wty Solid State
Drive

NOTE:

This drive supports G7 servers only.

739894-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value 3yr Wty Solid State
Drive

728735-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive

730065-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive

730063-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive

730061-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr Wty
Solid State Drive

730059-B21

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

605835-B21

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Core Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 23

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507610-B21

6G SAS SLC Hot Plug Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State
Drive

632494-B21

HP 200GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State
Drive

632492-B21

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr
Warranty Solid State Drive

690823-B21

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in ENT Mainstream 3yr Warranty Solid
State Drive

690821-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in Enterprise Mainstream 3yr
Warranty Solid State Drive

690819-B21

NOTE:

Please see the for Technical Specifications and additional information:

http://h18000.www1.hp.com/products/quickspecs/14038_div/14038_div.html

(Worldwide)

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Core Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 24

NOTE:

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of

an HP approved configurator. Contact your local sales representative for additional information.

HP Insight Software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Electronic License

C6N28ABE

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License

C6N27A

HP iLO Advanced for BladeSystem including 1yr 24x7 Support Eight Server License

512489-B21

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic
License

C6N36ABE

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

C6N31A

NOTE:

HP Insight Management Media Kit contains DVDs without licenses. Contains HP
Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment, and
Virtual Connect Enterprise Manager software. Uses an integrated installer to perform
quick and accurate software installation and updates.

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Management Media Kit can be
ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

.

HP Insight Control server deployment

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service.

NOTE:

For additional license kits please see the Insight Control QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html

(Worldwide)

HP iLO Advanced License

HP iLO Advanced for BladeSystem including 1yr 24x7 Tech Support and Updates
Electronic License

E6U60ABE

HP iLO Advanced Blade including 3yr 24x7 Tech Support and Updates Electronic License

E6U63ABE

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Additional Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 25

Converged Infrastructure
Management Software

HP OneView

HP OneView with iLO Advanced

HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y34A

HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU

E5Y35AAE

HP OneView Media Kit Phys No Lic

E5Y37A

HP OneView without iLO Advanced

HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y38A

HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU

E5Y39AAE

NOTE:

For additional license kits please see the QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/14621_div/14621_div.html

.

High Performance
Clusters

HP Insight Cluster Management Utility 1yr 24x7 Flexible License

NOTE:

This part number can be used to purchase one certificate for multiple licenses
with a single activation key. Each license is for one node (server). Customer will receive
a printed end user license agreement and license entitlement certificate via physical
shipment. The license entitlement certificate must be redeemed online in order to
obtain a license key.

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html

(Worldwide)

QL803B

HP Insight Cluster Management Utility 3yr 24x7 Flexible License

NOTE:

These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.

BD476A

HP Insight Cluster Management Utility Media

NOTE:

Order a minimum of one license per cluster to purchase media including
software and documentation, which will be delivered to the customer, and also licenses
CMU management. No license key is delivered or required.

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html

(Worldwide)

BD477A

HP I/O Accelerator
Options

NOTE:

Models compatible with G7 and previous generation Blade Servers only.

HP 320GB IO Accelerator for BladeSystem c-Class

AJ878B

HP 640GB IO Accelerator for BladeSystem c-Class

BK836A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
configuration information at:

http://h18000.www1.hp.com/products/quickspecs/13220_div/13220_div.html

(Worldwide)

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Additional Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 26

HP Security

HP Trusted Platform Module Option

488069-B21

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline.

NOTE:

For more information about TPM, including a white paper, go to:

www.hp.com/go/TPM

.

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM
deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.

HP Storage Controller

HP Smart Array P712M Controller

HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller

488348-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
configuration information at:

http://h18000.www1.hp.com/products/quickspecs/13296_div/13296_div.html

(Worldwide)

HP Smart Array P711m Controller

HP Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller

513778-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
configuration information at:

http://h18000.www1.hp.com/products/quickspecs/14035_div/14035_div.html

(Worldwide)

Optional Upgrades

HP Smart Array Cache Battery Kit

NOTE:

Supports the HP ProLiant BL2x220c and BL685c G7 server blades.

NOTE:

HP Smart Array Cache Battery Kit supports HP P700m Controller.

383280-B21

HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates
Single Server License

NOTE:

A license key, a minimum of 256MB cache, and battery kit is required to enable
Smart Array Advanced Pack features. For more information go to:

http://www.hp.com/go/saap

516471-B21

HP InfiniBand Mezzanine
Options

HP 4X QDR QLogic InfiniBand Dual Port Mezzanine HCA for c-Class BladeSystem

583210-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/12586_div/12586_div.html

(Worldwide)

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Additional Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 27

HP Ultrium Tape Blades

HP StoreEver LTO-4 Ultrium SB1760c Tape Blade

NOTE:

LTO-4 Ultrium tape technology

AQ697B

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
configuration information at:

http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html

(Worldwide)

NOTE:

Please visit the BladeSystem c-Class enclosure QuickSpecs for a complete list of
recommended data protection solutions for BladeSystem c-Class enclosures:

http://www.hp.com/go/blades

HP Storage Blades

HP StoreEver LTO-5 Ultrium SB3000c Tape Blade

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
configuration information at:

http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html

(Worldwide)

BS580B

HP D2200sb PCIe Storage Blade

NOTE:

Please see the HP D2200sb PCIe Storage Blade QuickSpecs for technical
specifications and additional information at:

http://h18006.www1.hp.com/storage/bladesystem/index.html

.

AP880A

HP Expansion Blade

HP BLc PCI Expansion Blade

NOTE:

Ships with one pre-installed PCI-X connect board. Also includes one PCIe connect
board which requires installation.

NOTE:

In a c3000 rack enclosure two half-height expansion blades may be installed
above the full-height BL685c G7 in the two slots created by the mini divider in the top
half of the c3000 enclosure. A mixture of half height and full height blades is not
supported in the lower half of the c3000 enclosure. For more information, please see
the HP BladeSystem c3000 Enclosure QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12790_div/12790_div.html

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
configuration information at:

http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html

(Worldwide)

448018-B21

HP Rack Options

HP Server Console Switches

HP Server Console 0x2x8 Port Analog Switch

AF616A

HP Server Console 0x2x16 Port Analog Switch

AF617A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/11834_div/11834_div.html

(Worldwide)

HP Server Console Switch G2 with Virtual Media & CAC

HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software

AF618A

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Additional Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 28

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13475_div/13475_div.html

(Worldwide)

HP IP Console Switch G2 with Virtual Media & CAC

HP 2x1Ex16 KVM IP Console Switch G2 with Virtual Media CAC Software

AF621A

HP 4x1Ex32 KVM IP Console Switch G2 with Virtual Media CAC Software

AF622A

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13474_div/13474_div.html

(Worldwide)

HP USB and SD Options

HP USB 2-Button Optical Scroll Mouse

DC172B

HP USB Standard Keyboard

DT528A#ABA

HP 2GB USB Flash Media Drive Key Kit

HP 2GB USB Flash Media Drive Key Kit

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment. HP recommends this industry standard USB flash
device for use with VMware ESXi. USB device must be installed in the internal slot of the
ProLiant server for use with VMware ESXi. Refer to

HP VMware Getting Started Guide

for

installation instructions.

608447-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HP 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13971_div/13971_div.html

HP Care Pack Services

Proactive Care

- Collaborative Support plus Proactive services delivered by the on
shore/near shore Advanced Solution Center (ASC) and backed by the global delivery
organization, end-to-end case ownership from a Technical Solution Specialists and
Technical Account Manager who remotely delivers firmware/software revision
management, proactive scans and incident trend reports. Recommended for customers
running a virtualized infrastructure and/or customers who desire an enhanced call
support experience.

HP 3 year 4 hour 24x7 ProLiant BL6xxc Proactive Care Service

U3B32E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant BL6xxc Proactive Care
Service

U3B35E

HP 3 year 6 hour Call To Repair 24x7 ProLiant BL6xxc Proactive Care Service

U3B38E

HP 3 year 6hr Call To Repair 24x7 with Defective Media Retention ProLiant BL6xxc
Proactive Care SVC

U3B41E

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Additional Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 29

Proactive Care Personalized Support Environmental Option

- to add an onsite
Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who
delivers support planning and brings technical expertise and best practices advice for
the customer's environment.

HP 3 year ISS ProactiveCare Personalized Support

U6W98E

Installation Services

- reduce the time required to get your system up and running and

help minimize disruptions to your business.
HP Install c-Class Server Blade Service

UE493E

HP Hardware Installation during Non Standard Hours c-Class Enclosure and Server
Blade Service

UG869E

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Additional Options

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 30

NOTE:

Memory configurations listed do not apply to "Factory Integrated Models".

DDR3 Memory Population Guidelines

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Some DIMM installation guidelines are summarized below:

For the HP ProLiant BL685c G7 server blade with thirty-two (32) memory slots:

There are four (4) channels per processor; sixteen (16) channels per server.
There are two (2) DIMM slots for each memory channel; thirty-two (32) total slots.
Memory channel 1 consists of the two (2) DIMMs that are furthest from the processor.

Memory channel 4 consists of the two (2) DIMMs that are closest from the processor.
A minimum of one (1) DIMM per processor is required.
DIMM slots that are white should be populated first.
Do not install DIMMs if the corresponding processor is not installed.
If only two (2) processors are installed in a four (4) CPU system, only half of the DIMM slots are available.
To maximize performance, balance the total memory capacity between all installed processors.
To maximize performance, balance the total memory capacity on any given processor across the memory channels.
You may only have up to eight (8) ranks installed per channel.
You may install up to two (2) quad-rank DIMMs per channel.
RDIMMs and LRDIMMs cannot be mixed.
Mixing DIMMs with different voltage levels will result in the higher voltage level being used resulting in higher power.
consumption. When running virtualization software, a minimum of two (2) DIMMs per processor are required. Populate DIMM
sockets 1A and 5B for each processor socket populated.

NOTE:

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

DIMM slot/capacity/populated speed table

DIMM Type

Registered DIMMS (RDIMMs)

Load Reduced

(LRDIMMs)

DIMM Rank

Single Rank

(1R)

Dual Rank

(2R)

Quad
Rank

(4R)

Quad Rank (4R)

DIMM Capacity

4GB 4GB 8GB 2GB 8GB

16GB 16GB 16GB 32GB 32GB

DIMM Native Speed (MHz)

1333 1600 1600 1333 1333 1333 1600 1066 1066 1333

DIMM Voltage

LV/Std

Std Std Std

LV/Std LV/Std

Std Std

LV/Std

LV

SLOTS THAT CAN BE POPULATED

32 slot servers

32 32 32 32 32 32 32 32 32 32

MAXIMUM CAPACITY (GB)

32 slot servers

128 128 256 64 256 512 512 512

1TB 1TB

POPULATED DIMM SPEED (MHz)

1 DIMM Per Channel

1333 1600 1600 1333 1333 1333 1600 1066 1066 1333

2 DIMM Per Channel

1333 1600 1600 1333 1333 1333 1333 1066

1066/800

1333

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 31

NOTE:

Mixing DIMMs with different voltage levels will result in the higher voltage level being used resulting in higher power

consumption.

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 32

HP ProLiant BL685 G7 Server Blade DIMM slot and configuration diagrams

Basic memory slot and population diagram

Population order; start with "A" first, "B" second, "C" third, etc.

32 DIMM SLOTS (8 per CPU node)

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

1

A

1

A

Chnl 1

2

E

2

E

Chnl 2

3

C

3

C

Chnl 2

4

G

4

G

Chnl 3

5

B

5

B

Chnl 3

6

F

6

F

Chnl 4

7

D

7

D

Chnl 4

8

H

8

H

CPU3 CPU4

slot #

population order

slot #

population order

Chnl 1

1

A

1

A

Chnl 1

2

E

2

E

Chnl 2

3

C

3

C

Chnl 2

4

G

4

G

Chnl 3

5

B

5

B

Chnl 3

6

F

6

F

Chnl 4

7

D

7

D

Chnl 4

8

H

8

H

HP ProLiant BL685c G7 Server Blade (4P Model)

Standard memory configuration (4 CPU model)

32GB, consisting of eight (8) 4GB single-rank PC3-10600 RDIMMs

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 33

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: empty

2

E: empty

Chnl 2

3

C: empty

3

C: empty

Chnl 2

4

G: empty

4

G: empty

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: empty

6

F: empty

Chnl 4

7

D: empty

7

D: empty

Chnl 4

8

H: empty

8

H: empty

CPU3 CPU4

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: empty

2

E: empty

Chnl 2

3

C: empty

3

C: empty

Chnl 2

4

G: empty

4

G: empty

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: empty

6

F: empty

Chnl 4

7

D: empty

7

D: empty

Chnl 4

8

H: empty

8

H: empty

Standard memory configuration (4 CPU model)

64GB, consisting of sixteen (16) 4GB single-rank PC3-10600 RDIMMs

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: empty

2

E: empty

Chnl 2

3

C: 4GB DIMM

3

C: 4GB DIMM

Chnl 2

4

G: empty

4

G: empty

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: empty

6

F: empty

Chnl 4

7

D: 4GB DIMM

7

D: 4GB DIMM

Chnl 4

8

H: empty

8

H: empty

CPU3 CPU4

slot #

population order

slot #

population order

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 34

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: empty

2

E: empty

Chnl 2

3

C: 4GB DIMM

3

C: 4GB DIMM

Chnl 2

4

G: empty

4

G: empty

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: empty

6

F: empty

Chnl 4

7

D: 4GB DIMM

7

D: 4GB DIMM

Chnl 4

8

H: empty

8

H: empty

Standard Memory Plus Optional Memory (4 CPU model)

416GB, consisting of two (2) 4GB RDIMMs plus six (6) 16GB RDIMMs

8 x 4GB single-rank PC3-10600 RDIMMs
24 x 16GB quad-rank PC3-8500 RDIMMs

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: 16GB DIMM

2

E: 16GB DIMM

Chnl 2

3

C: 16GB DIMM

3

C: 16GB DIMM

Chnl 2

4

G: 16GB DIMM

4

G: 16GB DIMM

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: 16GB DIMM

6

F: 16GB DIMM

Chnl 4

7

D: 16GB DIMM

7

D: 16GB DIMM

Chnl 4

8

H: 16GB DIMM

8

H: 16GB DIMM

CPU3 CPU4

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: 16GB DIMM

2

E: 16GB DIMM

Chnl 2

3

C: 16GB DIMM

3

C: 16GB DIMM

Chnl 2

4

G: 16GB DIMM

4

G: 16GB DIMM

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: 16GB DIMM

6

F: 16GB DIMM

Chnl 4

7

D: 16GB DIMM

7

D: 16GB DIMM

Chnl 4

8

H: 16GB DIMM

8

H: 16GB DIMM

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 35

Standard Memory Plus Optional Memory (4 CPU model)

320GB, consisting of two (2) 4GB RDIMMs plus six (6) 16GB RDIMMs

16 x 4GB single-rank PC3-10600 RDIMMs
16 x 16GB quad-rank PC3-8500 RDIMMs

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: 16GB DIMM

2

E: 16GB DIMM

Chnl 2

3

C: 4GB DIMM

3

C: 4GB DIMM

Chnl 2

4

G: 16GB DIMM

4

G: 16GB DIMM

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: 16GB DIMM

6

F: 16GB DIMM

Chnl 4

7

D: 4GB DIMM

7

D: 4GB DIMM

Chnl 4

8

H: 16GB DIMM

8

H: 16GB DIMM

CPU3 CPU4

slot #

population order

slot #

population order

Chnl 1

1

A: 4GB DIMM

1

A: 4GB DIMM

Chnl 1

2

E: 16GB DIMM

2

E: 16GB DIMM

Chnl 2

3

C: 4GB DIMM

3

C: 4GB DIMM

Chnl 2

4

G: 16GB DIMM

4

G: 16GB DIMM

Chnl 3

5

B: 4GB DIMM

5

B: 4GB DIMM

Chnl 3

6

F: 16GB DIMM

6

F: 16GB DIMM

Chnl 4

7

D: 4GB DIMM

7

D: 4GB DIMM

Chnl 4

8

H: 16GB DIMM

8

H: 16GB DIMM

Standard Memory Replaced with Optional Memory (4 CPU Model)
RDIMM maximum configuration

1TB, consisting of thirty-two (32) 32GB quad-rank PC3L-8500

32 x 32GB quad-rank PC3L-8500 RDIMMs

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 36

CPU1 CPU2

slot #

population order

slot #

population order

Chnl 1

1

A: 32GB DIMM

1

A: 32GB DIMM

Chnl 1

2

E: 32GB DIMM

2

E: 32GB DIMM

Chnl 2

3

C: 32GB DIMM

3

C: 32GB DIMM

Chnl 2

4

G: 32GB DIMM

4

G: 32GB DIMM

Chnl 3

5

B: 32GB DIMM

5

B: 32GB DIMM

Chnl 3

6

F: 32GB DIMM

6

F: 32GB DIMM

Chnl 4

7

D: 32GB DIMM

7

D: 32GB DIMM

Chnl 4

8

H: 32GB DIMM

8

H: 32GB DIMM

CPU3 CPU4

slot #

population order

slot #

population order

Chnl 1

1

A: 32GB DIMM

1

A: 32GB DIMM

Chnl 1

2

E: 32GB DIMM

2

E: 32GB DIMM

Chnl 2

3

C: 32GB DIMM

3

C: 32GB DIMM

Chnl 2

4

G: 32GB DIMM

4

G: 32GB DIMM

Chnl 3

5

B: 32GB DIMM

5

B: 32GB DIMM

Chnl 3

6

F: 32GB DIMM

6

F: 32GB DIMM

Chnl 4

7

D: 32GB DIMM

7

D: 32GB DIMM

Chnl 4

8

H: 32GB DIMM

8

H: 32GB DIMM

NOTE:

Capacity references are rounded to the common Gigabyte values.

2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
16GB = 16384MB
32GB = 32768MB

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 37

Memory options part number decoder

HP Memory

Registered DIMMs (RDIMMs)

HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593907-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676331-B21

HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593911-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit

604500-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

676333-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit

593913-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Power
Memory Kit

604502-B21

HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7 Memory Kit

593915-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP
Memory Kit

627808-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

684066-B21

HP 32GB (1x32GB) Quad Rank x4 PC3L-8500 (DDR3-1066) Registered CAS-7 LP Memory
Kit

627810-B21

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647885-B21

NOTE:

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory
configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

www.hp.com/go/ddr3memory-configurator

NOTE:

A minimum of one (1) DIMM per processor is required.

NOTE:

Kits described as PC3L include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see:

www.hp.com/go/proliant-energy-efficient

NOTE:

Depending on the memory configuration, the memory speed may run at
1600MHz, 1333MHz, 1066MHz, or 800MHz. Please see Memory Population Table or the
Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Memory

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 38

1-2

2 x SFF SAS or SATA Hot Plug Hard Drives, or
2 x SFF SATA Hot Plug SSD Drives

Hard Drives

NOTE:

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate

at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components

NOTE:

Simultaneous operation of hot plug hard drives and solid state drives is not supported.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE:

SAS, SATA, and/or SSD drives cannot be mixed within the server.

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

1TB 3G SATA 7.2K
500GB 3G SATA 7.2K

2

1-2

Smart Array P410i Controller

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

Quantity

Supported

Position

Supported

Controller

1TB 6G SAS 7.2K
500GB 6G SAS 7.2K

2

1-2

Smart Array P410i Controller

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

Quantity

Supported

Position

Supported

1.2TB 6G SAS 10K
900GB 6G SAS 10K
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 15K
300GB 6G SAS 10K
146GB 6G SAS 15K

2

1-2

Smart Array P410i Controller

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

Quantity

Supported

Position

Supported

Controller

120GB 6G SATA VE SFF
80GB 6G SATA VE SFF

2

1-2

Smart Array P410i Controller

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Storage

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 39

Quantity

Supported

Position

Supported

800GB 6G SATA VE SFF
480GB 6G SATA VE SFF
240GB 6G SATA VE SFF

2

1-2

Smart Array P410i Controller

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

Quantity

Supported

Position

Supported

Controller

800GB 6G SATA ME SFF
400GB 6G SATA ME SFF
200GB 6G SATA ME SFF
100GB 6G SATA ME SFF

2

1-2

Smart Array P410i Controller

6G SAS SLC Hot Plug Enterprise Performance (2.5-inch) Solid State Drives

Quantity

Supported

Position

Supported

Controller

400GB 6G SAS SLC SFF
200GB 6G SAS SLC SFF

2

1-2

Smart Array P410i Controller

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

Quantity

Supported

Position

Supported

Controller

800GB 6G SAS ME
400GB 6G SASME
200GB 6G SAS ME

2

1-2

Smart Array P410i Controller

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Storage

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 40

System Unit

Dimensions

(H x W x D)

14.42 x 2.19 x 20.058 (36.63 x 5.56 x 50.95 cm)

Weight

(approximate)

Maximum
(all hard drives, DIMMs, and
processors installed)

27 lbs (12.25 kg)

Minimum
(no hard drives, two
processors and four
DIMMs)

19.2 lbs (8.71 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power
supply output, please see the HP BladeSystem c-Class Enclosures QuickSpecs
located at:
HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html

HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html

To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at:

www.hp.com/go/hppoweradvisor

NOTE:

For optimal cooling and system performance the BL685c G7 requires
the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to
be configured with 6 fans.

System Inlet
Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m (1.8°F
per every 1000 ft) above sea level to a maximum
of 3050 m (10,000 ft), no direct sustained
sunlight. Maximum rate of change is 10°C/hr
(18°F/hr). The upper limit may be limited by the
type and number of options installed. System
performance may be reduced if operating with a
fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F), maximum rate of
change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non­condensing.

Non-operating

10 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non­condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1500 ft/min).

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Technical Specifications

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 41

Acoustic Noise

For acoustic noise specifications, please see the HP BladeSystem c-Class
Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html

HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html

HP Smart Array P410i
Controller

Disk Drive and Enclosure
Interface

6G SAS (Serial Attached SCSI)

3.0 G SATA (Serial Advanced Technology Attachment)

SAS Connectors

2 internal (SFF8484) x4 wide port connectors

Cache Memory Speed

DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum
bandwidth.

Server Interface

x4 5G PCIe 2.0 provides 2 GB/s maximum bandwidth.

SAS Speed

x2 6G SAS provides 1.2 GB/s maximum bandwidth.

Cache Memory

72-bit 1GB cache; ECC protection, capacitor-backed

Logical Drives Supported

Up to 32 logical drives

Maximum Logical Drive
Capacity

2.4 TB (2 x 1.2 TB)

Host Memory Addressing

64-bit, supporting greater than 4 GB server memory space

RAID Support

RAID 1 (Mirroring)
RAID 0 (Striping)

Upgradeable Firmware

Upgradeable Firmware with recovery ROM feature

Integrated HP NC551i
Dual Port FlexFabric 10Gb
Converged Network
Adapter

Type

Integrated dual-port KR 10GbE with FlexFabric (FCoE or iSCSI) capability

Network Processor

Blade Engines 2 (BE2)

Data Transfer Method

x8 PCI Express 2.0

Network Transfer Rate

Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex
theoretical bandwidth

NOTE:

Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb
HP BladeSystem c-Class interconnect components. Both ports will operate at
the same speed.

NOTE:

Each port on the NC551i adapter transmits from the server at 20 Gbps
(theoretical) full duplex.

IEEE Compliance

802.1p QoS, 802.1Q VLAN tagging, 802.3ad link aggregation, 802.3ap
10GBase-KR, and 802.3x flow control

Standard Features

ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Accelerated FCoE or iSCSI

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Technical Specifications

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 42

HP Integrated Lights-Out
3 (iLO 3)
integrated on system
board

Architecture

PCI Express based health and remote management ASIC

Processor

PCI Express RISC processor core running at 250MHz

Upgradeability

Option firmware upgradeable via Flash ROM

Video Support

1600 x 1200 DVR max resolution

Interfaces

One Ethernet network connection (10/100Mb/s)

Memory

128-MB DDR with ECC

Operating System
Support

Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and Windows

Server 2003 for Extended Systems Standard Edition, Enterprise Edition
Red Hat Enterprise Linux 5.4 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0

Client System Support

Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10

Client Browser Support

Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)

Command Line Support

Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2

Security

Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface

AES encryption of video
RC4 encryption of video

Directory Support
Services

Active Directory v1.0 (Windows 2003)

Driver Support

HP ProLiant iLO3 Management Controller Driver Package

Management protocols
supported

SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management
Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP
RIBCL XML

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Technical Specifications

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 43

Environment-friendly
Products and Approach

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant BL685c Generation 7 (G7) Server Blade

Technical Specifications

DA - 13655 Worldwide — Version 36 — December 13, 2013

Page 44
