HP ProLiant BL660c G8 Specification

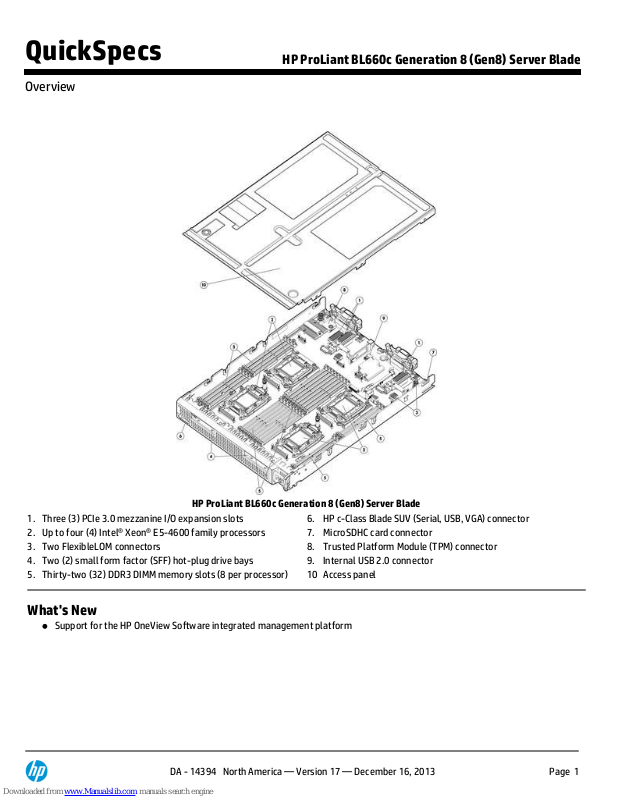

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

1.

Three (3) PCIe 3.0 mezzanine I/O expansion slots

6.

HP c-Class Blade SUV (Serial, USB, VGA) connector

2.

Up to four (4) Intel® Xeon® E5-4600 family processors

7.

MicroSDHC card connector

3.

Two FlexibleLOM connectors

8.

Trusted Platform Module (TPM) connector

4.

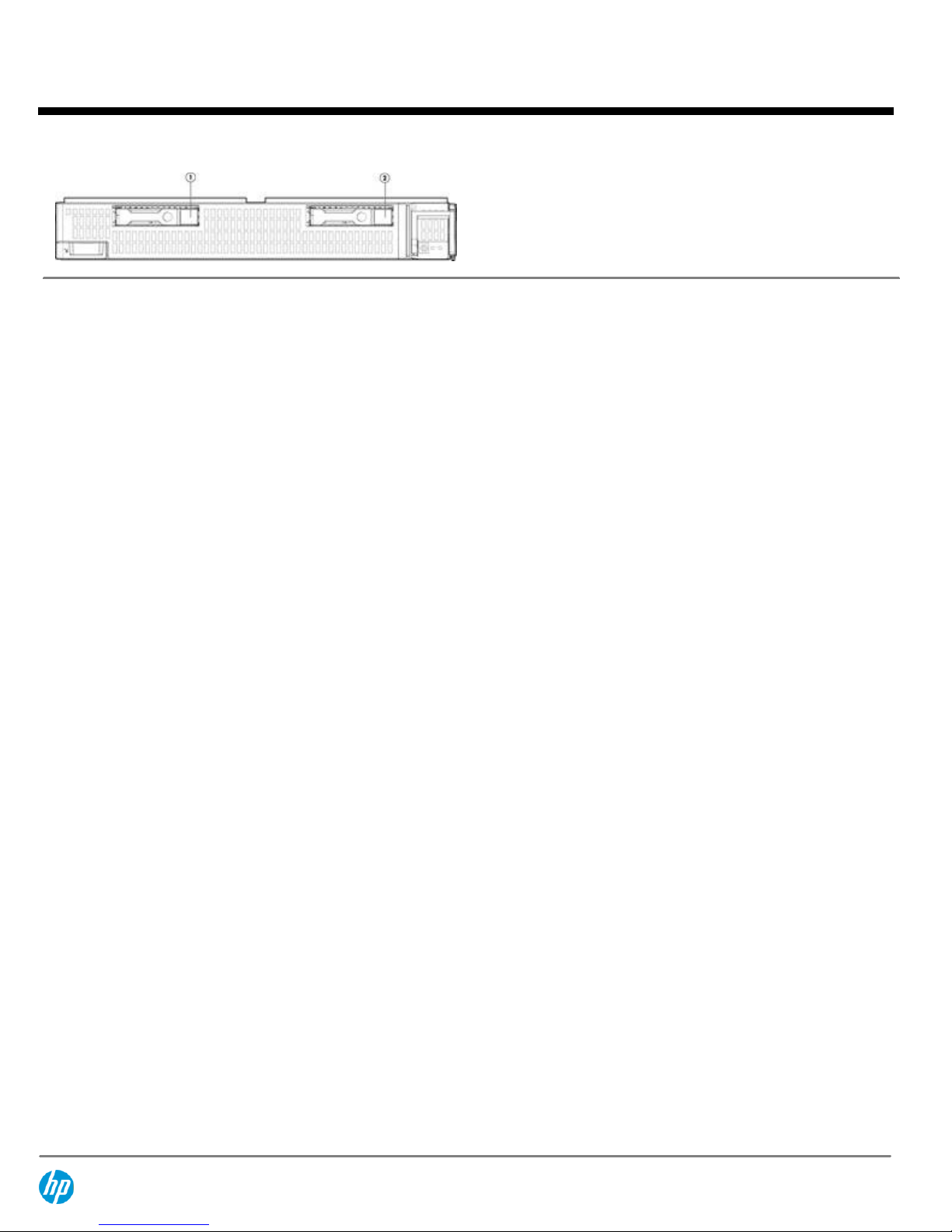

Two (2) small form factor (SFF) hot-plug drive bays

9.

Internal USB 2.0 connector

5.

Thirty-two (32) DDR3 DIMM memory slots (8 per processor)

10

Access panel

What's New

Support for the HP OneView Software integrated management platform

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Overview

DA - 14394 North America — Version 17 — December 16, 2013

Page 1

NOTE:

This document covers the HP ProLiant BL660c Gen8 server blade only. For information on HP BladeSystems c-Class Enclosures

and HP BladeSystem c-Class interconnect and mezzanine options, please see the following:

HP BladeSystem c-Class Enclosures QuickSpecs:

HP BladeSystem c3000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html

NOTE:

The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in

the new enclosures and any future server blades will be supported in the existing enclosures.

NOTE:

The ProLiant BL660c Gen8 requires the c3000 Enclosure to be configured with 6 fans.
HP BladeSystem c7000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html

NOTE:

The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.

NOTE:

The ProLiant BL660c Gen8 requires the c7000 Enclosure to be configured with 10 fans.
HP BladeSystem c-Class interconnect and mezzanine options at

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

NOTE:

For proper BladeSystem operation, the minimum required versions of HP Onboard Administrator and HP Virtual Connect are

required and available via the HP Service Pack for ProLiant, please see

http://www.hp.com/go/spp/download

.

Processor

One of the following
depending on Model

Eight-Core Processors

Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W) Processor
Intel® Xeon® E5-4650L (2.6GHz/8-core/20MB/115W) Processor
Intel® Xeon® E5-4640 (2.4GHz/8-core/20MB/95W) Processor
Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W) Processor

Six-Core Processors

Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W) Processor
Intel® Xeon® E5-4610 (2.4GHz/6-core/15MB/95W) Processor
Intel® Xeon® E5-4607 (2.2GHz/6-core/12MB/95W) Processor

Four-Core Processors

Intel® Xeon® E5-4603 (2.0GHz/4-core/10MB/95W) Processor

Cache Memory

One of the following
depending on Model

16MB or 20MB L3 cache

NOTE:

For eight-core processors.

12MB or 15MB L3 cache

NOTE:

For six-core processors.

10MB L3 cache

NOTE:

For four-core processors.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 2

Chipset

Intel® C600 Series Chipset

NOTE:

For more information regarding Intel chipsets, please see the following:

http://www.intel.com/products/server/chipsets/

.

Upgradeability

Upgradeable to four (4) processors

On System Management
Chipset

HP iLO (Firmware: HP iLO 4)

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

Memory Protection

Data bus ECC protection
Advanced ECC / SDDC
Rank sparring (on line spare)
Lockstep mode
DIMM address/control bus parity protection
Failed DIMM isolation
Demand scrubbing
Patrol scrubbing
Memory thermal control

Memory

One of the following
depending on Model

Type

HP SmartMemory
DDR3 Load Reduced (LRDIMM) and Registered (RDIMM)

Standard (Pre-configured
Models)

128GB (8 x 16GB) DDR3 1600MHz RDIMMs at 1.5V
128GB (8 x 16GB) DDR3 1333MHz RDIMMs at 1.35V

Maximum (LRDIMM)

1.0TB (32 x 32GB) up to 1333MHz at 1.35V

Maximum (RDIMM)

512GB (32 x 16GB) up to 1600MHz at 1.5V
768GB (32 x 24GB) up to 1333MHz at 1.35V

NOTE:

HP memory from previous generation servers are not qualified or warranted with this server.

NOTE:

HP SmartMemory is required to realize the memory performance improvements and enhanced
functionality listed in this document for Gen8. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

LRDIMMs and RDIMMs are distinct memory technologies and cannot be mixed within a server.

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at
1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table later in this document or the
Online Memory Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in this document.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 3

Network Controller

Two (2) HP FlexibleLOM connectors for one or two dual-port FlexibleLOMs

NOTE:

FlexibleLOM options include 10Gb FlexFabric, 10Gb Flex-10, and 10Gb Ethernet.

NOTE:

FlexFabric capabilities require the use of an HP Virtual Connect FlexFabric module. Learn more at:

http://www.hp.com/go/bladesystem/interconnects

NOTE:

The server supports one or two FlexibleLOMs.

NOTE:

For Pre-configured Model configurations, two FlexibleLOMs are already included; no additional
FLexibeLOMs are added.

NOTE:

For a Factory Integrated Model configuration with one FlexibleLOM, it is added in the HP Networking

section of "Step 2" in the Factory Integrated Models section.

NOTE:

For a Factory Integrated Model configuration with two FlexibleLOMs, the second FlexibleLOM is a
different part number. You must select the first FlexibleLOM in the "Step 2" HP Networking section and
select the second FlexibleLOM in the "Step 4" HP Networking section.

NOTE:

All FlexibleLOMs are dual port: one port is routed to interconnect module bay 1 and the other to bay

2.

Expansion Slots

Three (3) I/O expansion mezzanine slots:

x8 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).
x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 3).

Mezzanine card options include:

Dual-port to quad-port (depending on the model) 10Gb FlexFabric, 10Gb Flex-10, 10Gb Ethernet,
and 1Gb Ethernet for additional Ethernet network ports.
Dual-port 8Gb and 16GB Fibre Channel HBAs for SAN connectivity.
QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity.
HP Smart Array P721m Controller for direct attached SAS Storage
HP I/O Accelerator Options for higher I/O performance and low latency access to storage, with the
reliability of solid state

HP Server ROM

HP ROM (read only memory) is now digitally signed using HP's Corporate Signing Service. This signature is
verified before the flash process starts, reducing accidental programming and preventing malicious efforts
to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating
system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to
assist in diagnosis.

HP's ProLiant ROM is used to configure the following:

Processor and chipset status registers

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 4

System memory, memory map, and memory initialization
System hardware configuration (integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration using the HP ROM-Based Setup Utility (RBSU).

NOTE:

For further information, please refer to HP's RBSU (ROM based setup utility) user guide at

www.hp.com/support/rbsu

.

Storage Controller

All Models

One (1) embedded HP Smart Array P220i Controller

NOTE:

The HP Smart Array P220i supports RAID 0 and 1. It includes 512MB
flash-backed write cache (FBWC) on pre-configured models and is optional on
factory integrated models. The FBWC is not required for RAID capability. The
purpose of the cache is it can increase hard drive write performance and
provides data protection in case the server losses power.

NOTE:

The HP Smart Array P220i supports upgradeable firmware with
recovery ROM.

NOTE:

The HP Smart Array P220i supports two (2) small form factor (SFF) hot
plug drive bays.

Available Options: Smart Array Advanced Pack 2.0 Software for enhanced
performance, reliability, availability, and security of system data

Maximum Internal
Storage

Hot Plug SFF SAS

2.4TB

2 x 1.2TB

Hot Plug SFF SATA

2.0TB

2 x 1.0TB

Hot Plug SFF SAS SSD

1.6TB

2 x 800GB

NOTE:

The ProLiant BL660c Gen8 server includes the new HP hot plug small form factor (SFF) SmartDrive
carrier for enhanced management and reduced maintenance errors. HP drives from previous generation
servers are not compatible with the ProLiant BL660c Gen8 drive bays.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the server, but limits the
RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.

Interfaces

Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port

One (1) internal USB 2.0 connector for USB flash media drive keys

NOTE:

The above options are for integrated hypervisor virtualization environments needing a low cost

boot solution with the highest performance and reliability.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 5

Industry Standard
Compliance

ACPI 2.0
Microsoft® Logo certifications
USB 2.0 Support
IMPI 2.0
Secure Digital 2.0
TMP 1.2 Support
IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
PCIe 3.0
SR-IOV capability (requires network adapter and operating system support)

Operating Systems and
Virtualization Software
Support for ProLiant
Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/ossupport

and our driver download page

http://www.hp.com/support/BL660cGen8

.

Enclosures

Enclosures HP offers two different c-Class server blade enclosures to meet your individual needs:

The HP BladeSystem c7000 rack enclosure is 10U high and holds up to eight (8) ProLiant BL660c
Gen8 servers plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds up to four (4) HP ProLiant BL660c
Gen8 servers plugged horizontally.
Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard
Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

NOTE:

For additional enclosure information, please see

http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 6

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bpp)

1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

16 MB Flash

256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

HP ProLiant BL660c Gen8 is a single-wide, full-height server blade that plugs into the HP BladeSystem
c3000 and c7000 enclosures.

On System Management

HP iLO Management
Engine

HP iLO Management Engine is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HP iLO Management Engine comes standard on all HP ProLiant Gen8
servers. The HP iLO Management Engine portfolio includes:

HP iLO:

The HP iLO (Integrated Lights-Out) management processor is

the core foundation for the HP iLO Management Engine

HP Agentless Management:

Provides built in server health monitoring
and alerting capability without OS agents, that starts working the
moment a power cord and an Ethernet cable are connected.

HP Active Health System:

Always on, continuous monitoring for
increased stability and shorter downtimes; 100% configuration history;
Health and service alerts and easy export and upload to Service and
Support.

HP Intelligent Provisioning:

Lets customers provision and configure a
single server without any separate media. No more SmartStart CDs or
firmware DVDs are needed.

To start Intelligent Provisioning:

Press the F10 key during the ProLiant Gen8 server boot
process (also known as power on self test or POST).
Please go to the Intelligent Provisioning website at

www.hp.com/go/intelligentprovisioning

for additional
information and to view usage videos.
Use the Service Pack for ProLiant (SPP) at

www.hp.com/go/spp

to get firmware and software

updates.

HP iLO Mobile App:

Enables the ability to access, deploy, and
manage your server anytime from anywhere from select
smartphones and mobile devices. For additional information
please visit:

www.hp.com/go/ilo/mobileapp

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

or HP iLO

Management Engine technologies whitepaper

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 7

HP Insight management
software

HP Service Pack for
ProLiant (SPP)

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
provide a comprehensive approach to firmware and system software
maintenance. Together they provide better operating stability and ensure
maximum uptime. The SPP will be updated at a predictable cadence, typically
coinciding with new HP server hardware launches. By enabling firmware to be
updated online and integrating firmware and system software updates in one
operation, HP SUM and the SPP offer faster updates of individual servers and
dramatically faster updates of entire BladeSystem enclosures. Further
improving system uptime and stability is the fact that HP provides 12 months
of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM and the latest
SPP. Optional smaller subsets with only specific types of servers or specific
operating systems are offered to save on download time. The HP SUM
application provides a straightforward, intuitive user interface that guides the
user through the steps of discovery, analyses and update, providing
comprehensive information on available updates, criticality and
interdependencies. This information is also available in reports. By providing
the option of multiple local or shared repositories which can be easily updated
from hp.com, HP SUM provides the tools to optimize stability and consistency
throughout the company. While HP SUM and the SPP recommend the
combinations of firmware and system software that HP has found to be the
best practice, the application gives customers the flexibility to set their own
specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.

NOTE:

The Service Pack for ProLiant (which includes HP SUM) can be

downloaded from

www.hp.com/go/spp/download

. More information can be

found:

http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp

and

http://www.hp.com/go/hpsum

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 8

Security

Power-on password
Administrator's password
Keyboard password (QuickLock)
HP iLO 4 On System Management Chipset with:

SSL encryption
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser,
CLP and XML scripting interface

AES and RC4 encryption of video
External USB port enable/disable
Network server mode
Serial interface control
TPM (Trusted Platform Module) 1.2 option
Advanced Encryption Standard (AES)
Intel® Advanced Encryption Standard-New Instructions (AES-NI)
Intet TXT (require the TPM module option)

Availability

Memory

Data Bus ECC protection provides automatic correction from a single data bit error and detection of
double data error bits. Often called single error correction/double error detection (SEC/DED).
Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-bit
error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires
lockstep mode).
Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and
switches operation to the spare rank. HP offers the rank sparing rather than DIMM sparing as rank
sparing uses less spare memory resulting in reduced overhead.
Memory lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs in
each paired memory channel must have identical HP part numbers.
Memory demand and patrol scrubbing prevent accumulation of correctable errors and reducing the
likelihood of unplanned downtime.
Failed DIMM isolation improves the service time thus improving the overall system availability.
Address parity protection available on RDIMMs and LRDIMMs detects address bit errors to improve
service time and overall system availability.
Memory thermal control is used to prevent DIMMs from overheating. Achieved by slowing down the
memory access rate per the temperature monitored by DIMM sensor.

Mezzanine options and I/O

One or two FlexibleLOM connectors each supporting two (i.e. redundant) Ethernet ports routed to
redundant interconnect modules.
Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each
supporting multiple data paths routed to redundant interconnect modules.
Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing, and
switch-assisted load balancing.

Storage

Two (2) hot-plug SAS/SATA/SSD drive bays.
Integrated HP Smart Array P220i Controller with 512MB FBWC capability, RAID 0 and 1, and
upgradeable firmware with recovery ROM capability.

NOTE:

The 512MB flash-backed write cache (FBWC) is included on pre-configured models and is

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 9

optional on factory integrated models. The FBWC is not required for RAID capability. The purpose of
the cache is it can increase hard drive write performance and provides data protection in case the
server losses power

.
Up to eight optional HP D2200sb and/or D22020sb Storage Blades for attachment of up to 12 drives
per Storage Blade (up to 96 drives total) within the c-Class enclosure.
Optional dual-port Fibre Channel mezzanine card(s) for redundant SAN connections.

Processor/Chipset

Processor internal sensors & thermal control protection against over-temperature conditions.
Cache parity/ECC protects cache data from accidental data corruption.
Machine Check Architecture (MCA) detects and captures hardware errors such as system bus,
memory ECC, parity, and cache, and improves service time.
Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits.
Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair. It
uses BIST (built-in self test) results to detect a failure and disables the target core-pair upon
subsequent boot.

Server Blade Enclosure Infrastructure

Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency,
common slot enclosure-based power supplies (configuration dependent).
Up to ten (10) redundant enclosure-based hot-plug HP Active Cool fans that scale to meet future
demands and optimize airflow, reduce power draw, and improve acoustic performance.
Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.
HP Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time and
automatically adjusted with changes in demand for improved efficiency and reliability.
HP Dynamic Power Capping safely limits power usage without impacting performance by capping
peak usage instead of average power usage, removes risk to electrical infrastructure with a fast­acting, hardware-based capping algorithm, and reclaims more power by dynamically controlling
power limits based on workload demand.
Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant
fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, Pass Thru Ethernet, etc.
Enclosure crosslinks between adjacent enclosures to provide interconnect module-to-module
connections or as Virtual Connect module stacking links.
Optional enclosure redundant Onboard Administrator system management module.

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three
years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Enhancements to warranty services are available through HP Care Pack services or customized
service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three
year warranty; refer to specific hard drive QuickSpecs for details.

NOTE

: Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may

be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories:

1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy
replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR
parts at no charge. Additional information regarding worldwide limited warranty and technical support is
available at

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Standard Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 10

Fibre Channel Support

Up to three (3) optional Fibre Channel mezzanine HBAs are supported on the HP ProLiant BL660c Gen8.

Compatible SAN

HP ProLiant BL660c Gen8 server blades are optimized for HP MSA, EVA and XP.

HP ProLiant BL660c Gen8 server blades are compatible with select 3rd party SANs. Please see blade
storage page for more details at

http://h18004.www1.hp.com/products/blades/components/c-class-sans.html

.

HP Virtual Connect

HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to
data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of
network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and
infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect
FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HP
Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console
to administer network connections and workloads for thousands of servers. For more information on
Virtual Connect Enterprise Manager, see

http://www.hp.com/go/vcem

. For more information on Virtual
Connect Ethernet, Fibre Channel, Converged Network and management options, see

http://www.hp.com/go/virtualconnect

.

HP Insight management
software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. For more information, see

http://www.hp.com/go/insightcontrol

.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see

http://www.hp.com/services/insight

.

HP Matrix Operating
Environment

The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS). For more
information, see

http://www.hp.com/go/matrixoe

.

HP iLO Scale-Out

The HP iLO Scale-Out license ideal for web/hosting/cloud service providers
and High Performance Computing environments. This license is a specific
subset of iLO Advanced functionality, provides fast remote access through
Text Console via SSH, lower operational cost with Dynamic power capping,
and faster time to resolution through Email-based Alerting and proactive
notifications. With this newly designed HP iLO Scale-Out license HPC
customers now have a server management package solely design and priced
for their massive data environments. HP iLO Scale-Out is available on all HP

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Optional Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 11

ProLiant Gen8 BL and SL platforms. For more information, see:
www.hp.com/go/iLO/scale-out

HP iLO Advanced

HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multi­user collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:

http://www.hp.com/go/iloadvance

HP OneView

The HP OneView architecture combines server, storage, and networking with control of datacenter
environmentals into a single, integrated management platform. Architected to deliver lifecycle
management for the complete Converged Infrastructure, it facilitates collaboration, removes friction,
collapses cycle times, eliminates error-prone work, and accelerates time to value. HP OneView v1.0
combines management of servers and virtual connect with open integration to automate and customize
existing tools and processes. With OneView, you'll work smarter-with greater visibility and control-and
fully capitalize on the benefits of a Converged Infrastructure.

For more information on HP OneView management, see:

http://www.hp.com/go/oneview

High Performance
Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large­scale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering.

http://www.hp.com/go/clusters

HP HPC Interconnects

HP HPC Interconnects High Performance Computing (HPC) interconnect
technologies are available for this server as part of the HP Cluster Platform
portfolio. These high-speed InfiniBand and Gigabit interconnects are fully
supported by HP when integrated within an HP cluster. Flexible, validated
solutions can be defined with the help of configuration tools.

http://www.hp.com/techservers/clusters/ucp/index.html

HP Insight Cluster
Management Utility

HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP­supported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.

http://www.hp.com/go/cmu

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Optional Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 12

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:

Data Protection and Recovery Software
Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.
Data Archive and Migration Software
HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.
Storage Resource Management Software (SRM)
HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.
Data Replication Software
HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.
Storage Device Management Software
Maximize your investment in HP storage and networking with software that enables hardware­specific configuration, performance tuning and connectivity management.
HP StoreVirtual VSA
With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

.

HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP
support information personalized to your IT environment. Insight Online can automatically display devices
remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.

http://www.hp.com/go/insightonline

.

HP Proactive Insight
experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Optional Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 13

Factory Express Portfolio
for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.

For more information on Factory Express services on your specific server model please contact your sales
representative or go to:

http://www.hp.com/go/factory-express.html

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Optional Features

DA - 14394 North America — Version 17 — December 16, 2013

Page 14

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.

Recommended HP Care Pack Services for your HP product

Optimized Care

3-Year HP 6 hour Call to Repair Response, Proactive Care

Combined reactive and proactive support for hardware and software helping optimize your systems and
delivering high levels of availability through proactive service management and advanced technical
response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the
initial service request. A Technical Account Manager, as your single point of contact, will own your call or
issue end to end until resolved.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed
smoothly, efficiently, and with minimal disruption of your IT and business operations.

Standard Care

3-Year HP 24x7 4 hour response, Proactive Care Service

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed
smoothly, efficiently, and with minimal disruption of your IT and business operations

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Service and Support

DA - 14394 North America — Version 17 — December 16, 2013

Page 15

Related Services

HP Proactive Care Personalized Support - Environmental Option

The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

Insight Online/Insight
Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote
Support

http://www.hp.com/go/insightremotesupport

and Insight Online

http://www.hp.com/go/insightonline

NOTE:

Insight Remote Support is a prerequisite for Proactive Care. All blades within a single HP

BladeSystem enclosure must be at the same service level.

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.

NOTE:

HP Support Center Mobile App is subject to local availability.

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales
representative or HP Authorized ServiceOne Channel Partner. Or visit:

www.hp.com/services/bladesystem

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Service and Support

DA - 14394 North America — Version 17 — December 16, 2013

Page 16

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

NOTE:

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section

of this QuickSpecs.

NOTE:

HP does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped

separately.

NOTE:

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this

QuickSpecs.

NOTE:

Not all Pre-configured Models are available in all regions. Check with your local country HP offices for availability.

Performance Models

HP ProLiant BL660c Gen8
E5-4650 4P 128GB-R
Server

679114-B21

Processor(s)

Four (4) Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W)

Cache Memory

20MB Level 3 cache

Memory

128GB (16x 8GB) PC3-12800R (DDR3-1600) Registered DIMMs at 1.5V

NOTE:

Total of 32 DIMM slots.

Network Controller

Two (2) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOMs

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC and RAID 0, 1

Hard Drive

None ship standard; includes 2 SFF hard drive blanks
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives

Internal Storage

SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB

Optical Drive Bay

None

Expansion Slots

3 standard - Slot 1 supports Type A mezzanine Cards. Slots 2 and 3 support
Type A and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control

Form Factor

Up to four (4) full-height server blades supported in the HP BladeSystem
c3000 Enclosure
Up to eight (8) full-height server blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year parts, 3 year labor, 3-year on-site support.

HP ProLiant BL660c Gen8
E5-4620 4P 128GB-R
Server

679115-B21

Processor(s)

Four (4) Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W)

Cache Memory

16MB Level 3 cache

Memory

128GB (16x 8GB) PC3L-10600R (DDR3-1333) Registered DIMMs at 1.35V

NOTE:

Total of 32 DIMM slots.

Network Controller

Two (2) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOMs

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC and RAID 0, 1

Hard Drive

None ship standard; includes 2 SFF hard drive blanks
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives

Internal Storage

SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB

Optical Drive Bay

None

Expansion Slots

3 standard - Slot 1 supports Type A mezzanine Cards. Slots 2 and 3 support
Type A and Type B mezzanine cards.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Pre-configured Models

DA - 14394 North America — Version 17 — December 16, 2013

Page 17

Management

HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control

Form Factor

Up to four (4) full-height server blades supported in the HP BladeSystem
c3000 Enclosure
Up to eight (8) full-height server blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year parts, 3 year labor, 3-year on-site support.

HP ProLiant BL660c Gen8
E5-4617 4P 128GB-R
Server

679116-B21

Processor(s)

Four (4) Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W)

Cache Memory

15MB Level 3 cache

Memory

128GB (16x 8GB) PC3-12800R (DDR3-1600) Registered DIMMs at 1.5V

NOTE:

Total of 32 DIMM slots.

Network Controller

Two (2) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOMs

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC and RAID 0, 1

Hard Drive

None ship standard; includes 2 SFF hard drive blanks
Supports up to two (2) HP hot-plug SFF SAS/SATA/SDD drives

Internal Storage

SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB

Optical Drive Bay

None

Expansion Slots

3 standard - Slot 1 supports Type A mezzanine Cards. Slots 2 and 3 support
Type A and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control

Form Factor

Up to four (4) full-height server blades supported in the HP BladeSystem
c3000 Enclosure
Up to eight (8) full-height server blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year parts, 3 year labor, 3-year on-site support.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Pre-configured Models

DA - 14394 North America — Version 17 — December 16, 2013

Page 18

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model or configure-to-order (CTO) server. To
ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.

NOTE:

Configure-to-order server blades must start with a CTO Blade Server

NOTE:

FIO indicates that this option is only available as a factory installable option.

NOTE:

All CTO (Configure to Order) systems will be populated with sufficient hard drive blanks based on the number of initial hard
drives ordered with the server.

Step 1: Base Server Blade Configuration (Select a configurable Blade)

Models

HP ProLiant BL660c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server

679118-B21

Each configurable model ships with:

Two (2) FlexibleLOM connectors providing a choice of supported FlexibleLOMs (see Step

2)
One (1) embedded HP Smart Array P220i Controller with RAID 0, 1
Optional HP Smart Array P220i Controller 512MB FBWC (listed in step 4)
Two (2) HP small form factor hot-plug SAS/SATA/SSD hard drive bays
Three (3) PCIe Gen 3.0 I/O expansion slots (one x8 Type A, two x16 Type B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector
HP iLO Management Engine (standard)

Step 2: Choose Required Options (one of the following from each list unless otherwise
noted)

HP Processors

NOTE:

The BL660c Gen8 supports two or four processors; one and three processor

configurations are not supported.

NOTE:

All processor kits contain two (2) processors.

NOTE:

If four processors are desired, select one 2P xxxxxx-L21 processor kit here in

Step 2 and one xxxxxx-B21 2P processor kit in Step 3.

NOTE:

All processors within the server must be identical.

NOTE:

The processor model as well as the memory configuration determines the
maximum speed memory can operate. Please see the see the "Memory" section later in
this document.

Eight-Core Processors

HP BL660c Gen8 Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W) FIO 2-processor
Kit

679098-L21

HP BL660c Gen8 Intel® Xeon® E5-4650L (2.6GHz/8-core/20MB/115W) FIO 2-processor
Kit

679110-L21

HP BL660c Gen8 Intel® Xeon® E5-4640 (2.4GHz/8-core/20MB/95W) FIO 2-processor Kit

679100-L21

HP BL660c Gen8 Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W) FIO 2-processor Kit

679102-L21

Six-Core Processors

HP BL660c Gen8 Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W) FIO 2-processor
Kit

679112-L21

HP BL660c Gen8 Intel® Xeon® E5-4610 (2.4GHz/6-core/15MB/95W) FIO 2-processor Kit

679104-L21

HP BL660c Gen8 Intel® Xeon® E5-4607 (2.2GHz/6-core/12MB/95W) FIO 2-processor Kit

679106-L21

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14394 North America — Version 17 — December 16, 2013

Page 19

Four-Core Processors

HP BL660c Gen8 Intel® Xeon® E5-4603 (2.0GHz/4-core/10MB/95W) FIO 2-processor Kit

679108-L21

HP Memory

NOTE:

HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server.

NOTE:

HP SmartMemory is required to realize the memory performance improvements
and enhanced functionality listed in this document. For additional information, please
see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

LRDIMMs and RDIMMs are all distinct memory technologies and cannot be mixed
within a server.

NOTE:

A minimum of one DIMM is required per processor.

NOTE:

Depending on the memory configuration and processor model, 1600MHz and
1333MHz memory may operate at a lower speed. Please see the see the "Memory"
section later in this document and the Online Memory Configuration Tool for details at

www.hp.com/go/ddr3memory-configurator

.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in
this document.

HP SmartMemory

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647903-B21

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647893-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647897-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647901-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672631-B21

HP 24 GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage FIO Memory Kit

NOTE:

When HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered
CAS-9 Low Voltage FIO Memory Kits are used, all 32 DIMM slots on the BL660c Gen8
must be fully populated with these 24GB DIMMs.

716324-B21

HP Networking

FlexibleLOM Adapters

NOTE:

The ProLiant BL660c Gen8 supports one or two FlexibleLOMs.

NOTE:

For a single FlexibleLOM Factory Integrated Model configuration, select the
option here in the "Step 2" HP Networking section.

NOTE

: For a two FlexibleLOM Factory Integrated Model configuration, the second

FlexibleLOM is a different part number. When two FlexibleLOMs are needed you must

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14394 North America — Version 17 — December 16, 2013

Page 20

select the first FlexibleLOM here in the "Step 2" HP Networking section and the second
FlexibleLOM from "Step 4" HP Networking section.

NOTE:

All FlexibleLOMs are dual port: one port is routed to interconnect module bay 1

and the other to bay 2.

10GbE Ethernet FlexibleLOMs

HP Flex-10 10Gb 2-port 530FLB FIO Adapter

NOTE:

For a two FlexibleLOM configuration, the HP Flex-10 10Gb 2-port 530FLB FIO
Adapter may be configured with the HP Flex-10 10Gb 2-port 530FLB Adapter (656590­B21) or the HP 10Gb 2-port 560FLB Adapter (655639-B21).

684211-B21

HP FlexFabric 10Gb 2-port 534FLB FIO Adapter

NOTE:

For a two FlexibleLOM configuration, the HP FlexFabric 10Gb 2-port 534FLB FIO
Adapter may be configured with the HP FlexFabric 10Gb 2-port 534FLB Adapter
(700741-B21) ) or the HP 10Gb 2-port 560FLB Adapter (655639-B21)

700742-B21

HP FlexFabric 10Gb 2-port 554FLB FIO Adapter

NOTE:

For a two FlexibleLOM configuration, the HP FlexFabric 10Gb 2-port 554FLB FIO
Adapter may be configured with the HP FlexFabric 10Gb 2-port 554FLB Adapter
(647586-B21) or the HP 10Gb 2-port 560FLB Adapter (655639-B21).

684212-B21

HP Ethernet 10Gb 2-port 560FLB FIO Adapter

NOTE:

For a two FlexibleLOM configuration, the HP 10Gb 2-port 560FLB FIO Adapter

may be configured with the HP 10Gb 2-port 560FLB Adapter (655639-B21).

684214-B21

HP Storage Controllers

Optional Upgrades

HP 512MB FBWC for BL660c FIO Kit

694033-B21

NOTE:

Please see the Smart Array Advanced Pack 2.0 QuickSpecs for Technical
Specifications and additional information at

http://h18000.www1.hp.com/products/quickspecs/13200_na/13200_na.html

.

(Smart Array Advanced Pack)

Step 3: Choose Additional Factory Integration Options

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License

C6N36A

Converged Infrastructure
Management Software

HP OneView with iLO Advanced - Server hardware required on same purchase order

HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU

E5Y43AAE

HP OneView for Blade Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

F6Q89A

HP OneView for Blade Server incl 3yr 24x7 Supp FIO Bundle 1 Svr E-LTU

F6Q89AAE

HP Storage Blades

HP D2220sb Configure-to-order Storage Blade

NOTE:

The ProLiant BL660c Gen8 supports up to two expansion blades (Ultrium Tape
Blade(s), HP D2200sb/D2220sb Storage Blade(s), and/or PCI Expansion Blade(s) that
directly connect to the server via the enclosure midplane

NOTE:

Please see the QuickSpecs for technical specifications and additional information
at

http://h18006.www1.hp.com/storage/bladesystem/index.html

QW918A

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14394 North America — Version 17 — December 16, 2013

Page 21

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please

see the Core Options and Additional sections below; or the following:

HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html

NOTE:

The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in

the new enclosures and any future server blades will be supported in the existing enclosures.

NOTE:

The ProLiant BL660c Gen8 requires the c3000 Enclosure to be configured with 6 fans.
HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html

NOTE:

The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.

NOTE:

The ProLiant BL660c Gen8 requires the c7000 Enclosure to be configured with 10 fans.
HP BladeSystem c-Class Interconnect and Mezzanine Components:

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html

and

http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14394 North America — Version 17 — December 16, 2013

Page 22

HP Networking

10Gb Ethernet Mezzanines

NOTE:

All 10Gb Ethernet adapters are Type A mezzanine cards that can be installed in

any of the BL660c Gen8 mezzanine slots.

NOTE:

Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.

NOTE:

A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when

connected to an interconnect module with 10Gb Ethernet downlinks.

NOTE:

A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected to

an interconnect module with 1Gb Ethernet downlinks.

NOTE:

The 10 Gigabit Ethernet adapters on each server blade connect to a 10Gb
interconnect in bays 3-6 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP
BladeSystem c3000 Enclosure).

HP Ethernet 10Gb 2-port 560M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18004.www1.hp.com/products/quickspecs/14478_na/14478_na.html.

665246-B21

HP FlexFabric 10Gb 2-port 554M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14221_na/14221_na.html

.

647590-B21

HP Flex-10 10Gb 2-port 552M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14218_na/14218_na.html

.

674764-B21

HP FlexFabric 10Gb 2-port 534M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14617_na/14617_na.html

700748-B21

HP Flex-10 10Gb 2-port 530M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14217_na/14217_na.html

.

631884-B21

1Gb Ethernet Mezzanines

NOTE:

All 1Gb Ethernet adapters are Type A mezzanine cards that can be installed in
any of the BL660c Gen8 mezzanine slots.

HP Ethernet 1Gb 4-port 366M Adapter

615729-B21

10Gb Ethernet FlexibleLOM Adapters

NOTE:

The server supports one or two FlexibleLOMs.

NOTE:

For Pre-configured Model configurations, two FlexibleLOMs are already included;

no additional FlexibeLOMs are added.

NOTE:

For a Factory Integrated Model configuration with one FlexibleLOM, it is added in
the HP Networking section of "Step 2" in the Factory Integrated Models section earlier in
this document; it is not added here.

NOTE:

For a Factory Integrated Model configuration with two FlexibleLOMs, the second
FlexibleLOM is a different part number. You must select the first FlexibleLOM earlier in
this document in the "Step 2" HP Networking section and select the second FlexibleLOM
here in the "Step 4" HP Networking section.

NOTE:

The FlexibleLOMs here can also be used change the FlexibleLOM(s) that original
came with the server.

NOTE:

All FlexibleLOMs are dual port: one port is routed to interconnect module bay 1
and the other to bay 2.

HP Flex-10 10Gb 2-port 530FLB Adapter

656590-B21

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Core Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 23

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14216_na/14216_na.html

.

HP FlexFabric 10Gb 2-port 534FLB Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14617_na/14617_na.html

700741-B21

HP FlexFabric 10Gb 2-port 554FLB Adapter

647586-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14219_na/14219_na.html

.

HP Ethernet 10Gb 2-port 560FLB Adapter

655639-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14331_na/14331_na.html

.

1Gb Ethernet FlexibleLOM Adapters

NOTE:

The server supports one or two FlexibleLOMs. Two are already included in the
Pre-configured Models and the first one is added per Step 2 for Factory Integrated
Models. The 1GbE FlexibleLOM option below is used to change the original 10Gb
FlexibleLOM(s) that originally came with the server.

NOTE:

For a two FlexibleLOM configuration, the two FlexibleLOMs must be identical.

HP Ethernet 1Gb 2-port 361FLB Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14333_na/14333_na.html

652500-B21

HP Fibre Channel

HP LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

NOTE:

This is a Type A mezzanine card that can be installed in any of the BL660c Gen8
mezzanine slots.

NOTE:

Please see QuickSpecs for technical specifications and additional information at

http://h18000.www1.hp.com/products/quickspecs/14338_na/14338_na.html

659818-B21

HP QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

NOTE:

This is a Type A mezzanine card that can be installed in any of the BL660c Gen8

mezzanine slots.

NOTE:

Please see QuickSpecs for technical specifications and additional information at

http://h18000.www1.hp.com/products/quickspecs/14230_na/14230_na.html

651281-B21

HP QMH2672 16Gb Fibre Channel Host Bus Adapter

NOTE:

This is a Type A mezzanine card that can be installed in any of the BL660c Gen8

mezzanine slots.

710608-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14622_na/14622_na.html

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Core Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 24

HP Processors

NOTE:

The BL660c Gen8 supports two or four processors; one and three processor
configurations are not supported.

NOTE:

All processor kits contain two (2) processors.

NOTE:

All processors within the server must be identical.

NOTE:

The processor model as well as the memory configuration determines the
maximum speed memory can operate. Please see the see the "Memory" section later in
this document.

Eight-Core Processors

HP BL660c Gen8 Intel® Xeon® E5-4650 (2.7GHz/8-core/20MB/130W) 2-processor Kit

679098-B21

HP BL660c Gen8 Intel® Xeon® E5-4650L (2.6GHz/8-core/20MB/115W) 2-processor Kit

679110-B21

HP BL660c Gen8 Intel® Xeon® E5-4640 (2.4GHz/8-core/20MB/95W) 2-processor Kit

679100-B21

HP BL660c Gen8 Intel® Xeon® E5-4620 (2.2GHz/8-core/16MB/95W) 2-processor Kit

679102-B21

Six-Core Processors

HP BL660c Gen8 Intel® Xeon® E5-4617 (2.9GHz/6-core/15MB/130W) 2-processor Kit

679112-B21

HP BL660c Gen8 Intel® Xeon® E5-4610 (2.4GHz/6-core/15MB/95W) 2-processor Kit

679104-B21

HP BL660c Gen8 Intel® Xeon® E5-4607 (2.2GHz/6-core/12MB/95W) 2-processor Kit

679106-B21

Four-Core Processors

HP BL660c Gen8 Intel® Xeon® E5-4603 (2.0GHz/4-core/10MB/95W) 2-processor Kit

679108-B21

HP Memory

NOTE:

HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document. For
additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

LRDIMMs and RDIMMs are all distinct memory technologies and cannot be mixed
within a server.

NOTE:

A minimum of one DIMM is required per processor.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in
this document.

HP SmartMemory

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647903-B21

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647893-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647897-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Core Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 25

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647901-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672631-B21

HP 24 GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage FIO Memory Kit

NOTE:

When HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered
CAS-9 Low Voltage FIO Memory Kits are used, all 32 DIMM slots on the BL660c Gen8
must be fully populated with these 24GB DIMMs.

716324-B21

HP Hard Drives

NOTE:

The ProLiant BL660c Gen8 server includes the new HP hot-plug small form factor
(SFF) SmartDrive carrier for enhanced management and reduced maintenance errors.
HP drives from previous generation servers are not compatible with the BL660c Gen8
drive bays.

NOTE:

HP hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.

NOTE:

The hard drive options are not required when configuring a drive-less model.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the
server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of
other drives types is not supported.

HP SAS Hot Plug SmartDrive Carriers for Gen8 Servers only

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

697574-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard
Drive

718162-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

NOTE:

Please see QuickSpecs for technical specifications and additional information at

http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

.

652745-B21

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

NOTE:

Please see the QuickSpecs for technical specifications and additional information
at

http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

.

655708-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Core Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 26

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717965-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

734360-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State
Drives

HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717973-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717971-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717969-B21

NOTE:

Please see the QuickSpecs for technical specifications and information at:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

.

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Boot Solid State
Drives

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

739898-B21

HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

739888-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691862-B21

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690829-B21

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690827-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690825-B21

6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive

653082-B21

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Core Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 27

HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive

NOTE:

Please see the QuickSpecs for technical specifications and information at

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

.

653078-B21

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Core Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 28

HP Insight Software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License

C6N27A

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

C6N31A

NOTE:

HP Insight Management Media Kit contains DVDs without licenses. Contains HP
Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment, and
Virtual Connect Enterprise Manager software. Uses an integrated installer to perform
quick and accurate software installation and updates.

NOTE:

HP Insight Control 7.2 introduces Insight Control server provisioning, a new
capability ideal for multi-server OS and firmware provisioning to ProLiant and
BladeSystem servers. Insight Control server provisioning is included and licensed as
part of HP Insight Control. A media kit, "HP Insight Control server provisioning USB
media kit" (# BD883A), including a USB, is available for customers who require a
physical copy of the media loaded with Insight Control server provisioning software.
Please note that this media kit is separate and in addition to the "HP Insight
Management DVD media kit" (#C6N31A).

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate. The license entitlement
certificate must be redeemed online or via fax in order to obtain the license activation
key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.

NOTE:

Licenses ship without media. The HP Insight Management Media Kit can be
ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

.

NOTE:

For additional license options please see the Insight Control QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control server deployment

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Licenses ship without media. The HP Insight Management Media Kit can be

ordered separately, or can be downloaded at

http://www.hp.com/go/insightupdates

.

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service.

NOTE:

For additional license kits please see the Insight Control QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html

.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Additional Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 29

HP iLO Advanced License

HP Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote
Management

HP iLO Advanced Blade 1 Server License with 3yr 24x7 Tech Support and Updates

BD502A

HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License

512488-B21

HP iLO Advanced for BladeSystem including 1yr 24x7 Support Eight Server License

512489-B21

HP Integrated Lights-Out (iLO)

HP iLO Scale Out

HP Integrated Lights-Out Scale-Out 3yr 24x7 Tech Support and Updates Flex Quantity
License

BD776A

HP Integrated Lights-Out Scale-Out 1yr 24x7 Tech Support and Updates Flex Quantity
License

BD778A

HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates Flex
Qty E-LTU

BD776AAE

HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates Flex
Qty E-LTU

BD778AAE

HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates
Tracking License

BD777A

HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates
Tracking License

BD779A

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one or three
years of 24 x 7 HP Software Technical Support Service.

NOTE:

For additional license kits, including electronic delivery options, please see the

iLO QuickSpecs at

http://www.hp.com/go/iLO

Converged Infrastructure
Management Software

HP OneView

HP OneView with iLO Advanced

HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y34A

HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU

E5Y35AAE

HP OneView Media Kit Phys No Lic

E5Y37A

HP OneView without iLO Advanced

HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y38A

HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU

E5Y39AAE

NOTE:

For additional license kits please see the QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/14621_na/14621_na.html

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Additional Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 30

High Performance
Clusters

HP Cluster Management Utility

HP Insight Cluster Management Utility 1yr 24x7 Flexible License

QL803B

HP Insight Cluster Management Utility 3yr 24x7 Flexible License

NOTE:

These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.

BD476A

HP Insight Cluster Management Utility Media

NOTE:

For additional license kits please see the QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html

.

BD477A

HP I/O Accelerator
Options

NOTE:

The HP I/O Accelerator Options are Type B mezzanine cards that can be installed
in BL660c Gen8 mezzanine slots 2 and 3.

HP 1.2TB Multi Level Cell IO Accelerator for BladeSystem c-Class

QK763A

HP 785GB Multi Level Cell IO Accelerator for BladeSystem c-Class

QK762A

HP 365GB Multi Level Cell IO Accelerator for BladeSystem c-Class

QK761A

HP Security

HP Trusted Platform Module Option

488069-B21

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline.

NOTE:

For more information about TPM, including a white paper, go to

http://www.hp.com/go/TPM

.

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM
deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Additional Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 31

HP Storage Controller

HP Smart Array P731m Controller

NOTE:

The HP Smart Array P731m Controller is a Type B mezzanine card that can be

installed in BL660c Gen8 mezzanine slots 2 and 3.

NOTE:

The BL660 has three installation locations for the "capacitor pack" that comes
with the FBWC on Smart Array controllers. The first install location is for the embedded
Smart Array P220i Controller. The second install location is for an optional Smart Array
controller Type A or B mezzanine card with FBWC installed in mezzanine slot 3. The
third install location is for an optional Smart Array controller mezzanine card with FBWC
installed in either mezzanine slot 1 (Type A only) or slot 2 (Type A or B).

HP Smart Array P731m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller

698535-B21

HP Smart Array P721m Controller

NOTE:

The HP Smart Array P721m Controller is a Type B mezzanine card that can be
installed in BL660c Gen8 mezzanine slots 2 and 3.

NOTE:

The BL660 has three installation locations for the "capacitor pack" that comes
with the FBWC on Smart Array controllers. The first install location is for the embedded
Smart Array P220i Controller. The second install location is for an optional Smart Array
controller Type A or B mezzanine card with FBWC installed in mezzanine slot 3. The
third install location is for an optional Smart Array controller mezzanine card with FBWC
installed in either mezzanine slot 1 (Type A only) or slot 2 (Type A or B).

HP Smart Array P721m/2G FBWC 4-ports Ext Mezzanine SAS Controller

650072-B21

HP Smart Array P721m/512 4-ports Ext Mezzanine SAS Controller

655636-B21

NOTE:

For additional information, please see the HP BladeSystem c7000 Enclosure and
InfiniBand QuickSpecs at::

http://h18000.www1.hp.com/products/quickspecs/14626_na/14626_na.html

.
(Smart Array P731m Controller)

http://h18000.www1.hp.com/products/quickspecs/14404_na/14404_na.html

.
(Smart Array P721M Controller)

HP InfiniBand Mezzanines

NOTE:

When an InfiniBand adapter is installed in mezzanine slot 1, only one port is
active (regardless of operating mode). When installed in any other mezzanine slot, both
ports are active.

NOTE:

InfiniBand QDR and FDR speeds are only supported on the HP BladeSystem
c7000 Enclosure. For additional information, please see the HP BladeSystem c7000
Enclosure and InfiniBand QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12586_na/12586_na.html
http://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html

HP Infiniband QDR/Ethernet 10Gb 2-port 544M Adapter

NOTE:

The QDR InfiniBand adapter may be installed in any mezzanine slot of the server.

644160-B21

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544M Adapter

NOTE:

The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode

and may be installed in any mezzanine slot if operated in any other mode.

644161-B22

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Additional Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 32

HP Ultrium Tape Blades

NOTE:

The ProLiant BL660c Gen8 supports up to two expansion blades (Ultrium Tape
Blade(s), HP D2200sb/D2220sb Storage Blade(s), and/or PCI Expansion Blade(s) ) that
directly connect to the server via the enclosure midplane.

NOTE:

For the above Ultrium tape drives, please see the QuickSpecs for technical
specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html

HP StoreEver LTO-4 Ultrium SB1760c Tape Blade

NOTE:

LTO-4 Ultrium tape technology.

AQ697B

HP StoreEver LTO-5 Ultrium SB3000c Tape Blade

NOTE:

LTO-5 Ultrium tape technology.

BS580B

HP Storage Blades

NOTE:

The ProLiant BL660c Gen8 supports up to two expansion blades (Ultrium Tape
Blade(s), HP D2200sb/D2220sb Storage Blade(s), and/or PCI Expansion Blade(s) that
directly connect to the server via the enclosure midplane

NOTE:

Please see the QuickSpecs for technical specifications and additional information
at:

http://h18006.www1.hp.com/storage/bladesystem/index.html

HP D2200sb PCIe Storage Blade

AP880A

HP D2220sb PCIe and StoreVirtual VSA Bundle

QW914A

HP D2220sb PCIe w/(12) 900 GB 6G SAS HDD Bundle

QW915A

HP D2220sb PCIe w/(12) 900 GB 6G SAS HDD Bundle

QW917A

NOTE:

For additional information, please see the QuickSpecs for technical
specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14507_na/14507_na.html

HP Expansion Blade

HP BLc PCI Expansion Blade

NOTE:

The PCI Expansion Blade provides PCI card slots for an adjacent c-Class Server

Blade.

NOTE:

The ProLiant BL660c Gen8 supports up to two expansion blades (Ultrium Tape
Blade(s), HP D2200sb/D2220sb Storage Blade(s), and/or PCI Expansion Blade(s) that
directly connect to the server via the enclosure midplane.

NOTE:

The PCI Expansion Blade ships with one pre-installed PCI-X connect board. Also
includes one PCIe connect board which requires installation.

NOTE:

Please see the QuickSpecs for technical specifications and additional information
at

http://h18000.www1.hp.com/products/quickspecs/12753_na/12753_na.html

448018-B21

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Additional Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 33

HP Flash Media Kits for
USB Drives

HP Flash Media Kits for USB Drives

HP 2GB USB Flash Media Drive Key Kit

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment. HP value-add software like SmartStart. HP
recommends this industry standard USB flash device for use with VMware ESXi. USB
device must be installed in the internal slot of the ProLiant server for use with VMware
ESXi. Refer to HP VMware Getting Started Guide for installation instructions.

608447-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HP 32GB microSD Enterprise Mainstream Flash Media Kit

700139-B21

HP Care Pack Services

Proactive Care

- Collaborative Support plus Proactive services delivered by the on
shore/near shore Advanced Solution Center (ASC) and backed by the global delivery
organization, end-to-end case ownership from a Technical Solution Specialists and
Technical Account Manager who remotely delivers firmware/software revision
management, proactive scans and incident trend reports. Recommended for customers
running a virtualized infrastructure and/or customers who desire an enhanced call
support experience.

HP 3 year 4 hour 24x7 ProLiant BL6xxc Proactive Care Service

U3B32E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant BL6xxc Proactive Care
Service

U3B35E

HP 3 year 6 hour Call To Repair 24x7 ProLiant BL6xxc Proactive Care Service

U3B38E

HP 3 year 6hr Call To Repair 24x7 with Defective Media Retention ProLiant BL6xxc
Proactive Care SVC

U3B41E

Proactive Care Personalized Support Environmental Option

- to add an onsite
Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who
delivers support planning and brings technical expertise and best practices advice for
the customer's environment.

HP 3 year ISS ProactiveCare Personalized Support

U6W98E

Installation Services -

reduce the time required to get your system up and running and

help minimize disruptions to your business.
HP Install c-Class Server Blade Service

UE493E

HP Hardware Installation during Non Standard Hours c-Class Enclosure and Server
Blade Service

UG869E

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Additional Options

DA - 14394 North America — Version 17 — December 16, 2013

Page 34

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture

Each Intel® Xeon® E5-4600 family processor socket contains four memory channels that support two DIMMs each for a total of eight
(8) DIMM per installed processor or a grand total of thirty-two (32) DIMMs for the server. Up to 32GB capacity DIMMs are supported for

1.0TB of memory (32 DIMM slots x 32GB per DIMM).

Memory Population Rules and Guidelines:

A minimum of one DIMM is required per processor.
Install DIMMs only if the corresponding processor is installed.
DIMM slots attached to each processor socket are only available if a processor is installed in that socket.
DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity
between all installed processors and to load the channels similarly whenever possible.
RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.
LRDIMMs and RDIMMs are distinct memory technologies and cannot be mixed within a server.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.
The maximum memory capacity is a function of the memory type and number of installed processors.
HP memory from previous generation servers is not compatible with the BL660c Gen8 Server Blade.
When HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits are used, all
32 DIMM slots on the BL660c Gen8 must be fully populated with these 24GB DIMMs.
To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional
information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

.
For memory population rules and additional memory guidelines, please see the BL660c Gen8 user guide at

http://www.hp.com/support

.

BL660c Gen8 Supported Memory Bandwidth

DIMM Type

Registered DIMMS (RDIMMs)

Load Reduced

(LRDIMMs)

DIMM Rank

Single Rank

(1R)

Dual Rank

(2R)

Three Rank

(3R)

Quad Rank

(4R)

DIMM Capacity

4GB 4GB 8GB 8GB 8GB

16GB 16GB 24GB 32GB

DIMM Native Speed
(MHz)

1333 1600 1600 1333 1600 1333 1600 1333 1333

Voltage*

LV

Std Std

LV

Std

LV

Std

LV LV

* LV= low voltage at 1.35V; Std = standard voltage at 1.5V.

Slots That Can Be
Populated

32 32 32 32 32 32 32 32 32

Maximum Capacity (GB)

128 128 256 256 256 512 512 768 1024

Populated DIMM Speed (MHz)

1 DIMM Per Channel

1333 1600 1600 1333 1600 1333 1600

N/A

1333

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Memory

DA - 14394 North America — Version 17 — December 16, 2013

Page 35

2 DIMM Per Channel

1333

**

1600 1600 1333

**

1600 1333

**

1600 1333 1333

**

** Using HP SmartMemory, 1333MHz DIMMs operate at 1.35V for 2 DIMMs per channel (2DPC). Third party 1333MHz DIMM memory may
only support 1.5V at 2DPC.

NOTE:

Memory speed is a function of the processor QPI bus speed; see the table below "Memory Speed by Processor Model".

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Memory

DA - 14394 North America — Version 17 — December 16, 2013

Page 36

Memory Speed by Processor Model

Processor Models

Supported Memory Speeds

E5-4650, E5-4650L, E5-4640, E5-4617

1600/1333/1066MHz

E5-4620, E5-4617, E5-4610, E5-4607

1333/1066MHz

E5-4603, E5-4607

1066MHz

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Memory

DA - 14394 North America — Version 17 — December 16, 2013

Page 37

Standard and Maximum Memory Capacity (Pre-configured Models)

Pre Configured Models

Standard Memory

Maximum Memory Plus

Optional Memory

Standard Memory Replaced

with Optional Memory

Intel Xeon E5-4650, E5-4620,
and E5-4617

128GB

(16x 8GB)

384GB

(16x 8GB + 16x 16GB)

1024GB

(32x 32GB)

NOTE:

Capacity references are rounded to the common gigabyte (GB) values.

4GB = 4,096MB
8GB = 8,192MB
16GB = 16,384MB
24GB = 24,576MB
32GB = 32,768MB

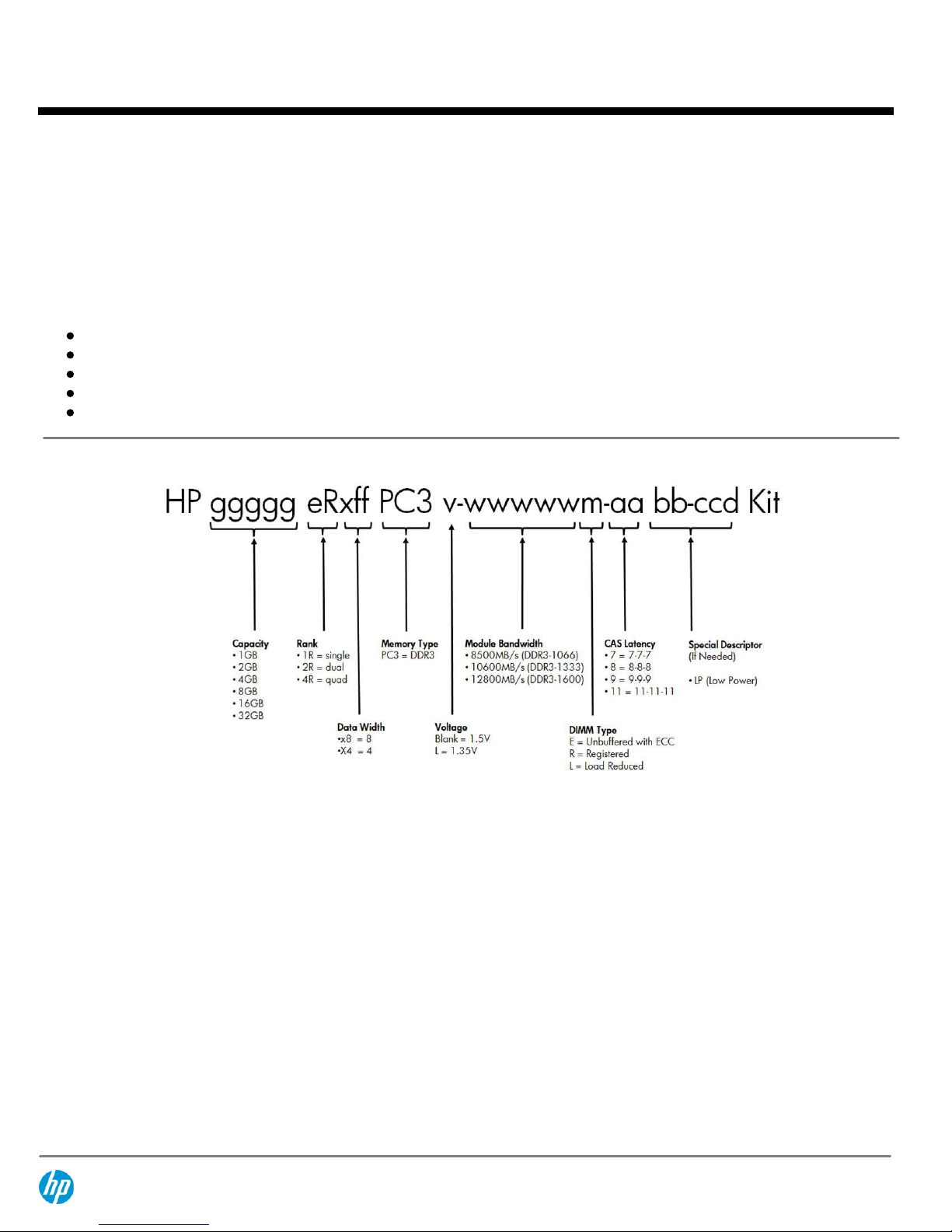

Memory options part number decoder

Following are memory options available from HP:

HP Memory

NOTE:

HP memory from previous generation servers are not qualified or warranted with
this HP ProLiant Server. HP SmartMemory is required to realize the memory
performance improvements and enhanced functionality listed in this document for
Gen8. For additional information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

NOTE:

LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be
mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM
and LRDIMM.

NOTE:

A minimum of one DIMM is required per server.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in
this document.

HP SmartMemory

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647903-B21

Registered DIMMs (RDIMMs)

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Memory

DA - 14394 North America — Version 17 — December 16, 2013

Page 38

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647893-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647897-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647901-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672631-B21

HP 24 GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage FIO Memory Kit

716324-B21

NOTE:

Depending on the memory configuration and processor model, 1600MHz and
1333MHz memory may operate at a lower speed. Please see the see the "Memory"
section later in this document and the Online Memory Configuration Tool for details at

www.hp.com/go/ddr3memory-configurator

.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Memory

DA - 14394 North America — Version 17 — December 16, 2013

Page 39

1-2

2 x SFF hot-plug SAS, SATA, SAS SDD; and SATA SSD hard
drives

Hard Drives

NOTE:

The ProLiant BL660c Gen8 server includes the new HP hot-plug small form factor (SFF) SmartDrive carrier for enhanced
management and reduced maintenance errors. HP drives from previous generation servers are not compatible with the BL660c Gen8
drive bays.

NOTE:

Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE:

The hard drive options are not required when configuring a drive-less model.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the server, but limits the RAID configuration to two

separate RAID 0 volumes. Mixing of other drives types is not supported.

SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise Drives

Quantity

Supported

Position

Supported

Controller

1.2TB 6G SAS 10K
900GB 6G SAS 10K
600GB 6G SAS 10K
450GB 6G SAS 10K
300GB 6G SAS 10K
300GB 6G SAS 15K
146GB 6G SAS 15K

2

1-2

HP Smart Array P220i Controller

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

Quantity

Supported

Position

Supported

Controller

1TB 6G SAS 7.2K
500GB 6G SAS 7.2K

2

1-2

HP Smart Array P220i Controller

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline Drives

Quantity

Supported

Position

Supported

Controller

1TB 6G SAS 7.2K
500GB 6G SAS 7.2K

2

1-2

HP Smart Array P220i Controller

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

Quantity

Supported

Position

Supported

Controller

120GB 6G SATA VE Boot

2

1-2

HP Smart Array P220i Controller

6G SATA VE Hot Plug SFF (2.5-inch) Enterprise Value Solid State Drives

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Storage

DA - 14394 North America — Version 17 — December 16, 2013

Page 40

Quantity

Supported

Position

Supported

Controller

800GB 6G SATA VE
480GB 6G SATA VE
240GB 6G SATA VE

2

1-2

HP Smart Array P220i Controller

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Boot Solid State Drives

Quantity

Supported

Position

Supported

Controller

600GB 6G SATA VE Boot
300GB 6G SATA VE Boot

2

1-2

HP Smart Array P220i Controller

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

Quantity

Supported

Position

Supported

Controller

800GB 6G SATA ME
400GB 6G SATA ME
200GB 6G SATA ME
100GB 6G SATA ME

2

1-2

HP Smart Array P220i Controller

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

Quantity

Supported

Position

Supported

Controller

800GB 6G SAS ME
400GB 6G SAS ME
200GB 6G SAS ME

2

1-2

HP Smart Array P220i Controller

6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives

Quantity

Supported

Position

Supported

Controller

400GB 6G SAS SLC
200GB 6G SAS SLC

2

1-2

HP Smart Array P220i Controller

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Storage

DA - 14394 North America — Version 17 — December 16, 2013

Page 41

System Unit

Dimensions

(H x W x D)
(with bezel)

366.27mm (14.42") x 56.54mm (2.23") x 516.67mm (20.34")

Weight

(approximate)

Maximum: 4 processors, 2
FlexibleLOMs, 32 DIMMs, 2
hard drives, 3 mezzanine
cards, and 2 flash cache
batteries installed

27.1 lb (12.3 kg)

Minimum: 2 processors, 1
FlexibleLOM, and 2 DIMMs
installed

20.2 lb (9.2 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power
supply output, please see the:

HP BladeSystem c3000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/
12790_na/12790_na.html

NOTE:

The ProLiant BL660c Gen8 requires the c3000 Enclosure to be
configured with 6 fans.

HP BladeSystem c7000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/
12810_na/12810_na.html

NOTE:

The ProLiant BL660c Gen8 requires the c7000 Enclosure to be

configured with 10 fans.

To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at

www.hp.com/go/hppoweradvisor

.

System Inlet
Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m (1.8°F
per every 1,000 ft) above sea level to a maximum
of 3,050 m (10,000 ft), no direct sustained
sunlight.

Maximum rate of change is 10°C/hr (18°F/hr). The
upper limit may be limited by the type and
number of options installed.

System performance may be reduced if operating
with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non­condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non­condensing.

Altitude

Operating

3,050 m (10,000 ft). This value may be limited by

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Technical Specifications

DA - 14394 North America — Version 17 — December 16, 2013

Page 42

the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1,500 ft/min).

Non-operating

9,144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1,500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HP BladeSystem c-Class
Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html

HP Smart Array P220i
Controller

Disk Drive Interface

6G SAS (Serial Attached SCSI)

Server Interface

x4 PCI Express host interface

Cache Memory Speed

512MB flash backed write cache (FBWC) cache standard with Pre-configured
Models and optional on Factory Integrated Models

Logical Drives Supported

64 (with included 512MB cache)

Host Memory Addressing

64-bit, supporting servers memory space greater than 4GB

RAID Support

RAID 1 (mirroring) and RAID 0 (striping)

NOTE:

The FBWC is not required for RAID capability. The purpose of the cache

is it can increase hard drive write performance and provides data protection in
case the server losses power.

Other

Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)

HP FlexFabric 10Gb
2-port 554FLB
FlexibleLOM
(Included with Pre­configured Models)

Type

Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE,
hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosencing
1Gb/10Gb Ethernet capability)

Network Processor

Emulex BE3

Data Transfer Method

x8 PCI Express 2.0

Network Transfer Rate

Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex
theoretical bandwidth

NOTE:

Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb or

10Gb HP BladeSystem c-Class interconnect components. Both ports will
operate at the same speed.

NOTE:

Each port on the 554FLB adapter transmits from the server at 20Gbps

(theoretical) full duplex.

IEEE Compliance

802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and

802.3x

Standard Features

ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Technical Specifications

DA - 14394 North America — Version 17 — December 16, 2013

Page 43

Hardware-based accelerated iSCSI
iSCSI boot
Flex-10 capability
Fibre Channel over Ethernet (FCoE)
TCP/IP offload engine (stateless TCP/IP)
Autosencing 1Gb/10Gb Ethernet

Environment-friendly
Products and Approach

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant BL660c Generation 8 (Gen8) Server Blade

Technical Specifications

DA - 14394 North America — Version 17 — December 16, 2013

Page 44
