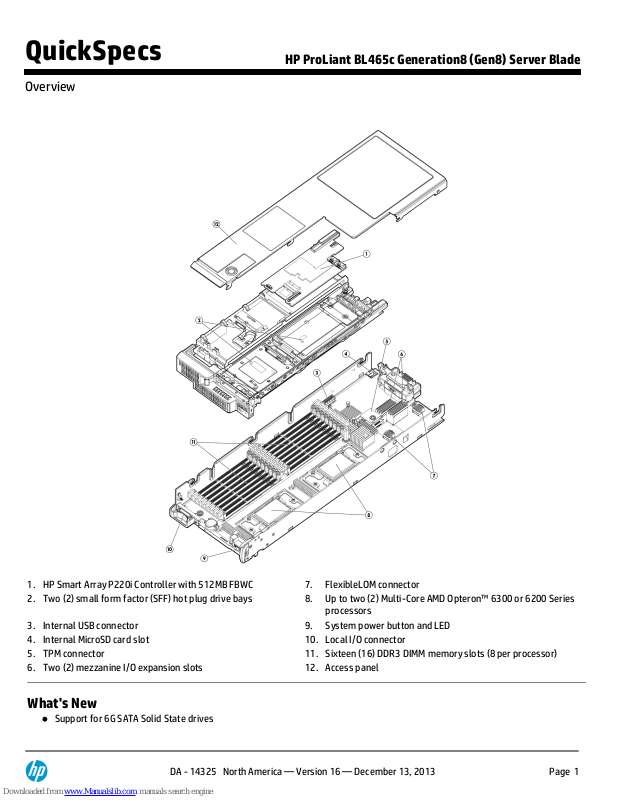

HP ProLiant BL465c, ProLiant BL465c G8 Specification

1.

HP Smart Array P220i Controller with 512MB FBWC

7.

FlexibleLOM connector

2.

Two (2) small form factor (SFF) hot plug drive bays

8.

Up to two (2) Multi-Core AMD Opteron™ 6300 or 6200 Series
processors

3.

Internal USB connector

9.

System power button and LED

4.

Internal MicroSD card slot

10.

Local I/O connector

5.

TPM connector

11.

Sixteen (16) DDR3 DIMM memory slots (8 per processor)

6.

Two (2) mezzanine I/O expansion slots

12.

Access panel

What's New

Support for 6G SATA Solid State drives

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Overview

DA - 14325 North America — Version 16 — December 13, 2013

Page 1

NOTE:

This document covers the HP ProLiant BL465c Gen8 server blade only. For information on HP BladeSystems c-Class Enclosures

and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

HP BladeSystem c-Class Enclosures QuickSpecs:

HP BladeSystem c3000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html

NOTE:

The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c7000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html

NOTE:

The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c-Class Interconnect and Mezzanine Components at

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

NOTE:

For proper BladeSystem operation, the minimum required versions of HP Onboard Administrator and HP Virtual Connect are

required and available via the HP Service Pack for ProLiant, please see:

http://www.hp.com/go/spp/download

.

NOTE:

For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory

Integrated Models" section.

Processor

One of the following
depending on Model

Sixteen-Core Processors

AMD Opteron™ 6380 ( 2.5GHz/ 16-core/16MB/115W) Processor
AMD Opteron™ 6378 (2.4GHz 16-core/16MB/115W) Processor
AMD Opteron™ 6376 (2.3GHz 16-core/16MB/115W) Processor
Low Power AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) Processor
AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W) Processor
AMD Opteron™ 6276 (2.3GHz/16-core/16MB/115W) Processor
AMD Opteron™ 6274 (2.2GHz/16-core/16MB/115W) Processor
AMD Opteron™ 6272 (2.1GHz/16-core/16MB/115W) Processor
Low Power AMD Opteron™ 6262HE (1.6GHz/16-core/16MB/85W) Processor

Twelve-Core Processors

AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) Processor
AMD Opteron™ 6344 (2.6GHz/ 12-core/ 16MB/115W) Processor
AMD Opteron™ 6238 (2.6GHz/12-core/16MB/115W) Processor
AMD Opteron™ 6234 (2.4GHz/12-core/16MB/115W) Processor

Eight-Core Processors

AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) Processor
AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) Processor
AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor
AMD Opteron™ 6212 (2.6GHz/8-core/16MB/115W) Processor

Quad-Core Processors

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 2

AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) Processor
AMD Opteron™ 6204 (3.3GHz/4-core/16MB/115W) Processor

NOTE:

Processor wattage references reflect Thermal Design Power (TDP). For more information on TDP

and Average CPU Power (ACP) visit:

http://www.amd.com/acp

.

Cache Memory

16MB Level 3 cache memory

Chipset

AMD SR5690 and SP5100

NOTE:

For more information regarding AMD chipsets, please see the following:

http://www.amd.com/us/products/Pages/chipsets.aspx

.

Upgradeability

Upgradeable to two (2) processors

On System Management
Chipset

HP iLO (Firmware: HP iLO 4)

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

Memory Protection

Advanced ECC
Online spare mode

Memory

Type

HP SmartMemory
DDR3 Load Reduced (LRDIMM) or Registered (RDIMM)

Standard (Pre-configured
Models)

16GB (2 x 8 GB) DDR3 1333MHz RDIMMs at 1.35v

Maximum (LRDIMM)

512GB (16 x 32GB) at 1333MHz

Maximum (RDIMM)

256GB (16 x 16GB) up to 1600MHz

NOTE:

HP memory from previous generation servers are not qualified or warranted with this server. HP
SmartMemory is required to realize the memory performance improvements and enhanced functionality
listed in this document for Gen8. For additional information, please see the HP SmartMemory QuickSpecs
at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

.

NOTE:

LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a

server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

NOTE:

Depending on the memory configuration and processor model, the memory speed may run at
1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory
Configuration Tool at:

www.hp.com/go/ddr3memory-configurator

.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 3

Network Controller

NOTE:

Supports one of the following FlexibleLOMs and iLO Management.

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

NOTE:

Supports FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and

autosensing 10Gb/1Gb Ethernet.

NOTE:

Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP BladeSystem c-Class

interconnect components. Both ports will operate at the same speed.

NOTE:

FlexFabric capabilities require the use of an HP Virtual Connect FlexFabric module. Fibre Channel
over Ethernet (FCoE) is supported with the HP 10GbE Pass-Thru Module, HP 6120XG Blade Switch with the
CEE license installed, HP Cisco B22HP Fabric Extender and HP Cisco B22HP Fabric Extender with 16 FET for
BladeSystem c-Class. Learn more at

www.hp.com/go/virtualconnect

.

One (1) HP Flex-10 10Gb 2-port 530FLB FlexibleLOM
One (1) HP Ethernet 10Gb 2-port 560FLB FlexibleLOM

NOTE:

FlexibleLOMs are not compatible with prior generation c-Class server blades

Standard iLO Network Controller:
One (1) 10/100 Mbps port for the HP iLO 4 On System Management Chipset
One (1) 10/100 Mbps port for the HP iLO 4 to Onboard Administrator link. The Onboard Administrator (with
10/100/1000 Mbps) to BladeSystem link is 1Gbps.

Expansion Slots

Two (2) I/O expansion mezzanine slots:

x8 PCIe 2.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
NOTE: This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect
module bay 3 and the other to bay 4.
x16 PCIe 2.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).

NOTE:

This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards,
one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one
port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8.

Mezzanine card options include:

Dual-port 10Gb FlexFabric,10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server
adapter mezzanine options for additional network ports
Dual-port 8Gb Fibre Channel HBA for SAN connectivity
QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
I/O accelerator mezzanine options for high transaction rate local storage
Smart Array SAS RAID controller mezzanine options for external direct attach and shared SAS
storage

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 4

HP Server ROM

HP ROM (read only memory) is now digitally signed using HP's Corporate Signing Service. This signature is
verified before the flash process starts, reducing accidental programming and preventing malicious efforts
to corrupt system ROM.

HP ROM provides for essential initialization and validation of hardware components before control is
passed to the customer-installed operating system. The ROM also provides the capability of booting from
various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating
system.

HP ROM performs very early configuration of the video controller, to allow monitoring of initialization
progress via an attached monitor. If configuration or hardware errors are discovered during this early
phase of hardware initialization, suitable messages are now displayed on the connected monitor.
Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to
assist in diagnosis.

HP's ProLiant ROM is used to configure the following:

Processor and chipset status registers
System memory, memory map, and memory initialization
System hardware configuration (integrated PCI devices and optional PCIe cards).
Customer-specific BIOS configuration using the HP ROM-Based Setup Utility (RBSU).

NOTE:

For further information, please refer to HP's RBSU (ROM based setup utility) user guide:

www.hp.com/support/rbsu

Storage Controller

All Models

One (1) HP Smart Array P220i Controller with 512MB FBWC, (RAID 0 and 1)

NOTE:

Upgradeable firmware with recovery ROM.

NOTE:

The HP Smart Array P220i supports two (2) small form factor (SFF) hot

plug drive bays.

Available Options: Smart Array Advanced Pack Software for enhanced
performance, reliability, availability, and security of system data

Maximum Internal
Storage

Hot Plug SFF SAS

2.4TB

2 x 1.2TB

Hot Plug SFF SATA

2.0TB

2 x 1.0TB

Hot Plug SFF SAS SSD

1.6TB

2 x 800GB

Hot Plug SFF SATA SSD

1.6TB

2 x 800GB

NOTE:

The ProLiant BL465c Gen8 server includes the new HP small form factor (SFF) hot plug SmartDrive

carrier for enhanced management and reduced maintenance errors. HP drives from previous generation
servers are not compatible with the ProLiant BL465c Gen8 drive bays.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the server, but limits the

RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 5

Interfaces

Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port

One (1) internal USB 2.0 connector for USB flash media drive keys

NOTE:

The above options are for integrated hypervisor virtualization environments needing a low cost

boot solution with the highest performance and reliability.

Industry Standard
Compliance

ACPI 2.0
Microsoft® Logo certifications
USB 2.0 Support
IPMI 2.0
Secure Digital 2.0
TPM 1.2 Support
IEEE (specific IEEE standards dependant on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
PCIe 2.0

Operating Systems and
Virtualization Software
Support for ProLiant
Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware
Citrix XenServer

NOTE:

For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:

http://www.hp.com/go/ossupport

and our driver download page

http://www.hp.com/support/BL465cGen8

Enclosures

HP offers two different c-Class server blade enclosures to meet your individual needs:

The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL465c
Gen8 servers plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL465c
Gen8 servers plugged horizontally.
Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard
Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

NOTE:

For additional enclosure information, please see:

http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 6

Graphics

Integrated Matrox G200 video standard

1280 x 1024 (32 bpp)
1920 x 1200 (16 bpp)

HP iLO 4 On System Management Memory

16 MB Flash
256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

HP ProLiant BL465c Gen8 is a half-height server blade that plugs into the HP BladeSystem c3000 and
c7000 enclosures.

On System Management

HP iLO Management
Engine

HP iLO Management Engine is a comprehensive set of embedded management
features supporting the complete lifecycle of the server, from initial
deployment, through ongoing management, to service alerting and remote
support. HP iLO Management Engine comes standard on all HP ProLiant Gen8
servers. The HP iLO Management Engine portfolio includes:

HP iLO:

Provides remote embedded server management without OS-

based management software

HP Agentless Management:

Provides remote embedded server

management without OS-based management software

HP Active Health System:

Builds diagnostic support into the server.

HP Intelligent Provisioning:

Lets customers provision and configure a
single server without any separate media. No more SmartStart CDs or
Smart Update Firmware DVD are needed.

To start Intelligent Provisioning:

Press the F10 key during the ProLiant Gen8 server boot
process (also known as power on self test or POST).
Please go to the Intelligent Provisioning website at

www.hp.com/go/intelligentprovisioning

for additional
information and to view usage videos.
Use the Service Pack for ProLiant (SPP) at

www.hp.com/go/spp

to get firmware and software
updates.
HP iLO Mobile App: Enables the ability to access, deploy,
and manage your server anytime from anywhere from
select smartphones and mobile devices. For additional
information please visit:

www.hp.com/go/ilo/mobileapp

NOTE:

For more information, visit:

http://www.hp.com/go/ilo

or HP iLO

Management Engine technologies whitepaper

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 7

HP Insight management
software

HP Service Pack for
ProLiant

HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
provide a comprehensive approach to firmware and system software
maintenance. Together they provide better operating stability and ensure
maximum uptime. The SPP will be updated at a predictable cadence, typically
coinciding with new HP server hardware launches. By enabling firmware to be
updated online and integrating firmware and system software updates in one
operation, HP SUM and the SPP offer faster updates of individual servers and
dramatically faster updates of entire BladeSystem enclosures. Further
improving system uptime and stability is the fact that HP provides 12 months
of support for each Service Pack for ProLiant release.

The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM and the latest
SPP. Optional smaller subsets with only specific types of servers or specific
operating systems are offered to save on download time. The HP SUM
application provides a straightforward, intuitive user interface that guides the
user through the steps of discovery, analyses and update, providing
comprehensive information on available updates, criticality and
interdependencies. This information is also available in reports. By providing
the option of multiple local or shared repositories which can be easily updated
from hp.com, HP SUM provides the tools to optimize stability and consistency
throughout the company. While HP SUM and the SPP recommend the
combinations of firmware and system software that HP has found to be the
best practice, the application gives customers the flexibility to set their own
specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.

NOTE:

The Service Pack for ProLiant (which includes HP SUM) can be

downloaded from

www.hp.com/go/spp/download

. More information can be

found:

http://www.hp.com/go/SmartUpdate, www.hp.com/go/spp

and

http://www.hp.com/go/hpsum

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 8

Security

Power-on password
Administrator's password
Keyboard password (QuickLock)
HP iLO 4 On System Management Chipset with:

SSL encryption
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser,
CLP and XML scripting interface

AES and RC4 encryption of video
External USB port enable/disable
Network server mode
Serial interface control
TPM (Trusted Platform Module) 1.2 option
Advanced Encryption Standard (AES)

Availability

Memory

Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-bit
error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported
Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and
switches operation to the spare rank.
Memory demand and patrol scrubbing to prevent accumulation of correctable errors and reducing
the likelihood of unplanned downtime.
Failed DIMM isolation improves the service time thus improving the overall system availability.
Address parity protection available on RDIMMs and LRDIMMs detects address bit errors improving
service time and overall system availability.

Mezzanine options and I/O

FlexibleLOM connector supporting two (i.e. redundant) Ethernet ports.
Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each
supporting multiple data paths routed to redundant interconnect modules.
Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing, and
switch-assisted load balancing.

Storage

Two (2) Small Form Factor hot-plug SAS/SATA/SSD drive bays.
Integrated HP Smart Array P220i Controller with 512MB FBWC, RAID 0 and 1 support, and
upgradeable firmware with recovery ROM capability.
Optional HP D2200sb Storage Blade for direct attached and shared storage within the c-Class
enclosure.
Optional dual-port Fibre Channel mezzanine cards for redundant SAN connections.

Processor/Chipset

Processor internal sensors & thermal control protection against over-temperature conditions.
Cache parity/ECC protects cache data from accidental data corruption.
Machine Check Architecture (MCA) detects and captures hardware errors such as system bus,
memory ECC, parity, and cache, and improves service time.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 9

Server Blade Enclosure Infrastructure

Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency,
enclosure-based power supplies (configuration dependant).
Up to ten (10) redundant enclosure-based hot-plug HP Active Cool fans that scale to meet future
demands and optimize airflow, reduce power draw, and improve acoustic performance.
Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.
HP Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time and
automatically adjusted with changes in demand for improved efficiency and reliability.
HP Dynamic Power Capping safely limits power usage without impacting performance by capping
peak instead of average power usage, removes risk to electrical infrastructure with fast-acting,
hardware-based capping algorithm, and reclaims more power by dynamically controlling power
limits based on workload demand.
Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant
fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, iSCSI, etc.
Enclosure crosslinks between adjacent to provide interconnect module-to-module connections or
as Virtual Connect module stacking links.
Optional enclosure redundant Onboard Administrator system management module.

Warranty

This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three
years from date of purchase. Support for software and initial setup is available for 90 days from date of
purchase. Enhancements to warranty services are available through HP Care Pack services or customized
service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three
year warranty; refer to specific hard drive QuickSpecs for details.

NOTE:

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may

be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories:

1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy
replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR
parts at no charge. Additional information regarding worldwide limited warranty and technical support is
available at

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Standard Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 10

Fibre Channel Support

Up to two (2) optional Fibre Channel mezzanine HBAs are supported on the HP ProLiant BL465c Gen8.

Compatible SAN

HP ProLiant BL465c Gen8 server blades are optimized for HP MSA, EVA and XP.

HP ProLiant BL465c Gen8 server blades are compatible with select 3rd party SANs. Please see blade
storage page for more details at

http://h18004.www1.hp.com/products/blades/components/c-class-sans.html

.

HP Virtual Connect

HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to
data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of
network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and
infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect
FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HP
Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console
to administer network connections and workloads for thousands of servers. For more information on
Virtual Connect Enterprise Manager, see

http://www.hp.com/go/vcem

. For more information on Virtual
Connect Ethernet, Fibre Channel, Converged Network and management options, see

http://www.hp.com/go/virtualconnect

.

HP Insight management
software

HP Insight Control

HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
migrate, monitor, remote control, and optimize your IT infrastructure through
a single, simple management console. For more information, see

http://www.hp.com/go/insightcontrol

.

HP Insight Control includes one year of 24 x 7 HP Software Technical Support
and Update Service ensuring rapid access to HP support staff and proactive
delivery of software updates. For more information about this service, see:

http://www.hp.com/services/insight

.

HP Matrix Operating
Environment

The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.

The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS). For more
information, see

http://www.hp.com/go/matrixoe

.

HP iLO Scale-Out

The HP iLO Scale-Out license ideal for web/hosting/cloud service providers
and High Performance Computing environments. This license is a specific
subset of iLO Advanced functionality, provides fast remote access through
Text Console via SSH, lower operational cost with Dynamic power capping, and
faster time to resolution through Email-based Alerting and proactive
notifications. With this newly designed HP iLO Scale-Out license HPC
customers now have a server management package solely design and priced
for their massive data environments. HP iLO Scale-Out is available on all HP

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Optional Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 11

ProLiant Gen8 BL and SL platforms. For more information, see:

www.hp.com/go/iLO/scale-out

HP iLO Advanced

HP Integrated Lights-Out Advanced License a product option, providing smart
remote server management without compromise. iLO Advanced unlocks the
full set of remote administration functionality for all HP ProLiant servers by
activating the full Virtual Keyboard Video and Mouse remote console, multi­user collaboration, console record and replay, GUI-based and scripted virtual
media and virtual folders, and enhanced security and power management
functionality. For more information, see:

http://www.hp.com/go/iloadvance

.

HP iLO Advanced License
for ProLiant Servers

HP iLO management processors for HP ProLiant Gen8 servers virtualizes system controls to help simplify
server setup, engage health monitoring and power and thermal control, and promote remote
administration. HP iLO functions out-of-the-box without additional software installation and functions
regardless of the servers' state of operation. The HP iLO can be accessed from any location via a web
browser and works hand-in-hand with HP Systems Insight Manager, Insight Control, and Matrix Operating
Environment, helping customers unleash the value of the ProLiant platform and deliver the highest
possible quality of IT service to the business.

Advanced functionality, such as graphical remote console, multi-user collaboration, and video
record/playback can be activated with the optional HP iLO Advanced or HP iLO Advanced for BladeSystem
licenses. The Advanced licensed features offer sophisticated remote administration of servers in dynamic
data center and remote locations and can help significantly reduce cost associated with IT-related travel
and unplanned downtime.

NOTE:

For more information, visit

http://www.hp.com/go/ilo

.

HP OneView

The HP OneView architecture combines server, storage, and networking with control of datacenter
environmentals into a single, integrated management platform. Architected to deliver lifecycle
management for the complete Converged Infrastructure, it facilitates collaboration, removes friction,
collapses cycle times, eliminates error-prone work, and accelerates time to value. HP OneView v1.0
combines management of servers and virtual connect with open integration to automate and customize
existing tools and processes. With OneView, you'll work smarter-with greater visibility and control-and
fully capitalize on the benefits of a Converged Infrastructure.
For more information on HP OneView management, see:

http://www.hp.com/go/oneview

.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Optional Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 12

High Performance
Clusters

HP Cluster Platforms

HP Cluster Platforms are specifically engineered, factory-integrated large­scale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and SUSE Linux
Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster
Platform Configurator simplifies ordering.

http://www.hp.com/go/clusters

HP HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.

http://www.hp.com/techservers/clusters/ucp/index.html

HP Insight Cluster
Management Utility

HP Insight Cluster Management Utility (CMU) is an HP-licensed and HP­supported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the
administration of clusters user friendly, efficient, and effective.

http://www.hp.com/go/cmu

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control
challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than
HP storage software. Our storage software helps you reduce costs, simplify storage infrastructure,
protect vital assets and respond faster to business opportunities.
Storage software that gets the job done:

Data Protection and Recovery Software
Whether you're a large enterprise or a smaller business, HP data protection and recovery software
will cost-effectively protect you against disaster and ensure business continuity.
Data Archive and Migration Software
HP's storage software enables you to comply with data retention and retrieval requirements,
improve application performance, and reduce costs by efficiently migrating infrequently accessed
or less valuable data to lower cost storage.
Storage Resource Management Software (SRM)
HP's storage resource management software reduces operational costs and provides the command
and control foundation you need to efficiently manage and visualize your physical and virtual
environments.
Data Replication Software
HP offers array-based and host-based replication software for use in disaster recovery, testing,
application development and reporting.
Storage Device Management Software
Maximize your investment in HP storage and networking with software that enables hardware­specific configuration, performance tuning and connectivity management.
HP StoreVirtual VSA
With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and
disconnected physical disk drives in your servers and storage devices into a single pool of logical
storage capacity.

NOTE:

For more information available Storage Software including QuickSpecs, please see:

www.hp.com/go/storage/software

.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Optional Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 13

HP Insight Online

HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP
support information personalized to your IT environment. Insight Online can automatically display devices
remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.

http://www.hp.com/go/insightonline

HP Proactive Insight
experience

Prevent problems with innovative, automated monitoring tools and proactive services. The HP Proactive
Insight experience consist of using Insight Online, Insight Remote Support, and Proactive Care Support
Service as one integrated solution. The Proactive Insight experience provides you with expert advice and
personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve
problems quickly. For more information, visit:

www.hp.com/go/proactiveinsightexperience

Expansion Blade Support

Supports one (1) optional storage, tape, or PCI expansion blade.

Factory Express Portfolio
for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.

For more information on Factory Express services on your specific server model please contact your sales
representative or go to:

http://www.hp.com/go/factory-express.html

HP Simple Configurator

SCE is a guided self service tool to help sales and non technical people provide customers with initial
configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in
your existing ordering processes. If you require "custom" rack configuration or configuration for products
not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for
assistance.

http://www.hp.com/products/configurator

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Optional Features

DA - 14325 North America — Version 16 — December 13, 2013

Page 14

Service and Support

HP Technology Services for Industry Standard Servers and BladeSystem

Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who
understands your increasingly complex business technology environment. That's why it makes sense to
team up with the people who know HP infrastructure hardware and software best - the experienced
professionals at HP Services.

Protect your business beyond warranty with HP Care Pack Services

HP Care Pack services offer complete care and support expertise with committed response choices
designed to meet your IT and business needs.

HP Foundation Care services offer scalable reactive support-packages for HP industry-standard servers
and software. You can choose the type and level of service that is most suitable for your IT and business
needs. HP Proactive Care delivers high levels of system availability through proactive service management
and advanced technical response.

Recommended HP Care Pack Services for your HP product

Optimized Care

3-Year HP 6 hour Call to Repair Response, Proactive Care

Combined reactive and proactive support for hardware and software helping optimize your systems and
delivering high levels of availability through proactive service management and advanced technical
response. Hardware problem resolution to return the hardware in operating condition within 6 hours of the
initial service request. A Technical Account Manager, as your single point of contact, will own your call or
issue end to end until resolved.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed
smoothly, efficiently, and with minimal disruption of your IT and business operations.

Standard Care

3-Year HP 24x7 4 hour response, Proactive Care Service

This service gives you combined reactive and proactive support including rapid access to our Advanced
Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of
technical knowledge that will engage with additional technical expertise as needed from HP's vast global
resources.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855EEE.pdf

HP Install c-Class Server Blade Service

This easy-to-buy, easy-to-use HP Care Pack service helps ensure that your new HP hardware is installed
smoothly, efficiently, and with minimal disruption of your IT and business operations.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Service and Support

DA - 14325 North America — Version 16 — December 13, 2013

Page 15

Related Services

HP Proactive Care Personalized Support - Environmental Option

The Personalized Support option provides an assigned Account Support Manager who can bring best
practices from across the industry plus extra technical skills to your IT team. This option is only available
as an add-on to HP Proactive Care Support.

HP Proactive Select Service

Provides a flexible way to purchase HP best-in-class consultancy and technical services. You can buy
Proactive Select Service Credits when you purchase your hardware and then use the credits over the next
12 months.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENN.pdf

NOTE:

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

Insight Online/Insight
Remote Support

HP Insight Remote Support provides 24 X 7 remote monitoring, proactive notifications, and problem
resolution. This comes at no additional cost with your HP solution. Learn more about Insight Remote
Support

http://www.hp.com/go/insightremotesupport

and Insight Online

http://www.hp.com/go/insightonline

NOTE:

Insight Remote Support is a prerequisite for Proactive Care. All blades within a single HP

BladeSystem enclosure must be at the same service level.

HP Support Center

Personalized online support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources or collaborate with
peers. Learn more

http://www.hp.com/go/hpsc

HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for
live support. Now, you can get access to personalized IT support anywhere, anytime.
HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty,
HP Care Pack or HP contractual support agreement.

NOTE:

HP Support Center Mobile App is subject to local availability.

Parts and Materials

HP will provide HP-supported replacement parts and materials necessary to maintain the
covered hardware product in operating condition, including parts and materials for available
and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the
maximum usage limitations as set forth in the manufacturer's operating manual, product
quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as
part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives
replaced by HP due to malfunction.

For more information

To learn more on HP ProLiant servers and HP BladeSystem servers, please contact your HP sales
representative or HP Authorized Channel Partner. Or visit:

www.hp.com/services/bladesystem

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Service and Support

DA - 14325 North America — Version 16 — December 13, 2013

Page 16

HP ProLiant BL465c Gen8
6380 1P 16GB-R P220i
Server

699045-B21

Processor(s)

(1) AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

16GB (2 x 8 GB) DDR3 1333MHz RDIMMs at 1.35v

NOTE:

Total of 16 DIMM slots.

Network Controller

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC RAID 0,1

Hard Drive

None ship standard
Supports up to two (2) HP SFF hot-plug SAS/SATA/SDD drives

Internal Storage

SAS: 2. 4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB

Optical Drive Bay

None

Expansion Slots

2 standard - Slot 1 supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control

Form Factor

Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure

Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

HP ProLiant BL465c Gen8
6344 1P 16GB-R P220i
Server

708931-B21

Processor(s)

(1) AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

16GB (2 x 8 GB) DDR3 1333MHz RDIMMs at 1.35v

NOTE:

Total of 16 DIMM slots.

Network Controller

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC RAID 0,1

Hard Drive

None ship standard
Supports up to two (2) HP SFF hot-plug SAS/SATA/SDD drives

Internal Storage

SAS: 2.4TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 1.6TB

Optical Drive Bay

None

Expansion Slots

2 standard - Slot1 supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP iLO Scale-Out or HP Insight Control

Form Factor

Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure

Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Models

DA - 14325 North America — Version 16 — December 13, 2013

Page 17

HP ProLiant BL465c Gen8
6220 2P 64GB-R P220i
Server/S-Buy

696173-S01

Processor(s)

(2) AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (8 x 8 GB) DDR3 1600MHz RDIMMs at 1.5v

NOTE:

Total of 16 DIMM slots.

Network Controller

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC RAID 0,1

Hard Drive

None ship standard
Supports up to two (2) HP SFF hot-plug SAS/SATA/SDD drives

Internal Storage

SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 800GB

Optical Drive Bay

None

Expansion Slots

2 standard - Slot1 supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP Insight Control

Form Factor

Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure

Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

HP ProLiant BL465c Gen8
6278 2P 64GB-R P220i
Server/S-Buy

696172-S01

Processor(s)

(2) AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (8 x 8 GB) DDR3 1600MHz RDIMMs at 1.5v

NOTE:

Total of 16 DIMM slots.

Network Controller

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC RAID 0,1

Hard Drive

None ship standard
Supports up to two (2) HP SFF hot-plug SAS/SATA/SDD drives

Internal Storage

SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 800GB

Optical Drive Bay

None

Expansion Slots

2 standard - Slot1 supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP Insight Control

Form Factor

Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure

Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Smart Buys

DA - 14325 North America — Version 16 — December 13, 2013

Page 18

HP ProLiant BL465c Gen8
6320 2P 64GB-R P220i
Server/S-Buy

709114-S01

Processor(s)

(2) AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (8 x 8 GB) DDR3 1600MHz RDIMMs at 1.5v

NOTE:

Total of 16 DIMM slots.

Network Controller

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC RAID 0,1

Hard Drive

None ship standard
Supports up to two (2) HP SFF hot-plug SAS/SATA/SDD drives

Internal Storage

SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 800GB

Optical Drive Bay

None

Expansion Slots

2 standard - Slot1 supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP Insight Control

Form Factor

Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure

Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

HP ProLiant BL465c Gen8
6378 2P 64GB-R P220i
Server/S-Buy

709113-S01

Processor(s)

(2) AMD Opteron™ 6378 (2.4GHz 16-core/16MB/115W) Processor

Cache Memory

16MB Level 3 cache memory

Memory

64GB (8 x 8 GB) DDR3 1600MHz RDIMMs at 1.5v

NOTE:

Total of 16 DIMM slots.

Network Controller

One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM

Storage Controller

HP Smart Array P220i Controller with 512MB FBWC RAID 0,1

Hard Drive

None ship standard
Supports up to two (2) HP SFF hot-plug SAS/SATA/SDD drives

Internal Storage

SAS: 2.0TB; SATA: 2.0TB; SAS SSD: 1.6TB; SATA SSD: 800GB

Optical Drive Bay

None

Expansion Slots

2 standard - Slot1 supports Type A mezzanine Cards. Slot 2 supports Type A
and Type B mezzanine cards.

Management

HP iLO Management Engine (standard)
Optional: HP Insight Control

Form Factor

Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure

Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure

Warranty

Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Smart Buys

DA - 14325 North America — Version 16 — December 13, 2013

Page 19

NOTE:

This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To
ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales
representative for information on CTO product offerings and requirements.

NOTE:

Configure-to-order server blades must start with a CTO Blade Server.

NOTE:

FIO indicates that this option is only available as a factory installable option.

Step 1: Base Server Blade Configuration (Select a configurable Blade)

HP Models

HP ProLiant BL465c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server

634975-B21

Configurable Model ships with:

One (1) FlexibleLOM connector providing a choice of supported 10Gb FlexibleLOMs (see
Step 2)
One (1) HP Smart Array P220i Controller with 512MB FBWC and RAID 0 and 1 support
Two (2) HP small form factor hot-plug SAS/SATA/SSD hard drive bays
One (1) x8 PCIe I/O expansion slot (Type A)
One (1) x16 PCIe I/O expansion slot (Type A or Type B)
One (1) integrated USB connector and one (1) Micro SDHC connector
One (1) TPM connector
HP iLO Management Engine (standard)

Step 2: Choose Required Options (one of the following from each list unless otherwise
noted)

HP Processors

For single processor configuration choose:

Core Processor Option Kits

NOTE:

The BL465c Gen8 supports one or two processors.

NOTE:

All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.

NOTE:

If two processors are desired, select one xxxxxx-L21 here in Step 2 and one

xxxxxx-B21 in Step 3.

NOTE:

All processors within the server must be identical.

NOTE:

The letters "HE" following the model number denotes lower wattage.

NOTE:

The processor model as well as the memory configuration determines the
maximum speed memory can operate. Please see the see the "Memory" section later in
this document.

Sixteen-Core Processors

HP BL465c Gen8 AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) FIO Processor Kit

699048-L21

HP BL465c Gen8 AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W) FIO Processor Kit

699049-L21

HP BL465c Gen8 AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W) FIO Processor Kit

699050-L21

HP BL465c Gen8 AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) FIO Processor
Kit

699056-L21

HP BL465c Gen8 AMD Opteron™ 6276 (2.3GHz/16-core/16MB/115W) FIO Processor Kit

634970-L21

Twelve-Core Processors

HP BL465c Gen8 AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) FIO Processor Kit

699051-L21

HP BL465c Gen8 AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) FIO Processor Kit

699052-L21

Eight-Core Processors

HP BL465c Gen8 AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) FIO Processor Kit

699053-L21

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14325 North America — Version 16 — December 13, 2013

Page 20

HP BL465c Gen8 AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) FIO Processor Kit

699054-L21

HP BL465c Gen8 AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) FIO Processor Kit

634983-L21

Quad-Core Processors

HP BL465c Gen8 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) FIO Processor Kit

699055-L21

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

(Worldwide)

NOTE:

HP memory from previous generation servers are not fully compatible with
Smart Memory features in Gen8 Servers.

NOTE:

A minimum of one DIMM per processor is required.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in
this document.

HP SmartMemory

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647871-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647873-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

695793-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647877-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647879-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647883-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672633-B21

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647885-B21

Ultra Low Voltage DIMMs (ULVDIMM) for AMD Servers

HP 4GB (1x4GB) Single Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low
Voltage Memory Kit

647869-B21

HP 8GB (1x8GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low
Voltage Memory Kit

647875-B21

HP 16GB (1x16GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra
Low Voltage Memory Kit

647881-B21

NOTE:

Depending on the memory configuration and processor model, 1600MHz and
1333MHz memory may operate at a lower speed. Please see the see the "Memory"
section later in this document and the Online Memory Configuration Tool for details at

www.hp.com/go/ddr3memory-configurator

.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14325 North America — Version 16 — December 13, 2013

Page 21

HP Networking

FlexibleLOM Adapters

NOTE:

The server requires one FlexibleLOM that is installed in the FlexibleLOM
connector. All FlexibleLOMs are dual port: One port is routed to interconnect module
bay 1 and the other to bay 2.

10Gb FlexibleLOM Adapters

HP FlexFabric 10Gb 2-port 554FLB FIO Adapter

684212-B21

HP Ethernet 10Gb 2-port 560FLB FIO Adapter

684214-B21

HP Flex-10 10Gb 2-port 530FLB FIO Adapter

684211-B21

NOTE:

HP ProLiant BL465c Gen8 10Gb FlexibleLOM Configure-to-order Blade Server
(634975-B21) must be selected in order to select one of the 10Gb FlexibleLOM
adapters.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

www.hp.com/go/ProLiantNICs

Step 3: Choose Additional Factory Integration Options

HP Insight Software

HP Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server
FIO License

C6N36A

Converged Infrastructure
Management Software

HP OneView with iLO Advanced - Server hardware required on same purchase order

HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU

E5Y43AAE

HP OneView for Blade Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

F6Q89A

HP OneView for Blade Server incl 3yr 24x7 Supp FIO Bundle 1 Svr E-LTU

F6Q89AAE

HP Storage Blades

HP D2220sb Configure-to-order Storage Blade

QW918A

Step 4: Choose Additional Options for Factory Integration

NOTE:

For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options,
including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and
Additional sections below; or the following:

HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html

NOTE:

The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html

NOTE:

The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in
the new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c-Class Interconnect and Mezzanine Components:

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html

and

http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Configuration Information - Factory Integrated Models

DA - 14325 North America — Version 16 — December 13, 2013

Page 22

HP Networking

10Gb Ethernet Mezzanine

NOTE:

Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.

NOTE:

A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when

connected to an interconnect module with 10Gb Ethernet downlinks.

NOTE:

A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected to

an interconnect module with 1Gb Ethernet downlinks.

NOTE:

The 10 Gigabit Ethernet adapters on each server blade connects to a 10Gb
interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP
BladeSystem c3000 Enclosure).

HP Flex-10 10Gb 2-port 530M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14217_na/14217_na.html

.

631884-B21

HP Flex-10 10Gb 2-port 552M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14218_na/14218_na.html

.

674764-B21

HP FlexFabric 10Gb 2-port 554M Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14221_na/14221_na.html

.

647590-B21

HP Ethernet 10Gb 2-port 560M Adapter

665246-B21

1Gb Ethernet Mezzanine

HP Ethernet 1Gb 4-port 366M Adapter

615729-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14335_na/14335_na.html

FlexibleLOM Adapters

NOTE:

The server supports one FlexibleLOM that is installed in the FlexibleLOM
connector and is already included in Pre-configured Models and added per Step 2 for
Factory Integrated Models. The FlexibleLOM options below are used to change these
original FlexibleLOMs.

10Gb FlexibleLOM

HP Flex-10 10Gb 2-port 530FLB Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14216_na/14216_na.html

.

656590-B21

HP FlexFabric 10Gb 2-port 554FLB Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14219_na/14219_na.html

.

647586-B21

HP Ethernet 10Gb 2-port 560FLB Adapter

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14331_na/14331_na.html

655639-B21

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Core Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 23

HP Fibre Channel

HP LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

659818-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14338_na/14338_na.html

HP QMH2572 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

651281-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14230_na/14230_na.html

HP QMH2672 16Gb Fibre Channel Host Bus Adapter

710608-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information

at:

http://h18000.www1.hp.com/products/quickspecs/14622_na/14622_na.html

HP Processors

NOTE:

The BL465c Gen8 supports one or two processors.

NOTE:

All processors within the server must be identical.

NOTE:

The letters "HE" following the model number denotes lower wattage.

NOTE:

The memory configuration determines the maximum speed memory can
operate. Please see the see the "Memory" section later in this document.

Sixteen-Core Processors

HP BL465c Gen8 AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) Processor Kit

699048-B21

HP BL465c Gen8 AMD Opteron™ 6378 (2.4GHz/16-core/16MB/115W) Processor Kit

699049-B21

HP BL465c Gen8 AMD Opteron™ 6376 (2.3GHz/16-core/16MB/115W) Processor Kit

699050-B21

HP BL465c Gen8 AMD Opteron™ 6366HE (1.8GHz/16-core/16MB/85W) Processor Kit

699056-B21

HP BL465c Gen8 AMD Opteron™ 6278 (2.4GHz/16-core/16MB/115W) Processor Kit

686868-B21

HP BL465c Gen8 AMD Opteron™ 6276 (2.3GHz/16-core/16MB/115W) Processor Kit

634970-B21

HP BL465c Gen8 AMD Opteron™ 6274 (2.2GHz/16-core/16MB/115W) Processor Kit

660080-B21

HP BL465c Gen8 AMD Opteron™ 6272 (2.1GHz/16-core/16MB/115W) Processor Kit

634973-B21

HP BL465c Gen8 AMD Opteron™ 6262HE (1.6GHz/16-core/16MB/85W) Processor Kit

686870-B21

Twelve-Core Processors

HP BL465c Gen8 AMD Opteron™ 6348 (2.8GHz/12-core/16MB/115W) Processor Kit

699051-B21

HP BL465c Gen8 AMD Opteron™ 6344 (2.6GHz/12-core/16MB/115W) Processor Kit

699052-B21

HP BL465c Gen8 AMD Opteron™ 6238 (2.6GHz/12-core/16MB/115W) Processor Kit

634978-B21

HP BL465c Gen8 AMD Opteron™ 6234 (2.4GHz/12-core/16MB/115W) Processor Kit

660081-B21

Eight-Core Processors

HP BL465c Gen8 AMD Opteron™ 6328 (3.2GHz/8-core/16MB/115W) Processor Kit

699053-B21

HP BL465c Gen8 AMD Opteron™ 6320 (2.8GHz/8-core/16MB/115W) Processor Kit

699054-B21

HP BL465c Gen8 AMD Opteron™ 6220 (3.0GHz/8-core/16MB/115W) Processor Kit

634983-B21

HP BL465c Gen8 AMD Opteron™ 6212 (2.6GHz/8-core/16MB/115W) Processor Kit

660079-B21

Quad-Core Processors

HP BL465c Gen8 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) Processor Kit

699055-B21

HP BL465c Gen8 AMD Opteron™ 6204 (3.3GHz/4-core/16MB/115W) Processor Kit

686869-B21

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Core Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 24

HP Memory

NOTE:

To realize the performance memory capabilities listed in this document, HP
SmartMemory is required. For additional information, please see the HP SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

(Worldwide)

NOTE:

HP memory from previous generation servers are not fully compatible with
Smart Memory features in Gen8 Servers.

NOTE:

A minimum of one DIMM per processor is required.

NOTE:

For additional memory rules and guidelines, see the "Memory" section later in
this document.

HP SmartMemory

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647871-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647873-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

695793-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647877-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647879-B21

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647883-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672633-B21

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647885-B21

Ultra Low Voltage DIMMs (ULVDIMM) for AMD Servers

HP 4GB (1x4GB) Single Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low
Voltage Memory Kit

647869-B21

HP 8GB (1x8GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low
Voltage Memory Kit

647875-B21

HP 16GB (1x16GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra
Low Voltage Memory Kit

647881-B21

NOTE:

Depending on the memory configuration, 1600MHz and 1333MHz memory may
operate at a lower speed. Please see the see the "Memory" section later in this
document and the Online Memory Configuration Tool for details at:

www.hp.com/go/ddr3memory-configurator

.

HP Hard Drives

NOTE:

The ProLiant BL465c Gen8 server includes the new HP hot-plug small form
factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance
errors. HP drives from previous generation servers are not compatible with the BL465c
Gen8 drive bays.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Core Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 25

server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of
other drives types is not supported.

NOTE:

HP hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.

NOTE:

The hard drive options are not required when configuring a drive-less model.

NOTE:

Server supports only 3G SATA devices. The 6G SATA drives will negotiate to 3G
speeds.

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717965-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

734360-B21

6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Value Solid State
Drives

HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717973-B21

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

739898-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717971-B21

HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

739888-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

NOTE:

This drive supports Gen8 servers only.

717969-B21

NOTE: Please see the QuickSpecs for technical specifications and information at:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

.

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

NOTE:

Please see the QuickSpecs for technical specifications and additional information

at:

http://h18000.www1.hp.com/products/quickspecs/13021_na/13021_na.html

.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

697574-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard
Drive

718162-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Core Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 26

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

NOTE:

Please see QuickSpecs for technical specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/12244_na/12244_na.html

.

6G SAS ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drive

HP 800GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690829-B21

HP 400GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690827-B21

HP 200GB 6G SAS Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

690825-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691862-B21

NOTE:

Servers supports only 3G SATA drives. The 6G SATA drives will negotiate to 3G
speeds.

NOTE:

The mixing of standard SAS drives with SAS SSD drives is supported within the
server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of
other drives types is not supported.

NOTE:

Please see the QuickSpecs for technical specifications and information at:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

.

6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives

HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive

653082-B21

HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid
State Drive

653078-B21

NOTE:

Please see the QuickSpecs for technical specifications and information at:

http://h18000.www1.hp.com/products/quickspecs/14038_na/14038_na.html

.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Core Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 27

HP Insight software

HP Insight Control

HP Insight Control including 1yr 24x7 Technical Support and Updates Single Server
License

C6N27A

HP Insight Control Server Provisioning Media Kit

BD883A

HP Insight Management Media Kit

NOTE:

HP Insight Management Media Kit contains DVDs without licenses. Contains HP
Systems Insight Manager, HP Insight Control, HP Matrix Operating Environment, and
Virtual Connect Enterprise Manager software. Uses an integrated installer to perform
quick and accurate software installation and updates.

C6N31A

NOTE:

Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single activation key.

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service.

NOTE:

Licenses ship without media. The HP Insight Management Media Kit can be
ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

.

NOTE:

For additional license kits, please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html

HP Insight Control server deployment

HP Insight Control Server Deployment including 1yr 24x7 Support Electronic License

T9082AAE

HP Insight Control Server Deployment including 1yr 24x7 Support Single Server License

452151-B21

NOTE:

Licenses ship without media. The HP Insight Management Media Kit can be
ordered separately, or can be downloaded at:

http://www.hp.com/go/insightupdates

.

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service.

NOTE:

For additional license kits please see the Insight Control QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12631_na/12631_na.html

.

HP iLO Advanced License HP Integrated Lights-Out (iLO) Advanced for ProLiant
BladeSystem

HP iLO Advanced for BladeSystem including 1yr 24x7 Support Single Server License

512488-B21

HP iLO Advanced for BladeSystem including 1yr 24x7 Support Eight Server License

512489-B21

HP Integrated Lights-Out (iLO)

HP iLO Scale Out

HP Integrated Lights-Out Scale-Out 3yr 24x7 Tech Support and Updates Flex Quantity
License

BD776A

HP Integrated Lights-Out Scale-Out 1yr 24x7 Tech Support and Updates Flex Quantity
License

BD778A

HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates Flex
Qty E-LTU

BD776AAE

HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates Flex
Qty E-LTU

BD778AAE

HP Integrated Lights-Out Scale-Out including 3yr 24x7 Tech Support and Updates
Tracking License

BD777A

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Additional Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 28

HP Integrated Lights-Out Scale-Out including 1yr 24x7 Tech Support and Updates
Tracking License

BD779A

NOTE:

Customer will receive a license entitlement certificate, which must be redeemed
online or via fax in order to obtain the license activation key(s). Includes one year of 24
x 7 HP Software Technical Support Service.

NOTE:

For additional license kits, including electronic delivery options, please see the
iLO QuickSpecs at

http://www.hp.com/go/iLO

Converged Infrastructure
Management Software

HP OneView

HP OneView with iLO Advanced

HP OneView incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y34A

HP OneView incl 3yr 24x7 Supp Flex Qty E-LTU

E5Y35AAE

HP OneView Media Kit Phys No Lic

E5Y37A

HP OneView without iLO Advanced

HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y38A

HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU

E5Y39AAE

NOTE:

For additional license kits please see the QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/14621_na/14621_na.html

.

High Performance
Clusters

HP Cluster Management Utility

HP Insight Cluster Management Utility 1yr 24x7 Flexible License

QL803B

HP Insight Cluster Management Utility 3yr 24x7 Flexible License

NOTE:

These part numbers can be used to purchase one certificate for multiple licenses
and support with a single activation key. Each license is for one node (server). Customer
will receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order
to obtain a license key. Customer also will receive a support agreement.

BD476A

HP Insight Cluster Management Utility Media

NOTE:

For additional license kits please see the QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12612_na/12612_na.html

.

BD477A

HP I/O Accelerator
Options

HP 1.2TB Multi Level Cell IO Accelerator for BladeSystem c-Class

QK763A

HP 785GB Multi Level Cell IO Accelerator for BladeSystem c-Class

QK762A

HP 365GB Multi Level Cell IO Accelerator for BladeSystem c-Class

QK761A

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Additional Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 29

HP Security

HP Trusted Platform Module Option

488069-B21

NOTE:

The TPM (Trusted Platform Module) is a microcontroller chip that can securely
store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure that
a server running Windows Server 2008 has not been tampered with while the system
was offline.

NOTE:

For more information about TPM, including a white paper, go to

http://www.hp.com/go/TPM

.

NOTE:

ProLiant OS pre-installed units will come with the partition required for TPM
deployment.

NOTE:

The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.

HP Storage Controllers

HP Smart Array P731m Controller

HP Smart Array P731m/2GB FBWC 6Gb 4-ports Ext Mezzanine SAS Controller

698535-B21

NOTE:

This option is a Type B mezzanine and is only supported on mezzanine slot 2.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information at:

http://h18000.www1.hp.com/products/quickspecs/14626_na/14626_na.html

.

(Smart Array P731m Controller)

HP Smart Array P721m Controller

HP Smart Array P721m/2G FBWC 4-ports Ext Mezzanine SAS Controller

650072-B21

HP Smart Array P721m/512 4-ports Ext Mezzanine SAS Controller

655636-B21

NOTE:

This option is a Type B mezzanine and is only supported on mezzanine slot 2.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information at:

http://h18000.www1.hp.com/products/quickspecs/14404_na/14404_na.html

.

(Smart Array P721m Controller)

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Additional Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 30

HP InfiniBand Mezzanines

NOTE:

When an InfiniBand adapter is installed in mezzanine slot 1, only one port is
active (regardless of operating mode). When installed in any other mezzanine slot, both
ports are active.

NOTE:

On PCIe 2.0 based servers like BL465 Gen8, InfiniBand FDR speeds are not

feasible.

NOTE:

InfiniBand QDR and FDR speeds are only supported on the HP BladeSystem
c7000 Enclosure. For additional information, please see the HP BladeSystem c7000
Enclosure and InfiniBand QuickSpecs at:

http://h18004.www1.hp.com/products/quickspecs/12586_na/12586_na.html
http://h18000.www1.hp.com/products/quickspecs/13078_na/13078_na.html

HP Infiniband QDR/Ethernet 10Gb 2-port 544M Adapter

NOTE:

The QDR InfiniBand adapter may be installed in any mezzanine slot of the server.

644160-B21

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544M Adapter

NOTE:

The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode
and may be installed in any mezzanine slot if operated in any other mode.

644161-B22

HP Ultrium Tape Blades

HP StoreEver LTO-4 Ultrium SB1760c Tape Blade

NOTE:

LTO-4 Ultrium tape technology.

AQ697B

HP StoreEver LTO-5 Ultrium SB3000c Tape Blade

NOTE:

LTO-5 Ultrium tape technology.

BS580B

NOTE:

For the above Ultrium tape drives, please see the QuickSpecs for technical
specifications and additional information at:

http://h18000.www1.hp.com/products/quickspecs/12729_na/12729_na.html

HP Storage Blades

HP D2200sb PCIe Storage Blade

NOTE:

Please see the QuickSpecs for technical specifications and additional information
at:

http://h18006.www1.hp.com/storage/bladesystem/index.html

.

AP880A

HP D2220sb PCIe and StoreVirtual VSA Bundle

QW914A

HP D2220sb PCIe w/(12) 900 GB 6G SAS HDD Bundle

QW915A

HP D2220sb Build-to-order Storage Blade

NOTE:

For additional information, please see the QuickSpecs for technical specifications
and additional information at:

http://h18000.www1.hp.com/products/quickspecs/14507_na/14507_na.html

QW917A

HP Expansion Blade

HP BLc PCI Expansion Blade

NOTE:

The PCI Expansion Blade provides PCI card slots for an adjacent c-Class Server
Blade. Order one PCI expansion Blade for each server blade needing standard PCI-X or
PCIe expansion slots.

NOTE:

Ships with one pre-installed PCI-X connect board. Also includes one PCIe connect
board which requires installation.

NOTE:

Please see the QuickSpecs for technical specifications and additional information
at:

http://h18000.www1.hp.com/products/quickspecs/12753_na/12753_na.html

448018-B21

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Additional Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 31

HP Flash Media Kits for
USB Drives

HP Flash Media Kits for USB Drives

HP 2GB USB Flash Media Drive Key Kit

NOTE:

HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization. HP recommends this industry standard USB flash device for use
with VMware ESXi. USB device must be installed in the internal slot of the ProLiant
server for use with VMware ESXi. Refer to HP VMware Getting Started Guide for
installation instructions.

608447-B21

HP Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HP 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HP 32GB microSD Enterprise Mainstream Flash Media Kit

700139-B21

NOTE:

Please see the QuickSpecs for Technical Specifications and additional
information:

http://h18000.www1.hp.com/products/quickspecs/13971_na/13971_na.html

HP Care Pack Services

Proactive Care -

Collaborative Support plus Proactive services delivered by the on
shore/near shore Advanced Solution Center (ASC) and backed by the global delivery
organization, end-to-end case ownership from a Technical Solution Specialists and
Technical Account Manager who remotely delivers firmware/software revision
management, proactive scans and incident trend reports. Recommended for customers
running a virtualized infrastructure and/or customers who desire an enhanced call
support experience.

HP 3 year 6hr Call To Repair 24x7 with Defective Media Retention ProLiant BL4xxc
Proactive Care SVC

U3B23E

HP 3 year 4 hour 24x7 ProLiant BL4xxc Proactive Care Service

U3B14E

HP 3 year 4 hour 24x7 with Defective Media Retention ProLiant BL4xxc Proactive Care
Service

U3B17E

HP 3 year 6 hour Call To Repair 24x7 ProLiant BL4xxc Proactive Care Service

U3B20E

Proactive Care Personalized Support Environmental Option -

to add an onsite
Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who
delivers support planning and brings technical expertise and best practices advice for
the customer's environment.

HP 3 year ISS ProactiveCare Personalized Support

U6W98E

Installation Services -

reduce the time required to get your system up and running and

help minimize disruptions to your business.
HP Install c-Class Server Blade Service

UE493E

HP Hardware Installation during Non Standard Hours c-Class Enclosure and Server
Blade Service

UG869E

NOTE:

Additional HP Care Pack services can be found at:

http://www.hp.com/go/cpc

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Additional Options

DA - 14325 North America — Version 16 — December 13, 2013

Page 32

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

www.hp.com/go/ddr3memory-configurator

Memory Subsystem Architecture

The memory subsystem in this server blade is divided into four memory channels that support two DIMMs each for a total of eight (8)
DIMM per installed processor or a grand total of sixteen (16) DIMMs for the server. Up to 32GB capacity DIMMs are supported for 512GB
of memory (16 DIMM slots x 32GB per DIMM).

Memory Population Rules and Guidelines

:

A minimum of one DIMM per processor is required.
Install DIMMs only if the corresponding processor is installed.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load
the channels similarly whenever possible.
RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.
RDIMMs and LRDIMMs cannot be mixed.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.
The maximum memory capacity is a function of the memory type and number of installed processors.
HP memory from previous generation servers is not compatible with the BL465c Gen8 Server Blade.
To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional
information, please see the HP SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/quickspecs/14225_na/14225_na.html

.
For memory population rules and additional memory guidelines, please see the BL465c Gen8 user guide at

http://www.hp.com/support

.

NOTE:

Mixing 1.25V and 1.5V DIMMs is not allowed. Mixing DIMMs with different voltage levels will result in the higher voltage level

being used resulting in higher power consumption.

BL465c Gen8 Supported Memory Bandwidth

DIMM Type

Registered DIMMS (RDIMMs)

Load

Reduced

(LRDIMMs)

DIMM Rank

Single Rank (1R)

Dual

Rank

(2R)

Single

Rank

(1R)

Dual

Rank

(2R)

Dual

Rank

(2R)

Dual

Rank

(2R)

Quad
Rank

(4R)

DIMM Capacity

4GB 4GB 8GB 8GB 8GB

16GB 16GB 32GB

DIMM Native Speed (MHz)

1333 1600 1333 1600 1600 1333 1600 1066

Voltage

1

LV/ULV

Std

LV/ULV

Std Std

LV/ULV

Std

LV

1

ULV= low voltage at 1.25V; LV= low voltage at 1.35V; Std = standard voltage at 1.5V.

SLOTS THAT CAN BE POPULATED

16 slot servers

16 16 16 16 16 16 16 16

MAXIMUM CAPACITY (GB)

1

16 slot servers

64 64 128 128 128 256 256 512

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Memory

DA - 14325 North America — Version 16 — December 13, 2013

Page 33

POPULATED DIMM SPEED (MHz)

1 DIMM Per Channel

1333 1600 1333 1600 1600 1333 1600 1333

2 DIMM Per Channel

1333 1600

1333/
1066

2

1600 1600

1333/
1066

2

1600 1333

1

Maximum capacity will vary based on individual server platform.

2

Ultra Low Voltage 8GB and 16GB dual rank operate at 1066MT/s speed in 2 DPC configurations.

NOTE:

Maximum memory speed is a function of the processor bus speed; see the table below "Memory Speed by Processor Model".

Memory Speed by Processor Model

Processor Models

Supported Memory Speeds

AMD Opteron™ 6300 or 6200 Series processors

1600/1333/1066MHz

Standard and Maximum Memory Capacity (Pre-configured Models)

Pre Configured Models

Standard Memory

Maximum Memory Plus

Optional Memory

Standard Memory Replaced

with Optional Memory

AMD Opteron 6238, 6272, 6276,
6328, 6344, 6380

16GB

(2x 8GB)

192GB

(8x 8GB + 8x 16GB)

512GB

(16x 32GB)

NOTE:

Capacity references are rounded to the common gigabyte (GB) values.

2GB = 2,048MB
4GB = 4,096MB
8GB = 8,192MB
16GB = 16,384MB
32GB = 32,768MB

Memory options part number decoder

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Memory

DA - 14325 North America — Version 16 — December 13, 2013

Page 34

Following are memory options available from HP:

HP Memory

HP SmartMemory

Registered DIMMs (RDIMMs)

HP 16GB (1x16GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647883-B21

HP 16GB (1x16GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra
Low Voltage Memory Kit

647881-B21

HP 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

672633-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

695793-B21

HP 8GB (1x8GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647879-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647877-B21

HP 8GB (1x8GB) Dual Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low
Voltage Memory Kit

647875-B21

HP 4GB (1x4GB) Single Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory
Kit

647873-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low
Voltage Memory Kit

647871-B21

HP 4GB (1x4GB) Single Rank x4 PC3U-10600R (DDR3-1333) Registered CAS-9 Ultra Low
Voltage Memory Kit

647869-B21

Load Reduced DIMMs (LRDIMMs)

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600L (DDR3-1333) Load Reduced CAS-9 Low
Voltage Memory Kit

647885-B21

NOTE:

Depending on the memory configuration, 1600MHz and 1333MHz memory may
operate at a lower speed. Please see the Online Memory Configuration Tool for details
at

www.hp.com/go/ddr3memory-configurator

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Memory

DA - 14325 North America — Version 16 — December 13, 2013

Page 35

1-2

2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD hard
drives

Maximum Internal Storage

Hot Plug SFF SAS

2.0TB

2 x 1.0TB

Hot Plug SFF SATA

2.0TB

2 x 1.0TB

Hot Plug SFF SAS SSD

1.6TB

2 x 800GB

Hot Plug SFF SATA SSD

1.6TB

2 x 800GB

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Storage

DA - 14325 North America — Version 16 — December 13, 2013

Page 36

System Unit

Dimensions

(H x W x D)

(with bezel)

7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)

Weight

(approximate)

Maximum: all processors,
16 DIMMs, hard drives,
mezzanine cards, and two
flash cache batteries
installed)

14.00 lb (6.33 kg)

Minimum: one processor
and 2 DIMMs installed

10.50 lb (4.75 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power
supply output, please see the:

HP BladeSystem c3000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

.
HP BladeSystem c7000 Enclosure QuickSpecs at

http://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html

.

To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at:

www.hp.com/go/hppoweradvisor

.

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m (1.8°F
per every 1,000 ft) above sea level to a maximum
of 3,050 m (10,000 ft), no direct sustained
sunlight.

Maximum rate of change is 10°C/hr (18°F/hr). The
upper limit may be limited by the type and
number of options installed.

System performance may be reduced if operating
with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non­condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
maximum wet bulb temperature, non­condensing.

Altitude

Operating

3,050 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1,500 ft/min).

Non-operating

9,144 m (30,000 ft). Maximum allowable altitude
change rate is 457 m/min (1,500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HP BladeSystem c-Class

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Technical Specifications

DA - 14325 North America — Version 16 — December 13, 2013

Page 37

Enclosures QuickSpecs located at:
HP BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12790_na/
12790_na.html

HP BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/quickspecs/12810_na/
12810_na.html

HP Smart Array P220i
Controller

Disk Drive Interface

6Gb/s SAS (Serial Attached SCSI)

Server Interface

x4 PCI Express host interface

Cache Memory

512MB flash backed write cache (FBWC) cache standard

Logical Drives Supported

64 (with included 512MB cache)

Host Memory Addressing

64-bit, supporting servers memory space greater than 4GB

RAID Support

RAID 1 (mirroring) and RAID 0 (striping)

Other

Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)

HP FlexFabric 10Gb
2-port 554FLB
FlexibleLOM

Type

Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE,
hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing
1Gb/10Gb Ethernet capability)

Network Processor

Emulex BE3

Data Transfer Method

x8 PCI Express 2.0

Network Transfer Rate

Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex
theoretical bandwidth

NOTE:

Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP
BladeSystem c-Class interconnect components. Both ports will operate at the
same speed.

NOTE:

Each port on the 554FLB adapter transmits from the server at 20Gbps
(theoretical) full duplex.

IEEE Compliance

802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and

802.3x

Standard Features

ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Hardware-based accelerated iSCSI
iSCSI boot
Flex-10 capability
Fibre Channel over Ethernet (FCoE)
TCP/IP offload engine (stateless TCP/IP)
Autosensing 1Gb/10Gb Ethernet

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Technical Specifications

DA - 14325 North America — Version 16 — December 13, 2013

Page 38

Environment-friendly
Products and Approach

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:

http://www.hp.com/go/green

. To recycle your product, please go to:

http://www.hp.com/go/green

or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:

http://www.hp.com/go/green

. These instructions may be
used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

© Copyright 2013 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. AMD is a US registered trademark of AMD
Corporation

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

QuickSpecs

HP ProLiant BL465c Generation8 (Gen8) Server Blade

Technical Specifications

DA - 14325 North America — Version 16 — December 13, 2013

Page 39
