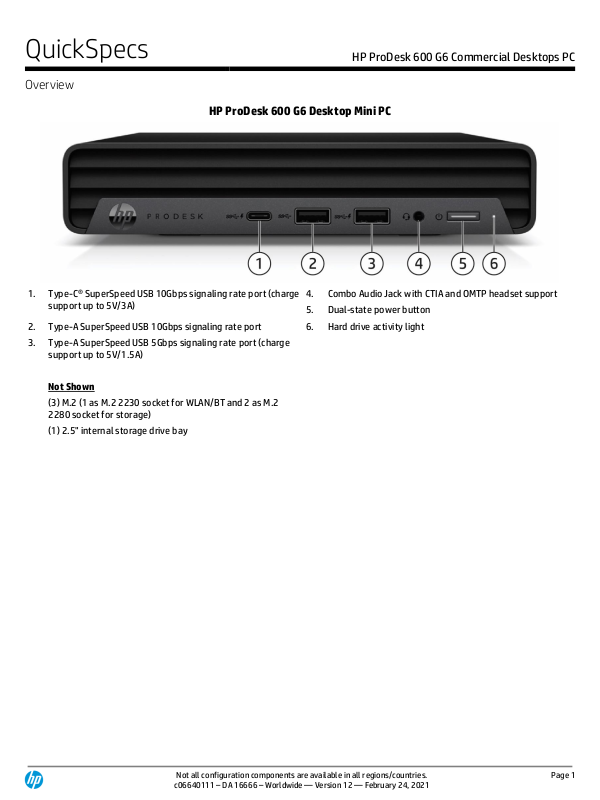

HP ProDesk 600 G6 QuickSpecs

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 1

HP ProDesk 600 G6 Desktop Mini PC

1.

Type-C® SuperSpeed USB 10Gbps signaling rate port (charge support up to 5V/3A)

4.

Combo Audio Jack with CTIA and OMTP headset support

5.

Dual-state power button

2.

Type-A SuperSpeed USB 10Gbps signaling rate port

6.

Hard drive activity light

3.

Type-A SuperSpeed USB 5Gbps signaling rate port (charge support up to 5V/1.5A)

Not Shown

(3) M.2 (1 as M.2 2230 socket for WLAN/BT and 2 as M.2 2280 socket for storage)

(1) 2.5" internal storage drive bay

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 2

HP ProDesk 600 G6 Desktop Mini PC

1.

(2) Dual-Mode DisplayPort™ 1.4 (DP++)

8.

Flex Port 22, choice of:

2.

Type-A SuperSpeed USB 5Gbps signaling rate port

• 2x Type-A Hi-Speed USB 480Mbps signaling rate port

• Serial

3.

Type-A SuperSpeed USB 5Gbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

9.

Type-A SuperSpeed USB 10Gbps signaling rate port

10.

RJ45 network connector

4.

Type-A SuperSpeed USB 10Gbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

11.

External WLAN antenna opening2

12.

Power connector

5.

Cover release thumbscrew

13.

Retractable Padlock loop

6.

Standard cable lock slot (10 mm)

7.

Flex Port 1, choice of:

• Thunderbolt™ 3

1

• DisplayPort

• HDMI 2.0a

• VGA

• Serial

1

• Type-C® SuperSpeed USB 10Gbps signaling rate port w/

DisplayPort™ Alt Mode and power intake via USB Type-C® Power Delivery up to 100W

1. Sold separately or as an optional feature

2. Must be configured at time of purchase

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 3

HP ProDesk 600 G6 Small Form Factor PC

1.

Slim optical drive (optional)

5.

Type-A SuperSpeed USB 5Gbps signaling rate port (charge support up to 5V/1.5A)

2.

SD card 4.0 reader (optional)

3.

Type-C® SuperSpeed USB 10Gbps signaling rate port (charge support up to 5V/3A)

6.

Type-A SuperSpeed USB 5Gbps signaling rate port

7.

Combo Audio Jack with CTIA and OMTP headset support

4.

(2) Type-A SuperSpeed USB 10Gbps signaling rate port

8.

Dual-state power button

9.

Hard drive activity light

Not Shown

(1) PCI Express x16

(1) PCI Express x4

(2) M.2 (1 as M.2 2230 socket for WLAN/BT and 1 as M.2 2280 socket for storage)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 4

HP ProDesk 600 G6 Small Form Factor PC

1.

Audio-out connector

5.

RJ45 network connector

2.

(2) Dual-Mode DisplayPort™ 1.4 (DP++)

6.

(2) Type-A Hi-Speed USB 480Mbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

3.

Serial port (optional)

4.

Flex Port choice of:

7.

(3) Type-A SuperSpeed USB 5Gbps signaling rate port

• DisplayPort™1.4

• HDMI 2.0a

• VGA

• Serial

8.

Power cord connector

9.

Internal WLAN antenna cover (optional)

• Dual Type-A SuperSpeed USB 5Gbps signaling rate

• Type-C® SuperSpeed USB 10Gbps signaling rate

with DisplayPort™ Alt mode

10.

Standard cable lock slot

11.

Integrated accessory cable lock

Not Shown

Port

Bay Optional Thunderbolt™ 3 port card

(1) 9.5mm internal optical drive bay

Optional PS/2 & serial port card1 (connected with mainboard via flyer cable)

(1) 3.5" internal storage drive bay or (2) 2.5" internal storage drive bays2

Optional parallel port1

Optional 4 serial port PCIe card1 (1 to 4 serial port dongle)

1. Each of the legacy port options would occupy one rear slot

2. SFF can be configured with either (1) 3.5” or (2) 2.5” internal storage drive (2.5-inch drive needs adapter that can only be purchased when configuring the PC from factory with a 2.5” drive)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 5

HP ProDesk 600 G6 Microtower PC

1.

Slim optical drive (optional)

7.

Type-A SuperSpeed USB 5Gbps signaling rate port

2.

5.25-inch drive bay (optional)

8.

(2) Type-A SuperSpeed USB 10Gbps signaling rate port

3.

Hard drive activity light

9.

Type-C® SuperSpeed USB 10Gbps signaling rate port (charge support up to 5V/3A)

4.

Dual-state power button

5.

Combo Audio Jack with CTIA and OMTP headset support

10.

SD card 4.0 reader (optional)

6.

Type-A SuperSpeed USB 5Gbps signaling rate port (charge support up to 5V/1.5A)

Not Shown

(2) PCI Express x16 (one wired as an x4)

(1) PCI Express x1

(3) M.2 (1 as M.2 2230 socket for WLAN/BT and 2 as M.2 2280 socket for storage)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 6

HP ProDesk 600 G6 Microtower PC

1.

Audio-out connector

5.

(3) Type-A SuperSpeed USB 5Gbps signaling rate port

2.

(2) Dual-Mode DisplayPort™ 1.4 (DP++)

6.

Internal WLAN antenna cover (optional)

3.

Flex Port, choice of:

7.

RJ45 network connector

• DisplayPort™1.4

• HDMI 2.0a

• VGA

• Serial

8.

Serial port (optional)

9.

Integrated accessory cable lock

• Dual Type-A SuperSpeed USB 5Gbps signaling rate

• Type-C® SuperSpeed USB 10Gbps signaling rate with

DisplayPort™ Alt mode

10.

Power cord connector

11.

Standard cable lock slot

4.

(2) Type-A Hi-Speed USB 480Mbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

Not Shown

Port

Bay

Optional Thunderbolt™ 3 port card

(1) 5.25” internal half-height drive bay or (1) 3.5” internal

storage drive bay

Optional PS/2 & serial port card1 (connected with mainboard via flyer cable)

(1) 3.5” internal storage drive bay or (1) 2.5" internal storage drive bay

Optional parallel port1

(1) 2.5" internal storage drive bay

Optional 4 serial port PCIe card1 (1 to 4 serial port dongle)

(1) 9.5mm internal optical drive bay

1. Each of the legacy options will occupy one rear slot.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 7

HP ProDesk 600/680 G6 PCI Microtower PC

1.

Slim optical drive (optional)

6.

Type-A SuperSpeed USB 5Gbps signaling rate port (charge support up to 5V/1.5A)

2.

5.25-inch drive bay (optional)

7.

Type-A SuperSpeed USB 5Gbps signaling rate port

3.

Hard drive activity light

8.

(4) Type-A SuperSpeed USB 10Gbps signaling rate port

4.

Dual-state power button

9.

SD card 4.0 reader (optional)

5.

Combo Audio Jack with CTIA and OMTP headset support

Not Shown

(2) PCI Express x16 (one wired as an x4)

(1) PCI Express x1

(1) PCI x1

(3) M.2 (1 as M.2 2230 socket for WLAN/BT and 2 as M.2 2280 socket for storage)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 8

HP ProDesk 600/680 G6 PCI Microtower PC

1.

Audio-in/out connector

6.

(2) Type-A SuperSpeed USB 5Gbps signaling rate port

2.

Dual-Mode DisplayPort™ 1.4a (DP++)

7.

Internal WLAN antenna cover (optional)

3.

VGA port

8.

RJ45 network connector

4.

Flex Port, choice of:

9.

Serial port (optional)

• DisplayPort™1.4

• HDMI 2.0a

• VGA

• Serial

10.

Integrated accessory cable lock

11.

Power cord connector

5.

(2) Type-A SuperSpeed USB 5Gbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

12.

Standard cable lock slot

Not Shown

Port

Bay

Optional PS/2 & serial port card1 (connected with mainboard via flyer cable)

(1) 5.25” internal half-height drive bay or (1) 3.5” internal storage drive bays

Optional parallel port1

(1) 3.5” internal storage drive bay or (1) 2.5" internal storage drive bay

Optional 4 serial port PCIe card1 (1 to 4 serial port dongle)

(1) 2.5" internal storage drive bay

(1) 9.5mm internal optical drive bay

1. Each of the legacy options will occupy one rear slot.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 9

HP ProOne 600 G6 22 All-in-One PC (Touch & Non-Touch)

1.

Pull-up webcam (optional)

6.

Hard drive activity light

2.

Combo Audio Jack with CTIA and OMTP headset support

7.

Power button

3.

Speakers (optional)

8.

Type-A SuperSpeed USB 10Gbps signaling rate port (charge support up to 5V/1.5A)

4.

SD media card reader (optional)

9.

Type-C® SuperSpeed USB 10Gbps signaling rate port (charge support up to 5V/3A)

5.

On-screen display (OSD) buttons

HD webcam (optional)

5MP webcam (optional)

5MP webcam with

Infrared (IR) sensors (optional)

1.

Dual microphones

1.

Dual microphones

1.

Dual microphones

2.

Webcam light

2.

Webcam light

2.

Webcam light

3.

HD webcam

3.

5MP webcam

3.

IR/5MP webcam

4.

IR light

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Overview

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 10

HP ProOne 600 G6 22 All-in-One PC (Touch & Non-Touch)

1.

Pull-up webcam (optional)

6.

RJ45 network connector

2.

Optical disc drive (optional)

7.

Power connector

3.

Standard cable lock slot

8.

Dual-Mode DisplayPort™ 1.4 (DP++)

4.

Flex Port, choice of:

9.

(2) Type-A SuperSpeed USB 5Gbps signaling rate port

• DisplayPort™

• HDMI 2.0a

• Serial

10.

(2) Type-A SuperSpeed USB 5Gbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

5.

HDMI-in

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 11

AT A GLANCE

• Choice of four form factors: Microtower, Small Form Factor, Desktop Mini, and All-in-One

• HP developed and engineered UEFI V2.7 BIOS supporting security, manageability and software image stability

• Latest commercial class Intel® 400 Series chipsets supporting latest Intel® 10th Generation Core™ processors

1

, featuring

integrated Intel® UHD Graphics

o Intel Standard Manageability (ISM) comes standard for Intel® Core™ and Pentium™ configurations o Optional Intel® vPro™ Technology upgrade with selected Core™ i5 and Core™ i7 processors (vPro™ is optional and

requires factory configuration)5

• Support of true 65W desktop class processors on all form factors

• Intel® Optane memory and storage available as optional feature

• Choice of Windows 10 Professional, Windows 10 Home, and FreeDOS

• Integrated 10/100/1000 Ethernet Controller, with optional Wi-Fi 6 (802.11ax) and Wi-Fi 5 (802.11ac) and Bluetooth®

• Up to 128 GB of DDR4 Synchronous Dynamic Random Access Memory (SDRAM) on MT and SFF, and up to 64 GB on DM and

AiO

• Support for up to three video outputs via two standard video connectors and an optional third video port connector which

provides the following choices: DisplayPort™, HDMI, VGA, or USB Type-C® with DisplayPort™ Output on MT/SFF/DM

• Reduce clutter on DM with single cable connection for power and video through USB Type-C® enabled displays with the

optional USB Type-C® port w/ DisplayPort Alt Mode and power intake via USB Type-C® Power Delivery up to 100W; reduce desktop footprint with the DM mounted behind a USB-C™ enabled display or enable a “All-in-One” experience by docking into HP Mini-in-One 24 Display

• New flexibility is delivered by the All-in-One that can be used as a full PC or as an additional display for another desktop or

laptop PC via the new HDMI in functionality

• Multiple HDD data drives set up in a SATA RAID array for MT/SFF and support RAID 1 configured from factory.

• Enable NVDIA® GeForce® VR ready

2

discrete graphic card and compatible with HP Reverb VR Headset7 on MT with 550W

PSU.

• Optional Serial port available on all form factors

• Optimized chassis design for SFF enabling dual 2.5" internal storage drives

• Integrated accessory cable lock helps secure cabled mouse and keyboard on MT/SFF

• Trusted Platform Module (TPM) 2.0

3

• HP Sure Run Gen3

• HP Sure Recover Gen3

• HP SureSense

• HP SureStart Gen6

• HP BIOSphere Gen6

• HP Client Security Manager Gen6

• HP Sure Click

• HP Manageability Integration Kit Gen4

• HP Image Assistant Gen5

• HP Support Assistant

• High efficiency energy saving power supply

• ENERGY STAR® certified. EPEAT ® 2019 registered where applicable. EPEAT® registration varies by country. See

http://www.epeat.net for registration status by country.6

• TUV Low Blue Light certified for All-in-One. To reach maximum performance, Low Blue Light setting should be enabled in

On-screen display (OSD) settings and Night light mode should be turned on in Windows®

• Optimized for Microsoft Teams for All-in-One

• Low halogen

4

• All form factors undergo up to 13 MIL-STD tests

8

• Dust filter available for MT/SFF/DM

• Protected by HP Services, including limited warranties up to 3-3-3 (terms and conditions vary by country; certain

restrictions and exclusions apply); Care Packs available with up to 5 years Next Business Day Onsite Hardware Support

• Compliance with CE (Class B) / FCC (Class B) / UL (UL60950-1 / UL62368-1) / CSA (CSA C22.2 No.60950-1-07 / CSA C22.2

No. 62368-1-14) / ICES-003 / CCC / VCCI (Class B) / KCC (Class B)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 12

1. Multi core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance

2. VR-ready as optional feature, requires specific configuration for support

3. In some scenarios, machines pre-configured with Windows OS or FreeDOS might ship with TPM turned off 4 External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.

5. Some functionality of vPro technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependant on 3rd party software providers. Compatibility of this generation of Intel vPro technology-based hardware with future "virtual appliances" is yet to be determined.

6. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit http://www.epeat.net for more information.

7. Availability may vary by country.

8. MIL-STD drop test not performed for All-in-Ones. MIL-STD testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires an optional HP Accidental Damage Protection Care Pack.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

PRODUCT NAME

HP ProDesk 600 G6 Desktop Mini PC HP ProDesk 600 G6 Small Form Factor PC HP ProDesk 600 G6 Microtower PC HP Prodesk 600 G6 PCI Microtower PC HP Prodesk 680 G6 PCI Microtower PC HP ProOne 600 G6 22 All-in-One PC

OPERATING SYSTEM

Preinstalled

Windows® 10 Pro 64

-

HP recommends Windows 10 Pro

1

Windows® 10 Pro 64 (National Academic License)

1,2

Windows® 10 Home 641 FreeDOS

Web Support

Windows® 10 Enterprise 64 (Web Support)1

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.

2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.

NOTE: Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows® 8 or Windows 7 operating system on products configured with Intel® and AMD® 7th generation and forward processors or provide any Windows® 8 or Windows 7 drivers on http://www.support.hp.com. A full list of HP products and the Windows 10 versions tested is available on the HP support website. https://support.hp.com/us-en/document/c05195282

SUPPORTED VERSIONS

HP tested Windows 10, version 1809 on this platform. For testing information on newer versions of Windows 10, please see

https://support.hp.com/document/c05195282

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 13

CHIPSET

DM

SFF

MT

AiO

Intel® Q470

X X X

X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 14

PROCESSORS

Intel® 10th Generation Core™ Processors

DM

SFF

MT

AiO

Intel® Core™ i7-10700 Processor1 65W

2.9 GHz base frequency Up to 4.8 GHz max. turbo frequency with Intel® Turbo Boost Technology2 16 MB cache, 8 cores, 16 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2933 MT/s data rate Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)

3

X

X X X

Intel® Core™ i7-10700T Processor1 35W

2.0 GHz base frequency Up to 4.5 GHz max. turbo frequency with Intel® Turbo Boost Technology2 16 MB cache, 8 cores, 16 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2933 MT/s data rate Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)

3

X

Intel® Core™ i5-10600 Processor1 65W

3.3 GHz base frequency Up to 4.8 GHz max. turbo frequency with Intel® Turbo Boost Technology2 12 MB cache, 6 cores, 12 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)

3

X

X X X

Intel® Core™ i5-10600T Processor1 35W

2.4 GHz base frequency Up to 4.0 GHz max. turbo frequency with Intel® Turbo Boost Technology2 12 MB cache, 6 cores, 12 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)

3

X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 15

DM

SFF

MT

AiO

Intel® Core™ i5-10500 Processor1 65W

3.1 GHz base frequency Up to 4.5 GHz max. turbo frequency with Intel® Turbo Boost Technology2 12 MB cache, 6 cores, 12 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)

3

X X X

X

Intel® Core™ i5-10500T Processor1 35W

2.3 GHz base frequency Up to 3.8 GHz max. turbo frequency with Intel® Turbo Boost Technology2 12 MB cache, 6 cores, 12 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate Supports Intel® vPro™ Technology and Intel® Stable Image Platform Program (SIPP)

3

X

Intel® Core™ i5-10400 Processor1 65W

2.9 GHz base frequency Up to 4.3 GHz max. turbo frequency with Intel® Turbo Boost Technology2 12 MB cache, 6 cores, 12 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X X X

X

Intel® Core™ i5-10400T Processor1 35W

2.0 GHz base frequency Up to 3.6 GHz max. turbo frequency with Intel® Turbo Boost Technology2 12 MB cache, 6 cores, 12 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X

DM

SFF

MT

AiO

Intel® Core™ i3-10320 Processor1 65W

3.8 GHz base frequency Up to 4.6 GHz max. turbo frequency with Intel® Turbo Boost Technology2 8 MB cache, 4 cores, 8 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X X X

X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 16

Intel® Core™ i3-10300 Processor1 65W

3.7 GHz base frequency Up to 4.4 GHz max. turbo frequency with Intel® Turbo Boost Technology2 8 MB cache, 4 cores, 8 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X

X X X

Intel® Core™ i3-10300T Processor1 35W

3.0 GHz base frequency Up to 3.9 GHz max. turbo frequency with Intel® Turbo Boost Technology2 8 MB cache, 4 cores, 8 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X

Intel® Core™ i3-10100 Processor1 65W

3.6 GHz base frequency Up to 4.3 GHz max. turbo frequency with Intel® Turbo Boost Technology2 6 MB cache, 4 cores, 8 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X

X X X

Intel® Core™ i3-10100T Processor1 35W

3.0 GHz base frequency Up to 3.8 GHz max. turbo frequency with Intel® Turbo Boost Technology2 6 MB cache, 4 cores, 8 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X

Intel® Pentium® Processors

DM

SFF

MT

AiO

Intel® Pentium® Gold G-6600 Processor1 58W

4.2 GHz base frequency 4 MB cache, 2 cores, 4 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X X X

X

Intel® Pentium® Gold G-6500 Processor1 58W

4.1 GHz base frequency 4 MB cache, 2 cores, 4 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X X X

X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 17

Intel® Pentium® Gold G-6500T Processor1 35W

3.5 GHz base frequency 4 MB cache, 2 cores, 4 threads Intel® UHD Graphics 630 Supports DDR4 memory up to 2666 MT/s data rate

X

Intel® Pentium® Gold G-6400 Processor1 58W

4.0 GHz base frequency 4 MB cache, 2 cores, 4 threads Intel® UHD Graphics 610 Supports DDR4 memory up to 2666 MT/s data rate

X X X

X

Intel® Pentium® Gold G-6400T Processor1 35W

3.4 GHz base frequency 4 MB cache, 2 cores, 4 threads Intel® UHD Graphics 610 Supports DDR4 memory up to 2666 MT/s data rate

X

1: Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a mea configuration surement of higher performance.

2. Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance varies depending on hardware, software and overall system . See www.intel.com/technology/turboboost for more information.

3. Some functionality of vPro technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent on 3rd party software providers. Compatibility with future "virtual appliances" is yet to be determined. NOTE: Memory speed 2666 and 2933 MT/s can be achieved via two UDIMMs per channel (2DPC) when populated with the same part number.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 18

GRAPHICS

Integrated Graphics

DM

SFF

MT

AiO

Intel® UHD Graphics 630 (integrated on 10th gen Core i7/i5/i3 processors and Pentium® Gold G-6600, G-6500, and G-6500T)

X X X

X

Intel® UHD Graphics 610 (integrated on Pentium® Gold G-6400, G-6400T)

X X X

X

Optional Discrete Graphics Solutions

DM

SFF

MT*

AiO

AMD® Radeon™ RX 550X 4GB FH DP+HDMI

X X

AMD® Radeon™ R7 430 2GB DP+VGA

X X

AMD® Radeon™ R7 430 2GB 2DP

X X

AMD® Radeon™ 520 1GB VGA+DP

X

AMD® Radeon™ 630 with 2GB GDDR5**

X

NVIDIA® GeForce® RTX 2060 super 8GB DP+HDMI+DVI-D

X

*MT can support one single graphics card up to 75W or dual graphics cards up to 35W each. **AMD® Radeon™ 630 with 2GB GDDR5 must be configured at purchase

Adapters and Cables

DM

SFF

MT

AiO

HP DisplayPort™ Cable

X X X

X

HP DisplayPort™ to DVI-D Adapter

X X X

X

HP DisplayPort™ to HDMI True 4K Adapter

X X X

X

HP DisplayPort™ to VGA Adapter

X X X

X

HP USB to Serial Port Adapter

X X X

X

STORAGE

3.5 inch SATA Hard Disk Drives (HDD)

DM

SFF

MT

AiO

500 GB 7200RPM 3.5in SATA HDD

X X

1 TB 7200RPM 3.5in SATA HDD

X X

2 TB 7200RPM 3.5in SATA HDD

X X

2.5 inch SATA Hard Disk Drives (HDD)

DM

SFF

MT

AiO

500 GB 7200RPM 2.5in SATA HDD

X X X

X

1 TB 7200RPM 2.5in SATA HDD

X X X

X

2 TB 5400RPM 2.5in SATA HDD

X X X

X

500 GB 7200RPM 2.5in Self Encrypted OPAL2 SATA HDD*

X X X

X

500 GB 7200RPM 2.5in Self Encrypted Federal Information Processing Standard SATA HDD*

X X X

X

* Storage DriveLock does not work with Self Encrypting or Optane based storage

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 19

M.2 PCIe NMVe Solid State Drives (SSD)

DM

SFF

MT

AiO

256GB M.2 2280 PCIe NVMe SSD

X X X

X

512GB M.2 2280 PCIe NVMe SSD

X X X

X

128GB M.2 2280 PCIe NVMe Three Layer Cell SSD

X X X

X

256GB M.2 2280 PCIe NVMe Three Layer Cell SSD

X X X

X

512GB M.2 2280 PCIe NVMe Three Layer Cell SSD

X X X

X

1TB M.2 2280 PCIe NVMe Three Layer Cell SSD

X X X

X

2TB M.2 2280 PCIe NVMe Three Layer Cell SSD

X X X

X

256GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD*

X X X

X

512GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD*

X X X

X

256GB Intel® Optane™ Memory H10 with Solid State Storage*

X X X

X

512GB Intel® Optane™ Memory H10 with Solid State Storage*

X X X

X

* Storage DriveLock does not work with Self Encrypting or Optane based storage

Optical Disc Drives

DM

SFF

MT

AiO

HP 9.5mm Slim DVD-ROM Drive

1

X X

X

HP 9.5mm Slim DVD Writer Drive

2

X X

X

HP 9.5mm Slim Blu-Ray Writer Drive

3

X X

X

1. HD-DVD disks cannot be played on this drive. No support for DVD-RAM. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than single layer discs. Discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.

2. Don't copy copyright-protected materials.

3. With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played on this Desktop PC.

Media Card Reader

DM

SFF

MT

AiO

SD 4.0 with 5-in-1 Interface (Supports SD, SDXC, SDHC, UHS-I, UHS-II)

X X

SD 3.0 with 4-in-1 Interface (Supports SD, SDXC, SDHC, UHS-I)

X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 20

MEMORY

DM

SFF

MT

AiO

DDR4-2666 (Transfer rates up to 2666 MT/s), 64 GB, 2 SODIMM

X

DDR4-2666 (Transfer rates up to 2666 MT/s), 128 GB, 4 DIMM

X X

DDR4-3200 (Transfer rates up to 3200 MT/s), 64 GB, 2 SODIMM

X

DDR4-3200 (Transfer rates up to 3200 MT/s), 128 GB, 4 DIMM

X X

Memory Configuration

4 GB (4 GB x 1)

X X X

X

8 GB (4 GB x 2)

X X X

X

8 GB (8 GB x 1)

X X X

X

16 GB (8 GB x 2)

X X X

X

16 GB (16 GB x 1)

X X X

X

32 GB (32 GB x 1)

X X X

X

32 GB (16 GB x 2)

X X X

X

32 GB (8 GB x 4)

X X

64 GB (32 GB x 2)

X X X

X

64 GB (16 GB x 4)

X X

128 GB (32 GB x 4)

X X

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system

resource requirements. Addressing memory above 4 GB requires a 64-bit operating system. NOTE: Memory modules support data transfer rates up to 2666 MT/s and 3200 MT/s respectively depending on memory module used; actual data rate is determined by the system's configured processor and memory configuration. See processor specifications for supported memory data rate.

NOTE: All memory slots are customer accessible / upgradeable. NOTE: Memory speed 2666 and 2933 MT/s can be achieved via two UDIMMs per channel (2DPC) when populated with the same part number.

NETWORKING/COMMUNICATIONS

Ethernet (RJ-45)

DM

SFF

MT

AiO

Intel® I219-LM Gigabit Network Connection (standard)

X X X

X

Intel® I210-T1 PCIe x1 Gigabit Network Interface Card (optional)

X X

Wireless

1

Intel® Wi-Fi 6 AX201 802.11ax 2x2 with Bluetooth® M.2 Combo Card vPro™

X X X

X

Intel® Wi-Fi 6 AX201 802.11ax 2x2 with Bluetooth® M.2 Combo Card non-vPro™

X X X

X

Realtek RTL8822CE 802.11ac 2x2 with Bluetooth® M.2 Combo Card

X X X

X

Realtek RTL8821CE 802.11ac 1x1 with Bluetooth® M.2 Combo Card

X X X

X

1. Wireless access point and Internet service required and not included. Availability of public wireless access points limited.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 21

KEYBOARDS AND POINTING DEVICES

Keyboards

DM

SFF

MT

AiO

HP PS/2 Business Slim Standalone Wired Keyboard

X X

HP Wired Desktop 320K Keyboard

X X X

X

HP USB Business Slim Wired SmartCard CCID Keyboard

X X X

X

HP USB & PS/2 Washable Standalone Wired Keyboard

X X X

X

HP USB Wired Keyboard

X X X

X

HP Universal USB Wired Keyboard

X X X

X

Keyboard & Mouse Combo

DM

SFF

MT

AiO

HP Premium Wireless Keyboard and Mouse

X X X

X

HP Premium USB Wired Keyboard and Mouse

X X X

X

HP Business Slim Wireless Keyboard and Mouse

X X X

X

HP USB PS/2 Washable Keyboard and Mouse Wired

X X X

X

Mouse

DM

SFF

MT

AiO

HP PS/2 Mouse

X X

HP Wired Desktop 320M Mouse

X X X

X

HP USB Optical Wired Mouse

X X X

X

HP USB Hardened Optical Wired Mouse

X X X

X

HP USB 1000dpi Laser Mouse

X X X

X

HP USB & PS/2 Washable Wired Mouse Standalone

X X X

X

HP USB Premium Wired Mouse

X X X

X

HP USB Fingerprint Mouse

X X X

X

NOTE: Availability may vary by country

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 22

SECURITY

DM

SFF

MT

AiO

TPM 2.0 (FW: 7.85) endpoint security controller (Infineon SLB9670) shipped with Windows 10. Common Criteria EAL4+ Certified. FIPS 140-2 Level 2 Certified.

X X X

X

Solenoid Lock & Intrusion Sensor (Optional)

X

Intrusion Sensor (Optional)

X

Intrusion Sensor (integrated in the system board, can be enabled/disabled through BIOS)

X

Support for chassis cable lock devices

X

(10 mm

barrel or smaller)

X X X

Support for chassis padlocks devices

X X X

Support for table lock

X

SATA port disablement (via BIOS)

X X X

X

Serial, USB enable / disable (via BIOS)

X X X

X

Intel® Identify Protection Technology (IPT)1

X X X

X

Removable media write/boot control

X X X

X

Power-on password (via BIOS)

X X X

X

Setup password (via BIOS)

X X X

X

1. Models configured with Intel® Core™ processors have the ability to utilize advanced security protection for online transactions. IPT, used in conjunction with participating web sites, provides double identity authentication by adding a hardware component in addition to the usual username and password. IPT is initialized through an HP Client Security module.

PORTS

Internal Slots and Ports

DM

SFF

MT

AiO

600

600/680 PCI

M.2 PCIe

(1) M.2 PCIe x1 2230

(for WLAN)

(2) M.2 PCIe x4 2280

(for storage)

(1) M.2 PCIe x1 2230

(for WLAN)

(1) M.2 PCIe x4 2280

(for storage)

(1) M.2 PCIe x1 2230 (for

WLAN)

(2) M.2 PCIe x4 2280 (for

storage)

(1) M.2 PCIe x1 2230

(for WLAN)

(1) M.2 PCIe x4 2280

(for storage)

PCI Express v3.0 x1

1 1

PCI Express v3.0 x4

1

PCI Express v3.0 x16 (wired as x4)

1

PCI Express v3.0 x16

1

1 1

PCI x1

1

SATA port 3 4

Integrated SATA storage connector

1

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 23

NOTE: For Desktop Mini with M.2 Storage config, there will be no SATA drive bracket. If you plan to use or upgrade the storage with any 2.5" SATA drive, please select a DM SATA Drive Bracket (available as both factory configured and after market option).

Bays

DM

SFF

MT

AiO

5.25" Half Height

13

9.5mm Slim Optical Disc Drive (ODD)

1 1

1

SD Card Reader

1 1

1

2.5" Internal Storage Drive

1

22 1

1

3.5" Internal Storage Drive

12

14

1. Must be configured at time of purchase

2. SFF can be configured with either (1) 3.5” or (2) 2.5” internal storage drive (2.5-inch drive needs adapter that can only be purchased when configuring the PC from factory with a 2.5” drive.)

3. MT’s 5.25” legacy bay can be configured as either (1) 5.25 half-height drive bay or (1) 3.5" internal storage drive bay (3.5-inch drive needs an adapter cage that can be purchased when configuring the PC from factory with a 3.5” drive or buy the adapter cage individually as an after-

market-options part).

4. MT’s 3.5” bay can be configured as either (1) 3.5" internal storage drive bay or (1) 2.5" internal storage drive bay (2.5-inch drive needs an adapter that can only be purchased when configuring the PC from factory with a 2.5” drive).

Standard User Accessible Ports

DM

SFF

MT

AiO

600

600/680 PCI

Type-A Hi-Speed USB 480Mbps signaling rate port

2 (rear)

Type-A SuperSpeed USB 5Gbps signaling rate port

1 (front)

2 (rear)

2 (front)

3 (rear)

2 (front)

3 (rear)

2 (front)

4 (rear)

Type-A SuperSpeed USB 10Gbps signaling rate port

1 (front)

2 (rear)

2 (front)

4 (front)

1 (side)

Type-C® SuperSpeed USB 10Gbps signaling rate port

1 (front)

1 (front) 1 (side)

Video

2 DisplayPort™ 1.4

(rear)

2 DisplayPort™ 1.4

(rear)

2

DisplayPort™

1.4 (rear)

1

DisplayPort™

1.4 (rear)

1 VGA (rear)2

1 HDMI 1.4 in (rear)

1 DisplayPort™ 1.4

(rear)

Audio

1 Combo Audio Jack with CTIA and OMTP

headset support (front)

1 Combo Audio Jack with CTIA and OMTP

headset support

(front)

1 Combo Audio Jack with

CTIA and OMTP headset

support (front)

1 Combo Audio Jack with CTIA and OMTP

headset support

(side)

Network Interface

1 RJ45 (rear)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 24

Rear Configurable Non-PCIe/PCI Slot User Accessible Ports

Flexible Port 1, choice of one of the following:

DM

SFF

MT

AiO

600

600/680 PCI

Type-A USB

2 Type-A SuperSpeed

USB 5Gbps signaling

rate port

2 Type-A

SuperSpeed

USB 5Gbps

signaling rate port

Type-C® USB

1 SuperSpeed USB

10Gbps signaling rate

port w/ DisplayPort™

Alt Mode and power

intake via USB Type-C®

Power Delivery up to

100W

1 SuperSpeed USB

10Gbps signaling rate

port w/ DisplayPort™

Alt Mode

1 SuperSpeed USB 10Gbps

signaling

rate port w/

DisplayPort™

Alt Mode

Thunderbolt™ 3

11

Video

1 DisplayPort™ 1.4 or

HDMI 2.0a or VGA

1 DisplayPort™ 1.4 or

HDMI 2.0a or VGA

1 DisplayPort™ 1.4 or

HDMI 2.0a or VGA

1 DisplayPort™ 1.4

or HDMI 2.0a

Serial (RS-232)

11 1 1

1

1. Sold separately or as an optional feature

Flexible Port 2, choice of one of the following:

DM

SFF

MT

AiO

600

600/680 PCI

Type-A USB

2 Hi-Speed USB

480Mbps signaling rate1

Thunderbolt™ 3

1

Serial (RS-232)

11

1. Must be configured at time of purchase

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 25

USB SPECIFICATION AND MARKETING NAME MAPPING TABLE

Marketing Name

Technical Terminology

Hi-Speed USB 480Mbps signaling rate

USB 2.0

SuperSpeed USB 5Gbps signaling rate

USB 3.2 Gen 1

SuperSpeed USB 10Gbps signaling rate

USB 3.2 Gen 2

SuperSpeed USB 20Gbps signaling rate

USB 3.2 Gen 2x2

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 26

SOFTWARE COMPONENTS AND APPLICATIONS WITH WINDOWS

Preinstalled Software

BIOS

HP BIOSphere Gen617 HP Secure Erase18 HP DriveLock & Automatic DriveLock20 BIOS Update via Network Absolute Persistence Module19 Pre-boot Authentication

Software

HP Desktop Support Utility HP JumpStart HP Privacy Settings HP Setup Integrated OOBE HP Support Assistant21 HP Noise Cancellation Software Buy Office (sold separately)

Manageability Features

HP Driver Packs22 HP System Software Manager (SSM) (download) HP BIOS Config Utility (BCU) (download) HP Cloud Recovery38 HP Client Catalog (download) HP Image Assistant Gen5 HP Manageability Integration Kit for Microsoft System Center Configuration Management Gen423 Ivanti Management Suite (download)

24

Client Security Software

HP Client Security Manager Gen625 HP Power On Authentication Windows Defender27

Security Management

Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10. (Common Criteria EAL4+ Certified) Serial, USB enable/disable (via BIOS) Power-on password (via BIOS) Setup password (via BIOS) Support for chassis padlocks and cable lock devices HP Sure Sense

34

HP Sure Click

37

HP Sure Start Gen630 HP Sure Run Gen3

35

HP Sure Recover Gen336

17. HP BIOSphere Gen6 is available on select HP Pro and Elite PCs. Features may vary depending on the platform and configurations.

18. Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88. “Clear” sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.

19. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:

http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by

Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 27

20. Storage Drivelock does not work with Self Encrypting or Optane based storage.

21. HP Support Assistant requires Windows and Internet access.

22. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.

23. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html

24. Ivanti Management Suite subscription required.

25. HP Client Security Manager Gen6 requires Windows and is available on the select HP Elite and Pro PCs.

26. HP Sure Sense requires Windows 10.

27. Windows Defender Opt In, Windows 10, and internet connection required for updates.

30. HP Sure Start Gen6 is available on select HP PCs.

35. HP Sure Run Gen3 is available on select Windows 10 based HP Pro, Elite and Workstation PCs with select Intel® or AMD processors.

36. HP Sure Recover Gen3 requires an open network connection. You must back up important files, data, photos, videos, etc. before use to avoid loss of data.

37. HP Sure Click requires Windows 10 and supports Microsoft Internet Explorer, Google Chrome™, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed.

38. HP Cloud Recovery is available for HP Elite and Pro desktops and laptops PCs with Intel® or AMD processors and requires an open, wired network connection. Note: You must back up important files, data, photos, videos, etc. before use to avoid loss of data. Detail please refer to:

https://support.hp.com/us-en/document/c05115630.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 28

UNIT ENVIRONMENT AND OPERATING CONDITIONS

General Unit Operating Guidelines

• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit

is operated within the specified operating range.

• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.

• Never restrict airflow into the computer by blocking any vents or air intakes.

• Do not stack computers on top of each other or place computers so near each other that they are subject to each other's

re-circulated or preheated air.

• Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign

matter can block the vents and limit the airflow.

• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the

enclosure, and the same operating guidelines listed above will still apply.

Temperature Range

Operating: 5° to 35° C1 Non-Operating for AiO: -20° to 60° C1 Non-Operating for MT/SFF/DM: -30° to 60° C1

Relative Humidity

Operating: 5% to 90% (non-condensing at ambient) Non-operating: 5% to 90% (non-condensing at ambient)

Maximum Altitude (unpressurized)

Operating: 5000m Non-operating: 50000ft (15240 m)

1. Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 29

ENVIRONMENTAL & INDUSTRY

HP Prodesk 600 G6 Desktop Mini PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified

• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See

http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd

party option store for solar generator accessories at http://www.hp.com/go/options.

• TCO Certified 8.0

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a Typically Configured Desktop.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

4.663 watt

4.699watt

4.6268 watt

Normal Operation (Long idle)

4.469 watt

4.472watt

4.462watt

Sleep

0.676 watt

0.726watt

0.656watt

Off

0.668 watt

0.669watt

0.666watt

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are certified with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

15.901 BTU/hr

16.024 BTU/hr

15.777 BTU/hr

Normal Operation (Long idle)

15.239 BTU/hr

15.25 BTU/hr

15.215 BTU/hr

Sleep

2.305 BTU/hr

2.476 BTU/hr

2.237 BTU/hr

Off

2.278 BTU/hr

2.281 BTU/hr

2.271 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

2.7

16

Fixed Disk – Random writes

2.7

17

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 2 SODIMM memory slots

• Interchangeable M.2 PCIe NVME SSD & 2.5” SATA HDD

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 30

Spare parts are available throughout the warranty period and or for up to “5” years after the end of

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater than 1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains a minimum of 35% post-consumer recycled (PCR) plastic (by wt.); including

10% ITE-derived post-consumer recycled plastic.*

• This product is 95.1% recycle-able when properly disposed of at end of life.

*Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.

Packaging Materials (vary by country)

External:

PAPER/Corrugated

Internal:

PLASTIC/Polyethylene Expanded - EPE

PLASTIC/Polyethylene low density - LDPE

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 31

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

End-of-life Management and Recycling

For more information about HP’s commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_ Certificate.pdf

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

HP ProDesk 600 G6 Small Form Factor PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified

• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See

http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd

party option store for solar generator accessories at http://www.hp.com/go/options.

• TCO Certified

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a Typically Configured Desktop.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

5.40 watt

5.27 watt

5.39 watt

Normal Operation (Long idle)

4.25 watt

4.08 watt

4.19 watt

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 32

Sleep

0.79 watt

Off

0.67 watt

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are certified with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

18.414 BTU/hr

17.9707 BTU/hr

18.3799 BTU/hr

Normal Operation (Long idle)

14.4925 BTU/hr

13.9128 BTU/hr

14.2879 BTU/hr

Sleep

2.6939 BTU/hr

Off

2.2847 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

3.2

24

Fixed Disk – Random writes

3.2

24

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 4 DIMM memory slots

• Interchangeable M.2 PCIe NVME SSD & 2.5”/3.5” SATA HDD

Spare parts are available throughout the warranty period and or for up to 5 years after the end of production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater than 1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains a minimum of 35% post-consumer recycled (PCR) plastic (by wt.); including

10% ITE-derived post-consumer recycled plastic.*

• This product is 95.1% recycle-able when properly disposed of at end of life.

*Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.

Packaging Materials (vary by country)

External:

PAPER/Corrugated

Internal:

PLASTIC/Expanded Polyethylene – EPE

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 33

or PAPER/molded fiber-pulp

PLASTIC/Polyethylene low density - LDPE

PAPER/Molded Pulp

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 34

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_ Certificate.pdf

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

HP ProDesk 600 G6 Microtower Series

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified

• EPEAT® Gold registered in the United States. See http://www.epeat.net for registration status in

your country*. Search keyword generator on HP’s 3rd party option store for solar generator accessories at http://www.hp.com/go/options.

• TCO Certified 8.0

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a “Typically Configured Desktop”.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

12.199 W

12.43 W

12.032 W

Normal Operation (Long idle)

10.563 W

10.924 W

10.335 W

Sleep

0.793 W

0.815 W

0.795 W

Off

0.701 W

0.699 W

0.71 W

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are certified with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

41.60 BTU/hr

42.39 BTU/hr

41.03 BTU/hr

Normal Operation (Long idle)

36.02 BTU/hr

37.25 BTU/hr

35.24 BTU/hr

Sleep

2.71 BTU/hr

2.78 BTU/hr

2.71 BTU/hr

Off

2.4 BTU/hr

2.38 BTU/hr

2.42 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

3.26

22.4

Fixed Disk – Random writes

3.42

23.5

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 35

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 4 DIMM memory slots

• Interchangeable M.2 PCIe NVME SSD & 2.5”/3.5” SATA HDD

Spare parts are available throughout the warranty period and or for up to “5” years after the end of

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater than 1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Gold> level, see www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains 44.4% post-consumer recycled plastic (by wt.)

• This product is 93.7% recycle-able when properly disposed of at end of life.

Packaging Materials (vary by country)

External:

PAPER/Corrugated

1110 g

PAPER/Molded Pulp

620 g

Internal:

PLASTIC/Polyethylene low density

32 g

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 36

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

HP Inc. Corporate Environmental Information

For more information about HP’s commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_ Certificate.pdf

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

HP ProDesk 600 PCI G6 Microtower PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified

• EPEAT® Gold registered in the United States. See http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd party option store for solar generator

accessories at http://www.hp.com/go/options.

• TCO Certified 8.0

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a “Typically Configured Desktop”.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

12.199 W

12.43 W

12.032 W

Normal Operation (Long idle)

10.563 W

10.924 W

10.335 W

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 37

Sleep

0.793 W

0.815 W

0.795 W

Off

0.701 W

0.699 W

0.71 W

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are certified with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

41.60 BTU/hr

42.39 BTU/hr

41.03 BTU/hr

Normal Operation (Long idle)

36.02 BTU/hr

37.25 BTU/hr

35.24 BTU/hr

Sleep

2.71 BTU/hr

2.78 BTU/hr

2.71 BTU/hr

Off

2.4 BTU/hr

2.38 BTU/hr

2.42 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

3.26

22.4

Fixed Disk – Random writes

3.42

23.5

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 4 DIMM memory slots

• Interchangeable M.2 PCIe NVME SSD & 2.5”/3.5” SATA HDD

Spare parts are available throughout the warranty period and or for up to “5” years after the end of

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater than 1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Gold> level, see

www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains 44.4% post-consumer recycled plastic (by wt.)

• This product is 93.7% recycle-able when properly disposed of at end of life.

Packaging Materials (vary by country)

External:

PAPER/Corrugated

1110 g

PAPER/Molded Pulp

620 g

Internal:

PLASTIC/Polyethylene low density

32 g

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 38

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

HP Inc. Corporate Environmental Information

For more information about HP’s commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_ Certificate.pdf

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 39

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

HP ProDesk 680 PCI G6 Microtower PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified

• EPEAT® Gold registered in the United States. See http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd party option store for solar generator

accessories at http://www.hp.com/go/options.

• TCO Certified 8.0

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a “Typically Configured Desktop”.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

12.199 W

12.43 W

12.032 W

Normal Operation (Long idle)

10.563 W

10.924 W

10.335 W

Sleep

0.793 W

0.815 W

0.795 W

Off

0.701 W

0.699 W

0.71 W

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are certified with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

41.60 BTU/hr

42.39 BTU/hr

41.03 BTU/hr

Normal Operation (Long idle)

36.02 BTU/hr

37.25 BTU/hr

35.24 BTU/hr

Sleep

2.71 BTU/hr

2.78 BTU/hr

2.71 BTU/hr

Off

2.4 BTU/hr

2.38 BTU/hr

2.42 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

3.26

22.4

Fixed Disk – Random writes

3.42

23.5

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 40

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 4 DIMM memory slots

• Interchangeable M.2 PCIe NVME SSD & 2.5”/3.5” SATA HDD

Spare parts are available throughout the warranty period and or for up to “5” years after the end of

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater than 1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Gold> level, see

www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains 44.4% post-consumer recycled plastic (by wt.)

• This product is 93.8% recycle-able when properly disposed of at end of life.

Packaging Materials (vary by country)

External:

PAPER/Corrugated

1110 g

PAPER/Molded Pulp

620 g

Internal:

PLASTIC/Polyethylene low density

32 g

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 41

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

HP Inc. Corporate Environmental Information

For more information about HP’s commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_ Certificate.pdf

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

HP ProDesk 600 G6 22 All-in-One PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR® certified

• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See

http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd

party option store for solar generator accessories at http://www.hp.com/go/options.

• TCO Certified

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a “Typically Configured Desktop”.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

17.07 W

18.19 W

16.43 W

Normal Operation (Long idle)

5.53 W

6.28 W

4.29 W

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 42

Sleep

0.94 W

1.01 W

0.86 W

Off

0.75 W

0.76 W

0.66 W

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are certified with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

58.2087 BTU/hr

62.0279 BTU/hr

56.0263 BTU/hr

Normal Operation (Long idle)

18.8573 BTU/hr

21.4148 BTU/hr

14.6289 BTU/hr

Sleep

3.2054 BTU/hr

3.441 BTU/hr

2.9326 BTU/hr

Off

2.5575 BTU/hr

2. 5916BTU/hr

2.2506 BTU/hr

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

2.8

17.2

Fixed Disk – Random writes

3.3

20

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

• 2 SODIMM memory slots

• Interchangeable M.2 PCIe NVME SSD & 2.5” SATA HDD

Spare parts are available throughout the warranty period and or for up to “5” years after the end of

production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater than 1ppm by weight Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water

and Toxic Enforcement Act of 1986).

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

• This product contains a minimum of 50% post-consumer recycled (PCR) plastic (by wt.); including

10% ITE-derived post-consumer recycled plastic.*

• This product is 95.1% recycle-able when properly disposed of at end of life.

*Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.

Packaging Materials (vary by country)

External:

PAPER/Corrugated

1446 g

Internal:

PLASTIC/Polyethylene Expanded - EPE

432 g

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 43

PLASTIC/Polyethylene low density - LDPE

36 g

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently handled or

carried by the user.

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been

voluntarily removed from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging

materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_ Certificate.pdf

and

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 44

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Standard Features and Configurable Components

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 45

SERVICE AND SUPPORT

On-site Warranty1: Three-year (3-3-3) limited warranty delivers three years of on-site, next business day2 service for parts and labor and includes free support 24 x 73. Three-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing an optional HP Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central: http://www.hp.com/go/cpc.4

1. Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be offered in your region.

2. On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

3. Technical telephone support applies only to HP-configured and third-party HP qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

4. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications - Processors

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 46

PROCESSORS

Intel® 10th Generation Core™ Processors

All HP ProDesk & ProOne 600 G6 Business PC models featuring this technology include processors that are part of the Intel® Stable Image Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP ProDesk and ProOne 600 G6 Business PC.

Intel® Advanced Management Technology (AMT) v121 – An advanced set of remote management features and functionality which provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems regardless of the system's health or power state. AMT 12 includes the following advanced management functions:

• Support for configuration of Intel AMT 12.0 capabilities

• No reset after provisioning

• Support for Intel Enterprise Digital Fence

• The Platform Discovery Utility can now discover these additional Intel products:

o Intel Identity Protection Technology with One Time Password o Public Key Infrastructure o Multi Factor Authentication

• Profile Editor and Profile Editor Plugin Interface

• Required Permissions for Solutions Framework

1. Intel® Active Management Technology requires an Intel® AMT-enabled chipset, network hardware and software, as well as connection with a power source and a corporate network connection. Setup requires configuration by the purchaser and may require scripting with the management console or further integration into existing security frameworks to enable certain functionality. It may also require modifications of implementation of new business processes.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – All-in-One Stand Specifications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 47

DISPLAY PANEL SPECIFICATIONS

1

HP ProOne 600 G6 22 All-in-One PC

21.5" diagonal IPS widescreen WLED backlit anti-glare LCD (1920 x 1080)

Non-touch or optional touch Projected Capacitive Touch supports up to 10 touch-points

Type

IPS WLED Backlit LCD

Active area (mm)

476.064 x 267.786

Native Resolution (HxV)

1920 x 1080

Refresh Rate

60 Hz @ 1920 x 1080

Aspect ratio

16:9

Pixel pitch (HxV)(mm)

0.24795 x 0.24795

Contrast ratio (typical)

1000:1

Brightness (typical)

250nits

Viewing angle (typical) (HxV)

178° x 178°

Backlight lamp life (to half brightness)

30,000 hours minimum

Color support

Up to 16.7 million colors with the use of FRC technology

Color gamut (typical)

NTSC 72%

Anti-glare

Yes

Response Time

14ms (Typical)

Default color temperature

Warm (6500K)

Hardware based low blue light

Available on non-touch variant

1. All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – All-in-One Stand Specifications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 48

ALL-IN-ONE STAND SPECIFICATIONS

HP ProOne 600 G6 22 All-in-One PC

Cantilever Stand (Fixed Height Tilt Stand)

Tilt Angle

-5° to +20°

Rotation (Swivel)

None

Pivot

None

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – All-in-One Stand Specifications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 49

Adjustable Height Stand

Height Adjustment (Landscape Mode)

5.12 in / 130 mm

Height Adjustment (Portrait Mode)

N/A

Tilt Angle

-5° to +20°

Rotation (Swivel)

±45°

Pivot

None

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Graphics

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 50

GRAPHICS

Intel® UHD Graphics (integrated)

Graphics Controller

Integrated

DisplayPort™

Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and MultiStream Technology for a maximum of 3 displays connected to any output controlled by Intel® Graphics

HDMI

Supports HDMI 2.0a features Supports HDCP 2.2 Supports audio over HDMI

VGA

VGA output

USB-C™ DP Alt Mode

DisplayPort™ over the USB-C™ module

Memory

The actual amount of maximum graphics memory can be >4GB. System memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Color Depth

up to 10 bits/color

Graphics/Video API Support

HEVC 10b Enc/Dec HW VP9 10b Dec HW HDR Rec. 2020 DX12

Max. Resolution (VGA)

2048 x 1536@60Hz

Max. Resolution (HDMI)

4096 x 2160@60Hz

Max. Resolution (DP)

4096 x 2160@60Hz

AMD® Radeon™ RX 550X 4 GB PCIe x16

Engine Clock

1183MHz

Memory Clock

6 Gbps

Memory Size(width)

4 GB(128-bit)

Memory Type

GDDR5

Max. Resolution(HDMI)

4096x2160 @ 60Hz

Max. Resolution(DP)

5120x2880 @ 60Hz

Multi Display Support

2 displays

HDCP Compliance

Yes

Rear I/O connectors(bracket)

HDMI, DP

Cooling(active/passive)

Active fan-sink (Active cooling with dynamic speed)

Total power consumption(W)

<50W

PCB form-factor with bracket

LP (low profile) PCB with FH/LP bracket

AMD® Radeon™ RX 580 8GB GDDR5 Graphics Card

Engine Clock

1266 MHz

Memory Clock

4000 MHz

Memory Size(width)

8 GB (256-bit)

Memory Type

256M x 32 GDDR5

Max. Resolution(HDMI)

4096x2160@60Hz

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Graphics

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 51

Max. Resolution(DP)

5120x3200@60Hz

Multi Display Support

4 displays

HDCP Compliance

Yes

Rear I/O connectors(bracket)

HDMI + DPx3

Cooling(active/passive)

Active fan-sink (Active cooling with dynamic speed)

Total power consumption(W)

<150W

PCB form-factor with bracket

ATX (Full height) PCB with ATX dual slot bracket

AMD® Radeon™ R7 430 2GB VGA+DP 64bit Graphics Card

Engine Clock

780 MHz

Memory Clock

1100 MHz

Memory Size(width)

2 GB(64-bit)

Memory Type

256M x 32 GDDR5

Max. Resolution(HDMI)

2048x1536

Max. Resolution(DP)

4096x2160@60Hz

Multi Display Support

2 displays

HDCP Compliance

Yes

Rear I/O connectors(bracket)

VGA+DP

Cooling(active/passive)

Active fan-sink (Active cooling with dynamic speed)

Total power consumption(W)

<50W

PCB form-factor with bracket

LP PCB with FH/LP bracket

AMD® Radeon™ R7 430 2GB GDDR5 2DP 64 bit Graphics Card

Engine Clock

780 MHz

Memory Clock

1100 MHz

Memory Size(width)

2 GB(64-bit)

Memory Type

256M x 32 GDDR5

Max. Resolution(DP)

4096x2160@60Hz

Multi Display Support

2 displays

HDCP Compliance

yes

Rear I/O connectors(bracket)

DPx2

Cooling(active/passive)

Active fan-sink (Active cooling with dynamic speed)

Total power consumption(W)

<50W

PCB form-factor with bracket

LP PCB with FH/LP bracket

AMD Radeon™ 520 1GB Graphics Card

Engine Clock

780 MHz

Memory Clock

1150 MHz

Memory Size(width)

1 GB (32-bit)

Memory Type

256M x 32 GDDR5

Max. Resolution(DP)

2048x1536@60Hz

Multi Display Support

2 displays

HDCP Compliance

Yes

Rear I/O connectors(bracket)

VGA+DP

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Graphics

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 52

Cooling(active/passive)

Active fan-sink (Active cooling with dynamic speed)

Total power consumption(W)

<50W

PCB form-factor with bracket

PCB with FH bracket

AMD Radeon™ 630 with 2 GB GDDR5 Graphics Card

Memory

2 GB 64-bit wide frame buffer operating at 1125MHz.

Controller Clock Speed

AMD Radeon™ 630 GPU operating at 1024 MHz

Architecture

Hybrid Graphics AMD GPU uses Intel graphics controller for display control

Bus Connection

PCIE 3.0 x8

Graphics /API support

DIRECTX 12, Open GL 4.5, Open CL2.0, UVD, Mantle, AMD LiquidVR™

Display support

Same as for the Intel integrated graphics solution

Max. Resolution (HDMI)

4096 X 2160@60Hz

Max. Resolution (DP)

4096 X 2160@60Hz

NVIDIA® GeForce® RTX 2060 Super 8 GB Graphics Card

Engine Clock

1650 MHz

Memory Clock

7000 MHz

Memory Size(width)

8 GB(256-bit)

Memory Type

256M x 32 GDDR6

Max. Resolution(DVI)

2560x1600@60Hz

Max. Resolution(HDMI)

4096x2160@60Hz

Max. Resolution(DP)

7680x4320@60Hz

Multi Display Support

3 displays

HDCP Compliance

Yes

Rear I/O connectors(bracket)

DVI+HDMI+DP

Cooling(active/passive)

Active fan-sink (Active cooling with dynamic speed)

Total power consumption(W)

<175W

PCB form-factor with bracket

ATX (Full height) PCB with ATX dual slot bracket

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 53

HARD DISK AND SOLID STATE STORAGE

500 GB 7200RPM 3.5in SATA HDD

Capacity

500 GB

Rotational Speed

7,200 rpm

Interface

SATA 6.0 Gb/s

Buffer Size

32 MB

Logical Blocks

976,773,168

Seek Time

11 ms (Average)

Height

1 in/2.54 cm

Width

Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

1 TB 7200RPM 3.5in SATA HDD

Capacity

1 TB

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

64 MB

Logical Blocks

1,953,525,168

Seek Time

11 ms (Average)

Height

1 in/2.54 cm

Width (nominal)

Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

2 TB 7200RPM 3.5in SATA HDD

Capacity

2 TB

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

64 MB

Logical Blocks

3,907,050,336

Seek Time

11 ms (Average)

Height

1.028 in/26.11 mm

Width (nominal)

Media diameter: 3.5 in/88.9 mm Physical size: 4 in/102 mm

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 54

500 GB 7200RPM 2.5in SATA HDD

Capacity

500 GB

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

Up to 128 MB

Logical Blocks

976,773,168

Seek Time

12 ms (Average)

Height

0.267 in/6.8 mm (nominal)

Width (nominal)

2.75 in/70 mm (nominal)

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

1 TB 7200RPM 2.5in SATA HDD

Capacity

1 TB

Rotational Speed

7,200 rpm

Interface

SATA 6 Gb/s

Buffer Size

Up to 128 MB

Logical Blocks

1,953,525,168

Seek Time

12 ms (Average)

Height

0.374 in/9.5 mm (Max.)

Width (nominal)

2.75 in/70 mm (nominal)

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

2 TB 5400RPM 2.5in SATA HDD

Capacity

2 TB

Rotational Speed

5,400 rpm

Interface

SATA 6 Gb/s

Buffer Size

128 MB

Logical Blocks

3,907,050,336

Seek Time

12 ms (Average)

Height

0.374 in/9.5 mm (nominal)

Width (nominal)

2.75 in/70 mm (nominal)

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 55

500 GB 7200RPM 2.5in Self Encrypted OPAL2 SATA HDD

Capacity

500 GB

Architecture

Self-Encrypting (SED) Solid State Drive with SATA interface

Interface

SATA 6 Gb/s

Buffer Size

128 MB

Logical Blocks

976,773,168

Seek Time

12 ms (Average)

Height

0.283 in/7.2 mm (Max)

Width

2.75 in/70 mm (nominal)

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

500 GB 7200RPM 2.5in Self Encrypted Federal Information Processing Standard SATA HDD

Capacity

500 GB

Architecture

Self-Encrypting (SED) Solid State Drive with SATA interface

Interface

SATA 6 Gb/s

Buffer Size

128 MB

Logical Blocks

976,773,168

Seek Time

12 ms (Average)

Height

0.283 in/7.2 mm (Max)

Width

2.75 in/70 mm (nominal)

Operating Temperature

41° to 131° F (5° to 55° C)

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

256 GB M.2 2280 PCIe NVMe SSD

Drive Weight

< 10g

Capacity

256 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 1600MB/s

Maximum Sequential Write

Up to 780MB/s

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 56

512 GB M.2 2280 PCIe NVMe SSD

Drive Weight

< 10g

Capacity

512 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 1600MB/s

Maximum Sequential Write

Up to 860MB/s

Logical Blocks

1,000,215,216

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

128 GB M.2 2280 PCIe NVMe Three Layer Cell SSD

Drive Weight

< 10g

Capacity

128 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 2800MB/s

Maximum Sequential Write

Up to 600MB/s

Logical Blocks

250,069,680

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

256 GB M.2 2280 PCIe NVMe Three Layer Cell SSD

Drive Weight

< 10g

Capacity

256GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 2700MB/s

Maximum Sequential Write

Up to 1000MB/s

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 57

512 GB M.2 2280 PCIe NVMe Three Layer Cell SSD

Drive Weight

< 10g

Capacity

512 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 2900MB/s

Maximum Sequential Write

Up to 1100MB/s

Logical Blocks

1,000,215,216

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

1 TB M.2 2280 PCIe NVMe Three Layer Cell SSD

Drive Weight

< 10g

Capacity

1 TB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 3480MB/s

Maximum Sequential Write

Up to 3037MB/s

Logical Blocks

2,000,409,264

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

TRIM; ASPM L1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

2 TB M.2 2280 PCIe NVMe Three Layer Cell SSD

Drive Weight

< 10g

Capacity

2 TB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 3500MB/s

Maximum Sequential Write

Up to 3000MB/s

Logical Blocks

3,907,029,168

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

TRIM; ASPM L1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 58

256 GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD

Drive Weight

< 10g

Capacity

256 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 2700MB/s

Maximum Sequential Write

Up to 1000MB/s

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2; TCG-OPAL2 security

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

512 GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD

Drive Weight

< 10g

Capacity

512 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIE Gen3

Maximum Sequential Read

Up to 2900MB/s

Maximum Sequential Write

Up to 1100MB/s

Logical Blocks

1,000,215,216

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

APST; ASPM L1.2; NVME spec 1.2; TCG-OPAL2 security

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

256 GB Intel® PCIe® NVMe™ QLC + 32 GB Intel® Optane™

Drive Weight

< 10g

Capacity

256 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIe Gen3

Maximum Sequential Read

Up to 1450MB/s

Maximum Sequential Write

Up to 500MB/s

Logical Blocks

500,118,192

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

TRIM; ASPM L1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 59

512 GB Intel® PCIe® NVMe™ QLC + 32 GB Intel® Optane™

Drive Weight

< 10g

Capacity

512 GB

Height

2.38mm

Length

80mm

Width

22mm

Interface

PCIe Gen3

Maximum Sequential Read

Up to 2400MB/s

Maximum Sequential Write

Up to 1300MB/s

Logical Blocks

1,000,215,215

Operating Temperature

0° to 70°C (32° to 158°F) [ambient temp]

Features

TRIM; ASPM L1.2

NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows

10) of system disk is reserved for the system recovery software.

HP 9.5mm Slim DVD-ROM Drive

Height

9.5 mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Dimensions (W x H x D)

5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel

Weight (max)

Up to 0.31 lb (140g) without bezel

Read Speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL Up to 8X DVD-ROM Up to 8X CD-ROM, CD-R Up to 24X CD-RW Up to 24X

Access time (typical reads, including settling)

Random: DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical) Full stroke: DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)

Power

Source Slimline SATA DC power receptacle DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum)

Environmental conditions (operating - non-condensing)

Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 80% Maximum Wet Bulb Temperature 84° F (29° C)

HP 9.5mm Slim DVD Writer Drive

Height

9.5 mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc recording capacity

Up to 8.5 GB DL or 4.7 GB standard

Dimensions (W x H x D)

5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel

Weight (max)

0.31 lb (140 g)

Write Speeds

DVD-R DL - Up to 6X DVD+R - Up to 8X DVD+RW - Up to 8X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 60

DVD+R DL - Up to 6X DVD-R - Up to 8X DVD-RW - Up to 6X CD-R - Up to 24X CD-RW - Up to 10X

Read Speeds

DVD-RW, DVD+RW - Up to 8X DVD-R DL, DVD+R DL - Up to 8X DVD+R, DVD-R - Up to 8X DVD-ROM DL, DVD-ROM - Up to 8X CD-ROM, CD-R - Up to 24X CD-RW - Up to 24X

Access time (typical reads, including settling)

Random DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical) Full Stroke DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical) Stop Time 6 seconds (typical)

Power

Source Slimline SATA DC power receptacle DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum)

Environmental conditions (operating - non-condensing)

Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 80% Maximum Wet Bulb Temperature 84° F (29° C)

HP 9.5mm Slim Blu-Ray Writer Drive

Height

9.5 mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc recording capacity

Up to 128 GB QL, 100 GB TL, 50 GB DL or 25 GB standard SL

Dimensions (W x H x D)

5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel

Weight (max)

0.29 lb (132 g)

Write Speeds

BD-R SL/DL Up to 6X BD-R TL/QL Up to 4X BD-RE Up to 2X DVD-R Up to 8X DVD-R DL - Up to 6X DVD-RW Up to 6X DVD+R Up to 8X DVD+R DL - Up to 6X DVD+RW Up to 8X DVD-RAM Up to 5X CD-R Up to 24X CD-RW Up to 10X

Read Speeds

BD-ROM Up to 6X BD-R Up to 6X BD-RE SL/DL Up to 6X BD-RE TL Up to 4X DVD-ROM Up to 8X DVD-R SL/DL Up to 8X DVD-R Up to 8X DVD-RW Up to 8X DVD+R SL/DL Up to 8X DVD+R Up to 8X DVD+RW Up to 8X

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Storage

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 61

BDMV (AACS Compliant Disc) Up to 6x/2x (Read/Play) DVD-RAM Up to 5x DVD-Video (CSS Compliant Disc) Up to 8x/4x (Read/Play) CD-R/RW/ROM Up to 24x CD-DA (DAE) Up to 24X/10X (Read/Play)

Access time (typical reads, including settling)

Random BD-ROM: 205 ms (typical), DVD-ROM: 185 ms (typical), CD-ROM: 165 ms (typical) Full Stroke BD-ROM: 350 ms (typical), DVD-ROM: 345 ms (typical), CD-ROM: 340 ms (typical)

Power

Source Slimline SATA DC power receptacle DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p DC Current 5 VDC -1200 mA typical, 2000 mA maximum

Environmental conditions (operating - non-condensing)

Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 80% Maximum Wet Bulb Temperature 84° F (29° C)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 62

NETWORKING AND COMMUNICATIONS

Intel i219LM 10/100/1000 Integrated NIC

Connector

RJ-45

System Interface

PCI (Intel proprietary) + SMBus

Data rates supported

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)

IEEE Compliance

100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)

Performance

TCP/IP/UDP Checksum Offload (configurable) Protocol Offload (ARP & NS) Large send offload and Giant send offload Receiving Side Scaling Jumbo Frame 9K

Power consumption

Cable Disconnetion: 25mW 100Mbps Full Run: 450mW 1000bp Full Run: 1000mW WoL Enable(S3/S4/S5): 50mW WoL Disable(S3/S4/S5): 25mW

Power Management

ACPI compliant – multiple power modes Situation-sensitive features reduce power consumption Advanced link down power saving for reducing link down power consumption

Management Interface

Auto MDI/MDIX Crossover cable detection

IT Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite Virtual Cable Doctor for Ethernet cable status

Security & Manageability

Intel® vPro™ support with appropriate Intel® chipset components

Intel® Ethernet Controller I210-AT Add-On Card

Connector

RJ-45

System Interface

PCI (Intel proprietary) + SMBus

Data rates supported

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s

IEEE Compliance

IEEE 802.1p QoS (Quality of Service) Support IEEE 802.1q VLAN support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable) IEEE 802.3az EEE (Energy Efficient Ethernet)

Performance

TCP/IP/UDP Checksum Offload (configurable) Protocol Offload (ARP & NS) Large send offload and Giant send offload Receiving Side Scaling Jumbo Frame 9K

Power consumption

Cable Disconnetion: 25mW 100Mbps Full Run: 450mW 1000bp Full Run: 1000mW WoL Enable(S3/S4/S5): 50mW WoL Disable(S3/S4/S5): 25mW

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 63

Power Management

ACPI compliant – multiple power modes Situation-sensitive features reduce power consumption Advanced link down power saving for reducing link down power consumption

Management Interface

Auto MDI/MDIX Crossover cable detection

IT Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wakeon-LAN from off (Magic Packet only)

Security & Manageability

PXE 2.1 Remote Boot

Intel Wi-Fi 6 AX201 + BT5 (802.11ax 2x2, non-vPro, supporting gigabit file transfer speeds)

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Features Wi-Fi 6 technology

Frequency Band

802.11b/g/n/ax

• 2.402 – 2.482 GHz

802.11a/n/ac/ax

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

• 802.11ax : MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

Modulation

Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Security

• IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 64

Output Power

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

• 802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

• 802.11ax HT40(2.4GHz) : +10dBm minimum

• 802.11ax VHT160(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode 2.0 W

• Receive mode 1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode 50 mW (WLAN unassociated)

• Connected Standby 10mW

• Radio disabled 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

•802.11b, 1Mbps : -93.5dBm maximum

•802.11b, 11Mbps : -84dBm maximum

• 802.11a/g, 6Mbps : -86dBm maximum

• 802.11a/g, 54Mbps : -72dBm maximum

• 802.11n, MCS07 : -67dBm maximum

• 802.11n, MCS15 : -64dBm maximum

• 802.11ac, MCS0 : -84dBm maximum

• 802.11ac, MCS9 : -59dBm maximum

•802.11ax, MCS11(HT40): -59dBm maximum

•802.11ax, MCS11(VHT160): -58.5dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

1. Type 2230 : 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

1. Type 2230 : 2.8g

2. Type 126: 1.3g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED Off – Radio ON

Subtitle

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2/5.0/5.1 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 65

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR.

Power Consumption

Peak (Tx): 330 mW Peak (Rx): 230 mW Selective Suspend: 17 mW

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC60950-1/IEC62368-1 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

Intel Wi-Fi 6 AX201 + BT5 (802.11ax 2x2, vPro, supporting gigabit file transfer speeds)

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11ax IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Features Wi-Fi 6 technology

Frequency Band

802.11b/g/n/ax

• 2.402 – 2.482 GHz

802.11a/n/ac/ax

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 66

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

• 802.11ax : MCS0 ~ MCS11, (1SS and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)

Modulation

Direct Sequence Spread Spectrum OFDM, BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Security

• IEEE compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

• 802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

• 802.11ax HT40(2.4GHz) : +10dBm minimum

• 802.11ax VHT160(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode :2.0 W

• Receive mode :1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode :50 mW (WLAN unassociated)

• Connected Standby/Modern Standby: 10mW

• Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

•802.11b, 1Mbps : -93.5dBm maximum

•802.11b, 11Mbps : -84dBm maximum

• 802.11a/g, 6Mbps : -86dBm maximum

• 802.11a/g, 54Mbps : -72dBm maximum

• 802.11n, MCS07 : -67dBm maximum

• 802.11n, MCS15 : -64dBm maximum

• 802.11ac, MCS0 : -84dBm maximum

• 802.11ac, MCS9 : -59dBm maximum

•802.11ax, MCS11(HT40): -59dBm maximum

•802.11ax, MCS11(VHT160): -58.5dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

1. Type 2230 : 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

1. Type 2230 : 2.8g

2. Type 126: 1.3g

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 67

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED White – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0/5.1 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2/5.0/5.1 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 9.5 dBm for BR and EDR.

Power Consumption

Peak (Tx): 330 mW Peak (Rx): 230 mW Selective Suspend: 17 mW

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC60950-1/IEC62368-1 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

Security & Manageability

Intel® vPro™ support with appropriate Intel® chipset components

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 68

Realtek RTL8821CE 802.11ac 1x1 Wi-Fi® and Bluetooth® 4.2 Combo

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Wi-Fi® certified

Frequency Band

802.11b/g/n

• 2.402 – 2.482 GHz

802.11a/n/ac

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Modulation

Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security

• IEEE and WiFi® compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

• 802.11b : +14dBm minimum

• 802.11g : +12dBm minimum

• 802.11a : +12dBm minimum

• 802.11n HT20(2.4GHz) : +12dBm minimum

• 802.11n HT40(2.4GHz) : +12dBm minimum

• 802.11n HT20(5GHz) : +10dBm minimum

• 802.11n HT40(5GHz) : +10dBm minimum

• 802.11ac VHT80(5GHz) : +10dBm minimum

Power Consumption

• Transmit mode 2.0 W

• Receive mode 1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode 50 mW (WLAN unassociated)

• Connected Standby 10mW

• Radio disabled 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 69

Receiver Sensitivity

802.11b, 1Mbps : -93.5dBm maximum

802.11b, 11Mbps : -84dBm maximum

802.11a/g, 6Mbps : -86dBm maximum

802.11a/g, 54Mbps : -72dBm maximum

802.11n, MCS07 : -67dBm maximum

802.11n, MCS15 : -64dBm maximum

802.11ac, MCS0 : -84dBm maximum

802.11ac, MCS9 : -59dBm maximum

Antenna type

High efficiency antenna. One embedded dual band 2.4/5 GHz antenna is provided to the card to support WLAN communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230 : 2.3 x 22.0 x 30.0 mm

Weight

Type 2230 : 2.8g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED OFF – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

Power Consumption

Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW

Electrical Interface

USB 2.0 compliant

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC60950-1/IEC62368-1 UL, CSA, and CE Mark

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 70

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

Realtek RTL8822CE 802.11ac 2x2 Wi-Fi® + BT5

Wireless LAN Standards

IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac IEEE 802.11d IEEE 802.11e IEEE 802.11h IEEE 802.11i IEEE 802.11k IEEE 802.11r IEEE 802.11v

Interoperability

Wi-Fi® certified

Frequency Band

802.11b/g/n

• 2.402 – 2.482 GHz

802.11a/n/ac

• 4.9 – 4.95 GHz (Japan)

• 5.15 – 5.25 GHz

• 5.25 – 5.35 GHz

• 5.47 – 5.725 GHz

• 5.825 – 5.850 GHz

Data Rates

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz & 80MHz)

Modulation

Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

Security

• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• WAPI

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 71

Network Architecture Models

Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between access points

Output Power

• 802.11b : +18.5dBm minimum

• 802.11g : +17.5dBm minimum

• 802.11a : +18.5dBm minimum

• 802.11n HT20(2.4GHz) : +15.5dBm minimum

• 802.11n HT40(2.4GHz) : +14.5dBm minimum

• 802.11n HT20(5GHz) : +15.5dBm minimum

• 802.11n HT40(5GHz) : +14.5dBm minimum

• 802.11ac VHT80(5GHz) : +11.5dBm minimum

• 802.11ac VHT160(5GHz) : +11.5dBm minimum

Power Consumption

• Transmit mode :2.0 W

• Receive mode :1.6 W

• Idle mode (PSP) 180 mW (WLAN Associated)

• Idle mode :50 mW (WLAN unassociated)

• Connected Standby/Modern Standby: 10mW

• Radio disabled: 8 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

802.11b, 1Mbps : -93.5dBm maximum

802.11b, 11Mbps : -84dBm maximum

802.11a/g, 6Mbps : -86dBm maximum

802.11a/g, 54Mbps : -72dBm maximum

802.11n, MCS07 : -67dBm maximum

802.11n, MCS15 : -64dBm maximum

802.11ac, MCS0 : -84dBm maximum

802.11ac, MCS9 : -59dBm maximum

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

PCI-Express M.2 MiniCard with CNVi Interface

Dimensions

1. Type 2230 : 2.3 x 22.0 x 30.0 mm

2. Type 1216: 1.67 x 12.0 x 16.0 mm

Weight

1. Type 2230 : 2.8g

2. Type 126: 1.3g

Operating Voltage

3.3v +/- 9%

Temperature

Operating: 14° to 158° F (–10° to 70° C) Non-operating: –40° to 176° F (–40° to 80° C)

Humidity

Operating: 10% to 90% (non-condensing) Non-operating: 5% to 95% (non-condensing)

Altitude

Operating: 0 to 10,000 ft (3,048 m) Non-operating: 0 to 50,000 ft (15,240 m)

LED Activity

LED Amber – Radio OFF; LED OFF – Radio ON

HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology

Bluetooth Specification

4.0/4.1/4.2/5.0 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)

Data Rates and Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps BLE : 1 Mbps data rate; throughput up to 0.2 Mbps Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Networking and Communications

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 72

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of + 4 dBm for BR and EDR.

Power Consumption

Peak (Tx): 330 mW Peak (Rx): 230 mW Selective Suspend: 17 mW

Bluetooth Software Supported Link Topology

Microsoft Windows Bluetooth Software

Power Management

Microsoft Windows ACPI, and USB Bus Support

Certifications

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management Certifications

ETS 300 328, ETS 300 826 Low Voltage Directive IEC60950-1/IEC62368-1 UL, CSA, and CE Mark

Bluetooth Profiles Supported

BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 73

I/O DEVICES

HP Business Slim Standalone Wired Keyboard

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions (L x W x H)

171.97 x 68.35 x 8.27 in (436.8± 1.5 x 137.6± 1.0 x 21.0±

1.0 cm)

Weight

1.32 lb (0.6± 0.08 kg)

Electrical

Operating voltage

4.4-5.25VDC

Power consumption

50-mA maximum (with 5 VDC power supplied and three LEDs ON)

System interface

USB or PS/2

ESD

Contact Discharge: 2, 4,6,8KV Air Discharge: 2, 4, 8,10,12.5KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Low-profile design

Switch actuation

60±12.5g nominal peak force with tactile feedback

Switch life

10 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

Minus 30 degrees to 60 degrees Celsius

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 74

HP USB Business Slim Wired SmartCard CCID Keyboard

Physical Characteristics

Keys

104, 105, 109 layout (depending upon country)

Dimensions (L x W x H)

17.34 x 5.68 x 0.78in (440.6 x 144.5 x 1.98 cm) Weight

1.32 lb (598g)

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption

100mA (All LED on)

System interface

USB Type A plug connector

ESD

Contact Discharge: 8 KV Air Discharge: 12.5 KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Low-profile design

Switch actuation

60±10g nominal peak force with tactile feedback

Switch life

10 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

CE Marking, TUV, EAC, FCC, cULus/CSAus, ICES, RCM, VCCI, KCC, BSMI

Ergonomic compliance

ISO 9241-4, TUVGS

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 75

HP USB & PS/2 Washable Standalone Wired Keyboard

Physical Characteristics

Keys

104, 105 layout (depending upon country)

Dimensions (L x W x H)

17.68 x 6.68 x 1.22 in (449.18 x 169.66 x31.2 mm) Weight

1.57 lb (710g)

Electrical

Operating voltage

5V +- 5%

Power consumption

50mA

System interface

USB Type A plug connector

ESD

Contact Discharge: 8 KV Air Discharge: 15 KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Low-profile design

Switch actuation

55±10g nominal peak force with tactile feedback

Switch life

20 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

7.2 ft (2.2 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-4° to 149° F (-20° to 65° C)

Operating humidity

10% to 95% (non-condensing at ambient)

Non-operating humidity

0% to 95% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, RCM, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 76

HP Premium Standalone Wireless Keyboard

Physical Characteristics

Keys

104, 105 layout (depending upon country)

Dimensions (L x W x H)

17.04 x 5.55 x 0.52 in (433 x 141 x13.2 mm) Weight

1.54 lb (698g)

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption

35mA (All LED on)

System interface

USB Type A plug connector

ESD

Contact Discharge: 8 KV Air Discharge: 15 KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Low-profile design

Switch actuation

60±10g nominal peak force with tactile feedback

Switch life

10 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC

Ergonomic compliance

TUVGS

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 77

HP USB Premium Wired Keyboard

Physical Characteristics

Keys

104, 105 layout (depending upon country)

Dimensions (L x W x H)

17.04 x 5.55 x 0.52 in (433 x 141 x13.2 mm) Weight

1.54 lb (698g)

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption

35mA (All LED on)

System interface

USB Type A plug connector

ESD

Contact Discharge: 8 KV Air Discharge: 15 KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Low-profile design

Switch actuation

60±10g nominal peak force with tactile feedback

Switch life

10 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC

Ergonomic compliance

TUVGS

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 78

HP USB Wired Keyboard

Physical Characteristics

Keys

104, 105, 106, 108, 109 layouts

Dimensions (L x W x H)

18.12 x 6.47 x 1.10 in (460.28 x 164.31 x 27.88 mm) Weight

1.98 lb (900g) min

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption

50mA Max (All LED on)

System interface

USB Type A plug connector

ESD

Contact Discharge: 8 KV Air Discharge: 15 KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Low-profile design

Switch actuation

60±14g nominal peak force with tactile feedback

Switch life

20 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

CUL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC

Ergonomic compliance

TUVGS

HP Universal USB Wired Keyboard

Physical Characteristics

Keys

104, 105 layout (depending upon country)

Dimensions (L x W x H)

18.15 x 6.02 x 1.08 in (461 x 153 x 27.4 mm) Weight

1.32 lb (600g) min

Electrical

Operating voltage

5 VDC, +/-5%

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 79

Power consumption

50mA Max (All LED on)

System interface

USB Type A plug connector

ESD

Contact Discharge: 8 KV Air Discharge: 15 KV

EMI - RFI

Conforms to FCC rules for a Class B computing device

Mechanical

Keycaps

Mid-profile design

Switch actuation

60±10g nominal peak force with tactile feedback

Switch life

10 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Environmental

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop (out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop (in box)

30 in (76.2 cm) on concrete, 16-drop sequence

Approvals

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC

Ergonomic compliance

TUVGS

HP Universal USB Wired Mouse

Dimensions (H x L x W)

4.53 x 2.50 x 1.40 in (115 x 63.46 x 35.48 mmm)

Weight

0.18lb (80g)

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption (typical)

50mA Max

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 80

Resolution

1,000 DPI

Sensor

Pixart PAN3606DL

Tracking speed

30 inch/sec (max)

Tracking acceleration

9G(max), 1G=9.8m/s2

Mechanical

Connector

USB 2.0

Cable length

6 ft (1.8 m)

Color

Jack Black

Regulatory approvals

Compliant

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC

HP Optical Mouse

Dimensions (H x L x W)

4.53 x 2.48 x1.46 in (115.2x 63 x37 mm)

Weight

0.22lb (101.6g)

Environmental

Operating temperature

41° to 122° F (5° to 50° C)

Non-operating temperature

(-4° to 140° F )(-20° to 60° C)

Operating humidity

10% to 85% (non-condensing at ambient)

Non-operating humidity

5% to 95% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Electrical

Tracking speed

30 inch/sec (max)

Tracking acceleration

8G(max), 1G=9.8m/s2

System interface

USB or PS/2

Mechanical

Switch actuation

60±15g nominal peak force with tactile feedback

Switch life

3 million keystrokes (Life tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Color

Jack Black

Regulatory approvals

Compliant

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC

HP USB 1000dpi Laser Mouse

Dimensions (H x L x W)

115 * 62.9 * 37 mm (L * W * H)

Weight

0.22lb (101.6g)

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 81

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption (typical)

100mA

Resolution

1,000 DPI

Sensor

PixArt vendor Laser USB mouse sensor

Tracking speed

30 inch/sec (max)

Tracking acceleration

8G(max), 1G=9.8m/s2

Mechanical

Connector

USB 2.0

Cable length

6 ft (1.8 m)

Color

Jack Black

Regulatory approvals

Compliant

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC

HP USB Premium Wired Mouse

Dimensions (H x L x W)

4.21 x 2.64 x 1.52 in (107 x 67 x 38.7 mmm)

Weight

0.19lb (90g)

Environmental

Operating temperature

50° to 122°F (10° to 50° C)

Non-operating temperature

-22° to 140°F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

50 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption (typical)

12mA

Resolution

800, 1200, 1600 DPI

Sensor

Pixart PAN3606DL

Tracking speed

30 inch/sec (max)

Tracking acceleration

8G(max), 1G=9.8m/s2

Mechanical

Connector

USB 2.0

Cable length

6 ft (1.8 m)

Color

Jack Black

Regulatory approvals

Compliant

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, C-Tick, KC

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Input/Output Devices

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 82

HP USB Fingerprint Mouse

Dimensions (H x L x W)

107 x 67 x 38.7 mm

Weight

85 g

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Electrical

Operating voltage

5 VDC, +/-5%

Power consumption (typical)

130mA

Resolution

1,200 DPI

Sensor

PixArt vendor Laser USB mouse sensor

Tracking speed

30 inch/sec (max)

Tracking acceleration

8G(max), 1G=9.8m/s2

Mechanical

Connector

USB 2.0

Cable length

6 ft (1.8 m)

Color

Jack Black

Regulatory approvals

Compliant

UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Audio/Multimedia

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 83

AUDIO/MULTIMEDIA

HP ProDesk 600 G6 Desktop Mini PC

Type

Integrated

HD Stereo Codec

Realtek ALC3205

Audio I/O Ports

Front: Headset connector supports a CTIA and OMTP style headset and is re-taskable as a Line-in, Line-out, Microphone-in or Headphone-out port

Internal Speaker Amplifier

2W class D mono amplifier for the internal speaker only. External speakers must be powered

Multi-streaming Capable

Playback multi-streaming can be enabled in the audio control panel to allow independent audio streams to be sent to/from the front and rear jacks or integrated speaker.

Sampling

Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC

Wavetable Syntheses

Yes - Uses OS soft wavetable

Analog Audio

Yes

# of Channels on Line-Out

Stereo (Left & Right channels)

Internal Speaker

Yes

HP ProDesk 600 G6 Small Form Factor PC

Type

Integrated

HD Stereo Codec

Realtek ALC3205

Audio I/O Ports

Front: Headset connector supports a CTIA and OMTP style headset and is re-taskable as a Line-in, Line-out, Microphone-in or Headphone-out port Rear: Line-out, 3.5mm and support stereo

Internal Speaker Amplifier

2W class D mono amplifier for the internal speaker only. External speakers must be powered

Multi-streaming Capable

Playback multi-streaming can be enabled in the audio control panel to allow independent audio streams to be sent to/from the front and rear jacks or integrated speaker

Sampling

Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC

Wavetable Syntheses

Yes - Uses OS soft wavetable

Analog Audio

Yes

# of Channels on Line-Out

Stereo (Left & Right channels)

Internal Speaker

Yes

HP ProDesk 600 G6 Microtower PC

Type

Integrated

HD Stereo Codec

Realtek ALC3205

Audio I/O Ports

Front: Headset connector supports a CTIA and OMTP style headset and is re-taskable as a Line-in, Line-out, Microphone-in or Headphone-out port Rear: Line-Out port, 3.5mm and support stereo Line-in*, 3.5mm and support stereo

Internal Speaker Amplifier

2W class D mono amplifier for the internal speaker only. External speakers must be powered

Multi-streaming Capable

Playback multi-streaming allows independent audio streams to be sent to/from the front and rear jacks or integrated speaker.

Sampling

Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC

Wavetable Syntheses

Yes - Uses OS soft wavetable

Analog Audio

Yes

# of Channels on Line-Out

Stereo (Left & Right channels)

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Audio/Multimedia

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 84

Internal Speaker

Yes

*Line-in port only available on product with legacy PCI version

HP ProOne 600 G6 All-in-One PC

Type

Integrated

HD Stereo Codec

Realtek ALC3252

Audio I/O Ports

Side 3.5mm headset connector supports an OMTP and CTIA style headset and is re-taskable as a Line-in, Line-out, Microphone-in or Headphone-out port

Internal Speaker Amplifier

2W per channel class D stereo amplifier for the internal speakers only

Multi-streaming Capable

Playback multi-streaming allows independent audio streams to be sent to/from the side jack and integrated speakers.

Sampling

Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC

Wavetable Syntheses

Yes - Uses OS soft wavetable

Analog Audio

Yes

# of Channels on Line-Out

Stereo (Left & Right channels)

Internal Speaker

Yes - Stereo

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Integrated Webcam and Microphone

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 85

INTEGRATED WEBCAM AND MICROPHONE

Optional integrated 1 MP HD RGB webcam & microphone; maximum resolution of 1280 x 720 Optional integrated 5 MP RGB webcam & microphone; maximum resolution of 2592 x 1944 Optional integrated 5 MP RGB webcam with IR sensor & microphone; maximum resolution of 2592 x 1944

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Power

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 86

POWER

DM

SFF

MT

AiO

External Power Supplies

65W EPS, 88% average efficiency at 115V & 89% at 230Vac 90W EPS, active PFC, when using 65W CPU, 88% average efficiency at 115V & 89% at 230Vac

N/A

90W EPS, active PFC, 88% efficiency in 115Vac / 89% efficiency in 230Vac 120W EPS, active PFC, 88% efficiency in 115Vac / 89% efficiency in 230Vac 150W EPS, active PFC, 88% efficiency in 115Vac / 89% efficiency in 230Vac

80 PLUS Gold

N/A

180W active PFC / 80 PLUS Gold 87/90/87% efficient at 20/50/100% load (115V) 90/92/89% efficient at 20/50/100% load (230V)

N/A

80 PLUS Platinum

N/A

210W active PFC 90/92/89% efficient at 20/50/100% load (115V) 91/93/90% efficient at 20/50/100% load (230V)

260W active PFC / 80 PLUS Platinum 550W active PFC / 80 PLUS Platinum 90/92/89% efficient at 20/50/100% load (115V) 91/93/90% efficient at 20/50/100% load (230V)

N/A

Operating Voltage Range

90Vac~264Vac

Rated Voltage Range

100Vac~240Vac

Rated Line Frequency

50HZ~60HZ

Operating Line Frequency

47HZ~63HZ

Rated Input Current with Energy Efficient* Power Supply

65W≦1.7A 90W≦1.7A

180W Gold ≦2.3A 210W Platinum ≦2.5A

180W Gold≦2.3A 260W Platinum≦3.1A 550W Platinum≦6.6A

90W≦1.7A 120W≦2.2A 150W≦2.5A

DC Output

+19.5V

+12V

+19.5V

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Power

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 87

DM

SFF

MT

AiO

Current Leakage (NFPA 99: 2102)

Less than 500 microamps of leakage current at 264 Vac with the ground wire disconnected, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section

10.3.5.1. Less than 100 microamps of leakage current at 264 Vac with the ground wire intact with normal polarity, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section

10.3.5.1.

Less than 500 microamps of leakage current at 264 Vac with the ground wire disconnected, as required for Nonpatient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section

10.3.5.1. Less than 100 microamps of leakage current at 264 Vac with the ground wire intact with normal polarity, as required for Nonpatient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section

10.3.5.1.

Less than 500 microamps of leakage current at 264 Vac with the ground wire disconnected, as required for Nonpatient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section

10.3.5.1. Less than 100 microamps of leakage current at 264 Vac with the ground wire intact with normal polarity, as required for Nonpatient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section

10.3.5.1.

Less than 500 microamps of leakage current at 264 Vac with the ground wire disconnected, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section 10.3.5.1. Less than 100 microamps of leakage current at 264 Vac with the ground wire intact with normal polarity, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section 10.3.5.1.

Power Supply Fan

N/A

50 mm variable speed

70 mm variable speed

N/A

Power cord length

6.0 ft. (1.83 m)

Dimensions

65W: 102 x 55 x 30 mm 90W : 127 x 50 x 30 mm

200 x 85 x 53 mm

165 x 95 x 73 mm

90W : 127 x 50 x 30 mm 120W : 148 x 75.5 x 25.4 mm

The power supply shall comply with harmonic input current requirements as detailed in EN61000-3-2 and JEIDA MITI standards. The harmonic input current requirements must be met under the following operating conditions: Load Requirements: 50% and 100% Input Voltage: 230Vac/50Hz. For active power factor correction the power factor at 50% &100% loads shall be greater than 0.9 over the entire nominal input voltage range (100-127VAC and 200-240VAC).

Condition

Standard Efficiency

82/85/82%

85/88/85%

87/90/87%

90/92/89%

Input Voltage

10% of Rated Load

-

75%

81%

84%

86%

115Vac/60HZ

20% of Rated Load

-

82%

85%

87%

90%

115Vac/60HZ

50% of Rated Load

-

85%

88%

90%

92%

115Vac/60HZ

PF>0.9

PF>0.95

100% of Rated Load

70%

82%

85%

87%

89%

115Vac/60HZ

PF>0.9

230Vac/50HZ

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Weights and Dimensions

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 88

WEIGHTS & DIMENSIONS1

DM

SFF

MT

Chassis (W x D x H)

6.97 x 6.89 x 1.35 in 177 x 175 x 34.2 mm

10.6 in x 11.9 in x 3.7 in 270 mm x 303 mm x 95 mm

6.1 x 13.27 x 11.93 in 155x 337 x 303 mm

System Volume

64 cu in

1.05 L

474 cu in

7.8 L

965 cu in

15.83 L

System Weight 2

2.74 lbs

1.25 kg

8.6 lbs

3.9 kg

11.01 lbs 5 kg

Max Supported Weight (desktop orientation)

N/A

77 lb 35 kg

Packaging Dimension (W x D x H)

19.57 x 5.04 x 8.78 in (497 x 128 x 223 mm)

15.52 x 8.07 x 19.65 in (394 x 205 x 499 mm)

15.75 x 11.30 x 19.65 in (400 x 287 x 499 mm)

MPP: 19.61 x 9.25 x 5.20 in

(498 x 235 x 132 mm)

MPP: 15.52 x 8.07 x 19.65 in

(394 x 205 x 499 mm)

MPP: 15.75 x 11.30 x 19.65 in

(400 x 287 x 499 mm)

Shipping Weight

6.52 lbs (2.97 kg)

15.37 lbs (6.97 kg)

16.85 lbs (7.65 kg)

MPP: 7.50 lbs (3.40 kg)

MPP: 15.86 lbs (7.2 kg)

MPP: 17.55 lbs (7.97 kg)

Palletization Profile

18-units per layer 5 or 6 layers max depending on details of air freight 90 or 108 units per pallet depending on details of air freight

45.354 x 39.13 x 57.80 in, 1152 x 994 x 1468 mm (include pallet)

6-units per layer 11 layer max 66 per pallet

47.24 x 39.37 x 93.90 in, 1200 x 1000 x 2380 mm (including pallet)

6-units per layer 8 layer max 48 per pallet

47.24 x 39.37 x 95.12 in, 1200 x 1000 x 2416 mm (including pallet)

Palletization Profile (Molded Pulp)

10-units per layer 10 to 19 layers max depending on details of freight 100 or 190 units per pallet depending on details of freight

46.26 x 39.21 x 103.74 in, 1175 x 996 x 2635 mm (including pallet)

6-units per layer 11 layer max 66 per pallet

47.24 x 39.37 x 93.90 in, 1200 x 1000 x 2380 mm (including pallet)

6-units per layer 8 layer max 48 per pallet

47.24 x 39.37 x 95.12 in, 1200 x 1000 x 2416 mm (including pallet)

1. Packaging material used will vary by country

2. Configured with 1 HDD & 1 ODD; DM configured with 1 HDD only

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Weights and Dimensions

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 89

All-in-One Dimensions

1

HP ProOne 600 G6 22 All-in-One PC

Without Stand

Cantilever Stand

(Fixed Height Tilt Stand)

Adjustable Height Stand

cm/kg

inch/lbs

cm/kg

inch/lbs

cm/kg

inch/lbs

Product

Width

48.87 cm

19.24 in

48.87 cm

19.24 in

48.87 cm

19.24 in

Length/Depth

5.08 cm

2.0 in

15.65 cm

6.16 in

20.15 cm

7.93 in

Height

32.45 cm

12.78 in

37.46 cm

14.75 in

35.4 ~ 48.28 cm

13.94 ~ 19.01 in

Weight

5.178 kg

11.42 lbs

5.888 kg

12.98 lbs

6.758 kg

14.90 lbs

Package

Width

59.5 cm

23.43 in

59.5 cm

23.43 in

59.5 cm

23.43 in

Length/Depth

24.5 cm

9.65 in

24.5 cm

9.65 in

24.5 cm

9.65 in

Height

41.4 cm

16.30 in

41.4 cm

16.30 in

41.4 cm

16.30 in

Weight

8.2 kg

18.08 lbs

8.91 kg

19.64 lbs

9.78 kg

21.56 lbs

Palletization

for Sea/Rail

Width

120 cm

47.24 in

120 cm

47.24 in

120 cm

47.24 in

Length/Depth

100 cm

39.37 in

100 cm

39.37 in

100 cm

39.37 in

Height

221 cm

87.07 in

221 cm

87.07 in

221 cm

87.07 in

Weight

346.8 kg

764.85 lbs

375.2 kg

827.25 lbs

410 kg

904.05 lbs

Qty / Layer 8 8

8

Layers 5 5

5

Qty / Pallet via Sea/Rail

40

Qty / Pallet via Air

24

1. Packaging material used will vary by country

2. Configured with 1 HDD & 1 ODD

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Miscellaneous Features

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 90

MISCELLANEOUS FEATURES

Management Features

• Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.

Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state without affecting other elements of the system.

• Intel® Wired for Management support; industry wide initiative to make Intel® architecture based PCs, servers and mobile

computers more inherently manageable out-of-the-box and over the network

• Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button

Serviceability Features

• Dual colored power LED on front of computer to indicate either normal or fault condition

• Diagnostic LED Explanation Table:

o Power LED will blink red 2 to 5 times, then blink white 2 or more times, then repeat (with beep tones for each

blink initially):

▪ 2 red + 2 white User must provide file for BIOS recovery (USB storage typically) ▪ 2 red + 3 white User must enter a key sequence to proceed with recovery by policy ▪ 2 red + 4 white BIOS recovery is in progress ▪ 3 red + 2 white Memory could not be initialized ▪ 3 red + 3 white Graphics adaptor could not be found ▪ 3 red + 4 white Power supply failure / not connected ▪ 3 red + 5 white Processor not installed ▪ 3 red + 6 white Current processor does not support an enabled feature ▪ 4 red + 2 white Processor has exceeded its temperature threshold / system thermal shutdown ▪ 4 red + 3 white System internal temperature has exceeded its threshold ▪ 5 red + 2 white System controller firmware is not valid ▪ 5 red + 3 white System controller detected BIOS is not executing ▪ 5 red + 4 white BIOS could not complete initialization / mainboard failure ▪ 5 red + 5 white System controller rebooted the system after a health or recovery timer triggered

• HP PC Hardware Diagnostics UEFI:

o This utility enables hardware level testing outside the operating system on many components. The diagnostics

can be invoked by pressing F2 at POST, and is available as a download from HP Support

• System/Emergency ROM

• Flash ROM

• CMOS Battery Holder for easy replacement

• Flash Recovery with Video Configuration Record Software5

• 5 Aux Power LED on System mainboard

• Processor ZIF Socket for easy Upgrade

• Over-Temp Warning on Screen (Requires IM Agents)

• DIMM Connectors for easy Upgrade

• Clear CMOS Button

• NIC LEDs (integrated) (Green & Amber)

• Dual Color Power and HD LED - To Indicate Normal Operations and Fault Conditions

• Color coordinated cables and connectors

• Tool-less Hood Removal

• Front power switch

• System memory can be upgraded without removing the system board or any internal components

• Tool-less Hard Drive, memory & optical drive removal (For MT, SFF, and DM only)

• Green Pull Tabs, and Quick Release Latches for easy Identification

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Technical Specifications – Miscellaneous Features

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 91

Additional Features

Product Orientation

Microtower (MT) can be oriented in a tower (vertical) orientation. Small Form Factor (SFF) can be oriented as either a desktop (horizontal) or a tower (vertical) with optional vertical stand. Desktop Mini (DM) can be oriented as either a desktop (horizontal) or a tower (vertical) with optional vertical stand.

Drive Protection System

DPS Access through F10 Setup during Boot

A diagnostic hard drive self- test. It scans critical physical components and every sector of the hard drive for physical faults and then reports any faults to the user

Running independently of the operating system, it can be accessed through a Windows-based diagnostics utility or through the computer's setup procedure. It produces an evaluation on whether the hard drive is the source of the problem and needs to be replaced

The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously running systems diagnostic that alerts the user to certain types of failures

SMART Technology (Self-Monitoring, Analysis and Reporting Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted

SMART I - Drive Failure Prediction

Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as re-allocated sector count, spin retry count, calibration retry count

SMART II - Off-Line Data Collection

By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user downtime and potential data loss from hard drive failure

SMART III - Off-Line Read Scanning with Defect Reallocation

IOEDC: I/O Error Detection Circuitry

SMART IV - End-to-End CRC for hard drives

Detects errors in Read/Write buffers on HDD cache RAM

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

After Market Options

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 92

AFTER MARKET OPTIONS

Graphics Solutions

DM

SFF

MT

AiO

Part Number

AMD Radeon RX 550X 4GB Display Card

X

5LH79AA

AMD Radeon R7 430 2GB 2DP Card

X X

5JW82AA

AMD Radeon R7 430 2GB DP+VGA Card

X X

5JW81AA

HP DisplayPort To HDMI True 4k Adapter

X

X X X

2JA63AA

HP DVI Cable Kit

X X

DC198A

HP HDMI Standard Cable Kit

X

X X X

T6F94AA

HP DisplayPort Cable Kit

X

X X X

VN567AA

HP DisplayPort To VGA Adapter

X

X X X

AS615AA

HP DisplayPort To DVI-D Adapter

X

X X X

FH973AA

Desktop Mini Accessories

DM

SFF

MT

AiO

Part Number

HP Desktop Mini Port Cover v2

X

13L69AA

HP Desktop Mini 2.5" SATA Drive Bay kit v2

X

13L70AA

HP Desktop Mini LockBox V2

X

3EJ57AA

HP Desktop Mini DVD-Writer ODD Expansion Module

X (Either one)

K9Q83AA

HP Desktop Mini I/O Expansion Module

K9Q84AA

HP Desktop Mini Security/Dual VESA Sleeve v3

X

13L67AA

HP Desktop Mini Security/Dual VESA Sleeve v3 with Power Supply Holder

X

13L68AA

HP B300 PC Mounting Bracket with Power Supply Holder X

7DB37AA

HP Desktop Mini Vertical Chassis Stand

X

G1K23AA

HP DM Power Supply Holder Kit v2

X

7DB38AA

Data Storage Drives

DM

SFF

MT

AiO

Part Number

HP PCIe NVME TLC 256GB SSD M.2 Drive

X

X X X

1CA51AA

HP PCIe NVME TLC 512GB SSD M.2 Drive

X

X X X

X8U75AA

HP 500GB 7200PRM SATA 6.0Gb/s 3.5” Hard Drive

X X

QK554AA

HP 1TB 7200rpm SATA 6Gb/s 3.5” Hard Drive

X X

QK555AA

HP 9.5mm G3 8/6/4 SFF G4 400 SFF/MT DVD Writer

X X

1CA53AA

HP ProDesk 400/600 MT 2nd 3.5” HDD cage

X

13L71AA

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

After Market Options

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 93

Input Devices

DM

SFF

MT

AiO

Part Number

HP Wired Desktop 320K Keyboard

X X X

X

9SR37AA

HP USB Antimicrobial Business Slim Keyboard and Mouse

X X X

X

Z9H50AA

HP USB Business Slim CCID SmartCard Keyboard

X X X

X

Z9H48AA

HP USB Keyboard

X X X

X

QY776AA

HP USB Premium Keyboard

X X X

X

Z9N40AA

HP Wired Desktop 320MK Mouse and Keyboard

X X X

X

9SR36AA

HP USB PS/2 Washable Keyboard & Mouse

X X X

X

BU207AA

HP Wireless Business Slim Keyboard and Mouse

X X X

X

N3R88AA

HP Wireless Premium Keyboard

X X X

X

Z9N41AA

HP PS/2 Business Slim Keyboard

X X

N3R86AA

HP Wired Desktop 320M Mouse

X X X

X

9VA80AA

HP Wireless Premium Mouse

X X X

X

1JR31AA

HP USB Grey v2 Mouse

X X X

X

Z9H74AA

HP USB Premium Mouse

X X X

X

1JR32AA

HP PS/2 Mouse

X X

QY775AA

HP USB 1000dpi Laser Mouse

X X X

X

QY778AA

HP USB Optical Mouse

X X X

X

QY777AA

HP USB Fingerprint Mouse

X X X X 4TS44AA

Communication Devices

DM

SFF

MT

AiO

Part Number

Intel Ethernet I210-T1 GbE NIC

X

E0X95AA

System Memory

DM

SFF

MT

AiO

Part Number

HP 4GB DDR4-2666 UDIMM

X X 3TK85AA

HP 8GB DDR4-2666 UDIMM

X X 3TK87AA

HP 16GB DDR4-2666 UDIMM

X X 3TK83AA

HP 32GB DDR4-2666 UDIMM

X X 1C918AA

HP 4GB DDR4-2666 SODIMM

X X 3TK86AA

HP 8GB DDR4-2666 SODIMM

X X 3TK88AA

HP 16GB DDR4-2666 SODIMM

X X 3TK84AA

HP 4GB DDR4-3200 UDIMM

X X 13L78AA

HP 8GB DDR4-3200 UDIMM

X X 13L76AA

HP 16GB DDR4-3200 UDIMM

X X 13L74AA

HP 32GB DDR4-3200 UDIMM

X X 13L72AA

HP 4GB DDR4-3200 SODIMM

X X 13L79AA

HP 8GB DDR4-3200 SODIMM

X X 13L77AA

HP 16GB DDR4-3200 SODIMM

X X 13L75AA

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

After Market Options

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 94

HP 32GB DDR4-3200 SODIMM

X X 13L73AA

Multimedia Devices

DM

SFF

MT

AiO

Part Number

HP Business Headset v2

X X X X T4E61AA

HP S101 Speaker Bar

X X X 5UU40AA

HP UC Speaker Phone v2

X X X 4VW02AA

Security Devices

DM

SFF

MT

AiO

Part Number

HP Business PC Security Lock v3 Kit

X X X 3XJ17AA

HP Dual Head Keyed Cable Lock

X X X X T1A64AA

HP Keyed Cable Lock 10mm

X X X X T1A62AA

HP Master Keyed Cable Lock 10mm

X X X X T1A63AA

Stands and Mounting Accessories

DM

SFF

MT

AiO

Part Number

HP B250 PC Mounting Bracket

X 8RA46AA

HP B300 PC Mounting Bracket

X 2DW53AA

HP B500 PC Mounting Bracket

X 2DW52AA

HP Quick Release Bracket 2

X X 6KD15AA

HP Single Monitor Arm

X BT861AA

HP ProOne G6 VESA Plate with Power Supply Holder

X 13L66AA

HP ProOne G6 AiO Adjustable Height Stand

X 13L65AA

I/O Devices

DM

SFF

MT

AiO

Part Number

HP DisplayPort Port Flex IO v2

X X X 13L54AA

HP HDMI Port Flex IO v2

X X X 13L55AA

HP Type-C USB 3.1 Gen2 Port Flex IO v2

X X 13L59AA

HP Type-C USB 3.1 Gen2 Port with 100W PD Flex IO v2

X 13L60AA

HP VGA Port Flex IO v2

X X X 13L53AA

HP Serial Port Flex IO v2

X X X 13L56AA

HP Serial Port Flex IO 2nd v2

X 13L57AA

HP Internal Serial Port (405/600/805/800)

X X 3TK82AA

HP PCIe x1 Parallel Port Card

X X N1M40AA

HP 800/600/400 G3 Serial/ PS/2 Adapter

X X 1VD82AA

NOTE: For more detail on HP I/O Devices please refer to the HP FLEX IO Option Cards QuickSpecs. URL is:

http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=c06042607

Intel® Optane™ Memory

DM

SFF

MT

AiO

Part Number

Intel® Optane™ Memory 16GB (Cache)

X X X X 1WV97AA

512GB Intel® Optane™ Memory H10 with SSD

X X X X 6VF55AA

QuickSpecs

HP ProDesk 600 G6 Commercial Desktops PC

Change Log

Not all configuration components are available in all regions/countries.

c06640111 – DA 16666 – Worldwide — Version 12 — February 24, 2021

Page 95

© Copyright 2021 HP Development Company, L.P. All rights reserved. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Celeron, Core, Pentium are registered trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark of its proprietor, used by HP, Inc. under license. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. NVIDIA, GeForce and NVS are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.

Date

Version History

Action

Description of Change

August 26, 2020

From v1 to v2

Addition

DVD-R DL - Up to 6X, DVD+R DL - Up to 6X, DVD-R SL/DL Up to 8X and DVD+R SL/DL Up to 8X on the read/write speed on the blue ray write drive specs on Storage section. Environmental section for AiO 22

September 3, 2002

From v2 to v3

Update

HP ProDesk 600/680 G6 PCI Microtower PC front view, Not shown call outs corrected

October 7, 2020

From v3 to v4

Addition

Environmental specs for SFF

October 21, 2020

From v4 to v5

Correction

External power supply section for DM

October 27, 2020

From v5 to v6

Correction

Processors footnotes section and Turbo boost specs corrected

November 18, 2020

From v6 to v7

Addition

Environmental data for HP ProDesk 600 G6 Microtower PC, HP ProDesk 600 PCI G6 Microtower PC and HP ProDesk 680 PCI G6 Microtower PC.

November 25, 2020

From v7 to v8

Addition

Environmental data for HP ProDesk 600 G6 Desktop Mini PC.

December 2, 2020

From v8 to v9

Update

HDMI versions to 2.0a in port flex sections

December 8, 2020

From v9 to v10

Update

Optional 4 Serial Port PCIe Card not shown call out in 680 G6, 600 G6 MTs and 600 G6 SFF rear images call outs sections

January 20, 2021

From v10 to v11

Update

Graphics Solutions in Amo section updated

February 24, 2021

From v11 to v12

Update

RAID sentence in At a glance section updated

HP ProDesk 600 G6 QuickSpecs

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Standard Features and Configurable Components

Technical Specifications - Processors

Technical Specifications – All-in-One Stand Specifications

Technical Specifications – Graphics

Technical Specifications – Storage

Technical Specifications – Networking and Communications

Technical Specifications – Input/Output Devices

Technical Specifications – Audio/Multimedia

Technical Specifications – Integrated Webcam and Microphone

Technical Specifications – Power

Technical Specifications – Weights and Dimensions

Technical Specifications – Miscellaneous Features

After Market Options

Change Log
