QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Overview
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 1

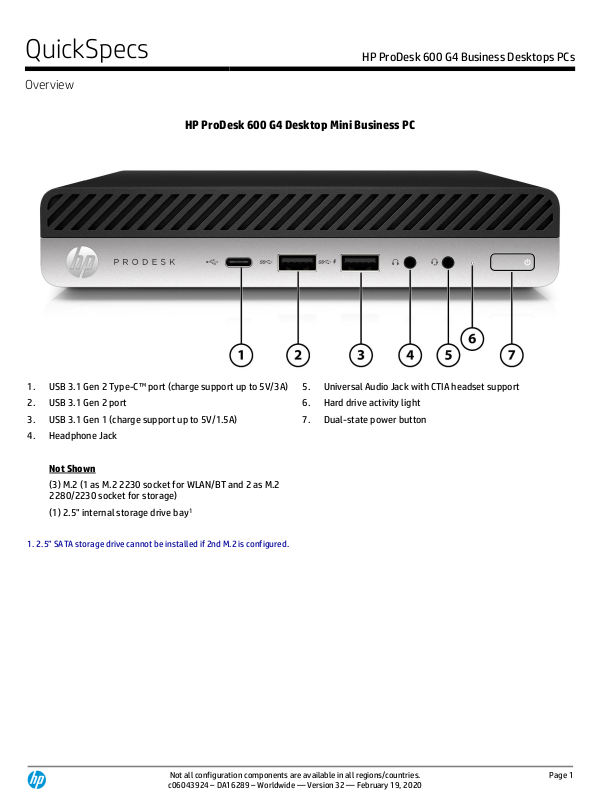

HP ProDesk 600 G4 Desktop Mini Business PC
1.
USB 3.1 Gen 2 Type-C™ port (charge support up to 5V/3A)
5.
Universal Audio Jack with CTIA headset support
2.
USB 3.1 Gen 2 port
6.
Hard drive activity light
3.
USB 3.1 Gen 1 (charge support up to 5V/1.5A)
7.
Dual-state power button
4.
Headphone Jack
Not Shown
(3) M.2 (1 as M.2 2230 socket for WLAN/BT and 2 as M.2
2280/2230 socket for storage)
(1) 2.5" internal storage drive bay1
1. 2.5” SATA storage drive cannot be installed if 2nd M.2 is configured.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Overview
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 2
HP ProDesk 600 G4 Desktop Mini Business PC
1.
(2) Dual-Mode DisplayPort™ 1.2 (DP++)
5.
RJ45 network connector
2.
(2) USB 3.1 Gen 2 port
6.
Power connector
3.
Configurable I/O Port (Choice of DisplayPort™ 1.2, HDMI™
2.0, VGA, USB Type-C™ with Display Output or Serial)
7.
External WLAN antenna opening1
8.
Standard lock slot (10 mm)
4.
(2) USB 3.1 Gen 1 port (Supporting wake from S4/S5 with
keyboard/mouse connected and enabled in BIOS)
9.
Cover release thumbscrew
10.
Internal WLAN antenna cover
11.
Padlock loop
1. Must be configured at time of purchase
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Overview
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 3
HP ProDesk 600 G4 Small Form Factor Business PC
1.
Slim optical drive (optional)
5.
(1) USB 2.0 port
2.
SD card 4.0 reader (optional)
6.
(1) USB 2.0 port (charge support up to 5V/1.5A)
3.
(1) USB 3.1 Gen 2 Type-C™ port (charge support up to
5V/3A)
7.
Universal Audio Jack with CTIA headset support
8.
Hard drive activity light
4.
(2) USB 3.1 Gen 2 port
9.
Dual-state power button
Not Shown
(1) PCI Express x16
(1) PCI Express x4
(2) M.2 (1 as M.2 2230 socket for WLAN/BT and 1 as M.2
2280/2230 socket for storage)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Overview
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 4
HP ProDesk 600 G4 Small Form Factor Business PC
1.
Audio-in connector
6.
(1) Configurable I/O Port (Choice of DisplayPort™ 1.2, HDMI™ 2.0,
VGA, USB Type-C™ with Display Output)
2.
Audio-out connector
7.
RJ-45 (network) jack
3.
(2) Dual-Mode DisplayPort™ 1.2 (DP++)
8.
(2) USB2.0 ports supporting wakening from S4/S5 with
keyboard/mouse connected)
4.
(1) Serial port (optional)
9.
(2) USB 3.1 Gen 2 port
5.
Standard lock slot
10.
(2) USB 3.1 Gen 1 port
11.
Power cord connector
Not Shown
Port
Bay
Optional PS/2 & serial port card (connected with PCA via
flyer cable)
(1) 9.5mm internal optical drive bay
Optional 4 Serial Port PCIe Card
(1) 3.5" internal storage drive bay or (2) 2.5"1 internal storage
drive bays
1. SFF can be configured with either (1) 3.5” or (2) 2.5” internal storage drive (2.5-inch drive needs adapter that can only be purchased when configuring
the PC from factory with a 2.5” drive)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Overview
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 5
HP ProDesk 600 G4 Microtower Business PC
1.
5.25-inch drive bay (behind bezel)
6.
Universal Audio Jack with CTIA headset support
2.
Slim optical drive (optional)
7.
(1) USB 2.0 port (charge support up to 5V/1.5A)
3.
SD card 4.0 reader (optional)
8.
(1) USB 2.0 port
4.
Dual-state power button
9.
(2) USB 3.1 Gen 2 port
5.
Hard drive activity light
10.
(1) USB 3.1 Gen 2 Type-C™ port (charge support up to
5V/3A)
Not Shown
(2) PCI Express x16 (one wired as an x4)
(2) PCI Express x1
1
(2) M.2 (1 as M.2 2230 socket for WLAN/BT and 1 as M.2
2280/2230 socket for storage)
1. On certain models, it would be (1) PCI Express x1 and (1) PCI
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 6
HP ProDesk 600 G4 Microtower Business PC
1.
Audio-out connector
6.
(2) USB 3.1 Gen 1 port, and supporting wakening from S4/S5
with keyboard/mouse connected)
2.
(2) Dual-Mode DisplayPort™ 1.2 (DP++)
7.
Standard lock slot
3.
(1) Configurable I/O Port (Choice of DisplayPort™ 1.2,
HDMI™ 2.0, VGA, USB Type-C™ with Display Output)
8.
RJ-45 (network) jack
4.
(2) USB2.0 ports
9.
(1) Serial port (optional)
5.
(2) USB 3.1 Gen 2 port
10.
Power cord connector
11.
Audio-in connector
Not Shown
Port
Bay
Optional PS/2 & serial port card (connected with PCA via
flyer cable)
(1) 5.25” internal half-height drive bay or (2) 2.5” internal
storage drive bays
(1) 3.5” internal storage drive bay
(1) 9.5mm internal optical drive bay
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 7
HP ProOne 600 G4 21.5" All-in-One Business PC (Touch & Non-Touch)
1.
Pull-up webcam (optional)
2.
Speakers (optional)
HD webcam (optional)
FHD webcam (optional)
FHD webcam with
Infrared (IR) sensors (optional)
1.
Dual microphones
1.
Dual microphones
1.
Dual microphones
2.
Webcam light
2.
Webcam light
2.
IR light
3.
HD webcam
3.
FHD webcam
3.
Webcam light
4.
IR webcam
5.
FHD webcam
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 8
HP ProOne 600 G4 21.5" All-in-One Business PC (Touch & Non-Touch)
1.
Optical disc drive (optional)
7.
(2) USB 3.1 Gen 1 port (Supporting wake from S4/S5
with keyboard/mouse connected and enabled in BIOS)
2.
SD media card reader
3.
USB 2.0 or 3.1 Gen 2 Type-C™ port1 (charge support up to
5V/3A)
8.
Dual-Mode DisplayPort™ 1.2 (DP++)
4.
USB 3.1 Gen 1 or Gen 2 charging port1 (charge support up to
5V/1.5A)
9.
RJ45 network connector
5.
USB 3.1 Gen 1 or Gen 2 port 1
10.
Power connector
6.
Universal Audio Jack with CTIA headset support
11.
Configurable I/O Port (Choice of DisplayPort™ 1.2,
HDMI™ 2.0 or Serial)
1. Upgradeable to USB 3.1 Gen 2 port if configured with additional video port and/or Intel® vPro™
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 9
AT A GLANCE
• Choice of four form factors: Microtower, Small Form Factor, Desktop Mini, and All-in-One
• HP developed and engineered UEFI V2.6 BIOS supporting security, manageability and software image stability
• Latest Intel® 300 Series chipsets supporting latest Intel® 8 Generation Core™ processors
1
, featuring integrated Intel® UHD
Graphics and optional Intel® vPro™ Technology (vPro™ is optional and requires factory configuration, available with Core
i5 and Core i7 processors only)4
• Processor support up to 65W for MT/SFF/AiO and up to 35W for Desktop Mini
• Intel® Optane memory available as optional feature
• Choice of Windows 10 Professional, Windows 10 Home, and FreeDOS 2.0
• Integrated 10/100/1000 Ethernet Controller, with optional 802.11ac Wi-Fi and/or Bluetooth® 5.0
• Up to 64 GB of DDR4 Synchronous Dynamic Random Access Memory (SDRAM) on MT and SFF, and up to 32 GB on DM and
AiO
• Support for up to three video outputs via two standard video connectors and an optional third video port connector which
provides the following choices: DisplayPort™ 1.2, HDMI™ 2.0, VGA, or USB Type-C™ with Display Output on MT/SFF/DM
• Multiple data drives setup in a RAID array is optional and requires product to be configured with vPro™ at purchase on
MT/SFF/DM
• Optional Serial port available on all form factors
• Optimized chassis design for SFF enabling dual 2.5" internal storage drives
• Configurable 400W PSU with VR ready
2
discrete graphics on MT
• New stylish micro-edge display bezel on All-in-One
• Trusted Platform Module (TPM) 2.0
3
• HP SureStart Gen4
• HP BIOSphere Gen4
• HP Client Security Manager Gen4
• HP Sure Click
• HP Manageability Integration Kit Gen2
• HP Image Assistant Gen3
• HP Support Assistant
• High efficiency energy saving power supply
• ENERGY STAR® certified. EPEAT ® 2019 registered where applicable. EPEAT ® registration varies by country. See
http://www.epeat.net for registration status by country.6 Search keyword generator on HP’s 3rd party option store for
solar generator accessories at http://www.hp.com/go/options
• Optimized for Skype® for Business for All-in-One
• PC chassis and all internal components and modules are manufactured with low halogen content
4
• Low halogen
4
• Dust filter available for MT/SFF/DM
• Protected by HP Services, including limited warranties up to 3-3-3 (terms and conditions vary by country; certain
restrictions and exclusions apply); Care Packs available with up to 5 years Next Business Day Onsite Hardware Support
• Compliance with CE (Class B) / FCC (Class B) / UL (UL609501) / CSA (CSA C22.2 No.60950-1-07) / ICES-003 / CCC / VCCI
(Class B) / KCC (Class B)
1. Multi core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit
from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software
configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance
2. VR-ready as optional feature, requires specific configuration for support
3. In some scenarios, machines pre-configured with Windows OS might ship with TPM turned off
4 External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low
halogen.
5. Some functionality of vPro technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd
party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependant on 3rd party software
providers. Compatibility of this generation of Intel vPro technology-based hardware with with future "virtual appliances" is yet to be determined.
6. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit http://www.epeat.net for more
information.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 10
PRODUCT NAME
HP ProDesk 600 G4 Desktop Mini Business PC
HP ProDesk 600 G4 Small Form Factor Business PC
HP ProDesk 600 G4 Microtower Business PC
HP ProOne 600 G4 21.5-inch All-in-One Business PC
OPERATING SYSTEM
Preinstalled
Windows® 10 Pro 641
Windows® 10 Pro 64 (National Academic License)
1,2
Windows® 10 Home 641
Windows® 10 Home Single Language 641
FreeDos
1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware,
drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always
enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.
2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary Update.
Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.
NOTE: Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the
Windows® 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide
any Windows® 8 or Windows 7 drivers on http://www.support.hp.com
CHIPSET
DM
SFF
MT
AiO
Intel® Q370
X X X
X
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 11
PROCESSORS
Intel® 8th Generation Core™ Processors
DM
SFF
MT
AiO
Intel® Core™ i7 8700 Processor
1,
65W
3.2 GHz base frequency
Up to 4.6 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
12 MB cache, 6 cores, 12 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP)
4
X X
X
Intel® Core™ i7+ 8700 Processor (Core i7 and Intel® Optane™)
1,2
65W
3.2 GHz base frequency
Up to 4.6 GHz max. turbo frequency with Intel® Turbo Boost
Technology
3
12 MB cache, 6 cores, 12 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rateSupports
Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X X
X
Intel® Core™ i7 8700T Processor1
35W
2.4 GHz base frequency
Up to 4.0 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
12 MB cache, 6 cores, 12 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X
X
Intel® Core™ i7+ 8700T Processor (Core i7 and Intel®
Optane™)
1,2
35W
2.4 GHz base frequency
Up to 4.0 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
12 MB cache, 6 cores, 12 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X
X
Intel® Core™ i5 8600 Processor1
65W
3.1 GHz base frequency
Up to 4.3 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X X X
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 12
DM
SFF
MT
AiO
Intel® Core™ i5+ 8600 Processor (Core i5 and Intel® Optane™)
1,2
65W
3.1 GHz base frequency
Up to 4.3 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X X X
Intel® Core™ i5 8600T Processor1
35W
2.3 GHz base frequency
Up to 3.7 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X
X
Intel® Core™ i5+ 8600T Processor (Core i5 and Intel®
Optane™)
1,2
35W
2.3 GHz base frequency
Up to 3.7 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X
X
Intel® Core™ i5 8500 Processor1
65W
3.0 GHz base frequency
Up to 4.1 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X X X
Intel® Core™ i5+ 8500 Processor (Core i5 and Intel® Optane™)
1,2
65W
3.0 GHz base frequency
Up to 4.1 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X X X
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 13
DM
SFF
MT
AiO
Intel® Core™ i5 8500T Processor1
35W
2.1 GHz base frequency
Up to 3.5 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X
X
Intel® Core™ i5+ 8500T Processor (Core i5 and Intel®
Optane™)
1,2
35W
2.1 GHz base frequency
Up to 3.5 GHz max. turbo frequency with Intel® Turbo Boost
Technology3
9 MB cache, 6 cores, 6 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2666 MT/s data rate
Supports Intel® vPro™ Technology and Intel® Stable Image
Platform Program (SIPP) 4
X
X
Intel® Core™ i3 8300 Processor
62W
3.7 GHz base frequency
8 MB cache, 4 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X X X
Intel® Core™ i3 8300T Processor
35W
3.2 GHz base frequency
8 MB cache, 4 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X
X
Intel® Core™ i3 8100 Processor
65W
3.6 GHz base frequency
6 MB cache, 4 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X X X
Intel® Core™ i3 8100T Processor
35W
3.1 GHz base frequency
6 MB cache, 4 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X
X
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 14
Intel® 8th Generation Pentium® Processors
DM
SFF
MT
AiO
Intel® Pentium® Gold G5600 Processor
54W
3.9 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X X
X
Intel® Pentium® Gold G5500 Processor
54W
3.8 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X X
X
Intel® Pentium® Gold G5500T Processor
35W
3.2 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel® UHD Graphics 630
Supports DDR4 memory up to 2400 MT/s data rate
X
X
Intel® Pentium® Gold G5400 Processor
54W
3.7 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel® UHD Graphics 610
Supports DDR4 memory up to 2400 MT/s data rate
X X
X
Intel® Pentium® Gold G5400T Processor
35W
3.1 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel® UHD Graphics 610
Supports DDR4 memory up to 2400 MT/s data rate
X
X
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 15
Intel® 8th Generation Celeron™ Processors
DM
SFF
MT
AiO
Intel® Celeron® G4900 Processor
54W
3.1 GHz base frequency
2 MB cache, 2 cores, 2 threads
Intel® UHD Graphics 610
Supports DDR4 memory up to 2400 MT/s data rate
X X
X
Intel® Celeron® G4900T Processor
35W
2.9 GHz base frequency
2 MB cache, 2 cores, 2 threads
Intel® UHD Graphics 610
Supports DDR4 memory up to 2400 MT/s data rate
X
X
1: Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily
benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and
software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
2. Intel® Optane™ memory system acceleration does not replace or increase the DRAM in your system and requires configuration with an optional
Intel® Core™ i(5 or 7)+ processor.
3. Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance varies depending
on hardware, software and overall system configuration. See www.intel.com/technology/turboboost for more information.
4. Some functionality of vPro technology, such as Intel Active management technology and Intel Virtualization technology, requires additional 3rd
party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent on 3rd party software
providers. Compatibility with future "virtual appliances" is yet to be determined
NOTE: S-Processor 6+2 DDR4 2666 MT/s 2 DPC UDIMM is supported when channel is populated with the same UDIMM part number
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 16
GRAPHICS
Integrated Graphics
DM
SFF
MT
AiO
Intel® UHD Graphics 630 (integrated on 8th gen Core i7/i5/i3 processors
and Pentium® Gold G5600, G5500, G5500T)
X X X
X
Intel® UHD Graphics 610 (integrated on Pentium® Gold G5400, G5400T,
Celeron® G4900, G4900T)
X X X
X
Optional Discrete Graphics Solutions
DM
SFF
MT
AiO
AMD® Radeon™ RX550 4GB FH 2DP+HDMI
X1
AMD® Radeon™ RX550X 4GB FH DP+HDMI
X
AMD® Radeon™ RX580 8GB FH 3DP+HDMI
X1
AMD® Radeon™ R7 430 2GB DP+VGA
X X1
AMD® Radeon™ R7 430 2GB 2DP
X X1
AMD® Radeon™ 535 with 2GB GDDR5*
X
AMD R7 430 64bits card (2DP)
X X
AMD R7 430 64bits card (DV+VGA)
X X
AMD® Radeon™ 520 1GB VGA + DP Graphics Card
X
NVIDIA® GeForce® GTX 1060 3GB FH DVI-D+HDMI+3DP
X1
NVIDIA® GeForce® GT 730 2GB DP DVI PCIe x8 GFX
X X1
NVIDIA® GeForce® RTX 2060 6GB DP+HDMI+DVI-D
X1
*AMD® Radeon™ 535 with 2GB GDDR5 must be configured at purchase.
1. The MT can support a single graphics card up to 75W. When configured with dual graphics cards support is limited to 35W for each.
Adapters and Cables
DM
SFF
MT
AiO
HP DisplayPort™ Cable
X X X
X
HP DisplayPort™ to DVI-D Adapter
X X X
X
HP DisplayPort™ to HDMI True 4K Adapter
X X X
X
HP DisplayPort™ to VGA Adapter
X X X
X
HP USB-C™ to USB 3.0
X X X
X
HP USB to Serial Port Adapter
X X X
X
HP Type-C to DisplayPort Adapter
X
X
1. The MT can support a single graphics card up to 75W. When configured with dual graphics cards support is limited to 35W for each.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 17
STORAGE
3.5 inch SATA Hard Disk Drives (HDD)
DM
SFF
MT
AiO
500 GB 7200RPM 3.5in SATA HDD
X X
1 TB 7200RPM 3.5in SATA HDD
X X
2 TB 7200RPM 3.5in SATA HDD
X X
2.5 inch SATA Hard Disk Drives (HDD)
DM
SFF
MT
AiO
500 GB 5400RPM 2.5in SATA SSHD
X X X
X
500 GB 7200RPM 2.5in SATA HDD
X X X
X
1 TB 7200RPM 2.5in SATA HDD
X X X
X
2 TB 5400RPM 2.5in SATA HDD
X X X
X
500 GB 7200RPM 2.5in Self Encrypted OPAL2 SATA HDD*
X X X
X
500 GB 7200RPM 2.5in Self Encrypted Federal Information Processing
Standard SATA HDD*
X X X
X
2.5 inch SATA Solid State Hybrid Drives (SSHD)
DM
SFF
MT
AiO
500 GB 5400RPM 2.5in SATA SSHD
X X X
X
1 TB 5400RPM 2.5in SATA SSHD
X X X
X
2 TB 5400RPM 2.5in SATA SSHD
X X
X
2.5 inch Solid State Drives (SSD)
DM
SFF
MT
AiO
256 GB 2.5in SATA Three Layer Cell SSD
X X X
X
512 GB 2.5in SATA Three Layer Cell SSD
X X X
X
256 GB 2.5in SATA Self Encrypted OPAL2 Three Layer Cell SSD*
X X X
X
512 GB 2.5in SATA Self Encrypted OPAL2 Three Layer Cell SSD*
X X X
X
256 GB 2.5in SATA Self Encrypted Federal Information Processing
Standard SSD*
X X X
X
512 GB 2.5in SATA Self Encrypted Federal Information Processing
Standard SSD*
X X X
X
M.2 PCIe NMVe Solid State Drives (SSD)
DM
SFF
MT
AiO
128GB M.2 2280 PCIe NVMe SSD
X X X
X
256GB M.2 2280 PCIe NVMe SSD
X X X
X
512GB M.2 2280 PCIe NVMe SSD
X X X
X
128GB M.2 2280 PCIe NVMe Three Layer Cell SSD
X X X
X
256GB M.2 2280 PCIe NVMe Three Layer Cell SSD
X X X
X
512GB M.2 2280 PCIe NVMe Three Layer Cell SSD
X X X
X
1TB M.2 2280 PCIe NVMe Three Layer Cell SSD
X X
X
256GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD*
X X X
X
512GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD*
X X X
X
NOTE*: Storage Drivelock does not work with Self Encrypting or Optane based storage.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 18
Optical Disc Drives
DM
SFF
MT
AiO
HP 9.5mm Slim DVD-ROM Drive
1
X X
X
HP 9.5mm Slim DVD Writer Drive
2
X X
X
HP 9.5mm Slim Blu-Ray Writer Drive
3
X X
X
1. HD-DVD disks cannot be played on this drive. No support for DVD-RAM. Actual speeds may vary. Don’t copy copyright-protected materials.
Double Layer discs can store more data than single layer discs. Discs burned with this drive may not be compatible with many existing single-layer
DVD drives and players.
2. Don't copy copyright-protected materials.
3. With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product.
Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and
your display may require HDCP support. HD-DVD movies cannot be played on this Desktop PC.
Media Card Reader
DM
SFF
MT
AiO
SD 4.0 with 5-in-1 Interface (Supports SD, SDXC, SDHC, UHS-I, UHS-II)
X X
SD 3.0 with 4-in-1 Interface (Supports SD, SDXC, SDHC, UHS-I)
X
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows
10) of system disk is reserved for the system recovery software.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 19
MEMORY
DM
SFF
MT
AiO
DDR4-2666 (Transfer rates up to 2666 MT/s), 32 GB, 2 SODIMM
X
X
DDR4-2666 (Transfer rates up to 2666 MT/s), 64 GB, 4 DIMM
X X
Memory Configuration
4 GB (4 GB x 1)
X X X
X
8 GB (4 GB x 2)
X X X
X
8 GB (8 GB x 1)
X X X
X
16 GB (8 GB x 2)
X X X
X
16 GB (16 GB x 1)
X X X
X
32 GB (16 GB x 2)
X X X
X
32 GB (8 GB x 4)
X X
64 GB (16 GB x 4)
X X
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system
resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
Memory modules support data transfer rates up to 2666 MT/s; actual data rate is determined by the system's configured processor and memory
configuration. See processor specifications for supported memory data rate.
NOTE: All memory slots are customer accessible / upgradeable.
NOTE: S-Processor 6+2 DDR4 2666 MT/s 2 DPC UDIMM is supported when channel is populated with the same UDIMM part number.
NETWORKING/COMMUNICATIONS
1
Ethernet (RJ-45)
DM
SFF
MT
AiO
Intel® I219-LM Gigabit Network Connection (standard)
X X X
X
Intel® I210-T1 PCIe x1 Gigabit Network Interface Card (optional)
X X
Wireless
1
Intel® 9560 802.11ac 2x2 with Bluetooth® M.2 Combo Card vPro™
X X X
X
Intel® 9560 802.11ac 2x2 with Bluetooth® M.2 Combo Card non-vPro™
X X X
X
Realtek RTL8822BE 802.11ac 2x2 with Bluetooth® M.2 Combo Card
X X X
X
Realtek RTL8821CE 802.11ac 1x1 with Bluetooth® M.2 Combo Card
X X X
X
1. Wireless access point and Internet service required and not included. Availability of public wireless access points limited. The specifications for
the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability
of the notebook to communicate with other 802.11ac WLAN devices
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 20
KEYBOARDS AND POINTING DEVICES
Keyboards
DM
SFF
MT
AiO
HP PS/2 Business Slim Standalone Wired Keyboard
X X
HP USB Business Slim Standalone Wired Keyboard
X X X
X
HP USB Business Slim Wired SmartCard CCID Keyboard
X X X
X
HP USB & PS/2 Washable Standalone Wired Keyboard
X X X
X
HP Premium Standalone Wireless Keyboard
X X
HP Collaboration Wireless Keyboard
X X X
X
HP USB Collaboration Wired Keyboard
X X X
X
HP USB Conferencing Wired Keyboard
X X X
X
HP USB Wired Keyboard
X X X
X
Standalone Wired Keyboard Value
X X
X
Keyboard & Mouse Combo
DM
SFF
MT
AiO
HP Premium Wireless Keyboard and Mouse
X X X
X
HP Premium USB Wired Keyboard and Mouse
X X
HP Business Slim Wireless Keyboard and Mouse
X X X
X
HP USB Keyboard and Mouse Healthcare Edition
X X X
X
HP USB Keyboard and Mouse Wired Value
X
X
HP USB PS/2 Washable Keyboard and Mouse Wired
X X
Mouse
DM
SFF
MT
AiO
HP USB Universal Wired Mouse
X
X
HP PS/2 Mouse
X X
HP USB Optical Mouse
X X X
X
HP USB Hardened Mouse
X X X
X
HP USB 1000dpi Laser Mouse
X X X
X
HP USB & PS/2 Washable Wired Mouse Standalone
X X X
X
HP USB Premium Wired Mouse
X X X
HP USB Fingerprint Reader Wired Mouse
X X X
X
NOTE: Availability may vary by country
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 21
SECURITY
DM
SFF
MT
AiO
Trusted Platform Module (TPM) 2.0 (Infineon SLB9670). Common Criteria
EAL4+ Certified. Convertible to FIPS 140-2 Certified mode.
X X X
X
Solenoid Lock & Intrusion Sensor
X
Intrusion Sensor (Optional)
X
X
Intrusion Sensor for DM (integrated in the PCA, can be enabled/disabled
through BIOS)
X
Support for chassis cable lock devices
X
(10 mm or
smaller)
X X X
Support for chassis padlocks devices
X X X
Support for table lock
X
SATA port disablement (via BIOS)
X X X
X
Serial, USB enable / disable (via BIOS)
X X X
X
Intel® Identify Protection Technology (IPT)1
X X X
X
Removable media write/boot control
X X X
X
Power-on password (via BIOS)
X X X
X
Setup password (via BIOS)
X X X
X
1. Models configured with Intel® Core™ processors have the ability to utilize advanced security protection for online transactions. IPT, used in
conjunction with participating web sites, provides double identity authentication by adding a hardware component in addition to the usual user
name and password. IPT is initialized through an HP Client Security module
PORTS
Internal Slots and Ports
DM
SFF
MT
AiO
M.2 PCIe
(1) M.2 PCIe x1 2230 (for
WLAN)
(2) M.2 PCIe x4
2280/2230 Combo (for
storage)
(1) M.2 PCIe x1 2230
(for WLAN)
(1) M.2 PCIe x4
2280/2230 Combo (for
storage)
(1) M.2 PCIe x1 2230
(for WLAN)
(1) M.2 PCIe x4
2280/2230 Combo (for
storage)
(1) M.2 PCIe x1 2230
(for WLAN)
(1) M.2 PCIe x4
2280/2230 Combo (for
storage)
PCI Express v3.0 x1
21
PCI Express v3.0 x4
1
PCI Express v3.0 x16
(wired as x4)
1
PCI Express v3.0 x16
1 1
PCI1
1
SATA port 3 4
DM SATA storage
connector
1
AiO SATA storage
connector
1
NOTE: For Desktop Mini with M.2 Storage config, there will be no SATA drive bracket. If you plan to use or upgrade the storage with any 2.5"
SATA drive, please select a DM SATA Drive Bracket (available as both factory configured and after market option).
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 22
Bays
DM
SFF
MT
AiO
5.25" Half Height
14
9mm Slim Optical Disc
Drive (ODD)
1 14
1
2
SD Card Reader 1 1 1
2.5" Internal Storage Drive
16
23 24
1
3.5" Internal Storage Drive
1 14
User Accessible Ports
DM
SFF
MT
AiO
USB 2.0 2 (front)
2 (rear)
2 (front)
2 (rear)
USB Type-C 2.0 1 (side)
5
USB 3.1 Gen 1
1 (front)
2 (rear)
2 (rear)
2 (rear)
2 (side)5
2 (rear)
USB 3.1 Gen 2
1 (front)
2 (rear)
2 (front)
2 (rear)
2 (front)
2 (rear)
USB Type-C 3.1 Gen 2
(15 W)
1 (front)
1 (rear) (optional)
1 (front)
1 (rear) (optional)
1 (front)
1 (rear) (optional)
Video
2 DisplayPort™ 1.2
(rear)
1 Optional configurable
video port (rear) (Choice
of DisplayPort™ 1.2,
HDMI™ 2.0, VGA, or USB
Type-C™ with display
output)
2 DisplayPort™ 1.2
(rear)
1 Optional
configurable video
port (rear) (Choice of
DisplayPort™ 1.2,
HDMI™ 2.0, VGA, or
USB Type-C™ with
display output)
2 DisplayPort™ 1.2
(rear)
1 Optional
configurable video
port (rear) (Choice of
DisplayPort™ 1.2,
HDMI™ 2.0, VGA, or
USB Type-C™ with
display output)
1 DisplayPort™ 1.2
(rear)
1 Optional
configurable video
port (rear) (Choice of
DisplayPort™ 1.2 or
HDMI™ 2.0)
Audio
1 Headphone (front)
1 Universal Audio Jack
with CTIA headset
support (front)
Front: 1 Universal
Audio Jack with CTIA
headset support
Rear: 1 Audio-out
1 Audio-in
Front: 1 Universal
Audio Jack with CTIA
headset support
Rear: 1 Audio-out
1 Audio-in
1 Universal Audio Jack
with CTIA headset
support (side)
Network Interface
RJ45
RJ45
RJ45
RJ45
Serial (RS-232)
1 (rear) (optional)
2 (rear) (optional)
2 (rear) (optional)
1 (rear) (optional)
1. On certain models, it would be (1) PCI Express x1 and (1) PCI. Maximum total of 4 PCI/PCIe slots supported on MT.
2. Must be configured at time of purchase
3. SFF can be configured with either (1) 3.5” or (2) 2.5” internal storage drive (2.5-inch drive needs adapter that can only be purchased when
configuring the PC from factory with a 2.5" drive.)
4. Configuration options will be (1) 5.25” internal half-height drive bay or (2) 2.5” internal storage drive bays, (1) 3.5” internal storage drive bay,
(1) 9.5mm internal optical drive bay
5. Upgradeable to USB 3.1 Gen 2 port 10 Gb/s signaling data rate* if configured with additional video port and/or Intel® vPro™
6. 2.5" SATA storage drive cannot be selected if 2nd M.2 is installed.
*Actual throughput may vary.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 23
SOFTWARE COMPONENTS AND APPLICATIONS WITH WINDOWS
Preinstalled Software
HP BIOSphere Gen417
HP DriveLock & Automatic DriveLock20
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Absolute Persistence Module19
Pre-boot Authentication
HP Wireless Wakeup
Software
HP Native Miracast Support15
HP Hotkey Support
HP Recovery Manager
HP Jumpstart
HP Support Assistant21
HP Noise Cancellation Software
Buy Office (sold separately)
Manageability Features
HP Driver Packs22
HP System Software Manager (SSM)
HP BIOS Config Utility (BCU)
HP Client Catalog
HP Manageability Integration Kit Gen223
Ivanti Management Suite24
HP Cloud Recovery38
Client Security Software
HP Client Security Manager Gen425 including:
HP Security Manager26 (including Credential Manager, HP Password Manager, HP Spare Key)
HP Device Access Manager
HP Power On Authentication
Windows Defender27
Security Management
HP Secure Erase18
RAID configurations
33
USB enable/disable (via BIOS)
Power-on password (via BIOS)
Setup password (via BIOS)
Support for chassis padlocks and cable lock devices
Integrated hood sensor
HP Sure Click
37
HP Sure Start Gen430
15. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming
17. HP BIOSphere Gen4 features may vary depending on the PC platform and configurations requires 8th Gen Intel® processors.
18. Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.
19. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be
purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery
Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 24
Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a
Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from Absolute Software.
20. Storage Drivelock does not work with Self Encrypting or Optane based storage.
21. HP Support Assistant requires Windows and Internet access.
22. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.
23. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html
24. Ivanti Management Suite subscription required.
25. HP Client Security Suite Gen 4 requires Windows and Intel® or AMD 8th generation processors.
26. HP Password Manager requires Internet Explorer or Chrome or FireFox. Some websites and applications may not be supported. User may
need to enable or allow the add-on / extension in the internet browser.
27. Windows Defender Windows Defender Opt In, Windows 10, and internet connection required for updates.
30. HP Sure Start Gen4 is available on HP ProDesk & ProOne products equipped with Intel® 8th generation processors.
33. RAID configuration is optional and does require a second hard drive. RAID 1 is pre-installed and functionality will require a second hard
drive.
37. HP Sure Click is available on most HP PCs and supports Microsoft® Internet Explorer and Chromium™. Supported attachments include
Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed.
38. HP Cloud Recovery is available for HP Elite and Pro desktops and laptops PCs with Intel® or AMD processors and requires an open, wired
network connection. Note: You must back up important files, data, photos, videos, etc. before use to avoid loss of data. Detail please refer to:
https://support.hp.com/us-en/document/c05115630.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 25
ENVIRONMENTAL & INDUSTRY
HP Prodesk 600 G4 Desktop Mini Business PC
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See
http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd
party option store for solar generator accessories at http://www.hp.com/go/options.
• TCO Certified
*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a Typically Configured Notebook.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation
(Short idle)
4.81 W
4.90 W
4.67 W
Normal Operation
(Long idle)
4.37 W
4.39 W
4.29 W
Sleep
0.56 W
0.60 W
0.55 W
Off
0.52 W
0.55W
0.52 W
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the
model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable
U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation
(Short idle)
16 BTU/hr
17 BTU/hr
16 BTU/hr
Normal Operation
(Long idle)
15 BTU/hr
15 BTU/hr
15 BTU/hr
Sleep
2 BTU/hr
2 BTU/hr
2 BTU/hr
Off
2 BTU/hr
2 BTU/hr
2 BTU/hr
NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
Typically Configured –
Idle
3.1
19
Fixed Disk – Random
writes
3.1
20
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:
• 3 USB ports
• 1 PC card slot (type I/II)
• 1 ExpressCard/54 slot
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 26
• 1 IEEE 1394 Port
• 2 SODIMM memory slots
• Optional expansion base docking station
• 1 multi-bay II storage port
• Interchangeable HDD
Spare parts are available throughout the warranty period and or for up to “5” years after the end of
production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater than 1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water
and Toxic Enforcement Act of 1986).
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.
• This product contains 0% post-consumer recycled plastic (by wt.)
• This product is 95.1% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
322 g
Internal:
PLASTIC/Polyethylene Expanded - EPE
33 g
PLASTIC/Polyethylene low density - LDPE
5 g
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to
the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
• Radioactive Substances
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 27
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_
Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
HP ProDesk 600 G4 Small Form Factor Business PC
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See
http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd
party option store for solar generator accessories at http://www.hp.com/go/options.
• TCO Certified
*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a Typically Configured Notebook.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation
(Short idle)
13.16 W
12.72 W
12.86 W
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 28
Normal Operation
(Long idle)
11.89 W
11.86 W
11.93 W
Sleep
1.04 W
1.05W
1.03 W
Off
0.91 W
0.92 W
0.91 W
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the
model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable
U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 60Hz
Normal Operation
(Short idle)
45 BTU/hr
43 BTU/hr
44 BTU/hr
Normal Operation
(Long idle)
41 BTU/hr
40 BTU/hr
41 BTU/hr
Sleep
3 BTU/hr
3 BTU/hr
3 BTU/hr
Off
3 BTU/hr
3 BTU/hr
3 BTU/hr
NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
Typically Configured –
Idle
3.2
22
Fixed Disk – Random
writes
3.2
22
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:
• 3 USB ports
• 1 PC card slot (type I/II)
• 1 ExpressCard/54 slot
• 1 IEEE 1394 Port
• 2 SODIMM memory slots
• Optional expansion base docking station
• 1 multi-bay II storage port
• Interchangeable HDD
Spare parts are available throughout the warranty period and or for up to 5 years after the end of
production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater than 1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water
and Toxic Enforcement Act of 1986).
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 29
• This product contains 0% post-consumer recycled plastic (by wt.)
• This product is 95.1% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
1170 g
Internal:
PAPER/Paper
17 g
PLASTIC/Polyethylene low density - LDPE
378 g
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to
the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 30
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_
Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
HP ProDesk 600 MicroTower G4 series
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See
http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd
party option store for solar generator accessories at http://www.hp.com/go/options.
• TCO Certified
*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Desktop model is based on a “Typically Configured Desktop”.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation
(Short idle)
13.599
13.514
13.099
Normal Operation
(Long idle)
12.211
11.765
12.367
Sleep
1.318
1.312
1.322
Off
0.616
0.618
0.618
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the
model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable
U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation
(Short idle)
46.3726
46.0827
44.6676
Normal Operation
(Long idle)
41.6395
40.1187
42.1715
Sleep
4.4944
4.4739
4.508
Off
2.1006
2.1074
2.1074
NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 31
Typically Configured –
Idle
4
29
Fixed Disk – Random
writes
4.4
33
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:
Spare parts are available throughout the warranty period and or for up to “5” years after the end of
production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater than 1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water
and Toxic Enforcement Act of 1986).
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.
• This product contains 0% post-consumer recycled plastic (by wt.)
• This product is 95.1% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
Internal:
PLASTIC/EPE (Expanded Polyethylene)
PLASTIC/Polyethylene low density
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to
the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 32
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_
Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
HP ProDesk 600 All-in-One G4 series
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See
http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd
party option store for solar generator accessories at http://www.hp.com/go/options.
• TCO Certified
*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Desktop model is based on a “Typically Configured Desktop”.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 33
Normal Operation
(Short idle)
Normal Operation
(Long idle)
Sleep
Off
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the
model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable
U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation
(Short idle)
Normal Operation
(Long idle)
Sleep
Off
NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Declared Noise
Emissions
(in accordance with
ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
Typically Configured –
Idle
4.3
32
Fixed Disk – Random
writes
4.4
33
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:
Spare parts are available throughout the warranty period and or for up to “5” years after the end of
production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater than 1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water
and Toxic Enforcement Act of 1986).
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.
• This product contains 0% post-consumer recycled plastic (by wt.)
• This product is 95.1% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 34
Internal:
PLASTIC/EPE (Expanded Polyethylene)
PLASTIC/Polyethylene low density
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to
the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Standard Features and Configurable Components (availability may vary by country)
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 35
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K_
Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
SERVICE AND SUPPORT
On-site Warranty1: Three-year (3-3-3) limited warranty delivers three years of on-site, next business day2 service for parts
and labor and includes free support 24 x 73. Three-year onsite and labor are not available in all countries. Service offers
terms up to 5 years by choosing an optional HP Care Pack. To choose the right level of service for your HP product, visit HP
Care Pack Central: http://www.hp.com/go/cpc.4
1. Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be offered in
your region.
2. On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not
available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
3. Technical telephone support applies only to HP-configured and third-party HP qualified hardware and software. Toll-free calling and
24 x 7 support may not be available in some countries.
4. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of
hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP services are governed by the
applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional
statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service
or the HP Limited Warranty provided with your HP Product.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Processors
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 36
PROCESSORS
Intel® 8th Generation Core™ Processors
All HP ProDesk & ProOne 600 G4 Business PC models featuring this technology include processors that are part of the Intel®
Stable Image Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP
ProDesk and ProOne 600 G4 Business PC.
Intel® Advanced Management Technology (AMT) v121 – An advanced set of remote management features and functionality
which provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked
client systems regardless of the system's health or power state. AMT 12 includes the following advanced management
functions:
• Support for configuration of Intel AMT 12.0 new capabilities
• No reset after provisioning
• Support changes to BIOS table 130
• Support for Microsoft Windows Server 2012 R2
• Support for New Microsoft SQL Server Versions including Standard and Enterprise editions
• Support for Intel SSD Prop 2500 Series
• Support for Intel Enterprise Digital Fence
• The Platform Discovery Utility can now discover these additional Intel products:
• Intel SSD Pro 2500 Series; Enterprise Digital Fence
• Intel Identity Protection Technology with One Time Password; Public Key Infrastructure; Multi Factor Authentication
• Intel Identity Protection Technology with Intel WiGig
• New Profile Editor and Profile Editor Plugin Interface
• New Required Permissions for Solutions Framework
1. Intel® Active Management Technology requires an Intel® AMT-enabled chipset, network hardware and software, as well as connection
with a power source and a corporate network connection. Setup requires configuration by the purchaser and may require scripting with the
management console or further integration into existing security frameworks to enable certain functionality. It may also require
modifications of implementation of new business processes.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Panel
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 37
DISPLAY PANEL SPECIFICATIONS
1
HP ProOne 600 G4 AIO
21.5" diagonal IPS widescreen WLED backlit anti-glare LCD (1920 x 1080)
Non-touch or optional touch
Projected Capacitive Touch supports up to 10 touch-points
Type
IPS WLED Backlit LCD
Active area (mm)
476.064 x 267.786
Native Resolution (HxV)
1920 x 1080
Refresh Rate
60 Hz @ 1920 x 1080
Aspect ratio
16:9
Pixel pitch (HxV)(mm)
0.24795 x 0.24795
Contrast ratio (typical)
1000:1
Brightness (typical)
250nits
Viewing angle (typical) (HxV)
178 ° x 178 °
Backlight lamp life (to half
brightness)
30,000 hours minimum
Color support
Up to 16.7 million colors with the use of FRC technology
Color gamut (typical)
NTSC 72%
Anti-glare
Yes
Response Time
14ms (Typical)
Default color temperature
Warm (6500K)
1. All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher
or lower.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Graphics
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 38
GRAPHICS
Intel® UHD Graphics (integrated)
Graphics Controller
Integrated
DisplayPort™
Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and MultiStream Technology for a maximum of 3 displays connected to any output controlled by Intel®
Graphics
HDMI
Supports HDMI 2.0a features
Supports HDCP 2.2
Supports audio over HDMI
VGA
VGA output
USB-C™ DP Alt Mode
DisplayPort™ over the USB-C™ module
Memory
The actual amount of maximum graphics memory can be >4GB. System memory is allocated for
graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an
optimal balance between graphics and system memory use.
Maximum Color Depth
up to 10 bits/color
Graphics/Video API Support
HEVC 10b Enc/Dec HW
VP9 10b Dec HW
HDR
Rec. 2020
DX12
Max. Resolution (VGA)
2048 x 1536@60Hz
Max. Resolution (HDMI)
4096 x 2160@60Hz
Max. Resolution (DP)
4096 x 2160@60Hz
AMD® Radeon™ R7 430 2 GB DP+VGA
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size(width)
2 GB (128-bit)
Memory Type
128M x 32 GDDR5
Max. Resolution (VGA)
2048x1536
Max. Resolution(DP)
4096x2160@60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
VGA+DP
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
AMD® Radeon™ R7 430 2 GB 2DP
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size(width)
2 GB(128-bit)
Memory Type
128M x 32 GDDR5
Max. Resolution(DP)
4096x2160@60Hz
Multi Display Support
2 displays
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Graphics
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 39
HDCP Compliance
Yes
Rear I/O connectors(bracket)
2DP
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
AMD R7 430 64bits card (2DP)
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size(width)
2 GB(64-bit)
Memory Type
256M x 32 GDDR5
Max. Resolution(DP)
4096x2160@60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
2DPx2
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
AMD R7 430 64bits card (DV+VGA)
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size(width)
2 GB(64-bit)
Memory Type
256M x 32 GDDR5
Max. Resolution(VGA)
2048x1536@60Hz
Max. Resolution(DP)
4096x2160@60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
DP + VGA
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
NVIDIA® GeForce® GTX1060 3 GB FH DVI-D+HDMI+3DP
Engine Clock
1506 MHz
Memory Clock
4004 MHz
Memory Size(width)
3 GB(192-bit)
Memory Type
128M x 32 GDDR5
Max. Resolution(DVI)
2560x1600@60Hz
Max. Resolution(HDMI)
4096x2160@60Hz
Max. Resolution(DP)
5120x3200@60Hz
Multi Display Support
4 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
DVI-D+HDMI+3DP
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Graphics
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 40
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<120W
PCB form-factor with bracket
ATX (Full height) PCB with ATX dual slot bracket
NVIDIA® GeForce® GT730 2GB DP DVI PCIe x8 GFX
Engine Clock
902 MHz
Memory Clock
1250 MHz
Memory Size(width)
2 GB (64-bit)
Memory Type
256Mx32 GDDR5
Max. Resolution(DVI)
2560 x 1600 x 30 bpp @ 60Hz (Dual Link)
Max. Resolution(DP)
4096 x 2160 x 24 bpp @ 60 Hz (DP1.2)
Multi Display Support
Up to 2 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
DL DVI-I + DP
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
35 W
PCB form-factor with bracket
2-pin fan connector for fan sink power/speed control
AMD® Radeon™ RX550 4GB FH 2DP+HDMI
Engine Clock
1183MHz
Memory Clock
7 Gbps
Memory Size(width)
4 GB(128-bit)
Memory Type
GDDR5
Max. Resolution(HDMI)
4096x2160 @ 60Hz
Max. Resolution(DP)
5120x2880 @ 60Hz
Multi Display Support
3 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
2DP+HDMI
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<62W
PCB form-factor with bracket
ATX (Full height) PCB with ATX single slot bracket
AMD® Radeon™ RX550X 4 GB PCIe x16
Engine Clock
1183MHz
Memory Clock
6 Gbps
Memory Size(width)
4 GB(128-bit)
Memory Type
GDDR5
Max. Resolution(HDMI)
4096x2160 @ 60Hz
Max. Resolution(DP)
5120x2880 @ 60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
HDMI, DP
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<50W
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Graphics
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 41
PCB form-factor with bracket
LP (low profile) PCB with FH/LP bracket
AMD® Radeon™ RX580 8 GB FH 3DP+HDMI
Engine Clock
1266 MHz
Memory Clock
400 MHz
Memory Size(width)
8 GB (256-bit)
Memory Type
256M x 32 GDDR5
Max. Resolution(HDMI)
4096x2160@60Hz
Max. Resolution(DP)
5120x3200@60Hz
Multi Display Support
4 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
HDMI DPx3
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<150W
PCB form-factor with bracket
ATX (Full height) PCB with ATX dual slot bracket
AMD® Radeon™ 535 with 2 GB GDDR5
Memory
2 GB 64-bit wide frame buffer operating at 1125MHz.
Controller Clock Speed
AMD Radeon™ 535 GPU operating at 1024 MHz
Architecture
Hybrid Graphics
AMD GPU uses Intel graphics controller for display control
Bus Connection
PCIE 3.0 x8
Graphics /API support
DIRECTX 12, Open GL 4.5, Open CL2.0, UVD
Display support
Same as for the Intel integrated graphics solution
Max. Resolution (HDMI)
4096 X 2160@60Hz
Max. Resolution (DP)
4096 X 2160@60Hz
AMD® Radeon™ 520 1GB Graphics Card
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size(width)
1GB(32-bit)
Memory Type
256M x 32 GDDR5
Max. Resolution(VGA)
2048x1536
Max. Resolution(DP)
4096x2160@60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
VGA+DP
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Graphics
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 42
NVIDIA® GeForce® RTX 2060 6 GB Graphics Card
Engine Clock
1680 MHz
Memory Clock
7000 MHz
Memory Size(width)
6 GB(192-bit)
Memory Type
256M x 32 GDDR6
Max. Resolution(DVI)
2560x1600@60Hz
Max. Resolution(HDMI)
4096x2160@60Hz
Max. Resolution(DP)
7680x4320@60Hz
Multi Display Support
3 displays
HDCP Compliance
Yes
Rear I/O connectors(bracket)
DVI+HDMI+DP
Cooling(active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption(W)
<170W
PCB form-factor with bracket
ATX (Full height) PCB with ATX dual slot bracket
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 43
HARD DISK AND SOLID-STATE STORAGE
500GB 7200RPM 3.5in SATA HDD
Capacity
500 GB
Rotational Speed
7,200 rpm
Interface
SATA 6.0 Gb/s
Buffer Size
16 MB
Logical Blocks
976,773,168
Seek Time
11 ms (Average)
Height
1 in/2.54 cm
Width
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
Operating Temperature
41° to 131° F (5° to 55° C)
1 TB 7200RPM 3.5in SATA HDD
Capacity
1 TB
Rotational Speed
7,200 rpm
Interface
SATA 6.0 Gb/s
Buffer Size
32 MB
Logical Blocks
1,953,525,168
Seek Time
11 ms (Average)
Height
1 in/2.54 cm
Width
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
2 TB 7200RPM 3.5in SATA HDD
Capacity
2 TB
Rotational Speed
7,200 rpm
Interface
SATA 6.0 Gb/s
Buffer Size
64 MB
Seek Time
11 ms (Average)
Height
1.028 in/26.11 mm
Width
4.0 in/101.6 mm
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 44
500 GB 7200RPM 2.5in SATA HDD
Capacity
500GB
Rotational Speed
7,200 rpm
Interface
SATA 6 Gb/s
Buffer Size
16 MB
Logical Blocks
976,773,168
Seek Time
12 ms (Average)
Height
0.267 in/6.8 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
1 TB 7200RPM 2.5in SATA HDD
Capacity
1 TB
Rotational Speed
7,200 rpm
Interface
SATA 6 Gb/s
Buffer Size
32 MB
Logical Blocks
1,953,525,168
Seek Time
12 ms (Average)
Height
0.374 in/9.5 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
2 TB 5400RPM 2.5in SATA HDD
Capacity
2 TB
Rotational Speed
5,400 rpm
Interface
SATA 6 Gb/s
Buffer Size
128MB
Logical Blocks
3,907,050,336
Seek Time
12 ms (Average)
Height
0.374 in/9.5 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 45
500 GB 7200RPM 2.5in Self Encrypted OPAL2 SATA HDD
Capacity
500 GB
Rotational Speed
Self-Encrypting (SED) Solid State Drive with SATA interface
Interface
SATA 6 Gb/s
Buffer Size
32 MB
Logical Blocks
976,773,168
Seek Time
12 ms (Average)
Height
0.267 in/6.8 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
500 GB 7200RPM 2.5in Self Encrypted Federal Information Processing Standard SATA HDD
Capacity
500 GB
Rotational Speed
Self-Encrypting (SED) Solid State Drive with SATA interface
Interface
SATA 6 Gb/s
Buffer Size
32 MB
Logical Blocks
976,773,168
Seek Time
12 ms (Average)
Height
0.267 in/6.8 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
500 GB 5400RPM 2.5in SATA SSHD
Capacity
500 GB
Rotational Speed
5,400 rpm
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
SATA 6 Gb/s
Buffer Size
64 MB
NAND Flash
8GB
Seek Time
12 ms (Average)
Height
0.267 in/6.8 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 46
1 TB 5400RPM 2.5in SATA SSHD
Capacity
1 TB
Rotational Speed
5,400 rpm
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
SATA 6 Gb/s
Buffer Size
64 MB
NAND Flash
8GB
Seek Time
12 ms (Average)
Height
0.374 in/9.5 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
2 TB 5400RPM 2.5in SATA SSHD
Capacity
2TB
Rotational Speed
5,400 rpm
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
SATA 6 Gb/s
Buffer Size
128 MB
NAND Flash
8GB
Seek Time
12 ms (Average)
Height
0.374 in/9.5 mm (nominal)
Width
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
128 GB 2.5in SATA Three Layer Cell SSD
Drive Weight
<50g
Capacity
128 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 70K/40K IOPS
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 380MB/s
Logical Blocks
250,069,680
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 47
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
256 GB 2.5in SATA Three Layer Cell SSD
Drive Weight
<62g
Capacity
256 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 55K/68K IOPS
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 450MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
512 GB 2.5in SATA Three Layer Cell SSD
Drive Weight
<50g
Capacity
512 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 92K/83K IOPS
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 500MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
256 GB 2.5in SATA Self Encrypted OPAL2 Three Layer Cell SSD
Drive Weight
<50g
Capacity
256 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 55K/80K IOPS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 48
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 500MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM; TCG-OPAL2.0 security
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
512 GB 2.5in SATA Self Encrypted OPAL2 Three Layer Cell SSD
Drive Weight
<50g
Capacity
512 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 92K/83K IOPS
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 500MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM; TCG-OPAL2.0 security
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
256 GB 2.5in SATA Self Encrypted Federal Information Processing Standard SSD
Drive Weight
<40g
Capacity
256 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 55K/83K IOPS
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 500MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM; FIPS 140-2 security
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 49
512 GB 2.5in SATA Self Encrypted Federal Information Processing Standard SSD
Drive Weight
<45g
Capacity
512 GB
Height
7mm
Length
100.45mm
Width
69.85mm
Interface
SATA 3.0 (6Gb/s)
Performance
Up to Random Read/Write = 92K/83K IOPS
Maximum Sequential Read
Up to 530MB/s
Maximum Sequential Write
Up to 500MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
DIPM; TRIM; FIPS 140-2 security
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
128 GB M.2 2280 PCIe NVMe SSD
Drive Weight
< 10g
Capacity
128 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 60K/50K IOPS
Maximum Sequential Read
Up to 1400MB/s
Maximum Sequential Write
Up to 395MB/s
Logical Blocks
250,069,680
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
256 GB M.2 2280 PCIe NVMe SSD
Drive Weight
< 10g
Capacity
256 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 120K/170K IOPS
Maximum Sequential Read
Up to 1600MB/s
Maximum Sequential Write
Up to 780MB/s
Logical Blocks
500,118,192
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 50
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
512 GB M.2 2280 PCIe NVMe SSD
Drive Weight
< 10g
Capacity
512 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 200K/180K IOPS
Maximum Sequential Read
Up to 1600MB/s
Maximum Sequential Write
Up to 860MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
128 GB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
128 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 140K/40K IOPS
Maximum Sequential Read
Up to 2800MB/s
Maximum Sequential Write
Up to 600MB/s
Logical Blocks
250,069,680
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
256 GB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
256 GB
Height
2.38mm
Length
80mm
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 51
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 150K/180K IOPS
Maximum Sequential Read
Up to 2700MB/s
Maximum Sequential Write
Up to 1000MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
512 GB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
512 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 270K/235K IOPS
Maximum Sequential Read
Up to 2900MB/s
Maximum Sequential Write
Up to 1100MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
1 TB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
1 TB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 290K/240K IOPS
Maximum Sequential Read
Up to 2900MB/s
Maximum Sequential Write
Up to 2100MB/s
Logical Blocks
2,000,409,264
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 52
256 GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD
Drive Weight
< 10g
Capacity
256 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 150K/180K IOPS
Maximum Sequential Read
Up to 2700MB/s
Maximum Sequential Write
Up to 1000MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2; TCG-OPAL2 security
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
512 GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD
Drive Weight
< 10g
Capacity
512 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Performance
Up to Random Read/Write = 270K/235K IOPS
Maximum Sequential Read
Up to 2900MB/s
Maximum Sequential Write
Up to 1100MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2; TCG-OPAL2 security
NOTE: For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to
36 GB (for Windows 10) of system disk is reserved for the system recovery software.
HP 9.5mm Slim DVD-ROM Drive
Height
9.5 mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Dimensions (W x H x D)
5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel
Weight (max)
Up to 0.31 lb (140g) without bezel
Read Speeds
DVD+R/-R/+RW/
-RW/+R DL /-R DL Up to 8X
DVD-ROM Up to 8X
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 53
CD-ROM, CD-R Up to 24X
CD-RW Up to 24X
Access time
(typical reads, including
settling)
Random: DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)
Full stroke: DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Power
Source Slimline SATA DC power receptacle
DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p
DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum)
Environmental conditions
(operating - non-condensing)
Temperature 41° to 122° F (5° to 50° C)
Relative Humidity 10% to 80%
Maximum Wet Bulb Temperature 84° F (29° C)
HP 9.5mm Slim DVD Writer Drive
Height
9.5 mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D)
5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel
Weight (max)
0.31 lb (140 g)
Read Speeds
DVD-R DL - Up to 6X
DVD+R - Up to 8X
DVD+RW - Up to 8X
DVD+R DL - Up to 6X
DVD-R - Up to 8X
DVD-RW - Up to 6X
CD-R - Up to 24X
CD-RW - Up to 10X
DVD-RW, DVD+RW - Up to 8X
DVD-R DL, DVD+R DL - Up to 8X
DVD+R, DVD-R - Up to 8X
DVD-ROM DL, DVD-ROM - Up to 8X
CD-ROM, CD-R - Up to 24X
CD-RW - Up to 24X
Access time
(typical reads, including
settling)
Random DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)
Full Stroke DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Stop Time 6 seconds (typical)
Power
Source Slimline SATA DC power receptacle
DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p
DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum)
Environmental conditions
(operating - non-condensing)
Temperature 41° to 122° F (5° to 50° C)
Relative Humidity 10% to 80%
Maximum Wet Bulb Temperature 84° F (29° C)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Storage
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 54
HP 9.5mm Slim Blu-Ray Writer Drive
Height
9.5 mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 128 GB QL, 100 GB TL, 50 GB DL or 25 GB standard SL
Dimensions (W x H x D)
5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel
Weight (max)
0.29 lb (132 g)
Write Speeds
BD-R Up to 4X
BD-RE Up to 2X
BD-R Up to 6X
BD-RE Up to 2X
DVD-R Up to 8X
DVD-RW Up to 6X
DVD+R Up to 8X
DVD+RW Up to 8X
DVD-RAM Up to 5X
CD-R Up to 24X
CD-RW Up to 10X
Read Speeds
BD-R Up to 6X
BD-RE Up to 4X
BD-ROM Up to 6X
BD-R Up to 6X
BD-RE Up to 6X
DVD-ROM Up to 8X
DVD-R Up to 8X
DVD-RW Up to 8X
DVD+R Up to 8X
DVD+RW Up to 8X
BDMV (AACS Compliant
Disc)
Up to 6x/2x (Read/Play)
DVD-RAM Up to 5x
DVD-Video (CSS
Compliant Disc)
Up to 8x/4x (Read/Play)
CD-R/RW/ROM Up to 24x
CD-DA (DAE) Up to 24X/10X (Read/Play)
Access time
(typical reads, including
settling)
Random BD-ROM: 205 ms (typical), DVD-ROM: 185 ms (typical),
CD-ROM: 165 ms (typical)
Full Stroke BD-ROM: 350 ms (typical), DVD-ROM: 345 ms (typical),
CD-ROM: 340 ms (typical)
Power
Source Slimline SATA DC power receptacle
DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p
DC Current 5 VDC -1200 mA typical, 2000 mA maximum
Environmental conditions
(operating - non-condensing)
Temperature 41° to 122° F (5° to 50° C)
Relative Humidity 10% to 80%
Maximum Wet Bulb Temperature 84° F (29° C)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 55
NETWORKING AND COMMUNICATIONS
Intel® I219-LM Gigabit Network Connection (standard)
Connector
RJ-45
System Interface
PCI (Intel proprietary) + SMBus
Data rates supported
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 802.3 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s
IEEE Compliance
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Performance
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload (ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
Jumbo Frame 9K
Power consumption
Cable Disconnection: 25mW
100Mbps Full Run: 450mW
1000bp Full Run: 1000mW
WoL Enable(S3/S4/S5): 50mW
WoL Disable(S3/S4/S5): 25mW
Power
Management
ACPI compliant – multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power consumption
Management Interface
Auto MDI/MDIX Crossover cable detection
IT Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame);
Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Security & Manageability
Intel® vPro™ support with appropriate Intel® chipset components
Intel® I210-T1 PCIe x1 Gigabit Network Interface Card (optional)
Connector
RJ-45
System Interface
PCI (Intel proprietary) + SMBus
Data rates supported
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 802.3 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s
IEEE Compliance
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Performance
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload (ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
Jumbo Frame 9K
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 56
Power consumption
Cable Disconnetion: 25mW
100Mbps Full Run: 450mW
1000bp Full Run: 1000mW
WoL Enable(S3/S4/S5): 50mW
WoL Disable(S3/S4/S5): 25mW
Power
Management
ACPI compliant – multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power consumption
Management Interface
Auto MDI/MDIX Crossover cable detection
IT Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame);
Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Security & Manageability
Intel® vPro™ support with appropriate Intel® chipset components
Intel® 9560 802.11ac 2x2 with Bluetooth® M.2 Combo Card vPro™
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, ,80MHz & 160MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
• 802.11b : +18.5dBm minimum
• 802.11g : +17.5dBm minimum
• 802.11a : +18.5dBm minimum
• 802.11n HT20(2.4GHz) : +15.5dBm minimum
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 57
• 802.11n HT40(2.4GHz) : +14.5dBm minimum
• 802.11n HT20(5GHz) : +15.5dBm minimum
• 802.11n HT40(5GHz) : +14.5dBm minimum
• 802.11ac VHT80(5GHz) : +11.5dBm minimum
• 802.11ac VHT160(5GHz) : +11.5dBm minimum
Power Consumption
• Transmit mode 2.0 W
• Receive mode 1.6 W
• Idle mode (PSP) 180 mW (WLAN Associated)
• Idle mode 50 mW (WLAN unassociated)
• Connected Standby 10mW
• Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
802.11b, 1Mbps : -93.5dBm maximum
802.11b, 11Mbps : -84dBm maximum
802.11a/g, 6Mbps : -86dBm maximum
802.11a/g, 54Mbps : -72dBm maximum
802.11n, MCS07 : -67dBm maximum
802.11n, MCS15 : -64dBm maximum
802.11ac, MCS0 : -84dBm maximum
802.11ac, MCS9 : -59dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN
MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or
864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum
transmit power of +4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 58
Bluetooth Software Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Security & Manageability
Intel® vPro™ support with appropriate Intel® chipset components
Intel® 9560 802.11ac 2x2 with Bluetooth® M.2 Combo Card non-vPro™
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, , 80MHz & 160MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 59
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
• 802.11b : +18.5dBm minimum
• 802.11g : +17.5dBm minimum
• 802.11a : +18.5dBm minimum
• 802.11n HT20(2.4GHz) : +15.5dBm minimum
• 802.11n HT40(2.4GHz) : +14.5dBm minimum
• 802.11n HT20(5GHz) : +15.5dBm minimum
• 802.11n HT40(5GHz) : +14.5dBm minimum
• 802.11ac VHT80(5GHz) : +11.5dBm minimum
• 802.11ac VHT160(5GHz) : +11.5dBm minimum
Power Consumption
• Transmit mode2.0 W
• Receive mode 1.6 W
• Idle mode (PSP) 180 mW (WLAN Associated)
• Idle mode 50 mW (WLAN unassociated)
• Connected Standby 10mW
• Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
802.11b, 1Mbps : -93.5dBm maximum
802.11b, 11Mbps : -84dBm maximum
802.11a/g, 6Mbps : -86dBm maximum
802.11a/g, 54Mbps : -72dBm maximum
802.11n, MCS07 : -67dBm maximum
802.11n, MCS15 : -64dBm maximum
802.11ac, MCS0 : -84dBm maximum
802.11ac, MCS9 : -59dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN
MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230: 2.3 x 22.0 x 30.0 mm
Weight
Type 2230: 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2/5.0 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2/5.0 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 60
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5)
or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum
transmit power of +4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Bluetooth Software Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Realtek RTL8822BE 802.11ac 2x2 with Bluetooth® M.2 Combo Card
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz & 80MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 61
Security
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
• 802.11b : +18.5dBm minimum
• 802.11g : +17.5dBm minimum
• 802.11a : +18.5dBm minimum
• 802.11n HT20(2.4GHz) : +15.5dBm minimum
• 802.11n HT40(2.4GHz) : +14.5dBm minimum
• 802.11n HT20(5GHz) : +15.5dBm minimum
• 802.11n HT40(5GHz) : +14.5dBm minimum
• 802.11ac VHT80(5GHz) : +11.5dBm minimum
• 802.11ac VHT160(5GHz) : +11.5dBm minimum
Power Consumption
• Transmit mode2.0 W
• Receive mode 1.6 W
• Idle mode (PSP) 180 mW (WLAN Associated)
• Idle mode 50 mW (WLAN unassociated)
• Connected Standby 10mW
• Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
802.11b, 1Mbps : -93.5dBm maximum
802.11b, 11Mbps : -84dBm maximum
802.11a/g, 6Mbps : -86dBm maximum
802.11a/g, 54Mbps : -72dBm maximum
802.11n, MCS07 : -67dBm maximum
802.11n, MCS15 : -64dBm maximum
802.11ac, MCS0 : -84dBm maximum
802.11ac, MCS9 : -59dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN
MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230: 2.3 x 22.0 x 30.0 mm
Weight
Type 2230: 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 62
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels.
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or
864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum
transmit power of + 4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Realtek RTL8821CE 802.11ac 1x1 with Bluetooth® M.2 Combo Card
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 63
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power
• 802.11b : +14dBm minimum
• 802.11g : +12dBm minimum
• 802.11a : +12dBm minimum
• 802.11n HT20(2.4GHz) : +12dBm minimum
• 802.11n HT40(2.4GHz) : +12dBm minimum
• 802.11n HT20(5GHz) : +10dBm minimum
• 802.11n HT40(5GHz) : +10dBm minimum
• 802.11ac VHT80(5GHz) : +10dBm minimum
Power Consumption
• Transmit mode2.0 W
• Receive mode 1.6 W
• Idle mode (PSP) 180 mW (WLAN Associated)
• Idle mode 50 mW (WLAN unassociated)
• Connected Standby 10mW
• Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
802.11b, 1Mbps : -93.5dBm maximum
802.11b, 11Mbps : -84dBm maximum
802.11a/g, 6Mbps : -86dBm maximum
802.11a/g, 54Mbps : -72dBm maximum
802.11n, MCS07 : -67dBm maximum
802.11n, MCS15 : -64dBm maximum
802.11ac, MCS0 : -84dBm maximum
802.11ac, MCS9 : -59dBm maximum
Antenna type
High efficiency antenna.
One embedded dual band 2.4/5 GHz antenna is provided to the card to support WLAN
communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications - Networking
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 64
Bluetooth Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or
864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with a maximum
transmit power of +4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 65
INPUT/OUTPUT DEVICES
HP USB Business Slim Standalone Wired Keyboard
Physical Characteristics
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions
(L x W x H)
171.97 x 68.35 x 8.27 in (436.8± 1.5 x 137.6± 1.0 x 21.0±
1.0 cm)
Weight
1.32 lb (0.6± 0.08 kg)
Electrical
Operating voltage
4.4-5.25VDC
Power consumption
50-mA maximum (with 5 VDC power supplied and three
LEDs ON)
System interface
USB or PS/2
ESD
Contact Discharge: 2, 4,6,8KV
Air Discharge: 2, 4, 8,10,12.5KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±12.5g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
Minus 30 degrees to 60 degrees Celsius
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, C-Tick, KC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 66
HP USB Business Slim Wired SmartCard CCID Keyboard
Physical Characteristics
Keys
104, 105, 109 layout (depending upon country)
Dimensions
(L x W x H)
17.34 x 5.68 x 0.78in (440.6 x 144.5 x 1.98 cm)
Weight
1.32 lb (598g)
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption
100mA (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 12.5 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±10g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
CE Marking, TUV, EAC, FCC, cULus/CSAus, ICES, RCM, VCCI, KCC, BSMI, KCC, EAC, ICES, RCM
Ergonomic compliance
ISO 9241-4, TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 67
HP USB & PS/2 Washable Standalone Wired Keyboard
Physical Characteristics
Keys
104, 105 layout (depending upon country)
Dimensions
(L x W x H)
17.68 x 6.68 x 1.22 in (449.18 x 169.66 x31.2 mm)
Weight
1.57 lb (710g)
Electrical
Operating voltage
5V +- 5%
Power consumption
50mA
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
55±10g nominal peak force with tactile feedback
Switch life
20 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
7.2 ft (2.2 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-4° to 149° F (-20° to 65° C)
Operating humidity
10% to 95% (non-condensing at ambient)
Non-operating humidity
0% to 95% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 68
HP Premium Standalone Wireless Keyboard
Physical Characteristics
Keys
104, 105 layout (depending upon country)
Dimensions
(L x W x H)
17.04 x 5.55 x 0.52 in (433 x 141 x13.2 mm)
Weight
1.54 lb (698g)
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption
35mA (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±10g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, C-Tick, KC
Ergonomic compliance
TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 69
HP USB Premium Wired Keyboard
Physical Characteristics
Keys
104, 105 layout (depending upon country)
Dimensions
(L x W x H)
17.04 x 5.55 x 0.52 in (433 x 141 x13.2 mm)
Weight
1.54 lb (698g)
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption
35mA (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±10g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, C-Tick, KC
Ergonomic compliance
TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 70
HP Collaboration Wireless Keyboard
Physical Characteristics
Keys
109,110 layout (depending upon country)
Dimensions
(L x W x H)
17.04 x 5.55 x 0.52 in (433 x 141 x13.2 mm)
Weight
1.54lb (700g)
Electrical
Operating voltage
4.2VDC, +/-5%
Power consumption
70mA (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±10g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 85% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, FCC, CE Mark, VCCI, BSMI, KCC, EAC, ICES, RCM, EMC
Ergonomic compliance
TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 71
HP USB Collaboration Wired Keyboard
Physical Characteristics
Keys
109,110 layout (depending upon country)
Dimensions
(L x W x H)
17.04 x 5.55 x 0.52 in (433 x 141 x13.2 mm)
Weight
1.48 lb (670g)
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption
70mA (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±10g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 85% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, FCC, CE Mark, VCCI, BSMI, KCC, EAC, ICES, RCM, EMC
Ergonomic compliance
TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 72
HP USB Conferencing Wired Keyboard
1.
Function Keys
6.
End/Decline a Call
2.
F11 Lync or Skype for Business Contact list
1
7.
Answer a Call
3.
F12 Lync or Skype for Business Calendar
2
8.
Microphone Mute
4.
Share Screen
9.
Volume Up/Down
5.
Stop Webcam
10.
Audio Mute
1. Microsoft Lync 2013, or Skype for Business, or Microsoft Outlook 2013 Contact list
2. Microsoft Lync 2013, or Skype for Business, or Microsoft Outlook 2013 Calendar
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 73
HP USB Wired Keyboard
Physical Characteristics
Keys
104, 105, 106, 108, 109 layouts
Dimensions
(L x W x H)
18.12 x 6.47 x 1.10 in (460.28 x 164.31 x 27.88 mm)
Weight
1.98 lb (900g) min
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption
50mA Max (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
60±14g nominal peak force with tactile feedback
Switch life
20 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
CUL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC
Ergonomic compliance
TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 74
Standalone Wired Keyboard Value
Physical Characteristics
Keys
104, 105 layout (depending upon country)
Dimensions
(L x W x H)
18.15 x 6.02 x 1.08 in (461 x 153 x 27.4 mm)
Weight
1.32 lb (600g) min
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption
50mA Max (All LED on)
System interface
USB Type A plug connector
ESD
Contact Discharge: 8 KV Air Discharge: 15 KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Mid-profile design
Switch actuation
60±10g nominal peak force with tactile feedback
Switch life
10 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC
Ergonomic compliance
TUVGS
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 75
HP USB Keyboard Healthcare Edition
Physical Characteristics
Keys
98 (US Layout), 99(EU Layout)
Dimensions
(L x W x H)
13.6x4.5x1.0 in (345x115x25 mm) (L x W x H)
Weight
0.7 lbs (307 g)
Electrical
Operating voltage
4.75 to 5.25VDC
Power consumption
100-mA maximum
System interface
USB Type A plug connector
ESD
Contact Discharge: ±4 KV Air Discharge: ±8KV
EMI - RFI
Conforms to FCC rules for a Class B computing device
Mechanical
Keycaps
Low-profile design
Switch actuation
55±10g nominal peak force with tactile feedback
Switch life
8 million keystrokes (Life tester)
Switch type
Membrane switch
Key-leveling mechanisms
N/A
Cable length
1820+30/-20mm
6 ft (1.8 m)
Environmental
Acoustics
<40-dBA maximum sound pressure level
Operating temperature
32° to 122° F (0° to 50° C)
Non-operating temperature
23° to 131° F (-5° to 55° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 90% (non-condensing at ambient)
Operating shock
NA
Non-operating shock
NA
Operating vibration
NA
Non-operating vibration
NA
Drop (out of box)
30 in (76 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76 cm) on steel, 10-drop sequence
Approvals
FCC, CE Mark, C-Tick, ICES-003 and IP65.
Ergonomic compliance
N/A
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 76
HP USB Universal Wired Mouse
Dimensions (H x L x W)
4.53 x 2.50 x 1.40 in (115 x 63.46 x 35.48 mmm)
Weight
0.18lb (80g)
Environmental
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption (typical)
50mA Max
Resolution
1,000 DPI
Sensor
Pixart PAN3606DL
Tracking speed
30 inch/sec (max)
Tracking acceleration
9G(max), 1G=9.8m/s2
Mechanical
Connector
USB 2.0
Cable length
6 ft (1.8 m)
Color
Jack Black
Regulatory approvals
Compliant
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 77
HP USB Optical Mouse
Dimensions (H x L x W)
4.53 x 2.48 x1.46 in (115.2x 63 x37 mm)
Weight
0.22lb (101.6g)
Environmental
Operating temperature
41° to 122° F (5° to 50° C)
Non-operating temperature
(-4° to 140° F )(-20° to 60° C)
Operating humidity
10% to 85% (non-condensing at ambient)
Non-operating humidity
5% to 95% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Electrical
Tracking speed
30 inch/sec (max)
Tracking acceleration
8G(max), 1G=9.8m/s2
System interface
USB or PS/2
Mechanical
Switch actuation
60±15g nominal peak force with tactile feedback
Switch life
3 million keystrokes (Life tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Color
Jack Black
Regulatory approvals
Compliant
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, C-Tick, KC
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 78
HP USB 1000dpi Laser Mouse
Dimensions (H x L x W)
115 * 62.9 * 37 mm (L * W * H)
Weight
0.22lb (101.6g)
Environmental
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption (typical)
100mA
Resolution
1,000 DPI
Sensor
PixArt vendor Laser USB mouse sensor
Tracking speed
30 inch/sec (max)
Tracking acceleration
8G(max), 1G=9.8m/s2
Mechanical
Connector
USB 2.0
Cable length
6 ft (1.8 m)
Color
Jack Black
Regulatory approvals
Compliant
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 79
HP USB Premium Wired Mouse
Dimensions (H x L x W)
4.21 x 2.64 x 1.52 in (107 x 67 x 38.7 mmm)
Weight
0.19lb (90g)
Environmental
Operating temperature
50° to 122°F (10° to 50° C)
Non-operating temperature
-22° to 140°F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
50 g, 6 surfaces
Non-operating shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating vibration
4 g peak acceleration
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption (typical)
12mA
Resolution
800, 1200, 1600 DPI
Sensor
Pixart PAN3606DL
Tracking speed
30 inch/sec (max)
Tracking acceleration
8G(max), 1G=9.8m/s2
Mechanical
Connector
USB 2.0
Cable length
6 ft (1.8 m)
Color
Jack Black
Regulatory approvals
Compliant
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, C-Tick, KC
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – I/O Devices
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 80
HP USB Fingerprint Reader Wired Mouse
Dimensions (H x L x W)
107 x 67 x 38.7 mm (L x W x H)
Weight
85g
Environmental
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Electrical
Operating voltage
5 VDC, +/-5%
Power consumption (typical)
130mA
Resolution
1,200 DPI
Sensor
PixArt vendor Laser USB mouse sensor
Tracking speed
30 inch/sec (max)
Tracking acceleration
8G(max), 1G=9.8m/s2
Mechanical
Connector
USB 2.0
Cable length
6 ft (1.8 m)
Color
Jack Black
Regulatory approvals
Compliant
UL, FCC, CE Mark, TUV GS, VCCI, BSMI, RCM, KCC, EAC
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Audio
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 81
AUDIO/MULTIMEDIA
HP ProDesk 600 G4 Desktop Mini Business PC
Type
Integrated
HD Stereo Codec
Conexant CX20632
Audio I/O Ports
Front: 1 - Headset connector supports a CTIA style headset and is re-taskable as a Line-in, Lineout, Microphone-in or Headphone-out port
1 - Headphone port
All ports are 3.5mm and support stereo
Internal Speaker Amplifier
2W class D mono amplifier for the internal speaker only. External speakers must be powered
Multi-streaming Capable
Playback multi-streaming can be enabled in the audio control panel to allow independent audio
streams to be sent to/from the front and rear jacks or integrated speaker.
Sampling
Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz
to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC
Wavetable Syntheses
Yes - Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
Internal Speaker
Yes
HP ProDesk 600 G4 Small Form Factor Business PC
Type
Integrated
HD Stereo Codec
Conexant CX20632
Audio I/O Ports
Front: 1 - Headset connector supports a CTIA style headset and is re-taskable as a Line-in, Lineout, Microphone-in or Headphone-out port
1 - Headphone port
Rear: Line-out
Line-in All ports are 3.5mm and support stereo
Internal Speaker Amplifier
2W class D mono amplifier for the internal speaker only. External speakers must be powered
Multi-streaming Capable
Playback multi-streaming can be enabled in the audio control panel to allow independent audio
streams to be sent to/from the front and rear jacks or integrated speaker.
Sampling
Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz
to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC
Wavetable Syntheses
Yes - Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
Internal Speaker
Yes
HP ProDesk 600 G4 Microtower Business PC
Type
Integrated
HD Stereo Codec
Conexant CX20632
Audio I/O Ports
Front: 1 - Headset connector supports a CTIA style headset and is re-taskable as a Line-in, Lineout, Microphone-in or Headphone-out port
Rear: Line-Out
Line-in which is retaskable as a Microphone Input
All ports are 3.5mm and support stereo
Internal Speaker Amplifier
2W class D mono amplifier for the internal speaker only. External speakers must be powered
Multi-streaming Capable
Playback multi-streaming allows independent audio streams to be sent to/from the front and
rear jacks or integrated speaker.
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Audio
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 82
Sampling
Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz
to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC
Wavetable Syntheses
Yes - Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
Internal Speaker
Yes
HP ProOne 600 G4 AIO PC
Type
Integrated
HD Stereo Codec
Conexant CX3601
Audio I/O Ports
Side 3.5mm headset connector supports an OMTP or CTIA style headset and is re-taskable as a
Line-in, Line-out, Microphone-in or Headphone-out port
Internal Speaker Amplifier
2W per channel class D stereo amplifier for the internal speakers only
Multi-streaming Capable
Playback multi-streaming allows independent audio streams to be sent to/from the side jack and
integrated speakers.
Sampling
Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit; 44.1 kHz
to 192 kHz for DAC and 44.1 kHz to 96 kHz for ADC
Wavetable Syntheses
Yes - Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
Internal Speaker
Yes - Stereo
INTEGRATED WEBCAM AND MICROPHONE
Optional integrated 1 MP HD RGB webcam & microphone; maximum resolution of 1280 x 720
Optional integrated 2 MP Full HD RGB webcam & microphone; maximum resolution of 1920 x 1080
Optional integrated 2 MP Full HD RGB webcam with IR sensor & microphone; maximum resolution of 1920 x 1080
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Power
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 83
POWER
HP ProDesk 600 G4 Desktop Mini Business PC
UNIT ENVIRONMENT AND OPERATING CONDITIONS
General Unit Operating Guidelines
• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit
is operated within the specified operating range.
• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
• Never restrict airflow into the computer by blocking any vents or air intakes.
• Do not stack computers on top of each other or place computers so near each other that they are subject to each other's
re-circulated or preheated air.
• Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other
foreign matter can block the vents and limit the airflow.
• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 5°C ~35°C
Non-Operating: -40°C ~66°C
Relative Humidity
Operating 5% to 90% relative humidity at max inlet temperature
Non Operating 5% to 90% relative humidity at max inlet temperature
Maximum Altitude
(unpressurized)
Operating: 5000m
Non-operating: 50000ft (15240 m)
HP ProDesk 600 G4 Small Form Factor Business PC
Unit Environment and Operating Conditions
General Unit Operating Guidelines
• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that
unit is operated within the specified operating range.
• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
• Never restrict airflow into the computer by blocking any vents or air intakes.
• Do not stack computers on top of each other or place computers so near each other that they are subject to each
other's re-circulated or preheated air.
• Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other
foreign matter can block the vents and limit the airflow.
• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating : 5°C ~35°C
Non-Operating : -40°C ~66°C
Relative Humidity
Operating 5% to 90% relative humidity at max inlet temperature
Non Operating 5% to 90% relative humidity at max inlet temperature
Maximum
Altitude (unpressurized)
Operating: 5000m
Non-operating: 50,000 ft (15240 m)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Power
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 84
HP ProDesk 600 G4 Microtower Business PC
UNIT ENVIRONMENT AND OPERATING CONDITIONS
General Unit Operating Guidelines
• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit
is operated within the specified operating range.
• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
• Never restrict airflow into the computer by blocking any vents or air intakes.
• Do not stack computers on top of each other or place computers so near each other that they are subject to each other's
re-circulated or preheated air.
• Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other
foreign matter can block the vents and limit the airflow.
• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 5°C ~35°C
Non-Operating: -40°C ~66°C
Relative Humidity
Operating 5% to 90% relative humidity at max inlet temperature
Non Operating 5% to 90% relative humidity at max inlet temperature
Maximum Altitude
(unpressurized)
Operating: 5000m
Non-operating: 50,000 ft (15240 m)
HP ProOne 600 G4 AIO PC
UNIT ENVIRONMENT AND OPERATING CONDITIONS
General Unit Operating Guidelines
• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit
is operated within the specified operating range.
• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
• Never restrict airflow into the computer by blocking any vents or air intakes.
• Do not stack computers on top of each other or place computers so near each other that they are subject to each other's
re-circulated or preheated air.
• Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other
foreign matter can block the vents and limit the airflow.
• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 5°C ~35°C
Non-Operating: -40°C ~66°C
Relative Humidity
Operating 5% to 90% relative humidity at max inlet temperature
Non Operating 5% to 90% relative humidity at max inlet temperature
Maximum Altitude
(unpressurized)
Operating: 5000m
Non-operating: 50,000 ft (15240 m)
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Power
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 85
DM
SFF
MT
AiO
External Power
Supplies
65W EPS, 89% average
efficiency at 115V &
230Vac
N/A
N/A
90W EPS, active PFC, 88%
efficiency in 115Vac / 89%
efficiency in 230Vac
120W EPS, active PFC, 88%
efficiency in 115Vac / 89%
efficiency in 230Vac
80 PLUS Platinum
N/A
180W active PFC
90/92/89% efficient at
20/50/100% load (115V)
91/93/90% efficient at
20/50/100% load (230V)
250W active PFC / 80
PLUS Platinum
400W active PFC / 80
PLUS Platinum
90/92/89% efficient at
20/50/100% load
(115V)
91/93/90% efficient at
20/50/100% load
(230V)
N/A
Operating Voltage
Range
90Vac~264Vac
90Vac~264Vac
90Vac~264Vac
90Vac~264Vac
Rated Voltage Range
100Vac~240Vac
100Vac~240Vac
100Vac~240Vac
100Vac~240Vac
Rated Line Frequency
50HZ~60HZ
50HZ~60HZ
50HZ~60HZ
50HZ~60HZ
Operating Line
Frequency
47HZ~63HZ
47HZ~63HZ
47HZ~63HZ
47HZ~63HZ
Rated Input Current
≦1.6A
≦2.3A
250W≦3A
400W≦5.2A
90W≦1.2A
120W≦2.2A
Rated Input Current
with Energy Efficient*
Power Supply
≦1.6A
≦2.3A
250W≦3A
400W≦5.2A
90W≦1.2A
120W≦2.2A
DC Output
+19.5V
+12V
+12V
+19.5V
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Power
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 86
DM
SFF
MT
AiO
Current Leakage (NFPA
99: 2102)
Less than 500
microamps of leakage
current at 264 Vac with
the ground wire
disconnected, as
required for Non-patient
Electrical Appliances and
Equipment used in a
patient care facility or
that contact patients in
normal use. Per section
10.3.5.1.
Less than 100
microamps of leakage
current at 264 Vac with
the ground wire intact
with normal polarity, as
required for Non-patient
Electrical Appliances and
Equipment used in a
patient care facility or
that contact patients in
normal use. Per section
10.3.5.1.
Less than 500
microamps of leakage
current at 264 Vac with
the ground wire
disconnected, as
required for Nonpatient Electrical
Appliances and
Equipment used in a
patient care facility or
that contact patients in
normal use. Per section
10.3.5.1.
Less than 100
microamps of leakage
current at 264 Vac with
the ground wire intact
with normal polarity, as
required for Nonpatient Electrical
Appliances and
Equipment used in a
patient care facility or
that contact patients in
normal use. Per section
10.3.5.1.
Less than 500
microamps of leakage
current at 264 Vac with
the ground wire
disconnected, as
required for Nonpatient Electrical
Appliances and
Equipment used in a
patient care facility or
that contact patients in
normal use. Per section
10.3.5.1.
Less than 100
microamps of leakage
current at 264 Vac with
the ground wire intact
with normal polarity, as
required for Nonpatient Electrical
Appliances and
Equipment used in a
patient care facility or
that contact patients in
normal use. Per section
10.3.5.1.
Less than 500 microamps
of leakage current at 264
Vac with the ground wire
disconnected, as required
for Non-patient Electrical
Appliances and Equipment
used in a patient care
facility or that contact
patients in normal use. Per
section 10.3.5.1.
Less than 100 microamps
of leakage current at 264
Vac with the ground wire
intact with normal polarity,
as required for Non-patient
Electrical Appliances and
Equipment used in a patient
care facility or that contact
patients in normal use. Per
section 10.3.5.1.
Power Supply Fan
N/A
50mm variable speed
70mm variable speed
N/A
Power cord length
6.0 ft. (1.83 m)
6.0 ft. (1.83 m)
6.0 ft. (1.83 m)
6.0 ft. (1.83 m)
Dimensions
113.5mm x 55mm x
30mm
200mm x 85mm x 53mm
165mm x 95mm x
73mm
90W : 132mm x 57mm x
30mm
120W : 148mm x 75.5mm x
25.4mm
The harmonic input current requirements must be met under the following operating conditions:
Load Requirements: 50% and 100%
Input Voltage: 230Vac/50Hz.
For active power factor correction the power factor at 50% &100% loads shall be greater than 0.9 over the entire nominal input
voltage range (100-127VAC and 200-240VAC).
Condition
Standard Efficiency
82/85/82%
85/88/85%
87/90/87%
90/92/89%
Input Voltage
10% of Rated Load
-
75%
81%
84%
84%
115Vac/60HZ
20% of Rated Load
-
82%
85%
87%
90%
115Vac/60HZ
50% of Rated Load
-
85%
88%
90%
92%
115Vac/60HZ
PF>0.9
PF>0.9
PF>0.9
PF>0.9
PF>0.95
100% of Rated Load
70%
82%
85%
87%
89%
115Vac/60HZ
PF>0.9
PF>0.9
PF>0.9
PF>0.9
PF>0.9
230Vac/50HZ
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Weights and Dimensions
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 87
WEIGHTS & DIMENSIONS
DM
SFF
MT
Chassis (W x D x H)
6.97 x 6.89 x 1.35 in
177 x 175 x 34.2 mm
3.74 x 11.7 x 10.6 in
95 x 296 x 270 mm
6.69 x 10.79 x 13.3 in
170 x 274 x 338 mm
System Volume
64 cu in
1.05 L
463 cu in
7.6 L
960 cu in
15.74 L
System Weight 1
2.74 lbs
1.25 kg
9.98 lbs
4.54 kg
15.77 lbs
7.14 kg
Max Supported Weight
(desktop orientation)
N/A
77 lb
35 kg
77 lb
35 kg
Packaging (W x D x H)
19.57 x 5.04 x 8.78 in
497 x 128 x 223 mm
15.71 x 9.06 x 19.65 in
399 x 230 x 499 mm
15.35 x 11.73 x 19.65 in
390 x 298 x 499 mm
Shipping Weight
6.52 lbs
2.97 kg
16.12 lbs
7.32 kg
22.64 lbs
10.28kg
Shipping Weight (Molded Pulp)
N/A
16.62 lbs
7.54 kg
23.15 lbs
10.50 kg
Palletization Profile
18-units per layer
5 or 6 layers max
depending on details of
air freight
90 or 108 units per palet
depending on details of
air freight
45.354 x 39.13 x 57.80 in,
1152 x 994 x 1468 mm
(include pallet)
6-units per layer
10 layer max
60 per pallet
47.24 x 39.37 x 95.95 in,
1200 x 1000 x 2438 mm
(including pallet)
6-units per layer
7 layer max
42 per pallet
47.24 x 39.37 x 87.79 in, 1200 x
1000 x 2230 mm (including
pallet)
1. Configured with 1 HDD & 1 ODD; DM configured with 1 HDD only
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Weights and Dimensions
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 88
All in One Dimensions
Weight
21.5 Non-Touch Product
Weight (Unboxed)
Without Stand: 8.61 ~ 10.36 lbs, 3.91 ~ 4.7 kg
Cantilever Stand: 10.93 ~ 12.68 lbs, 4.96 ~ 5.75 lbs
Height Adjustable Stand: 12.74 ~ 14.48 lbs, 5.78 ~ 6.57 kg
21.5 Touch Product Weight
(Unboxed)
Without Stand: 8.64 ~ 10.19 lbs, 3.92 ~ 4.62 kg
Cantilever Stand: 10.96 ~ 12.5 lbs, 4.97 ~ 5.67 kg
Height Adjustable Stand: 12.76 ~ 14.31 lbs, 5.79 ~ 6.49 kg
21.5 Shipping Weight (Boxed)
Without Stand: 16.17 ~ 20.0 lbs, 7.34 ~ 9.08 kg
Cantilever Stand: 18.85 ~ 22.69 lbs, 8.55 ~ 10.29 kg
Height Adjustable Stand: 20.66 ~ 24.67 lbs, 9.37 ~ 11.19 kg
21.5 Shipping Weight (Pallet) Air Ship Container
Without Stand: 485.2 ~ 605.44 lbs, 220.08 ~ 274.62kg
Cantilever Stand: 452.5 ~ 548.69 lbs, 205.25 ~ 248.88 kg
Height Adjustable Stand: 495.49 ~ 591.61 lbs, 224.93 ~ 268.56
Dimensions (W x D x H)
21.5 System Dimensions
(including Touch, Non-Touch )
Without Stand: 19.26 x 2.04 x 12.64 in, 489.1 x 51.9 x 321 mm
Cantilever Stand: 19.26 x 5.9 x 14.35 in, 489.1 x 149.97 x 364.4 mm
Height Adjustable Stand: 19.26 x 8.21 x 14.32 in, 489.1 x 208.47 x 363.69 mm
21.5 Shipping Dimensions
(Boxed)
Without Stand: 24.88 x 7.17 x 18.31 in, 632 x 182 x 465 mm
Cantilever Stand: 23.46 x 9.69 x 18.43 in, 596 x 246 x 468 mm
Height Adjustable Stand: 23.46 x 9.69 x 18.43 in, 596 x 246 x 468 mm
21.5 Shipping Dimensions
(Pallet) - Air Ship Container
Without Stand: 47.24 x 39.37 x 60.59 in, 1200 x 1000 x 1539 mm
Cantilever Stand: 47.24 x 39.37 x 60.94 in, 1200 x 1000 x 1548 mm
Height Adjustable Stand: 47.24 x 39.37 x 60.94 in, 1200 x 1000 x 1548 mm
21.5 Pallet Quantity (including
Touch, Non-Touch)
Without Stand: 30
Cantilever Stand: 24
Height Adjustable Stand: 24
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Miscellaneous Features
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 89
MISCELLANEOUS FEATURES
Management Features
• Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or
powered-off state without affecting other elements of the system.
• Intel® Wired for Management support; industry wide initiative to make Intel® architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
• Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button
Serviceability Features
• Dual colored power LED on front of computer to indicate either normal or fault condition
• Diagnostic LED Explanation Table:
o Power LED will blink red 2 to 5 times, then blink white 2 or more times, then repeat (with beep tones for each
blink initially):
▪ 2 red + 2 white User must provide file for BIOS recovery (USB storage typically)
▪ 2 red + 3 white User must enter a key sequence to proceed with recovery by policy
▪ 2 red + 4 white BIOS recovery is in progress
▪ 3 red + 2 white Memory could not be initialized
▪ 3 red + 3 white Graphics adaptor could not be found
▪ 3 red + 4 white Power supply failure / not connected
▪ 3 red + 5 white Processor not installed
▪ 3 red + 6 white Current processor does not support an enabled feature
▪ 4 red + 2 white Processor has exceeded its temperature threshold / system thermal shutdown
▪ 4 red + 3 white System internal temperature has exceeded its threshold
▪ 5 red + 2 white System controller firmware is not valid
▪ 5 red + 3 white System controller detected BIOS is not executing
▪ 5 red + 4 white BIOS could not complete initialization / PCA failure
▪ 5 red + 5 white System controller rebooted the system after a health or recovery timer triggered
• HP PC Hardware Diagnostics UEFI:
o This utility enables hardware level testing outside the operating system on many components. The diagnostics
can be invoked by pressing F2 at POST, and is available as a download from HP Support
• System/Emergency ROM
• Flash ROM
• CMOS Battery Holder for easy replacement
• Flash Recovery with Video Configuration Record Software5
• 5 Aux Power LED on System PCA
• Processor ZIF Socket for easy Upgrade
• Over-Temp Warning on Screen (Requires IM Agents)
• Clear Password Jumper
• DIMM Connectors for easy Upgrade
• Clear CMOS Button
• NIC LEDs (integrated) (Green & Amber)
• Dual Color Power and HD LED - To Indicate Normal Operations and Fault Conditions
• Color coordinated cables and connectors
• Tool-less Hood Removal
• Front power switch
• System memory can be upgraded without removing the system board or any internal components
• Tool-less Hard Drive, CD & Diskette Removal (For MT, SFF, and DM only)
• Green Pull Tabs, and Quick Release Latches for easy Identification
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – Miscellaneous Features
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 90
Additional Features
Tower Orientation
Product can be oriented as either a desktop (horizontal) or a tower (vertical) for MT,
SFF, and DM only
Drive Protection System
DPS Access through F10 Setup during Boot
A diagnostic hard drive self- test. It scans critical physical components and every
sector of the hard drive for physical faults and then reports any faults to the user
Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain
types of failures
SMART Technology (Self-Monitoring,
Analysis and Reporting Technology)
Allows hard drives to monitor their own health and to raise flags if imminent failures
were predicted
SMART I - Drive Failure Prediction
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count
SMART II - Off-Line Data Collection
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure
SMART III - Off-Line Read Scanning with
Defect Reallocation
IOEDC: I/O Error Detection Circuitry
SMART IV - End-to-End CRC for hard
drives
Detects errors in Read/Write buffers on HDD cache RAM
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – After Market Options
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 91
AFTER MARKET OPTIONS
Graphics Solutions
DM
SFF
MT
AiO
Part Number
AMD Radeon RX 550 4GB 2DP Card
X
3TK71AA
AMD Radeon R7 430 2GB 2DP Card
X X
3MQ82AA
HP DisplayPort To HDMI True 4k Adapter
X
X X X
2JA63AA
HP DVI Cable Kit
X
X X X
DC198A
HP HDMI Standard Cable Kit
X
X X X
T6F94AA
HP DisplayPort Cable Kit
X
X X X
VN567AA
HP DisplayPort To VGA Adapter
X
X X X
AS615AA
HP DisplayPort To DVI-D Adapter
X
X X X
FH973AA
Desktop Mini Accessories
DM
SFF
MT
AiO
Part Number
HP Desktop Mini G3 Port Cover Kit
X
1ZE52AA
HP G4 Mini 2.5-inch SATA Drive Bay Kit
X
3TK91AA
HP Desktop Mini LockBox V2
X
3EJ57AA
HP Desktop Mini 500GB HDD/I/O Expansion Module
X (Either one)
K9Q82AA
HP Desktop Mini DVD-Writer ODD Expansion Module
K9Q83AA
HP Desktop Mini I/O Expansion Module
K9Q84AA
HP Desktop Mini Security/Dual VESA Sleeve v2
X
2JA32AA
HP Desktop Mini Vertical Chassis Stand
X
G1K23AA
HP DM VESA Power Supply Holder Kit
X (Must use in
conjunction with Dual
VESA Sleeve V2)
1RL87AA
Data Storage Drives
DM
SFF
MT
AiO
Part Number
HP 256GB SATA TLC Non-SED Solid State Drive
X
X X X
P1N68AA
HP PCIe NVME TLC 256GB SSD M.2 Drive
X
X X X
1CA51AA
HP PCIe NVME TLC 512GB SSD M.2 Drive
X
X X X
X8U75AA
HP PCIe NVME TLC 512GB SSD PCIe Drive
X X
Z4L70AA
HP 500GB 7200PRM SATA 6.0Gb/s 3.5” Hard Drive
X X
QK554AA
HP 1TB 7200rpm SATA 6Gb/s 3.5” Hard Drive
X X
QK555AA
HP SATA SuperMulti JB Drive
X
QS208AA
HP 9.5mm Slim Removable SATA 500GB
X X
T7G14AA
HP 9.5mm G3 8/6/4 SFF G4 400 SFF/MT DVD Writer
X
1CA53AA
HP 9.5mm G3 800/600 Tower DVD-Writer
X
1CA52AA
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – After Market Options
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 92
Input Devices
DM
SFF
MT
AiO
Part Number
HP USB Grey SmartCard CCID Keyboard (EMEA Only)
X X
J7H70AA
HP USB Antimicrobial Business Slim Keyboard and Mouse
(China Only)
X X
X
Z9H50AA
HP USB Business Slim CCID SmartCard Keyboard
X X X
X
Z9H48AA
HP USB Business Slim (Grey) Keyboard (EMEA Only)
X X X
X
Z9H49AA
HP USB Business Slim Keyboard
X X X
X
N3R87AA
HP USB Business Slim Keyboard and Mouse and
Mousepad
X X
X
T4E63AA
HP USB Collaboration Keyboard
X X X
Z9N38AA
HP USB Conferencing Keyboard
X
K8P74AA
HP USB Keyboard
X X X
X
QY776AA
HP USB Keyboard and Mouse Healthcare Edition
X X X
X
1VD81AA
HP USB Premium Keyboard
X X X
X
Z9N40AA
HP USB PS/2 Washable Keyboard & Mouse
X X X
X
BU207AA
HP Wireless Business Slim Keyboard and Mouse
X X X
X
N3R88AA
HP Wireless Collaboration Keyboard
X X X
Z9N39AA
HP Wireless Premium Keyboard
X X
Z9N41AA
HP PS/2 Business Slim Keyboard
X X
N3R86AA
HP USB Grey v2 Mouse (EMEA only)
X X X
X
Z9H74AA
HP USB Premium Mouse
X X X
X
1JR32AA
HP PS/2 Mouse
X X
QY775AA
HP USB 1000dpi Laser Mouse
X X X
X
QY778AA
HP USB Hardened Mouse
X X X
X
P1N77AA
HP USB Mouse
X X X
X
QY777AA
Communication Devices
DM
SFF
MT
AiO
Part Number
Intel 9260 802.11ac non-vPro™ PCIe x1 Card
X
X
3TK89AA
Realtek 8822BE 802.11ac PCIe x1 Card
X
X
3TK90AA
System Memory
DM
SFF
MT
AiO
Part Number
HP 4GB DDR4-2666 DIMM
X X 3TK85AA
HP 8GB DDR4-2666 DIMM
X X 3TK87AA
HP 16GB DDR4-2666 DIMM
X X 3TK83AA
HP 4GB DDR4-2666 SODIMM
X X 3TK86AA
HP 8GB DDR4-2666 SODIMM
X X 3TK88AA
HP 16GB DDR4-2666 SODIMM
X X 3TK84AA
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Technical Specifications – After Market Options
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 93
Multimedia Devices
DM
SFF
MT
AiO
Part Number
HP Business Headset v2
X X X X T4E61AA
HP USB Business Speakers v2
X X X N3R89AA
Security Devices
DM
SFF
MT
AiO
Part Number
HP Solenoid Lock & Hood Sensor (MT)
X
HP Business PC Security Lock v3 Kit
X X 3XJ17AA
HP Dual Head Keyed Cable Lock
X X X T1A64AA
HP Keyed Cable Lock 10mm
X X X X T1A62AA
HP Master Keyed Cable Lock 10mm
X X X X T1A63AA
Stands and Accessories
DM
SFF
MT
AiO
Part Number
HP B300 PC Mounting Bracket
X 2DW53AA
HP B500 PC Mounting Bracket
X 2DW52AA
HP Quick Release Kit
X EM87OAA
HP Single Monitor Arm
X X BT861AA
HP ProOne 600/400 G4 VESA Plate
X 4CX33AA
HP ProOne G4 Height Adjustable Stand
X 4CX34AA
I/O Devices
DM
SFF
MT
AiO
Part Number
HP DisplayPort Port Flex IO
X X X 3TK72AA
HP HDMI Port Flex IO (400/600/800)
X X X 3TK74AA
HP Type-C USB 3.1 Gen2 Port Flex IO
X X X 3TK78AA
HP VGA Port Flex IO
X X X 3TK80AA
HP Serial Port Flex IO
X 3TK76AA
HP Internal Serial Port (600/705/800)
X X 3TK82AA
HP PCIe x1 Parallel Port Card
X X N1M40AA
HP 800/600/400 G3 Serial/ PS/2 Adapter
X X 1VD82AA
Intel Optane Memory
DM
SFF
MT
AiO
Part Number
Intel Optane Memory 16GB (Cache)
X X X
X
1WV97AA
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Change Log
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 94
© Copyright 2020 HP Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows
are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Celeron, Core, Pentium
are registered trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark of
its proprietor, used by HP, Inc. under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. NVIDIA,
GeForce and NVS are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. AMD and
Radeon are trademarks of Advanced Micro Devices, Inc. ENERGY STAR is a registered trademark owned by the U.S. Environmental
Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association
(VESA®) in the United States and other countries.
Date
Version History
Action
Description of Change
June 8, 2018
From v1 to v2
Update
At a glance, Ports, Environmental
June 12, 2018
From v2 to v3
Update
Ports
June 27, 2018
From v3 to v4
Update
HP 9.5mm Slim Removable SATA 500GB removed for AiO and
Non internal bay disclaimer also removed from Bays section,
disclaimers adjusted / Ports section note rearranged
July 2, 2018
From v4 to v5
Update
Adding PCI slot into the table on page 20 and HP Workwise
removed from SOFTWARE COMPONENTS AND APPLICATIONS
WITH WINDOWS
July 4, 2018
From v5 to v6
Update
Environmental tab
July 9, 2018
From v6 to v7
Update
Port Deployment for SFF and MT call outs.
July 18, 2018
From v7 to v8
Update
AiO USB port callouts No.3,4 and 5 updated.
Footnote No. 29 removed.
HP Quick Release Kit added to Stands and Accessories.
July 24, 2018
From v8 to v9
Update
UEFI version updated to V2.6
July 30, 2018
From v9 to v10
Update
USB sentence reduced in the call outs specs and rest of QS
Detail fixed to 64-bit in AMD Radeon 530 Graphic Card
August 2, 2018
From v10 to v11
Update
Palletization profile and shipping weight (Molded Pulp)
corrected for DM, SFF and MT
August 10, 2018
From v11 to v12
Update
Hp Velocity removed
August 15, 2018
From v12 to v13
Update
TPM 1.2 mention removed from Security section.
August 21, 2018
From v13 to v14
Update
SFF chasis dimensions updated
September 26, 2018
From v14 to v15
Update
Update for call out number 6 and in HP ProOne 600 G4 21.5"
All-in-One Business PC (Touch & Non-Touch)
Last bullet added in “At a glance” section
October 12, 2018
From v15 to v16
Update
Footnote 33 updated to Raid 1 configuration
October 17, 2018
From v16 to v17
Update
Maximum temperature range corrected for HP ProDesk 600 G4
Microtower Business PC and HP ProDesk 600 G4 Small Form
Factor Business PC at Power section
November 14, 2018
From v17 to v18
Update
Max. Resolution added to Intel® UHD Graphics and AMD
Radeon™ 530 with 2 GB GDDR5
December 3, 2019
From v18 to v19
Update
Response Time specs added to DISPLAY PANEL SPECIFICATIONS
February 5, 2019
From v19 to v20
Update
HP PhoneWise, HP ePrinter + Jet advantage, HP Velocity, and
HP WorkWise removed / Windows Defender and Sure Click
disclaimers updated
March 6, 2019
From v20 to v21
Update
Type C port USB port (2.0 or 3.0) and PORTS information
charging capability statement update and PORTS information,
on USB type C port, (15W) added.
March 18
From v21 to v22
“Universal Audio Jack with CTIA headset support” added to
Audio specs in the User Accessible Ports section for SFF and MT
QuickSpecs
HP ProDesk 600 G4 Business Desktops PCs
Change Log
Not all configuration components are available in all regions/countries.
c06043924 – DA16289 – Worldwide — Version 32 — February 19, 2020
Page 95
Call outs with descriptions updated for SMM and MT
HP USB Fingerprint Reader Wired Mouse and it´s specs added to
KEYBOARDS AND POINTING DEVICES section
AMD R7 430 64bits card (2DP) and AMD R7 430 64bits card
(DV+VGA) with specs added to GRAPHICS section
March 20, 2019
From v22 to v23
Update
SFF rear image corrected
April 23, 2019
From v23 to v24
Update
NVIDIA® GeForce® GT730 2GB DP DVI PCIe x8 GFX added to MT
and SFF platforms in Graphics section.
May 30, 2019
From v24 to v25
Update
PCI Express x1 and (1) PCI x1 corrected: (-X1)
AMD® Radeon™ RX550X 4GB FH DP+HDMI added for SFF
NVIDIA® GeForce® GT730 2GB DP+DVI added for MT
June 12, 2019
From v25 to v26
Update
EPEAT reference corrections
2.5” SATA Storage disclaimers added
Active PFV for external power supply for AiO corrected
June 19, 2019
From v26 to 27
Update
HP internal Serial Port(400) replaced with HP internal Serial
Port(600/705/800)
AMD® Radeon™ RX580 4GB GDDR5 Graphics Card removed
AMD® Radeon™ RX580 8GB GDDR5 Graphics Card added
NVIDIA® GeForce® RTX 2060 6 GB Graphics Card added
HP Cloud recovery and its disclaimer added
July 29, 2019
From v27 to v28
Update
AMD Radeon™ 520 1GB Graphics Card added to Graphics
August 19, 2019
From v28 to v29
Update
Bays specs, and references updated
Disclaimer added to SFF call outs back image
Cable lock slot upgraded to Standard
September 9, 2019
From v29 to v30
Update
Radeon 530 updted to Radeon 535 @ Graphics
November 5, 2019
From v30 to v31
Update
EPEAT references updated and Power Factor added to Power
supply section.
February 19, 2020
From v31 to v32
Update
DriceLock note and disclaimer added
Loading...
