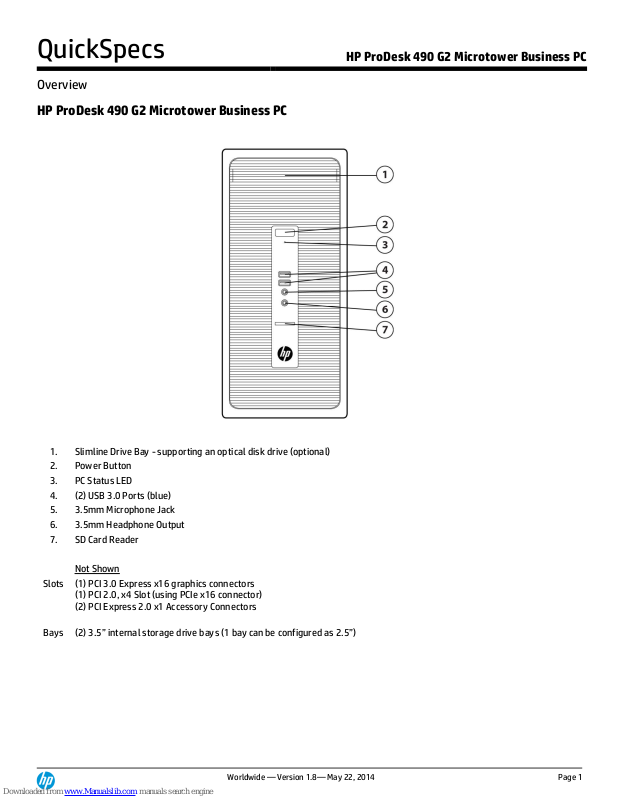

Page 1
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Overview
Worldwide — Version 1.8— May 22, 2014
Page 1
HP ProDesk 490 G2 Microtower Business PC
1.
Slimline Drive Bay - supporting an optical disk drive (optional)
2.
Power Button
3.
PC Status LED
4.
(2) USB 3.0 Ports (blue)
5.
3.5mm Microphone Jack
6.
3.5mm Headphone Output
7.
SD Card Reader
Not Shown
Slots
(1) PCI 3.0 Express x16 graphics connectors
(1) PCI 2.0, x4 Slot (using PCIe x16 connector)
(2) PCI Express 2.0 x1 Accessory Connectors
Bays
(2) 3.5” internal storage drive bays (1 bay can be configured as 2.5”)
Page 2
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Overview
Worldwide — Version 1.8— May 22, 2014
Page 2
1.
Voltage Select Switch (included on some models only)
7.
PS/2 Keyboard Connector (purple)
2.
Power Cord Connector
8.
PS/2 Mouse Connector (green)
3.
Line-Out Connector for powered audio devices (green)
9.
RJ-45 Network Connector
4.
DVI-D Monitor Connector
10.
(4) USB 2.0 Ports (black)
5.
(2) USB 3.0 Ports (blue)
11.
VGA Monitor Connector
6.
RS-232 Serial Connector
12.
Line-In Audio Connector (blue)
Not Shown
Parallel Port (optional); 2nd RS-232 Serial Port (optional)
Page 3
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Overview
Worldwide — Version 1.8— May 22, 2014
Page 3
NOTE: See important legal disclosures for all listed specs in their respective features sections.
At A Glance
Redesigned expandable, upgradable Microtower chassis
Intel® H97 Express chipset supporting Intel 4th generation Core processors, featuring integrated Intel HD Graphics
HP developed and engineered UEFI BIOS supporting security, manageability and software image stability
Realtek RTL8151GH-CG GbE LOM integrated network connection
Up to 32GB DDR3 Synchronous Dynamic Random Access Memory (SDRAM)
Multi-independent monitor support via VGA and DVI-D video interfaces, with optional Display Port 1.2
Discrete graphics options available for all platforms
DTS Studio Sound™ audio management software
Standard and high efficiency energy saving power supply options
ENERGY STAR® qualified models certified EPEAT® Gold
Can be configured with multiple drives in a RAID array
Optional Intel Smart Response Technology disk cache modules
1 32GB SATA SSD Cache*
* 32GB SATA Internal Solid State Drive (SSD)
Page 4
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 4
OPERATING SYSTEMS
Preinstalled When Purchased
Windows 8.1 Pro (64-bit)*
Windows 8.1 (64-bit)*
Windows 7 Ultimate (32-bit)**
Windows 7 Ultimate (64-bit)**
Windows 7 Professional (32-bit)**
Windows 7 Professional (64-bit)**
Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8.1 Pro)***
Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8.1 Pro)***
Windows 7 Home Premium (32-bit)**
Windows 7 Home Premium (64-bit)**
Windows 7 Home Basic (32-bit)**
FreeDOS 2.0
*Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com.
**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
***This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8.1
Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to
uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and
installing operating systems to avoid loss of your data.
PROCESSORS*
Intel® 4th Generation Core™ i7 Processors
Intel® Core™ i7-4790 Processor
Up to 4.0 GHz Max. Turbo Frequency (3.6 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i7-4790s Processor
Up to 4.0 GHz Max. Turbo Frequency (3.2 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i7-4770 Processor
Up to 3.9 GHz Max. Turbo Frequency (3.4 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i7-4771 Processor
Up to 3.9 GHz Max. Turbo Frequency (3.5 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Page 5
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 5
Intel® Core™ i7-4770S Processor
Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency)
8 MB cache, 4 cores, 8 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® 4th Generation Core™ i5 Processors
Intel® Core™ i5-4690 Processor
Up to 3.9 GHz Max. Turbo Frequency (3.5 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4690S Processor
Up to 3.9 GHz Max. Turbo Frequency (3.2 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4590 Processor
Up to 3.7 GHz Max. Turbo Frequency (3.3 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4590S Processor
Up to 3.7 GHz Max. Turbo Frequency (3.0 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4570 Processor
Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4570S Processor
Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4670 Processor
Up to 3.8 GHz Max. Turbo Frequency (3.4 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4670S Processor
Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency)
Page 6
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 6
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4430 Processor
Up to 3.2 GHz Max. Turbo Frequency (3.0 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i5-4430s Processor
Up to 3.2 GHz Max. Turbo Frequency (2.7 GHz base frequency)
6 MB cache, 4 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® 4th Generation Core™ i3 Processors
Intel® Core™ i3-4360 Processor
Up to 3.7 GHz Base Frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4350 Processor
Up to 3.6 GHz Base Frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4150 Processor
Up to 3.5 GHz Base Frequency
3 MB cache, 2 cores, 4 threads
Intel HD Graphics 4400
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4340 Processor
Up to 3.6 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4330 Processor
Up to 3.5 GHz base frequency
4 MB cache, 2 cores, 4 threads
Intel HD Graphics 4600
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Core™ i3-4130 Processor
Up to 3.4 GHz base frequency
3 MB cache, 2 cores, 4 threads
Intel HD Graphics 4400
Page 7
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 7
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium Processors
Intel® Pentium G3450 Processor
Up to 3.4 GHz Base Frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium G3440 Processor
Up to 3.3 GHz Base Frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium G3240 Processor
Up to 3.1 GHz Base Frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium G3430 Processor
Up to 3.3 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium G3420 Processor
Up to 3.2 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Pentium G3220 Processor
Up to 3.0 GHz base frequency
3 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1600 MT/s data rate
Intel® Celeron Processors
Intel® Celeron™ G1850 Processor
2.9 GHz base frequency
2 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1333 MT/s data rate
Intel® Celeron™ G1840 Processor
2.8 GHz base frequency
2 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1333 MT/s data rate
Page 8
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 8
Intel® Celeron™ G1830 Processor
2.8 GHz base frequency
2 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1333 MT/s data rate
Intel® Celeron™ G1820 Processor
2.7 GHz base frequency
2 MB cache, 2 cores, 2 threads
Intel HD Graphics
Supports DDR3 memory up to 1333 MT/s data rate
*Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a
processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will
not operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on
your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
CHIPSET
Intel® 9 Series (H97 Express) Chipset
GRAPHICS
Intel HD Graphics on all models (integrated on processor)
AMD Radeon HD 8350 (1GB) FH PCIe x16*
AMD Radeon HD 8350 (1GB) PCIe x16 DH
AMD Radeon HD 8470 (2GB) FH *
AMD Radeon HD 8490 DP (1GB) PCIe x16
NVIDIA GeForce GT630 DP (2GB) PCIe x16
NVIDIA NVS 310 512MB 1st
NVIDIA NVS 315 1GB PCIe x16
AMD Radeon R7 240 2GB FH PCIe x16*
AMD Radeon R9 255 2GB PCIe x16**
*Available only in China region
**Projected availability, October 2014
Discrete graphics options cannot be configured with 180W power supply and Quad-Core Processor
ADAPTERS AND CABLES
HP DMS-59 to Dual DisplayPort Cable
HP DMS-59 to Dual DVI Cable
HP DMS-59 to Dual VGA Cable
HP DisplayPort to DisplayPort Cable
HP DisplayPort to DVI-D Adapter
HP DisplayPort to HDMI Adapter
HP DisplayPort to VGA Adapter
HP Serial Port Adapter
HP Parallel Port Adapter
Page 9
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 9
HP DisplayPort Cable
STORAGE*
SATA Drives
2 TB, 7200 RPM, SATA 6.0 Gb/s, SMART IV, 3.5”
2 TB, 7200 RPM, SATA 6.0 Gb/s, SMART IV, 3.5” - 2nd hard drive
1 TB, 7200 RPM, SATA 6.0 Gb/s, SMART IV, 3.5”
1 TB, 7200 RPM, SATA 6.0 Gb/s, SMART IV, 3.5” - 2nd hard drive
500 GB, 7200 RPM, SATA 6.0 Gb/s, SMART IV, 3.5”
500 GB, 7200 RPM, SATA 6.0 Gb/s, SMART IV, 3.5” - 2nd hard drive
500GB, 7200 RPM SATA SED, 2.5” (with 3.5” adapter when installed in MT)
500GB, 7200 RPM SATA SED, 2.5” (with 3.5” adapter when installed in MT) - 2nd hard drive
Hybrid Drives
1 TB SATA 6G 2.5” (8 GB cache) SSHD Drive (with 3.5” adapter when installed in MT)
1 TB SATA 6G 2.5” (8 GB cache) SSHD Drive (with 3.5” adapter when installed in MT) - 2nd hard drive
500 GB SATA 6G 2.5” (8GB cache) SSHD Drive (with 3.5” adapter when installed in MT)
500 GB SATA 6G 2.5” (8GB cache) SSHD Drive (with 3.5” adapter when installed in MT) - 2nd hard drive
500 GB SATA 6G 2.5” (8GB cache) SSHD Drive w/caddy
500 GB SATA 6G 2.5” (8GB cache) SSHD Drive w/caddy- 2nd hard drive
Solid State Drives
128 GB SATA 6G 2.5” SSD (with 3.5” adapter when installed in MT)
128 GB SATA 6G 2.5” SSD (with 3.5” adapter when installed in MT) - 2nd hard drive
128 GB SATA 6G 2.5” SSD w/caddy
128 GB SATA 6G 2.5” SSD w/caddy - 2nd hard drive
Self-encrypting Drives
500GB 7200 RPM SATA 2.5 SED HDD
Self-encrypting Solid State Drives
500GB 2.5” FIPS 140-2 Self-Encrypting (SED) Solid State Drive
500GB 2.5” FIPS 140-2 Self-Encrypting (SED) Solid State Drive - 2nd hard drive
500GB 2.5” FIPS 140-2 w/ca Self-Encrypting (SED) Solid State Drive
500GB 2.5” FIPS 140-2 w/ca Self-Encrypting (SED) Solid State Drive - 2nd hard drive
256GB SATA 2.5” Opal2 Self-Encrypting (SED) Solid State Drive SSD
256GB SATA 2.5” Opal2 Self-Encrypting (SED) Solid State Drive - 2nd hard drive
256GB SATA 2.5” w/ca Opal2 Self-Encrypting (SED) Solid State Drive
256GB SATA 2.5” w/ca Opal2 Self-Encrypting (SED) Solid State Drive - 2nd hard drive
256 GB SATA 2.5” Self-Encrypting (SED) Solid State Drive (with 3.5” adapter when installed in MT)
256 GB SATA 2.5” Self-Encrypting (SED) Solid State Drive (with 3.5” adapter when installed in MT) - 2nd hard drive
256 GB SATA 2.5” w/caddy Self-Encrypting (SED) Solid State Drive
256 GB SATA 2.5” w/caddy Self-Encrypting (SED) Solid State Drive - 2nd hard drive
180GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500)
Page 10
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 10
180GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500) - 2nd hard drive
180GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500) w/caddy
180GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500) w/caddy - 2nd hard drive
128GB SATA 2.5” Opal2 Self-Encrypting (SED) Solid State Drive
128GB SATA 2.5” Opal2 Self-Encrypting (SED) Solid State Drive- 2nd hard drive
128GB SATA 2.5” Opal2 Self-Encrypting (SED) Solid State Drive w/ caddy
128GB SATA 2.5” Opal2 Self-Encrypting (SED) Solid State Drive w/ caddy - 2nd hard drive
120GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500)
120GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500) - 2nd hard drive
120GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500) w/ caddy
120GB SATA 2.5” Opal1 Self-Encrypting (SED) Solid State Drive (Pro 1500) w/ caddy - 2nd hard drive
10K 6 Gb/s Hard Drives
1TB 10K RPM 6G 3.5” Hard Drive
1TB 10K RPM 6G 3.5” Hard Drive - 2nd hard drive
500GB 10K RPM 6G 3.5” Hard Drive
500GB 10K RPM 6G 3.5 Hard Drive - 2nd hard drive
Frame/Carrier
HP Slim Removable SATA HDD Frame/Carrier
Optical Disc Drives
Slim DVD-ROM
Slim BDXL Blu-ray Writer
Slim SuperMulti
Media Card Reader**
SD Media Card Reader
*For hard drives and solid state drives, GB = 1 billion bytes. Actual formatted capacity is less. Up to 16 GB (for
Windows 7) and 30 GB (for Windows 8.1) of system disk is reserved for the system recovery software.
**Card sold separately
MEMORY*
Form Factor
Type
Maximum
# of Slots
Microtower
DDR3 non-ECC
Up to 1600 MT/s
32 GB
4 DIMM
* Full availability of 4 GB or more of memory requires a 64-bit operating system. With Windows 32-bit operating systems, the
amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to
system resource requirements.
Memory modules support data transfer rates up to 1600 MT/s; actual data rate is determined by the system’s configured
processor. See processor specifications for supported memory data rate.
Page 11
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 11
PERFORMANCE
Intel® Smart Response Technology Disk Cache Modules
32GB SATA Solid State Disk Cache
NETWORKING/COMMUNICATIONS
Ethernet (RJ-45)
Realtek RTL8151GH-CG GbE LOM (standard)
Intel Ethernet I210-T1 PCIe x1 Gb Network Interface Card (optional)
Wireless*
Intel® Dual Band Wireless-N 7260 802.11 a/b/g/n PCI Express (optional)
HP WLAN 802.11 a/b/g/n 2x2 Dual Band PCIe x1 WLAN/Bluetooth Card (optional)
* Wireless access point and Internet service required and not included. Availability of public wireless access points
limited.
AUDIO/MULTIMEDIA
HD audio with Realtek ALC221 codec (all ports are stereo)
DTS Studio Sound audio management technology
Microphone and headphone front ports (3.5mm)
Line-out and Line-In rear Ports (3.5mm)
Multi-streaming capable
Internal speaker (standard)
KEYBOARDS AND POINTING DEVICES
Keyboard
HP PS/2 Keyboard
HP USB Keyboard
USB Smart Card (CCID) Keyboard
HP USB and PS/2 Washable Keyboard
HP Wireless Keyboard and Mouse Combo*
*Keyboard contains 25% post-consumer recycled plastic material
Mice
HP PS/2 Mouse
HP USB Mouse
HP USB 1000dpi Laser Mouse
HP USB and PS/2 Washable Mouse
HP BIOSphere
Key features of the HP BIOS include:
Deployment and manageability - HP BIOS provides several technologies that help integrate the HP
ProDesk 490 G2 MT Business PC into the enterprise, such as PXE, and F10 Setup support for 12
Page 12
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 12
languages.
Support UEFI specification 2.3.1
Thermal and power management - The HP BIOS provides and enables thermal and power management
technologies so component temperatures are managed for high reliability and to assist in operating
the HP Business Desktop computer in any enterprise environment.
Thermal Controlled Fans – Automatic or manual controlled fan speeds for cooling and acoustic
performance Serviceability - HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery - HP BIOS provides numerous ways to upgrade HP Business Desktop
computers, including BIOS updates from within DOS (DOSFlash), BIOS updates from within Windows
(HPQFlash), HP Client Manager, and fail-safe recovery (Emergency Boot Block Recovery).
HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery.
Serviceability - HP BIOS provides diagnostic and detailed service information.
Additional HP BIOS Features:
Power-On password - Helps prevent an unauthorized user from powering on the system.
Administrator password - Also known as the setup password, this helps prevent unauthorized changes
to the system configuration. If the administrator password is not known, the BIOS version cannot be
changed and changes cannot be made to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) - Represents a significant innovation in power and
configuration management, allowing operating systems and applications to manage power based on
activity and usage. HP Pro models use ACPI to provide power conservation features.
S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down
below 1W is S5 (when turned off). When S5 Max Power Savings feature is enabled power to slots is
turned off along with WOL functionality.
HP BIOS Protection – prevents unauthorized updates or changes to the BIOS due to malware, viruses,
or malicious BIOS updates. Based on NIST SP800-147 policy guidelines.
MANAGEABILITY
Fully manageable and supported by industry-standard HP Client Management Solutions. Optional LANDesk management
tools simplify mobile device management and security. Simplify everything from deployment or migration to daily
management, security, licensing, and more—and stop downtime before it starts.
Hardware Management: Inventory, Device config and BIOS updates, HW alerting, Driver updates
Software Management: Deployment, App Management, Patch Management; Deployment and Migration;
Proactive HW and SW Management; Mobile Users and Device Management; Remote Assistance / Help Desk
LANDesk Management Suite 9.5 (LDMS) – optional – contact HP representative for part numbers
Hardware integration with Microsoft System Center Configuration Manager: Client Integration Kit (CIK), Client
Catalog, Client Driver Packs
HP SoftPaq Download Manager (SDM)
HP System Software Manager (SSM)
HP BIOS Configuration Utility (BCU)
HP Driver Packs
HP Client Management Interface (HP CMI)
Absolute Persistence Software*
*BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and activate a
subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional subscription service
of Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
http://www.absolute.com/company/legal/agreements/computrace-agreement. If Data Delete is utilized, the Recovery
Page 13
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 13
Guarantee payment is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization
Agreement and either create a PIN or purchase one or more RSA SecurID tokens from Absolute Software.
SECURITY
Trusted Platform Module (TPM) 1.2 (Common Criteria EAL4+ certified)
X
SATA port disablement (via BIOS)
X
Drivelock
N/A
RAID configurations
X
Intel® Identify Protection Technology (IPT)*
N/A
Serial, parallel, USB enable/disable (via BIOS)
X
Optional USB Port Disable at factory (user configurable via BIOS)
X
Removable media write/boot control
X
Power-On password (via BIOS)
X
Administrator password (via BIOS)
X
HP Chassis (1 bay) Security Kit
N/A
Solenoid Hood Lock / Sensor
N/A
Support for chassis padlocks and cable lock devices
X
*Models configured with Intel Core processors have the ability to utilize advanced security protection for online
transactions. IPT, used in conjunction with participating web sites, provides double identity authentication by adding a
hardware component in addition to the usual user name and password. IPT is initialized through an HP Client Security
module.
ENVIRONMENTAL & REGULATORY
ENERGY STAR® qualified models available
EPEAT® registered where applicable/supported. EPEAT registration varies by country. See www.epeat.net for registration
status by country.
Low halogen (chassis, all internal components and modules)*
TAA compliant
For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
*External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase
may not be Low Halogen.
PORTS
I/O Ports – Standard
USB 2.0
4 (rear)
USB 3.0
2 (front); 2 (rear)
Serial (RS-232)
1
PS/2
1 keyboard (purple), 1 mouse (green)
Video
1 VGA, 1 DVI-D
NOTE: When configured with an Intel Celeron, Pentium or 4th generation Intel Core i3 CPU only two of the available video
output ports are active.
Audio
Front: headphone/mic
Rear: line in/out
Page 14
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Standard Features and Configurable Components
Worldwide — Version 1.8— May 22, 2014
Page 14
3.5mm diameter
RJ-45 Network Interface
1
I/O Ports – Optional
2nd Serial (RS-232)
1
Parallel
1
PCI Express x1 (v2.0)
3
4.2” full height
6.6” length
10W max. power
PCI Express x16 (v2.0)
1
4.2” full height
6.6” length
75W max. power
BAYS
(4 total – 2 external, 2 internal)
External, SD reader
1 External, Slimline ODD
1
Internal 3.5” storage drive*
2
*One bay can be configured as a 2.5”
SERVICE AND SUPPORT
On-site Warranty 1: One-year (1-1-1) limited warranty delivers one year of on-site, next business day 2 service for parts and
labor and includes free telephone support 3 24 x 7. One-year onsite and labor are not available in all countries. Service
offers terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care
Pack Central: www.hp.com/go/cpc
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations
may be offered in your region.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party
provider, and is not available in certain countries. Global service response times are based on commercially reasonable best
effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured and third-party HP qualified hardware and software.
Toll-free calling and 24 x 7 support may not be available in some countries.
Page 15
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Operating Systems and Software
Worldwide — Version 1.8— May 22, 2014
Page 15
OPERATING SYSTEMS
Preinstalled
Windows 8.1 Pro (64-bit)*
Windows 8.1 (64-bit)*
Windows 7 Ultimate (32-bit)**
Windows 7 Ultimate (64-bit)**
Windows 7 Professional (32-bit)**
Windows 7 Professional (64-bit)**
Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8.1 Pro)***
Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8.1 Pro)***
Windows 7 Home Premium (32-bit)**
Windows 7 Home Premium (64-bit)**
Windows 7 Home Basic (32-bit)**
FreeDOS 2.0
For all Preinstalled operating systems HP provides Microsoft WHQL certified (where applicable) drivers on www.hp.com at the
time of product announcement.
Web Support
Windows 7 Enterprise (32-bit or 64-bit)
For all Supported operating systems HP performs testing of the OS, and makes available all HP value add software (OS
dependent). Certified drivers are made available on www.hp.com within 30 days of product announcement.
*Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See http://www.microsoft.com.
**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.
***This system is preinstalled with Windows® 7 Professional software and also comes with a license and media for Windows
8.1 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require
you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling
and installing operating systems to avoid loss of your data.
SOFTWARE COMPONENTS AND APPLICATIONS WITH WINDOWS
Included
Windows 7
Windows 8.1
Security
HP Client Security:
HP Drive Encryption (FIPS 140-2)1
HP Device Access Manager with Just In Time
Authentication
HP Password Manager
HP File Sanitizer (SSDs and Hybrid Drives not
supported)
5
HP Disk Sanitizer External Edition
2,4
Microsoft Security Essentials (Windows 7)
Disk Sanitizer External Edition
2, 4
Microsoft Defender7
MultiMedia
Cyberlink Power DVD, BD
Cyberlink Power2Go (Secure Burn)
Cyberlink Power DVD, BD
Cyberlink Power2Go (Secure Burn)
Communication
HP Wireless Hotspot8
HP Value Add
HP ePrint Driver3
HP PageLift
HP Recovery Manager
HP Support Assistant
HP Recovery Disk Creator
HP ePrint Driver3
HP PageLift
HP Recovery Manager
HP Support Assistant
Page 16
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Operating Systems and Software
Worldwide — Version 1.8— May 22, 2014
Page 16
3rd Party
Box 50 GB Offer6
Foxit PhantomPDF Express
Skype
Box Application
Foxit PhantomPDF Express
Skype
Microsoft Products
Buy Office
Buy Office
1. Drive Encryption requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate
logs out of Drive Encryption and prevents data access.
2. Available via download
3. Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,
supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage
and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds
may vary.
4. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Requires Disk
Sanitizer, External Edition for Business Desktops from hp.com.
5. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup
required. Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled. With Windows 8.1,
user must turn off Enhanced Protection Mode in IE11 for shred on browser close feature.
6. Requires Box registration. Offer available to new Box users only. Box App requires Windows 8 or 8.1. Offer subject to
change without notice.
7. Requires Windows 8 and internet access.
8. The Wireless Hotspot application requires an active internet connection and separately purchased data plan. While HP
Wireless Hotspot is active, on-device applications will continue to work and will use the same data plan as the wireless
hotspot. Wireless Hotspot data usage may incur additional charges. Check with your plan for plan details. Requires Windows.
Page 17
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 17
Intel HD Graphics
VGA Controller
Integrated
DisplayPort
Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and
Multi-Stream Technology for a maximum of 2 displays (including the integrated panel)
Bus Type
N/A
RAMDAC
N/A
Memory
Intel graphics do not have dedicated memory but utilizes some of the computer’s
system memory The amount of memory used for graphics depending on the amount of
system memory installed, BIOS settings, operating system, and system load. 32 MB is
pre-allocated for graphics use at system boot time. Additional memory can be allocated
at boot time by the BIOS for PAVP (Protected Audio Video Playback) support for
playback of protected video content.
Additional memory is allocated for graphics as needed using Intel's Dynamic Video
Memory Technology (DVMT), to provide an optimal balance between graphics and
system memory use.
Maximum Graphics Memory
Microsoft Windows 7
Windows 8.1
Up to 1.7GB
Up to 1.8GB
Note: the actual amount of maximum graphics memory can be less than the amounts
listed above depending upon your computer’s configuration.
Maximum Color Depth
32 bits/pixel
Graphics/Video API Support
4th Generation Core processors:
The Processor Graphics contains a refresh of the seventh generation graphics
core enabling substantial gains in performance and lower power consumption.
Up to 16 EU support.
Next Generation Intel Clear Video Technology HD Support is a collection of
video playback and enhancement features that improve the end user's viewing
experience
o Encode/transcode HD content
o Playback of high definition content including Blu-ray Disc
o Superior image quality with sharper, more colorful images
DirectX Video Acceleration (DXVA) support for accelerating video processing
o Full AVC/VC1/MPEG2 HW Decode
Advanced Scheduler 2.0, 1.0
Windows 7, Windows 8.1, Linux OS Support
DirectX 11.1
OpenGL 4.0
Open CL 1.2
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Refresh Rates
800x600
60 Hz
1024x768
60 Hz
1152x864
60 Hz
1280x600
60 Hz
Page 18
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 18
1280x720
60 Hz
1280x800
60 Hz
1280x960
60 Hz
1280x1024
60 Hz
1360x768
60 Hz
1366x768
60 Hz
1400x1050
60 Hz
1440x900
60 Hz
1600x900
60 Hz
1600x1200*
60 Hz
1680x1050
60 Hz
1920x1080
60 Hz
1920x1200*
60 Hz
1920x1440*
60 Hz
2560x1440*
60 Hz
2560x1600*
60 Hz
* Only supported on displays connected to the external DisplayPort connector.
AMD Radeon HD 8470 Graphics Card
Form Factor
Full Height
Graphics Controller
AMD Radeon HD 8470
Core Clock
775MHz
Memory Clock
900MHz
Memory
2GB, DDR3, 64-bit wide
Bus Type
PCIe Gen2
Max. Power
< 30W
Power Source Support
12V and 3.3V
3D API Support
DX11
HDCP Support
Yes
Display Max. Resolution
Digital 2560 x 1600
Analog 2048 x 1536
Supported Graphics APIs
DX11, OpenGL, full 1080p BD (H264) playback in hardware, HDMI 1.4 support
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Refresh Rates
Page 19
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 19
800 x 600
60 Hz
1024 x 768
60 Hz
1280 x 720
60 Hz
1280 x 768
60 Hz
1280 x 1024
60 Hz
1360 x 768
60 Hz
1440 x 900
60 Hz
1600 x 900
60 Hz
1680 x 1050
60 Hz
1920 x 1080
60 Hz
NVIDIA NVS 310 Graphics Card
Introduction
The NVIDIA® NVS™ 310 Graphics Card is a PCI Express low profile form factor graphics add-in
card targeted as an active low cost graphics solution for the corporate business and
enterprise markets.
Performance and Features
The NVIDIA® NVS 310 Graphics Card offers 512 MB of ultrafast DDR3 memory and is capable
of supporting up to 2 displays.
DisplayPort connector supports multimode technology to support connection to DVI-D, VGA
and HDMI monitors with optional adapters in kits NR078AA, FH973AT, BP937AA, AS615AA.
For a DisplayPort to DisplayPort connections use the optional DisplayPort Cable Kit
VN567AA.
Form Factor
Low Profile: 2.713 × 6.15 in
Graphics Controller
NVIDIA® NVS 310
Memory Clock
875MHz
Memory Size
512 MB DDR3
Memory Bandwidth
14 GB/s
Max. Power
19.5W
Display Max. Resolution
Up to 2560 x 1600 (digital display) per display
Display Output
Up to 2 displays in the following configurations
DisplayPort output:
Drives two DisplayPort enabled digital display at resolutions
up to 2560 × 1600 at 60 Hz with reduced blanking, when
connected natively using the 2 DisplayPort connectors on the
NVS 310 graphics card
Supports 2 monitors up to resolution of 1920 × 1200 at 60 Hz
with reduced blanking using DisplayPort Multi-Stream
topology technology.
Page 20
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 20
DVI-D output:
Drives two digital display at resolutions up to 1920 × 1200 at
60 Hz with reduced blanking using DisplayPort to DVI-D singlelink cable adaptors
Drives two digital display at resolutions up to 2560× 1600 at
60 Hz with reduced blanking using DisplayPort to DVI-D duallink cable adaptors
HDMI output:
NVS 310 is capable of driving two high definition (HD) panels
up to resolutions of 1920 × 1080P at 60 Hz using DisplayPort
to HDMI cable adaptors
VGA display output:
Drives two analog display at resolutions up to 1920 × 1200 at
60 Hz using DisplayPort to VGA cable adaptors
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Maximum Refresh Rates (Hz) by Connection
DisplayPort to VGA
DisplayPort to DVI-D
DisplayPort to HDMI
DisplayPort
640 x 480
85
60
60
60
800 x 600
85
60
60
60
1024 x 768
85
60
60
60
1280 x 720
85
60
60
60
1280 x 1024
85
60
60
60
1440 x 900
75
60
60
60
1600 x 1200
60
60
60
60
1680 x 1050
60
60
60
60
1920 x 1080
60-R
60-R
60
60
1920 x 1200
60-R
60-R 60
1920 x 1440
60
2048 x 1536
60
2560 x 1600
60
NVIDIA NVS 315 1GB PCIe x 16 Graphics Card
Introduction
Get efficient dual-display graphics performance in a PCI Express low-profile graphics card
with the NVIDIA NVS 315 PCIe x16 1 GB Graphics Card, an ideal desktop graphics solution for
professional business and commercial applications.
Performance and Features
The NVIDIA® NVS 315 Graphics Card offers 1 GB of ultrafast DDR3 memory and is capable of
supporting up to 2 displays.
DisplayPort connector supports multimode technology to support connection to DVI-D, VGA
and HDMI monitors with optional adapters in kits NR078AA, FH973AT, BP937AA, AS615AA.
For a DisplayPort to DisplayPort connections use the optional DisplayPort Cable Kit
VN567AA.
Form Factor
Low Profile: 2.713 × 6.15 in
Page 21
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 21
Graphics Controller
NVIDIA® NVS 315
Memory Clock
875MHz
Memory Size
512 MB DDR3
Memory Bandwidth
14 GB/s
Connectors
DMS-59 , with support for dual VGA, dual DVI or dual Display Port with the appropriate
adapter cable
Display Max. Resolution
Up to 2048 x 1536 VGA; 1920 x 1200 DVI; 2560 x 1600 DisplayPort
Display Output
Up to 2 displays in the following configurations
Dual DVI :
o Drives two DVI displays using optional HP DMS59 DVI Dual-head Connector Cable
DL139A
Dual DisplayPort :
o Drives two DisplayPort using optional HP DMS-59 to Dual DisplayPort kit XP688AA
Dual VGA :
o Drives two analog using the included HP DMS-59 to Dual VGA Cable
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Maximum Refresh Rates (Hz) by Connection
Analog Connection
Digital Connection
640 x 480
85
60
720 x 480
85
60
720 x 576
85
60
800 x 600
85
60
1024 x 768
85
60
1280 x 720
85
60
1280 x 768
85
60
1280 x 1024
85
60
1440 x 900
75
60
1600 x 1024
85
60
1600 x 1200
85
60
1680 x 1050
75
60
1920 x 1080
85
60-R
1920 x 1200
85
60-R
1920 x 1440
85
N/A
2048 x 1536
75
N/A
2560 x 1440
N/A
60*
2560 x 1600
N/A
60*
* Display Port Only
Page 22
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 22
NVIDIA GeForce GT630 Graphics Card
Introduction
The NVIDIA GeForce GT630 DP (2GB) PCIe x16 Card Graphics Card provides a full height, PCI
Express x16 graphics add-in card solution based on the NVIDIA Kepler Architecture GPU. The
card is designed to support three display connections through its DVII, and two DisplayPort
connectors.
An ideal solution for desktop PC customers seeking enhanced 2D and advanced 3D graphics
performance, the NVIDIA GeForce GT630 DP (2GB) PCIe x16 Cards are an excellent choice for
business users who want run multiple displays from a single graphics board. Engage in Web
conferencing or video or photo editing, while improving your everyday business PC
experience with better graphics and excellent visual display quality.
Performance and Features
The NVIDIA GeForce GT630 DP (2GB) PCIe x16 Cards deliver superior PCI Express (PCIe) Gen 3
features including:
Unprecedented flexibility for new applications and enhanced performance
Support for NVIDIA surround technology
Run multiple displays from a single graphics card
Full 16 lane PCIe Generation 3 bus support with peak bandwidth support
Wireless Display ready for future support
Form Factor
PCIe x16 Card
Graphics Controller
NVIDIA Kepler Architecture GPU
Core Clock
875 MHz
Memory Clock
891 MHz
Memory Size
2 GB DDR3 128 bit
Memory Bandwidth
28.5 GB/s
Display Max. Resolution
2560 x 1600 digital, 2048 x 1536 analog
Display Support
Integrated 400 MHz RAMDAC
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Maximum Refresh Rates (Hz)
Analog Connection
Digital Connection
640 x 480
85
60
800 x 600
85
60
1024 x 768
85
60
1280 x 720
85
60
1280 x 1024
85
60
1440 x 900
75
60
Page 23
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 23
1600 x 1200
85
60
1680 x 1050
75
60
1920 x 1080
85
60-R
1920 x 1200
85
60-R
1920 x 1440
85
60
2048 x 1536
75
60
2560 x 1600
N/A
60
AMD Radeon HD 8350 1GB PCIe x16 DH Graphics Card
Introduction
Get stable 2D and advanced 3D graphics performance from the AMD Radeon HD 8350 1 GB
PCIe x16 DH Graphics Card, a low profile, PCI Express x16 graphics add-in card based on the
AMD Radeon HD 8350 GPU, great for Web conferencing or video and photo editing.
Form Factor
PCie x16
Graphics Controller
AMD Radeon HD 8350
Core Clock
GPU engine operates at 523 MHz
Memory
1GB, DDR3, SDRAM
Memory Clock
875 MHz
HDCP Support
Yes
Display Max. Resolution
Digital 1920 x 1200
Analog 2048 x 1536
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Analog Connection
Digital Connection
640 x 480
85
60
720 x 480
85
60
720 x 576
85
60
800 x 600
85
60
1024 x 768
85
60
1280 x 720
85
60
1280 x 768
85
60
1280 x 1024
85
60
1440 x 900
75
75
1600 x 1024
85
60
1600 x 1200
85
60
1680 x 1050
75
75-R
1920 x 1080
85
60-R
1920 x 1200
85
60-R
Page 24
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 24
1920 x 1440
85
N/A
2048 x 1536
75
N/A
2560 x 1440
N/A
N/A
2560 x 1600
N/A
N/A
AMD Radeon HD 8490 1GB PCIe x16 Graphics Card
Introduction
Get impressive graphics and high resolution dual-display performance in a low profile, PCI
Express x16 graphics add-in card based on the AMD Radeon HD 8490 Graphics Processor.
Improve your everyday PC, Web conferencing, and video or photo editing.
Form Factor
PCie x16
Graphics Controller
AMD Radeon HD 8490
Core Clock
GPU engine operates at 875 MHz
Memory
1GB, DDR3, SDRAM
Memory Clock
900 MHz
HDCP Support
Yes
Display Max. Resolution
Digital 2560 x 1600
Analog 2048 x 1536
Supported Display Resolutions and Refresh Rates
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Analog Connection
Digital Connection
300 x 200
85
60
320 x 240
85
60
400 x 300
85
60
640 x 480
85
60
720 x 480
85
60
720 x 576
85
60
800 x 600
85
60
1024 x 768
85
60
1280 x 720
85
60
1280 x 768
85
60
1280 x 1024
85
60
1440 x 900
75
75
1600 x 900
85
60
1600 x 1024
85
60
1600 x 1200
85
60
1680 x 1050
75
75-R
Page 25
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 25
1920 x 1080
85
60-R
1920 x 1200
85
60-R
1920 x 1440
85
N/A
2048 x 1536
75
N/A
2560 x 1440
N/A
60
2560 x 1600
N/A
60
AMD Radeon R7 240 2GB FH PCIe x16 GFX Graphics Card
Form Factor
Full Height
Graphics Controller
AMD Radeon R7 240
Core Clock
730MHz
Memory Clock
1800MHz
Memory
2GB, DDR3
Frame Buffer
128-bit wide frame buffer
Bus Type
PCI Express 3.0 interface
Max. Power
32.71 W
Power Source Support
12V and 3.3V
HDCP Support
Yes, All digital outputs support HDCP (High-Bandwidth Digital Content Protection)
Display Max. Resolution
Digital 1920 x 1200
Analog 2048 x1536
Compliance
Compliant with all listed and with all applicable ACPI, AGP Forum, ANSI, DDWG, HP, Intel, ITU,
Microsoft, PCI SIG, SMPTE, and VESA APIs, standards, requirements, implementation guides,
and ECRs.
SUPPORTED DVI-D (DIGITAL) AND DISPLAYPORT DISPLAY MODES
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Refresh Rates
640 x 480
60 Hz
720 x 480
60 Hz
720 x 576
60 Hz
800 x 600
60 Hz
1024 x 768
60 Hz
1280 x 720
60 Hz
1280 x 768
60 Hz
1280 x 1024
60 Hz
Page 26
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 26
1440 x 900
60 Hz, 75 Hz
1600 x 1024
60 Hz
1600 x 1200
60 Hz
1680 x 1050
75 Hz
1920 x 1080
60 Hz
AMD Radeon R9 255 2GB PCIe x16 GFX
Form Factor
PCie x16
Graphics Controller
AMD Radeon R9 255
Core Clock
900MHz
Memory Clock
1150MHz
Memory
2GB, (4 pcs of 4Gb 128Mx32 GDDR5)
Frame Buffer
128-bit wide frame buffer
Bus Type
PCI Express 3.0 interface
Max. Power
N/A
Power Source Support
12V and 3.3V
HDCP Support
Yes, All digital outputs support HDCP (High-Bandwidth Digital Content Protection)
Display Max. Resolution
Digital 1920 x 1200
Analog 2048 x1536
Compliance
Compliant with all listed and with all applicable ACPI, AGP Forum, ANSI, DDWG, HP, Intel,
ITU, Microsoft, PCI SIG, SMPTE, and VESA APIs, standards, requirements, implementation
guides, and ECRs.
Supports Microsoft DirectX 11.1, OpenGL 4.3 and OpenCL 1.2 APIs.
SUPPORTED DVI-D (DIGITAL) AND DISPLAYPORT DISPLAY MODES
Note: other resolutions may be available but are not recommended as they may not have been tested and qualified by HP
Resolution
Refresh Rates
320 x 200
60 Hz
320 x 240
60 Hz
400 x 300
60 Hz
480 x 360
60 Hz
512 x 384
60 Hz
640 x 350
60 Hz
640 x 400
60 Hz
Page 27
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Graphics
Worldwide — Version 1.8— May 22, 2014
Page 27
640 x 480
60 Hz
720 x 480
60 Hz
720 x 576
60 Hz
800 x 600
60 Hz
1024 x 768
60 Hz
1152 x 864
60 Hz
1280 x 720
60 Hz
1280 x 768
60 Hz
1280 x 960
60 Hz
1280 x 1024
60 Hz
1440 x 900
60 Hz, 75 Hz
1600 x 900
60 Hz
1600 x 1024
60 Hz
1600 x 1200
60 Hz
1680 x 1050
75 Hz
1680 x 1080
60 Hz
1920 x 1080
60 Hz
2560 x 1440
60 Hz
2560 x 1600
60 Hz
Page 28
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 28
Introduction:
HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance of HP Business PCs by providing the
technologies to meet your increasing storage demands with high-capacity drives offering superior reliability and performance.
SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in
future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the PC
platform enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated
bandwidth, the ability to more easily identify device failures and scalability. The HP ProDesk 490 G2 Series Business PC supports
the latest SATA 6.0Gb/s specification.
SMART IV Technology
Self Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health
and to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive
technology enables the intelligent manageability or management software to generate a fault alert. While the current versions of
SMART hard drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and
quality has promoted HP to implement SMART IV technology which constantly checks that the data flow from host interface to
media and media to host interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte
block in the data path of the hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard
drives, allows for more complete error detection coverage encompassing the entire data path between the host and the hard drive.
Smart IV is also known as IOEDC: I/O Error Detection Code.
Native Command Queuing
NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands
outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next
command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best
overall throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory
Access (FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding
commands, without involving the host processor. NCQ can contribute to better performance but the results are dependent on
many factors, including the access patterns of the various applications and operating system functions that are initiating drive
accesses. Enabling NCQ features in the hard drive requires AHCI support from the host system BIOS, controller, and driver. AHCI
support is typically implemented in RAID configurations.
Note: GB = 1 billion bytes. Actual available capacity is less.
Introduction:
HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance of HP Business PCs by providing the
technologies to meet your increasing storage demands with high-capacity drives offering superior reliability and performance.
SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in
future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the PC
platform enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated
bandwidth, the ability to more easily identify device failures and scalability. The HP ProDesk 490 G2 Series Business PC supports
the latest SATA 6.0Gb/s specification.
SMART IV Technology
Self Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health
and to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive
Page 29
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 29
technology enables the intelligent manageability or management software to generate a fault alert. While the current versions of
SMART hard drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and
quality has promoted HP to implement SMART IV technology which constantly checks that the data flow from host interface to
media and media to host interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte
block in the data path of the hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard
drives, allows for more complete error detection coverage encompassing the entire data path between the host and the hard drive.
Smart IV is also known as IOEDC: I/O Error Detection Code.
Native Command Queuing
NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands
outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next
command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best
overall throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory
Access (FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding
commands, without involving the host processor. NCQ can contribute to better performance but the results are dependent on
many factors, including the access patterns of the various applications and operating system functions that are initiating drive
accesses. Enabling NCQ features in the hard drive requires AHCI support from the host system BIOS, controller, and driver. AHCI
support is typically implemented in RAID configurations.
Note: GB = 1 billion bytes. Actual available capacity is less.
2TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Unformatted Capacity
2 TB
Rotational Speed
7,200 rpm
Interface
SATA 6 Gb/s
Cache, Multisegmented (MB)
64 MB
Seek Time (average)
Read
<8.5 ms
Write
<9.5 ms
Height
1.028 in/26.11 mm
Width
4.0 in/101.6 mm
Depth
5.787 in/146.99 mm
Weight
1.38 lb/626 g
Operating Temperature
41° to 131° F (5° to 55° C)
1TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
1,000,204,886,016 bytes
Page 30
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 30
Rotational Speed
7,200 rpm
Interface
Serial ATA 3.0 (6.0 Gb/s)
Buffer Size
32 MB
Logical Blocks
1,953,525,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
2.0 ms
Average:
11 ms
Full-Stroke:
21 ms
Height (nominal)
1 in/2.54 cm
Width (nominal)
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
Operating Temperature
41° to 131° F (5° to 55° C)
500GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
500,107,862,016 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 3.0 (6.0 Gb/s)
Buffer Size
16 MB
Logical Blocks
976,773,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
2.0 ms
Average:
11 ms
Full-Stroke:
21 ms
Height (nominal)
1 in/2.54 cm
Width (nominal)
Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm
Operating Temperature
41° to 131° F (5° to 55° C)
500GB 7200 RPM SATA 2.5” Self-Encrypting (SED) Hard Disk Drive
Capacity
500,107,862,016 bytes
Page 31
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 31
Rotational Speed
7,200 rpm
Drive Type
Self-Encrypting Drive (SED) with SATA interface
Interface
SATA 6 Gb/s
Segmented Buffer with write
cache
32768 KB - A portion of buffer capacity used for firmware
Number of Sectors
976,773,168
Seek Time (typical reads)
Single Track:
1.0 ms
Average:
13 ms
Full-Stroke:
25 ms
Media Diameter
2.5 in/63.5 mm
Height
0.267 in/6.8 mm, ±0.2mm
Width
2.75 in/69.85 mm, ±0.25mm
Length
3.945 in/100.2 mm, ±0.25mm
Weight
3.35 oz/95 g (max)
Operating Temperature
41° to 131° F (5° to 55° C)
1TB SATA 6G 2.5” 8GB Solid State Hybrid Drive (SSHD)
Formatted Capacity
1 TB
Spindle Speed
5,400 rpm +/- 0.2%
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
Serial ATA (SATA)
Cache Buffer
64 MB
NAND Flash
Commercial Multilevel Cell
(cMLC)
8 GB
Number of Sectors
976,773,168
Seek Time (typical reads)
Single Track:
2.0 ms
Average:
12 ms
Page 32
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 32
Height
0.374 +/-.008 in (9.5 +/- 0.2 mm)
Width
2.750 +/- 0.010 in (69.85 +/- 0.25 mm)
Length
3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm)
Weight
0.254 lb/115 g (max)
Operating Temperature
41° to 131° F (5° to 55° C)
500 GB SATA 6G 2.5” 8GB Solid State Hybrid Drive (SSHD)
Formatted Capacity
500 GB
Spindle Speed
5,400 rpm +/- 0.2%
Drive Type
Solid State Hybrid Drive (SSHD) technology with NAND Flash
Interface
Serial ATA (SATA)
Cache Buffer
64 MB
NAND Flash
Commercial Multilevel Cell
(cMLC)
8 GB
Number of Sectors
976,773,168
Seek Time (typical reads)
Single Track:
2.0 ms
Average:
12 ms
Height
0.268 +/-.008 in (6.8 +/- 0.2 mm)
Width
2.750 +/- 0.010 in (69.85 +/- 0.25 mm)
Length
3.951 +0.008 / -0.010 in (100.35 +0.20 / -0.25 mm)
Weight
0.209 lb/95 g (max)
Operating Temperature
41° to 131° F (5° to 55° C)
128 GB Solid State Drive
Unformatted Capacity
128 GB*
Architecture
Multi Level Cell (MLC) NAND
Interface
SATA 6 GB/sec
Dimensions (W x H x D)
2.75 x 0.276 x 3.96 in (6.985 x 0.7 x 10.05 cm)
Page 33
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 33
Weight
0.16 lb (73 g)
Bandwidth Performance
Sustained Sequential Read:
Up to 450 MB/ss
Sustained Sequential Write:
Up to 260 MB/s
Random Read (4KB):
up to 46K IOPs
Random Write (4KB):
up to 56K IOPs
Latency
Read:
55ms (TYP)
Write:
55ms (TYP)
Power
DC power requirement:
Min 4.5 V; Max 5.5 V
Total power consumption:
160 mW (Active) ; <85 mW; (Idle)
Useful Drive Life
1.2 million device hours**
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity (operating):
5% to 95%
Shock:
1,500 G/1.0 msec
Regulations
UL, CSA, EN 60950-2000, CISPR Pub 22 Class B, CNS 13438, AS/NZS
CISPR 22:2002 Class B, Korea KCC, CE Mark
* For solid state disk drives, GB means 1 billion bytes. 128GB is the unformatted capacity of this drive before a portion of the drive is reserved for
flash management features. Actual capacity will vary by content
** The product achieves a mean time between failure (MTBF) based on population statistics not relevant to individual units.
500GB 2.5” FIPS 140-2 SED Solid State Drive
Formatted Capacity
500 GB
Architecture
Self-Encrypting (SED) Solid State Drive with SATA interface.
Interface
Serial ATA (6.0 Gb/s)
Form Factor
2.5 inch
Height
6.80 mm ± 0.20
Width
69.85 mm ± 0.25
Length
100.35 mm ± 0.25/0.20
Weight (typical)
<95 g (0.209 lb)
Page 34
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 34
Bandwidth Performance
Sustained data transfer
rate OD
100 MB/s max
I/O data-transfer rate
600 MB/s max
Power
Power consumption:
Spinup (max): 1.00A
Idle, active: 0.70W
Sleep 0.18W
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 140° F (0° to 60° C)
Relative Humidity:
5% to 95%
Shock:
Maximum 400 G/2 ms
256GB SATA 2.5” Opal2 SED Solid State Drive
Unformatted Capacity
256 GB
500,118,192 (User Addressable Sectors)
Architecture
Self-Encrypting (SED) Solid State Drive with NAND Flash and SATA interface.
Trusted Computing Group(TCG) OPAL compliant encrypted solid state drive
Interface
Serial ATA (6.0 Gb/s)
Form Factor
2.5 inch
Height
6.80 mm ± 0.20
Width
69.85 mm ± 0.25
Length
100.20 mm ± 0.25
Weight
Up to 55 g
Bandwidth Performance
Sustained Sequential
Read:
Up to 520 MB/s
Sustained Sequential
Write:
Up to 500 MB/s
Power
Power consumption:
Active: 0.78A / 3.891W; Idle: 0.005A / 0.026W
Mean Time Between Failure
(MTBF)
1,500,000 hours
Page 35
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 35
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Shock:
1,500 G/0.5 ms
256 GB SATA 2.5” Self-Encrypting (SED) Solid State Drive
Unformatted Capacity
256,186,271 user addressable sectors
Architecture
Self-Encrypting (SED) Solid State Drive with 25nm MLC NAND Flash and SATA interface
Interface
Serial ATA 2.0 (3.0 Gb/s)
NAND Flash
25nm MLC NAND Flash
Height
.275 in/7mm
Width
2.75 in/69.85 mm
Length
3.95 in/100.5 mm
Weight
0.161 lb (73 g)
Bandwidth Performance
Sustained Sequential 128k Read:
Up to 450 MB/s
Sustained Sequential 128k Write:
Up to 260 MB/s
Random 4k Read:
Up to 46K IOPs
Random 4k Write:
Up to 56K IOPs
Latency
Read:
55 µs
Write:
55 µs
Power
SATA power consumption:
160 mW (active average); <85 mW (idle
average)
Useful Drive Life
72TB written, up to 40GB/day for 5 years
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Shock:
1,500 G/1 ms
180GB SATA 2.5” Opal1 SED Solid State Drive (Pro 1500)
Unformatted Capacity
351,651,888 Unformatted Capacity (Total User Addressable Sectors in LBA mode)
Page 36
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 36
Architecture
Self-Encrypting (SED) Solid State Drive with 20nm MLC NAND Flash and SATA interface
Interface
Serial ATA (6.0 Gb/s)
NAND Flash
20nm MLC NAND Flash
Form Factor
2.5 inch
Thickness
7 mm
Weight
Up to 78 g
Bandwidth Performance
Sustained Sequential
Read:
Up to 540 MB/s
Sustained Sequential
Write:
Up to 490 MB/s
Random 4k Read:
Up to 41K IOPs
Random 4k Write:
Up to 80K IOPs
Power
SATA power consumption:
195 mW (active average); 125 mW (idle average)
Mean Time Between Failure
(MTBF)
1,200,000 hours
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Shock:
1,500 G/0.5 ms
128GB SATA 2.5” Opal2 SED Solid State Drive
Unformatted Capacity
128 GB
250,069,680 (User Addressable Sectors)
Architecture
Self-Encrypting (SED) Solid State Drive with NAND Flash and SATA interface.
Trusted Computing Group(TCG) OPAL compliant encrypted solid state drive
Interface
Serial ATA (6.0 Gb/s)
Form Factor
2.5 inch
Height
6.80 mm ± 0.20
Page 37
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 37
Width
69.85 mm ± 0.25
Length
100.20 mm ± 0.25
Weight
Up to 55 g
Bandwidth Performance
Sustained Sequential
Read:
Up to 520 MB/s
Sustained Sequential
Write:
Up to 340 MB/s
Power
Power consumption:
Active: 0.78A / 3.891W; Idle: 0.005A / 0.026W
Mean Time Between Failure
(MTBF)
1,500,000 hours
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Shock:
1,500 G/0.5 ms
120GB SATA 2.5” Opal1 SED Solid State Drive
Unformatted Capacity
234,442,648 Unformatted Capacity (Total User Addressable Sectors in LBA mode)
Architecture
Self-Encrypting (SED) Solid State Drive with 20nm MLC NAND Flash and SATA interface
Interface
Serial ATA (6.0 Gb/s)
NAND Flash
20nm MLC NAND Flash
Form Factor
2.5 inch
Thickness
7 mm
Weight
Up to 78 g
Bandwidth Performance
Sustained Sequential
Read:
Up to 540 MB/s
Sustained Sequential
Write:
Up to 480 MB/s
Random 4k Read:
Up to 41K IOPs
Random 4k Write:
Up to 80K IOPs
Page 38
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Hard Disk and Solid State Storage
Worldwide — Version 1.8— May 22, 2014
Page 38
Power
SATA power consumption:
195 mW (active average); 125 mW (idle average)
Mean Time Between Failure
(MTBF)
1,200,000 hours
Environmental
(all conditions, non-condensing)
Operating Temperature:
32° to 158° F (0° to 70° C)
Relative Humidity:
5% to 95%
Shock:
1,500 G/0.5 ms
1TB 10K SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
500,107,862,016 bytes
Rotational Speed
7,200 rpm
Interface
Serial ATA 2.0 (6.0 Gb/s)
Buffer Size
16 MB
Logical Blocks
976,773,168
Seek Time (typical reads,
includes controller overhead,
including settling)
Single Track:
2.0 ms
Average:
12 ms
Full-Stroke:
25 ms
Height (nominal)
0.374 in/9.5 mm
Width (nominal)
Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm
Operating Temperature
41° to 131° F (5° to 55° C)
Page 39
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Removable Storage
Worldwide — Version 1.8— May 22, 2014
Page 39
HP Slim SuperMulti DVD Writer Drive
Height
12.7mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D)
5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel
Weight (max)
0.42 lb (190 g)
Write speeds
DVD-RAM
Up to 5X
DVD-R DL
Up to 6X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 6X
DVD-R
Up to 8X
DVD-RW
Up to 6X
CD-R
Up to 24X
CD-RW
Up to 24X
Read speeds
DVD-RAM
Up to 5X
DVD-RW, DVD+RW
Up to 8X
DVD-R DL, DVD+R DL
Up to 8X
DVD+R, DVD-R
Up to 8X
DVD-ROM DL, DVD-ROM
Up to 8X
CD-ROM, CD-R
Up to 24X
CD-RW
Up to 24X
Access time
(typical reads, including
settling)
Random
DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)
Full Stroke
DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Stop Time
6 seconds (typical)
Power
Source
Slimline SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC (< 1000 mA typical, 1600 mA maximum)
Environmental conditions
(operating - non-condensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Page 40
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Removable Storage
Worldwide — Version 1.8— May 22, 2014
Page 40
Maximum Wet Bulb
Temperature
84° F (29° C)
HP Slim Blu-ray BDXL Drive
Height
12.7mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 128 GB QL, 100 GB TL, 50 GB DL or 25 GB standard SL
Dimensions (W x H x D)
5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel
Weight (max)
Up to 0.37 lb (170 g) without bezel
Triple-layer
Quadruple-layer
Write speeds
BD-R
Up to 4X
Up to 4X
BD-RE
Up to 2X
Not supported
Single-layer
Double-layer
BD-R
Up to 6X
Up to 6X
BD-RE
Up to 2X
Up to 2X
DVD-R
Up to 8X
Up to 6X
DVD-RW
Up to 6X
Not supported
DVD+R
Up to 8X
Up to 6X
DVD+RW
Up to 8X
Not supported
DVD-RAM
Up to 5X
CD-R
Up to 24X
CD-RW
Up to 24X
Triple-layer
Quadruple-layer
BD-R
Up to 4X
Up to 4X
BD-RE
Up to 4X
Not supported
Single-layer
Double-layer
BD-ROM
Up to 6X
Up to 6X
BD-R
Up to 6X
Up to 6X
Read speeds
BD-RE
Up to 6X
Up to 6X
DVD-ROM
Up to 8X
Up to 8X
DVD-R
Up to 8X
Up to 8X
DVD-RW
Up to 8X
DVD+R
Up to 8X
Up to 8X
Page 41
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Removable Storage
Worldwide — Version 1.8— May 22, 2014
Page 41
DVD+RW
Up to 8X
BDMV (AACS Compliant Disc)
Up to 6X/2X (Read/Play)
DVD-RAM
Up to 5X
DVD-Video (CSS Compliant
Disc)
Up to 8X/4X (Read/Play)
CD-R/RW/ROM
Up to24X
CD-DA(DAE)
Up to 20X/10X (Read/Play)
Access time
(typical reads, including
settling)
Random
BD-ROM: 205 ms (typical), DVD-ROM: 185 ms (typical),
CD-ROM: 165 ms (typical)
Full Stroke
BD-ROM: 350 ms (typical), DVD-ROM: 345 ms (typical),
CD-ROM: 340 ms (typical)
Power
Source
Slimline SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC -1200 mA typical, 2000 mA maximum
Environmental conditions
(operating - non-condensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb
Temperature
84° F (29° C)
HP Slim DVD-ROM Drive
Height
12.7mm
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Dimensions (W x H x D)
5.04 x 0.5 x 5.0 in (128 x 12.7 x 127 mm) without bezel
Weight (max)
Up to 0.37 lb (170 g) without bezel
Read speeds
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 8X
DVD-ROM
Up to 8X
CD-ROM, CD-R
Up to 24X
CD-RW
Up to 24X
Access time
(typical reads, including
settling)
Random
DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical)
Full Stroke
DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Power
Source
Slimline SATA DC power receptacle
DC Power Requirement
5 VDC ± 5%-100 mV ripple p-p
DC Current
5 VDC - <1000 mA typical, < 1600 mA maximum
Page 42
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Removable Storage
Worldwide — Version 1.8— May 22, 2014
Page 42
Environmental (all conditions
non-condensing)
Temperature
41° to 122° F (5° to 50° C)
Relative Humidity
10% to 80%
Maximum Wet Bulb
Temperature (operating)
84° F (29° C)
Page 43
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Memory
Worldwide — Version 1.8— May 22, 2014
Page 43
System Memory Support
The HP ProDesk 490 G2 Business PC supports the 4th generation Intel® Core™ processor family. Based on a new PC microarchitecture, the processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike
previous generations, the 4th generation Intel® Core™ processor includes an Integrated Memory Controller (IMC). The IMC supports
DDR3/DDR3L protocols with two independent, 64-bit wide channels each accessing one or two DIMMs.
Two channels of non-ECC DDR3/DDR3Lunbuffered dual in-line memory modules (UDIMM) or DDR3/DDR3L unbuffered
small outline dual in-line memory modules (SO-DIMM) with a maximum of two DIMMs per channel
Single-channel and dual-channel memory organization modes
Data burst length of eight for all memory organization modes
Memory data transfer rates of up to 1600 MT/s; actual supported data transfer rate determined by the configured
processor.
64-bit wide channels
DDR3/DDR3L system memory I/O voltage of 1.5V
Theoretical maximum memory bandwidth of:
o 21.3 GB/s in dual-channel mode assuming 1333 MT/s
o 25.6 GB/s in dual-channel mode assuming 1600 MT/s
Platform Memory Support
Microtower (MT) platforms support up to four (4) industry-standard DDR3-SDRAM DIMMs.
CAUTION: You must shut down the computer and disconnect the power cord before adding or removing memory modules.
Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an
active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory
modules or system board.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available
due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.
Page 44
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Networking/Communication
Worldwide — Version 1.8— May 22, 2014
Page 44
Realtek RTL8151GH-CG GbE LOM Network Adapter
Connector
RJ-45
System Interface
Integrated on PCA
Controller
Realtek RTL8151GH-CG Gigabit Ethernet Controller
Memory
16 KB FIFO packet buffer memory
Data rates supported
10/100/1000 Mbps
IEEE Compliance
802.1P
802.1Q
802.3
802.3ab
802.3az
802.3u
Bus architecture
PCI Express
Data transfer mode
PCIe-based interface for active state operation (S0 state)
Power requirement
Requires 3.3V and 1V or just 3.3V with integrated regulators
Power consumption 0.425 W
Network transfer mode
Full-duplex
Half-duplex (not supported for the 1000BASE-T transceiver)
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Environmental
Operating Temperature:
32° to 158° F (0° to 70° C )
Operating Humidity:
60% RH
Management
WOL, auto MDI crossover, PXE, Muti-port teaming, Advanced cable diagnostic
Intel® Ethernet I210-T1 Gigabit Network Adapter
Connector
RJ-45
System Interface
PCI Express x1
Controller
Intel® I210 Gigabit Ethernet Controller
Page 45
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Networking/Communication
Worldwide — Version 1.8— May 22, 2014
Page 45
Memory
Integrated Dual 48K configurable transmit receive FIFO Buffers
Data rates supported
10/100/1000 Mbps
IEEE Compliance
802.1P
802.1Q
802.2
802.3
802.3AB
802.3u
802.3x flow control
Bus architecture
PCI-E 2.1
Data path width
X1, 250 MB/s, Bi-directional interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV-c, TUVus Mark Canada and United States, TUV-GS Mark for European Union
Power requirement
Aux 3.3 V, 3.0 Watts in 1000 base-T and 1.0 Watts in 100 Base-T
Boot ROM support
Yes
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI bus)
Environmental
Operating Temperature:
32° to 132° F (0° to 55° C )
Operating Humidity:
85% at 131° F (55° C)
Management
WOL, PXE, DMI, WFM 2.0
Intel Dual Band Wireless-N 7260 802.11 a/b/g/n (2x2) Wireless Network Interface
Connection
Wireless LAN Standards
IEEE 802.11a/b/g/n
Interoperability
Wi-Fi certified (802.11 a/b/g/n WMM, WPA, WPA2 and WPS)
Cisco Compatible Extensions Program compliant with Microsoft Windows 7, Windows Vista and
XP.
Page 46
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Networking/Communication
Worldwide — Version 1.8— May 22, 2014
Page 46
NOTE: WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for
Microsoft Windows Vista.
Frequency Band
802.11b/g/n
2.402-2.482 GHz
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX Lite
WAPI
Note: Check latest software/driver release for updates on supported security features.
Sub-channels
Multinational support with frequency bands and channels compliant to local regulations.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Note: Maximum output power may vary by country according to local regulations.
Power Consumption
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode: 250 mW (WLAN associated) In Power Save Polling mode and on battery power.
Idle mode: 100 mW (WLAN unassociated)
Radio off: 100 mW (WLAN unassociated)
Page 47
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Networking/Communication
Worldwide — Version 1.8— May 22, 2014
Page 47
Power Management
ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
Note: Receiver sensitivity is
measured at a packet error
rate of 8% for 802.11b (CCK
modulation) and a packet
error rate of 10% for
802.11a/g (OFDM
modulation).
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm (18 Mbps), -82 dBm
(24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm (54 Mbps)
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm (11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm (18 Mbps), -82 dBm
(24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm (54 Mbps)
Antenna Connections
2 U.FL type connectors (output impedance of 50 ± 2 ohms)
Form Factors
PCI-Express Half-MiniCard
Weight
0.0068 lb (3.1 g)
Dimensions
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating:
Non-operating:
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating:
Non-operating:
10% to 90% (non-condensing)
5% to 90% (non-condensing)
Altitude
Operating:
Non-operating:
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
HP WLAN 802.11 a/b/g/n 2x2 Dual Band PCIe x1 WLAN/Bluetooth Card
Wireless LAN Standards
IEEE 802.11a/b/g/n
Interoperability
Wi-Fi certification
BQE certification of the Bluetooth component
CCXv1, v2, v3, v4, v5 CCX certified (Cisco Client Extensions)
NOTE: WLAN supplier's client utility is required for Cisco Compatible Extensions support with
Microsoft Windows XP. WLAN may also be compatible with certain third-party software
supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support
for Microsoft Windows Vista.
Frequency Band
802.11b/g/n
2.402-2.482 GHz
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
Antenna Structure
2 transmit; 2 receive (2x2)
Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO
Page 48
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Networking/Communication
Worldwide — Version 1.8— May 22, 2014
Page 48
communications and Bluetooth communications.
Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20 and 40 MHz
channels. Short and long guard interval shall be supported.
Security
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5
WAPI
Note: Check latest software/driver release for updates on supported security features.
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power
+13.5 dBm minimum
Maximum output power must be able to achieve modular regulatory certification peak
gain of +3dBi at 2.4GHz and +5dBi at 5GHz
Note: Maximum output power may vary by country according to local regulations.
Power Consumption
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode: 250 mW (WLAN associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW (WLAN unassociated)
Bluetooth Power
Consumption
Peak operating: 330 mW
Receive: 230 mW
USB selective suspend: 17 mW
Power Management
ACPI and PCI Express bus compliant power management
802.11 compliant power saving mode
Supports USB selective suspend and resume of the Bluetooth component through the USB
control signals.
Receiver Sensitivity
802.11b
Sensitivity
(dBm)
Rate (Mbps)
Modulation and
Coding Rate
-95 1 BPSK
-93 2 QPSK
-91
5.5
CCK
-88
11
CCK
Page 49
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Networking/Communication
Worldwide — Version 1.8— May 22, 2014
Page 49
802.11a/g
Sensitivity
(dBm)
Rate (Mbps)
Modulation and
Coding Rate
-90 6 BPSK - ½
-89 9 BPSK – ¾
-87
12
QPSK – ½
-85
18
QPSK – ¾
-82
24
16 QAM – ½
-79
36
16 QAM – ¾
-76
48
64 QAM – 2/3
-74
54
64 QAM – ¾
802.11n
Sensitivity
(dBm)
Rate (Mbps)
Modulation and
Coding Rate
-69
150
64 QAM – 5/6
-66
300
64 QAM – 5/6
Form Factors
PCI-Express Half-MiniCard
Weight
0.1133 oz (3.212 g)
Dimensions
1.04 x 1.17 x 0.042 in (26.65 x 29.85 x 1.067 mm)
Operating Voltage
3.3V +/- 9%
Temperature
Operating:
Non-operating:
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating:
Non-operating:
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating:
Non-operating:
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
High Definition Audio
Type
Integrated
HD Stereo Codec
Realtek 2-channel ALC221 codec
Audio I/O Ports
Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio
driver)
Rear Line-Out* (190 ohms Output Impedance, expects at least a 10-K ohm load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32 ohm load)
Front Microphone/Headphone jack is re-task able to provide Microphone input, line-in or
Headphone output to support connecting two headphones to the front of the system. When
configured as a second front headphone output, both front headphone outputs are always
driven with the same signal.
All ports are 3.5mm
Page 50
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Audio
Worldwide — Version 1.8— May 22, 2014
Page 50
Internal Speaker Amplifier
1.5W amplifier for the internal speaker only. External speakers must be powered externally.
Multi-streaming Capable
Multi-streaming can be enabled in the Realtek control panel to allow independent audio streams
to be sent to/from the front and rear jacks.
Sampling
8 kHz - 192 kHz
Wavetable Syntheses
Yes – Uses OS soft wavetable
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left & Right channels)
Internal Speaker
Yes
External Speaker Jack
Yes
Page 51
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 51
HP USB Keyboard
Physical characteristics
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions (L x W x H)
18.12 x 6.47 x 0.96 in (46.03 x 16.43 x 2.44 cm)
Weight
2 lb (0.9 kg)
Electrical
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft® PC 99 - 2001
Functionally compliant
Mechanical
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001
Mechanically compliant
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Page 52
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 52
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
30 in (76.2 cm) on concrete, 16-drop sequence
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, KC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard
Installation Guide
Warranty Card
Safety and Comfort Guide
HP PS/2 Keyboard
Physical Characteristics
Keys
104, 105, 106, 107, 109 layout (depending upon country)
Dimensions (L x W x H)
18.22 x 6.47 x 1.1 in (46.28 x 16.43 x 2.79 cm)
Weight
2 lb (0.9 kg) minimum
Electrical
Operating voltage
+ 5VDC ± 10%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
PS/2 6-pin mini din connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001
Functionally compliant
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001
Mechanically compliant
Environmental
Acoustics
50-dBA maximum sound pressure level
Page 53
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 53
Operating temperature
32° to 104° F (0° to 40° C)
Non-operating temperature
-22° to 149° F (-30° to 65° C)
Operating humidity
15% to 80% (non-condensing at ambient)
Non-operating humidity
15% to 90% (non-condensing at ambient)
Operating shock
N/A
Non-operating shock
65 inch 2.9 ms, six surface; 30g 266 inch/second; 50g
266 inch/second six surface
Operating vibration
2-g peak acceleration
Non-operating vibration
Starting at 5 Hz, vary the frequency of vibration from 5 to
500 Hz and back to 5 Hz at a Logarithmic sweep rate of 1
octave per minute.
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
29.93 in (76 cm) on concrete, 16-drop sequence
Approvals
CUL, ICES-003 Class B, FCC, CE Mark,TUV GS, VCCI, BSMI, C-Tick, KC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
HP USB Smart Card (CCID) Keyboard
Key Benefits:
Protects against unauthorized access with smart card technology
Delivers even greater security when combined with a HP ProtectTools smart card
and the HP ProtectTools Security Software
Combination of username and password or pin with a smart card or security token
Secures online transactions using digital signatures and certificates
Conforms to industry standards for ease of setup and use
Delivers long product life and quiet operation with high-impact materials and
lubricated keys
Spill drain feature
Physical Characteristics
Keys
104, 105, 106, 107, 109 layout
(depending upon country
Form factor
USB basic smart card keyboard
Colors
Carbonite/Silver
Dimensions (H x W x D)
18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
Weight
2 lb (0.9 kg) minimum
Page 54
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 54
Electrical
Operating voltage
+ 5VDC ± 5%
Power consumption
100-mA maximum (with four LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001
Functionally compliant
Mechanical
Languages
30+ available
Keycaps
Standard design
Switch actuation
55 g nominal peak force with tactile feedback
Switch life
20 million keystrokes
(using Hasco modified tester)
Switch type
Contamination-resistant membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001
Mechanically compliant
Environmental
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
-22° to 140° F (-30° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating humidity
20% to 80% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
SmartCard Function
Support
All ISO 7816 smart cards (FIPS 201)
Page 55
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 55
Interface
Reads from and writes to all ISO7816-1, 2, 3, 4
memory and microprocessor smart cards (T=0, T=1)
Chipset
SCM STCII
Standard APIs supported
PC/SC, EMV2000, SET
Power
USB Port
Short circuit detection (protects smart card and
reader)
Power supply compliant with ISO7816 and EMV (5V, 60
mA)
Supports 3-V and 5-V cards
Power consumption
100-mA maximum draw
Communication
From card
9600 bps to 330,000 bps
From computer
12 Mbps (USB transfer
speed)
Landing mechanism
Contact device
Friction contact
Card insertions rating
Up to 100,000 insertion
cycles
Interface modes
CCID protocol
Reader performance interface
USB connection
Electro-magnetic standards
Europe
2004/108/EC
USA
USAFCC part 15
Approvals
CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF
Ergonomic Compliance
ISO 9241-4, TUVGS
Kit Contents
Keyboard, I/O Security and Documentation CD, warranty card
HP USB PS/2 Washable Keyboard
Physical Characteristics
Keys
104 (US) Layout, 105 (EU) layout – depending upon
country
Dimensions (L x W x H)
17.67x 6.62 x 1.38 in (449 x 168 x 35 mm)
Weight
1.7 lb (0.77 kg) minimum
Electrical
Operating voltage
+ 5VDC ±5%
Power consumption
50-mA maximum (with three LEDs ON)
Page 56
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 56
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC 99 - 2001
Functionally compliant
Mechanical
Keycaps
Stepped -profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms
For all double-wide and greater-length keys
Cable length
7 ft (2.2 m)
Microsoft PC 99 - 2001
Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating temperature
4° to 149° F (-20° to 65° C)
Operating humidity
10% to 95% (non-condensing at ambient)
Non-operating humidity
0% to 95% (non-condensing at ambient)
Operating shock
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Operating vibration
2-g peak acceleration
Non-operating vibration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
Drop (in box)
42 in (107 cm) on concrete, 16-drop sequence
Operating system support
Windows 8, Windows 7, Windows Vista, Windows XP Professional
Approvals
UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1,
IP66/NEMA4X
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
HP Wireless Keyboard and Mouse
Keyboard
Dimensions (H x L x W)
1.09 x 18.1 x 6.47 in (27.87 x 460.3 x 164.3 mm)
Weight – Without Two AA
Alkaline Batteries
1.94 lb (880 g)
Mouse
Dimensions (H x L x W)
1.46 x 4.53 x 2.47 in (37 x 115 x 62.9 mm)
Weight – Without Two AA
Alkaline Batteries
0.15 lb (67 g)
Receiver
Dimensions (H x L x W)
0.33x 1.79 x 0.72 in (8.4 x 45.5 x 18.4 mm)
Weight
0.21 oz (5.9 g)
Page 57
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 57
Cable Length – Minimum
6 ft (1.8 m)
Range
32.8 ft (10 m)
System Requirements
Windows 8, Windows 7 Home Basic*, Windows 7 Home Premium*, Windows 7 Professional
Edition 32*, Windows 7 Professional Edition 64*, Windows 7 Ultimate Edition 32*, Windows
7 Ultimate Edition 64* Windows Vista or Windows XP
Available USB port for the receiver
CD-ROM Drive
*This system may require upgraded and/or separately purchased hardware and/or a DVD
drive to install the Windows 7 software and take full advantage of Windows 7 functionality.
See http://www.microsoft.com/windows/windows-7/ for details.
Approvals
Product Safety
UL; CSA /TUV (Europe only); CE Mark; CB Report
Ergonomics
ANSI; ISO (Europe only); GS Mark (Germany only)
EMC
FCC; CE; ACA (-tick); BSMI; KC ; VCCI
CE Mark
EN 55022:2010; EN 55024; EN 301489-1; EN 61000
Design Guidelines for PCs
PC 99 – connector overmold colors; PC 2001 – full
functionality
Telecom
All local telecom requirements and approvals for
intended markets
USA
FCC Title 47 CFR, Par 15, Subpart C; other local
requirements
Country Support
US, Belgium, Switzerland, Spain, Denmark,
Netherlands, France, Germany, Italy, Portugal, Sweden,
Norway, Finland, UK, Poland, Czech Republic, Turkey,
Greece, Austria, Bulgaria, Cyprus, Estonia, Hungary,
Ireland, Latvia, Lithuania, Luxemburg, Malta, Romania,
Slovakia, Slovenia, Vietnam, HK, Australia, NZ,
Malaysia, Singapore, Indonesia, Philippines, Thailand,
Canada, China, Japan, Korea, Taiwan, India, Venezuela,
Ecuador, Russia, Ukraine, Israel, Croatia, United Arab
Emirates, Peru, Brazil, Chile, Argentina, Mexico, South
Africa, and up to 193 countries worldwide.
Environmental
Keyboard contains 25% post-consumer recycled plastic material
HP PS/2 Mouse
Dimensions
(H x L x W)
1.46 x 2.48 x 4.53 in (3.70 x 6.29 x 11.50 cm)
Weight
3.53 oz (100g; +10g/- 5 g)
Environmental
Operating temperature
-32° to 104°F (0° to 40° C)
Non-operating temperature
-4° to 140°F (-20° to 60° C)
Page 58
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 58
Operating humidity
10% to 90%
(non condensing at ambient)
Non-operating humidity
10% to 90%
(non condensing at ambient)
Operating shock
40 g, 6 surfaces
Non-operating shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating vibration
4 g peak acceleration
Drop
(out of box)
80 cm height onto asphalt tile over concrete or
equivalent, 5-drop in 5 direction except the cable face
Electrical
Operating voltage
5 VDC ± 10%
Power consumption
100mA
System consumption
PS/2 mini-din connector
ESD
CE level 4, 15 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC99 - 2001
Functionally compliant
Mechanical
Resolution
800 DPI
Tracking speed
10 in/s (25.4 cm/s) maximum
Acceleration
±15%
Switch actuation
65±20 gf
Switch life
3,000,000 operations (using Hasco modified tester)
Switch type
Low force micro-switches
Tracking mechanism life
80 km
Cable length
6 ft (1.8 m)
Microsoft PC99 - 2001
Mechanically compliant
Scroll wheel
Width
6 mm
Diameter
22.5 ± 0.2 mm
Page 59
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 59
Maximum rotation force
50 gf-cm
Switch type
Light force micro-switch
Switch life
1 million operations
Mechanical life
Minimum 200,000 revolutions
Regulatory Approvals
UL/cUL, FCC, CE Mark, TUV/GS, VCCI, KCC, BSMI, C-Tick
HP USB Mouse
Dimensions
(H x L x W)
1.5 x 4.5 x 2.5 in (3.7 x 11.5 x 6.3 cm)
Weight
0.22 lb (0.10 kg)
Cable length
70.9 in (180 cm)
System requirements
Available USB port
HP USB 1000dpi Laser Mouse
Dimensions
(H x L x W)
1.47 x 4.53 x 2.47 in (37.3 x 114.97 x 62.86 mm)
Weight
3.360 oz (102g)
Cable length
70.9 in (180 cm)
System requirements
Available USB port
Environmental
Operating Temperature
32° to 104° F (0° to 40° C)
Non-operating Temperature
-4° to 140° F (-20° to 60° C)
Operating Humidity
10% to 90%
(non-condensing at ambient)
Mechanical
Resolution
1000dpi
Tracking Speed
45 cm/sec
Cable Length
70.9 in (180 cm)
Page 60
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 60
HP USB PS/2 Washable Mouse
Dimensions
(H x L x W)
1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm)
Weight
4.44 oz (126 g)
Environmental
Operating
temperature
–32° to 104°F (0° to 40° C)
Non-operating
temperature
–4° to 140°F (–20° to 60° C)
Operating humidity
10% to 90% (non-condensing at ambient)
Non-operating
humidity
10% to 90% non-condensing
Operating shock
40 g, 6 surfaces
Non-operating
shock
80 g, 6 surfaces
Operating vibration
2 g peak acceleration
Non-operating
vibration
4 g peak acceleration
Drop
(out of box)
80 cm height onto asphalt tile over concrete or equivalent, 5-drop in 5 direction
except the cable face
Electrical
Operating voltage
5 VDC ± 10%
Power
consumption
100mA
System
consumption
PS/2 mini-din connector or USB
ESD
CE level 2 8 kV air discharge
EMI-RFI
Conforms to FCC rules for a Class B computing device
Microsoft PC99 2001
Functionally compliant
Mechanical
Resolution
1000 ± 20% DPI
Tracking speed
14 in/s ( 35.56 cm/s) maximum
Page 61
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications - Input/Output Devices
Worldwide — Version 1.8— May 22, 2014
Page 61
Acceleration
2 g
Switch actuation
70 g nominal peak force
Switch life
3,000,000 operations (using Hasco modified tester)
Switch type
Low force micro-switches
Tracking
mechanism life
8.8 ft total 70 cm+ 2m extension
Cable length
Mechanically compliant
Microsoft PC99 2001
1000 ± 20% DPI
Scroll wheel
Width
6 mm
Diameter
1 in (25.4 mm)
Maximum rotation
force
48 rats/sec
Switch type
Light force micro-switch
Switch life
3 million operations
Mechanical life
Minimum 200,000 revolutions
Regulatory
Approvals
FCC, CE Mark, ICES-003-B, IP66/NEMA4X
Page 62
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Power
Worldwide — Version 1.8— May 22, 2014
Page 62
Unit Environment and Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit
is operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's
re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other
foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: –22° to 140° F(–30° to 60° C)
Relative Humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum
Altitude (unpressurized)
Operating: 10,000 ft (3048 m)
Non-operating: 30,000 ft (9144 m)
*Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained
sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
Standard Efficiency
300W & 180W active PFC (230 VAC input only)
300W & 180W Reg (115V/230 VAC)
High Efficiency*
80 PLUS Bronze
300W & 180 active PFC EStar 6
82/85/82% efficient at 20/50/100% load (115V)
82/85/82% efficient at 20/50/100% load (230V)
Rated Voltage Range
200 - 240 VAC (300W & 180W active PFC)
100 - 240 VAC (300W & 180W ENERGY STAR® 6)
115 VAC/230 VAC (300W & 180W Reg)
Rated Line Frequency
50/60 Hz
Operating Line Frequency
47 – 63 Hz
Rated Input Current
4A/200 VAC, 8A/100 VAC
Rated Input Current with Energy Efficient* Power Supply
6.3A/100 VAC
Current Leakage
(NFPA 99)
<900uA / 230 VAC (300W PSU)
Current Leakage with Energy Efficient Power Supply
<600uA / 230 VAC
Power Supply Fan
80mm Fan
Power cord length
6.0 ft. (1.83 m)
External Power Adapter Dimensions
N/A
Total Cord Length
N/A
*High efficiency power supply is a requirement for ENERGY STAR® qualification in conjunction with a select range of processors
and modules
Page 63
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Weights & Dimensions
Worldwide — Version 1.8— May 22, 2014
Page 63
Weights & Dimensions
(configured with 1 HDD & 1 ODD)
Chassis (W x H x D)
182.88 X 357 X 402 mm
7.2 x 14.05 x 15.82 in
System Volume
24.66 L
System Weight*
6.5 kg
14.33 lb
Max Supported Weight (desktop orientation)
N/A
Tower Stand (H x W x D)
N/A
Packaged (H x W x D)
496 x 240 x 520 mm
19.53 x 9.45 x 20.47 in
Shipping Weight
Est. 9.058 kg (19.969 lb)
Palletization Profile
2 x 5 = 10 -units per layer
4-layer max.
40-units per pallet
Page 64
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Miscellaneous Features
Worldwide — Version 1.8— May 22, 2014
Page 64
Management Features
Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and peripherals in a low-power or
powered-off state without affecting other elements of the system.
Intel Wired for Management support; industry wide initiative to make Intel architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button
Serviceability Features
Dual colored power LED on front of computer to indicate either normal or fault condition
Diagnostic LED Explanation Table:
o Number of 1-second red LED blinks followed by a 2-second pause, then repeats:
2 - processor thermal protection activated
3 - processor not installed
4 - power supply failure
5 -- memory error
6 - video error
7 - PCA failure (ROM detected failure prior to video)
8 - invalid ROM, boot block recovery mode
9 - system not fetching code
10 - system hang while loading an option ROM
HP PC Hardware Diagnostics UEFI:
o This utility enables hardware level testing outside the operating system on many components. The diagnostics
can be invoked by pressing F2 at POST, and is available as a download from HP Support
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy replacement
Flash Recovery with Video Configuration Record Software
5 Aux Power LED on System PCA
Processor ZIF Socket for easy Upgrade
Over-Temp Warning on Screen (Requires IM Agents)
Clear Password Jumper
DIMM Connectors for easy Upgrade
Clear CMOS Button
NIC LEDs (integrated) (Green & Amber)
Dual Color Power and HD LED - To Indicate Normal Operations and Fault Conditions
Color coordinated cables and connectors
Tool-less Hood Removal
Front power switch
System memory can be upgraded without removing the system board or any internal components
Tool-less Hard Drive, CD & Diskette Removal
Green Pull Tabs, and Quick Release Latches for easy Identification
Additional Features
Description
Towerable Orientation
Product can be oriented as either a desktop (horizontal) or a tower (vertical)
Drive Lock
Implementation of the industry standard ATA Security feature set. When enabled, it
prevents software access to user data on the drive until one or two user-defined
passwords are provided.
Drive Protection System
DPS Access through F10 Setup during Boot
A diagnostic hard drive self test. It scans critical physical components and every sector
Page 65
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Technical Specifications – Miscellaneous Features
Worldwide — Version 1.8— May 22, 2014
Page 65
of the hard drive for physical faults and then reports any faults to the user
Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain
types of failures
SMART Technology (Self-Monitoring,
Analysis and Reporting Technology)
SMART I - Drive Failure Prediction
SMART II - Off-Line Data Collection
SMART III - Off-Line Read Scanning with
Defect Reallocation
SMART IV - End-to-End CRC for hard
drives
Allows hard drives to monitor their own health and to raise flags if imminent failures
were predicted
Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure
IOEDC: I/O Error Detection Circuitry
Detects errors in Read/Write buffers on HDD cache RAM
Interface in F10 setup provides confirmation of SMART IV support.
Page 66
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
After-Market Options (availability may vary by region)
Worldwide — Version 1.8— May 22, 2014
Page 66
Business Monitors
Part Number
HP ProDisplay P191
C9E54AA
HP ProDisplay P201
C9F26AA
HP ProDisplay P221
C9E49AA
HP ProDisplay P17A
F4M97AA
HP ProDisplay P19A
D2W67AA
HP ProDisplay P231
E4S07AA
HP EliteDisplay E201
C9V73AA
HP EliteDisplay E221
C9V76AA
HP EliteDisplay E231
C9V75AA
HP EliteDisplay E190i
E4U30AA
HP EliteDisplay E241i
FOW81AA
HP EliteDisplay E271i
D7Z72AA
HP EliteDisplay E221c
D9E49AA
HP EliteDisplay S230tm
E4S03AA
HP L2206tm
B0L55AA
Communication Devices
Part Number
Intel Ethernet I210 – T1 Gbe NIC
E0X95AA
Intel 7260 802.11 a/b/g/n PCIe x1 WLAN Card
F2P07AA
Graphics Solutions
Part Number
AMD Radeon HD 8350 Graphics (PCIe x16)
E1C63AA
AMD Radeon HD 8490 Graphics Card
E1C64AA
Nvidia NVS 310 Graphics (PCIe x16)
A7U59AA
Nvidia NVS 315 Graphics (PCIe x16)
E1C65AA
HP DisplayPort Cable Kit
VN567AA
HP DisplayPort To Dual Link DVI-D Adapter
NR078AA
HP DisplayPort To DVI-D Adapter
FH973AA
HP DisplayPort to HDMI Adapter
BP937AA
HP DisplayPort to VGA Adapter
AS615AA
HP DMS-59 to Dual DVI Cable
DL139A
HP DMS-59 to Dual DisplayPort Adapter
XP688AA
Dual Output USB Graphics Adapter
C5U89AA
Data Storage Drives and Accessories
Part Number
HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
QK555AA
HP 1-TB 10K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
C2T91AA
HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
QK554AA
Intel Pro 1500 180GB SATA SED Opal1 SSD
G4M04AA
Page 67
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
After-Market Options (availability may vary by region)
Worldwide — Version 1.8— May 22, 2014
Page 67
HP 128-GB SATA 3.0Gb/s Solid State Drive
QV063AA
HP 500-GB SATA 3.0Gb/s Solid State Hybrid Drive
E1C62AA
HP Slim Removable SATA Hard Drive Enclosure (frame & carrier)
C1N41AA
HP Slim Removable SATA Hard Drive Enclosure (carrier only)
AR639AA
Input Devices
Part Number
HP USB Keyboard
QY776AA
HP USB Gray Keyboard (EMEA only)
B6B64AA
HP USB Smart Card (CCID) Keyboard
E6D77AA
HP USB Keyboard and Mouse Kit
B1T09AA
HP USB and PS/2 Washable Keyboard and Mouse Kit
BU207AA
HP PS/2 Mouse
QY775AA
HP USB Mouse
QY777AA
HP USB 1000dpi Laser Mouse
QY778AA
HP Wireless Keyboard and Mouse Combination
QY449AA
System Memory
Part Number
HP 4GB DDR3-1600 (PC3-12800) DIMM
B4U36AA
HP 8GB DDR3-1600 (PC3-12800) DIMM
B4U37AA
Multimedia Devices
Part Number
HP Slim DVD-ROM Drive
VP033AA
HP Slim SuperMulti DVD Writer Drive
QS209AA
HP USB HD 720P v2 Business Webcam
D8Z08AA
HP Business Headset
QK550AA
HP Business Speakers
D9J19AA
Security Devices
Part Number
HP UltraSlim Cable Lock
H4D73AA
Stands and Accessories
Part Number
HP (10 Sets) 400 G2 Bezel Support Kit
TBD
HP Serial Port Adapter (RS-232 compatible)
PA716A
HP Parallel Port Kit
KD061AA
HP PCI Expansion Kit
E1V16AA
LANDesk Software (E-Delivery)
Contact your HP representative for available options.
Page 68
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
After-Market Options (availability may vary by region)
Worldwide — Version 1.8— May 22, 2014
Page 68
© Copyright 2014 Hewlett-Packard Development Company, L.P. All rights reserved.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor used by Hewlett-Packard Company under license. Intel and Core are trademarks of Intel
Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of the Microsoft group of
companies. AMD and Radeon are trademarks of Advanced Micro Devices, Inc.
April 2014
Page 69
QuickSpecs
HP ProDesk 490 G2 Microtower Business PC
Change Log
Worldwide — Version 1.8— May 22, 2014
Page 69
Date of change:
Version
History:
Description of change:
May 22, 2014
From v1.7 to
v1.8
Replaced
180W disclaimer replaced with new wording.
Loading...
