HP ProDesk 490 G1 Quickspecs

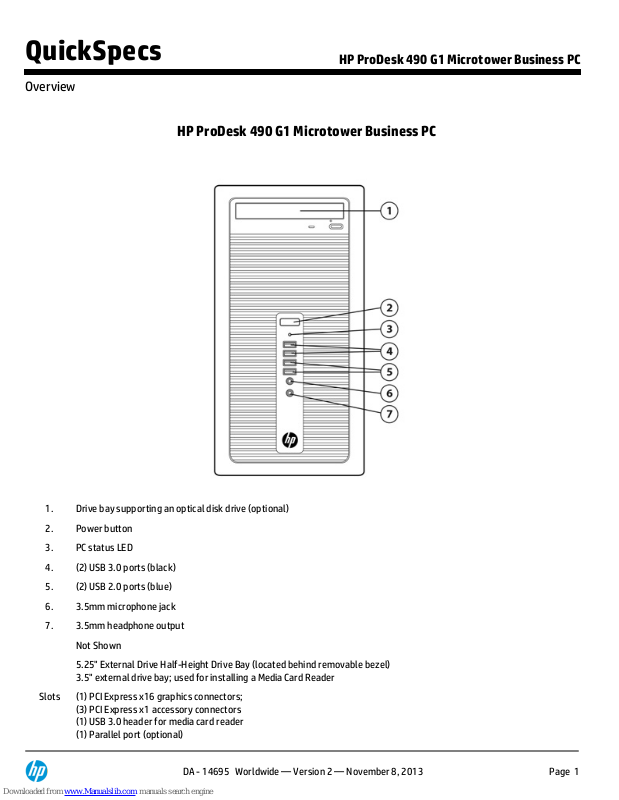

HP ProDesk 490 G1 Microtower Business PC

Drive bay supporting an optical disk drive (optional)

Power button

PC status LED

(2) USB 3.0 ports (black)

(2) USB 2.0 ports (blue)

3.5mm microphone jack

3.5mm headphone output

Not Shown

5.25" External Drive Half-Height Drive Bay (located behind removable bezel)

3.5" external drive bay; used for installing a Media Card Reader

Slots

(1) PCI Express x16 graphics connectors; (3) PCI Express x1 accessory connectors (1) USB 3.0 header for media card reader (1) Parallel port (optional)

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Overview

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 1

Bays

(2) 3.5" internal storage drive bays

Rear I/O

(4) USB 2.0 ports; (2) USB 3.0 ports (1) VGA video port; (1) DVI-D video port; DisplayPort with Multi-Stream support - DP 1.2 (Optional) (1) RJ-45 network connector (1) RS-232 serial port (1) RS-232 serial (optional)

3.5mm audio in/out jacks PS/2 keyboard and mouse ports

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Overview

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 2

At A Glance

Expandable, upgradable chassis and system board HP developed and engineered UEFI BIOS supporting security, manageability and software image stability Intel® H87 Express chipset supporting Intel® 4th generation Core processors, featuring integrated Intel HD Graphics Realtek RTL8151GH-CG GbE LOM integrated network connection DDR3 Synchronous Dynamic Random Access Memory (SDRAM) Three independent monitor support via VGA and DVI-D video interfaces and optional DisplayPort with Multi-stream support - DP

1.2 Discrete graphics options available for all platforms DTS Sound + audio management software Standard and high efficiency energy saving power supply options ENERGY STAR® qualified models certified EPEAT® Gold Can be configured with multiple drives in a RAID array Optional Intel Smart Response Technology disk cache modules

Intel® Smart Response Technology disk cache modules planned to be available December, 2013.

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Overview

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 3

OPERATING SYSTEM

Preinstalled When Purchased

Windows 8.1 Pro (64-bit) Windows 8.1 (64-bit) Windows 7 Ultimate (32-bit)

Windows 7 Ultimate (64-bit)

Windows 7 Professional (32-bit)

Windows 7 Professional (64-bit)

Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8.1 Pro)

***

Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8.1 Pro)

***

Windows 7 Home Premium (32-bit)

Windows 7 Home Premium (64-bit)

Windows 7 Home Basic (32-bit)

FreeDOS 2.0 Novell SUSE Linux Enterprise Desktop 11

*Not all features are available in all editions of Windows 8.1. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8.1 functionality. See

http://www.microsoft.com

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. See

http://www.microsoft.com/windows/windows-7/

for details.

***This system is preinstalled with Windows 7 Pro software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

PROCESSORS

Intel® 4th Generation Core™ i7 Processors

Intel® Core™ i7-4770 Processor Up to 3.9 GHz Max. Turbo Frequency (3.4 GHz base frequency) 8 MB cache, 4 cores, 8 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i7-4771 Processor Up to 3.9 GHz Max. Turbo Frequency (3.5 GHz base frequency) 8 MB cache, 4 cores, 8 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i7-4770S Processor Up to 3.9 GHz Max. Turbo Frequency (3.1 GHz base frequency) 8 MB cache, 4 cores, 8 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 4

Intel® 4th Generation Core™ i5 Processors

Intel® Core™ i5-4570 Processor Up to 3.6 GHz Max. Turbo Frequency (3.2 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i5-4570S Processor Up to 3.6 GHz Max. Turbo Frequency (2.9 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i5-4670 Processor Up to 3.8 GHz Max. Turbo Frequency (3.4 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i5-4670S Processor Up to 3.8 GHz Max. Turbo Frequency (3.1 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i5-4430 Processor Up to 3.2 GHz Max. Turbo Frequency (3.0 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i5-4430s Processor Up to 3.2 GHz Max. Turbo Frequency (2.7 GHz base frequency) 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® 4th Generation Core™ i3 Processors

Intel® Core™ i3-4340 Processor Up to 3.6 GHz Max. Turbo Frequency (3.6 GHz base frequency) 4 MB cache, 2 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Core™ i3-4330 Processor Up to 3.5 GHz Max. Turbo Frequency (3.5 GHz base frequency) 4 MB cache, 2 cores, 4 threads Intel HD Graphics 4600 Supports DDR3 memory up to 1600 MT/s data rate

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 5

Intel® Core™ i3-4130 Processor Up to 3.4 GHz Max. Turbo Frequency (3.4 GHz base frequency) 3 MB cache, 2 cores, 4 threads Intel HD Graphics 4400 Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium Processors

Intel® Pentium G3430 Processor Up to 3.3 GHz Max. Turbo Frequency (3.3 GHz base frequency) 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium G3420 Processor Up to 3.2 GHz Max. Turbo Frequency (3.2 GHz base frequency) 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1600 MT/s data rate

Intel® Pentium G3220 Processor Up to 3.0 GHz Max. Turbo Frequency (3.0 GHz base frequency) 3 MB cache, 2 cores, 2 threads Intel HD Graphics Supports DDR3 memory up to 1600 MT/s data rate

CHIPSET

Intel® 8 Series (H87 Express) Chipset

GRAPHICS

Intel HD Graphics on all models (integrated on processor)

AMD Radeon HD 8350 (1GB) FH PCIe x16 AMD Radeon HD 8350 (1GB) PCIe x16 AMD Radeon HD 8470 (2GB) FH AMD Radeon HD 8490 (1GB) PCIe x16 NVIDIA GeForce GT630 (2GB) FH PCIe x16 NVIDIA NVS 310 x16 1st (no cbl) NVIDIA NVS 315 (1GB) PCIe x1

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 6

ADAPTERS AND CABLES

HP DMS-59 to Dual DisplayPort Cable HP DMS-59 to Dual DVI Cable HP DMS-59 to Dual VGA Cable HP DisplayPort to DisplayPort Cable HP DisplayPort to DVI-D Adapter HP DisplayPort to HDMI Adapter HP DisplayPort to VGA Adapter HP Serial Port Adapter HP Parallel Port Adapter HP DisplayPort Cable

STORAGE

SATA Drives

500 GB, 7.2K rpm, SATA 6.0 Gb/s, SMART IV, 3.5" 1 TB, 7.2K rpm, SATA 6.0 Gb/s, SMART IV, 3.5" 2 TB, 7.2K rpm, SATA 6.0 Gb/s, SMART IV, 3.5"

Hybrid Drives

500 GB SATA 6G 2.5 (8GB cache) SSHD Drive (with 3.5" adapter)

500 GB SATA 6G 2.5 2nd Drive (8 GB cache) SSHD Drive (with 3.5" adapter)

1 TB SATA 6G 2.5 (8 GB cache) SSHD Drive (with 3.5" adapter)

1 TB SATA 6G 2.5 2nd Drive (8 GB cache) SSHD Drive (with 3.5" adapter)

Solid State Drives

128 GB SATA 6G 2.5 SSD (with 3.5" adapter)

128 GB SATA 6G 2.5 2nd SSD (with 3.5" adapter)

Self-encrypting Solid State Drive

256 GB SATA 2.5" Self-Encrypting (SED) Solid State Drive (with 3.5" adapter)

256 GB SATA 2.5" 2nd Self-Encrypting (SED) Solid State Drive installed w/caddy

Optical Disc Drive

Blu-ray BDXL Writer

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 7

SuperMulti DVD Writer DVD-ROM

MEMORY

Form Factor

Type

Maximum

# of Slots

Microtower

DDR3 non-ECC

Up to 1600 MT/s

32 GB

4 UDIMM

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available

due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

Memory modules support data transfer rates up to 1600 MT/s; actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate.

PERFORMANCE

Intel® Smart Response Technology Disk Cache Modules

32GB SATA Solid State Disk Cache

*Intel® Smart Response Technology disk cache modules planned to be available December, 2013.

NETWORKING/COMMUNICATIONS

Ethernet (RJ-45)

Realtek RTL8151GH-CG GbE LOM (standard) Intel Ethernet I210-T1 PCIe x1 Gb Network Interface Card (optional)

Wireless

Intel® Dual Band Wireless-N 7260 802.11 a/b/g/n PCI Express (optional)

*Intel® Dual Band Wireless-N 7260 planned to be available December, 2013.

AUDIO/MULTIMEDIA

HD audio with Realtek ALC221 codec (all ports are stereo) DTS Studio Sound audio management technology Microphone and headphone front ports (3.5mm) Line-out and Line-In rear Ports (3.5mm) Multi-streaming capable Internal speaker (standard)

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 8

KEYBOARDS AND POINTING DEVICES

Keyboard

HP PS/2 Keyboard HP USB Keyboard USB Smart Card (CCID) Keyboard HP USB and PS/2 Washable Keyboard HP Wireless Keyboard and Mouse Combo

* Keyboard contains 25% post-consumer recycled plastic material.

Mice

HP PS/2 Mouse HP USB Mouse HP USB 1000dpi Laser Mouse HP USB and PS/2 Washable Mouse

HP BIOS

Key features of the HP BIOS include:

UEFI specification 2.3.1 Absolute Persistence Agent - To ensure tracking and tracing services remains active, available in select countries, separate software and purchase of a subscription is required. Thermal and power management - The HP BIOS provides and enables thermal and power management technologies so component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any enterprise environment. Acoustic performance - Industry leading acoustic emissions across the range of operating conditions. Serviceability - HP BIOS provides diagnostic and detailed service information. Upgrades and recovery - HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS updates from within DOS (DOSFlash), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe recovery. In addition, the BIOS has the capability to replicate settings across all like systems in the Enterprise using the Replicated Setup option in BIOS Setup, or using tools available from the HP support website in the Business Desktop BIOS Utilities and BIOS Configuration Utility packages. HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery.

Additional HP BIOS features:

Power-On password - Helps prevent an unauthorized user from powering on the system. Administrator password - Also known as the setup password, this helps prevent unauthorized changes to the system configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to BIOS settings using F10 setup or under the OS. Advanced Configuration and Power Interface (ACPI) - Represents a significant innovation in power and configuration management, allowing operating systems and applications to manage power based on activity and usage. S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5 (when turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality.

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 9

MANAGEABILITY

Fully manageable and supported by industry-standard HP Client Management Solutions. Optional LANDesk management tools simplify mobile device management and security. Simplify everything from deployment or migration to daily management, security, licensing, and more-and stop downtime before it starts.

Hardware Management: Inventory, Device config and BIOS updates, HW alerting, Driver updates Software Management: Deployment, App Management, Patch Management; Deployment and Migration; Proactive HW and SW Management; Mobile Users and Device Management; Remote Assistance / Help Desk LANDesk Management Suite 9.5 (LDMS) - optional - contact HP representative for part numbers Hardware integration with Microsoft System Center Configuration Manager: Client Integration Kit (CIK), Client Catalog, Client Driver Packs HP SoftPaq Download Manager (SDM) HP System Software Manager (SSM) HP BIOS Configuration Utility (BCU) HP Driver Packs HP Client Management Interface (HP CMI) Absolute Persistent Software.

SECURITY

Trusted Platform Module (TPM) 1.2 (Common Criteria EAL4+ certified)

N/A

SATA port disablement (via BIOS)

Drivelock

N/A

RAID configurations

Intel® Identify Protection Technology (IPT)

N/A

Serial, parallel, USB enable/disable (via BIOS)

Optional USB Port Disable at factory (user configurable via BIOS)

Removable media write/boot control

Power-On password (via BIOS)

Administrator password (via BIOS)

HP Chassis (1 bay) Security Kit

Solenoid Hood Lock / Sensor

N/A

Support for chassis padlocks and cable lock devices

N/A

*Models configured with Intel Core processors have the ability to utilize advanced security protection for online transactions. IPT, used in conjunction with participating web sites, provides double identity authentication by adding a hardware component in addition to the usual user name and password. IPT is initialized through an HP Client Security module.

ENVIRONMENTAL & REGULATORY

ENERGY STAR® qualified models available EPEAT® registered where applicable/supported. See

www.epeat.net

for registration status by country. Low halogen (chassis, all internal components and modules) TAA compliant

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 10

PORTS

I/O Ports - Standard

USB 2.0

2 (front); 4 (rear)

USB 3.0

2 (front); 2 (rear);

1(internal)

Serial (RS-232)

PS/2

1 keyboard

(purple)

1 mouse (green)

Video

1 VGA

1 DVI-D

NOTE:

When configured with an Intel Celeron, Pentium or 4th generation Intel Core i3 CPU only two of the available video output

ports are active

Audio

Front:

headphone/mic

Rear: line in/out

3.5mm diameter

RJ-45 Network Interface

I/O Ports - Optional

DisplayPort with Multi-Stream support - DP 1.2

2nd Serial (RS-232)

Parallel

PCI Express Mini Card

N/A

MXM Graphics

N/A

mSATA

N/A

PCI Express x1 (v2.0)

4.2" full height

6.6" length

10W max. power

PCI Express x16 (v2.0) (wired as a x4)

N/A

PCI Express x16 (v3.0)

4.2" full height

6.6" length

75W max. power

Optional PCI (v2.3)

N/A

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 11

BAYS

5.25" external storage drive

3.5" external storage drive

5.25" ODD

Slim ODD

N/A

2.5" internal storage drive

N/A

3.5" internal storage drive

SERVICE AND SUPPORT

On-site Warranty1: One-year (1-1-1) limited warranty delivers one year of on-site, next business day2 service for parts and labor and includes free telephone support3 24 x 7. One-year onsite and labor are not available in all countries. Service offers terms up to 5 years by choosing a Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central:

www.hp.com/go/cpc

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be

offered in your region.

NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured and third-party HP qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Standard Features and Configurable Components (availability may vary by country)

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 12

OPERATING SYSTEMS

Preinstalled

Windows 8.1 Pro (64-bit)

Windows 8.1 (64-bit)

Windows 7 Ultimate (32-bit)

Windows 7 Ultimate (64-bit)

Windows 7 Professional (32-bit)

Windows 7 Professional (64-bit)

Windows 7 Professional (32-bit) (available through downgrade rights from Windows 8.1 Pro)

***

Windows 7 Professional (64-bit) (available through downgrade rights from Windows 8.1 Pro)

***

Windows 7 Home Premium (32-bit)

Windows 7 Home Premium (64-bit)

Windows 7 Home Basic (32-bit)

FreeDOS 2.0 Novell SUSE Linux Enterprise Desktop 11

For all Preinstalled operating systems HP provides Microsoft WHQL certified (where applicable) drivers on www.hp.com at the time of product announcement.

Web Support

Windows 7 Enterprise (32-bit or 64-bit)

For all Supported operating systems HP performs testing of the OS, and makes available all HP value add software (OS dependent). Certified drivers are made available on www.hp.com within 30 days of product announcement.

Certified

Novell SUSE Linux Enterprise Desktop 111 Red Hat Enterprise Linux 64

For all Certified operating systems HP will submit hardware to the operating system vendor for testing and certification. All drivers would be obtained from the operating system vendor, not supplied by HP. Certification will be posted by the operating system vendor.

**Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.

***This system is preinstalled with Windows® 7 Professional software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

The following features are not supported by Novell SUSE Linux Enterprise Desktop:

Intel Gigabit CT Desktop NIC Broadcom NetXtreme Gigabit Ethernet Plus HP Media Card Reader HP Client Security HP Blu-ray Writer playback of commercial movies HP 2nd serial port adapter Power Management features

Systems configured with Linux do not qualify for ENERGY STAR®

The following features are not supported by Red Hat Enterprise Linux 64:

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Technical Specifications – Operating Systems and Software

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 13

TPM v1.2 embedded Security Chip Intel Gigabit CT Desktop NIC HP Wireless 802.11b/g/n NIC HP Media Card Reader HP Blu-ray Writer HP 2nd serial port Adapter HP USB Smart Card (CCID) Keyboard Power Management features

Systems configured with Linux do not qualify for ENERGY STAR®

SOFTWARE COMPONENTS AND APPLICATIONS WITH WINDOWS

Included

Windows 7

Windows 8.1

Security

HP Client Security: HP Drive Encryption (FIPS 140-2) HP Device Access Manager with Just In Time Authentication HP Password Manager HP File Sanitizer (SSDs and Hybrid Drives not supported) HP Disk Sanitizer External Edition

Microsoft Security Essentials

Disk Sanitizer External Edition

Microsoft Defender

MultiMedia

Cyberlink Power DVD, BD Cyberlink Power2Go (Secure Burn)

Communication

HP Wireless Hotspot

HP Value Add

HP ePrint Driver

HP PageLift HP Support Assistant HP Recovery Disk Creator

HP ePrint Driver

HP PageLift HP Recovery Manager HP Support Assistant

3rd Party

Adobe Flash Player Bing Search for Internet Explorer 10 Box PDF Complete, Corporate Edition Skype

Bing Search PDF Complete, Corporate Edition Skype

Microsoft Products

Buy Office Buy Office

Available via download.

Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers,

supported documents and image types and other HP ePrint details, see:

www.hp.com/go/eprintcenter

).Requires optional broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Technical Specifications – Operating Systems and Software

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 14

Intel HD Graphics

VGA Controller

Integrated

DisplayPort

Multimode capable; supports HDCP, Display Port Audio (2 streams), HBR2 link rates and Multi-Stream Technology for a maximum of 2 displays (including the integrated panel)

Bus Type

N/A

RAMDAC

N/A

Memory

Intel graphics do not have dedicated memory but utilizes some of the computer's system memory The amount of memory used for graphics depending on the amount of system memory installed, BIOS settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system boot time. Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio Video Playback) support for playback of protected video content.

Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Graphics Memory

Microsoft Windows 7

Windows 8.1

Up to 1.7GB Up to 1.8GB

NOTE:

the actual amount of maximum graphics memory can be less than the amounts listed above

depending upon your computer's configuration.

Maximum Color Depth

32 bits/pixel

Graphics/Video API Support

4th Generation Core processors:

The Processor Graphics contains a refresh of the seventh generation graphics core enabling substantial gains in performance and lower power consumption. Up to 16 EU support. Next Generation Intel Clear Video Technology HD Support is a collection of video playback and enhancement features that improve the end user's viewing experience

Encode/transcode HD content Playback of high definition content including Blu-ray Disc Superior image quality with sharper, more colorful images

DirectX Video Acceleration (DXVA) support for accelerating video processing

Full AVC/VC1/MPEG2 HW Decode Advanced Scheduler 2.0, 1.0 Windows 7, Windows 8.1, Linux OS Support DirectX 11.1 OpenGL 4.0 Open CL 1.2

Supported Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Technical Specifications - Graphics

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 15

Resolution

Refresh Rates

800x600

60 Hz

1024x768

60 Hz

1152x864

60 Hz

1280x600

60 Hz

1280x720

60 Hz

1280x800

60 Hz

1280x960

60 Hz

1280x1024

60 Hz

1360x768

60 Hz

1366x768

60 Hz

1400x1050

60 Hz

1440x900

60 Hz

1600x900

60 Hz

1600x1200

60 Hz

1680x1050

60 Hz

1920x1080

60 Hz

1920x1200

60 Hz

1920x1440

60 Hz

2560x1440

60 Hz

2560x1600

60 Hz

* Only supported on displays connected to the external DisplayPort connector.

AMD Radeon HD 8470 Graphics Card

Form Factor

Full Height

Graphics Controller

AMD Radeon HD 8470

Core Clock

775MHz

Memory Clock

900MHz

Memory

2GB, DDR3, 64-bit wide

Bus Type

PCIe Gen2

Max. Power

< 30W

Power Source Support

12V and 3.3V

3D API Support

DX11

HDCP Support

Yes

Display Max. Resolution

Digital 2560 x 1600 Analog 2048 x 1536

Supported Graphics APIs

DX11, OpenGL, full 1080p BD (H264) playback in hardware, HDMI 1.4 support

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Technical Specifications - Graphics

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 16

Supported Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Refresh Rates

800 x 600

60 Hz

1024 x 768

60 Hz

1280 x 720

60 Hz

1280 x 768

60 Hz

1280 x 1024

60 Hz

1360 x 768

60 Hz

1440 x 900

60 Hz

1600 x 900

60 Hz

1680 x 1050

60 Hz

1920 x 1080

60 Hz

NVIDIA NVS 310 Graphics Card

Introduction

The NVIDIA® NVS™ 310 Graphics Card is a PCI Express low profile form factor graphics add-in card targeted as an active low cost graphics solution for the corporate business and enterprise markets.

The NVIDIA® NVS 310 graphics card is an ideal solution for customers requiring a small form factor graphics add-in card for either standard or small form factor PC designs.

Performance and Features

The NVIDIA® NVS 310 Graphics Card offers 512 MB of ultrafast DDR3 memory and is capable of supporting up to 2 displays.

DisplayPort connector supports multimode technology to support connection to DVI-D, VGA and HDMI monitors with optional adapters in kits NR078AA, FH973AT, BP937AA, AS615AA.

For a DisplayPort to DisplayPort connections use the optional DisplayPort Cable Kit VN567AA.

Form Factor

Low Profile: 2.713 × 6.15 in

Graphics Controller

NVIDIA® NVS 310

Memory Clock

875MHz

Memory Size

512 MB DDR3

Memory Bandwidth

14 GB/s

Max. Power

19.5W

Display Max. Resolution

Up to 2560 x 1600 (digital display) per display

Display Output

Up to 2 displays in the following configurations

DisplayPort output:

Drives two DisplayPort enabled digital display at resolutions up to 2560 × 1600 at 60 Hz with reduced blanking, when connected natively using the 2 DisplayPort connectors on the NVS 310 graphics card Supports 2 monitors up to resolution of 1920 × 1200 at 60 Hz with reduced blanking using DisplayPort Multi-Stream topology technology.

QuickSpecs

HP ProDesk 490 G1 Microtower Business PC

Technical Specifications - Graphics

DA - 14695 Worldwide — Version 2 — November 8, 2013

Page 17

+ 38 hidden pages

HP ProDesk 490 G1 Quickspecs

Specifications and Main Features

Frequently Asked Questions

User Manual
