HP ProDesk 405 G6 QuickSpecs

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 1

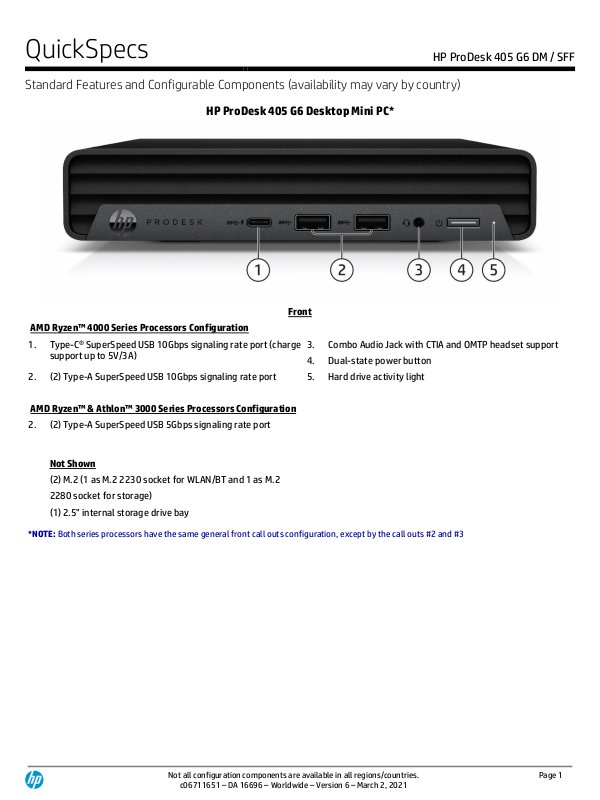

HP ProDesk 405 G6 Desktop Mini PC*

Front

AMD Ryzen™ 4000 Series Processors Configuration

Type-C® SuperSpeed USB 10Gbps signaling rate port (charge support up to 5V/3A)

Combo Audio Jack with CTIA and OMTP headset support

Dual-state power button

(2) Type-A SuperSpeed USB 10Gbps signaling rate port

Hard drive activity light

AMD Ryzen™ & Athlon™ 3000 Series Processors Configuration

(2) Type-A SuperSpeed USB 5Gbps signaling rate port

Not Shown

(2) M.2 (1 as M.2 2230 socket for WLAN/BT and 1 as M.2

2280 socket for storage)

(1) 2.5" internal storage drive bay

*NOTE: Both series processors have the same general front call outs configuration, except by the call outs #2 and #3

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 2

HP ProDesk 405 G6 Desktop Mini PC*

Rear

AMD Ryzen™ 4000 Series Processors Configuration

HDMI 1.4

Flex Port 1, choice of:

Dual-Mode DisplayPort™ 1.4 (DP++)

• DisplayPort™

• HDMI 2.0a

• VGA

• Serial

Type-A SuperSpeed USB 5Gbps signaling rate port

Type-A SuperSpeed USB 10Gbps signaling rate port

• Type-C® SuperSpeed USB 10Gbps signaling rate port w/

DisplayPort™ Alt Mode and power intake via USB TypeC® Power Delivery up to 100W

(Supporting wake from S4 with keyboard/mouse connected and enabled in BIOS)

Type-A SuperSpeed USB 10Gbps signaling rate port

Flex Port 22 choice of:

(Supporting wake from S4 with keyboard/mouse

• 2x Type-A Hi-Speed USB 480Mbps signaling rate port

• Serial

connected and enabled in BIOS)

Cover release thumbscrew

10.

Type-A SuperSpeed USB 5Gbps signaling rate port

Standard cable lock slot (10 mm)

11.

RJ45 network connector

12.

External WLAN antenna opening2

13.

Power connector

14.

Retractable Padlock loop

AMD Ryzen™ & Athlon™ 3000 Series Processors Configuration

Type-A SuperSpeed USB 5Gbps signaling rate port (Supporting wake from S4 with keyboard/mouse connected and enabled in BIOS)

Type-A SuperSpeed USB 5Gbps signaling rate port (Supporting wake from S4/S5 with keyboard/mouse connected and enabled in BIOS)

*NOTE: Both series processors have the same general rear call outs configuration, except by the call outs #4 and #5

1. Sold separately or as an optional feature.

2. Must be configured at time of purchase.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 3

HP ProDesk 405 G6 Small Form Factor PC

Front

Slim optical drive (optional)

Combo Audio Jack with CTIA and OMTP headset support

SD card 4.0 reader (optional)

Dual-state power button

(4) Type-A SuperSpeed USB 5Gbps signaling rate port

Hard drive activity light

Not Shown

(1) PCI Express x16

(1) PCI Express x1

(2) M.2 (1 as M.2 2230 socket for WLAN/BT and 1 as M.2 2280 socket for storage)

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 4

HP ProDesk 405 G6 Small Form Factor PC

Rear

Audio-out connector

(2) Type-A Hi-Speed USB 480Mbps signaling rate port (Supporting wake from S4 with keyboard/mouse connected and enabled in BIOS)

(2) Dual-Mode DisplayPort™ 1.4 (DP++)

Serial Port (Optional)

(3) Type-A SuperSpeed USB 5Gbps signaling rate port

Flex Port, choice of:

Power cord connector

• DisplayPort™1.4

• HDMI 2.0a

• VGA

• Serial

Internal WLAN antenna cover (optional)

10.

Standard cable lock slot

• Dual Type-A SuperSpeed USB 5Gbps signaling rate

• Type-C

SuperSpeed USB 10Gbps signaling rate with

DisplayPort™ Alt mode

11.

Integrated accessory cable lock

RJ45 network connector

Not Shown

Port

Bay

Optional PS/2 (2 ports) & serial port card1 (connected with mainboard via flyer cable)

(1) 9.5mm internal optical drive bay (1) 3.5" internal storage drive bay or (2) 2.5" internal storage drive bays2

Optional parallel port1

Optional 4 serial port PCIe card1

1. Each of the legacy options will occupy one rear slot.

2. SFF can be configured with either (1) 3.5” or (2) 2.5” internal storage drive (2.5-inch drive needs adapter that can only be purchased when configuring the PC from factory with a 2.5” drive)

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 5

AT A GLANCE

• Choice of Small Form Factor and Desktop Mini form factors

• Latest AMD® Ryzen™ PRO and Athlon PRO processors

with Radeon™ Vega Graphics

• HP developed and engineered UEFI V2.7 BIOS supporting security, manageability and software image stability

• DASH KVM is available for both SFF and DM

• Choice of Windows 10 Professional, Windows 10 Home, and FreeDOS

• Integrated 10/100/1000 Ethernet Controller, with optional Wi-Fi 6 (802.11ax) and Wi-Fi 5 (802.11ac) and Bluetooth®

• Up to 64GB of DDR4 Synchronous Dynamic Random Access Memory (SDRAM)

• Support for up to three video outputs via two standard video connectors and an optional third video port connector which

provides the following choices: DisplayPort™, HDMI™, VGA, or USB Type-C® with DisplayPort™ Output

• Reduce clutter on DM with single cable connection for power and video through USB Type-C® enabled displays with the

optional USB Type-C® port w/ DisplayPort Alt Mode and power intake via USB Type-C® Power Delivery up to 100W; reduce desktop footprint with the DM mounted behind a USB Type-C® enabled display or enable a “All-in-One” experience by docking into HP Mini-in-One 24 Display

• Optional Serial port available on all form factors

• Multiple HDD data drives set up in a SATA RAID array for MT/SFF and support RAID 1 configured from factory.

• Optimized chassis design for SFF enabling dual 2.5" internal storage drives

• Integrated accessory cable lock helps secure cabled mouse and keyboard on SFF

• Trusted Platform Module (TPM) 2.0

• HP BIOSphere Gen6

• HP Client Security Manager Gen6

• HP Sure Click

• HP Manageability Integration Kit Gen4

• HP Image Assistant Gen5

• HP Support Assistant

• High efficiency energy saving power supply

• ENERGY STAR® certified. EPEAT ® 2019 registered where applicable. EPEAT ® registration varies by country. See

http://www.epeat.net for registration status by country.4

• Low halogen

• Dust filter available

• Protected by HP Services, including limited warranties up to 3-3-3 (terms and conditions vary by country; certain

restrictions and exclusions apply); Care Packs available with up to 5 years Next Business Day Onsite Hardware Support

• Compliance with CE (Class B) / FCC (Class B) / UL (UL60950-1 / UL62368-1) / CSA (CSA C22.2 No.60950-1-07 / CSA C22.2

No. 62368-1-14) / ICES-003 / CCC / VCCI (Class B) / KCC (Class B)

1. Multi core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering, branding and/or naming is not a measurement of higher performance

2. In some scenarios, machines pre-configured with Windows OS might ship with TPM turned off

3. External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.

4. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit http://www.epeat.net for more information.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 6

PRODUCT NAME

HP ProDesk 405 G6 Desktop Mini PC HP ProDesk 405 G6 Small Form Factor PC

OPERATING SYSTEM

Preinstalled

Windows® 10 Pro 64 – HP recommends Windows 10 Pro1 Windows® 10 Pro 64 (National Academic License)

1,2

Windows® 10 Home 64

FreeDOS

Web Support

Windows® 10 Enterprise 64 (Web Support)1

1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.

2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.

NOTE: Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows® 8 or Windows 7 operating system on products configured with Intel® and AMD® 7th generation and forward processors or provide any Windows® 8 or Windows 7 drivers on http://www.support.hp.com. A full list of HP products and the Windows 10 versions tested is available on the HP support website. https://support.hp.com/us-en/document/c05195282

Supported Versions

HP tested Windows 10, version 1809 on this platform. For testing information on newer versions of Windows 10, please see

https://support.hp.com/document/c05195282

CHIPSET

SFF

AMD® PRO 565

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 7

PROCESSORS

AMD® Ryzen™ 4000 Series Processors

SFF

AMD® Ryzen™ 7 PRO 4750G 65W, 8 Cores, 16 threads

3.6 GHz base frequency, up to 4.4 GHz max. 384 KB L1 cache, 4 MB L2 cache, 8 MB L3 cache Integrated Radeon™ Graphics (8 Cores, 2100MHz) Supports DDR4 memory up to 3200 MT/s data rate

AMD® Ryzen™ 7 PRO 4750GE 35W, 8 Cores, 16 threads

3.1 GHz base frequency, up to 4.3 GHz max. 384 KB L1 cache, 4 MB L2 cache, 8 MB L3 cache Integrated Radeon™ Graphics (8 Cores, 2100MHz) Supports DDR4 memory up to 3200 MT/s data rate

AMD® Ryzen™ 5 PRO 4650G 65W, 6 Cores, 12 threads

3.7 GHz base frequency, up to 4.2 GHz max. 384 KB L1 cache, 3 MB L2 cache,8 MB L3 cache Integrated Radeon™ Graphics (7 Cores, 1900MHz) Supports DDR4 memory up to 3200 MT/s data rate

AMD® Ryzen™ 5 PRO 4650GE 35W, 6 Cores, 12threads

3.5 GHz base frequency, up to 4.2 GHz max. 384 KB L1 cache, 3 MB L2 cache, 8 MB L3 cache Integrated Radeon™ Graphics (7 Cores, 1900MHz) Supports DDR4 memory up to 3200 MT/s data rate

AMD® Ryzen™ 3 PRO 4350G 65W, 4 Cores, 8 threads

3.8 GHz base frequency, up to 4.0 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics (6 Cores, 1700MHz) Supports DDR4 memory up to 3200 MT/s data rate

AMD® Ryzen™ 3 PRO 4350GE 35W, 4 Cores, 8 threads

3.5 GHz base frequency, up to 4.0 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics (6 Cores, 1700MHz) Supports DDR4 memory up to 3200 MT/s data rate

AMD® Ryzen™ 3000 Series Processors

SFF

APU AMD Ryzen™ 5 PRO 3400G 65W, 4 Cores, 8 threads

3.7 GHz base frequency, up to 4.2 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 11 Graphics Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Ryzen™ 5 PRO 3400GE 35W, 4 Cores, 8 threads

3.3 GHz base frequency, up to 4.0 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 11 Graphics

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 8

Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Ryzen™ 5 PRO 3350G 65W, 4 Cores, 8 threads

3.6 GHz base frequency, up to 4.0 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Ryzen™ 5 PRO 3350GE 35W, 4 Cores, 8 threads

3.3 GHz base frequency, up to 3.9 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Ryzen™ 3 PRO 3200G 65W, 4 Cores, 4 threads

3.6 GHz base frequency, up to 4.0 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 8 Graphics Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Ryzen™ 3 PRO 3200GE 35W, 4 Cores, 4 threads

3.3 GHz base frequency, up to 3.8 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 8 Graphics Supports DDR4 memory up to 2933 MT/s data rate

AMD® Athlon™ 3000 Series Processors

SFF

APU AMD Athlon™ Gold PRO 3150G 65W, 4 Cores, 4 threads

3.5 GHz base frequency, up to 3.9 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Athlon™ Gold PRO 3150GE 35W, 4 Cores, 4 threads

3.3 GHz base frequency, up to 3.8 GHz max. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics Supports DDR4 memory up to 2933 MT/s data rate

APU AMD Athlon™ Silver PRO 3125GE 35W, 2 Cores, 4 threads

3.4 GHz base frequency 384 KB L1 cache, 1 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Graphics Supports DDR4 memory up to 2666 MT/s data rate

1: Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering, is not a measurement of Clock speed. NOTE: Memory speed 2400, 2666, 2933 and 3200 MT/s can be achieved via two DIMMs per channel (2DPC) when populated with the same part number.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 9

GRAPHICS

Integrated Graphics

SFF

AMD Radeon™ Graphics

Optional Discrete Graphics Solutions

SFF

AMD® Radeon™ R7 430 2GB 2DP

AMD® Radeon™ R7 430 2GB DP+VGA

AMD® Radeon™ RX 550X 4GB DP+HDMI

Adapters and Cables

SFF

HP DisplayPort™ Cable

HP DisplayPort™ to DVI-D Adapter

HP DisplayPort™ to HDMI True 4K Adapter

HP DisplayPort™ to VGA Adapter

HP USB to Serial Port Adapter

STORAGE

3.5 inch SATA Hard Disk Drives (HDD)**

SFF

500GB 7200RPM 3.5in SATA HDD

1TB 7200RPM 3.5in SATA HDD

2TB 7200RPM 3.5in SATA HDD

** For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10)

of system disk is reserved for the system recovery software.

2.5 inch SATA Hard Disk Drives (HDD)**

SFF

500GB 7200RPM 2.5in SATA HDD

1TB 7200RPM 2.5in SATA HDD

2TB 5400RPM 2.5in SATA HDD

500GB 7200RPM 2.5in Self Encrypted OPAL2 SATA HDD*

500GB 7200RPM 2.5in Self Encrypted Federal Information Processing Standard SATA HDD*

* Storage DriveLock does not work with Self Encrypting storage ** For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10)

of system disk is reserved for the system recovery software.

M.2 PCIe NMVe Solid State Drives (SSD)**

SFF

256GB M.2 2280 PCIe NVMe SSD

512GB M.2 2280 PCIe NVMe SSD

128GB M.2 2280 PCIe NVMe Three Layer Cell SSD

256GB M.2 2280 PCIe NVMe Three Layer Cell SSD

512GB M.2 2280 PCIe NVMe Three Layer Cell SSD

1TB M.2 2280 PCIe NVMe Three Layer Cell SSD

256GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD*

512GB M.2 2280 PCIe NVMe Self Encrypted OPAL2 Three Layer Cell SSD*

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 10

of system disk is reserved for the system recovery software.

Optical Disc Drives

SFF

HP 9.5mm Slim DVD-ROM Drive1

HP 9.5mm Slim DVD Writer Drive2

HP 9.5mm Slim Blu-Ray Writer Drive3

1. HD-DVD disks cannot be played on this drive. No support for DVD-RAM. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than single layer discs. Discs burned with this drive may not be compatible with many existing single-layer DVD drives and players.

2. Don't copy copyright-protected materials.

3. With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played on this Desktop PC.

Media Card Reader

SFF

SD 4.0 with 5-in-1 Interface (Supports SD, SDXC, SDHC, UHS-I, UHS-II)

MEMORY

SFF

DDR4-2666 (Transfer rates up to 2666 MT/s), 64 GB, 2 SODIMM

DDR4-2666 (Transfer rates up to 2666 MT/s), 64 GB, 2 DIMM

DDR4-3200 (Transfer rates up to 3200 MT/s), 64 GB, 2 SODIMM

DDR4-3200 (Transfer rates up to 3200 MT/s), 64 GB, 2 DIMM

Memory Configuration

SFF

4 GB (4 GB x 1)

8 GB (4 GB x 2)

8 GB (8 GB x 1)

16 GB (8 GB x 2)

16 GB (16 GB x 1)

32 GB (16 GB x 2)

32 GB (32 GB x 1)

64 GB (32 GB x 2)

NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system

resource requirements. Addressing memory above 4 GB requires a 64-bit operating system. NOTE: Memory modules support data transfer rates up to 2666 MT/s and 3200 MT/s respectively depending on memory module used; actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate.

NOTE: All memory slots are customer accessible / upgradeable. NOTE: Memory speed 2400, 2666, 2933 and 3200 MT/s can be achieved via two DIMMs per channel (2DPC) when populated with the same part number.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 11

NETWORKING/COMMUNICATIONS

Ethernet (RJ-45)

SFF

Realtek RTL8111FPH-CG Gigabit Network Connection (standard)

Intel® I210-T1 PCIe x1 Gigabit Network Interface Card (optional)

Wireless1

Intel® Wi-Fi 6 AX200 802.11ax 2x2 with Bluetooth® M.2 Combo Card

Realtek RTL8822CE 802.11ac 2x2 with Bluetooth® M.2 Combo Card

Realtek RTL8821CE 802.11ac 1x1 with Bluetooth® M.2 Combo Card

1. Wireless access point and Internet service required and not included. Availability of public wireless access points limited.

KEYBOARDS AND POINTING DEVICES

Keyboards

SFF

HP PS/2 Business Slim Standalone Wired Keyboard

HP Wired Desktop 320K Keyboard

HP USB Business Slim Wired SmartCard CCID Keyboard

HP USB & PS/2 Washable Standalone Wired Keyboard

HP USB Wired Keyboard

HP Universal USB Wired Keyboard

Keyboard & Mouse Combo

SFF

HP Business Slim Wireless Keyboard and Mouse

HP USB PS/2 Washable Keyboard and Mouse Wired

Mouse

SFF

HP PS/2 Mouse

HP Wired Desktop 320M Mouse

HP USB Optical Wired Mouse

HP USB Hardened Optical Wired Mouse

HP USB 1000dpi Laser Mouse

HP USB & PS/2 Washable Wired Mouse Standalone

HP USB Fingerprint Mouse

NOTE: Availability may vary by country

SECURITY

SFF

TPM 2.0 (FW: 7.85) endpoint security controller (Infineon SLB9670) shipped with Windows 10. Common Criteria EAL4+ Certified. FIPS 140-2 Level 2 Certified.

Intrusion Sensor (Optional)

Intrusion Sensor (integrated in the system board, can be enabled/disabled through BIOS)

Support for chassis cable lock devices

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 12

(10 mm barrel or smaller)

Support for chassis padlocks devices

SATA port disablement (via BIOS)

Serial, USB enable/disable (via BIOS)

Removable media write/boot control

Power-on password (via BIOS)

Setup password (via BIOS)

PORTS

Internal Slots and Ports

SFF

M.2 PCIe

(1) M.2 PCIe

x1 2230 (for

WLAN)

(1) M.2 PCIe

x4 2280 (for

storage)

(1) M.2 PCIe

x1 2230 (for

WLAN)

(1) M.2 PCIe

x4 2280 (for

storage)

PCI Express v3.0 x1

PCI Express v3.0 x16

SATA port

Integrated SATA storage connector

NOTE: For Desktop Mini with M.2 Storage config, there will be no SATA drive bracket. If you plan to use or upgrade the storage with any 2.5" SATA drive, please select a DM SATA Drive Bracket (available as both factory configured and after market option).

Bays

SFF

9.5mm Slim Optical Disc Drive (ODD)

SD Card Reader

2.5" Internal Storage Drive

1 21

3.5" Internal Storage Drive

1. SFF can be configured with either (1) 3.5” or (2) 2.5” internal storage drive (2.5-inch drive needs adapter that can only be purchased when configuring the PC from factory with a 2.5" drive.)

Standard User Accessible Ports

SFF

4000 Series Processor

3000 Series Processor

Type-A Hi-Speed USB 480Mbps signaling rate port

2 (rear)

Type-A SuperSpeed USB 5Gbps signaling rate port

2 (rear)

2 (front)

4 (rear)

4 (front)

3 (rear)

Type-A SuperSpeed USB 10Gbps signaling rate port

2 (front)

2 (rear)

Type-C® SuperSpeed USB 10Gbps signaling rate port

1 (front)

Video

1 DisplayPort™ 1.4 (rear)

1 HDMI 1.4 (rear)

2 DisplayPort™ 1.4 (rear)

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 13

Audio

1 Combo Audio Jack with CTIA and

OMTP headset support (front)

1 Combo Audio Jack with CTIA and

OMTP headset support (front)

Network Interface

1 RJ45 (rear)

Rear Configurable Non-PCIe/PCI Slot User Accessible Ports

Flexible Port 1, choice of one of the following:

SFF

Type-A USB

2 Type-A SuperSpeed USB 5Gbps

signaling rate port

Type-C® USB

1 SuperSpeed USB 10Gbps signaling

rate port w/ DisplayPort™ Alt Mode

and power intake via USB Type-C®

Power Delivery up to 100W

1 SuperSpeed USB 10Gbps signaling

rate port w/ DisplayPort™ Alt Mode

Video

1 DisplayPort™ 1.4 or

HDMI 2.0a or VGA

1 DisplayPort™ 1.4 or

HDMI 2.0a or VGA

Serial (RS-232)

1. Sold separately or as an optional feature

Flexible Port 2, choice of one of the following:

SFF

Type-A USB

2 Hi-Speed USB 480Mbps signaling

rate 1

Serial (RS-232)

1. Must be configured at time of purchase

USB SPECIFICATION AND MARKETING NAME MAPPING TABLE

Marketing Name

Technical Terminology

Hi-Speed USB 480Mbps signaling rate

USB 2.0

SuperSpeed USB 5Gbps signaling rate

USB 3.2 Gen 1

SuperSpeed USB 10Gbps signaling rate

USB 3.2 Gen 2

SuperSpeed USB 20Gbps signaling rate

USB 3.2 Gen 2x2

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 14

SOFTWARE COMPONENTS AND APPLICATIONS WITH WINDOWS

Preinstalled Software

HP BIOSphere Gen6

HP Secure Erase18 HP DriveLock & Automatic DriveLock20 BIOS Update via Network Absolute Persistence Module19 Pre-boot Authentication

Software

HP Desktop Support Utilities HP JumpStarts HP Notifications HP Privacy Settings HSA Fusion for Commercial HSA Telemetry for Commercial HP Setup Integrated OOBE HP Support Assistant

HP Connection Optimizer

HP PC Hardware Diagnostics Windows Touchpoint Customizer for Commercial HP Noise Cancellation Software Buy Office (sold separately) Xerox® DocuShare® (30 day free trial offer)28

Manageability Features

HP Driver Packs (download)22 HP System Software Manager (SSM) (download) HP BIOS Config Utility (BCU) (download) HP Client Catalog (download) HP Manageability Integration Kit for Microsoft System Center Configuration Management Gen5 (download)

HP Image Assistant Gen5 (download) Ivanti Management Suite (download)

Client Security Software

HP Client Security Manager Gen625 HP Power On Authentication Windows Defender27

Security Management

Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10. (Common Criteria EAL4+ Certified) Serial, USB enable/disable (via BIOS) Power-on password (via BIOS) Setup password (via BIOS) HP Sure Sense

HP Sure Click

17. HP BIOSphere Gen6 is available on select HP Pro and Elite PCs. Features may vary depending on the platform and configurations.

18. Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88. “Clear” sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.

19. Absolute firmware module is shipped turned off and can only be activated with the purchase a license subscription and full activation of the software agent. License subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. Certain conditions apply. For full details visit: https://www.absolute.com/about/legal/agreements/absolute/

20. Storage DriveLock does not work with Self Encrypting or Optane based storage

21. HP Support Assistant requires Windows and Internet access.

22. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 15

23. HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html

24. Ivanti Management Suite subscription required.

25. HP Client Security Manager Gen6 requires Windows and is available on the select HP Elite and Pro PCs.

26. HP Connection Optimizer requires Windows 10

27. Windows Defender Opt in and internet connection required for updates.

28. Simply sign up and start using Xerox® DocuShare® Go. No credit card. No obligation. Data will become unavailable unless a subscription is entered before the end of the 30 day free trial period. See visit http://www.xerox.com/docusharego for details.

34. HP Sure Sense requires Windows 10 Pro or Enterprise.

37. HP Sure Click requires Windows 10 and supports Microsoft Internet Explorer, Google Chrome™, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or Adobe Acrobat are installed.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 16

UNIT ENVIRONMENT AND OPERATING CONDITIONS

General Unit Operating Guidelines

• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit

is operated within the specified operating range.

• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.

• Never restrict airflow into the computer by blocking any vents or air intakes.

• Do not stack computers on top of each other or place computers so near each other that they are subject to each other's

re-circulated or preheated air.

• Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign

matter can block the vents and limit the airflow.

• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the

enclosure, and the same operating guidelines listed above will still apply.

Temperature Range

Operating: 5° to 35° C1 Non-Operating: -30° to 60° C1

Relative Humidity

Operating: 5% to 90% (non-condensing at ambient) Non-operating: 5% to 90% (non-condensing at ambient)

Maximum Altitude (unpressurized)

Operating: 5000m Non-operating: 50000ft (15240 m)

1. Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 17

ENVIRONMENTAL & INDUSTRY

HP ProDesk 405 G6 Desktop Mini PC

Eco-Label Certifications & declarations

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR®

EPEAT® Gold registered in the United States. See http://www.epeat.net for registration status in your country*. Search keyword generator on HP’s 3rd party option store for solar generator accessories at http://www.hp.com/go/options.

• TCO Certified 8.0

*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit

http://www.epeat.net for more information.

Sustainable Impact Specifications

• Low halogen1

• Ocean-Bound Plastic in speaker enclosure2

• Outside Box and corrugated cushions are 100% sustainably sourced and recyclable3

• 75% post-consumer recycled plastic4

• Molded Paper Pulp Cushion inside box is 100% sustainably sourced and recyclable5

1. External power supplies, WWAN modules, power cords, cables and peripherals excluded.Service parts obtained after purchase may not be Low Halogen.

2. Percentage of ocean-bound plastic contained in each component varies by product

3. 100% outer box packaging and corrugated cushions made from sustainably sourced certified and recycled fibers.

4. Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.

5. Molded pulp cushions are made from 100% recycled wood fiber and organic materials.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a “Typically Configured Desktop”.

Energy Consumption (in accordance with US ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

9.27 W

9.35 W

9.11 W

Normal Operation (Long idle)

8.57 W

8.65 W

8.41 W

Sleep

0.65 W

0.67 W

0.62 W

Off

0.52 W

0.55 W

0.49 W

NOTE: Energy efficiency data listed is for an ENERGY STAR® certified product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® certified configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

Search keyword generator on HP’s 3rd party option store for solar generator accessories

at www.hp.com/go/options

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 60Hz

Normal Operation (Short idle)

31.61 BTU/hr

31.88 BTU/hr

31.07 BTU/hr

Normal Operation (Long idle)

29.22 BTU/hr

29.50 BTU/hr

28.68 BTU/hr

Sleep

2.22 BTU/hr

2.29 BTU/hr

2.11 BTU/hr

Off

1.77 BTU/hr

1.88 BTU/hr

1.67 BTU/hr

QuickSpecs

HP ProDesk 405 G6 DM / SFF

Standard Features and Configurable Components (availability may vary by country)

Not all configuration components are available in all regions/countries.

c06711651 – DA 16696 – Worldwide – Version 6 – March 2, 2021

Page 18

NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)

Sound Power

WAd

, bels)

Sound Pressure

pAm

, decibels)

Typically Configured – Idle

3.1

Fixed Disk – Random writes

2.9

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

Spare parts are available throughout the warranty period and or for up to 5 years after the end of production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight

Battery size: Not Applilcable Battery type: Not Applilcable

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS)

directive - 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic Equipment

(WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe

Drinking Water and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Gold> level,

see www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and

ISO1043.

• This product contains 32.2% post-consumer recycled plastic (by wt.)

• This product is 92.8% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

PAPER/Corrugated

450 g

PAPER/Molded Pulp

74 g

Internal:

PLASTIC/Polyethylene low density - LDPE

5 g

The plastic packaging material contains at least 50% recycled content.

The corrugated paper packaging materials contains at least 70% recycled content.

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

+ 42 hidden pages

HP ProDesk 405 G6 QuickSpecs

Specifications and Main Features

Frequently Asked Questions

User Manual

Standard Features and Configurable Components (availability may vary by country)
