HP ProCurve MSM310-R, ProCurve MSM410, ProCurve MSM325, ProCurve MSM335, ProCurve MSM422 Reference Manual

ProCurve 5400zl Switches

Installation and Getting Started Guide

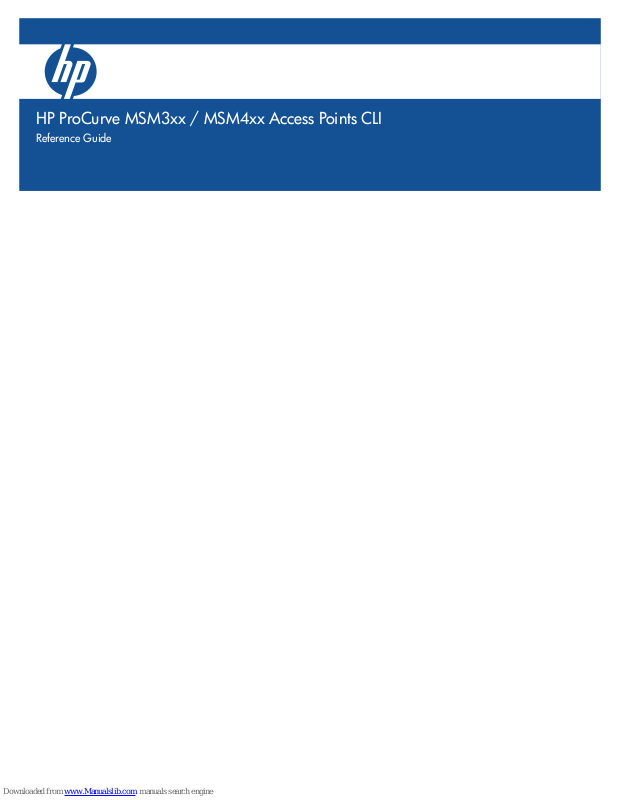

Reference Guide for HP ProCurve MSM3xx / MSM4xx Access Points CLI

HP ProCurve MSM3xx / MSM4xx Access Points CLI

Reference Guide

HP ProCurve
MSM3xx / MSM4xx Access Points

CLI Reference Guide

Copyright and Disclaimer Notices

© Copyright 2010 Hewlett-Packard Development Company, L.P. The
information contained herein is subject to change without notice.

This document contains proprietary information, which is
protected by copyright. No part of this document may be
photocopied, reproduced, or translated into another language
without the prior written consent of Hewlett-Packard.

Publication Number

5998-0327
May 2010

Applicable Products

USA Japan WW
MSM310 Access Point J9374A/B J9524A/B J9379A/B
MSM310-R Access Point J9380A/B J9383A/B
MSM317 Access Device J9422A J9423A J9423A
MSM320 Access Point J9360A/B J9527A/B J9364A/B
MSM320-R Access Point J9365A/B J9528A/B J9368A/B
MSM325 Access Point

with Sensor
MSM335 Access Point

with Sensor
MSM410 Access Point J9426A/B J9529A/B J9427A/B
MSM422 Access Point J9358A/B J9530A/B J9359A/B

J9369A/B J9373A/B

J9356A/B J9357A/B

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF
ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. Hewlett-Packard shall not be liable for errors
contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this
material.

The only warranties for HP products and services are set forth
in the express warranty statements accompanying such
products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for
technical or editorial errors or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or
reliability of its software on equipment that is not furnished by
Hewlett-Packard.

Trademark Credits

Windows NT®, Windows®, and MS Windows® are US
registered trademarks of Microsoft Corporation.

Hewlett-Packard Company
8000 Foothills Boulevard

Roseville, California 95747

www.hp.com/go/procurve

Contents

1 Introduction

About this guide ...........................................................................................................1-2

Products covered...................................................................................................1-2

Important terms..................................................................................................... 1-2

Typographical conventions ..................................................................................1-3

Command syntax ............................................................................................1-3

Management tool ............................................................................................1-3

New in this release.......................................................................................................1-3

HP ProCurve Networking support.............................................................................1-3

Before contacting support.............................................................................1-4

Online documentation .................................................................................................1-4

CLI support in autonomous and controlled modes .................................................1-4

Controlled mode....................................................................................................1-4

Autonomous mode ................................................................................................1-5

Configuring CLI support..............................................................................................1-5

Secure shell access.........................................................................................1-5

Authenticate CLI logins using .......................................................................1-5

Entering strings ............................................................................................................1-6

Context hierarchy ........................................................................................................1-7

Sample CLI session ......................................................................................................1-7

CLI commands

2

View context .................................................................................................................2-2

arping ......................................................................................................................2-2

enable......................................................................................................................2-2

iperf .........................................................................................................................2-2

nslookup ................................................................................................................. 2-2

ping..........................................................................................................................2-2

ps .............................................................................................................................2-3

quit...........................................................................................................................2-3

iii

show license...........................................................................................................2-3

show logging filtered.............................................................................................2-3

top............................................................................................................................2-3

traceroute ...............................................................................................................2-3

Enable context..............................................................................................................2-4

reboot device..........................................................................................................2-4

show certificate .....................................................................................................2-4

show certificate binding ....................................................................................... 2-4

iperf .........................................................................................................................2-4

ping..........................................................................................................................2-4

arping ......................................................................................................................2-5

arp............................................................................................................................2-5

end...........................................................................................................................2-5

quit...........................................................................................................................2-5

rcapture...................................................................................................................2-5

show arp .................................................................................................................2-5

show bridge............................................................................................................2-6

show bridge forwarding........................................................................................2-6

show dns cache......................................................................................................2-6

show interfaces......................................................................................................2-6

show ip....................................................................................................................2-6

show ip route .........................................................................................................2-6

show system info ...................................................................................................2-6

New show wireless clients ............................................................................................2-6

New disassociate wireless client _...............................................................................2-7

factory reset ...........................................................................................................2-7

switch operational mode ......................................................................................2-7

show dot11 associations.......................................................................................2-7

show dot11 statistics client-traffic dot11n .........................................................2-7

show local mesh ....................................................................................................2-7

show wireless neighborhood ............................................................................... 2-7

show wireless rogue-ap ........................................................................................2-7

show client log.......................................................................................................2-8

show discrete pin...................................................................................................2-8

config.......................................................................................................................2-8

show all config.......................................................................................................2-8

Config context ..............................................................................................................2-9

certificate................................................................................................................2-9

iv

certificate binding..................................................................................................2-9

certificate revocation ............................................................................................2-9

end...........................................................................................................................2-9

factory settings ......................................................................................................2-9

interface ethernet ..................................................................................................2-9

New network-profile ....................................................................................................2-10

reboot device........................................................................................................2-10

show certificate ...................................................................................................2-10

show certificate binding ..................................................................................... 2-10

show config factory.............................................................................................2-10

New show network-profiles........................................................................................2-10

interface ip............................................................................................................2-10

interface wireless ................................................................................................2-11

local mesh profile ................................................................................................2-11

interface gre .........................................................................................................2-11

virtual ap...............................................................................................................2-11

cap-switch to........................................................................................................2-11

admin local authentication.................................................................................2-12

admin radius authentication ..............................................................................2-12

admin radius authentication server ..................................................................2-12

ip http port............................................................................................................2-12

ip https port..........................................................................................................2-12

snmp-server trap certificate-expired.................................................................2-12

snmp-server trap certificate-expires-soon .......................................................2-13

snmp-server trap web-fail...................................................................................2-13

snmp-server trap web-login................................................................................2-13

snmp-server trap web-logout .............................................................................2-13

username ..............................................................................................................2-13

web admin kickout..............................................................................................2-14

web allow..............................................................................................................2-14

world-mode dot11 country code........................................................................2-14

web access port-1 ................................................................................................2-14

web access port-2 ................................................................................................2-14

web access wireless ............................................................................................2-15

web access interface vlan...................................................................................2-15

web access interface gre ....................................................................................2-15

web access local mesh........................................................................................2-15

New console authentication........................................................................................2-15

clock......................................................................................................................2-16

v

clock auto adjust dst ...........................................................................................2-16

clock timezone.....................................................................................................2-16

clock use custom dst rules.................................................................................2-16

ntp protocol..........................................................................................................2-16

ntp server..............................................................................................................2-17

clock custom dst begins .....................................................................................2-17

clock custom dst begins format.........................................................................2-17

clock custom dst ends ........................................................................................2-17

clock custom dst ends format............................................................................2-18

ntp server..............................................................................................................2-18

ntp server failure trap .........................................................................................2-18

config-update automatic.....................................................................................2-18

config-update operation......................................................................................2-19

New config-update start ..............................................................................................2-19

config-update time...............................................................................................2-19

config-update uri..................................................................................................2-19

config-update weekday.......................................................................................2-19

snmp-server trap config-change ........................................................................2-19

snmp-server trap config-update.........................................................................2-20

logging destination ..............................................................................................2-20

snmp-server trap syslog-severity .......................................................................2-20

snmp-server..........................................................................................................2-20

snmp-server access port-1..................................................................................2-20

snmp-server allow ...............................................................................................2-21

snmp-server chassis-id........................................................................................2-21

snmp-server contact............................................................................................2-21

snmp-server heartbeat period............................................................................2-21

snmp-server location...........................................................................................2-21

snmp-server port..................................................................................................2-22

snmp-server readonly..........................................................................................2-22

snmp-server readwrite........................................................................................2-22

snmp-server trap..................................................................................................2-22

snmp-server trap community.............................................................................2-22

snmp-server trap destination ............................................................................. 2-23

snmp-server trap heartbeat ................................................................................2-23

snmp-server trap link-state.................................................................................2-23

snmp-server trap snmp-authentication.............................................................2-23

snmp-server version 1.........................................................................................2-23

snmp-server version 2c.......................................................................................2-24

vi

snmp-server version 3.........................................................................................2-24

snmp-server access interface vlan ....................................................................2-24

snmp-server access local mesh..........................................................................2-24

snmp-server access interface gre ......................................................................2-24

snmp-server access wireless..............................................................................2-25

snmp-server access port-2..................................................................................2-25

snmp-server user .................................................................................................2-25

snmp-server notification receiver .....................................................................2-25

soap-server ...........................................................................................................2-25

soap-server access interface vlan......................................................................2-26

soap-server access port-1 ...................................................................................2-26

soap-server access port-2 ...................................................................................2-26

soap-server allow.................................................................................................2-26

soap-server http authentication.........................................................................2-26

soap-server http authentication password.......................................................2-27

soap-server http authentication username.......................................................2-27

soap-server port...................................................................................................2-27

soap-server ssl......................................................................................................2-27

soap-server ssl with client certificate ...............................................................2-27

soap-server access interface gre........................................................................2-27

soap-server access wireless ...............................................................................2-28

soap-server access local mesh...........................................................................2-28

snmp-server trap low-snr....................................................................................2-28

snmp-server trap low-snr interval .....................................................................2-28

snmp-server trap low-snr level ..........................................................................2-28

snmp-server trap new-association.....................................................................2-28

snmp-server trap new-association interval ......................................................2-29

snmp-server trap vpn-connection......................................................................2-29

snmp-server trap wireless-association-fail.......................................................2-29

snmp-server trap wireless-association-success...............................................2-29

snmp-server trap wireless-authentication-fail .................................................2-29

snmp-server trap wireless-authentication-success .........................................2-29

snmp-server trap wireless-deauthentication-fail .............................................2-30

snmp-server trap wireless-deauthentication-success .....................................2-30

snmp-server trap wireless-disassociation-fail.................................................. 2-30

snmp-server trap wireless-disassociation-success.......................................... 2-30

snmp-server trap wireless-reassociation-fail ...................................................2-30

snmp-server trap wireless-reassociation-success ...........................................2-30

snmp-server trap syslog-matches ......................................................................2-31

vii

snmp-server trap syslog-matches regex ...........................................................2-31

snmp-server trap syslog-severity level..............................................................2-31

snmp-server trap network-trace ........................................................................2-31

firmware-update automatic................................................................................2-31

firmware-update start .........................................................................................2-32

firmware-update time..........................................................................................2-32

firmware-update uri ............................................................................................2-32

firmware-update weekday..................................................................................2-32

snmp-server trap firmware-update....................................................................2-32

access-controller restrict location.....................................................................2-33

service-sensor ......................................................................................................2-33

service-sensor ......................................................................................................2-33

service-sensor poll...............................................................................................2-33

service-sensor retry.............................................................................................2-34

service-sensor timeout........................................................................................2-34

ip name-server......................................................................................................2-34

ip name-server cache ..........................................................................................2-34

ip name-server dynamic......................................................................................2-35

New ip name-server interception ............................................................................... 2-35

ip name-server switch-on-servfail .....................................................................2-35

ip name-server switch-over ................................................................................2-35

snmp-server trap unauthorized-ap ....................................................................2-35

snmp-server trap unauthorized-ap interval ......................................................2-36

wireless-scan........................................................................................................2-36

wireless-scan period............................................................................................2-36

wireless-scan url ..................................................................................................2-36

access controller shared secret .........................................................................2-36

radius-server profile ............................................................................................2-37

ip-qos profile ........................................................................................................2-37

dot11 igmp snooping-helper...............................................................................2-37

New lldp config.............................................................................................................2-37

New lldp dynamic-name ..............................................................................................2-37

New lldp dynamic-name refresh-time........................................................................2-38

New lldp dynamic-name user-string...........................................................................2-38

New lldp fast-start-count .............................................................................................2-38

New lldp holdtime-multiplier......................................................................................2-38

New lldp med-location civic-address-element..........................................................2-38

New lldp med-location elin-addr ................................................................................2-39

New lldp refresh-interval.............................................................................................2-39

viii

New lldp run..................................................................................................................2-39

New show lldp config...................................................................................................2-39

New show lldp info local-device.................................................................................2-39

New show lldp info remote-device.............................................................................2-39

New show lldp stats .....................................................................................................2-39

New lldp local-mesh.....................................................................................................2-40

discovery protocol...............................................................................................2-40

discovery protocol device-id..............................................................................2-40

New service controller discovery interface internet-port.......................................2-40

New service controller discovery interface lan-port ...............................................2-40

bridge priority ......................................................................................................2-41

bridge protocol ieee ............................................................................................2-41

bridge protocol ieee vlan....................................................................................2-41

ip route gateway ..................................................................................................2-41

dot1x reauth .........................................................................................................2-42

dot1x reauth period.............................................................................................2-42

dot1x reauth terminate ....................................................................................... 2-42

dot1x supplicant timeout....................................................................................2-42

dynamic key .........................................................................................................2-42

dynamic key interval ...........................................................................................2-43

add wireless ip-qos profile..................................................................................2-43

delete wireless ip-qos profile all ........................................................................2-43

delete wireless ip-qos profile .............................................................................2-43

wireless link qos ..................................................................................................2-43

sensor discovery mode .......................................................................................2-43

sensor network detector.....................................................................................2-44

sensor server id....................................................................................................2-44

sensor server name .............................................................................................2-44

config-version.......................................................................................................2-44

New sflow......................................................................................................................2-45

New show sflow agent .................................................................................................2-45

New show sflow controller stats ................................................................................2-45

New show sflow device stats ......................................................................................2-45

New sflow destination .................................................................................................2-45

New show sflow destination.......................................................................................2-45

New show sflow sampling-polling..............................................................................2-45

New sflow sampling .....................................................................................................2-46

New sflow polling.........................................................................................................2-46

New mac lockout entry................................................................................................2-46

ix

New show mac lockout ...............................................................................................2-46

New supplicant 802dot1x ............................................................................................2-46

New supplicant anonymous identity..........................................................................2-46

New supplicant eap......................................................................................................2-46

Port 2 port interface context ....................................................................................2-47

end.........................................................................................................................2-47

duplex ...................................................................................................................2-47

speed ..................................................................................................................... 2-47

vlan ........................................................................................................................2-47

vlan compatibility mode ..................................................................................... 2-48

vlan-management filter .......................................................................................2-48

interface vlan........................................................................................................2-48

Port 1 port interface context ....................................................................................2-49

end.........................................................................................................................2-49

duplex ...................................................................................................................2-49

speed ..................................................................................................................... 2-49

vlan ........................................................................................................................2-49

vlan compatibility mode ..................................................................................... 2-50

vlan-management filter .......................................................................................2-50

interface vlan........................................................................................................2-50

WAN IP interface context..........................................................................................2-51

pppoe client user .................................................................................................2-51

ip address mode...................................................................................................2-51

ip address..............................................................................................................2-51

ip default-gateway ...............................................................................................2-51

ip address dhcp client-id.....................................................................................2-52

end.........................................................................................................................2-52

pppoe auto-reconnect .........................................................................................2-52

pppoe mru ............................................................................................................2-52

pppoe mtu.............................................................................................................2-52

pppoe unnumbered .............................................................................................2-53

Wireless context.........................................................................................................2-54

end.........................................................................................................................2-54

radio active...........................................................................................................2-54

rts threshold .........................................................................................................2-54

distance.................................................................................................................2-54

dot11......................................................................................................................2-55

x

transmit power..................................................................................................... 2-55

antenna bidirectionnal........................................................................................2-56

antenna gain .........................................................................................................2-56

autochannel skip..................................................................................................2-56

beacon interval ....................................................................................................2-56

dot11 automatic frequency.................................................................................2-56

dot11 automatic frequency period ....................................................................2-57

dot11 automatic frequency time........................................................................2-57

dot11 automatic transmit-power .......................................................................2-57

dot11 automatic transmit-power period...........................................................2-57

New maximum clients .................................................................................................2-57

multicast rate .......................................................................................................2-57

station distance....................................................................................................2-58

dot11 mode...........................................................................................................2-58

spectralink view...................................................................................................2-58

New dot11n channel extension...................................................................................2-58

dot11n channel width..........................................................................................2-58

New dot11n guard interval ..........................................................................................2-58

dot11n mimo ........................................................................................................2-59

New dot11n multicast rate ..........................................................................................2-59

bandwidth.............................................................................................................2-59

bandwidth max .................................................................................................... 2-59

Virtual AP context......................................................................................................2-60

virtual ap name ....................................................................................................2-60

ingress interface ..................................................................................................2-60

guest-mode ...........................................................................................................2-60

max-association ...................................................................................................2-60

ssid name..............................................................................................................2-60

vlan ........................................................................................................................2-61

encryption key 1 ..................................................................................................2-61

encryption key format.........................................................................................2-61

transmit key..........................................................................................................2-61

authentication server access controller ...........................................................2-62

authentication server accounting......................................................................2-62

authentication server accounting radius profile .............................................2-62

authentication server radius ..............................................................................2-62

dot1x authentication ...........................................................................................2-62

wpa-psk.................................................................................................................2-62

authentication server accounting radius stationid case.................................2-63

xi

authentication server accounting radius stationid delimiter.........................2-63

wireless filters......................................................................................................2-63

wireless filters mac .............................................................................................2-63

wireless filters rule input....................................................................................2-63

wireless filters rule output .................................................................................2-64

wireless filters type .............................................................................................2-64

mac-filters local ...................................................................................................2-65

mac-filters.............................................................................................................2-65

mac-filters mode ..................................................................................................2-66

mac authentication accounting .........................................................................2-66

mac authentication accounting radius profile.................................................2-66

mac authentication radius profile .....................................................................2-66

mac authentication radius stationid case.........................................................2-66

mac authentication radius stationid delimiter.................................................2-67

mac authentication..............................................................................................2-67

add ip filter ...........................................................................................................2-67

delete ip filter .......................................................................................................2-67

delete ip filter all..................................................................................................2-67

ip filters.................................................................................................................2-68

active.....................................................................................................................2-68

beacon dtim count...............................................................................................2-68

beacon transmit power.......................................................................................2-68

New data rate................................................................................................................2-68

add ip-qos profile.................................................................................................2-69

delete ip-qos profile all........................................................................................2-69

delete ip-qos profile.............................................................................................2-69

qos .........................................................................................................................2-69

upstream diffserv tagging...................................................................................2-70

wmm advertising .................................................................................................2-70

location-aware group ..........................................................................................2-70

end.........................................................................................................................2-71

security .................................................................................................................2-71

VLAN interface context .............................................................................................2-72

end.........................................................................................................................2-72

ip address..............................................................................................................2-72

ip address mode...................................................................................................2-72

Local mesh context....................................................................................................2-73

end.........................................................................................................................2-73

xii

active.....................................................................................................................2-73

interface................................................................................................................2-73

local mesh name ..................................................................................................2-73

remote mac...........................................................................................................2-73

security .................................................................................................................2-74

security mode....................................................................................................... 2-74

security psk ..........................................................................................................2-74

security wep .........................................................................................................2-74

speed ..................................................................................................................... 2-74

interface vlan........................................................................................................2-74

accept forced links ..............................................................................................2-75

allowed downtime ...............................................................................................2-75

dynamic local mesh.............................................................................................2-75

dynamic mode......................................................................................................2-75

initial discovery time...........................................................................................2-75

mesh id..................................................................................................................2-76

minimum snr ........................................................................................................2-76

preserve master link............................................................................................2-76

promiscuous mode..............................................................................................2-76

promiscuous mode startup delay ......................................................................2-77

snr cost per hop ...................................................................................................2-77

RADIUS profiles context...........................................................................................2-78

end.........................................................................................................................2-78

radius-server accounting port............................................................................2-78

radius-server alternate hosts..............................................................................2-78

radius-server authentication method................................................................ 2-78

radius-server authentication port......................................................................2-78

radius-server deadtime .......................................................................................2-79

radius-server host ................................................................................................2-79

radius-server key 2 ..............................................................................................2-79

radius-server message-authenticator................................................................2-79

radius-server name ..............................................................................................2-79

radius-server nasid ..............................................................................................2-80

radius-server timeout ..........................................................................................2-80

radius-server timeout ..........................................................................................2-80

IP QOS context ...........................................................................................................2-81

end.........................................................................................................................2-81

end-port.................................................................................................................2-81

xiii

priority ..................................................................................................................2-81

profile name .........................................................................................................2-81

protocol.................................................................................................................2-81

start-port ...............................................................................................................2-81

GRE interface context ...............................................................................................2-83

end force...............................................................................................................2-83

gre name ...............................................................................................................2-83

ip address..............................................................................................................2-83

peer ip address.....................................................................................................2-83

remote ip address ................................................................................................2-83

Syslog context ............................................................................................................2-84

active.....................................................................................................................2-84

logging facility......................................................................................................2-84

logging host ..........................................................................................................2-84

logging prefix .......................................................................................................2-84

name......................................................................................................................2-84

end.........................................................................................................................2-85

level .......................................................................................................................2-85

level .......................................................................................................................2-85

matches.................................................................................................................2-85

message.................................................................................................................2-85

message.................................................................................................................2-86

process..................................................................................................................2-86

process..................................................................................................................2-86

SNMP user context ....................................................................................................2-87

access level...........................................................................................................2-87

end.........................................................................................................................2-87

password...............................................................................................................2-87

security .................................................................................................................2-87

user name .............................................................................................................2-87

SNMP notification receiver context ........................................................................2-88

community............................................................................................................2-88

end.........................................................................................................................2-88

port ........................................................................................................................2-88

receiver .................................................................................................................2-88

user........................................................................................................................2-88

version...................................................................................................................2-88

xiv

Network profile context............................................................................................2-89

New end.........................................................................................................................2-89

New name......................................................................................................................2-89

New vlan ........................................................................................................................2-89

New vlan ........................................................................................................................2-89

LLDP agent context ...................................................................................................2-90

New admin-status .........................................................................................................2-90

New basic-tlv-enable ....................................................................................................2-90

New basic-tlv-enable port_desc..................................................................................2-90

New basic-tlv-enable system_cap...............................................................................2-90

New basic-tlv-enable system_descr ...........................................................................2-90

New basic-tlv-enable system_name ...........................................................................2-91

New dot3-tlv-enable .....................................................................................................2-91

New end.........................................................................................................................2-91

New ip-addr-enable.......................................................................................................2-91

New med-application-type...........................................................................................2-91

New medtlv-enable capabilities..................................................................................2-91

New medtlv-enable location-id ...................................................................................2-92

New medtlv-enable network-policy ...........................................................................2-92

New medtlv-enable poe ...............................................................................................2-92

xv

xvi

Alphabetical list of commands

accept forced links ...................................................... 2-75

access controller shared secret ................................. 2-36

access level................................................................... 2-87

access-controller restrict location............................. 2-33

active ............................................................................. 2-68

active ............................................................................. 2-73

active ............................................................................. 2-84

add ip filter ................................................................... 2-67

add ip-qos profile ......................................................... 2-69

add wireless ip-qos profile.......................................... 2-43

admin local authentication......................................... 2-12

admin radius authentication server .......................... 2-12

admin radius authentication ...................................... 2-12

New admin-status ................................................................. 2-90

allowed downtime ....................................................... 2-75

antenna bidirectionnal ................................................ 2-56

antenna gain ................................................................. 2-56

arp.................................................................................... 2-5

arping .............................................................................. 2-2

arping .............................................................................. 2-5

authentication server access controller ................... 2-62

authentication server accounting radius profile ..... 2-62

authentication server accounting radius stationid case2-63
authentication server accounting radius stationid delimiter
2-63

authentication server accounting.............................. 2-62

authentication server radius ...................................... 2-62

autochannel skip.......................................................... 2-56

bandwidth max ............................................................ 2-59

bandwidth..................................................................... 2-59

New basic-tlv-enable port_desc .......................................... 2-90

New basic-tlv-enable system_cap....................................... 2-90

New basic-tlv-enable system_descr ................................... 2-90

New basic-tlv-enable system_name ................................... 2-91

New basic-tlv-enable ............................................................ 2-90

beacon dtim count....................................................... 2-68

beacon interval ............................................................ 2-56

beacon transmit power ............................................... 2-68

bridge priority .............................................................. 2-41

bridge protocol ieee vlan ............................................ 2-41

bridge protocol ieee .................................................... 2-41

cap-switch to ................................................................ 2-11

certificate binding.......................................................... 2-9

certificate revocation .................................................... 2-9

certificate........................................................................ 2-9

clock auto adjust dst ................................................... 2-16

clock custom dst begins format................................. 2-17

clock custom dst begins ............................................. 2-17

clock custom dst ends format.................................... 2-18

clock custom dst ends ................................................ 2-17

clock timezone............................................................. 2-16

clock use custom dst rules ......................................... 2-16

clock.............................................................................. 2-16

community.................................................................... 2-88

config............................................................................... 2-8

config-update automatic ............................................. 2-18

config-update operation.............................................. 2-19

New config-update start ...................................................... 2-19

config-update time....................................................... 2-19

config-update uri.......................................................... 2-19

config-update weekday ............................................... 2-19

config-version............................................................... 2-44

New console authentication................................................ 2-15

New data rate .........................................................................2-68

delete ip filter all...........................................................2-67

delete ip filter ................................................................2-67

delete ip-qos profile all.................................................2-69

delete ip-qos profile......................................................2-69

delete wireless ip-qos profile all .................................2-43

delete wireless ip-qos profile ......................................2-43

New disassociate wireless client _ ........................................2-7

discovery protocol device-id .......................................2-40

discovery protocol........................................................2-40

distance..........................................................................2-54

dot11 automatic frequency period .............................2-57

dot11 automatic frequency time .................................2-57

dot11 automatic frequency..........................................2-56

dot11 automatic transmit-power period ....................2-57

dot11 automatic transmit-power ................................2-57

dot11 igmp snooping-helper........................................2-37

dot11 mode....................................................................2-58

dot11...............................................................................2-55

New dot11n channel extension ...........................................2-58

dot11n channel width...................................................2-58

New dot11n guard interval ...................................................2-58

dot11n mimo .................................................................2-59

New dot11n multicast rate ...................................................2-59

dot1x authentication ....................................................2-62

dot1x reauth period......................................................2-42

dot1x reauth terminate ................................................2-42

dot1x reauth ..................................................................2-42

dot1x supplicant timeout.............................................2-42

New dot3-tlv-enable ..............................................................2-91

duplex ............................................................................2-47

duplex ............................................................................2-49

dynamic key interval ....................................................2-43

dynamic key ..................................................................2-42

dynamic local mesh......................................................2-75

dynamic mode...............................................................2-75

enable...............................................................................2-2

encryption key 1 ...........................................................2-61

encryption key format..................................................2-61

end force........................................................................2-83

end..................................................................................2-47

end-port..........................................................................2-81

factory reset ....................................................................2-7

factory settings ...............................................................2-9

firmware-update automatic.........................................2-31

firmware-update start ..................................................2-32

firmware-update time...................................................2-32

firmware-update uri .....................................................2-32

firmware-update weekday...........................................2-32

gre name ........................................................................2-83

guest-mode ....................................................................2-60

ingress interface ...........................................................2-60

initial discovery time....................................................2-75

interface ethernet ...........................................................2-9

interface gre ..................................................................2-11

interface ip.....................................................................2-10

interface vlan.................................................................2-48

interface vlan.................................................................2-50

interface vlan.................................................................2-74

interface wireless .........................................................2-11

interface.........................................................................2-73

ip address dhcp client-id..............................................2-52

ip address mode............................................................2-51

xvii

ip address mode........................................................... 2-72

ip address...................................................................... 2-51

ip address...................................................................... 2-72

ip address...................................................................... 2-83

ip default-gateway ....................................................... 2-51

ip filters......................................................................... 2-68

ip http port.................................................................... 2-12

ip https port.................................................................. 2-12

ip name-server cache .................................................. 2-34

ip name-server dynamic.............................................. 2-35

New ip name-server interception ....................................... 2-35

ip name-server switch-on-servfail ............................. 2-35

ip name-server switch-over ........................................ 2-35

ip name-server.............................................................. 2-34

ip route gateway .......................................................... 2-41

New ip-addr-enable............................................................... 2-91

iperf ................................................................................. 2-2

iperf ................................................................................. 2-4

ip-qos profile ................................................................ 2-37

level ............................................................................... 2-85

level ............................................................................... 2-85

New lldp config..................................................................... 2-37

New lldp dynamic-name refresh-time ................................ 2-38

New lldp dynamic-name user-string................................... 2-38

New lldp dynamic-name ...................................................... 2-37

New lldp fast-start-count ..................................................... 2-38

New lldp holdtime-multiplier .............................................. 2-38

New lldp local-mesh ............................................................. 2-40

New lldp med-location civic-address-element .................. 2-38

New lldp med-location elin-addr ........................................ 2-39

New lldp refresh-interval ..................................................... 2-39

New lldp run.......................................................................... 2-39

local mesh name .......................................................... 2-73

local mesh profile ........................................................ 2-11

location-aware group .................................................. 2-70

logging destination ...................................................... 2-20

logging facility.............................................................. 2-84

logging host .................................................................. 2-84

logging prefix ............................................................... 2-84

mac authentication accounting radius profile ......... 2-66

mac authentication accounting ................................. 2-66

mac authentication radius profile ............................. 2-66

mac authentication radius stationid case ................. 2-66

mac authentication radius stationid delimiter ......... 2-67

mac authentication...................................................... 2-67

New mac lockout entry........................................................ 2-46

mac-filters local ........................................................... 2-65

mac-filters mode .......................................................... 2-66

mac-filters..................................................................... 2-65

matches......................................................................... 2-85

max-association ........................................................... 2-60

New maximum clients ......................................................... 2-57

New med-application-type................................................... 2-91

New medtlv-enable capabilities.......................................... 2-91

New medtlv-enable location-id ........................................... 2-92

New medtlv-enable network-policy ................................... 2-92

New medtlv-enable poe ....................................................... 2-92

mesh id.......................................................................... 2-76

message......................................................................... 2-85

message......................................................................... 2-86

minimum snr ................................................................ 2-76

multicast rate ............................................................... 2-57

name.............................................................................. 2-84

New name.............................................................................. 2-89

New network-profile ............................................................ 2-10

nslookup ......................................................................... 2-2

ntp protocol .................................................................. 2-16

ntp server failure trap.................................................. 2-18

ntp server ...................................................................... 2-17

ntp server ...................................................................... 2-18

password ....................................................................... 2-87

peer ip address ............................................................. 2-83

ping .................................................................................. 2-2

ping .................................................................................. 2-4

port................................................................................. 2-88

pppoe auto-reconnect.................................................. 2-52

pppoe client user.......................................................... 2-51

pppoe mru..................................................................... 2-52

pppoe mtu ..................................................................... 2-52

pppoe unnumbered...................................................... 2-53

preserve master link .................................................... 2-76

priority........................................................................... 2-81

process .......................................................................... 2-86

process .......................................................................... 2-86

profile name.................................................................. 2-81

promiscuous mode startup delay............................... 2-77

promiscuous mode ...................................................... 2-76

protocol ......................................................................... 2-81

ps...................................................................................... 2-3

qos.................................................................................. 2-69

quit ................................................................................... 2-3

quit ................................................................................... 2-5

radio active ................................................................... 2-54

radius-server accounting port .................................... 2-78

radius-server alternate hosts ...................................... 2-78

radius-server authentication method ........................ 2-78

radius-server authentication port .............................. 2-78

radius-server deadtime................................................ 2-79

radius-server host ........................................................ 2-79

radius-server key 2....................................................... 2-79

radius-server message-authenticator ........................ 2-79

radius-server name ...................................................... 2-79

radius-server nasid....................................................... 2-80

radius-server profile .................................................... 2-37

radius-server timeout .................................................. 2-80

radius-server timeout .................................................. 2-80

rcapture ........................................................................... 2-5

reboot device ................................................................ 2-10

reboot device .................................................................. 2-4

receiver.......................................................................... 2-88

remote ip address......................................................... 2-83

remote mac ................................................................... 2-73

rts threshold.................................................................. 2-54

security mode ............................................................... 2-74

security psk................................................................... 2-74

security wep.................................................................. 2-74

security.......................................................................... 2-71

security.......................................................................... 2-74

security.......................................................................... 2-87

sensor discovery mode................................................ 2-43

sensor network detector ............................................. 2-44

sensor server id ............................................................ 2-44

sensor server name...................................................... 2-44

New service controller discovery interface internet-port 2-40

New service controller discovery interface lan-port........ 2-40

service-sensor poll ....................................................... 2-33

service-sensor retry ..................................................... 2-34

service-sensor timeout ................................................ 2-34

service-sensor............................................................... 2-33

service-sensor............................................................... 2-33

New sflow destination.......................................................... 2-45

New sflow polling ................................................................. 2-46

xviii

New sflow sampling ............................................................. 2-46

New sflow.............................................................................. 2-45

show all config ............................................................... 2-8

show arp ......................................................................... 2-5

show bridge forwarding................................................ 2-6

show bridge .................................................................... 2-6

show certificate binding ............................................. 2-10

show certificate binding ............................................... 2-4

show certificate ........................................................... 2-10

show certificate ............................................................. 2-4

show client log ............................................................... 2-8

show config factory..................................................... 2-10

show discrete pin........................................................... 2-8

show dns cache.............................................................. 2-6

show dot11 associations............................................... 2-7

show dot11 statistics client-traffic dot11n ................. 2-7

show interfaces.............................................................. 2-6

show ip route ................................................................. 2-6

show ip............................................................................ 2-6

show license................................................................... 2-3

New show lldp config........................................................... 2-39

New show lldp info local-device......................................... 2-39

New show lldp info remote-device..................................... 2-39

New show lldp stats ............................................................. 2-39

show local mesh ............................................................ 2-7

show logging filtered..................................................... 2-3

New show mac lockout ....................................................... 2-46

New show network-profiles ................................................ 2-10

New show sflow agent ......................................................... 2-45

New show sflow controller stats ........................................ 2-45

New show sflow destination ............................................... 2-45

New show sflow device stats .............................................. 2-45

New show sflow sampling-polling...................................... 2-45

show system info ........................................................... 2-6

New show wireless clients .................................................... 2-6

show wireless neighborhood ....................................... 2-7

show wireless rogue-ap ................................................ 2-7

snmp-server access interface gre .............................. 2-24

snmp-server access interface vlan ............................ 2-24

snmp-server access local mesh.................................. 2-24

snmp-server access port-1 .......................................... 2-20

snmp-server access port-2 .......................................... 2-25

snmp-server access wireless ...................................... 2-25

snmp-server allow ....................................................... 2-21

snmp-server chassis-id................................................ 2-21

snmp-server contact.................................................... 2-21

snmp-server heartbeat period .................................... 2-21

snmp-server location................................................... 2-21

snmp-server notification receiver ............................. 2-25

snmp-server port.......................................................... 2-22

snmp-server readonly.................................................. 2-22

snmp-server readwrite ................................................ 2-22

snmp-server trap certificate-expired......................... 2-12

snmp-server trap certificate-expires-soon ............... 2-13

snmp-server trap community ..................................... 2-22

snmp-server trap config-change ................................ 2-19

snmp-server trap config-update................................. 2-20

snmp-server trap destination ..................................... 2-23

snmp-server trap firmware-update............................ 2-32

snmp-server trap heartbeat ........................................ 2-23

snmp-server trap link-state......................................... 2-23

snmp-server trap low-snr interval ............................. 2-28

snmp-server trap low-snr level .................................. 2-28

snmp-server trap low-snr............................................ 2-28

snmp-server trap network-trace ................................ 2-31

snmp-server trap new-association interval .............. 2-29

snmp-server trap new-association .............................2-28

snmp-server trap snmp-authentication ..................... 2-23

snmp-server trap syslog-matches regex .................... 2-31

snmp-server trap syslog-matches............................... 2-31

snmp-server trap syslog-severity level ...................... 2-31

snmp-server trap syslog-severity ............................... 2-20

snmp-server trap unauthorized-ap interval .............. 2-36

snmp-server trap unauthorized-ap............................. 2-35

snmp-server trap vpn-connection .............................. 2-29

snmp-server trap web-fail ........................................... 2-13

snmp-server trap web-login ........................................ 2-13

snmp-server trap web-logout...................................... 2-13

snmp-server trap wireless-association-fail ............... 2-29

snmp-server trap wireless-association-success .......2-29

snmp-server trap wireless-authentication-fail..........2-29

snmp-server trap wireless-authentication-success..2-29

snmp-server trap wireless-deauthentication-fail .....2-30

snmp-server trap wireless-deauthentication-success2-30

snmp-server trap wireless-disassociation-fail ..........2-30

snmp-server trap wireless-disassociation-success ..2-30

snmp-server trap wireless-reassociation-fail............ 2-30

snmp-server trap wireless-reassociation-success....2-30

snmp-server trap .......................................................... 2-22

snmp-server user.......................................................... 2-25

snmp-server version 1 ................................................. 2-23

snmp-server version 2c ............................................... 2-24

snmp-server version 3 ................................................. 2-24

snmp-server .................................................................. 2-20

snr cost per hop............................................................ 2-77

soap-server access interface gre ................................ 2-27

soap-server access interface vlan .............................. 2-26

soap-server access local mesh ................................... 2-28

soap-server access port-1............................................ 2-26

soap-server access port-2............................................ 2-26

soap-server access wireless........................................ 2-28

soap-server allow ......................................................... 2-26

soap-server http authentication password ............... 2-27

soap-server http authentication username ............... 2-27

soap-server http authentication ................................. 2-26

soap-server port ........................................................... 2-27

soap-server ssl with client certificate........................2-27

soap-server ssl .............................................................. 2-27

soap-server.................................................................... 2-25

spectralink view ........................................................... 2-58

speed.............................................................................. 2-47

speed.............................................................................. 2-49

speed.............................................................................. 2-74

ssid name ...................................................................... 2-60

start-port ....................................................................... 2-81

station distance ............................................................ 2-58

New supplicant 802dot1x..................................................... 2-46

New supplicant anonymous identity .................................. 2-46

New supplicant eap .............................................................. 2-46

switch operational mode............................................... 2-7

top .................................................................................... 2-3

traceroute........................................................................ 2-3

transmit key .................................................................. 2-61

transmit power ............................................................. 2-55

upstream diffserv tagging ........................................... 2-70

user name...................................................................... 2-87

user ................................................................................ 2-88

username....................................................................... 2-13

version ........................................................................... 2-88

virtual ap name............................................................. 2-60

virtual ap ....................................................................... 2-11

vlan compatibility mode.............................................. 2-48

xix

vlan compatibility mode ............................................. 2-50

vlan ................................................................................ 2-47

vlan-management filter ............................................... 2-48

vlan-management filter ............................................... 2-50

web access interface gre ............................................ 2-15

web access interface vlan........................................... 2-15

web access local mesh................................................ 2-15

web access port-1 ........................................................ 2-14

web access port-2 ........................................................ 2-14

web access wireless .................................................... 2-15

web admin kickout...................................................... 2-14

web allow...................................................................... 2-14

wireless filters mac ..................................................... 2-63

wireless filters rule input............................................ 2-63

wireless filters rule output ......................................... 2-64

wireless filters type ..................................................... 2-64

wireless filters.............................................................. 2-63

wireless link qos .......................................................... 2-43

wireless-scan period.................................................... 2-36

wireless-scan url .......................................................... 2-36

wireless-scan ................................................................ 2-36

wmm advertising ......................................................... 2-70

world-mode dot11 country code................................ 2-14

wpa-psk......................................................................... 2-62

xx

Chapter 1: Introduction

Introduction

Contents

About this guide ...........................................................................................................1-2

Products covered...................................................................................................1-2

Important terms..................................................................................................... 1-2

Typographical conventions ..................................................................................1-3

New in this release.......................................................................................................1-3

HP ProCurve Networking support.............................................................................1-3

1

Online documentation .................................................................................................1-4

CLI support in autonomous and controlled modes .................................................1-4

Controlled mode....................................................................................................1-4

Autonomous mode ................................................................................................1-5

Configuring CLI support..............................................................................................1-5

Entering strings ............................................................................................................1-6

Context hierarchy ........................................................................................................1-7

Sample CLI session ......................................................................................................1-7

Online documentation .................................................................................................1-4

Introduction

About this guide

About this guide

This guide explains how to work with the Command Line Interface (CLI) on HP ProCurve
Networking MSM3xx and MSM4xx APs.

Products covered

This guide covers the following products:

Part number

Model

MSM310 Access Point J9374A/B J9524A/B J9379A/B

MSM310-R Access Point J9380A/B J9383A/B

MSM317 Access Device J9422A J9423A J9423A

MSM320 Access Point J9360A/B J9527A/B J9364A/B

MSM320-R Access Point J9365A/B J9528A/B J9368A/B

MSM325 Access Point with Sensor J9369A/B J9373A/B

MSM335 Access Point with Sensor J9356A/B J9357A/B

MSM410 Access Point J9426A/B J9529A/B J9427A/B

MSM422 Access Point J9358A/B J9530A/B J9359A/B

USA Japan WW

Important terms

The following terms are used in this guide.

Ter m Description

AP Refers to any HP ProCurve Networking MSM3xx or MSM4xx

controller, service
controller

VSC, Virtual ap, VAP These terms are used interchangeably to refer to VSC (Virtual

1-2

Access Point.

Refers to any HP ProCurve Networking MSM7xx Controller,
including both Access Controller and Mobility Controller
variants.

Service Community).

Typographical conventions

Command syntax

Command syntax is formatted in a monospaced font as follows:

Example Description

Introduction

New in this release

web admin kickout

ip http port <number>

end [force]

firewall mode
(high|low|none)

Items in plain text must be entered as shown.

Items in italics and enclosed in < > are parameters for
which you must supply a value. In this example, you
must supply a value for <number>.

Items enclosed in square brackets are optional. You
can either include them or not. Do not include the
brackets. In this example you can either include
“force” or omit it.

Items enclosed in parenthesis and separated by a
vertical line indicate a choice. Specify only one of the
items. In this example, you must specify ’high’, ’low’, or
’none’.

Management tool

When referring to the management tool interface, the Main menu name is presented first
followed by a right angle-bracket and then the sub-menu name, as in Network > Ports.

New in this release

New CLI commands in this release are identified by the text New in the left margin. This done
in both the table of contents, alphabetical list of commands, and Chapter 2: CLI commands.

HP ProCurve Networking support

The Customer Support/Warranty booklet included with your product and the HP ProCurve
Networking Web site, www.hp.com/go/procurve/support, provide information on the support
services offer by HP ProCurve Networking. Additionally, your HP-authorized network
reseller can provide you with assistance, both with services that they offer and with services
offered by HP.

1-3

Introduction

Online documentation

Before contacting support

To make the support process most efficient, before calling your networking dealer or HP
Support, you first should collect the following information:

Collect this information Where to find it

Product identification. On the rear of the product.

Software version. The product management tool Login page.

Network topology map, including the
addresses assigned to all relevant devices.

Your network administrator.

Online documentation

For the latest documentation, visit the HP ProCurve Networking manuals Web page at:

www.hp.com/go/procurve/manuals.

CLI support in autonomous and controlled
modes

An AP operates in either controlled mode or autonomous mode.

Controlled mode

Controlled mode is the factory default mode for all APs.

When in controlled mode, an AP establishes a control channel with a controller. The
controller manages the AP and provides all configuration settings. Discovery of the controller
is automatic if default settings are used on all devices.

Note In controlled mode, access to the CLI is possible only before the control channel to the

controller is established, which can occur in the following scenarios:

 Network failures prevent a control channel from being created.

 After an AP is restarted, prior to establishment of the control channel (during the brief

controller discovery process).

When the AP is in controlled mode, a reduced number of CLI commands are available. The
most notable command is switch operational mode, which enables you to switch the AP to
autonomous mode. The config context is not available.

1-4

Introduction

Configuring CLI support

Autonomous mode

When in autonomous mode, the AP operates as a stand-alone unit. Autonomous mode
supports all CLI commands. You can also configure and manage the AP using the AP
management tool, SNMP, CLI, or SOAP.

Configuring CLI support

CLI support is configured using the management tool on the AP. Select Management > CLI
to open the Command Line Interface (CLI) configuration page.

Note A maximum of three concurrent CLI sessions are supported.

Secure shell access

Enable this option to allow access to the CLI via an SSH session. The CLI supports SSH on
the standard TCP port (22).

Connectivity and login credentials for SSH connections use the same settings as defined for
management tool on the Controller >> Management > Management tool page. SSH
connections to the CLI can be made on any active interface. Support for each interface must
be explicitly enabled under Security.

The following SSH clients have been tested with the CLI. Others may work as well:

 OpenSSH

 Tect ia

 SecureCRT

 Putty

Authenticate CLI logins using

The CLI validates login credentials (username and password) using the settings defined on
the Management > Management tool page. (Shown below for reference)

1-5

Introduction

Entering strings

Local manager account

The login username and password are the same as those defined for the local manager
account. If this account is disabled, the last known username and password for this account
are used.

Administrative user authentication settings

The login username and password use the same settings (Local and/or RADIUS) as defined
for the manager account under Administrative user authentication.

Entering strings

When entering a value that contains spaces, you must enclose it in quotation marks. For
example, if the command syntax is:

ssid <name>

you must specify one of the following:

ssid ANameWithNoSpaces
ssid "A name with spaces"

1-6

Introduction

Context hierarchy

Context hierarchy

CLI commands are grouped into functional contexts. The following table shows the context
hierarchy and the command used to switch from the parent context.

Context hierarchy Command to switch from parent context

View context (This is the root context. No command is needed.)

Enable context enable

Config context config

WAN IP interface context interface ip

Port-2 interface context interface ethernet port-2

VLAN interface context interface vlan <id>[-<id2>]

Port-1 interface context interface ethernet port-1

VLAN interface context interface vlan <id>[-<id2>]

Wireless context interface wireless <number>

Local mesh context local mesh profile <name>

VLAN interface context interface vlan <number>

GRE interface context interface gre <name>

Virtual AP context virtual ap <name>

Syslog destination context logging destination <name>

SNMP user context snmp-server user <name>

SNMP notification receiver context snmp-server notification receiver <host>

RADIUS context radius-server profile <name>

IP_QOS context ip-qos profile <name>

Network profile context network-profile <name>

Sample CLI session

This sample CLI session shows you how to set the wireless port to support 802.11a on
channel 60 with medium distance between access points. (The CLI prompt is shown in bold.)

CLI> enable
CLI# config
CLI(config)# interface wireless
CLI(config-if-wlan)# dot11 a 60
CLI(config-if-wlan)# distance medium
CLI(config-if-wlan)# end
CLI(config)# end
CLI# quit

1-7

Introduction

Sample CLI session

1-8

Chapter 2: CLI commands

CLI commands

Contents

View context .................................................................................................................2-2

Enable context..............................................................................................................2-4

Config context ..............................................................................................................2-9

Port 2 port interface context ....................................................................................2-47

Port 1 port interface context ....................................................................................2-49

2

WAN IP interface context..........................................................................................2-51

Wireless context.........................................................................................................2-54

Virtual AP context......................................................................................................2-60

VLAN interface context .............................................................................................2-72

Local mesh context....................................................................................................2-73

RADIUS profiles context...........................................................................................2-78

IP QOS context ...........................................................................................................2-81

GRE interface context ...............................................................................................2-83

Syslog context ............................................................................................................2-84

SNMP user context ....................................................................................................2-87

SNMP notification receiver context ........................................................................2-88

Network profile context............................................................................................2-89

LLDP agent context ...................................................................................................2-90

CLI commands

View context

View context

Path: View

This is the root of the command tree.

arping

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

arping [ -AbDfhqUV] [ -c <count>] [ -w <deadline>] [ -s <source>] -I <interface>
<destination>

Pings a destination on a device interface using ARP packets.

enable

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

enable

Switches to the enable context.

iperf

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

iperf -c host [-t time]

Runs a performance throughput test.

Parameters

<-c host> The IP address or DNS name of the iperf server to connect to.
<-t length> Length of the throughput test in seconds.

nslookup

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

nslookup [ -option authentication ] [ <host-to-find> | - [< server> ]]

Queries DNS servers for information on hosts or domains.

ping

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ping <host> [-c <count>] [-s <length>] [-q]

Determines if the specified remote IP address is active.

Parameters

<-c host> The IP address or DNS name of the host to ping.
<-c count> Number of pings.
<-s length> Length of the ping datagram.
<-q> Quiet mode. No output.

2-2

ps

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ps

Displays all running processes.

quit

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

quit

Quits the CLI.

show license

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show license (eula | gpl | other)

Displays license information.

CLI commands

View context

show logging filtered

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show logging [filtered]

Displays the system log.

top

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

top

Displays all running processes.

traceroute

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

traceroute [-n] [-r] [-v] [-m <max_ttl>] [-p <port#>] [-q <nqueries>] [-s
<src_addr>] [-t <tos>] [-w <wait>] <host> [<data size>]

Show the hosts that are traversed to reach the specified IP address.

2-3

CLI commands

Enable context

Enable context

Path: View > Enable

This context provides access to various utilities.

reboot device

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

reboot device

Restarts the system.

show certificate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show certificate

Displays current certificates.

show certificate binding

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show certificate binding

Displays how the certificates are used.

iperf

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

iperf -c host [-t time]

Runs a performance throughput test.

Parameters

<-c host> The IP address or DNS name of the iperf server to connect to.
<-t length> Length of the throughput test in seconds.

ping

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ping <host> [-c <count>] [-s <length>] [-q]

Determines if the specified remote IP address is active.

Parameters

<-c host> The IP address or DNS name of the host to ping.
<-c count> Number of pings.
<-s length> Length of the ping datagram.
<-q> Quiet mode. No output.

2-4

CLI commands

Enable context

arping

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

arping [ -AbDfhqUV] [ -c <count>] [ -w <deadline>] [ -s <source>] -I <interface>
<destination>

Pings a destination on a device interface using ARP packets.

arp

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

arp [-evn] [-H <type>] [-i if] ?- [<hostname>] arp [-v] [-i if] -d <hostname>
[pub] arp [-v] [-H <type>] [-i if] -s <hostname> <hw_addr> [temp] arp [-v] [-H

<type>] [-i if] -s <hostname> <hw_addr> [<netmask> <nm>] <pub> arp [-v] [-H
<type>] [-i if] -Ds <hostname> ifa [<netmask> <nm>] <pub>

Displays and modifies the Internet-to-Ethernet address translation tables used by the address
resolution protocol.

end

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

end

Switches to parent context.

quit

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

quit

Exits the enable context.

rcapture

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

rcapture -u <URI> [-c <count>] -i <interface>

Captures data on a port and sends it to a file on an FTP server.

Parameters

<URI> Address of the FTP site and filename where the trace will be saved. For

example: ftp://user:[email protected]/trace.pcap

<count> Number of packets to capture.
<interface> Interface to trace: eth0 = Internet port, eth1 = LAN port, wvlan0 = wireless

port

show arp

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show arp

Shows the ARP table.

2-5

CLI commands

Enable context

show bridge

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show bridge

Shows bridge information.

show bridge forwarding

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show bridge forwarding

Shows bridge forwarding information.

show dns cache

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show dns cache [<serial>]

Shows DNS cache entries. Specify a serial number to display detailed information.

show interfaces

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show interfaces

Show networking interfaces.

show ip

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show ip

Shows all IP addresses.

show ip route

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show ip route

Shows all IP routes.

show system info

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show system info

Shows basic system information.

New show wireless clients

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show wireless clients

Displays all wireless clients.

2-6

New disassociate wireless client _

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

disassociate wireless client [<client_macaddress>]

Terminates the connection for the specified wireless client.

factory reset

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

factory reset

Resets the unit to factory default settings.

switch operational mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

switch operational mode

Switches the unit’s operational mode.

CLI commands

Enable context

show dot11 associations

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show dot11 associations

Shows all current wireless associations.

show dot11 statistics client-traffic dot11n

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show dot11 statistics client-traffic [dot11n [<macaddress]>]

Shows current client matrix statistics.

show local mesh

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show local mesh

Shows current local mesh interfaces.

show wireless neighborhood

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show wireless neighborhood

Shows all access points detected nearby.

show wireless rogue-ap

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show wireless rogue-ap

Shows all rogue access points detected nearby.

2-7

CLI commands

Enable context

show client log

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show client log [<macaddr>]

Displays the client station log. Enter the MAC address to display more details for a specific client
station.

show discrete pin

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show discrete pin

Displays the state of the discrete pin.

config

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config

Switches to the config context.

show all config

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show all config

Shows all configuration settings that apply to this device.

2-8

CLI commands

Config context

Config context

Path: View > Enable > Config

This is the root context for all configuration commands.

certificate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

certificate (authority | local) <uri> <certname> [<password>]

Adds a new certificate to the store, using the specified friendly name.

certificate binding

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

certificate binding (web-management | html-auth | soap | eap) <certname>

Assigns a certificate to a service.

no certificate binding (web-management | html-auth | soap | eap) <certname>

Unassigns a certificate from a service.

certificate revocation

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

certificate revocation <uri> <certname>

Adds a Certificate Revocation List (CRL) to an existing authority certificate.

end

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

end

Switches to parent context.

factory settings

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

factory settings

Resets the system configuration to factory default settings.

interface ethernet

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

interface ethernet (port-1|port-2)

Switches to the specified Ethernet interface context.

2-9

CLI commands

Config context

New network-profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

network-profile <name>

Add/Edits the specified network profile or create a new profile with the specified name.

no network-profile <name>

Deletes the network profile with the specified name.

reboot device

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

reboot device

Restarts the system.

show certificate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show certificate

Displays current certificates.

show certificate binding

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show certificate binding

Displays how the certificates are used.

show config factory

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show config [factory]

Generates a list of CLI commands that can be used to define the currently loaded configuration.

New show network-profiles

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show network-profiles

Displays all currently defined network profiles.

interface ip

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

interface ip

Switches to the specified IP interface context.

2-10

interface wireless

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

interface wireless <interface number>

Switches to the specified wireless interface context.

local mesh profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

local mesh profile <name>

Switches to the specified local mesh link context.

Parameters

<name> Number of the local mesh profile to configure.

interface gre

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

interface gre <name>

CLI commands

Config context

Switches to the specified GRE interface or creates a new GRE interface with the specified name.

no interface gre <name>

Deletes the specified GRE interface.

virtual ap

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

virtual ap <name>

Creates a new VSC (VAP) profile or switches to the existing VSC (VAP) context with the specified
name.

no virtual ap <name>

Deletes the specified VSC (VAP) profile.

Parameters

name Name of an existing or new VSC (VAP) profile.

cap-switch to

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

cap-switch to (ap | ac | wab)

Switches to the specified operational mode.

Parameters

ap Switches operational mode to CAP MultiService Access Point.
ac Switches operational mode to CAP MultiService Controller.
wab Switches operational mode to WAB Wireless Station.

2-11

CLI commands

Config context

admin local authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

admin local authentication

Sets the authentication of manager logins to occur using the local account.

no admin local authentication

Disables administrator authentication via the local account.

admin radius authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

admin radius authentication

Sets the authentication of manager logins to occur using RADIUS.

no admin radius authentication

Disables manager authentication via RADIUS.

admin radius authentication server

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

admin radius authentication server <name>

Sets the authentication of manager logins to occur using RADIUS.

ip http port

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip http port <number>

Sets the port number to use for HTTP access to the AP.

Parameters

<number> Port number. Range: 1 - 65535.

Description

HTTP connections made to this port are met with a warning and the browser is redirected to the
secure web server port. By default. this parameter is set to port 80.

ip https port

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip https port <number>

Sets the port number used for HTTPS access to the AP.

Parameters

<number> Port number. Range: 1 - 65535.

snmp-server trap certificate-expired

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap certificate-expired

Send a trap when the SSL certificate has expired. A trap is sent every 12 hours.

2-12

CLI commands

Config context

no snmp-server trap certificate-expired

Do not send a trap when the SSL certificate has expired.

snmp-server trap certificate-expires-soon

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap certificate-expires-soon

Send a trap when the SSL certificate is about to expire. A trap is sent every 12 hours starting 15
days before the certificate expires.

no snmp-server trap certificate-expires-soon

Do not send a trap when the SSL certificate is about to expire.

snmp-server trap web-fail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap web-fail

Send a trap each time an manager login is refused.

no snmp-server trap web-fail

Do not send a trap each time an manager login is refused.

snmp-server trap web-login

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap web-login

Send a trap each time an manager login is accepted.

no snmp-server trap web-login

Do not send a trap each time an manager login is accepted.

snmp-server trap web-logout

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap web-logout

Send a trap each time an manager logs out.

no snmp-server trap web-logout

Do not send a trap each time an manager logs out.

username

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

username <user> <password>

Changes the current manager local username and password.

Parameters

<user> New manager username.

2-13

CLI commands

Config context

<password> New manager password. New password must be between 6 and 16

printable characters in length and contain at least 4 different characters.
Passwords are case sensitive. Space characters and double quotes cannot
be used. Passwords must also conform to the Security policy that is in
effect.

web admin kickout

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web admin kickout

Enables a new manager login to terminate an existing manager session.

no web admin kickout

Stops a new manager from logging in until an existing manager logs out.

web allow

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web allow <ip address>/<mask>

Adds an address to the list of hosts that can access the management tool.

no web allow <ip address>/<mask>

Removes the specified address from the list of hosts that can access the management tool.

Parameters

<address> IP address.
</mask> Subnet mask in CIDR format. Specifies the number of bits in the mask.

world-mode dot11 country code

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

world-mode dot11 country code <code>

Specifies the country in which the AP is operating.

Parameters

<code> An ISO3166 three-letter country code.

web access port-1

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web access port-1

Enables access to the management tool via Port 2.

no web access port-1

Blocks access to the management tool via Port 2.

web access port-2

Supported on: MSM320 MSM310

web access port-2

Enables access to the management tool via Port 1.

2-14

no web access port-2

Blocks access to the management tool via Port 1.

web access wireless

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web access wireless

Enables access to the management tool via the wireless port.

no web access wireless

Blocks access to the management tool via the wireless port.

web access interface vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web access interface vlan <name>

Enables access to the management tool via the specified VLAN.

no web access interface vlan <name>

CLI commands

Config context

Removes access to the management tool for the specified VLAN.

web access interface gre

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web access interface gre <name>

Enables access to the management tool via the specified GRE tunnel.

no web access interface gre <name>

Disables access to the management tool via the specified GRE tunnel.

web access local mesh

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

web access local mesh <name>

Enables access to the management tool via the specified local mesh link.

no web access local mesh <name>

Disables access to the management tool via the specified local mesh link.

New console authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

console authentication (always-local | like-web)

Sets how logins to the CLI are authenticated.

Parameters

<always-local> The login username and password are the same as those defined for the

local manager account. If this account is disabled, the last known
username and password for this account are used.

2-15

CLI commands

Config context

<like-web> The login username and password use the same settings (Local and/or

RADIUS) as defined for the manager account in the web interface.

clock

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock <time> <date>

Sets the system time and date.

Parameters

<time> Time as hh:mm:ss. For example: 15:44:00.
<date> Date as dd mmm yyyy. For example: 17 Oct 2004

clock auto adjust dst

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock auto adjust dst

Automatically adjust clock for daylight savings changes.

no clock auto adjust dst

Do not automatically adjust clock for daylight savings changes.

clock timezone

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock timezone <gmtdiff>

Sets the time zone the AP is operating in.

Parameters

<gmtdiff> Offset from GMT as follows: +-HOUR:MIN. For example, Eastern Standard

time is -5:00.

clock use custom dst rules

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock use custom dst rules

Use custom DST rules instead of default ones.

no clock use custom dst rules

Do not use custom DST rules, use default ones.

ntp protocol

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ntp protocol (ntp | sntp)

Sets the network time protocol to use.

2-16

CLI commands

Config context

ntp server

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ntp server

Enable this option to have the AP periodically contact a network time server to update its internal
clock.

no ntp server

Disables the use of a network time server.

clock custom dst begins

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock custom dst begins <day> <weekday> <month> <time>

Set parameters of the rule defining the beginning of daylight savings time.

Parameters

<day> Day of the month. Range 1 - 31.
<weekday> Weekday. Valid values are: "sun", "mon", "tue", "wed", "thu", "fri", "sat".
<month> Month. Valid values are: "jan", "feb", "mar", "apr", "may", "jun", "jul", "aug",

"sep", "oct", "nov", "dec".

<time> Time as hh:mm[:ss]. For example: 15:44:00.

If a parameter does not apply to the configured DST rule format, simply set this parameter to any
valid value.

clock custom dst begins format

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock custom dst begins format (<fixed>|<last-weekday>|<following­date>|<preceding-date>

Set the format of the custom DST rule.

Parameters

<fixed> Rule of the form: The [Day]th of [Month] at [Time].
<last-weekday> Rule of the form: The last [Weekday] of [Month] at [Time].
<following-date> Rule of the form: The first [Weekday] on or after the [Day]th of [Month] at

[Time].

<preceding-date> Rule of the form: The first [Weekday] on or before the [Day]th of [Month]

at [Time].

clock custom dst ends

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock custom dst ends <day> <weekday> <month> <time>

Set parameters of the rule defining the end of daylight savings time.

Parameters

<day> Day of the month. Range 1 - 31.
<weekday> Weekday. Valid values are: "sun", "mon", "tue", "wed", "thu", "fri", "sat".

2-17

CLI commands

Config context

<month> Month. Valid values are: "jan", "feb", "mar", "apr", "may", "jun", "jul", "aug",

"sep", "oct", "nov", "dec".

<time> Time as hh:mm[:ss]. For example: 15:44:00.

If a parameter does not apply to the configured DST rule format, simply set this parameter to any
valid value.

clock custom dst ends format

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

clock custom dst ends format (<fixed>|<last-weekday>|<following­date>|<preceding-date>

Set the format of the custom DST rule.

Parameters

<fixed> Rule of the form: The [Day]th of [Month] at [Time].
<last-weekday> Rule of the form: The last [Weekday] of [Month] at [Time].
<following-date> Rule of the form: The first [Weekday] on or after the [Day]th of [Month] at

[Time].

<preceding-date> Rule of the form: The first [Weekday] on or before the [Day]th of [Month]

at [Time].

ntp server

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ntp server <index><host>

Adds the specified network time server.

Parameters

<index> Index of the time server in the list. Up to 20 time servers are supported.

Time servers are checked in the order that they appear in the list.

<host> DNS name or IP address of the time server.

ntp server failure trap

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ntp server failure trap

Send a trap each time a time server synchronization failed.

no ntp server failure trap

Do not send a trap each time a time server synchronization failed.

config-update automatic

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-update automatic

Enables scheduled configuration restore or backup.

no config-update automatic

Disables scheduled configuration restore or backup.

2-18

The AP can automatically download the configuration file from a local or remote URL (restore). It
is also possible to upload the current configuration to a given URL (backup). Theses operations
can be done at preset times.

config-update operation

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-update operation (restore | backup)

Sets the type of operation that will take place at the preset time.

New config-update start

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-update start

Start a config update now. Will reboot on success.

config-update time

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-update time <time>

CLI commands

Config context

Sets the time of day when the scheduled configuration operation (backup or restore) will take
place.

Parameters

<time> Time as hh:mm:ss. For example: 15:44:00.

config-update uri

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-update uri <uri>

Sets the URI where the AP will download or upload the configuration file.

no config-update uri

Clears the configuration file URI.

config-update weekday

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-update weekday (everyday | monday | tuesday | wednesday | thursday |
friday | saturday | sunday)

Sets the day when the scheduled configuration operation (backup or restore) will take place.

snmp-server trap config-change

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap config-change

Send a trap whenever the configuration is changed.

no snmp-server trap config-change

Do not send this trap.

2-19

CLI commands

Config context

snmp-server trap config-update

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap config-update

Send a trap whenever the firmware is updated.

no snmp-server trap config-update

Do not send this trap.

logging destination

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

logging destination <name>

Creates a new remote destination for syslog.

no logging destination <name>

Deletes the specified syslog destination.

Parameters

<name> Name of syslog destination. Use the name "local" to edit your local log file

settings. Any other name will edit/create a remote log destination.

snmp-server trap syslog-severity

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap syslog-severity

Set the severity level of syslog messages that will trigger a trap.

no snmp-server trap syslog-severity

Do not send this trap.

snmp-server

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server

Enables the SNMP agent.

no snmp-server

Disables the SNMP agent.

snmp-server access port-1

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server access port-1

Enables SNMP access on the downstream port.

no snmp-server access port-1

Blocks SNMP access on the downstream port.

2-20

CLI commands

Config context

snmp-server allow

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server allow <ip address>/<mask>

Adds a host to the list of IP address from which access to the SNMP interface is permitted.

no snmp-server allow <ip address>/<mask>

Removes a host from the list of IP address from which access to the SNMP interface is permitted.

Parameters

<address> IP address.
</mask> Subnet mask in CIDR format. Specifies the number of bits in the mask.

snmp-server chassis-id

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server chassis-id <name>

Specifies a name to identify the AP. By default, this is set to the serial number of the AP.

no snmp-server chassis-id

Deletes the system name.

snmp-server contact

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server contact <email>

Specifies contact information.

no snmp-server contact

Deletes contact information.

Parameters

<email> Email address.

snmp-server heartbeat period

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server heartbeat period <seconds>

Sets the interval between sending heartbeat traps.

Parameters

<seconds> Heartbeat interval in seconds.

snmp-server location

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server location <name>

Specifies the location where the AP is installed.

no snmp-server location

Deletes location information.

2-21

CLI commands

Config context

Parameters

<name> Location where the AP is installed.

snmp-server port

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server port <port number>

Sets the port the AP will use to respond to SNMP requests.

Parameters

<port number> SNMP port number. Range 1 - 65535.

snmp-server readonly

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server readonly <community>

Sets the read-only community string.

no snmp-server readonly

Deletes the read-only community string.

snmp-server readwrite

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server readwrite <community>

Sets the read-write community string.

no snmp-server readwrite

Deletes the read-write community string.

snmp-server trap

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap

Enables support for SNMP traps.

no snmp-server trap

Disables support for SNMP traps.

snmp-server trap community

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap community <str>

Sets the password required by the remote host that will receive the trap.

no snmp-server trap community

Deletes the password required by the remote host that will receive the trap.

2-22

CLI commands

Config context

snmp-server trap destination

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap destination <host> <[port number]>

Add a new trap destination.

no snmp-server trap destination <host> [<port>]

Deletes the specified trap destination.

Parameters

<host> Sets the IP address or domain name of the host that the AP will send traps

to.

<[port number]> SNMP port number. Range 1 - 65535. By default port 162 is used

snmp-server trap heartbeat

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap heartbeat

Enables sending of heartbeat traps at regular intervals.

no snmp-server trap heartbeat

Disables sending of heartbeat traps at regular intervals.

snmp-server trap link-state

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap link-state

Send a trap when the link state changes on any interface.

no snmp-server trap link-state

Do not send this trap.

snmp-server trap snmp-authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap snmp-authentication

Send a trap each time an SNMP request fails to supply the correct community name.

snmp-server version 1

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server version 1

Enable support for SNMP version 1.

no snmp-server version 1

Disable support for SNMP version 1.

2-23

CLI commands

Config context

snmp-server version 2c

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server version 2c

Enable support for SNMP version 2c.

no snmp-server version 2c

Disable support for SNMP version 2c.

snmp-server version 3

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server version 3

Enable support for SNMP version 3.

no snmp-server version 3

Disable support for SNMP version 3.

snmp-server access interface vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server access interface vlan <name>

Enables access to SNMP via the specified VLAN.

no snmp-server access interface vlan <name>

Disables access to SNMP via the specified VLAN.

Parameters

<name> Specifies the name of the VLAN.

snmp-server access local mesh

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server access local mesh <profile>

Enables access to SNMP via the specified local mesh.

no snmp-server access local mesh <profile>

Enables access to SNMP via the specified local mesh.

snmp-server access interface gre

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server access interface gre <name>

Enables access to SNMP via the specified GRE tunnel.

no snmp-server access interface gre <name>

Removes access to SNMP via the specified GRE tunnel.

2-24

snmp-server access wireless

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server access wireless

Enables SNMP access on the wireless port.

no snmp-server access wireless

Blocks SNMP access on the wireless port.

snmp-server access port-2

Supported on: MSM320 MSM310

snmp-server access port-2

Enables SNMP access on the upstream port.

no snmp-server access port-2

Blocks SNMP access on the upstream port.

snmp-server user

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server user <name>

CLI commands

Config context

Creates a new SNMP user or switches to the SNMP user context with the specified user name.

no snmp-server user <name>

Deletes the specified SNMP user.

snmp-server notification receiver

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server notification receiver <host>

Creates a new SNMP notification receiver or switches to the SNMP notification receiver context
with the specified IP address.

no snmp-server notification receiver <host>

Deletes the specified SNMP notification receiver.

soap-server

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server

Enables the SOAP server.

no soap-server

Disables the SOAP server.

2-25

CLI commands

Config context

soap-server access interface vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server access interface vlan <name>

Enables access to SOAP via this VLAN.

no soap-server access interface vlan <name>

Disables access to SOAP via this VLAN.

soap-server access port-1

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server access port-1

Enables SOAP access on the downstream port.

no soap-server access port-1

Blocks SOAP access on the downstream port.

soap-server access port-2

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server access port-2

Enables SOAP access on the upstream port.

no soap-server access port-2

Blocks SOAP access on the upstream port.

soap-server allow

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server allow <ip address>/<mask>

Adds a host to the list of IP addresses from which access to the SOAP interface is permitted.

no soap-server allow <ip address>/<mask>

Removes a host from the list of IP addresses from which access to the SOAP interface is
permitted.

Parameters

<address> IP address.
</mask> Subnet mask in CIDR format. Specifies the number of bits in the mask.

soap-server http authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server http authentication

Enable the SOAP server HTTP authentication.

no soap-server http authentication

Disable the SOAP server HTTP authentication.

2-26

soap-server http authentication password

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server http authentication password

Set the SOAP server HTTP authentication password.

soap-server http authentication username

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server http authentication username

Set the SOAP server HTTP authentication username.

soap-server port

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server port <port number>

Sets the port the AP will use to respond to SOAP requests.

Parameters

<port number> SOAP port number. Range 1 - 65535.

CLI commands

Config context

soap-server ssl

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server ssl

SSL enabled for SOAP server.

no soap-server ssl

SSL disabled for SOAP server.

soap-server ssl with client certificate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server ssl with client certificate

Enable the use of client certificate with SSL for SOAP server.

no soap-server ssl with client certificate

Disable the use of client certificate with SSL for SOAP server.

soap-server access interface gre

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server access interface gre <name>

Enables access to SOAP via the specified GRE tunnel.

no soap-server access interface gre <name>

Removes access to SOAP via the specified GRE tunnel.

2-27

CLI commands

Config context

soap-server access wireless

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server access wireless

Enables SOAP access on the wireless port.

no soap-server access wireless

Blocks SOAP access on the wireless port.

soap-server access local mesh

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

soap-server access local mesh <profile>

Enables access to the management tool via the specified local mesh link.

no soap-server access local mesh <profile>

Disables access to the management tool via the specified local mesh link.

snmp-server trap low-snr

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap low-snr

Send a trap when the average signal to noise ratio on a VAP (VSC) exceeds a specified level.

no snmp-server trap low-snr

Do not send this trap.

snmp-server trap low-snr interval

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap low-snr interval <number>

Sets the interval at which the average SNR level is checked for each VAP (VSC).

snmp-server trap low-snr level

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap low-snr level <number>

Sets the SNR level that will trigger a trap.

snmp-server trap new-association

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap new-association

Send trap on when a new wireless client station associates with any VAP (VSC).

no snmp-server trap new-association

Do not send this trap.

2-28

snmp-server trap new-association interval

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap new-association interval <number>

Interval, in minutes, between notifications.

snmp-server trap vpn-connection

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap vpn-connection

Send a trap when a user establishes a VPN connection with the AP.

no snmp-server trap vpn-connection

Do not send this trap.

snmp-server trap wireless-association-fail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-association-fail

CLI commands

Config context

Send a trap when a wireless client station fails to associate with the AP.

no snmp-server trap wireless-association-fail

Do not send this trap.

snmp-server trap wireless-association-success

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-association-success

Send a trap when a wireless client station successfully associates with the AP.

no snmp-server trap wireless-association-success

Do not send this trap.

snmp-server trap wireless-authentication-fail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-authentication-fail

Send a trap when a wireless client station fails to authenticate.

no snmp-server trap wireless-authentication-fail

Do not send this trap.

snmp-server trap wireless-authentication-success

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-authentication-success

Send a trap when a wireless client station is successfully associated.

no snmp-server trap wireless-authentication-success

Do not send this trap.

2-29

CLI commands

Config context

snmp-server trap wireless-deauthentication-fail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-deauthentication-fail

Send a trap when a wireless client station fails to deauthenticate from the AP.

no snmp-server trap wireless-deauthentication-fail

Do not send this trap.

snmp-server trap wireless-deauthentication-success

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-deauthentication-success

Send a trap when a wireless client station deauthenticates from the AP.

no snmp-server trap wireless-deauthentication-success

Do not send this trap.

snmp-server trap wireless-disassociation-fail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-disassociation-fail

Send a trap when a wireless client station fails to disassociate from the AP.

no snmp-server trap wireless-disassociation-fail

Do not send this trap.

snmp-server trap wireless-disassociation-success

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-disassociation-success

Send a trap when a wireless client station disassociates from the AP.

no snmp-server trap wireless-disassociation-success

Do not send this trap.

snmp-server trap wireless-reassociation-fail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-reassociation-fail

Send a trap when a wireless client station fails to reassociate with the AP.

no snmp-server trap wireless-reassociation-fail

Do not send this trap.

snmp-server trap wireless-reassociation-success

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap wireless-reassociation-success

Send a trap when a wireless client station reassociates with the AP.

2-30

no snmp-server trap wireless-reassociation-success

Do not send this trap.

snmp-server trap syslog-matches

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap syslog-matches

Send a trap when syslog messages matches a specified regular expression.

no snmp-server trap syslog-matches

Do not send this trap.

snmp-server trap syslog-matches regex

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap syslog-matches regex <regex>

Sets the regular expression used to match the syslog messages.

CLI commands

Config context

snmp-server trap syslog-severity level

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap syslog-severity level (debug | info | notice | warning | error
| critical | alert | emergency)

Set the severity level of syslog messages that will trigger a trap.

snmp-server trap network-trace

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap network-trace

Send a trap when a network trace is started or stopped.

no snmp-server trap network-trace

Do not send this trap.

firmware-update automatic

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

firmware-update automatic

Enables scheduled firmware upgrades.

no firmware-update automatic

Disables scheduled firmware upgrade.

The AP can automatically retrieve and install firmware from a local or remote URL at preset
times. By placing AP firmware on a web or ftp server, you can automate the update process for
multiple units.

When the update process is triggered the AP retrieves the first 2K of the firmware file to determine
if it is different from the active version. If different, the entire firmware file is then downloaded
and installed.

2-31

CLI commands

Config context

(Different means older or newer. This enables you to return to a previous firmware version if
required).

Configuration settings are preserved during the update unless stated otherwise in the release
notes for the firmware. However, all active connections will be terminated. Customers will have to
log in again after the AP restarts

firmware-update start

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

firmware-update start

Upload the firmware based on a specified URI. This URI can be set with the command: firmware­update uri.

firmware-update time

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

firmware-update time <time>

Sets the time of day the scheduled firmware upgrade will take place.

Parameters

<time> Time as hh:mm:ss. For example: 15:44:00.

firmware-update uri

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

firmware-update uri <uri>

Sets the URI where the AP will retrieve new firmware.

no firmware-update uri

Clears the firmware URI.

firmware-update weekday

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

firmware-update weekday (everyday | monday | tuesday | wednesday | thursday |
friday | saturday | sunday)

Sets the day when the scheduled firmware upgrade will take place.

snmp-server trap firmware-update

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap firmware-update

Send a trap on firmware update.

no snmp-server trap firmware-update

Do not send a trap on firmware update.

2-32

CLI commands

Config context

access-controller restrict location

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

access-controller restrict location (gateway | mac <mac address>)

Identifies the access controller the AP will communicate with.

Parameters

gateway Use the default gateway as the access controller.
mac Use the specified MAC address as the gateway.

<mac address> MAC address. Specify 6 pairs of hexadecimal numbers separated by

colons, with the values a to f in lowercase. For example: 00:00:00:0a:0f:01

service-sensor

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service-sensor

Enables the service sensor. The service sensor polls a target device at present intervals. If the
device does not respond, the radio is shut off.

no service-sensor

Disables the service sensor.

service-sensor

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service-sensor (gateway | address<ip address>)

Sets the target device the service sensor will poll. This can be the default gateway or a specific IP
address.

no service-sensor

Disables the service sensor.

Parameters

gateway The service sensor will poll the default gateway.
address The service sensor will poll another device.

<ip address> IP address of the other device. For example: 192.168.10.10

service-sensor poll

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service-sensor poll <seconds>

Sets the poll frequency.

Parameters

<seconds> Poll frequency. Range: 1 - 3600 seconds.

2-33

CLI commands

Config context

service-sensor retry

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service-sensor retry <retries>

Specify how many retries the service sensor will attempt when polling the target device.

When the retry limit is reached, the radio on the AP is turned off.

Parameters

<retires> Number of retries. Range: 0 - 100.

service-sensor timeout

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service-sensor timeout <seconds>

Sets how long the service sensor will wait for a response to a poll before timing out.

Parameters

<seconds> Length of timeout. Range: 1 - 5 seconds.

ip name-server

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip name-server <primary> [<secondary>] [<third>]

Sets the primary and secondary DNS servers overriding dynamically assigned ones.

Parameters

<primary> IP address of the primary DNS server.
<secondary> IP address of the secondary DNS server.
<third> IP address of the third DNS server.

ip name-server cache

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip name-server cache

Enables the DNS cache.

no ip name-server cache

Disables the DNS cache.

Once a host name has been successfully resolved to an IP address by a remote DNS server, it is
stored in the cache. This speeds up network performance, as the remote DNS server now does not
have to be queried for subsequent requests for this host.

The entry stays in the cache until:

 an error occurs when connecting to the remote host

 the time to live (TTL) of the DNS request expires

 the AP is restarted

2-34

ip name-server dynamic

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip name-server dynamic

Enables dynamic assignment of DNS servers.

no ip name-server dynamic

Disables dynamic DNS assignment.

New ip name-server interception

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip name-server interception

Intercept all DNS requests from users and relay them to configured servers.

no ip name-server interception

Process DNS requests addressed to this device only.

ip name-server switch-on-servfail

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip name-server switch-on-servfail

CLI commands

Config context

Switch to next server when server failure is received.

no ip name-server switch-on-servfail

Do not switch to next server when server failure is received.

ip name-server switch-over

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip name-server switch-over

Switch over to primary when active.

no ip name-server switch-over

Do not switch over to primary when active.

snmp-server trap unauthorized-ap

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap unauthorized-ap

Send a trap when a rogue access point is detected.

no snmp-server trap unauthorized-ap

Do not send this trap.

2-35

CLI commands

Config context

snmp-server trap unauthorized-ap interval

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

snmp-server trap unauthorized-ap interval <number>

If set to 0, then traps are only sent when a rogue access point is detected. If set to >0, the entire list
of rogue access points is sent each time the interval expires.

wireless-scan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless-scan

Enables wireless neighborhood scanning.

no wireless-scan

Disables wireless neighborhood scanning.

wireless-scan period

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless-scan period <seconds>

Specifies the interval between wireless neighborhood scans.

Parameters

<seconds> Scanning interval. Range: 10 - 600 seconds.

wireless-scan url

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless-scan url <location>

Sets the URL of the file that contains a list of all authorized access points.

no wireless-scan url

Deletes the URL of the file that contains a list of all authorized access points.

The format of this file is XML. Each entry in the file is composed of two items: MAC address and
SSID. Each entry should appear on a new line.

For example:

00:00:00:07:f5:11 "AP_1"

00:00:00:07:f5:23 "AP_2"

00:00:00:07:f5:12 "AP_3"

access controller shared secret

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

access controller shared secret <secret>

Sets the shared secret used to communicate with the controller.

no access controller shared secret

Sets the shared secret used to communicate with the access controller.

2-36

CLI commands

Config context

The controller will only accept authentication/location-aware information from HP APs that have
a matching shared secret to its own.

radius-server profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

radius-server profile <name>

Creates a new RADIUS profile or switches to the RADIUS context with the specified profile name.

no radius-server profile <name>

Deletes the specified RADIUS profile.

ip-qos profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip-qos profile <name>

Creates a new IP QoS profile or switches to the IP QoS context with the specified profile name.

no ip-qos profile <name>

Deletes the specified IP QoS profile.

dot11 igmp snooping-helper

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 igmp snooping-helper

Enables IGMP snooping helpers which ensure that the AP correctly delivers multicast packets to
roaming client stations that are part of a multicast group.

no dot11 igmp snooping-helper

Disables IGMP snooping helpers.

New lldp config

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp config <port>

Edit LLPD port specific options.

New lldp dynamic-name

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp dynamic-name

Enables the LLDP dynamic naming feature.

no lldp dynamic-name

Disables the LLDP dynamic naming feature.

2-37

CLI commands

Config context

New lldp dynamic-name refresh-time

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp dynamic-name refresh-time <time>

Sets the interval at which dynamic names for controlled APs are updated.

New lldp dynamic-name user-string

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp dynamic-name user-string <name>

Specifies the text to use for the dynamic name.

You can use regular text in combination with placeholders to create the name. Placeholders are
automatically expanded each time the name is regenerated.

Placeholders

%RN System name of the neighboring device to which the port is connected,

obtained via the System Name TLV. Since this is an optional TLV, if it is not
available, the Chassis ID TLV is used instead.

%RP Port description of the port on the neighboring device to which the local

port is connected, obtained via the Port Description TLV. Since this is an
optional TLV, if it is not available, the Port ID TLV is used instead.

%SN Controller’s serial number.
%IP Controller’s IP address. An IP address can require up to 15 characters

(nnn.nnn.nnn.nnn).

New lldp fast-start-count

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp fast-start-count <count>

After an MED LLDPDU is received, this timer is started and the agent sends one MED LLDPDU to
the MED device each second as it counts down.

New lldp holdtime-multiplier

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp holdtime-multiplier <hold>

Sets the hold time multiplier for LLDPDU transmissions.

The value of Multiplier is multiplied by the refresh-interval to define Time to live. Time to live
indicates the length of time that neighbors will consider LLDP information sent by this agent to be
valid.

New lldp med-location civic-address-element

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp med-location civic-address-element <caelement>

Adds a Civic Address Element.

2-38

New lldp med-location elin-addr

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp med-location elin-addr <elin>

Sets the Emergency Call Services ELIN as described, for example, by NENA TID 07-501.

New lldp refresh-interval

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp refresh-interval <time>

Sets the interval (in seconds) at which local LLDP information is updated and TLVs are sent to
neighboring network devices.

New lldp run

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp run

Enables the LLDP Agent.

CLI commands

Config context

no lldp run

Disables the LLDP Agent.

New show lldp config

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show lldp config [<port>]

Shows LLDP configuration settings.

New show lldp info local-device

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show lldp info local-device [<port>]

Shows LLDP configuration settings.

New show lldp info remote-device

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show lldp info remote-device [<port>]

Shows LLDP configuration settings.

New show lldp stats

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show lldp stats [<port>]

Shows LLDP statistics for all ports or a specific port .

2-39

CLI commands

Config context

New lldp local-mesh

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

lldp local-mesh

Enable LLDP support on local mesh links.

no lldp local-mesh

Disable LLDP support on local mesh links.

discovery protocol

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

discovery protocol

Enables broadcast of HP device information for interoperability with CDP-enabled networking
hardware.

no discovery protocol

Disable broadcast of HP device information.

discovery protocol device-id

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

discovery protocol device-id <name>

Overwrite the device-id field of information packets (the AP serial number is not used).

no discovery protocol device-id

Do not overwrite the device-id field of information packets (use the AP serial number).

New service controller discovery interface internet-port

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service controller discovery interface internet-port

Allow discovery on the LAN port.

no service controller discovery interface internet-port

Allow discovery on the LAN port.

New service controller discovery interface lan-port

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

service controller discovery interface lan-port

Allow discovery on the LAN port.

no service controller discovery interface lan-port

Allow discovery on the LAN port.

2-40

CLI commands

Config context

bridge priority

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

bridge priority <number>

Sets the bridge priority for the spanning tree.

The spanning tree uses the bridge ID to elect the root bridge and the designated bridges. The
bridge ID is built with the MAC address of the bridge and the bridge priority. The first 2 most
significant bytes are the bridge priority and the next 6 bytes are the MAC address. To control
which bridge will become the root bridge, you can configure the bridge priority parameter on the
bridges. The root will be the bridge with the lowest bridge ID. The Bridge priority has a valid range
of 0 to 0xFFFF. The default value is the middle value: 0x8000.

bridge protocol ieee

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

bridge protocol ieee

Enable the bridge spanning tree protocol to prevent undesirable loops from occurring in the
network that may result in decreased throughput.

no bridge protocol ieee

Disable the bridge spanning tree protocol.

bridge protocol ieee vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

bridge protocol ieee vlan

Enable the bridge spanning tree protocol for VLANs.

no bridge protocol ieee vlan

Disable the bridge spanning tree protocol for VLANs.

ip route gateway

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip route gateway<destination>/<mask> <gateway> <[metric]>

Adds a static route.

no ip route gateway <destination>/<mask> <gateway> <[metric]>

Removes the specified static route.

Parameters

<destination> Traffic addressed to this IP address will be routed.
<mask> Indicates the number of bits in the destination address that is checked for a

match.

<gateway> Indicates the IP address of the gateway the AP will forward routed traffic

to. The gateway address must be on the same subnet as one of the
available interfaces (Internet port or LAN port).

<metrix> Indicates the priority of a route. If two routes exist for a destination

address then the AP chooses the one with the lower metric.

2-41

CLI commands

Config context

dot1x reauth

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot1x reauth

Enable this option to force 802.1X client stations to reauthenticate.

no dot1x reauth

Disables 802.1X reauthentication.

dot1x reauth period

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot1x reauth period (15m | 30m | 1h | 2h | 4h | 8h | 12h)

Sets the 802.1X reauthentication interval. Client stations must reauthenticate when this interval
expires.

dot1x reauth terminate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot1x reauth terminate

Enable this option to allow client stations to remain connected during re-authentication. Client
traffic is blocked only when re-authentication fails.

no dot1x reauth terminate

Disabled this option to block client traffic during re-authentication and only activate traffic again
if authentication succeeds.

dot1x supplicant timeout

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot1x supplicant timeout <number>

Sets the 802.1X supplicant time-out.

Parameters

<seconds> time-out in seconds.

dynamic key

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dynamic key

Enables dynamic key support for 802.1X and WPA.

no dynamic key

Disables dynamic key support for 802.1X and WPA.

2-42

CLI commands

Config context

dynamic key interval

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dynamic key interval (5m | 10m | 15m | 30m | 1h | 2h | 4h | 8h | 12h)

Specifies how often (in minutes or hours) that the group (broadcast) key is changed for 802.1X
and WPA.

add wireless ip-qos profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

add wireless ip-qos profile <name>

Adds the specified profile to the list of IP QoS profiles in effect for all local mesh links.

<profile-name> Name of an existing IP QoS profile.

delete wireless ip-qos profile all

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

delete wireless ip-qos profile all

Clears the list of IP QoS profiles currently in effect for all local mesh links.

delete wireless ip-qos profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

delete wireless ip-qos profile <name>

Removes the specified profile from the list of IP QoS profiles in effect for all local mesh links.

<profile-name> Name of an existing IP QoS profile currently in the profile list for all local

mesh links.

wireless link qos

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless link qos (disabled | 802.1p | wme | very-high | high | normal | low |
tos | diffsrv)

Sets the local mesh QoS policy.

sensor discovery mode

Supported on: MSM320 MSM335

sensor discovery mode (id | ip)

Sets the method the AP will use to communicate with the RF Manager Server.

Parameters

id Connect using the Server ID of the RF Manager Server.
ip Connect using the IP address or hostname of the RF Manager Server.

Description

For these methods to work, the following must be true:

2-43

CLI commands

Config context

 The AP must be able to reach the RF Manager Server via a network connected to port 1 or

port 2. For example, you should be able to ping the RF Manager Server’s IP address from the
AP.

 If there are any firewalls between the AP and the RF Manager Server, then TCP and UDP ports

3851 must be open bi-directionally.

 If using the hostname option, an entry must be created on the network DNS server that points

to the IP address of the RF Manager Server.

 If using the Server ID option, support for multicast traffic must be enabled on all routers and

switches connected between the AP and the RF Manager Server.

sensor network detector

Supported on: MSM320 MSM335

sensor network detector

Enable the Network Detector.

no sensor network detector

Disable the Network Detector.

sensor server id

Supported on: MSM320 MSM335

sensor server id <id>

Sets the server ID of the RF Manager Server to connect to.

Parameters

ID Specify the Server ID of the RF Manager Server to connect to. Set the

Server ID to 0 to have the AP send a discovery request to all active HP RF
Manager Servers. The AP will connect to the first server that responds to
the discovery request.

sensor server name

Supported on: MSM320 MSM335

sensor server name <name>

Sets the IP address or hostname of the RF Manager Server to connect to.

Parameters

Name Specify the IP address of the RF Manager Server or its hostname. If a

hostname is specified, the AP must be able to resolve it via DNS—that is,
an entry must be created on the network DNS server that points to the IP
address of the RF Manager Server.

config-version

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

config-version <string>

Sets a string to identify the user configuration version.

2-44

New sflow

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

sflow

Enables sFlow.

no sflow

Disables sFlow.

New show sflow agent

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show sflow agent

Displays read-only sFlow agent information.

New show sflow controller stats

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show sflow controller stats

CLI commands

Config context

Displays read-only sFlow controller statistics.

New show sflow device stats

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show sflow device stats <macaddress>

Displays read-only sFlow device statistics.

New sflow destination

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

sflow <receiver> destination <ipaddress> [<port>] [<80211toethernet>]

Sets the IP address of an sFlow collector/management station.

New show sflow destination

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show sflow <receiver> destination

Shows sFlow receiver configuration.

New show sflow sampling-polling

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show sflow <receiver> sampling-polling [<interface>]

Shows sFlow sampling and polling configuration for a receiver.

2-45

CLI commands

Config context

New sflow sampling

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

sflow <receiver> sampling <interface> <rate>

Specifies the number of packets between samples. For example, if set to 5, approximately every
fifth packet will be sampled (There is some jitter introduced purposefully into the sample
collection). A value of 0 disables sampling.

New sflow polling

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

sflow <receiver> polling <interface> <interval>

Specifies the maximum interval (seconds) between polling of counters. 0 disables polling.

New mac lockout entry

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac lockout entry <mac>

Adds a new entry to the MAC lockout list.

no mac lockout entry <mac>

Removes the entry from the MAC lockout list.

New show mac lockout

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

show mac lockout

Displays all entries in the MAC lockout list.

New supplicant 802dot1x

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

supplicant 802dot1x

Enables the 802.1X supplicant.

no supplicant 802dot1x

Disables 802.1X supplicant.

New supplicant anonymous identity

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

supplicant anonymous identity <identitiy>

Sets the 802.1X supplicant anonymous identity.

New supplicant eap

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

supplicant eap (peap0 | peap1 | ttls) <user> <password>

Changes the EAP configuration.

2-46

CLI commands

Port 2 port interface context

Port 2 port interface context

Path: View > Enable > Config > Port 2 port interface

Use this context to configure the Port 2 port.

end

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

end

Switches to parent context.

duplex

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

duplex (auto | half | full)

Sets the duplex mode on Port 2.

Parameters

auto Lets the AP automatically set duplex mode based on the type of equipment

it is connected to.

half Forces the port to operate in half duplex mode.
full Forces the port to operate in full duplex mode.

speed

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

speed (auto | 10 | 100)

Sets the speed of the Port 2 port.

Parameters

auto Lets the AP automatically set port speed based on the type of equipment it

is connected to.

100 Forces the port to operate at 100 mbps.
10 Forces the port to operate at 10 mbps.

vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan <id>

Sets the default VLAN ID. Range: 1 - 4094. All outgoing traffic that does not have a VLAN already
assigned to it, is sent on this VLAN.

no vlan

Deletes the default VLAN ID.

2-47

CLI commands

Port 2 port interface context

vlan compatibility mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan compatibility mode

When this option is enabled, the AP sends all management traffic AND all untagged traffic on both
the default VLAN and untagged.

no vlan compatibility mode

Disables VLAN and untagged compatibility mode.

vlan-management filter

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan-management filter

Restricts the default VLAN to carry management traffic only.

no vlan-management filter

Does not restrict the default VLAN to carry management traffic only.

Management traffic includes:

 all traffic that is exchanged by the AP and the access controller

 all communications with RADIUS servers

 HTTPS sessions to the management tool

 SNMP traffic

interface vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

interface vlan <networkname>

Switches to the specified VLAN interface or create a new VLAN interface with the specified VLAN
definition.

no interface vlan <networkname>

Deletes the specified VLAN.

2-48

CLI commands

Port 1 port interface context

Port 1 port interface context

Path: View > Enable > Config > Port 1 port interface

Use this context to configure the Port 1 port.

end

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

end

Switches to parent context.

duplex

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

duplex (auto | half | full)

Sets the duplex mode on Port 1.

Parameters

auto Lets the AP automatically set duplex mode based on the type of equipment

it is connected to.

half Forces the port to operate in half duplex mode.
full Forces the port to operate in full duplex mode.

speed

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

speed (auto | 10 | 100)

Sets the speed of the Port 1 port.

Parameters

auto Lets the AP automatically set port speed based on the type of equipment it

is connected to.

100 Forces the port to operate at 100 mbps.
10 Forces the port to operate at 10 mbps.

vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan <id>

Sets the default VLAN ID. Range: 1 - 4094. All outgoing traffic that does not have a VLAN already
assigned to it, is sent on this VLAN.

no vlan

Deletes the default VLAN ID.

2-49

CLI commands

Port 1 port interface context

vlan compatibility mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan compatibility mode

When this option is enabled, the AP sends all management traffic AND all untagged traffic on both
the default VLAN and untagged.

no vlan compatibility mode

Disable VLAN and untagged compatibility mode.

vlan-management filter

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan-management filter

Restricts the default VLAN to carry management traffic only.

no vlan-management filter

Does not restrict the default VLAN to carry management traffic only.

Management traffic includes:

 all traffic that is exchanged by the AP and the access controller

 all communications with RADIUS servers

 HTTPS sessions to the management tool

 SNMP traffic

interface vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

interface vlan <id>[-<id2>]

Switches to the specified VLAN interface or create a new VLAN interface with the specified ID.

no interface vlan <id>[-<id2>]

Deletes the specified VLAN interface.

Parameters

<id> VLAN ID. Range: 1 - 4094.
<id2> VLAN ID. When specified, is the last value in a range.

2-50

CLI commands

WAN IP interface context

WAN IP interface context

Path: View > Enable > Config > WAN IP interface

Use this context to configure various IP-networking related settings on the Internet port.

pppoe client user

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

pppoe client user <username> <password>

Sets the PPPoE username and password.

no pppoe client user

Deletes the PPPoE username.

Parameters

<username> The username assigned to you by your ISP. The AP will use this username

to log on to your ISP when establishing a PPPoE connection.

<password> The password assigned to you by your ISP. The AP will use this username

to log on to your ISP when establishing a PPPoE connection.

ip address mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip address mode (dhcp | pppoe | static)

Sets the IP addressing mode for Port 2.

Parameters

dhcp Dynamic host configuration protocol. The DHCP server will automatically

assign an address to the AP, which functions as a DHCP client.

pppoe Point-to-point protocol over Ethernet. The PPPoE server will automatically

assign an IP address to the AP. You need to supply a username and
password so the AP can log on.

static This option enables you to manually assign an IP address to the AP.

ip address

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip address <ip address>/<mask>

Sets a static IP address for the port.

Parameters

<address> IP address.
</mask> Subnet mask in CIDR format. Specifies the number of bits in the mask.

ip default-gateway

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip default-gateway <ip address>

Sets the IP address of the default gateway.

2-51

CLI commands

WAN IP interface context

no ip default-gateway

Deletes the default gateway IP address.

Parameters

<address> IP address.

ip address dhcp client-id

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip address dhcp client-id <id>

Specifies an ID to identify the AP to a DHCP server. This parameter is not required by all ISPs.

no ip address dhcp client-id

Deletes the specified DHCP client id.

end

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

end

Switches to parent context.

pppoe auto-reconnect

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

pppoe auto-reconnect

The AP will automatically attempt to reconnect if the connection is lost.

no pppoe auto-reconnect

The AP will not automatically attempt to reconnect if the connection is lost.

pppoe mru

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

pppoe mru <bytes>

Specifies the maximum receive unit.

Changes to this parameter should only be made according to the recommendations of your ISP.
Incorrectly setting this parameter can reduce the throughput of your Internet connection.

Parameters

<bytes> Maximum size (in bytes) of a PPPoE packet when receiving. Range: 500 -

1500 bytes.

pppoe mtu

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

pppoe mtu <bytes>

Specifies the maximum transmit unit.

Changes to this parameter should only be made according to the recommendations of your ISP.
Incorrectly setting this parameter can reduce the throughput of your Internet connection.

2-52

CLI commands

WAN IP interface context

Parameters

<bytes> Maximum size (in bytes) of a PPPoE packet when transmitting. Range: 500

- 1500 bytes.

pppoe unnumbered

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

pppoe unnumbered

Enable unnumbered mode.

no pppoe unnumbered

Disable unnumbered mode.

This feature is useful when the AP is connected to the Internet and NAT is not being used. Instead
of assigning two IP addresses to the AP, one to the Internet port and one to the LAN port, both
ports can share a single IP address. This is especially useful when a limited number of IP
addresses are available to you.

2-53

CLI commands

Wireless context

Wireless context

Path: View > Enable > Config > Wireless

Use this context to configure wireless settings.

end

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

end

Switches to parent context.

radio active

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

radio active

Enables the radio.

no radio active

Disables the radio.

rts threshold

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

rts threshold <value>

Sets the RTS threshold.

no rts threshold

Deletes the RTS threshold value.

Parameters

< value> Threshold value in the range 128 and 1540.

Description

Use this parameter to control collisions on the link that can reduce throughput. If the Status >
Wireless page on the management tool shows increasing values for Tx multiple retry frames or Tx
single retry frames, you should adjust this value until the errors clear up. Start with a value of 1024
and then decrease to 512 until errors are reduced or eliminated.

Using a small value for RTS threshold can affect throughput.

If a packet is larger than the threshold, the AP will hold it and issue a request to send (RTS)
message to the client station. Only when the client station replies with a clear to send (CTS)
message will the AP send the packet. Packets smaller than the threshold are transmitted without
this handshake.

distance

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

distance (small | medium | large)

Sets the distance between access points.

2-54

CLI commands

Wireless context

Use this parameter to adjust the receiver sensitivity of the AP. This parameter should only be
changed if:

 you have more than one wireless access point installed in your location

 you are experiencing throughput problems

In all other cases, use the default setting of Large.

If you have installed multiple APs, reducing the receiver sensitivity of the AP from its maximum
will help to reduce the amount of crosstalk between the wireless stations to better support
roaming clients. By reducing the receiver sensitivity, client stations will be more likely to connect
with the nearest access point.

dot11

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 <mode> <frequency>

Sets the wireless mode and the frequency the AP will operate at.

Parameters

<mode> Sets the transmission speed and frequency band. The available options are

determined by the wireless card installed in the AP, and may include:
a: Selects 802.11a providing 54 Mbps in the 5 GHz frequency band.
b: Selects 802.11b providing 11 Mbps in the 2.4 GHz frequency band.
g: Selects 802.11g providing 54 Mbps in the 2.4 GHz frequency band.
bg: Selects 802.11b + 802.11g providing 11 and 54 Mbps in the 2.4 GHz

frequency band.
n: Selects 802.11n.
an: Selects 802.11n + 802.11a, on the 5Ghz frequency band.
gn: Selects 802.11n + 802.11g, on the 2.4Ghz frequency band.
bgn: Selects 802.11n + 802.11g + 802.11b, on the 2.4Ghz frequency band.

<frequency> Sets the operating frequency by specifying a number in GHz or by

specifying a channel number. The frequencies that are available are
determined by the radio installed in the AP and the regulations that apply
in your country.

For optimum performance when operating in 802.11b or 802.11g modes,
choose a frequency that differs from other wireless access points operating
in neighboring cells by at least 25 MHz.

If operating in 802.11a mode, all channels are non-overlapping.

transmit power

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

transmit power (DB | max)

Sets the maximum transmission power of the wireless radio.

Parameters

<db> Power is specified in steps of 1dBm. The maximum setting is 18 dBm.

Note: The actual transmit power used may less than the value specified. The AP determines the
power to used based on the settings you made for regulatory domain, wireless mode, and
operating frequency.

2-55

CLI commands

Wireless context

antenna bidirectionnal

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

antenna bidirectionnal (diversity | main | auxiliary)

Sets the antenna to transmit and receive on. Select diversity to transmit and receive on both
antennas.

Parameters

diversity In this mode both antennas are used to transmit and receive. The AP

supports both transmit and receive diversity.

main Transmit and receive on the main antenna only.
aux Transmit and receive on the aux antenna only.

antenna gain

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

antenna gain <number>

Used only for Radar detection, records gain (in 5GHz band) of external antenna installed on
device. Does not affect output power.

autochannel skip

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

autochannel skip <chan>

Adds the specified channel to the list of channels that are not allowed to be selected by the Auto
Channel algorithm.

no autochannel skip <chan>

Removes the specified channel to the list of channels that are not allowed to be selected by the
Auto Channel algorithm.

beacon interval

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

beacon interval <value>

Sets the beacon interval.

Parameters

< value> Beacon interval value in the range 20 and 500 time units (TU) (1 TU =

1024us).

dot11 automatic frequency

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 automatic frequency

Enable this option to have the AP automatically determine the best operating frequency.

no dot11 automatic frequency

Disable automatic frequency selection.

2-56

CLI commands

Wireless context

dot11 automatic frequency period

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 automatic frequency period (disabled | 1h | 2h | 4h | 8h | 12h | 24h)

Specify how often the frequency setting is re-evaluated when automatic frequency selection is
enabled.

dot11 automatic frequency time

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 automatic frequency time <time>

Specify when the channel should be re-evaluated.

dot11 automatic transmit-power

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 automatic transmit-power

Enables automatic transmit power selection.

no dot11 automatic transmit-power

Disables automatic transmit power selection.

dot11 automatic transmit-power period

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 automatic transmit-power period (1h | 2h | 4h | 8h | 12h | 24h)

Sets the interval at which the transmit power setting is re-evaluated when automatic power
selection is enabled.

New maximum clients

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

maximum clients <value>

Sets the maximum number of wireless client stations that can be associated at the same time on
this radio.

Parameters

< value> Maximum clients value in the range 1 and 255.

multicast rate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

multicast rate (1 | 2 | 5.5 | 6 | 9 | 11 | 12 | 18 | 24 | 36 | 48 | 54)

Sets the transmit rate for multicast traffic.

This is a fixed rate, which means that if a station is too far away to receive traffic at this rate, then
the multicast will not be seen by the station. By rasing the multicast rate you can increase overall
throughput significantly.

2-57

CLI commands

Wireless context

station distance

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

station distance (0km | 5km | 10km | 15km | 20km | 25km | 30km | 35km)

Fine tunes internal timeout settings to account for the distance that wireless links span. For
normal operation, the AP is optimized for links of less than 1 km.

This is a global setting that is useful when creating wireless links to remote sites. However, it also
applies to all wireless connection made with the radio, not just for wireless links. Therefore, if you
are also using the radio to serve local wireless client stations, adjusting this setting may lower the
performance for clients with marginal signal strength or when interference is present.
(Essentially, it means that if a frame needs to be retransmitted it will take longer before the actual
retransmit takes place.)

dot11 mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot11 mode (monitor | ap+wds | ap-only | wds-only | sensor)

Sets the operating mode for the radio.

spectralink view

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

spectralink view

Enables the use of spectralink view.

no spectralink view

Disables the use of spectralink view.

New dot11n channel extension

Supported on: MSM422 MSM410

dot11n channel extension (above | below)

Selects the 802.11n channel extension. Applicable only in the 2.4 GHz band and a 40 MHz channel
width.

dot11n channel width

Supported on: MSM422 MSM410

dot11n channel width (40 | 20 | auto)

Select the 802.11n channel width.

New dot11n guard interval

Supported on: MSM422 MSM410

dot11n guard interval (short | long)

Selects the 802.11n guard interval.

2-58

dot11n mimo

Supported on: MSM422 MSM410

dot11n mimo (3x3 | 2x2 | 2x3)

Sets the MIMO mode for 802.11n.

New dot11n multicast rate

Supported on: MSM422 MSM410

dot11n multicast rate <rate>

Sets the multicast rate for use with 802.11n networks.

bandwidth

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

bandwidth

Enables bandwidth control.

no bandwidth

CLI commands

Wireless context

Disables bandwidth control.

bandwidth max

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

bandwidth max <rate>

Sets the maximum data rate on the wireless port in kbps.

Parameters

<rate> Maximum data rate. Range: 50 - 500000 kbps.

2-59

CLI commands

Virtual AP context

Virtual AP context

Path: View > Enable > Config > Virtual AP

Use this context to configure VSC profiles (formerly called VAPs).
By default, one VSC profile exists with the name "HP". This is the default profile and cannot be

deleted.

virtual ap name

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

virtual ap name <name>

Change the VAP (VSC) name.

ingress interface

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ingress interface (wireless | wireless) <name>

Sets the specified interface as the ingress interface traffic will be accepted on.

no ingress interface (wireless | wireless) <name>

Removes the specified interface as an ingress interface.

guest-mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

guest-mode

Enables broadcast of the wireless network name (SSID).

no guest-mode

Disables broadcast of the wireless network name (SSID).

max-association

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

max-association <stations>

Sets the maximum number of clients stations that can associate with this VAP (VSC).

<stations> Number of client stations. Range: 1 - 255.

ssid name

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ssid name <name>

Specifies the WLAN name (SSID) for the profile.

2-60

vlan

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

vlan <id>

Assigns a VLAN ID to this VAP (VSC).

no vlan

Deletes the VLAN ID for this VAP (VSC).

Parameters

<id> VLAN ID. Range: 1 - 4094.

encryption key 1

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

encryption key <key> <value>

Sets WEP key 1.

no encryption key <key>

Deletes WEP key 1.

CLI commands

Virtual AP context

Parameters

<key> WEP key number. Range: 1 - 4. Keys 2 to 4 are only supported on the first

WLAN profile.

<value> Key value. The number of characters you specify for a key determines the

level of encryption the AP will provide.
For 40-bit encryption, specify 5 ASCII characters or 10 HEX digits.
For 128-bit encryption, specify 13 ASCII characters or 26 HEX digits.

encryption key format

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

encryption key format (hex | ascii)

Specify the WEP key format.

Parameters

hex Hex keys should only include the following digits: 0-9, a-f, A-F
ascii ASCII keys are much weaker than carefully chosen hex keys. You can

include ASCII characters between 32 and 126, inclusive, in the key.
However, note that not all client stations support non-alphanumeric
characters such as spaces, punctuation, or special symbols in the key.

transmit key

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

transmit key <key number>

Sets the key the AP will use to encrypt transmitted data. All four keys are used to decrypt received
data.

Parameters

<key number> Transmit key number. Range: 1 -4.

2-61

CLI commands

Virtual AP context

authentication server access controller

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

authentication server access controller

Use the access controller to authenticate 802.1X or WPA logins.

authentication server accounting

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

authentication server accounting

Enables RADIUS accounting for this VSC (VAP).

no authentication server accounting

Disables RADIUS accounting for this VSC (VAP).

authentication server accounting radius profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

authentication server accounting radius profile <name>

Sets RADIUS accounting to use the specified RADIUS profile.

no authentication server accounting radius profile

Removes accounting support for 802.1X.

authentication server radius

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

authentication server radius <name>

Sets the RADIUS profile to use for 802.1X or WPA authentication.

dot1x authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

dot1x authentication (local | radius | active-directory)

Sets the authentication for 802.1X and WPA.

wpa-psk

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wpa-psk <key>

Sets the WPA preshared key.

no wpa-psk

Deletes the WPA preshared key.

Parameters

password Specify a key that is between 8 and 64 ASCII characters in length. It is

2-62

recommended that the preshared key be at least 20 characters long, and be
a mix of letters and numbers.

CLI commands

Virtual AP context

Description

The AP uses the key you specify to generate the TKIP keys that encrypt the wireless data stream.
Since this is a static key, it is not as secure as using dynamically generated keys.

authentication server accounting radius stationid case

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

authentication server accounting radius stationid case (uppercase | lowercase)

Specifies the case applied to the station delimiter if it is a letter.

authentication server accounting radius stationid delimiter

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

authentication server accounting radius stationid delimiter (null | colon |
dash | dot | space | comma | under)

Specifies the one-character delimiter that will be used to format both the calling station ID and the
called station ID attributes in RADIUS packets.

wireless filters

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless filters

Enables the wireless security filters which only allow traffic to flow between the AP and a specific
upstream device (such as a HP service controller).

no wireless filters

Do not limit traffic flow between the AP and an upstream device.

This prevents wireless users from accessing resources on the backbone LAN that interconnects
the AP and the upstream device.

wireless filters mac

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless filters mac <mac>

Sets the MAC address of the upstream device to send traffic to.

no wireless filters mac <mac>

Deletes the MAC address of the upstream device to send traffic to.

wireless filters rule input

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless filters rule input <rule>

Adds a custom filter definition for incoming wireless traffic.

Use this command to define custom security filters for incoming wireless traffic. Filters are
specified using standard pcap syntax (http://www.tcpdump.org/tcpdump_man.html) with the
addition of a few HP-specific placeholders. These placeholders can be used to refer to specific
MAC addresses and are expanded by the AP when the filter is activated. Once expanded, the filter
must respect the pcap syntax. The pcap syntax is documented in the tcpdump man page:

2-63

CLI commands

Virtual AP context

Placeholders

 %a - MAC address of the access controller.

 %b - MAC address of the bridge.

 %g - Mac address of the default gateway assigned to the AP.

 %w - MAC address of wireless port.

wireless filters rule output

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless filters rule output <rule>

Adds a custom filter definition for outgoing wireless traffic.

Use this command to define custom security filters for outgoing wireless traffic. Filters are
specified using standard pcap syntax (http://www.tcpdump.org/tcpdump_man.html) with the
addition of a few HP-specific placeholders. These placeholders can be used to refer to specific
MAC addresses and are expanded by the AP when the filter is activated. Once expanded, the filter
must respect the pcap syntax. The pcap syntax is documented in the tcpdump man page:

Placeholders

 %a - MAC address of the access controller.

 %b - MAC address of the bridge.

 %g - Mac address of the default gateway assigned to the AP.

 %w - MAC address of wireless port.

wireless filters type

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wireless filters type (mac | gateway | rules)

Sets the type of wireless security filter to use.

Parameters

mac Traffic is forwarded to an upstream device with a specific MAC address.

Wireless security filters use the default definitions.

gateway Traffic is forwarded to the default gateway assigned to the AP. Wireless

security filters use the default definitions.

custom Lets you define custom security filters and address for the upstream

device.

Description

The AP features an intelligent bridge which can apply security filters to safeguard the flow of
wireless traffic. The filters limit both incoming and outgoing traffic as defined below, and force
the AP to exchange traffic with a specific upstream device. If the AP is configured to use the
services of a HP access controller, then the default security filters are automatically enabled and
all traffic is sent to the access controller.

Default filters for incoming wireless traffic

Applies to traffic sent from wireless client stations to the AP.

Accepted

 Any IP traffic addressed to the access controller.

2-64

CLI commands

Virtual AP context

 PPPoE traffic (The PPPoe server must be the upstream device.)

 IP broadcast packets, except NetBIOS

 Certain address management protocols (ARP, DHCP) regardless of their source address.

 Any traffic addressed to the AP, including 802.1X.

Blocked

 All other traffic is blocked. This includes NetBIOS traffic regardless of its source/destination

address. TTPS traffic not addressed to the AP (or upstream device) is also blocked, which
means wireless client stations cannot access the management tool on other HP products.

Default filters for outgoing wireless traffic

Applies to traffic sent from the AP to wireless client stations.

Accepted

 Any IP traffic coming from the upstream device, except NetBIOS packets.

 PPPoE traffic from the upstream device.

 IP broadcast packets, except NetBIOS

 ARP and DHCP Offer and ACK packets.

 Any traffic coming from the AP itself, including 802.1X.

Blocked

 All other traffic is blocked. This includes NetBIOS traffic regardless of its source/destination

address.

mac-filters local

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac-filters local

Enables the MAC filter list.

no mac-filters local

Disables the MAC filter list.

mac-filters

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac-filters <address>

Adds an address to the MAC filter list.

no mac-filters <address>

Remove the specified address from the MAC filter list.

Parameters

<address> MAC address. Specify 6 pairs of hexadecimal numbers separated by

colons, with the values a to f in lowercase. For example: 00:00:00:0a:0f:01

2-65

CLI commands

Virtual AP context

Description

This feature enables you to control access to the AP based on the MAC address of client stations.
You can either block access or allow access, depending on your requirements. When both this
option and the MAC-based authentication options are enabled, the following applies: if a user’s
MAC address does not appear in the MAC filtering list, then MAC-based authentication takes place
for that user.

mac-filters mode

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac-filters mode (allow | block)

Either allow or block access to the wireless network for client stations whose addresses appear in
the MAC filter list.

mac authentication accounting

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac authentication accounting

Enables RADIUS accounting for this VAP (VSC).

no mac authentication accounting

Disables RADIUS accounting for this VAP (VSC).

mac authentication accounting radius profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac authentication accounting radius profile <name>

Sets RADIUS accounting to use the specified RADIUS profile.

no mac authentication accounting radius profile

Disables accounting support for MAC authentication.

mac authentication radius profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac authentication radius profile <radiusname>

Specifies the name of the RADIUS profile to use for MAC-based authentication.

no mac authentication radius profile

Do not use a RADIUS profile.

mac authentication radius stationid case

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac authentication radius stationid case (uppercase | lowercase)

Specifies the case applied to the station delimiter if it is a letter.

2-66

CLI commands

Virtual AP context

mac authentication radius stationid delimiter

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac authentication radius stationid delimiter (null | colon | dash | dot | space
| comma | under)

Specifies the one-character delimiter that will be used to format both the calling station ID and the
called station ID attributes in RADIUS packets.

mac authentication

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

mac authentication

Enables support for MAC-based authentication.

no mac authentication

Disable support for MAC-based authentication.

add ip filter

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

add ip filter <ip address>/<mask>

Adds an IP filter to the list of destination addresses that traffic will be accepted for. All other
traffic will be blocked.

If the list is empty, then all wireless-to-wired LAN traffic is permitted.

Where:

<address> IP address.
</mask> Subnet mask in CIDR format. Specifies the number of bits in the mask.

delete ip filter

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

delete ip filter <ip address>/<mask>

Deletes the specified address from the IP filter list.

If the list is empty, then all wireless-to-wired LAN traffic is permitted.

Where:

<address> IP address.
</mask> Subnet mask in CIDR format. Specifies the number of bits in the mask.

delete ip filter all

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

delete ip filter all

Deletes all addresses from the IP filter list.

2-67

CLI commands

Virtual AP context

ip filters

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

ip filters

Activates the IP filter which enables you to block wireless-to-wired LAN traffic on this profile
based on its destination address.

no ip filters

Disables the IP filter for this profile.

active

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

active

Enable this VAP (VSC).

no active

Disable this VAP (VSC).

beacon dtim count

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

beacon dtim count <number>

Defines the DTIM period in the beacon.

Client stations use the DTIM to wake up from low-power mode to receive multicast traffic. The AP
transmits a beacon every 100 ms. The DTIM counts down with each beacon that is sent, therefore
if the DTIM is set to 5, then client stations in low-power mode will wake up every 500 ms (.5
second) to receive multicast traffic.

beacon transmit power

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

beacon transmit power

Advertise the current transmit power setting in the beacon.

no beacon transmit power

Do not advertise the current transmit power setting in the beacon.

New data rate

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

data rate (a | b | g | bg | n) <rate>

Enable the given data rate for a particular PHY type.

no data rate (a | b | g | bg | n) <rate>

Disable the given data rate for a particular PHY type.

2-68

CLI commands

Virtual AP context

add ip-qos profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

add ip-qos profile <name>

Adds the specified profile to the list of IP QoS profiles in effect for this VSC (VAP).

<profile-name> Name of an existing IP QoS profile.

delete ip-qos profile all

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

delete ip-qos profile all

Clears the list of IP QoS profiles currently in effect for this VSC (VAP).

delete ip-qos profile

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

delete ip-qos profile <name>

Removes the specified profile from the list of IP QoS profiles in effect for this VSC (VAP).

<profile-name> Name of an existing IP QoS profile currently in the profile list for this VSC

(VAP).

qos

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

qos ( 802.1p | very-high | high | normal | low | diffsrv | tos | default | vap0
| vap1 | vap2 | vap3)

Sets the QoS level for this profile.

no qos

Disables QoS for this profile.

Four traffic queues are provided based on the WME standard. In order of priority, these queues
are:

 1: Voice traffic

 2: Video traffic

 3: Best effort data traffic

 4: Background data traffic

Each QoS priority mechanism maps traffic to one of the four traffic queues. Client stations that do
not support the QoS mechanism for the profile they are connected to are always assigned to queue

3.

Important: Traffic delivery is based on strict priority (per the WME standard). Therefore, if
excessive traffic is present on queues 1 or 2, it will reduce the flow of traffic on queues 3 and 4.

2-69

CLI commands

Virtual AP context

802.1p Traffic from 802.1p client stations is classified based on the VLAN priority

field present within the VLAN header. When this mechanism is selected,
the AP will advertise WME capabilities, enabling WME clients to associate
and take advantage of them. This setting has no effect on legacy clients.

Note: To support 802.1p, the wireless profile must have a VLAN assigned to
it, which means that client station traffic is forwarded onto the LAN port
only.

vap0 to vap3 Allows a specific priority level to be specified for all traffic on a VAP (VSC)

profile. This enables client stations without a QoS mechanism to set traffic
priority by connecting to the appropriate SSID.

If you enable this priority mechanism, it takes precedence regardless of the
priority mechanism supported by associated client stations. For example,
if you set SSID-based low priority for a profile, all devices that connect to
the profile have their traffic set at this priority

Mapping to the traffic queues is as follows: vap0 or very-high=queue 1,
vap1 or high=queue 2, vap2 or normal=queue 3, vap3 or low=queue 4

diffsrv Differential services is a method for defining IP traffic priority on a per-hop

basis. The Differential Service bits are defined in RFC2474 and are
composed of the six most significant bits of the IP TOS field. These bits
define the class selector code points which the CN320 maps to the
appropriate traffic queue. (default setting)

tos The IP TOS (type of service) field can be used to mark prioritization or

special handling for IP packets.

upstream diffserv tagging

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

upstream diffserv tagging

Enables upstream diffserv tagging.

no upstream diffserv tagging

Disables upstream diffserv tagging.

wmm advertising

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

wmm advertising

Enables WMM information element advertising.

no wmm advertising

Disables WMM information element advertising.

location-aware group

Supported on: MSM422 MSM320 MSM410 MSM310 MSM335

location-aware group <name>

Sets the specified group name for the access point.

no location-aware group

Deletes the specified group name for the access point.

2-70
