HP ProCurve Series 6600 Switches

Installation and Getting Started Guide

www.procurve.com

ProCurve Series 6600 Switches

Installation and Getting Started Guide

Publication Number

5992-4962 January 2009

Applicable Products

HP ProCurve 6600-24G Switch (J9263A) HP ProCurve 6600-24G-4XG Switch (J9264A) HP ProCurve 6600-24XG Switch (J9265A) HP ProCurve Switch Power Supply (J9269A) HP ProCurve Switch Fan Tray (J9271A)

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warranty

See the Customer Support/Warranty booklet included with the product.

A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer.

Hewlett-Packard Company 8000 Foothills Boulevard, m/s 5552 Roseville, California 95747-5552

www.procurve.com

Safety

Before installing and operating these products, please read the “Installation Precautions” in chapter 2, “Installing the Switch”, and the safety statements in appendix C, “Safety and EMC Regulatory Statements”.

Contents

1 Introducing the Switch

Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

LED Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . 1-8

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Precautions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

LED Behavior: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

3. (Optional) Reversing the air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

4. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

5. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-14

Securing the power cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

6. (Optional) Install or Remove mini-GBICs or SFPs . . . . . . . . . . . . . 2-15

Installing the Mini-GBICs or SFP+ Transceivers: . . . . . . . . . . . . 2-16

SFP and SFP+ transceivers Plug-in, Fault and Alert behaviors. 2-17

Removing the mini-GBICs: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

iii

7. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Connecting Cables to mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

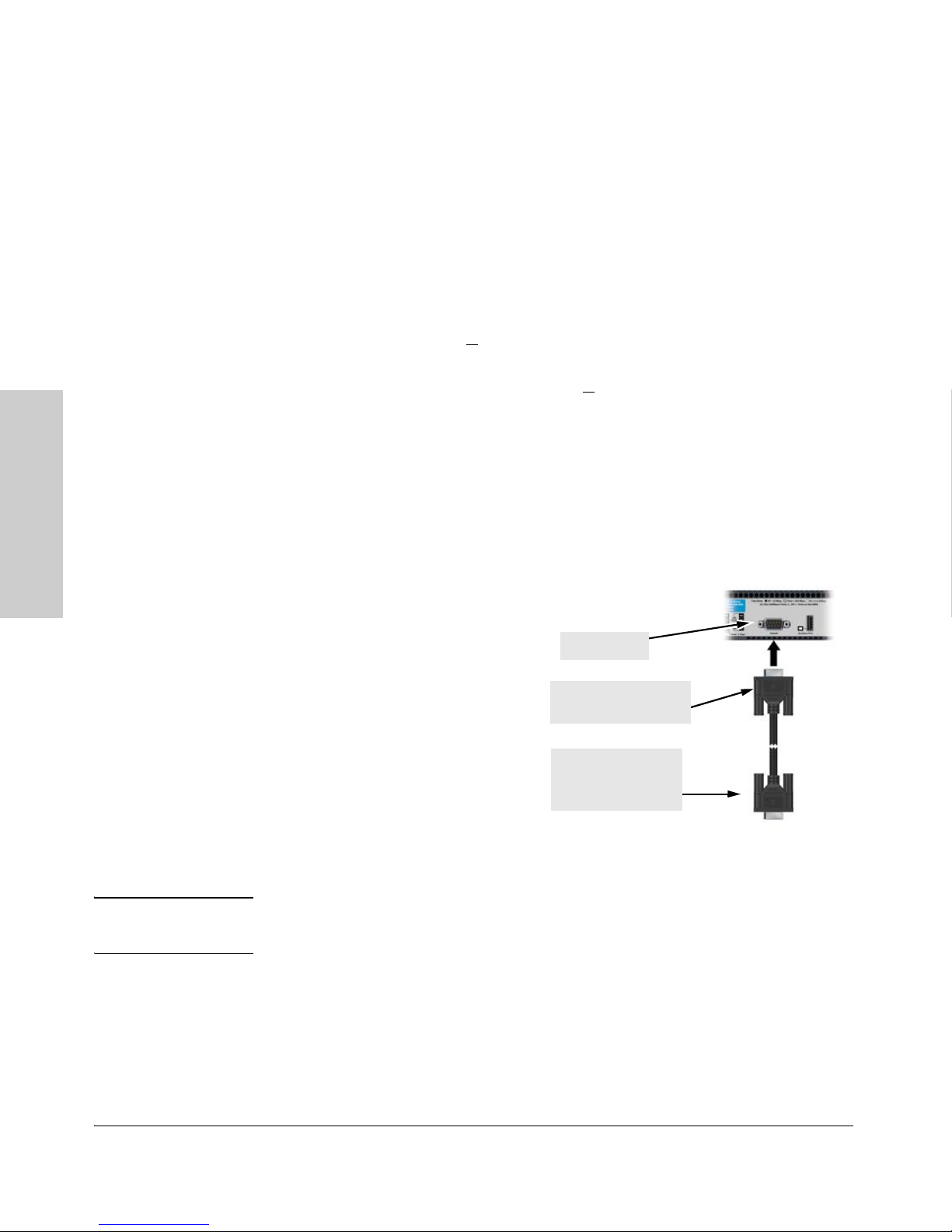

8. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-19

Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Console Cable Pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Sample Network Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

3 Getting Started With Switch Configuration

Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

To Recover from a Lost Manager Password . . . . . . . . . . . . . . . . . . . . . 3-4

Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5

Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

4 Replacing Components

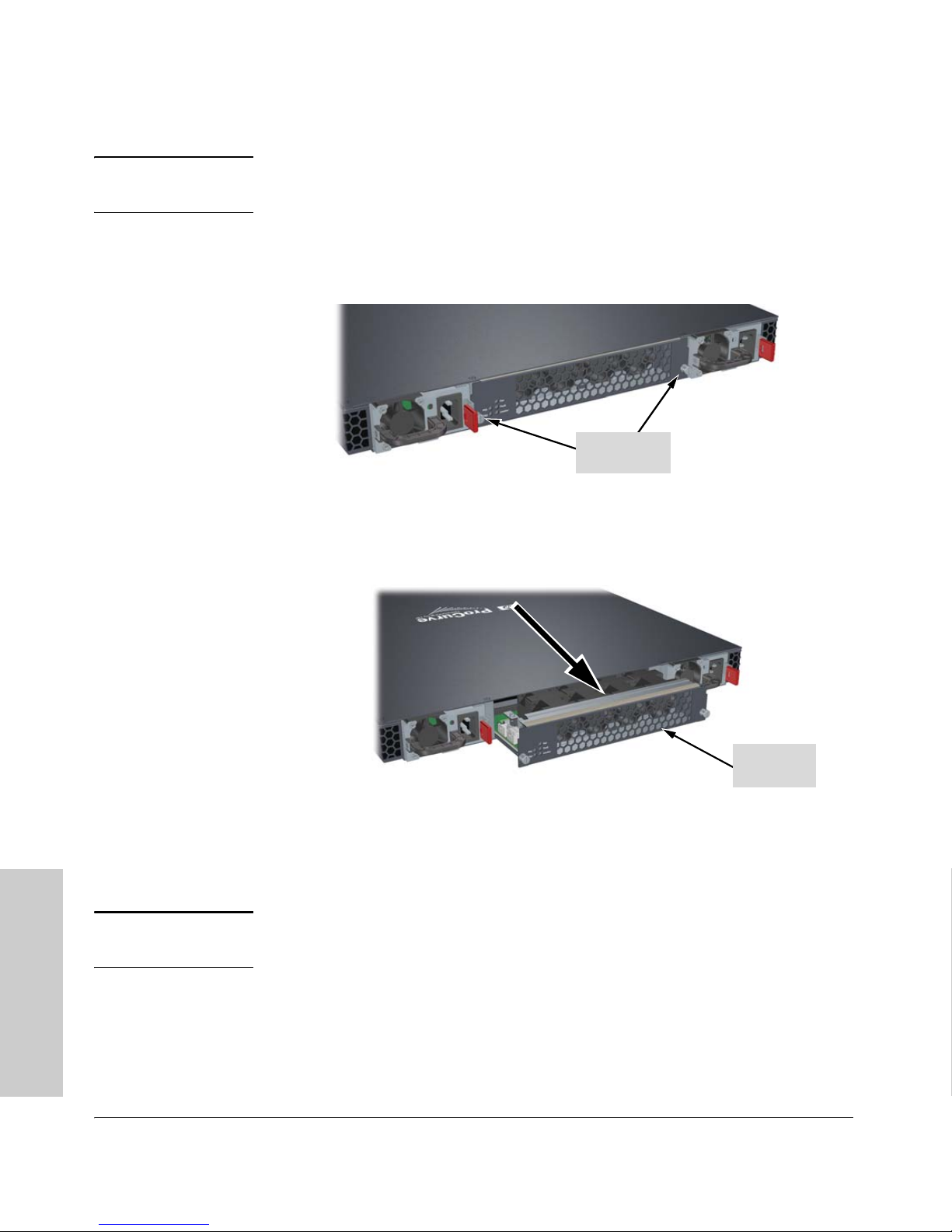

Replacing the fan tray assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

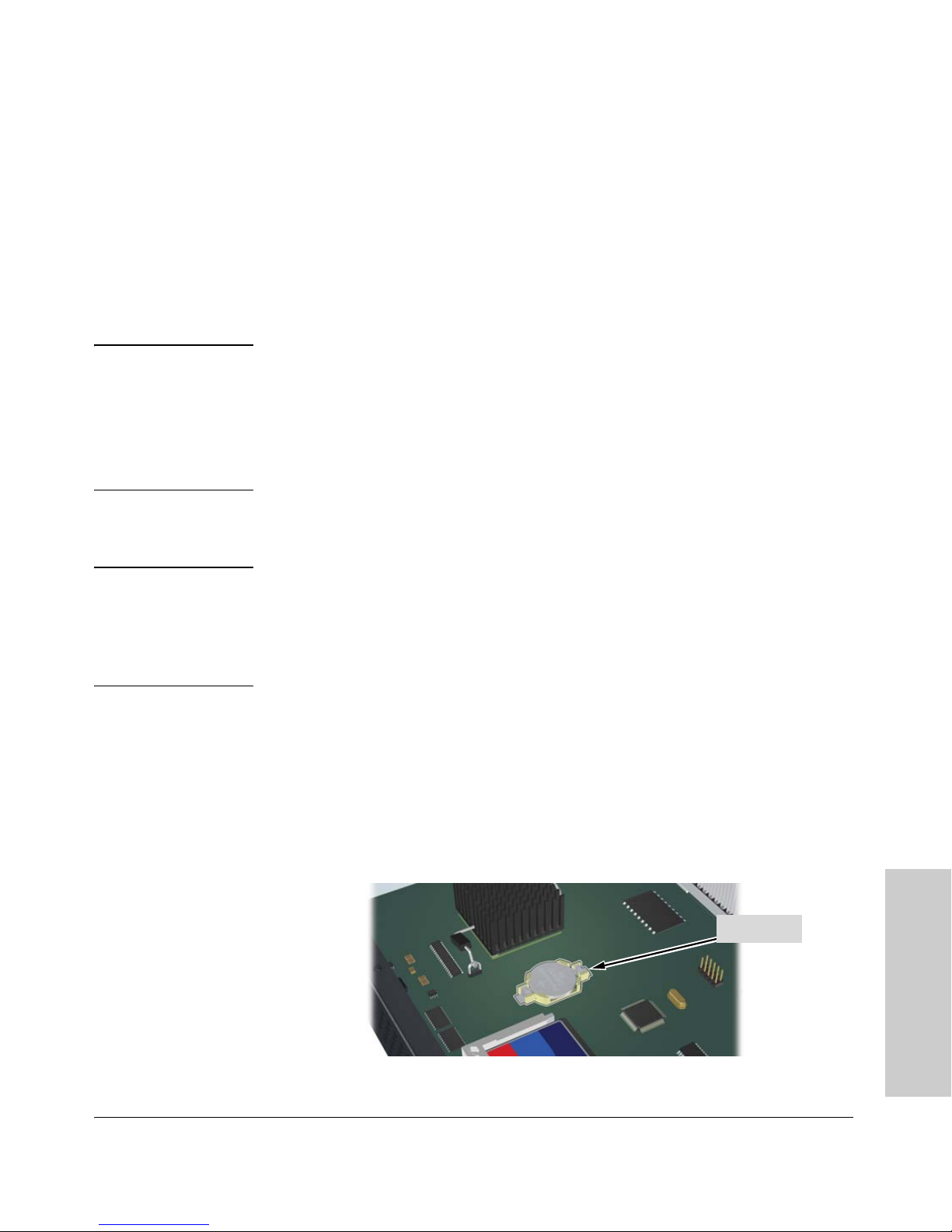

Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Installing a New Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

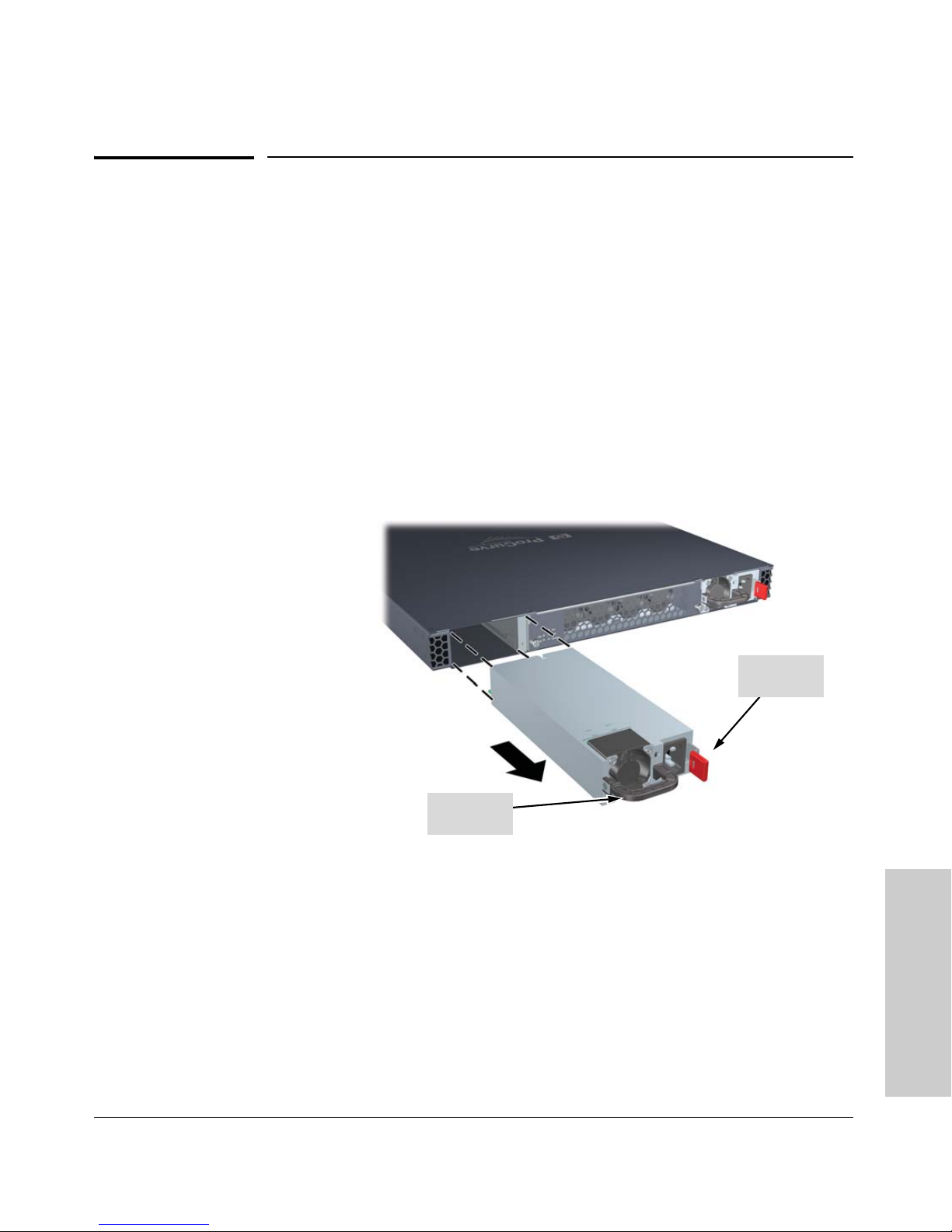

Replacing the Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

5 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Testing Switch-to-Device Network Communications . . . . . . . . . . . . 5-10

Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 5-10

Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 5-11

Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

A Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Acoustic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

B Cabling and Technology Information

Cabling specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Technology distance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Straight-Through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . B-7

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . . B-8

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

C Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

D Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1

Index

Introducing the Switch

The HP ProCurve Series 6600 Switches are top-of-rack data center switches that support advanced Layer three switching, and have reversible front-toback airflow, and two hot-swappable power supplies. These switches can be used to build high-speed switched networks between servers in the data center.

HP ProCurve 6600-24G Switch (J9263A)

Introducing the Switch

HP ProCurve 6600-24G-4XG Switch (J9264A)

HP ProCurve 6600-24XG Switch (J9265A)

Throughout this manual, these switches will be referred to as the Series 6600 Switches.

1-1

Introducing the Switch

The 6600-24G Switch has 20 auto-sensing 10/100/1000Base-T RJ-45 ports, four dual-personality ports—either auto-sensing 10/100/1000Base-T RJ-45 or miniGBIC (Small Form-Factor Pluggable (SFP)) ports.

The 6600-24G-4XG Switch has the same ports as the Switch 6600-24G plus it also has 4 SFP+ slots for 10-GbE connectivity. The specification for SFP+ defines the physical and electrical characteristics of this form-factor (size and shape). The form-factor is identical to SFP, but the SFP+ is a 10-Gigabit Ethernet transceiver.

Introducing the Switch

The 6600-24XG Switch has 24 SFP+ slots. All slots are 10-GbE.

Table 1-1. These products support optional network connectivity with the

following speeds and technologies:

Speed Technology Cabling Transceiver form-factor

and connector

SFP (mini-GBIC)

Connector

100-Mbps 100-FX Fiber (multimode) LC

100-BX Fiber (single mode) LC

1-Gbps 1000-SX Fiber (multimode) LC

1000-LX Fiber (multimode or

single mode)

1000-LH Fiber (single mode) LC

1000-BX Fiber (single mode) LC

10-Gbps 10-Gig

Direct Attach

10-Gig SR Fiber (multimode) LC

10-Gig LRM Fiber (multimode) LC

10-Gig LR Fiber (single mode) LC

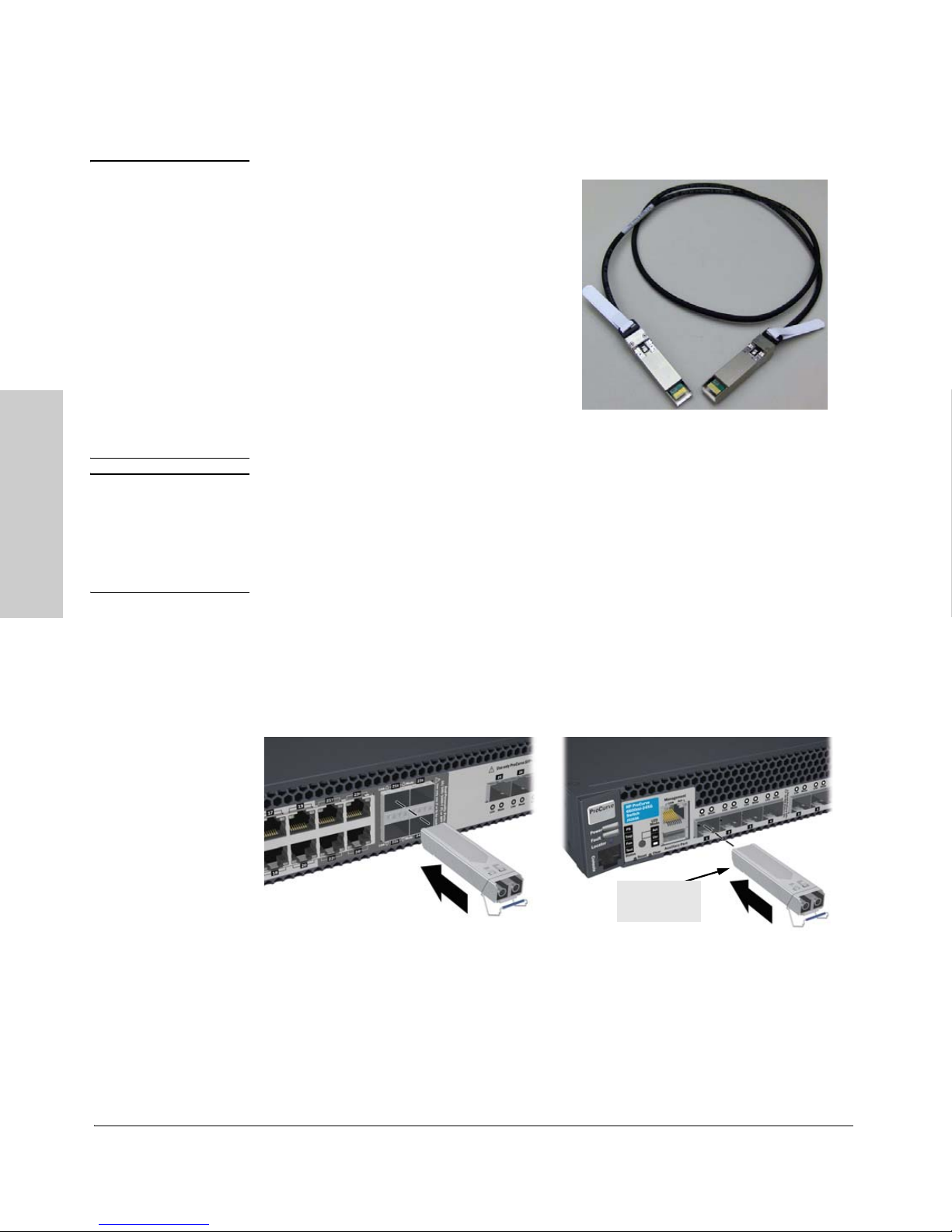

Direct attach cables (DAC) are low-cost 10-GbE connectivity options consisting of a one,

three, or seven meter cable with SFP+ connectors permanently attached to each end.

For supported transceivers see www.procurve.com/faqs. Both ProCurve 10-GbE transceivers and ProCurve Mini-GBICs and SFPs have links to a list of supported products (first question in the “General Product Information” category).

Copper (twinaxial) N/A

SFP+

Connector

For technical details of cabling and technologies see Appendix B, “Cabling and Tech-

nology Information”.

1-2

Introducing the Switch

These switches are designed to be used primarily in data center environments mounted in equipment racks along with the servers they are connected to. These switches can directly connect servers to other servers or backbone LANs to provide dedicated bandwidth to those devices, and can build a switched network infrastructure by connecting the switch to hubs, other switches, or routers. In addition, the Series 6600 Switches offer full network management capabilities.

This chapter describes the Series 6600 Switches, including:

■ Front and back of the switches

■ Network ports

■ LEDs

■ Switch features

Introducing the Switch

1-3

Introducing the Switch

Front of the Switch

Power,

Fault, and

Locator

LEDs

PS, Tmp, Fan, and Test

Status LEDs

Console port

Auxiliary port

and LED

Switch port LEDs

Link and Mode

Introducing the Switch

Port LED Mode select

button and indicator LEDs

Reset and Clear

buttons

10/100/1000Base-T

RJ-45 ports

Dual-personality ports

(1000Base-T or mini-GBIC)

Figure 1-1. ProCurve 6600-24G Switch

Power,

Fault, and

Locator

LEDs

PS, Tmp, Fan, and Test

Status LEDs

Console port

Auxiliary port

and LED

Switch port LEDs

Link and Mode

SFP+ 10-GbE ports

Port LED Mode select

Reset and Clear

buttons

These SFP+ slots are in the same configuration as the SFP Mini-GBIC slots of ports 21 and 24, label facing down.

button and indicator LEDs

Figure 1-2. ProCurve 6600-24G-4XG Switch

1-4

10/100/1000Base-T

RJ-45ports

Dual-personality ports

(1000Base-T or mini-GBIC)

Introducing the Switch

Front of the Switch

Power,

Fault, and

locator

LEDs

Console port

PS, Tmp, Fan, and

Test Status LEDs

Out of Band

Management port,

for future use

button and indicator LEDs

Reset and Clear

buttons

Figure 1-3. ProCurve 6600-24XG Switch

Network Ports

Port LED Mode select

Auxiliary port

and LED

Introducing the Switch

Link and Mode LEDs

SFP+ 10-GbE ports

■ On the 6600-24G and 6600-24G-4XG Switches there are 24 auto-sensing

10/100/1000Base-T ports. All these ports have the “Auto MDIX” feature, which means you can use either straight-through or crossover twistedpair cables to connect any network devices to the switch.

■ On the 6600-24G and 6600-24G-4XG Switches there are four dual-person-

ality ports. Use either the 10/100/1000Base-T RJ-45 connector, or install a supported ProCurve mini-GBIC for fiber-optic connections.

Dual-Personality Port Operation. By default, the RJ-45 connectors are enabled. If a mini-GBIC is installed in a slot, it is enabled and the associated RJ-45 connector is disabled and cannot be used. If the mini-GBIC is removed, the associated RJ-45 port is automatically re-enabled.

■ On the 6600-24XG Switch there are 24 SFP+ 10-GbE ports. SFP+ ports

only support 10 Gbps operation; 1 Gbps mini-GBICs are not supported in any SFP+ port.

1-5

Introducing the Switch

Front of the Switch

LEDs

Table 1-2. Switch LEDs

Switch LEDs State Meaning

Power (green)

On Blinking Off

Introducing the Switch

Fault

Off The normal state; indicates there are no fault conditions on the switch.

(orange)

Blinking

The power supply is operating properly.

Power supply failure. Blinking simultaneously with Fault LED No power connection.

A fault has occurred on the switch, one of the switch ports, module in the rear of the switch, or the fan. The Status LED for the component with the Fault LED will blink simultaneously.

On On briefly after the switch is powered on or reset, at the beginning of switch self

test. If this LED is on for a prolonged time, the switch has encountered a fatal hardware failure, or has failed its self test. See chapter 4, “Troubleshooting” for more information.

Locator (blue) On

Blinking Off

PS (green/orange)

On green Off

Blinking orange

The Locator LED is used to locate a specific switch in a area full of switches. The LED can be set to be on solid or blink for a specified number of minutes (1-1440). The default is 30 minutes. Use the command “chassislocate”.

The switch is receiving power. The switch is NOT receiving power.

A fault has occurred on one of the power supplies. The PS Status LED, Fault LED,

and on the back of the switch the failed power supply LED (PS1 or PS2) will all blink simultaneously.

Tmp

On green Switch temperature is normal.

(green/orange)

Blinking orange Blinking orange

An over temperature condition has been detected. This is a Fault condition

indicating elevated internal temperatures. The Fault LED will blink simultaneously. This indicates an alert condition indicating critical internal temperatures. The Fault

LED will blink simultaneously.

Fan Status (green/orange)

Fan LED on the fan tray (orange)

On Blinking orange

Blinking orange

Off Blinking orange

1-6

Normal operation, all fans are ok. One of the u nit’s fans has fail ed. The switch Fault LED will be blinking simultan eously.

One of the unit’s fans has failed and the switch is in an overtemp condition. The switch Fault LED will be blinking simultaneously.

Normal operation, all fans are working properly. One or more of the unit’s fans has failed. The switch Fault LED, fan status LED on the front of the switch, and the fan status LED on the back of the switch will be blinking simultaneously.

Introducing the Switch

Front of the Switch

Switch LEDs State Meaning

Te st

Off The normal operational state; the switch is not undergoing self test.

(green/orange)

On green The switch self test and initialization are in progress after the switch has been

power cycled or reset. The switch is not operational until this LED goes off. The Self Test LED also comes on briefly when you “hot swap” a mini-GBIC into the switch; the mini-GBIC is self tested when it is hot swapped.

A component of the switch has failed its self test. The status LED for that component,

for example an RJ-45 port, and the switch Fault LED will blink simultaneously.

• if the port LED is on, the port is enabled and receiving a link indication from the connected device.

Port LEDs (green/orange –

Link and Mode)

Blinking orange

Link Indicates the port LEDs are displaying link information:

• if the port LED is off, the port has no active network cable connected, or is not receiving lin k beat or sufficient lig ht. Otherwise, the port may have been disabled through the switch console, the web browser interface, or ProCurve Manager.

if the port LED is Blinking corresponding port has failed its self test.

Mode The operation of the Mode LED is controlled by the LED Mode select button, and

the current setting is indicated by the LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next. The default view is Activity (Act).

LED Mode View

Act Indicates the port LEDs are displaying network activity information.

(green LEDs)

FDx Indicates port LEDs are lit for ports in Full Duplex Mode. Off indicates ½ duplex.

(orange) simultaneously with the Fault LED, the

Introducing the Switch

Auxiliary (green/ orange) For more information see the Management and Configuration Guide for your switch.

Spd Indicates the port LEDs are displaying the connection speed at which each port is

operating:

• if the port LED is off, the port is operating at 10 Mbps.

• if the port LED is Blinking**, the port is operating at 100 Mbps.

• if the port LED is on continuously, the port is operating at 1000 Mbps.

Usr Indicates the port is displaying customer-specified information.

Blinking

green

Indicates the process with the USB device is taking place successfully.

On green The switch has finished processing the USB successfully.

Blinking orange

Indicates an error condition. The switch Fault LED will be blinking simultaneously.

There is a USB hardware fault associated with the USB device or the USB connector on the switch.

Blinking orange

Indicates an alert condition. The switch Fault LED should not be blinking

simultaneously. There is an alert error in the USB process that is not caused by a hardware fault, like a file transfer error.

Off Indicates that no USB device has been inserted, or that the inserted USB device

cannot be recognized, or that no command file can be found on the inserted USB device.

1-7

Introducing the Switch

Front of the Switch

Switch LEDs State Meaning

The Blinking behavior is an on/off cycle once every 1.6 seconds, approximately.

The Blinking behavior is an on/off cycle once every 0.8 seconds, approximately.

LED Power Save Mode

The HP ProCurve 6600-24XG Switch (J9265A) has the ability to turn off

Introducing the Switch

defined groups of ports to save power through the use of a CLI command, “savepower”. This feature provides the capability to explicitly power down the ports, including the LEDs, for a group of un-used ports associated with a block number.

Block # Port Range

1 01-08

2 09-17

3 18-24

This is only a temporary setting. The command is not retained after a power cycle or reboot. For more information regarding this feature see the Management and Configuration Guide which is on the ProCurve Web site at

www.procurve.com/manuals.

LED Mode Select Button and Indicator LEDs

The operation of the Mode LED is controlled by the LED Mode select button, and the current setting is indicated by the LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next.

Port LEDs Link

and Mode

Figure 1-4. ProCurve 6600-24G and 6600-24G-4XG Switches

1-8

LED Mode select button

and indicator LEDs

Introducing the Switch

Front of the Switch

Port LEDs Link

and Mode

LED Mode select button

and indicator LED

Figure 1-5. ProCurve 6600-24XG Switch

■ Each port has a Link LED. If it is lit, the port has a link. If the Link LED is

Blinking, the port has failed its self test. The Fault and Self Test LEDs will be Blinking simultaneously.

■ If the Activity (Act) indicator LED is lit, each port LED displays activity

information for the associated port—it flickers as network traffic is received and transmitted through the port.

■ If the Full Duplex (FDx) indicator LED is lit, the port LEDs light for those

ports that are operating in full duplex.

■ If the Speed (Spd) indicator LED is lit, the port LEDs behave as follows

to indicate the connection speed for the port:

• Off = 10 Mbps

• Blinking = 100 Mbps (the Blinking behavior is a repeated on/off cycle once every 0.8 sec.)

• On = 1000 Mbps

■ The Usr Mode LED indicates the port is displaying customer-specified

information.

Introducing the Switch

Reset Button

This button is for:

■ Resetting the switch - When the switch is powered on. This action clears

any temporary error conditions that may have occurred and executes the switch self test.

■ Restoring Factory Default Configuration - When pressed with the

Clear button in a specific pattern, any configuration changes you may have made through the switch console, the web browser interface, and SNMP management are removed, and the factory default configuration is restored to the switch. For the specific method to restore the factory default configuration, see “Restoring the Factory Default Configuration”

on page 11, in the Troubleshooting chapter of this manual.

1-9

Introducing the Switch

Front of the Switch

Clear Button

This button is used for:

■ Deleting Passwords - When pressed by itself for at least one second, the

button deletes any switch console access passwords that you may have configured. Use this feature if you have misplaced the password and need console access. This button is provided as a convenience, however if you are concerned with the security of the switch configuration and operation, you should make sure the switch is installed in a secure location. This

Introducing the Switch

button can be disabled by a CLI command.

■ Restoring Factory Default Configuration - See Reset Button above.

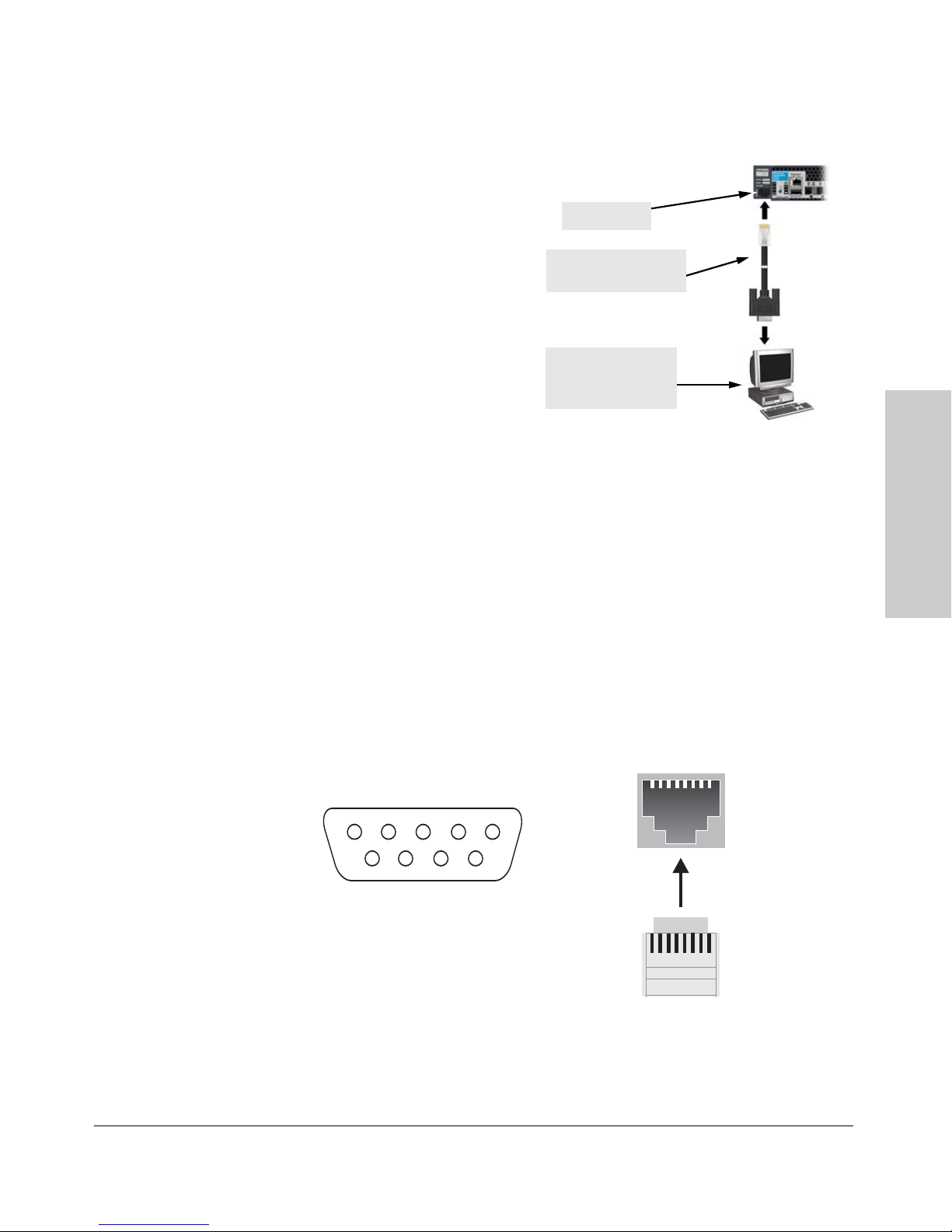

Console Port

This port is used to connect a console to the switch either by using the RJ-45 to DB9 cable or the DB9 to DB9 serial cable supplied with the switch. The Series 6600-24G and 6600-24G-4XG Switches use the DB9 to DB9 serial cable and the 6600-24XG Switch uses the RJ-45 to DB cable. This connection is described under “Connect a Console to the Switch” in chapter 2, “Installing the Switch.” The console can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal.

1-10

Introducing the Switch

Back of the Switch

Power supply

Back of the Switch

Power supply and

Locator LEDs

AC power connector

Figure 1-6. HP ProCurve Series 6600 Switches. The backs of all these switches

are the same.

Power Connector

The Series 6600 Switches do not have a power switch; they are powered on when connected to an active AC power source. These switches automatically adjust to any voltage between 100--127 and 200--240 volts and either 50 or 60 Hz. There are no voltage range settings required.

Fan tray assembly

Extra power slot

Introducing the Switch

Switch Features

The features of the Series 6600 Switches include:

■ 24 auto-sensing 10/100/1000Base-T RJ-45 ports with Auto-MDIX or 24

SFP+ 10-GbE ports. The 6600-24G-4XG has only 4 SFP+ 10-GbE ports.

■ Four dual-personality ports—either the auto sensing 10/100/1000Base-T

RJ-45 or the mini-GBIC can be used for each port. The 6600-24XG does not have these dual-personality ports.

■ An auxiliary (USB) port for processing a USB command file.

■ Plug-and-play networking—all ports are enabled—just connect the

network cables to active network devices and your switched network is operational.

1-11

Introducing the Switch

Switch Features

■ The 6600-24G and the 6600-24G-4XG supports IEEE 802.3ab Auto MDIX

on all 10/100/1000 twisted-pair ports, meaning that all connections can be made using straight-through twisted-pair cables. Cross-over

cables are not required, although they will also work. The pin operation of each port is automatically adjusted for the attached device: if the switch detects that another switch or hub is connected to the port, it configures the port as MDI; if the switch detects that an end-node device is connected to the port, it configures the port as MDI-X.

Introducing the Switch

■ Automatic learning of the network addresses in each switch’s 8000-

address forwarding table, (with configurable address aging value).

■ Automatically negotiated full-duplex operation for the 10/100/1000 RJ-45

ports when connected to other auto-negotiating devices—the mini-GBIC ports always operate at full duplex.

■ Easy management of the switch through several available interfaces:

• console interface—a full featured, easy to use, VT-100 terminal interface that is especially good for out-of-band switch management or for Telnet access to the switch.

• web browser interface—an easy to use built-in graphical interface that can be accessed from common web browsers.

• ProCurve Manager—an SNMP-based, graphical network management tool that you can use to manage your entire network. This product is included with your new switch.

■ Support for the Spanning Tree Protocol to eliminate network loops

■ Support for up to 2048 IEEE 802.1Q-compliant VLANs so you can divide

the attached end nodes into logical groupings that fit your business needs.

■ Support for many advanced features to enhance network performance—

for a description, see the Management and Configuration Guide, which is on the ProCurve Web site www.procurve.com/manuals.

■ Download of new switch software for product enhancements or bug fixes.

1-12

Installing the Switch

Included Parts

Installing the Switch

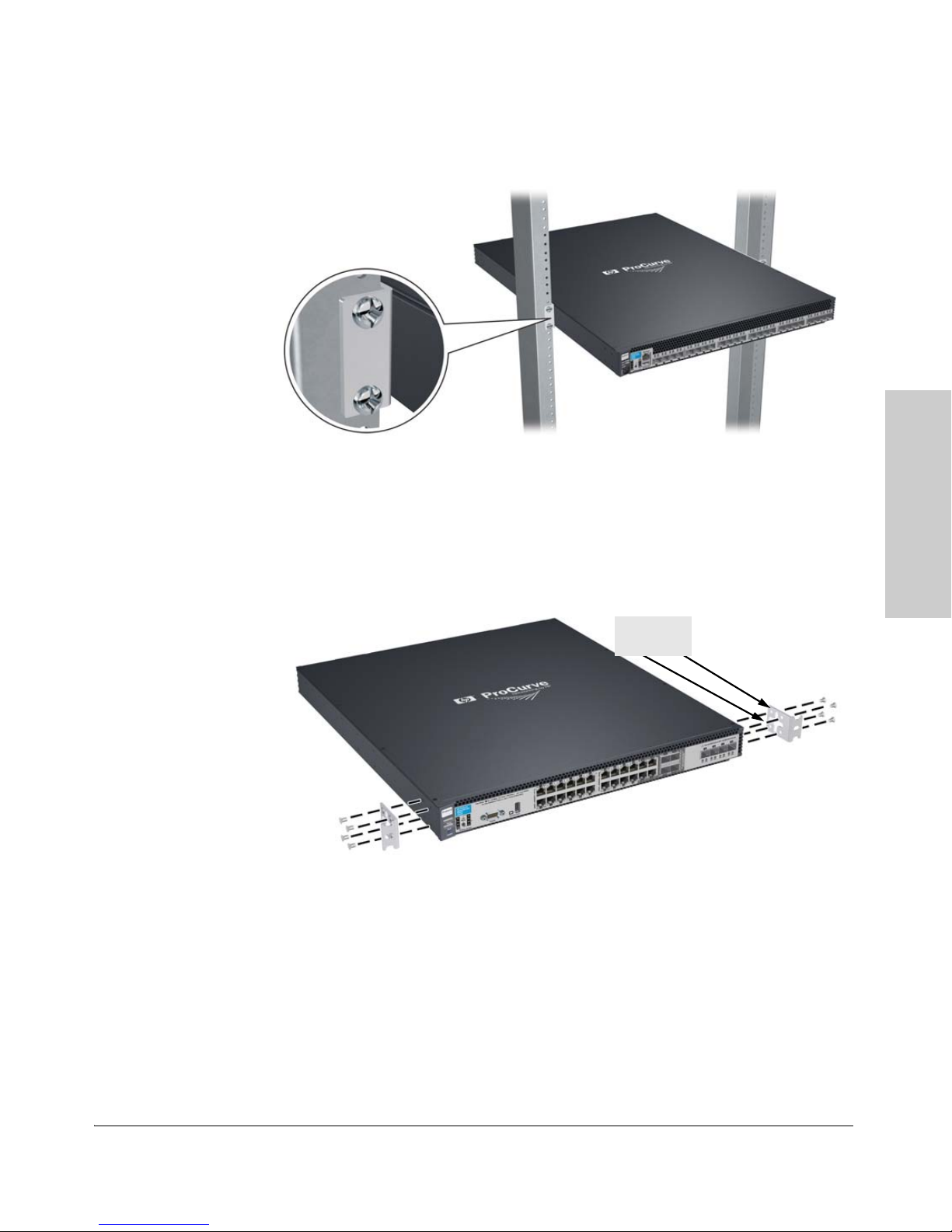

The HP ProCurve Series 6600 Switches come with an accessory kit that includes the brackets for mounting the switch in a standard 19-inch telco rack, or in an equipment cabinet. The brackets are designed to allow mounting the switch in a variety of locations and orientations. For other mounting options contact your local ProCurve authorized network reseller or ProCurve representative. This chapter shows how to install the switch.

Caution If the switch is to be shipped in a rack, be sure to use only an HP 10K rack.

Mount the switch using rail mounting kit, (5070-6532). The switch warranty may be voided.

Installing the Switch

Included Parts

The Series 6600 Switches have the following components shipped with them:

■ HP ProCurve Switch Quick Setup sheet

■ HP ProCurve Switches General Safety and Regulatory Information

booklet

■ Series 6600 Switch Safety and Regulatory Information sheet

■ Read Me First

■ Customer Support/Warranty booklet

■ Console cable

■ Accessory kits

5070-6315 used with the

J9263A and J9264A

two mounting brackets two mounting brackets

eight 8-mm M4 screws to attach the mounting brackets to the switch

four 5/8-inch number 12-24 screws to attach the switch to a rack

5070-6316 used with the

J9265A

eight 8-mm M4 screws to attach the mounting brackets to the switch

four 5/8-inch number 12-24 screws to attach the switch to a rack

2-1

Installing the Switch

Included Parts

■ Power cord, one of the following:

Australia/New Zealand China Continental Europe Denmark Japan Switzerland United Kingdom/Hong Kong/Singapore United States/Canada/Mexico South Africa India Argentina Thailand Brazil Chile Ta iw a n Israel

8120-6810 8120-8707 8120-6811 8120-6814 8120-4753 8120-6815 8120-6809 8120-6812 8120-6813 8120-6813 8120-6869 8121-0668 8121-1069 8120-6980 8121-0974 8121-1035

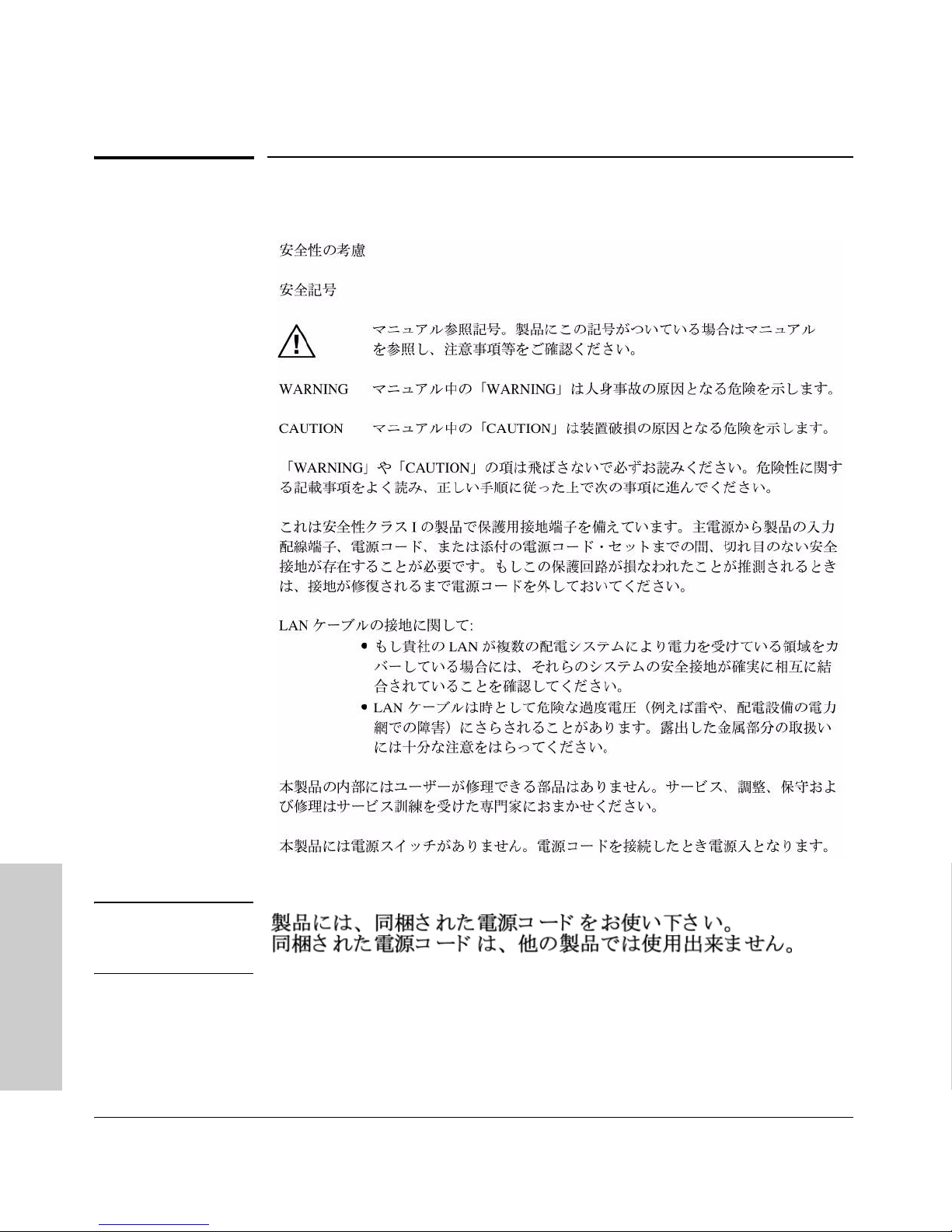

Japan Power Cord Warning

Installing the Switch

2-2

Installing the Switch

Included Parts

Installation Precautions:

Follow these precautions when installing the Series 6600 Switches.

WARNING ■ The rack or cabinet should be adequately secured to prevent it

from becoming unstable and/or falling over.

■ De v ices installed in a ra ck or cabinet should be m ounted as low as

possible, with the heaviest devices at the bottom and progressively lighter devices installed above.

■ Do not wall mount the Series 6600 Switches.

Cautions ■ The Series 6600 Switches should be mounted with the optional Rail

Mounting Kit (5070-6532) in an HP 10000 (HP 10K) rack or any 4 post racking solution.

■ Ensure the power source circuits are properly grounded, then use the

power cord supplied with the switch to connect it to the power source.

■ If your installation requires a different power cord than the one supplied

with the switch and power supply, be sure the cord is adequately sized for the switch’s current requirements. In addition, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch and power supply.

■ When installing the switch, the AC outlet should be near the switch and

should be easily accessible in case the switch must be powered off.

■ Ensure the switch does not overload the power circuits, wiring, and over-

current protection. To determine the possibility of overloading the supply circuits, add together the ampere ratings of all devices installed on the same circuit as the switch and compare the total with the rating limit for the circuit. The maximum ampere ratings are usually printed on the devices near the AC power connectors.

■ Do not install the switch in an environment where the operating ambient

temperature might exceed 40°C (104°F).

■ Ensure the air flow around the front and back of the switch is not

restricted. Leave at least 7.6 cm (3 inches) for cooling. See page 2-4 for the air flow direction.

Installing the Switch

2-3

Installing the Switch

Installation Procedures

Figure 2-1. Default air flow direction of the Series 6600 Switches is from power to

ports.

The direction of air flow can be reversed from the default direction shown in

Installing the Switch

figure 2-1 by reversing the direction of the fans. See step 3 below, Reversing the air flow.

Installation Procedures

Summary

1. Prepare the installation site (page 2-5). Ensure the physical environment is properly prepared, including having the correct network cabling ready to connect to the switch and having an appropriate location for the switch. See page 2-3 for some installation precautions.

2. Verify the switch passes self test (page 2-5). Plug the switch into a power source and observe that the LEDs on the switch’s front panel indicate correct switch operation. When self test is complete, unplug the switch.

3. (Optional) Reversing the air flow (page 2-8) The direction of air flow can be reversed from the default direction by reversing the fans.

4. Mount the switch (page 2-10). The Switch can be mounted in a 19-inch telco rack, or in an equipment cabinet.

2-4

Installing the Switch

Installation Procedures

5. Connect power to the switch (page 2-14). Once the switch is mounted, plug it into the nearby main power source.

6. (Optional) Install or remove mini-GBICs or SFPs (page 2-15). The switch has four slots for installing mini-GBICs. Depending on where you will mount the switch, it may be easier to install the mini-GBICs first. MiniGBICs can be installed or removed while the switch is powered on.

7. Connect the network cables (page 2-18). Using the appropriate network cables, connect the network devices to the switch ports.

8. (Optional) Connect a console to the switch (page 2-19). You m ay wish to modify the switch’s configuration, for example, to configure an IP address so it can be managed using a web browser, from an SNMP network management station, or through a Telnet session. Configuration changes can be made easily by using the included console cable to connect a PC to the switch’s console port.

At this point, the switch is fully installed. See the rest of this chapter if you need more detailed information on any of these installation steps.

Installing the Switch

1. Prepare the Installation Site

Cabling Infrastructure - Ensure the cabling infrastructure meets the necessary network requirements. See Appendix B “Cabling and Technology

Information” for more information.

■ Installation Location - Before installing the switch, plan its location and

orientation relative to other devices and equipment:

• In the front of the switch, leave at least 7.6 cm (3 inches) of space for

the twisted-pair, fiber-optic cabling, and cooling. See Figure 2-1 for the air flow direction.

• In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space

for the power cord and cooling.

2. Verify the Switch Passes Self Test

Before mounting the switch in its network location, you should first verify it is working properly by plugging it into a power source and verifying it passes self test.

2-5

Installing the Switch

Installation Procedures

1. Connect the power cord supplied with the switch to the power connector on the back of the power supply, and then into a properly grounded electrical outlet.

Figure 2-2. Connecting the power cord.

Note The Series 6600 Switches do not have a power switch. They are powered on

Installing the Switch

when the power cord is connected to the power supply and to a power source. For safety, the power outlet should be located near the switch installation.

The power supply cannot be removed when the power cord is connected.

The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz. No voltage range settings are required.

If your installation requires a different power cord than the one supplied with the switch, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch.

2. Check the LEDs on the switch as described below. When the switch is powered on, it performs its diagnostic self test. Self test takes approximately 50 seconds to complete.

2-6

Power and

Fault LEDs

Installing the Switch

Installation Procedures

Switch port LEDs

Test LED

Figure 2-3. Checking the LEDs on the 6600-24G and 6600-24G-4XG

Switch port LEDs

Power and

Fault LEDs

Test LE D

Figure 2-4. Checking the LEDs on the 6600-24XG

LED Behavior:

During the self test:

• Initially, all the status, LED Mode and port LEDs are on for most of

the duration of the test.

• Most of the LEDs go off and then may come on again during phases

of the self test. For the duration of the self test, the Test LED stays on.

Installing the Switch

When the self test completes successfully:

•The Power and Fan Status LEDs remain on.

•The Fault and Test LEDs go off.

• The port LEDs on the front of the switch go into their normal

operational mode:

2-7

Installing the Switch

Installation Procedures

– If the ports are connected to active network devices, the LEDs

behave according to the LED Mode selected. In the default view mode (Link), the LEDs should be on.

– If the ports are not connected to active network devices, the LEDs

will stay off.

If the LED display is different than what is described above, especially if the Fault and Test LEDs stay on for more than 60 seconds or they start blinking, the self test has not completed correctly. Refer to chapter 4, “Troubleshooting” for diagnostic help.

3. (Optional) Reversing the air flow

If desired, the air flow direction can be reversed by following these steps. This is not a hot swap operation. Make sure this is done during planned down time.

1. Remove the fan tray assembly a. Unscrew the retaining screws

Installing the Switch

b. Holding the two retaining screws, pull the fan tray assembly straight

out.

2-8

Retaining

Screw

Fan tray

2. Using a T10 screwdriver, remove the four retaining screws.

assembly

Installing the Switch

Installation Procedures

3. Lift the fan assembly from the fan tray high enough to turn it over.

Retaining

Screw

Rotating fan

tray

4. Rotate the fan assembly 180 degrees and replace the fan assembly into the fan tray, sheet metal side up.

Rotated

position

5. Take care to align the sensing pin between the two sensors and replace the 4 retaining screws.

Installing the Switch

6. Replace the fan tray assembly into the switch.

7. Tighten the retaining screws.

Sensing pin

Sensors

Retaining

Screw

2-9

Installing the Switch

Installation Procedures

4. Mount the Switch

After the switch passes self test, it is ready to be mounted in a stable location.

Rack or Cabinet Mounting

The Series 6600 Switches are designed to be mounted in any EIA-standard 19inch telco rack or communication equipment cabinet using the balanced or center mounting orientation, see figure 2-5. Flush mounting in a two post rack is not supported. Or with the optional Rail Mounting Kit (5070-6532) in an HP 10000 (HP 10K) rack or any 4 post racking solution, see figures 2-6 through 2-10. Secure the rack in accordance with the manufacture’s safety guidelines.

WARNING For safe operation, please read the mounting precautions on page 2-3,

before mounting a switch.

Equipment Cabinet

Installing the Switch

Note

The 12-24 screws supplied with the switch are the correct threading for standard EIA/TIA open 19-inch racks. If you are installing the switch in an equipment cabinet such as a server cabinet, use the clips and screws that came with the cabinet in place of the 12-24 screws that are supplied with the switch.

Complete step 1, and plan which four holes you will be using in the cabinet and install all four clips. Then proceed to step 2.

Note The mounting brackets have multiple mounting holes and can be rotated

allowing for a wide variety of mounting options. These include mounting it in a more balanced position (which is the ProCurve recommended option for the Series 6600 Switches when mounting in a two post rack) as shown in Figure 2-5, or mounting the switch so its front face is flush with the face of the rack, as shown in Figure 2-6. This installation is used for mounting in a four post HP 10K rack, see Figure 2-9.

2-10

Installing the Switch

Installation Procedures

Figure 2-5. Mounting in a two post rack using the balanced option.

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the switch with the included 8-mm M4 screws. Remember to use the correct accessory kit for your switch, see page 2-1.

Installing the Switch

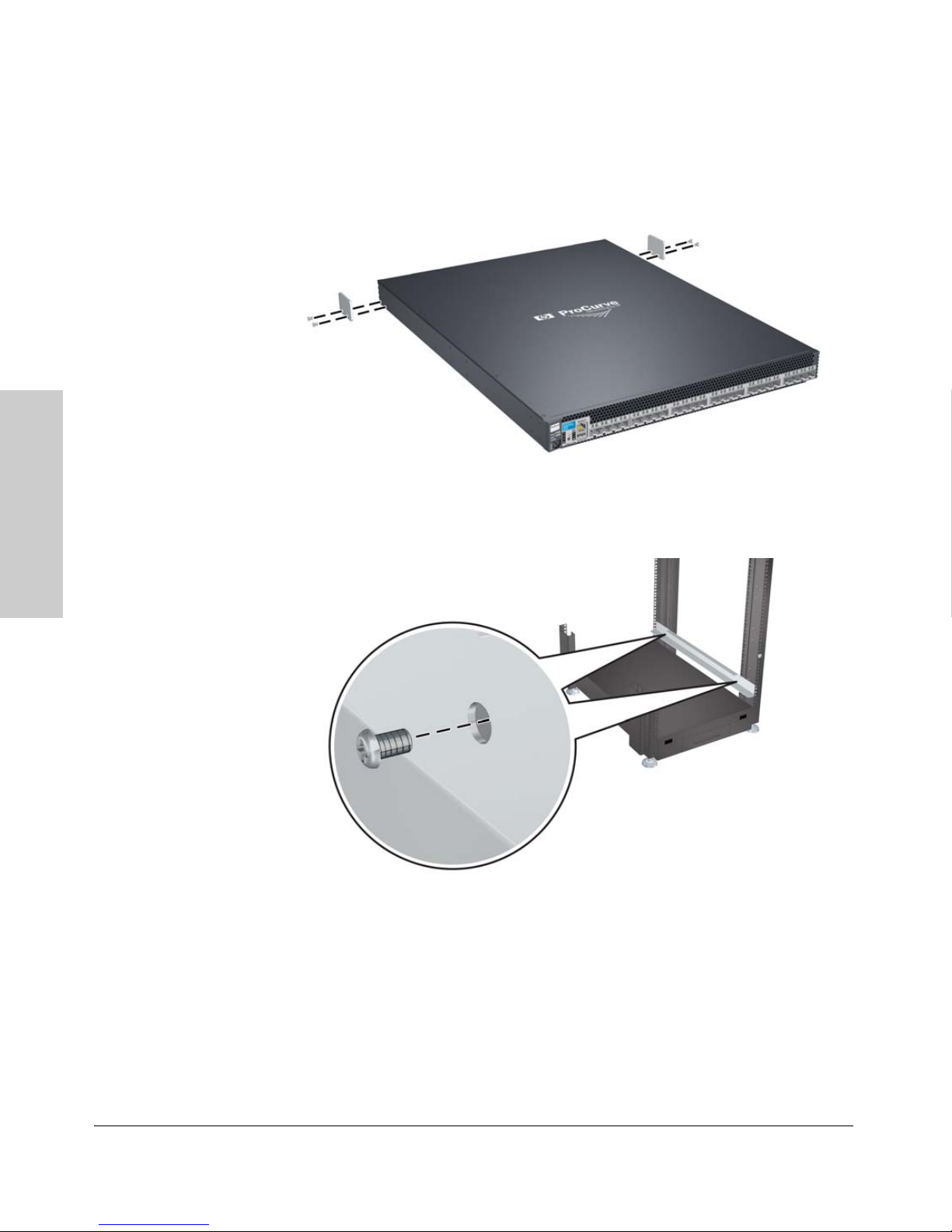

Figure 2-6. Example attaching mounting brackets

8 mm

M4 screws

2-11

Installing the Switch

Installation Procedures

2. Attach the holding brackets. Ensure the holes of the brackets and the screws are aligned to the bottom of the switch.

Figure 2-7. Installing the rail mounting holding brackets

3. Install the rails.

Installing the Switch

Figure 2-8. Mounting rails in a four-post HP 10K rack

2-12

Installing the Switch

Installation Procedures

4. Slide the switch into the rails

Figure 2-9. Sliding the switch into the rails

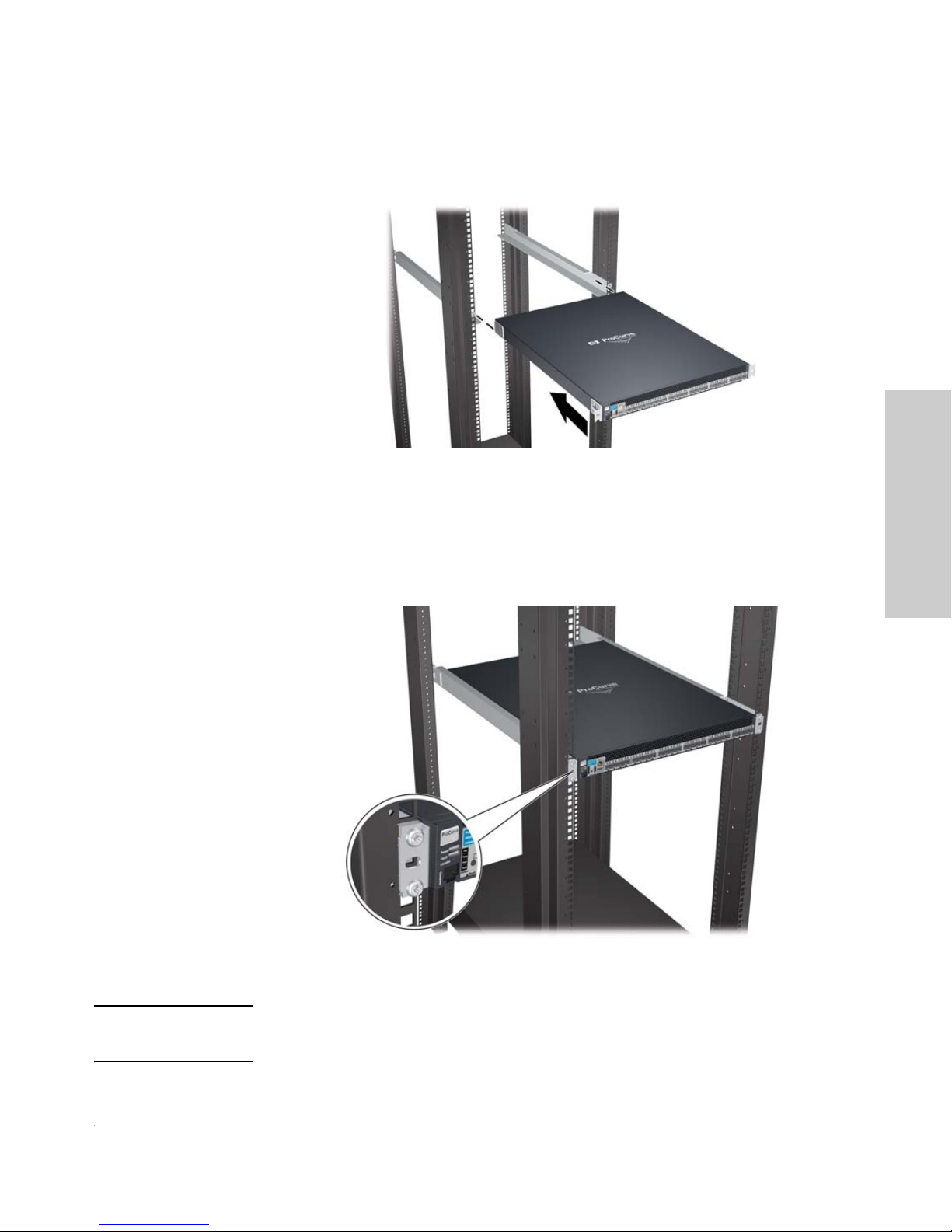

5. Hold the switch with attached brackets up to the rack and move it vertically until rack holes line up with the bracket holes, then insert and tighten the four number 12-24 screws holding the brackets to the rack.

Installing the Switch

Figure 2-10. Mounting in a rack

Caution Make sure the air flow is not restricted in the front or back of the switch. See

Figure 2-1 on page 2-4 for the air flow direction.

2-13

Installing the Switch

Installation Procedures

5. Connect the Switch to a Power Source

1. Plug the included power cord into the switch’s power connector and into a nearby AC power source.

2. Re-check the LEDs during self test. See “LED Behavior” on page 2-7.

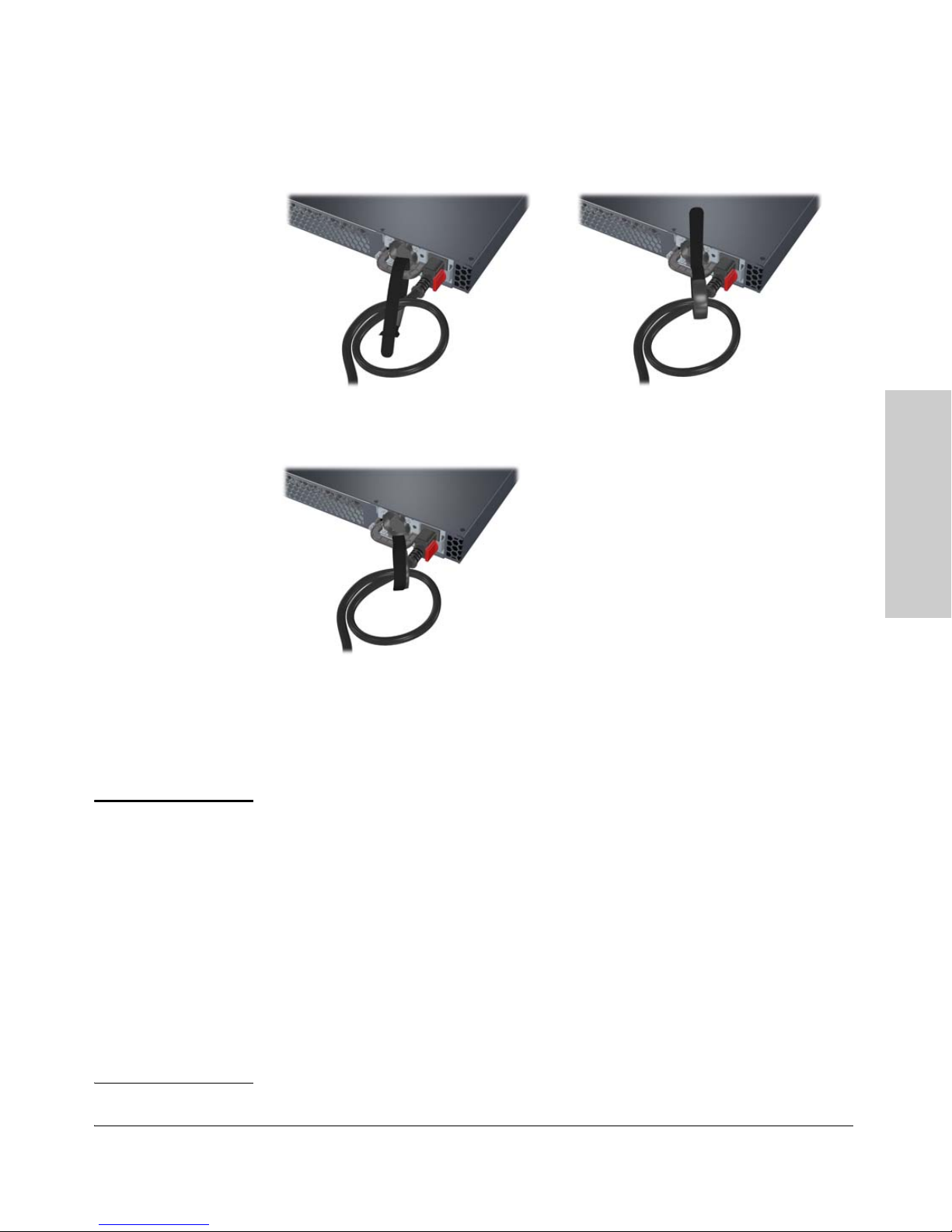

Securing the power cord

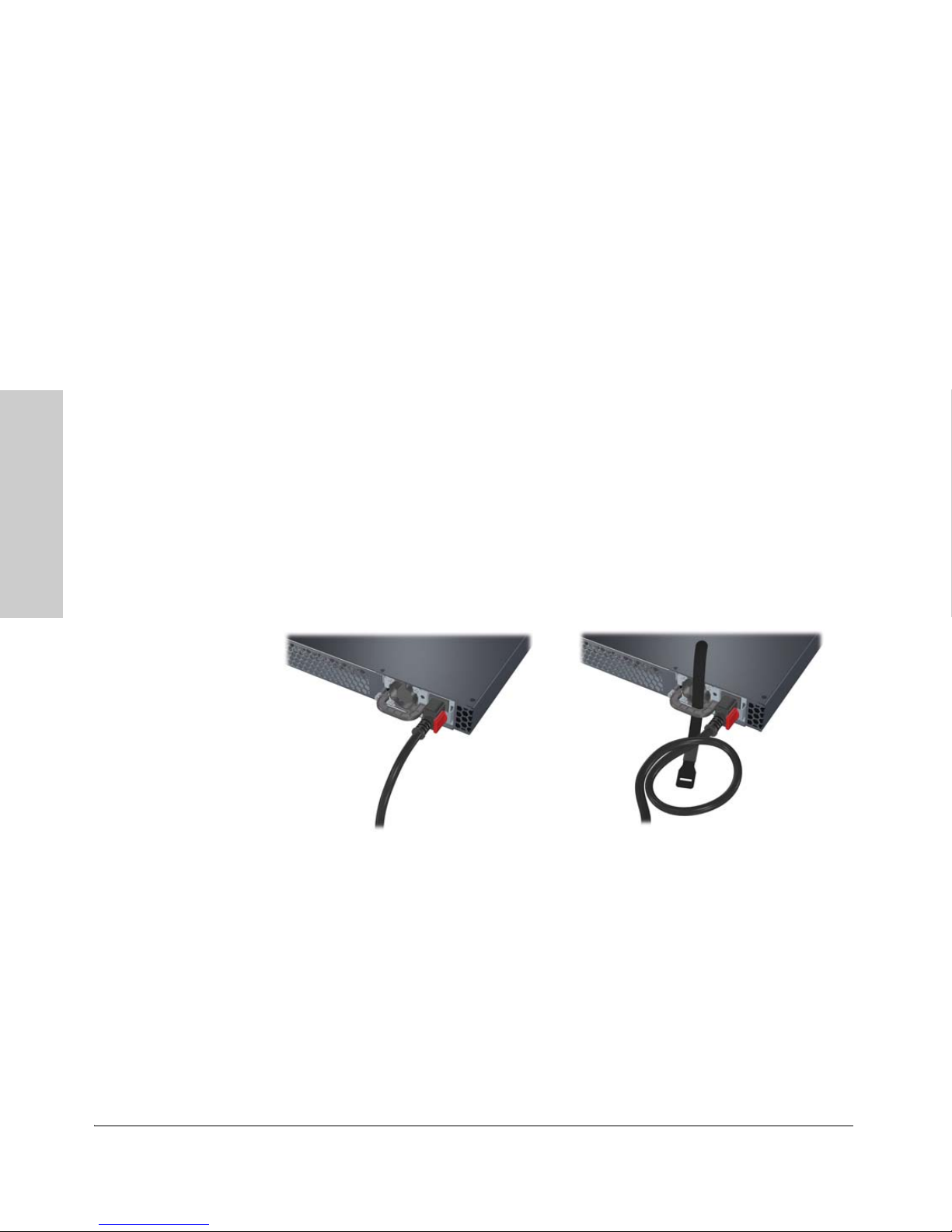

1.Connect the power cord to the power supply.

2.Make a small loop in the power cord, approximately 3 to 4 inches and insert the velcro strap through the loop and through the handle on power supply.

3.Insert the end of the velcro strap through the slot in the other end of the velcro strap.

4.Tighten the velcro strap around the loop in the power cord.

5.Wrap the excess velcro strap around the power cord loop and through the power supply handle a couple of times and secure the

Installing the Switch

velcro strap to itself.

1. 2.

2-14

3. 4.

Installing the Switch

Installation Procedures

Installing the Switch

6. (Optional) Install or Remove mini-GBICs or SFPs

You can install or remove a mini-GBIC from a mini-GBIC slot without having to power off the switch. Use only ProCurve transceiver accessories.

Notes ■ The mini-GBIC slots are shared with the four 10/100/1000Base-T RJ-45

ports. If a mini-GBIC is installed in a slot, the associated RJ-45 port is disabled and cannot be used.

■ The mini-GBICs operate only at full duplex. Half duplex operation is not

supported.

■ Inserting a 10-GbE transceiver (SFP+) into a 1 gigabit (mini-GBIC) slot,

will generate an event log message, “Transceiver type not supported by this port”, and the transceiver will not function. The reverse is true also, inserting a 1 gigabit (mini-GBIC) transceiver into a 10-GbE slot will generate an event log message and the transceiver will not function.

■ Ensure the network cable is NOT connected when you install or remove

a mini-GBIC unless you are using a Direct Attach Cable (DAC).

2-15

Installing the Switch

Installation Procedures

Note Direct attach cables (DAC) are low-

cost 10-GbE connectivity options consisting of a one, three, or seven meter cable with SFP+ connectors permanently attached to each end.

Figure 2-11. One meter DAC

Caution Use only supported genuine HP ProCurve transceiver accessories with your

switch. Non-ProCurve transceiver accessories are not supported, and their use may result in product malfunction. Should you require additional

Installing the Switch

ProCurve transceiver accessories, contact your ProCurve Networking Sales and Service Office or authorized dealer.

Installing the Mini-GBICs or SFP+ Transceivers:

Hold the mini-GBIC by its sides and gently insert it into any of the mini-GBIC slots on the switch until the mini-GBIC clicks into place.

10-GbE

transceiver

Figure 2-12. Installing a Mini-GBIC or SFP

2-16

Installing the Switch

Installation Procedures

WARNING The ProCurve mini-GBICs are Class 1 laser devices. Avoid direct eye

exposure to the beam coming from the transmit port.

SFP and SFP+ transceivers Plug-in, Fault and Alert behaviors.

Working SFP Transceiver plugged into SFP slot 21S, 22S, 23S or 24S:

■ When the switch recognizes the transceiver, the Mode LED turns on solid

for 2 seconds and then goes to normal operation.

• After inserting a mini-GBIC, do not remove it until the Mode LED has turned off.

Working SFP+ Transceiver plugged into SFP+ slot 25, 26, 27 & 28:

■ When the switch recognizes the transceiver, the Mode LED turns on solid

for 2 seconds and then goes to normal operation.

• After inserting an SFP+ transceiver, do not remove it until the Mode LED has turned off.

For a faulty or non-ProCurve Transceiver:

■ The switch Fault LED and port Link LED for the affected port would be

slow flashed for situations that cannot be fixed by the customer.

For working but unsupported transceiver including:

1. SFP transceiver into SFP+ slot 25, 26, 27 or 28

2. SFP+ transceiver into SFP slot 21S, 22S, 23S or 24S:

■ Orange fast flash on the port's Link LED for the affected port, plus

appropriate log messages. Examples include transceivers are not supported by the current software, or are the wrong revision, or are the wrong type.

Removing the mini-GBICs:

Installing the Switch

Note You should disconnect the network cable from the mini-GBIC before removing

it from the switch.

Depending on when you purchased your ProCurve mini-GBIC, it may have either of three different release mechanisms:

■ a plastic tab on the bottom of the mini-GBIC

■ a plastic collar around the mini-GBIC

■ a wire bail

2-17

Installing the Switch

Installation Procedures

To remove the mini-GBICs that have the plastic tab or plastic collar, push the tab or collar toward the switch until you see the mini-GBIC release from the switch (you can see it move outward slightly), and then pull it from the slot.

To remove the mini-GBICs that have the wire bail, lower the bail until it is approximately horizontal, and then using the bail, pull the mini-GBIC from the slot.

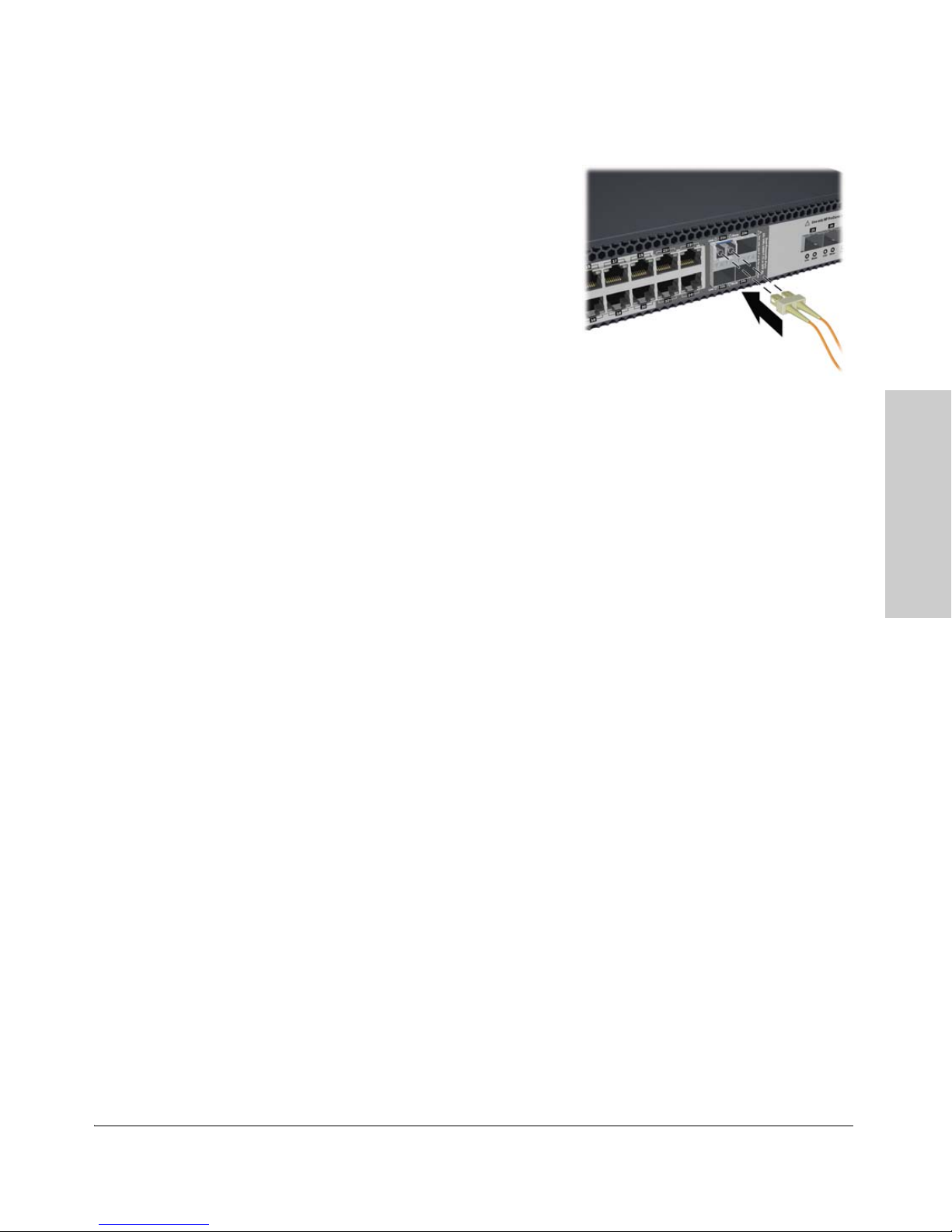

7. Connect the Network Cables

Connect the network cables, described under “Cabling Infrastructure” (page

2-5), from the network devices or your patch panels to the fixed RJ-45 ports

on the switch or to any mini-GBICs you have installed in the switch.

Using the RJ-45 Connectors

To c o n ne ct :

Push the RJ-45 plug into the RJ-45 jack until the tab on the plug clicks into

Installing the Switch

place. When power is on for the switch and for the connected device, the Link LED for the port should light to confirm a powered-on device (for example, an end node) is at the other end of the cable.

RJ-45

connector

If the Link LED does not go on when the network cable is connected to the port, see “Diagnosing with the LEDs” on

page 5-4, in chapter 5, “Trouble-

shooting”.

To disconnect:

Press the small tab on the plug and pull

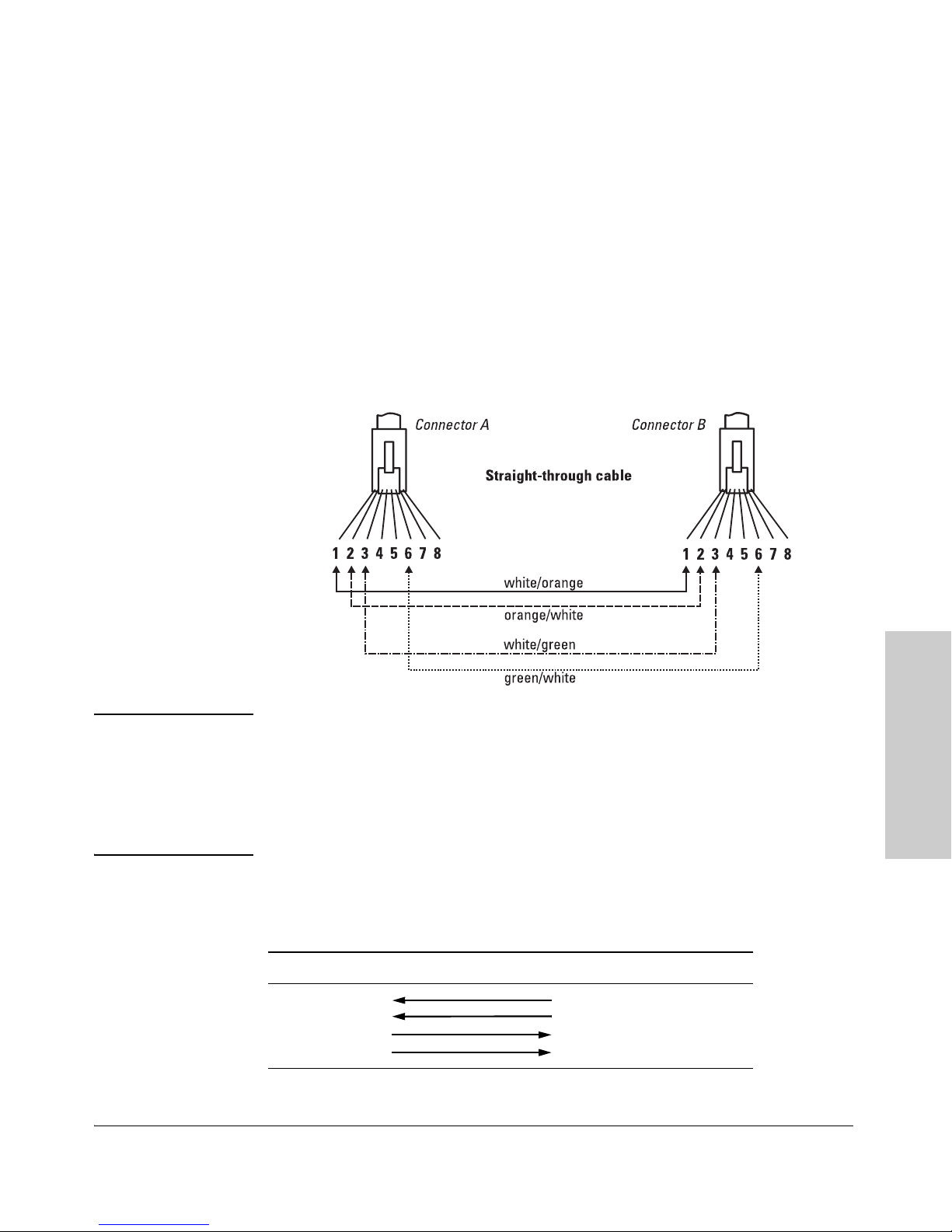

Unshielded twisted-pair cable:

• Category 3, 4, or 5 for 10 Mbps ports

• Category 5 or better for 100 Mbps ports

• Category 5e or better for 1000 Mbps ports Maximum distance: 100 meters

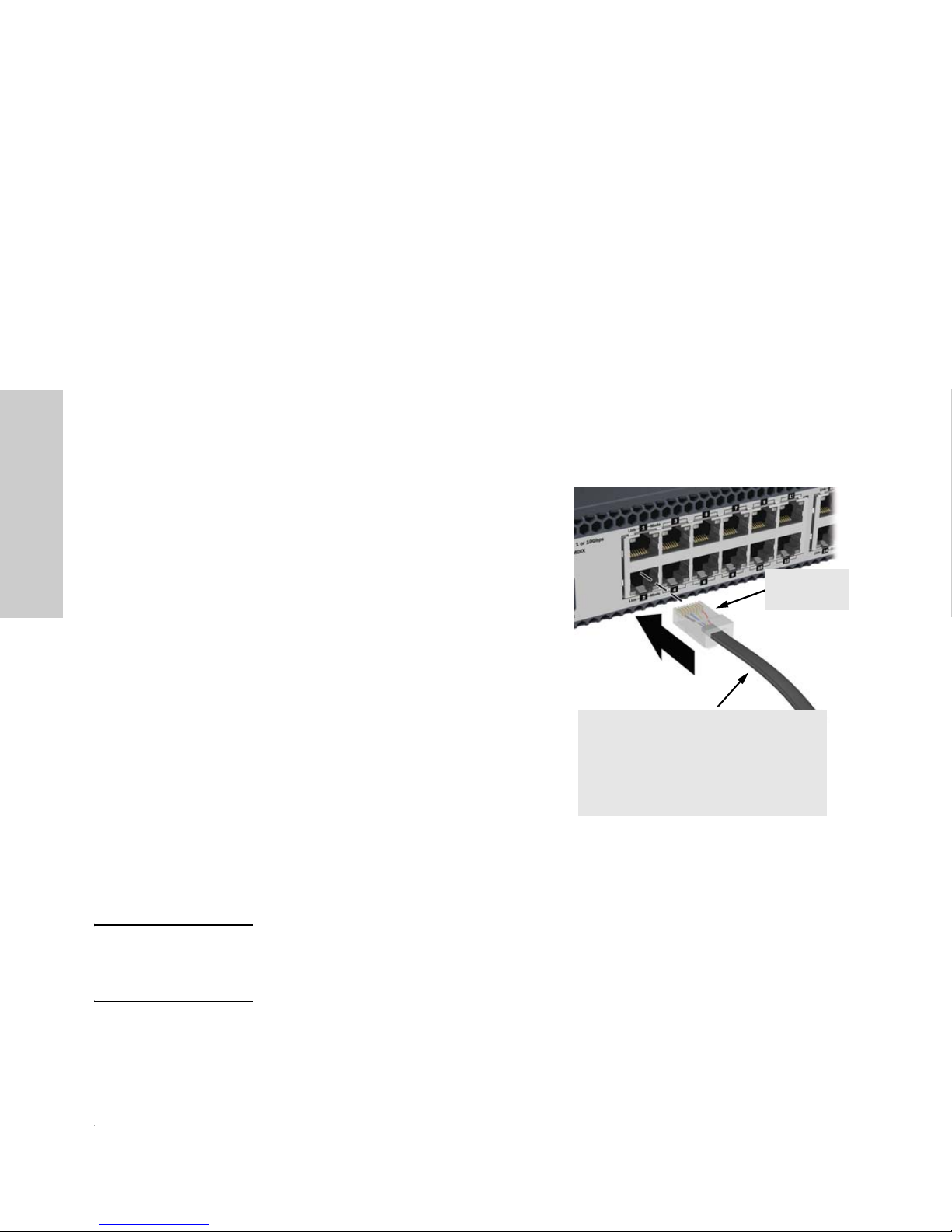

Figure 2-13. Connecting RJ-45s

the plug out of the jack.

Connecting Cables to mini-GBICs

Note Each of the four mini-GBIC slots is shared with the associated 10/100/

1000Base-T RJ-45 port. If a mini-GBIC is installed in a slot, the associated RJ45 port is disabled.

If you have any mini-GBICs installed in the switch, the type of network connections you will need to use depends on the type of mini-GBICs you have installed. See Appendix B, “Cabling and Technology Information”, for the mini- GBIC cabling information.

2-18

Installing the Switch

Installation Procedures

For mini-GBICs ports, and in general for all the switch ports, when a network cable from an active network device is connected to the port, the port LED for that port should go on. If the port LED does not go on when the network cable is connected to the port, see “Diag-

nosing with the LEDs” on page 5-4 in

chapter 5, “Troubleshooting”.

8. (Optional) Connect a Console to the Switch

The switch has a full-featured, easy to use console interface for performing switch management tasks including the following:

■ monitor switch and port status and observe network activity statistics

■ modify the switch’s configuration to optimize switch performance,

enhance network traffic control, and improve network security

■ read the event log and access diagnostic tools to help in troubleshooting

■ download new software to the switch

■ add passwords to control access to the switch from the console, web

browser interface, and network management stations

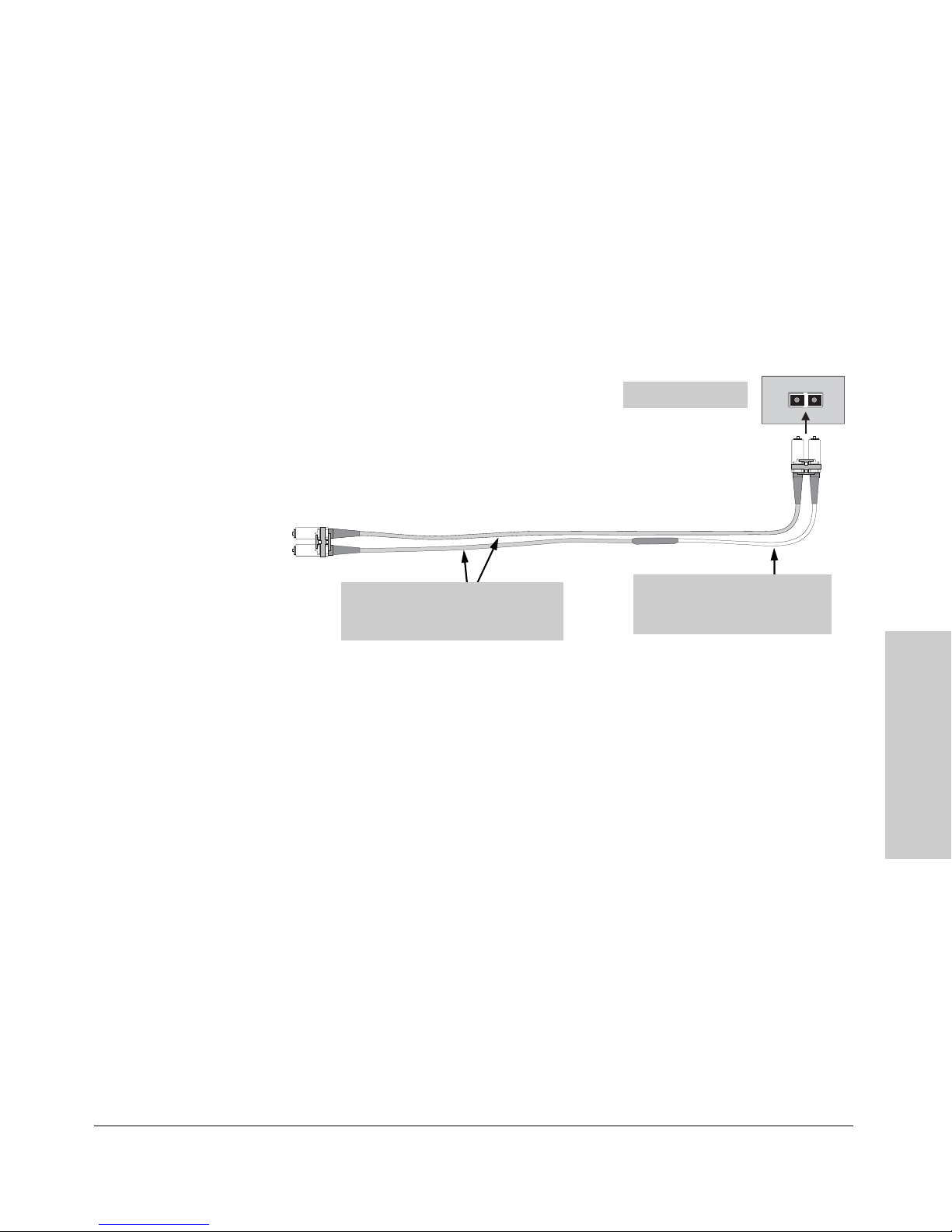

Figure 2-14. Connecting a Fiber cable

connector

Installing the Switch

The console can be accessed through these methods:

■ Out-of-band: The switch comes with a cable for connecting a PC or VT-

100 terminal, to be used as a console, directly to the switch. You can use the console port only for out-of-band management. It cannot be used for a Telnet connection.

■ In-Band: Manage the switch using Telnet from a PC or UNIX workstation

on the network, and a VT-100 terminal emulator. This method requires that you first configure the switch with an IP address and subnet mask by using either out-of-band console access or through DHCP/Bootp. For more information on IP addressing and on starting a Telnet session, see chapter 3, “Getting Started With Switch Configuration”, and the Manage- ment and Configuration Guide, which is on the ProCurve Web site at

www.procurve.com/manuals.

The Switch can simultaneously support one out-of-band console session through the Console Port and one in-band Telnet console session.

2-19

Installing the Switch

Installation Procedures

Terminal Configuration

To connect a console to the switch, configure the PC terminal emulator as a DEC VT-100 (ANSI) terminal or use a VT-100 terminal, and configure either one to operate with these settings:

■ any baud rate from 1200 to 115200 (the switch senses the speed)

■ 8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff

■ for the Windows Terminal program, also disable (uncheck) the “Use

Function, Arrow, and C

■ for the Hilgraeve HyperTerminal program, select the “Terminal keys”

option for the “Function, Arrow, and C

trl Keys for Windows” option

trl Keys act as” parameter

If you want to operate the console using a different configuration, make sure you change the settings on both the terminal and on the switch so they are compatible. Change the switch settings first, save your changes, then change the terminal settings, then reboot the switch and reestablish the console session.

Direct Console Access

Installing the Switch

To connect a console to the switch, follow these steps:

1. Connect the PC or terminal

Console port

to the switch’s Console Port using the console cable included with the Switch. (If

Console cable suppli ed

with the switch

your PC or terminal has a 25pin serial connector, first attach a 9-pin to 25-pin straight-through adapter at

PC running a terminal

emulator program, or

a VT-100 terminal

one end of the console cable.)

Figure 2-15. Connecting the console cable

Note The ProCurve Switch 6600-24XG (J9265A) is shipped with an RJ-45 to 9-pin

console cable.

2-20

Installing the Switch

Installation Procedures

2. Turn on the terminal or PC’s power and, if using a

Console port

PC, start the PC terminal program.

3. Press

[Enter] two or three

Console cable supplie d

with the switch

times and you will see the copyright page and the message “Press any key to continue”. Press a key, and you will then see the

PC running a terminal

emulator program, or

a VT-100 terminal

switch console command (CLI) prompt, for

Figure 2-16. Connecting the console cable

example:

ProCurve Switch 6600-24G#

If you want to continue with console management of the switch at this time, see chapter 3, “Getting Started With Switch Configuration” for some basic configuration steps. For more detailed information, refer to the Management and Configuration Guide, which is on the ProCurve Web site at

www.procurve.com/manuals.

Installing the Switch

Console Cable Pinouts

The console cable has an RJ-45 male connector on one end and a DB-9 female connector on the other end. Table 2-16 describes the mapping of the RJ-45 to DB-9 pins.

12345678

4321

876

12345678

Figure 2-17. RJ-45 to DB-9 pinouts

2-21

Installing the Switch

Sample Network Topology

Table 2-18. Mapping of RJ-45 to DB-9

RJ-45 (Signal reference from

Chassis

RTS18CTS

TX_Debug 2 6 DSR

TXD 3 2 RXD

GND 4 5 GND

DCD 5 1 DCD

RXD 6 3 TXD

RX_Debug 7 4 DTR

CTS87RTS

DB-9 (Signal reference from PC)

9RI

Installing the Switch

Sample Network Topology

An industry standard building block approach requires that applications can be adapted to a common server environment. Virtualization of these resources allows for improved scaling, flexibility, and efficient use of resources, while delivering seamless interoperability.

2-22

Installing the Switch

Sample Network Topology

In such a model, server/access layer network infrastructure can be completely standardized and continuously deployed without regard to application requirements.

Gigabit fiber cable

ProCurve Switch 6600

Servers

Gigabit fiber cable

Installing the Switch

ProCurve Switch 6600

Servers

Figure 2-19. Example topology

2-23

Getting Started With Switch Configuration

Recommended Minimal Configuration

Getting Started With Switch Configuration

This chapter is a guide for using the console Switch Setup screen to quickly assign an IP (Internet Protocol) address and subnet mask to the switch, set a Manager password, and, optionally, configure other basic features.

For more information on using the switch console and the other switch management interfaces: the web browser interface and the SNMP management tool, ProCurve Manager, please see the Management and Configuration Guide, which is on the ProCurve Web site at

www.procurve.com/manuals.

Recommended Minimal Configuration

In the factory default configuration, the switch has no IP (Internet Protocol) address and subnet mask, and no passwords. In this state, it can be managed only through a direct console connection. To manage the switch through inband (networked) access, you should configure the switch with an IP address and subnet mask compatible with your network. Also, you should configure a Manager password to control access privileges from the console and web browser interface. Other parameters in the Switch Setup screen can be left at their default settings or you can configure them with values you enter.

Many other features can be configured through the switch’s console interface, to optimize the switch’s performance, to enhance your control of the network traffic, and to improve network security. Once an IP address has been configured on the switch, these features can be accessed more conveniently through a remote Telnet session, through the switch’s web browser interface, and from an SNMP network management station running a network management program, such as ProCurve Manager. For a listing of switch features available with and without an IP address, refer to “How IP Addressing Affects Switch Operation” in the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

Getting Started With Switch

Configuration

For more information on IP addressing, refer to “IP Configuration” in the Management and Configuration Guide.

3-1

Getting Started With Switch Configuration

Using the Console Setup Screen

Note By default, the switch is configured to acquire an IP address configuration

from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual method described in this chapter, see “DHCP/Bootp Operation” in the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

Using the Console Setup Screen

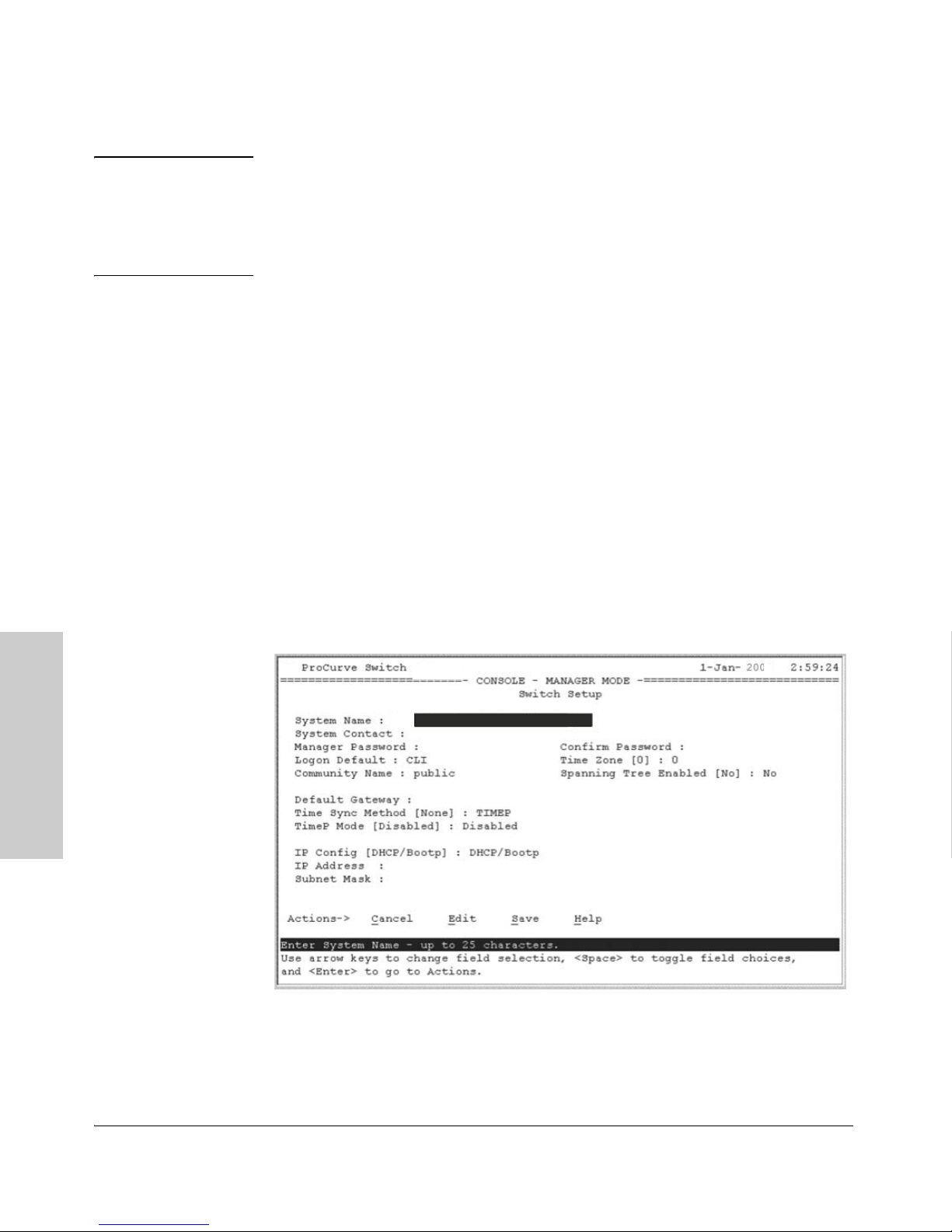

The quickest and easiest way to minimally configure the switch for management and password protection in your network is to use a direct console connection to the switch, start a console session, and access the Switch Setup screen.

1. Using the method described in the preceding section, connect a terminal device to the switch and display the switch console command (CLI) prompt (the default display).

The CLI prompt appears displaying the switch model number:

ProCurve 6600-24G Switch#

2. At the prompt, enter the setup command to display the Switch Setup screen. The following illustration shows the Setup screen with the default settings.

6600-2

Pr oCurve Switch

6600-2

Configuration

Getting Started With Switch

3. Use the password of up to 16 characters.

3-2

[Tab] key to select the Manager Password field and enter a manager

Getting Started With Switch Configuration

Using the Console Setup Screen

4. [Tab] to the IP Config (DHCP/Bootp) field and use the Space bar to select the Manual option.

[Tab] to the IP Address field and enter the IP address that is compatible with

5. your network.

[Tab] to the Subnet Mask field and enter the subnet mask used for your

network.

7. Press [

Enter], then [S] (for Save).

Here is some information on the fields in the Setup screen. For more information on these fields, see the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals:

Parameter Default

System Name blank Optional; up to 25 characters, including spaces

System Contact blank Optional; up to 48 characters, including spaces

Manager Password blank Recommended; up to 16 characters (no blank spaces)

Logon Default CLI The default setting selects the command line interface for console access.

The alternative is the menu interface.

Time Zone 0 (none) Optional; 1440 to -1440. The number of minutes your location is to the West (-)

or East (+) of GMT.

Community Name public Default setting recommended.

Spanning Tree Enabled No Default setting recommended unless STP is already running on your network

or the switch will be used in complex network topologies.

Default Gateway blank Optional; Enter the IP address of the next-hop gateway node if network traffic

needs to be able to reach off-subnet destinations.

Getting Started With Switch

Configuration

Time Sync Method None Optional; The protocol the switch uses to acquire a time signal. The options

TimeP Mode Disabled Optional; The method the switch uses to acquire the TimeP server address.

IP Config (DHCP/Bootp) DHCP/Bootp Set to Manual unless a DHCP/Bootp server is used on your network to

IP Address xxx.xxx.xxx.xxx Recommended; If you set IP Config to Manual, then enter an IP address

Note: The IP address and subnet mask assigned for the switch must be compatible with the IP addressing used in your network. For more information on IP addressing, see the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

Subnet Mask xxx.xxx.xxx.xxx Recommended; If you entered an IP address, then enter a subnet mask

are SNTP and TimeP.

configure IP addressing.

compatible with your network.

3-3

Getting Started With Switch Configuration

Where to Go From Here

The above procedure configures your switch with a Manager password, IP address, and subnet mask. As a result, with the proper network connections, you can now manage the switch from a PC equipped with Telnet, a web browser interface, or from an SNMP-based network management station using a tool such as ProCurve Manager.

Some basic information on managing your switch is included in the next section. For more information on the console, web browser, and SNMP management interfaces and all the features that can be configured on the switch, see the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

To Recover from a Lost Manager Password

If you cannot start a console session at the manager level because of a lost Manager password, you can clear all passwords and user names by getting physical access to the switch and pressing and holding the Clear button for a full second.

Configuration

Getting Started With Switch

3-4

Getting Started With Switch Configuration

Using the IP Address for Remote Switch Management

The switch’s IP address can be used to manage the switch from any PC that is on the same subnet as the switch. Either a Telnet session or a standard web browser can be used to manage the switch.

Starting a Telnet Session

To access the switch through a Telnet session, follow these steps:

1. Make sure the switch is configured with an IP address and that the switch is reachable from the PC that is running the Telnet session (for example, by using a Ping command to the switch’s IP address).

2. Start the Telnet program on a PC that is on the same subnet as the switch and connect to the switch’s IP address.

3. You will see the copyright page and the message “Press any key to continue”. Press a key, and you will then see the switch console command (CLI) prompt, for example:

ProCurve 6600-24G-4XG Switch#

Enter help or ? to see a list of commands that can be executed at the prompt. Entering any command followed by help provides more detailed context help information about the command. Entering any command followed by ? displays a list of options that are available at that point in the command entry.

Starting a Web Browser Session

Your Switch can be managed through a graphical interface that you can access from any PC or workstation on the network by running your web browser and typing in the switch’s IP address as the URL. No additional software installation is required to make this interface available; it is included in the switch’s onboard software.

The operating systems, web browsers, and Java support required to manage the switch through the browser interface are listed in the following table:

Getting Started With Switch

Configuration

3-5

Getting Started With Switch Configuration

Using the IP Address for Remote Switch Management

Operating System Internet Explorer Java Version

Windows 2000 SP4 5.5 SP2, 6.0 SP1 1.3.1_12 and 1.4.2_05

Windows XP SP1a 6.0 SP1 1.3.1_12 and 1.4.2_05

Windows Server 2003 6.0 SP1 1.3.1_12 and 1.4.2_05

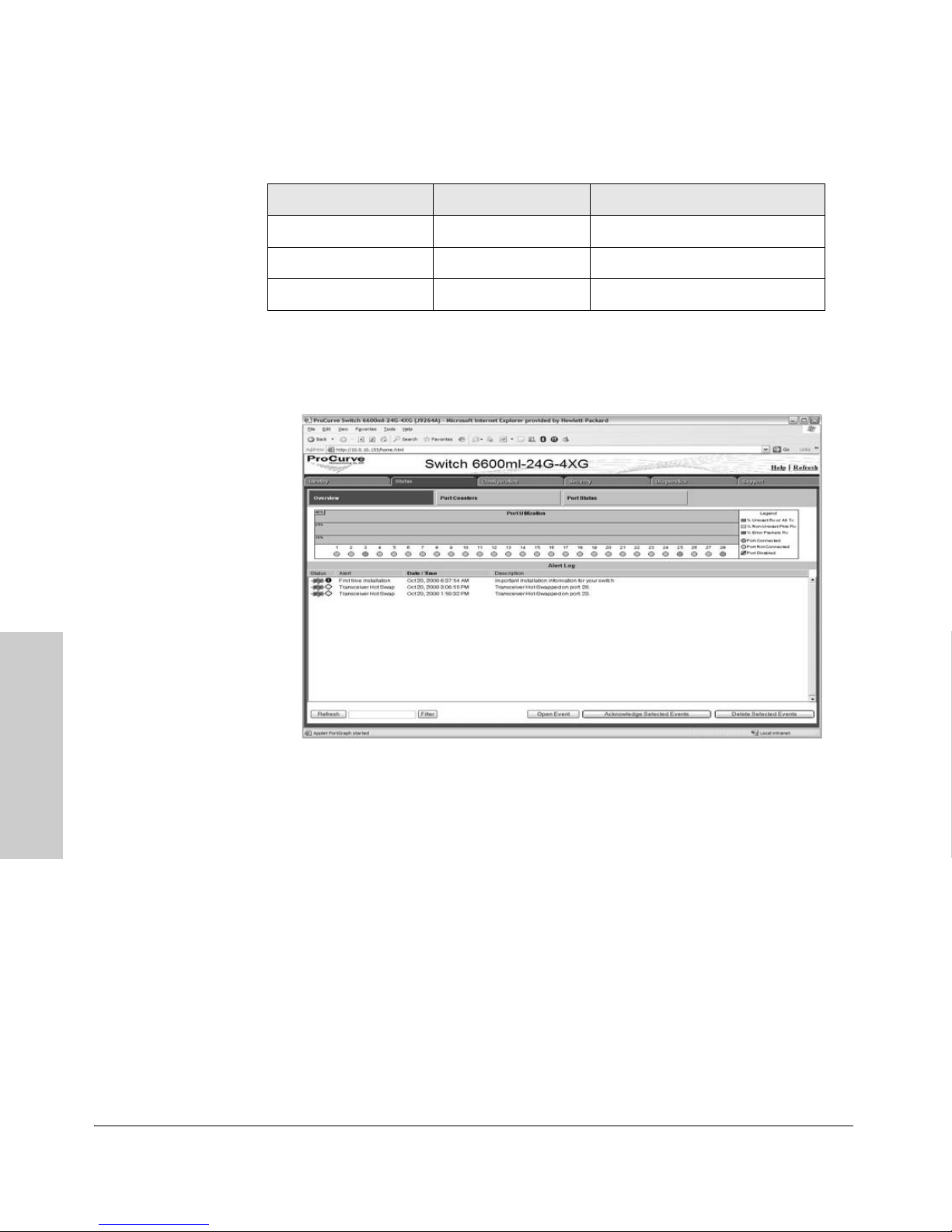

The following illustration shows a typical web browser interface screen.

Configuration

For more information on using the web browser interface, see the Management and Configuration Guide, which is on the ProCurve Web site

Getting Started With Switch

at www.procurve.com/manuals.

An extensive help system is also available for the web browser interface. To access the help system though, the subnet on which the switch is installed must have access to the internet, or ProCurve Manager needs to be installed on a network management station that is on the subnet.

3-6

Replacing Components

Replacing the fan tray assembly

Replacing Components

This chapter shows you how to remove and install the following components:

■ Fan tray (see page 4-1)

■ Battery (see page 4-3)

■ Power Supplies (see page 4-5)

Hot Swapping The battery cannot be hot swapped. The switch must be powered off to replace

the battery because the top must be removed.

Caution The HP ProCurve Series 6600 Switch and its components are sensitive to static

discharge. Use an antistatic wrist strap and observe all static precautions when replacing components.

Replacing the fan tray assembly

When a fan fails the Fan Status LED on the switch chassis will blink simultaneously with the switch Fault LED. In this case, the entire fan tray assembly needs to be replaced. Individual fans cannot be replaced.

The fan tray assembly is hot swappable. It can be removed and replaced without removing power from the switch. However, install the new fan tray assembly immediately (within two minutes) after removing the old fan tray assembly to avoid overheating and switch shutdown.

WARNING To avoid contact with spinning fans, if you are hot swapping out the

fan tray assembly, pull the assembly out one-inch and allow the fans to stop rotating (approximately 5 seconds) before pulling it all the way out.

Replacing Components

4-1

Replacing Components

Replacing the fan tray assembly

Caution If the fan assembly is replaced with the switch powered on, you will have

approximately three minutes before the switch overheats.

To replace a fan tray assembly:

1. Unscrew the retaining screws.

Retaining

screw

Figure 4-1. Fan tray assembly retaining screws

2. Holding the two retaining screws, pull the fan tray assembly straight out.

Fan tray

assembly

Figure 4-2. Removing the fan tray assembly

3. Remove the new fan tray assembly from it’s packaging.

Note Before installing the new fan tray assembly be sure the air flow direction is

the same as the fan tray assembly being replaced.

4. Holding the new fan tray assembly by the two retaining screws insert the new fan tray assembly fully. The face plate of the fan tray will be flush with the back face of the switch.

Replacing Components

5. Engage the retaining screws and tighten. Be sure to not over tighten the screws.

4-2

Replacing Components

Replacing the Battery

The battery is used to keep time for the internal switch clock. There is not LED indicator for when the battery no longer has sufficient power. The only indication will be the internal clock will not keep the correct time. The battery is not hot swappable. Replacing the battery must be done during scheduled downtime.

WARNING ■ The battery requires special handling at end-of-life. The battery

can explode or cause burns if disassembled, charged, or exposed to water, fire or high temperature. After replacing the battery, properly dispose of used battery according to instructions.

■ There is a risk of explosion if the battery is replaced by an

incorrect type. Ensure to replace the battery with the same type.

Installing a New Battery

WARNING To avoid the possibility of electric shock, all power cords must be

disconnected from the switch and both power supplies must be removed before starting this procedure. The top has an interlocking mechanism that prohibits removal until the power supplies are removed.

To install (or replace) a Battery:

1. Disconnect the power cable(s) and remove both power supplies.

2. Using a Torx T-8 screwdriver remove all the screws securing the top of the switch and remove the top. The top is interlocked with the power supplies and cannot be removed until the power supplies are removed.

3. Remove the used battery and dispose of properly.

Battery

Replacing Components

4-3

Replacing Components

Replacing the Battery

4. Insert a new battery with the lettering and the plus “+” sign facing up. Be sure to replace with the same type of battery.

5. Reinstall the top of the switch.

6. Reinstall and tighten all the screws securing the top.

7. Reconnect the power cable(s).

ATTENTION ll y a danger d'explosion s'il y a remplacement incorrect de la batterie.

Remplacer uniquement avec une batterie du même type ou d'un type équivalent recommandé par le constructeur.

Mettre au rebut les batteries usagées conformément aux instructions du fabricant.

ATTENTION If this product contains a real-time clock battery or coin cell battery it may

contain perchlorate and may require special handling when recycled or disposed of in California and other certain states.

Perchlorate material - special handling may apply see:

www.dtsc.ca.gov/hazardouswaste/perchlorate Web site for more

information."

Replacing Components

4-4

Replacing Components

Replacing the Power Supplies

If your HP ProCurve Series 6600 Switch is configured with redundant power supplies, the switch will not suffer any loss of traffic or performance if a power supply fails. Replace the failed component as soon as possible. The PS (Power Supply) LED will blink simultaneously with the switch Fault LED indicating a power supply has failed.

To remove an AC power supply:

1. Ensure the failed power supply is not plugged into an AC power source.

2. Grasping the handle of the failed power supply release the locking mechanism by squeezing the latch handle and remove the failed power supply.

Latch release

handle

Power supply

handle

3. Insert the new power supply. Slide it in all the way in until the locking mechanism locks.

Replacing Components

4-5

Troubleshooting

This chapter describes how to troubleshoot your switch. This document describes troubleshooting mostly from a hardware perspective. You can perform more in-depth troubleshooting on the switch using the software tools available with the switch, including the full-featured console interface, the built-in web browser interface, and ProCurve Manager, the SNMP-based network management tool. For more information, see the chapter “Troubleshooting” in the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

This chapter describes the following:

■ Basic Troubleshooting Tips (page 5-1)

■ Diagnosing with the LEDs (page 5-4)

■ Proactive Networking Tools (page 5-8)

■ Hardware Diagnostic Tests (page 5-9)

■ Restoring the Factory Default Configuration (page 5-11)

■ Downloading New Switch Software (page 5-12)

■ HP Customer Support Services (page 5-12)

Troubleshooting

Basic Troubleshooting Tips

Troubleshooting

Basic Troubleshooting Tips

Most problems are caused by the following situations. Check for these items first when starting your troubleshooting:

■ Connecting to devices that have a fixed full-duplex configuration.

The RJ-45 ports are configured as “Auto”. That is, when connecting to attached devices, the switch will operate in one of two ways to determine the link speed and the communication mode (half duplex or full duplex):

• If the connected device is also configured to Auto, the switch will

• If the connected device has a fixed configuration, for example

automatically negotiate both link speed and communication mode.

100 Mbps, the link speed, but will default to a communication mode of half duplex.

at half or full duplex, the switch will automatically sense

5-1

Troubleshooting

Basic Troubleshooting Tips

Caution Because the switch behaves in this way (in compliance with the IEEE 802.3

standard), if a device connected to the switch has a fixed configuration at full

duplex, the device will not connect correctly to the switch. The result will be high error rates and very inefficient communications between the switch and the device.

Make sure all devices connected to the switch are configured to auto nego-

Troubleshooting

tiate, or are configured to connect at half duplex (all hubs are configured this way, for example).

■ Faulty or loose cables. Look for loose or obviously faulty connections.

If they appear to be OK, make sure the connections are snug. If that does not correct the problem, try a different cable.

■ Non-standard cables. Non-standard and miswired cables may cause

network collisions and other network problems, and can seriously impair network performance. Use a new correctly-wired cable or compare your cable to the cable in appendix B, “Cables and Connectors” for pinouts and correct cable wiring. A category 5 cable tester is a recommended tool for every 100Base-TX and 1000Base-T network installation.

■ Improper Network Topologies. It is important to make sure you have

a valid network topology. Common topology faults include excessive cable length and excessive repeater delays between end nodes. If you have network problems after recent changes to the network, change back to the previous topology. If you no longer experience the problems, the new topology is probably at fault. Sample topologies are shown at the end of chapter 2 in this book, and some topology configuration guidelines can be found online on the ProCurve Web site at www.procurve.com/manuals.

5-2

In addition, you should make sure that your network topology contains no data path loops. Between any two end nodes, there should be only one active cabling path at any time. Data path loops will cause broadcast storms that will severely impact your network performance.

For your switch, if you wish to build redundant paths between important nodes in your network to provide some fault tolerance, you should enable Spanning Tree Protocol support on the switch. This ensures only one of the redundant paths is active at any time, thus avoiding data path loops. Spanning Tree can be enabled through the switch console, the web browser interface, or ProCurve Manager.

The Series 6600 Switch devices also support Trunking, which allows multiple network cables to be used for a single network connection without causing a data path loop. For more information on Spanning Tree and Trunking, see the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

Troubleshooting

Basic Troubleshooting Tips

■ Check the port configuration. A port on your switch may not be

operating as you expect because it has been put into a “blocking” state by Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking). (Note that the normal operation of the Spanning Tree, GVRP, and LACP features may put the port in a blocking state.) Or, the port just may have been configured as disabled through software.

Use the switch console to determine the port’s configuration and verify that there is not an improper or undesired configuration of any of the switch features that may be affecting the port. For more information, see the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

For more information on possible network problems and their solutions, refer to the technical note “Troubleshooting LAN Performance and Intermittent Connectivity Problems”, which can be found on the ProCurve Web site,

www.procurve.com/library, under “T” in the A-Z Index section.

Troubleshooting

5-3

Troubleshooting

Diagnosing with the LEDs

Table 5-1 shows LED patterns on the switch and the switch modules that indicate problem conditions.

1. Check in the table for the LED pattern you see on your switch.

Troubleshooting

2. Refer to the corresponding diagnostic tip on the next few pages.

Table 5-1. LED Error Indicators

LED Pattern Indicating Problems

Fan

Power Fault PS Tmp Tes t

Off with

power cord

plugged in

On Prolonged On * * Prolonged

On Blinking

On Off * * Off * Off with cable

On Off * * Off * On, but the port is

On Blinking Blinking * Off * *

On Blinking * Blinking Off * *

*PS LED off

or blinking

orange

†

**Blinking†**

* * Off Blinking

**Blinking†* Blinking

*** *

Status

Port LED

(in Link view mode)

†

connected

communicating

not

Diag

Tip s

➊

➋

➌

➍

†

➎

➏

➐

➑

➒

* This LED is not important for the diagnosis.

†

The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.

5-4

Diagnostic Tips:

Troubleshooting

Diagnosing with the LEDs

Tip Problem Solution

➊

➋

➌

The switch is not plugged into an active AC power source, or the switch’s power supply may have failed.

A switch hardware failure has occurred. All the LEDs will st ay on indefinitely.

The switch has experienced a software failure during self test.

1. Verify the power cord is plugged into an active power source and to the switch. Make sure these connections are snug.

2. Try power cycling the switch by unplugging and plugging the power cord back in.

3. If the Power LED is still not on, verify that the AC power source works by plugging another device into the outlet. Or try plugging the switch into a different outlet or try a different power cord.

If the power source and power cord are OK and this condition persists, the switch power supply may have failed. Call your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer Support/Warranty booklet for more information.

Try power cycling the switch. If the fault indication reoccurs, the switch may have failed. Call your ProCurve authorized LAN dealer, or use the electronic support services from HP to get assistance. See the Customer Support/Warranty booklet for more information.

1. Try resetting the switch by pressing the Reset button on the front of the switch, or by power cycling the switch.

2. If the fault indication reoccurs, attach a console to the switch (as indicated in chapter

2) and configure it to operate at 9600 baud. Then, reset the switch. Messages should appear on the console screen and in the console log identifying the error condition. You can view the console log at that point by selecting it from the console Main Menu.

If necessary to resolve the problem, contact your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer Support/Warranty booklet for more information.

Troubleshooting

➍

➎

One of the switch cooling fans may have failed.

The network port for which the LED is Blinking has experienced a self test or initialization failure.

Try disconnecting power from the switch and wait a few moments. Then reconnect the power to the switch and check the LEDs again. If the error indication reoccurs, one of the fans has failed. The other switch fans may continue to operate under this condition if the ambient temperature does not exceed normal room temperature, but for best operation, the fans should be replaced. Contact your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer Support/ Warranty booklet for more information.

Try power cycling the switch. If the fault indication reoccurs, the switch port may have failed. Call your ProCurve authorized LAN dealer, or use the electronic support services from ProCurve to get assistance. See the Customer Support/Warranty booklet for more information.

If the port is a pluggable, verify it is one of the pluggables supported by the switch. Unsupported pluggables will be identified with this fault condition. The supported miniGBICs are listed in Chapter 2, “Installing the Switch” on page 2-1. The mini-GBICs are also tested when they are “hot-swapped” — installed or changed while the switch is powered on. Also check the log file for error messages.

To verify the port has failed, try removing and reinstalling the mini-GBIC without having to power off the switch. If the port fault indication reoccurs, you will have to replace the mini-GBIC.

5-5

Troubleshooting

Diagnosing with the LEDs

Tip Problem Solution

continued on the next page

➏

The network connection is not working properly.

Troubleshooting

Try the following procedures:

• For the indicated port, verify both ends of the cabling, at the switch and the connected device, are connected properly.

• Verify the connected device and switch are both powered on and operating correctly.

• Verify you have used the correct cable type for the connection: – For twisted-pair connections to the fixed 10/100 or 10/100/1000 ports, if the port is

configured to “Auto” (auto negotiate), either straight-through or crossover cables can be used because of the switch’s “HP Auto-MDIX” feature and the Auto MDI/ MDI-X feature of the 10/100/1000-T port.

Note: If the switch port configuration is changed to one of the fixed configuration options (for example, 100 Mbps/Full Duplex), then the port operates as MDI-X only and you must use the correct type of cable for the connection. In general, for connecting an end node (MDI port) to the switch, use straight-through cable; for connecting to MDI-X ports on hubs, other switches, and routers, use crossover cable.

– For fiber-optic connections, verify the transmit port on the switch is connected to

the receive port on the connected device, and the switch receive port is connected to the transmit port on the connected device.

• For the dual-personality 10/100/1000-T ports, be sure a mini-GBIC is not installed in the associated slot.

• For 1000Base-T connections, verify that the network cabling complies with the IEEE

802.3ab standard. the cable should be installed according to the ANSI/TIA/EIA-568A-5 specifications. Cable testing should comply with the stated limitations for Attenuation, Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End Crosstalk (ELFEXT), Multiple Disturber ELFEXT, and Return Loss.

The cable verification process must include all patch cables from any end devices, including the switch, to any patch panels in the cabling path.

• Verify the port has not been disabled through a switch configuration change. You can use the console interface, or, if you have configured an IP address on the

switch, use the web browser interface, or ProCurve Manager network management software to determine the state of the port and re-enable the port if necessary.

• Verify the switch port configuration matches the configuration of the attached device. For example, if the switch port is configured as “Auto”, the port on the attached device also MUST be configured as “Auto”. Depending on the port type, twisted-pair or fiberoptic, if the configurations don’t match, the results could be a very unreliable connection, or no link at all.

• If the othe r procedures don’t resolv e the problem, try using a different port or a different cable.

5-6

Tip Problem Solution

Troubleshooting

Diagnosing with the LEDs

➐

➑

➒

The port may be improperly configured, or the port may be in a “blocking” state by the normal oper ation of the Spanning Tree, LACP, or IGMP features.

A power supply has failed in a multi-power supply switch.

The switch has overheated.

Use the switch console to see if the port is part of a dynamic trunk (through the LACP feature) or to see if Spanning Tree is enabled on the switch, and to see if the port may have been put into a “blocking” state by those features. The show lacp command displays the port status for the LACP feature; the show spanning-tree command displays the port status for Spanning Tree.

Also check the Port Status screen using the show interfaces command to see if the port has been configured as “disabled”.

Other switch features that may affect the port operation include VLANs and IGMP. Use the switch console to see how the port is configured for these features.

For software troubleshooting tips, see the chapter “Troubleshooting” in the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/

manuals.

Make sure also, the device at the other end of the connection is indicating a good link to the switch. If it is not, the problem may be with the cabling between the devices or the connectors on the cable.

Check the back of the switch to see which power supply has failed. The failed power supply LED will be blinking. Re place the failed powe r supply. Once the failed power supply is removed the LEDs will return to normal. If only one supply is inserted, try power cycling the switch. If the fault reoccurs, the power supply may need to be replaced. If there are two power supplies inserted but only one is connected, to remove the fault either connect power to the other supply or remove it.

Check to ensure the fans are functioning correctly.

Troubleshooting

5-7

Troubleshooting

Proactive Networking

The HP ProCurve Series 6600 Switches have built-in management capabilities that proactively help you manage your network including:

■ finding and helping you fix the most common network error conditions

Troubleshooting

(for example, faulty network cabling, and non-standard network topologies)

■ informing you of the problem with clear, easy-to-understand messages

■ recommending network configuration changes to enhance the perfor-

mance of your network

The following interfaces provide tests, indicators, and an event log that can be used to monitor the switch and its network connections and to help you take advantage of these proactive networking features:

■ ProCurve Manager - an SNMP-based network management tool that is

included with your switch.

■ A graphical web browser interface that you can use to manage your switch

from a PC running a supported web browser, for example Microsoft Internet Explorer, and Netscape Communicator.

■ A full-featured easy-to-use console interface that you can access by

connecting a standard terminal or PC running a terminal emulator to the switch’s console port. The cable to make that connection is provided with your switch. The console interface is also accessible through a Telnet connection.

5-8

For more information on using these software tools to diagnose and manage your switch, see the “Troubleshooting” chapter in the Management and Configuration Guide, which is on the ProCurve Web site at

www.procurve.com/manuals.

Troubleshooting

Hardware Diagnostic Tests

Testing the Switch by Resetting It

If you believe the switch is not operating correctly, you can reset the switch to test its circuitry and operating code. To reset a switch, either:

■ unplug and plug in the power cord (power cycling)

■ press the Reset button on the front of the switch

Power cycling the switch and pressing the Reset button both cause the switch to perform its power-on self test, which almost always will resolve any temporary operational problems. These reset processes also cause any network traffic counters to be reset to zero, and cause the System Up Time timer to reset to zero.

Checking the Switch LEDs

The self test passes if the Fault and Self Test LEDs on the front of the switch go off after approximately 50 seconds. If these LEDs stay on longer than 60 seconds or begin Blinking, there may be a problem with the switch.

Troubleshooting

See “Diagnosing With the LEDs” on page 5-4 for information on interpreting the LED patterns and LED behaviors in chapter one.

Checking Console Messages

Useful diagnostic messages may be displayed on the console screen when the switch is reset. As described in chapter 2 under step 7, “Connect a Console to the Switch”, connect a PC running a VT-100 terminal emulator program or a standard VT-100 terminal to the switch’s Console Port and configure it to run at 9600 baud, and with the other terminal communication settings shown on

page 2-19. Then, when you reset the switch, note the messages that are

displayed. Additionally, you can check the switch event log, which can be accessed from the console using the show log command, or from the console Main Menu.

5-9

Troubleshooting

Hardware Diagnostic Tests

Testing Twisted-Pair Cabling

Network cables that fail to provide a link or provide an unreliable link between the switch and the connected network device may not be compatible with the IEEE 802.3 Type 10Base-T, 100Base-TX, or 1000Base-T standards. The twistedpair cables attached to the Switch must be compatible with the appropriate standards. To verify your cable is compatible with these standards, use a

Troubleshooting

qualified cable test device.

Testing Switch-to-Device Network Communications

You can perform the following communication tests to verify the network is operating correctly between the switch and any connected device that can respond correctly to the communication test.

■ Link Test -- a physical layer test that sends IEEE 802.2 test packets to any

device identified by its MAC address.

■ Ping Test -- a network layer test used on IP networks that sends test

packets to any device identified by its IP address.

These tests can be performed through the switch console interface from a terminal connected to the switch or through a Telnet connection, or from the switch’s web browser interface. For more information, see the Management and Configuration Guide, which is on the ProCurve Web site at

www.procurve.com/manuals.

These tests can also be performed from an SNMP network management station running a program that can manage the switch, for example, ProCurve Manager.

Testing End-to-End Network Communications

Both the switch and the cabling can be tested by running an end-to-end communications test -- a test that sends known data from one network device to another through the switch. For example, if you have two PCs on the network that have LAN adapters between which you can run a link-level test or Ping test through the switch, you can use this test to verify that the entire communication path between the two PCs is functioning correctly. See your LAN adapter documentation for more information on running a link test or Ping test.

5-10

Troubleshooting

Restoring the Factory Default Configuration

As part of your troubleshooting process on the switch, it may become necessary to return the switch configuration to the factory default settings. This process momentarily interrupts the switch operation, clears any passwords, clears the console event log, resets the network counters to zero, performs a complete self test, and reboots the switch into its factory default configuration including deleting the IP address, if one is configured.

Note This process removes all switch configuration changes you have made from

the factory default settings. This includes, for example, configuration of VLANs, Spanning Tree, trunks, and stacking. Returning the configuration of these features to their factory default settings (usually disabling them) may result in network connectivity issues.

If the switch has a valid configuration, and you are restoring the factory default settings for a reason other than configuration problems, you should save the switch configuration prior to performing the factory default reset. Then, after the reset and resolution of the original problem, you can restore the saved configuration to the switch. For both the save and restore processes, you can use the console copy command. For more information on this command, see the Management and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/manuals.

Troubleshooting

You can restore the factory default configuration either on the switch itself, or through the switch console.

To execute the factory default reset on the switch, perform these steps:

1. Using pointed objects, simultaneously press both the Reset and Clear buttons on the front of the switch.

2. Continue to press the Clear button while releasing the Reset button.

3. When the Self Test LED begins to blink, release the Clear button.

The switch will then complete its self test and begin operating with its configuration restored to the factory default settings.

To restore the factory default configuration using the console, execute the erase startup-config command from the console command prompt.

5-11

Troubleshooting

Downloading New Switch Software

When product enhancements occur for the switch, new software can be downloaded to the switch through several methods, for product enhancements and new features. For more information, see the Management and Configuration Guide, which is on the ProCurve Web site at

Troubleshooting

www.procurve.com/manuals

The new switch software would be available on the ProCurve Web site at

www.procurve.com/software.

HP Customer Support Services

If you are still having trouble with your switch, Hewlett-Packard offers support 24 hours a day, seven days a week through the use of a number of automated electronic services. See the Customer Support/Warranty booklet that came with your switch for information on how to use these services to get technical support. The ProCurve Web site at www.procurve.com/support also provides up-to-date support information.

Additionally, your ProCurve authorized network reseller can provide you with assistance, both with services that they offer and with services offered by ProCurve.

Before Calling Support

Before calling your networking dealer or ProCurve Support, to make the support process most efficient, you first should have retrieved the following information:

Information Item Information Location

• product identification, including miniGBICs

• details about the switch’s status including the software (OS) version, a copy of the switch configuration, a copy of the switch Event Log, and a copy of the switch status and counters information

• copy of your network topology map, including network addresses assigned to the relevant devices

the front of the switch and on labels on the mini-GBICs

switch console: show tech command

your network records

5-12

Specifications

Physical

HP ProCurve 6600-24G Swi tch (J9263A)

Width: 44.3 cm (17.42 in) 44.3 cm (17.42 in) 44.3 cm (17.42 in)

Depth: 51.1 cm (20.1 in) 51.1 cm (20.1 in) 59.9 cm (23.6 in)

Height: 4.4 cm (1.7 in) 4.4 cm (1.7 in) 4.4 cm (1.7 in)

Weight: 7.68 kg (16.93) lbs) 7.7 kg (16.97 lbs) 9.33 kg (20.6 lbs)

HP ProCurve 6600-24G-4XG Switch (J9264A)

HP ProCurve 6600-24XG Switch (J9265A)

Electrical

The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz.

Applicable Products HP ProCurve 6600-24G Switch

(J9263A)

Electrical

AC voltage: Maximum current: Frequency range:

The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz.

100-127/200-240 volts

1.8A/0.9A 50/60 Hz

HP ProCurve 6600-24G-4XG Switch (J9264A)

100-127/200-240 volts

2.1A/1.1A 50/60 Hz

HP ProCurve 6600-24XG Switch (J9265A)

100-127/200-240 volts

4.2A/2.2A 50/60 Hz

Specifications

Environmental

Temperature: 5°C to 40°C (41°F to 104°F) -40°C to 70°C (-40°F to 158°F)

Relative humidity: (non-condensing)

Maximum altitude: 3.0 km (10,000 ft) 4.6 km (15,000 ft)

Operating Non-Operating

15% to 80% at 40°C (104°F) 20% to 90% at 70°C (158°F)

A-1

Specifications

Acoustic

HP ProCurve Switch 6600-24G (J9263A)

Geraeuschemission LpA=62.3 dB am fiktiven Arbeitsplatz nach DIN 45635 T.19

Noise Emission LpA=49.3 dB at virtual workspace according to DIN 45635 T.19

HP ProCurve Switch 6600-28G-4XG (J9264A)

Geraeuschemission LpA=59.5 dB am fiktiven Arbeitsplatz nach DIN 45635 T.19

Noise Emission LpA=52 dB at virtual workspace according to DIN 45635 T.19

HP ProCurve Switch 6600-24G-24XG (J9265A)

Specifications

Geraeuschemission LpA=61.8 dB am fiktiven Arbeitsplatz nach DIN 45635 T.19

Noise Emission LpA=49.3 dB at virtual workspace according to DIN 45635 T.19

Safety

Complies with:

■ EN60950-1

■ CSA 22.2 No. 60950-1

■ UL 60950-1

■ IEC 60950-1

A-2

Table A-1. Technology standards and safety compliance

Laser safety information

Specifications

Technology Compatible with these IEEE

standards

10/100/1000-T IEEE 802.3 10BASE-T,

IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T

100-FX IEEE 802.3u 100BASE-FX EN/IEC

100-BX IEEE 802.3ah 100BASE-BX10 EN/IEC

1000-SX IEEE 802.3z 1000BASE-SX EN/IEC

1000-LX IEEE 802.3z 1000BASE-LX EN/IEC

1000-LH (not an IEEE standard) EN/IEC

1000-BX IEEE 802.3ah 1000BASE-BX10 EN/IEC

Safety

standard

compliance

60825

SFP (“mini-GBIC”)

Lasers

Class 1 Laser Product Laser Klasse 1

SFP+

Lasers

Specifications

10-Gig Direct Attach

10-Gig SR IEEE 802.3ae 10GBASE-SR EN/IEC

10-Gig LRM IEEE 802.3aq 10GBASE-LRM EN/IEC

10-Gig LR IEEE 802.3ae 10GBASE-LR EN/IEC

(not an IEEE standard)

60825

Class 1 Laser Product Laser Klasse 1

A-3

Cabling and Technology Information

This appendix includes network cable information for cables that should be used with the Switch 6600, including minimum pin-out information and specifications for twisted-pair cables.

Note Incorrectly wired cabling is the most common cause of problems for LAN

communications. ProCurve recommends that you work with a qualified LAN cable installer for assistance with your cabling requirements.

Cabling specifications

Table B-1.

Twisted-pair copper 10 Mbps Operation Category 3, 4, or 5 100-ohm unshielded twisted-pair (UTP) or

shielded twisted-pair (STP) cable, complying with IEEE 802.3 10Base-T specifications.

100 Mbps Operation Category 5 100-ohm UTP or STP cable, complying with IEEE

802.3u 100Base-TX specifications.

1000 Mbps Operation Category 5 10 0-ohm 4-pair UTP or STP cable, compl ying with IEEE

802.3ab 1000Base-T specifications—Category 5e or better is recommended. See note on 1000Base-T Cable Requirements on

page B-2.

Twinaxial copper Direct attach cables One-piece devices consisting of a cable with SFP+ connectors

permanently a ttached to each end, complying with SFF 8431 S FP+ specifications.

Multimode fiber 62.5/125 μm or 50/125 μm (core/cladding) diameter, low metal

content, graded index fiber-optic cables, complying with the ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a standards respectively.

Single mode fiber 9/125 μm (core/cladding) diameter, low metal content fiber-optic

cables, complying with the ITU-T G.652 and ISO/IEC 793-2 Type B1 standards.

A mode conditioning patch cord may be needed for some Gigabit-LX and 10-Gigabit LRM installations.

See “Mode Conditioning Patch Cord” on page B-4 for more information.

Cabling and Technology

Information

B-1

Cabling and Technology Information

Note on 1000Base-T Cable Requirements. The Category 5 networking cables that work for 100Base-TX connections should also work for 1000Base-T, as long as all four-pairs are connected. But, for the most robust connections you should use cabling that complies with the Category 5e specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/ TIA/EIA-568-A-5).

Because of the increased speed provided by 1000Base-T (Gigabit-T), network cable quality is more important than for either 10Base-T or 100Base-TX. Cabling plants being used to carry 1000Base-T networking must comply with the IEEE 802.3ab standards. In particular, the cabling must pass tests for Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT). Additionally, unlike the cables for 100Base-TX, the 1000Base-T cables must pass tests for Equal-Level Far-End Crosstalk (ELFEXT) and Return Loss.

When testing your cabling, be sure to include the patch cables that connect the switch and other end devices to the patch panels on your site. The patch cables are frequently overlooked when testing cable and they must also comply with the cabling standards.

Information

Cabling and Technology

B-2

Cabling and Technology Information

Technology distance specifications

Table B-2.

Technology Supported cable type Multimode fiber

modal bandwidth

100-FX multimode fiber any up to 2,000 meters

100-BX single mode fiber N/A 0.5 - 10,000 meters

1000-T twisted-pair copper N/A up to 100 meters

1000-SX multimode fiber 160 MHz*km

200 MHz*km 400 MHz*km 500 MHz*km

1000-LX multimode fiber

single mode fiber

1000-LH single mode fiber N/A 10 - 70,000 meters

1000-BX single mode fiber N/A 0.5 - 10,000 meters

10-Gig Direct Attach twinaxial copper N/A (various lengths offered)

10-Gig SR multimode fiber 160 MHz*km

400 MHz*km 500 MHz*km N/A

200 MHz*km 400 MHz*km 500 MHz*km 2000 MHz*km

Supported distances

2 - 220 meters 2 - 275 meters 2 - 500 meters 2 - 550 meters

2 - 550 meters 2 - 550 meters 2 - 10,000 meters

2 - 26 meters 2 - 33 meters 2 - 66 meters 2 - 82 meters 2 - 300 meters

Cabling and Technology

Information

10-Gig LRM multimode fiber 400 MHz*km

500 MHz*km

10-Gig LR single mode fiber N/A 2 - 10,000 meters

For distances less than 20km, a 10dB attenuator must be used. For distances between 20km and 40km,

a 5dB attenuator must be used. Attenuators can be purchased from most cable vendors.

0.5 - 100 meters

0.5 - 220 meters

B-3

Cabling and Technology Information

Mode Conditioning Patch Cord

The following information applies to installations in which multimode fiberoptic cables are connected to a Gigabit-LX port or a 10-Gigabit LRM port. Multimode cable has a design characteristic called “Differential Mode Delay”, which requires the transmission signals be “conditioned” to compensate for the cable design and thus prevent resulting transmission errors.

Under certain circumstances, depending on the cable used and the lengths of the cable runs, an external Mode Conditioning Patch Cord may need to be installed between the Gigabit-LX or 10-Gigabit LRM transmitting device and the multimode network cable to provide the transmission conditioning. If you experience a high number of transmission errors on those ports, usually CRC or FCS errors, you may need to install one of these patch cords between the fiber-optic port in your switch and your multimode fiber-optic network cabling, at both ends of the network link.

The patch cord consists of a short length of single mode fiber cable coupled to graded-index multimode fiber cable on the transmit side, and only multimode cable on the receive side. The section of single mode fiber is connected in such a way that it minimizes the effects of the differential mode delay in the multimode cable.

Note Most of the time, if you are using good quality graded-index multimode fiber

cable that adheres to the standards listed in Appendix B, there should not be a need to use mode conditioning patch cords in your network. This is especially true if the fiber runs in your network are relatively short.

For 10-Gigabit LRM using OM3 cable (50 μm multimode @ 1500/500 MHz*km),

Information

Cabling and Technology

a mode conditioning patch cord is not required. Other multimode cables may require mode conditioning patch cords to achieve the LRM maximum distances.

B-4

Cabling and Technology Information

Mode Conditioning Patch Cord

Installing the Patch Cord

As shown in the illustration below, connect the patch cord to the ProCurve transceiver with the section of single mode fiber plugged in to the Tx (transmit) port. Then, connect the other end of the patch cord to your network cabling patch panel, or directly to the network multimode fiber.

If you connect the patch cord directly to the network cabling, you may need to install a female-to-female adapter to allow the cables to be connected together.

To netw o rk

multimode

cabling

Gigabit-LX port

Mode Conditioning

Patch Cord

The multimode cable in the patch cord must match the c haracteristics of your

network cable

Single-mode section plugs into Tx

port on Gigabit-LX Transceiver or

Gigabit-LX mini-GBIC

Figure B-1. Example: Connecting a Mode Conditioning Patch Cord for Gigabit-LX

Make sure you purchase a patch cord that has appropriate connectors on each end, and has multimode fibers that match the characteristics of the multimode fiber in your network. Most important, the core diameter of the multimode patch cord must match the core diameter of the multimode cable infrastructure (either 50 or 62.5 microns).

Cabling and Technology

Information

B-5

Cabling and Technology Information

Twisted-Pair Cable/Connector Pin-Outs

Auto-MDIX Feature: The 10/100/1000-T ports support the IEEE 802.3ab standard, which includes the “Auto MDI/MDI-X” feature. In the default configuration, “Auto”, the ports on the Switch 6600 all automatically detect the type of port on the connected device and operate as either an MDI or MDIX port, whichever is appropriate. So for any connection, a straight-through twisted-pair cable can be used -- you no longer have to use crossover cables, although crossover cables can also be used for any of the connections.

If you connect a Switch 6600 twisted-pair port to another switch or hub, which typically have MDI-X ports, the Switch 6600 port automatically operates as an MDI port. If you connect it to an end node, such as a server or PC, which typically have MDI ports, the Switch 6600 port operates as an MDI-X port. In all cases, you can use standard straight-through cables or crossover cables.

If you happen to use a correctly wired crossover cable, though, the switch will still be able to automatically detect the MDI/MDI-X operation and link correctly to the connected device.

Other Wiring Rules:

■ All twisted-pair wires used for 10 Mbps, and 100 Mbps operation must be

twisted through the entire length of the cable. The wiring sequence must conform to EIA/TIA 568-B (not USOC). See “Twisted-Pair Cable Pin Assignments” later in this appendix for a listing of the signals used on each pin.

■ For 1000Base-T connections, all four pairs of wires in the cable must be

Information

available for data transmission. See “Note on 1000Base-T Cable Require-

ments” on page B-2 for more information on 1000Base-T cabling.

Cabling and Technology

■ For 10 Mbps connections to the ports, you can use Category 3, 4, or 5

unshielded twisted-pair cable, as supported by the IEEE 802.3 Type 10Base-T standard.

■ For 100 Mbps connections to the ports, use 100-ohm Category 5 UTP or

STP cable only, as supported by the IEEE 802.3u Type 100Base-TX standard.

■ For 1000 Mbps connections, 100-ohm Category 5e or better cabling is

recommended.

B-6

Cabling and Technology Information

Twisted-Pair Cable/Connector Pin-Outs

Straight-Through Twisted-Pair Cable for 10 Mbps or 100 Mbps Network Connections

Because of the HP Auto-MDIX operation of the 10/100 ports on the switch, for all network connections, to PCs, servers or other end nodes, or to hubs or other switches, you can use straight-through cables.

If any of these ports are given a fixed configuration, for example 100 Mbps/ Full Duplex, the ports operate as MDI-X ports, and straight-through cables must be then used for connections to PC NICs and other MDI ports.

Cable Diagram

Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2

on connector “B”. Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”. Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.

Pin Assignments

Switch End (MDI-X) Computer, Transceiver, or

Other End

Signal Pins Pins Signal

receive + receive transmit + transmit -

1 2 3 6

transmit + transmit receive + receive -

Cabling and Technology

Information

B-7

Cabling and Technology Information

Twisted-Pair Cable/Connector Pin-Outs

Crossover Twisted-Pair Cable for 10 Mbps or 100 Mbps Network Connection

The HP Auto-MDIX operation of the 10/100 ports on the switch also allows you to use crossover cables for all network connections, to PCs, servers or other end nodes, or to hubs or other switches.

If any of these ports are given a fixed configuration, for example 100 Mbps/ Full Duplex, the ports operate as MDI-X ports, and crossover cables must be then used for connections to hubs or switches or other MDI-X network devices.

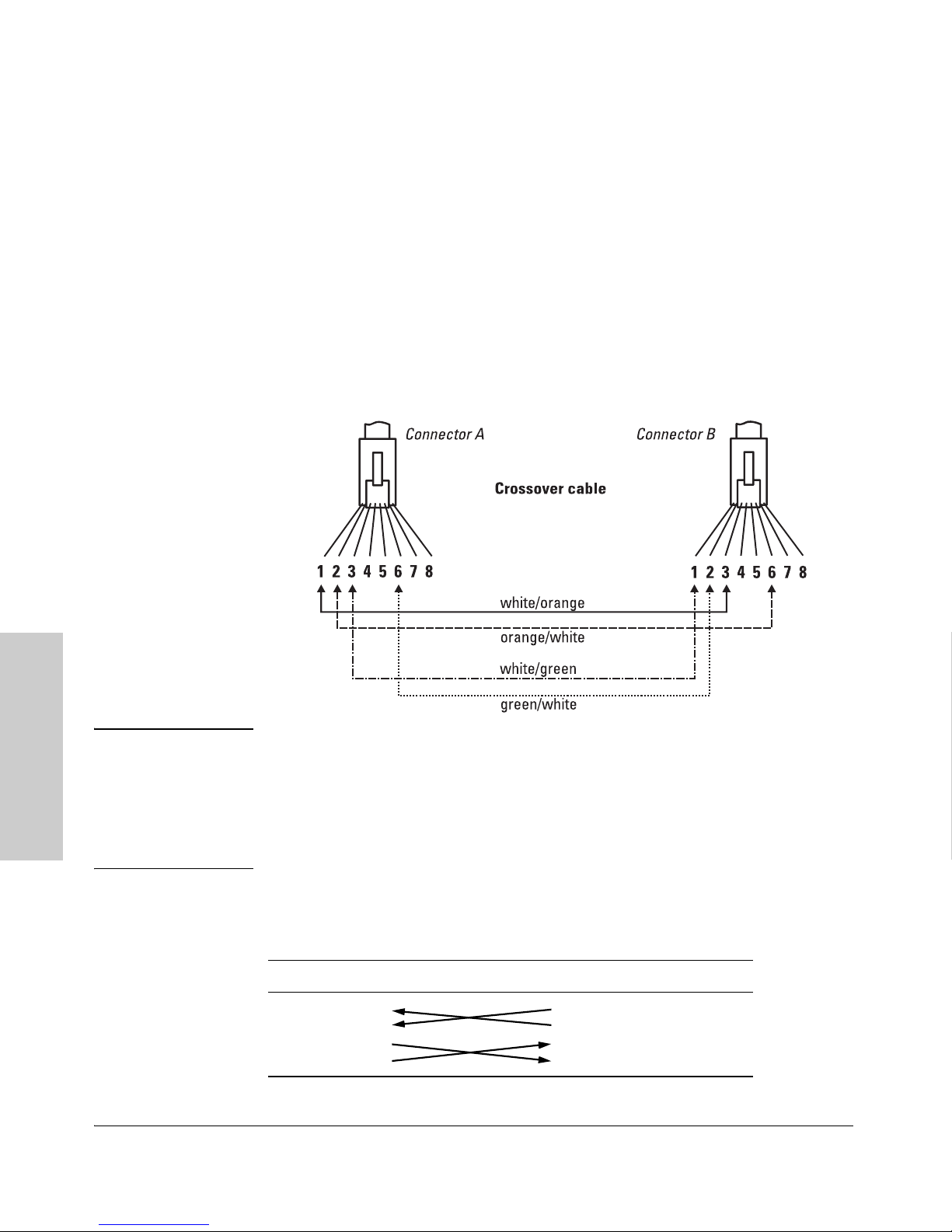

Cable Diagram

Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6

Information

Cabling and Technology

on connector “B”. Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2 on connector “B”. Pins 4, 5, 7, and 8 are not used in this application, although they may be wired in the cable.

Pin Assignments

Switch End (MDI-X) Hub or Switch Port, or Other

MDI-X Port End

Signal Pins Pins Signal

receive + receive transmit + transmit -

B-8

1 2 3 6

6 3 2 1

transmit transmit + receive receive +

Cabling and Technology Information

Twisted-Pair Cable/Connector Pin-Outs

Straight-Through Twisted-Pair Cable for 1000 Mbps Network Connections

1000Base-T connections require that all four pairs or wires be connected.

Cable Diagram

Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2

on connector “B”. Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6 on connector “B”. Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5 on connector “B”. Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8 on connector “B”.

Pin Assignments

For 1000Base-T operation, all four pairs of wires are used for both transmit and receive.

Cabling and Technology

Information

B-9

Safety and EMC Regulatory Statements

Safety Information

Documentation reference symbol. If the product is marked with this

WARNING A WARNING in the manual denotes a hazard that can cause injury

Caution A Caution in the manual denotes a hazard that can damage equip-

symbol, refer to the product documentation to get more information about the product.

or death.

ment.

Do not proceed beyond a WARNING or Caution notice until you have understood the hazardous conditions and have taken appropriate steps.

Grounding

These are safety class I products and have protective earthing terminals. There must be an uninterruptible safety earth ground from the main power source to the product's input wiring terminals, power cord, or supplied power cord set. Whenever it is likely that the protection has been impaired, disconnect the power cord until the ground has been restored.

For LAN cable grounding:

■ If your LAN covers an area served by more than one power distribu-

tion system, be sure their safety grounds are securely interconnected.

■ LAN cables may occasionally be subject to hazardous transient volt-

ages (such as lightning or disturbances in the electrical utilities power grid). Handle exposed metal components of the network with caution.

Servicing

There are no user-serviceable parts inside these products. Any servicing, adjustment, maintenance, or repair must be performed only by service-trained personnel.

These products do not have a power switch; they are powered on when the power cord is plugged in.

Safety and EMC Regulatory

Statements

C-1

Safety and EMC Regulatory Statements

Informations concernant la sécurité

WARNING Dans la documentation, un WARNING indique un danger susceptible

Caution Un texte de mise en garde intitulé Caution indique un danger suscep-

Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement fourni avec le produit. Lorsque cette protection semble avoir été endommagée, débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.

Symbole de référence à la documentation. Si le produit est marqué de ce symbole, reportez-vous à la documentation du produit afin d'obtenir des informations plus détaillées.

d'entraîner des dommages corporels ou la mort.

tible de causer des dommages à l'équipement.

Ne continuez pas au-delà d'une rubrique WARNING ou Caution avant d'avoir bien compris les conditions présentant un danger et pris les mesures appropriées.

Mise à la terre du câble de réseau local:

■ si votre réseau local s'étend sur une zone desservie par plus d'un système de

distribution de puissance, assurez-vous que les prises de terre de sécurité soient convenablement interconnectées.

■ Les câbles de réseaux locaux peuvent occasionnellement être soumis à des

surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants métalliques du réseau avec précautions.

Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur. Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un personnel qualifié.

Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est effectuée par branchement du cordon d'alimentation.

Statements

Safety and EMC Regulatory

C-2

Safety and EMC Regulatory Statements

Hinweise zur Sicherheit

Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem

WARNING Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die

Caution Caution in der Dokumentation symbolisiert eine Gefahr, die dis Gerät

Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose herausziehen, bis die Erdung wiederhergestellt ist.

Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation nach, um mehr Informationen über das Produkt zu erhalten.

Verletzungen oder sogar Todesfälle verursachen kann.

beschädigen kann.

Fahren Sie nach dem Hinweis WARNING oder Caution erst fort, nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.

Für LAN-Kabelerdung:

■ Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungs-

system beliefert wird, müssen Sie sich vergewissern, daß die Sicherheitserdungen fest untereinander verbunden sind.

■ LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausge-

setzt werden (beispielsweise durch Blitz oder Störungen in dem Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter Metallbestandteile des Netzwerkes Vorsicht walten lassen.

Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-, Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem Bedienungspersonal durchgeführt werden.

Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels eingeschaltet.

Safety and EMC Regulatory

Statements

C-3

Safety and EMC Regulatory Statements

Considerazioni sulla sicurezza

WARNING La dicitura WARNINGdenota un pericolo che può causare lesioni o

Caution La dicituraCaution denota un pericolo che può danneggiare le attr-

Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata, al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto. Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.

Simbolo di riferimento alla documentazione. Se il prodotto è contrassegnato da questo simbolo, fare riferimento alla documentazione sul prodotto per ulteriori informazioni su di esso.

morte.

ezzature.

Non procedere oltre un avviso di WARNING o di Cautionprima di aver compreso le condizioni di rischio e aver provveduto alle misure del caso.

Per la messa a terra dei cavi LAN:

■ se la vostra LAN copre un'area servita da più di un sistema di distribuzione

elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati fra loro;

■ i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni

transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in metallo della rete.

Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.

Questo apparato non possiede un commutatore principale; si mette scotto tensione all'inserirsi il cavo d'alimentazione.

Statements

Safety and EMC Regulatory

C-4

Safety and EMC Regulatory Statements

Consideraciones sobre seguridad

Símbolo de referencia a la documentación. Si el producto va

WARNING Una WARNING en la documentación señala un riesgo que podría

Caution Una Caution en la documentación señala un riesgo que podría

Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato, el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el cable de alimentación hasta haberse subsanado el problema.

marcado con este símbolo, consultar la documentación del producto a fin de obtener mayor información sobre el producto.

resultar en lesiones o la muerte.

resultar en averías al equipo.

No proseguir después de un símbolo de WARNING o Caution hasta no haber entendido las condiciones peligrosas y haber tomado las medidas apropiadas.

Puesta a tierra del cable de la red local (LAN):

■ Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una

red de distribución de electricidad, cerciorarse de que las puestas a tierra estén conectadas entre sí de modo seguro.

■ Es posible que los cables de la LAN se vean sometidos de vez en cuando a

voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red de energía eléctrica). Manejar con precaución los componentes de metal de la LAN que estén al descubierto.

Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario. Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.

Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable de alimentación.

Safety and EMC Regulatory

Statements

C-5

Safety and EMC Regulatory Statements

Safety Information (Japan)

Japan Power Cord Warning

Statements

Safety and EMC Regulatory

C-6

Safety and EMC Regulatory Statements

Safety Information (China)

Safety and EMC Regulatory

Statements

C-7

Safety and EMC Regulatory Statements

EMC Regulatory Statements

U.S.A.

FCC Class A

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. Operation of this equipment in a residential area may cause interference in which case the user will be required to correct the interference at his own expense.

Canada

This product complies with Class A Canadian EMC requirements.

Australia/New Zealand

This product complies with Australia/New Zealand EMC Class A requirements.

Japan

VCCI Class A

Korea

Taiwan

Statements

Safety and EMC Regulatory

C-8

Safety and EMC Regulatory Statements

European Community

DECLARATION OF CONFORMITY

according to ISO/IEC 17050-1 and EN 17050-1

DoC #: RSVLC-0704-091608 Supplier’s Name: Hewlett-Packard Company Manufacturer's Address: 8000 Foothills Blvd., Roseville, CA 95747 U.S.A.

declares, that the product

EMC Regulatory Statements

Product Name

HP ProCurve 6600 - 24G-4XG

HP ProCurve 6600 - 24XG

Product Number(s): J9263A, J9266A

J9264A, J9267A J9265A, J9268A

Regulatory Model No

Product Options: J9269A

conforms to the following Product Specifications and Regulations:

EMC: Class A

EN 55022:2006 EN 55024:2001+A2 (2003) EN 61000-3-2:2006 EN 61000-3-3:1995 +A1 (2001) +A2 (2005) FCC CFR47 Part 15

Safety:

EN 60950-1:2001 IEC 60950-1: 2001 EN 60825-1:1994 +A1+A2 / IEC 60825-1:1993 +A2 Class 1

Supplementary Information:

The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC and carries the CE marking accordingly.

: HP ProCurve 6600 - 24G

: RSVLC-0704

Additional Information:

1) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

2) This product was tested with HP branded products only.

Roseville, 16-September-2008

Local contact for regulatory information:

EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Straße 140, D-71034 Böblingen, Germany

U.S.: Hewlett-Packard, 3000 Hanover St., Palo Alto, CA 94304, U.S.A. 650-857-1501

Safety and EMC Regulatory

Statements

C-9

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycle Statements

Likvidace zařízení soukromými domácími uživateli v Evropské unii

Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v obchodě, kde jste produkt zakoupili.

Bortskaffelse af affald fra husstande i den Europæiske Union

Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte produktet.

Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus

See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.

D-1

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella

Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana. Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen. Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.

Élimination des appareils mis au rebut par les ménages dans l'Union européenne

Recycle Statements

Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous avez acheté ce produit.

Entsorgung von Altgeräten aus privaten Haushalten in der EU

Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu, wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben

Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή

νωση

Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να παραδώσετε τον άχρηστο εξοπλισμό σας γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το προϊόν.

Készülékek magánháztartásban történő selejtezése az Európai Unió területén

készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál, hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.

begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.

για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό

. Η ξεχωριστή συλλογή και

D-2

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea

Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il quale è stato acquistato il prodotto.

Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās mājsaimniecībās

Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.

tsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību. Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.

artotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje

Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje įsigijote gaminį.

Recycle Statements

Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie

Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur. Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur kunt aanbieden voor recycling.

Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach domowych w Unii Europejskiej

Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem, w którym zakupiono produkt.

D-3

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Descarte de Lixo Elétrico na Comunidade Européia

Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico), encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais que reciclam esse tipo de mate rial, entre em contato c om o escritório da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.

Recycle Statements

Likvidácia vyradených zariadení v domácnostiach v Európskej únii

Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.

Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji

Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.

Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la Unión Europea

Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.

Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen

Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall för återvinning.

D-4

Index

Numerics

10/100Base-TX ports

location on switch … 1-4

1000Base-BX … B-3

fiber-optic cable specifications … B-3

1000Base-LH … B-3

fiber-optic cable specifications … B-3

1000Base-T

fiber-optic cable specifications … B-3

AC power connector

location on back of switch … 1-11 Act LED … 1-7, 1-9 auto MDI/MDI-X operation … B-7, B-9

HP Auto-MDIX feature … B-6

back of switch

description … 1-11

power connector … 1-11 basic switch configuration

IP address … 3-3

manager password … 3-2

subnet mask … 3-3

switch setup screen … 3-2 basic troubleshooting tips … 5-1 battery

replacing battery … 4-3 Bootp

automatic switch configuration … 3-2

for in-band access … 2-19 buttons

Clear button … 1-10

port LED view select button … 1-8

Reset button … 1-9

cabinet

mounting the switch in … 2-10

cables

connecting cables to switch ports … 2-18 effects of non-standard cables … 5-2 fiber-optic, specifications … B-3 infrastructure requirements … 2-5 serial, for direct console connection … 2-20

cables, twisted pair

category 3, 4, 5 … B-6 cross-over cable pin-out … B-8 MDI-X to MDI connections … B-7, B-9 MDI-X to MDI-X connections … B-8 pin-outs … B-7, B-9 straight-through cable pin-out … B-7, B-9 switch-to-computer connection … B-7, B-9 switch-to-switch or hub connection … B-8

cables, twisted-pair

HP Auto-MDIX feature … B-6

wiring rules … B-6 cables, twisted-pair connector pin-outs … B-6 cabling infrastructure … 2-5 Clear button

deleting passwords … 1-10

description … 1-10

location on switch … 1-4, 1-10

restoring factory default configuration … 1-9–

1-10, 5-11

to delete password protection … 3-4 CLI command savepower … 1-8 CLI prompt, console

displaying … 2-21 configuration

checking when troubleshooting … 5-3

DHCP/Bootp … 3-2

full duplex only for mini-GBICs … 2-15

IP address … 3-3

IP address, manually … 3-2

manager password … 3-2

restoring factory defaults … 1-9–1-10, 5-11

subnet mask … 3-3

switch setup screen … 3-2 connecting the switch to a power source … 2-14

Index

Index – 1

console

checking messages during

troubleshooting … 5-9 displaying the CLI prompt … 2-21 features … 2-19 how to connect in-band … 2-19 how to connect out-of-band … 2-19 serial cable connection … 2-20 switch setup screen … 3-2 telnet access … 3-5 terminal configuration … 2-19

console port

definition … 1-10 location on switch … 1-4

cross-over cable

pin-out … B-8

Index

deleting passwords … 1-10 description

back of switch … 1-11 front of switch … 1-4 LEDs … 1-6 switch … 1-1

desktop switch

sample topology … 2-23

DHCP

automatic switch configuration … 3-2 for in-band access … 2-19

diagnostic tests … 5-9

checking the console messages … 5-9 checking the LEDs … 5-9 end-to-end connectivity … 5-10 testing the switch only … 5-9 testing twisted-pair cabling … 5-10

downloading new switch software … 5-12 dual-personality ports

location on switch … 1-5 operation description … 1-5

electrical specifications, switch … A-1 EMC regulatory statements … C-8 environmental specifications, switch … A-1

factory default configuration, restoring … 1-9– 1-10,

5-11 fan LED … 1-6 Fan Status LED … 1-6 fan Status LED … 1-6 fans

replacing fan trays … 4-1 Fault LED

behavior during self test … 2-7

location on switch … 1-4

showing error conditions … 5-4 fault LED … 1-6

behaviors … 1-6

flashing definition … 1-8 FDx LED … 1-7, 1-9 features

console … 2-19

switch … 1-11 fiber-optic cables … B-3

1000Base-BX … B-3

1000Base-LH … B-3

1000Base-T … B-3 flashing LEDs

error indications … 5-4 front of switch … 1-4

10/100Base-TX ports … 1-4

Clear button … 1-10

description … 1-4

dual-personality ports … 1-5

LEDs … 1-6

network ports … 1-5

port LED view select button and LEDs … 1-8

Reset button … 1-9 full-duplex fixed configuration

effects on network connections … 5-1 full-duplex operation of mini-GBICs … 2-15

hot swapping … 4-1 HP Auto-MDIX

feature description … B-6

in-band … 3-1

2 – Index

in-band console access

types of … 2-19 included parts … 2-1 installation

connecting the switch to a power source … 2-14

location considerations … 2-5

network cable requirements … 2-5

precautions … 2-3

rack or cabinet mounting … 2-10

site preparation … 2-5

summary of steps … 2-4 IP address

configuring … 3-3

LEDs

Act … 1-7, 1-9

behavior during self test … 2-7

checking during troubleshooting … 5-9

descriptions of … 1-6

error indications … 5-4

Fan Status … 1-6

fan status … 1-6

Fault

behavior during self test … 2-7

showing error conditions … 5-4 fault … 1-6 FDx … 1-7, 1-9 flashing definition … 1-8 Link … 1-7 location on switch … 1-4 on switch … 1-6 port

description … 1-7 Port LED View select indicators … 1-7 Port View

selecting the display … 1-8 Power … 1-6

behavior during self test … 2-7 Self Test … 1-7

behavior during self test … 2-7 Spd … 1-7, 1-9 Usr … 1-7 Usr Mode … 1-9

Link LEDs … 1-7 link test … 5-10 location for the switch, considerations … 2-5

MDI-X to MDI network cable … B-7, B-9 MDI-X to MDI-X network cable … B-8 mini-GBICs

full-duplex operation … 2-15

slot, location on switch … 1-4 mode conditioning patch cord … B-4 mounting the switch

in a rack or cabinet … 2-10

precautions … 2-3

network cables

fiber-optic, specifications … B-3

HP Auto-MDIX feature … B-6

required types … 2-5

twisted-pair connector pin-outs … B-6

twisted-pair, wiring rules … B-6 network devices

connecting to the switch … 2-18 network ports

connecting to … 2-18

location on switch … 1-5

types of … 1-5 non-standard network cables, effects … 5-2

out-of-band console access … 3-5

parts, included with the switch … 2-1 password

configuring … 3-2 passwords

deleting with the Clear button … 3-4

if you lose the password … 3-4 passwords, deleting … 1-10 physical specifications, switch … A-1 Ping test … 5-10 pin-outs

twisted-pair cables … B-6 port configuration

checking when troubleshooting … 5-3

Index

Index – 3

Port LED View

indicator LEDs … 1-8 select button … 1-8 selecting the display … 1-8

port LEDs

description … 1-7 Link … 1-7 normal operation … 2-7

ports

10/100Base-TX, location on switch … 1-4 connecting to … 2-18 console … 2-19 HP Auto-MDIX feature … B-6

network connections … 2-18 power connector … 1-11 Power LED … 1-6

behavior during self test … 2-7

behaviors … 1-6

location on switch … 1-4

Index

power source

connecting the switch to … 2-14 power supply

replacing … 4-5 precautions

mounting the switch … 2-3

power requirements … 2-3 preparing the installation site … 2-5 Proactive Network tools

diagnostics with … 5-8

rack

mounting precautions … 2-3

mounting the switch in … 2-10 ranges

voltage … 1-11, 2-6 recycle statements … D-1 regulatory statements … C-8 replacing components

battery … 4-3

power supply … 4-5 replacing hardware

fans … 4-1 Reset button

description … 1-9

location on switch … 1-4, 1-9

restoring factory default configuration … 5-11

resetting the switch

factory default reset … 5-11 location of Reset button … 1-9 troubleshooting procedure … 5-9

reversing air flow

default air flow … 2-8

safety and regulatory statements … C-1 safety specifications … A-2 savepower CLI command … 1-8 selecting the Port LED View display … 1-8 self test

Fault LED behavior … 2-7 LED behavior during … 2-7 Power LED behavior … 2-7

Self Test LED … 1-7

behavior during factory default reset … 5-11

serial cable

for direct console connection … 2-20

slots for mini-GBICs

location on switch … 1-4 Spd LED … 1-9 Spd LEDs … 1-7 specifications

cabling … B-1

distance … B-3

electrical … A-1

environmental … A-1

physical … A-1

safety … A-2 straight-through cable

pin-out … B-7, B-9 subnet mask

configuring … 3-3 summary

of switch installation … 2-4

4 – Index

HP ProCurve 6600, ProCurve 6600-24G, ProCurve 6600-24G-4XG, ProCurve 6600-24XG Installation And Getting Started Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
