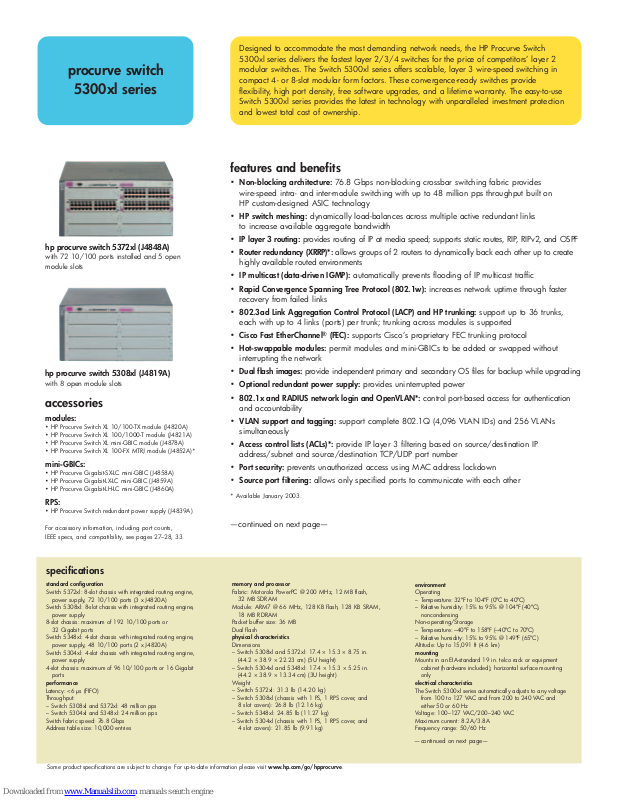

procurve switch

spec

5300xl series

hp procurve switch 5372xl (J4848A)

with 72 10/100 ports installed and 5 open
module slots

hp procurve switch 5308xl (J4819A)

with 8 open module slots

accessories

modules:

• HP Procurve Switch XL 10/100-TX module (J4820A)

• HP Procurve Switch XL 100/1000-T module (J4821A)

• HP Procurve Switch XL mini-GBIC module (J4878A)

• HP Procurve Switch XL 100-FX MTRJ module (J4852A)*

mini-GBICs:

• HP Procurve Gigabit-SX-LC mini-GBIC (J4858A)

• HP Procurve Gigabit-LX-LC mini-GBIC (J4859A)

• HP Procurve Gigabit-LH-LC mini-GBIC (J4860A)

RPS:

• HP Procurve Switch redundant power supply (J4839A)

For accessory information, including port counts,
IEEE specs, and compatibility, see pages 27–28, 33.

Designed to accommodate the most demanding network needs, the HP Procurve Switch
5300xl series delivers the fastest layer 2/3/4 switches for the price of competitors’ layer 2
modular switches. The Switch 5300xl series offers scalable, layer 3 wire-speed switching in
compact 4- or 8-slot modular form factors. These convergence-ready switches provide
flexibility, high port density, free software upgrades, and a lifetime warranty. The easy-to-use
Switch 5300xl series provides the latest in technology with unparalleled investment protection
and lowest total cost of ownership.

features and benefits

• Non-blocking architecture: 76.8 Gbps non-blocking crossbar switching fabric provides

wire-speed intra- and inter-module switching with up to 48 million pps throughput built on
HP custom-designed ASIC technology

• HP switch meshing: dynamically load-balances across multiple active redundant links

to increase available aggregate bandwidth

• IP layer 3 routing: provides routing of IP at media speed; supports static routes, RIP, RIPv2, and OSPF

• Router redundancy (XRRP)*: allows groups of 2 routers to dynamically back each other up to create

highly available routed environments

• IP multicast (data-driven IGMP): automatically prevents flooding of IP multicast traffic

• Rapid Convergence Spanning Tree Protocol (802.1w): increases network uptime through faster

recovery from failed links

• 802.3ad Link Aggregation Control Protocol (LACP) and HP trunking: support up to 36 trunks,

each with up to 4 links (ports) per trunk; trunking across modules is supported

• Cisco Fast EtherChannel® (FEC): supports Cisco’s proprietary FEC trunking protocol

• Hot-swappable modules: permit modules and mini-GBICs to be added or swapped without

interrupting the network

• Dual flash images: provide independent primary and secondary OS files for backup while upgrading

• Optional redundant power supply: provides uninterrupted power

• 802.1x and RADIUS network login and OpenVLAN*: control port-based access for authentication

and accountability

• VLAN support and tagging: support complete 802.1Q (4,096 VLAN IDs) and 256 VLANs

simultaneously

• Access control lists (ACLs)*: provide IP layer 3 filtering based on source/destination IP

address/subnet and source/destination TCP/UDP port number

• Port security: prevents unauthorized access using MAC address lockdown

• Source port filtering: allows only specified ports to communicate with each other

* Available January 2003.

—continued on next page—

ifications

standard configuration

Switch 5372xl: 8-slot chassis with integrated routing engine,

power supply, 72 10/100 ports (3 x J4820A)

Switch 5308xl: 8-slot chassis with integrated routing engine,

power supply

8-slot chassis: maximum of 192 10/100 ports or

32 Gigabit ports

Switch 5348xl: 4-slot chassis with integrated routing engine,

power supply, 48 10/100 ports (2 x J4820A)

Switch 5304xl: 4-slot chassis with integrated routing engine,

power supply

4-slot chassis: maximum of 96 10/100 ports or 16 Gigabit

ports

performance

Latency: <6 µs (FIFO)
Throughput:
– Switch 5308xl and 5372xl: 48 million pps
– Switch 5304xl and 5348xl: 24 million pps
Switch fabric speed: 76.8 Gbps
Address table size: 10,000 entries

Some product specifications are subject to change. For up-to-date information please visit www.hp.com/go/hpprocurve.

memory and processor

Fabric: Motorola PowerPC @ 200 MHz, 12 MB flash,

32 MB SDRAM

Module: ARM7 @ 66 MHz, 128 KB flash, 128 KB SRAM,

18 MB RDRAM
Packet buffer size: 36 MB
Dual flash

physical characteristics

Dimensions
– Switch 5308xl and 5372xl: 17.4 × 15.3 × 8.75 in.

(44.2 × 38.9 × 22.23 cm) (5U height)
– Switch 5304xl and 5348xl: 17.4 × 15.3 × 5.25 in.

(44.2 × 38.9 × 13.34 cm) (3U height)
Weight
– Switch 5372xl: 31.3 lb (14.20 kg)
– Switch 5308xl (chassis with 1 PS, 1 RPS cover, and

8 slot covers): 26.8 lb (12.16 kg)
– Switch 5348xl: 24.85 lb (11.27 kg)
– Switch 5304xl (chassis with 1 PS, 1 RPS cover, and

4 slot covers): 21.85 lb (9.91 kg)

environment

Operating
– Temperature: 32ºF to 104ºF (0ºC to 40ºC)
– Relative humidity: 15% to 95% @ 104ºF (40ºC),

noncondensing
Non-operating/Storage
– Temperature: –40ºF to 158ºF (–40ºC to 70ºC)
– Relative humidity: 15% to 95% @ 149ºF (65ºC)
Altitude: Up to 15,091 ft (4.6 km)

mounting

Mounts in an EIA-standard 19 in. telco rack or equipment

cabinet (hardware included); horizontal surface mounting

only

electrical characteristics

The Switch 5300xl series automatically adjusts to any voltage

from 100 to 127 VAC and from 200 to 240 VAC and

either 50 or 60 Hz
Voltage: 100–127 VAC/200–240 VAC
Maximum current: 8.2A/3.8A
Frequency range: 50/60 Hz

—continued on next page—
