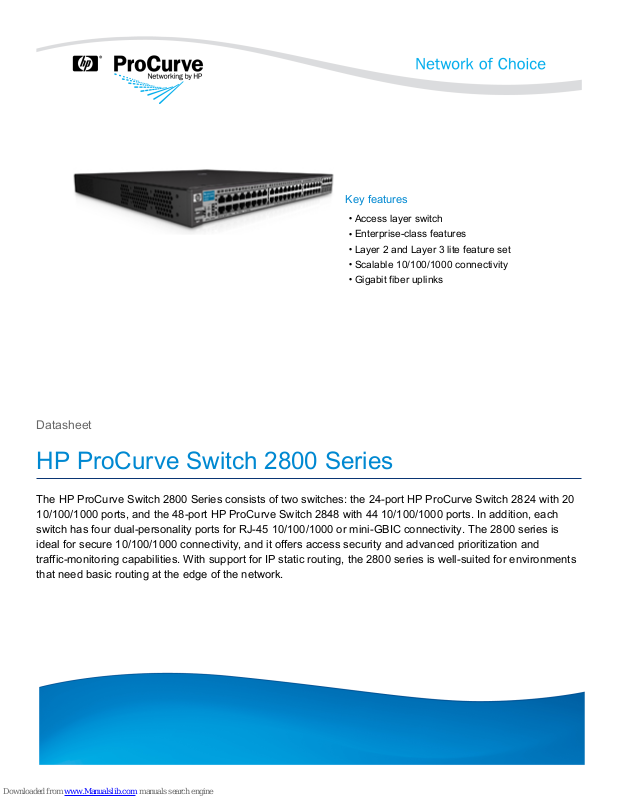

HP ProCurve 2824, ProCurve 2848 Datasheet

Download

Page 1

Key features

Access layer switch

Enterprise-class features

Layer 2 and Layer 3 lite feature set

Scalable 10/100/1000 connectivity

Gigabit fiber uplinks

Datasheet

HP ProCurve Switch 2800 Series

The HP ProCurve Switch 2800 Series consists of two switches: the 24-port HP ProCurve Switch 2824 with 20 10/100/1000 ports, and the 48-port HP ProCurve Switch 2848 with 44 10/100/1000 ports. In addition, each switch has four dual-personality ports for RJ-45 10/100/1000 or mini-GBIC connectivity. The 2800 series is ideal for secure 10/100/1000 connectivity, and it offers access security and advanced prioritization and traffic-monitoring capabilities. With support for IP static routing, the 2800 series is well-suited for environments that need basic routing at the edge of the network.

Page 2

HP ProCurve Switch 2800 Series

Features and benefits

Industry-leading warranty

Connectivity

• Dual-personality functionality: four 10/100/1000 ports or mini-GBIC slots for optional fiber connectivity such as Gigabit-SX,

-LX, or -LH

Performance

• 48 Gbps backplane with up to 34.7 million pps (HP ProCurve

Switch 2824) and 96 Gbps backplane with up to 69.8 million pps (HP ProCurve Switch 2848): ten times the bandwidth for

low-latency throughput

Resiliency and high availability

• IEEE 802.3ad Link Aggregation Protocol (LACP) and ProCurve trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk

• Spanning Tree Protocol (IEEE 802.1D): provides redundant links while preventing network loops

• IEEE 802.1w Rapid Convergence Spanning Tree Protocol: increases network uptime through faster recovery from failed links

• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees

• Optional external redundant power supply: provides uninterrupted power

Layer 2 switching

• VLAN support and tagging: supports the IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously

• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs

• Jumbo packet support: supports up to 9,216 byte frame size to improve performance of large data transfers

Layer 3 routing

• Basic IP routing: enables automatic routing to the connected VLANs and up to 16 static routes--including one default route--in IP networks

Security

• Dynamic ARP protection: blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

• Dynamic IP lockdown: works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing

• Port security: allows access only to specified MAC addresses, which can be learned or specified by the administrator

• MAC address lockout: prevents configured particular MAC addresses from connecting to the network

• Multiple user authentication methods:

- IEEE 802.1X: industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server

- Web-based authentication: similar to IEEE 802.1X, provides a browser-based environment to authenticate clients that do not support the IEEE 802.1X supplicant

- MAC-based authentication: client is authenticated with the RADIUS server based on the client's MAC address

• Secure FTP: allows secure file transfer to/from the switch; protects against unwanted file downloads or unauthorized copying of switch configuration file

• RADIUS/TACACS+: eases switch management security administration by using a password authentication server

• Source-port filtering: allows only specified ports to communicate with each other

• Secure Shell (SSHv2): encrypts all transmitted data for secure, remote command-line interface (CLI) access over IP networks

• Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch

• Switch management logon security: can require either RADIUS or TACACS+ authentication for secure switch CLI logon

♦ For as long as you own the product, with next-business-day advance replacement (available in most countries). The following hardware products and their related series modules have a one-year hardware warranty with extensions available: HP ProCurve Routing Switch 9300m Series, HP ProCurve Switch 8100fl Series, and HP ProCurve Network Access Controller 800. The following hardware mobility products have a one-year hardware warranty with extensions available: HP ProCurve M111 Client Bridge, HP ProCurve MSM3xx-R Access Points, HP ProCurve MSM7xx Mobility and Access Controllers, HP ProCurve RF Manager IDS/IPS Systems, HP ProCurve MSM Power Supplies, HP ProCurve 1-Port Power Injector, and HP ProCurve CNMS Appliances. Disk drives in the HP ProCurve ONE Services zl Modules have a five-year hardware warranty. Standalone software, upgrades, or licenses may have a different warranty duration. For details, refer to the ProCurve Software License, Warranty, and Support booklet at http://www.procurve.com/warranty.

Page 3

HP ProCurve Switch 2800 Series

Convergence

• IP multicast snooping and data-driven IGMP: automatically prevents flooding of IP multicast traffic

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP): automated device discovery protocol for easy mapping by network management applications

• Per-port broadcast throttling: selectively configures broadcast control on heavy traffic port uplinks

Quality of Service (QoS)

• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues

• Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), L3 protocol, TCP/UDP port number, source port, and DiffServ

• Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers

Manageability

• RMON, XRMON, sFlow, and SMON: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

• Electronic and telephone support: limited electronic and telephone support is available from HP. Refer to the HP Web site at www.procurve.com/support for details on the support provided and the period during which support is available.

• Software releases: refer to the HP Web site at www.procurve.com/support for details on the software releases provided and the period during which software releases are available.

• Friendly port names: allow assignment of descriptive names to ports

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

• Dual flash images: provides independent primary and secondary operating system files for backup while upgrading

• Software updates: free downloads from the Web

• Stacking capability: single IP address management for a virtual stack of up to 16 switches, including the HP ProCurve Switch 2500 Series, 2510 Series, 2600 Series, 2800 Series, 2810 Series, 2900 Series, 3400cl Series, 3500yl Series, 4200vl Series, 6108, 6200yl-24G-mGBIC, and 6400cl Series

• Find-Fix-and-Inform: finds and fixes common network problems automatically, then informs administrator

• Troubleshooting: ingress/egress port monitoring enables network problem-solving

• Multiple configuration files: multiple configuration files can be stored to the flash image

Warranty and support

• ProCurve Lifetime Warranty: for as long as you own the product, with next-business-day advance replacement (available in most countries).

Page 4

HP ProCurve Switch 2800 Series

Specifications

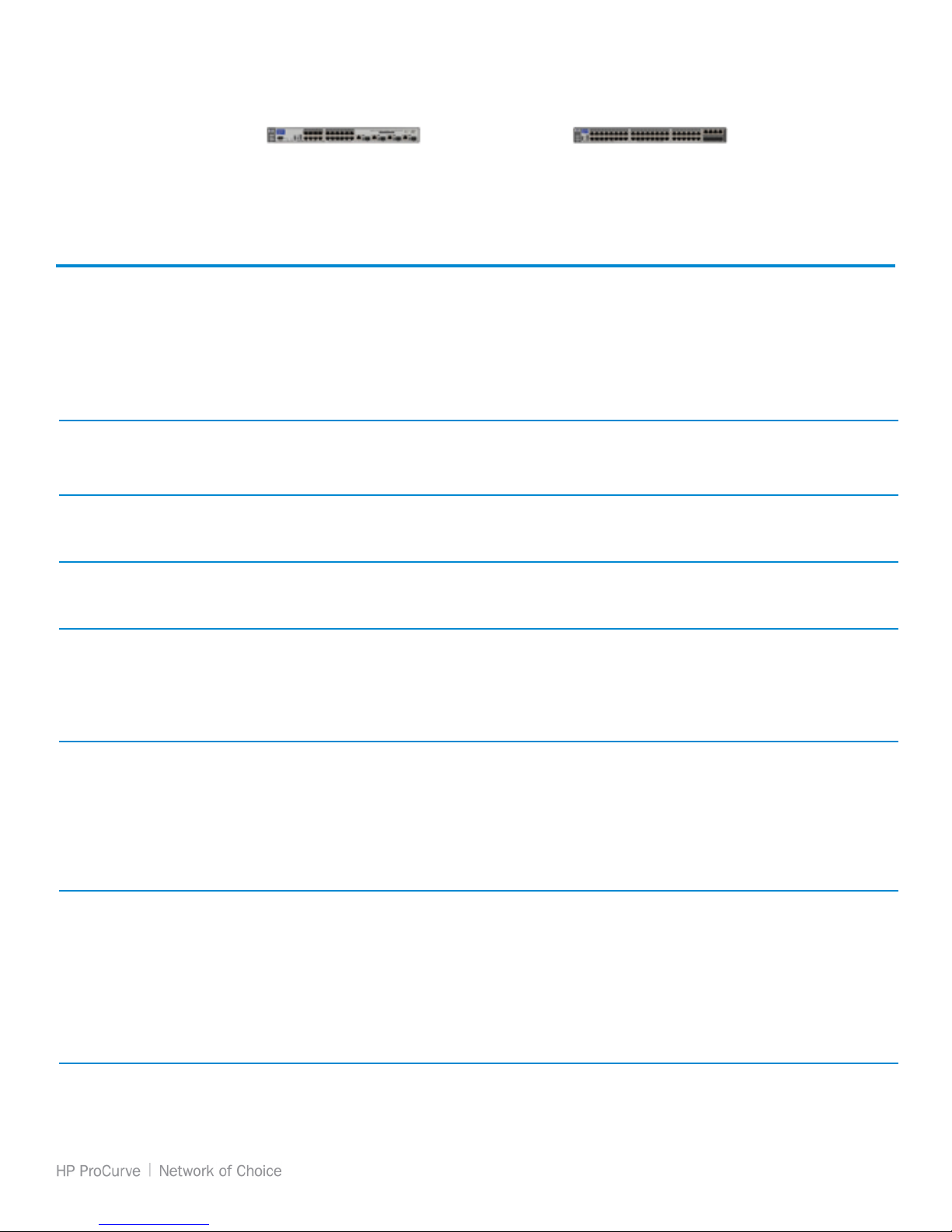

HP ProCurve Switch 2824 (J4903A) HP ProCurve Switch 2848 (J4904A)

Ports

Physical characteristics

Dimensions

Weight

Memory and processor

Processor

Mounting

Performance

Latency

Throughput

Switching capacity

MAC address table size

Environment

20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Media Type: Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only

1 RS-232C DB-9 console port 1 RS-232C DB-9 console port

4 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)

14.4(d) x 17.32(w) x 1.75(h) in. (36.58 x 43.99 x 4.45 cm) (1U height) 16.9(d) x 17.32(w) x 1.75(h) in. (42.93 x 43.99 x 4.45 cm) (1U height)

10.2 lb. (4.63 kg), Fully loaded 10.75 lb. (4.88 kg), Fully loaded

Motorola PowerPC MPC8245 @ 266 MHz, 8 MB flash, 64 MB SDRAM

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only

< 5.4 µs (64-byte packets) < 5.4 µs (FIFO 64-byte packets)

up to 34.65 million pps (64-byte packets) up to 69.3 million pps (64-byte packets)

48 Gbps 96 Gbps

16000 entries 16000 entries

44 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Media Type: Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only

4 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port or an open mini-GBIC slot (for use with mini-GBIC transceivers)

Motorola PowerPC MPC8245 @ 266 MHz, 8 MB flash, 64 MB SDRAM

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only

Operating temperature

Operating relative humidity

Non-operating/Storage temperature

Non-operating/Storage relative humidity

Altitude

Acoustic

Electrical characteristics

Maximum heat dissipation

Voltage

Current

Power consumption

Frequency

Notes

Safety

32ºF to 131ºF (0ºC to 55ºC) 32ºF to 131ºF (0ºC to 55ºC)

15% to 95% @ 104ºF (40ºC), non-condensing 15% to 95% @ 104ºF (40ºC), non-condensing

-40ºF to 158ºF (-40ºC to 70ºC) -40ºF to 158ºF (-40ºC to 70ºC)

15% to 95% @ 149ºF (65ºC), non-condensing 15% to 95% @ 149ºF (65ºC), non-condensing

up to 15000 ft. (4.6 km) up to 15000 ft. (4.6 km)

Power: < 53 dB; DIN 45635T.19 per ISO 7779 @ < 80°F (25°C) Power: < 53 dB; DIN 45635T.19 per ISO 7779 @ < 80°F (25°C)

341 BTU/hr (360 kJ/hr) 341 BTU/hr (360 kJ/hr)

100-127 / 200-240 VAC 100-127 / 200-240 VAC

0.6 / 0.3 A 0.6 / 0.3 A

100 W 100 W

50 / 60 Hz 50 / 60 Hz

Maximum power rating is the worst-case theoretical maximum power number with fully loaded PoE, 100% traffic, all ports plugged in, and all modules populated.

Page 5

HP ProCurve Switch 2800 Series

Emissions

Immunity

ESD

Radiated

EFT/Burst

Surge

Conducted

Power frequency magnetic field

Voltage dips and interruptions

Harmonics

Flicker

Management

Notes

Services

cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition

FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A

EN 55024, CISPR 24 EN 55024, CISPR 24

IEC 61000-4-2; 4 kV CD, 8 kV AD IEC 61000-4-2; 4 kV CD, 8 kV AD

IEC 61000-4-3; 3 V/m IEC 61000-4-3; 3 V/m

IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line)

IEC 61000-4-5; 1 kV/2 kV AC IEC 61000-4-5; 1 kV/2 kV AC

IEC 61000-4-6; 3 V IEC 61000-4-6; 3 V

IEC 61000-4-8; 1 A/m, 50 or 60 Hz IEC 61000-4-8; 1 A/m, 50 or 60 Hz

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2

EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3

HP ProCurve Manager Plus; HP ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Other mini-GBICs supported: HP ProCurve Gigabit-SX-LC Mini-GBIC (J4858A/B) HP ProCurve Gigabit-LX-LC Mini-GBIC (J4859A/B) HP ProCurve Gigabit-LH-LC Mini-GBIC (J4860A/B)

3-year, 4-hour onsite, 13x5 coverage for hardware (U2855E) 3-year, 4-hour onsite, 24x7 coverage for hardware (U2856E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (U6304E) 3-year, 24x7 SW phone support, software updates (UE262E) Installation with minimum configuration, system-based pricing (U4826E) Installation with HP-provided configuration, system-based pricing (U4830E)

cUL (CSA 950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 1950 3rd edition

IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods

HP ProCurve Manager Plus; HP ProCurve Manager (included); command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)

Other mini-GBICs supported: HP ProCurve Gigabit-SX-LC Mini-GBIC (J4858A/B) HP ProCurve Gigabit-LX-LC Mini-GBIC (J4859A/B) HP ProCurve Gigabit-LH-LC Mini-GBIC (J4860A/B)

3-year, 4-hour onsite, 13x5 coverage for hardware (H4496E) 3-year, 4-hour onsite, 24x7 coverage for hardware (H2893E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (U6319E) 3-year, 24x7 SW phone support, software updates (UE264E) Installation with minimum configuration, system-based pricing (U4826E) Installation with HP-provided configuration, system-based pricing (U4830E)

Refer to the HP Web site at www.procurve.com/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Standards and protocols Device management

HTML and telnet management

General protocols

IEEE 802.1D MAC Bridges IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3x Flow Control RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 951 BOOTP RFC 1542 BOOTP Extensions RFC 2030 Simple Network Time

Protocol (SNTP) v4 RFC 3046 DHCP Relay Agent Information Option

IP multicast

RFC 3376 IGMPv3

MIBs

RFC 1213 MIB II RFC 1493 Bridge MIB RFC 2021 RMONv2 MIB RFC 2096 IP Forwarding Table MIB RFC 2613 SMON MIB RFC 2618 RADIUS Client MIB RFC 2620 RADIUS Accounting MIB RFC 2665 Ethernet-Like-MIB RFC 2668 802.3 MAU MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 2737 Entity MIB (Version 2)

RFC 2863 The Interfaces Group MIB

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) RFC 3176 sFlow SNMPv1/v2c/v3 XRMON

Security

IEEE 802.1X Port Based Network Access Control RFC 1492 TACACS+ RFC 2138 RADIUS Authentication RFC 2866 RADIUS Accounting Secure Sockets Layer (SSL) SSHv2 Secure Shell

Page 6

HP ProCurve Switch 2800 Series accessories

HP ProCurve 100-FX SFP-LC Transceiver (J9054B)

NEW HP ProCurve 100-BX-D SFP-LC Transceiver (J9099B)

NEW HP ProCurve 100-BX-U SFP-LC Transceiver (J9100B)

HP ProCurve Gigabit-SX-LC Mini-GBIC (J4858C)

HP ProCurve Gigabit-LX-LC Mini-GBIC (J4859C)

HP ProCurve Gigabit-LH-LC Mini-GBIC (J4860C)

NEW HP ProCurve 1000-BX-D SFP-LC Mini-GBIC (J9142B)

NEW HP ProCurve 1000-BX-U SFP-LC Mini-GBIC (J9143B)

HP ProCurve 600 Redundant External Power Supply (J8168A)

HP ProCurve Manager 2.3 (-)

HP ProCurve Network Immunity Manager 1.0 50-device license (J9060A)

HP ProCurve Network Immunity Manager 1.0 +100-device license (J9061A)

HP ProCurve Network Immunity Manager 1.0 unlimited-device license (J9062A)

For more information

To learn more about HP ProCurve Networking, please visit ProCurve.com

© 2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. January 2009
