ProCurve Switch 1400 Series
The ProCurve Switch 1400 series provides plug-and-play simplicity for
high-bandwidth connectivity. The Switch 1400 series consists of two unmanaged
switches. The ProCurve Switch 1400-24G is a 24-port 10/100/1000 switch with
22 10/100/1000 ports and 2 dual-personality ports. The ProCurve Switch
1400-8G is a small-form-factor switch with 8 10/100/1000 ports. Ideal for
deployment in open spaces, both switches feature silent operation via a fanless
design.
ProCurve Switch 1400-24G
(J9078A)
ProCurve Switch 1400-8G
(J9077A)
Page 2
ProCurve Switch 1400 Series
Features and benefits
Connectivity
• ProCurve/IEEE Auto-MDIX: automatically
adjusts for straight-through or crossover cables
on all 10/100/1000 ports
• Jumbo packet support: supports up to 9,216
byte frame size to improve performance of large
data transfers
Performance
• High performance: wire-speed performance
provides maximized throughput for all PCs and
servers
• Half-/Full-duplex auto-negotiating capability on
every port: doubles the throughput of every port
Quality of Service (QoS)
• IEEE 802.1p prioritization: delivers data to
devices by honoring the priority and type of
traffic
Industry-leading warranty
• Lifetime warranty : for as long as you own the
product, with next-business-day advance
replacement (available in most countries)
Ease of use
• Unmanaged: provides plug-and-play simplicity
• 10/100/1000 auto-sensing per port:
automatically detects and sets the speed for any
10Base-T, 100Base-TX, or 1000Base-T device
• Comprehensive LED display with per-port
indicators: provides an at-a-glance view of status,
activity, speed, and full-duplex operation
Flexibility
• Small form factor: ideal for desktop use;
space-efficient for deployment flexibility
(1400-8G)
• Designed with no fan: enables quiet operation
for deployment in open spaces
2
Page 3
ProCurve Switch 1400 Series

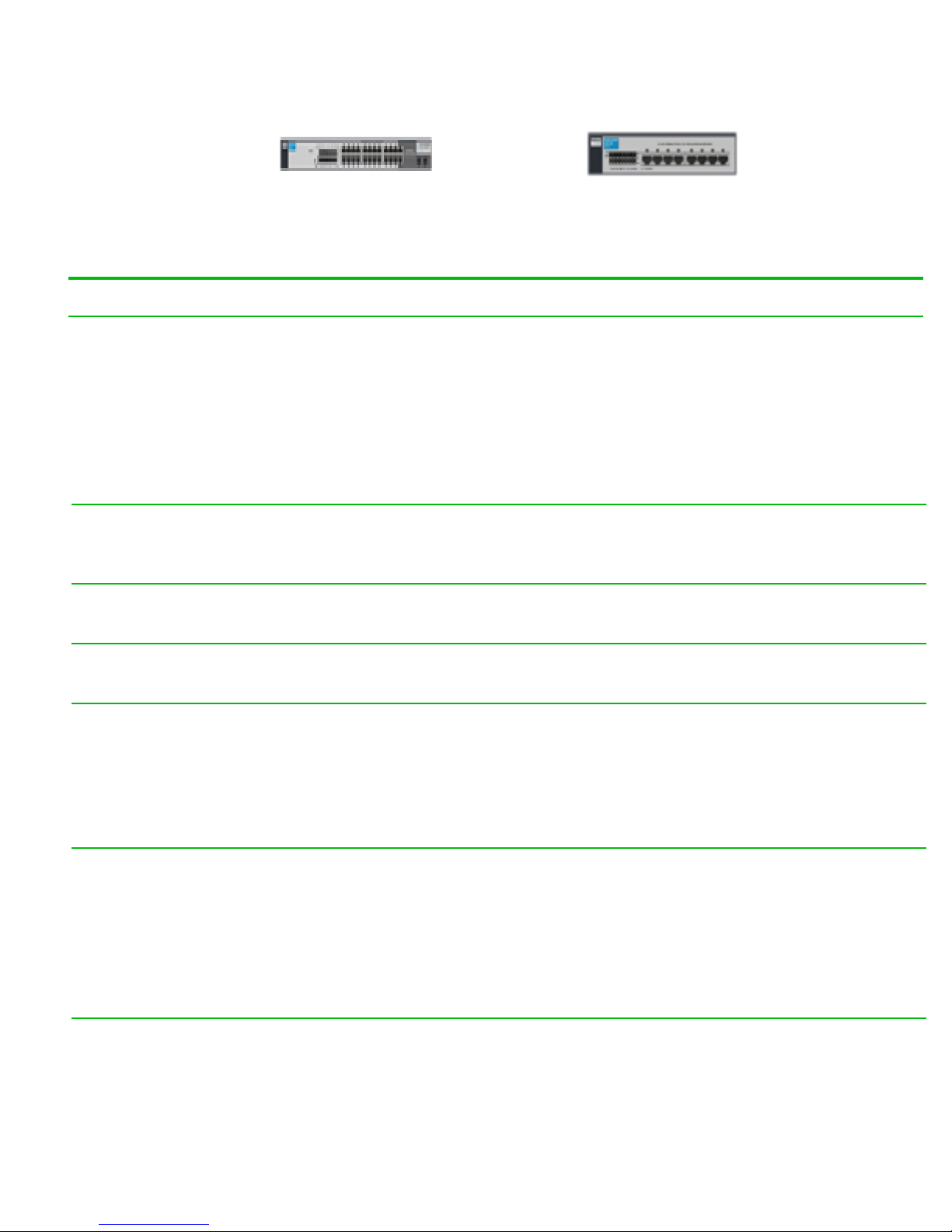

ProCurve Switch 1400-24G (J9078A) ProCurve Switch 1400-8G (J9077A)
Specifications
Ports
22 auto-sensing 10/100/1000 ports (IEEE 802.3
Type 10Base-T, IEEE 802.3u Type 100Base-TX,
IEEE 802.3ab Type 1000Base-T); Media Type: IEEE
Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or
full; 1000Base-T: full only
2 dual-personality ports; each port can be used as
either an RJ-45 10/100/1000 port (IEEE 802.3 Type
10Base-T; IEEE 802.3u Type 100Base-TX; IEEE
802.3ab 1000Base-T Gigabit Ethernet) or an open
mini-GBIC slot (for use with mini-GBIC
transceivers)
Physical characteristics
Dimensions 6.74(d) x 17.42(w) x 1.73(h) in. (17.12 x 44.25 x
4.39 cm) (1U height)
Weight 4.38 lb. (1.99 kg) 1.19 lb. (0.54 kg)
8 auto-sensing 10/100/1000 ports (IEEE 802.3
Type 10Base-T, IEEE 802.3u Type 100Base-TX,
IEEE 802.3ab Type 1000Base-T); Media Type: IEEE
Auto-MDIX; Duplex: 10Base-T/100Base-TX: half or
full; 1000Base-T: full only
4.58(d) x 7.73(w) x 1.73(h) in. (11.63 x 19.63 x
4.39 cm) (1U height)
Memory and processor
128 KB RAM/ROM capacity; packet buffer size: 500KB128 KB RAM/ROM capacity; packet buffer size: 144
Mounting
Mounts in an EIA-standard 19 in. telco rack or
equipment cabinent (hardware included)
Performance
Gbps Gbps
100 Mb Latency
1000 Mb Latency < 3.0 µs (64-byte packets) < 2.1 µs (64-byte packets)
Throughput
Switching capacity
MAC address table size 8000 entries 8000 entries
Environment
Operating temperature 32ºF to 104ºF (0ºC to 40ºC) 32ºF to 104ºF (0ºC to 40ºC)
Operating relative humidity 15% to 95% @ 104ºF (40ºC), non-condensing 15% to 95% @ 104ºF (40ºC), non-condensing
Non-operating/Storage
temperature
Non-operating/Storage relative
humidity
Altitude
Acoustic Power: 0 dB No Fan Power: 0 dB No Fan
Electrical characteristics
Maximum heat dissipation
Voltage 100-240 VAC 100-127 / 200-240 VAC
Current
Power consumption 24 W 18 W
Frequency 50 / 60 Hz 50 / 60 Hz
< 4.7 µs (64-byte packets) < 3.9 µs (64-byte packets)
up to 35.7 million pps up to 11.9 million pps
48 Gbps 16 Gbps
-40ºF to 158ºF (-40ºC to 70ºC) -40ºF to 158ºF (-40ºC to 70ºC)
10% to 90% @ 149ºF (65ºC), non-condensing 10% to 90% @ 149ºF (65ºC), non-condensing
up to 10000 ft. (3 km) up to 10000 ft. (3 km)
81 BTU/hr (85 kJ/hr) 61 BTU/hr (64 kJ/hr)
0.75 / 0.4 A 1.0 / 0.8 A
KB
Horizontal surface mounting only
3
Page 4
ProCurve Switch 1400 Series
Notes The exact input voltage and frequency rating are
Safety
CSA 22.2 No. 60950; EN 60950/IEC 60950; UL
60950
Emissions
FCC Rules Part 15, Subpart B Class A; EN 55022;
VCCI; ICES-003 (Canada)
Immunity
EN EN 55024, CISPR 24 EN 55024, CISPR 24
ESD
Radiated
EFT/Burst IEC 61000-4-4 IEC 61000-4-4
Surge
Conducted IEC 61000-4-6 IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8 IEC 61000-4-8
Voltage dips and interruptions
Harmonics IEC 61000-3-2 IEC 61000-3-2
Flicker
Notes
IEC 61000-4-2 IEC 61000-4-2
IEC 61000-4-3 IEC 61000-4-3
IEC 61000-4-5 IEC 61000-4-5
IEC 61000-4-11 IEC 61000-4-11
IEC 61000-3-3 IEC 61000-3-3
Use only supported genuine ProCurve mini-GBICs
with your switch.
determined by the specific power adapter part
number ordered. Please select the correct power
adapter country option.
CSA 22.2 No. 60950; EN 60950/IEC 60950; UL
60950
FCC Rules Part 15, Subpart B Class A; EN 55022;
VCCI; ICES-003 (Canada)
Standards and Protocols General Protocols
IEEE 802.1p Priority
IEEE 802.3x Flow Control
4
Page 5

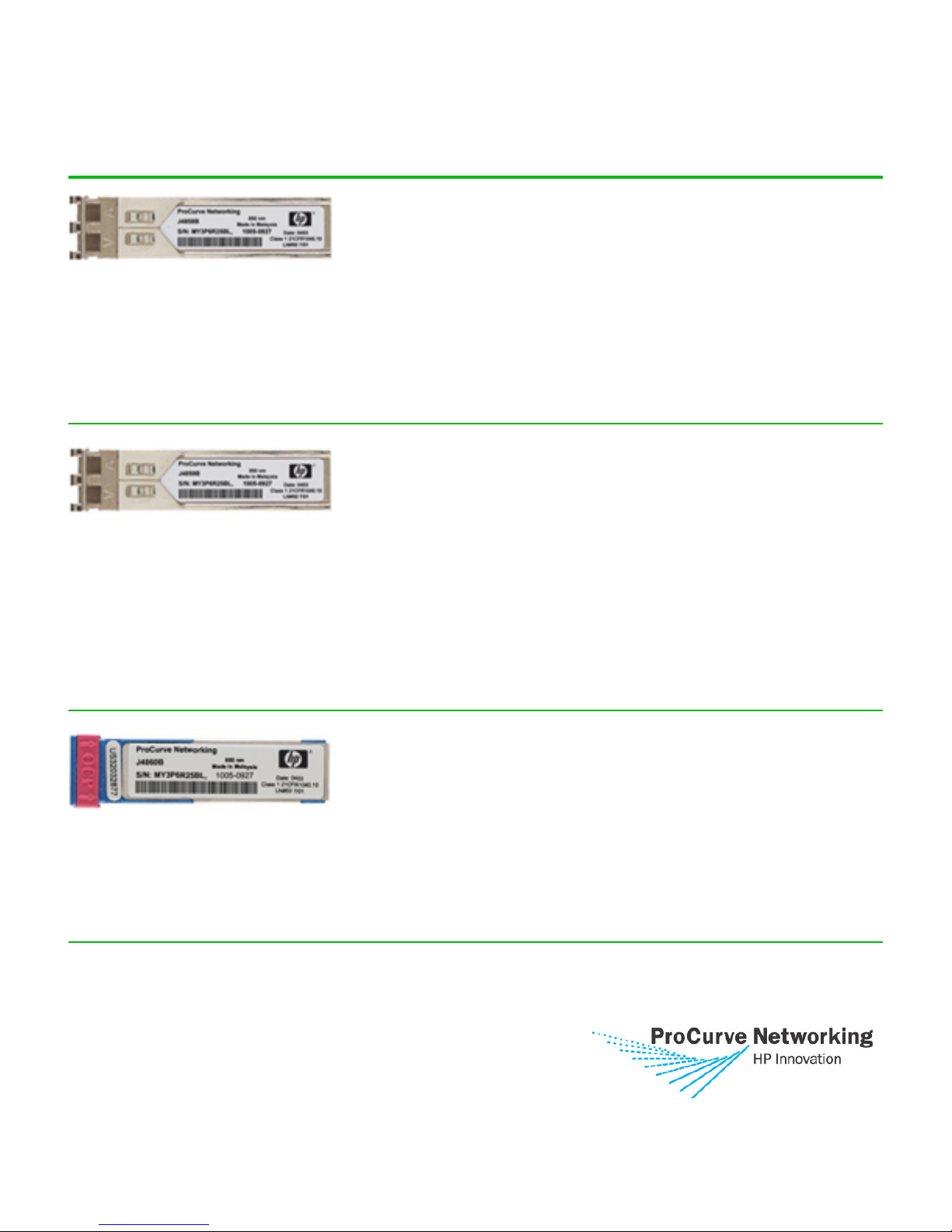

Accessories
ProCurve Gigabit-SX-LC Mini-GBIC (J4858C)
A small form factor pluggable (SFP) gigabit SX
transceiver that provides a full-duplex gigabit solution
up to 550 meters on multimode fiber.
ProCurve Gigabit-LX-LC Mini-GBIC (J4859C)
A small form factor pluggable (SFP) gigabit LX
transceiver that provides a full-duplex gigabit solution
up to 10 km (singlemode) or 550 m (multimode).
Ports
1 LC 1000Base-SX port (IEEE 802.3z
Type 1000Base-SX)
Duplex: full only
Physical characteristics
Dimensions: 2.24(d) x 0.54(w) x
0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight: 0.04 lb. (0.02 kg)
Cabling
Type:
• 62.5/125 µm or 50/125 µm
(core/cladding) diameter, graded-index,
Ports
1 LC 1000Base-LX port (IEEE 802.3z Type
1000Base-LX)
Duplex: full only
Physical characteristics
Dimensions: 2.24(d) x 0.54(w) x
0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight: 0.04 lb. (0.02 kg)
Cabling
Type:
• Either single mode or multimode
• 62.5/125 µm or 50/125 µm
(core/cladding) diameter, graded-index,
low metal content, multimode fiber optic,
complying with ITU-T G.651 and ISO/IEC
low metal content, multimode fiber optic,
complying with ITU-T G.651 and ISO/IEC
793-2 Type A1b or A1a, respectively
Maximum distance:
• 220 m (62.5 µm core diameter, 160
MHz/km bandwidth)• 275 m (62.5 µm
core diameter, 200 MHz/km
bandwidth)• 500 m (50 µm core
diameter, 400 MHz/km bandwidth)• 550
m (50 µm core diameter, 500 MHz/km
bandwidth)
793-2 Type A1b or A1a, respectively
• Low metal content, single-mode
fiber-optic, complying with ITU-T G.652
and ISO/IEC 793-2 Type B1
Maximum distance:
• 10 km (single mode) or 550 m
(multimode)
Notes
A mode conditioning patch cord may be
needed in some multimode fiber
installations.
Ports
1 LC 1000Base-LH port (no IEEE standard
exists for 1550 nm optics)
Duplex: full only
Physical characteristics
Dimensions: 2.17(d) x 0.60(w) x 0.46(h)
ProCurve Gigabit-LH-LC Mini-GBIC (J4860C)
A small form factor pluggable (SFP) gigabit LH
transceiver that provides a full-duplex gigabit solution
up to 70 km on singlemode fiber.
© 2007 Hewlett-Packard Development Company, L.P. The information contained herein is
subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be
liable for technical or editorial errors or omissions contained herein.
9/28/2007
To learn more, visit www.procurve.com
Information is subject to change without notice
in. (5.5 x 1.53 x 1.18 cm)
Weight: 0.04 lb. (0.02 kg)
Cabling
Type:
• Low metal content, single-mode
fiber-optic, complying with ITU-T G.652
and ISO/IEC 793-2 Type B1
Maximum distance:
• 70 km
