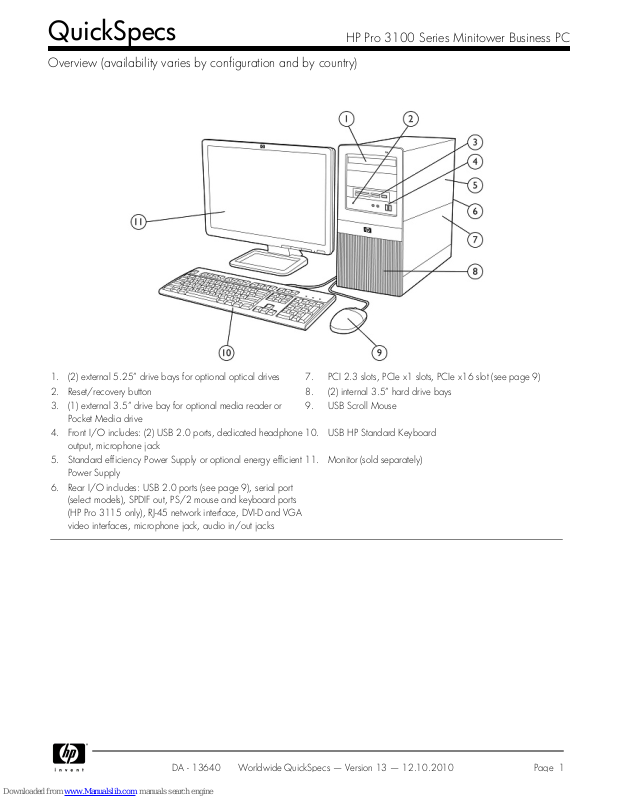

HP Pro 3100 Quickspecs

1.

(2) external 5.25” drive bays for optional optical drives

7.

PCI 2.3 slots, PCIe x1 slots, PCIe x16 slot (see page 9)

2.

Reset/recovery button

8.

(2) internal 3.5” hard drive bays

3.

(1) external 3.5” drive bay for optional media reader or
Pocket Media drive

9.

USB Scroll Mouse

4.

Front I/O includes: (2) USB 2.0 ports, dedicated headphone
output, microphone jack

10.

USB HP Standard Keyboard

5.

Standard efficiency Power Supply or optional energy efficient
Power Supply

11.

Monitor (sold separately)

6.

Rear I/O includes: USB 2.0 ports (see page 9), serial port
(select models), SPDIF out, PS/2 mouse and keyboard ports
(HP Pro 3115 only), RJ-45 network interface, DVI-D and VGA
video interfaces, microphone jack, audio in/out jacks

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Overview (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 1

At A Glance

Genuine Windows 7 versions, Genuine Windows Vista versions, SuSE Linux Enterprise Desktop 11, or FreeDOS
Choice of Intel® or AMD processor
Choice of integrated graphics or ATI or NVIDIA graphics cards
Up to 16 GB DDR3 SDRAM system memory available standard (select models)
Up to 2 TB 3.0 Gb/s SATA hard drive with RAID 0/1 support (select models)
Choice of optical drives: DVD-ROM, SuperMulti LightScribe DVD Writer, or Blu-Ray Writer
Integrated Realtek 8111DL Gigabit Ethernet Controller (HP Pro 3115, 3120 and 3130)
Integrated Realtek RTL8105E 10/100 Ethernet Controller (HP Pro 3125)
HP Wireless 802.11 b/g/n PCIe x1 Card
USB 2.0 ports
VGA and DVI-D video port
Legacy ports (select models)
Optional energy efficient power supply
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Overview (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 2

Processors

(Availability
depends on model; list is
subject to change)

Intel Celeron® Processors:
Intel Celeron 450 Processor (2.2 GHz, 512 KB L2 cache, 800 MHz FSB)
Intel Celeron Dual-Core Processors:
Intel Celeron E3300 Processor (2.5 GHz, 1 MB L2 cache, 800 MHz FSB)
Intel Pentium® Dual Core Processors:
Intel Pentium E5400 Processor (2.7 GHz, 2 MB L2 cache, 800 MHz FSB)
Intel Pentium E5500 Processor (2.8 GHz, 2 MB L2 cache, 800 MHz FSB)
Intel Pentium E6500 Processor (2.93 GHz, 2 MB L2 cache, 1066 MHz FSB)
Intel Pentium E6600 Processor (3.06 GHz, 2 MB L2 cache, 1066 MHz FSB)
Intel Pentium E6700 Processor (3.2 GHz, 2 MB L2 cache, 1066 MHz FSB)
Intel Core®2 Duo Processors:
Intel Core 2 Duo E7500 Processor (2.93 GHz, 3 MB L2 cache, 1066 MHz FSB)
Intel Core 2 Duo E7600 Processor (3.06 GHz, 3 MB L2 cache, 1066 MHz FSB)
Intel Core 2 Duo E8500 Processor (3.16 GHz, 6 MB L2 cache, 1333 MHz FSB)
Intel Core 2 Quad Processors:
Intel Core 2 Quad Q8300 Processor (2.5 GHz, 4 MB L2 cache, 1333 MHz FSB)
Intel Core 2 Quad Q8400 Processor (2.66 GHz, 4 MB L2 cache, 1333 MHz FSB)
Intel Core 2 Quad Q9500 Processor (2.83 GHz, 6 MB L2 cache, 1333 MHz FSB)
Intel Core i3 Processors (HP Pro 3130 only):
Intel Core i3-530 Processor (2.93 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Intel Core i3-540 Processor (3.06 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Intel Core i3-550 Processor (3.20 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Intel Core i5 Processors (HP Pro 3130 only):
Intel Core i5-650 Processor (3.20 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.46 GHz with Intel Turbo Boost Technology
Intel Core i5-660 Processor (3.33 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.6 GHz with Intel Turbo Boost Technology
Intel Core i5-670 Processor (3.46 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.73 GHz with Intel Turbo Boost Technology
Intel Core i5-750 Processor (2.66 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.2 GHz with Intel Turbo Boost Technology
Intel Core i7 Processors (HP Pro 3130 only):
Intel Core i7-860 Processor (2.8 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.46 GHz with Intel Turbo Boost Technology
Intel Core i7-870 Processor (2.93 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.6 GHz with Intel Turbo Boost Technology
Intel Core i7-880 Processor (3.06 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)

Up to 3.73 GHz with Intel Turbo Boost Technology

NOTE:

Intel processor numbers are not a measure of performance. Processor numbers differentiate

features within each processor family, not across different processor families.

AMD Sempron™ Processors:
AMD Sempron 140 Processor (2.7 GHz, 1M L2 cache, 4000 GT/s System BUS)
AMD Sempron 145 Processor (2.8 GHz, 1M L2 cache, 4000 GT/s System BUS)

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 3

AMD Athlon™ II X2 Dual Core Processors:
AMD Athlon II X2 215 Processor (2.7 GHz, 1M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 220 Processor (2.8 GHz, 1M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 240 Processor (2.8 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 245 Processor (2.9 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 250 Processor (3.0 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 255 Processor (3.1 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 260 Processor (3.2 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 265 Processor (3.3 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X2 270 Processor (3.4 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X3 Triple Core Processors:
AMD Athlon II X3 425 Processor (2.7 GHz, 1.5M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X3 435 Processor (2.9 GHz, 1.5M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X3 440 Processor (2.9 GHz, 1.5M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X3 445 Processor (3.0 GHz, 1.5M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X3 450 Processor (3.1 GHz, 1.5M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X4 Quad Core Processors:
AMD Athlon II X4 620 Processor (2.6 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X4 630 Processor (2.8 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X4 635 Processor (2.9 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X4 640 Processor (3.0 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Athlon II X4 645 Processor (3.1 GHz, 2M L2 cache, 4000 GT/s System BUS)
AMD Phenom™ II X2 Dual Core Processors:
AMD Phenom II X2 545 Processor (3.0 GHz, 7M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X2 550 Processor (3.1 GHz, 7M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X2 555 Processor (3.2 GHz, 7M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X3 Triple Core Processors:
AMD Phenom II X3 720 Processor (2.8 GHz, 7.5M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X3 740 Processor (3.0 GHz, 7.5M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 Quad Core Processors:
AMD Phenom II X4 820 Processor (2.8 GHz, 6M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 830 Processor (2.8 GHz, 8M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 925 Processor (2.8 GHz, 8M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 945 Processor (3.0 GHz, 8M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 955 Processor (3.2 GHz, 8M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 960T Processor (3.2 GHz, 8M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X4 B95 Processor (3.3 GHz, 8M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X6 Six Core Processors:
AMD Phenom II X6 1035T Processor (2.6 GHz, 9M L2+L3 cache, 4000 GT/s System BUS)
AMD Phenom II X6 1055T Processor (2.8 GHz, 9M L2+L3 cache, 4000 GT/s System BUS)

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 4

Operating System

Preinstalled

Genuine Windows 7 Professional Edition (32-bit)*
Genuine Windows 7 Professional Edition (64-bit)*
Genuine Windows 7 Home Premium Edition (32-bit)*
Genuine Windows 7 Home Premium Edition (64-bit)*
Genuine Windows 7 Ultimate Edition (32-bit)*
Genuine Windows 7 Ultimate Edition (64-bit)*
Genuine Windows 7 Home Basic Edition (32-bit)*
Genuine Windows 7 Home Basic Edition (64-bit)*
Genuine Windows 7 Starter (limited regions support)*
Genuine Windows Vista Business (32-bit)**
Genuine Windows Vista Home Basic (32-bit)**
SuSE Linux Enterprise Desktop 11
FreeDOS

* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install
the Windows 7 software and take full advantage of Windows 7 functionality. See

http://www.microsoft.com/windows/windows-7/

for details.

** Certain Windows Vista product features require advanced or additional hardware. See:

http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and

http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

.

Chipset

HP Pro 3115

AMD 760G Chipset

HP Pro 3120

Intel G43 Express Chipset

HP Pro 3125

AMD 760G Chipset

HP Pro 3130

Intel H57 Express Chipset

Graphics

HP Pro Minitower Model
3115 3120 3125 3130
Integrated

Integrated Intel Graphics Media Accelerator X4500HD

X

Integrated Intel Graphics Media Accelerator Core HD

X

Integrated ATI Radeon 3000 Graphics

X

X

NOTE:

HP Pro 3130 with Intel Core i5 750 processor or any Intel i7 processor has no integrated

graphics.

Graphics Cards

(List is subject to
change)

ATI Radeon HD 4350 HDMI (512MB) FH PCIe x16
Graphics Card

X X

ATI Radeon HD 4550 (512MB) DH PCIe x16 Graphics
Card

X X X X

ATI Radeon HD 4650 (1GB) PCIe x16 Graphics Card

X X X X

ATI Radeon HD 5450 (1GB) FH PCIe x16 Graphics Card

X X X X

ATI Radeon HD 5450 (512MB) FH PCIe x16 Graphics
Card

X X

X

ATI Radeon HD 5570 (2GB) FH PCIe x16 Graphics Card

X X

ATI Radeon HD 5570 (1GB) FH PCIe x16 Graphics Card

X X

X

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 5

NVIDIA GeForce G210 HDMI (512MB) PCIe x16
Graphics Card

X X X X

NVIDIA Geforce GT220 (1GB) FH PCIe x16 Graphics
Card

X X X X

NVIDIA GeForce GT230 (1.5GB) PCIe x16 Graphics
Card

X X X X

NVIDIA GeForce GT315 (1GB) PCIe x16 Graphics Card

X X X X

NVIDIA GeForce GT315 (512MB) PCIe x16 Graphics
Card

X X X X

NVIDIA GeForce GT320 (1GB) FH PCIe x16 Graphics
Card

X X

System Memory

Memory Type

PC3-10600 DDR3 SDRAM (1066/1333MHz) non-ECC

Expansion Slots

Four (4) DIMM slots

Maximum Memory

*

HP Pro Minitower Model

3115 3120 3125 3130

16 GB

8 GB

16 GB 16 GB

Standard Configurations

1-GB (1 x 1GB)
2-GB (2 x 1GB)
2-GB (1 x 2GB)
3-GB (1 x 1GB + 1 x 2GB)
4-GB (4 x 1GB)
4-GB (2 x 2GB)
4-GB (1 x 4GB) select models
5-GB (2 x 2GB + 1 x 1GB)
6-GB (3 x 2GB)
8-GB (4 x 2GB)
8-GB (2 x 4GB) select models
16-GB (4 x 4GB) select models

NOTE:

Memory runs at maximum system supported speed of 1066 MHz, or at 800 MHz when

processor has 800 MHz FSB.

* For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory
may not be available due to system resource requirements. Addressing memory above 4 GB requires a
64-bit operating system.

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 6

Storage

Hard Drive (SATA)

RAID 0/1 support
available with
HP Pro 3130 only

3.5-inch, 7200 rpm, 3.0 Gb/s SATA Hard Drive (NCQ, SMART):
160 GB

250 GB
320 GB
500 GB
640 GB

750 GB

1 TB

1.5 TB
2 TB

3.5-inch, 5400 rpm, 3.0 Gb/s SATA Hard Drive (NCQ, SMART):
1 TB

1.5 TB
2 TB

USB Pocket Media Drive
(PMD) and Bay

HP 3.5-inch Pocket Media Drive Bay
HP 250GB or 320GB 3.5-inch Pocket Media Drive

Media Reader

HP 22-in-1 Media Card Reader

Optical Drive (SATA)

DVD-ROM Drive
SuperMulti LightScribe DVD Writer
HP SATA Blu-ray Writer

Bays

Internal

Two (2) 3.5-inch

External

Two (2) 5.25-inch; One (1) 3.5-inch

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 7

Maximum Quantity Supported

Position Supported

Controller
Drive Support
Media Reader

1 3

Internal USB 2.0 port

USB Pocket Media Drive (PMD) 2 1, 2

Internal USB 2.0 port

DVD-ROM Drives

2 1, 2

SATA

SuperMulti LightScribe Drives

2 1, 2

SATA

HP Blu-Ray Writer

2 1, 2

SATA

3.5” Serial ATA Hard Drives

2 4, 5

SATA

Slots

HP Pro Minitower Model

3115 3120 3125 3130

# PCI 2.3 slots

2 0 0 0

# PCI Express x1 slots

1 3 3 3

# PCI Express x16 slots

1 1 1 1

# MiniPCI slots

0 0 1 1

Communication

Integrated Realtek 8111DL Gigabit Ethernet Controller (HP Pro 3115, 3120 and 3130)
Integrated Realtek RTL8105E 10/100 Ethernet Controller (HP Pro 3125)

Intel Gigabit CT Desktop NIC
LSI PCIe x1 56K International SoftModem
HP Wireless 802.11 b/g/n PCIe x1 Card

USB Support

EHCI high-speed USB 2.0 controller
Six (6) internal ports on system board:

2 for front ports
2 for media card reader
2 reserved for future upgrade

External USB 2.0 ports

HP Pro Minitower Model

3115 3120 3125 3130

Front

2 2 2 2

Rear

6 4 4 6

Optional HP USB 3.0 4-port SuperSpeed full height PCIe x1 card

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 8

Interfaces

One (1) PS/2 keyboard port (HP Pro 3115 only)
One (1) PS/2 mouse port (HP Pro 3115 only)
One (1) analog VGA video port
One (1) DVI-D video port
One (1) RJ45 network port
One (1) serial port (select models)
One (1) SPDIF out
One (1) audio in; 5.1/7.1 audio channel out; one (1) microphone in

Audio

Realtek ALC888S High Definition audio codec

Input Devices

Keyboard – One of the following
HP PS/2 Standard Keyboard (HP Pro 3115 only)

HP USB PS/2 Washable Keyboard
HP USB Standard Keyboard

HP USB Mini Keyboard
HP USB Smartcard Keyboard

Mouse – One of the following
PS/2 2-Button Optical Scroll Mouse (HP Pro 3115 only)
USB 2-Button Optical Scroll Mouse
USB 2-Button Laser Mouse

Miscellaneous

Port Control Cover
HP Chassis Security Kit
HP Parallel Port Adapter
HP Serial Port Full Height Adapter
HP Serial/Parallel PCI Card

NOTE:

HP Parallel Port Adapter and 2nd Serial Port Adapter are not supported on the HP Pro 3130.

Software

Preinstalled software
(varies by country)

Microsoft Office 2007 Ready (select models)
or
Microsoft Office 2010 Preloaded (purchase of a Product Key required to
activate a full Office 2010 suite)*
Microsoft Windows Virtual PC - XP
Mozilla Firefox for HP Virtual Solutions
Hard Disk Partitioning
Roxio Creator Business 10 HD **
Corel WinDVD 8***
Corel WinDVD BD for Blu-Ray**
McAfee Total Protection Anti-Virus***
PDF Complete
2008 Intel Matrix Storage Manager
HP Power Manager v2.0
HP ProtectTools Suite SMB
HP Total Care Advisor
USB Port Disable

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 9

Sun Java Runtime Environment
HP Sky Room 1.x

* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel, unless a
full version suite is added to the configuration at additional cost. Purchase of Product Key required to
activate full Office 2010 suite available at participating resellers/retailers and

http://www.office.com

.
** Supporting software available with certain optical drive configurations.
*** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required
to receive updates. First update included. Subscription required for updates thereafter.

Security

Padlock loop
Kensington Lock Support
Noble Universal Clamp Lock Cable Kit

Power Supply

250W PFC HV immunity (410V/s) and 300W NPFC power supply with a 115v/230v line switch
(varies by country/region) as Standard configuration for APJ and LANA regions respectively, and 300W
PFC HV immunity (410V/s) with a 115v/230v line switch and 300W 85% Efficiency power supply as
option for APJ only

Model

250W/300W PFC+HV

300W Non-PFC

300W 85% Eff

Rated Voltage Range

100 to 127VAC, or

200 to 240VAC

100 to 127VAC, or

200 to 240VAC

100 – 240 VAC

115V/230V Line switch

Yes Yes

N/A

Service and Support

On-site Warranty

Note 1

: 1-1-1, 3-1-1, 3-3-3, 3-3-3 limited, 4-4-4, 5-5-5 limited warranty delivers on-site,

next business-day

Note 2

service for parts and labor and includes free telephone support

Note 3

24 x 7.

Global coverage

Note 2

ensures that any product purchased in one country and transferred to another non­restricted country will remain fully covered under the original warranty and service offering. One-year
onsite and labor are not available in all countries.

NOTE 1:

Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other

warranty variations may be offered in your region.
NOTE 2:

On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are based
on commercially reasonable best effort and may vary by country.

NOTE 3:

Technical telephone support applies only to HP-configured Compaq and third-party HP-qualified
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

QuickSpecs

HP Pro 3100 Series Minitower Business PC

Standard Features (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 10

Communications

NICs
Intel Gigabit CT Desktop NIC

FH969AA
Wireless LAN
HP Wireless 802.11/b/g/n PCIe x1

FH971AA
Modems
LSI PCIe x1 56K International SoftModem

FH970AA

Hard Disk Drives

HP 1-TB SATA 3.0-Gb/s Hard Drive

VU353AA
HP 500-GB SATA 3.0-Gb/s Hard Drive

KW347AA

HP 320-GB SATA 3.0-Gb/s Hard Drive

FH963AA
HP 250-GB SATA 3.0-Gb/s Hard Drive

PY278AA

HP 160-GB SATA 3.0-Gb/s Hard Drive

PY277AA

Removable Storage
Devices

HP 22-in-1 Media Card Reader

AR941AA

Input Devices

Keyboards
HP PS/2 JB Standard Keyboard (HP Pro 3115 only)

DT527A

HP USB JB Standard Keyboard

DT528A

HP USB Smartcard Keyboard (Carbonite/Silver)

ED707AA
HP USB PS2 Washable Keyboard

VF097AA

HP USB Mini Keyboard

AS601AA
HP 2.4GHz Wireless Keyboard & Mouse

TBD
Mice
HP PS/2 2-Button Optical Scroll Mouse (HP Pro 3115 only)

EY703AA

HP USB 2-Button Optical Scroll Mouse

DC172B

HP USB 2-Button Laser Mouse

GW405AA

I/O Adapter

HP Serial/Parallel PCI Card

KD062AA

HP Parallel Port Adapter (not available on HP Pro 3130)

KD061AA

HP 2nd Serial Port Adapter (not available on HP Pro 3130)

PA716A

HP FireWire / IEEE 1394 PCI Card

PA997A

Belkin Serial to USB adapter

EM449AA

Memory

HP 1GB PC3-10600 (DDR3-1333) DIMM

AT023AA

HP 2GB PC3-10600 (DDR3-1333) DIMM

AT024AA

HP 4GB PC3-10600 (DDR3-1333) DIMM

AT025AA

Audio

HP Thin USB Powered Speakers

KK912AA

QuickSpecs

HP Pro 3100 Series Minitower Business PC

After-Market Options (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 11

Graphics

ATI Radeon HD 4550 (512MB) DH PCIe x16 Graphics Card

SG764AA

ATI Radeon HD 4650 (1 GB) PCIe x16 Graphics Card

AR956AA

ATI Radeon HD 5450 (1GB) FH PCIe x16 card

TBD
NVIDIA GeForce G210 HDMI (512MB) SH PCIe x16 Graphics Card

VN565AA

NVIDIA GeForce GT230 (1.5GB) PCIe x16 Graphics Card

VH697AA

NVIDIA GeForce GT315 PCIe x16 Card (PRC only)

VR763AA

HP DMS59 DVI Dual-head Connector Cable

DL139A

Optical Drives

HP 16X/48X SATA DVD-ROM Drive BLK

AR629AA

HP 16X SATA SuperMulti LightScribe DVD Drive BLK

AR630AA

HP 16X SATA Blu-ray Writer BLK

AR482AA

Security

HP Business PC Security Lock Kit

PV606AA

HP/Kensington MicroSaver Security Cable Lock

PC766A

HP Chassis (dc) Security Kit

AR639AA

QuickSpecs

HP Pro 3100 Series Minitower Business PC

After-Market Options (availability varies by configuration and by country)

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 12

System Unit

Dimensions

(HxWxD)

15.14 x 7.27 x 16.36 in
385 x 185 x 416 mm

Weight

16.7 lb (7.58 kg)

Packaging Dimensions
(DxLxW)

19.63 x 24.13 x 10.56 in

498.6 x 613 x 268.2 mm

Shipping Weight

24.77 lb (111.24 kg)

Temperature

Operating

41° to 95° F (5° to 35° C)

Non-operating

–22° to 149° F (–30° to 65° C)

Relative Humidity

Operating

10% to 90% (non-condensing at ambient)

Non-operating

5% to 95% (non-condensing at ambient)

Shock

Operating

35 G, half-sine

Non-operating

30 G, half-sine

Maximum Altitude
(unpressurized)

Operating

10,000 ft (3048 m)

Non-operating

30,000 ft (9144 m)

For accessibility information on HP products, please visit:

http://www.hp.com/accessibility

.

Unit Environment and
Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.

Eco-Label Certifications &
declarations

This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:

IT ECO declaration

HP Pro 3120, Microtower PC, HP Pro 3125 Microtower PC and HP Pro 3130 Microtower PC

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

68.637 W 68.393 W 68.763 W

Sleep (Energy Star low
power mode)

2.8911 W 3.0913 W 2.8888 W

Off

1.0867 W 1.2908 W 1.0597 W

Heat Dissipation

*

115 VAC 230 VAC 100 VAC

Normal Operation

235 BTU/hr 234 BTU/hr 235 BTU/hr

Sleep

10 BTU/hr 11 BTU/hr 10 BTU/hr

Off

4 BTU/hr 4 BTU/hr 4 BTU/hr

QuickSpecs

HP Pro 3100 Series Minitower Business PC

System Unit Specifications

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 13

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.

Declared Noise Emissions
(in accordance with
ISO 7779 and ISO

9296)
System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.8 33

Fixed Disk
(random writes)

4.4 34

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight

Battery size: CR2032 (coin cell)
Battery type: Lithium

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive ­2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 90% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated Carton 1405 g

Internal:

EPS (Expanded Polystyrene) 85 g
Other Plastics Unknown 6.3 g
Polyethylene low density 3.2 g

Polystyrene 6.8 g
The Corrugated Carton packaging material is made from 85% recycled content.
The EPS (Expanded Polystyrene) packaging material is made from 85% recycled content
The Other Plastics Unknown packaging material is made from 85% recycled content
The Polyethylene low density packaging material is made from 85% recycled content
The Polystyrene packaging material is made from 85% recycled content

RoHS Compliance

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for
all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is

QuickSpecs

HP Pro 3100 Series Minitower Business PC

System Unit Specifications

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 14

no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP
General Specification for the Environment at:

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

):

Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 micro-grams/cm^2/week, measured according to
EN 1811:1998, are not used on any product surface designed to be frequently handled or
touched by users.

Packaging

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management
and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

or contact your nearest
HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted on
the Hewlett Packard web site at:

http://www.hp.com/go/recyclers

. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.

Hewlett-Packard
Corporate Environmental

For more information about HP's commitment to the environment:
Global Citizenship Report

QuickSpecs

HP Pro 3100 Series Minitower Business PC

System Unit Specifications

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 15

Information

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

Copyright © 2010 Hewlett-Packard Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel, Core, Pentium and Celeron are registered trademarks or trademarks of Intel
Corporation in the U.S. and/or other countries. Phenom, Athlon and Sempron are registered trademarks or trademarks of AMD
Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective
companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.

QuickSpecs

HP Pro 3100 Series Minitower Business PC

System Unit Specifications

DA - 13640 Worldwide QuickSpecs — Version 13 — 12.10.2010

Page 16
