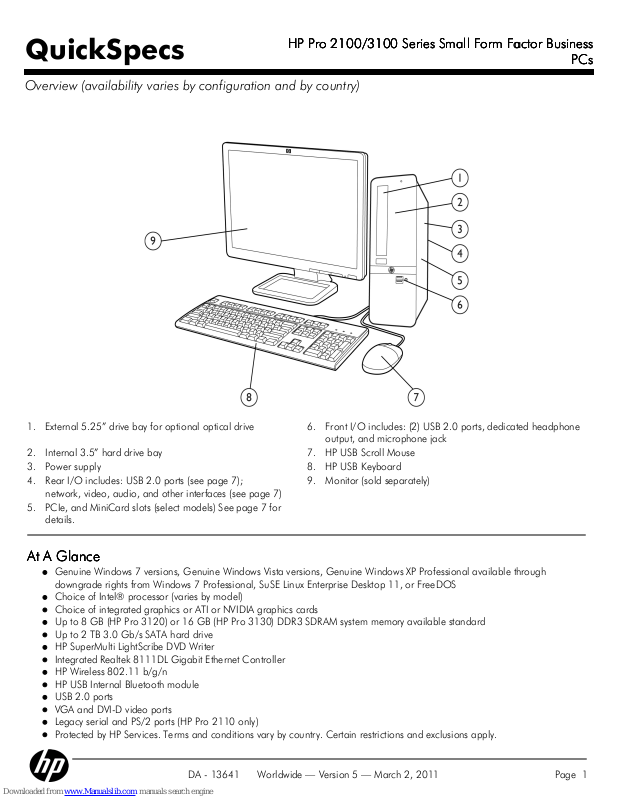

1.
External 5.25” drive bay for optional optical drive
6.
Front I/O includes: (2) USB 2.0 ports, dedicated headphone
output, and microphone jack
2.
Internal 3.5” hard drive bay
7.
HP USB Scroll Mouse
3.
Power supply
8.
HP USB Keyboard
4.
Rear I/O includes: USB 2.0 ports (see page 7);
network, video, audio, and other interfaces (see page 7)
9.
Monitor (sold separately)
5.
PCIe, and MiniCard slots (select models) See page 7 for
details.
At A Glance
At A GlanceAt A Glance
At A Glance
Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows XP Professional available through
downgrade rights from Windows 7 Professional, SuSE Linux Enterprise Desktop 11, or FreeDOS
Choice of Intel® processor (varies by model)
Choice of integrated graphics or ATI or NVIDIA graphics cards
Up to 8 GB (HP Pro 3120) or 16 GB (HP Pro 3130) DDR3 SDRAM system memory available standard
Up to 2 TB 3.0 Gb/s SATA hard drive
HP SuperMulti LightScribe DVD Writer
Integrated Realtek 8111DL Gigabit Ethernet Controller
HP Wireless 802.11 b/g/n
HP USB Internal Bluetooth module
USB 2.0 ports
VGA and DVI-D video ports
Legacy serial and PS/2 ports (HP Pro 2110 only)
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Overview (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 1
Page 2
Processors
ProcessorsProcessors
Processors
(Availability
(Availability(Availability
(Availability
depends on model; list is
depends on model; list isdepends on model; list is
depends on model; list is
subject to change)
subject to change)subject to change)
subject to change)
Intel Celeron® Processors (HP Pro 2110 and 3120 only):
Intel Celeron® Processors (HP Pro 2110 and 3120 only):Intel Celeron® Processors (HP Pro 2110 and 3120 only):
Intel Celeron® Processors (HP Pro 2110 and 3120 only):
Intel Celeron 450 Processor (2.2 GHz, 512 KB L2 cache, 800 MHz FSB)
Intel Celeron Dual-Core Processors (HP Pro 2110 and 3120 only):
Intel Celeron Dual-Core Processors (HP Pro 2110 and 3120 only):Intel Celeron Dual-Core Processors (HP Pro 2110 and 3120 only):
Intel Celeron Dual-Core Processors (HP Pro 2110 and 3120 only):
Intel Celeron E3300 Processor (2.5 GHz, 1 MB L2 cache, 800 MHz FSB)
Intel Pentium® Dual Core Processors (HP Pro 2110 and 3120 only):
Intel Pentium® Dual Core Processors (HP Pro 2110 and 3120 only):Intel Pentium® Dual Core Processors (HP Pro 2110 and 3120 only):
Intel Pentium® Dual Core Processors (HP Pro 2110 and 3120 only):
Intel Pentium E5400 Processor (2.7 GHz, 2 MB L2 cache, 800 MHz FSB)
Intel Pentium E5500 Processor (2.8 GHz, 2 MB L2 cache, 800 MHz FSB)
Intel Pentium E6500 Processor (2.93 GHz, 2 MB L2 cache, 1066 MHz FSB)
Intel Pentium E6600 Processor (3.06 GHz, 2 MB L2 cache, 1066 MHz FSB)
Intel Pentium® Dual Core Processors (HP Pro 3130 only):
Intel Pentium® Dual Core Processors (HP Pro 3130 only):Intel Pentium® Dual Core Processors (HP Pro 3130 only):
Intel Pentium® Dual Core Processors (HP Pro 3130 only):
Intel Pentium G6950 Processor (2.8 GHz, 3 MB L2 cache, 1066 MHz FSB)
Intel Core®2 Duo Processors (HP Pro 2110 and 3120 only):
Intel Core®2 Duo Processors (HP Pro 2110 and 3120 only):Intel Core®2 Duo Processors (HP Pro 2110 and 3120 only):
Intel Core®2 Duo Processors (HP Pro 2110 and 3120 only):
Intel Core 2 Duo E6700 Processor (2.66 GHz, 4 MB L2 cache, 1066 MHz FSB)
Intel Core 2 Duo E7500 Processor (2.93 GHz, 3 MB L2 cache, 1066 MHz FSB)
Intel Core 2 Duo E8500 Processor (3.16 GHz, 6 MB L2 cache, 1333 MHz FSB)
Intel Core2 Duo Processors (HP Pro 3120 only):
Intel Core2 Duo Processors (HP Pro 3120 only):Intel Core2 Duo Processors (HP Pro 3120 only):
Intel Core2 Duo Processors (HP Pro 3120 only):
Intel Core 2 Duo E7600 Processor (3.06 GHz, 3 MB L2 cache, 1066 MHz FSB)
Intel Core 2 Quad Processors (HP Pro 2110 and 3120 only):
Intel Core 2 Quad Processors (HP Pro 2110 and 3120 only):Intel Core 2 Quad Processors (HP Pro 2110 and 3120 only):
Intel Core 2 Quad Processors (HP Pro 2110 and 3120 only):
Intel Core 2 Quad Q8400 Processor (2.66 GHz, 4 MB L2 cache, 1333 MHz FSB)
Intel Core 2 Quad Q9500 Processor (2.83 GHz, 6 MB L2 cache, 1333 MHz FSB)
Intel Core 2 Quad Processors (HP Pro 3120 only):
Intel Core 2 Quad Processors (HP Pro 3120 only):Intel Core 2 Quad Processors (HP Pro 3120 only):
Intel Core 2 Quad Processors (HP Pro 3120 only):
Intel Core 2 Quad Q8300 Processor (2.5 GHz, 4 MB L2 cache, 1333 MHz FSB)
Intel Core i3 Processors (HP Pro 3130 only):
Intel Core i3 Processors (HP Pro 3130 only):Intel Core i3 Processors (HP Pro 3130 only):
Intel Core i3 Processors (HP Pro 3130 only):
Intel Core i3-530 Processor (2.93 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Intel Core i3-540 Processor (3.06 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Intel Core i3-550 Processor (3.20 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Intel Core i5 Processors (HP Pro 3130 only):
Intel Core i5 Processors (HP Pro 3130 only):Intel Core i5 Processors (HP Pro 3130 only):
Intel Core i5 Processors (HP Pro 3130 only):
Intel Core i5-650 Processor (3.20 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Up to 3.46 GHz with Intel Turbo Boost Technology
Intel Core i5-660 Processor (3.33 GHz, 4 MB Intel Smart Cache, DMI 2.5 GT/s)
Up to 3.6 GHz with Intel Turbo Boost Technology
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 2
Page 3
Intel Core i5-750 Processor* (2.66 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)
Up to 3.2 GHz with Intel Turbo Boost Technology
Intel Core i7 Processors (HP Pro 3130 only):
Intel Core i7 Processors (HP Pro 3130 only):Intel Core i7 Processors (HP Pro 3130 only):
Intel Core i7 Processors (HP Pro 3130 only):
Intel Core i7-860 Processor* (2.8 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)
Up to 3.46 GHz with Intel Turbo Boost Technology
Intel Core i7-870 Processor* (2.93 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)
Up to 3.6 GHz with Intel Turbo Boost Technology
Intel Core i7-880 Processor* (3.06 GHz, 8 MB Intel Smart Cache, DMI 2.5 GT/s)
Up to 3.73 GHz with Intel Turbo Boost Technology
* These processor onfigurations do not have integrated graphics and require a graphics card.
NOTE:
NOTE: NOTE:
NOTE:
Intel processor numbers are not a measure of performance. Processor numbers differentiate
features within each processor family, not across different processor families.
Operating System
Operating SystemOperating System
Operating System
Preinstalled
PreinstalledPreinstalled
Preinstalled
Genuine Windows 7 Professional Edition (32-bit)*
Genuine Windows 7 Professional Edition (64-bit)*
Genuine Windows XP Professional available through downgrade rights
from Windows 7 Professional**
Genuine Windows 7 Home Premium Edition (32-bit)*
Genuine Windows 7 Home Premium Edition (64-bit)*
Genuine Windows 7 Ultimate Edition (32-bit)*
Genuine Windows 7 Ultimate Edition (64-bit)*
Genuine Windows 7 Home Basic Edition (32-bit)*
Genuine Windows 7 Home Basic Edition (64-bit)*
Genuine Windows 7 Starter (limited regions support)*
Genuine Windows Vista Business (32-bit)**
Genuine Windows Vista Home Basic (32-bit)**
SuSE Linux Enterprise Desktop 11
FreeDOS
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the
Windows 7 software and take full advantage of Windows 7 functionality. See
http://www.microsoft.com/windows/windows-7/
for details.
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
and
http://www.microsoft.com/windowsvista/getready/capable.mspx
for details. Windows Vista Upgrade
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit:
http://www.windowsvista.com/upgradeadvisor
.
*** Windows XP Professional is preinstalled on this system and includes end user rights and media for
Windows 7 Professional. You may only use one version at a time. You must back up all data (files,
photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 3
Page 4
Chipset
ChipsetChipset
Chipset
HP Pro 2110
Intel G41 Express Chipset
HP Pro 3120
Intel G43 Express Chipset
HP Pro 3130
Intel H57 Express Chipset
Graphics
GraphicsGraphics
Graphics
HP Pro SFF Model
HP Pro SFF ModelHP Pro SFF Model
HP Pro SFF Model
2110
21102110
2110 3120
31203120
3120 3130
31303130
3130
Integrated
Integrated Integrated
Integrated
Integrated Intel Graphics Media Accelerator X4500
X
Integrated Intel Graphics Media Accelerator X4500
X
Integrated Intel Graphics Media Accelerator HD
X
NOTE:
NOTE: NOTE:
NOTE:
HP Pro 3130 with any Intel Core i7 processor or an Intel Core i5-750 processor has no
integrated graphics and requires a graphics card.
Graphics Cards
Graphics Cards Graphics Cards
Graphics Cards
(List is subject to
(List is subject to (List is subject to
(List is subject to
change)
change) change)
change)
ATI Radeon HD 4350 HDMI (512MB) LP PCIe x16 Graphics Card
X X
ATI Radeon HD 4550 (512MB) DH PCIe x16 Graphics Card
X
ATI Radeon HD 5450 (1GB) LP PCIe x16 Graphics Card
X X X
ATI Radeon HD 5450 (512MB) LP PCIe x16 Graphics Card
X X X
NVIDIA GeForce G210 HDMI (512MB) PCIe x16 Graphics Card
X X X
NVIDIA Geforce GT220 (1GB) LP PCIe x16 Graphics Card
X X X
NVIDIA GeForce GT315 (1GB) PCIe x16 Graphics Card
X X X
NVIDIA GeForce GT315 (512MB) PCIe x16 Graphics Card
X X X
NVIDIA GeForce GT320 (1GB) LP PCIe x16 Graphics Card
X X X
System Memory
System MemorySystem Memory
System Memory
Memory Type
Memory TypeMemory Type
Memory Type
PC3-10600 DDR3 SDRAM (1066/1333MHz) non-ECC
Expansion Slots
Expansion SlotsExpansion Slots
Expansion Slots
Two (2) DIMM slots in HP Pro 2110
Four (4) DIMM slots in HP Pro 3120 and 3130
Maximum Memory
Maximum MemoryMaximum Memory
Maximum Memory
*
4 GB in HP Pro 2110
8 GB in HP Pro 3120
16 GB in HP Pro 3130
Standard Configurations
Standard ConfigurationsStandard Configurations
Standard Configurations
1-GB (1 x 1GB)
2-GB (2 x 1GB)
2-GB (1 x 2GB)
3-GB (1 x 1GB + 1 x 2GB)
3-GB (3 x 1GB) HP Pro 3120 and 3130 only
4-GB (4 x 1GB) HP Pro 3120 and 3130 only
4-GB (2 x 2GB)
4-GB (1 x 4GB) HP Pro 3130 only
6-GB (3 x 2GB) HP Pro 3120 and 3130 only
8-GB (4 x 2GB) HP Pro 3120 and 3130 only
8-GB (2 x 4GB) HP Pro 3130 only
16-GB (4 x 4GB) HP Pro 3130 only
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 4
Page 5
NOTE:
NOTE:NOTE:
NOTE:
Memory runs at maximum system supported speed of 1066 MHz, or at 800 MHz when
processor has 800 MHz FSB.
* For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory
may not be available due to system resource requirements. Addressing memory above 4 GB requires a
64-bit operating system.
Storage
StorageStorage
Storage
Hard Drive (SATA)
Hard Drive (SATA)Hard Drive (SATA)
Hard Drive (SATA)
3.5-inch, 7200 rpm, 3.0 Gb/s SATA Hard Drive (NCQ, SMART):
160 GB
250 GB
320 GB
500 GB
640 GB
750 GB
1 TB
1.5 TB
2 TB
3.5-inch, 5400 rpm, 3.0 Gb/s SATA Hard Drive (NCQ, SMART):
1 TB
1.5 TB
2 TB
Optical Drive (SATA)
Optical Drive (SATA)Optical Drive (SATA)
Optical Drive (SATA)
SuperMulti LightScribe DVD Writer
Bays
BaysBays
Bays
Internal
InternalInternal
Internal
One (1) 3.5-inch
External
ExternalExternal
External
One (1) 5.25-inch
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 5
Page 6
Maximum Quantity Supported
Maximum Quantity SupportedMaximum Quantity Supported
Maximum Quantity Supported
Position Supported
Position SupportedPosition Supported
Position Supported
Controller
ControllerController
Controller
Drive Support
Drive SupportDrive Support
Drive Support
HP SuperMulti LightScribe Drive
1 1
SATA
3.5” Serial ATA Hard Drive
1 2
SATA
Slots
SlotsSlots
Slots
HP Pro SFF Model
HP Pro SFF ModelHP Pro SFF Model
HP Pro SFF Model
2110
21102110
2110 3120
31203120
3120 3130
31303130
3130
# PCI Express x1 slots
1 1 1
# PCI Express x16 slots
1 1 1
# MiniPCI slots
0 0 1
Communication
CommunicationCommunication
Communication
Integrated Realtek 8111DL Gigabit Ethernet Controller
Intel Gigabit CT Desktop NIC
LSI PCIe x1 56K International SoftModem
HP Wireless 802.11 b/g/n PCIe x1 Card
HP USB Internal Bluetooth module
USB Support
USB SupportUSB Support
USB Support
EHCI high-speed USB 2.0 controller
# External USB 2.0 ports
HP Pro SFF Model
HP Pro SFF ModelHP Pro SFF Model
HP Pro SFF Model
2110
21102110
2110 3120
31203120
3120 3130
31303130
3130
Front
2 2 2
Rear
4 4 6
Optional HP USB 3.0 SuperSpeed low profile PCIe x1 card
Interfaces
InterfacesInterfaces
Interfaces
HP Pro 2110
One (1) analog VGA video port
One (1) DVI-D video port
One (1) RJ45 network port
One (1) audio in; one (1) audio out; one (1) microphone in
One (1) serial port
Two (2) PS/2 ports (keyboard and mouse)
Support for an optional parallel port
HP Pro 3120 and
3130
One (1) analog VGA video port
One (1) DVI-D video port
One (1) RJ45 network port
One (1) SPDIF out
One (1) audio in; 5.1/7.1 audio channel out; one (1) microphone in
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 6
Page 7
Audio
AudioAudio
Audio
Realtek ALC662 High Definition audio codec in HP Pro 2110
Realtek ALC888S High Definition audio codec in HP Pro 3120 and 3130
Input Devices
Input DevicesInput Devices
Input Devices
Keyboard – One of the following
Keyboard – One of the followingKeyboard – One of the following
Keyboard – One of the following
HP USB Standard Keyboard
HP USB Mini Keyboard
HP USB Smartcard Keyboard
HP PS/2 Standard Keyboard (HP Pro 2110 only)
Mouse – One of the following
Mouse – One of the followingMouse – One of the following
Mouse – One of the following
USB 2-Button Optical Scroll Mouse
USB 2-Button Laser Mouse
HP PS/2 Optical Mouse (HP Pro 2110 only)
Miscellaneous
MiscellaneousMiscellaneous
Miscellaneous
USB to Serial Adapter
Software
SoftwareSoftware
Software
Preinstalled software
Preinstalled softwarePreinstalled software
Preinstalled software
(varies by country)
(varies by country)(varies by country)
(varies by country)
2007 Microsoft Office Ready PC
Microsoft Office 2007 Small Business
Microsoft Office 2007 Professional
Microsoft Office 2010 Professional
Microsoft Office Home and Business 2010
Microsoft Office Home and Student 2010
Microsoft Office Starter 2010
Microsoft Windows Virtual PC - XP
Mozilla Firefox for HP Virtual Solutions
Hard Disk Partitioning
Roxio Creator Business 10 HD*
Corel WinDVD 8**
McAfee Total Protection Anti-Virus**
PDF Complete
2008 Intel Matrix Storage Manager
HP Power Manager v2.0
HP ProtectTools Suite SMB
HP Total Care Advisor
USB Port Disable
Sun Java Runtime Environment
HP Sky Room 1.x
* Supporting software available with certain optical drive configurations.
** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
Security
SecuritySecurity
Security
Padlock loop
Kensington Lock Support
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 7
Page 8
Power Supply
Power SupplyPower Supply
Power Supply
220W active PFC power supply with a 115/230v line switch as Standard configuration for EMEA; 270W
active PFC (ESTAR or non-ESTAR) for APJ
Model
220W active PFC 270W active PFC
270W active PFC ESTAR
Rated Voltage Range
100 to 240VAC 100 to 240VAC 100 to 240VAC
115V/230V Line switch
No No No
Service and Support
Service and SupportService and Support
Service and Support
On-site Warranty
Note 1
: 1-1-1, 3-1-1, 3-3-3, 3-3-3 limited, 4-4-4, 5-5-5 limited warranty delivers on-
site, next business-day
Note 2
service for parts and labor and includes free telephone support
Note 3
24 x 7.
Global coverage
Note 2
ensures that any product purchased in one country and transferred to another
non-restricted country will remain fully covered under the original warranty and service offering. Oneyear onsite and labor are not available in all countries.
NOTE 1:
NOTE 1:NOTE 1:
NOTE 1:
Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other
warranty variations may be offered in your region.
NOTE 2:
NOTE 2:NOTE 2:
NOTE 2:
On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3:
NOTE 3:NOTE 3:
NOTE 3:
Technical telephone support applies only to HP-configured Compaq and third-party HPqualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
Standard Features (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 8
Page 9
Communications
CommunicationsCommunications
Communications
NICs
NICsNICs
NICs
Intel Gigabit CT Desktop NIC
FH969AA
Wireless LAN
Wireless LANWireless LAN
Wireless LAN
HP Wireless 802.11/b/g/n PCIe x1
FH971AA
Modems
ModemsModems
Modems
LSI PCIe x1 56K International SoftModem
FH970AA
Hard Disk Drives
Hard Disk DrivesHard Disk Drives
Hard Disk Drives
HP 1-TB SATA 3.0-Gb/s Hard Drive
VU353AA
HP 500-GB SATA 3.0-Gb/s Hard Drive
KW347AA
HP 320-GB SATA 3.0-Gb/s Hard Drive
FH963AA
HP 250-GB SATA 3.0-Gb/s Hard Drive
PY278AA
HP 160-GB SATA 3.0-Gb/s Hard Drive
PY277AA
Input Devices
Input DevicesInput Devices
Input Devices
Keyboards
KeyboardsKeyboards
Keyboards
HP USB JB Standard Keyboard
DT528A
HP USB Smartcard Keyboard (Carbonite/Silver)
ED707AA
HP USB Mini Keyboard
AS601AA
HP 2.4GHz Wireless Keyboard & Mouse
NB896AA
Mice
MiceMice
Mice
HP USB 2-Button Optical Scroll Mouse
DC172B
HP USB 2-Button Laser Mouse
GW405AA
I/O Adapter
I/O AdapterI/O Adapter
I/O Adapter
Belkin USB to Serial adapter
EM449AA
Memory
MemoryMemory
Memory
HP 1GB PC3-10600 (DDR3-1333) DIMM
AT023AA
HP 2GB PC3-10600 (DDR3-1333) DIMM
AT024AA
HP 4GB PC3-10600 (DDR3-1333) DIMM
AT025AA
Audio
AudioAudio
Audio
HP Thin USB Powered Speakers
KK912AA
Graphics
GraphicsGraphics
Graphics
ATI Radeon HD 4350 HDMI (512MB) LP PCIe x16 Graphics Card
TBD
NVIDIA GeForce G210 HDMI (512MB) LP PCIe x16 Graphics Card
TBD
HP DMS59 DVI Dual-head Connector Cable
DL139A
Optical Drives
Optical DrivesOptical Drives
Optical Drives
HP 16X SATA SuperMulti LightScribe DVD Drive BLK
AR630AA
HP 16X SATA Blu-ray Writer BLK
AR482AA
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
After-Market Options (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 9
Page 10
Security
SecuritySecurity
Security
HP/Kensington MicroSaver Security Cable Lock
PC766A
HP Chassis (dc) Security Kit
AR639AA
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
After-Market Options (availability varies by configuration and by country)
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 10
Page 11
System Unit
System UnitSystem Unit
System Unit
Dimensions
DimensionsDimensions
Dimensions
(HxWxD)
4.43 x 12.25 x 15.33 in
112.5 x 311 x 389.4 mm
Weight
WeightWeight
Weight
14.74 lb (6.69 kg)
Packaging Dimensions
Packaging DimensionsPackaging Dimensions
Packaging Dimensions
(DxLxW)
22.13 x 19.33 x 9.65 in
562.1 x 491 x 245.1 mm
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
40.77 lb (18.49 kg)
Temperature
TemperatureTemperature
Temperature
Operating
41° to 95° F (5° to 35° C)
Non-operating
–22° to 149° F (–30° to 65° C)
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
Operating
10% to 90% (non-condensing at ambient)
Non-operating
5% to 95% (non-condensing at ambient)
Shock
ShockShock
Shock
Operating
35 G, half-sine
Non-operating
30 G, half-sine
Maximum Altitude
Maximum AltitudeMaximum Altitude
Maximum Altitude
(unpressurized)
Operating
10,000 ft (3048 m)
Non-operating
30,000 ft (9144 m)
For accessibility information on HP products, please visit:
http://www.hp.com/accessibility
.
Unit Environment and
Unit Environment andUnit Environment and
Unit Environment and
Operating Conditions
Operating ConditionsOperating Conditions
Operating Conditions
General Unit Operating Guidelines
General Unit Operating GuidelinesGeneral Unit Operating Guidelines
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must
be provided on the enclosure, and the same operating guidelines listed above will still apply.
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
System Unit Specifications
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 11
Page 12
Eco-Label Certifications &
Eco-Label Certifications &Eco-Label Certifications &
Eco-Label Certifications &
declarations
declarationsdeclarations
declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
IT ECO declaration
HP Pro 2110 Small Form Factor Business PC, HP Pro 3120 Small Form Factor Business PC and HP
HP Pro 2110 Small Form Factor Business PC, HP Pro 3120 Small Form Factor Business PC and HPHP Pro 2110 Small Form Factor Business PC, HP Pro 3120 Small Form Factor Business PC and HP
HP Pro 2110 Small Form Factor Business PC, HP Pro 3120 Small Form Factor Business PC and HP
Pro 3130 Small Form Factor Business PC
Pro 3130 Small Form Factor Business PCPro 3130 Small Form Factor Business PC
Pro 3130 Small Form Factor Business PC
Energy Consumption
Energy ConsumptionEnergy Consumption
Energy Consumption
115 VAC 230 VAC 100 VAC
Normal Operation
43.149 W 42.826 W 43.061 W
Sleep (Energy Star low
power mode)
2.2186 W 2.3853 W 2.2152 W
Off
0.3361 W 0.4891 W 0.3250 W
Heat Dissipation
Heat DissipationHeat Dissipation
Heat Dissipation
*
115 VAC 230 VAC 100 VAC
Normal Operation
148 BTU/hr 146 BTU/hr 147 BTU/hr
Sleep
8 BTU/hr 8 BTU/hr 8 BTU/hr
Off
1 BTU/hr 2 BTU/hr 1 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.
Declared Noise Emissions
Declared Noise EmissionsDeclared Noise Emissions
Declared Noise Emissions
(in accordance with
(in accordance with(in accordance with
(in accordance with
ISO 7779 and ISO 9296)
ISO 7779 and ISO 9296)ISO 7779 and ISO 9296)
ISO 7779 and ISO 9296)
System Fan Off
Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels)
Idle
3.8
33
Fixed Disk
(random writes)
4.4
34
Batteries
BatteriesBatteries
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
Battery size: CR2032 (coin cell)
Battery type: Lithium
Additional Information
Additional InformationAdditional Information
Additional Information
This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0% post consumer recycled plastic (by wt.)
This product is 95% recyclable when properly disposed of at end of life.
Packaging Materials
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
System Unit Specifications
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 12
Page 13
External:
Corrugated Carton 1305 g
Corrugated 1120 g
Internal:
EPS (Expanded Polystyrene) 51 g
Polystyrene Foam 22 g
The Corrugated Carton packaging material is made from 82% recycled content.
The EPS (Expanded Polystyrene) packaging material is made from 82% recycled content
The Polystyrene Foam packaging material is made from 82% recycled content
RoHS Compliance
RoHS ComplianceRoHS Compliance
RoHS Compliance
Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations,
including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to
exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis.
By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for
all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is
no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).
Material Usage
Material UsageMaterial Usage
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to the
HP General Specification for the Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html
):
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Nickel finishes that release greater than 0.5 micro-grams/cm^2/week, measured according to
EN 1811:1998, are not used on any product surface designed to be frequently handled or
touched by users.
Packaging
PackagingPackaging
Packaging
HP follows these guidelines to decrease the environmental impact of product packaging:
Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
System Unit Specifications
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 13
Page 14
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management
End-of-life ManagementEnd-of-life Management
End-of-life Management
and Recycling
and Recyclingand Recycling
and Recycling
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas.
To recycle your product, please go to:
http://www.hp.com/go/reuse-recycle
or contact your nearest HP
sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each
product type for use by treatment facilities. This information (product disassembly instructions) is posted
on the Hewlett Packard web site at:
http://www.hp.com/go/recyclers
. These instructions may be used by
recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP
equipment.
Hewlett-Packard
Hewlett-PackardHewlett-Packard
Hewlett-Packard
Corporate Environmental
Corporate EnvironmentalCorporate Environmental
Corporate Environmental
Information
InformationInformation
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html
Copyright © 2011 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel, Core, Pentium and Celeron are registered trademarks or trademarks of Intel
Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective
companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor BusinessHP Pro 2100/3100 Series Small Form Factor Business
HP Pro 2100/3100 Series Small Form Factor Business
PCs
PCsPCs
PCs
System Unit Specifications
DA - 13641 Worldwide — Version 5 — March 2, 2011
Page 14
Loading...
