HP PRESARIO S6040AN Technical Data

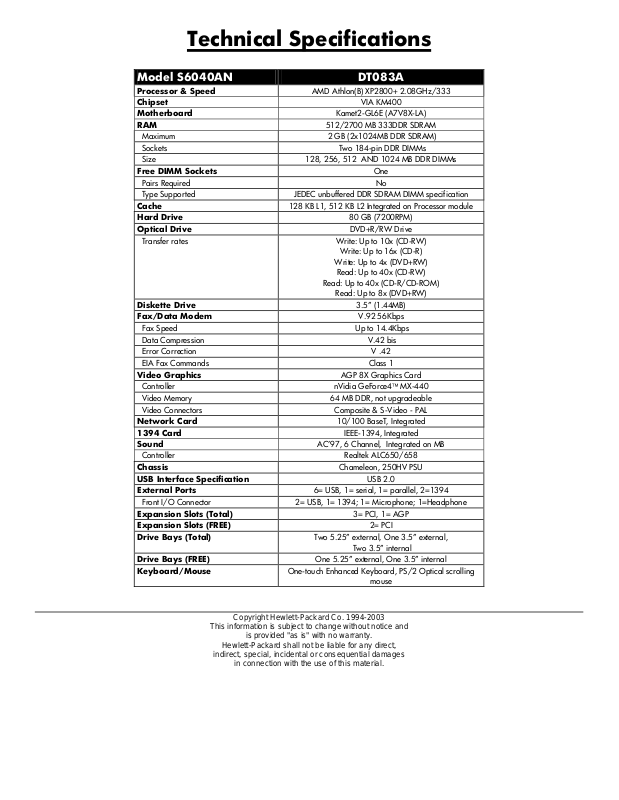

Technical Specifications

Model S6040AN DT083A

Processor & Speed AMD Athlon(B) XP2800+ 2.08GHz/333 Chipset VIA KM400 Motherboard Kamet2-GL6E (A7V8X-LA) RAM 512/2700 MB 333DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module Hard Drive 80 GB (7200RPM) Optical Drive DVD+R/RW Drive

Transfer rates

Diskette Drive 3.5” (1.44MB) Fax/Data Modem V.92 56Kbps

Fax Speed Up to 14.4Kbps Data Compression V.42 bis Error Correction V .42 EIA Fax Commands Class 1 Video Graphics AGP 8X Graphics Card Controller nVidia GeForce4™ MX-440 Video Memory 64 MB DDR, not upgradeable Video Connectors Composite & S-Video - PAL

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650/658 Chassis Chameleon, 250HV PSU USB Interface Specification USB 2.0 External Ports 6= USB, 1= serial, 1= parallel, 2=1394

Front I/O Connector 2= USB, 1= 1394; 1= Microphone; 1=Headphone

Expansion Slots (Total) 3= PCI, 1= AGP Expansion Slots (FREE) 2= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” internal Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 10x (CD-RW)

Write: Up to 16x (CD-R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD-RW)

Read: Up to 40x (CD-R/CD-ROM)

Read: Up to 8x (DVD+RW)

Two 3.5” internal

mouse
