HP Presario CQ43-300, Presario CQ43-400 Getting Started Manual
Getting Started
Compaq Notebook
© Copyright 2011 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Microsoft and
Windows are U.S. registered trademarks of
Microsoft Corporation. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: August 2011
Document Part Number: 657808-001
Product notice
This guide describes features that are
common to most models. Some features
may not be available on your computer.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a refund subject to the refund
policy of your place of purchase.
For any further information or to request a
full refund of the computer, please contact
your local point of sale (the seller).
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
come into contact with the skin or a soft surface, such as pillows or rugs or clothing, during operation.
The computer and the AC adapter comply with the user-accessible surface temperature limits defined
by the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Welcome .......................................................................................................................................................... 1
Finding information ............................................................................................................................... 2
2 Getting to know your computer ..................................................................................................................... 4
Top ....................................................................................................................................................... 4
TouchPad ............................................................................................................................ 4
Lights ................................................................................................................................... 5
Buttons ................................................................................................................................. 6
Keys ..................................................................................................................................... 7
Right side ............................................................................................................................................. 8
Left side ................................................................................................................................................ 9
Display ................................................................................................................................................ 11
Bottom ................................................................................................................................................ 12
3 HP QuickWeb (select models only) ............................................................................................................. 13
Getting started .................................................................................................................................... 13
Starting HP QuickWeb ....................................................................................................................... 14
4 Networking .................................................................................................................................................... 15
Using an Internet service provider ...................................................................................................... 16
Connecting to a wireless network ....................................................................................................... 16
Connecting to an existing WLAN ....................................................................................... 16
Setting up a new WLAN network ....................................................................................... 17
Configuring a wireless router ............................................................................ 18
Protecting your WLAN ....................................................................................... 18
5 Keyboard and pointing devices ................................................................................................................... 19
Using the keyboard ............................................................................................................................ 19
Using the action keys ......................................................................................................... 19
Using keypads ................................................................................................................... 20
Using an optional external numeric keypad ...................................................... 20
v
Using pointing devices ....................................................................................................................... 21
Setting pointing device preferences ................................................................................... 21
Using the TouchPad .......................................................................................................... 21
Turning the TouchPad off or on ........................................................................ 22
Navigating ......................................................................................................... 22
Selecting ........................................................................................................... 23
Using TouchPad gestures ................................................................................. 23
Scrolling ............................................................................................ 24
Pinching/Zooming ............................................................................. 24
6 Maintenance .................................................................................................................................................. 25
Inserting or removing the battery ........................................................................................................ 25
Inserting the battery ........................................................................................................... 25
Removing the battery ......................................................................................................... 26

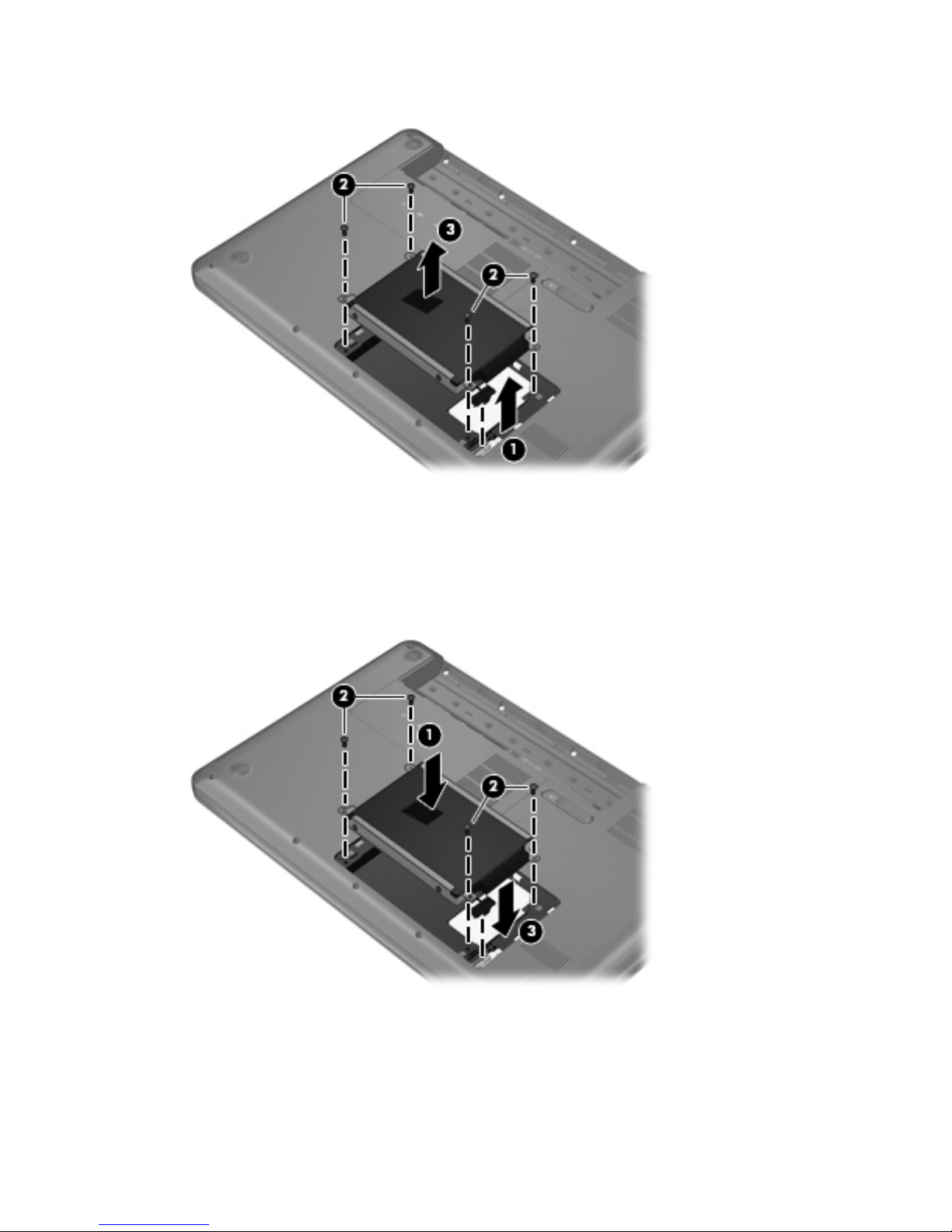

Replacing or upgrading the hard drive ............................................................................................... 27
Removing the hard drive .................................................................................................... 27
Installing a hard drive ......................................................................................................... 28
Adding or replacing memory modules ................................................................................................ 29
7 Backup and recovery .................................................................................................................................... 34
Restore ............................................................................................................................................... 35
Creating restore media ....................................................................................................................... 35
Performing a system restore .............................................................................................................. 36
Restoring using the dedicated recovery partition (select models only) .............................. 36
Restoring using the restore media ..................................................................................... 37
Changing the computer boot order .................................................................................... 38
Backing up and recovering your information ...................................................................................... 38
Using Windows Backup and Restore ................................................................................ 39
Using Windows system restore points ............................................................................... 40
When to create restore points ........................................................................... 40
Create a system restore point ........................................................................... 40
Restore to a previous date and time ................................................................. 40
8 Customer support ......................................................................................................................................... 41
Contacting customer support ............................................................................................................. 41
Labels ................................................................................................................................................. 42
9 Specifications ................................................................................................................................................ 43
Input power ......................................................................................................................................... 43
DC plug of external HP power supply ................................................................................ 43
vi
Operating environment ....................................................................................................................... 44
Index ................................................................................................................................................................... 45
vii
viii
1Welcome
After you set up and register the computer, it is important to take the following steps:
1. Set up your wired or wireless network. For more information, refer to
Networking on page 15.
2. Update your antivirus software. For more information, refer to the HP Notebook Reference
Guide. For information on finding this guide, refer to
Finding information on page 2.
3. Create recovery discs or a recovery flash drive. For more information, refer to
Backup and
recovery on page 34.
4. Get to know your computer. For more information, refer to
Getting to know your computer
on page 4 and Keyboard and pointing devices on page 19 for additional information.
5. Discover the software that is already loaded on the computer by selecting Start > All Programs.
1
Finding information
The computer comes with several resources to help you perform various tasks.
Resource Contents
Setup poster
●
How to set up the computer
● Identification of computer components
Getting Started
To access this guide:
Select Start > Help and Support > User Guides.
●
Computer features
● Instructions for the following:
◦ Connecting to a wireless network
◦ Using the keyboard and pointing devices
◦
Replacing or upgrading the hard drive and memory
modules
◦
Performing a backup and a recovery
◦
Contacting customer support
●
Computer specifications
HP Notebook Reference Guide
To access this guide:
Select Start > Help and Support > User Guides.
●
Power management features
● Instructions for the following:
◦
Maximizing battery life
◦
Using the multimedia features of the computer
◦ Protecting the computer
◦
Caring for the computer
◦
Updating the software
Help and Support
To access Help and Support, select Start > Help and
Support.
NOTE: For country- or region-specific support, go to
http://www.hp.com/support, select your country or
region, and follow the on-screen instructions.
●
Operating system information
● Software, driver, and BIOS updates
● Troubleshooting tools
● Instructions for contacting customer support
Regulatory, Safety and Environmental Notices
To access this guide:
Select Start > Help and Support > User Guides.
●
Regulatory and safety information
● Battery disposal information
Safety & Comfort Guide
To access this guide:
Select Start > Help and Support > User Guides.
– or –
Go to
http://www.hp.com/ergo.
● Proper workstation setup
●
Guidelines for posture and work habits that maximize your
comfort and decrease your risk of injury
●
Electrical and mechanical safety information
2 Chapter 1 Welcome
Resource Contents
Worldwide Telephone Numbers booklet
This booklet is provided with your computer.
HP customer support telephone numbers
HP Web site
To access this Web site, go to
http://www.hp.com/
support.
●
Customer support information
● Information for ordering parts
●
Software, driver, and BIOS updates
●
Information about accessories for the computer
Limited Warranty*
To access the warranty:
Select Start > Help and Support > User Guides.
– or –
Go to
http://www.hp.com/go/orderdocuments.
Warranty information
*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For some countries/regions where the warranty is not provided in printed format, you may request a
printed copy from
http://www.hp.com/go/orderdocuments or write to:
●
North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd, Boise, ID 83714, USA
● Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●
Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
When you request a printed copy of your warranty, please include your product number, warranty period (found on your
serial number label), name, and postal address.
IMPORTANT: Do NOT return your HP product to the addresses above. For product support, refer to your product home
page at
http://www.hp.com/go/contactHP.
Finding information 3
2 Getting to know your computer
Top
TouchPad
Component Description
(1) TouchPad light ● Amber: The TouchPad is off.
●
Off: The TouchPad is on.
(2) TouchPad on/off button Turns the TouchPad on or off. Quickly double-tap the
button to turn the TouchPad on or off.
(3) TouchPad zone Moves the pointer and selects or activates items on the
screen.
(4) Left TouchPad button Functions like the left button on an external mouse.
(5) Right TouchPad button Functions like the right button on an external mouse.
4 Chapter 2 Getting to know your computer
Lights
Component Description
(1) TouchPad light ● Amber: The TouchPad is off.
●
Off: The TouchPad is on.
(2) Caps lock light On: Caps lock is on.
(3)
Power light
●
On: The computer is on.
● Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(4)
Wireless light ● White: An integrated wireless device, such as a
wireless local area network (WLAN) device and/or a
Bluetooth® device, is on.
● Amber: All wireless devices are off.
Top 5
Buttons
Component Description
(1)
Power button
●
When the computer is off, press the button to turn on
the computer.
●
When the computer is on, press the button briefly to
initiate Sleep.
● When the computer is in the Sleep state, press the
button briefly to exit Sleep.
●
When the computer is in Hibernation, press the button
briefly to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options,
or refer to the HP Notebook Reference Guide.
6 Chapter 2 Getting to know your computer
Keys
Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) fn key Displays system information when pressed in combination
with the esc key.
(3)
Windows logo key Displays the Windows Start menu.
(4)
QuickWeb key
●
When the computer is off or in Hibernation, press the
key to open QuickWeb.
●
When the computer is in Microsoft Windows, press
the key to open the default Web browser.
● When the computer is in HP QuickWeb, press the key
to open the Web browser.
NOTE: For more information, refer to
HP QuickWeb
(select models only) on page 13 and to the HP QuickWeb
software Help. If your computer does not have HP
QuickWeb software, the key does not start QuickWeb or
perform any action or function in QuickWeb.
(5)
Windows applications key Displays a shortcut menu for items beneath the cursor.
(6) Action keys Execute frequently used system functions.
Top 7
Right side
Component Description
(1) Optical drive Reads and writes (select models only) to an optical disc.
(2) Optical drive light
●
Green: The optical drive is being accessed.
● Off: The optical drive is idle.
(3)
USB 2.0 ports (2) Connect optional USB 2.0 devices.
(4)
Power connector Connects an AC adapter.
(5) Battery/AC adapter light ● White: The computer is connected to external power
and the battery is fully charged.
●
Blinking white: The computer is in the Sleep state.
●
Amber: A battery is charging.
●
Blinking amber: The battery has reached a low battery
level, or there is a battery error. When a battery
reaches a critical battery level, the battery light begins
blinking rapidly.
(6)
Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
8 Chapter 2 Getting to know your computer
Left side
Component Description
(1)
External monitor port Connects an external VGA monitor or projector.
(2) Vents (2) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3)
RJ-45 (network) jack Connects a network cable.
(4)
HDMI port Connects an optional video or audio device, such as a
high-definition television, or any compatible digital or audio
device.
(5)
USB 2.0 port Connects an optional USB 2.0 device.
(6)
Audio-in (microphone) jack Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(7)
Audio-out (headphone) jack Connects optional powered stereo speakers, headphones,
ear buds, a headset, or a television audio cable.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, refer to the
Regulatory, Safety and Environmental Notices.
NOTE: When a device is connected to the headphone
jack, the computer speakers are disabled.
(8) Digital Media Slot Supports the following digital card formats:
●
Secure Digital (SD) Memory Card
●
Secure Digital Extended Capacity (SDxC) Memory
Card
●
Secure Digital High Capacity (SDHC) Memory Card
●
MultiMediaCard (MMC)
Left side 9
Loading...
