Compaq Presario CQ42 Notebook
PC and HP G42 Notebook PC
Maintenance and Service Guide
SUMMARY
This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides
comprehensive information on identifying computer features, components, and spare parts;
troubleshooting computer problems; and performing computer disassembly procedures.
© Copyright 2010 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and
Arrandale are trademarks of Intel
Corporation in the United States and other
countries. Microsoft and Windows are U.S.
registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: April 2010
Document Part Number: 594158-002
MSG revision history
Revision Publication date Description
A April 2010 Edited this guide to include HP G42 Notebook PC and Compaq CQ42
Notebook PC information only.
B October 2010
●
Added newly supported memory modules to spare parts listings in
the following locations:
Computer major components on page 26,
Mass storage devices on page 36, Sequential part number listing
on page 39, Memory module on page 60.
●
Added newly supported processors to spare parts listings in the
following locations:
Computer major components on page 26,
Mass storage devices on page 36, Sequential part number listing
on page 39, Processor on page 91.
● Added newly supported system boards to spare parts listings in the
following locations: Computer major components on page 26,
Mass storage devices on page 36, Sequential part number listing
on page 39, System board on page 81.
C December 2010
●
Added newly supported processors to spare parts listings in the
following locations:
Computer major components on page 26,
Mass storage devices on page 36, Sequential part number listing
on page 39, Processor on page 91.
● Added newly supported system boards to spare parts listings in the
following locations: Computer major components on page 26,
Mass storage devices on page 36, Sequential part number listing
on page 39, System board on page 81
●
Added newly supported power cord to spare parts listings in the
following locations: Miscellaneous Parts, Sequential part number
listing on page 39, Memory module on page 60.
●
Removed Bluetooth™ references. Bluetooth is not supported.
ENWW iii
iv MSG revision history ENWW
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
ENWW v
vi Safety warning notice ENWW
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification .............................................................................................................. 13
Identifying the hardware ..................................................................................................................... 13
Top components ................................................................................................................................. 14
TouchPad .......................................................................................................................... 14
Lights ................................................................................................................................. 15
Button and speakers .......................................................................................................... 16
Keys ................................................................................................................................... 17
Display ............................................................................................................................... 18
Right-side components ....................................................................................................................... 19
Left-side components ......................................................................................................................... 20
Bottom components ........................................................................................................................... 21
Wireless antennas .............................................................................................................................. 22
Additional hardware components ....................................................................................................... 23
3 Illustrated parts catalog ............................................................................................................................... 25

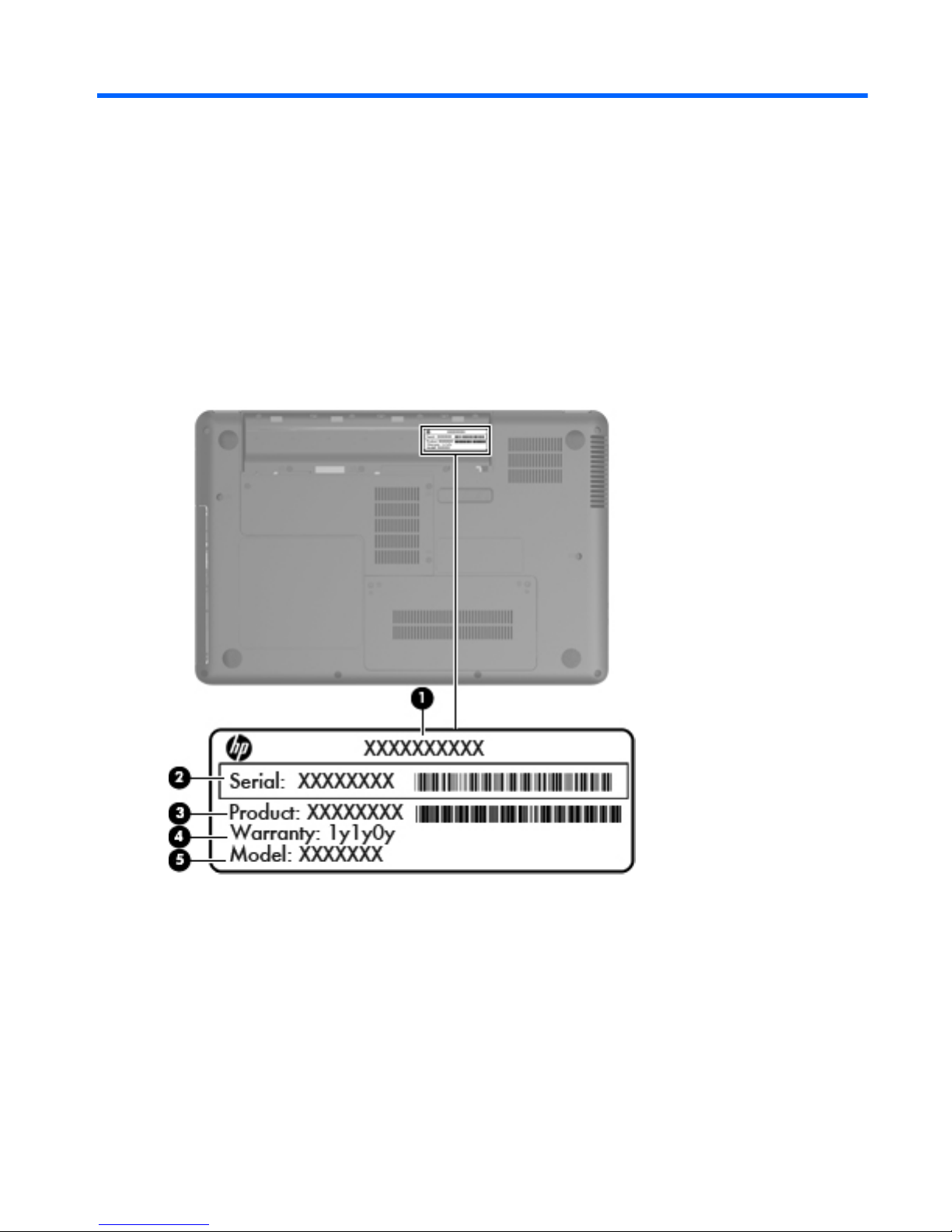

Serial number location ........................................................................................................................ 25
Computer major components ............................................................................................................. 26
Display assembly components ........................................................................................................... 33
Plastics Kit .......................................................................................................................................... 35
Mass storage devices ......................................................................................................................... 36
Miscellaneous parts ............................................................................................................................ 38
Sequential part number listing ............................................................................................................ 39
4 Removal and replacement procedures ....................................................................................................... 45
Preliminary replacement requirements ............................................................................................... 45
Tools required .................................................................................................................... 45
Service considerations ....................................................................................................... 45
Plastic parts ....................................................................................................... 45
Cables and connectors ..................................................................................... 46
Drive handling ................................................................................................... 46
Grounding guidelines ......................................................................................................... 47
ENWW vii
Electrostatic discharge damage ........................................................................ 47
Packaging and transporting guidelines ............................................. 48
Workstation guidelines ..................................................................... 48
Equipment guidelines ....................................................................... 49
Component replacement procedures ................................................................................................. 50
Serial number .................................................................................................................... 50
Computer feet .................................................................................................................... 51
Battery ............................................................................................................................... 52

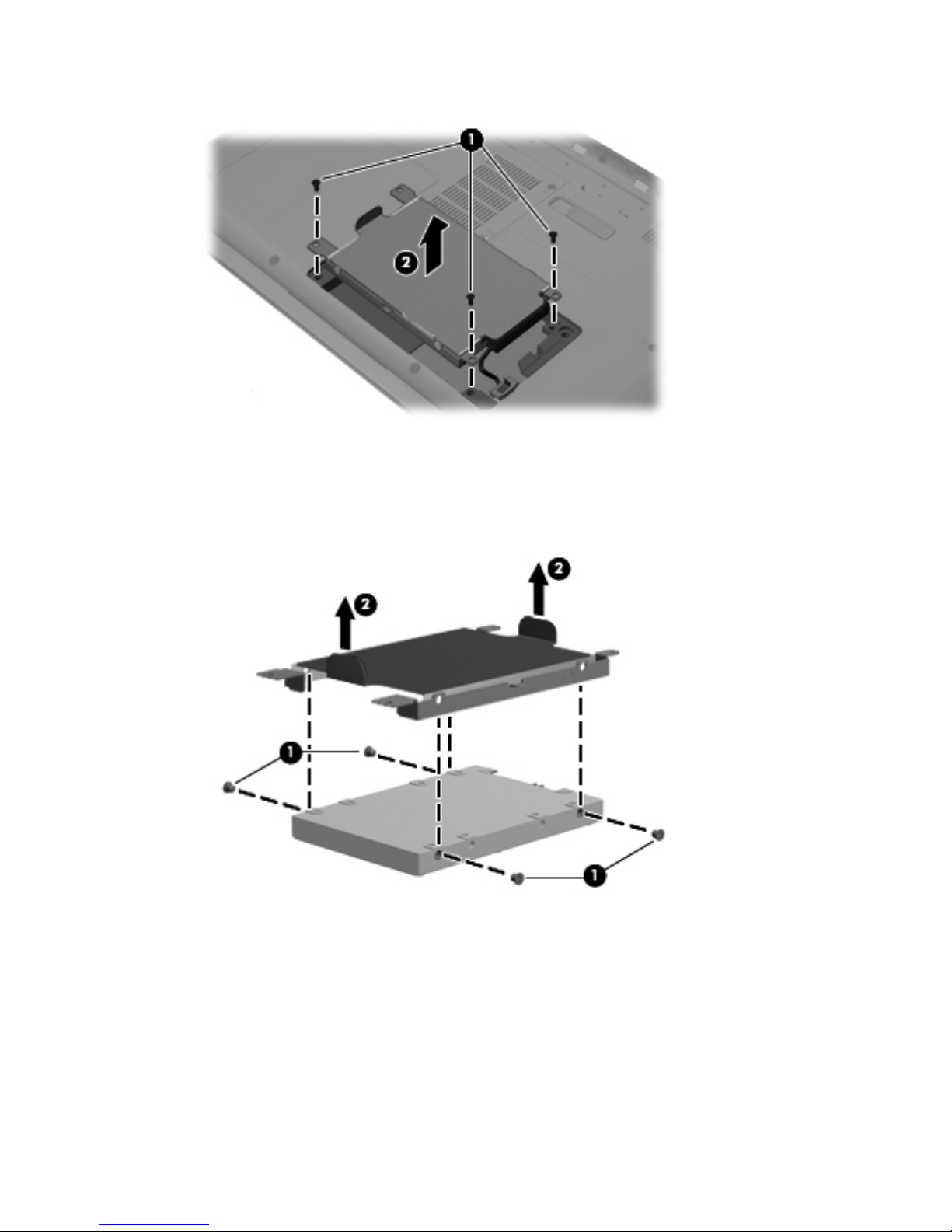

Hard drive .......................................................................................................................... 53
Optical drive ....................................................................................................................... 56
WLAN module .................................................................................................................... 58
Memory module ................................................................................................................. 60
Keyboard ........................................................................................................................... 62
Top cover ........................................................................................................................... 64
Speaker assembly ............................................................................................................. 67
Power button board ........................................................................................................... 68
TouchPad button board ..................................................................................................... 69
Modem module .................................................................................................................. 70
USB board ......................................................................................................................... 72
Power connector cable ...................................................................................................... 73
Display assembly ............................................................................................................... 74
System board ..................................................................................................................... 81
Optical drive SATA cable and connector ........................................................................... 84

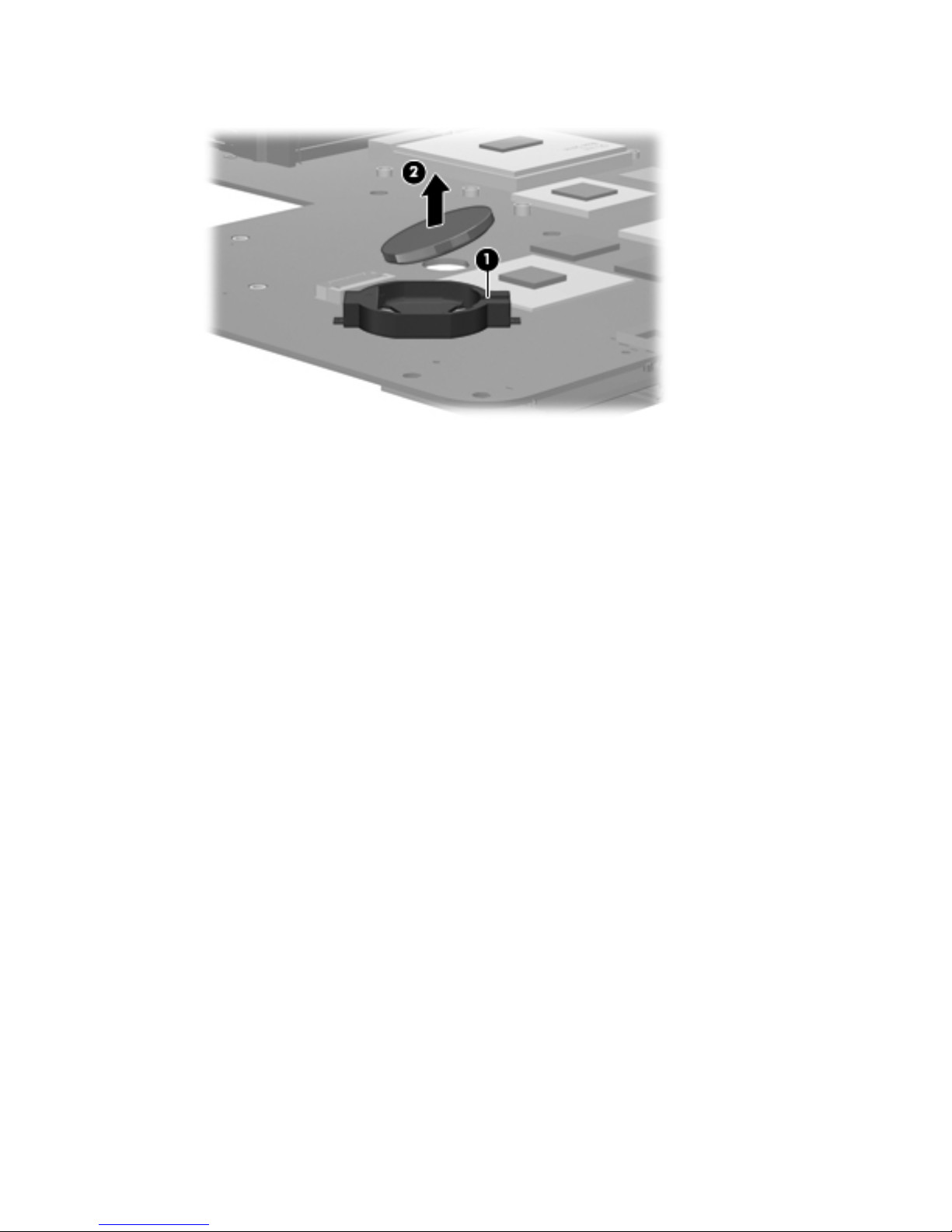

RTC battery ....................................................................................................................... 86
Fan/heat sink assembly ..................................................................................................... 88
Processor ........................................................................................................................... 91
5 Setup Utility ................................................................................................................................................... 95
Computer Setup in Windows 7 ........................................................................................................... 95
Starting Setup Utility .......................................................................................................... 95
Using Setup Utility ............................................................................................................. 95
Changing the language of Setup Utility ............................................................. 95
Navigating and selecting in Setup Utility ........................................................... 96
Displaying system information .......................................................................... 96
Restoring default settings in Setup Utility .......................................................... 97
Exiting Setup Utility ........................................................................................... 98
Setup Utility menus ............................................................................................................ 98
Main menu ........................................................................................................ 98
Security menu ................................................................................................... 98
System Configuration menu .............................................................................. 99
Diagnostics menu .............................................................................................. 99
Computer Setup in Linux .................................................................................................................. 100
Starting Computer Setup ................................................................................................. 100
viii ENWW
Using Computer Setup .................................................................................................... 100
Navigating and selecting in Computer Setup .................................................. 100
Restoring factory settings in Computer Setup ................................................. 101
Computer Setup menus ................................................................................................... 102
File menu ........................................................................................................ 102
Security menu ................................................................................................. 103
Diagnostics menu ............................................................................................ 103
System Configuration menu ............................................................................ 104
6 Specifications .............................................................................................................................................. 107
Computer specifications ................................................................................................................... 107
35.6-cm (14.0-in) display specifications ........................................................................................... 108
Hard drive specifications .................................................................................................................. 109
DVD±RW SuperMulti Double-Layer Drive with LightScribe specifications ....................................... 110
Blu-ray ROM with LightScribe DVD±R/RW SuperMulti DL Drive specifications .............................. 111
System resource specifications ........................................................................................................ 112
7 Backup and recovery .................................................................................................................................. 113
Windows 7 ........................................................................................................................................ 113
Creating recovery discs ................................................................................................... 114
Backing up your information ............................................................................................ 115
Using Windows Backup and Restore .............................................................. 116
Using system restore points ............................................................................ 117
When to create restore points ........................................................ 117
Create a system restore point ........................................................ 117
Restore to a previous date and time ............................................... 117
Performing a recovery ..................................................................................................... 117
Recovering from the recovery discs ................................................................ 118
Recovering from the dedicated recovery partition (select models only) .......... 118
Linux backup and recovery .............................................................................................................. 119
8 Connector pin assignments ....................................................................................................................... 121
Audio-out (headphone) ..................................................................................................................... 121
Audio-in (microphone) ...................................................................................................................... 121
External monitor ............................................................................................................................... 122
RJ-11 (modem) ................................................................................................................................ 123
RJ-45 (network) ................................................................................................................................ 123
HDMI ................................................................................................................................................ 124
Universal Serial Bus ......................................................................................................................... 125
9 Power cord set requirements .................................................................................................................... 127
Requirements for all countries or regions ......................................................................................... 127
Requirements for specific countries or regions ................................................................................ 128
ENWW ix
10 Recycling ................................................................................................................................................... 129
Battery .............................................................................................................................................. 129
Display .............................................................................................................................................. 129
Index ................................................................................................................................................................. 135
x ENWW
1 Product description
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
Product
Name
Compaq Presario
CQ42 Notebook PC
√√√
HP G42 Notebook
PC
√√
Processors Intel® Arrandale™
i7-620M, 2.66-GHz,
SC turbo, 4-MB L3
cache
√√√√
i5-540M, 2.53-GHz,
SC turbo, 3-MB L3
cache
√√√√
i5-520M, 2.4-GHz, SC
turbo, 3-MB L3 cache
√√√√
i5-430M 2.26-GHz
(turbo to 2.53- GHz)
3-MB L3 cache
√√√√
i3-350M, 2.26-GHz 3-
MB L3 cache
√√√√
i3-330M, 2.13-GHz 3-
MB L3 cache
√√√√
Intel Pentium™
DC T4400, 2.2-GHz,
800-MHz FSB, 1-MB
L2 cache
√
DC T4300, 2.1-GHz,
800-MHz FSB, 1-MB
L2 cache
√
Intel Celeron™
DC T3100, 1.9-GHz,
800-MHz FSB, 1-MB
L2 cache
√
ENWW 1
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
DC T3000, 1.8-GHz
800-MHz FSB, 1-MB
L2 cache
√
AMD® Phenom™ II
Processor
N620 DDR3-1333 (2
MB 2.8 GHz L2
cache) 35W
√√√√
DC N640 DC (2.9
GHz 35W)
√√√√
N660 3.0 GHz 2M √√√√
DC N830 Tri-core 2.1
GHz 1.5M L2 35W
√√√√
DC N850 2.2 GHz L2
cache
√√√√
N870 2.3 GHz 1.5 MB √√√√
DC N930 QC 2.0 GHz √√√√
N970 2.2 GHz 2 MB √√√√
P650 2.6 GHz 2MB
35W
√√√√
DC P820 Tri-Core 1.8
GHz 1.5 MB L2 cache
25W
√√√√
DC P840 1.9 GHz L2
cache
√√√√
P860 2 GHz 1.5 MB
25W
√√√√
DC QC P920 1.6 GHz
2M L2 cache 25W
√√√√
DC P940 DC QC 1.7
GHz L2 cache
√√√√
DC P950 QC 2.1 GHz
L2 cache 35W
√√√√
P960 1.8 GHz 2 MB
25W
√√√√
AMD Turion™ II
Processor
N570 2.7 GHz 2M
35W
√√√√
DC P540 DC 2.4 GHz
L2 cache 25W
√√√√
2 Chapter 1 Product description ENWW
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
DC N550 DC 2.6 GHz
L2 cache 35W
√√√√
DC N530 DC 2.5GHz
L2 cache 35W
√√√√
P560 2.5Ghz 2M 35W √√√√
P520 DDR3-1066
MHz
√√√√
P650 2.6 GHz 2 MB
25W
√√√√
AMD Athlon™ II
Processor
DC P340 2.2 GHz L2
cache 25W
√√√√
P360 2.5 GHz 35W √√√√
DC N330 2.3 GHz 1M
L2 cache 35W
√√√√
DC N350 2.4 GHz L2
cache 35W
√√√√
N370 2.5 GHz 1 MB
35W
√√√√
DC N530 DC 2.5 GHz
L2 cache 35W
√√√√
P320 DDR3-1066
MHz
√√√√
PROC DC V140 SC
2.3 GHz 25W
√√√√
Champlain SC
processor V160 2.4
GHz 25W
√√√√
Champlain V120
512K L2 cache
√√√√
AMD Sempron™ II
Processor
N120 DDR3-1066
Mhz
√√√√
Chipset Intel® HM55 Express √√√√
Intel® GL40 √
Southbridge: ICH9m √
AMD
ENWW 3
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
ATI RS880M
(Northbridge)
√ √
ATI RS880MD
(Northbridge)
√
Southbridge - SB820 √√√√
Graphics Intel UMA
(integrated)/HD
Graphics with shared
video memory
(memory size is
dynamic change):
●
Up to 251 MB on
computers with
1024 MB of
system memory
● Up to 358 MB on
computers with
more than 2048
MB of system
memory
√ √
4 Chapter 1 Product description ENWW
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
Intel UMA
(integrated)/GMA
4500M - GL40
chipset with shared
video memory
(memory size is
dynamic change):
● Up to 1759 MB
for computers
with more than
4096 MB of
system memory
(64 bit)
● Up to 1309 MB
for computers
with more than
4096 MB of
system memory
(32 bit)
●
Up to 1309 MB
for computers
with more than
3072 MB of
system memory
●
Up to 797 MB for
computers with
more than 2048
MB system
memory
●
Up to 285 MB for
computers with
more than 1024
MB of system
memory
√
ATi Discrete PCI
Express x 16
Graphics
●
ATi Mobility
Radeon Park-LP
S3 package (ATI
Mobility
Radeon™
HD5430 with
512-MB of
dedicated video
memory (64MB×16 DDR3, 4
pcs, 800-MHz))
√
ENWW 5
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
Switchable Discrete
Graphics
●
ATi Robson XT
(ATI Mobility
Radeon™
HD6370) with
512MB of
dedicated
memory
(64Mx16 DDR3
800 MHz x 4
PCs)
●
ATi Robson XT
(ATI Mobility
Radeon™
HD6370) with
1GB of
dedicated
memory
(128Mx16 DDR3
800 MHz x 4
PCs)
√ √
Support for BD or
HD-DVD playback
with HD decoder
and DX10 support
√√√√√
Panel 35.6-cm (14.0-in) HD
LED BrightView
(1366 x 768)
√√√√√
16:9 wide aspect ratio √√√√√
Memory 2 SODIMM slots √√√√√
Customer-accessible
and upgradable
√√√√√
Supports up to 8 GB
of system memory
√√√√√
DDR3, 1066-MHz,
dual-channel memory
(DDR3 1333 MHz can
be downgraded to
DDR3 1066 MHz)
√√√√
DDR3, 800-MHz,
dual-channel memory
(DDR3 1333 MHz can
be downgraded to
DDR3 800 MHz)
√
Supports the following
configurations:
6 Chapter 1 Product description ENWW
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
● 4096 MB (2048
MB × 2)
√√√√√
● 3072 MB (1024
MB × 1 + 2048
MB × 1)
√√√√√
● 2048 MB (2048
MB × 1)
√√√√√
● 2048 MB (1024
MB × 2)
√√√√√
● 1024 MB (1024
MB × 1)
√√√√√
Hard drives Supports 9.5-mm,
6.35-cm (2.5-in) hard
drive
√√√√√
Serial ATA √√√√√
Supports the following
drives:
● 750 GB, 5400
rpm
√√√√
● 640 GB, 5400
rpm
√√√√
● 500 GB, 7200
rpm
√√√√
● 320 GB, 7200
rpm
√√√√√
● 250 GB, 7200
rpm
√√√√√
● 160 GB, 7200
rpm
√√√√
Optical
drives
Fixed (removal of one
screw required)
√√√√√
SATA √√√√√
12.7-mm (0.50-in)
fixed tray load
√√√√√
Supports the following
drives:
● Blu-ray ROM
with LightScribe
DVD±R/RW
SuperMulti DL
Drive
√√√√
ENWW 7
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
● Blu-ray ROM
DVD±R/RW
SuperMulti DL
Drive
√√√√
●
DVD±R/RW
SuperMulti DL
Drive with
LightScribe
√√√√√
● DVD±R/RW
SuperMulti DL
Drive
√√√√√
Diskette
drive
Supports external
USB drive only
√√√√√
Camera VGA camera √√√√√
Fixed (no tilt) √√√√√
640 × 480 by 24
frames per second
√√√√√
Microphone One microphone,
analog
√√√√√
Audio HD audio √√√√√
Supports Microsoft
Premium
requirements
√√√√√
Altec Lansing
speakers
√√√√√
Modem
(select
models only)
Support for optional
high-speed 56k
modem
√√√√√
Ethernet Integrated 10/100
network interface card
(NIC)
√√√√√
Wireless Integrated wireless
local area network
(WLAN) options by
way of wireless
module:
Intel Centrino
Wireless-N 1000
802.11b/g 1x2
√√√√
Intel Centrino
Wireless-N 1000
802.11b/g 1x2
√√√√
8 Chapter 1 Product description ENWW
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
Atheros AR9285
802.11b/g/n 1x1 WiFi
Adapter
√√√√√
Atheros AR9285
802.11b/g/n 1x1 WiFi
Adapter
√√√√√
Broadcom 4312G
802.11b/g WiFi
Adapter
√
Broadcom 4312G
802.11b/g WiFi
Adapter
√
Realtek RTL8191SE
802.11b/g/n 1x1 WiFi
Adapter
√√√√√
Realtek RTL8191SE
802.11b/g/n 1x1 WiFi
Adapter
√√√√√
External
media card
(select
models only )
5-in-1 Digital Media
Slot; supports SD,
MMC, MS, Mspro, xD
√√√√√
Single port configured
as either HDMI or 5in-1 Digital Media Slot
√√√√
Supports mini
versions of SD, MMC,
and MS Duo with
adapter (adapter not
included)
√√√√√
Ports VGA (Dsub 15-pin)
supporting 1600 x
1200 resolution at 75
Hz; disabled when
connected to devices
through Expansion
port 3
√√√√√
Hot plug/unplug and
auto detect for wideaspect or standardaspect video
√√√√√
HDMI v1.3 supporting
1080p with HDCP key
√√√√√
Single port configured
for either HDMI or 5in-1 card reader
√√√√√
USB 2.0 (3) √√√√√
ENWW 9
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
RJ-11 (modem) with
modem option
√√√√√
RJ-45 (Ethernet, with
link and activity lights)
√√√√√
Audio-in (mono
microphone)
√√√√√
Audio-out (stereo
headphone)
√√√√√
Smart-pin AC adapter
plug
√√√√√
Keyboard/
pointing
devices
14.0-inch keyboard √√√√√
TouchPad with 2
buttons and 2-way
scroll (taps enabled
as default)
√√√√√
Power
requirement
s
6-cell (47-Wh) 2.20Ah Li-ion battery
√√√√√
65-W AC adapter with
Smart-Pin DC
connector
√√ √√
90-W AC adapter with
Smart-Pin DC
connector
√
Security Security cable slot √√√√√
Operating
system
Preinstalled:
Windows 7
Professional (32 & 64
bit)
√√√√
Windows 7 Home
Premium (32 & 64 bit)
√√√√
Windows 7 Home
Basic (32 & 64 bit)
√√√
Free DOS √√√
ServiceabilityEnd-user
replaceable parts:
AC adapter √√√√√
Battery (system) √√√√√
Hard drive √√√√√
10 Chapter 1 Product description ENWW
Category Description HP G42 HP G42 Compaq
Presario
CQ42
Compaq
Presario
CQ42
Compaq
Presario
CQ42
Discrete UMA Discrete UMA Models
150-199
UMA Models
100-149
Memory module √√√√√
Optical drive √√√√√
Mini-card device √√√√√
ENWW 11
12 Chapter 1 Product description ENWW
2 External component identification
Identifying the hardware
Components included with the computer may vary by region and model. The illustrations in this
chapter identify the standard features on most computer models.
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > My Computer.
2. In the left pane of the System Tasks window, select View system information.
3. Select Hardware tab > Device Manager.
You can also add hardware or modify computer configurations using Device Manager.
ENWW Identifying the hardware 13
Top components
TouchPad
Component Description
(1)
TouchPad off indicator To switch the TouchPad zone on and off, quickly double-tap
the TouchPad off indicator.
NOTE: When the TouchPad zone is active, the light is off.
(2) TouchPad zone Moves the pointer and selects or activates items on the
screen.
(3) Left TouchPad button Functions like the left button on an external mouse.
(4) Right TouchPad button Functions like the right button on an external mouse.
There is an unmarked scroll zone inside the right edge of the TouchPad. To scroll up and down using
the TouchPad vertical scroll zone, slide your finger up or down inside the right edge of the TouchPad.
For more information about TouchPad features, refer to” Using the TouchPad” section later in this
guide.
14 Chapter 2 External component identification ENWW
Lights
Component Description
(1) TouchPad light
●
On: The TouchPad is disabled.
● Off: The TouchPad is enabled.
(2) Caps lock light On: Caps lock is on.
(3)
Power light
●
On: The computer is on.
● Blinking: The computer is in the Sleep state.
● Off: The computer is off or in Hibernation.
(4)
Wireless light
●
White: An integrated wireless device, such as a
wireless local area network (WLAN) device, is on.
●
Amber: All wireless devices are off.
ENWW Top components 15
Button and speakers
Component Description
(1) Speakers (2) Produce sound.
(2) Power button
●
When the computer is off, press the button to turn on the
computer.
● When the computer is on, press the button briefly to
initiate Sleep.
●
When the computer is in the Sleep state, briefly press
the button to exit Sleep.
●
When the computer is in Hibernation, briefly press the
button to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Security > Power Options.
16 Chapter 2 External component identification ENWW
Keys
Component Description
(1) esc key Displays system information when pressed in combination with
the fn key.
(2) fn key Displays system information when pressed in combination with
the esc key.
(3)
Windows logo key Displays the Windows Start menu.
(4)
Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Navigation keys Navigate using the Up, Down, Left and Right arrow keys.
(6) Action keys Execute frequently used system actions.
ENWW Top components 17
Display
Component Description
(1) Internal microphone Records sound.
(2) Integrated webcam (select models only) Records audio and video and captures still photographs.
(3) Integrated webcam light (select models only) On: The integrated webcam is in use.
18 Chapter 2 External component identification ENWW
Right-side components
Component Description
(1) Optical drive Reads and writes to optical discs.
(2) Optical drive light Blinking: The optical drive is being accessed.
(3)
USB port Connects an optional USB device.
(4) RJ-11 (modem) jack (select models only) Connects a modem cable.
(5) AC adapter/power/battery light
●
White: The computer is connected to external power and
the battery is fully charged.
● Blinking white: The computer is in the Sleep state.
●
Amber: A battery is charging.
(6)
Power connector Connects an AC adapter.
(7)
Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent,
but it may not prevent the computer from being mishandled or
stolen.
ENWW Right-side components 19
Left-side components
Component Description
(1)
External monitor port Connects an external VGA monitor or projector.
(2) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal for
the internal fan to cycle on and off during routine operation.
(3) HDMI port (select models only) Connects an optional video or audio device, such as a high-
definition television, or any compatible digital or audio
component.
(4)
RJ-45 (network) jack Connects a network cable.
(5)
USB ports (2) Connects optional USB devices.
(6)
Audio-in (microphone) jack Connects an optional computer headset microphone, stereo
array microphone, or monaural microphone.
(7)
Audio-out (headphone) jack Produces sound when connected to optional powered stereo
speakers, headphones, earbuds, a headset, or television
audio.
(8) Digital Media Slot (select models only) Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
● MultiMediaCard (MMC)
● Secure Digital (SD) Memory Card
●
xD-Picture Card (XD)
(9)
Drive light On: The hard drive is in use.
20 Chapter 2 External component identification ENWW
