HP Presario 7934, Presario 7930, Presario 7935, Presario 7940, Presario 7947 Supplementary Manual
...Page 1

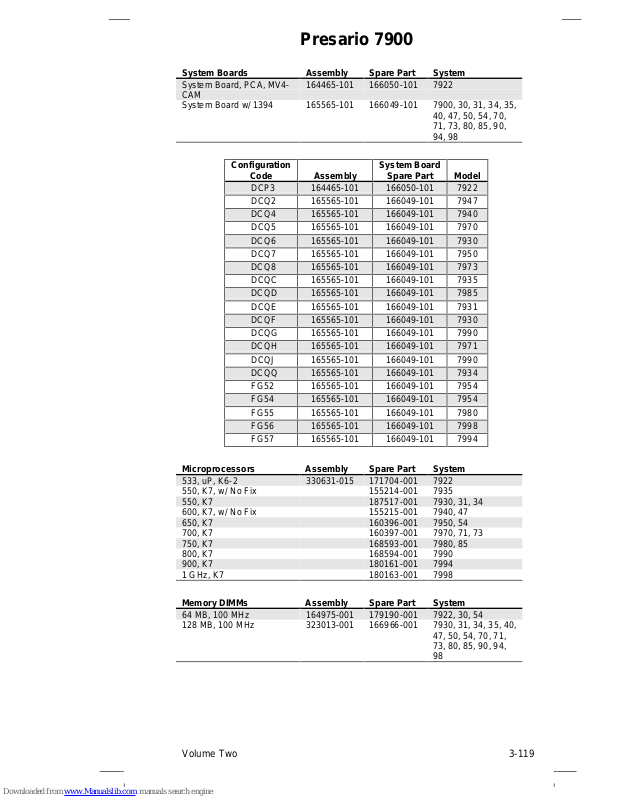

Presario 7900
System Boards Assembly Spare Part System
System Board, PCA, MV4CAM
System Board w/ 1394 165565-101 166049-101 7900, 30, 31, 34, 35,
164465-101 166050-101 7922
40, 47, 50, 54, 70,
71, 73, 80, 85, 90,
94, 98
Configuration
Code Assembly
DCP3 164465-101 166050-101 7922
DCQ2 165565-101 166049-101 7947
DCQ4 165565-101 166049-101 7940
DCQ5 165565-101 166049-101 7970
DCQ6 165565-101 166049-101 7930
DCQ7 165565-101 166049-101 7950
DCQ8 165565-101 166049-101 7973
DCQC 165565-101 166049-101 7935
DCQD 165565-101 166049-101 7985
DCQE 165565-101 166049-101 7931
DCQF 165565-101 166049-101 7930
DCQG 165565-101 166049-101 7990
DCQH 165565-101 166049-101 7971
DCQJ 165565-101 166049-101 7990
DCQQ 165565-101 166049-101 7934
FG52 165565-101 166049-101 7954
FG54 165565-101 166049-101 7954
FG55 165565-101 166049-101 7980
FG56 165565-101 166049-101 7998
FG57 165565-101 166049-101 7994
System Board
Spare Part Model
Microprocessors Assembly Spare Part System
533, uP, K6-2 330631-015 171704-001 7922
550, K7, w/ No Fix 155214-001 7935
550, K7 187517-001 7930, 31, 34
600, K7, w/ No Fix 155215-001 7940, 47
650, K7 160396-001 7950, 54
700, K7 160397-001 7970, 71, 73
750, K7 168593-001 7980, 85
800, K7 168594-001 7990
900, K7 180161-001 7994
1 GHz, K7 180163-001 7998
Memory DIMMs Assembly Spare Part System
64 MB, 100 MHz 164975-001 179190-001 7922, 30, 54
128 MB, 100 MHz 323013-001 166966-001 7930, 31, 34, 35, 40,
47, 50, 54, 70, 71,
73, 80, 85, 90, 94,
98
Volume Two 3-119
Page 2
Presario 7900
Miscellaneous Assembly Spare Part System
Keyboard 341162-XXX 387084-XXX 7922, 30, 31, 34, 35,
40, 47, 50, 54, 70,
71, 73, 80, 85, 90,
94, 98
Mouse, Scroll, Opal 334684-006 334689-002 7922, 30, 31, 34, 35,
40, 47, 50, 54, 70,
71, 73, 80, 85, 90,
94, 98
Front I/O Assembly, USB 158487-002 170077-001 7922
Front I/O Assembly, USB 115772-001 155641-001 7930, 31, 34, 35, 40,
47, 50, 54, 70, 71,
73, 80, 85, 90, 94, 98
Button Board 127738-001 141011-001 7922, 30, 31, 34, 35,
40, 47, 50, 54, 70,
71, 73, 80, 85, 90,
94, 98
Ethernet Card, Homenet 116158-001 120788-001 7922, 47
Controller Boards Assembly Spare Part System
NIC, 10/100 122849-001 123494-001 7930, 31, 34, 50,
54, 71, 73, 80,
90
Audio Board 102392-002 113897-002 7930, 31, 34, 35,
40, 47, 50, 54,
70, 71, 73, 80,
85, 90, 94, 98
Graphics Boards Assembly Spare Part System
3DX, Voodoo3 3500 16 MB, TVout
Video Card, S3, 16 MB, 4X AGP 166134-002 166385-001 7935, 40, 47, 70,
Video Card, S4, 16 MB, DFP,
TV-out
NVIDIA TNT2, 32 MB 122650-001 126724-001 7971, 80, 90
Hard Drives Assembly Spare Part System
10.0 GB, 5400 rpm 138224-001 168028-001 7930
13.0 GB, 5400 rpm 158740-001 168030-001 7930, 31, 34
17.0 GB, 5400 rpm 159945-001 168591-001 7954
20.0 GB, 5400 rpm 165133-001 168031-001 7950, 71, 90
20.0 GB, 7200 rpm 144369-001 157403-001 7954
30.0 GB, 5400 rpm 165134-001 168628-001 7922, 35, 40,
30.0 GB, 7200 rpm 167961-001 173343-001 7980
40.0 GB, 5400 rpm 171457-001 173342-001 7970, 90, 94, 98
CD-ROM Drive Assembly Spare Part System
DVD, 10X 155669-812 157784-001 7922, 30, 31, 34,
DVD, 40X, Stone 388770-806 134125-001 7994
RW 147290-001 120893-001 7922, 34, 35, 40,
147286-001 147908-001 7931, 34, 50, 54
73, 85, 90, 94,
98
128503-001 144307-001 7930
47, 73, 85
35, 40, 47, 50,
54, 70, 71, 73,
80, 85, 90, 94,
98
47, 50, 54, 70,
71, 73, 80, 85,
90, 94, 98
3-120 Volume Two
Page 3
Presario 7900
Diskette Drives Assembly Spare Part System
1.44 MB, Stone 388617-802 136436-001 7922, 30, 31,
34, 35, 40,
47, 50, 54,
70, 71, 73,
85, 90, 94, 98
Modems Assembly Spare Part System
V.90, PCI, DT/FA 146139-001 166386-001 7922, 35, 40,
47, 70, 73,
85, 94, 98
V.90, PCI, Lucent 155817-001 166358-002 7930, 31, 34,
50, 54, 71,
80, 90
V.90, DSL 152687-001 157041-001 7990
Cables Assembly Spare Part System
Telephone L/Line 112666-003 137256-001 7930, 31, 34,
35, 47, 50,
54, 70, 71,
73, 94
Audio, CD-ROM 387527-001 149806-001 7930, 31, 34,
35, 47, 50,
54, 70, 71,
73, 80, 90, 94
Cable Assembly, Dual
Connector, IDE, 18”
Cable Assembly, Hard Drive
Data, uATA, 18”
Cable Assembly, Data, Floppy 238078-003 327770-001 7922
Cable, Miscellaneous 122240-001 171291-001 7922
167344-001 171290-001 7922
108950-014 171289-001 7922
Modem Cables Assembly Spare Part System
Modem Cable, Ferrite, United
Kingdom
Modem Cable/Linefilter Switzerland
Modem Cable Adapter –
Belgium
Modem Cable Adapter –
Denmark
Modem Cable Adapter - France 234441-051 304398-051 7970
Modem Cable Adapter - Italy 234441-061 304398-061 7970
Modem Cable Adapter –
Netherlands
Modem Cable w/ Adapter,
Norway
Modem Cable Adapter –
Sweden
Modem Cable Adapter –
Switzerland
165227-033 161779-033 7970
334792-111 334815-111 7970
234441-181 304398-181 7970
234441-081 304398-081 7970
234441-331 304398-331 7970
165227-091 304398-091 7970
234441-101 304398-101 7970
234441-112 304398-112 7970
Volume Two 3-121
Page 4
Presario 7900
Power Supply/Battery Assembly Spare Part System
Power Supply, 145 W 174048-001 127999-001 7922
Power Supply, 200 W 152769-001 153652-001 7930, 31, 34,
35, 40, 47,
50, 54, 70,
71, 73, 80,
85, 90, 94, 98
Power Supply Assembly, ATX,
200E
152769-002 180562-021 7930, 31, 34,
50, 54, 71,
80, 90
3-122 Volume Two
Page 5
Presario 7900
Presario 7930, 31, 34, 35, 40, 47, 50, 54, 70, 71, 73, 80, 85, 90, 94

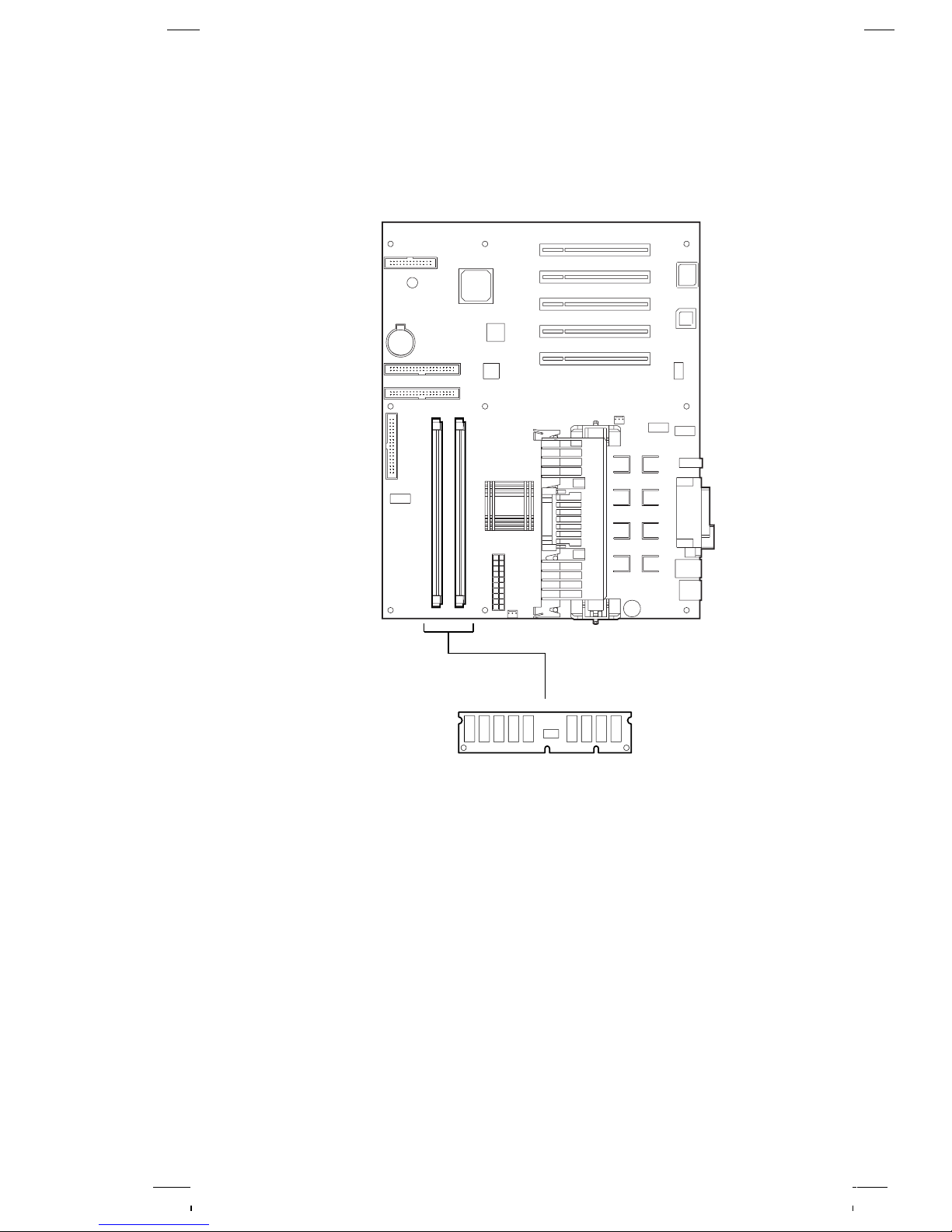

Memory Upgrade Chart
SYSTEM BOARD
165565-101
128 MB
Volume Two 3-123
64-MB 100MHz SDRAM DIMM - OPTION PN 170895-B21
128-MB 100MHz SDRAM DIMM - OPTION PN 309037-B21
384-MB 100MHz SDRAM DIMM - OPTION PN 170896-B21
Page 6
Presario 7900
Presario 7922

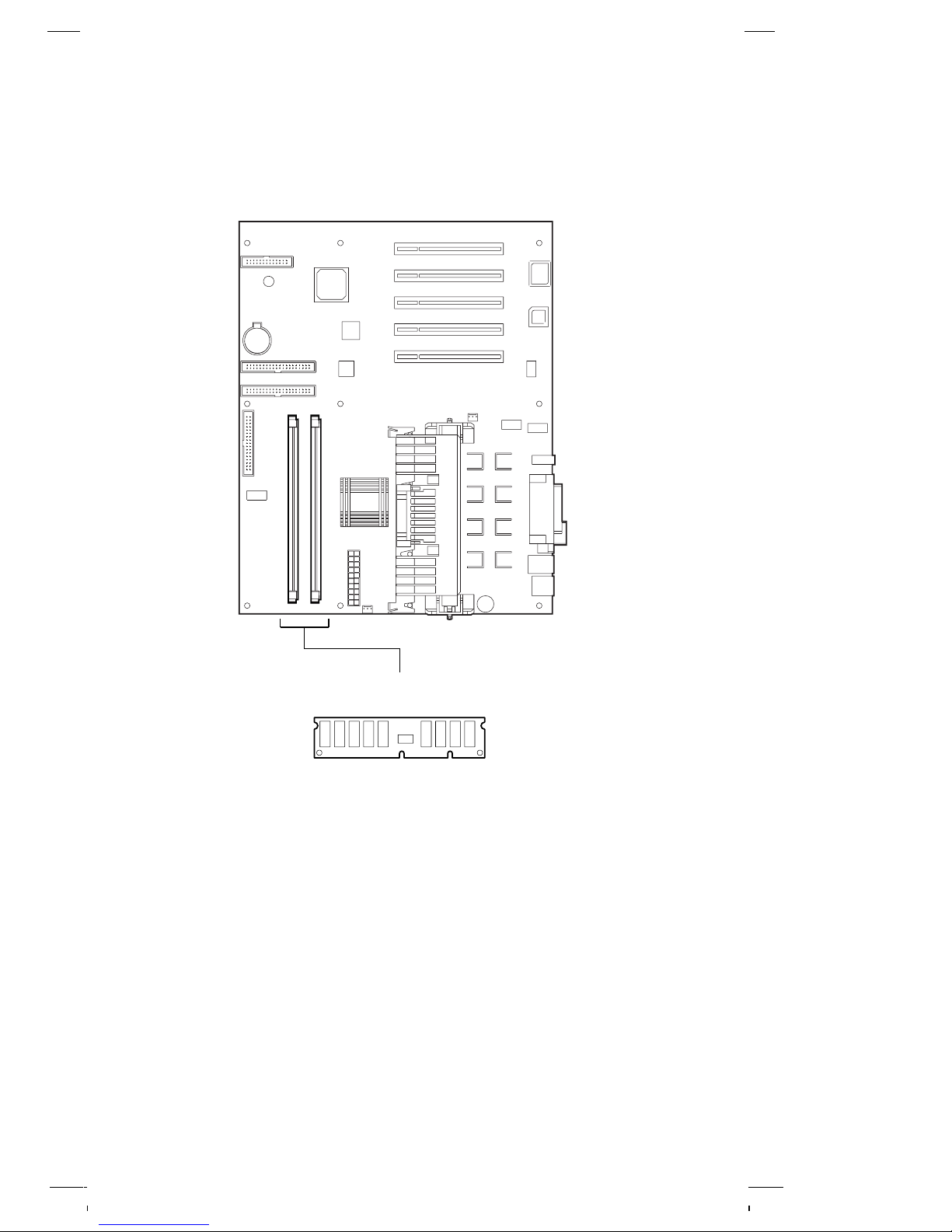

Memory Upgrade Chart
SYSTEM BOARD
164465-101
64 MB
MAXIMUM MEMORY 512 MB
32-MB 100MHz SDRAM DIMM- OPTION PN 308875-001
64-MB 100MHz SDRAM DIMM- OPTION PN 308877-001
128-MB 100MHz SDRAM DIMM- OPTION PN 308878-001
256-MB 100MHz SDRAM DIMM- OPTION PN 171558-B21
3-124 Volume Two
