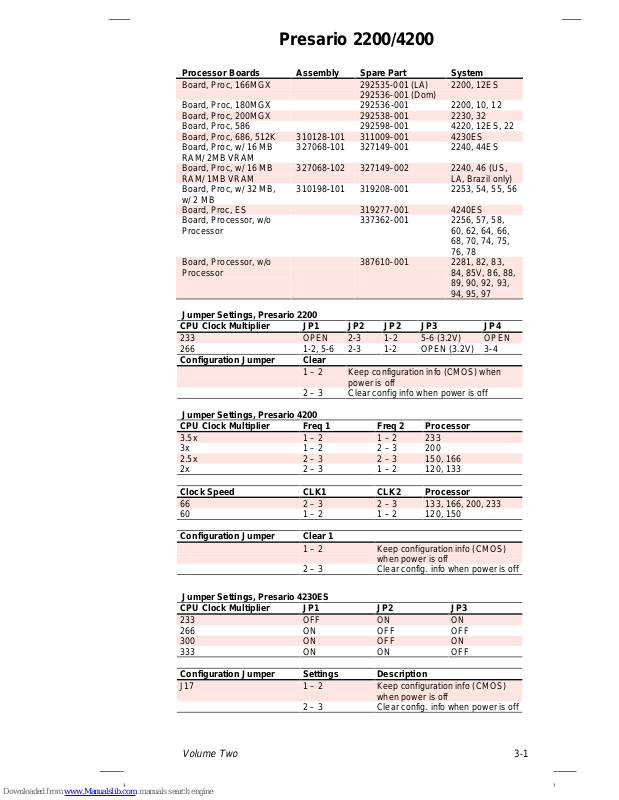

Presario 2200/4200
Processor Boards Assembly Spare Part System
Board, Proc, 166MGX 292535-001 (LA)
292536-001 (Dom)
Board, Proc, 180MGX 292536-001 2200, 10, 12
Board, Proc, 200MGX 292538-001 2230, 32
Board, Proc, 586 292598-001 4220, 12ES, 22
Board, Proc, 686, 512K 31012 8-10 1 311009-001 4230ES
Board, Proc, w/ 16 MB
RAM/ 2MB VRAM
Board, Proc, w/ 16 MB
RAM/ 1MB VRAM
Board, Proc, w/ 32 MB,
w/ 2 MB
Board, Proc, ES 319277-001 4240ES
Board, Processor, w/o
Processor
Board, Processor, w/o
Processor
Jumper Settings, Presario 2200
CPU Clock Multiplier JP1 JP2 JP2 JP3 JP4
233 OPEN 2-3 1-2 5-6 (3.2V) OPEN
266 1-2, 5-6 2-3 1-2 OPEN (3.2V) 3-4
Configuration Jumper Clear
327068-101 327149-001 2240, 44ES
327068-102 327149-002 2240, 46 (US,
310198-101 319208-001 2253, 54, 55, 56
337362-001 2256, 57, 58,
387610-001 2281, 82, 83,
1 – 2 Keep configuration info (CMOS) when
power is off
2 – 3 Clear config info when power is off
2200, 12ES
LA, Brazil only)
60, 62, 64, 66,
68, 70, 74, 75,
76, 78
84, 85V, 86, 88,
89, 90, 92, 93,
94, 95, 97
Jumper Settings, Presario 4200
CPU Clock Multiplier Freq 1 Freq 2 Processor
3.5x 1 – 2 1 – 2 233
3x 1 – 2 2 – 3 200
2.5x 2 – 3 2 – 3 150, 166
2x 2 – 3 1 – 2 120, 133
Clock Speed CLK1 CLK2 Processor
66 2 – 3 2 – 3 133, 166, 200, 233
60 1 – 2 1 – 2 120, 150
Configuration Jumper Clear 1
1 – 2 Keep configuration info (CMOS)
when power is off
2 – 3 Clear config. info when power is off
Jumper Settings, Presario 4230ES
CPU Clock Multiplier JP1 JP2 JP3
233 OFF ON ON
266 ON OFF OFF
300 ON OFF ON
333 ON ON OFF
Configuration Jumper Settings Description
J17 1 – 2 Keep configuration info (CMOS)
when power is off
2 – 3 Clear config. info when power is off
Volume Two
3-1
Page 2
Presario 2200/4200
Jumper Settings, Presario 4240ES
CPU Clock Multiplier JP1 JP2 JP2 JP3 JP4
233 OPEN 2-3 1-2 5-6 (3.2V) OPEN
266 1-2, 5-6 2-3 1-2 OPEN (3.2V) 3-4
Configuration
Codes
BP72 292536-001 2200
BP73 292536-001 2200
BP82 292536-001 2210
BP83 292536-001 2210
BP6N 292598-001 4212ES
BP8C 292536-001 2212
BP8M 292536-001 2210
BP62 292598-001 4220
BP63 292598-001 4220
BP64 292598-001 4222
BP65 292598-001 4220
BQQ2 311009-001 4230ES
BTF2 319277-001 4240ES
BTS2 327149-002 2246
BTT6 327149-001 2240
BTT7 327149-001 2240
BTT8 327149-001 2240
BTT9 327149-001 2240
BTTC 327149-001 2244ES
BTTD 327149-002 2240
BTTF 327149-001 2240
BTTG 327149-002 2240
BTTH 327149-001 2240
BTTJ 327149-001 2240
BXRB 319208-001 2254
BXRJ 319208-001 2254
BXRF 319208-001 2253
BXRF 319208-001 2254
BXRG 319208-001 2255
BXRH 319208-001 2255
BXRJ 319208-001 2255
BXR2 319208-001 2254
BXR4 319208-001 2254
BXR6 319208-001 2254
BXR7 319208-001 2254
BXR8 319208-001 2254
BXR9 319208-001 2253
BXS2 319208-001 2256
BXS3 319208-001 2255
BXT2 337362-001 2276
BXT3 337362-001 2274
System Board or Processor
Board Spare Part Model
Continued
3-2
Volume Two
Page 3
Presario 2200/4200
Configuration
Codes
BXT4 337362-001 2270, 75
BXT5 337362-001 2270, 75
BXT6 337362-001 2270, 78
BXT7 337362-001 2274, 75
BXTB 337362-001 2274
BXTC 337362-00 1 2274
BXTD 337362-00 1 2278
CDQB 33736 2-00 1 2262
CDQC 337362-001 2264
CDQD 337362-001 2260
CDQ2 337362-001 2262
CDQ3 337362-001 2262
CDQ5 337362-001 2260
CDQ6 337362-001 2268
CDQ7 337362-001 2262
CDQ8 337362-001 2262
CDQ9 337362-001 2266
CFH2 387610-001 2288
CFH4 387610-001 2289
CFH5 387610-001 2288
CFJ2 387610-001 2292
CFJ3 387610-001 2297
CFJ6 387610-001 2294
CGV2 387610-001 2282
CGV4 387610-001 2280
CGV5 387610-001 2282
CGV6 387610-001 2284
CGV7 387610-001 2284
CGV9 387610-001 2280
CGVB 387610-001 2286
CGVC 387610-001 2285V
CGW2 387610-001 2294
CGW3 387610-001 2294
CGW4 387610-001 2293
CGW6 387610-001 2290
System Board or Processor
Board Spare Part Model
Microprocessors Assembly Spare Part System
166 MHz 235229-001 4200, 4220, 4222
166 MHz 240181-001 4212ES
200 MHz 327169-001 2240, 2244ES
233 MHz 170724-001 2246
266 MHz 286275-001 4230ES
Heat Sink w/ Clip 327170-001 2240 Series
Heat Sink w/ Clip 337369-001 2281, 82, 83, 84, 85V,
Heat Sink w/ Clip 317216-001 4230ES
Heat Sink 292644-001 4220,4222, 4212ES
233X 296576-003 319281-001 2253, 54
266X 296576-005 319236-001 2254, 55
Volume Two
86, 88, 89; 2290
Series
Continued
3-3
Page 4
Presario 2200/4200
Microprocessors Assembly Spare Part System
333 278308-002 320666-001 4240ES
333/100, MHz, w/ Heat
Sink
300/66 (MX2) 337375-001 2260, 62
300, w/ Heat Sink 320471-002 337374-001 2270, 74
300X 320471-004 319336-001 2255, 2256
300/75 (MX-2) 386217-001 2262, 64, 66
P333, M2 388239-001 2281, 82, 83, 84, 85V,
P350, M2 388240-001 2288, 89
333/100, MHz, K6S-2 401555-001 2290, 92, 94
350, K6S-2 388241-001 2293, 94, 97
400, K6S-2 330631-001 320668-001 2295, 97
Memory Assembly Spare Part System
8 MB, 60ns, SDRAM 278029-002 288438-001 2240, 2244ES
16 MB, 60ns, SDRAM 271108-002 271117-001 4200
16 MB, 60ns, SDRAM 278030-002 278066-001 2240, 2244ES,2246,
16 MB, 60ns, SDRAM 320759-101 319327-001 4240ES
16 MB, 100 MHz, SDRAM 323010-001 166969-001 2274, 76, 78, 82, 84,
32 MB, 60ns, SDRAM 271109-002 271118-001 4200
32 MB, 60ns, SDRAM 286548-001 304287-001 4230ES
32 MB, 60ns, SDRAM 320767-101
320766-101
32 MB, 100 MHz, DIMM 323029-001 337372-001 2281, 82, 84, 85V,
64 MB, 100 MHz, DIMM 323012-001 179190-001 2262, 66, 74, 75, 78,
1 MB VRAM 210257-004 327265-001 2240 Series, 2253,
256K Cache 237716-001 243117-001 2240 Series, 2253,
512K Cache 240108-001 243117-002 4230ES
337364-001 2275, 76, 78
86
2255, 2256
85V, 86, 89, 93, 94,
95
319326-001 2260, 62, 64, 70;
4240ES
86, 89, 93, 94, 95, 97
83, 88, 89, 90, 92, 94,
97
54, 55, 56
2254, 2255, 2256
Miscellaneous Assembly Spare Part System
Bezel 319207-001 2253, 54, 55, 2256,
Bezel, ES 319279-001 4240ES
Bezel 337358-001 2280 Series, 2290
Bezel Button Board w/
Cable
Bezel Button Board w/
Cable
Bezel Button Board w/
Cable
Button/Headphone Board
w/ Cable
Bezel, Front w/ Buttons 292561-001 Prior to 2240 Series
Bezel, Front w/ Buttons 298470-001 2240 Series, 4230ES
3-4
Series
292562-001 Prior to 2240 Series
and 4230ES
298468-001 2240 Series, 4230ES
319206-001 2250 Series; 4240ES
337357-001 2260 Series, 2270
Series, 2280 Series,
2290 Series
and 4230ES
Continued
Volume Two
Page 5
Presario 2200/4200
75, 81, 85V, 86, 92, 94
Miscellaneous Assembly Spare Part System
Backplane Board, w/o NIC,
w/o ISA
Backplane Board, w/ NIC,
w/o ISA
Backplane Board, w/o NIC,
w/ ISA
Backplane Board, w/o NIC 387611-001 2281, 82, 85V, 86, 88,
Hard Drive Mounting
Bracket
Fan, System 298474-001 4230ES
Fan, System 292617-001 4212ES, 20, 22
Headphone Board 298469-001 2244ES, 4230ES,
Keyboard, US English,
Sunset
Keyboard, US English,
Education
Keyboard, Ivory – US/CAN
English
Modem 293020-001 4212ES (Teacher buy
Modem, 33.6/56K 007201-003 317296-001 2254, 55, 62, 74, 76
Modem, 56K,
Controllerless – Z(3C)
Modem, 56K 292269-003 2253, 54, 55, 56
Modem, Diamond - Spain 170762-073 2254
Modem, Diamond - Spain 334790-021 334808-021 2282, 88, 92, 93, 94,
Mouse, KYE Shielded 149998-006 199181-401 2240 Series, 2250
Mouse, Ivory 141649-008 337416-001 2260 Series, 2270
Mouse, Scroll 33468 4-00 1 334689-001 2290, 94, 97
Speaker, Left 292612-001 Prior to 2240 Series
Speaker, Left 298479-001 2240 Series, 4230ES,
Speaker, Right w/
Enclosure
Speaker, Right w/
Enclosure
Misc Hardware Kit 298592-001 2240 Series; 4240ES
Misc Hardware/Plastic Kit 337368-001 2260 Series, 2270
286220-003 304286-003 2240, 46, 85V, 86;
340740-003 340869-003 2254, 55, 56, 64, 66,
337550-001 337559-001 2262, 64, 66, 74, 75,
386216-001 2260, 64, 66, 70, 74,
75
337360-001 2262, 74, 78, 83, 84,
89, 94
337359-001 2262, 74, 76
90, 92, 93, 94, 95, 97
243231-001 2240 Series, 2253, 54,
55, 56, 4230 Series for
3.5 inch drive in 5.25
inch bay,
4240ES
286241-005 2200; 4212ES
2244ES; 4230ES,
4240ES
program)
78, 84, 85V, 86, 89,
94, 97
95, 97
Series
Series; 2281, 82, 83,
84, 85V, 86, 88, 89;
2290 Series
and 4230ES
4240ES
292611-001 Prior to 2240 Series
and 4230ES
298480-001 2240 Series, 4230ES,
4240ES
Series; 2281, 82, 83,
84, 85V, 86, 88, 89;
2290 Series
Volume Two
3-5
Page 6
Presario 2200/4200
Modem Cable Kits Assembly Spare Part System
Cable Kit, Modem 165224-001 2240
Cable Kit, Modem, UK 165227-033 165224-032 2282, 90, 92
Cable Kit, Modem, UK 165227-003 165224-033 2240, 54, 55, 56, 57,
58, 62, 74
Cable Kit, Modem, US,
PR, Can, Caribbean, LA,
Brazil, APD, Prc, Taiwan,
Japan, Spain
Cable Kit, Modem w/
Adapter, Aus, NZ
Cable Kit, Modem w/
Adapter, Belgium
Cable Kit, Modem w/
Adapter, Denmark
Cable Kit, Modem w/
Adapter, France
Cable Kit, Modem w/
Adapter, Finland
Cable Kit, Modem w/
Adapter, Italy
Cable Kit, Modem w/
Adapter, Netherlands
Cable Kit, Modem w/
Adapter, Sweden
Cable Kit, Modem w/
Adapter, Switzerland
112666-003 137256-001 2240, 2240ES, 2254,
55, 56, 57, 58, 62, 64,
75, 78, 82, 83, 84,
85V, 86, 88, 89, 93,
94, 95, 97
112666-005 304398-011 2254, 57, 62, 82, 94,
97
112666-005 304398-181 2254, 57, 62, 92
112666-005 304398-081 2254, 57, 92
112666-005 304398-051 2254, 55, 56, 57, 58,
60, 62, 92
112666-005 304398-351 2254, 57, 92
112666-005 304398-061 2254, 57, 62, 92
112666-005 304398-331 2254, 55, 57, 58, 62,
74, 92
112666-005 304398-101 2254, 57, 92
112666-005 304398-111 2254, 57, 92
Controller Boards Assembly Spare Part System
PCI, 10/100, w/ TX 317607-001 317606-001 4240ES
NIC PCI 10/100 169849-001 4230ES, 2244ES
Hard Drives Assembly Spare Part System
1.6 GB, IDE, 3.5” 292542-001 2200, 10, 12
2.1 GB, IDE 292541-001 4212ES, 20, 22
2.1 GB, IDE 328285-001
166820-001
2.1 GB, IDE, 3.5” 327213-001 2240, 2244ES, 2246
3.2 GB, IDE 337564-001 2253, 54, 55
3.2 GB, IDE 388237-001 2282
4.0 GB, IDE 286248-001 2253, 2254, 55, 56,
4.0 GB, IDE 328287-001
320783-001
6.0 GB, IDE 241139-001 271127-001 2255
6.0 GB, IDE 166973-001 2275
6.0 GB, IDE 387612-001 2284, 86, 88, 89, 94,
8.0 GB, IDE 334180-001 337419-001 2258
8.0 GB, IDE 298464-001 4240ES
CD-ROM Drive Assembly Spare Part System
CD-ROM, IDE, 8X 292540-001 2200, 10, 12
CD-ROM, IDE, 16X 292569-001 4212ES, 20, 22
CD-ROM, IDE, 20X 317210-001 2240, 2244ES, 2246
CD-ROM, IDE, 32X 310185-002 317212-001 2200 Series; 2281, 83,
DVD2 286466-408 317213-001 4230ES, 4240ES
337366-001 2260, 62
4230ES
337379-001 2262, 64, 66, 70, 74,
75, 76, 81, 82, 83, 84,
85V, 88, 90, 92, 93,
94, 95
97
84, 85V, 86, 88, 89, 94
3-6
Volume Two
Page 7
Presario 2200/4200
Diskette Drives Spare Part System
1.44 MB 292549-001 All except 2240 Series and
4230ES
1.44 MB 239612-401 2240, 2244ES, 2253, 54, 55,
56, 58, 2260 Series, 2270
Series, 2281, 82, 83, 84, 85V,
86, 88, 89, 2290 Series;
4240ES, 4230ES
33.6 Kb/s Modem, Upgradable to 56 Kb/s (Presario 2240, 2246, 2254, 2255)
Cable
Country Cable/Adapter Spare Part
Australia 304398-011 317296-001 165224-001
Belgium 304398-181 317296-001 165224-001
Denmark 304398-081 317296-001 165224-001
Finland 304398-351 317296-001 165224-001
France 304398-051 317296-001 165224-001
Italy 304398-061 317296-001 165224-001
Netherlands 304398-331 317296-001 165224-001
New Zealand 304398-011 317296-001 165224-001
Norway 304398-091 317296-001 165224-091
Singapore 317296-001 165224-001
Sweden 304398-101 317296-001 165224-001
Switzerland 304398-111 317296-001 165224-001
U Kingdom 317296-001 165224-033
Spare Part
33.6 Kb/s Modem, Upgradable to 56 Kb/s (all except Presario 2240, 2246)
Cable
Country Spare Part
APD 293020-371 165224-001
Australia 293020-012 165224-012
Belgium 293020-181 304398-181
Brazil 293020-001 165224-001
Canada 293020-001 165224-001
Caribbean 165224-001
Denmark 293020-001 304398-081
France 293020-051 304398-051
Germany 293020-041 286241-045
Italy 293020-161 165224-062
Japan 293020-291 165224-001
Korea 165224-001
Latin America 293020-001
Mexico 293020-001 165224-001
Netherlands 293020-331 304398-331
New Zealand 293020-012 165224-033
Norway 317296-001 304398-091
Portugal 165224-131
PRC/Thailand 293020-001 165224-001
Puerto Rico 165224-001
Singapore 293020-AF1 165224-001
Spain 165224-071
Sweden 293020-101 304398-101
Switzerland 293020-111 304398-111
Taiwan 293020-AB1 165224-001
U Kingdom 293020-031 165224-033
US 293020-001 165224-001
US 4212ES 293020-001 165224-001
Spare Part
Daughter Cards to Upgrade to 56 Kb/s
Country Spare Part
One part supports all countries 292614-001
Volume Two
3-7
Page 8
Presario 2200/4200
56 Kb/s DSVD (Presario 2240, 2246, 2253, 2254, 2255, 2256, 2257)
Modem
Country
APD English (Malaysia, Hong
Kong, Vietnam, Indonesia,
Philippines)
Brazil 292256-003 292269-003 137256-001
Caribbean 292256-003 292269-003 137256-001
Japan 292256-003 292269-003 137256-001
Latin America 292256-003 292269-003 137256-001
Mexico 292256-003 292269-003 137256-001
PRC/Thailand 292256-003 292269-003 137256-001
Puerto Rico 292256-003 292269-003 137256-001
Spain 170740-001 170762-073 137256-001
Taiwan 292256-003 292269-003 137256-001
US /Canada 292256-003 292269-003 137256-001
Cables Assembly Spare Part System
Cable Kit 292568-001 All except
Cable Kit, Miscellaneous 170720-001 2240 Series,
Cable Kit, Miscellaneous 337361-001 2260 Series,
Cable Kit, Miscellaneous 298486-001
PCA Spare Part
292256-003 292269-003 137256-001
337562-001 4240ES
310188-003
349006-001
320558-001
Cable
Spare Part
2240 and
4230ES Series
2253, 54, 55,
56, 4230ES
2270 Series,
2281, 82, 83,
84, 85V, 86,
88, 89, 2290
Series
Power Supply/Battery Spare Part System
Power Supply, 51W, Auto-Detect 293814-001 All except 2240 and 4230ES
Series
Power Supply, 75W, w/ Baffle 319234-001 2250 Series
Power Supply, 75W 337373-001 2260 Series, 2270 Series,
2280 Series, 2290 Series
Power Supply, 75W, w/ Baffle 298471-001 2240, 2244ES
Power Supply, 110W, w/ Baffle 319235-001 4240ES
Power Supply, 110W 317218-001 4230ES
Battery, Replaceable 234556-001 All
3-8
Volume Two
Page 9
Presario 2200/4200
Presario 2200 Series
Memory Upgrade Chart
I/O BOARD
Volume Two
A MAXIMUM OF 80 MB TOTAL MEMORY
NO OPTIONS
NO SPARES, ALL MEMORY DOWN
3-9
Page 10
Presario 2200/4200
Presario 2240 Series
Memory Upgrade Chart
I/O BOARD 16 MB
327149-001
A MAXIMUM OF 48MB TOTAL MEMORY
16 MB STANDARD .
32-MB SDRAM DIMMS, - OPTION PN 271434-001
3-10
Volume Two
Page 11
Presario 2200/4200
Presario 2253, 2254, 2255, 2256
Memory Upgrade Chart

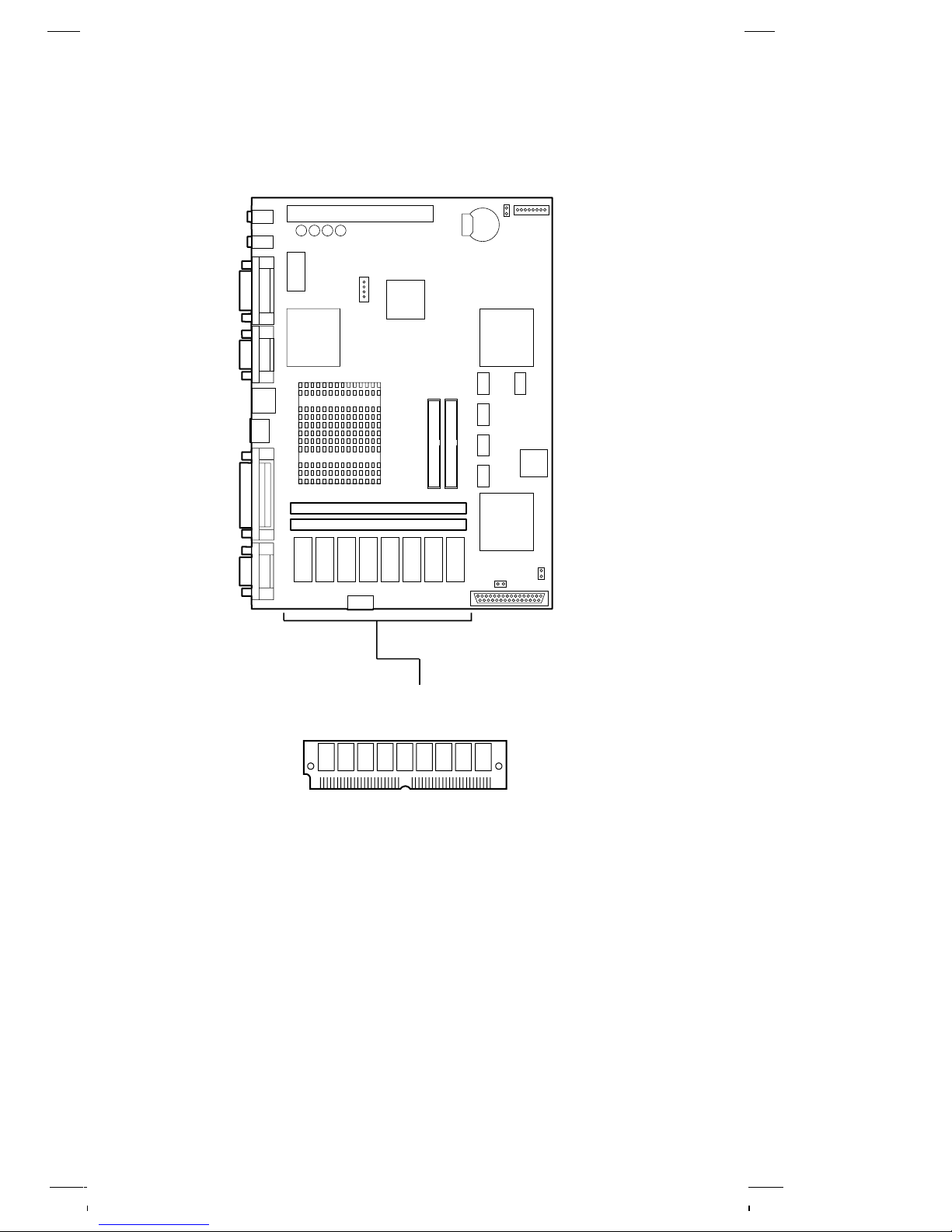

PROCESSOR BOARD
310198-001
(32 MB)
A MAXIMUM OF 48 OR 64 MB TOTAL MEMORY
32 MB STANDARD MEMORY SOLDERED
ON SYSTEM BOARD.
MEMORY OPTIONS ARE NOT AVAILABLE FOR THE
PRESARIO 2250 SERIES, 2510, AND 2410ES
Volume Two
3-11
Page 12
Presario 2200/4200
Presario 2260, 2262,
2264, 2266, 2270, 2274, 2275, 2276, 2278
Memory Upgrade Chart

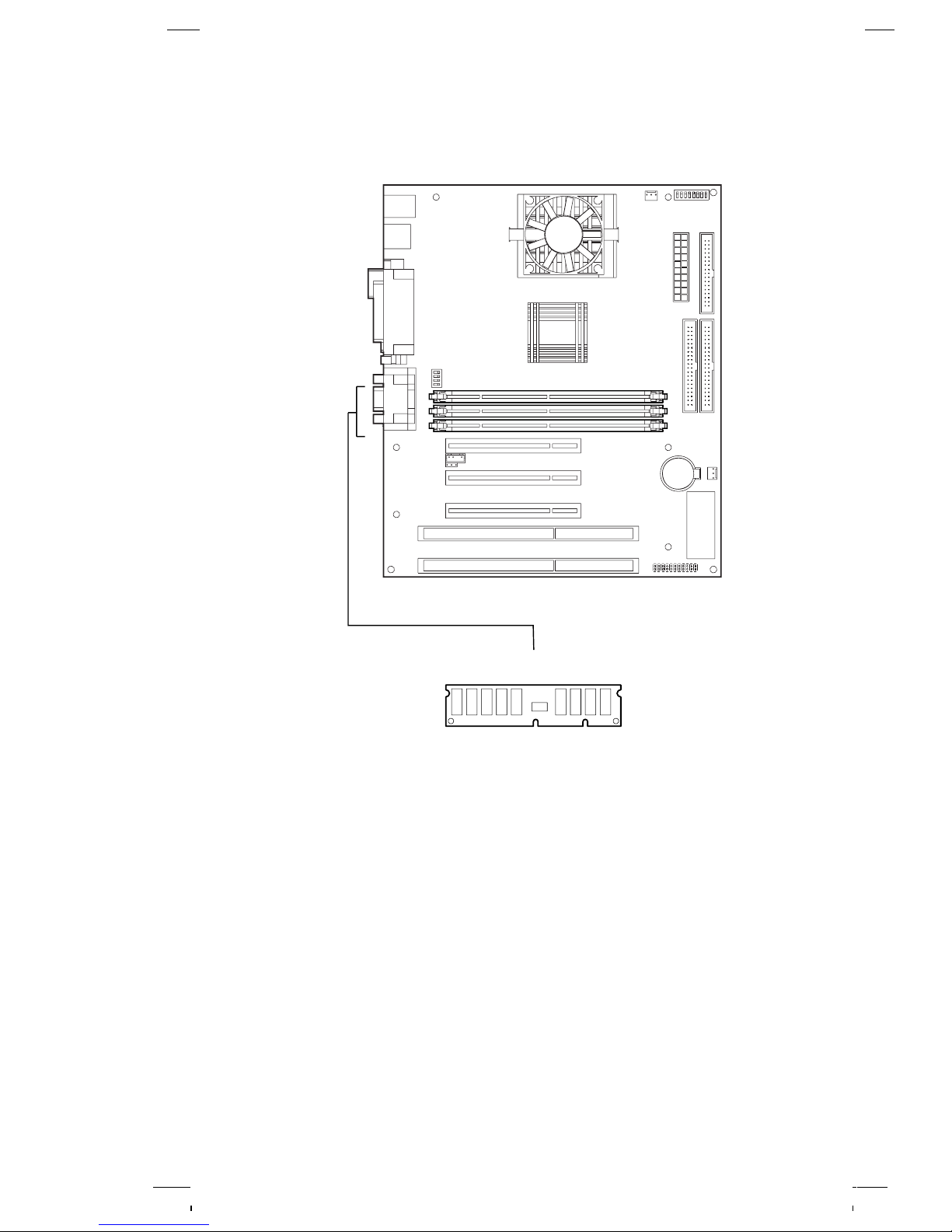

PROCESSOR BOARD
A MAXIMUM OF 256 MB TOTAL MEMORY
USE 16, 32, OR 64 MB 100 MHz DIMMs
MEMORY OPTIONS ARE NOT AVAILABLE
3-12
Volume Two
Page 13
Presario 2200/4200
Presario 2285V Series
Memory Upgrade Chart

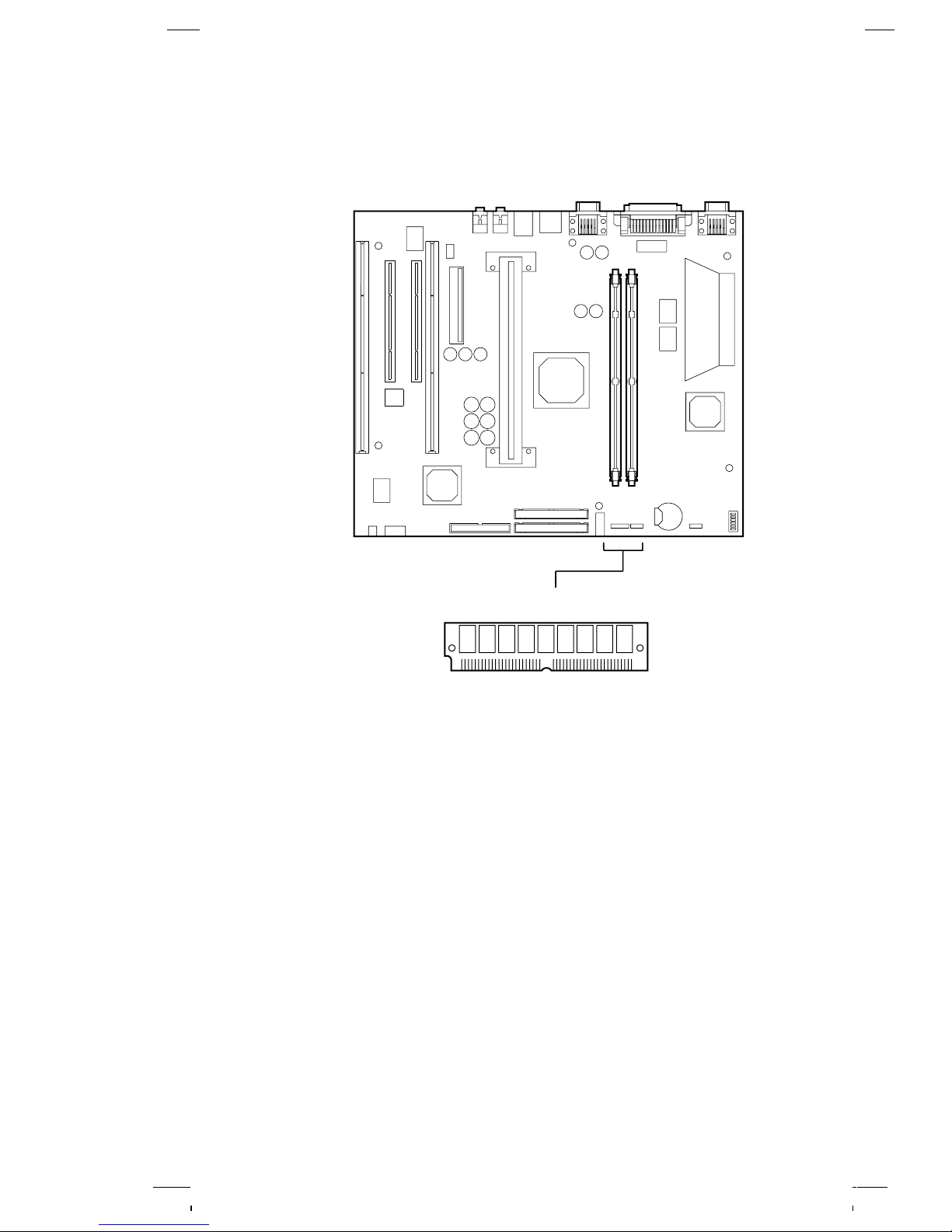

SYSTEM BOARD
(96MB)
MAXIMUM MEMORY 384MB
32-MB 100MHz SDRAM DIMM - OPTION PN 308875-001
64-MB 100MHz SDRAM DIMM - OPTION PN 308877-001
128-MB 100MHz SDRAM DIMM - OPTION PN 308878-001
Volume Two
3-13
Page 14
Presario 2200/4200
Presario 4200 Series
Memory Upgrade Chart

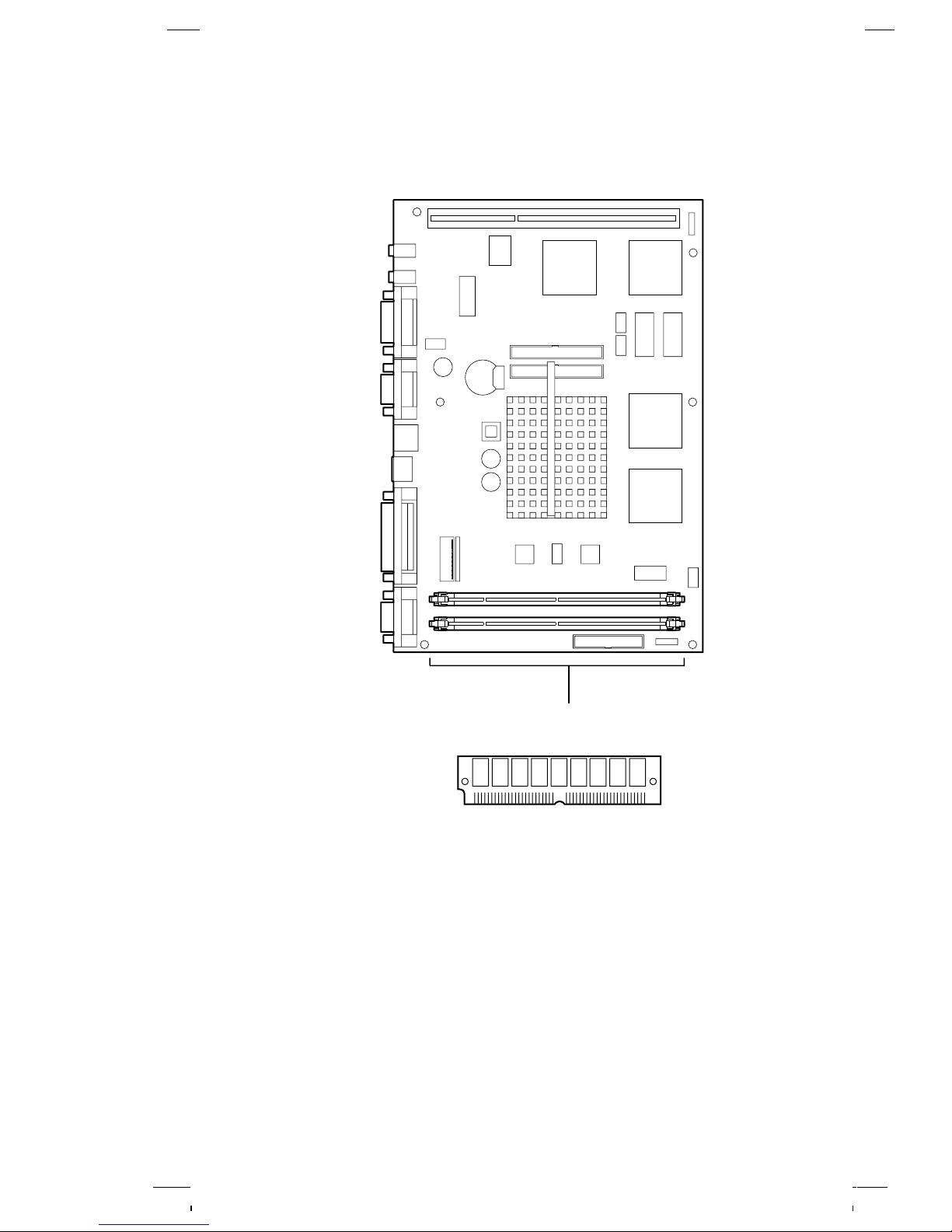

I/O BOARD
A MAXIMUM OF 80 MB TOTAL MEMORY
NO MEMORY OPTIONS
16-MB SDRAM DIMM - SPARE PN 271117-001
32-MB SDRAM DIMM - SPARE PN 271118-001
3-14
Volume Two
Page 15
Presario 2200/4200
Presario 4230 Series
Memory Upgrade Chart

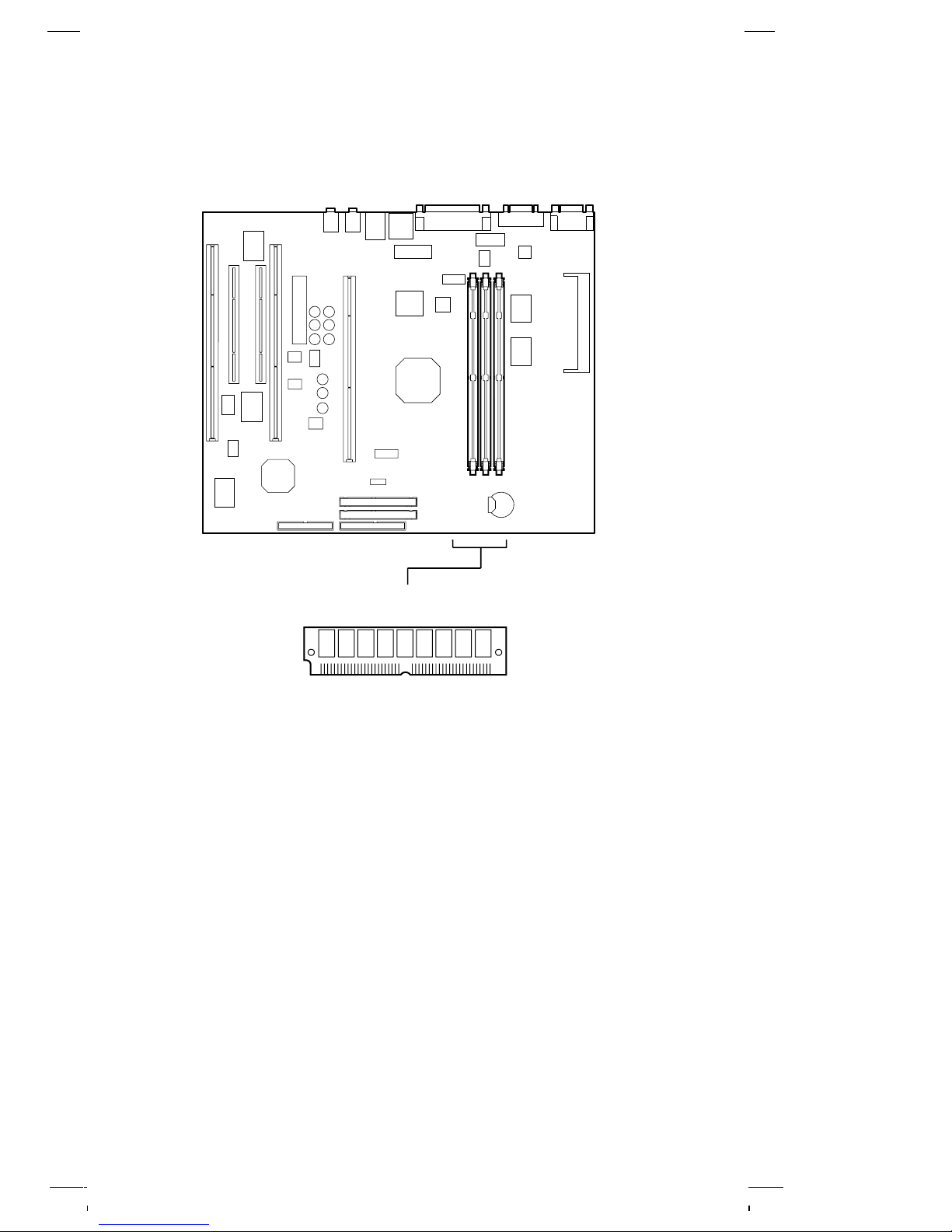

I/O BOARD 32 MB EDO
311009-001
A MAXIMUM OF 256 MB TOTAL MEMORY
16-MB DIMMS, - OPTION PN 271433-001
32-MB DIMMS, - OPTION PN 271434-001
64-MB DIMMS, - OPTION PN 309081-001
128-MB DIMMS, - OPTION PN 309082-001
Volume Two
3-15
Page 16
Presario 2200/4200
Presario 4240ES Series
Memory Upgrade Chart

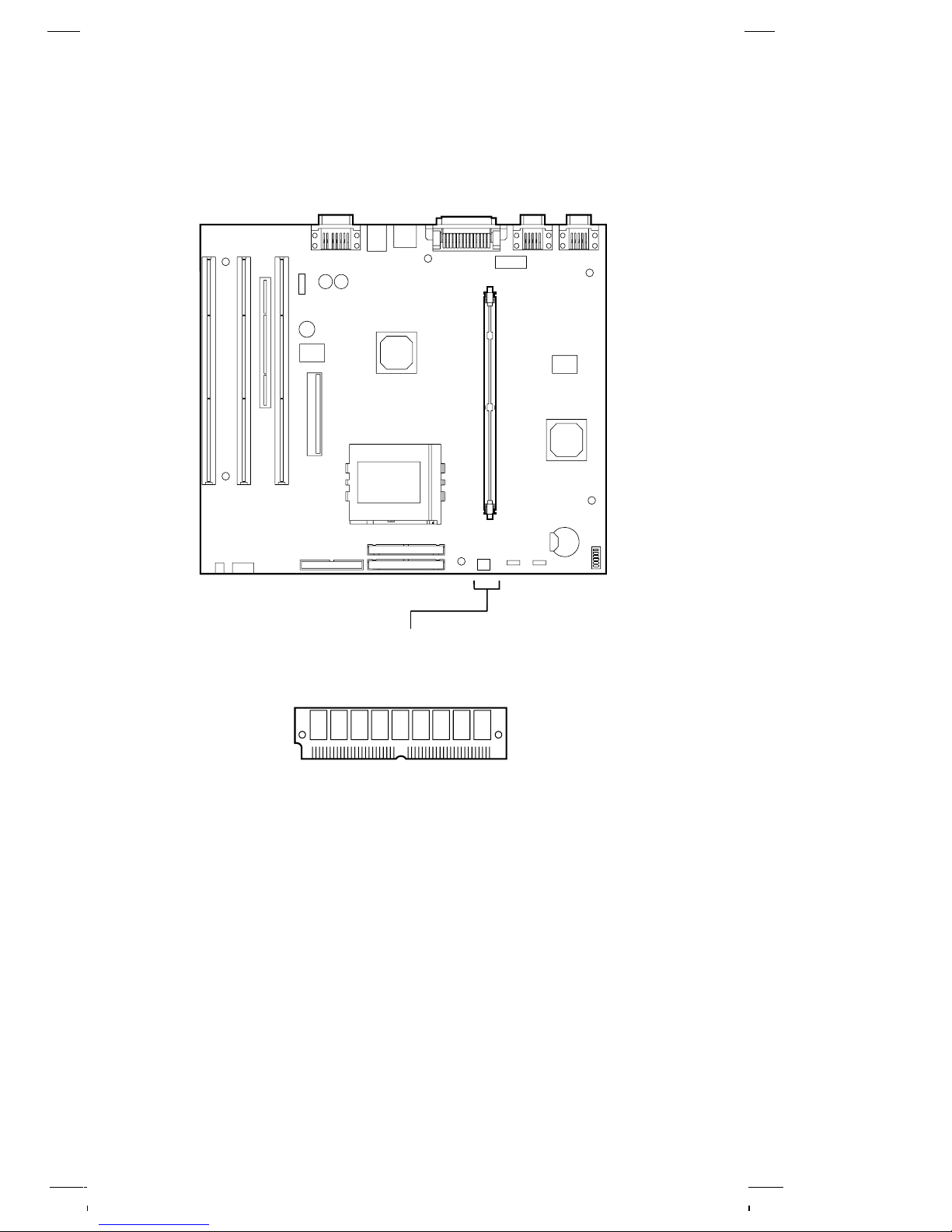

PROCESSOR BOARD
SPARE PART # 319277-001
A MAXIMUM OF 384 MB TOTAL MEMORY
16-MB SDRAM DIMMs - OPTION PN 271433-001
32-MB SDRAM DIMMs - OPTION PN 271434-001
64-MB SDRAM DIMMs - OPTION PN 309081-001
128-MB SDRAM DIMMs - OPTION PN 309082-001
3-16
Volume Two
Loading...
