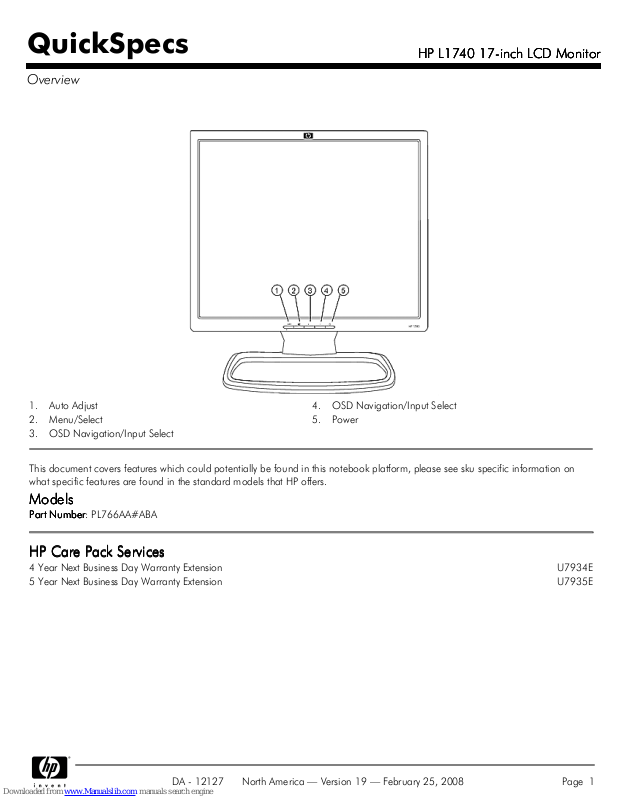

HP PL766AA Specifications

1.
Auto Adjust
4.
OSD Navigation/Input Select
2.
Menu/Select
5.
Power
3.
OSD Navigation/Input Select
Models
ModelsModels
Models
Part Number
Part NumberPart Number
Part Number
: PL766AA#ABA
HP Care Pack Services
HP Care Pack ServicesHP Care Pack Services
HP Care Pack Services
4 Year Next Business Day Warranty Extension
U7934E
5 Year Next Business Day Warranty Extension
U7935E
QuickSpecs
HP L1740 17-inch LCD Monitor
HP L1740 17-inch LCD MonitorHP L1740 17-inch LCD Monitor
HP L1740 17-inch LCD Monitor
Overview
DA - 12127 North America — Version 19 — February 25, 2008
Page 1
Panel
PanelPanel
Panel
Type
TypeType
Type
Active matrix, thin film transistor (TFT)
Viewable Image Area
Viewable Image AreaViewable Image Area
Viewable Image Area (diagonal)
17 in (43.2 cm)
Screen Opening
Screen Opening Screen Opening
Screen Opening
(WxH)
13.4 x 10.7 in (34.0 x 27.2 cm)
Viewing Angle
Viewing AngleViewing Angle
Viewing Angle
(typical)*
Up to 160° horizontal/160° vertical (10:1 minimum contrast ratio)
Brightness
BrightnessBrightness
Brightness
(typical)*
300 nits (cd/m2)
Contrast Ratio
Contrast RatioContrast Ratio
Contrast Ratio
(typical)*
800:1
Response Rate
Response RateResponse Rate
Response Rate
(typical)*
5 ms (rise + fall)
Pixel Pitch
Pixel PitchPixel Pitch
Pixel Pitch
0.264 mm
Backlight Lamp Life
Backlight Lamp LifeBacklight Lamp Life
Backlight Lamp Life (to half brightness)
40K hours
*
All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Video/Other Inputs
Video/Other InputsVideo/Other Inputs
Video/Other Inputs
Plug and Play
Plug and PlayPlug and Play
Plug and Play
Yes (supports VESA DDC2B and DDC/CI; PC2001 compliant)
USB 2.0 Hub
USB 2.0 HubUSB 2.0 Hub
USB 2.0 Hub
Self-powered; one upstream, two downstream ports (cable included)
Input Signal
Input SignalInput Signal
Input Signal
Two connectors: one 15-pin mini D-sub analog VGA and one DVI-D
Input Impedance
Input ImpedanceInput Impedance
Input Impedance
75 ohms ± 2%
Sync Input
Sync InputSync Input
Sync Input
Separate sync (HSYNC/VSYNC)
Video Cable
Video CableVideo Cable
Video Cable
15-pin D-sub mini connector; detached
Video Cable Length
Video Cable LengthVideo Cable Length
Video Cable Length
70.9 in (1.8 m); detached
Signal Interface/
Signal Interface/Signal Interface/
Signal Interface/ Performance
PerformancePerformance
Performance
Horizontal Frequency
Horizontal FrequencyHorizontal Frequency
Horizontal Frequency
30 to 83 kHz
Vertical Frequency
Vertical FrequencyVertical Frequency
Vertical Frequency
56 to 76 Hz
Native Resolution
Native ResolutionNative Resolution
Native Resolution
1280 x 1024 @ 60 Hz (analog) 1280 x 1024 @ 60 Hz (digital)
Max Resolution
Max ResolutionMax Resolution
Max Resolution
(Analog)
1280 x 1024 @ 75 Hz
Max Resolution
Max ResolutionMax Resolution
Max Resolution
(Digital)
1280 x 1024 @ 75 Hz
Preset VESA Graphic
Preset VESA GraphicPreset VESA Graphic
Preset VESA Graphic Modes
ModesModes
Modes
(non-interlaced)
640 x 480 @ 60 Hz, 72 Hz, 75 Hz 720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz 1024 x 768 @ 60 Hz, 70 Hz, 75 Hz 1280 x 1024 @ 60 Hz, 75 Hz
Preset MAC Mode
Preset MAC ModePreset MAC Mode
Preset MAC Mode
832 x 624 @ 75 Hz 1152 x 870 @75 Hz
Preset SUN Mode
Preset SUN ModePreset SUN Mode
Preset SUN Mode
1152 x 900 @ 76 Hz
Fail Safe Mode
Fail Safe ModeFail Safe Mode
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Maximum Pixel ClockMaximum Pixel Clock
Maximum Pixel Clock Speed
SpeedSpeed
Speed
140 MHz
User Programmable
User ProgrammableUser Programmable
User Programmable Modes
ModesModes
Modes
Yes, 15
Anti-Glare
Anti-GlareAnti-Glare
Anti-Glare
Yes
QuickSpecs
HP L1740 17-inch LCD Monitor
HP L1740 17-inch LCD MonitorHP L1740 17-inch LCD Monitor
HP L1740 17-inch LCD Monitor
Technical Specifications
DA - 12127 North America — Version 19 — February 25, 2008
Page 2
Anti-Static
Anti-StaticAnti-Static
Anti-Static
Yes
AssetControl
AssetControlAssetControl
AssetControl
Yes (accessible on HP Compaq Business Desktops featuring HP Client Manager)
Default Color
Default ColorDefault Color
Default Color Temperature
TemperatureTemperature
Temperature
6500° Kelvin
On Screen Display
On Screen DisplayOn Screen Display
On Screen Display
(OSD)
Controls
ControlsControls
Controls
Buttons and Switches
Buttons and SwitchesButtons and Switches
Buttons and Switches
4-button OSD (auto-adjust, menu, minus, plus); power on/off; second-level OSD buttons include dual-input switch
Languages
LanguagesLanguages
Languages
English, Spanish, French, German, Dutch, Italian, Simplified Chinese
User Controls
User ControlsUser Controls
User Controls
Size and positioning, contrast, brightness, clock, clock phase, selectable color temperature, serial number, mode displayed, sleep timer, input selection, factory reset, individual color contrast, full-screen resolution
Power
PowerPower
Power
Power Supply
Power SupplyPower Supply
Power Supply
Auto-ranging, 90 to 265 VAC; internal power supply
Input Power
Input PowerInput Power
Input Power
100 ~ 240 VAC
Nominal Current
Nominal CurrentNominal Current
Nominal Current
1.5 A maximum
Frequency
FrequencyFrequency
Frequency
50 ~ 60 Hz
Avg. Power Consumption
Avg. Power ConsumptionAvg. Power Consumption
Avg. Power Consumption
~33 watts (when displaying standard office applications)
Typ. Power Consumption
Typ. Power ConsumptionTyp. Power Consumption
Typ. Power Consumption
< 40 watts
Max. Power Consumption
Max. Power ConsumptionMax. Power Consumption
Max. Power Consumption
< 60 watts
Power Saving Mode
Power Saving ModePower Saving Mode
Power Saving Mode
< 2 watts
Off Mode
Off ModeOff Mode
Off Mode
< 2 watts
Power Cable Length
Power Cable LengthPower Cable Length
Power Cable Length
74.8 in (1.9 m); detached
Mechanical
MechanicalMechanical
Mechanical
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
Packaged
17.5 x 17.5 x 8.5 in (44.5 x 44.5 x 21.6 cm)
Unpacked with stand (minimum height)
13.8 x 14.6 x 10.5 in (35.1 x 37.1 x 26.7 cm)
Unpacked with stand (maximum height)
19.3 x 14.6 x 9.75 in (49.0 x 37.1 x 24.8 cm)
Base area (footprint)
11.75 x 9.75 in (29.8 x 24.8 cm)
Panel only (without stand)
12.4 x 14.6 x 2.5 in (31.5 x 37.1 x 6.4 cm)
Weight
WeightWeight
Weight
Packaged
19.5 lb (8.8 kg)
Unpacked with stand
15.4 lb (7.0 kg)
Panel Only (without stand)
8.3 lb (3.76 kg)
Bezel Width
Bezel WidthBezel Width
Bezel Width
17 mm left and right, 17 mm top, and 24 mm bottom
Tilt Range
Tilt RangeTilt Range
Tilt Range
-5° to +35°
Swivel Range
Swivel RangeSwivel Range
Swivel Range
± 170° horizontal swivel
Height Adjustable
Height AdjustableHeight Adjustable
Height Adjustable
Yes (5.1 in/13 cm adjustment range)
Pivot Rotation
Pivot RotationPivot Rotation
Pivot Rotation
Yes, 90° into portrait orientation
Base
BaseBase
Base
Ships attached and is removable (four screws)
Environmental
EnvironmentalEnvironmental
Environmental
Temperature – Operating
Temperature – OperatingTemperature – Operating
Temperature – Operating
41° to 95° F (5° to 35° C)
QuickSpecs
HP L1740 17-inch LCD Monitor
HP L1740 17-inch LCD MonitorHP L1740 17-inch LCD Monitor
HP L1740 17-inch LCD Monitor
Technical Specifications
DA - 12127 North America — Version 19 — February 25, 2008
Page 3
