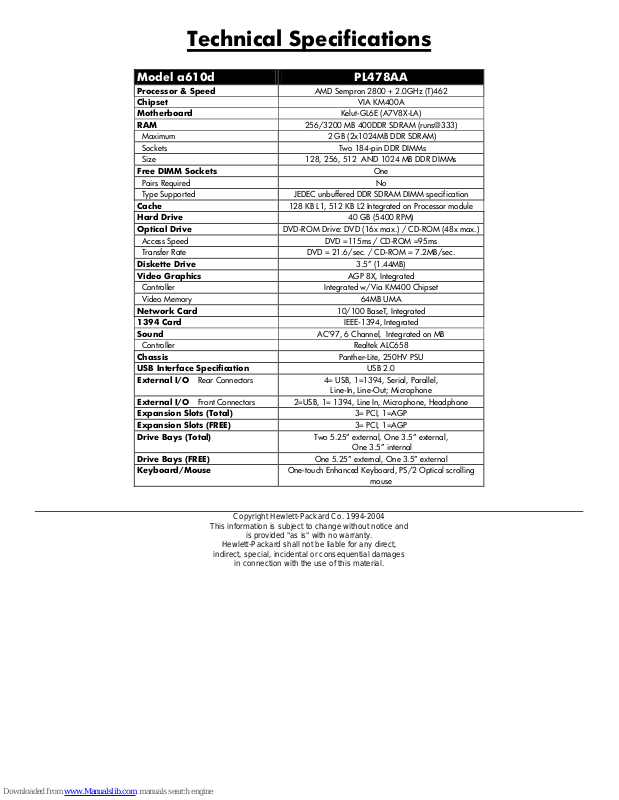

HP PL478AA Technical Specifications

Technical Specifications

Model a610d PL478AA

Processor & Speed AMD Sempron 2800 + 2.0GHz (T)462
Chipset VIA KM400A
Motherboard Kelut-GL6E (A7V8X-LA)
RAM 256/3200 MB 400DDR SDRAM (runs@333)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module
Hard Drive 40 GB (5400 RPM)
Optical Drive DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)

Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive 3.5” (1.44MB)
Video Graphics AGP 8X, Integrated

Controller Integrated w/Via KM400 Chipset
Video Memory 64MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Panther-Lite, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2=USB, 1= 1394, Line In, Microphone, Headphone
Expansion Slots (Total) 3= PCI, 1=AGP
Expansion Slots (FREE) 3= PCI, 1=AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
