Hp PAVILION w1160kr SPECIFICATIONS

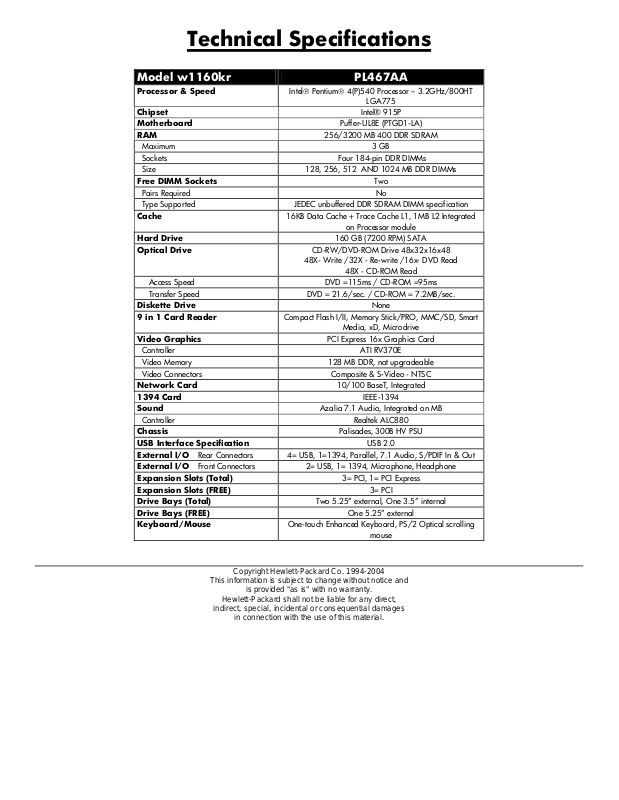

Technical Specifications

Model w1160kr PL467AA

Processor & Speed Intel® Pentium® 4(P)540 Processor – 3.2GHz/800HT

LGA775

Chipset Intel® 915P
Motherboard Puffer-UL8E (PTGD1-LA)
RAM 256/3200 MB 400 DDR SDRAM

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Two
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 160 GB (7200 RPM) SATA
Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Speed DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive
Video Graphics PCI Express 16x Graphics Card
Controller ATI RV370E
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Palisades, 300B HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel, 7.1 Audio, S/PDIF In & Out
External I/O Front Connectors 2= USB, 1= 1394, Microphone, Headphone
Expansion Slots (Total) 3= PCI, 1= PCI Express
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” internal
Drive Bays (FREE) One 5.25” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
