Hp PAVILION t740a Technical Specifications

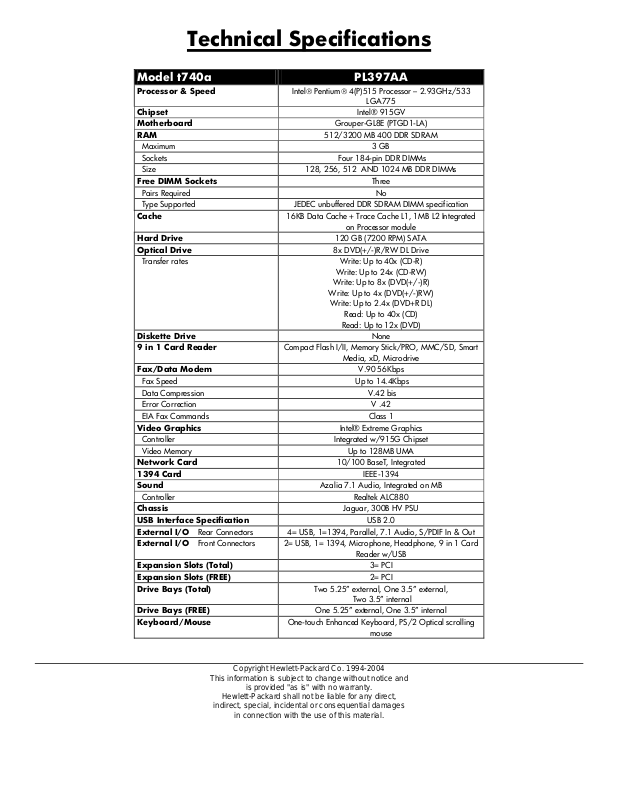

Technical Specifications

Model t740a PL397AA

Processor & Speed Intel® Pentium® 4(P)515 Processor – 2.93GHz/533

LGA775

Chipset Intel® 915GV
Motherboard Grouper-GL8E (PTGD1-LA)
RAM 512/3200 MB 400 DDR SDRAM

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 120 GB (7200 RPM) SATA
Optical Drive 8x DVD(+/-)R/RW DL Drive

Transfer rates

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Fax/Data Modem V.90 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/915G Chipset
Video Memory Up to 128MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Jaguar, 300B HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel, 7.1 Audio, S/PDIF In & Out
External I/O Front Connectors 2= USB, 1= 1394, Microphone, Headphone, 9 in 1 Card

Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 40x (CD-R)

Write: Up to 24x (CD-RW)

Write: Up to 8x (DVD(+/-)R)

Write: Up to 4x (DVD(+/-)RW)

Write: Up to 2.4x (DVD+R DL)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Media, xD, Microdrive

Reader w/USB

Two 3.5” internal

mouse
