HP Pavilion t615k Technical Specifications

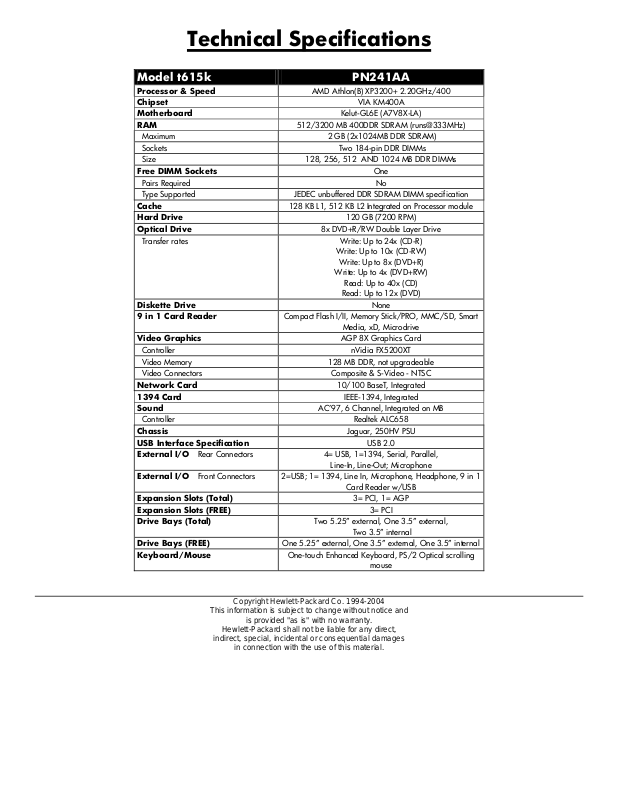

Technical Specifications

Model t615k PN241AA

Processor & Speed AMD Athlon(B) XP3200+ 2.20GHz/400
Chipset VIA KM400A
Motherboard Kelut-GL6E (A7V8X-LA)
RAM 512/3200 MB 400DDR SDRAM (runs@333MHz)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 512 KB L2 Integrated on Processor module
Hard Drive 120 GB (7200 RPM)
Optical Drive 8x DVD+R/RW Double Layer Drive

Transfer rates

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Video Graphics AGP 8X Graphics Card

Controller nVidia FX5200XT
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

External I/O Front Connectors 2=USB; 1= 1394, Line In, Microphone, Headphone, 9 in 1

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Media, xD, Microdrive

Line-In, Line-Out; Microphone

Card Reader w/USB

Two 3.5” internal

mouse
