Hp PAVILION t598d Technical Specifications

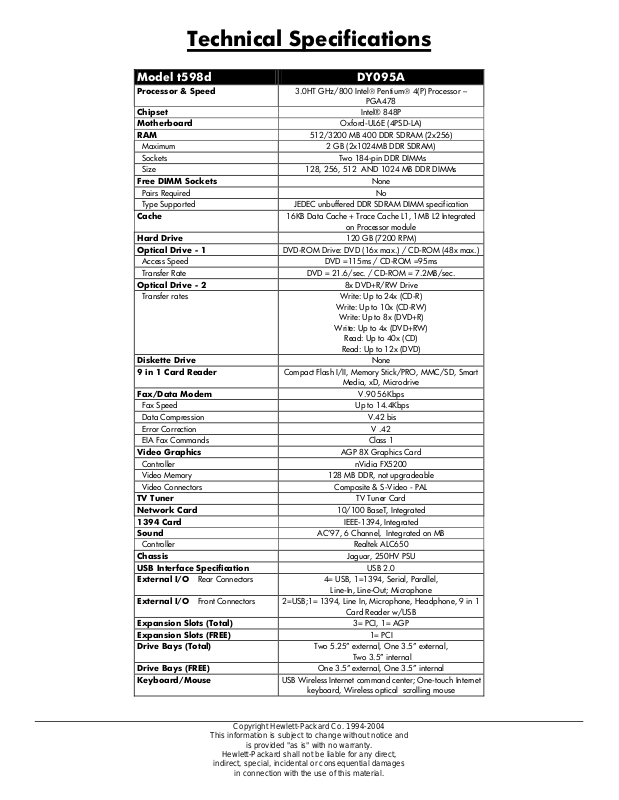

Technical Specifications

Model t598d DY095A

Processor & Speed 3.0HT GHz/800 Intel® Pentium® 4(P) Processor –

PGA478

Chipset Intel® 848P
Motherboard Oxford-UL6E (4PSD-LA)
RAM 512/3200 MB 400 DDR SDRAM (2x256)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets None
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated

on Processor module

Hard Drive 120 GB (7200 RPM)
Optical Drive - 1 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)

Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Optical Drive - 2 8x DVD+R/RW Drive
Transfer rates

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Fax/Data Modem V.90 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL

TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Jaguar, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

External I/O Front Connectors 2=USB;1= 1394, Line In, Microphone, Headphone, 9 in 1

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 3.5” external, One 3.5” internal
Keyboard/Mouse USB Wireless Internet command center; One-touch Internet

keyboard, Wireless optical scrolling mouse

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Media, xD, Microdrive

Line-In, Line-Out; Microphone

Card Reader w/USB

Two 3.5” internal
